Using single AAA battery, max 90 lumens, or 10440 Li-ion battery, max 240 lumens. Flat top, UNPROTECTED 10440 battery suggested. Some button top could also work, but some brands make the button to long, might cause a problem.
Some models of Ni-MH batteries have high internal resistance causing the low voltage protection to kick in on the light and turn it off. For that reason we recommend 10440 or alkaline.
When you place the order, there is a battery option. Please NOTE, due to shipping policy, battery can be only shipped when it is inserted in the flashlight.
ONLY these countries available. USA, Russia, Canada, Australia, Germany, France, UK, New Zealand, Italy, Spain, Japan, Brazil.

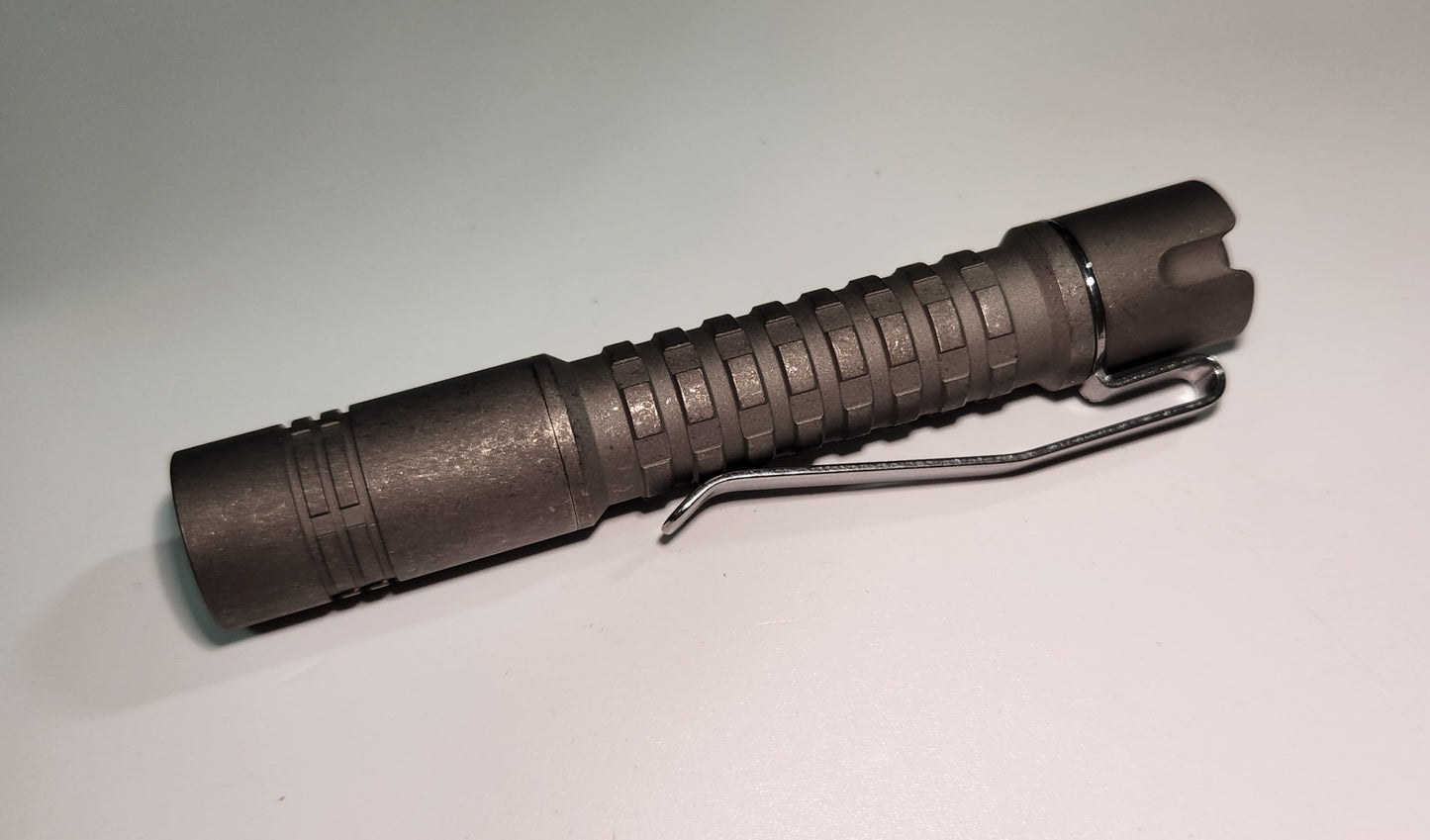

Size: 89mm length (including the switch button) diameter: 15mm
The driver has: Battery reverse protection. High temperature protection. Low voltage protection.
Reverse clicky switch. Full click to turn on or off, half click (tap) to cycle modes.
Thanks Kevin Manley for the more detailed manual.
Reylight Mini Pineapple Programming Guide
1. Turn on the light.
2. Press the button 8+ times. The light will now blink once, then strobe, blink twice, then strobe, blink three times, then strobe…After 5 blinks and a strobe, the sequence repeats.
a. 1 blink: mode group selection. Press the button to enter this menu.
i. 1 blink: (ML)-2%-20%-100%
ii. 2nd blink: (ML)-10%-40%-100%
iii. 3rd blink: (ML)-2%-10%-50%
iv. 4th blink: (ML)-50%-100%-strobe-SOS
It then repeats. Press the button during any blink to select that mode group.
b. 2 blinks: mode memory on-off toggle (default off). Press the button during the two blinks or during the strobe after to turn mode memory on. Repeat to turn mode memory off.
c. 3 blinks: moonlight mode off-on toggle (default on). Press the button during the three blinks or during the strobe after to turn moonlight off. Repeat to turn moonlight on.
d. 4 blinks: mode order toggle (default LMH). Press the button during the four blinks or during the strobe after to change the mode order from Low Medium High to High Medium Low. Repeat to reverse the order.
e. 5 blinks: factory reset. Press the button during the five blinks or during the strobe after to reset the light to factory settings.
Shorcut: quick double tap to turbo.

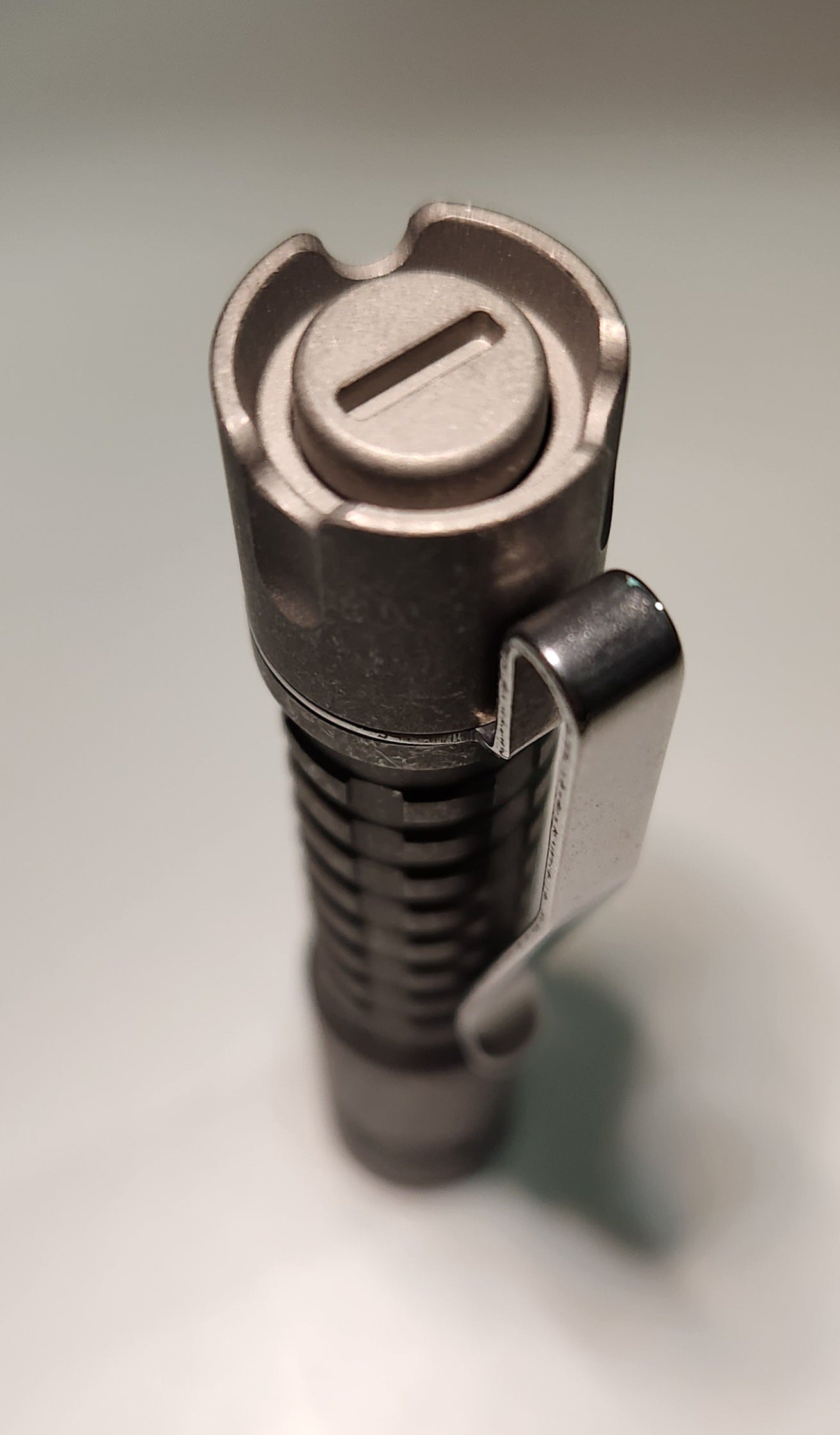

There is one tritium slot at the tail switch, 1.5*6mm size.
