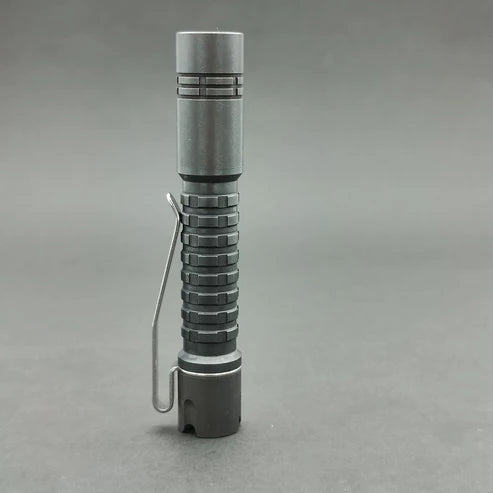

Reylight Pineapple Mini Titanium Black Oil Anodized Nichia 519A

Name: Reylight Pineapple Mini Titanium Black Oil Anodized Nichia 519A
Brand: REYLIGHT
Price: 79.88 USD
Availability: OutOfStock

Product variants

$79.88 USD

~~$79.99 USD~~ $79.88 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

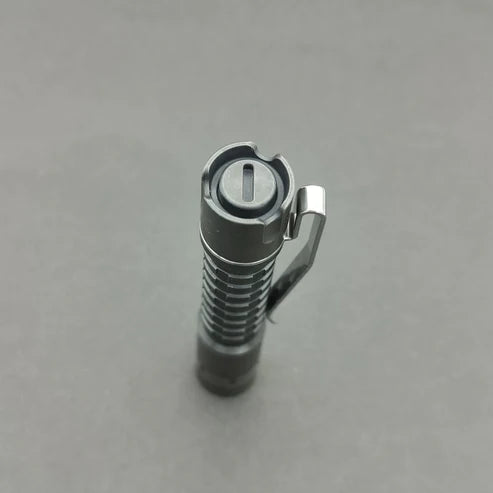

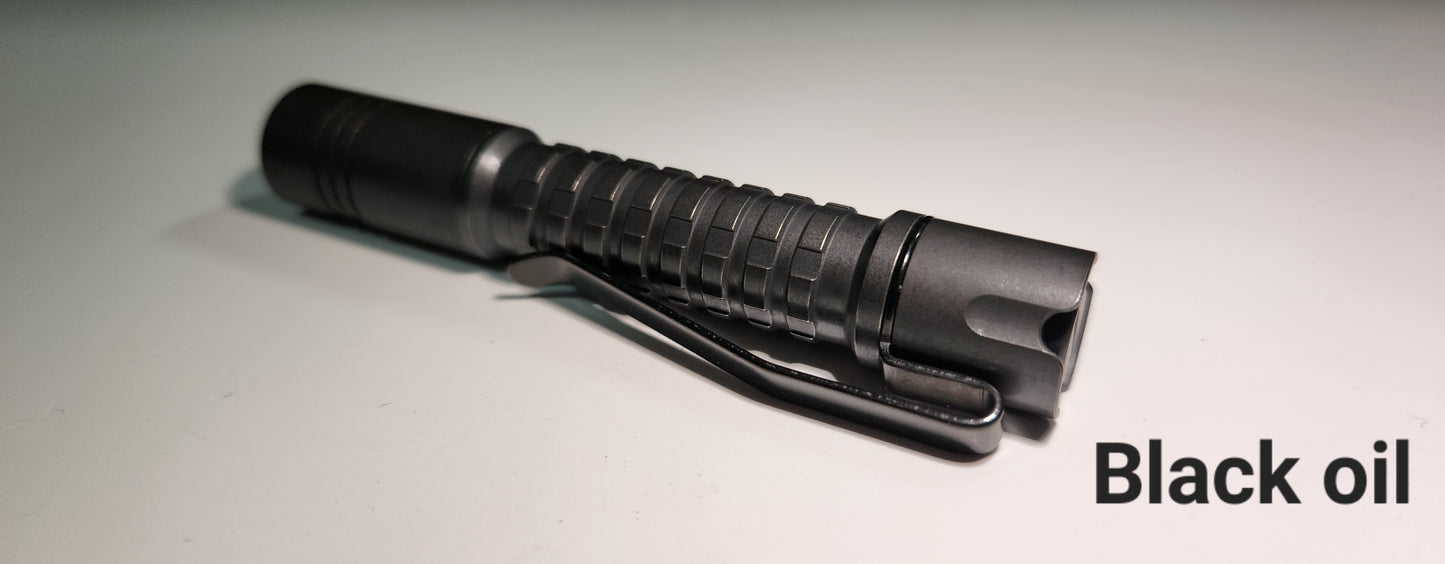

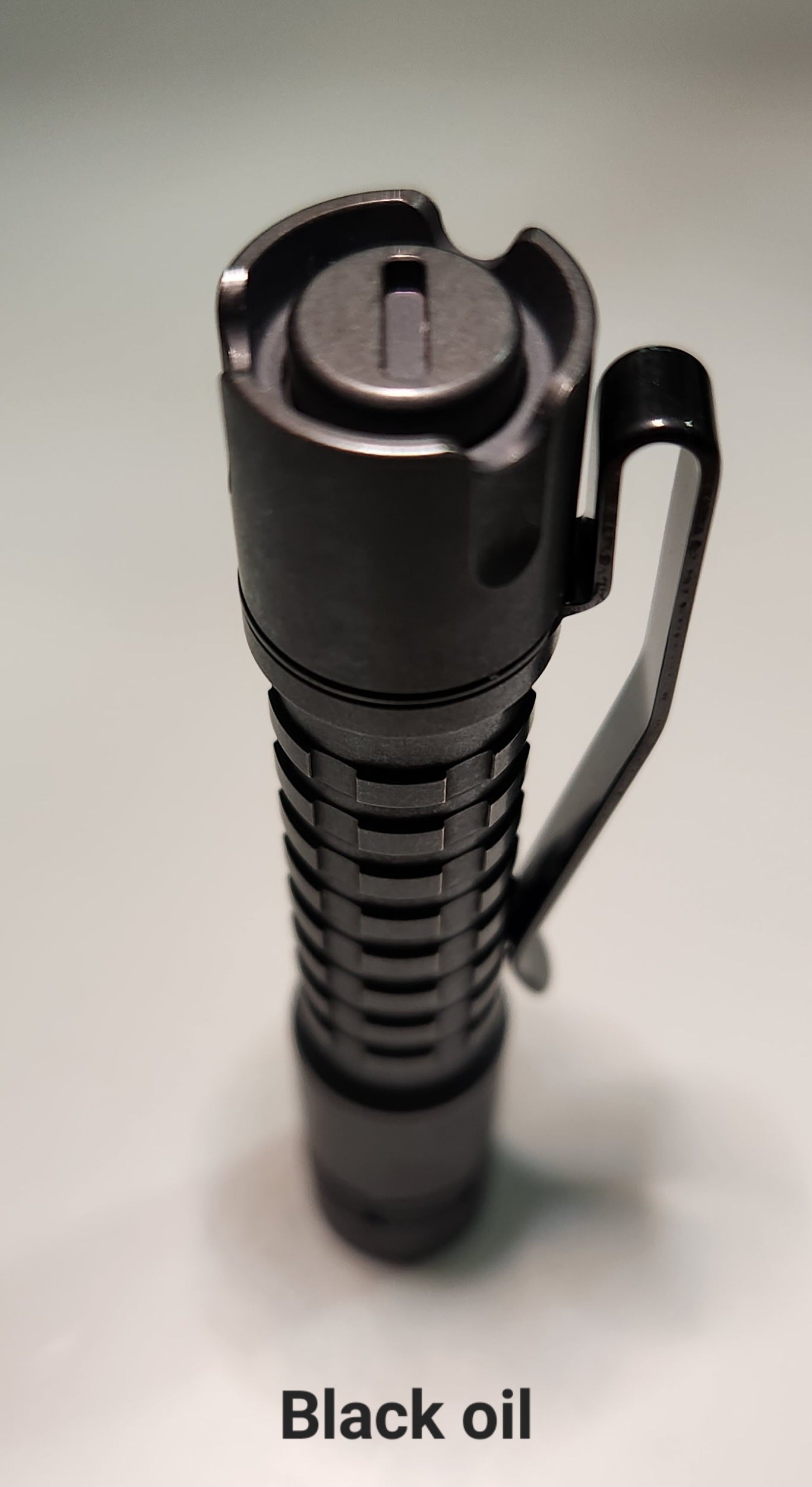

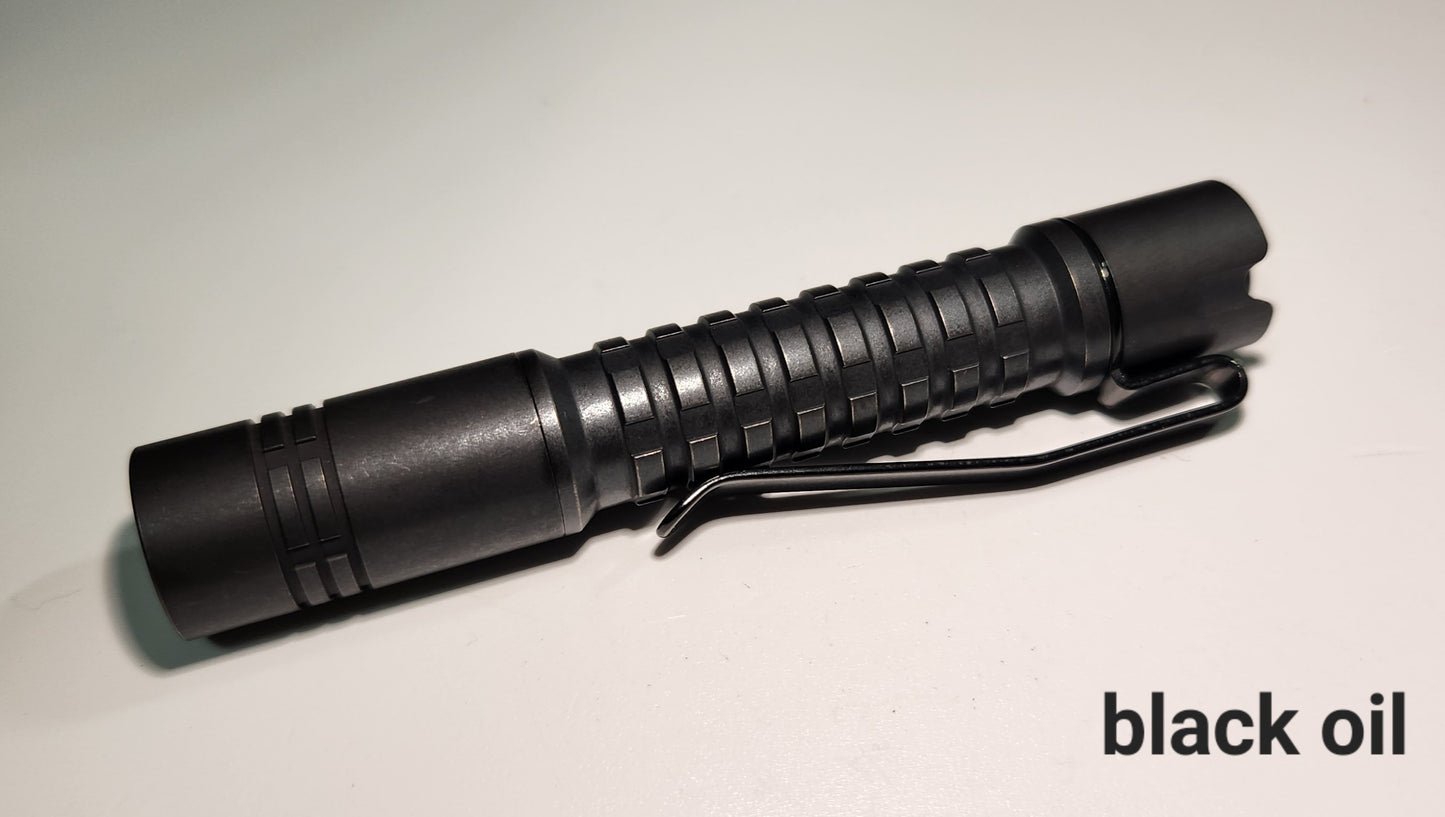

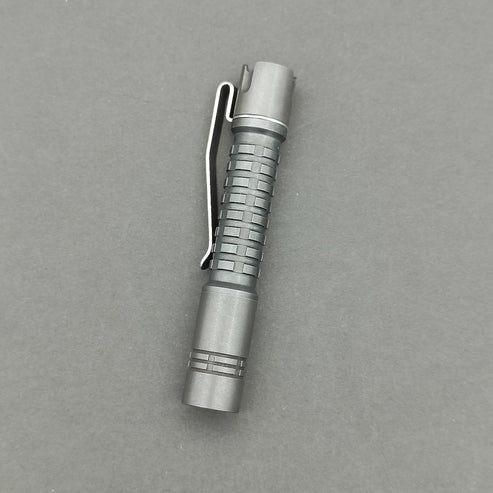

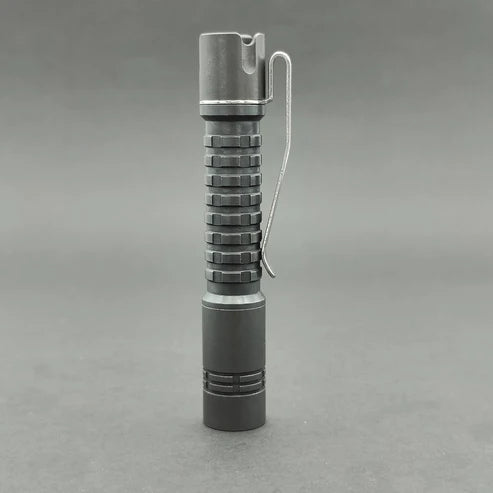

REYLIGHT PINEAPPLE MINI BLACK OIL ANODIZED TITANIUM (AAA OR 10440 LITHIUM-ION)

PLEASE READ 1ST BEFORE PURCHASING! FREE 10440 battery included while supplies last AND IT HAS TO BE SHIPPED FEDEX, unfortunately lithium-ion batteries are not allowed to be shipped internationally and will be removed before shipment. Thanks

FREE BLACK DLC CLIP INCLUDED

NEW TAILCAP INCLUDED (BLACK OIL)

GITD/LUMINSCENT IN TRIT SLOT AVAILABLE FOR $15.88 ALL COLORS AVAILABLE BUT LIMITED STOCK MESSAGE ME FOR COLOR

NEW TAILCAPS AVAILABLE HERE >>> Reylight Pineapple Mini Titanium Copper or Brass *** NEW TAIL CAP ONLY – JLHawaii808

NEW TITANIUM WASHERS HERE >>> ReyLight Pineapple Mini Titanium Washer – JLHawaii808

TIMASCUS BUTTON HERE >>> ReyLight Timascus Button For Pineapple/Pineapple Mini – JLHawaii808

NEW! NICHIA 519A 4000K (DOMED) EMITTER OPTION!

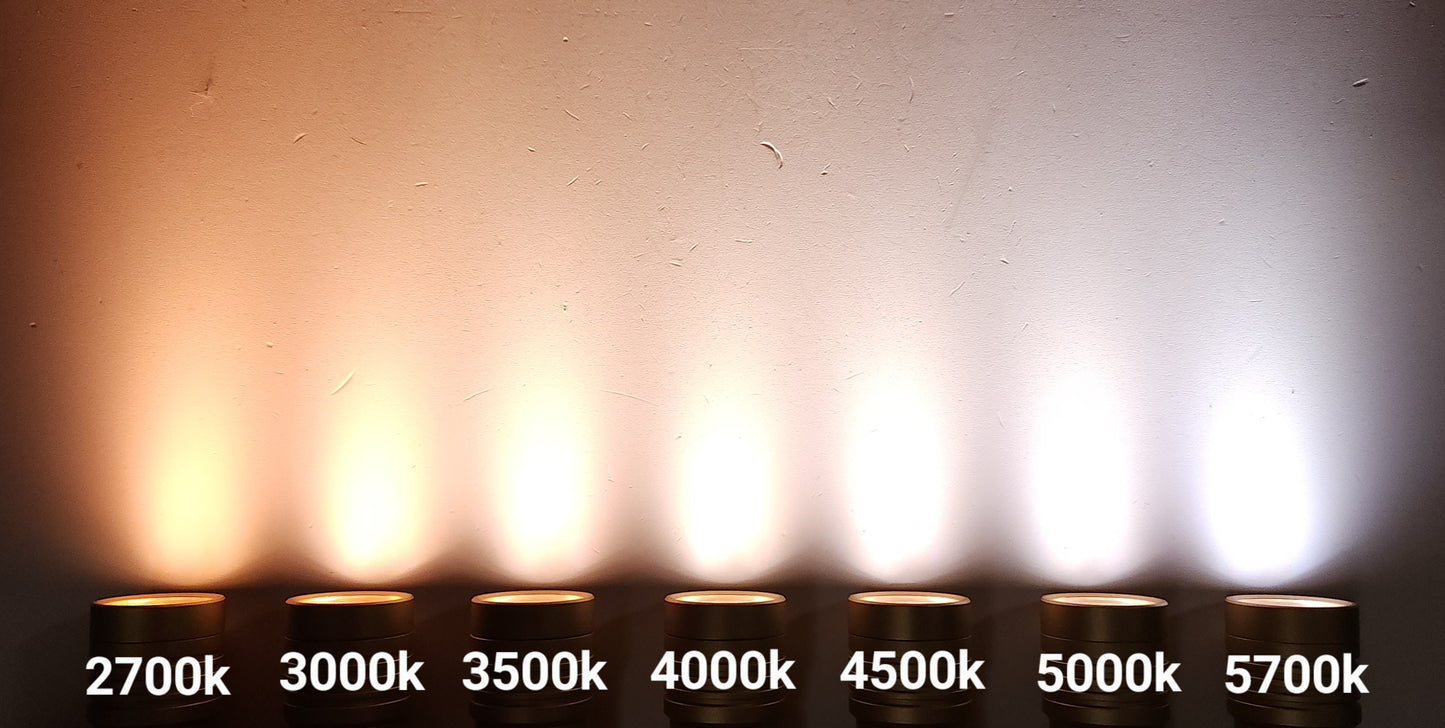

NICHIA 519A UPGRADE $16.88 ADDITIONAL COST (2700K, 3000K, 3500K, 4500K, 5000K AND 5700K)

OSRAM W1/W2 WHITE UPGRADE $17.88 ADDITIONAL COST

"ADD-ON" EMITTER SWAP OPTION $16.88 ADDITION (SELECT LIGHT AND SELECT THE ADD-ON OPTION) PLEASE MESSAGE OR EMAIL ME FOR COLRO TEMP!

2700K, 3000K, 4500K, 5000K OR 5700K (DOME OR DE-DOME)

THESE ARE THE NEW VERSION REDESIGNED PILL (DRIVER/MCPB)

Please message or call me (808-864-7548) if you want a glow tube OR Tritium installed. If you need battery, please purchase one because I highly recommend it. If you have one if has to be a 10440 (button-top) some button tops will work depending on how short the button (+) is.

Nichia 519a 4000k emitter optioned

Battery not included (highly recommended to purchase a 10440 battery from me or make sure its a FLAT TOP 10440 li-on battery)

Made of solid titanium bar.

Using single AAA battery, max 90 lumens, or 10440 Li-ion battery, max 240 lumens. Flat top, UNPROTECTED 10440 batteries suggested. Some button top could also work, but some brands make the button to long, might cause a problem.

Some models of Ni-MH batteries have high internal resistance causing the low voltage protection to kick in on the light and turn it off. For that reason we recommend 10440 or alkaline.

When you place the order, there is a battery option. Please NOTE, due to shipping policy, battery can be only shipped when it is inserted in the flashlight.

ONLY these countries available. USA, Russia, Canada, Australia, Germany, France, UK, New Zealand, Italy, Spain, Japan, Brazil.

Size: 89mm length (including the switch button) diameter: 15mm

Ti: 32grams

The driver has: Battery reverse protection. High temperature protection. Low voltage protection.

Reverse clicky switch. Full click to turn on or off, half click (tap) to cycle modes.

Thanks Kevin Manley for the more detailed manual.

Reylight Mini Pineapple Programming Guide

1. Turn on the light.

2. Press the button 8+ times. The light will now blink once, then strobe, blink twice, then strobe, blink three times, then strobe…After 5 blinks and a strobe, the sequence repeats.

a. 1 blink: mode group selection. Press the button to enter this menu.

i. 1 blink: (ML)-2%-20%-100%

ii. 2nd blink: (ML)-10%-40%-100%

iii. 3rd blink: (ML)-2%-10%-50%

iv. 4th blink: (ML)-50%-100%-strobe-SOS

It then repeats. Press the button during any blink to select that mode group.

b. 2 blinks: mode memory on-off toggle (default off). Press the button during the two blinks or during the strobe after to turn mode memory on. Repeat to turn mode memory off.

c. 3 blinks: moonlight mode off-on toggle (default on). Press the button during the three blinks or during the strobe after to turn moonlight off. Repeat to turn moonlight on.

d. 4 blinks: mode order toggle (default LMH). Press the button during the four blinks or during the strobe after to change the mode order from Low Medium High to High Medium Low. Repeat to reverse the order.

e. 5 blinks: factory reset. Press the button during the five blinks or during the strobe after to reset the light to factory settings.

Shorcut: quick double tap to turbo.

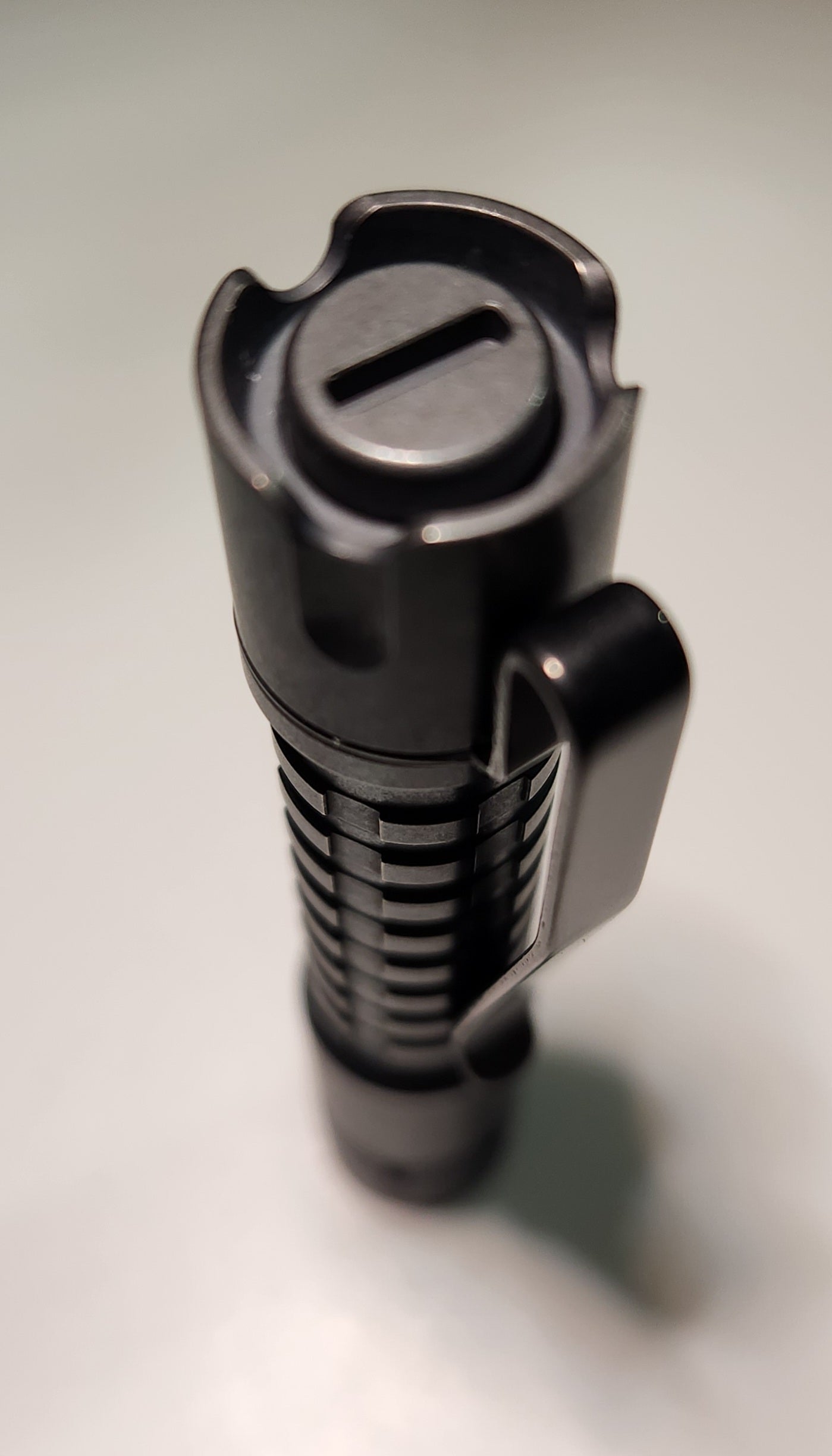

There is one tritium slot at the tail switch, 1.5*6mm size.
