ReyLight Pineapple Mini Nichia 519a 4000k Copper or Brass LED Flashlight

Name: ReyLight Pineapple Mini Nichia 519a 4000k Copper or Brass LED Flashlight
Brand: ReyLight
SKU: 114493364937
Price: 48.88 USD
Availability: OutOfStock

BODY COPPER BRASS COPPER W/BATTERY BRASS W/BATTERY *** NICHIA 519A EMITTER SWAP EMAIL OR MESSAGE ME FOR COLOR TEMP ***

Product variants

$48.88 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

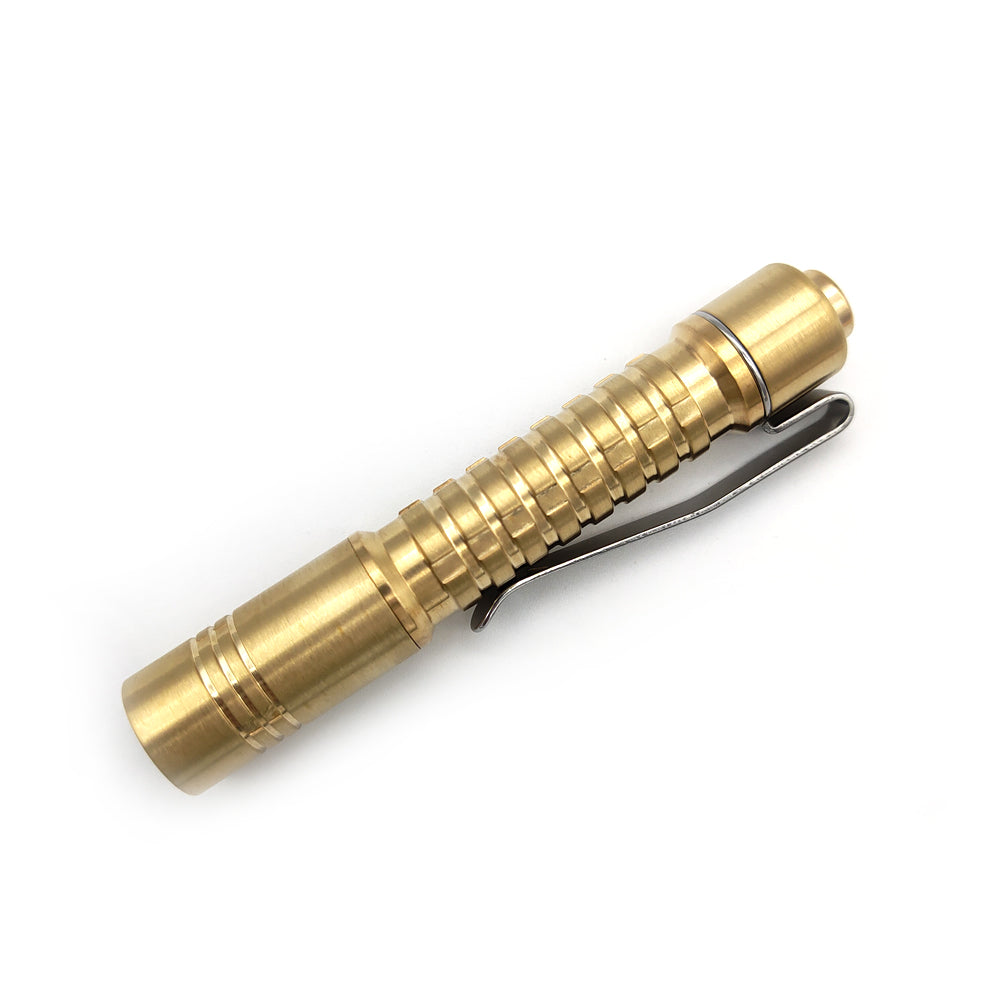

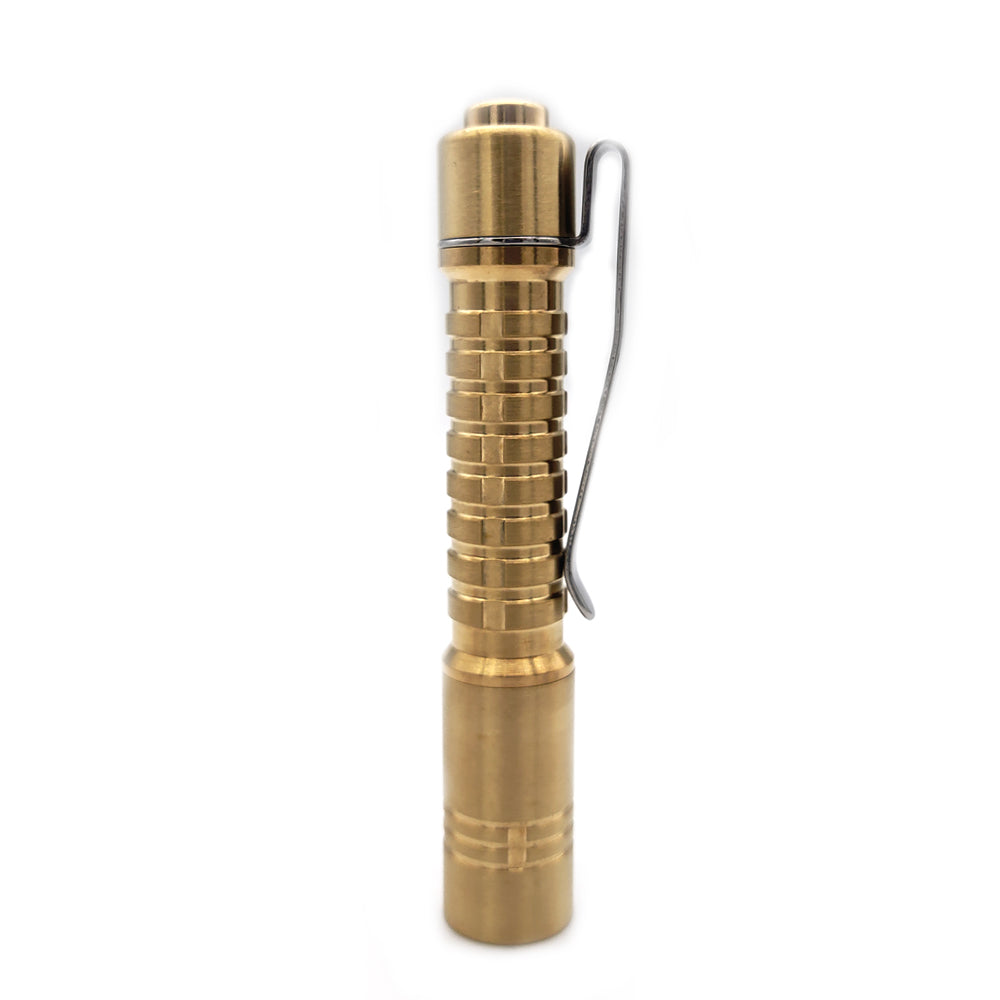

Reylight Pineapple Mini Copper or Brass

NEW TAILCAPS AVAILABLE HERE >>> Reylight Pineapple Mini Titanium Copper or Brass *** NEW TAIL CAP ONLY – JLHawaii808

NEW TITANIUM WASHERS HERE >>> ReyLight Pineapple Mini Titanium Washer – JLHawaii808

NEW! Nichia 519a 4000k

OTHER COLOR TEMPS AVAIALBLE ADDITION COST (2700, 3000, 3500K, 3500K, 5000K OR 5700K)

EMITTER SWAP OPTION IS $16.88 DOES NOT INCLUDED FLASHLIGHT NEED TO PURCAHSE FLASHLIGHT AND THIS ADD ONE, PLEASE EMAIL OR MESSAGE ME FOR COLOR TEMP OTHER THAN THE STOCK 4000K

365NM UV LED AVAILABLE!

Please message or call me (808-864-7548) if you want a glow tube OR Tritium installed.

Made of solid copper & brass bar

Using single AAA battery, max 90 lumens, or 10440 Li-ion battery, max 240 lumens. Flat top, UNPROTECTED 10440 batteries HIGHLY suggested. Some button top could also work, but some brands make the button to long, might cause a problem

Some models of Ni-MH batteries have high internal resistance causing the low voltage protection to kick in on the light and turn it off. For that reason, we recommend 10440 or alkaline.

There is one tritium slot at the tail switch, 1.5*6mm size (AVAILABLE FOR PURCHASE SEARCH MY STORE UNDER GLOW TUBE 1.5X6MM)

Size: 89mm length (including the switch button) diameter: 15mm

Copper: 52 grams
Ti: 32grams

UPDATED NEW DRIVER FOR 2022!

The driver has: Battery reverse protection. High temperature protection. Low voltage protection.

Reverse clicky switch. Full click to turn on or off, half click (tap) to cycle modes.

Thanks Kevin Manley for the more detailed manual.

Reylight Mini Pineapple Programming Guide

1. Turn on the light.

2. Press the button 8+ times. The light will now blink once, then strobe, blink twice, then strobe, blink three times, then strobe…After 5 blinks and a strobe, the sequence repeats.

a. 1 blink: mode group selection. Press the button to enter this menu.

i. 1 blink: (ML)-2%-20%-100%

ii. 2nd blink: (ML)-10%-40%-100%

iii. 3rd blink: (ML)-2%-10%-50%

iv. 4th blink: (ML)-50%-100%-strobe-SOS

It then repeats. Press the button during any blink to select that mode group.

b. 2 blinks: mode memory on-off toggle (default off). Press the button during the two blinks or during the strobe after to turn mode memory on. Repeat to turn mode memory off.

c. 3 blinks: moonlight mode off-on toggle (default on). Press the button during the three blinks or during the strobe after to turn moonlight off. Repeat to turn moonlight on.

d. 4 blinks: mode order toggle (default LMH). Press the button during the four blinks or during the strobe after to change the mode order from Low Medium High to High Medium Low. Repeat to reverse the order.

e. 5 blinks: factory reset. Press the button during the five blinks or during the strobe after to reset the light to factory settings.

Shorcut: quick double tap to turbo.
