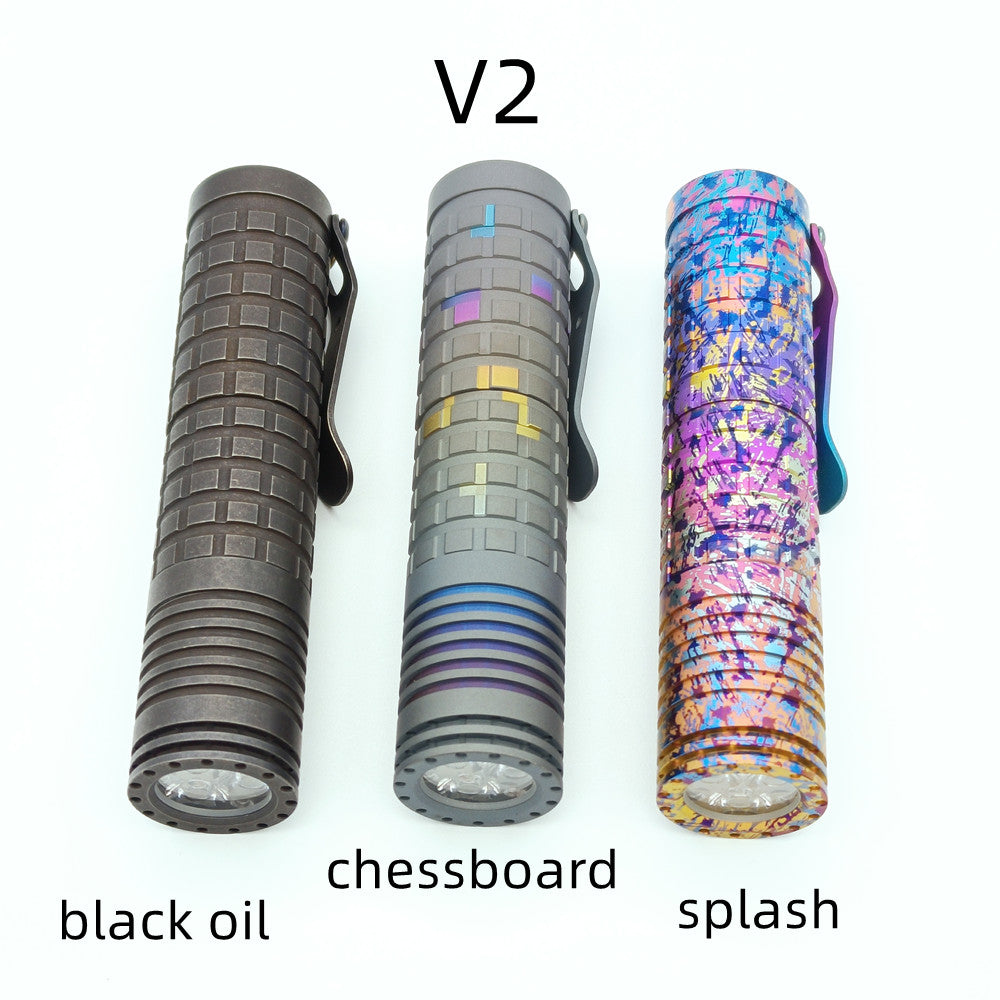

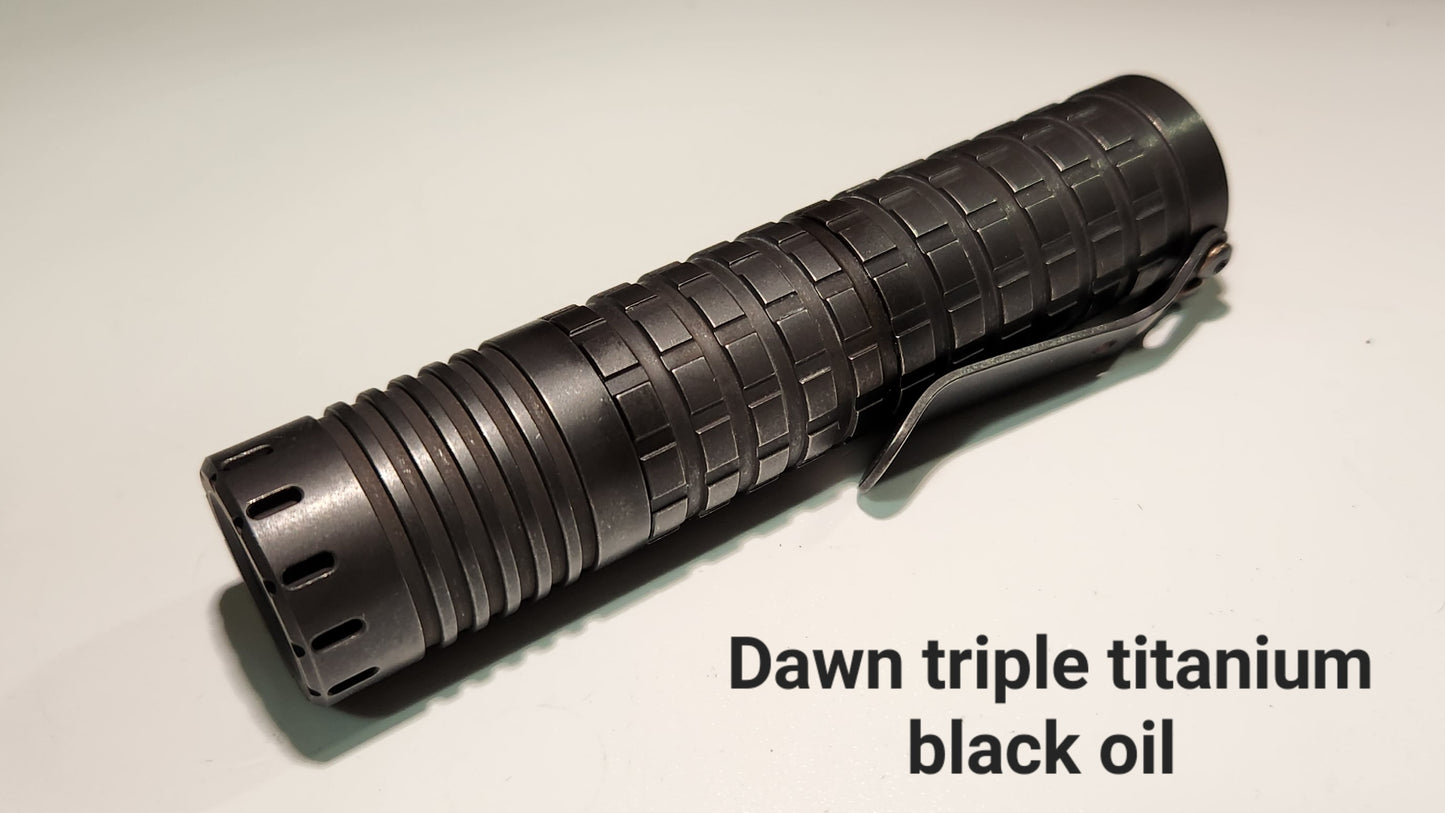

ReyLight Anodized Dawn Triple V2.1 Black Oil Titanium Custom LED Flashlight
ReyLight Anodized Dawn Triple V2.1 Black Oil Titanium Custom LED Flashlight
Share
ReyLight Dawn Triple Ti-Dawn V2.1
Anodized Black Oil titanium
V2.1 12 + 2 TRITIUM SLOTS
RECCOMENDED BATTERY: SAMSUNG 30Q 18650 FLAT TOP CELLS
UPGRADED SWITCH/SPRING INCLUDED!
12 + 2 TRITIUM SLOTS (12 ON HEAD 2 ON TAIL)
TRITIUMS ARE BACK IN STOCK! >>> Tritium Vials 1.5 x 6mm Self-Luminous – JLHawaii808
Please message or call me (808-864-7548) if you want a glow tube OR Tritium installed.
EMITTER OPTIONS:
CREE XP-L CW 6000K @ 2600-2800LM
CREE XP-L HI CW @ 6500K 2800-3000LK
CREE XP-L HI NW @ 5000K 2800-3000LM
NICHIA 219B SW45K @ 800-900LM
NICHIA 519A OPTIONS (EMITTER SWAP MOD ADDITIONAL COST) APPROXIMATE 1600-1800LM
2700K
3000K
3500K
4000K
4500K
5000K
5700K
NICHIA 519A DE-DOMED:
5700K = 4560K
5000K = 4000K
4500K = 3600K
4000K = 3200K
3500K = 2800K
3000K = 2400K
2700K = 2160K
NOTE: EMITTER SWAP TO NICHIA 519A CAN TAKE AN EXTRA SHIPPING DAY DEPENDING ON WHAT TIME THE ORDER GETS IN. THESE ARE MADE-TO-ORDER.
It has been 4 years since the 1st edition of Triple Ti.
Now it’s the time for the all-new designed Triple Ti – Dawn 2.1
Here are the specifications:
-Nichia 219C 4000K LED with a max output of 1,800 lumens.
-or optional XPL HI 6000K LED with a max output of 3,000 lumens. A true power of breaking the Dawn.
-Battery: single 18650 or 18350. It comes with 18650 battery extension!
– The Sapphire lens provides unbelievable high scratch resistance and durability, as well as adding long lasting value to this art piece.
– Glow in the dark gasket provides an upscale appearance.
-Custom-made rubber cap molding provides superior waterproof ability.
– Improved CNC tuning provides better quality of machining.
-Custom-made Ti clip and screws, are compatible with SF clips.
-Unlimited combination of tritium vials (12 trit-slots around head, and 2 trit-slots on the tail button).
-tritium size: 1.5*6mm (not included)
– TA driver with modified TK’s Bistro firmware, 23 groups of modes.
-Reverse polarity protection
-LVP (low voltage protection) for Li-ion battery
-Diameter is 25mm, 18650 length 112mm, 120g£¨18350 length 83mm£¨97g
-Battery 18650 high drain unprotected button-top cells recommended 10-15A, some flat tops will work. Nichia 519a Samsung 30q recommended
After 2+ years waiting, finally we have DAWN back.
-Nichia 219B SW45K R9080
-or XPL HI 6000K
-Battery: single 18650 or 18350. It comes with 18650 battery extension! (DO NOT use double 18350)
– The Sapphire lens provides unbelievable high scratch resistance and durability, as well as adding long lasting value to this art piece.
– Glow in the dark gasket provides an upscale appearance.
-Custom-made rubber cap molding provides superior waterproof ability.
– Improved CNC tuning provides better quality of machining.
-Custom-made Ti clip and screws, are compatible with SF clips.
-Unlimited combination of tritium vials (12 trit-slots around head, and 2 trit-slots on the tail button).
-tritium size: 1.5*6mm (not included)
-Reverse polarity protection
-LVP (low voltage protection) for Li-ion battery
-Diameter is 25mm, 18650 length 112mm, 120g, 18350 length 83mm 97g
Suggested battery: Sony C5, C6 , Sanyo 18650GA, Samsung 30Q, LG HG2.
Keeppower Xtar efest 18350.
Only unprotected battery is suggested. The protected one might be too long and cause a problem. The circuit itself has protection already.
Programming Guide:
1. Turn on the light.
2. Press the button 8+ times. The light will now blink once, then strobe, blink twice, then strobe, blink three times, then strobe…After 5 blinks and a strobe, the sequence repeats.
a. 1 blink: mode group selection. Press the button to enter this menu.
i. 1 blink: (ML)-2%-20%-100%
ii. 2nd blink: (ML)-10%-40%-100%
iii. 3rd blink: (ML)-2%-10%-50%
iv. 4th blink: (ML)-50%-100%-strobe-SOS
It then repeats. Press the button during any blink to select that mode group.
b. 2 blinks: mode memory on-off toggle (default off). Press the button during the two blinks or during the strobe after to turn mode memory on. Repeat to turn mode memory off.
c. 3 blinks: moonlight mode off-on toggle (default on). Press the button during the three blinks or during the strobe after to turn moonlight off. Repeat to turn moonlight on.
d. 4 blinks: mode order toggle (default LMH). Press the button during the four blinks or during the strobe after to change the mode order from Low Medium High to High Medium Low. Repeat to reverse the order.
e. 5 blinks: factory reset. Press the button during the five blinks or during the strobe after to reset the light to factory settings.
Shortcut: quick double tap to turbo.
