EMISAR NOCTIGON
QUAD OPTICS CUSTOM W/REFLECTORS
QUAD OPTICS CUSTOM W/REFLECTORS
Couldn't load pickup availability
Share

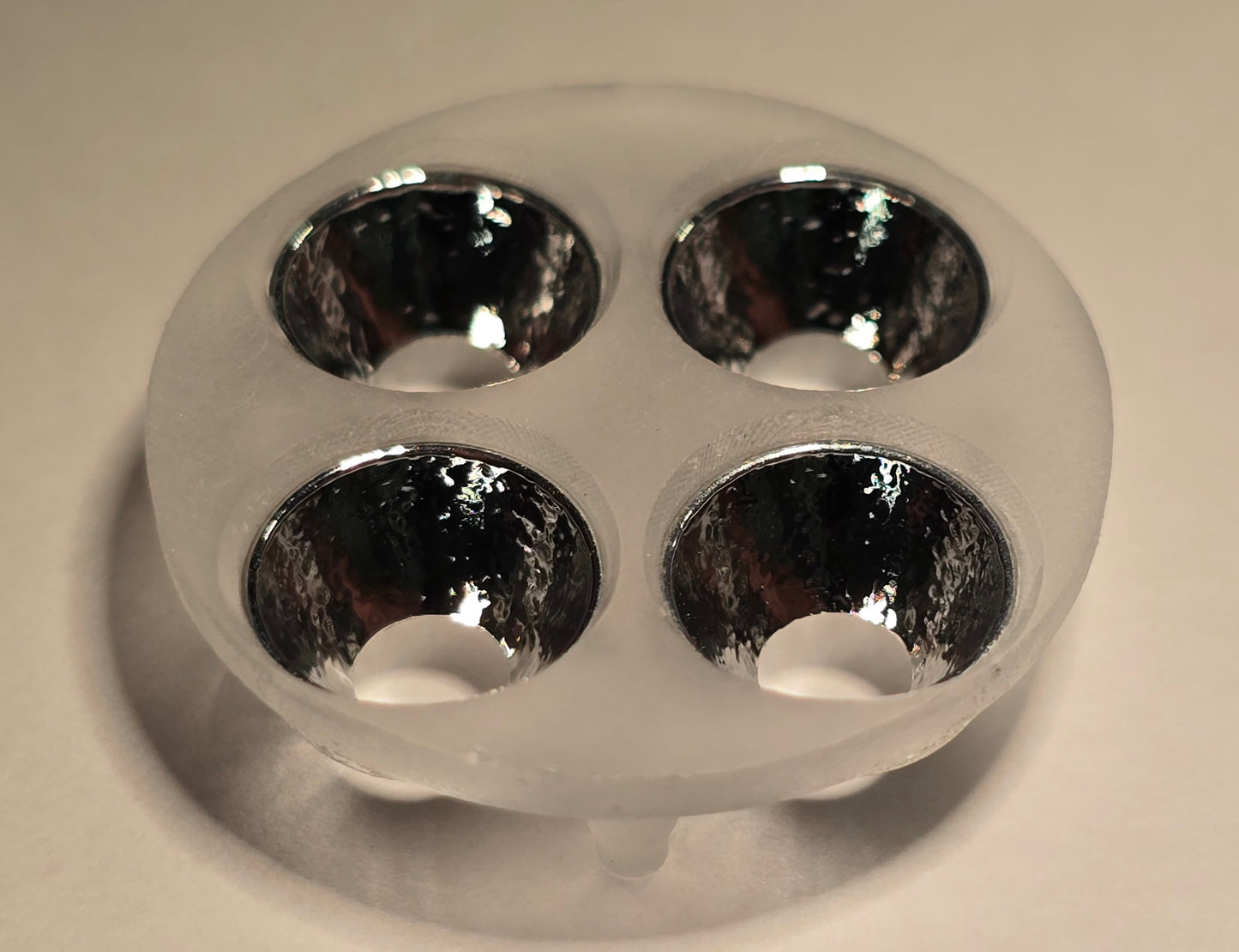

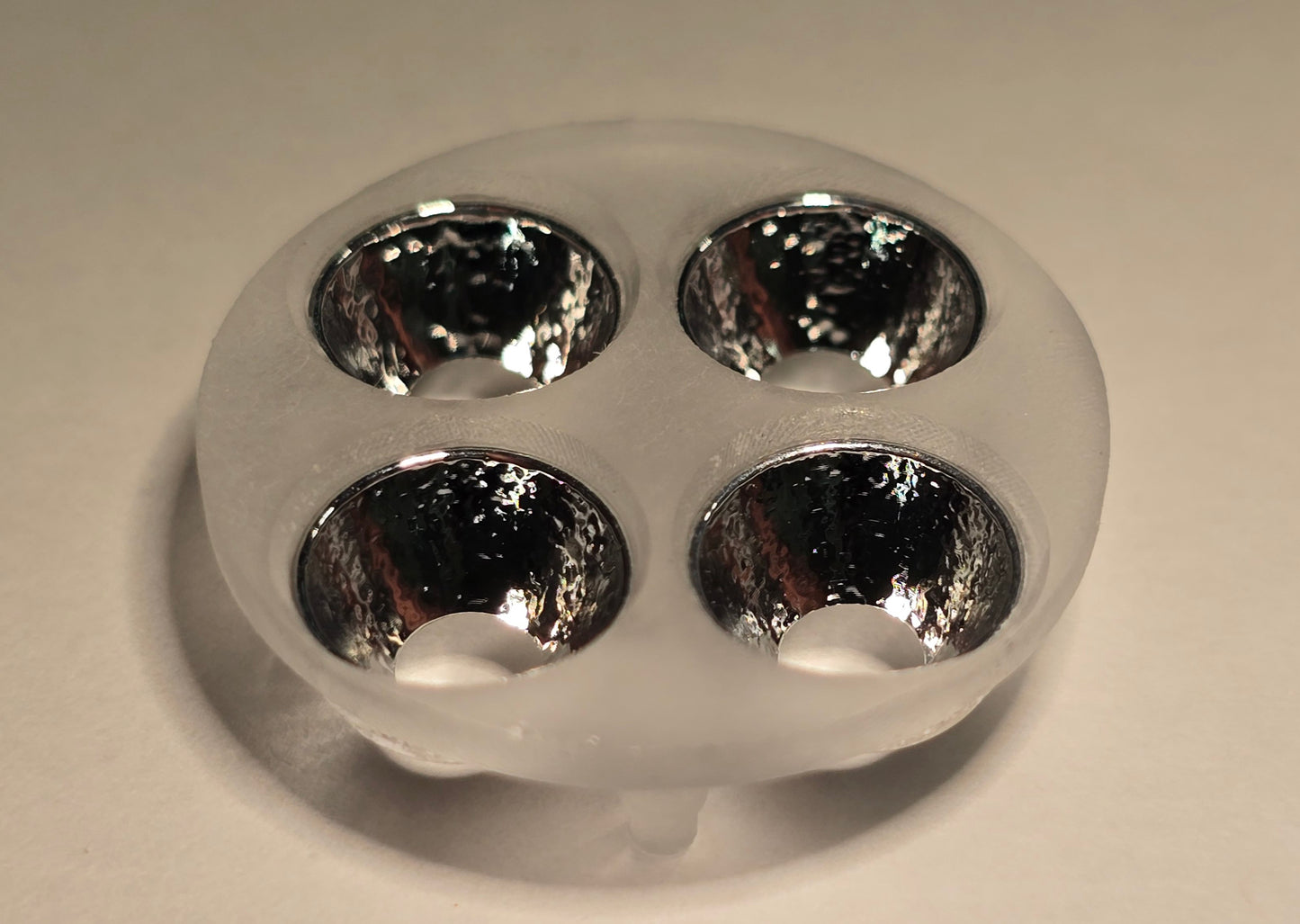

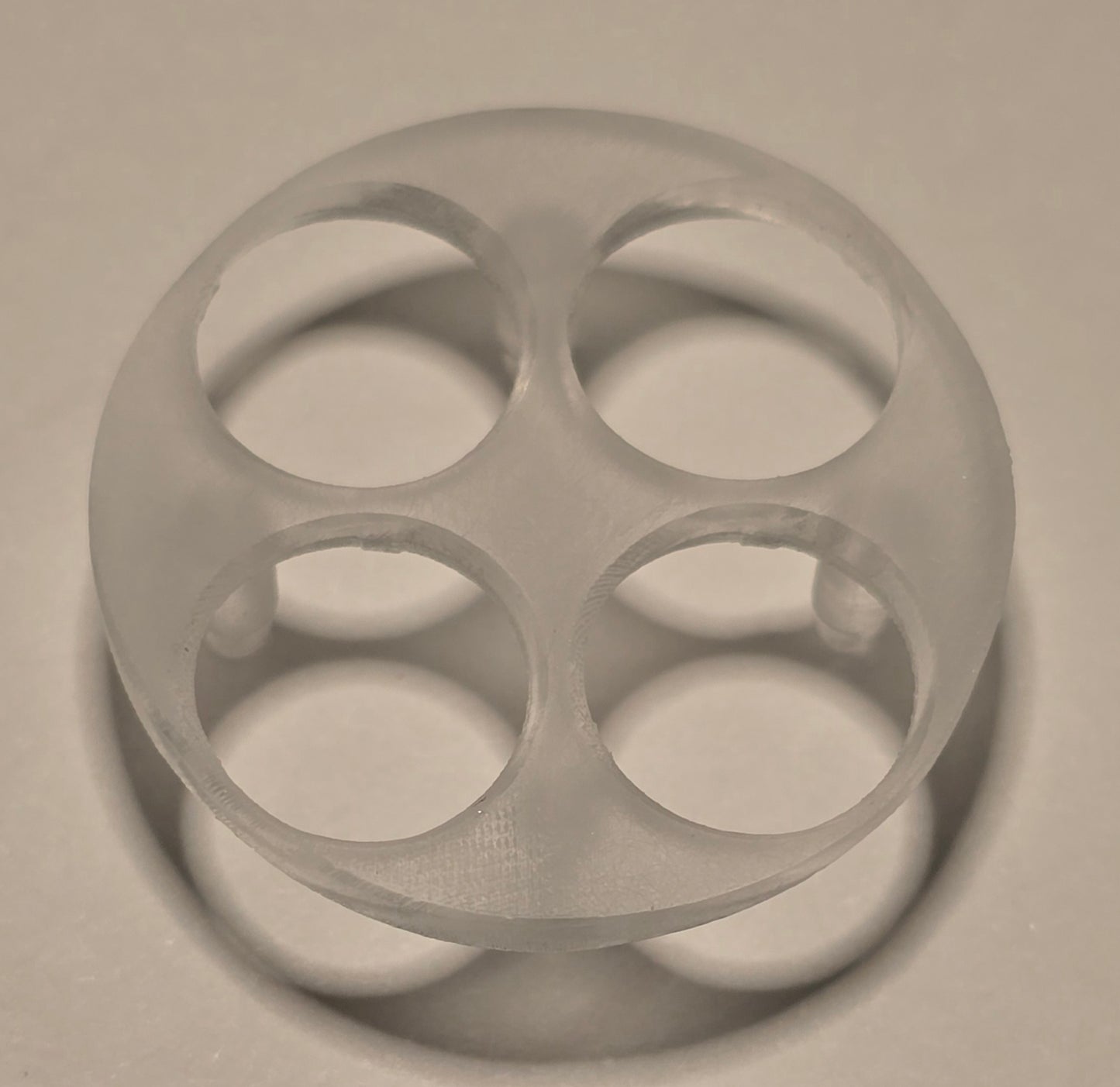

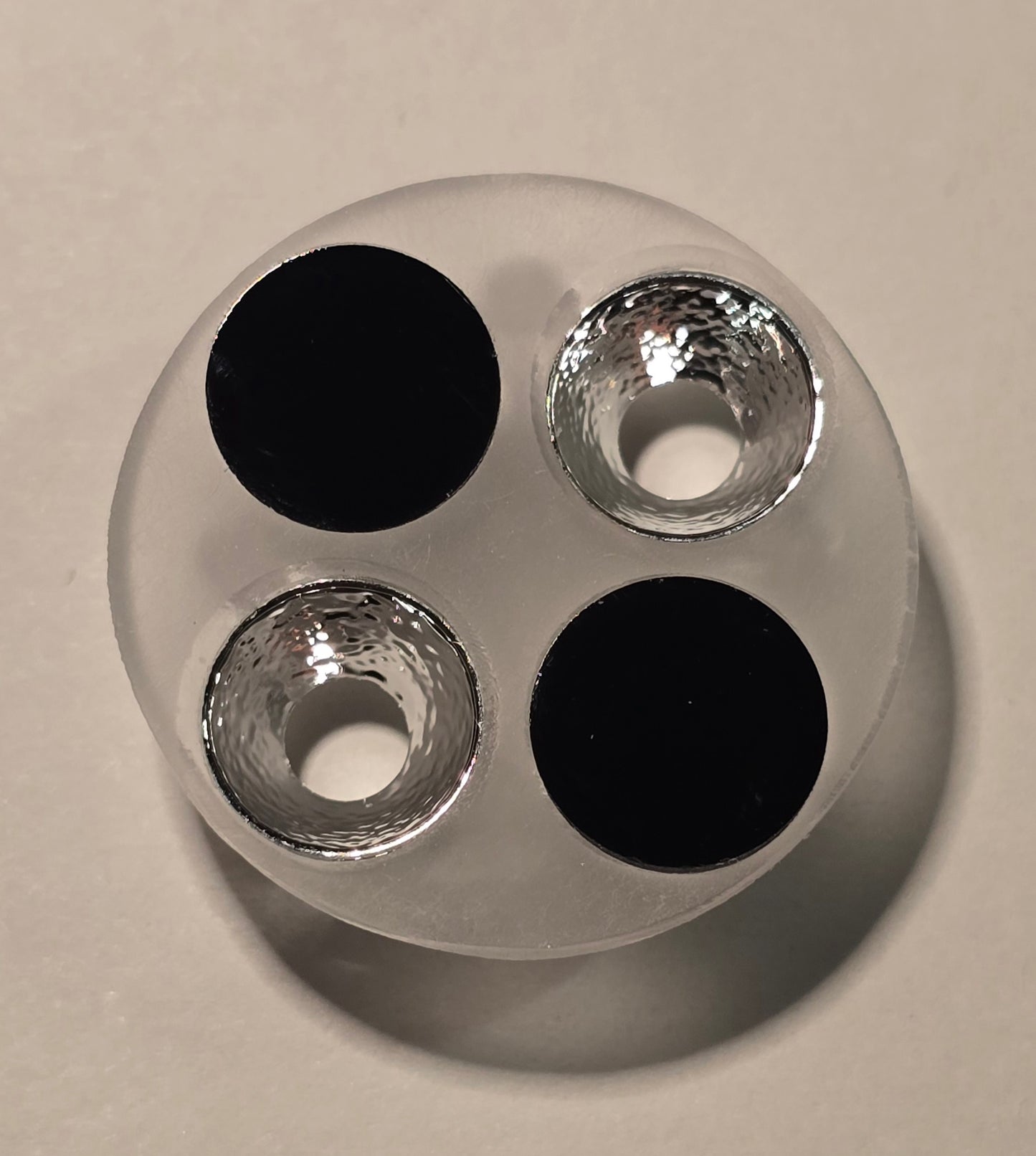

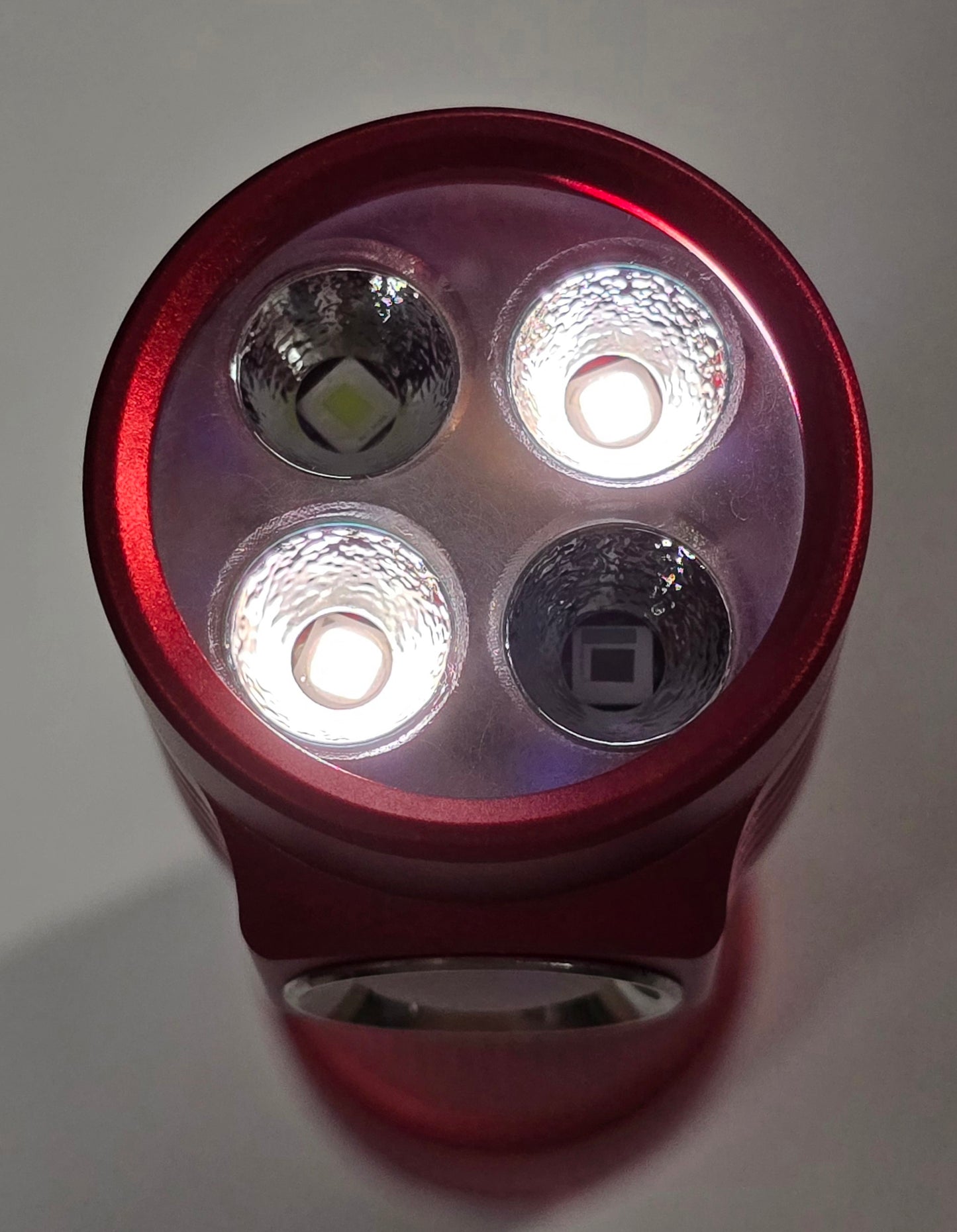

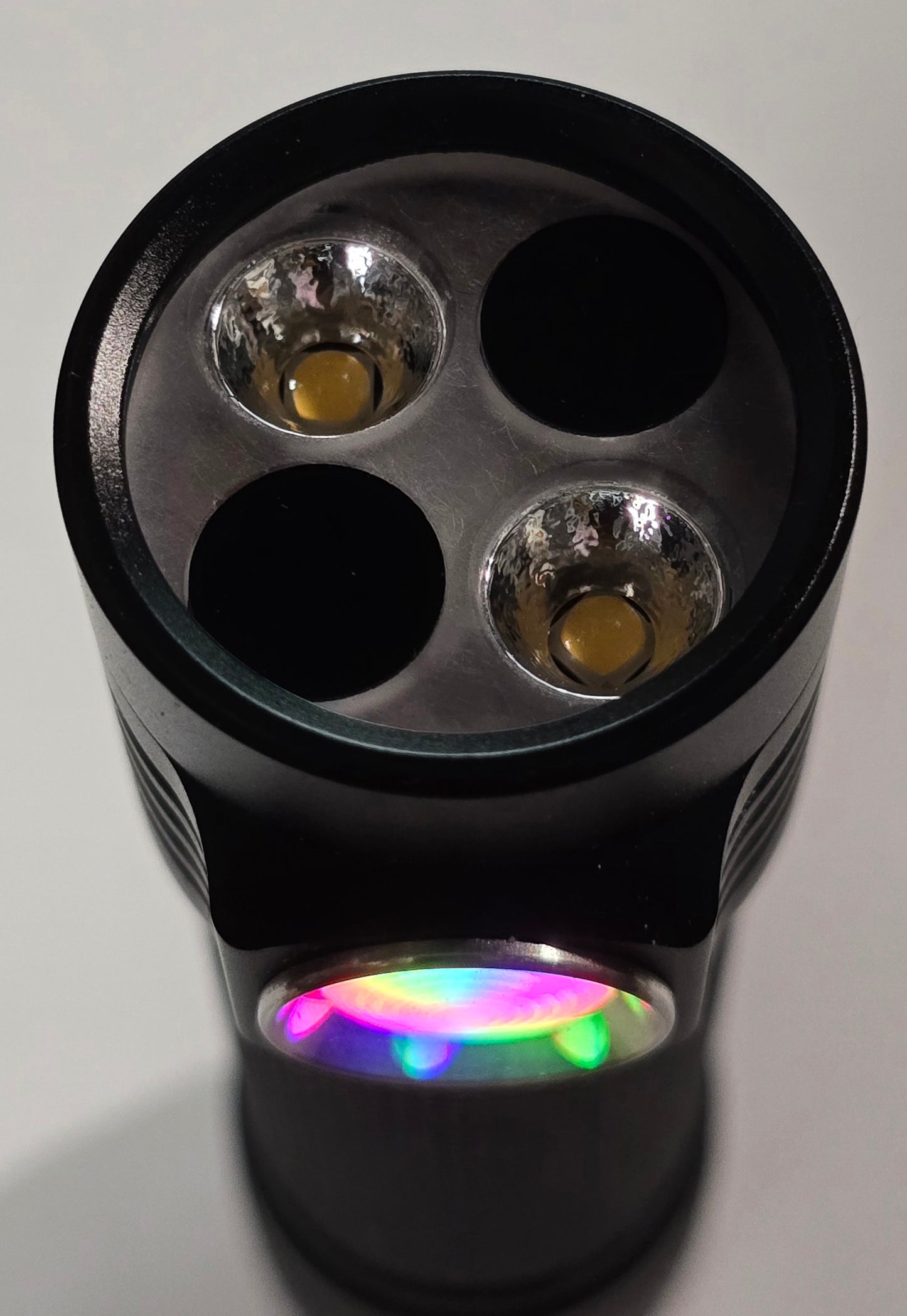

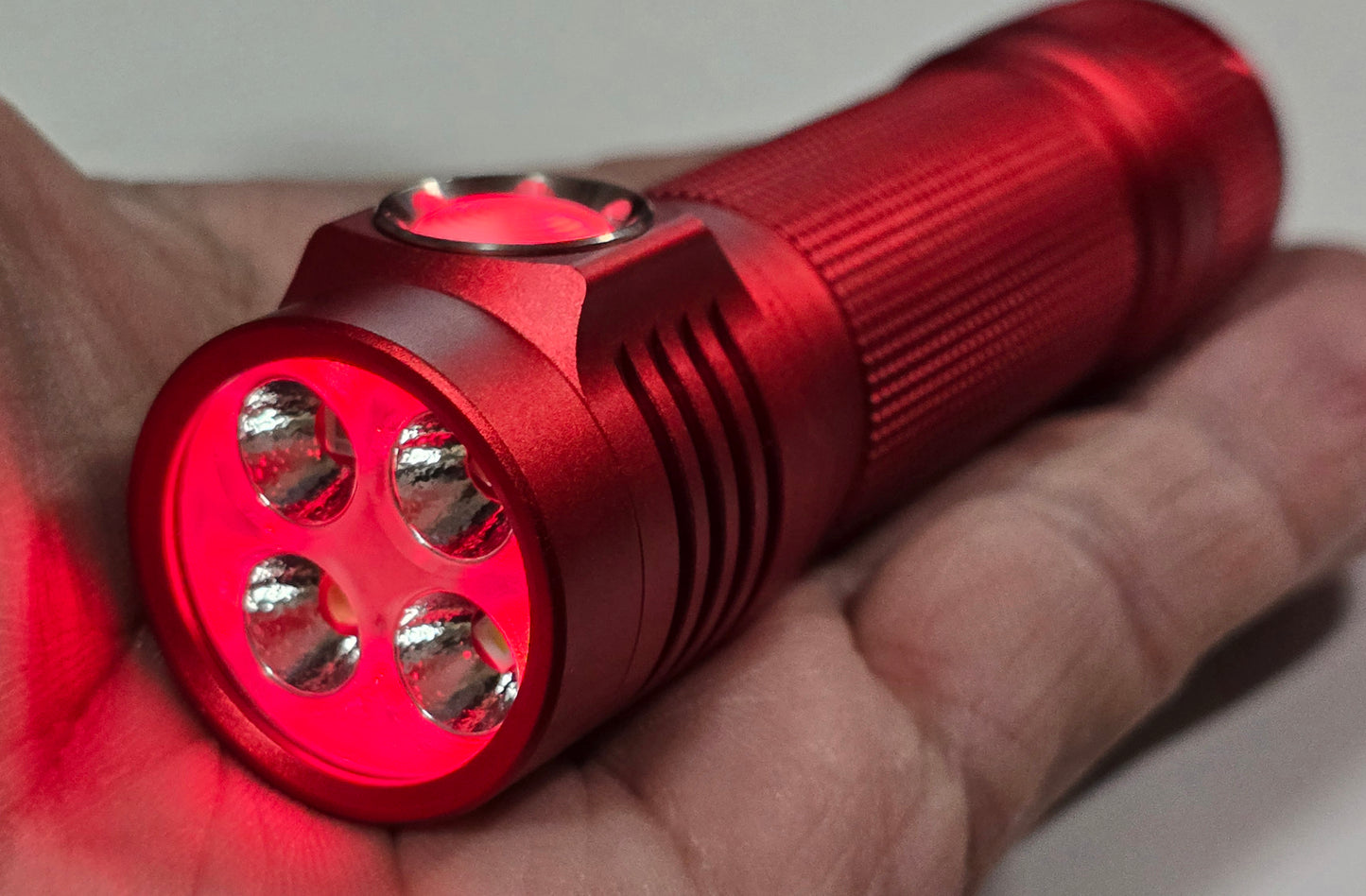

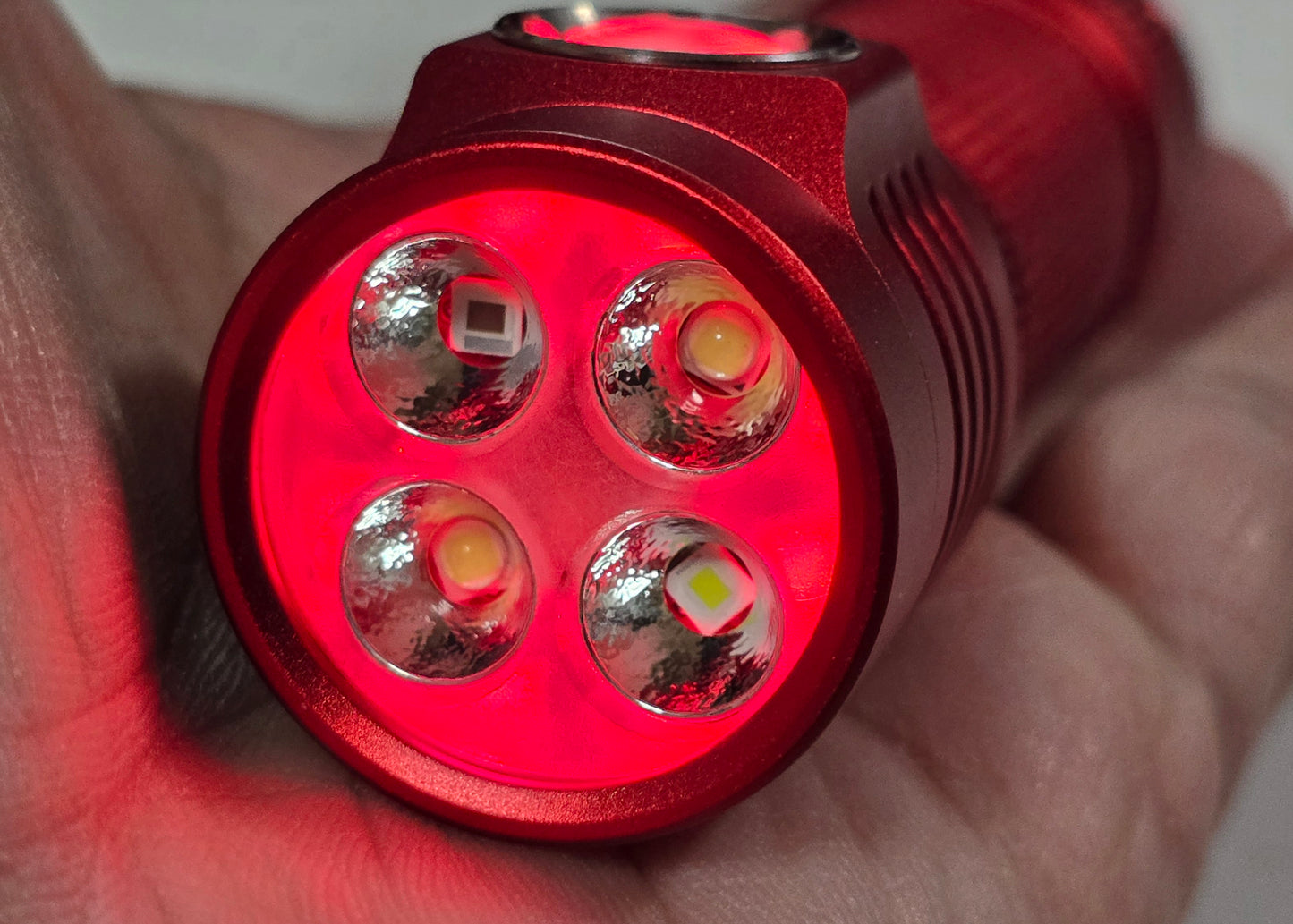

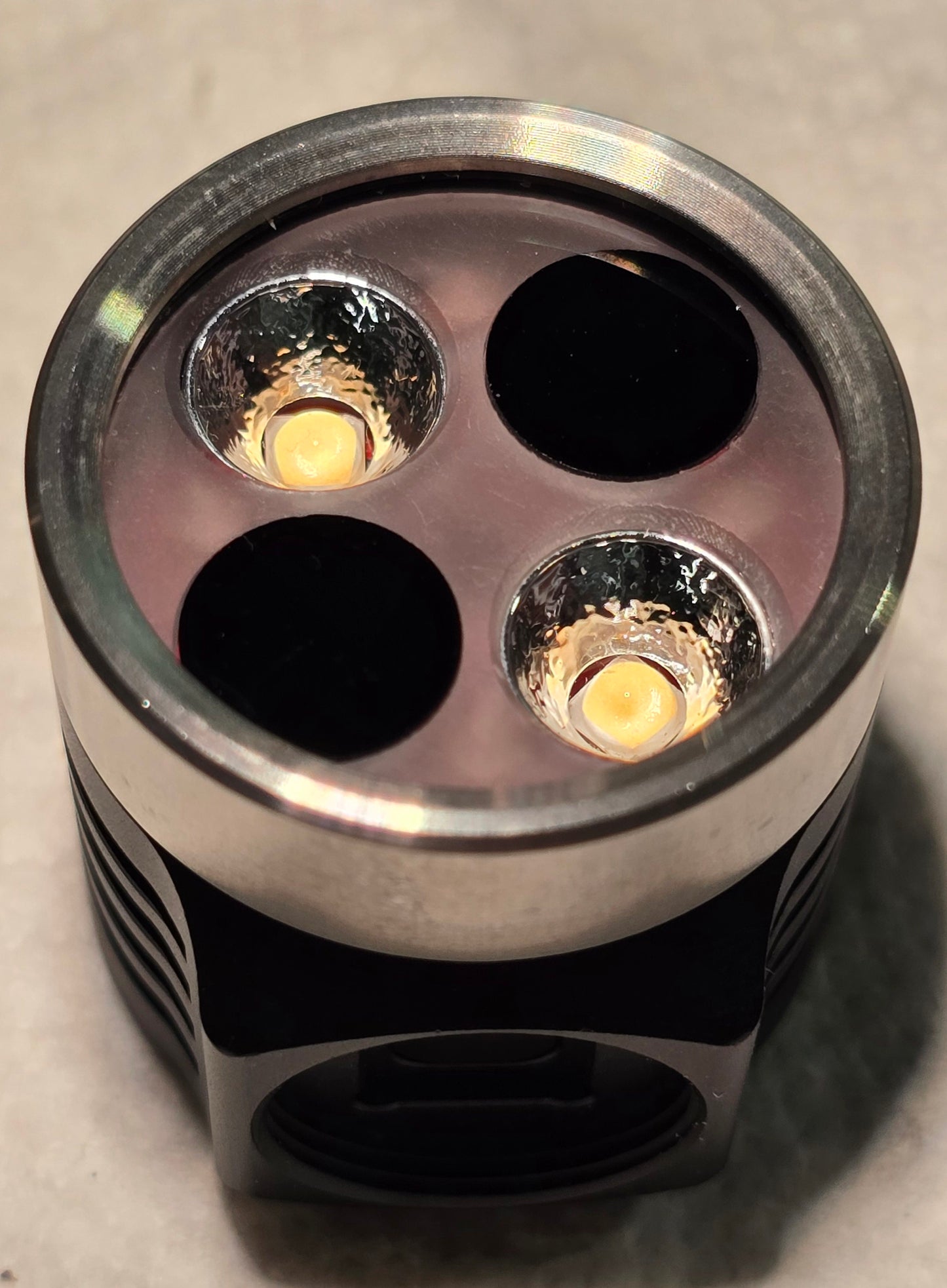

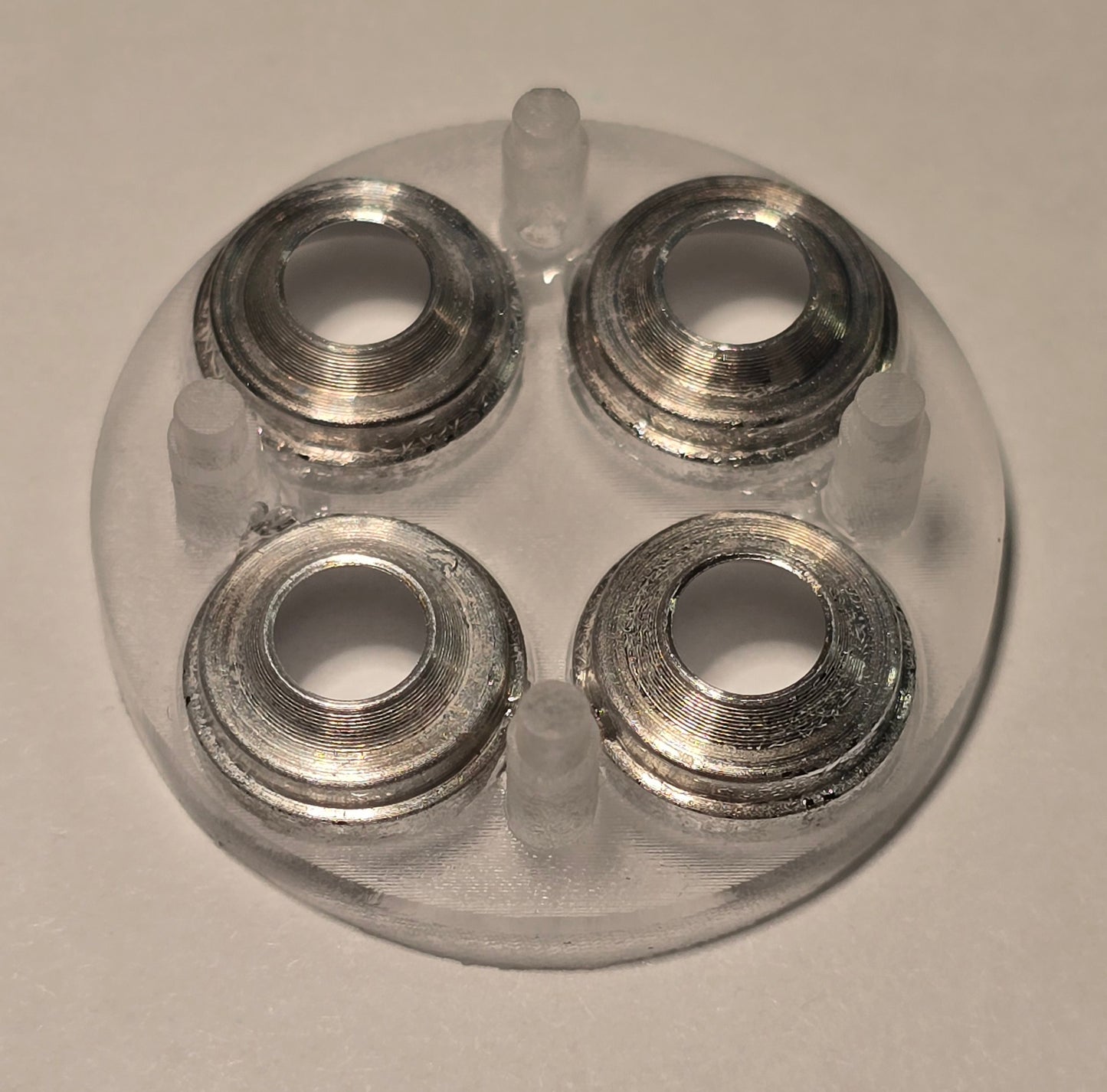

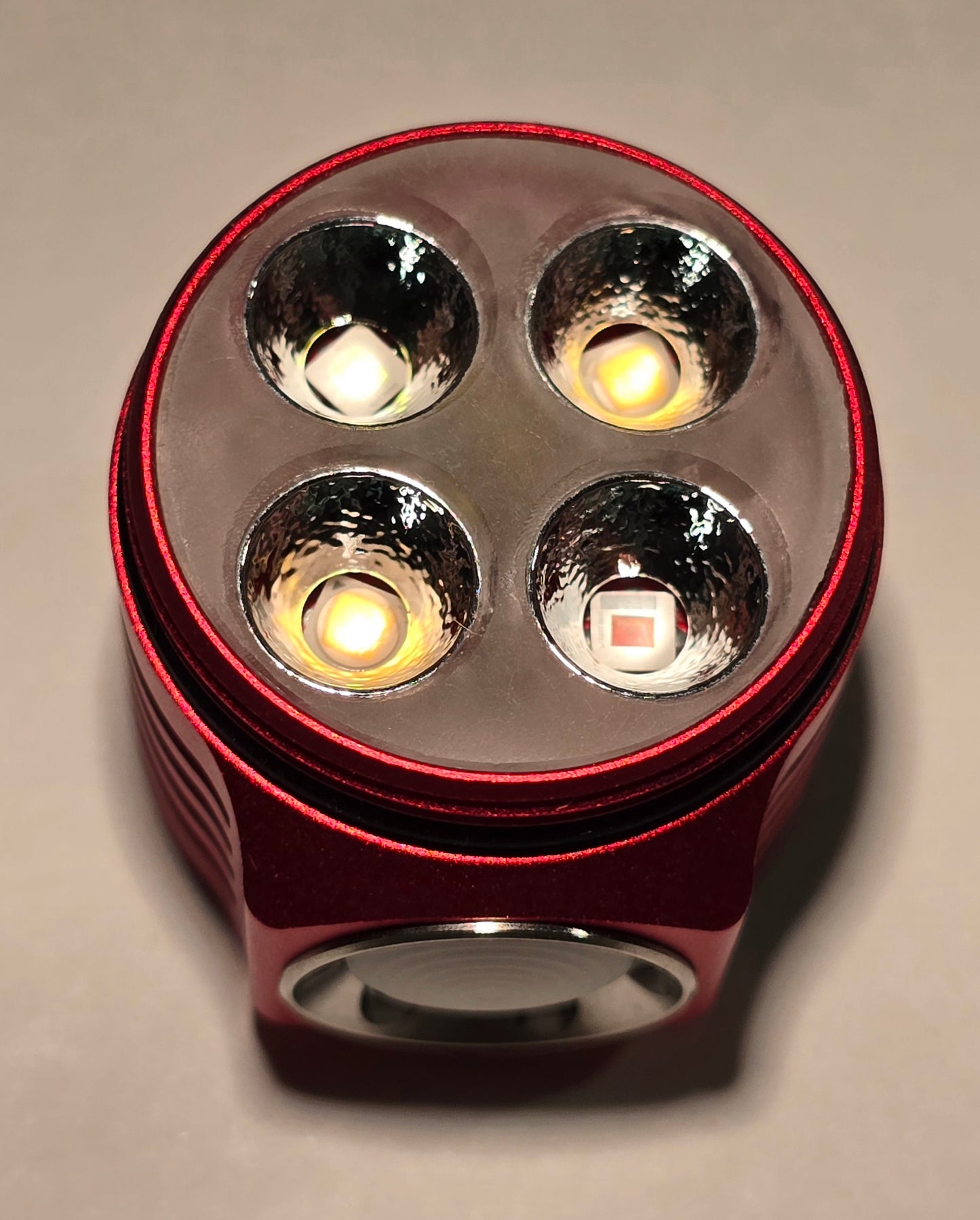

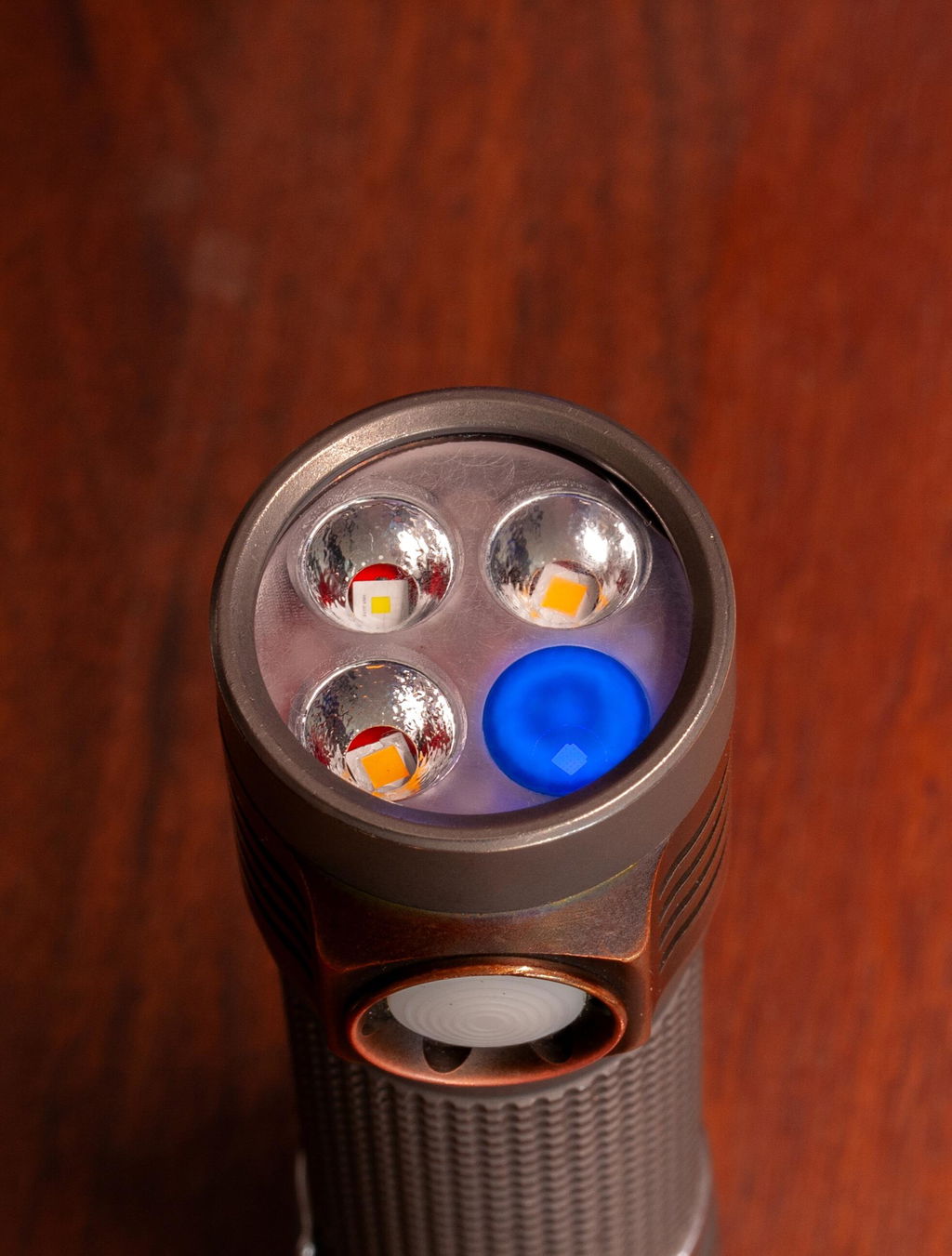

CUSTOM MADE QUAD OPTICS

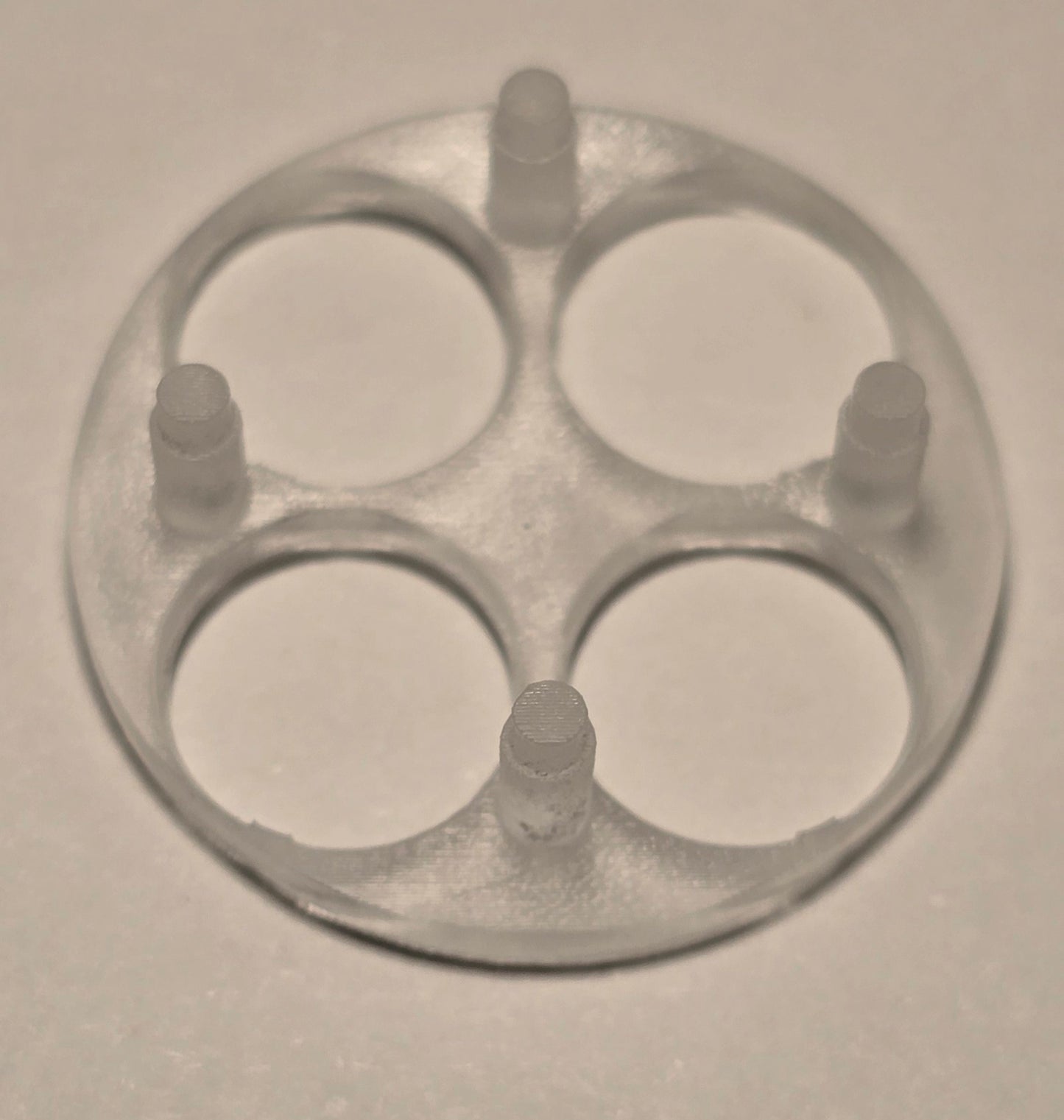

SLA 3D printed high temperature
Fully transparent (frosted)
Replacement for Carclo 10623, 10622 & 10621

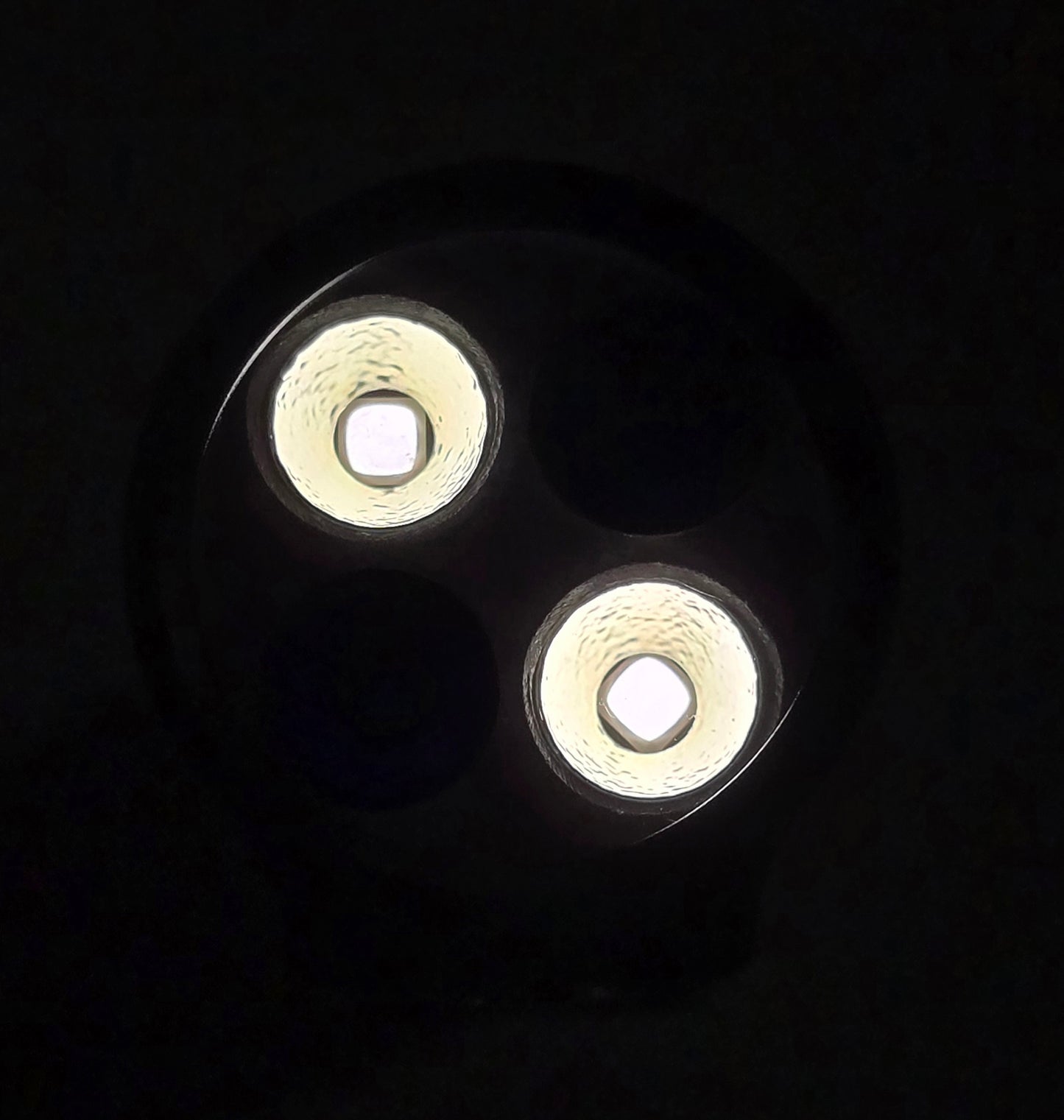

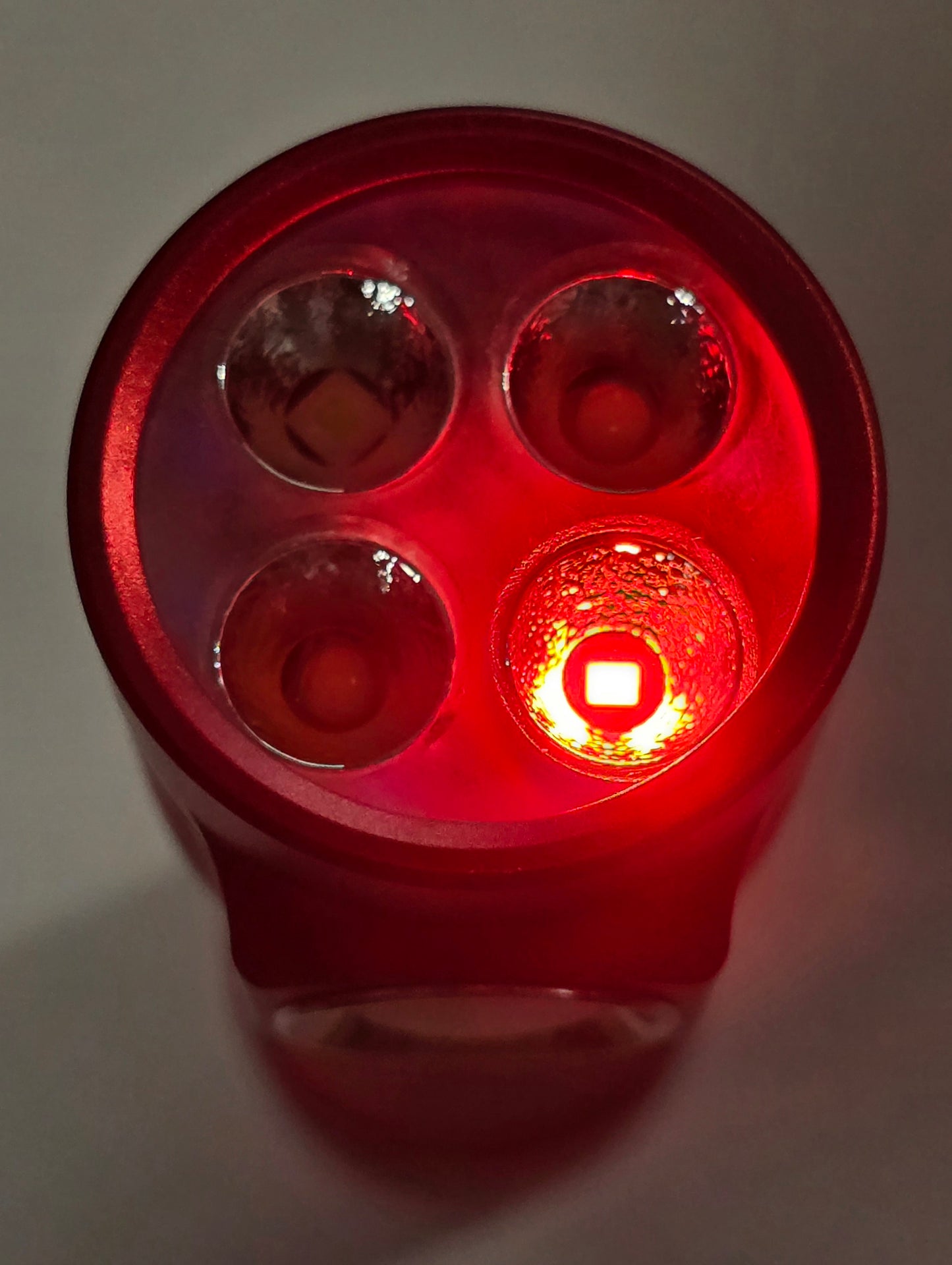

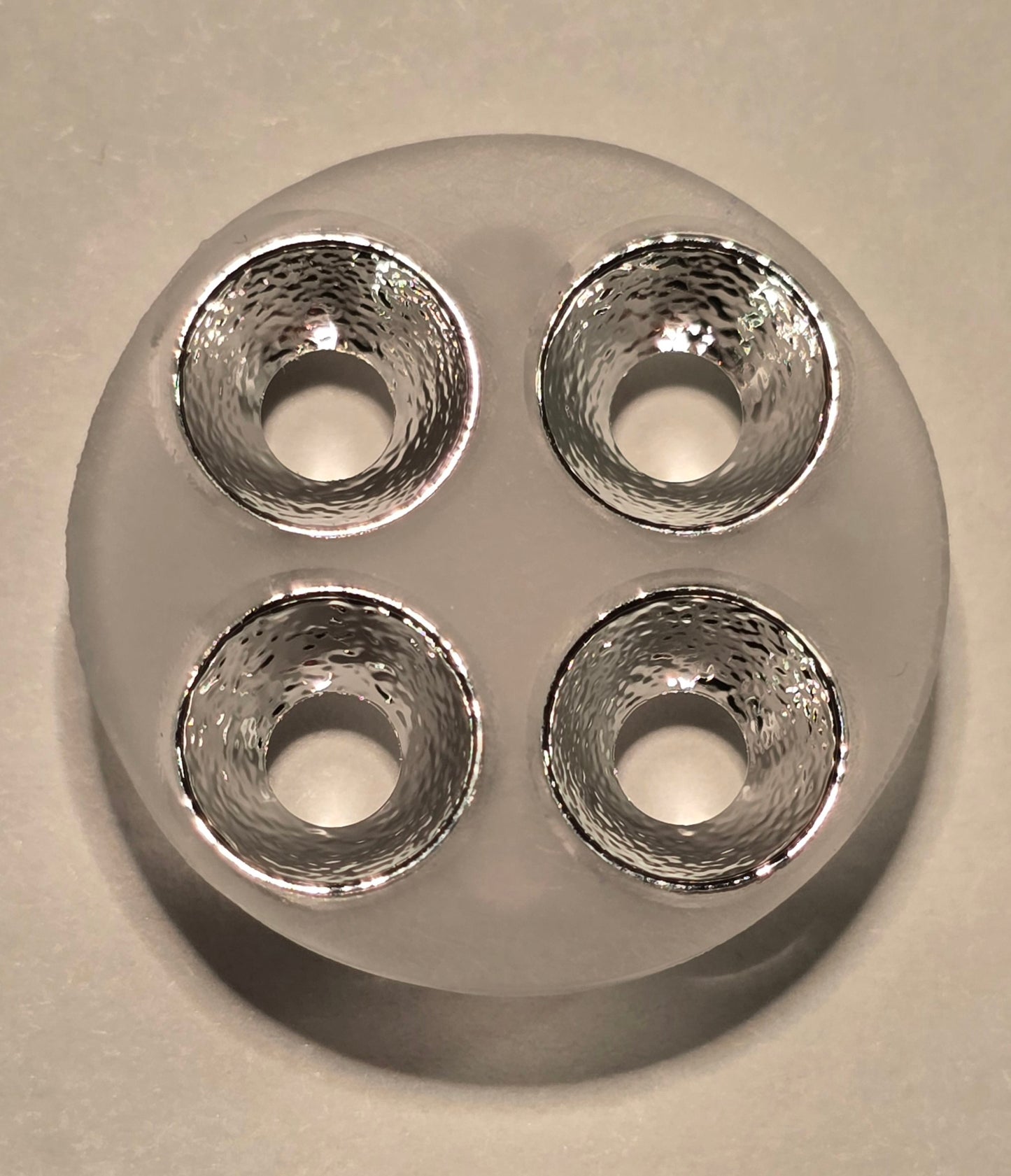

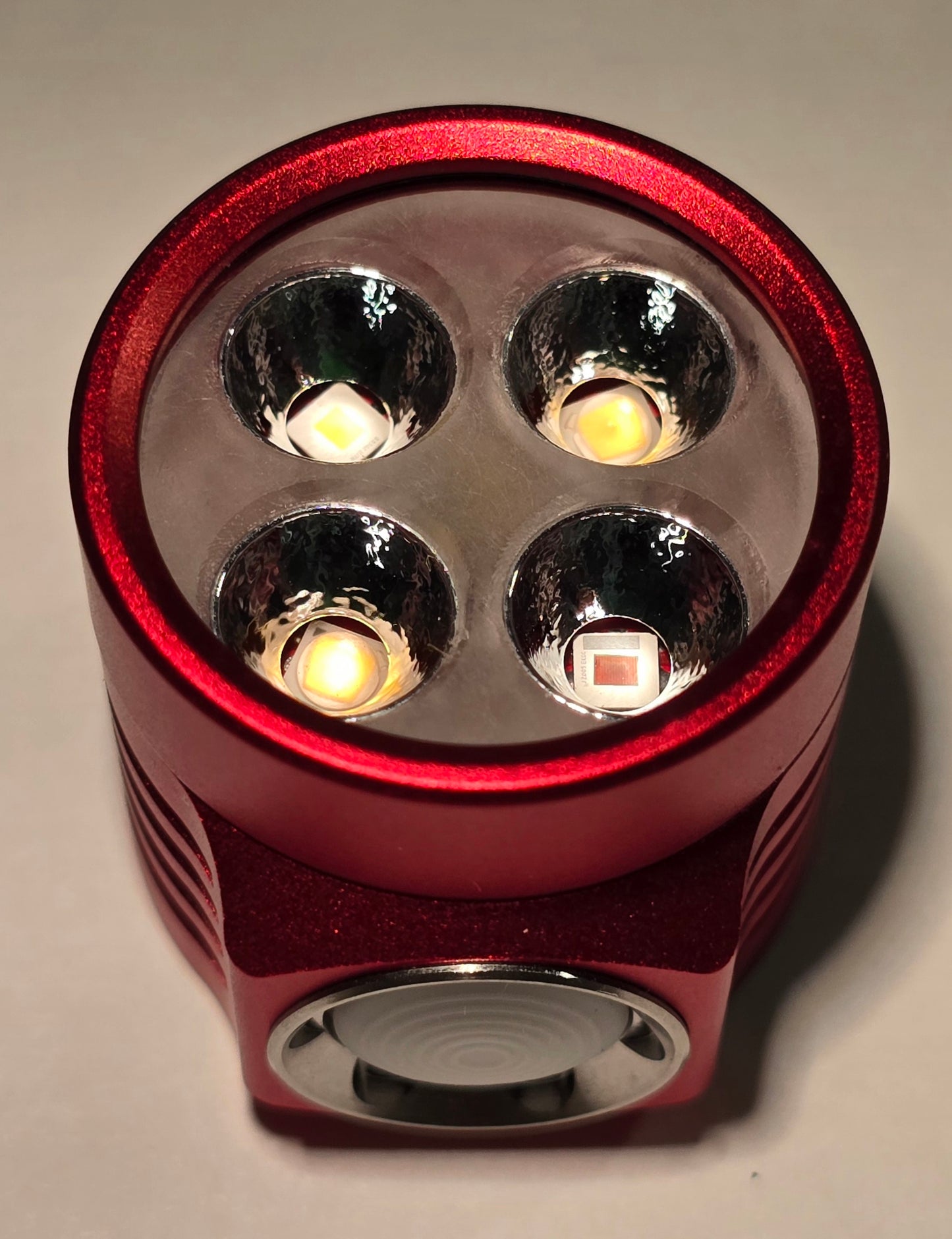

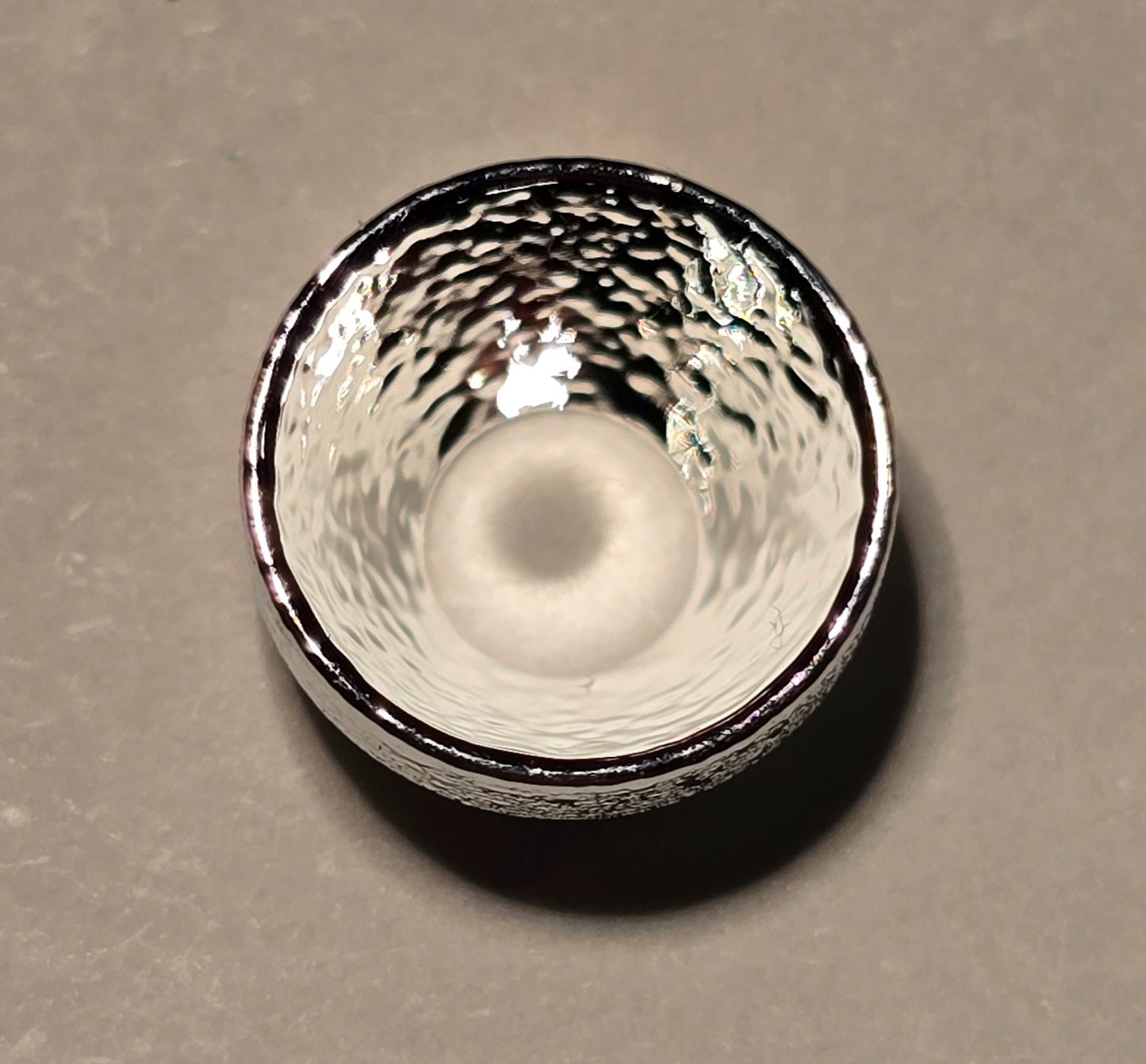

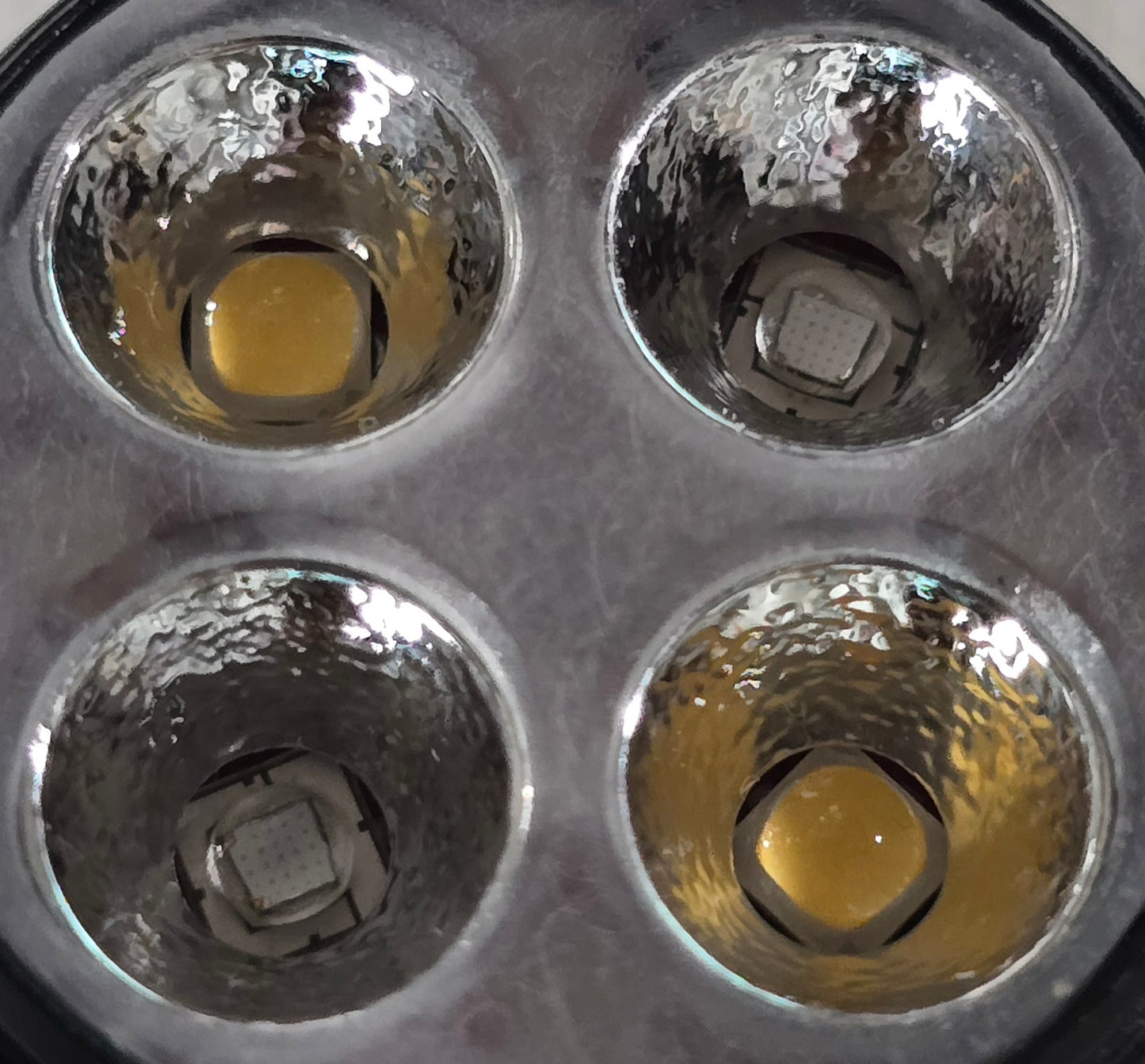

4 x OP (orange peel) aluminum reflectors

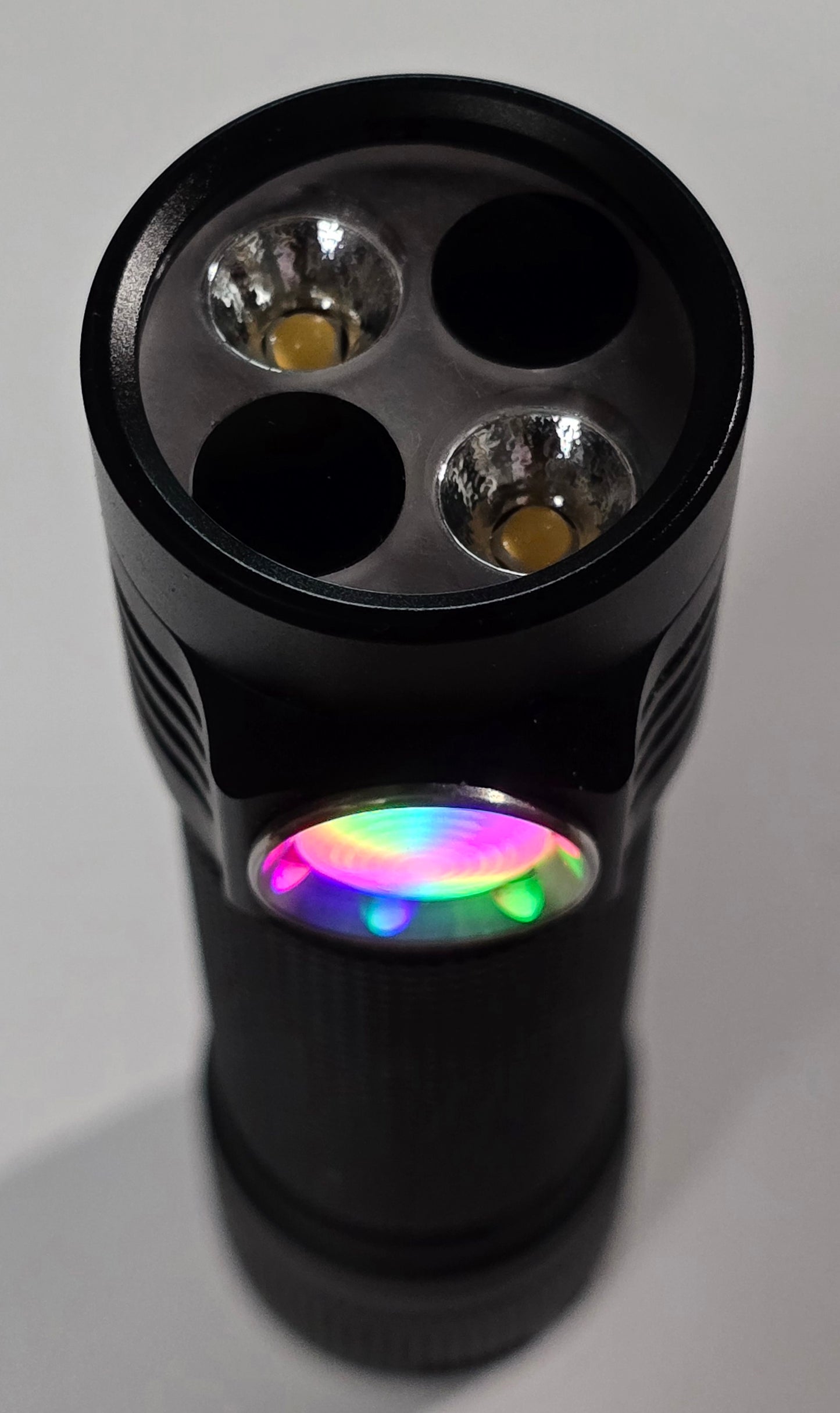

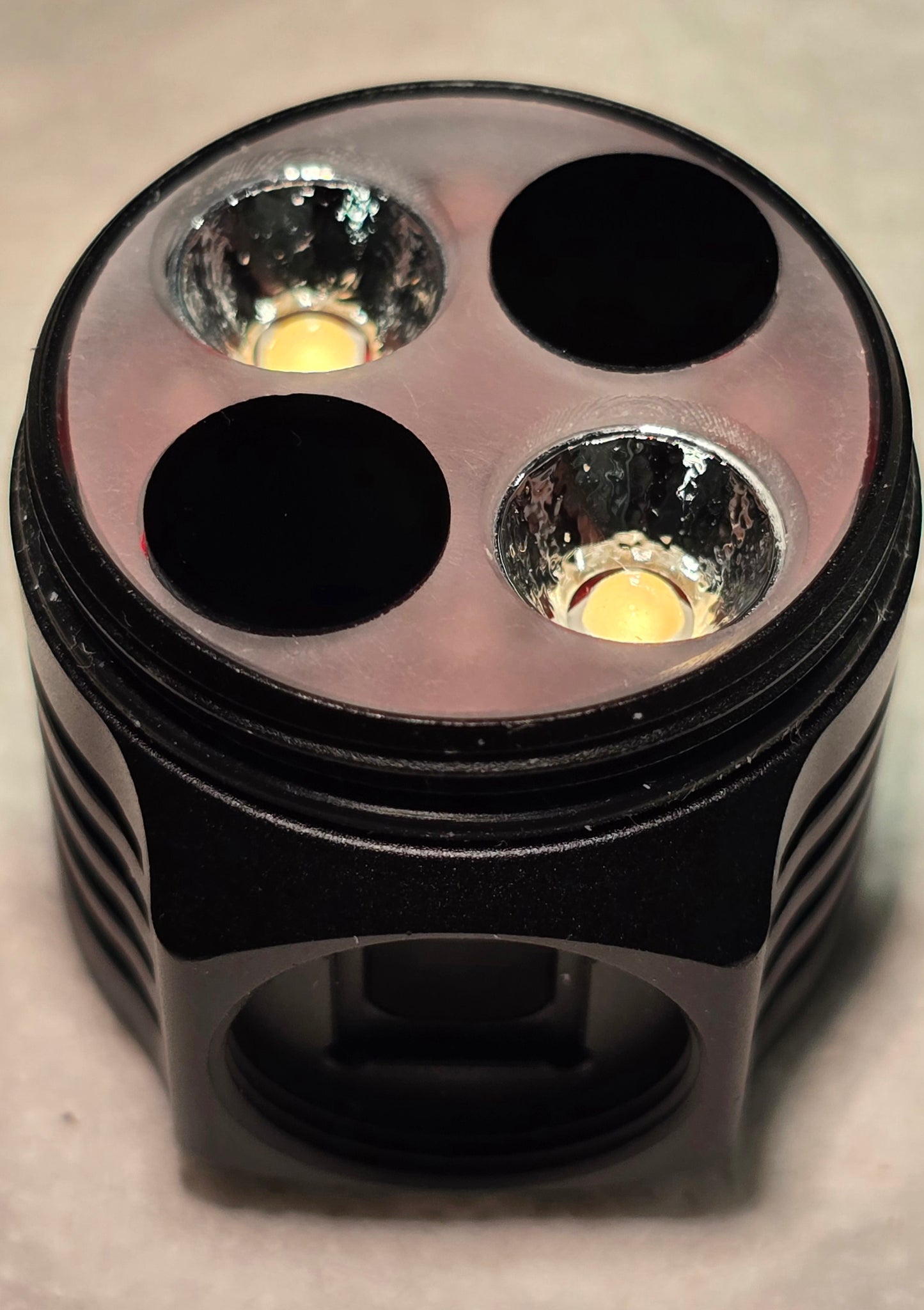

Designed for Emisar D4v2, D4k, DW4 works best for the D4k 3-CH flashlight

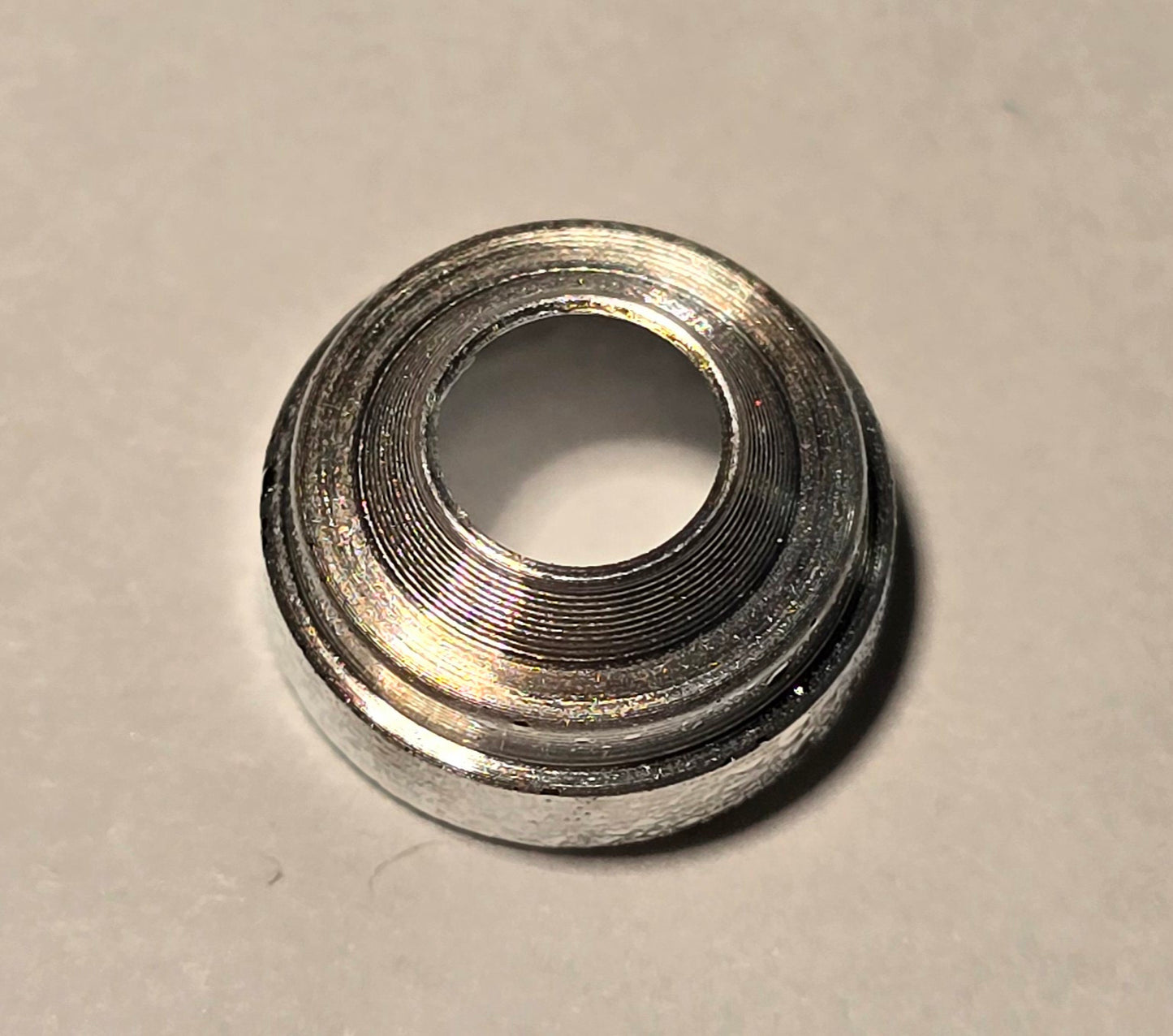

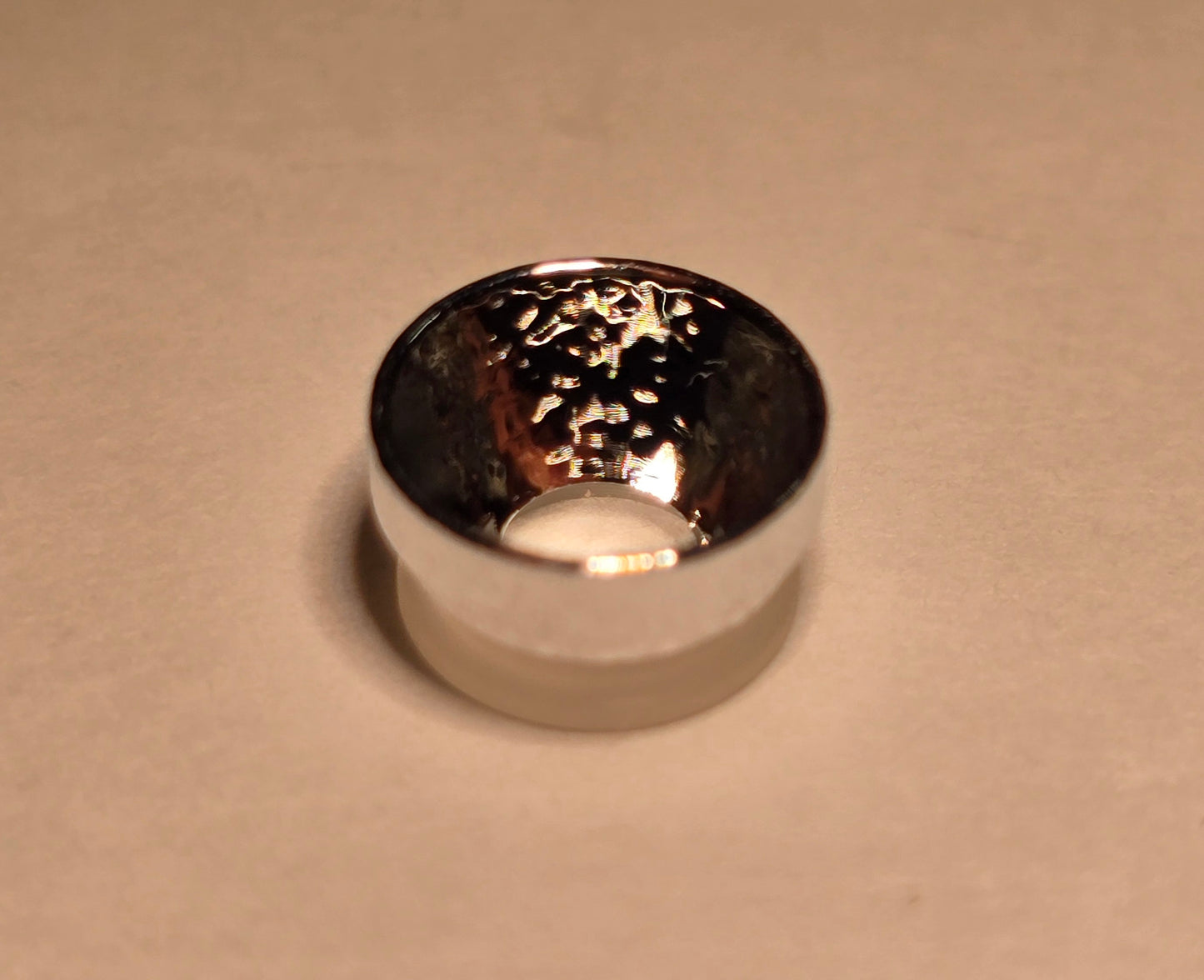

MINI ALUMINUM OP REFLECTOR MEASUREMENTS:
8.6MM X 3.9MM
LED OPENING 3.9MM

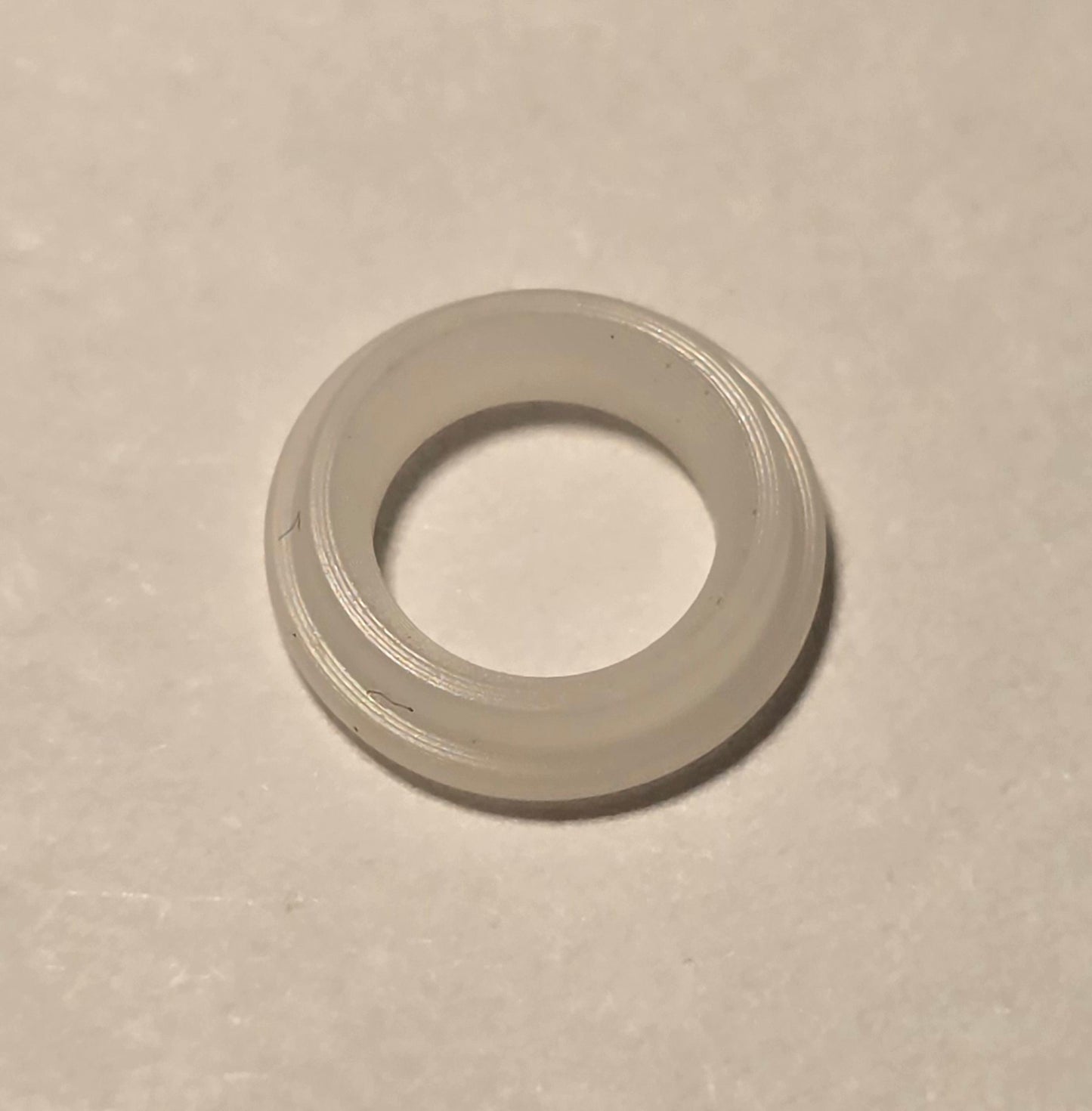

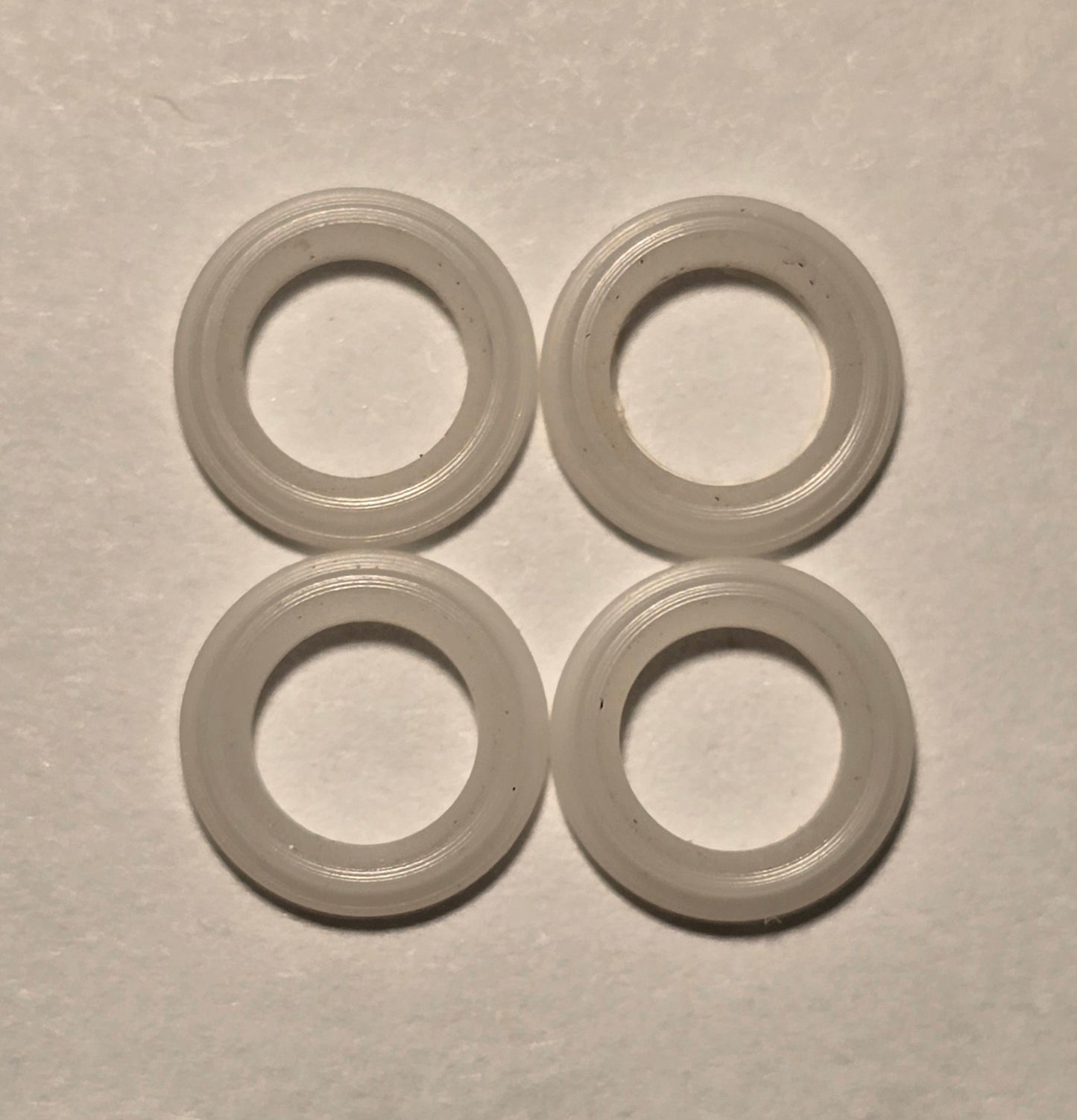

LED GASKET MEASUREMENTS:
7.7MM X 1.7MM

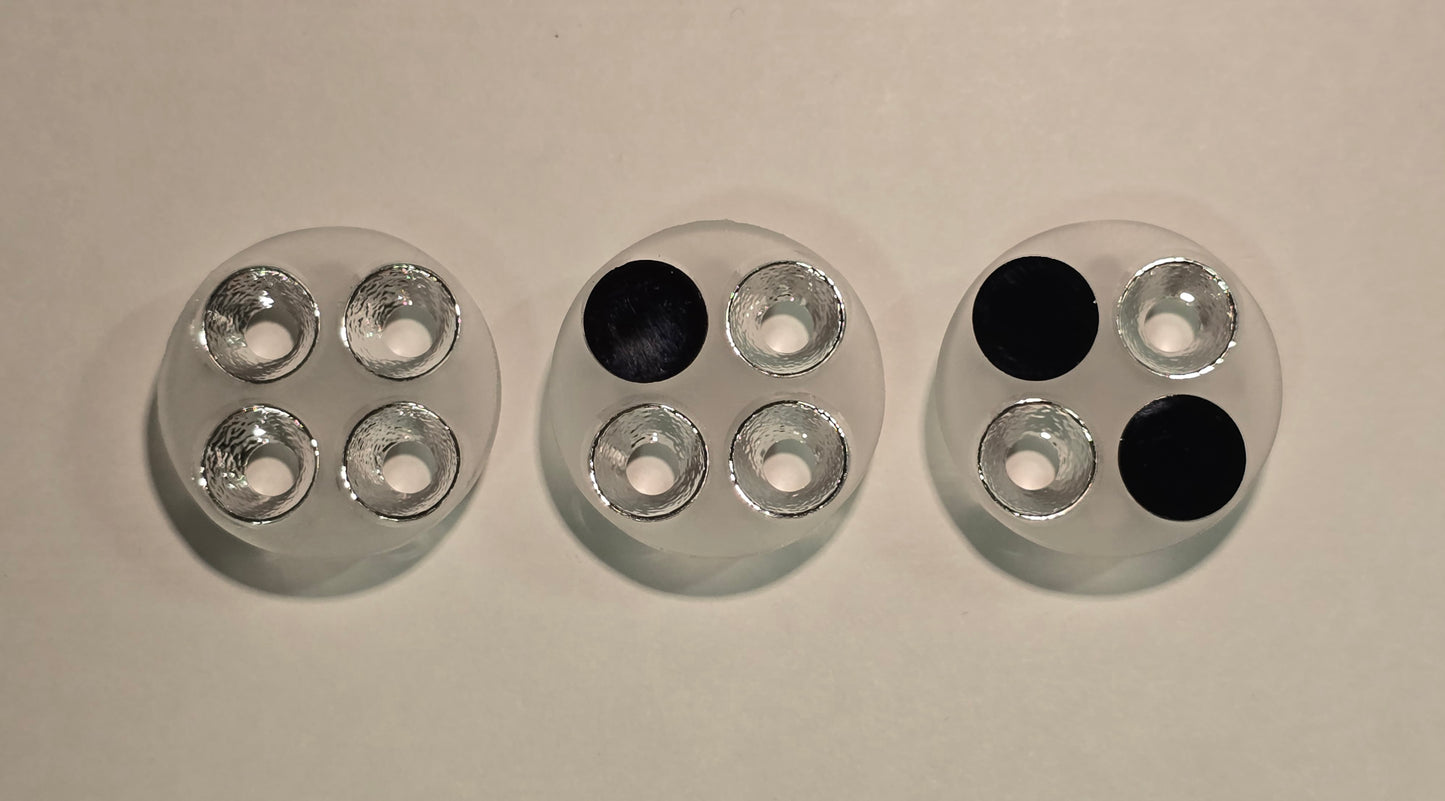

OPTIONS:
QUAD OP REFLECTORS

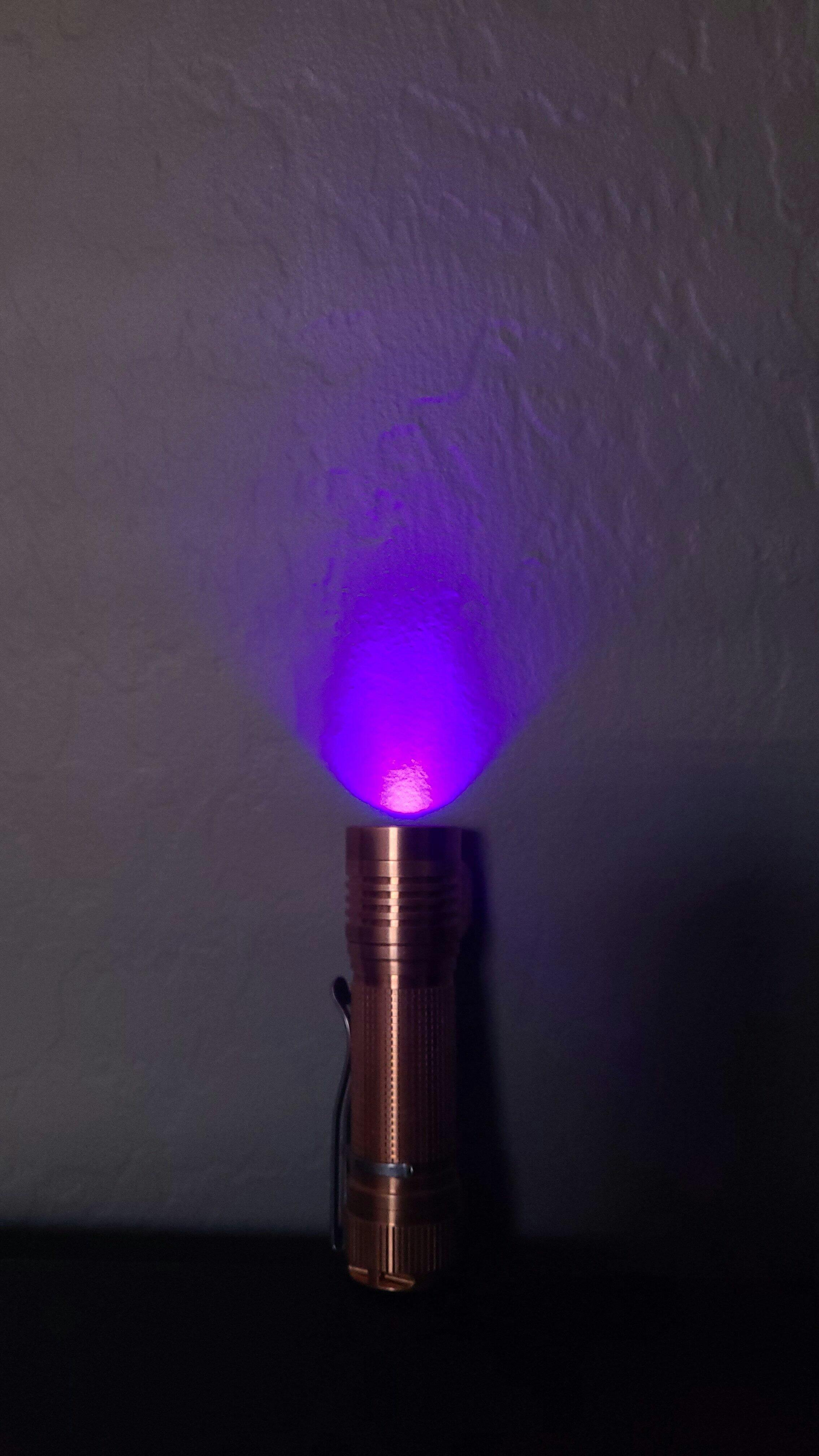

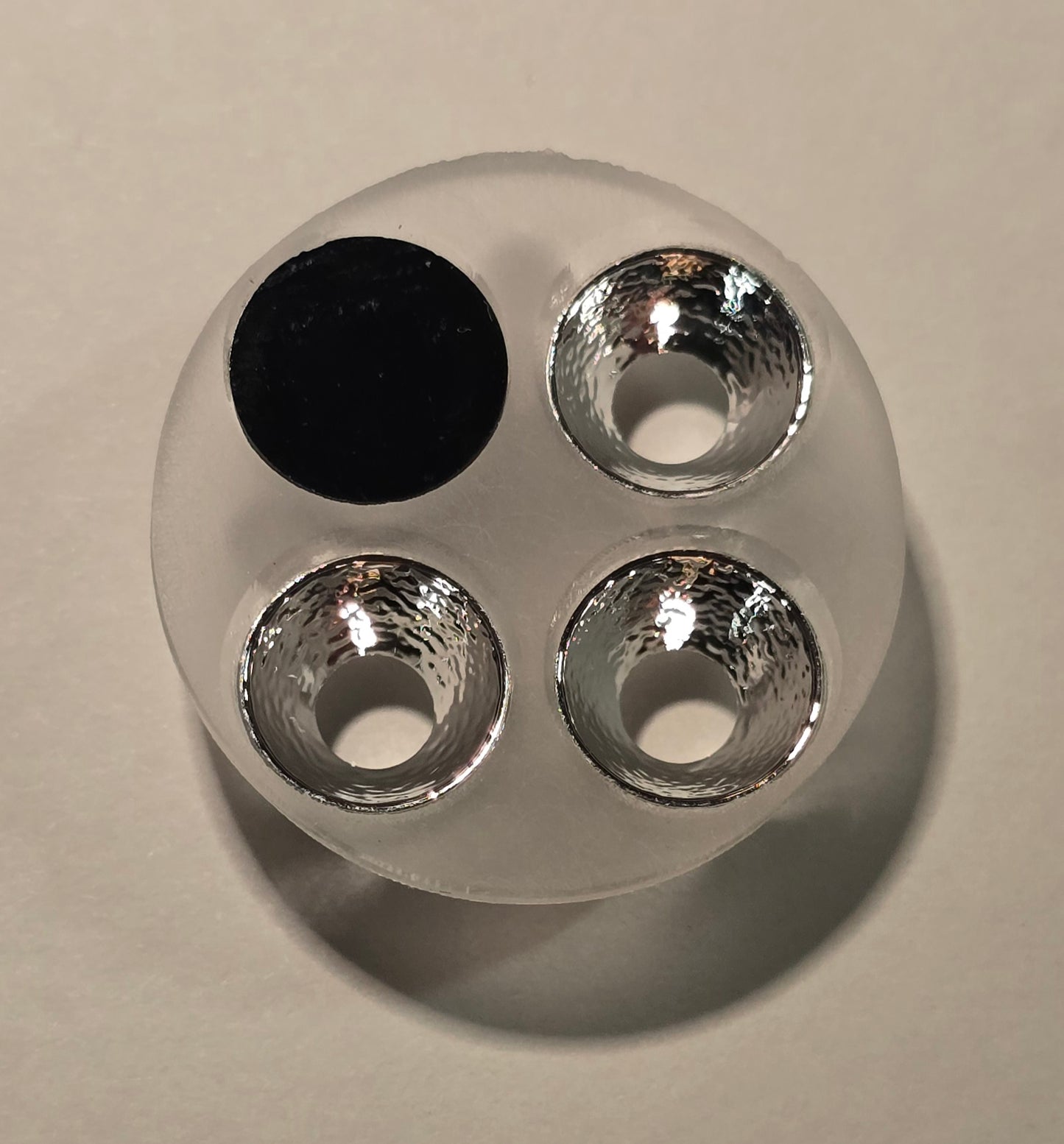

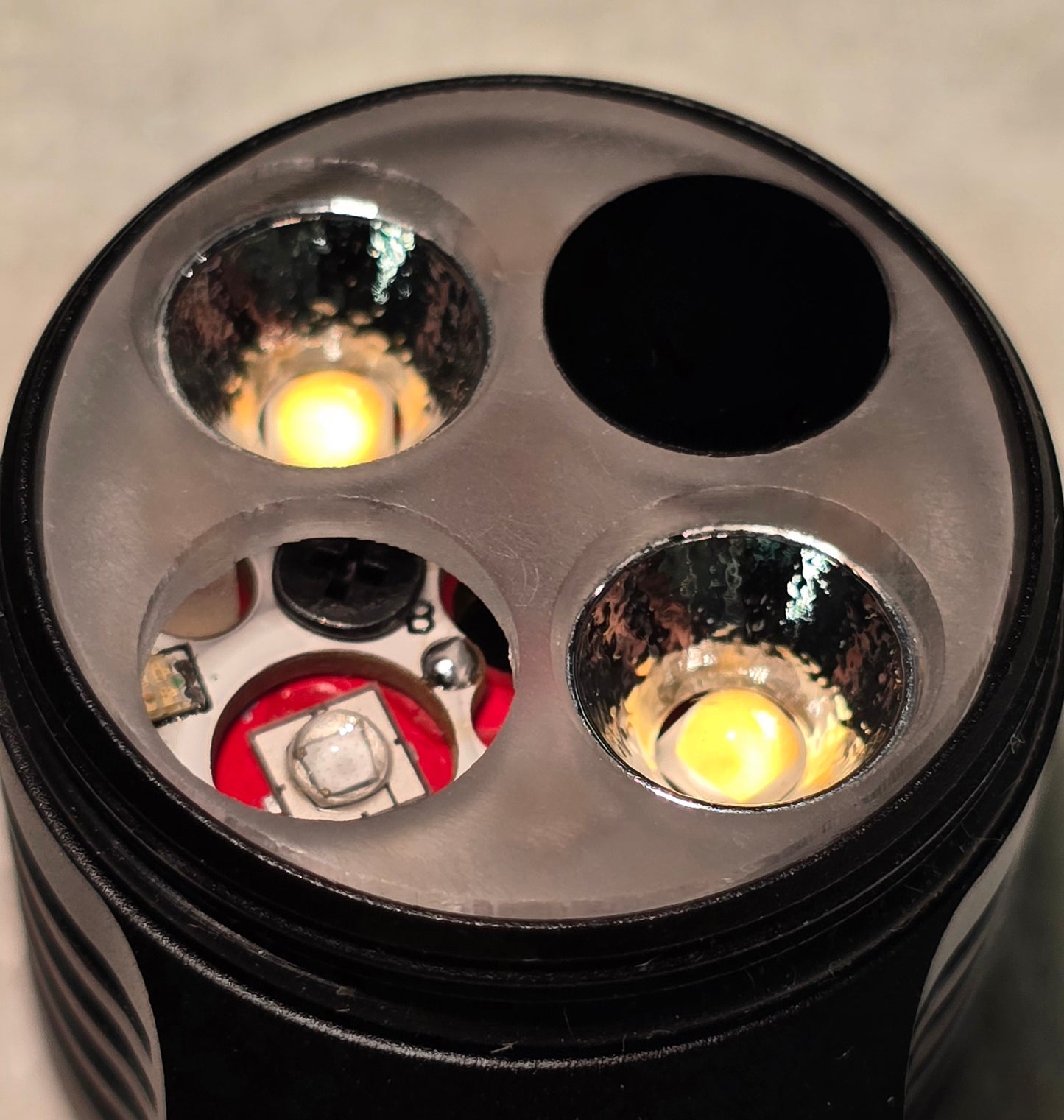

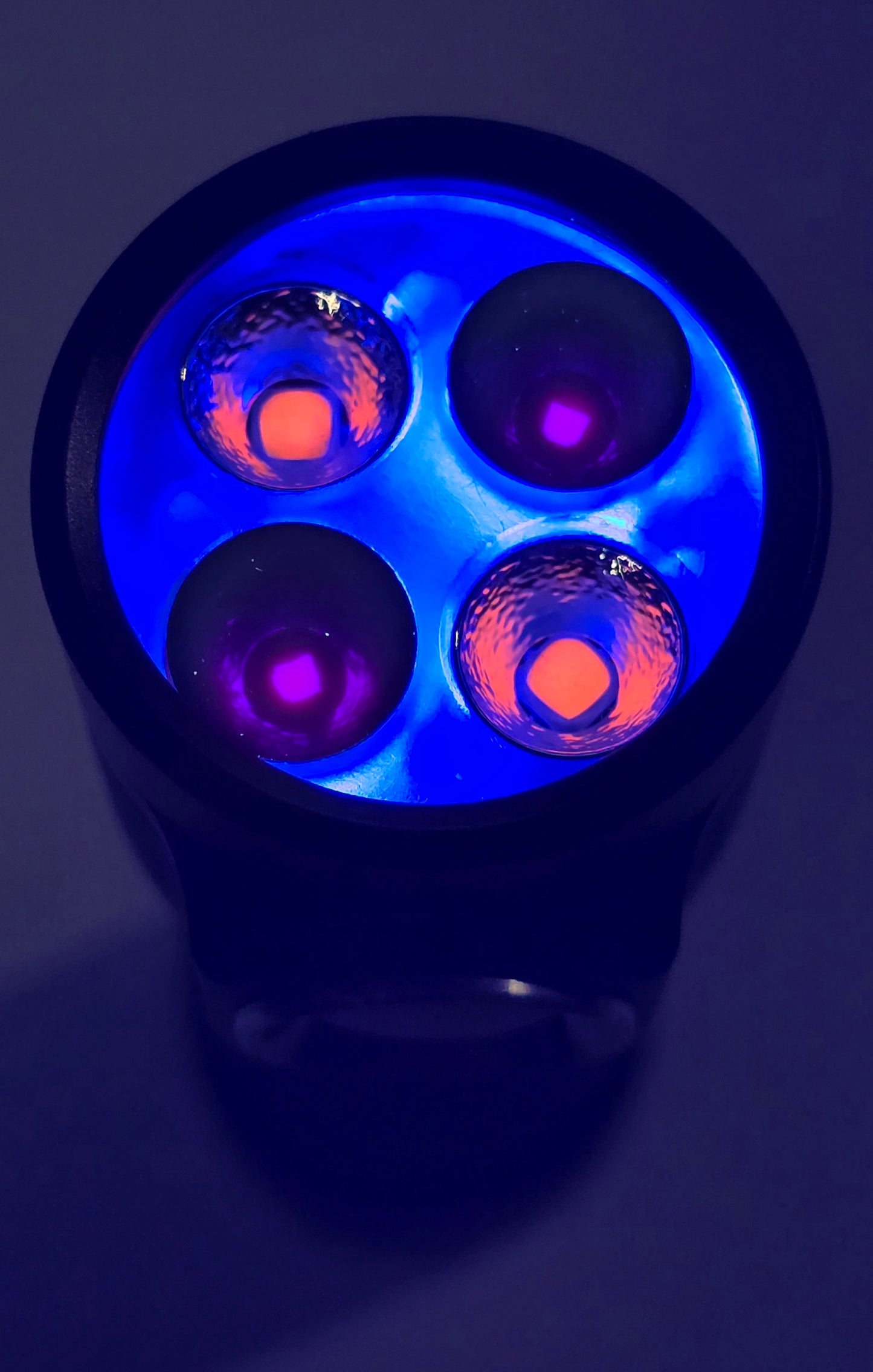

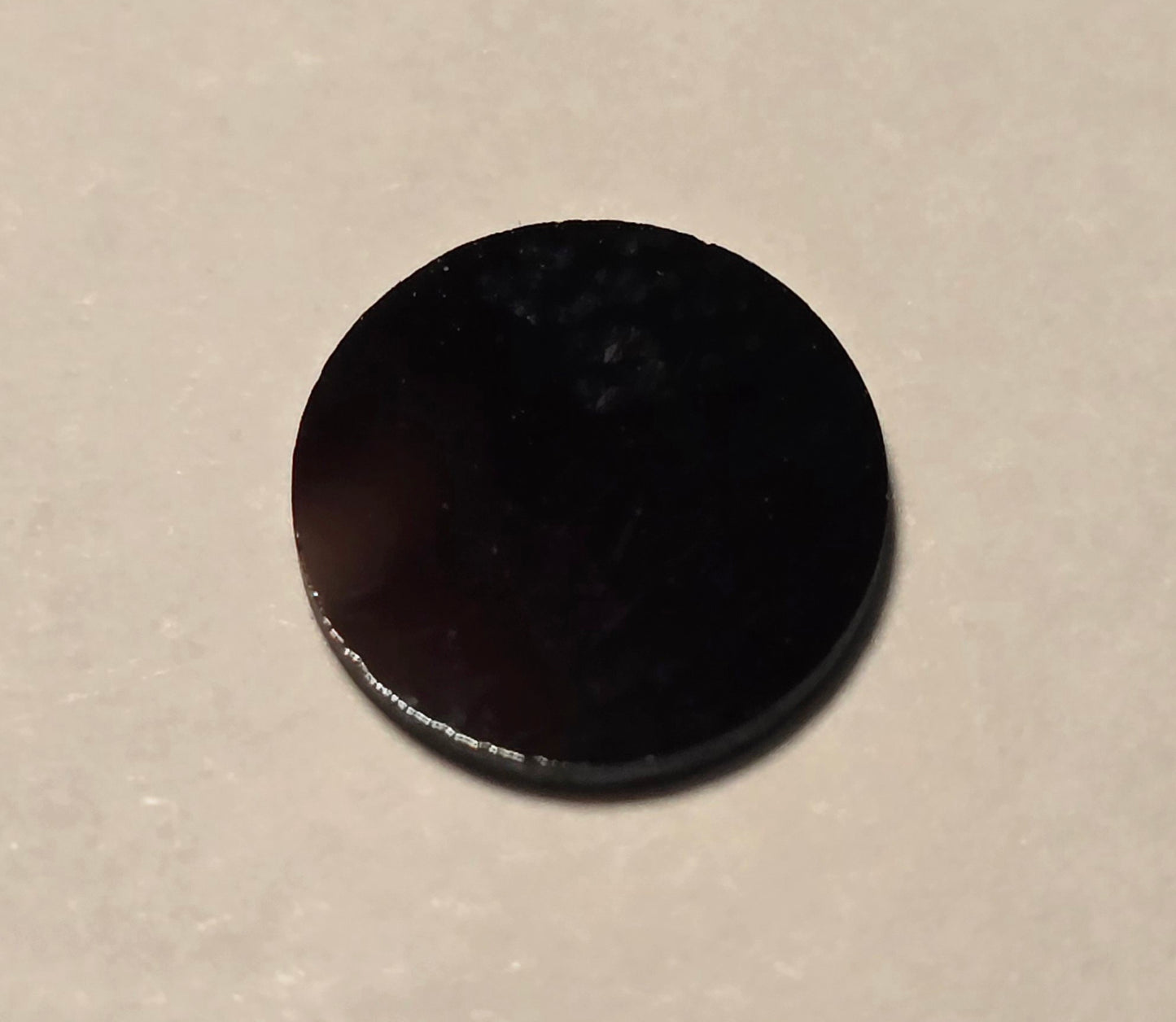

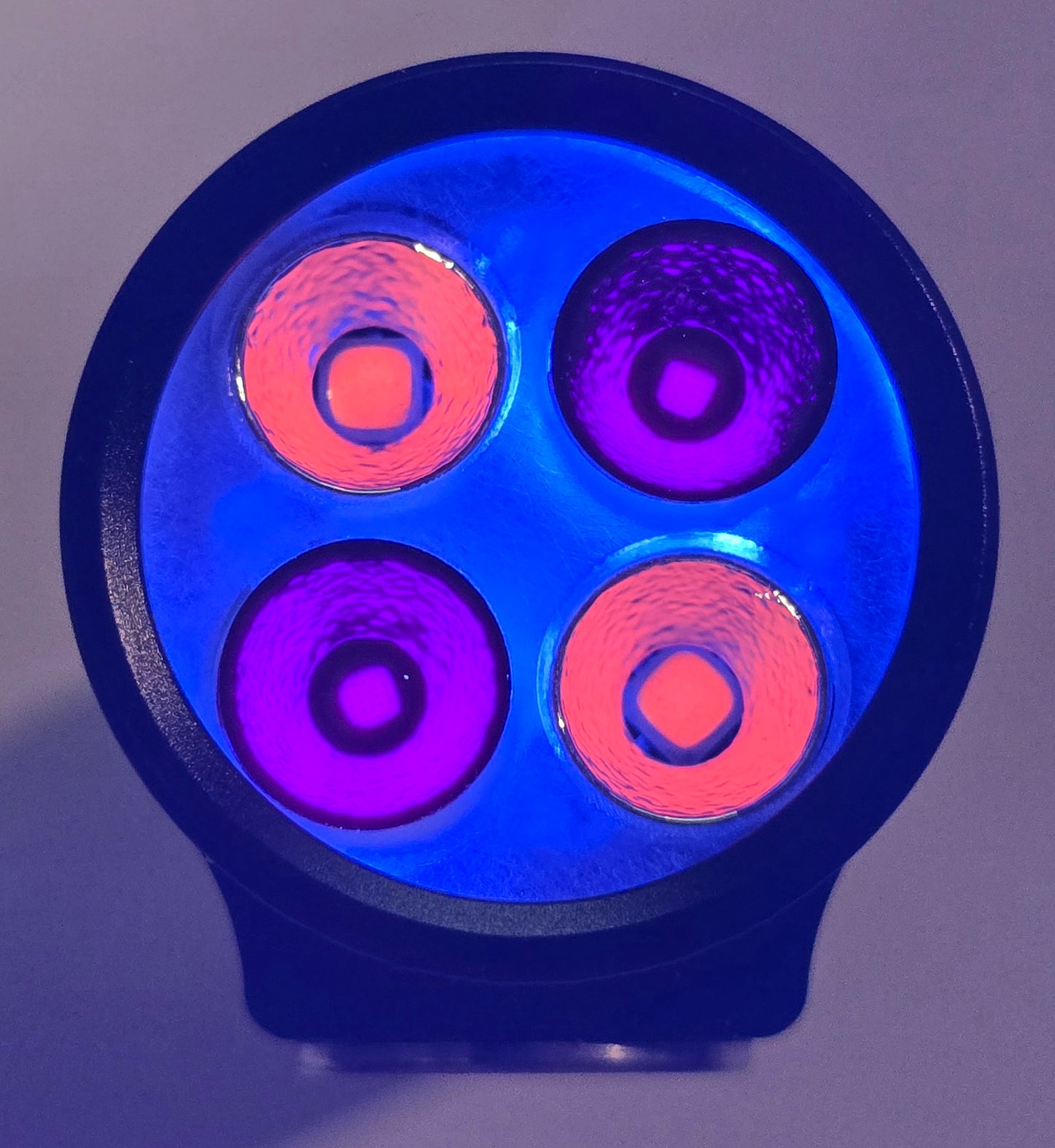

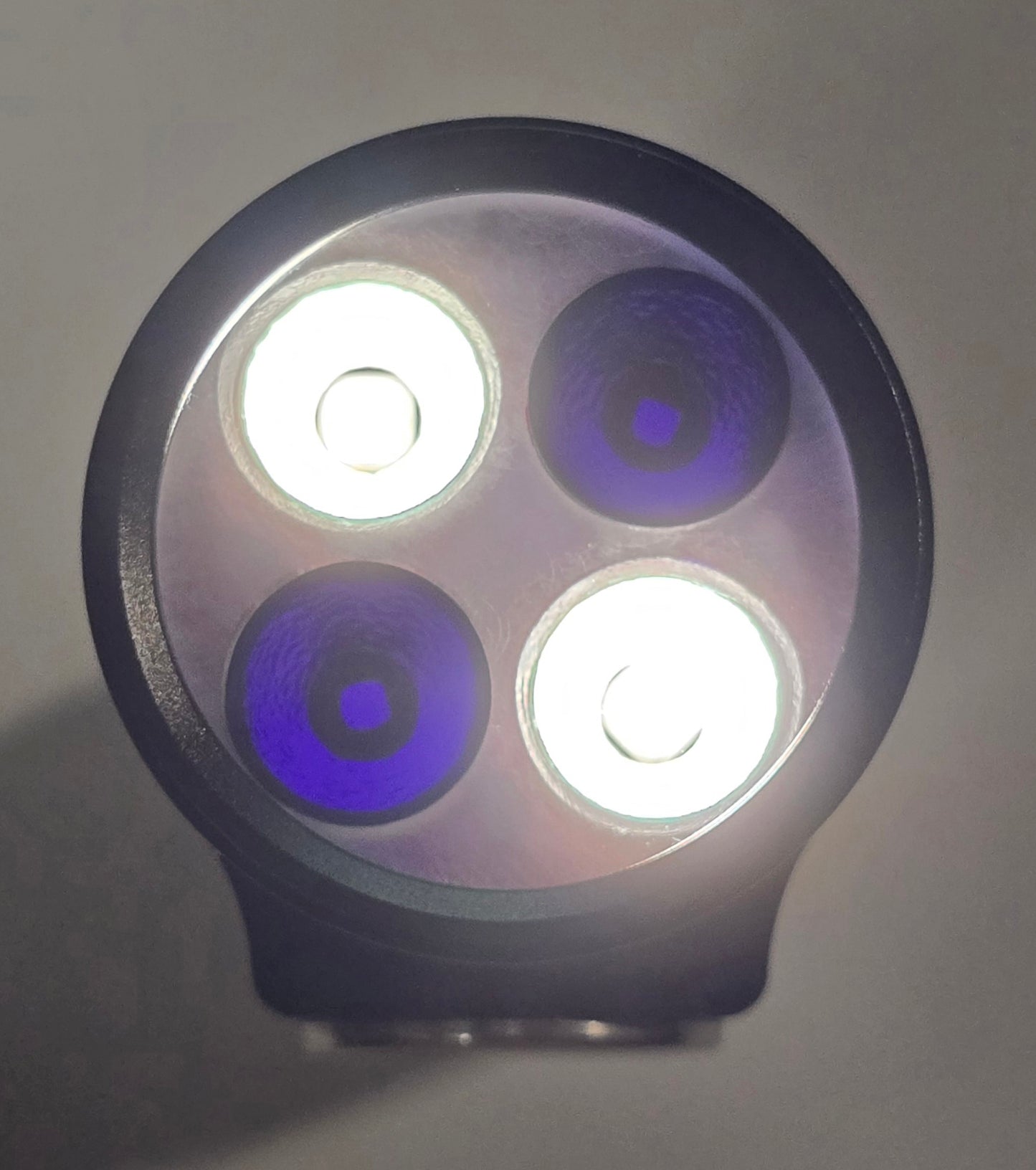

QUAD OP REFLECTORS W/1 ZWB2 365NM UV FILTER

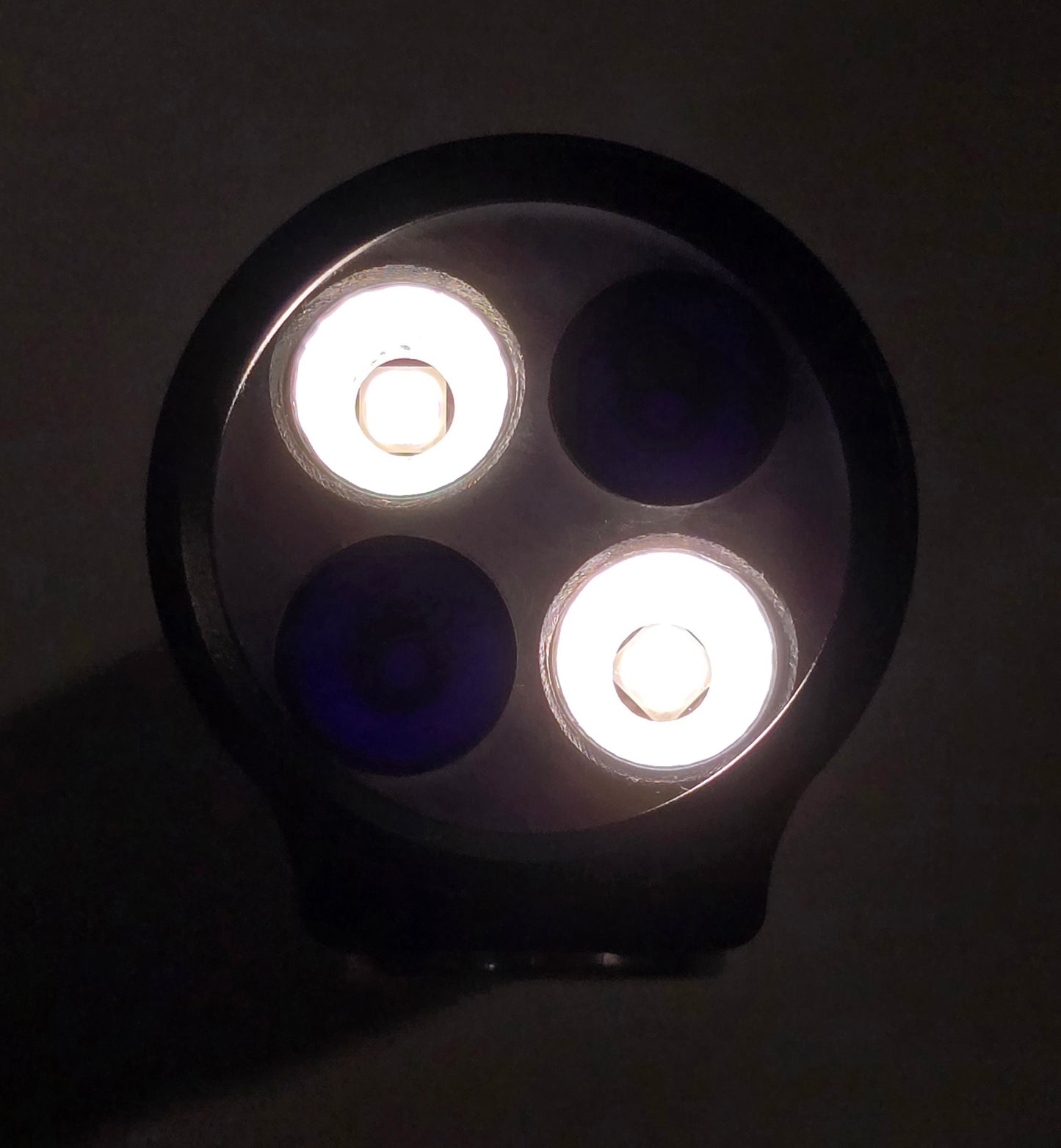

QUAD OP REFLECTORS W/2 ZWB2 365NM UV FILTERS

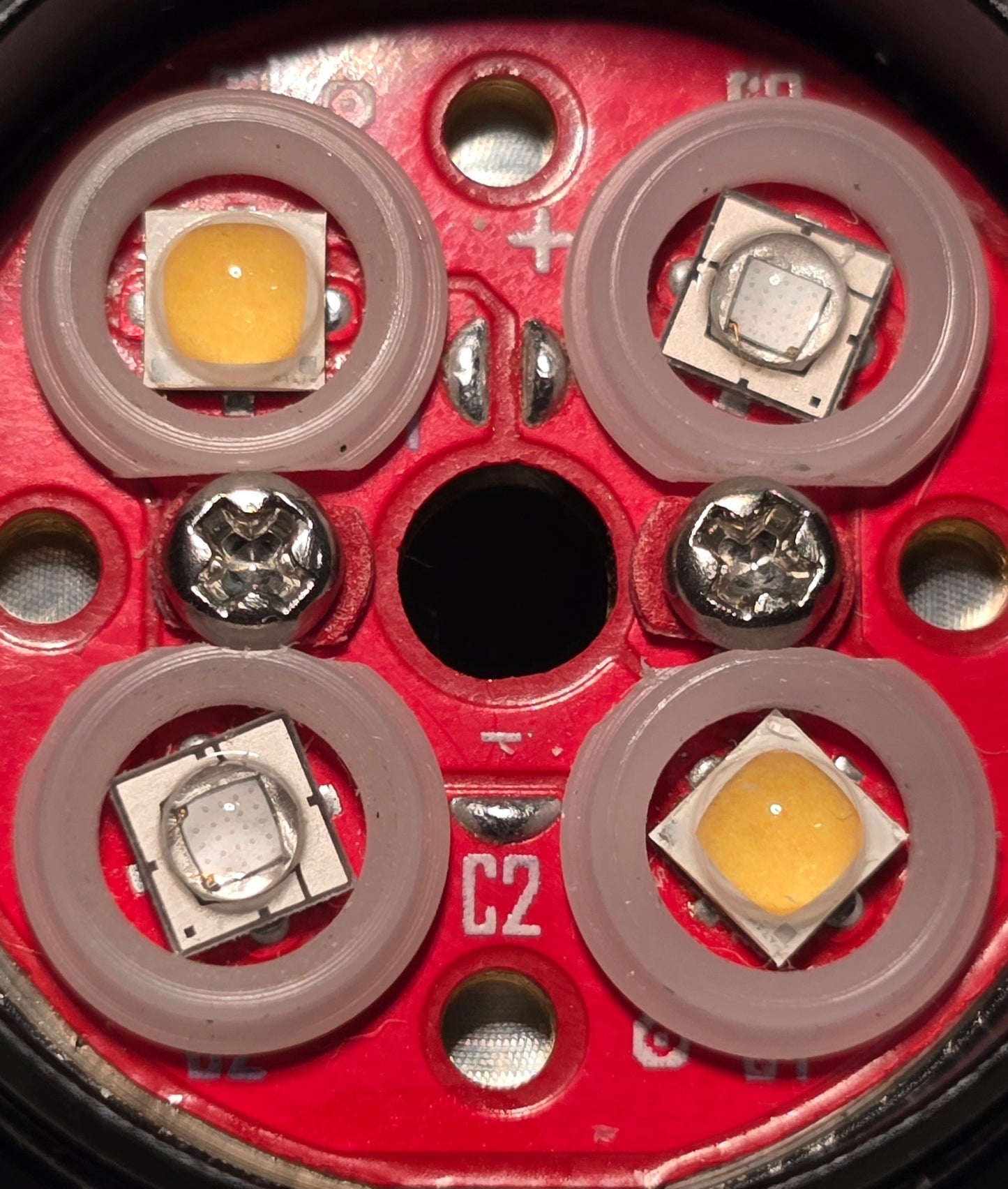

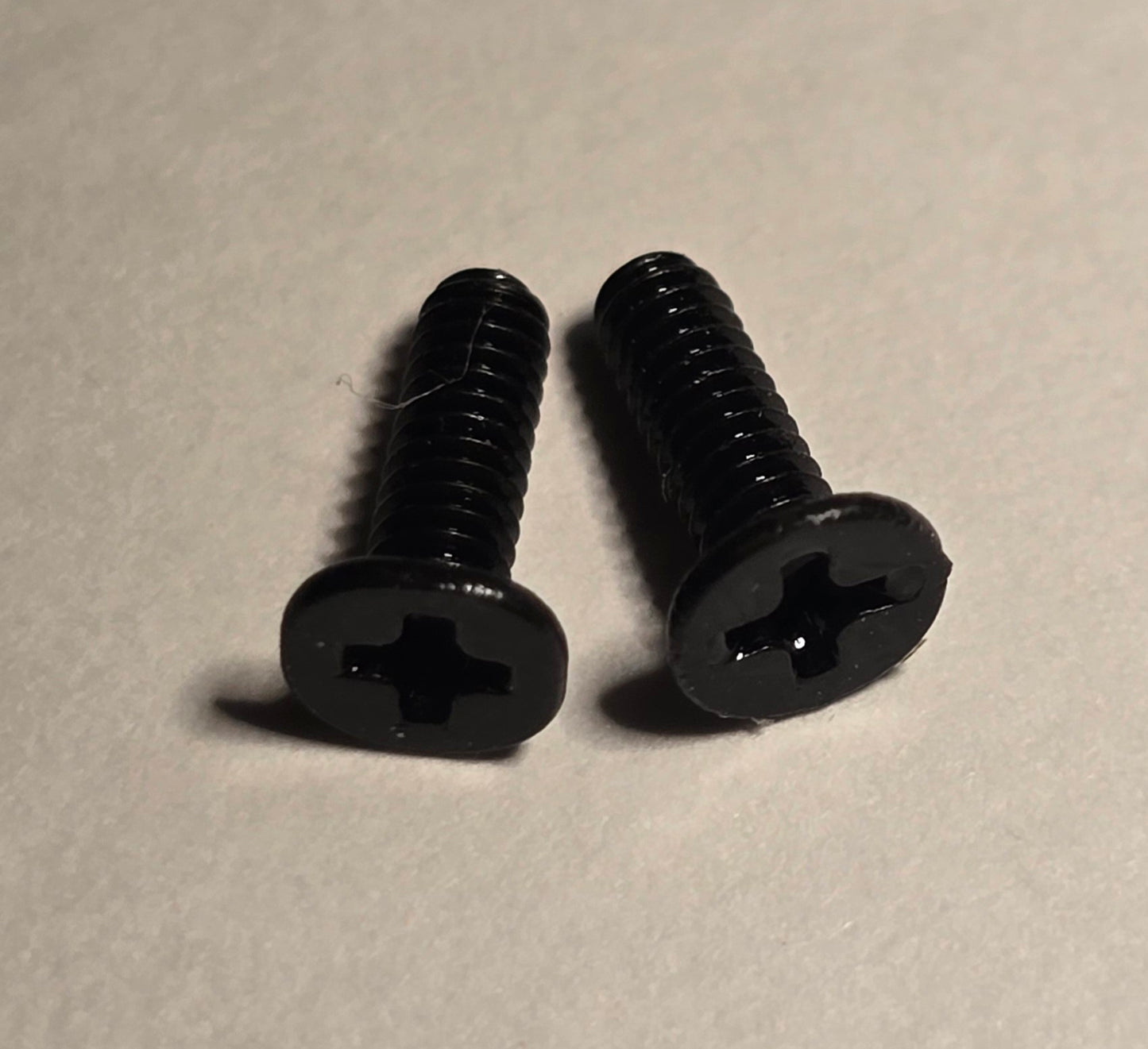

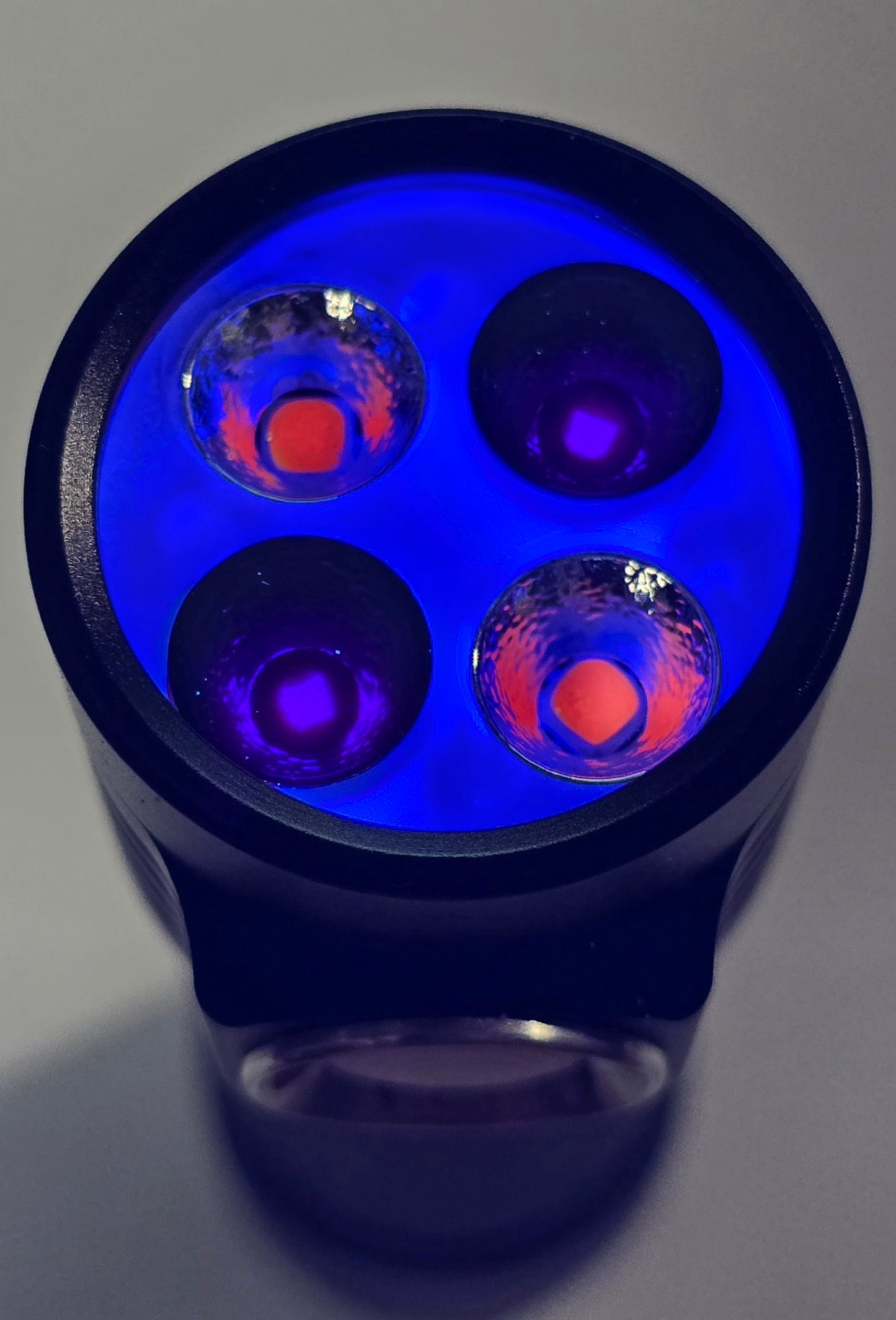

NOTE: WILL NEED SLIGHT MODIFICATIONS TO FIT THESE. WILL REQUIRE SCREWS WITH SMALLER HEADS. LED GASKETS WILL ONLY BE USED IF THERE IS NO AUXILIARIES (AUX BOARD) & OP REFLECTORS WILL NOT BE GLUED IN (OPTIONAL)

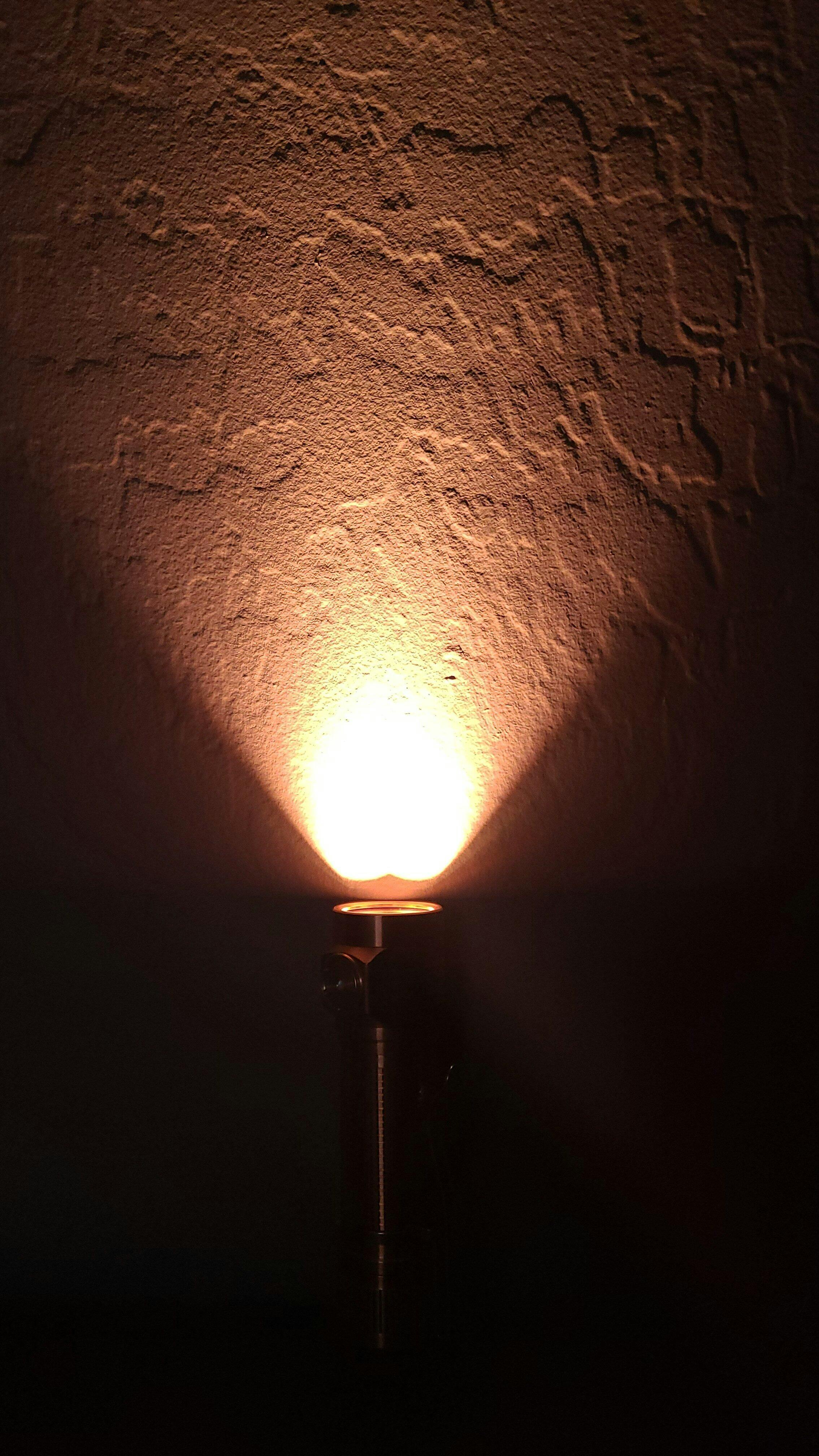

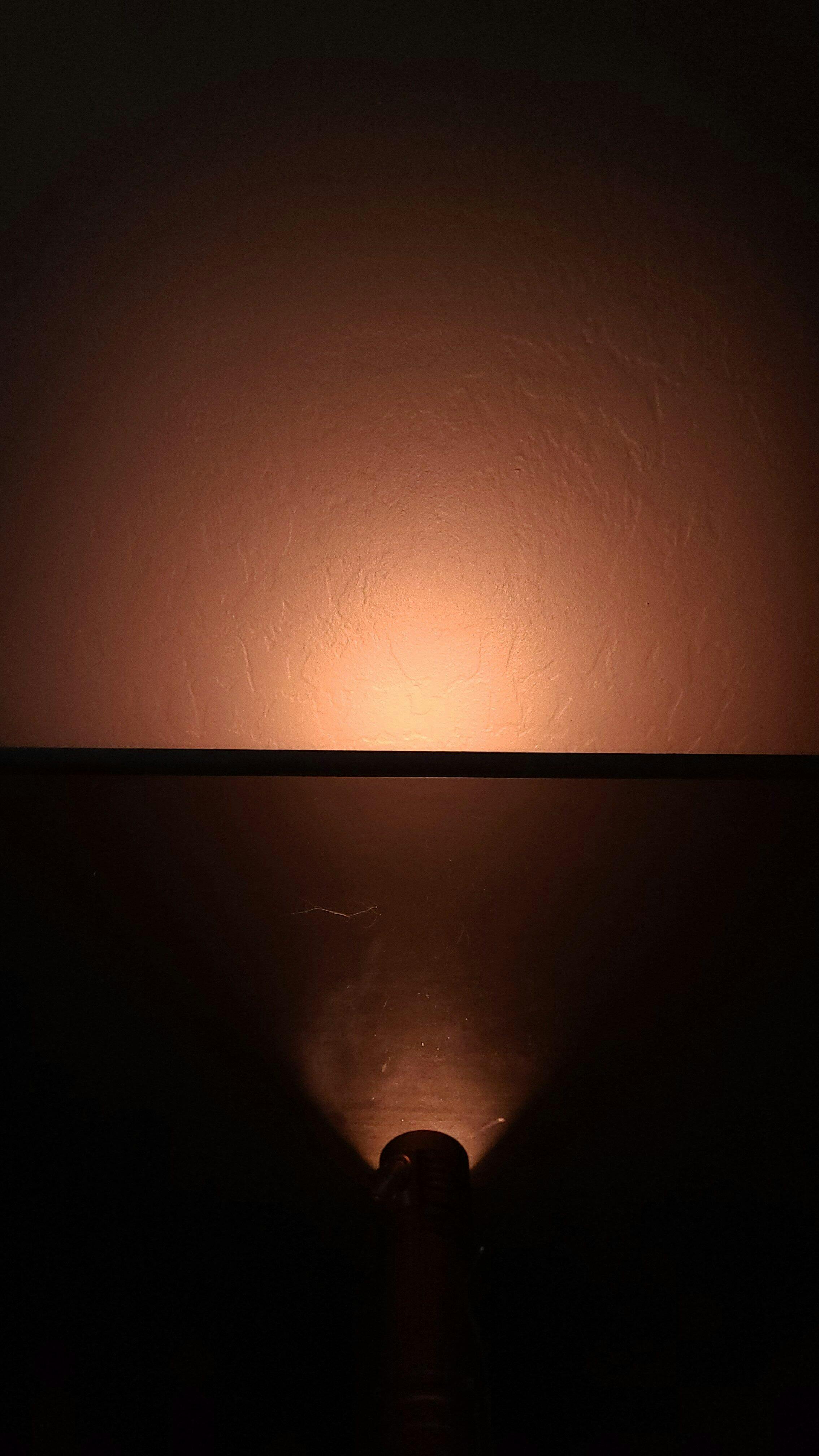

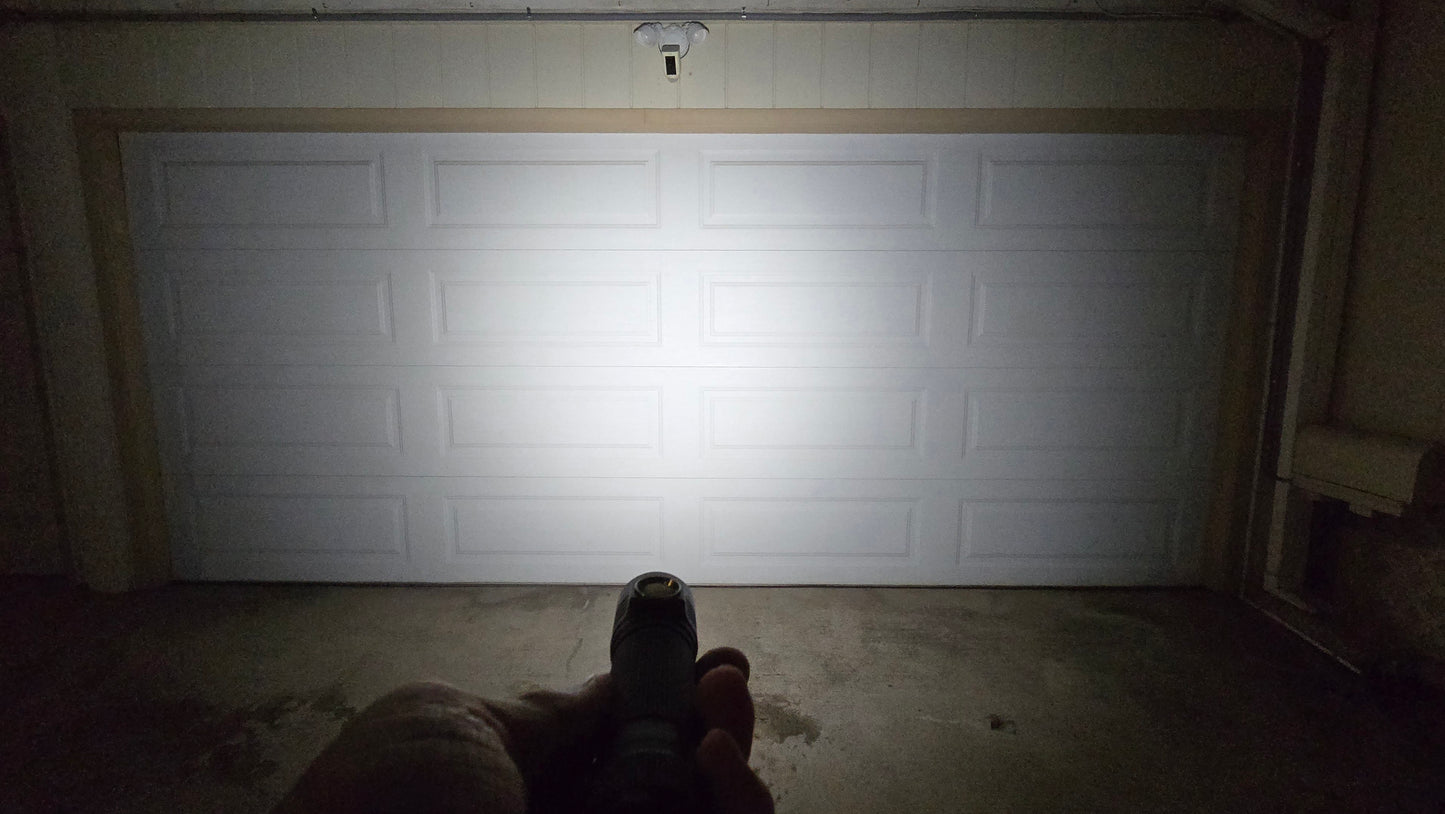

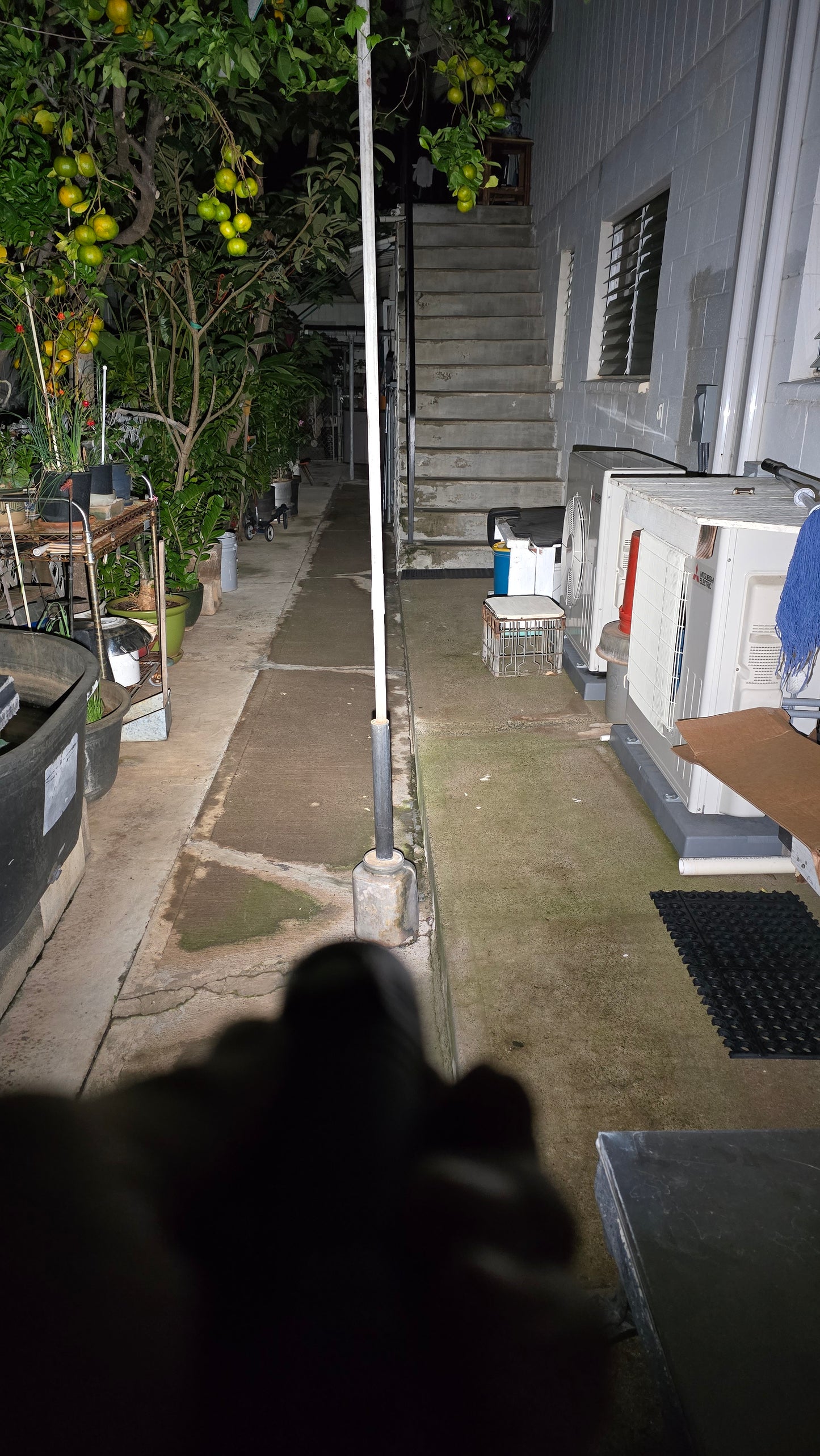

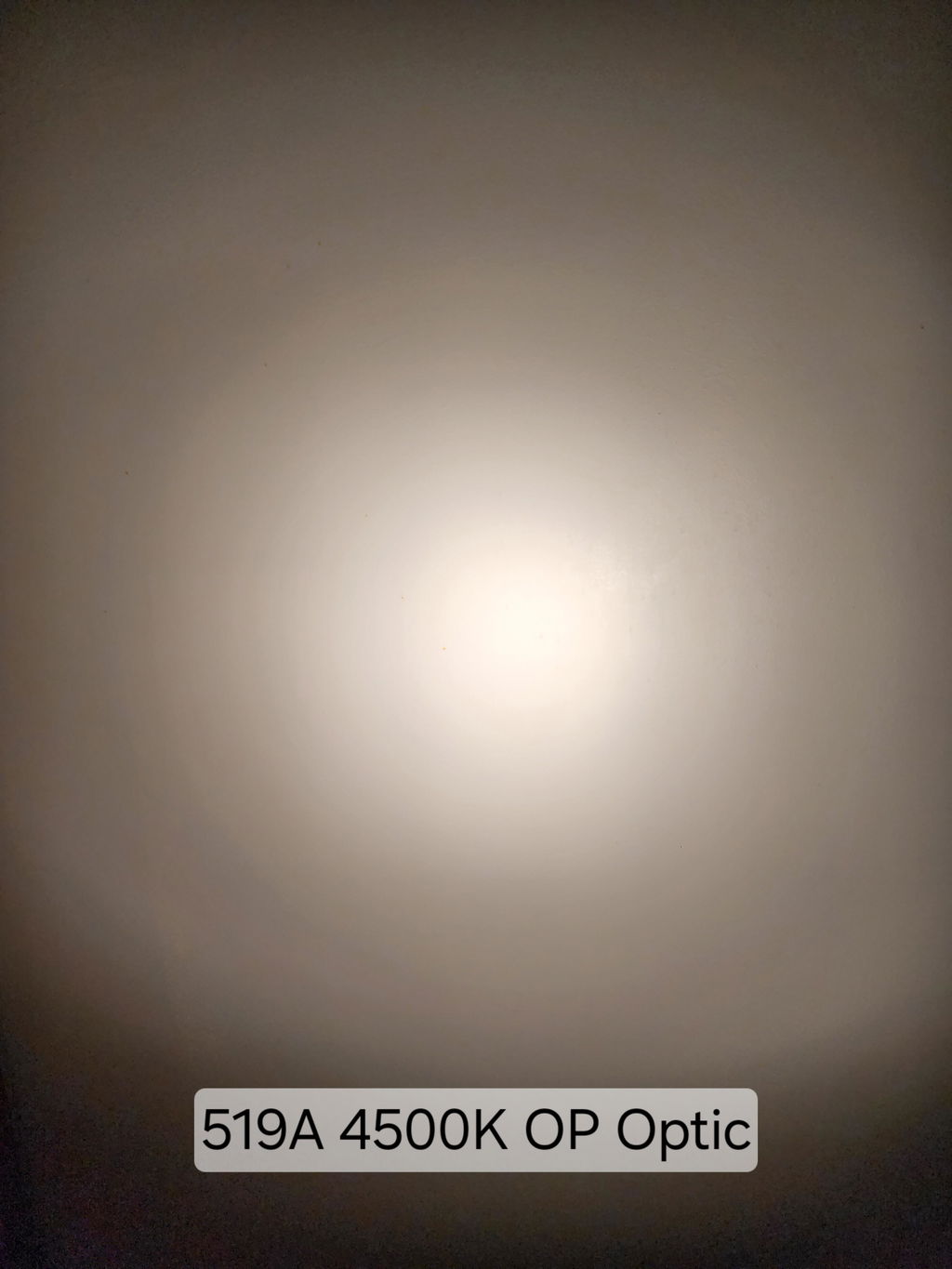

I tried this quad reflector because I wanted more flood without nerfing throw too much like with frosty optics. I use these on a single channel 519a d4v2 and am very happy with the result albeit not the intended use case of a triple channel light. I find the beam is very floody but still has decent throw all while giving my light a very cool and unique look. I highly recommend these reflectors but suggest you order them glued as that was a little tedious to do myself
