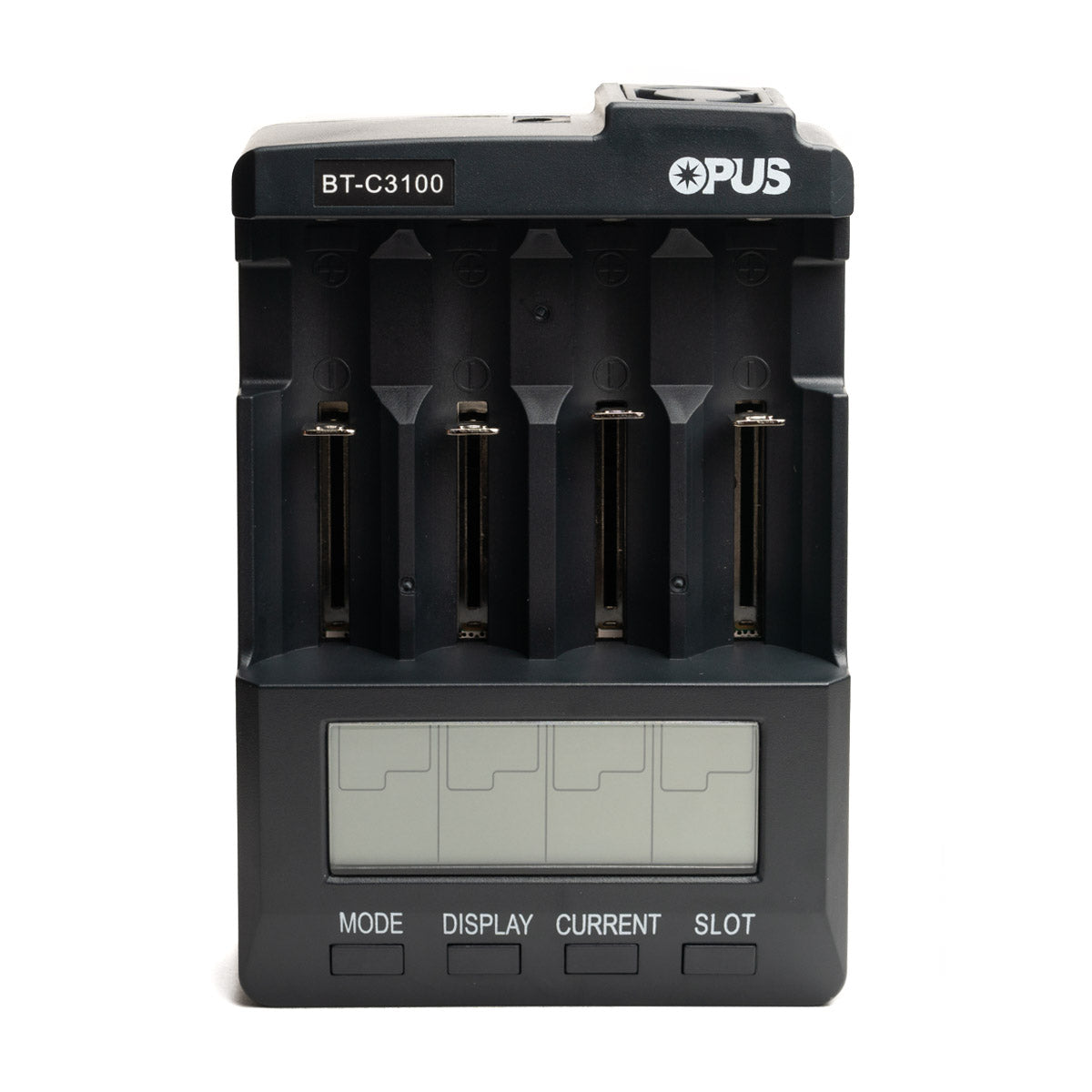

OPUS BT-C3100 V2.2 18650 21700 26650 Li-ion Battery Charger

OPUS BT-C3100 V2.2 18650 21700 26650 Li-ion Battery Charger

OPTION
Regular price $49.88 USD
Regular price $59.99 USD Sale price $49.88 USD
Sale Sold out
Shipping calculated at checkout.

OPUS BT-C3100 V2.2

This is THE BEST CHARGER FOR THE MONEY!

Newest updated model version V2.2

Opus BT3100 review >>> https://lygte-info.dk/review/Review%20Charger%20Opus%20BT-C3100%20UK.html

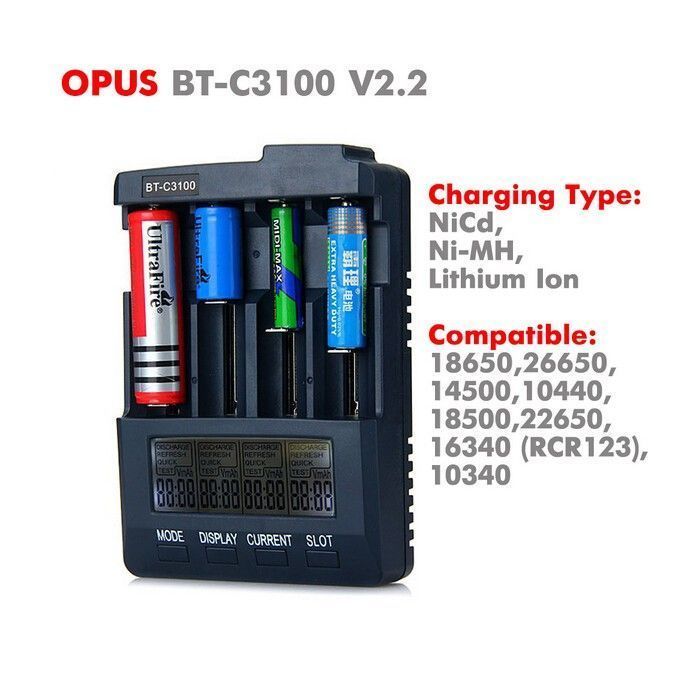

Compatible Battery Type

Li-ion: 18650, 18500, 8490, 17670, 17500, 17335, 16340, 14500, 10440, 10340, 21700, 20700, 26650, 26500

certain NiMH

certain NiCd

AA

AAA

Specifications Listed by Manufacturer

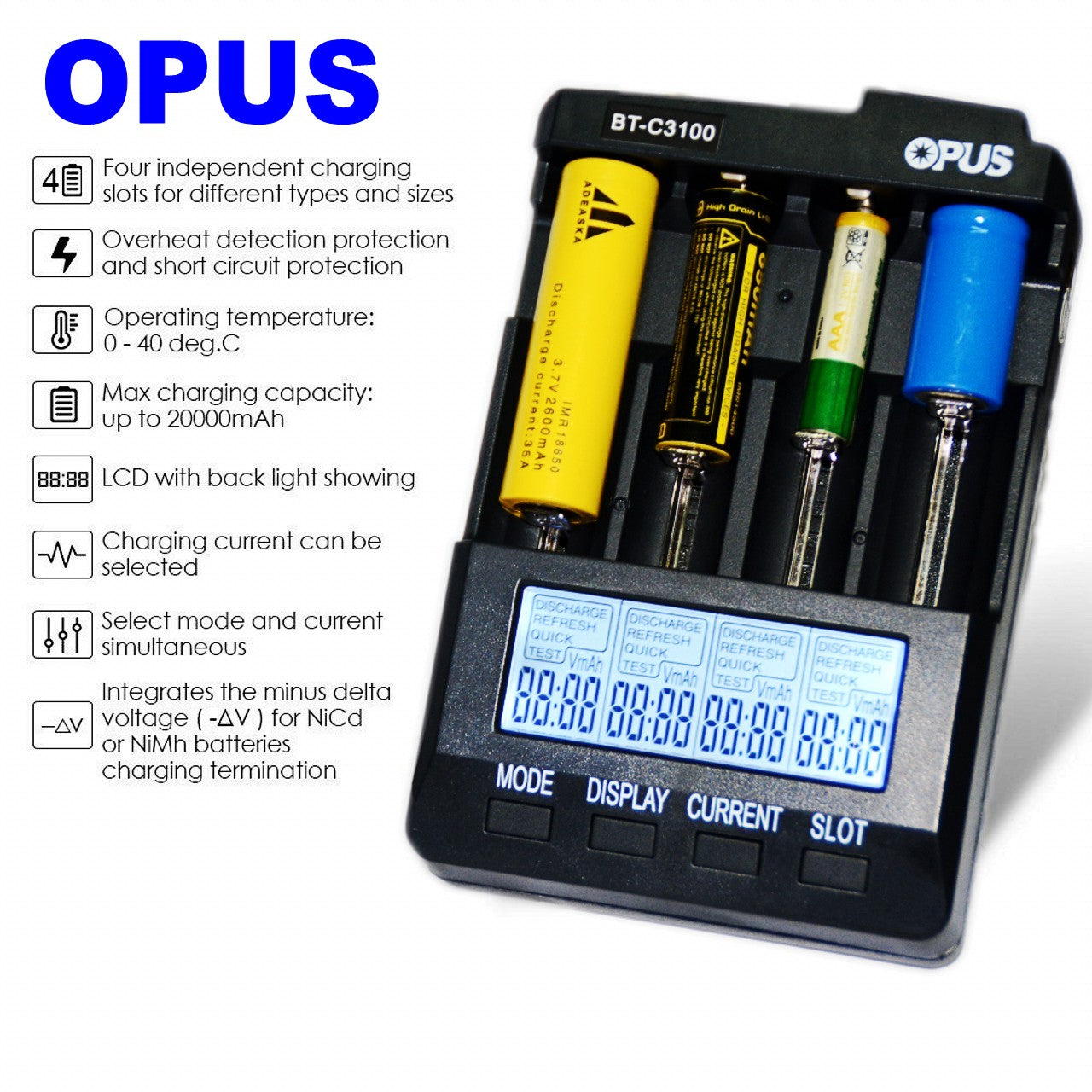

Main Features:
The charger integrates the minus delta voltage for NiCd or NiMh battery charging termination, and for Li-ion batteries charging to 4.2V with pre-selected constant current. (3.7 Li-FeO4 and 4.35 type high voltage batteries charging mode can be selected through switch on board)
Easy to read LCD with back light Showing Battery Voltage, Charge / Discharge Current, Charging Time, Battery Capacity etc.
Operating temperature: 0 – 40 deg.C
Max charging capacity: Up to 20000mAh
Power adapter: DC 12V, 3.0A (Output), 100 – 240V, 50 / 60Hz (Input)
Highlight:
1. Voltage update rate is 30s instead of 60s.
2. 4.35V charging time can be very long because charging current is regulated in entering the CV stage at 4.12V, which is same as 4.2V type. Now
3.35V charging algorithm is changed to 4.27V.
4. New fan cover make better protection for cooling fan.
5. Charging current range (mA): 200, 300, 500, 700, 1000, 1500, 2000
6. Discharge current range (mA):200, 300, 500, 700, 1000 (li-ion cell battery only)
7. Max. charging capacity: 20000mAh
8. Voltage deviation: max 0.03V 4.2V
9. Current deviation: max 5%
Type: Charger
Brand: Opus
Model: BT-C3100 V2.2
Rechargeable Battery Qty: 4
Input Voltage: AC 100~240V 50/60HZ
Output Voltage: DC 12V, 3.0A
LCD Screen: YES
Auto Circuit Detection: YES
Built-in Protected Circuit: YES
Over Voltage Protection: YES
Short-Circuit Protection: YES
Over-Charging Protection: YES
Over-Discharging Protection: YES
Battery Quantity: 4

Packaging

Package weight: 0.558 kg
Product size (L x W x H): 14.4 × 9.8 × 3.9 cm / 5.66 × 3.85 × 1.53 inches
Package size (L x W x H): 16 × 22 × 5 cm / 6.29 × 8.65 × 1.97 inches
