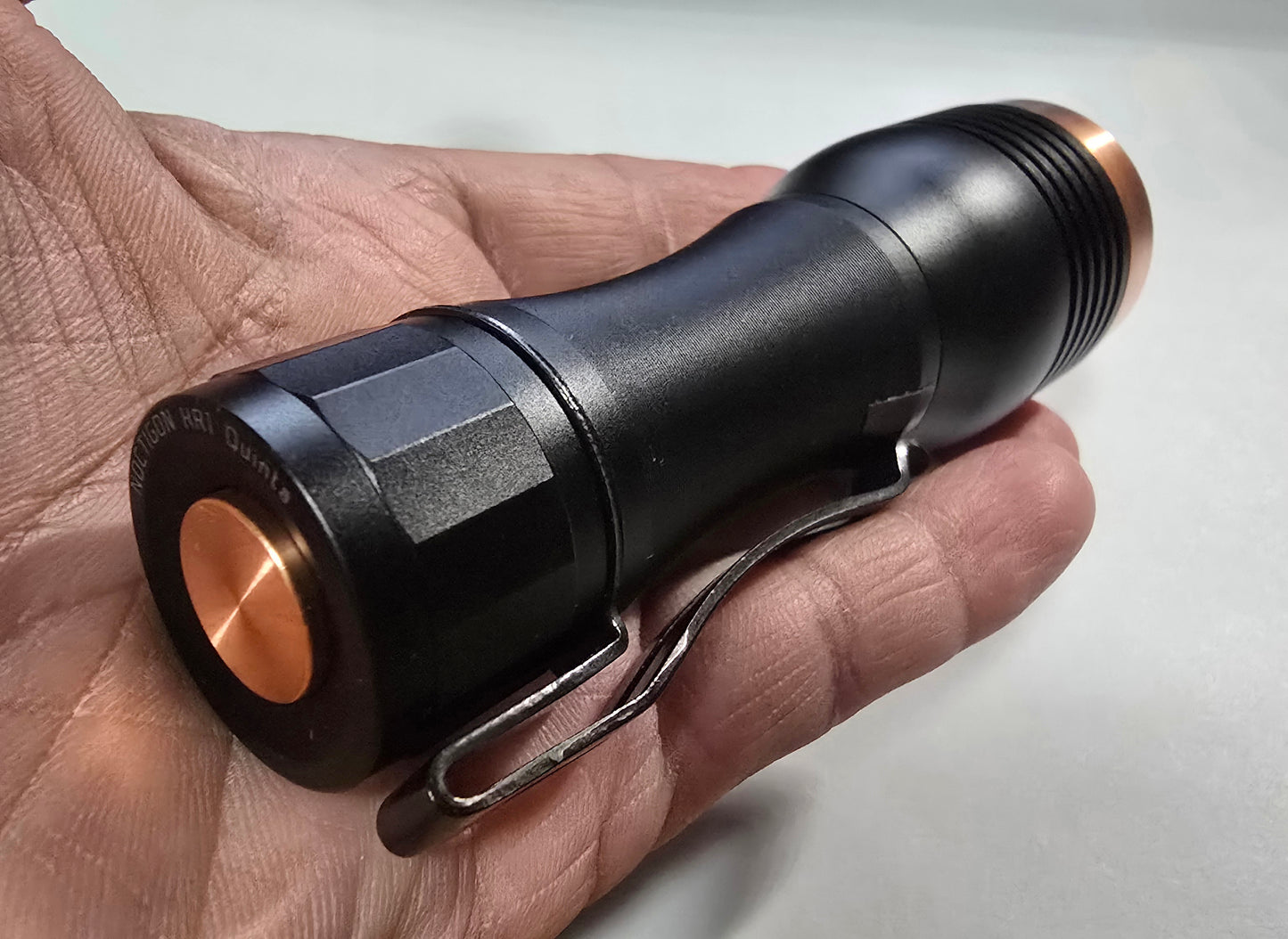

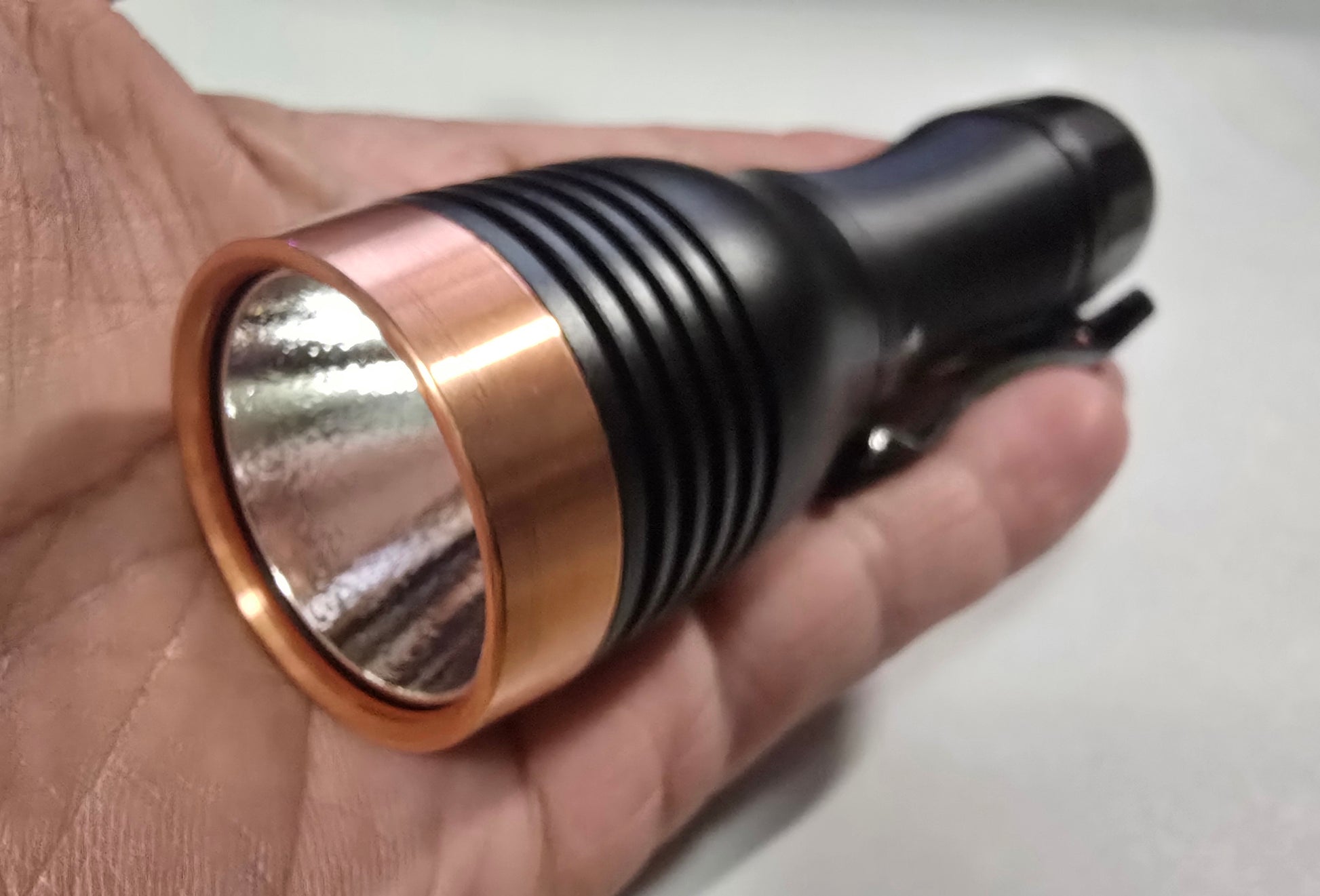

Noctigon KR1 18650 LED Flashlight *CUSTOM BUILT-TO-ORDER*

Noctigon KR1

WARNING! Noctigon KR1 puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing. Unprotected, flat top battery works only (not included in the price), KR1 does not work with protected battery.

Works with unprotected, 18650 flat top battery only (not included)

5/20/2025:

There is new black PVD coated stainless parts available & with new black switch buttons! You can select your options at during the time of your custom build. If the option is not selectable it's not available, the metal switch buttons won't be available will the end of May.

User interface:

Anduril 2 UI

Driver:

Linear

Linear + FET

6V 4A boost driver available for 6v emitters

Emitter options:

Osram W1 & W2

Osram W2.1 & W2.2

Luminus SFT25r

Luminus SFT40

Luminus SBT90.2

FFL351rd

FFL505a

FFL5095UT

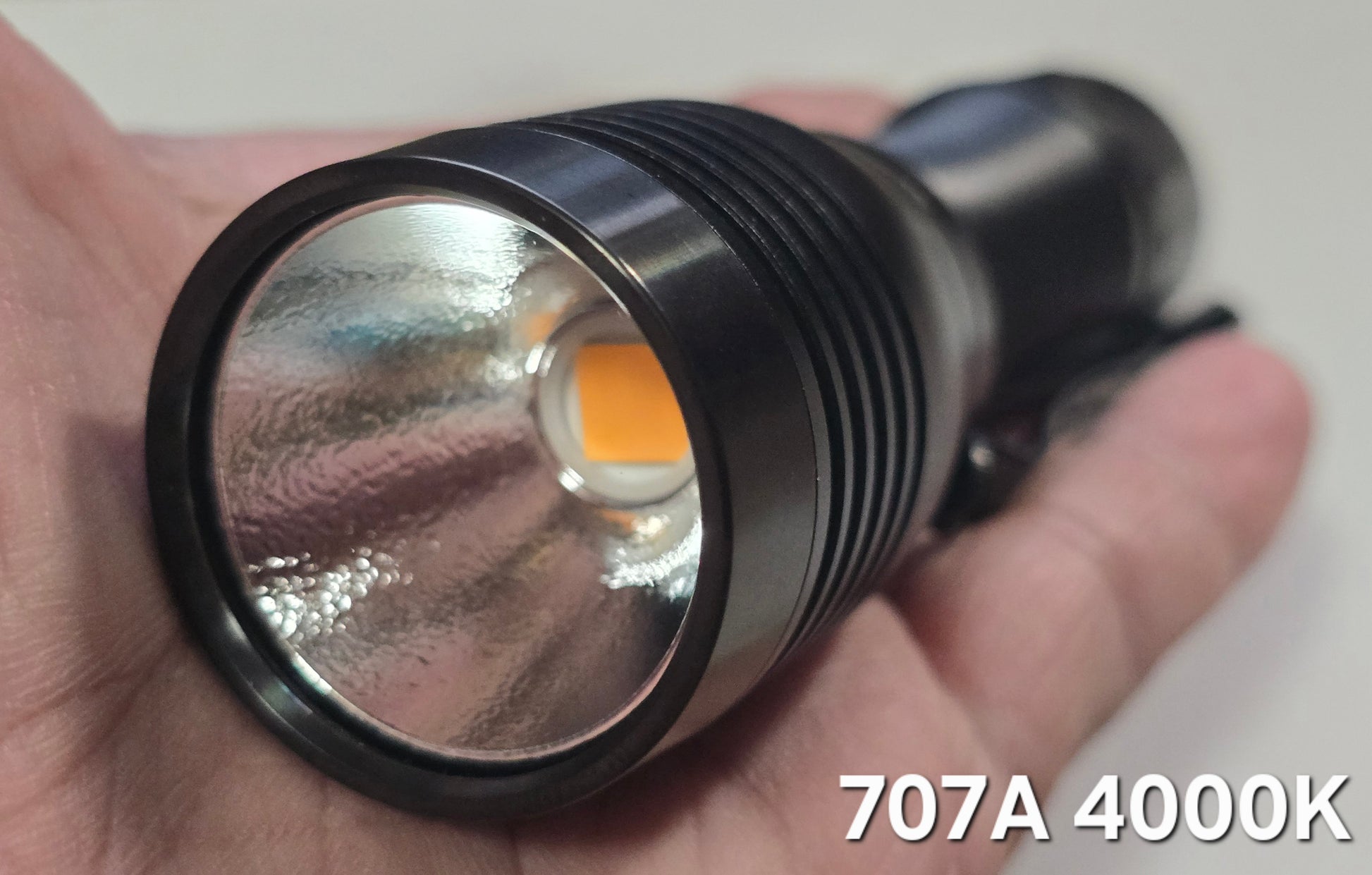

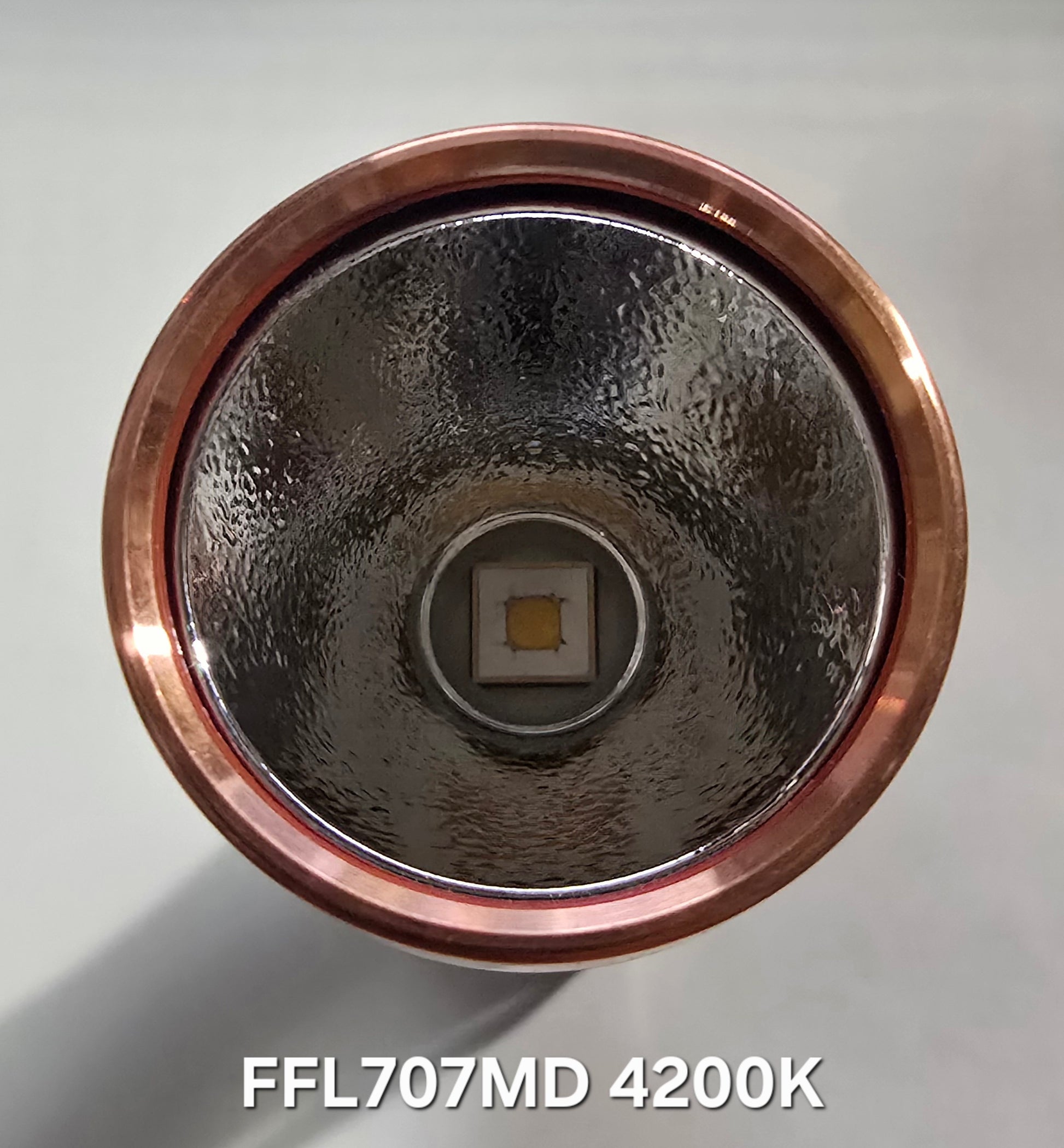

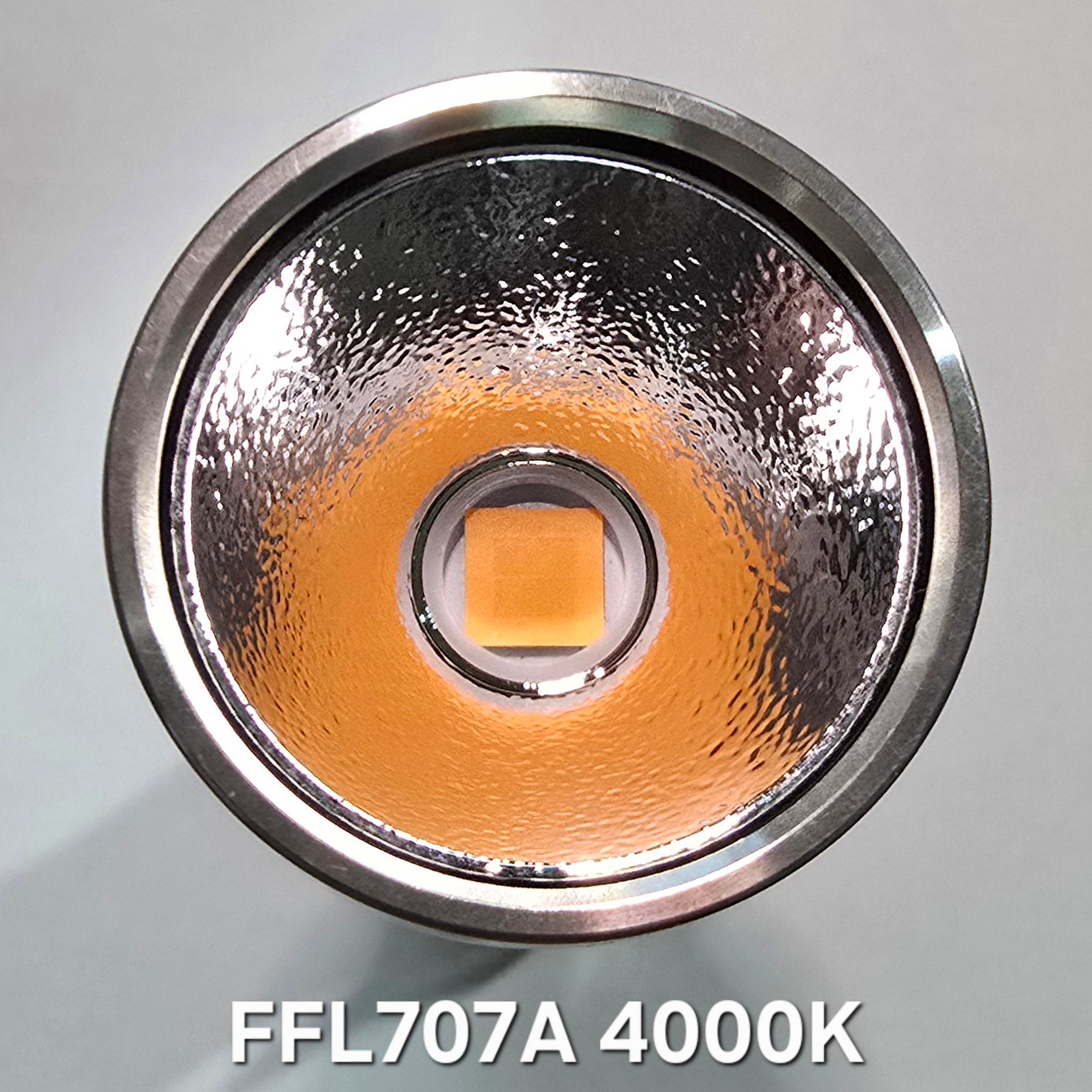

FFL707a (6v)

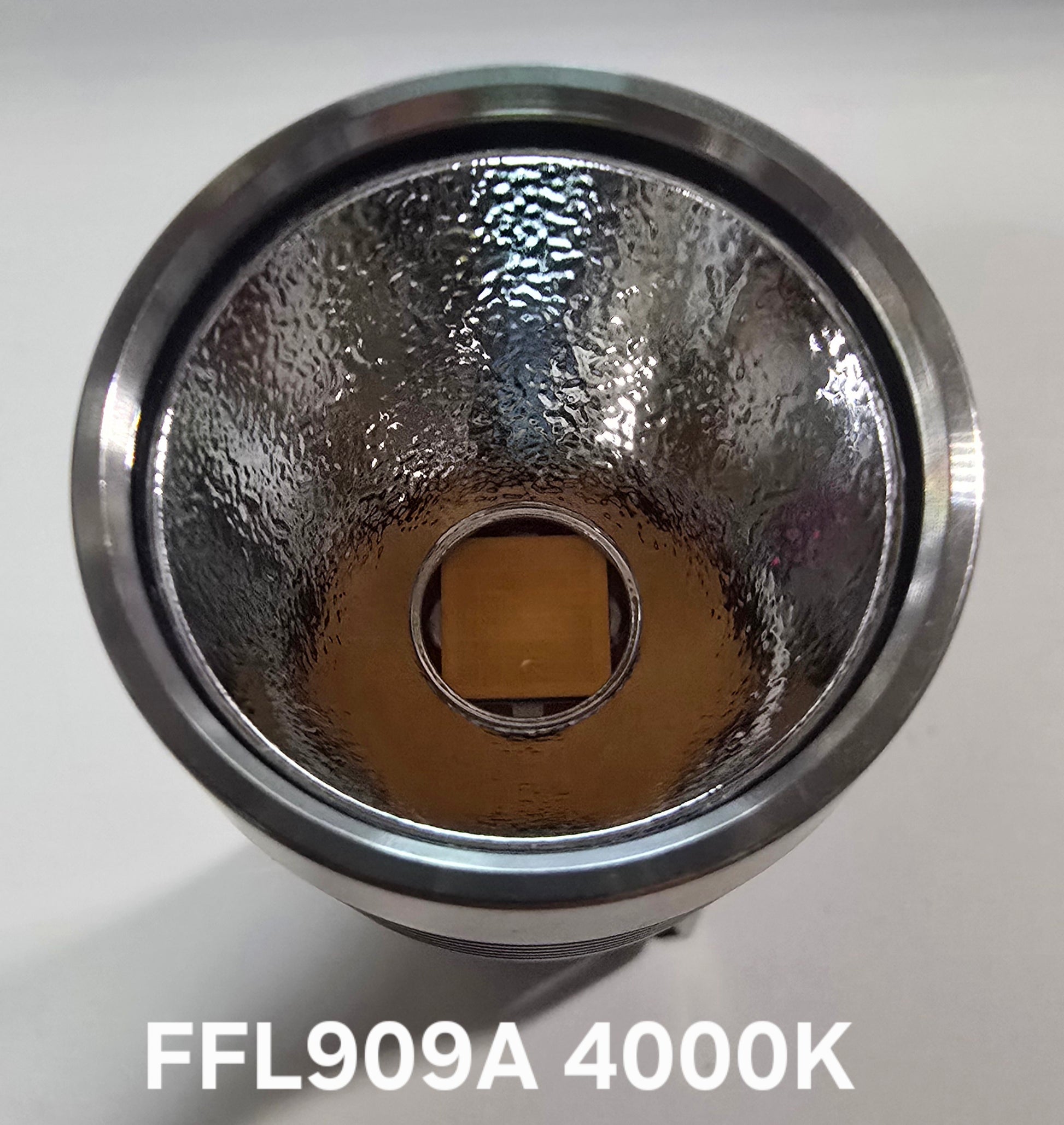

FFL909a (3v)

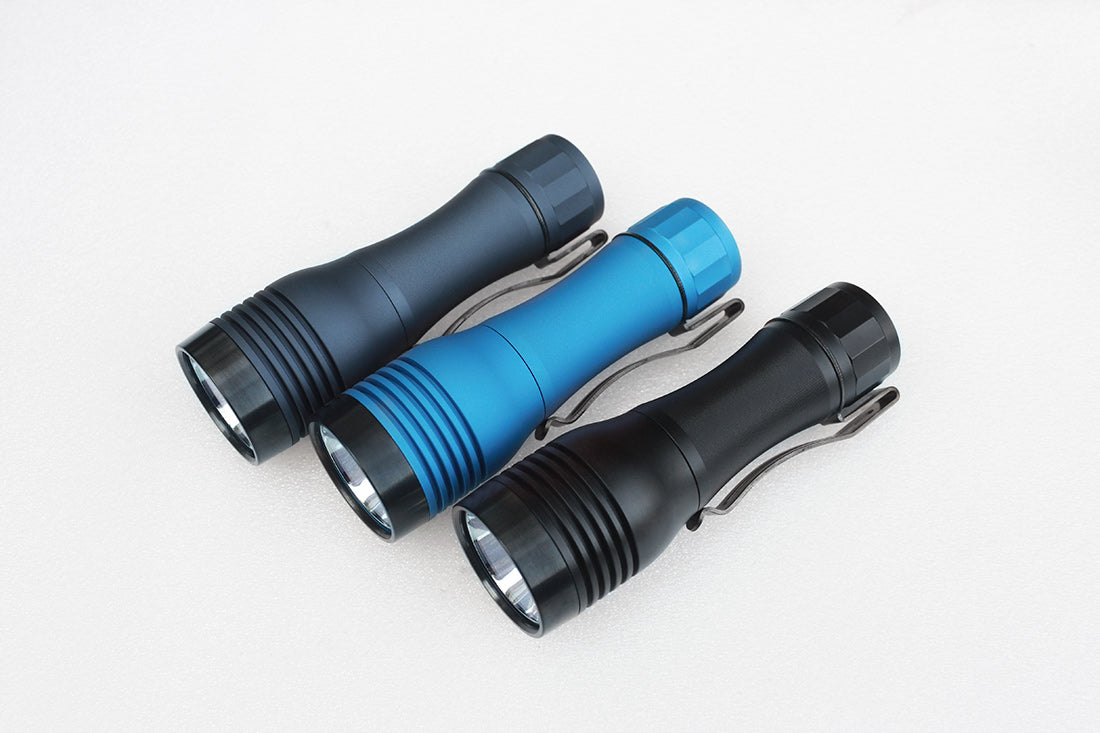

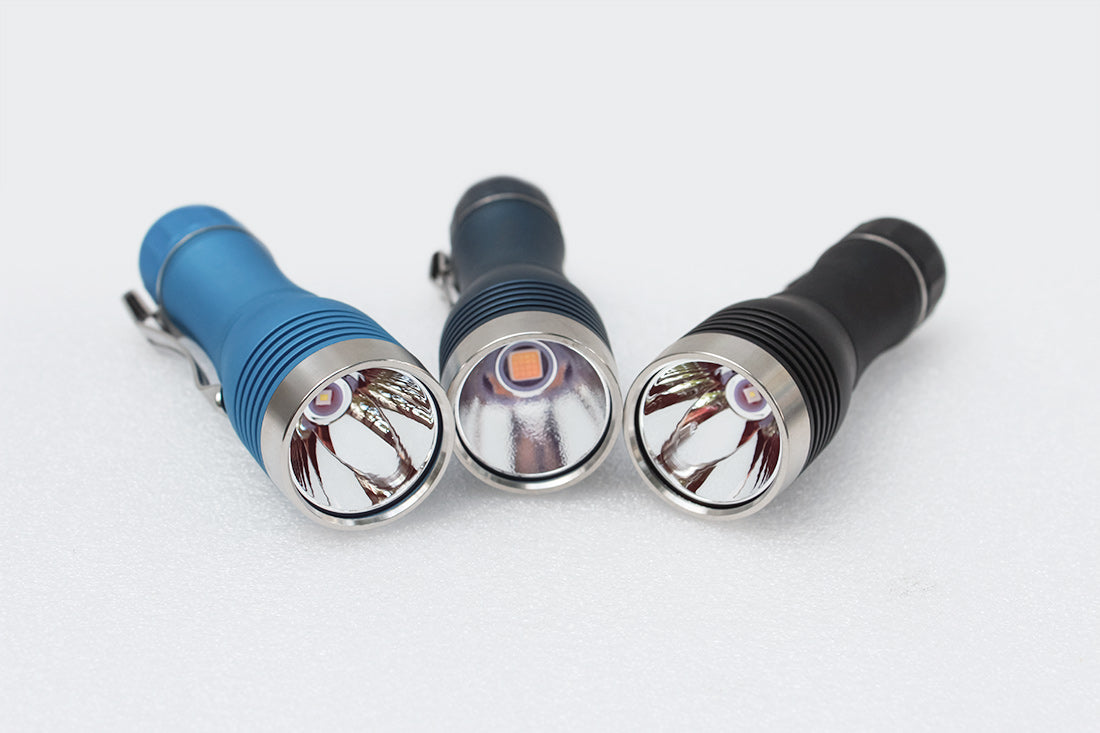

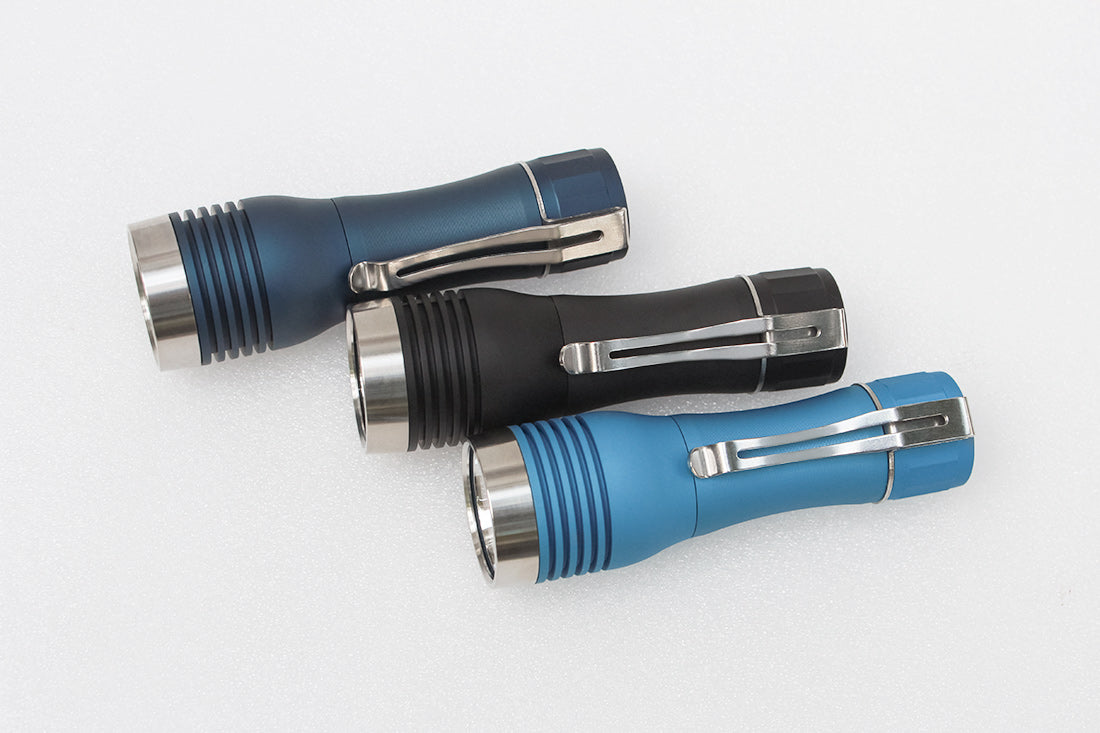

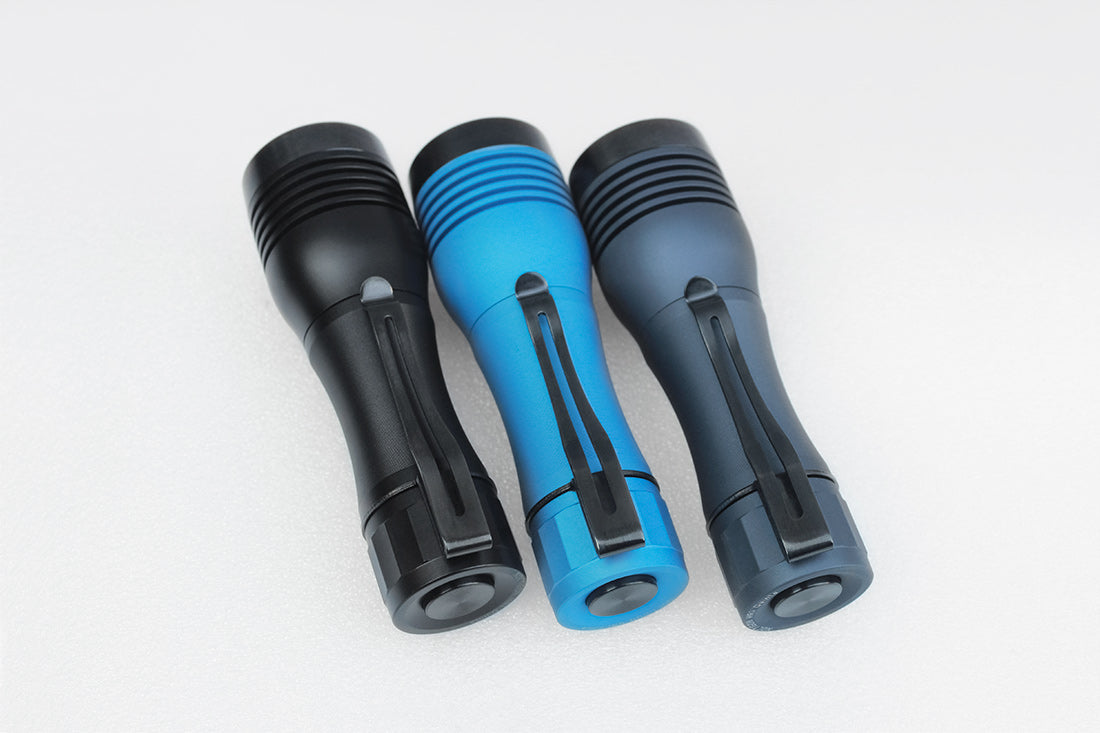

Body colors:

Black

Gray

Cyan

NEW! Black stainless (PVD) parts available (additional cost)

Included Options:

Deep carry pocket clip

Lanyard and ring

Extra orings

Battery:

BATTERY NOT INCLUDED!

18650 unprotected flat top battery depending on the emitter between 10-30A max discharge current (CDR)

Battery link >>> MOLICEL INR-18650-P30B ULTRA HIGH POWER RECHARGEABLE LITHIUM-ION BATTE – JLHawaii808

Features:

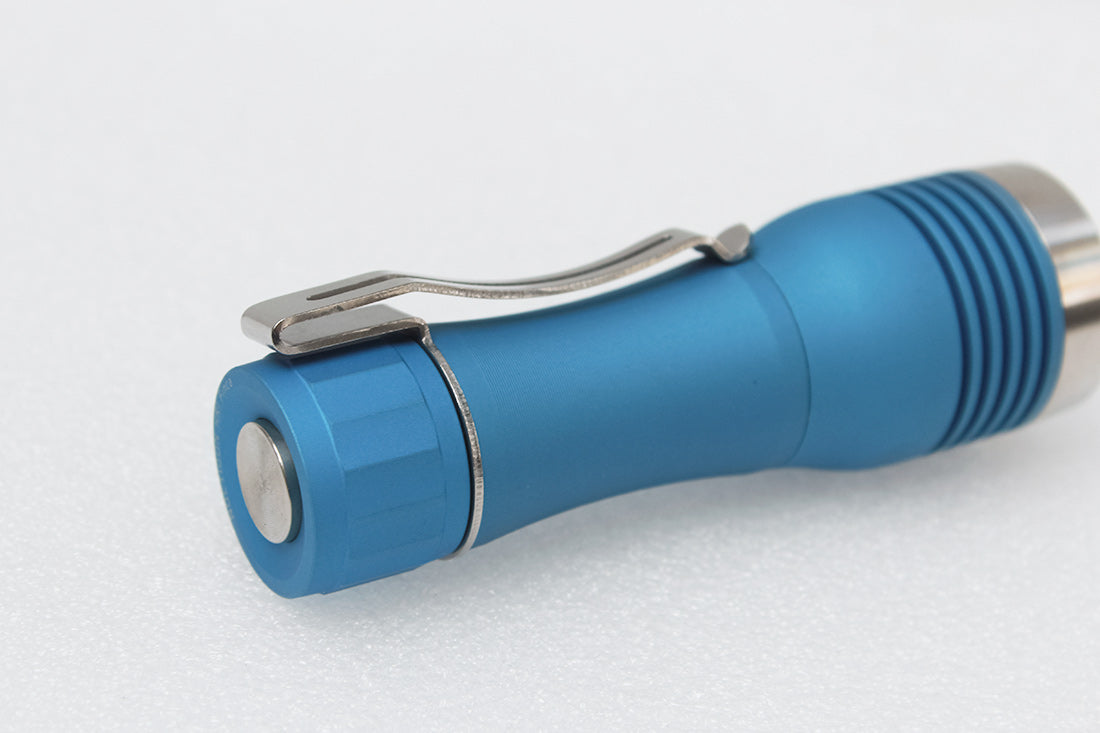

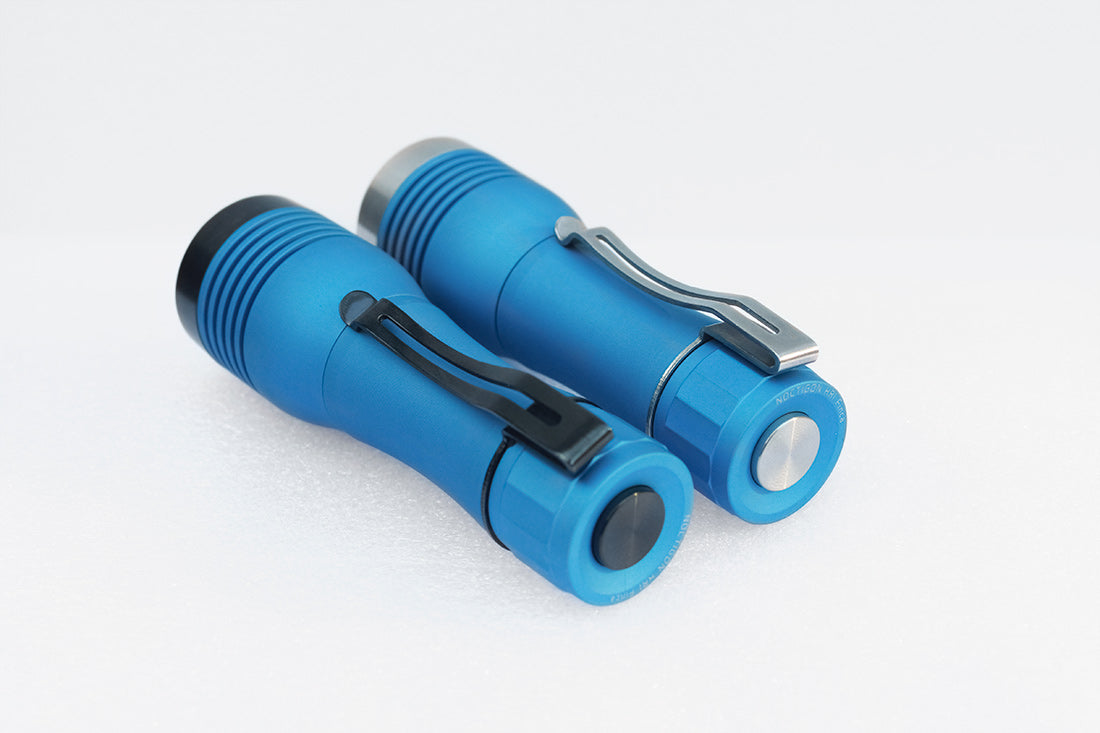

• Pocket clip and lanyard ring are both included by default

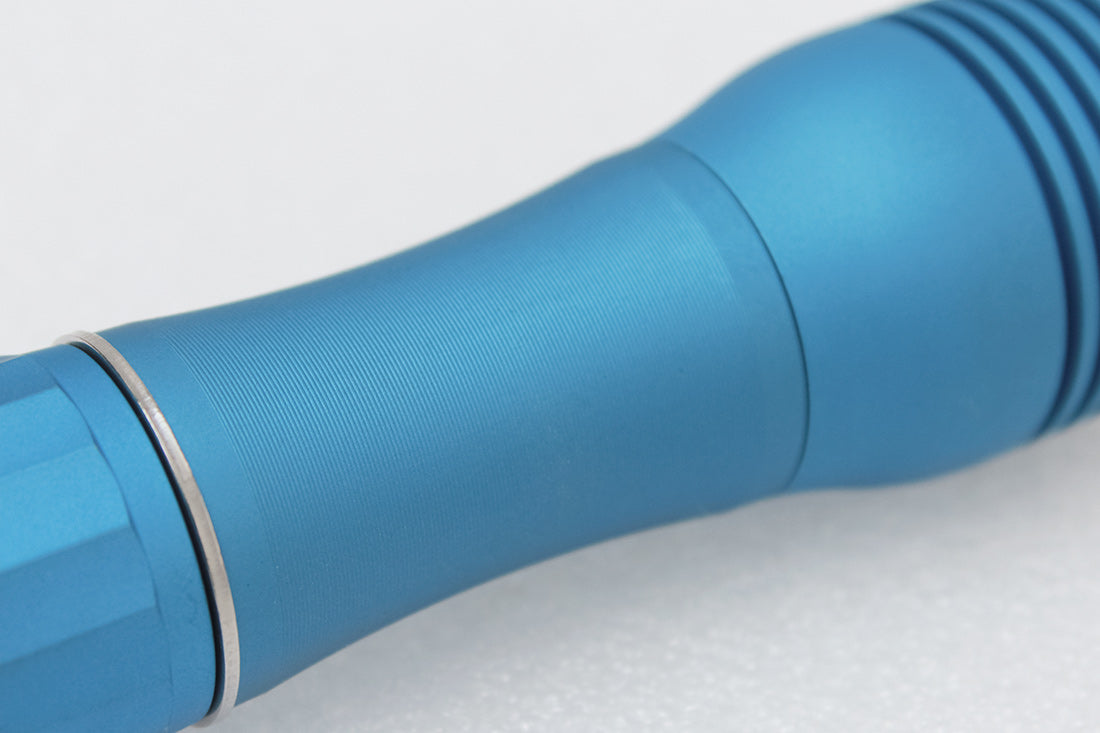

• Discrete knurling

• Grippy anodized surface

• CNC machined from aircraft-grade aluminium

• Anti-reflective coated glass lens

• Unihead construction

• High lumen output and low moon output

• Ramping interface

• Electronic tail switch

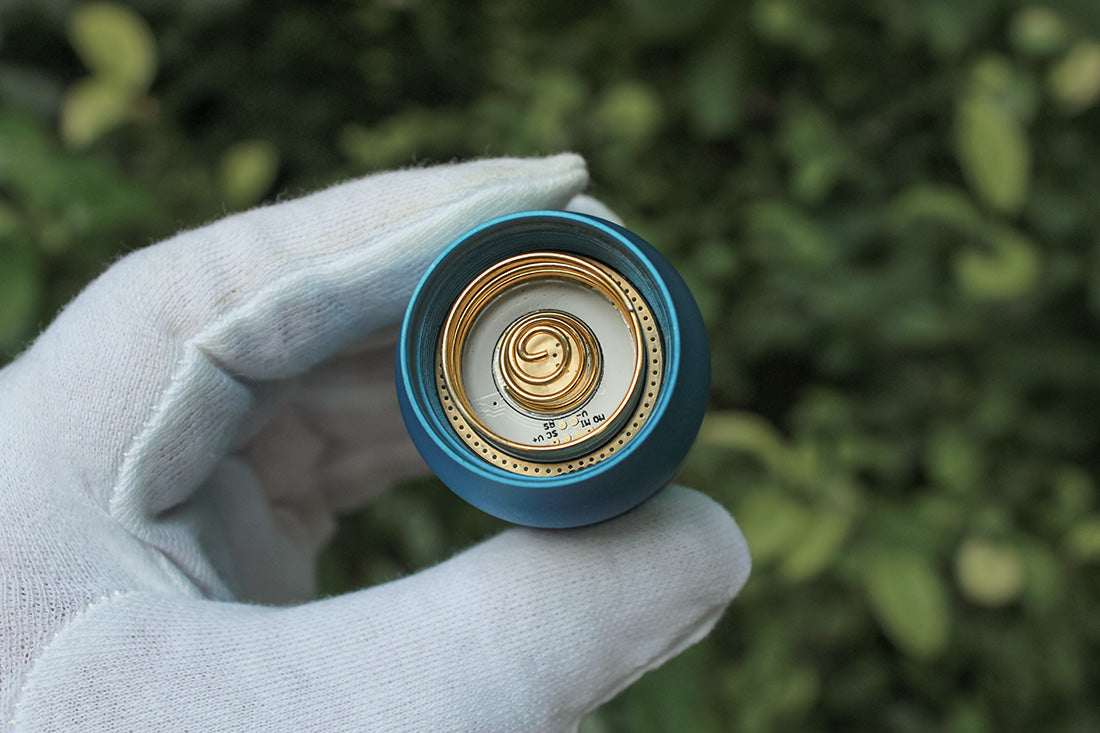

• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.

• Temperature step-down

• Waterproof and dustproof to IP67 standard (up to 1 meter)

• Default 18650 body with optional 18350 battery tube

• Weight: 120g (without battery)

• Dimensions: 110mm(length) * 35mm(head) * 24mm(body), 80mm (length 18350)

SFT-25 6500K: 1500lm, Lux : 120Kcd (120,000cd)

XHP70.3 HI: 2200lm, Lux: 25Kcd (25,000cd)

SST-40 5000K/6500K: 2200lm, Lux: 29Kcd (29,000cd)

SFT-40 6500K: 1600lm, Lux: 70Kcd (70,000cd)

FC-40: 1600lm, Lux: 14Kcd (14,000cd)

519A dedomed: 1200lm, Lux: 20Kcd (20,000cd)

SBT90.2: 4000lm, Lux: 100Kcd (100,000cd)

B35AM: 1000lm, Lux: 12Kcd (12,000cd)

SFN60 3V, 6500K/5500K, 5000lm, Lux: 55Kcd (55,000cd)

SFN60 3V, 3000K, 4000lm, Lux:44Kcd(44,000cd)
