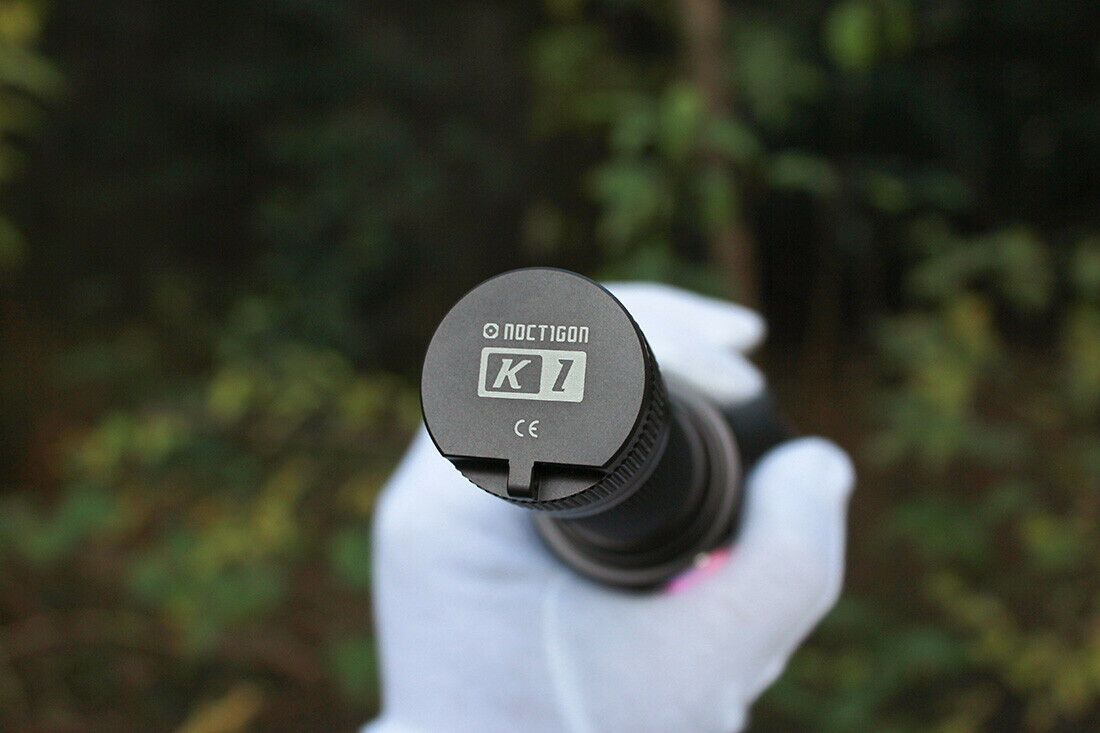

NOCTIGON K1 THROWER
USER INTERFACE:

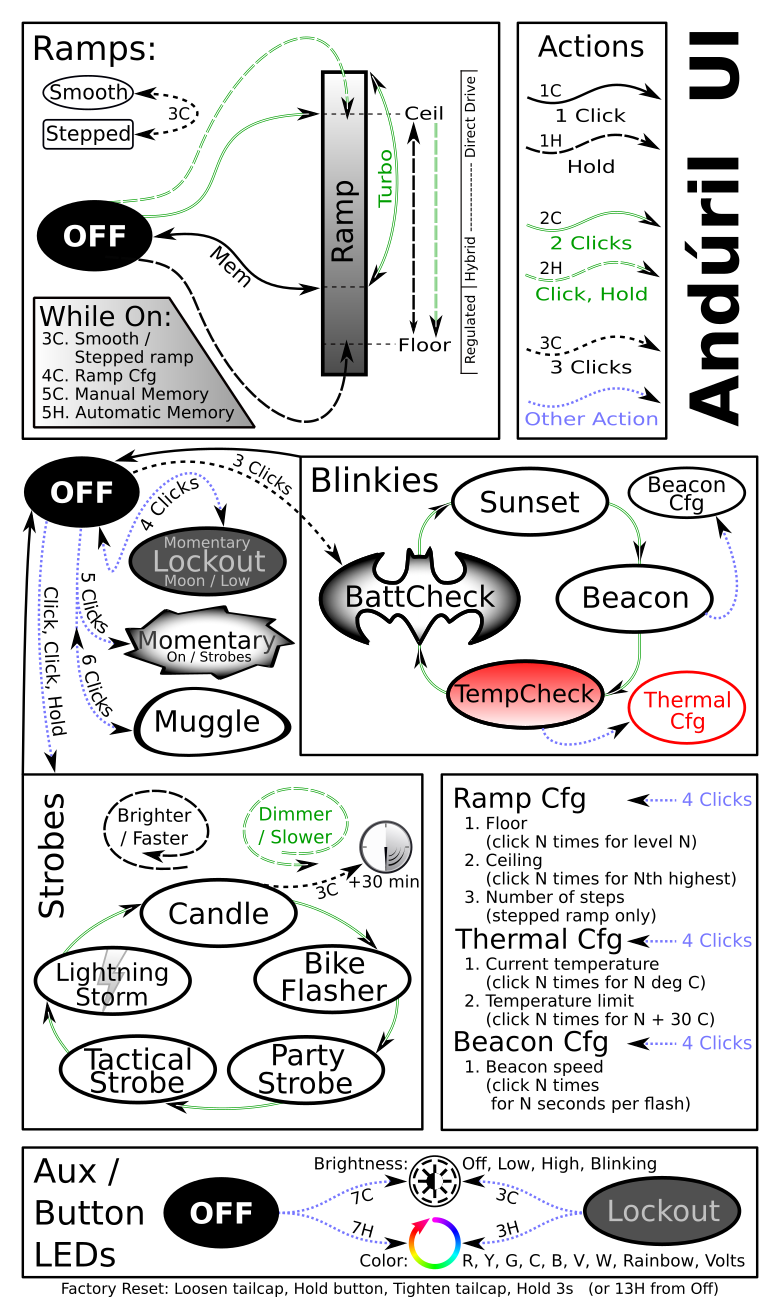

ANDURIL 2 UI
DRIVER:
5A LINEAR (FOR OSRAM W2.1)
7.5A LINEAR (FOR W2.2/SFT25R/SFT40/FFL505)
9A LINEAR + FET (SFN60/SBT90.2/FFL909)
6V 4A BOOST DRIVER (FFL707A) ADDITONAL COST
LUME X1 6V 6A BOOST (FOR FFL707A) ADDITIONAL COST
EMITTER OPTION:
SBT90.2 (5700K)
SFT40 (3000K, 5000K AND 6500K)
SFT25R (5000K & 6500K G1 BIN)
OSRAM W2.1/2.2 (6000K)
FF505A 3700K (ROSY BIN), 6500K 97CRI
FFL505UT 6500K 70CRI 30W

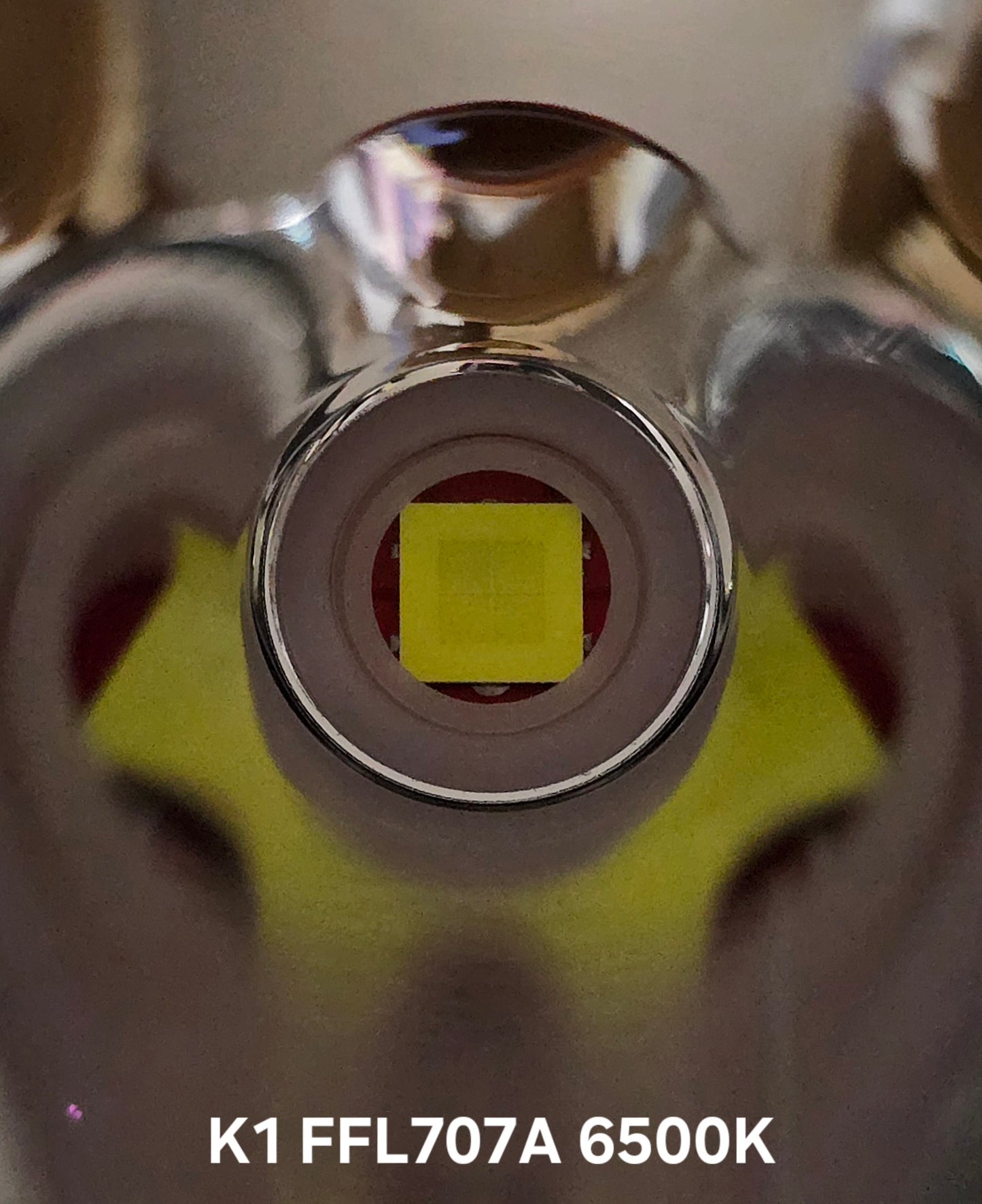

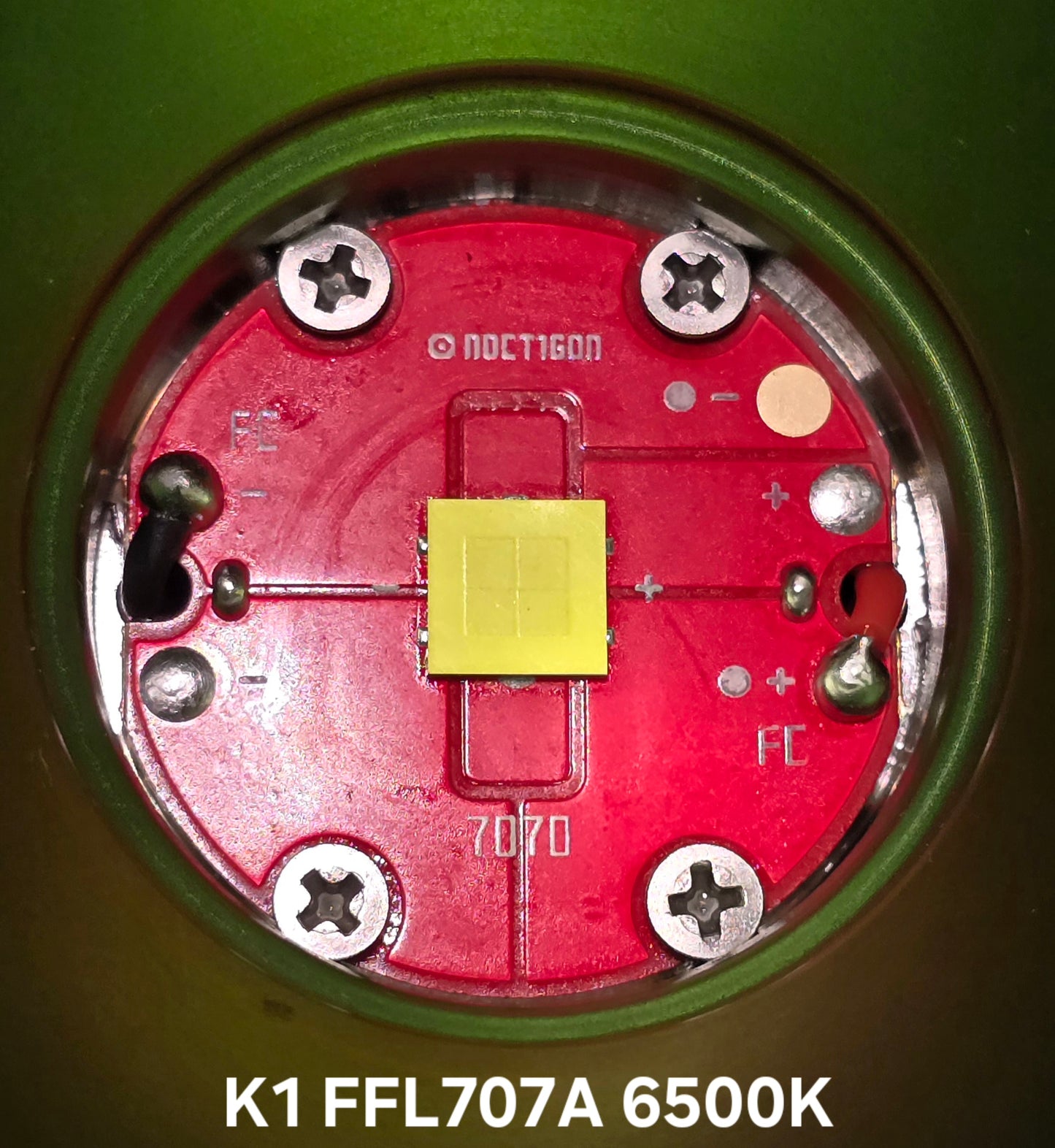

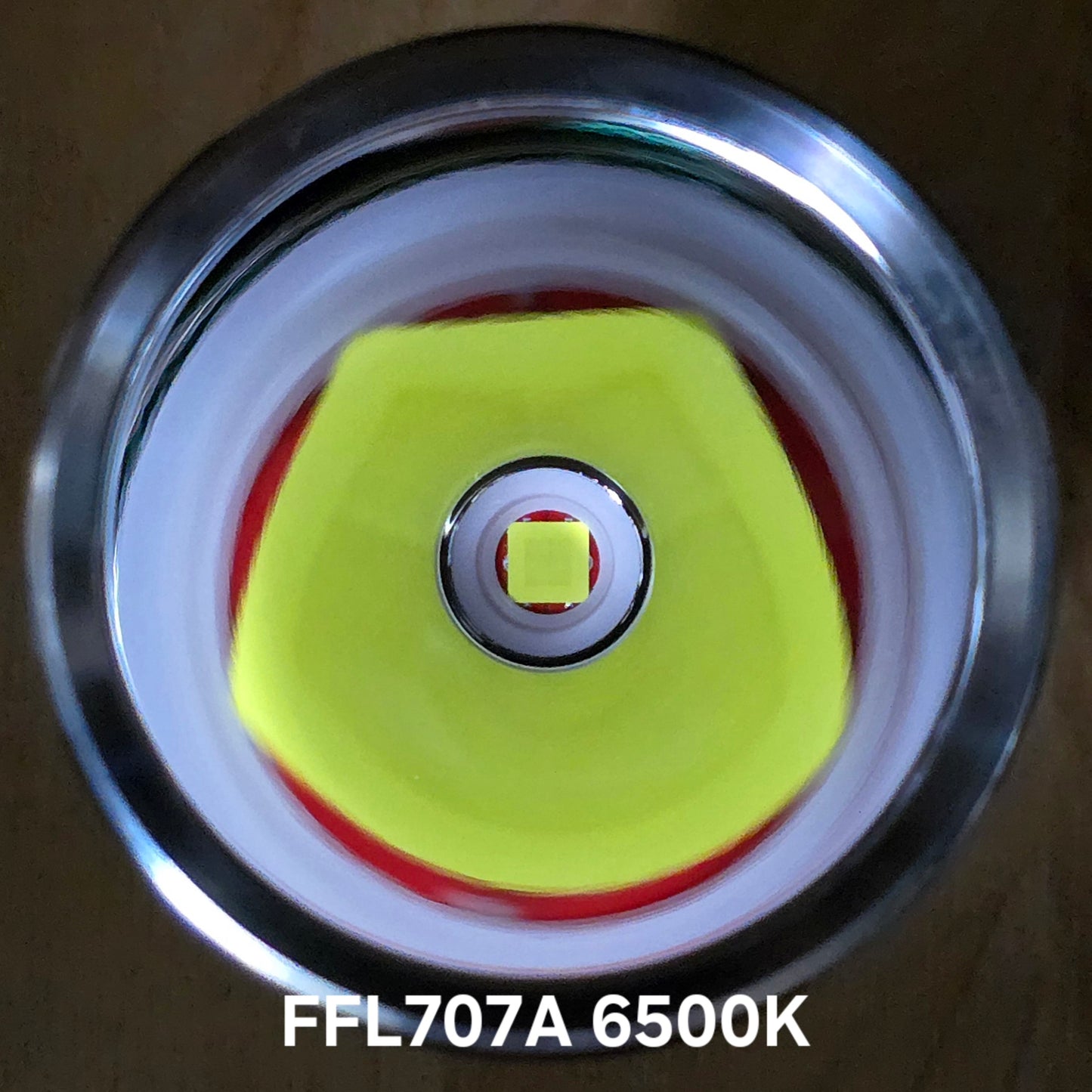

FFL707A (6V)

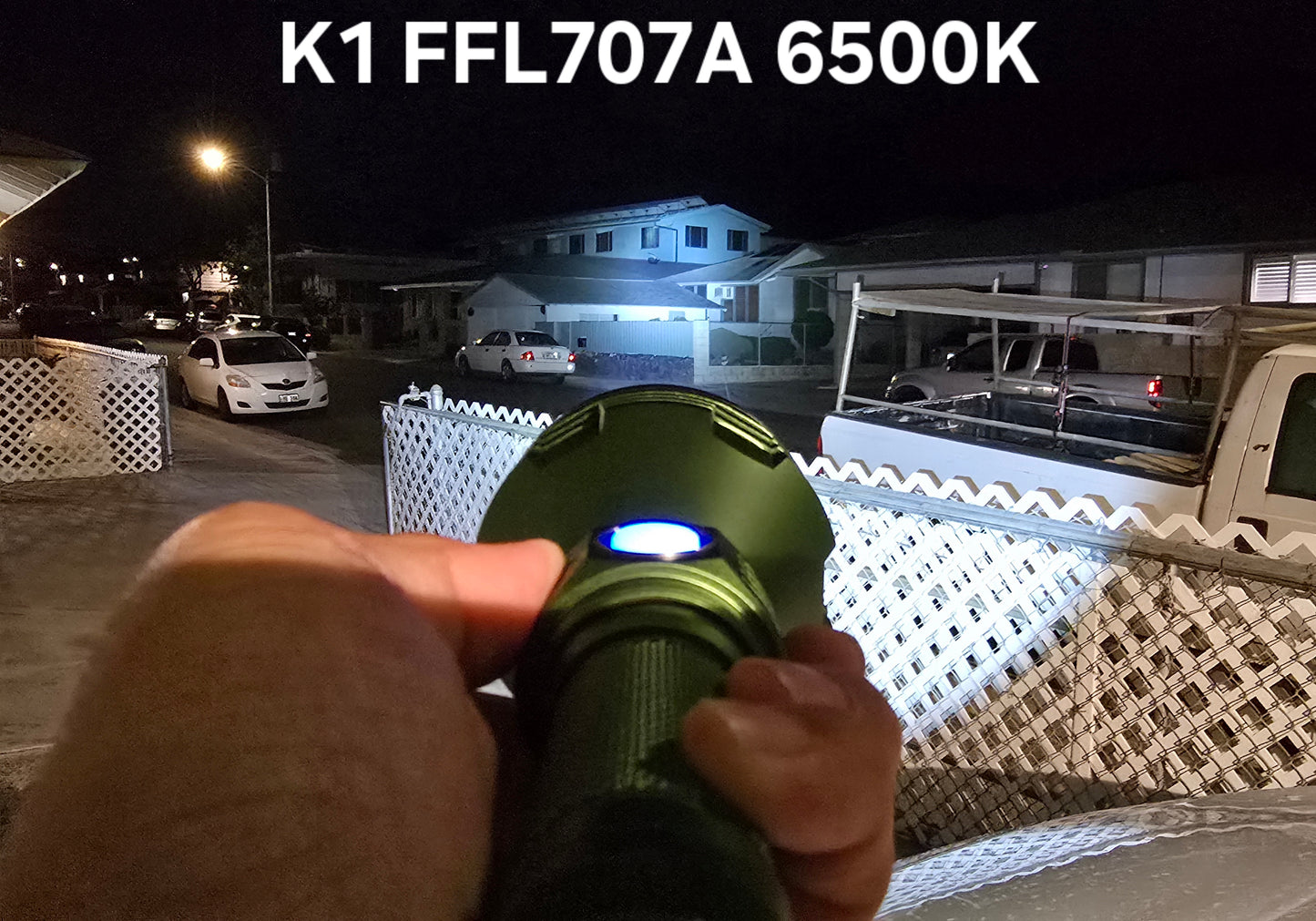

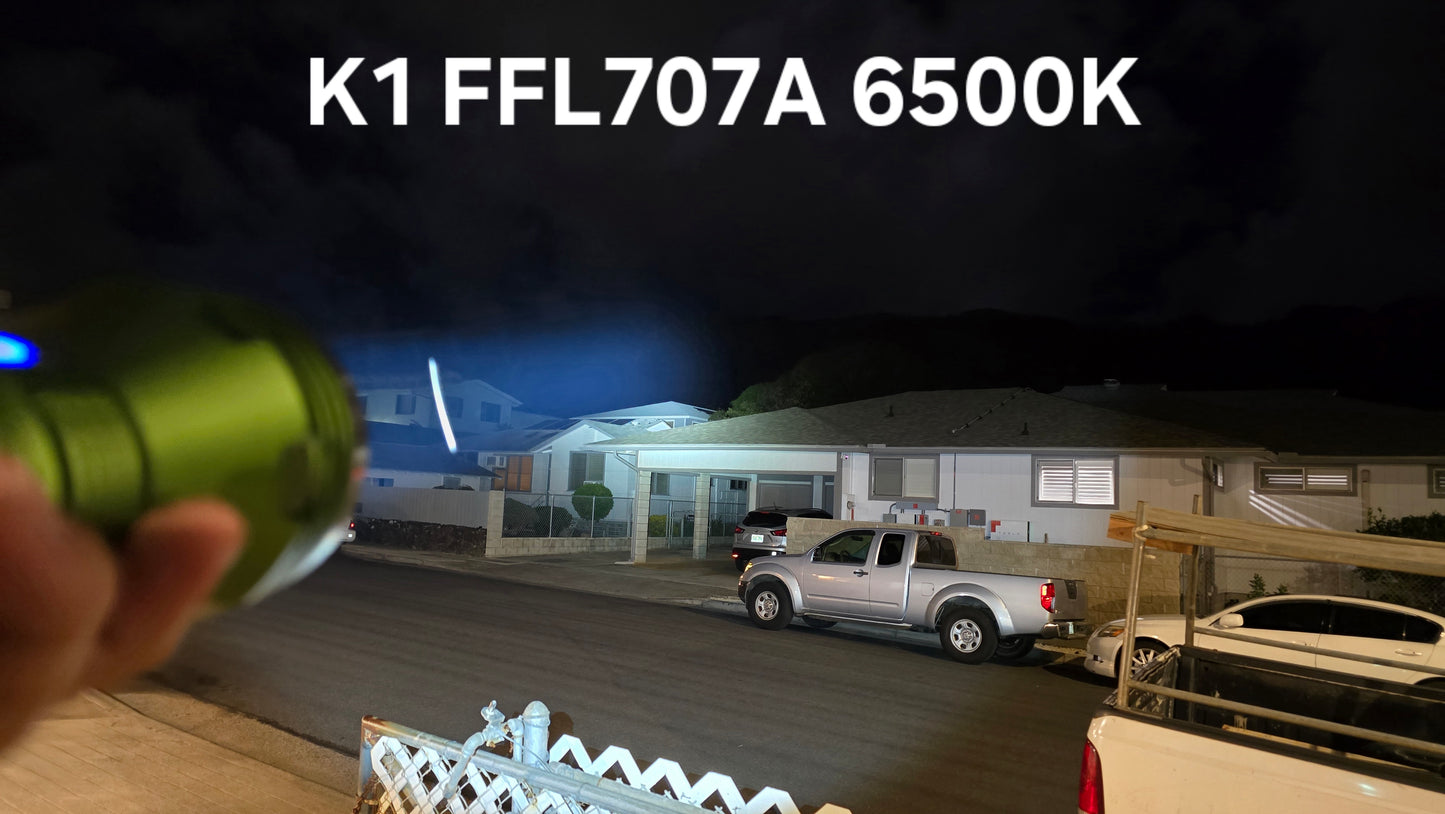

FFL707A 6500K SPECS:
2900LM
192kcd
860M

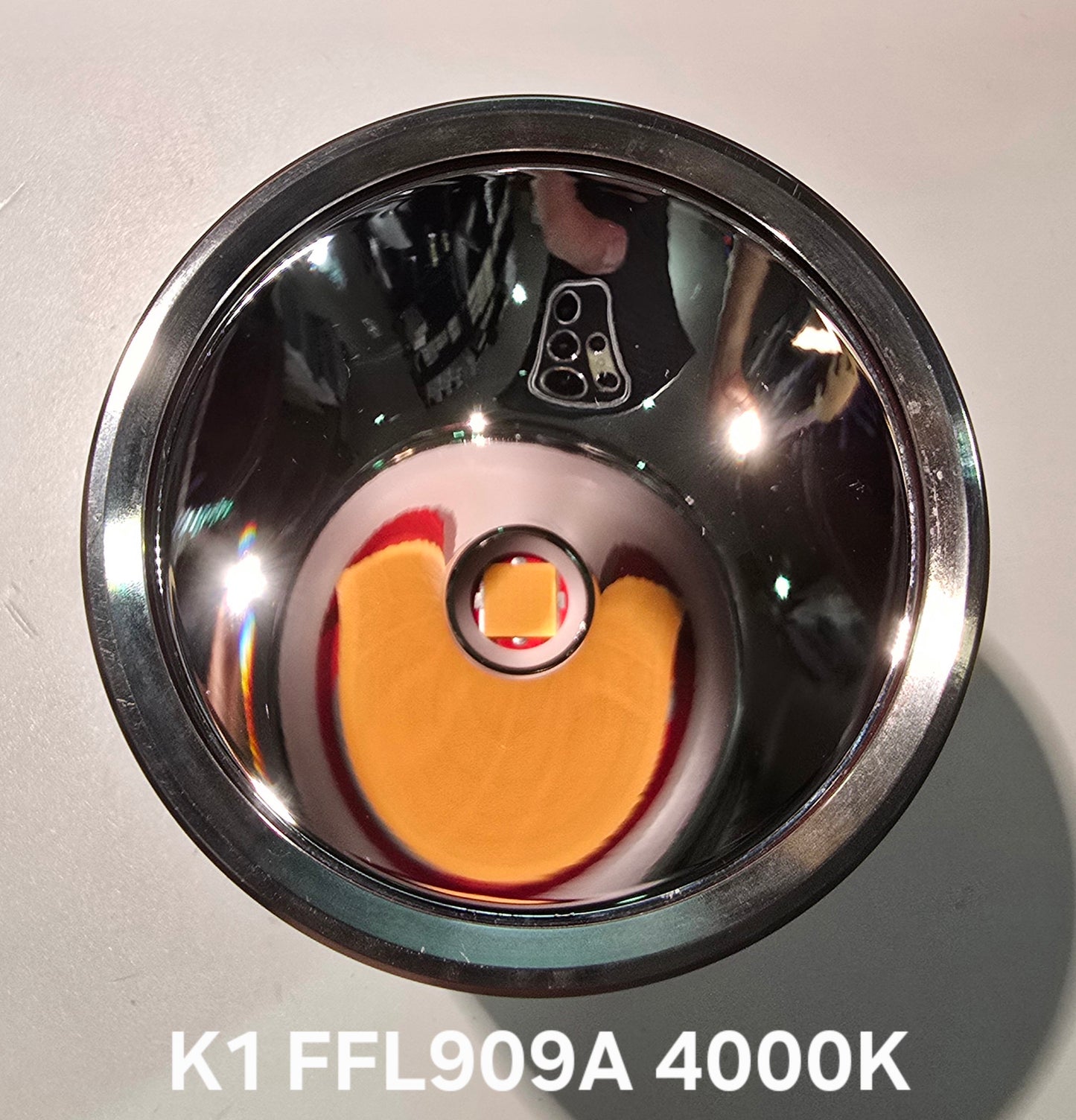

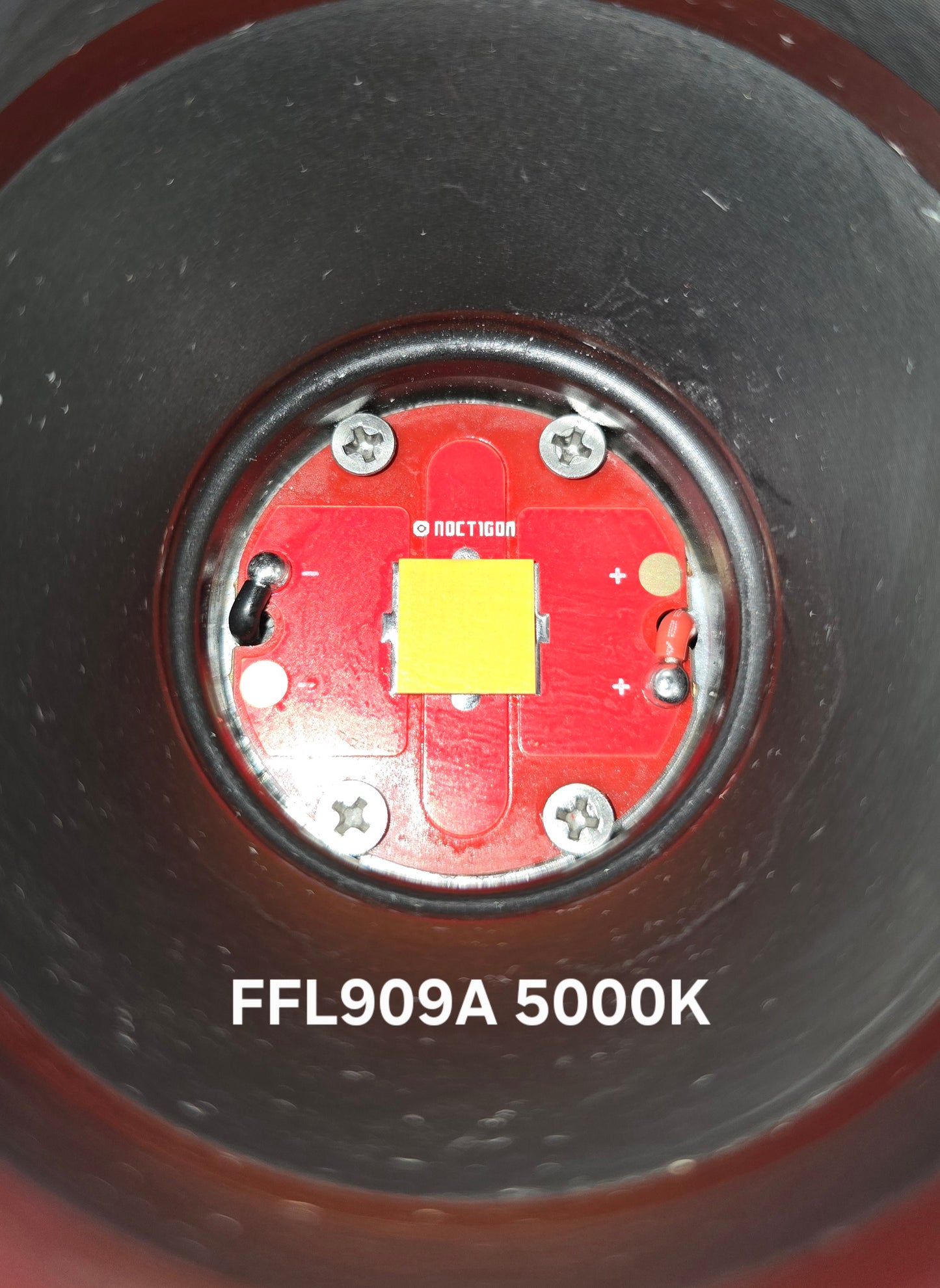

FFL909A/MX:

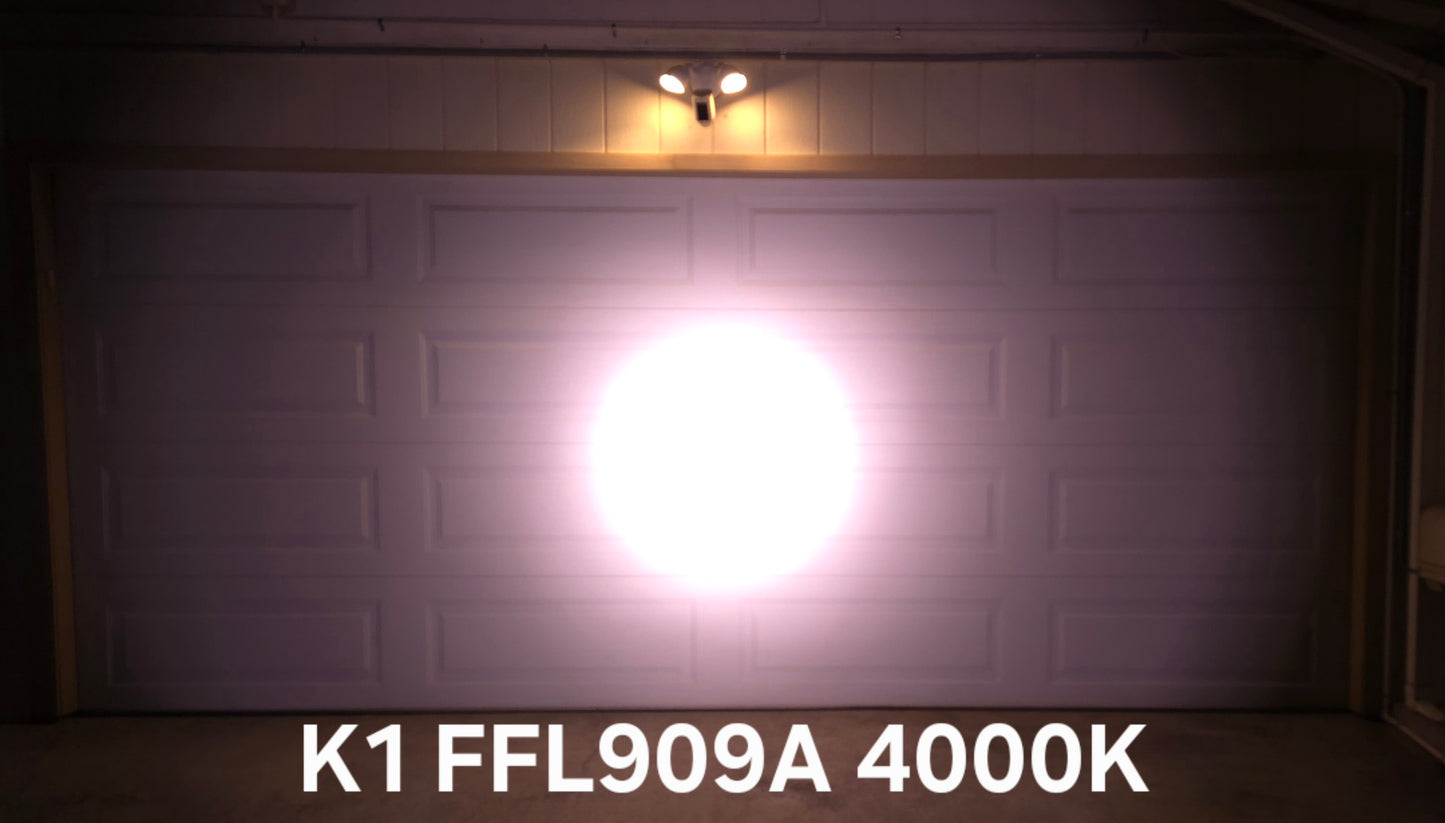

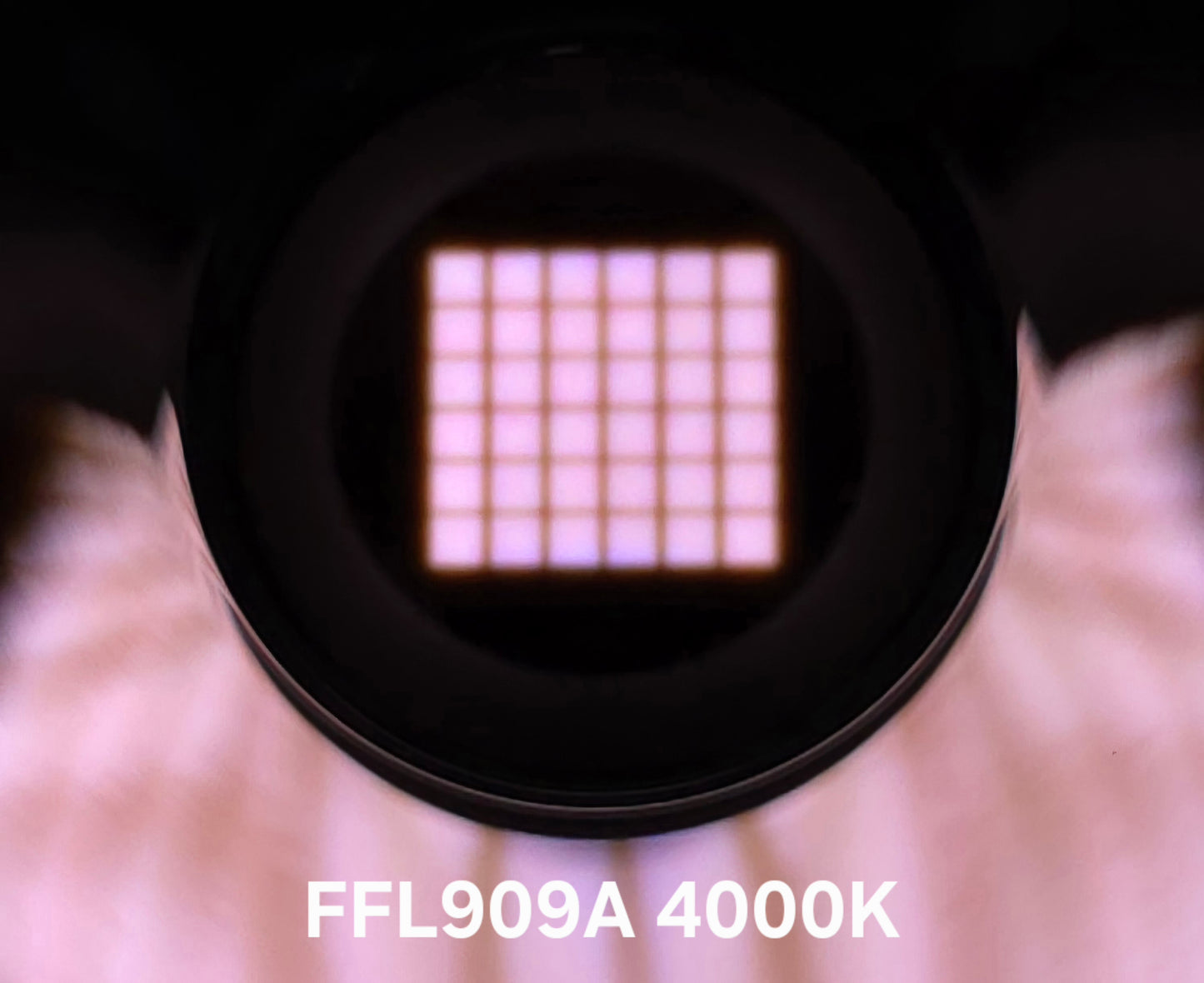

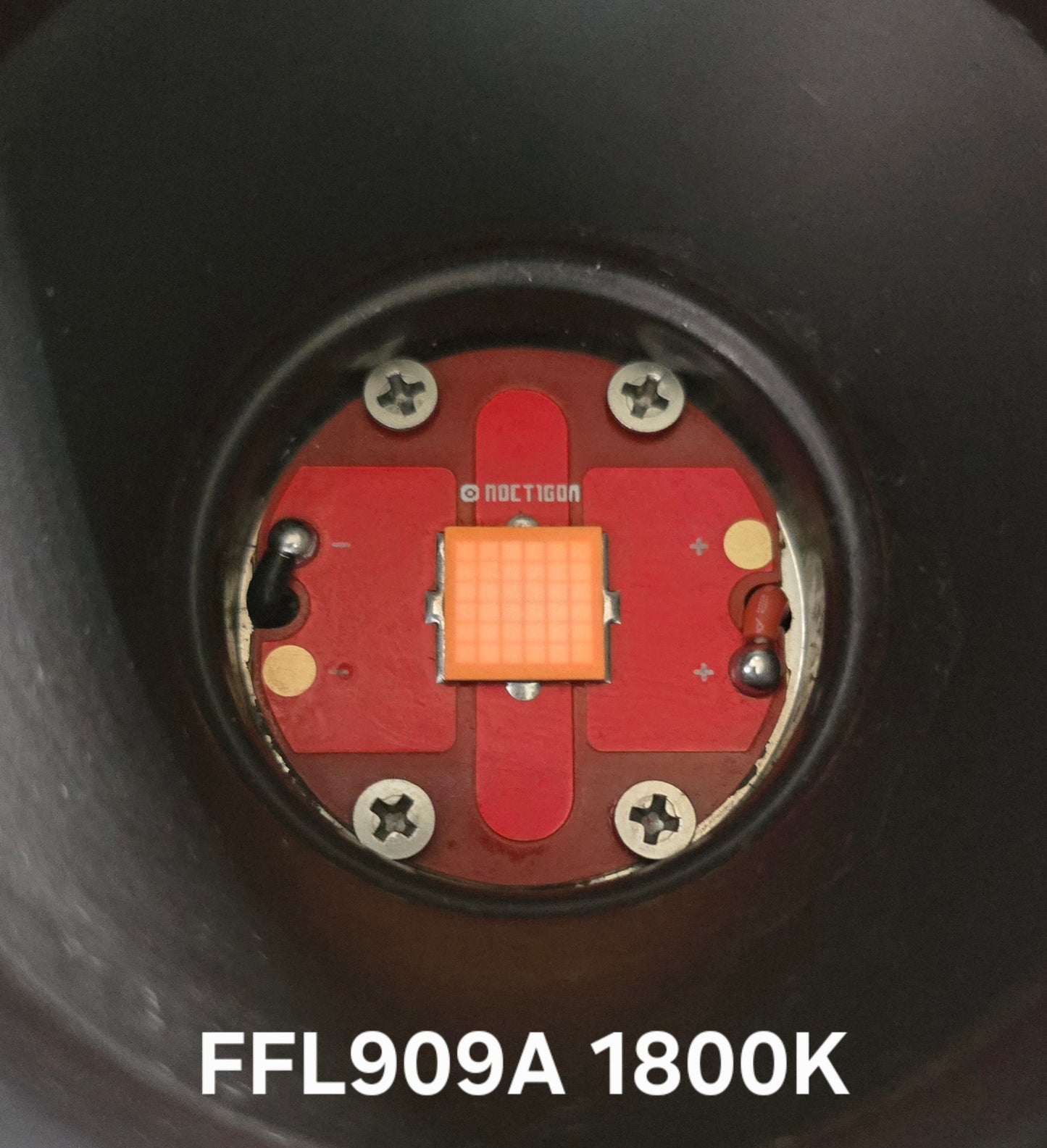

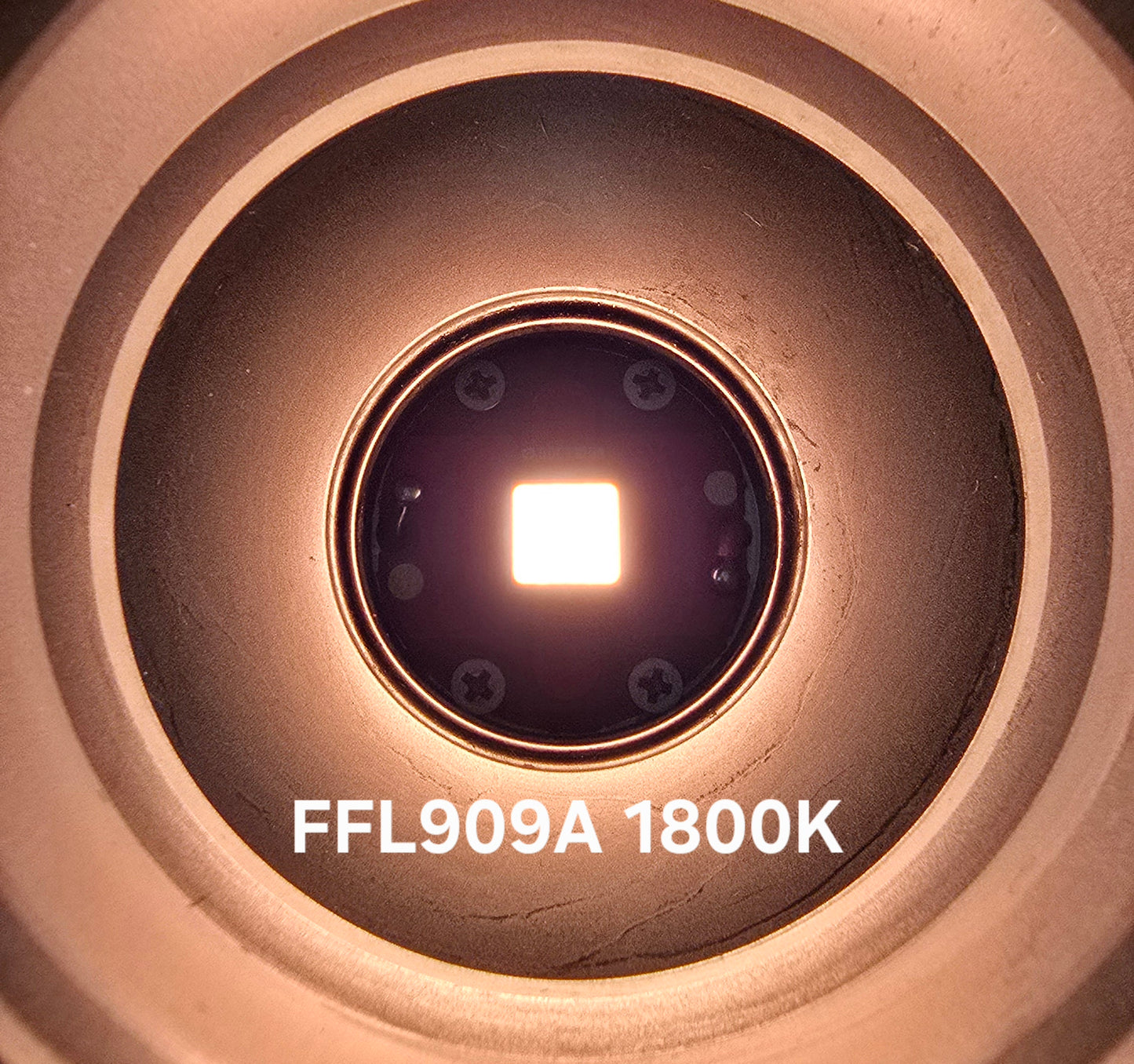

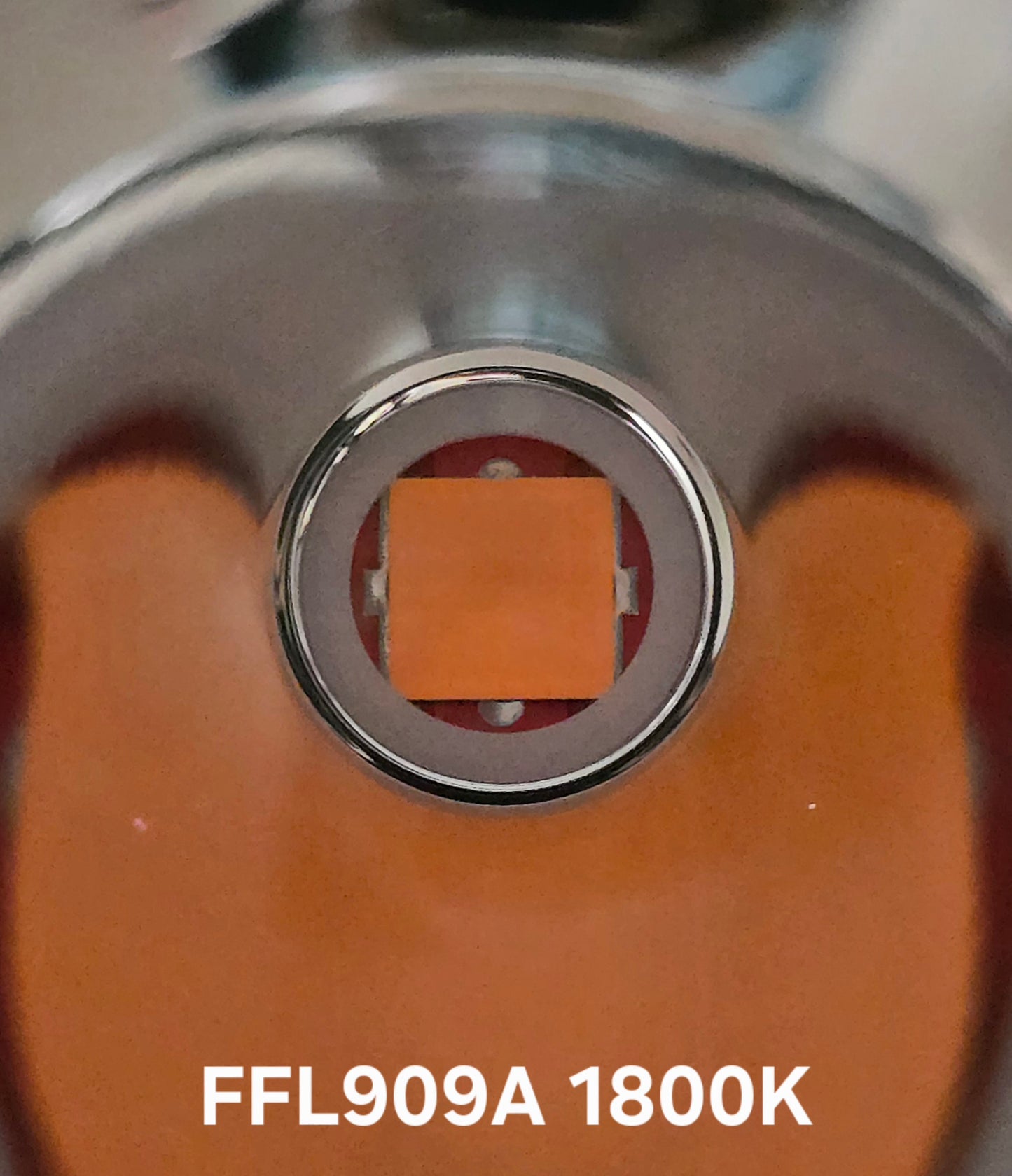

FFL909A 100W

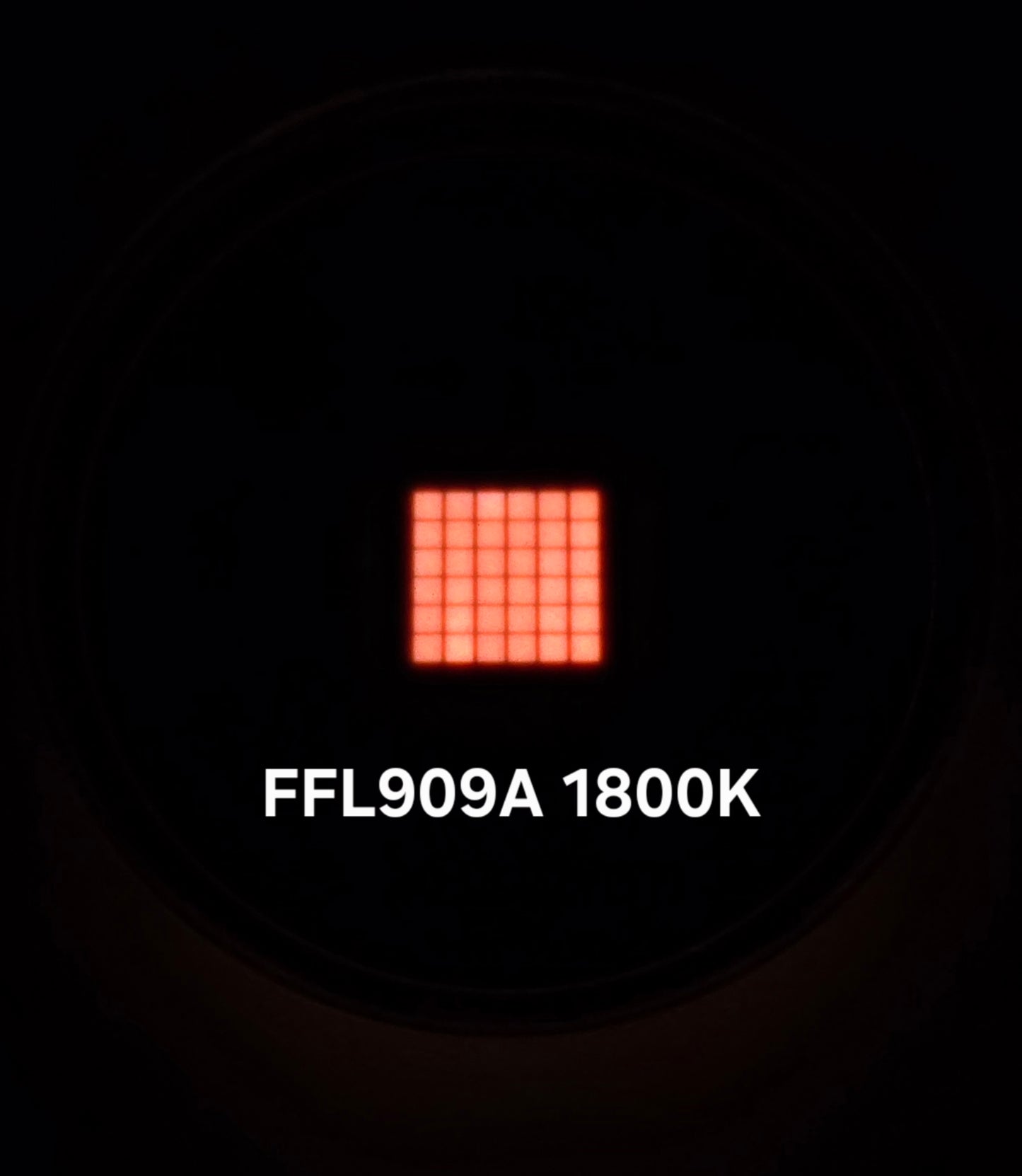

1800K, 4000K (SUPER ROSY BIN) & 5000K

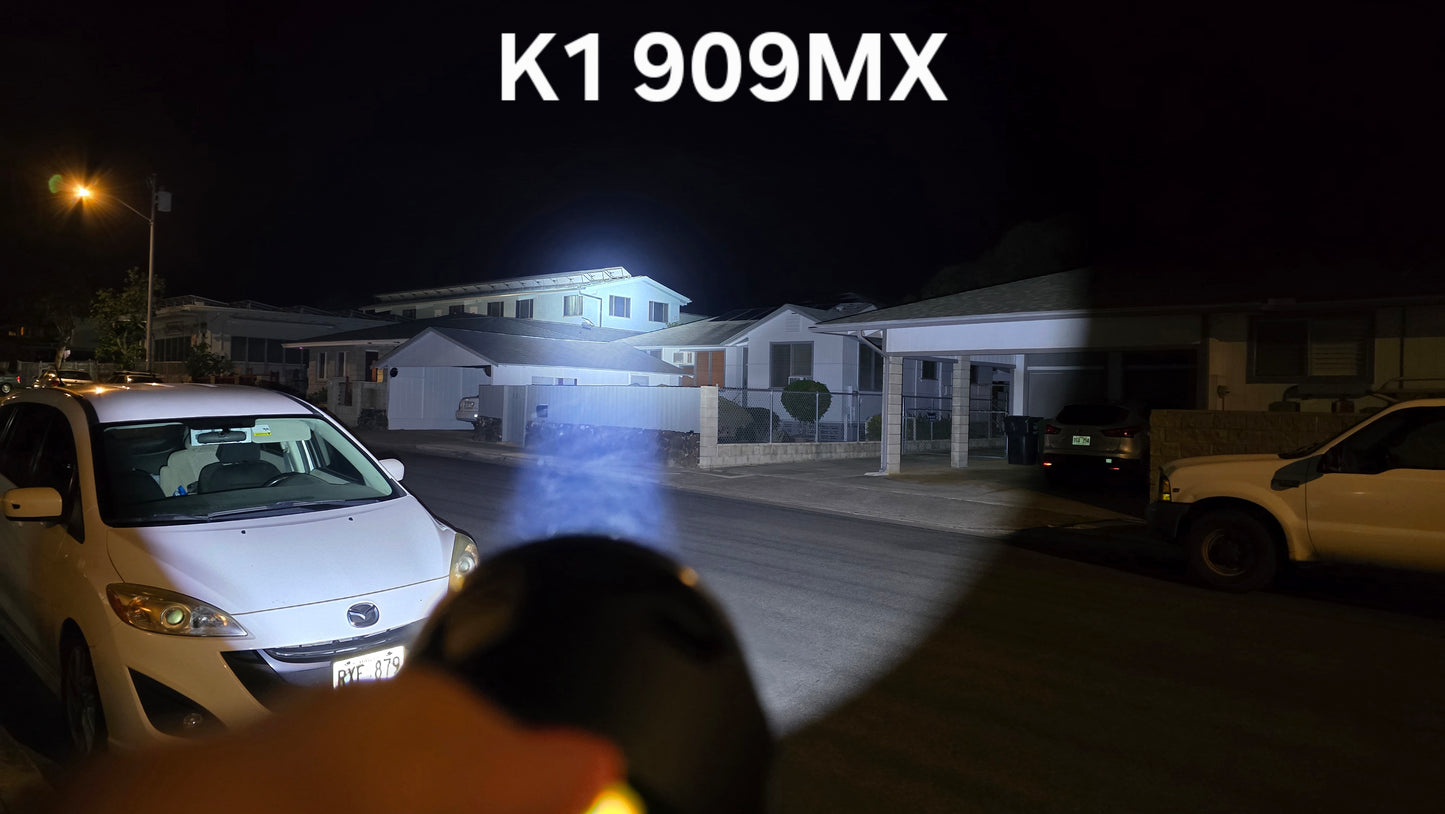

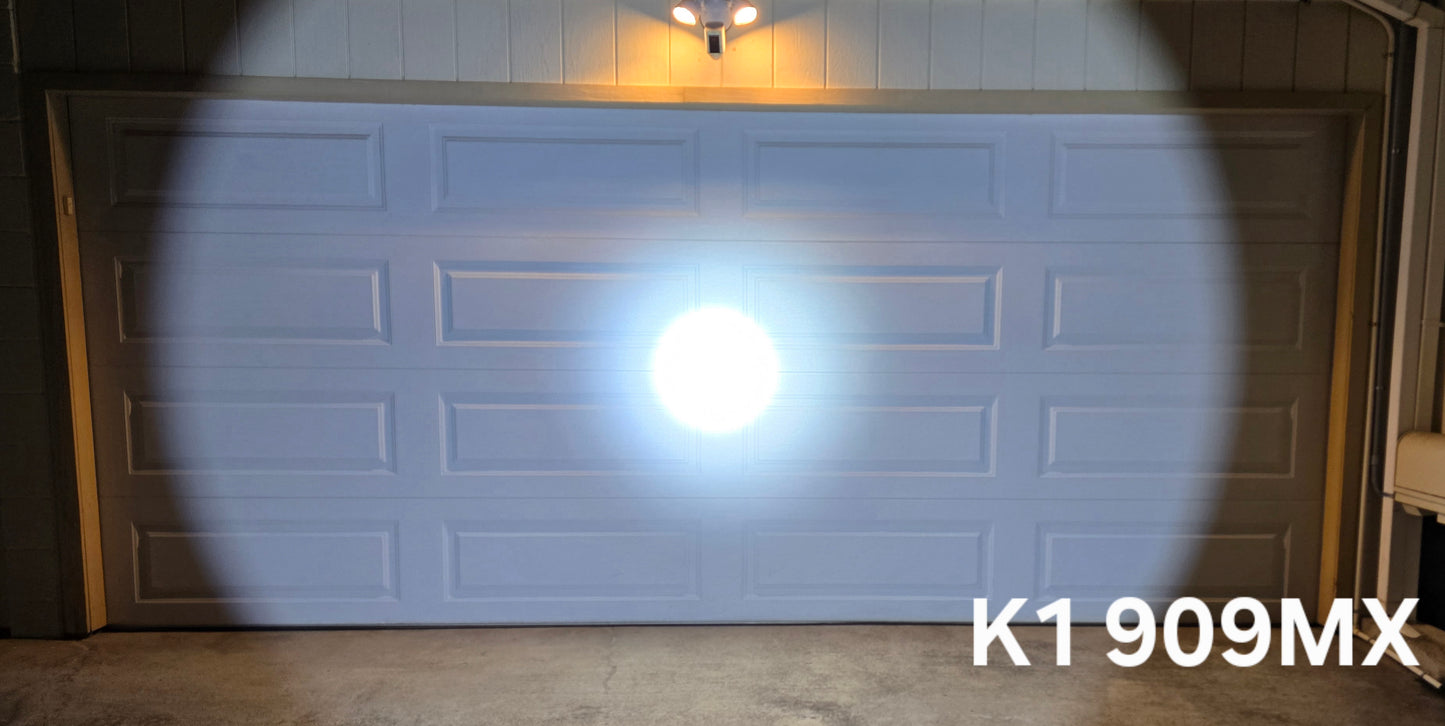

NEW! FFL909MX 6500K CRI70 120W 8500LM (SBT90.2 KILLER)

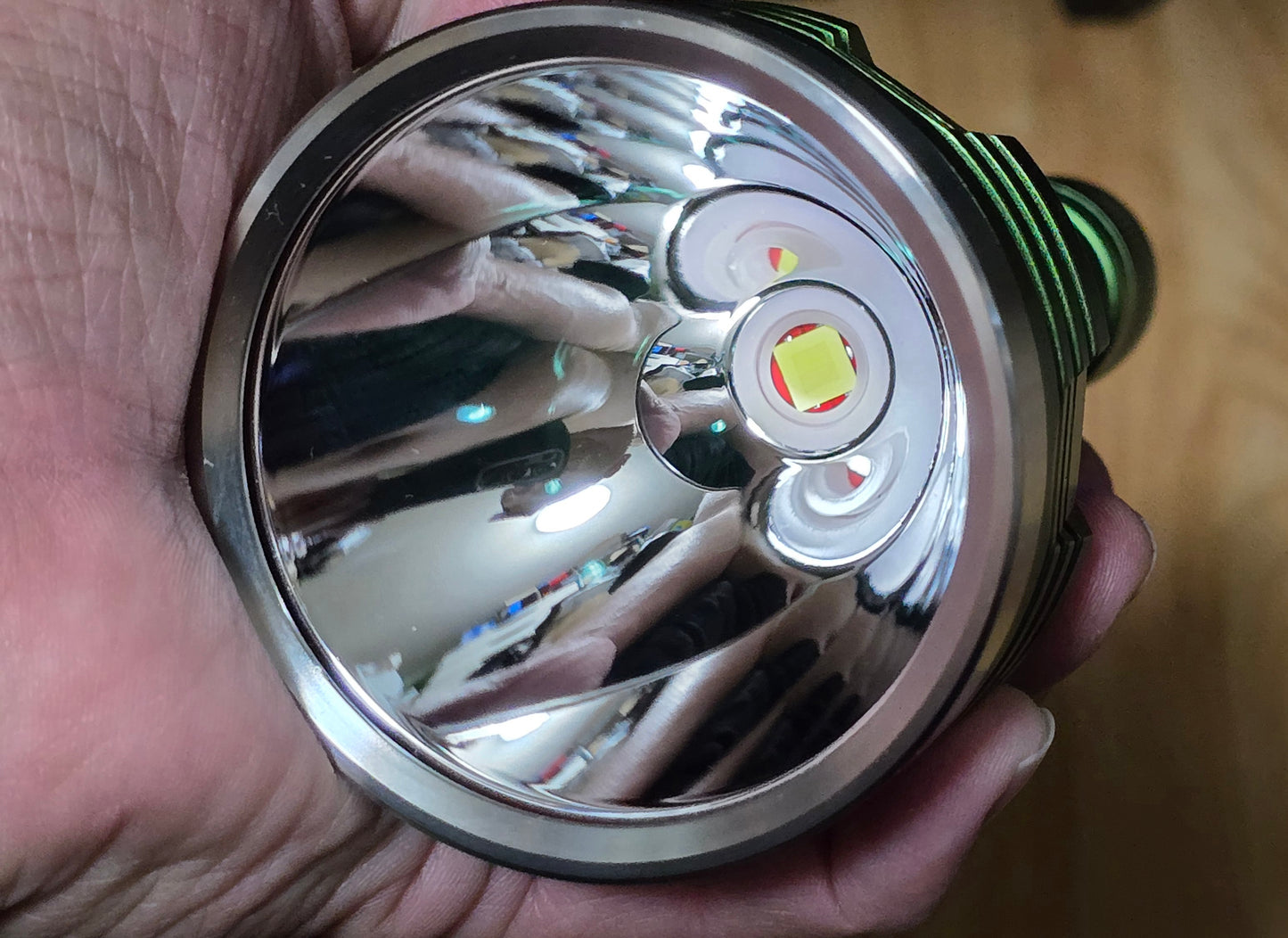

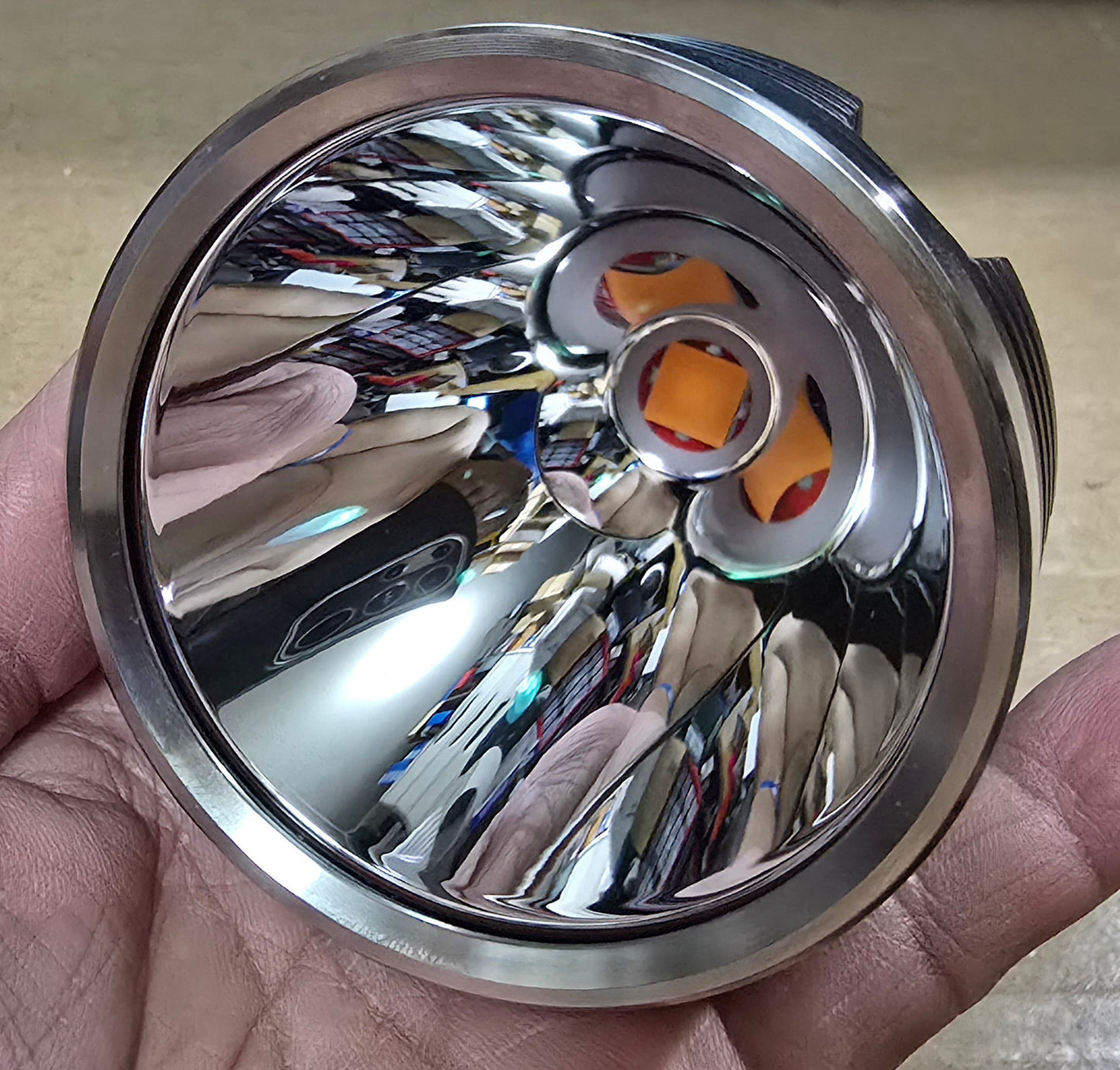

REFLECTOR:
SMO (DEFAULT OSRAM W2.1/2.2)
OP (DEPENDING ON THE EMITTER USED)

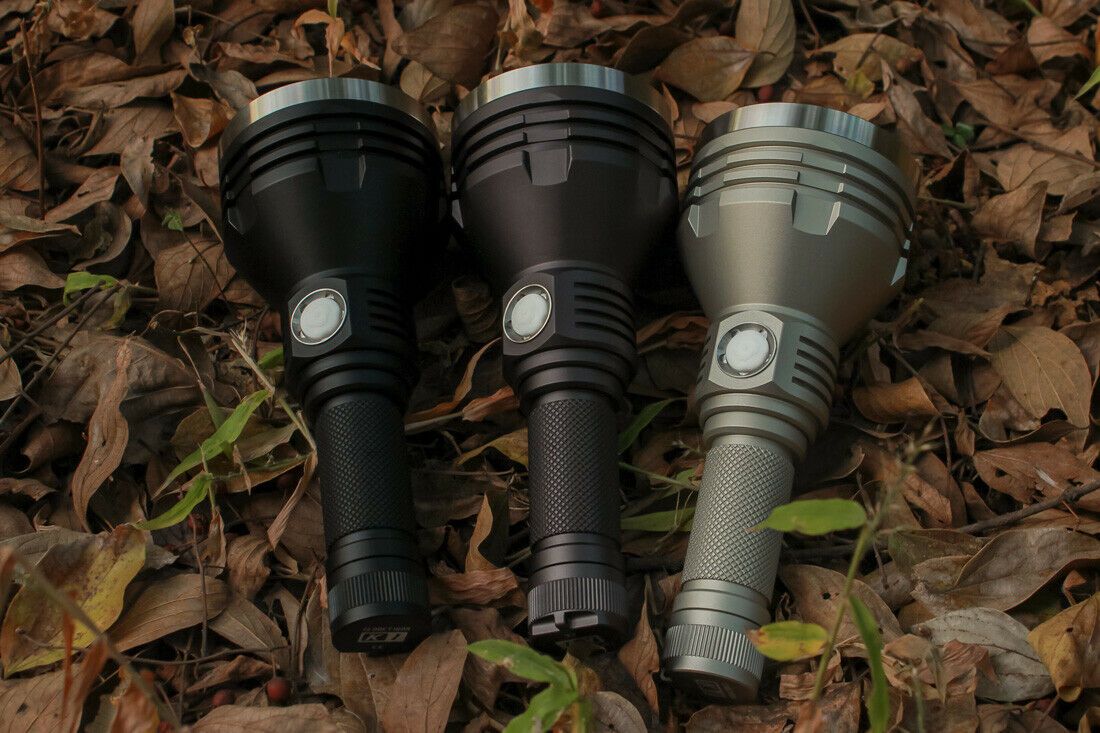

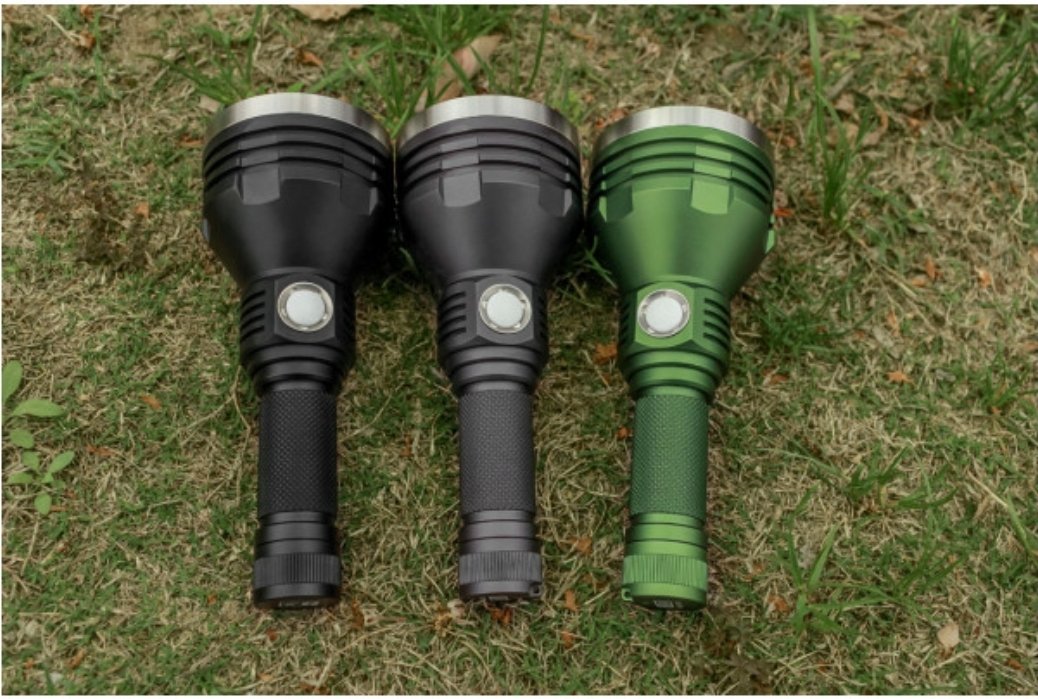

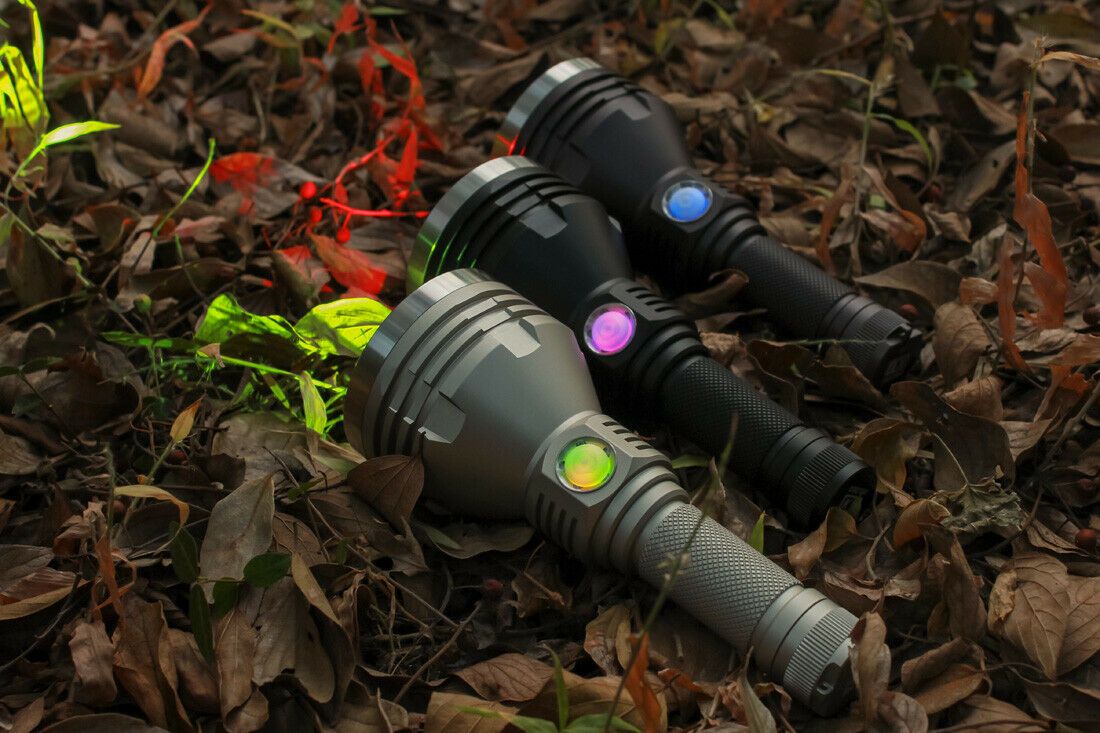

BODY COLOR:
BLACK
GRAY (GUN METAL COLOR)
SILVER (DISCONTINUED)
GREEN
BATTERY:
21700 HIGH DRAIN UNPROTECTED FLAT-TOP CELL RECCOMENDED (NOT INCLUDED), PLEASE DO NOT USE THE 21700 BATTERIES WITH THE BUILT-IN CHARGING PORT BECAUSE ITS TOO LONG FOR THE K1
21700 BATTERY LINK >>> Molicel P45B 4500mAh 21700 45A Lithium-ion Rechargeable Battery **** H – JLHawaii808

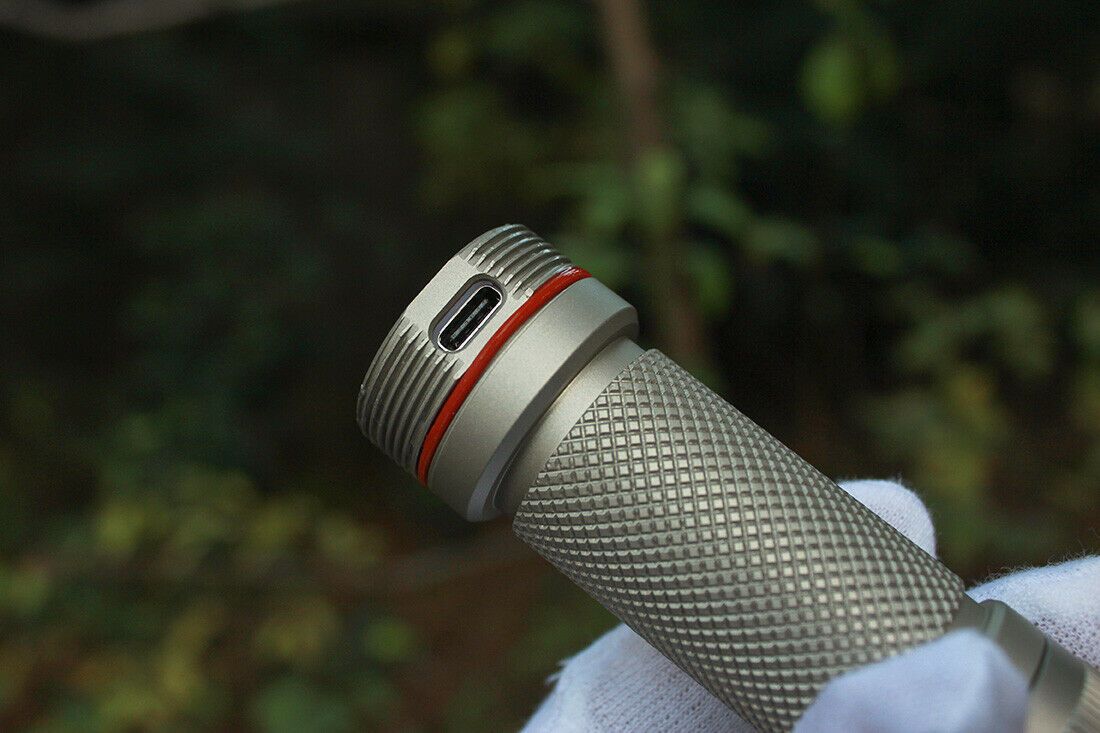

K1 HAS BUILT-IN-CHARGING PORT ON THE TOP THE TUBE
10A MIN FOR THE OSRAM EMITTERS
20A MIN FOR THE SBT90.2
ACCESSORIES:
HOLSER INCLUDED!
EXTRA ORING
LANYARD
SPARE BUTTON
Features:
• CNC machined from aircraft-grade aluminum
• Smooth aluminum reflector
• 1*21700 unprotected battery (not included in the price, 18650 battery can also be used as emergency)
• Anti-reflective coated glass lens
• Unihead construction
• High lumen output and low moon output
• Ramping interface

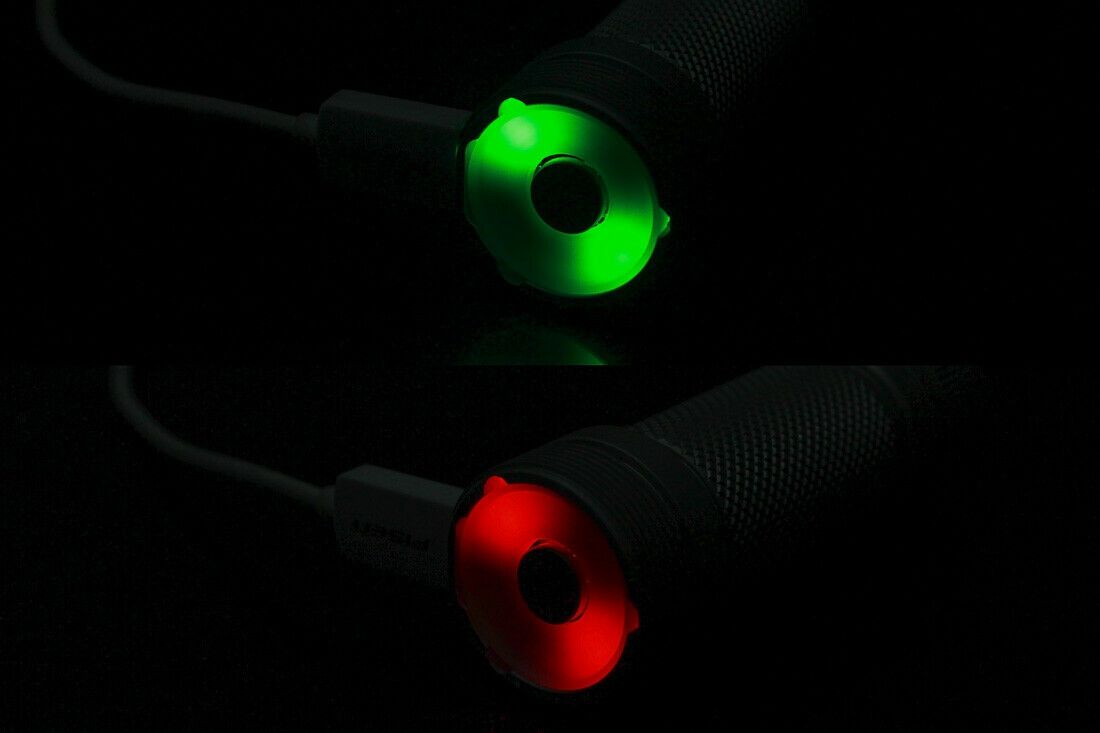

• Electronic soft touch switch

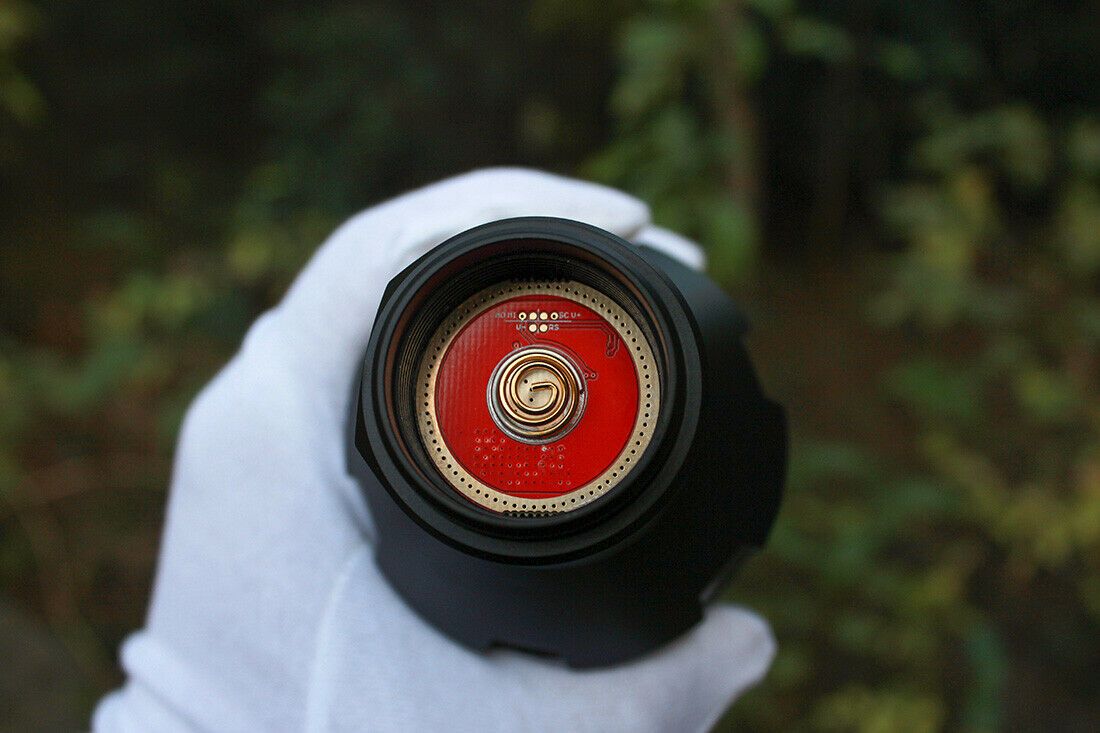

• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.
• Constant current, temperature step-down
• Waterproof and dustproof to IP67 standard (up to 1 meter)
• Dimensions: 173mm(length) * 72mm(head) * 26.5mm(body)
OTF lumen output
W1 (Osram CULNM1.TG): 900lm, Lux : 650Kcd (650,000cd)
W2 (Osram CULPM1.TG): 1500lm, Lux: 600Kcd (600,000cd)
XHP35 HI 6500K/5000K: 2000lm, Lux: 290Kcd (290,000cd)
XHP35 HI 4000K/3000K: 1800lm, Lux: 270Kcd (270,000cd)
SBT90.2 LED, 5700K, 4500lm, Lux: 420Kcd (420,000cd)

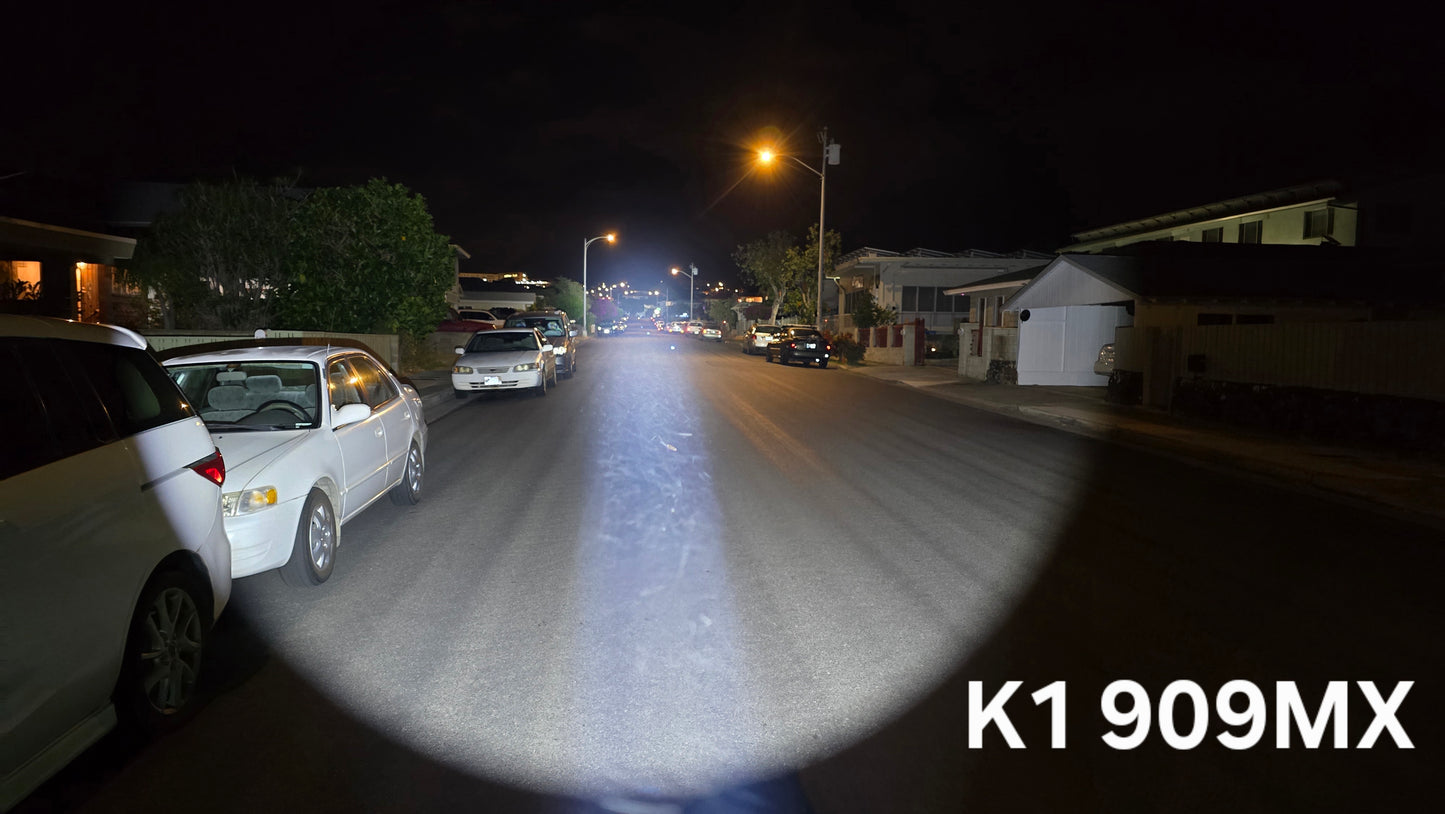

FFL909MX LED 6500K, 5200LM 1150m LUX 300Kcd (300,000cd)
