Noctigon DM11 21700 Mid-Range Thrower LED Flashlight *CUSTOM BUILT-TO-ORDER*

NEW! Noctigon DM11v2

NOTE: THESE ARE BUILT-TO-ORDER SO THESE WILL SHIP ACCORDINLY!

New designed head

New 21700 tube

3mm shorter than the previous DM11

1. Works with unprotected, flat top 21700 battery only (not inlcuded)

2. Please be noted there is no lanyard hole in the tailcap and no magnetic tailcap option.

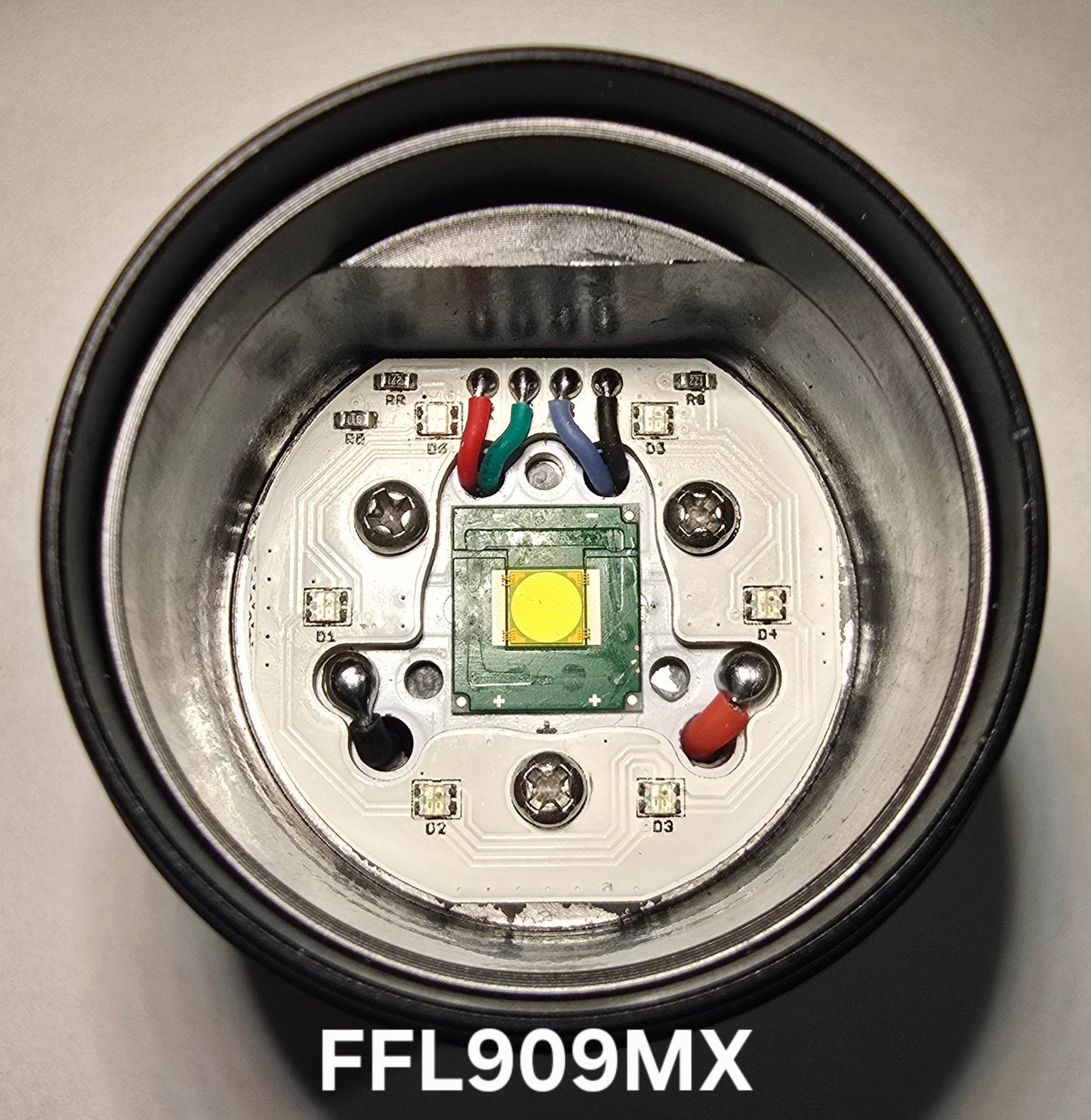

3. The glass lens of the SBT90.2 & FFL808mx LED will be removed to fit the optic, and the optic legs are also modified a bit to fit the LED, so, we do not recommend to swap the optic for the SBT90.2 & FFL909mx LED, the SBT90.2 & FFL909mx LED can easily be damaged by touching the emitter surface, we are not responsible for the damage of the LED if the user decides to swap the optic.

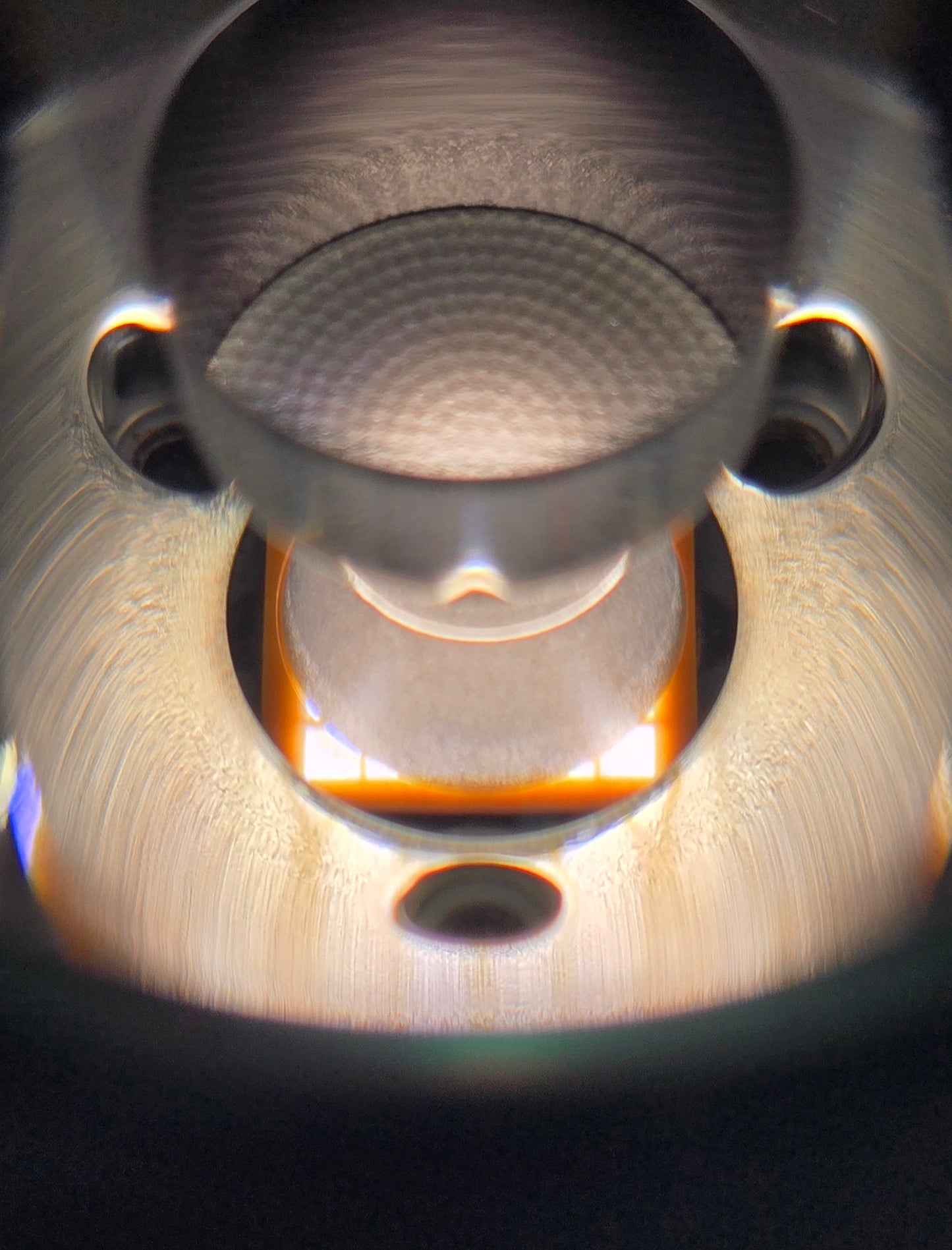

4. FFL909A is a very large 100w high lumen led so it will run VERY HOT! Optics will be modified to fit; beam profile will be not perfect can add d-c fix

5/20/2025:

There is new black PVD coated stainless parts available & with new black switch buttons! You can select your options at during the time of your custom build. If the option is not selectable it's not available, the metal switch buttons won't be available will the end of May. NOTE: new black switch buttons are painted so be careful not to press too hard or dig anything into the button switch. There will be new non-painted black buttons available in the next shipment. I will ship a spare button so you can replace it if it starts to wear.

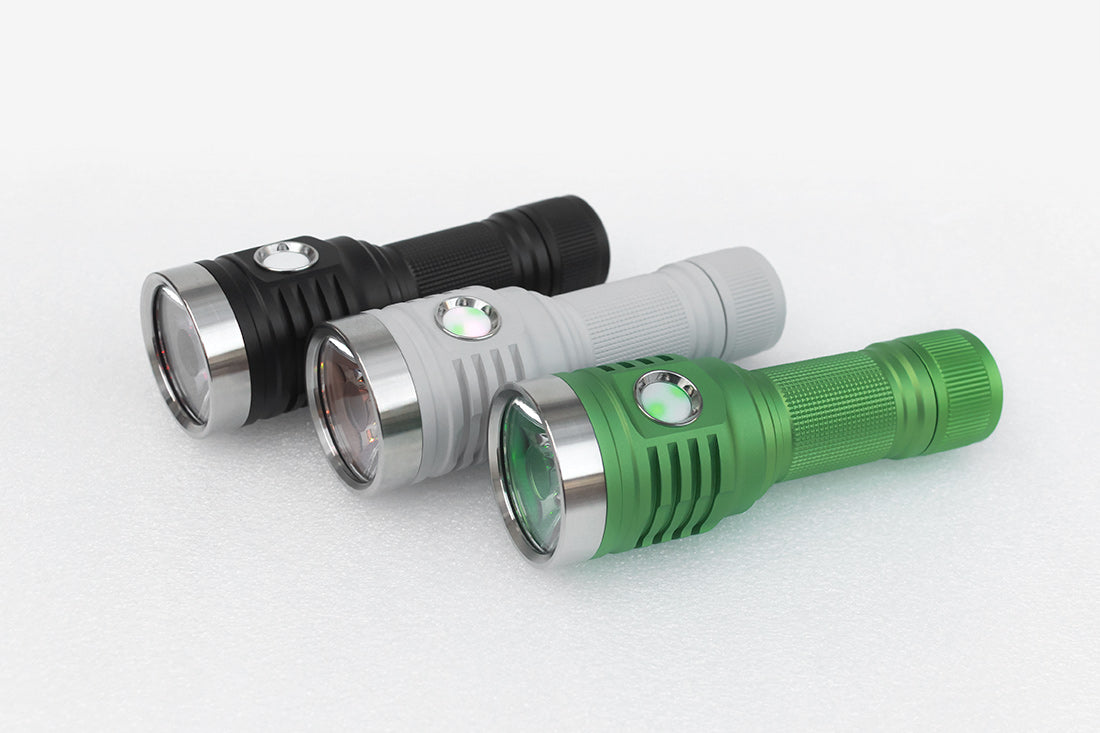

BODY COLORS:

BLACK

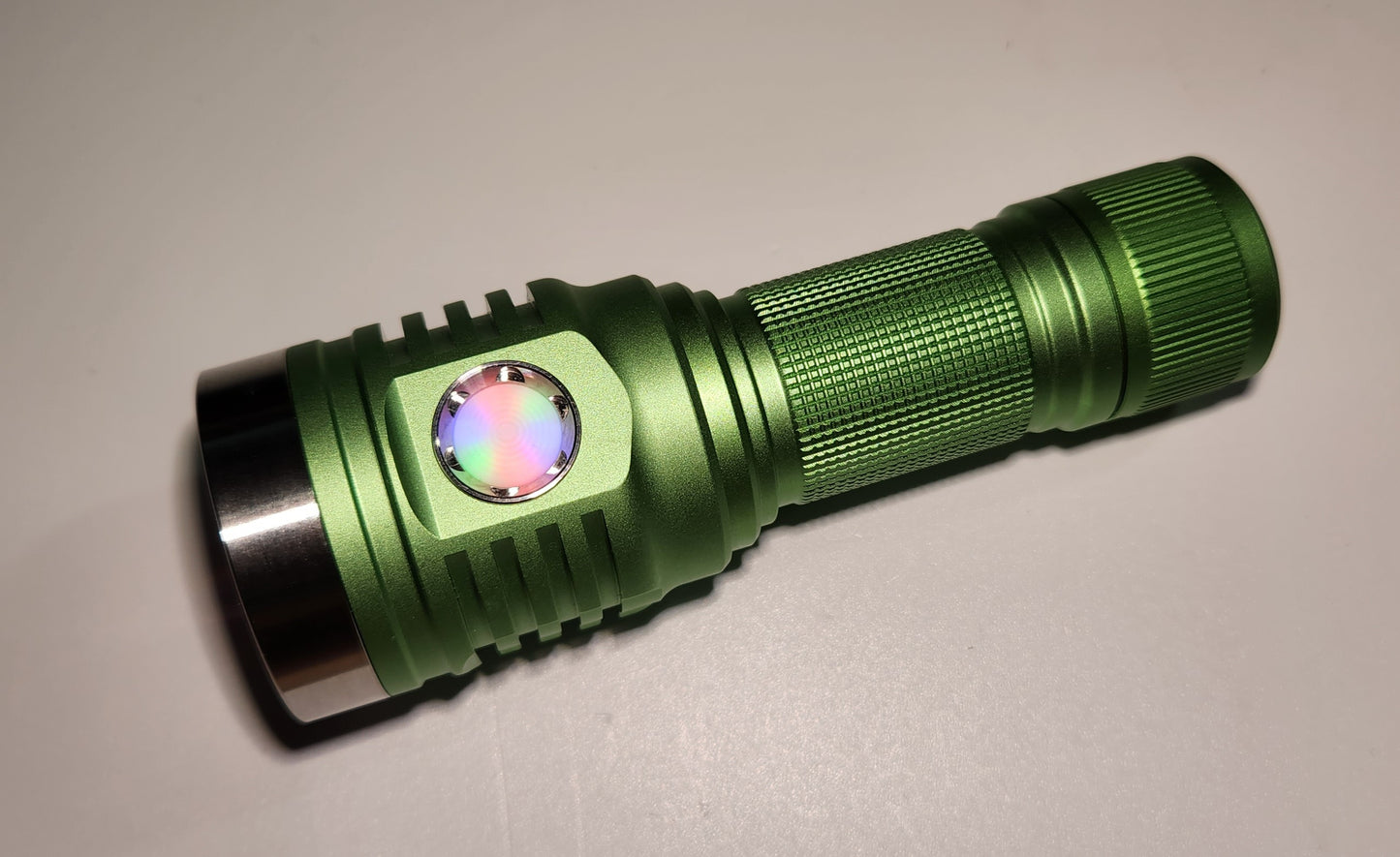

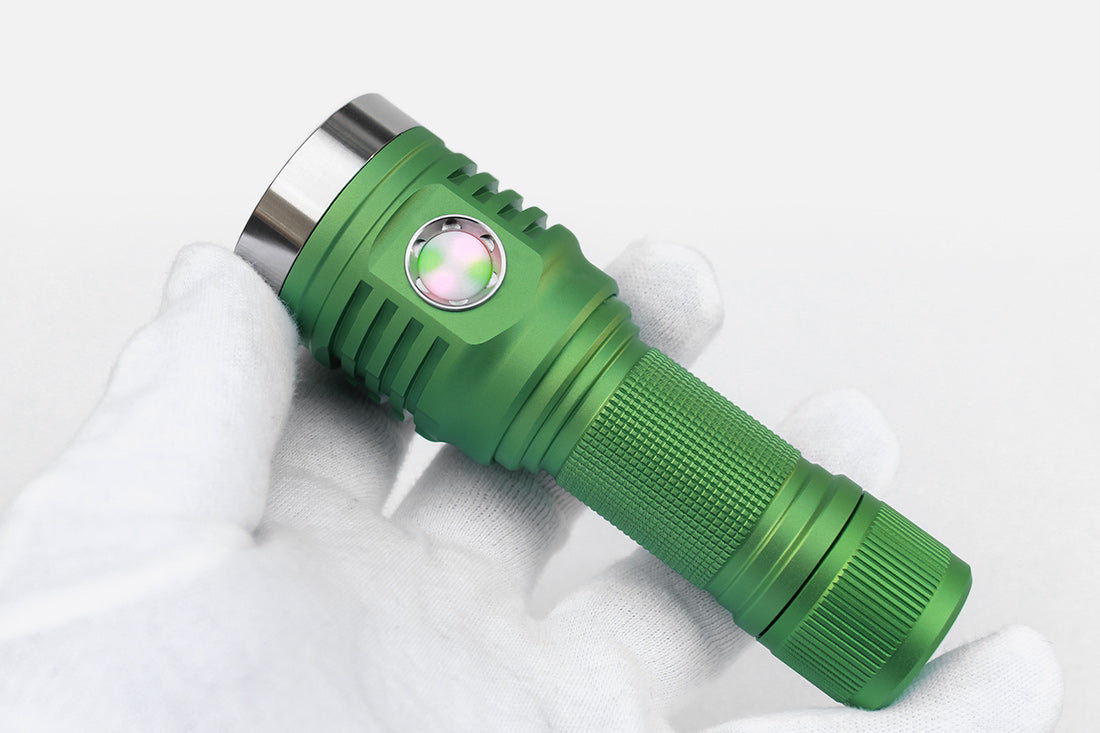

GREEN

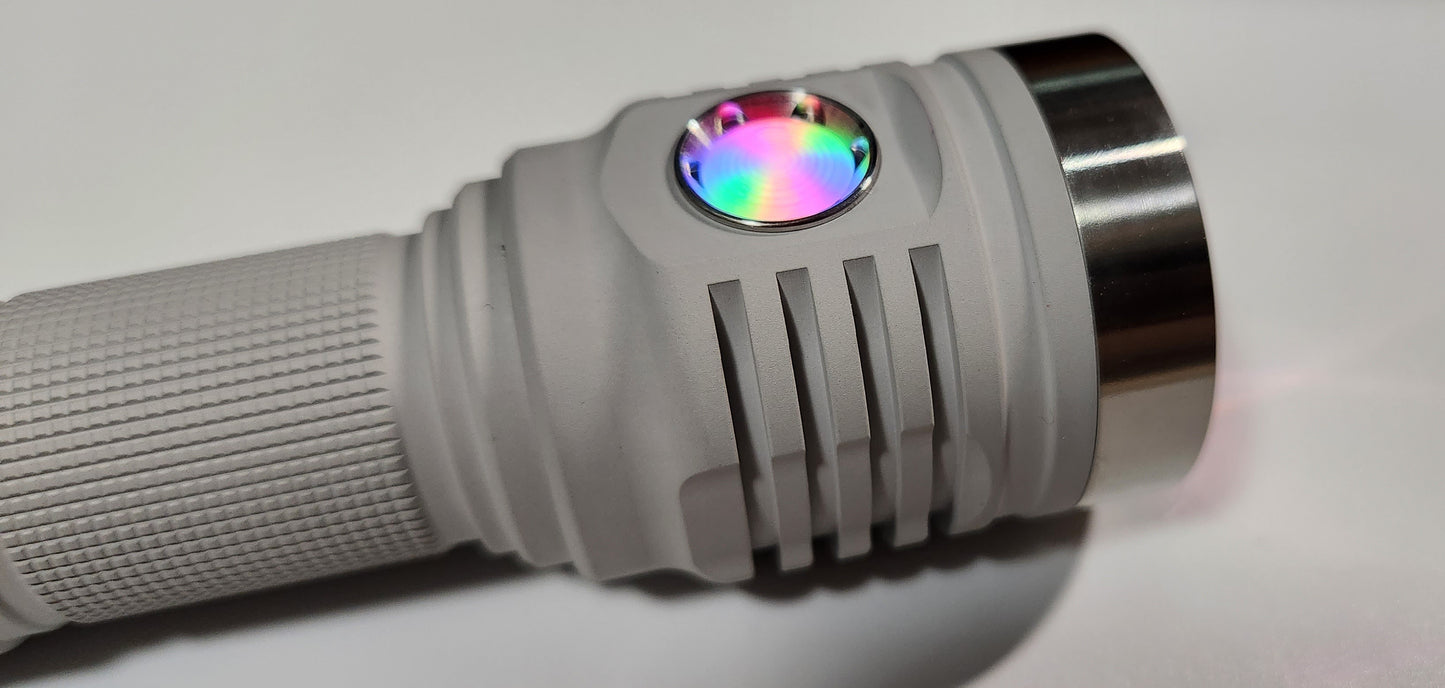

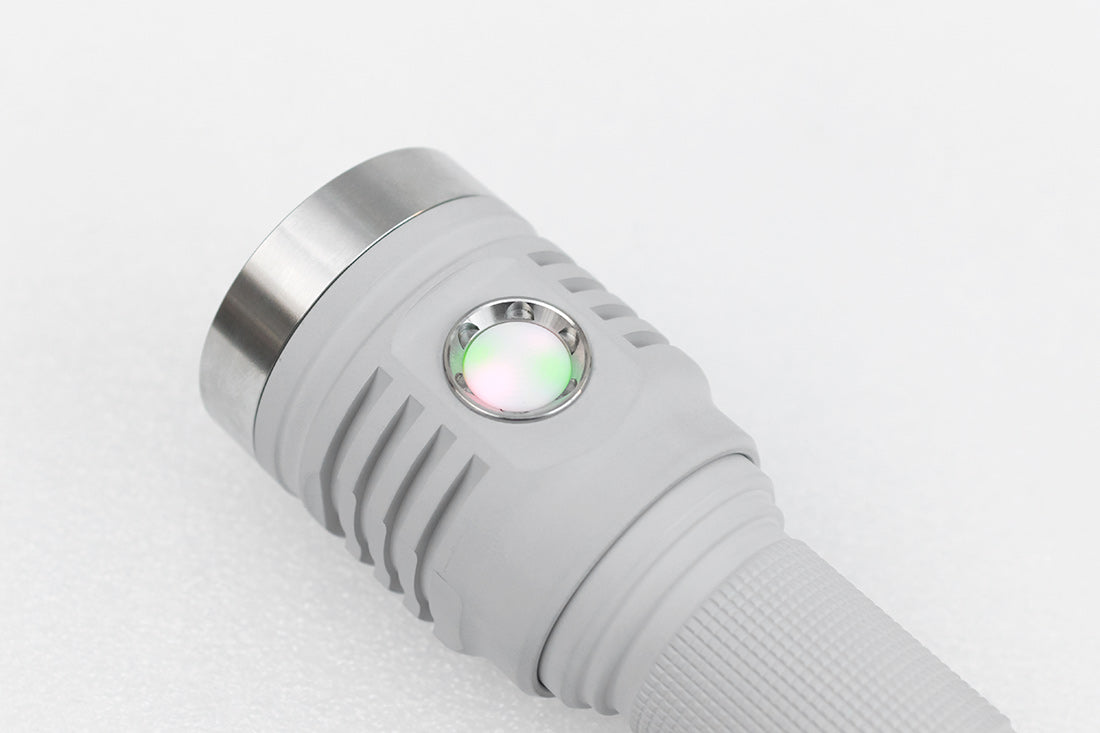

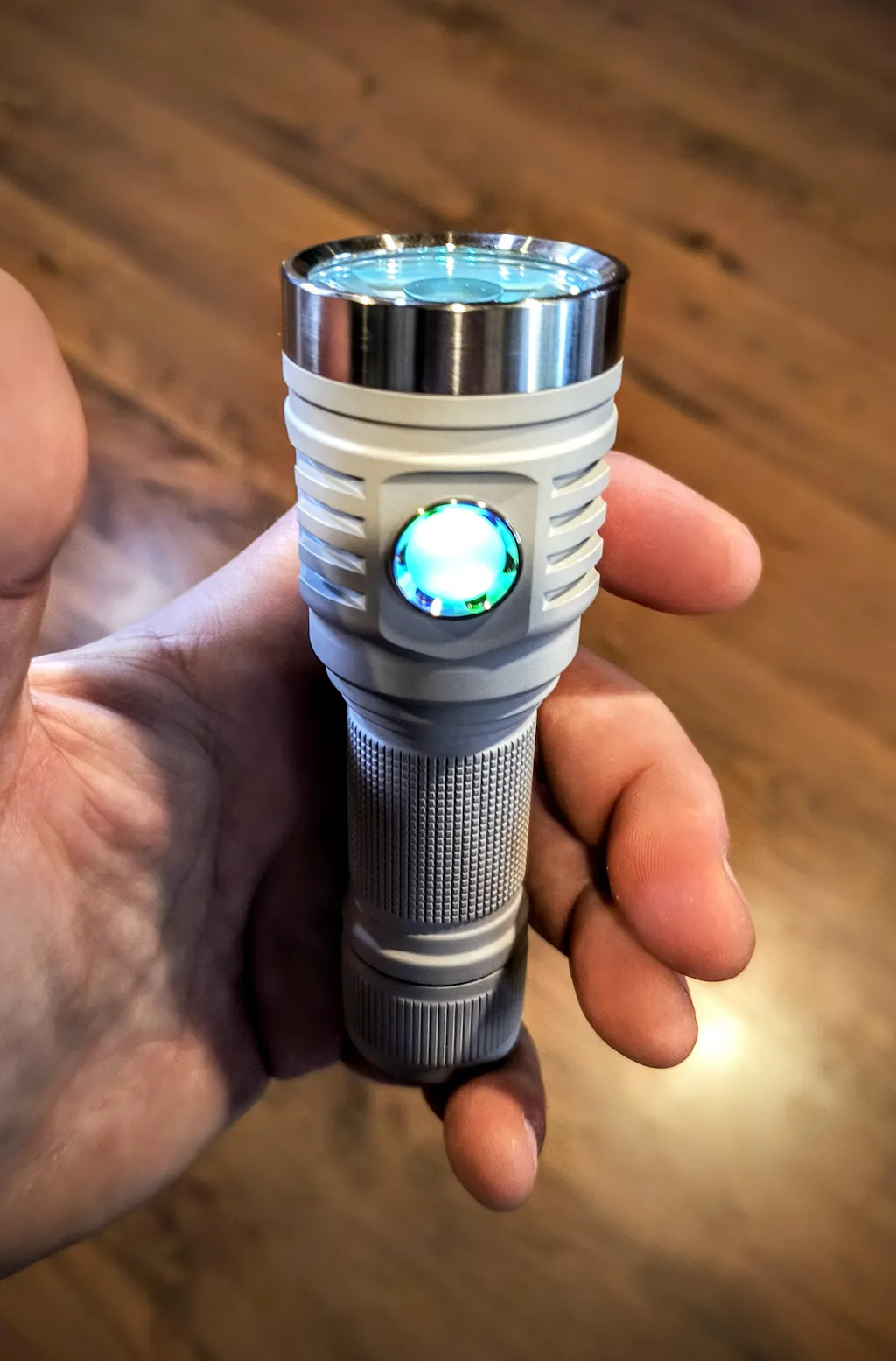

STONEWHITE ($5 ADDITIONAL)

EMITTER OPTION:

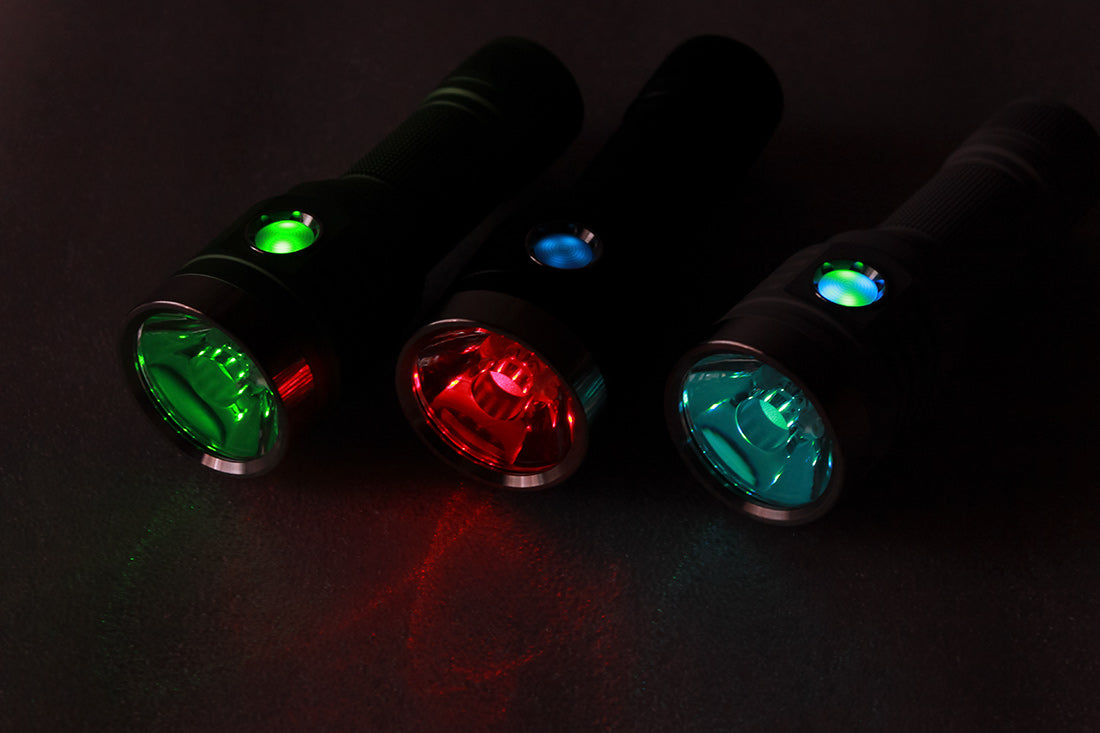

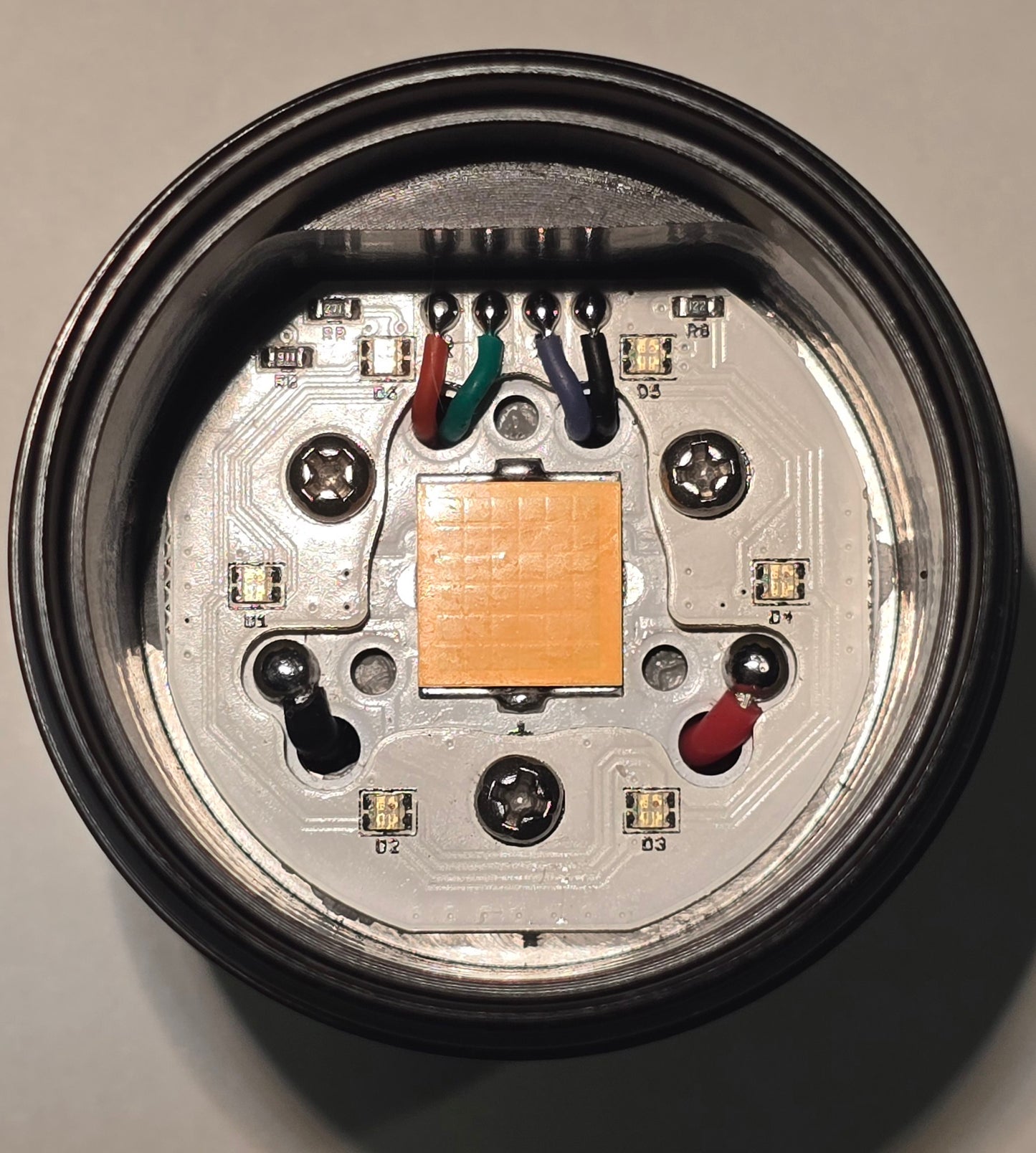

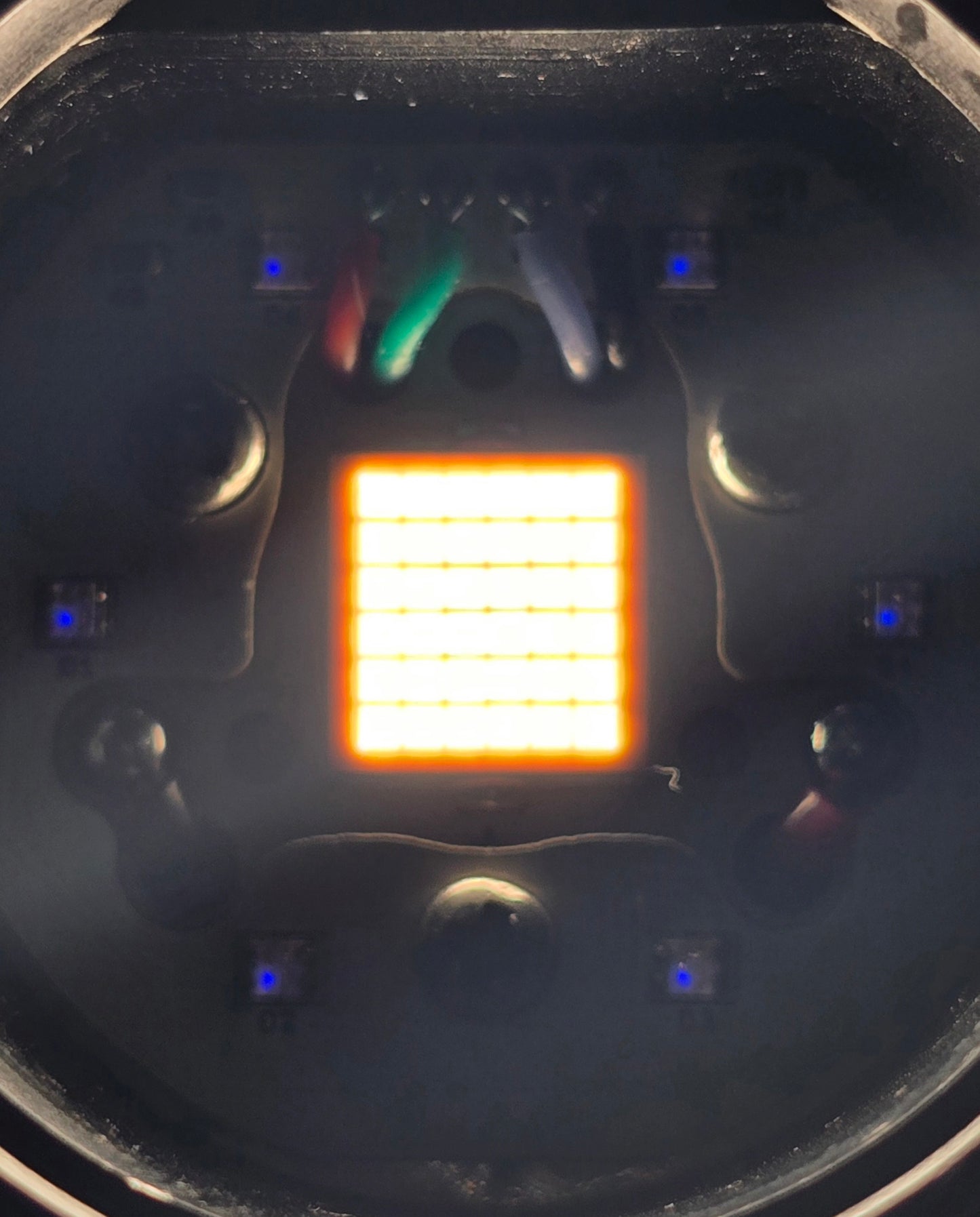

W/RGB AUXILIARIES

OSRAM W1/W2

OSRAM W2.1/W2.2 BOOST HX

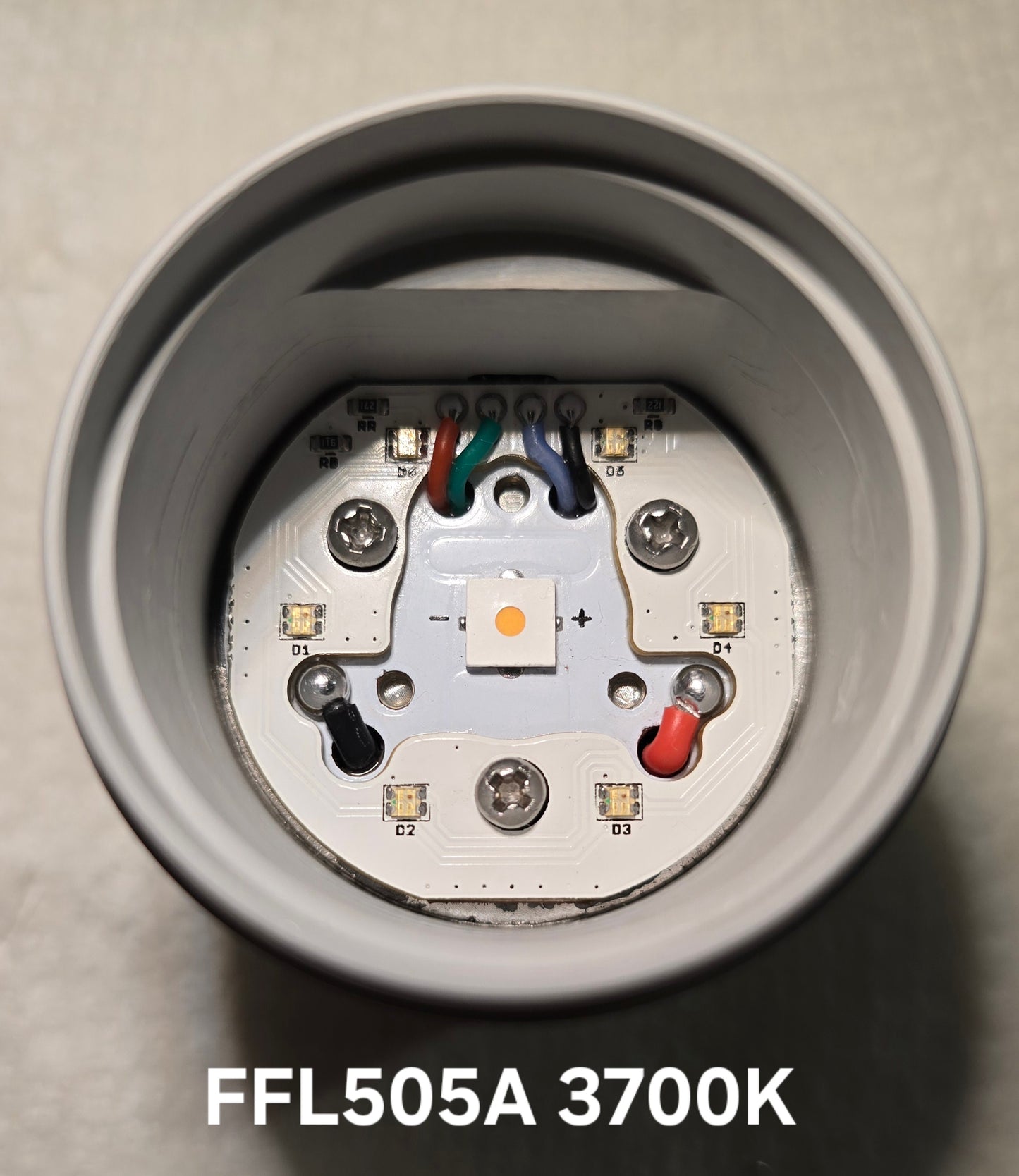

FFL505A 3700K 96CRI (ROSY BIN)

FFL505A 6500K 95-96CRI

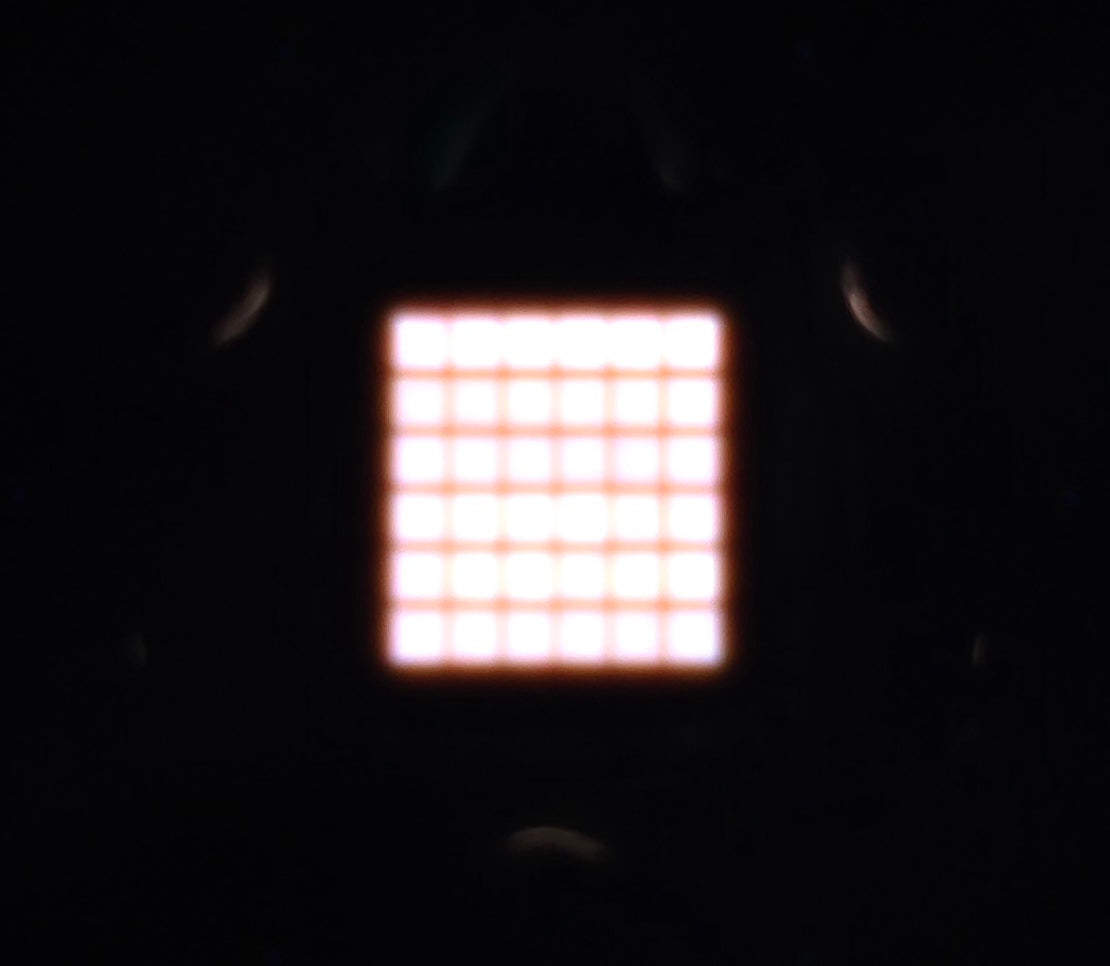

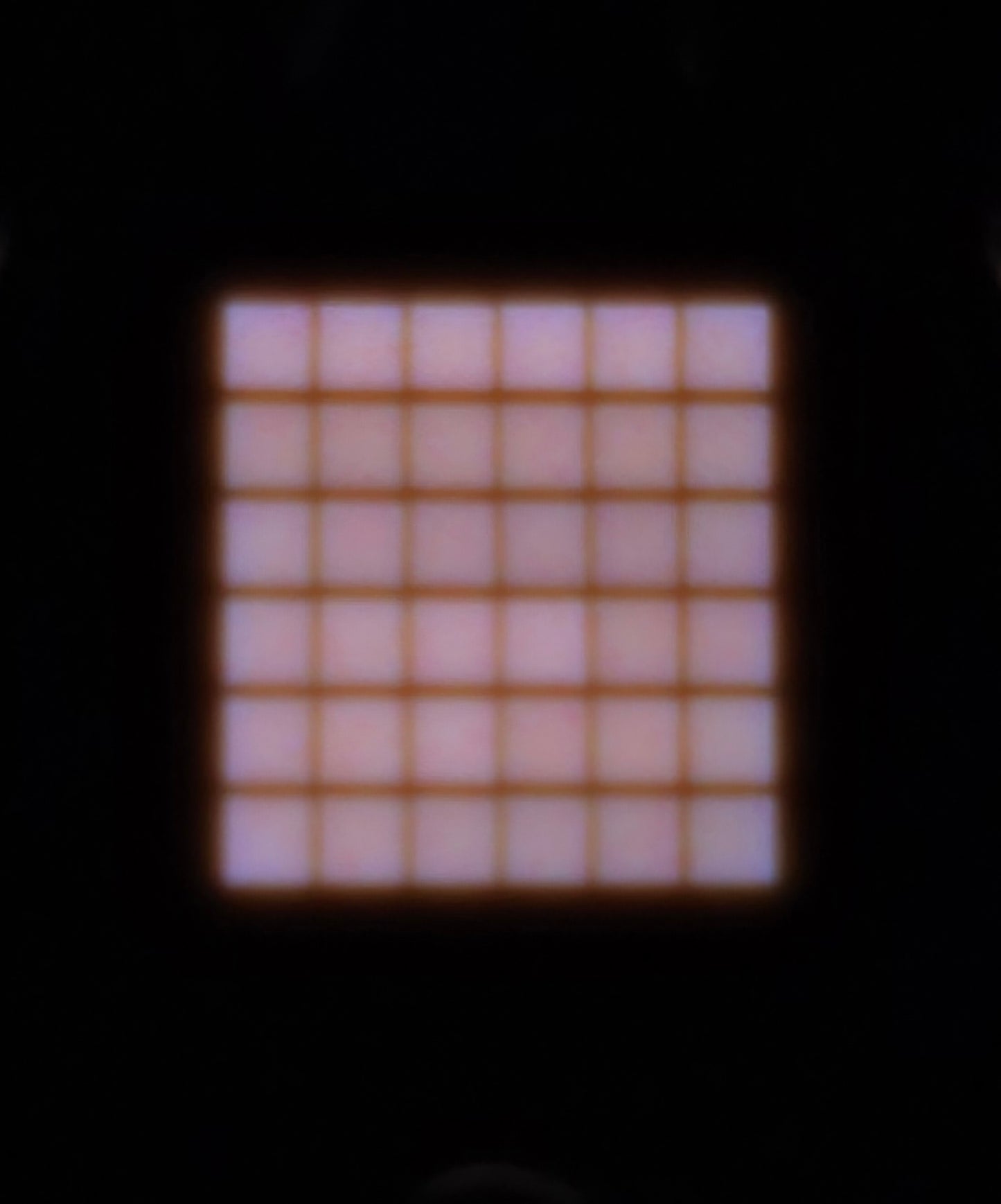

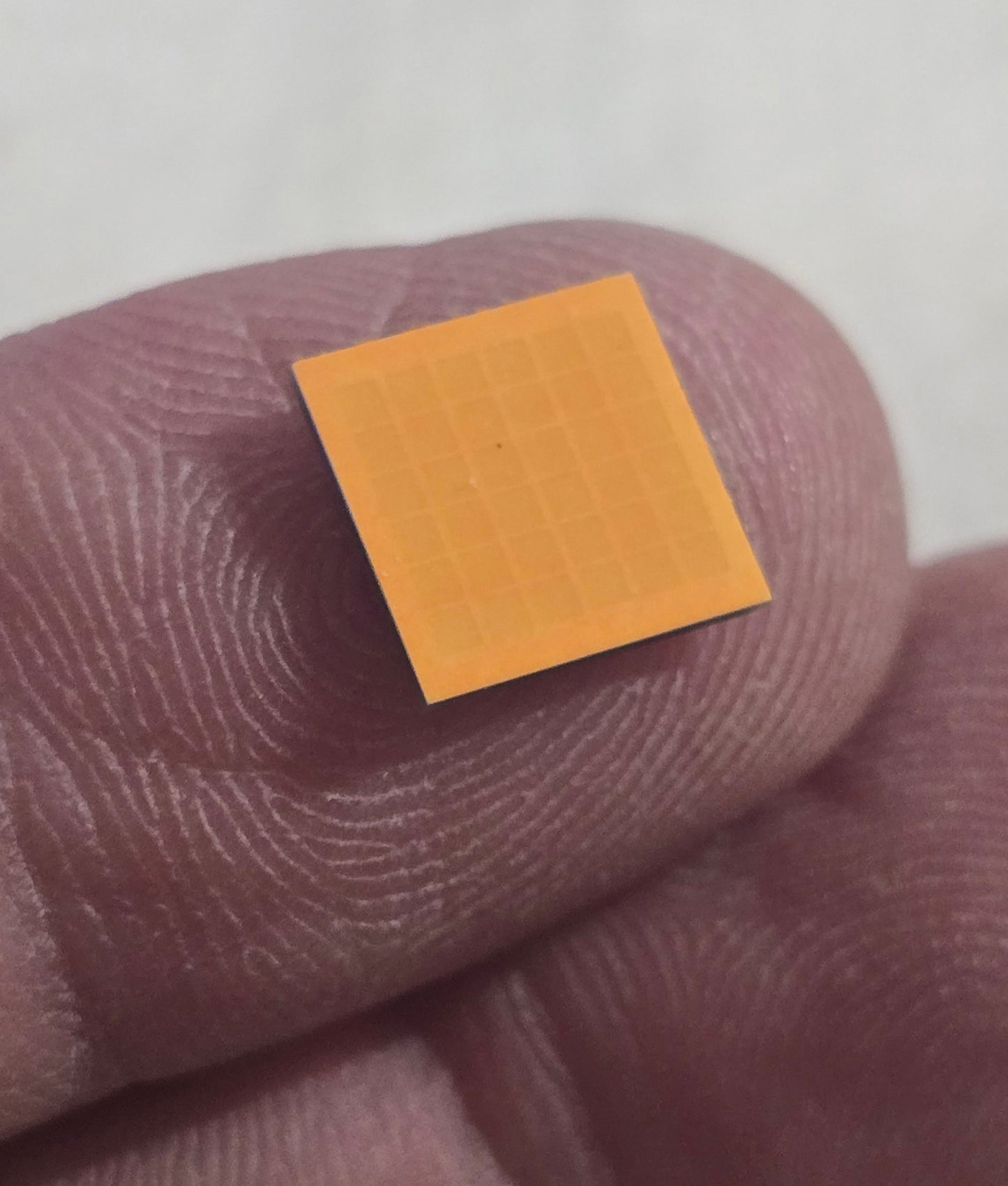

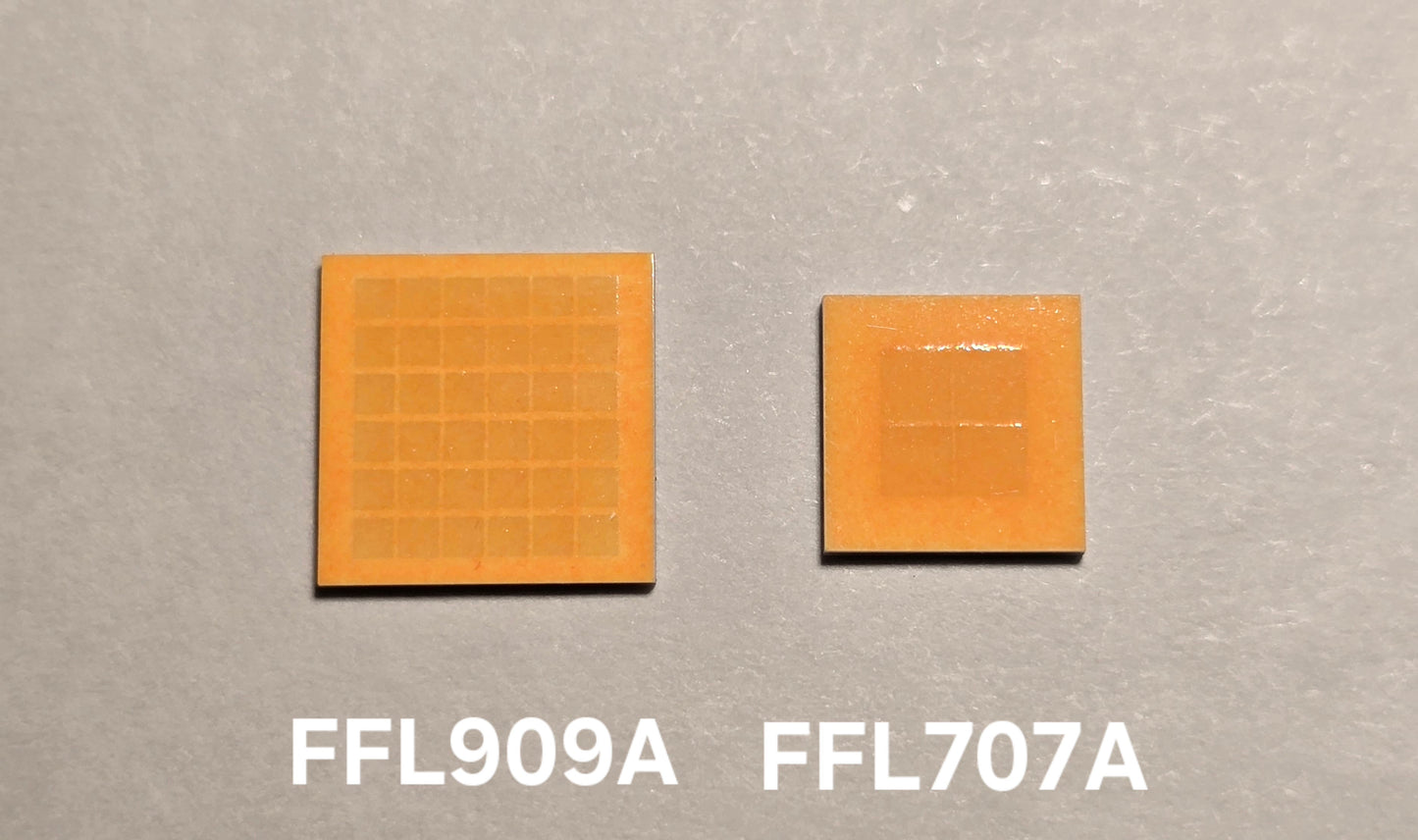

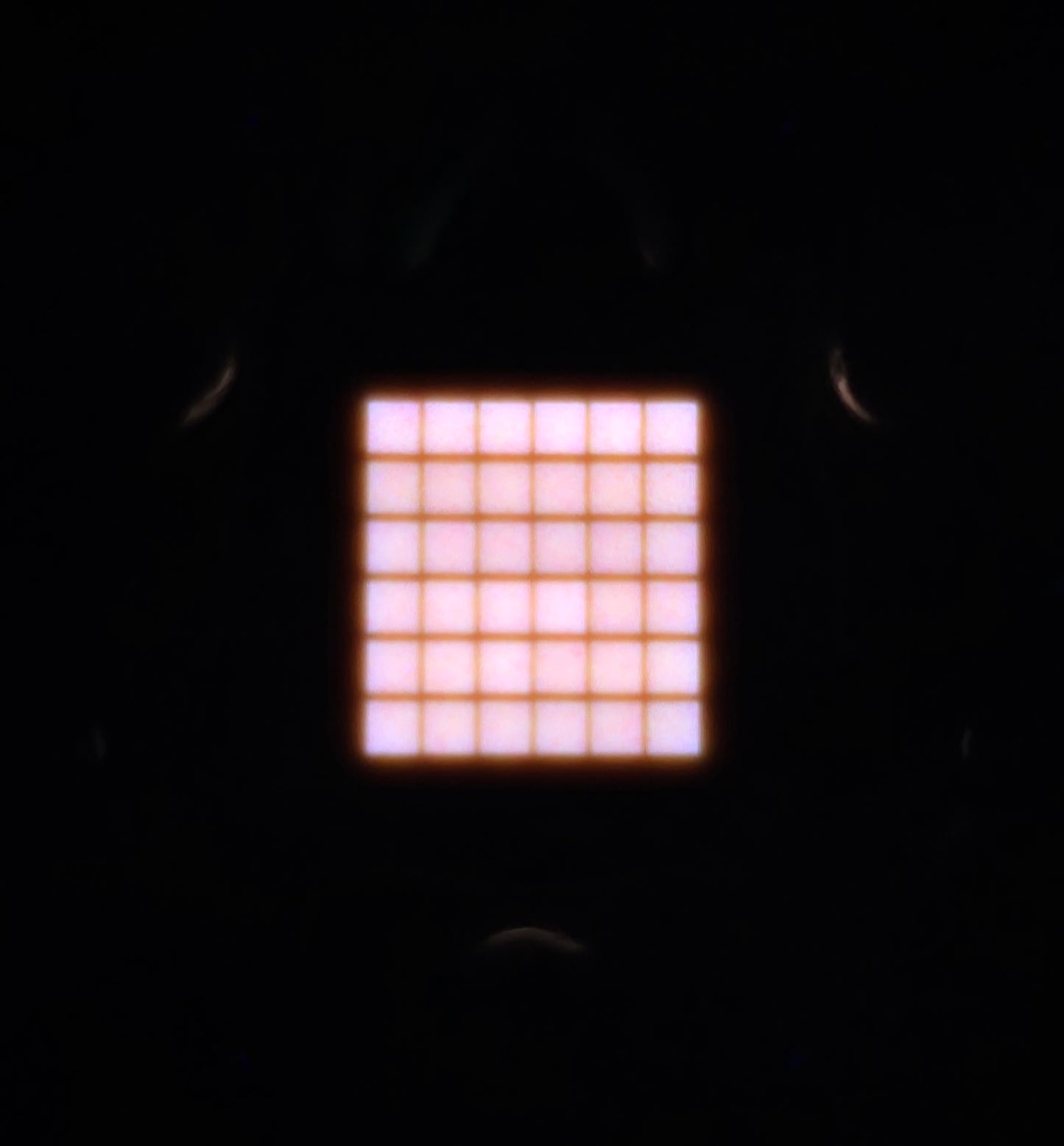

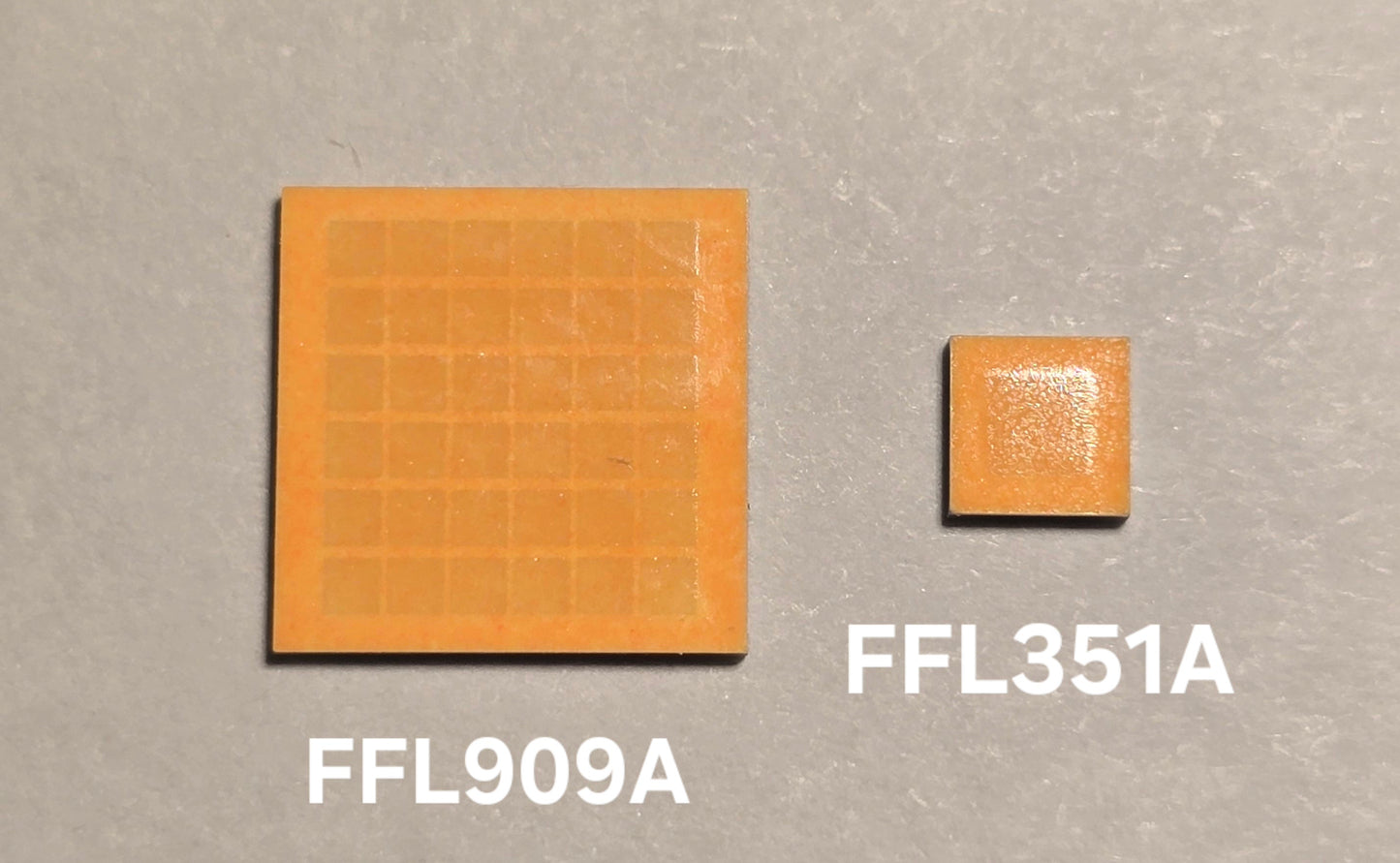

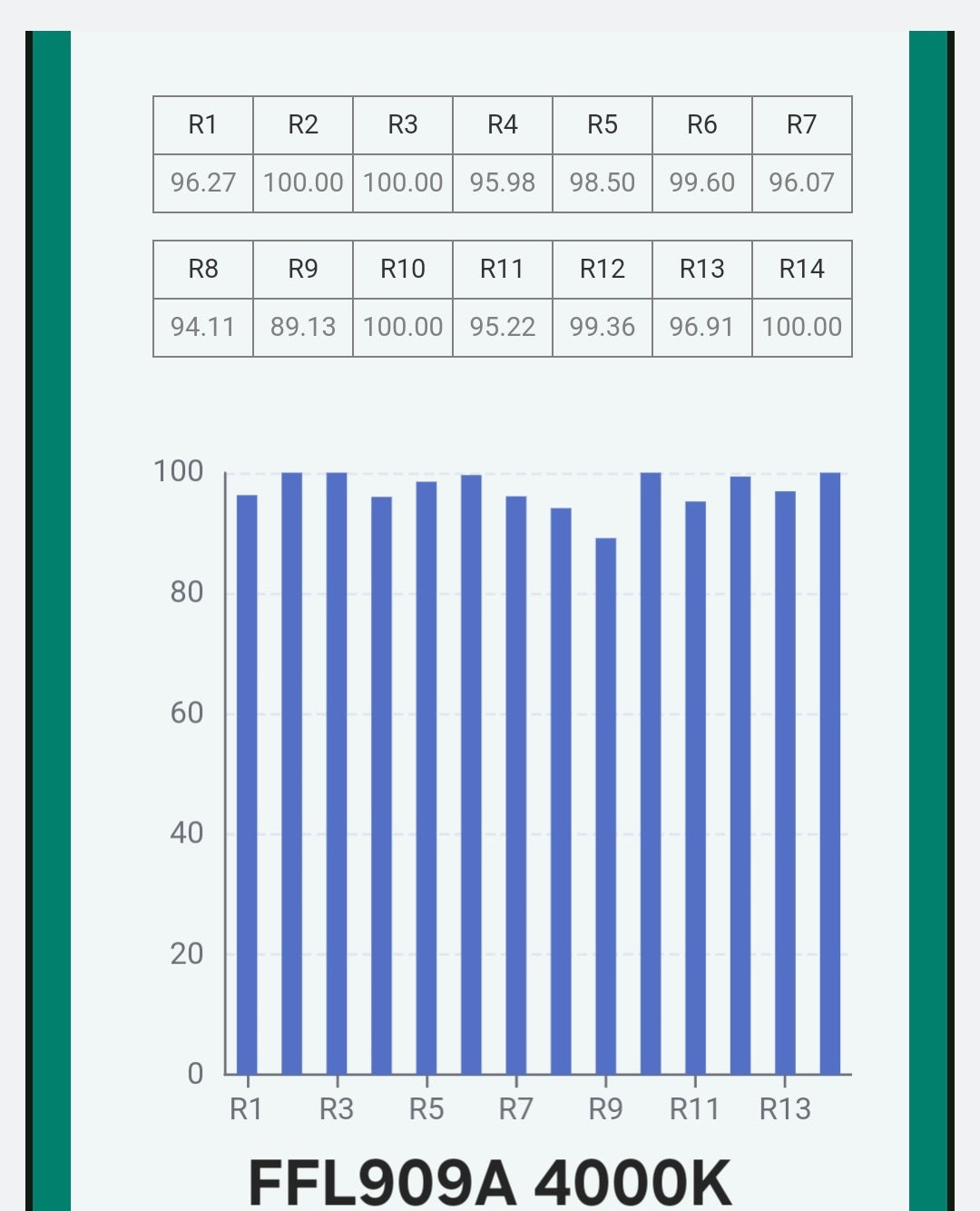

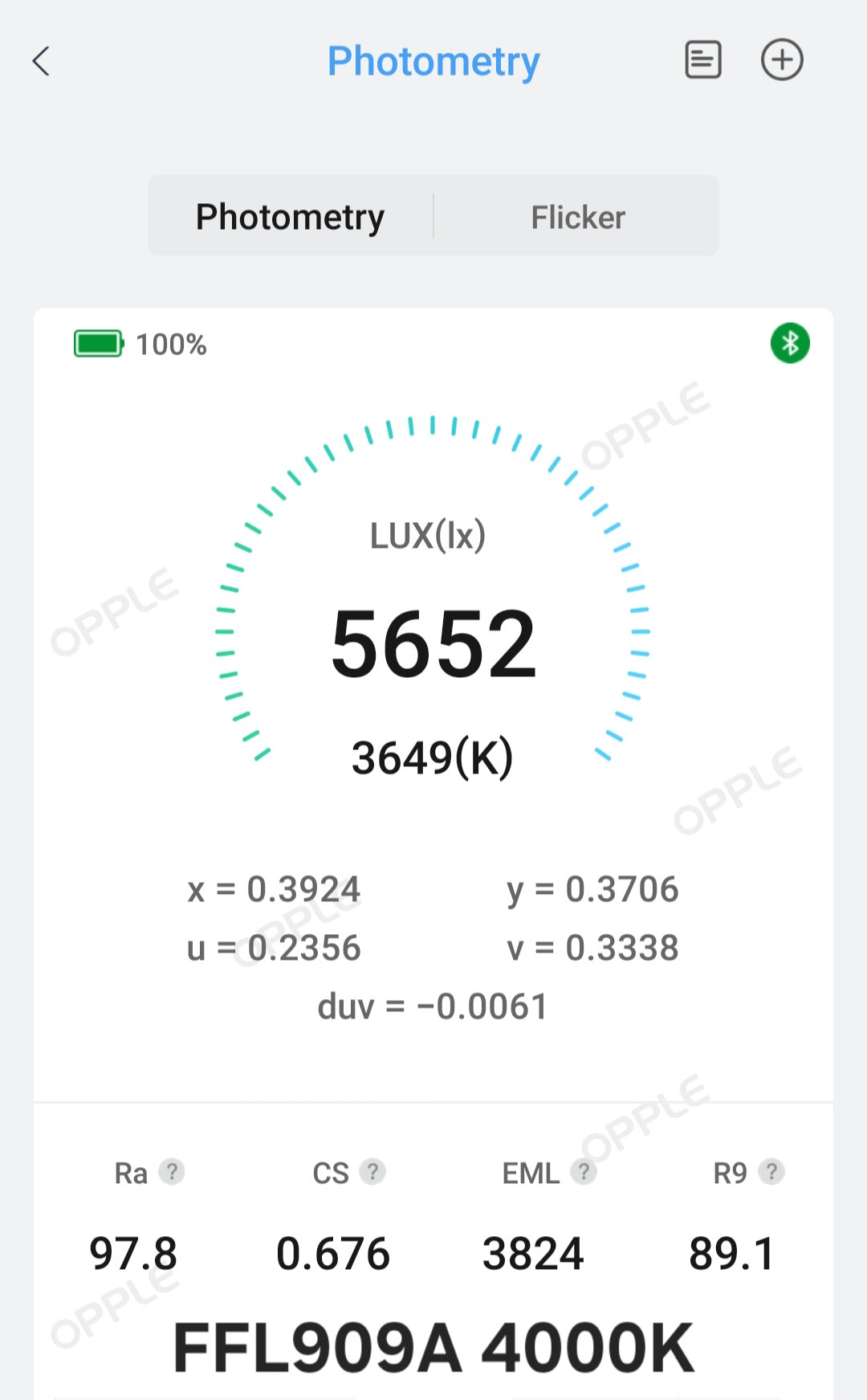

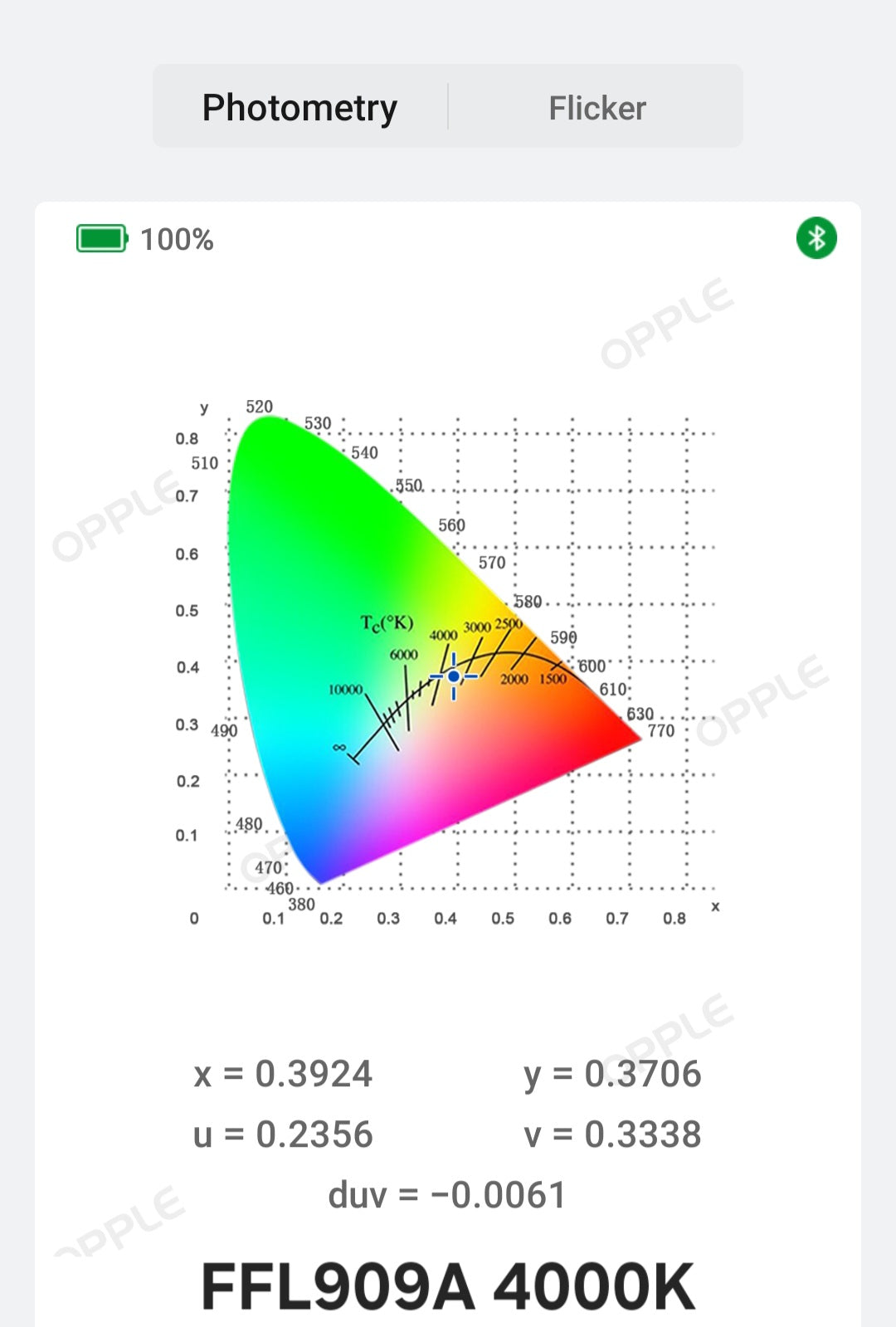

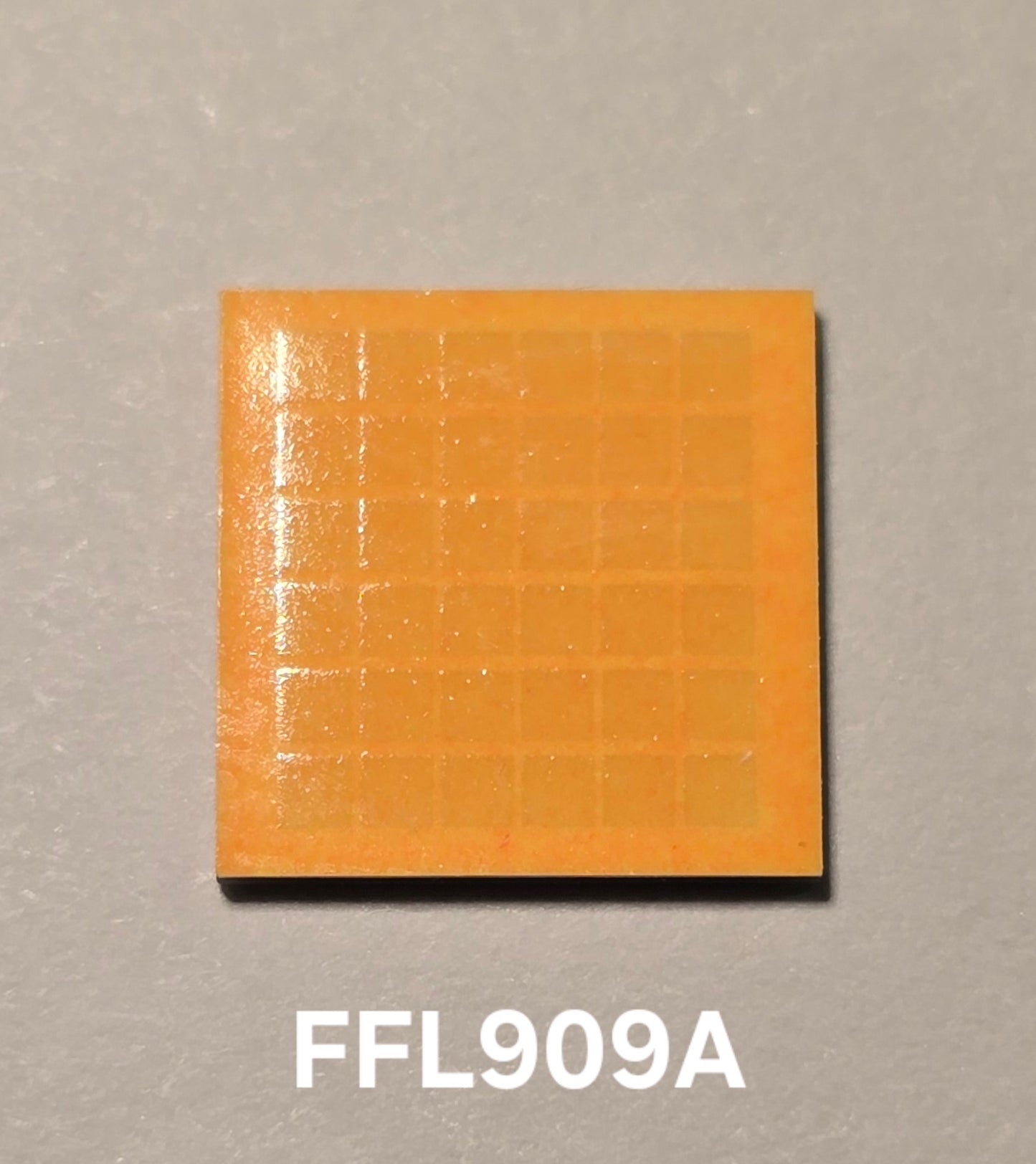

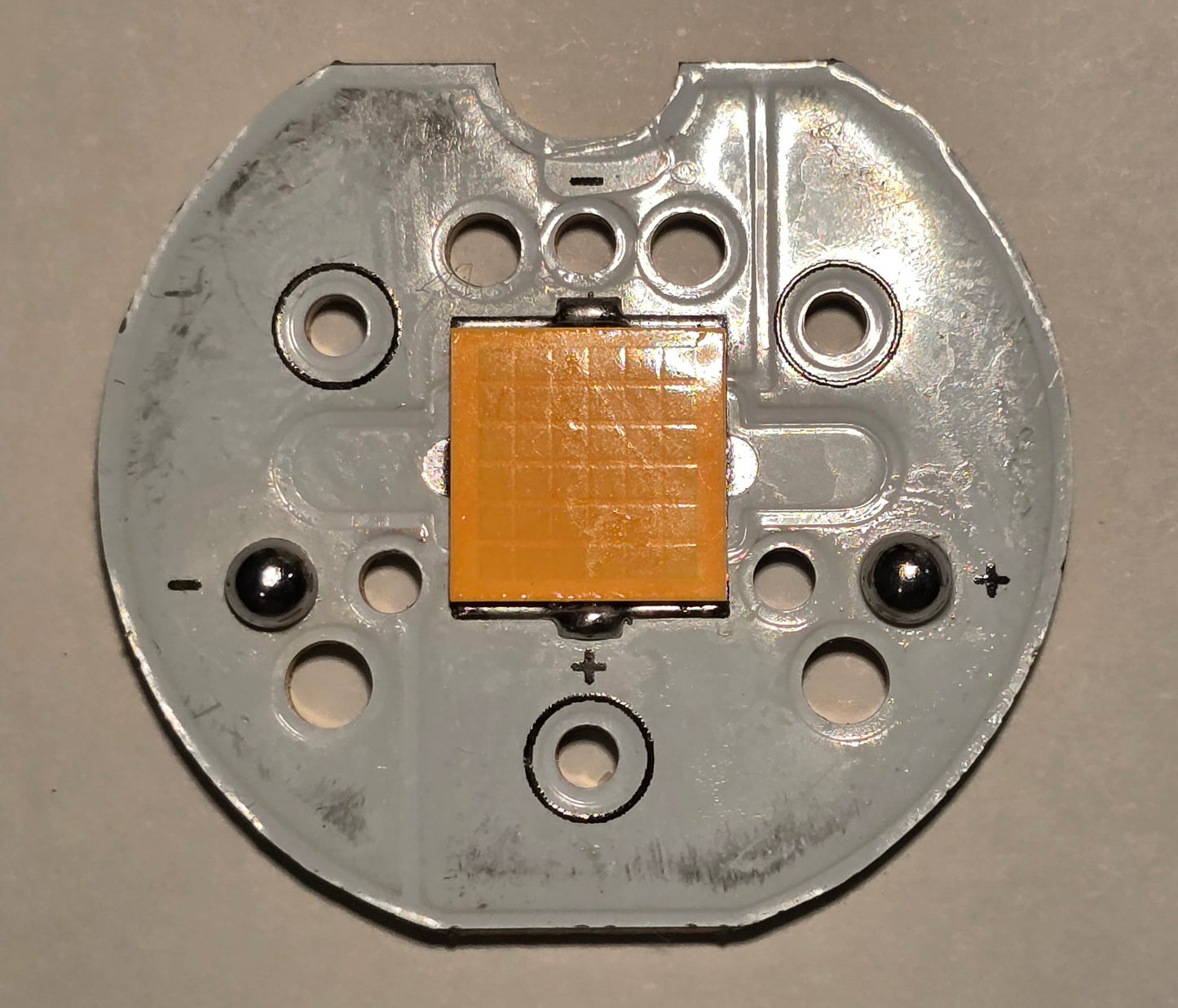

NEW! FFL909A 9090SMD

LUMINUS SFT-25R

LUMINUS SFT-40

LUMINUS SBT90.2

OPTICS:

DEFAULT

3.8 DEGREE THROW OPTICS (FOR SFT40, SFT25R, OSRAM & FFL505A)

6 DEGREE OPTIONAL (LARGER WIDER HOTSPOT)

FFL909A THERE IS ONLY ONE OPTICS USED

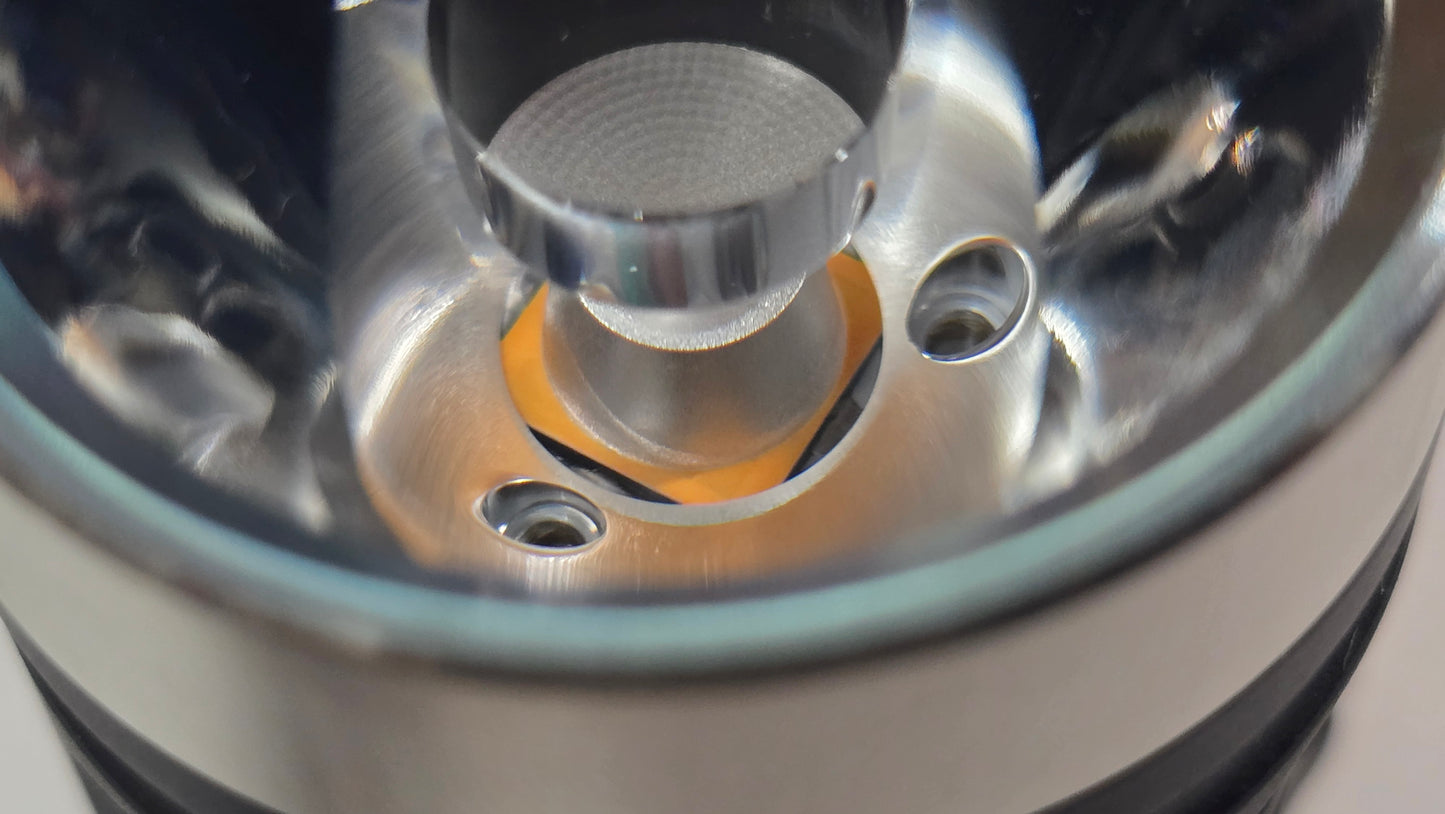

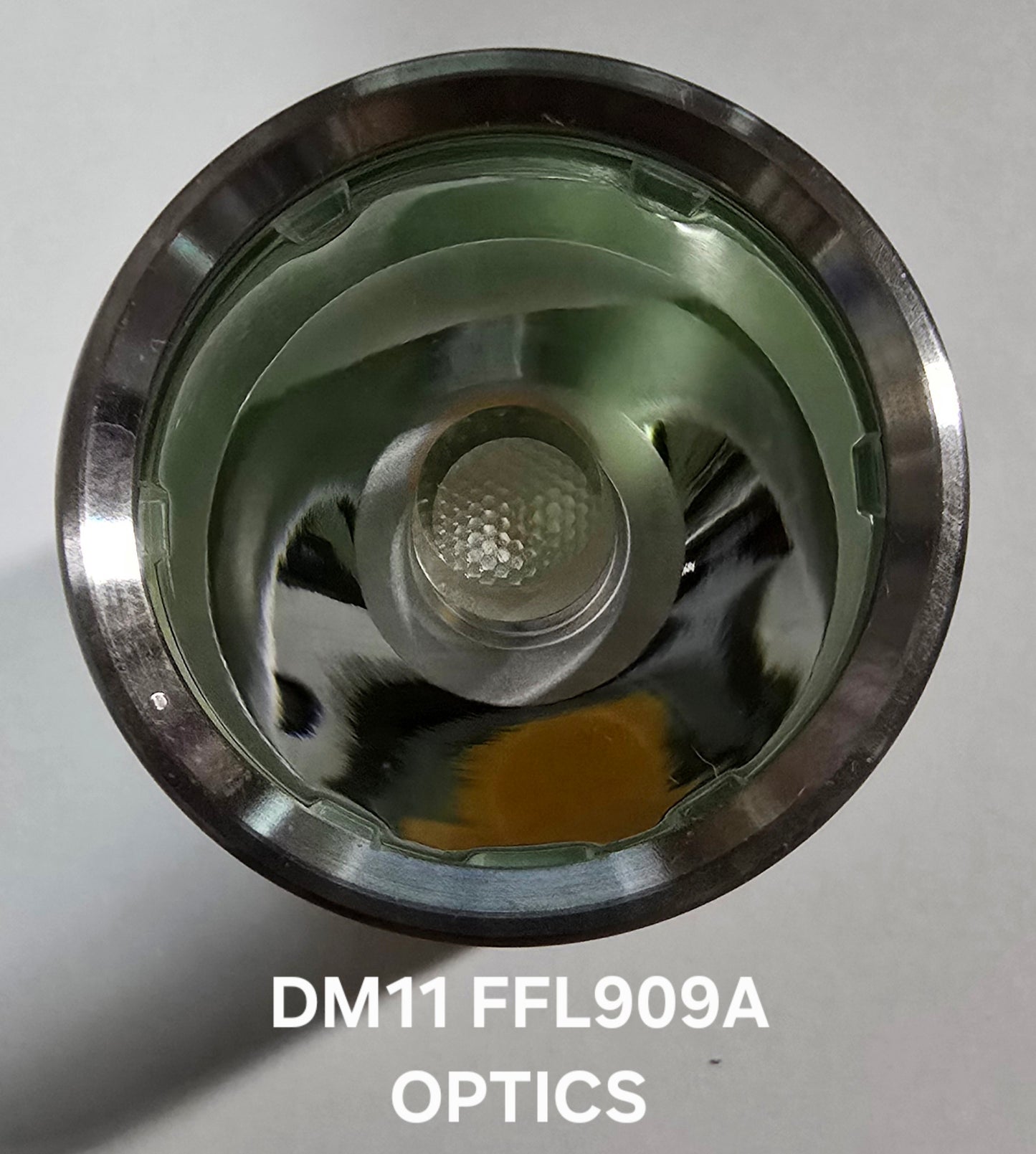

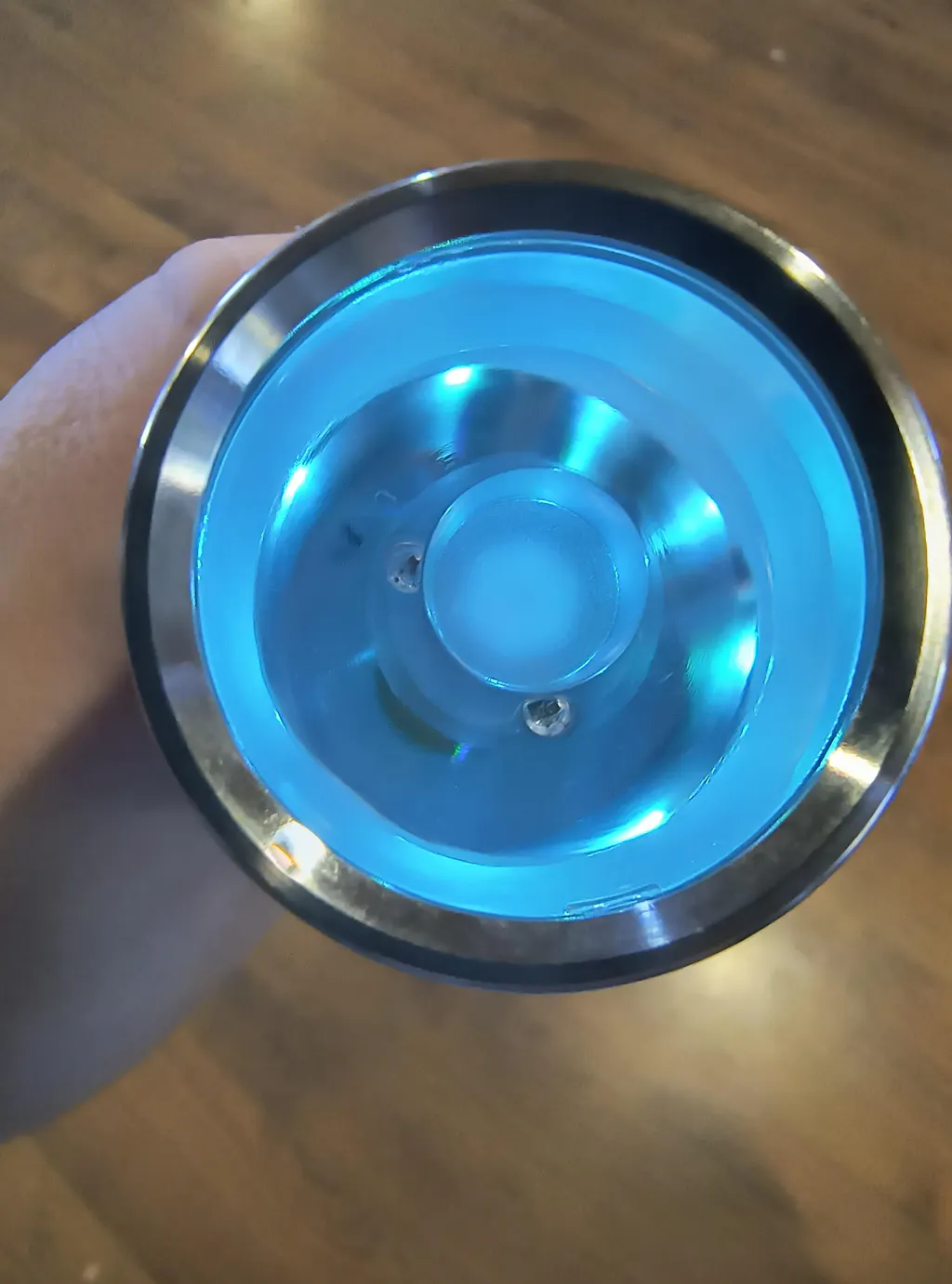

NOTE: FFL909A OPTION 35MM CONVOY TIR OPTICS USED, THERE WILL BE A SLIGHT "RATTLE" BECAUSE THERE IS A 1-2MM GAP FROM THE OPTIC TO GLASS

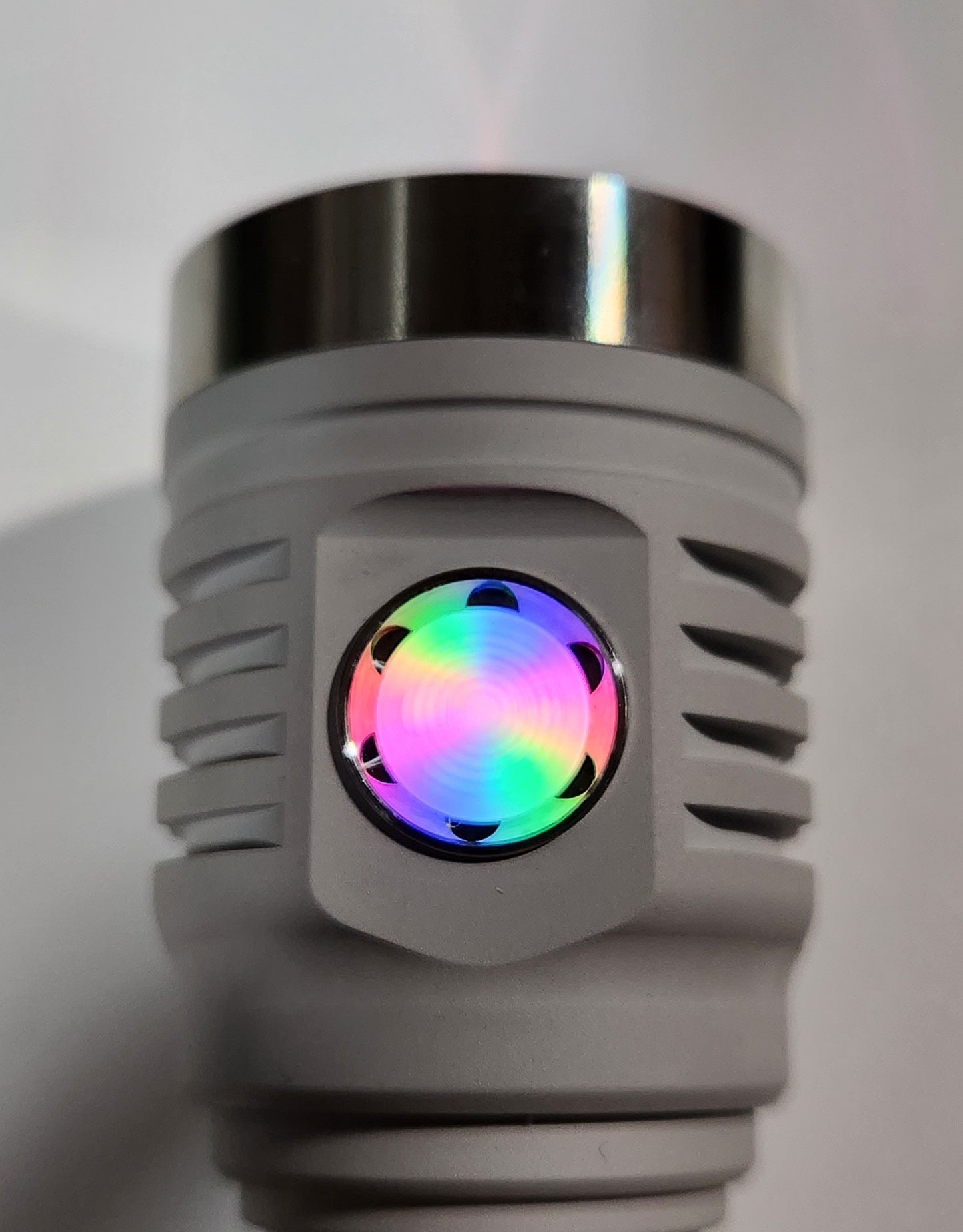

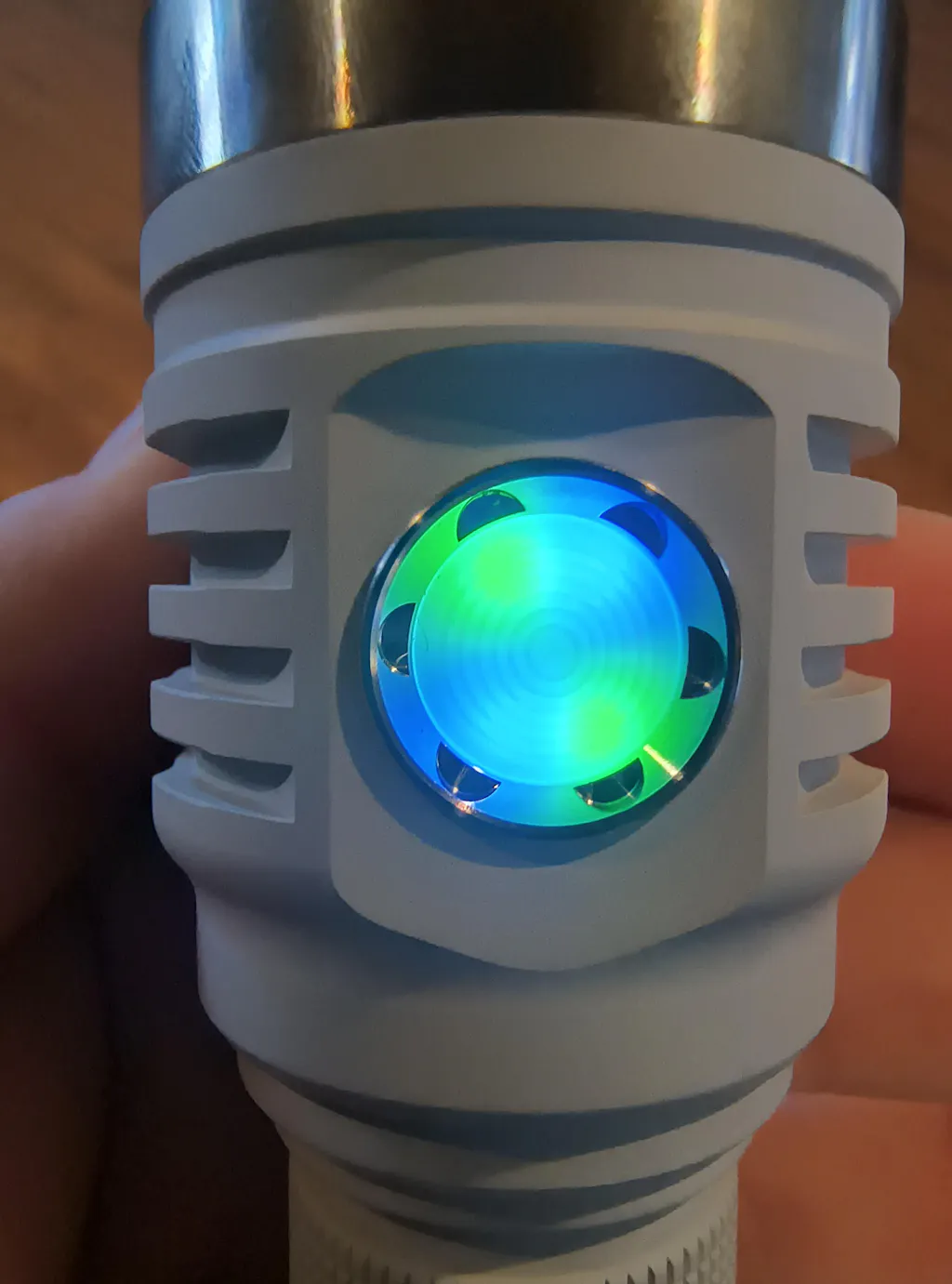

LIGHTED SWITH OPTION:

RGB

INCLUDED ACCESSORIES:

NONE

OPTIONAL ACCESSORIES:

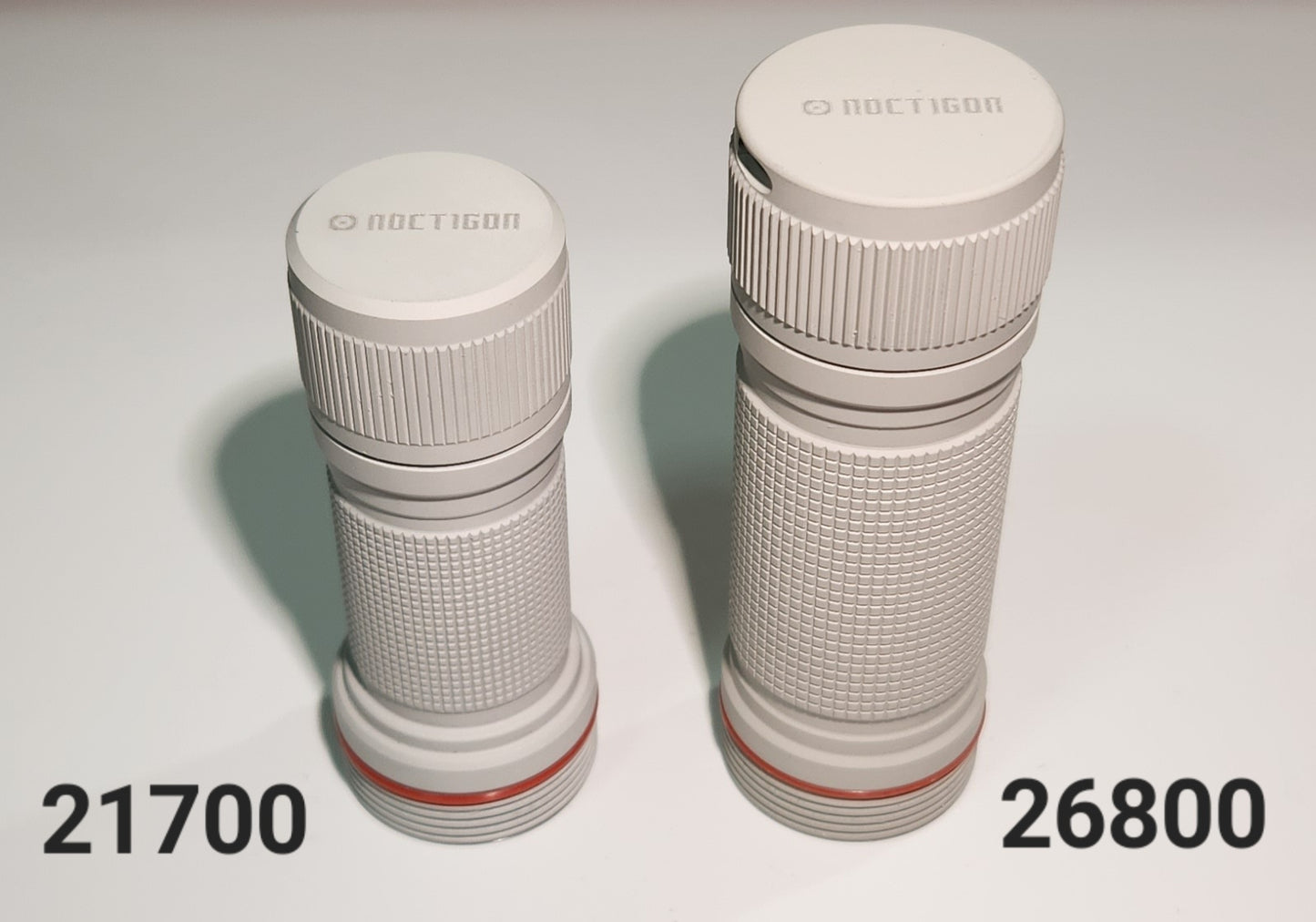

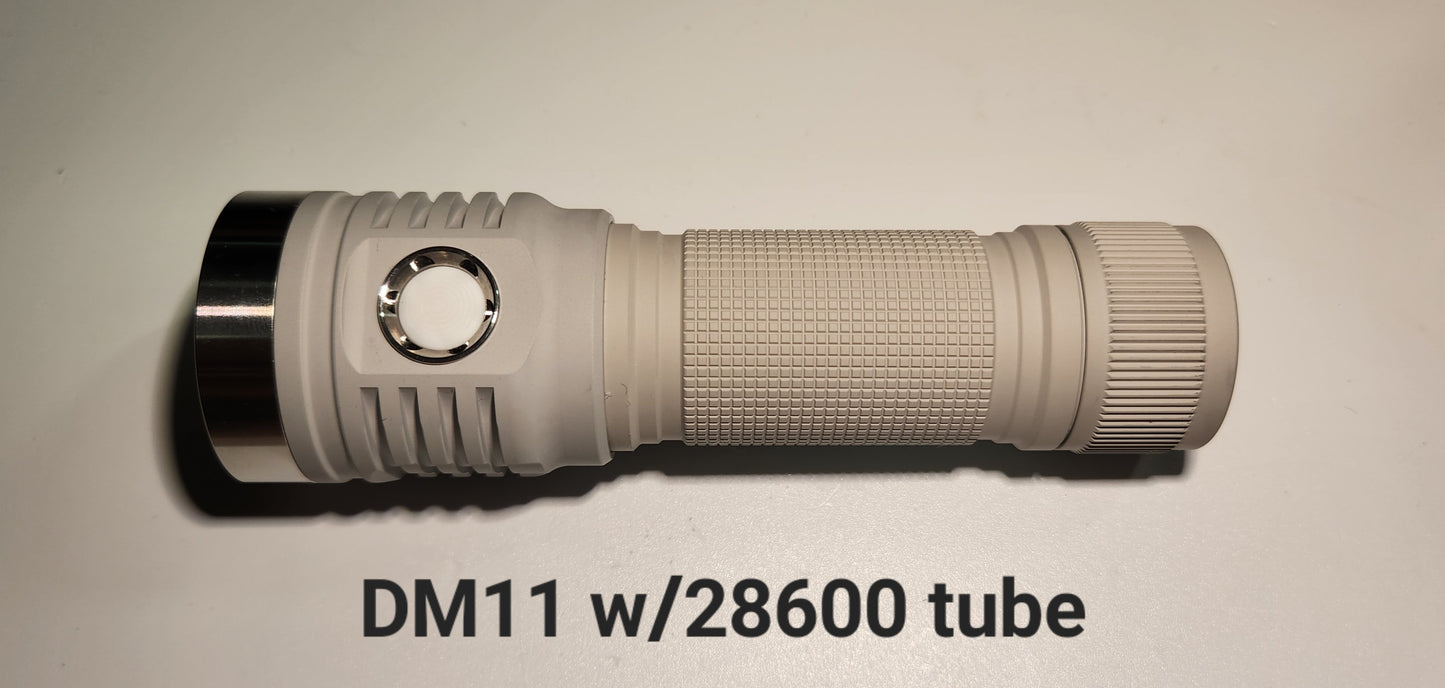

26800 TUBE/TAIL CAP >>> Noctigon DM11 DM1.12 26800 Extension Tube/Cap – JLHawaii808

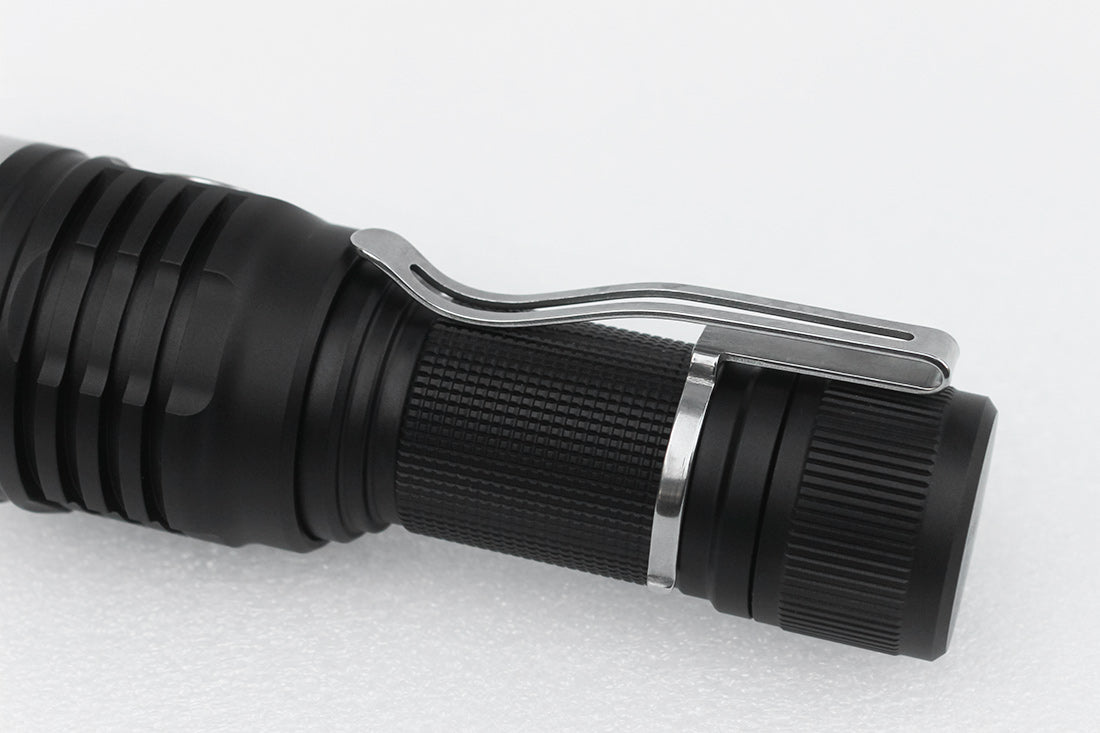

DEEP CARRY POCKET CLIP >>> Emisar Noctigon Stainless Pocket Clips – JLHawaii808

21700 BATTERY >>> Molicel P42A 21700 4200mAh 45A Li-Ion Rechargeable Battery – JLHawaii808

Battery:

21700 unprotected cell NOT INCLUDED!

Molicel P42A link >>> Molicel P42A 21700 4200mAh 45A Li-Ion Rechargeable Battery **** HAS TO – JLHawaii808

Features:

• CNC machined from aircraft-grade aluminum

• Unihead construction

• High lumen output and low moon output

• Ramping interface

• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.

• Temperature step-down

• Waterproof and dustproof to IP67 standard (up to 1 meter)

• Weight: 120g (without battery)

• Dimensions: 117mm(length) * 40mm(head) * 26.5mm(body)

W1 (Osram CSLNM1.TG): 900lm, Lux: 150Kcd (150,000cd)

W2 (Osram CSLPM1.TG): 1300lm, Lux: 130Kcd (130,000cd)

SFT-40 6500K: 1800lm, Lux: 130Kcd (130,000cd)

SBT90.2: 4500lm, Lux: 128Kcd (128,000cd)
