Miniware MHP30 Mini Hot Plate Reflow Station

Miniware MHP30 Mini Hot Plate Reflow Station

Regular price $129.88 USD
Regular price $129.99 USD Sale price $129.88 USD
Sale Sold out
Shipping calculated at checkout.

Miniware MHP30 mini hot plate. This is the best and will do the job quickly and doesn't take up much space. Super fast heat up time less than 2 mins! 65 watt PD charger included

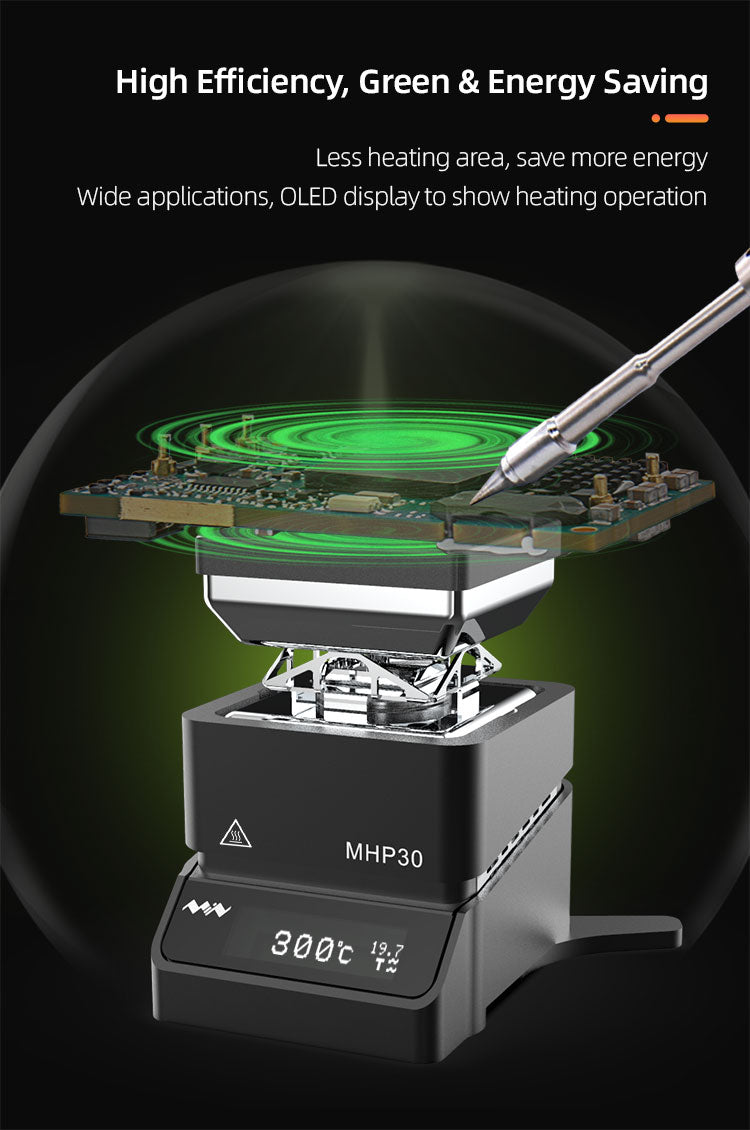

MINIWARE MHP30 Mini Hot Plate Preheater is an ultra-mini smart constant temperature hot plate (heating station). It eliminates redundancy, retains sufficient effective heating area, greatly saves energy and heating time. MHP30 condenses the large desktop heating station into pocket size, and with popular PD power input, it makes possible for heating station to become a portable tool.

 MHP30 has a small and exquisite appearance, with a square tower shape and a total height of only 5.2cm (2 inches). MHP30 controller and hot plate can be flexibly separated and replaced. The controller is equipped with an OLED display and two physical buttons (on the back). A pair of support feet at the bottom can be spread out to better support the whole station. The hot plate's heating body is made of brass with nano-ceramic coating, smooth on surface and evenly heated. A futuristic stainless steel hollow bracket connects the heating part with the circuit board that can be directly inserted into the controller.

Inheriting the high-efficiency performance of MINIWARE heating tools, MHP30 has excellent thermal performance. When using 65W PD power supply, it only takes 150 seconds to heat from 26°C room temperature to 300°C. The controller has a built-in true color LED that changes color with the rises and falls of the temperature, letting you know the warm and cold at a glance. In addition to the upgradeable firmware function, MHP30 also has smart modes such as preset temperature, tilt protection, power wake-up and automatic sleep. Users can set to turn on or off these functions according to their needs。



Product Features:

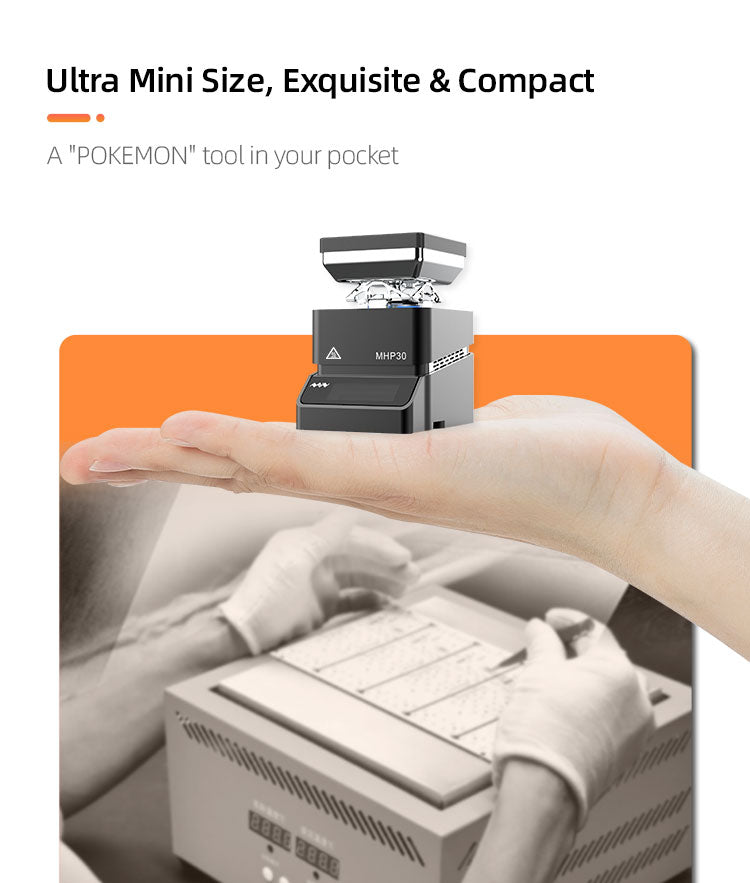

Ultramini size, exquisite and compact;

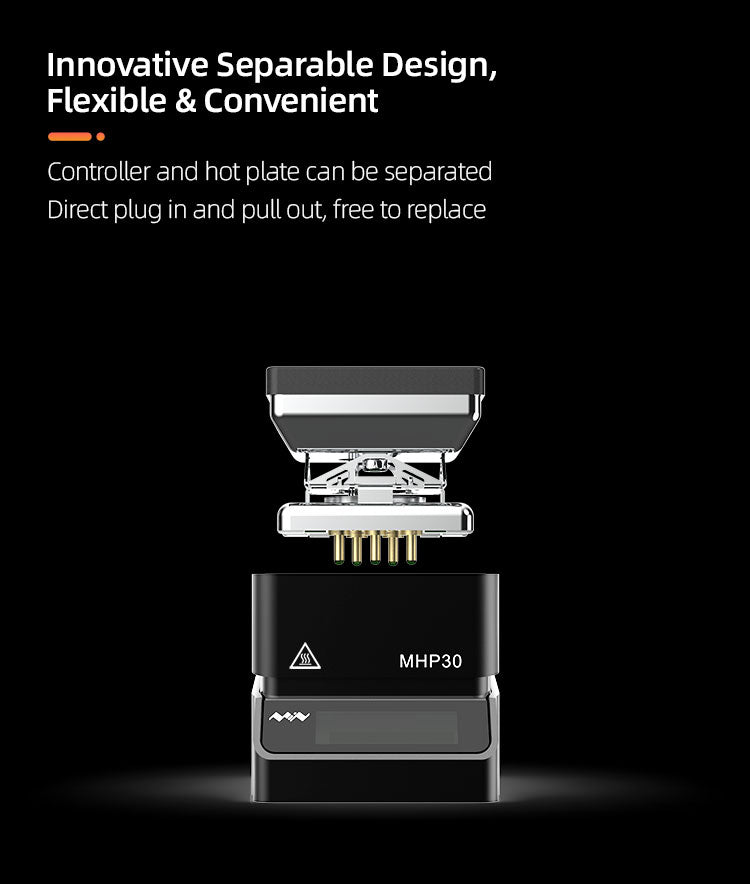

Separablecontroller and hot plate, flexible to replace;

High quality aluminum alloy shelland stainless steel heat dissipation slices;

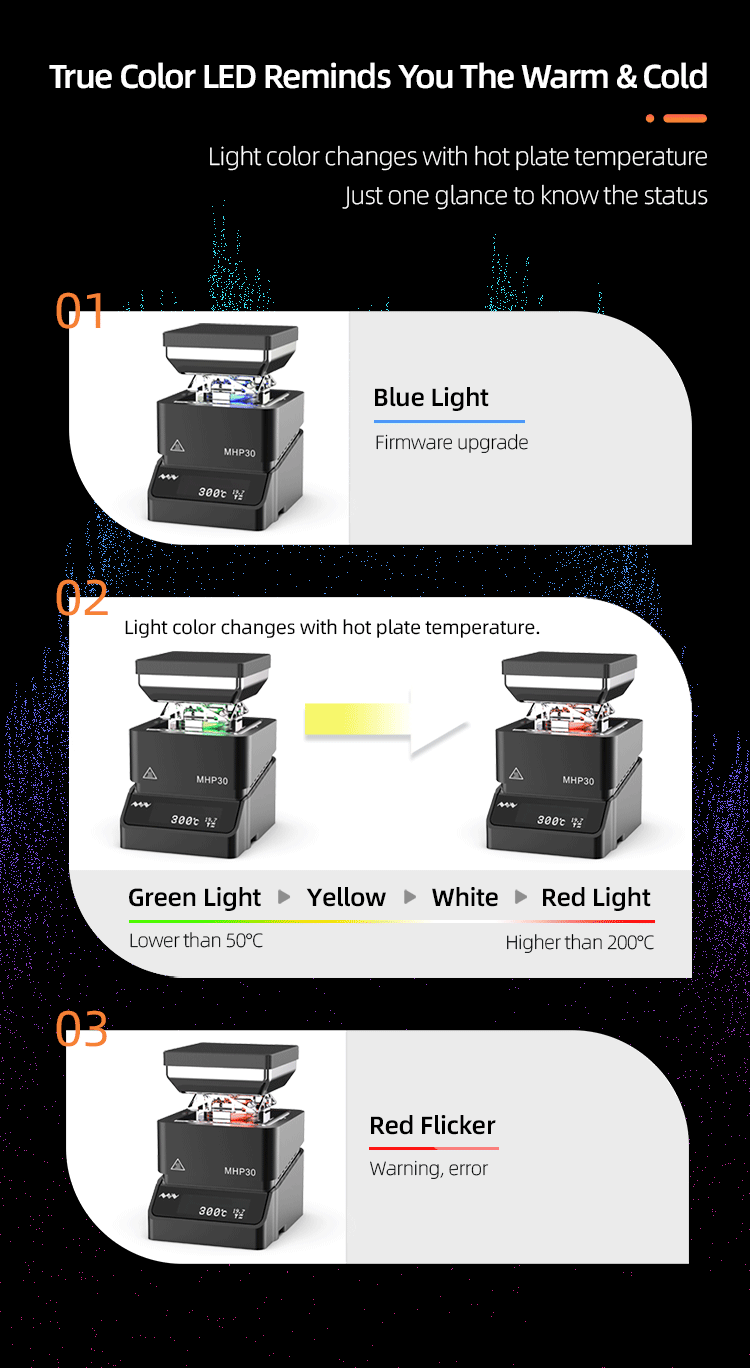

Built-in OLED displayand true color LED, light color changes with heating temperature;

Twosupporting legs at the bottom can be spread out to provide stable support;

Nano-ceramic coatingon brass hot plate, smooth, durable, and evenly heated;

Hot plate features a futuristic stainless steel heat dissipation bracket, artistic and practical;

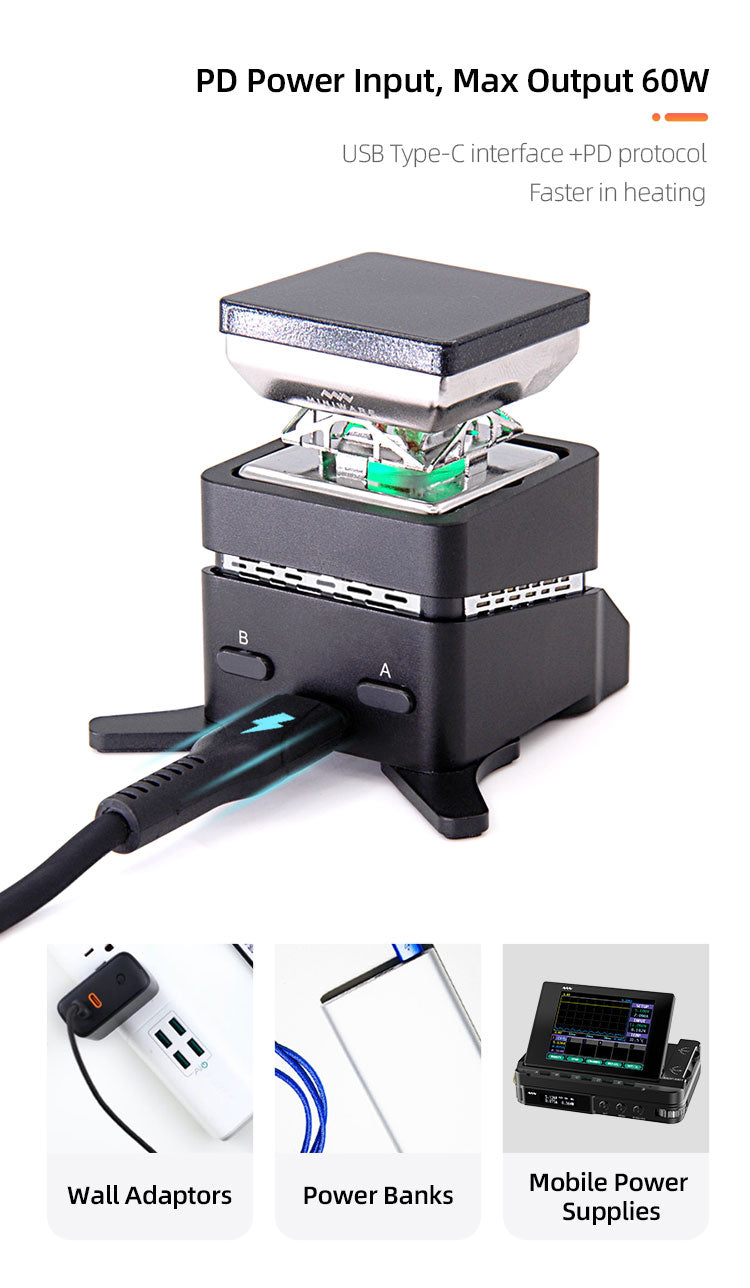

PD power supply input, power up to 60W;

Takes only 150 seconds to heat from room temperature to 300°C (65W PD power supply);

Energy saving and environmentally friendly.

Multi smart modes: preset temperature, tilt heating, power wake-up, automatic sleep, firmware upgrade

Applications: Portable for out fields; preheating, desoldering circuit boards, components, LED beads, etc.

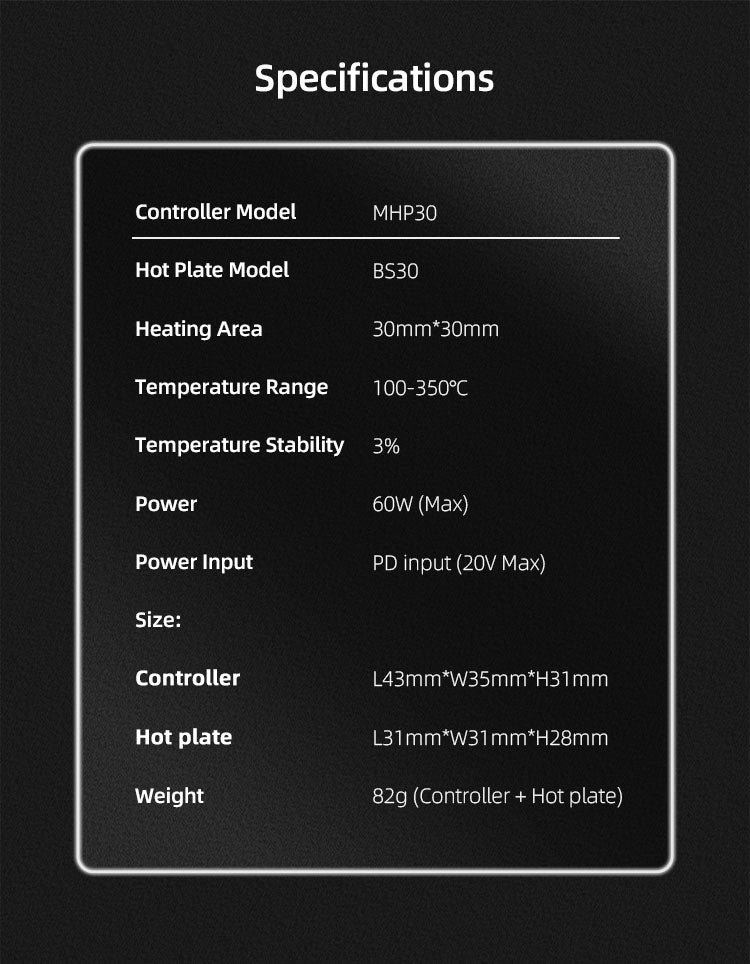

Specifications:

Heating area: 30mm*30mm

Temperature range: 100-350°C

Temperature stability: 3%

Ground resistance: <2Ω

Power: 60W (Max)

Power input: PD

Size: Controller: L43mm*W35mm*H31mm

Hot plate: L31mm*W31mm*H28mm

Weight (Controller + Hot plate): 82g
