Lumintop HL3A Custom Anduril 2 UI Compact Led Headlamp Handheld LED Flashlight

Lumintop HL3A Custom Anduril 2 UI Compact Led Headlamp Handheld LED Flashlight

1 total reviews

Regular price $85.88 USD
Regular price Sale price $85.88 USD
Sale Sold out
Shipping calculated at checkout.

HL3A

Will be available at the end of July 2023!

HL3A is a high-intensity and multi-purpose headlamp as well as a portable L-shape handheld flashlight. It adopts the same Anduril firmware with FW3A and equipped with triple Cree XPL HI or Nichia 219c LED's which emits a max 2800 lumens output. With a length only 81mm, it’s more compact than the FW3 series flashlights, which makes it more convenient to carry. Compatible with both protected and unprotected 18650 cell, strong magnetic, and IPX8 waterproof makes HL3A a must-have in various activities such as rescue, hiking, camping, engineering, etc.

NOTE: THE EMITTERS WILL BE SWAPPED WHEN ORDERED, SO THESE WILL SHIP ACCORDINGLY! THANKS

EMITTER OPTIONS:

NICHIA 219B 1200LM

NICHIA 519A 3000LM

SST20 4000K FA3 95CRI @ 2000LM

SST20 4000K FA4 95CRU @ 2000LM

SST-20 4000K RED (6A MAX)

PRICE IS BASE IS THE STOCK $59.99 PRICE + ADDITIONAL COST FOR THE EMITTER UPGRADE

BATTERY:

18650 FLAT TOP UNPROTECTED CELL (NOT INCLUDED) MIN 10A (SAMSUNG 35E)

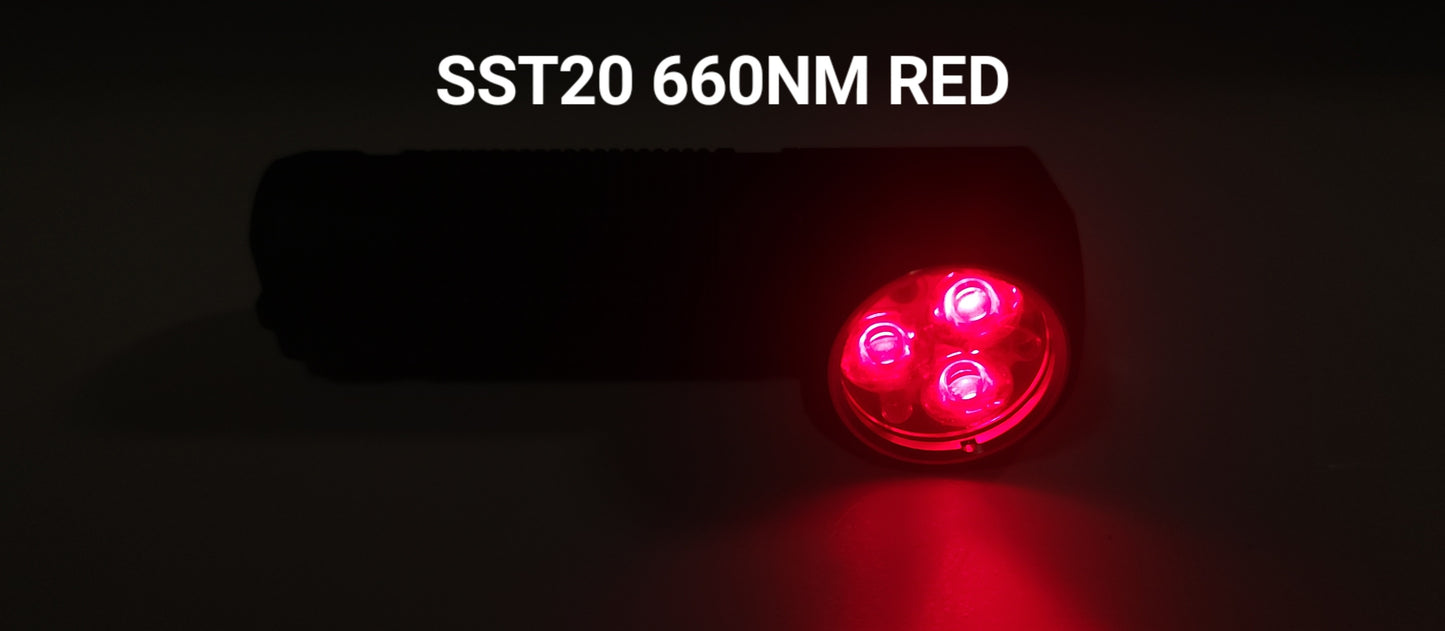

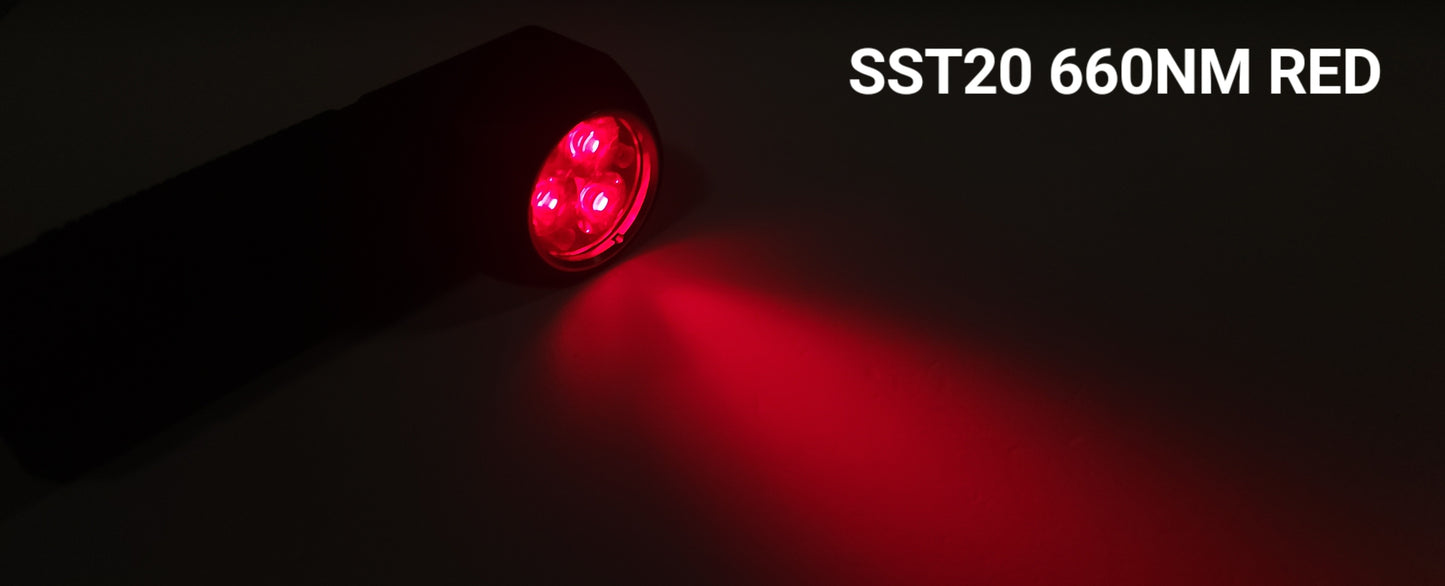

SST20 660NM RED 6A MAX BATTERY ONLY

Specifications:

Emitter: 3 Cree XP-L HI LED, Nichia 219CT, or Luminus SST20 LED options
Optic: Standard TIR optical lens
Flux: ~2800 lm (XP-L Hi)
Intensity: ~10 000cd ANSI throw ~200 m (XP-L Hi)
Firmware: Free software called Andúril 2 UI (NEW!)
User interfaces: [1] Defaulted SMOOTH RAMPING. Instant access to TURBO mode is also provided. [2] STEPPED RAMPING UI. [3] MOMENTARY mode. [4] MUGGLE mode. [5] Electronic LOCKOUT.
Other functions: Battery check, sunset, beacon, tactical strobe, party strobe, bike flasher, candlelight, lightning storm
Battery: One 18650 cell. An unprotected cell is recommended. Max. length 66mm. The cell is not included.
Driver: New V2 1+FET driver. Low parasitic drain while OFF
Body: Aluminum with hard-coat anodizing
Switch: Electronic switch on the top
Ingress rating: Equivalent to IPX8
Weight: Approximately 54 g without cells
Size: 33.8 mm Ø head x 81 mm length x 23.5mm tail
Others: sweat block and reflecting headband,
Magnetic tail cap, stainless steel body clip
Notice: The reccomend battery in the is the Samsung INR18650 35E Li-ion battery
