LUMINTOP FW3A

NOTE: THESE ARE RAW HOST ALL "CUSTOM BUILT TO ORDER" WILL SHIP ACCORDINGLY!

NO BOX INCLUDED OR ORIGINAL INSTRUCTIONS

NO EXTRA ORINGS INCLUDED

USER INTERFACE:

ANDURIL 1 UI

DRIVER:

1+7 FET DRIVER

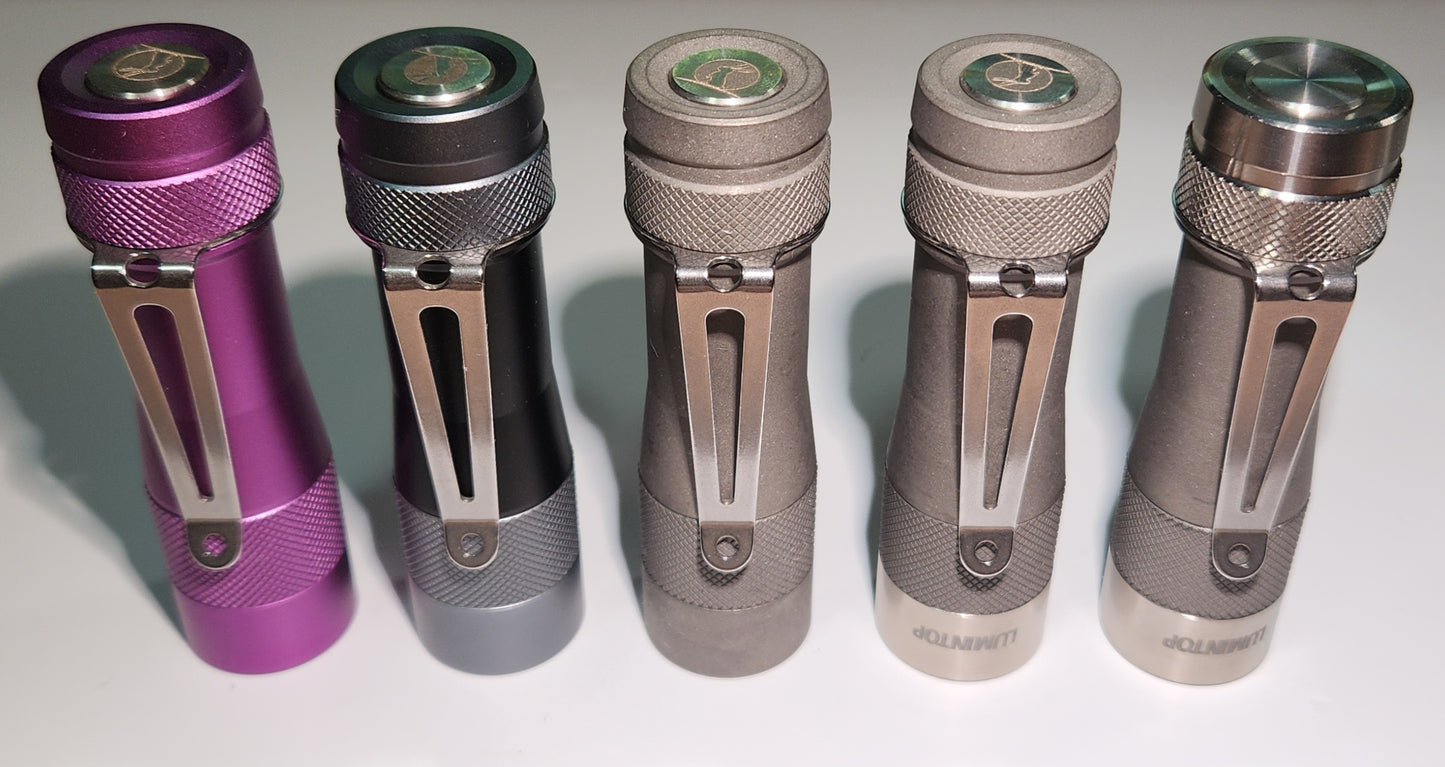

BODY:

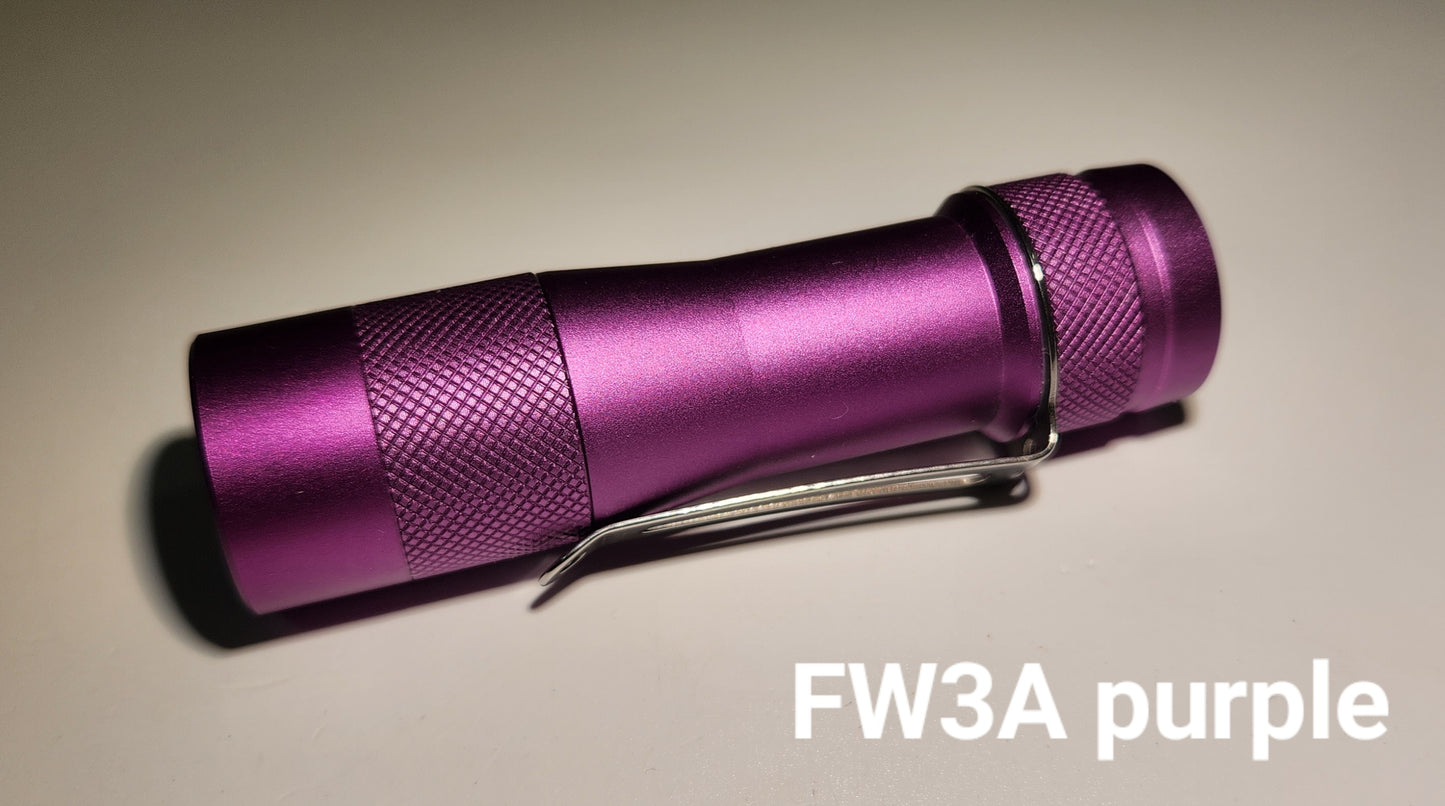

ALUMINUM PURPLE

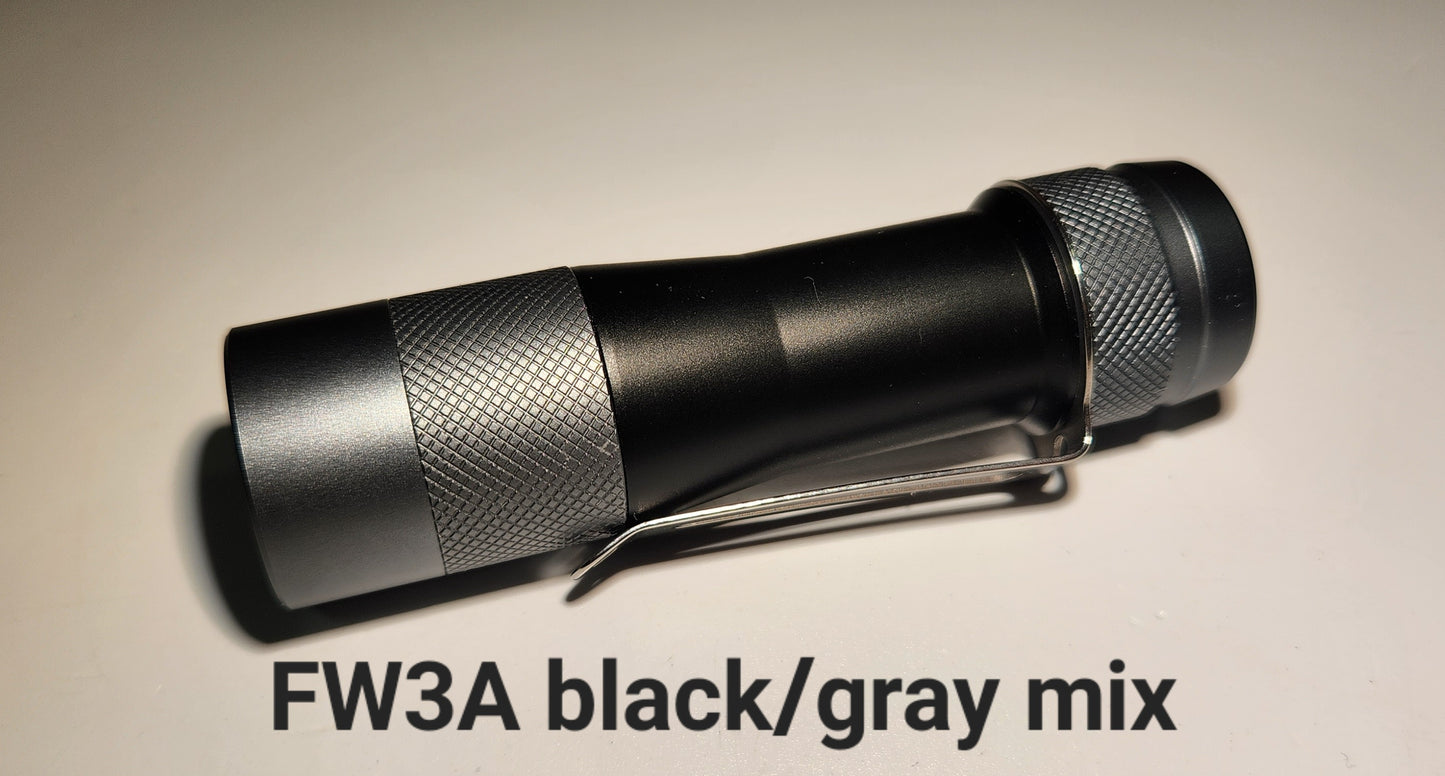

ALUMINUM BLACK/GRAY (BLACK BODY, GRAY HEAD, GRAY BEZEL & GRAY TAILCAP)

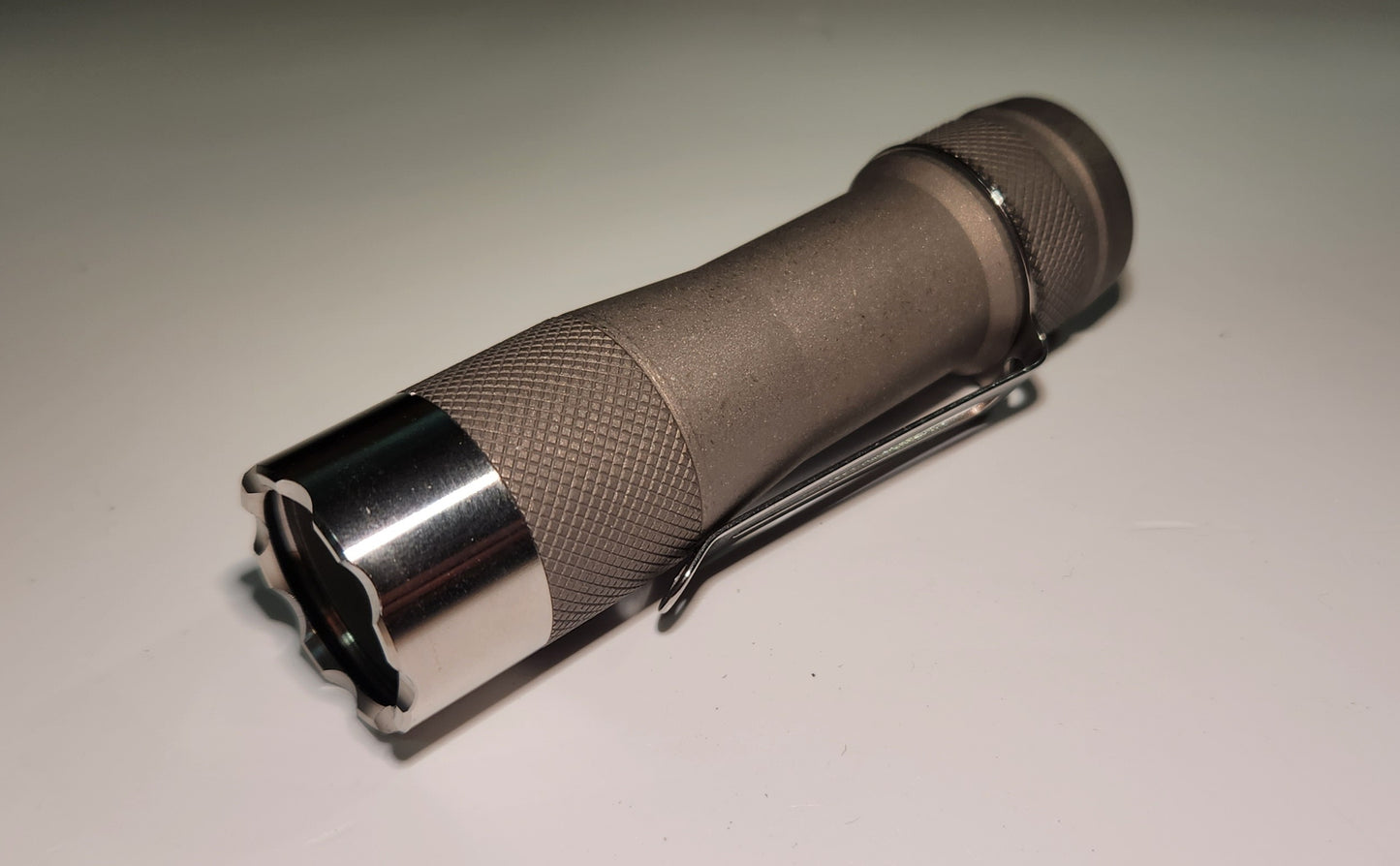

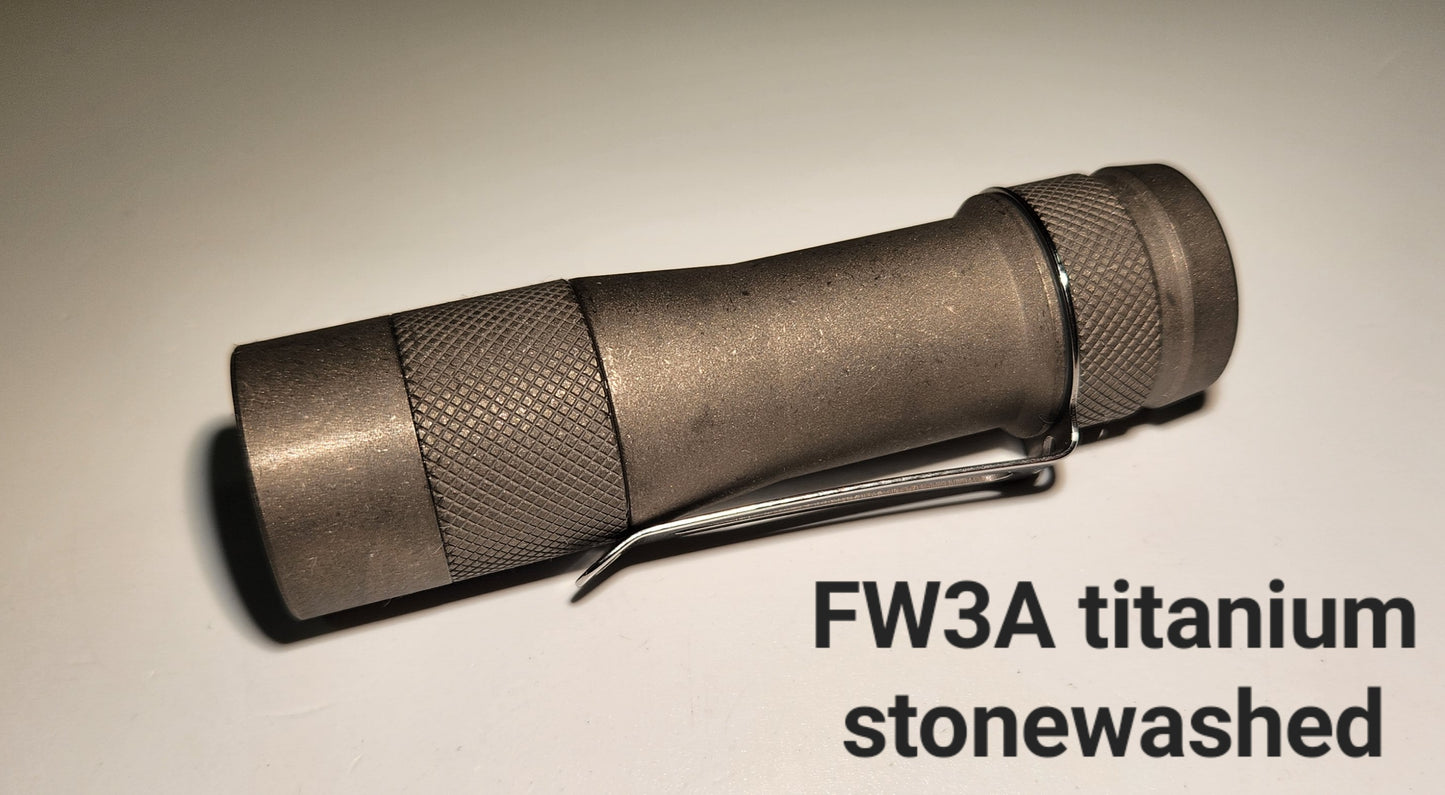

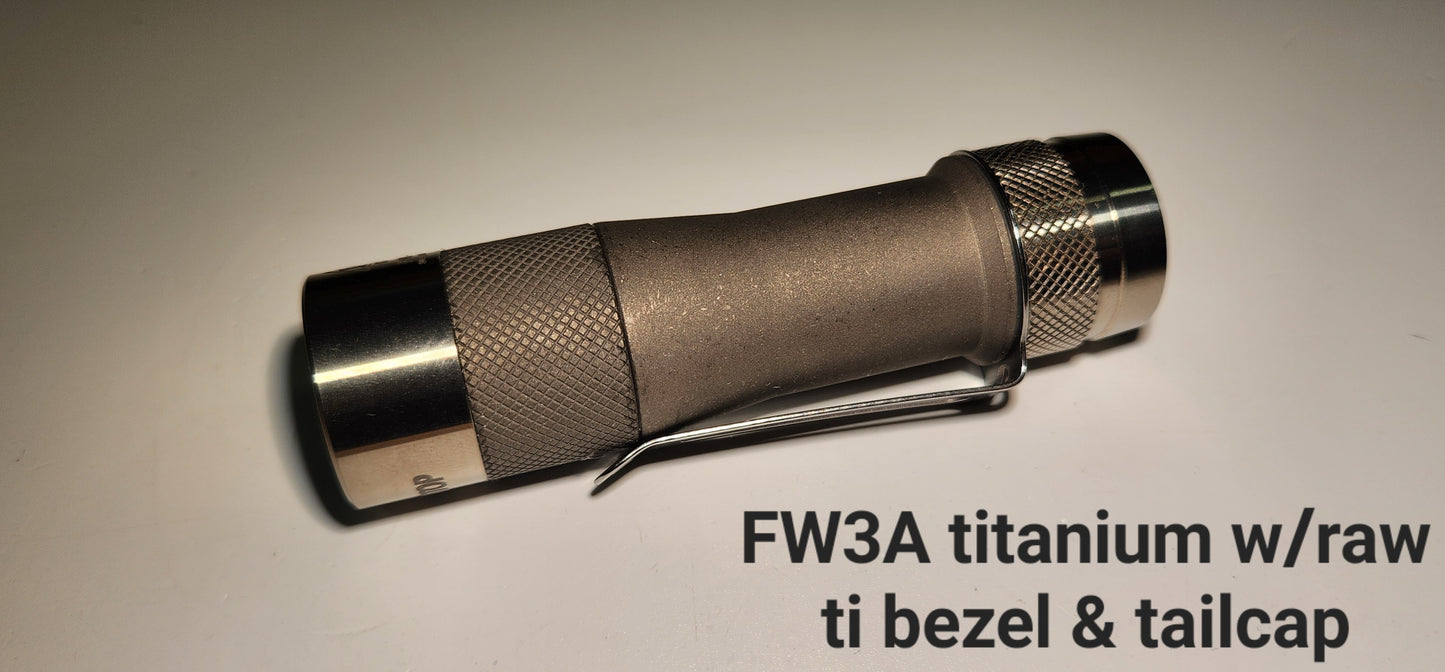

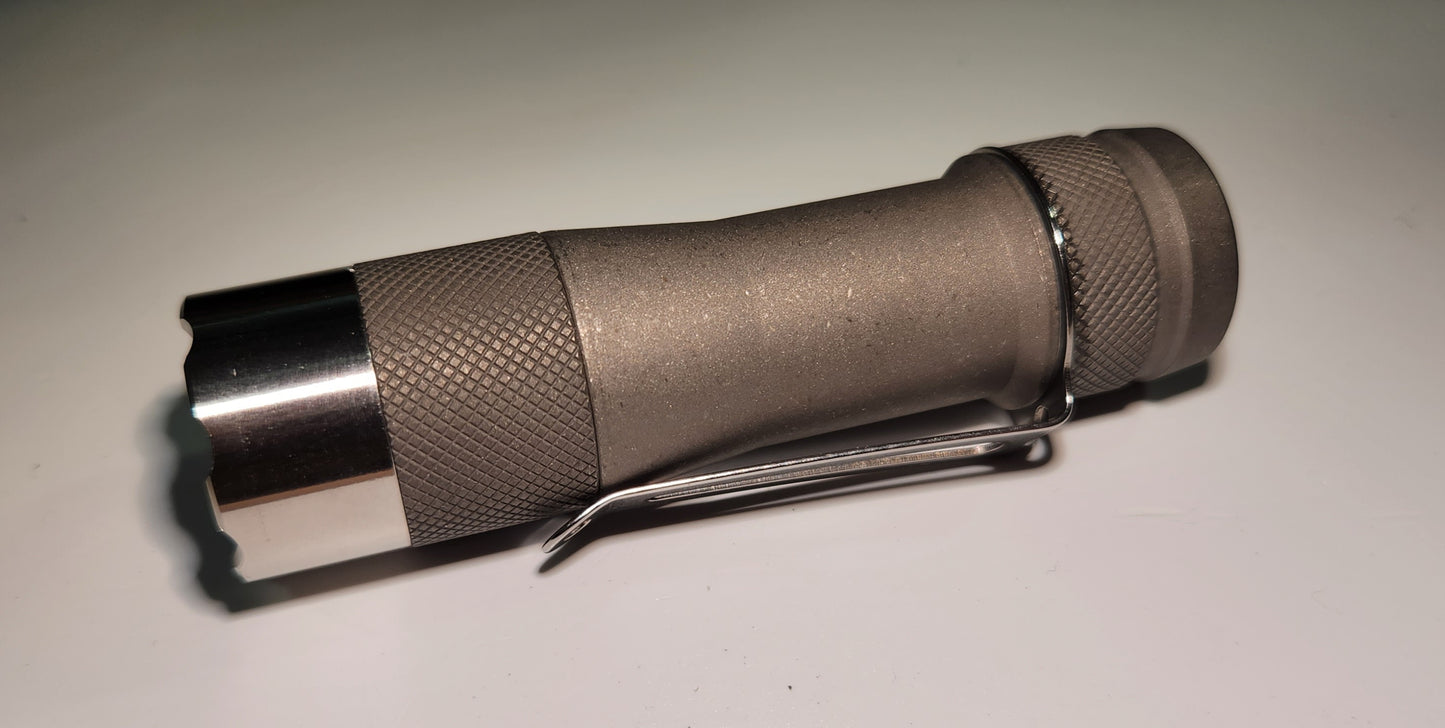

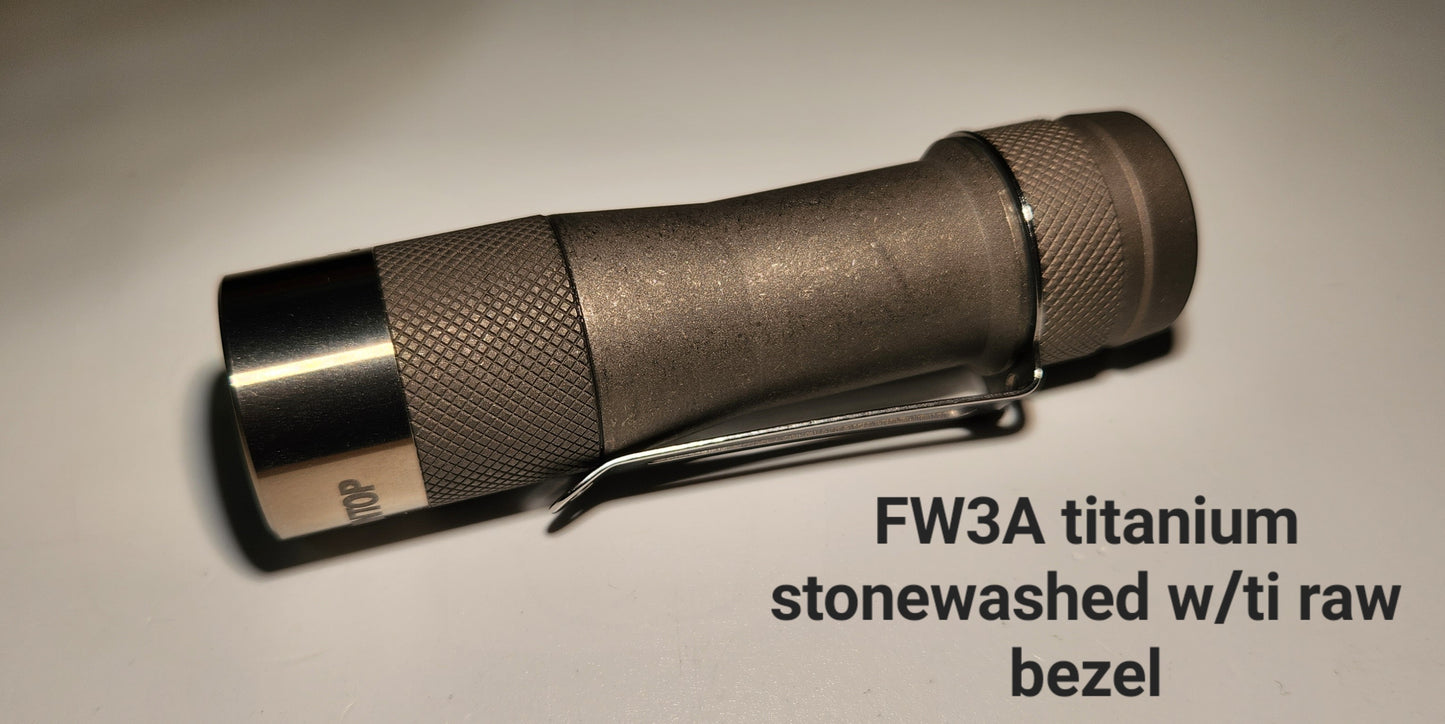

TITANIUM STONEWASHED

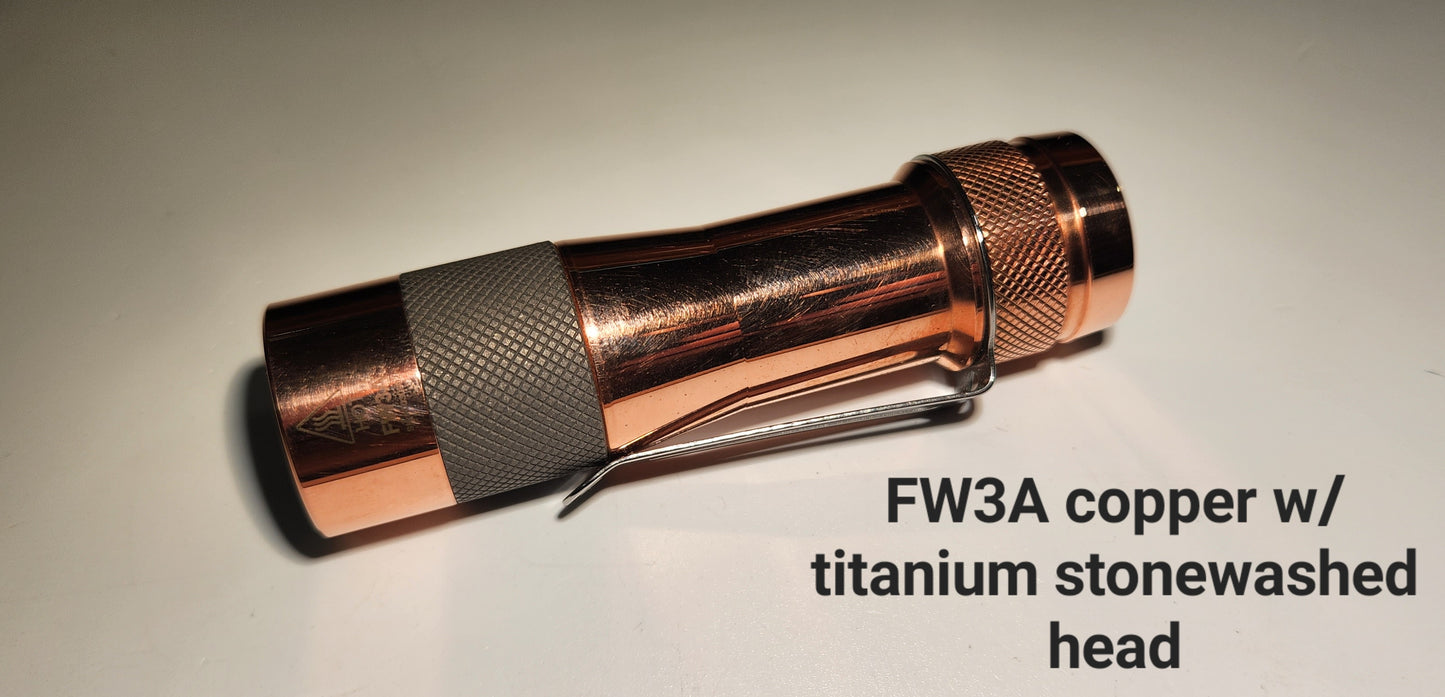

COPPER

STAINLESS CLIP INCLUDED

100% NEW

EMITTERS:

CREE XPL-HI 1A 5000K

CREE XPL-HI 3A 5000K

SST20 2700K & 4000K FA3 OR FA4 BIN

NICHIA 219B (2700K, 3500K OR 4500K) VERY IMPORTANT >>> NEED TO USE A 10A OR LESS 18650 BATTERY (SAMSUNG 35E RECCOMENDED)

NIICHIA 219C 4000K OR 5000K

NICHIA 519A (DE-DOME OPTIONAL)

2700K

3000K

3500K

4000K

4500K

5000K

5700K

OPTICS:

CARCLO

10511 (STOCK)

10507 (SPOT OPTICS)

BATTERY:

18650 FLAT TOP UNPROTECT CELL RECCOMENDED 5-8A MAX NOT INCLUDED (SAMSUNG 35E RECCOMENDED)

10A NICHIA 219B

15A NICHIA 219C OR SST20 4000K

15A+ NICHIA 519A

15A CREE XPL-HI

Specifications

1. • Emitter: 3 Cree XP-L Hi, Nichia or Luminus SST20 LED
   • Optic: Standard TIR optical lens
   • Flux: ~2800 lm (XP-L Hi)
   • Intensity: ~10 000cd ANSI throw ~200 m (XP-L Hi)
   • Firmware: Free software called Andúril
   • User interfaces: [1] Defaulted SMOOTH RAMPING. Instant access to TURBO mode is also provided. [2] STEPPED RAMPING UI. [3] MOMENTARY mode. [4] MUGGLE mode. [5] Electronic LOCKOUT.
   • Other functions: Battery check, sunset, beacon, tactical strobe, party strobe, bike flasher, candlelight, lightning storm
   • Battery: One 18650 cell. An unprotected cell is recommended. Max. length 66mm. The cell is not included.
   • Driver: FET+7+1 driver. Low parasitic drain while OFF
   • Body: Aluminum with knurling and polishing finish, grey, blue, green, purple, raw, sand for options
   • Switch: Electronic tail switch
   • Ingress rating: Equivalent to IPX8
   • Weight: Approximately 53 g without cells
   • Size: 25.5 mm Ø head x 92.5 mm in length.
   • Notice: The battery in the options is the Samsung INR18650 30Q Li-ion
