LUMINTOP FW1A PRO CUSTOM

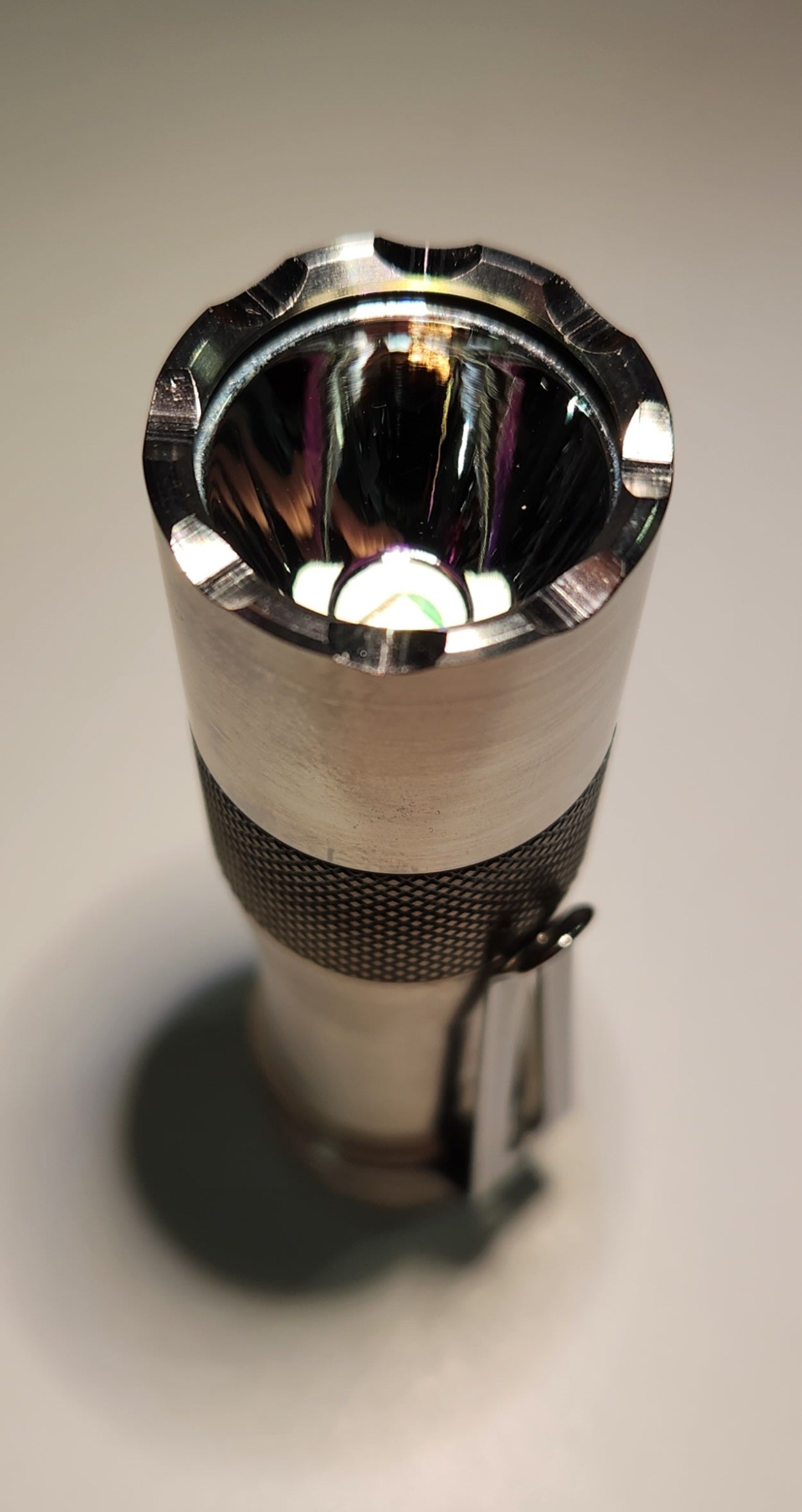

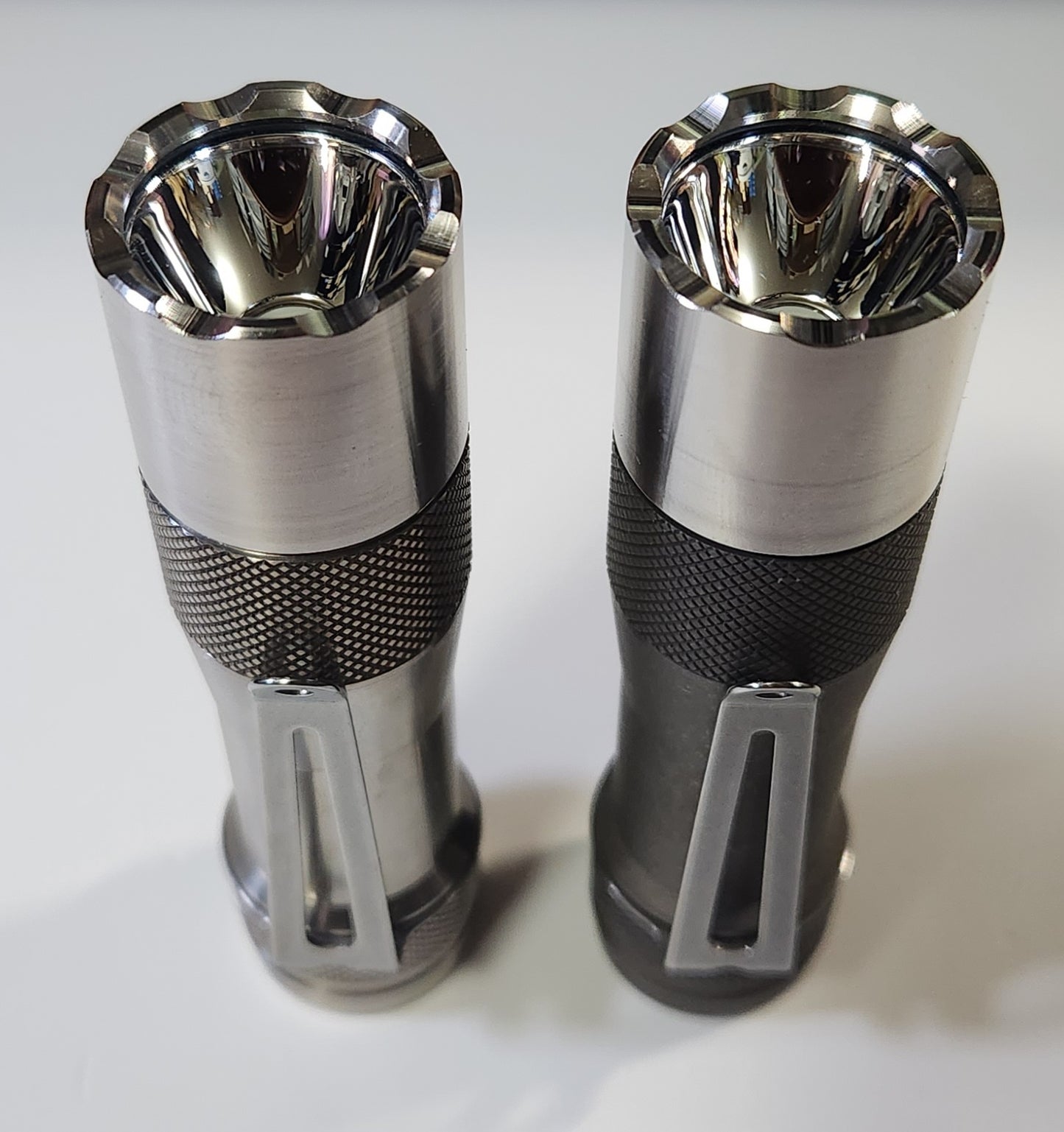

1ST EVER FOR SALE FW1A pro in TITANIUM these are NOT available from Lumintop

PLEASE READ FIRST REGARDING THE SBT90.2 OPTION ON THE TITANIUM BODY! THE SBT90.2 IS EXTREMELY POWERFUL AND WITH THAT COMES "HEAT" SO ON TURBO PLEASE DO NOT USE FOR MORE THAN A FEW SECONDS LET IT COOL DOWN AND DONT USE TURBO TILL IT COOLS DOWN. IF YOU DON'T IT WILL RUN SO HOW THE WIRES LEADS GOING TO THE MCPCB WILL POP OFF AND YOU WILL NEED TO RESOLDER THE WIRES BACK. I ADDED 3MM COPPER HEATSINK PADS TO HELP BUT ITS NOT ENOUGH THE TIANIUM BODY IS SO BAD TO PULL HEAT AWAY FROM THE MCPCB. IF YOU HAVE ANY QUESIONS CALL ME 808-864-7548

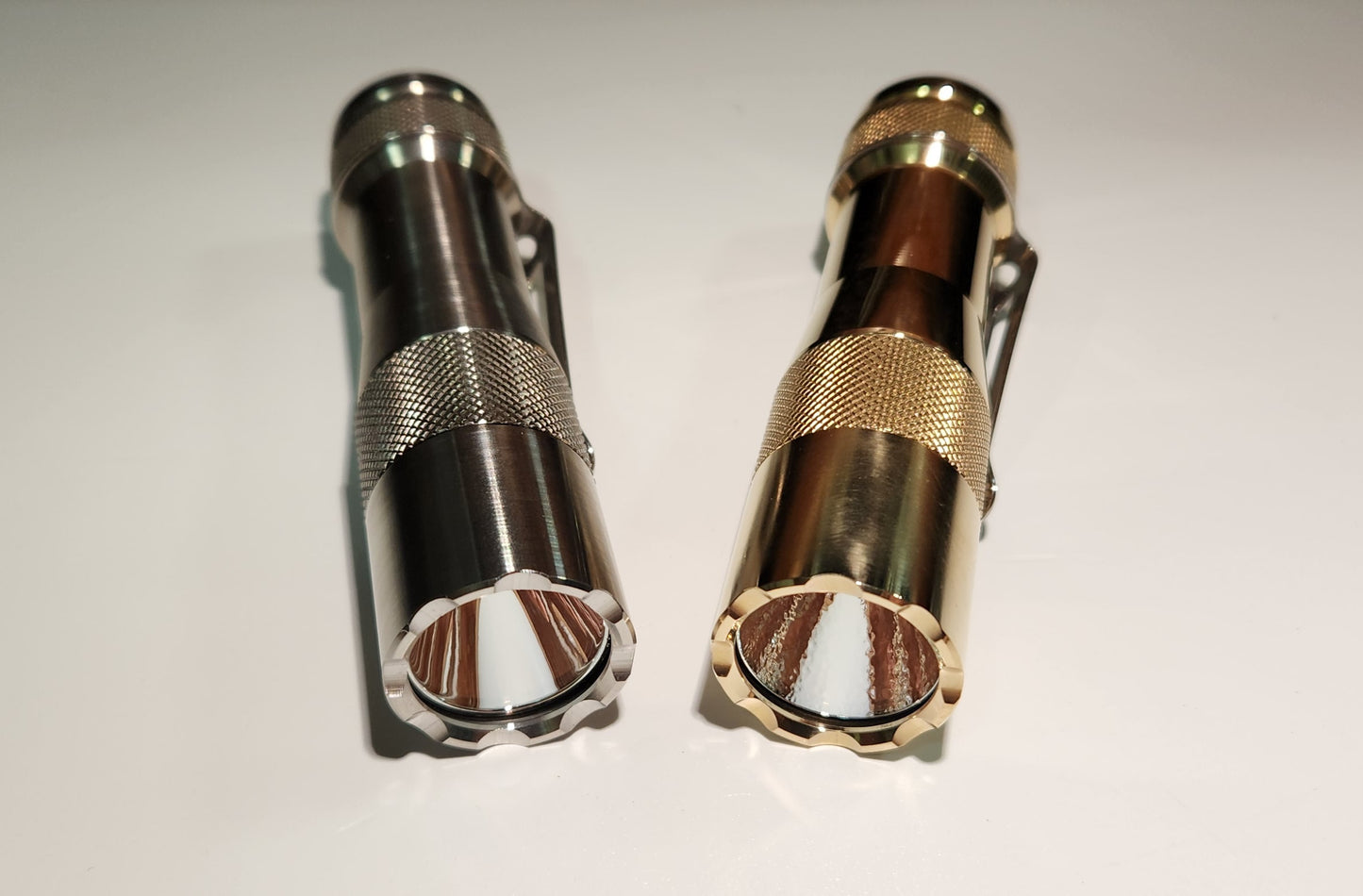

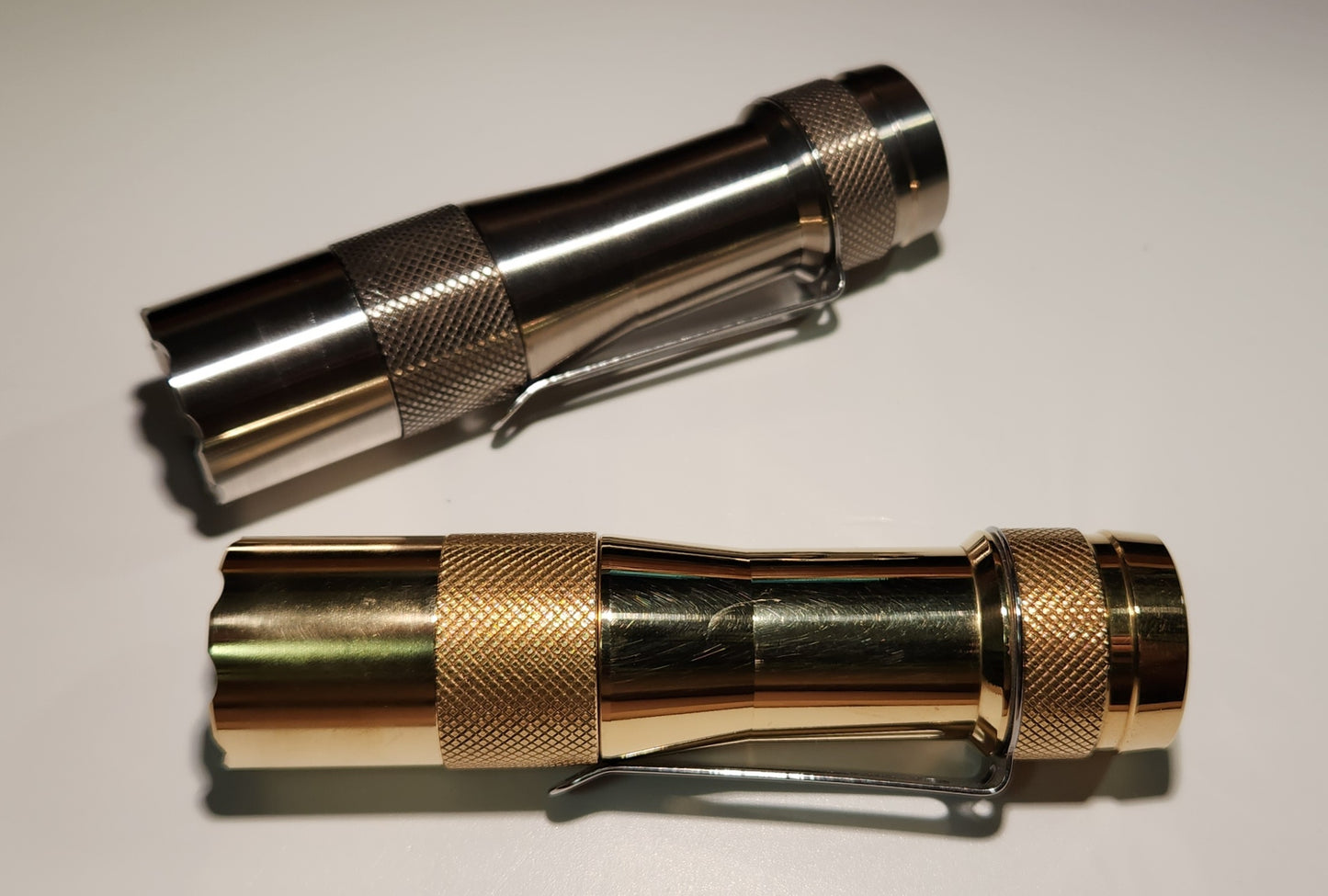

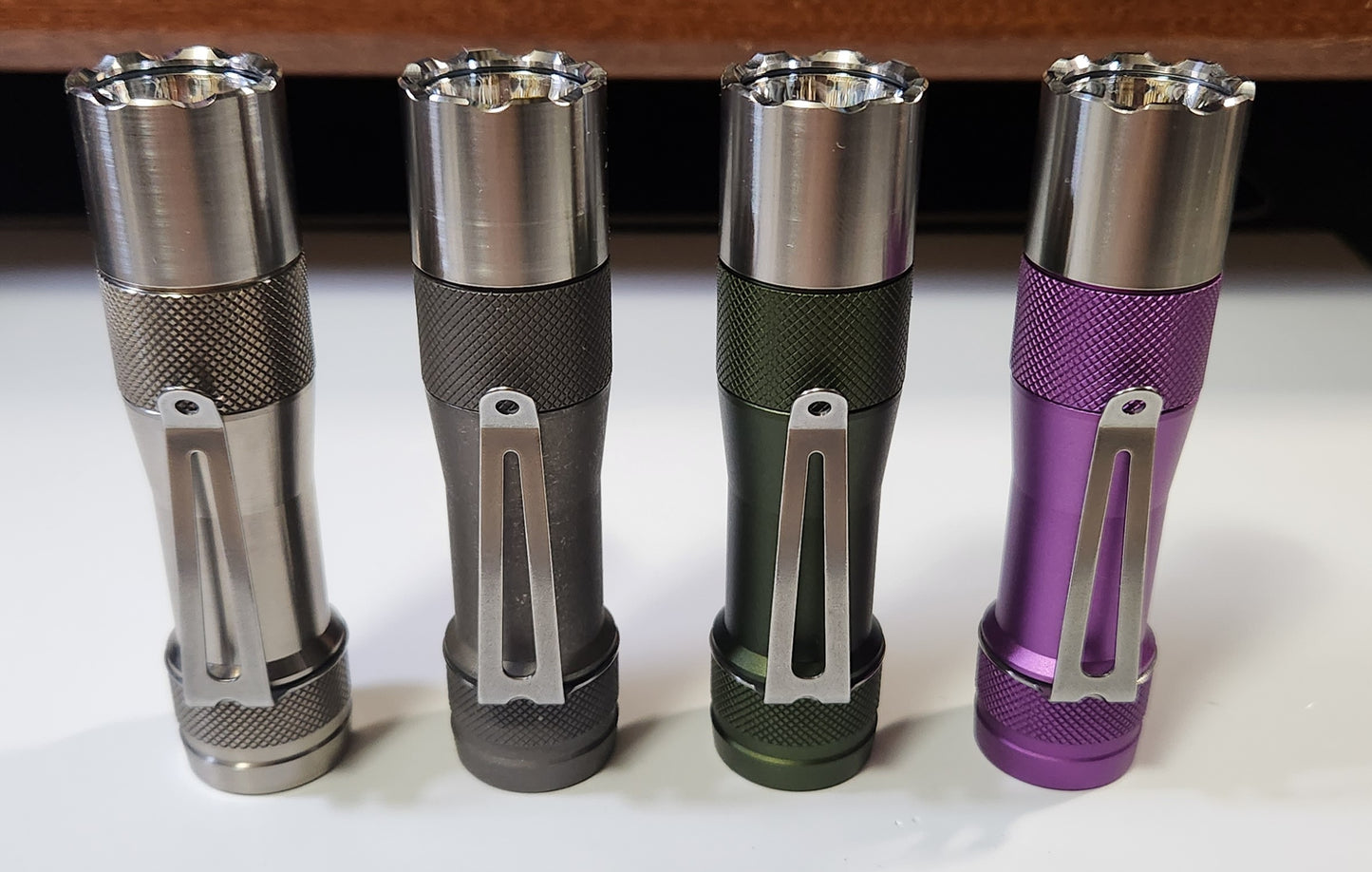

BODY:

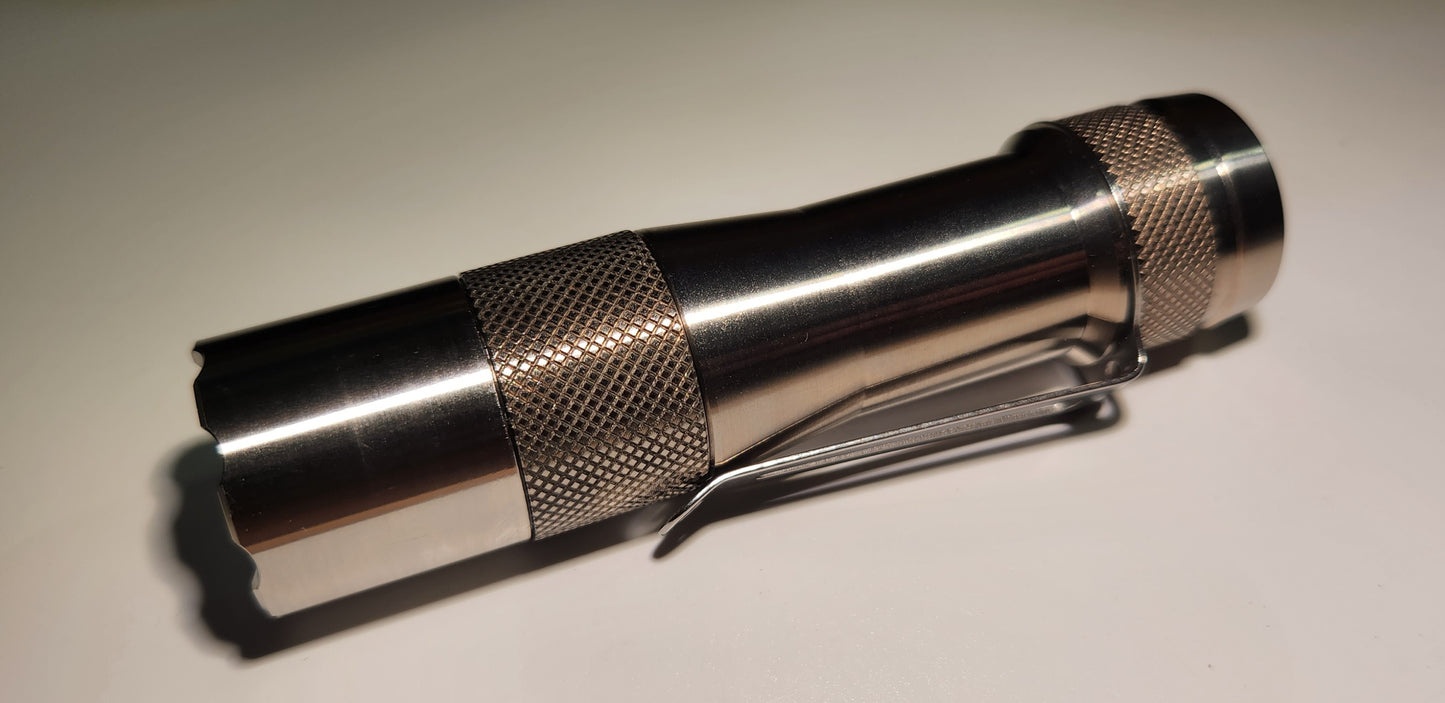

TITANIUM

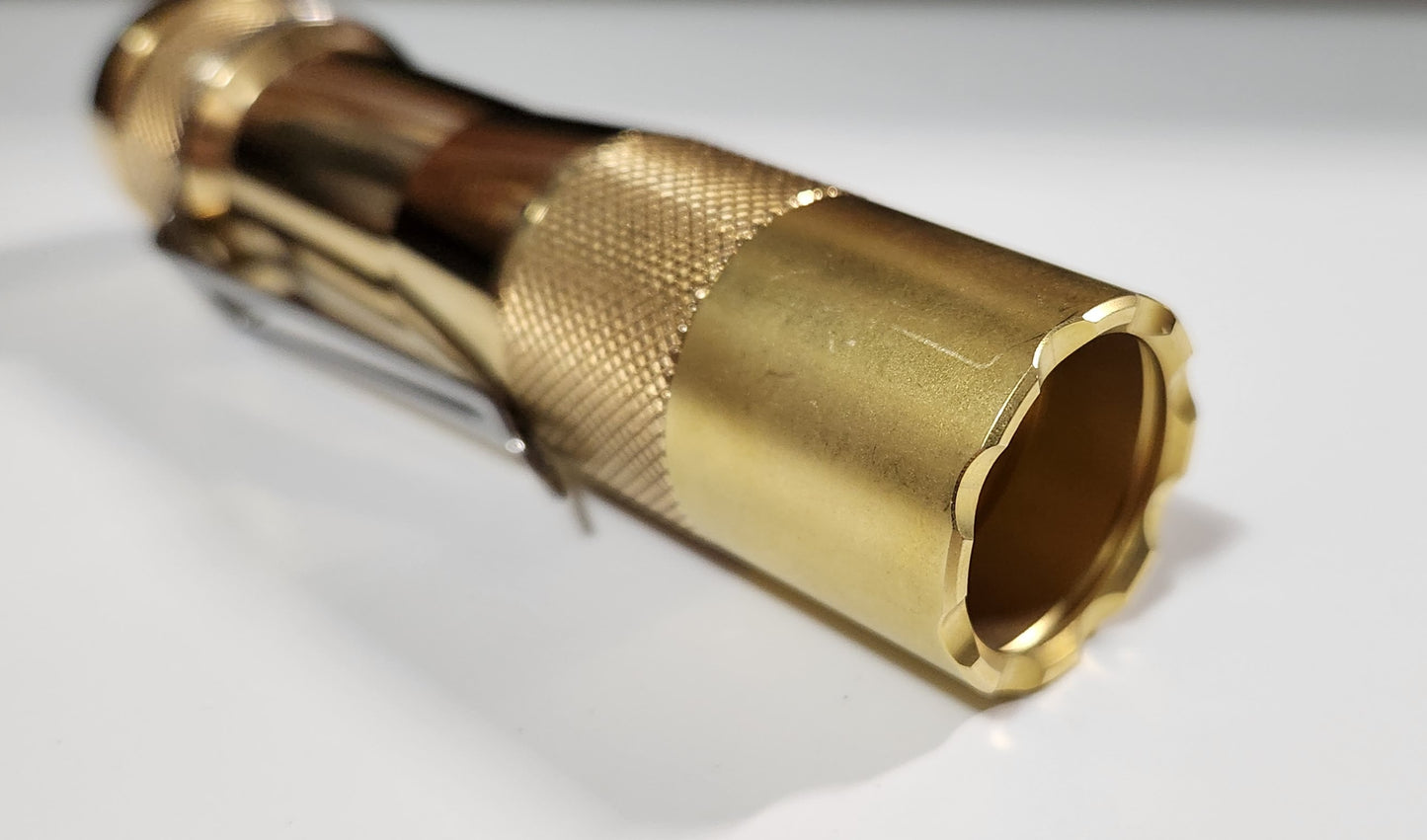

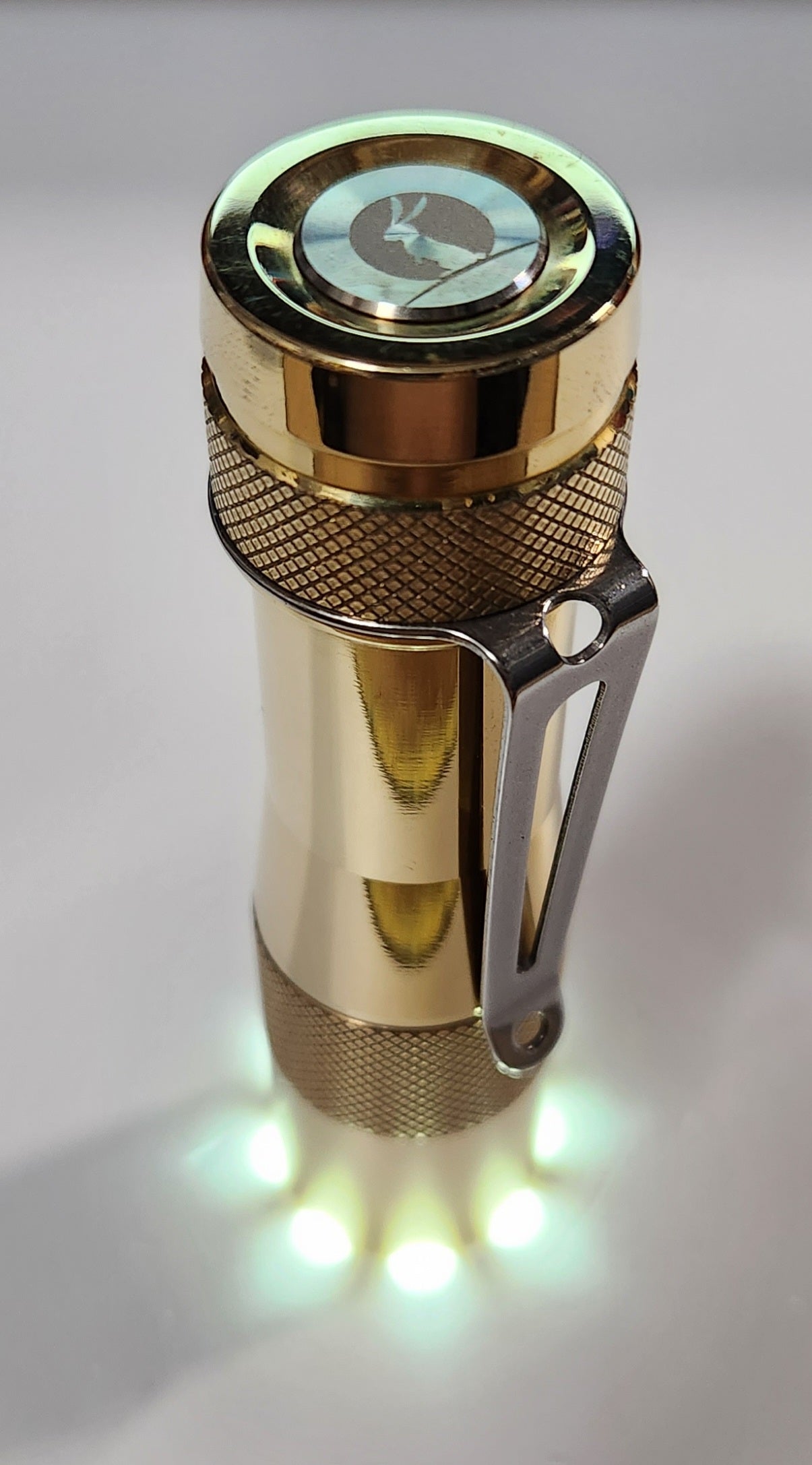

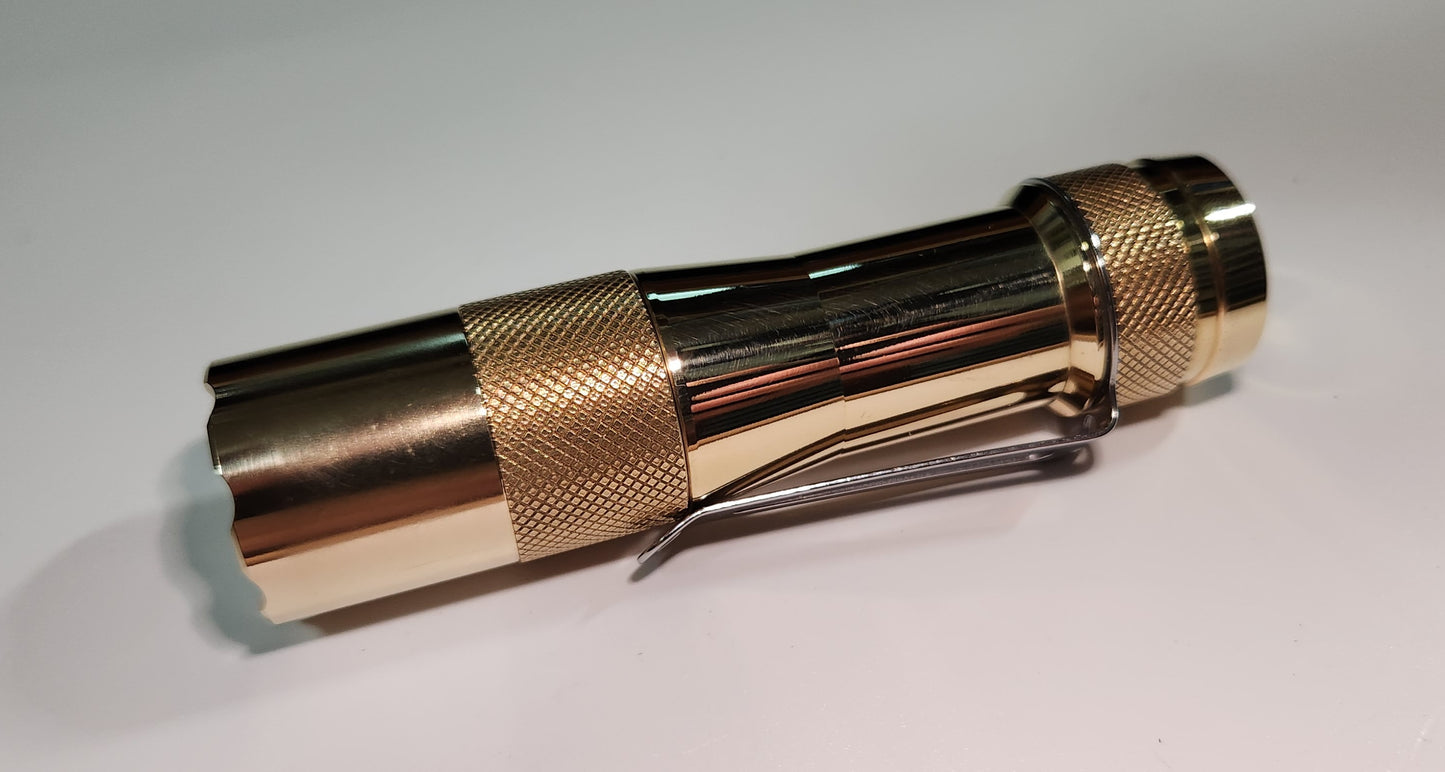

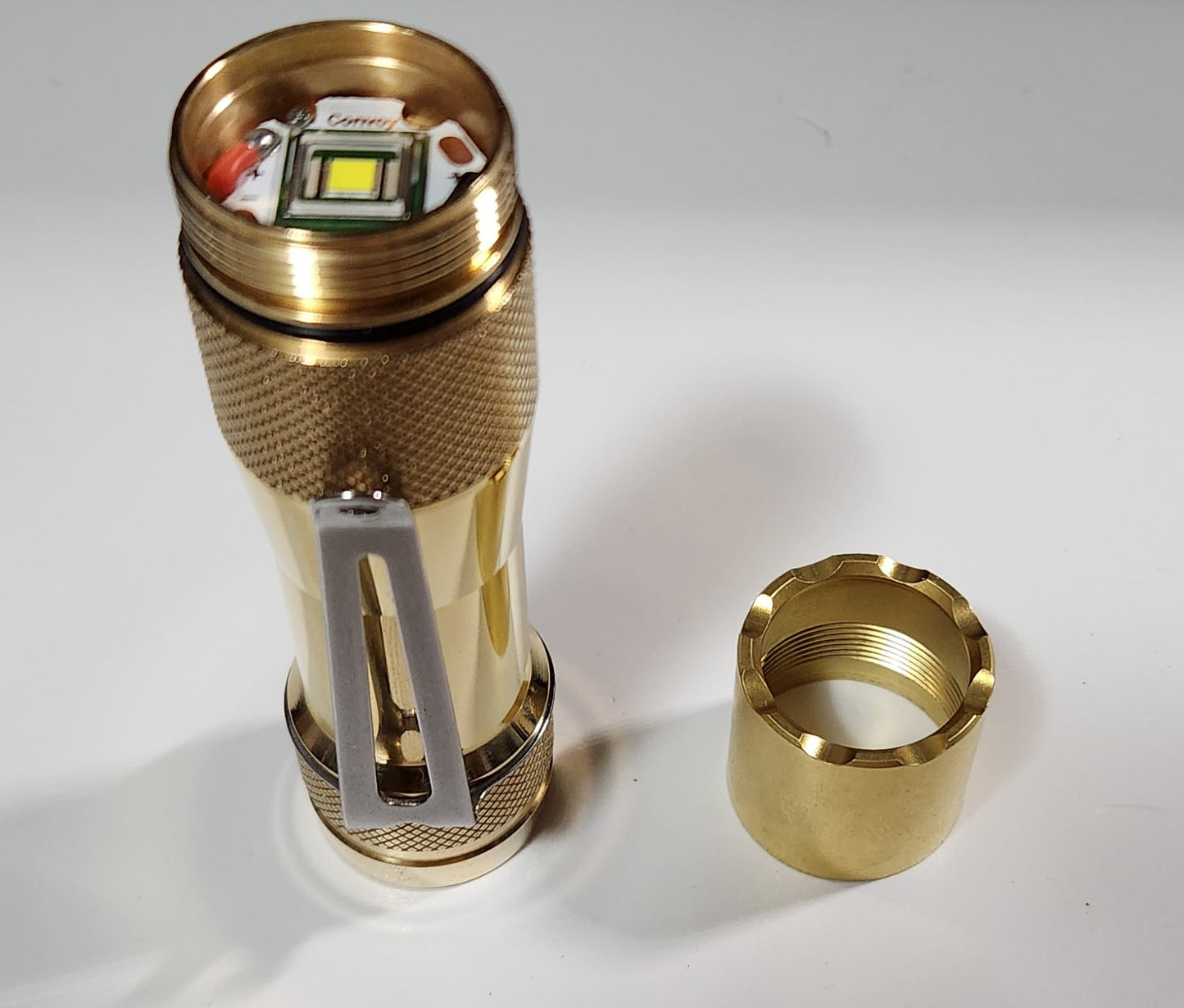

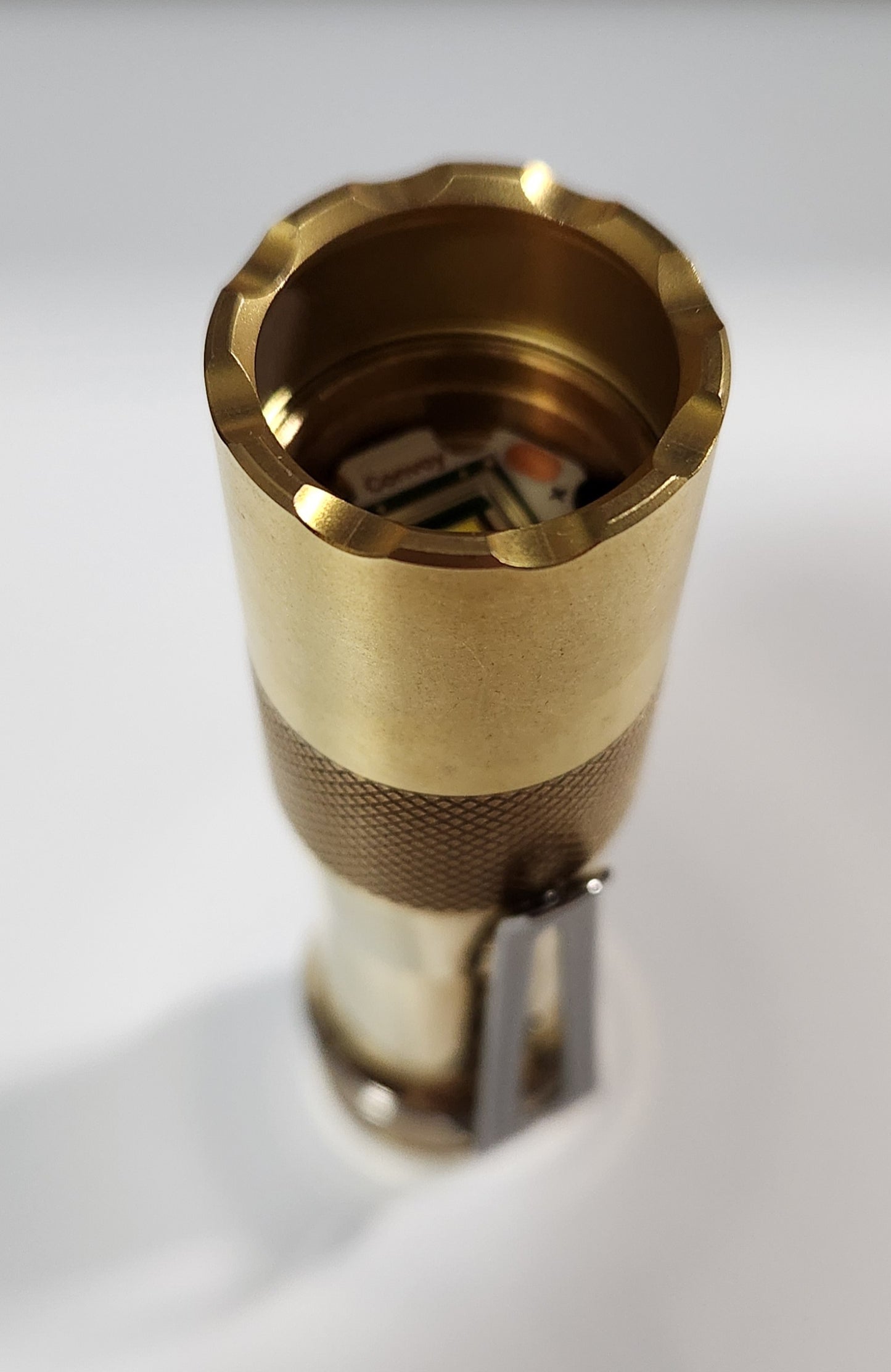

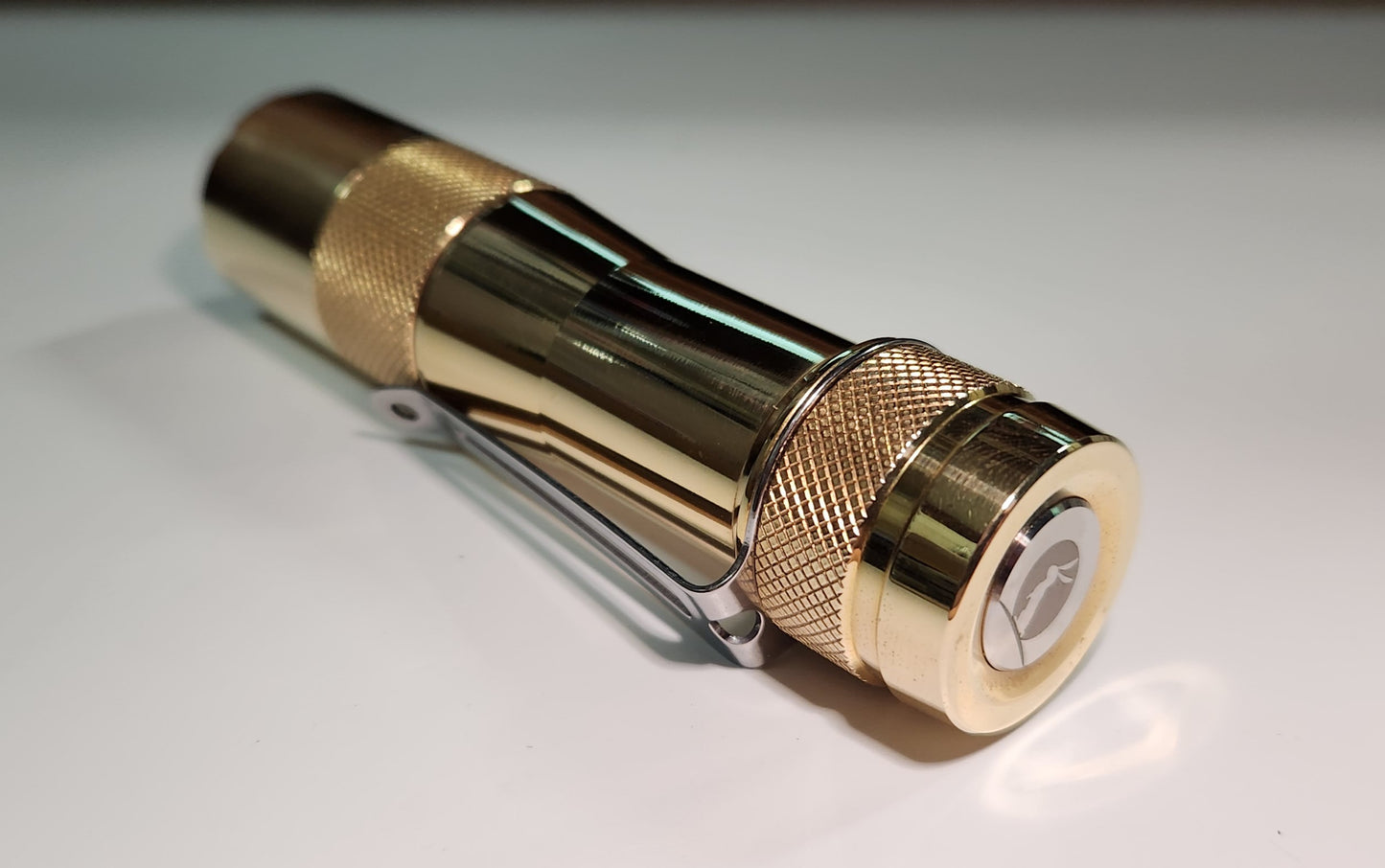

BRASS

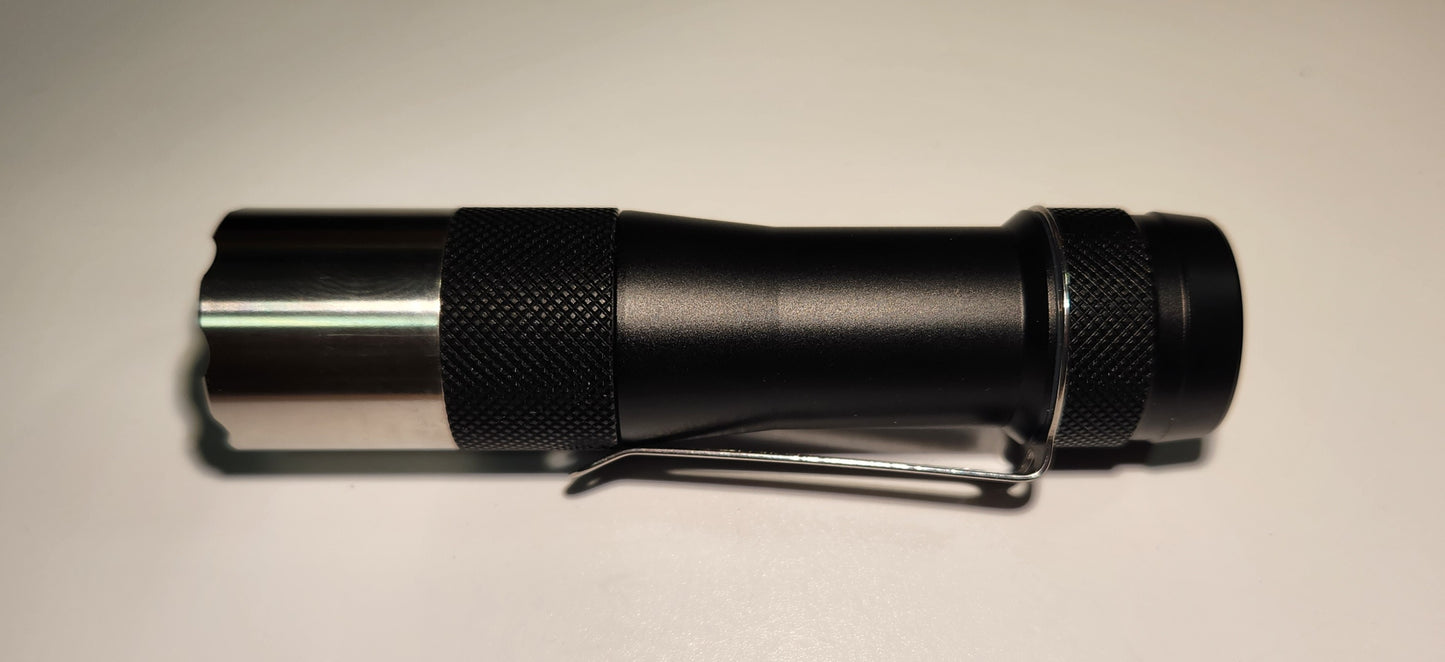

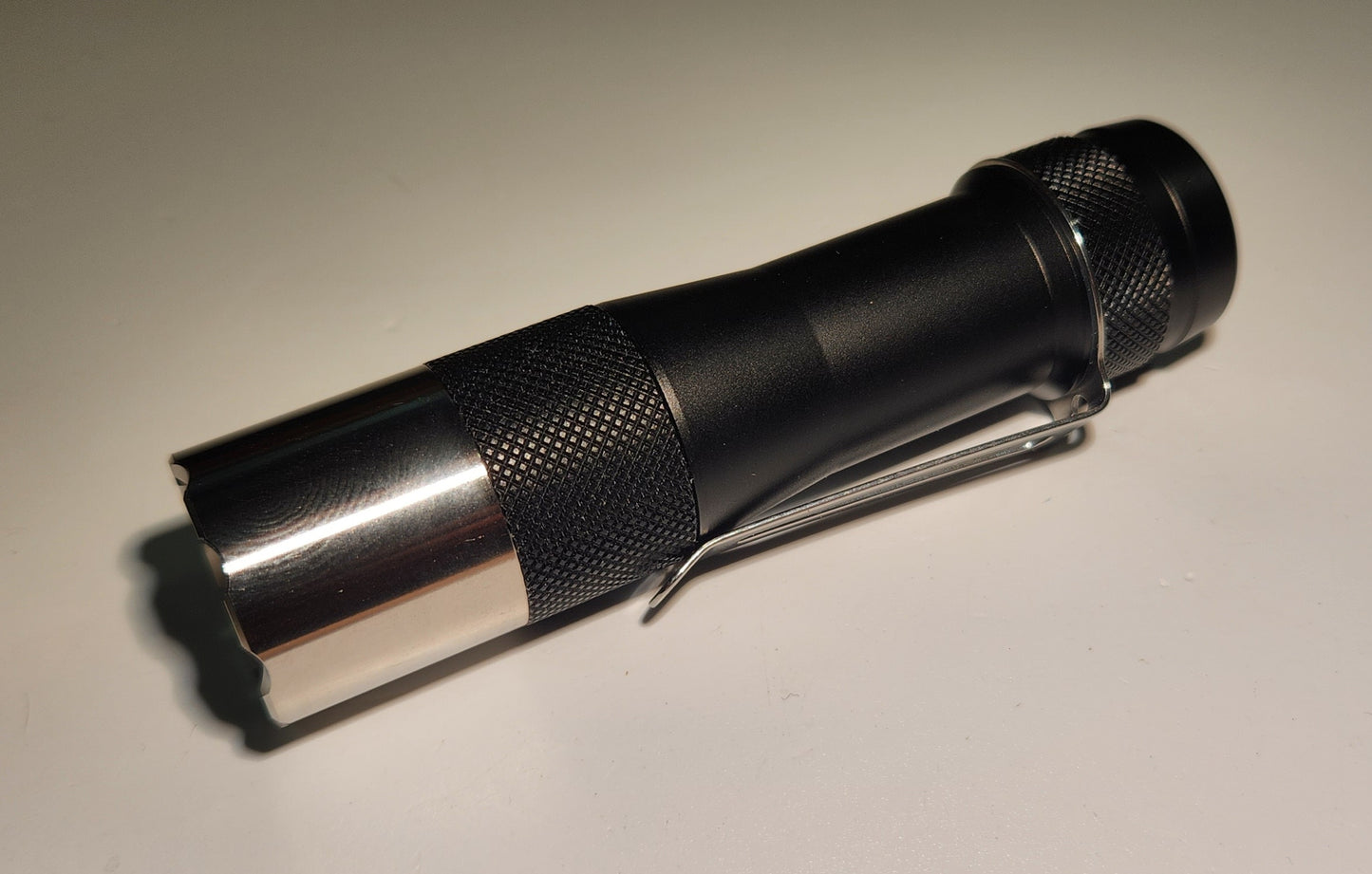

BLACK ALUMINUM (COMING SOON)

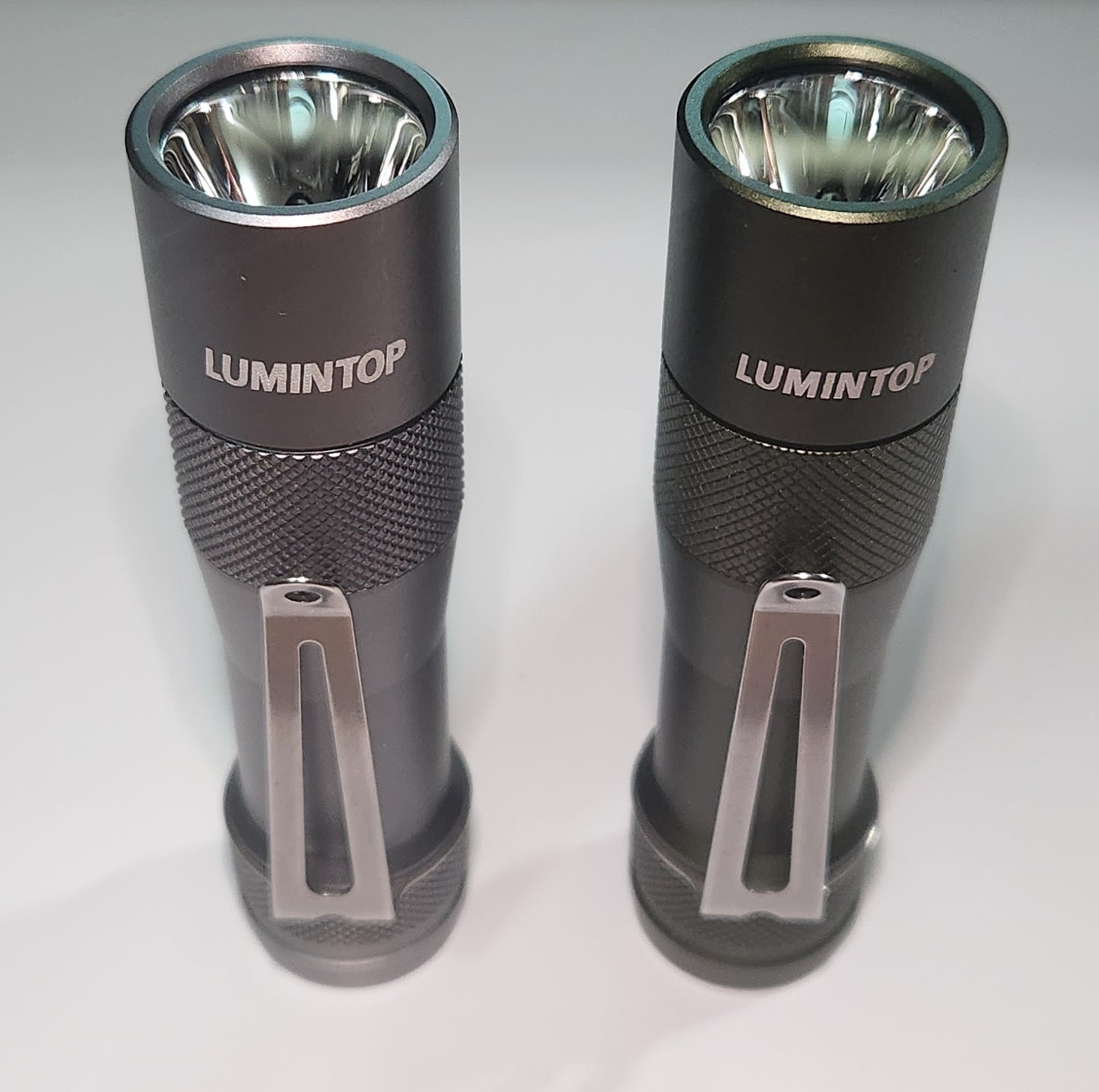

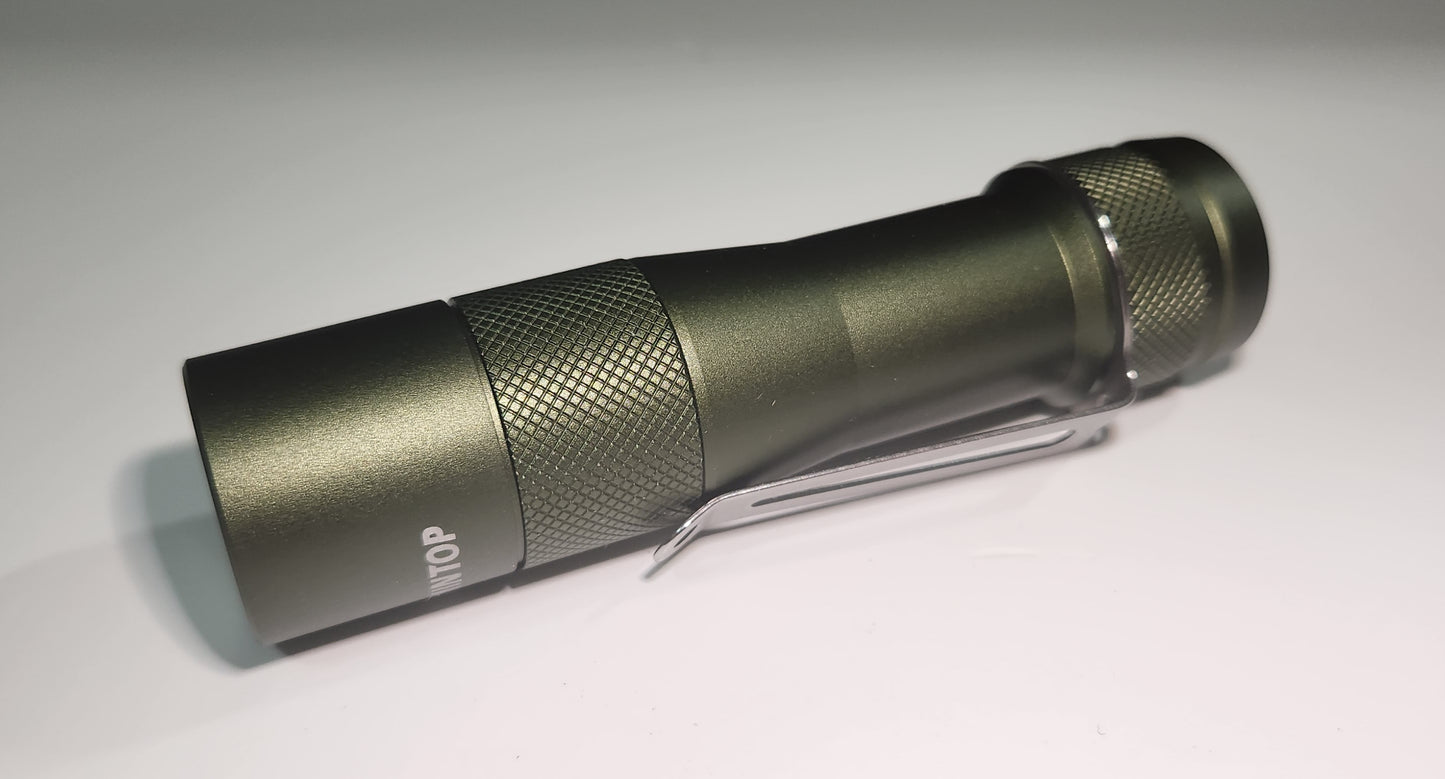

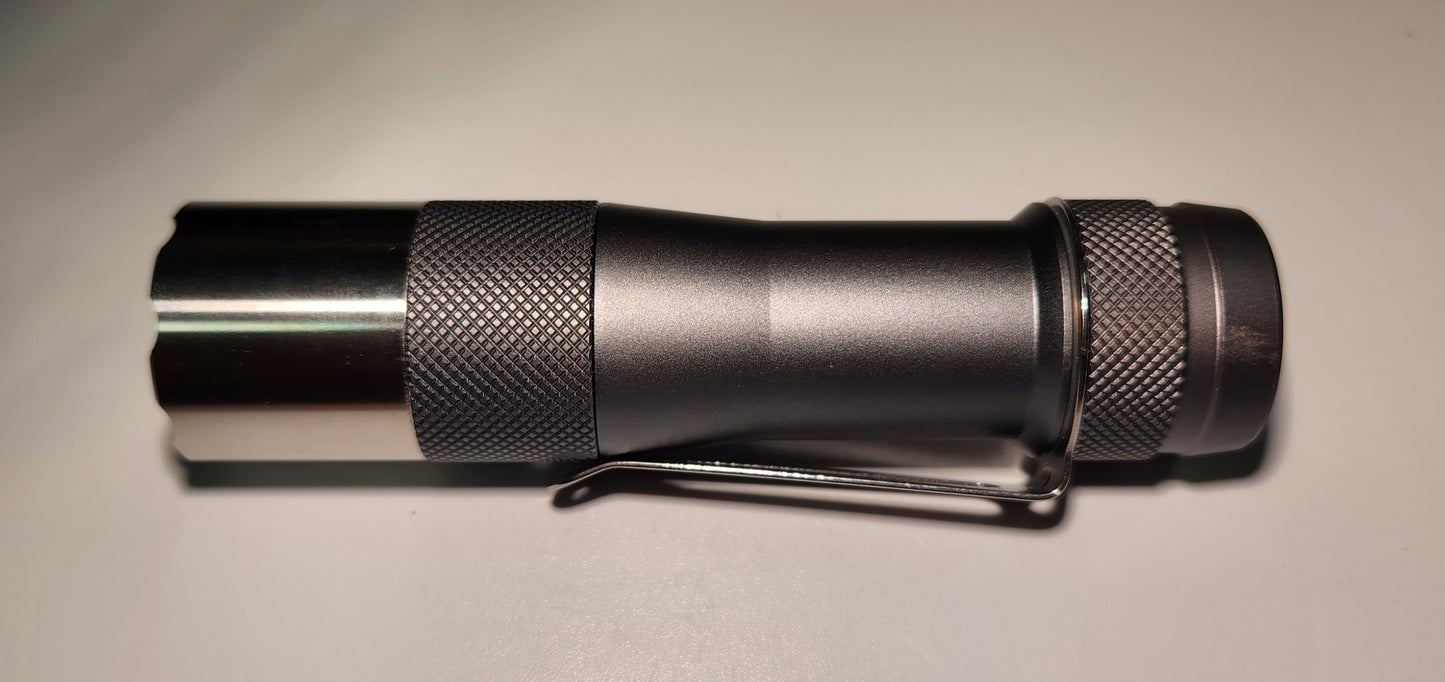

GRAY ALUMINUM (COMING SOON)

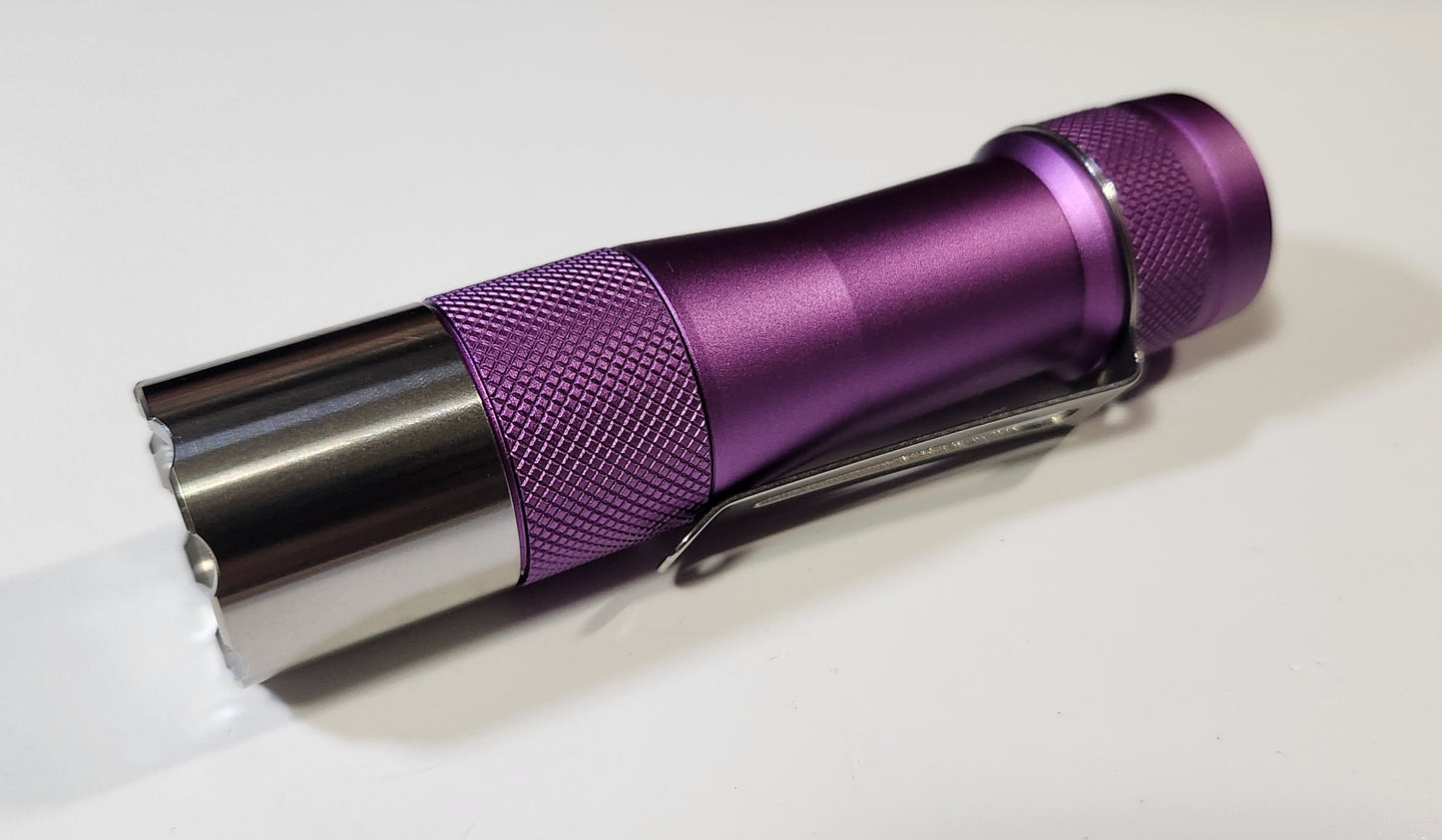

PURPLE ALUMINUM (COMING SOON)

SANBLASTED OR RAW ALUMINUM TOPO/SEIGAIHA LASER ENGRAVED (COMING SOON)

NEW! CONVOY 23 X 12MM SMOOTH REFLECTOR (9/3/2023)

NOTE: THERE IS A 1MM GAP BETWEEN THE BEZEL AND HEAD BUT THERE IS A ORING TO SEAL ANY WATER OR MOISTURE ENTERING FROM THE HEAD

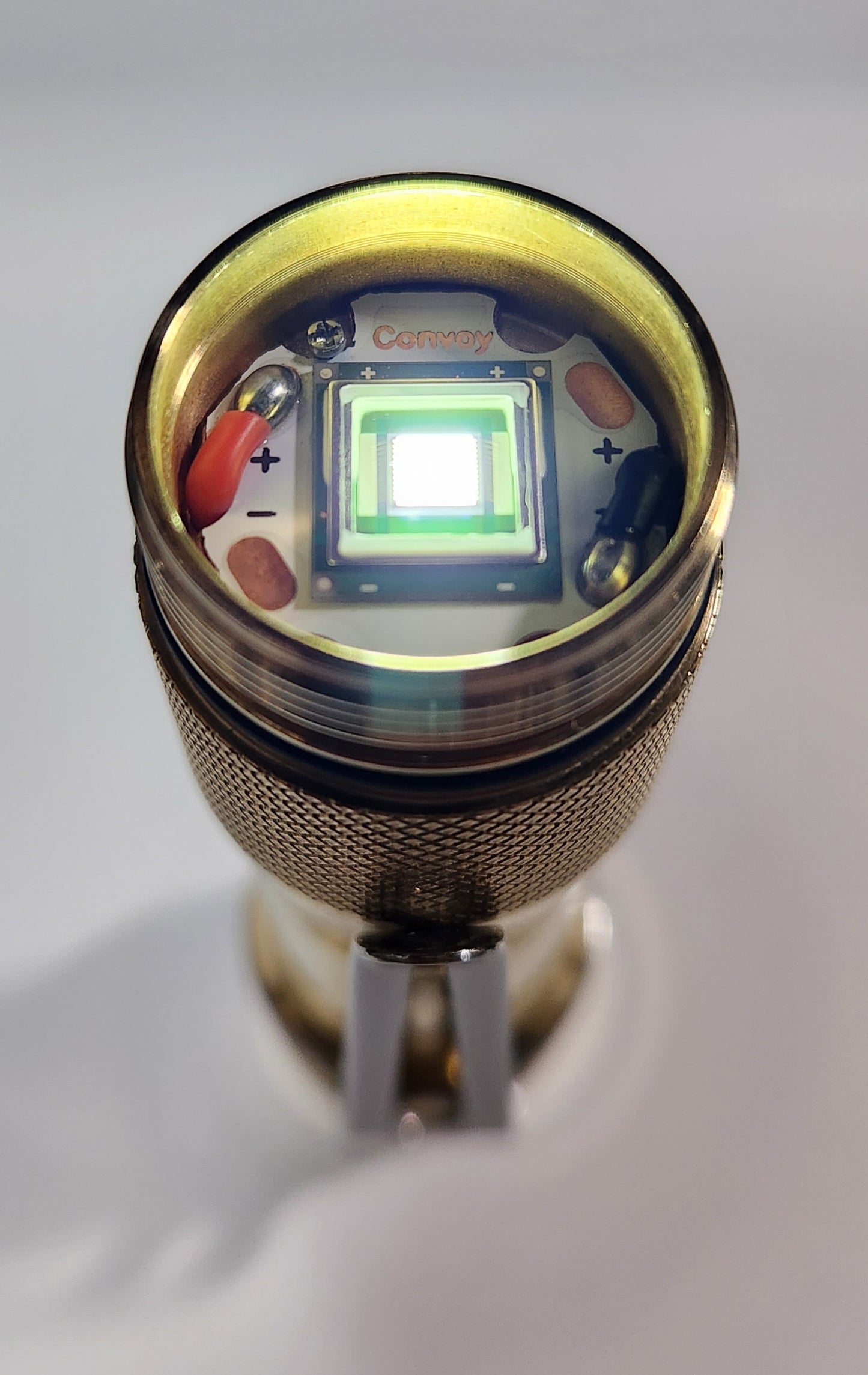

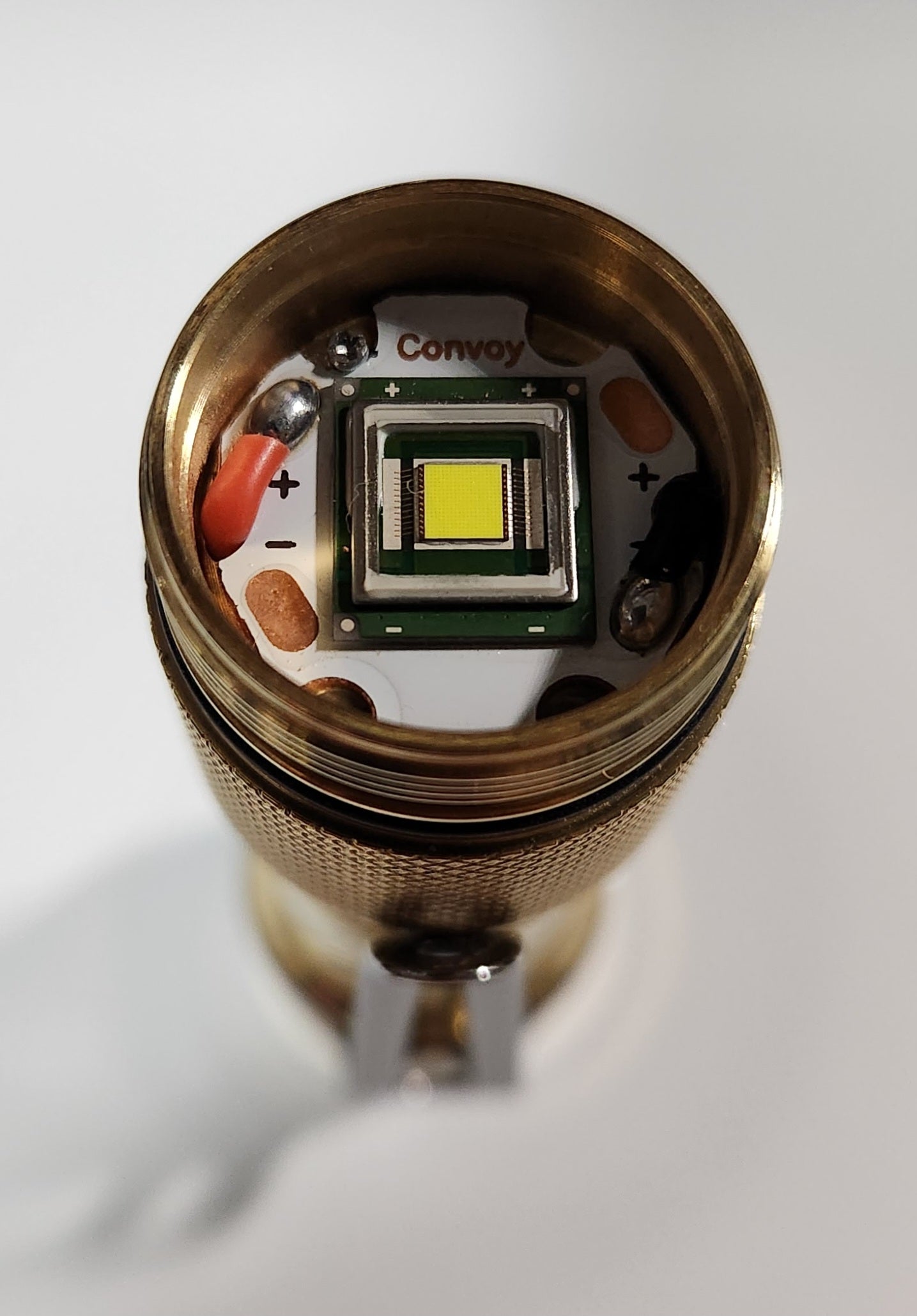

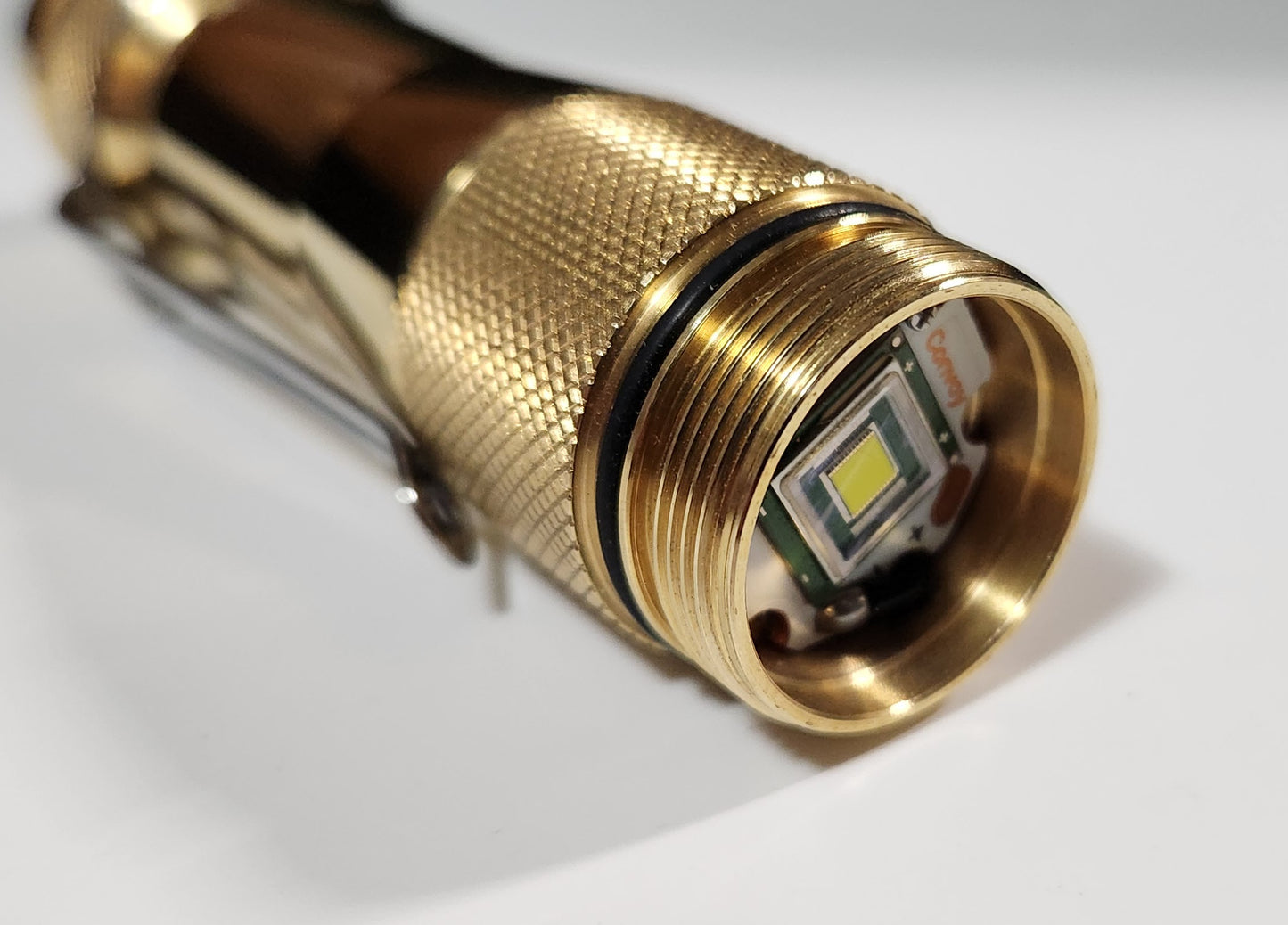

NEW! 1.5MM MCPCB + 3MM EXTRA COPPER THERMAL HEATSINK PAD

DRIVER:

1+7 FET

USER INTERFACE:

ANDURIL 1 UI

EMITTERS OPTIONS:

LUMINUS SFT40 6500K OR 5000K @ 2200LM

LUMINUS SBT90.2 @ 4500LM

STOCK CREE XHP50.2 EMITTER @ 3500LM

OSRAM W1 OR W2 WITH SMOOTH REFLECTOR 900-1400LM

BEZEL:

AVAILABLE WITH STOCK ALUMINUM BEZEL

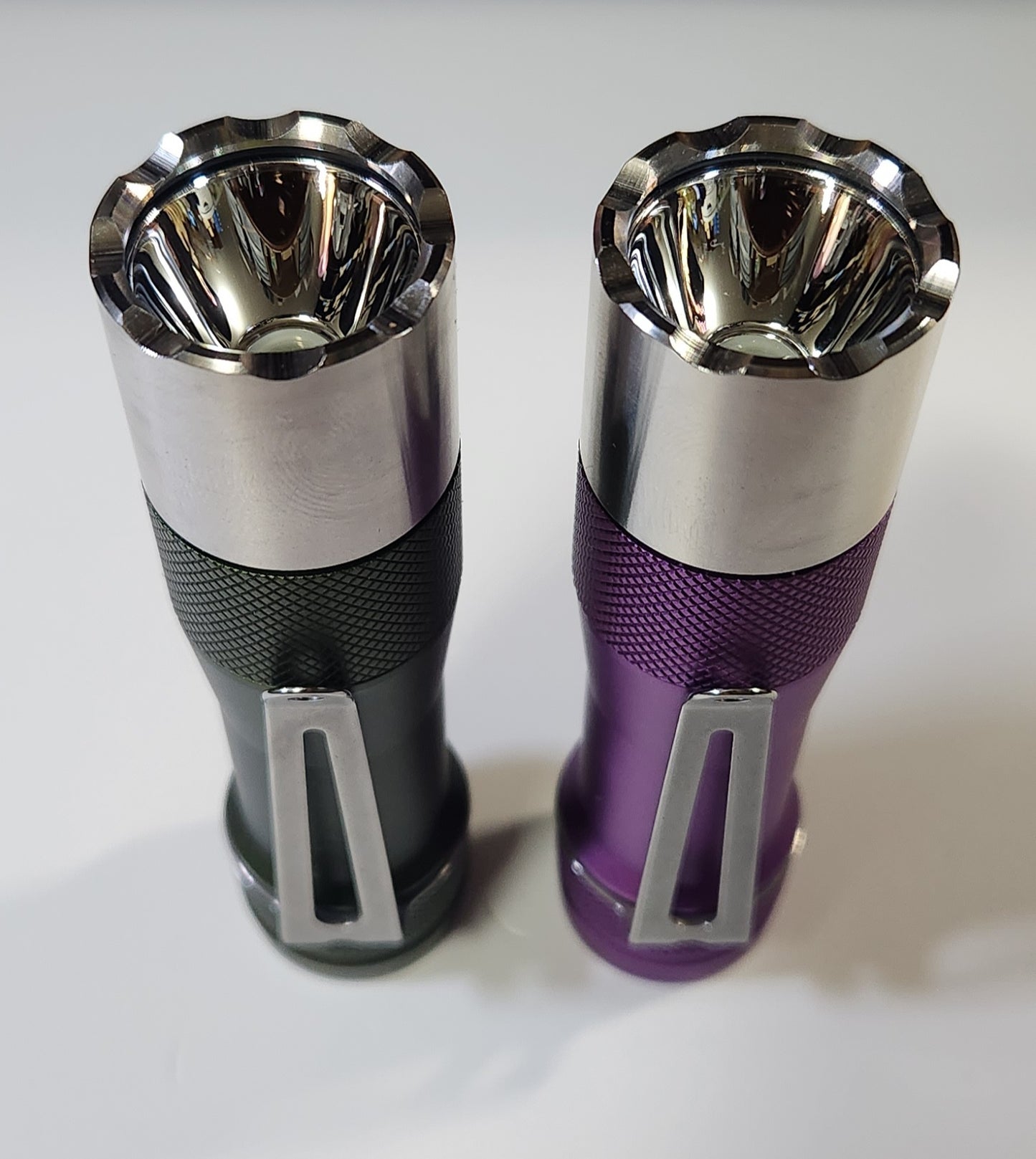

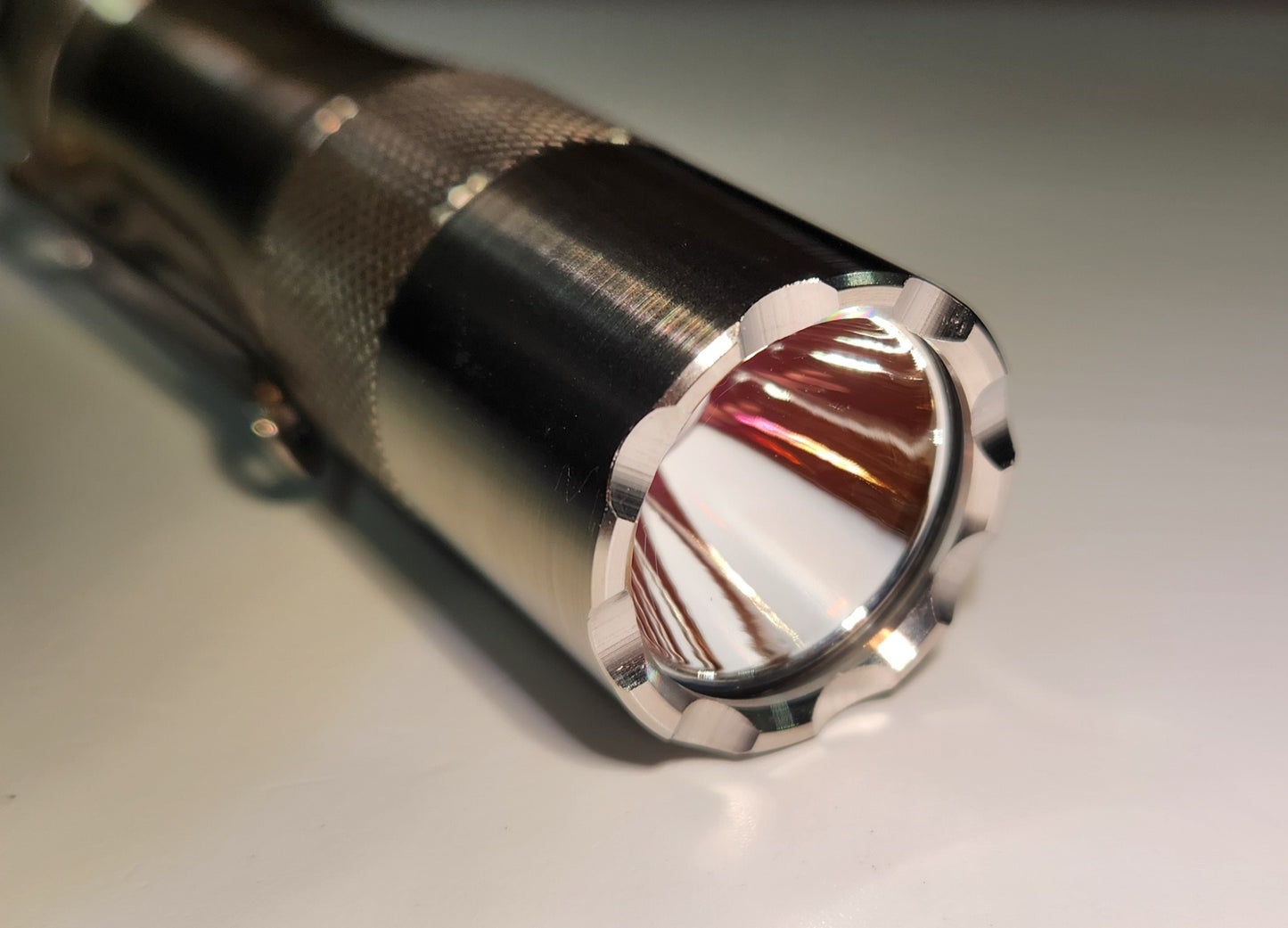

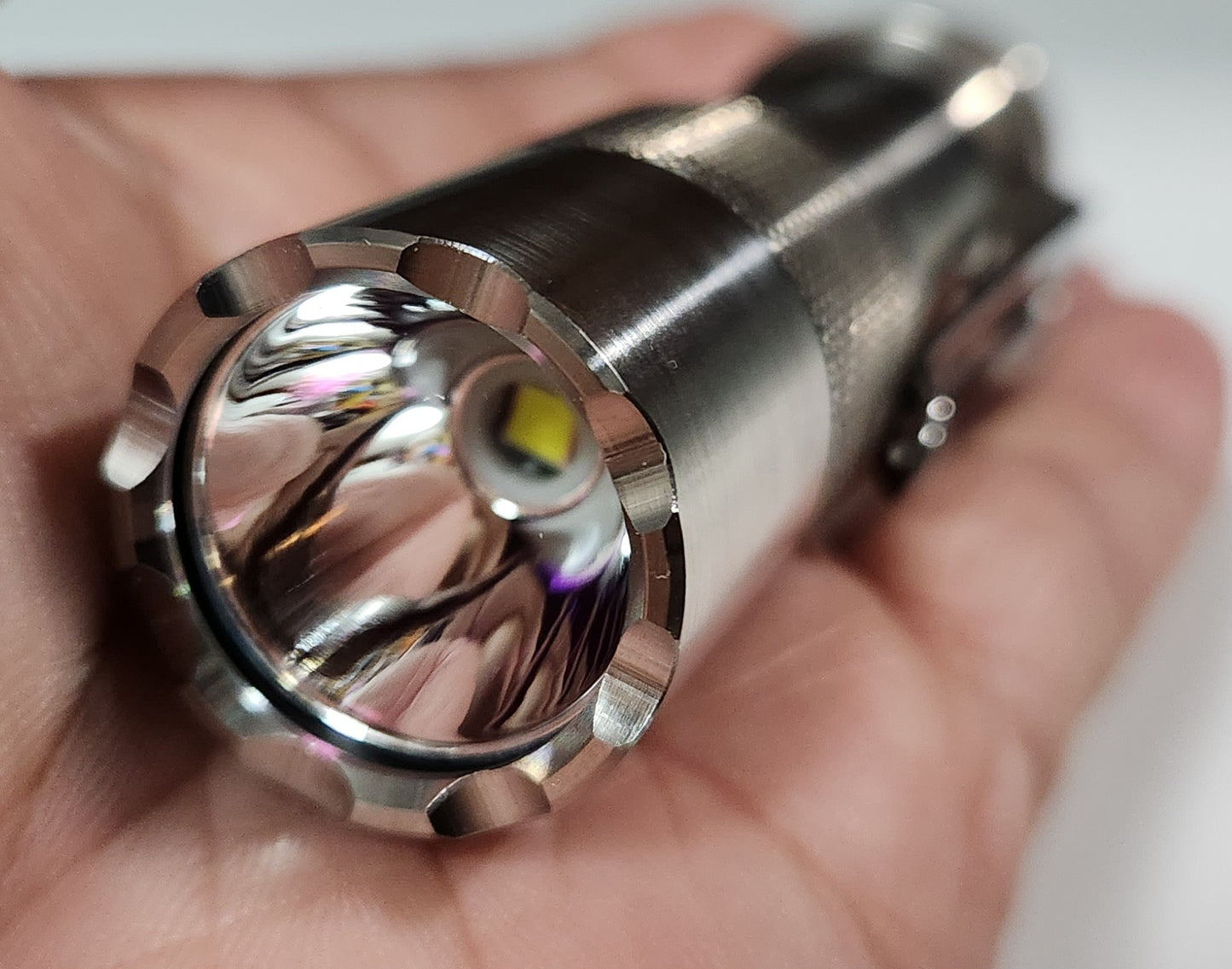

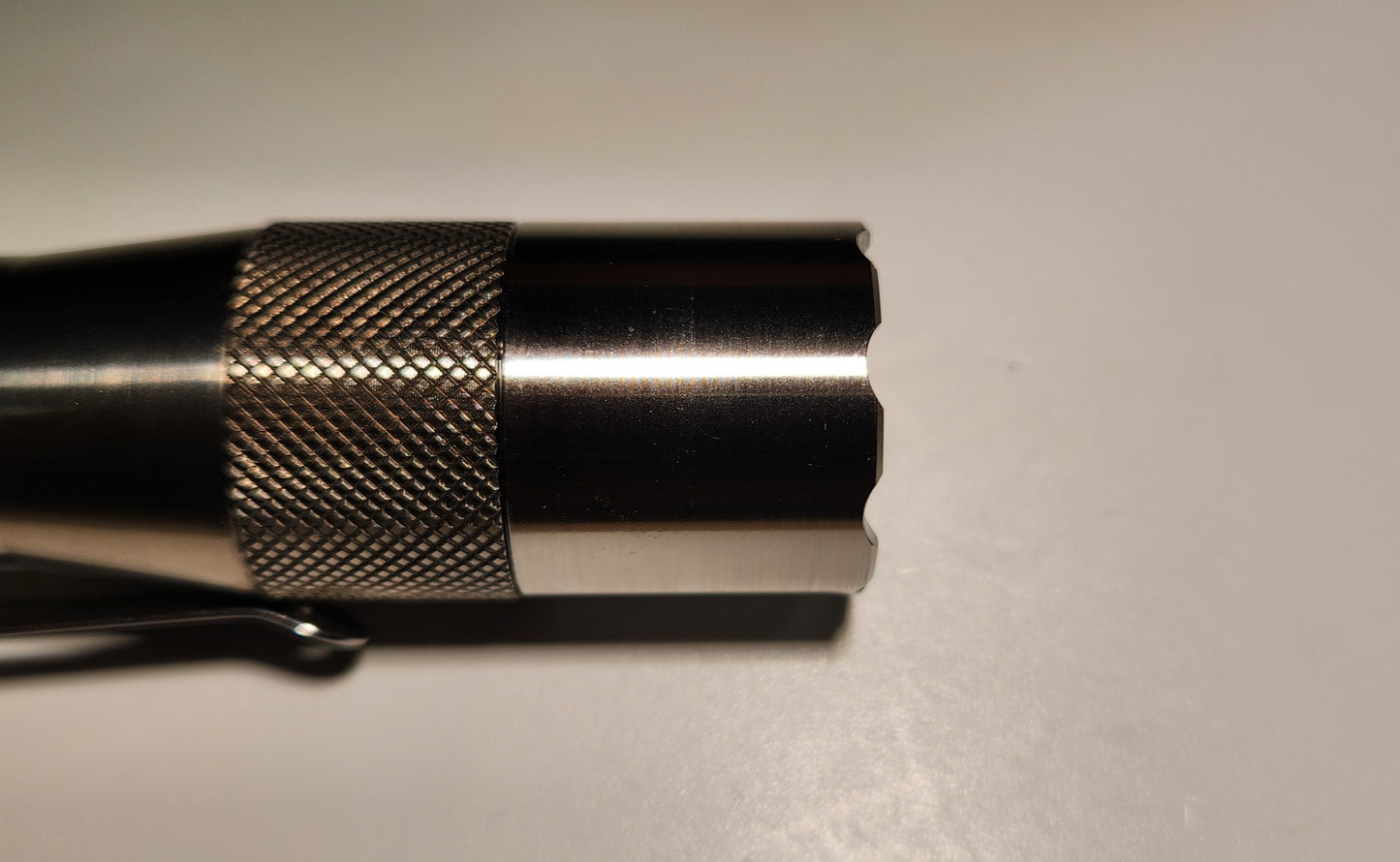

NEW! CRENELATED STAINLESS INCLUDED (ADDED COST INCLUDED WITH PRICE)

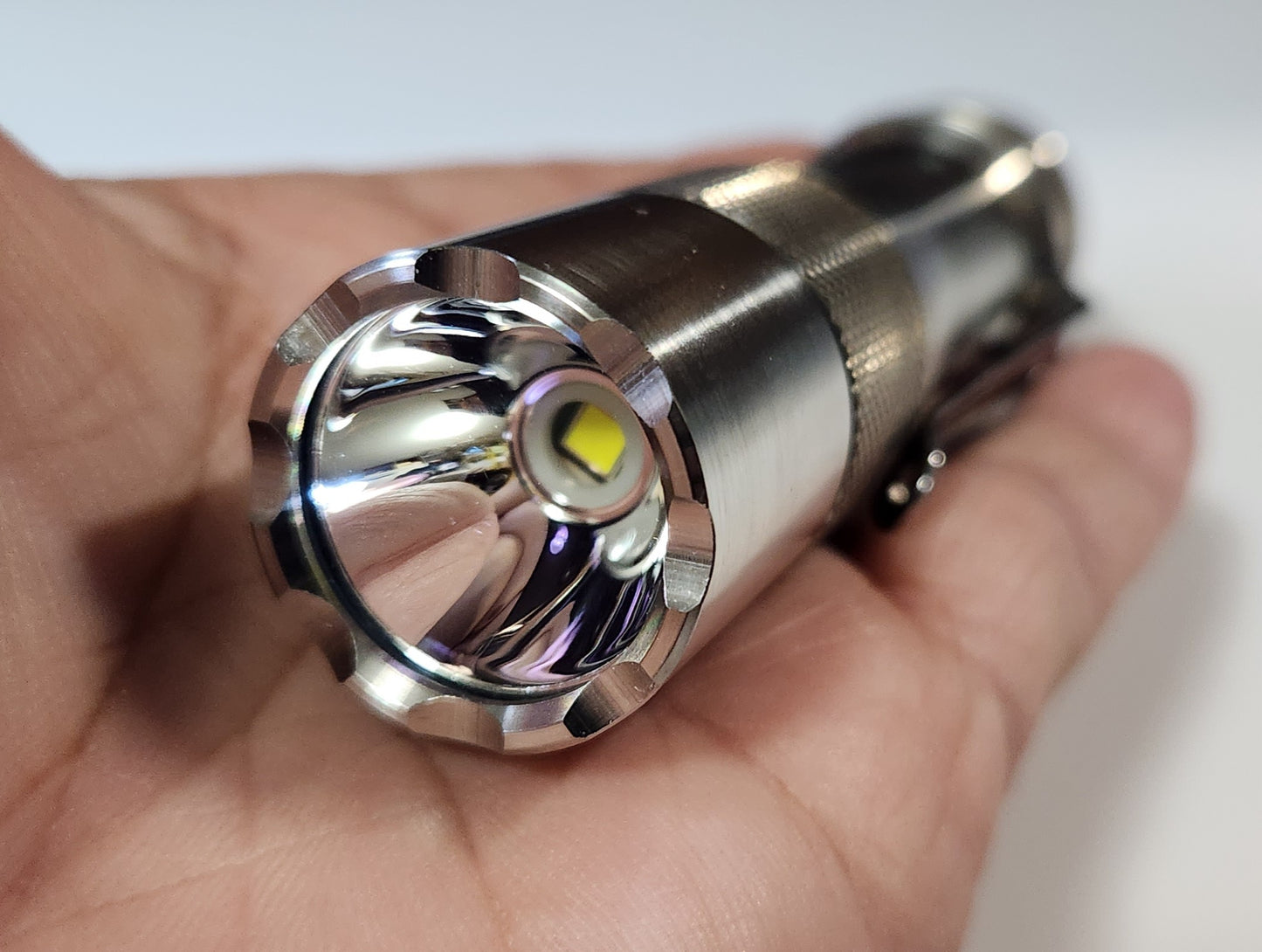

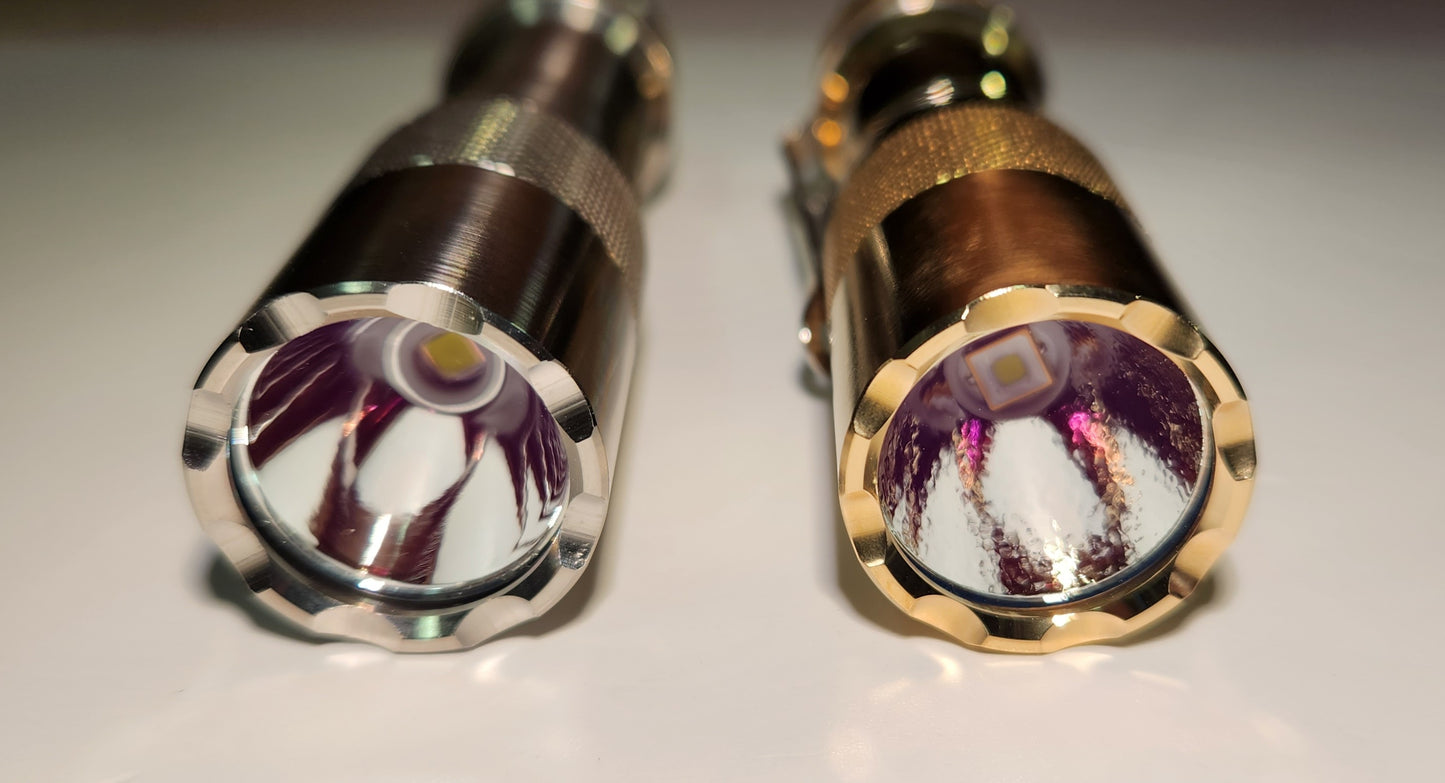

NEW! CRENELATED STAINLESS BEZEL >>> Crenelated Stainless Steel Bezel FW3A FW3T FW3C FW3B & FW1A FW1A Pro – JLHawaii808

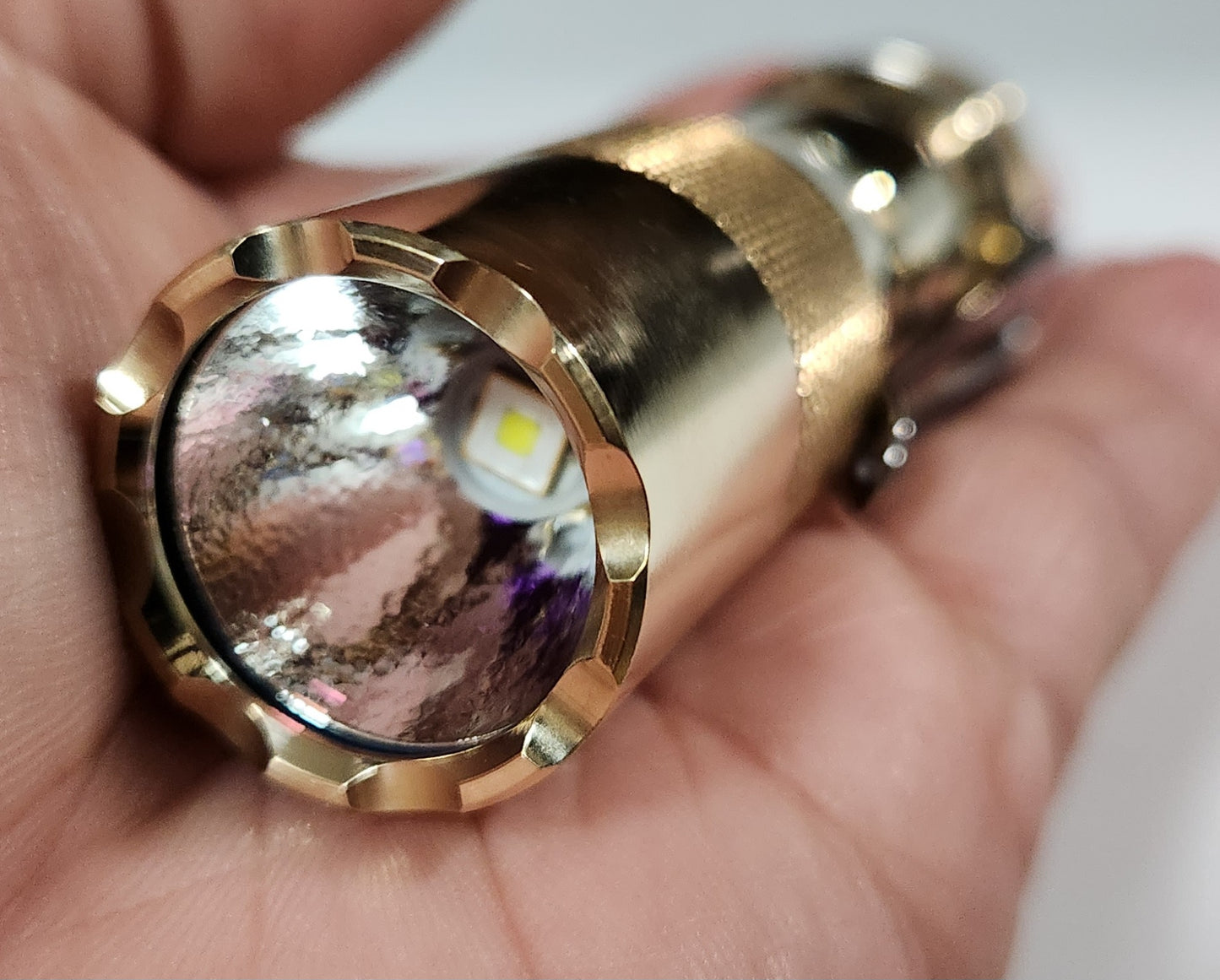

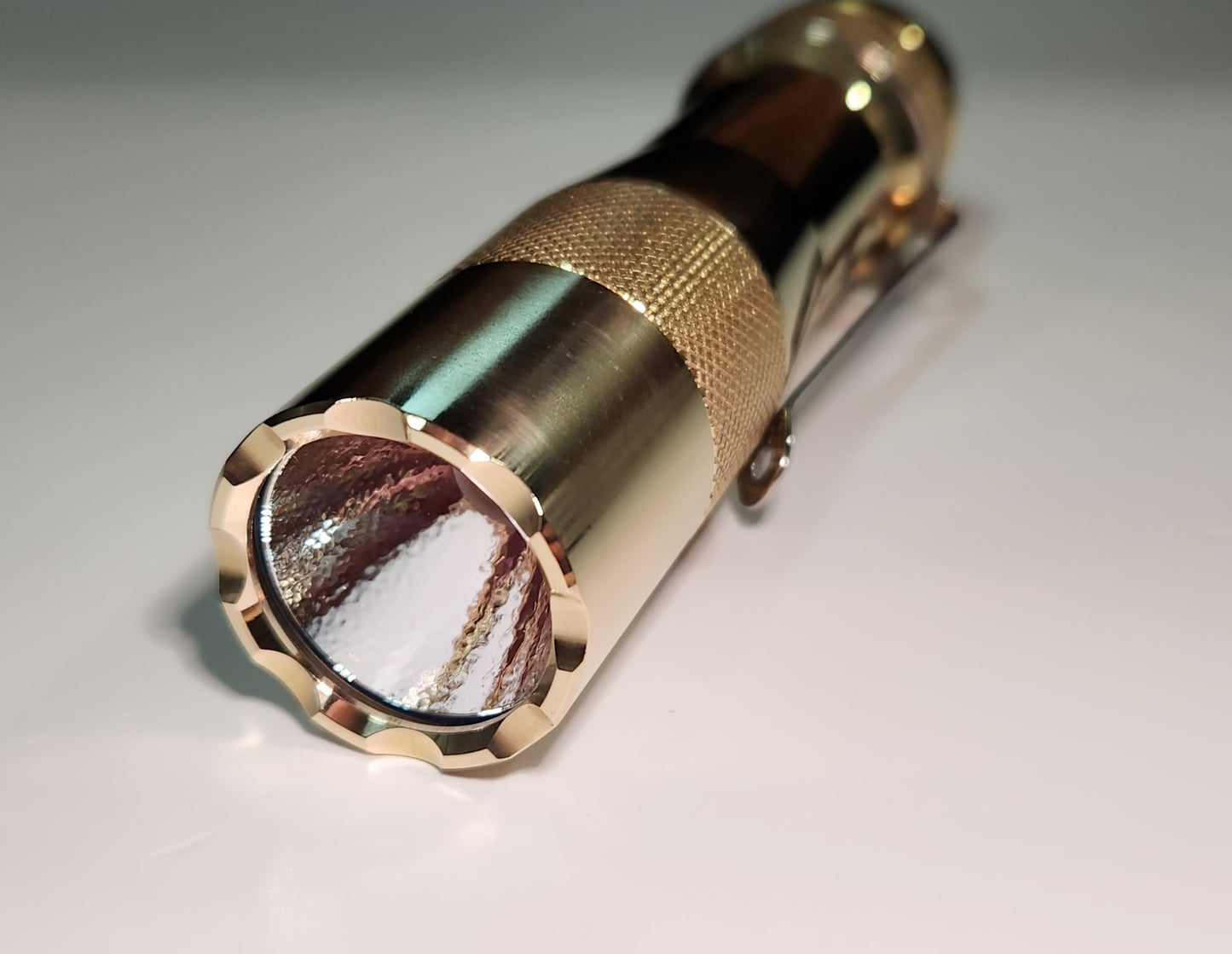

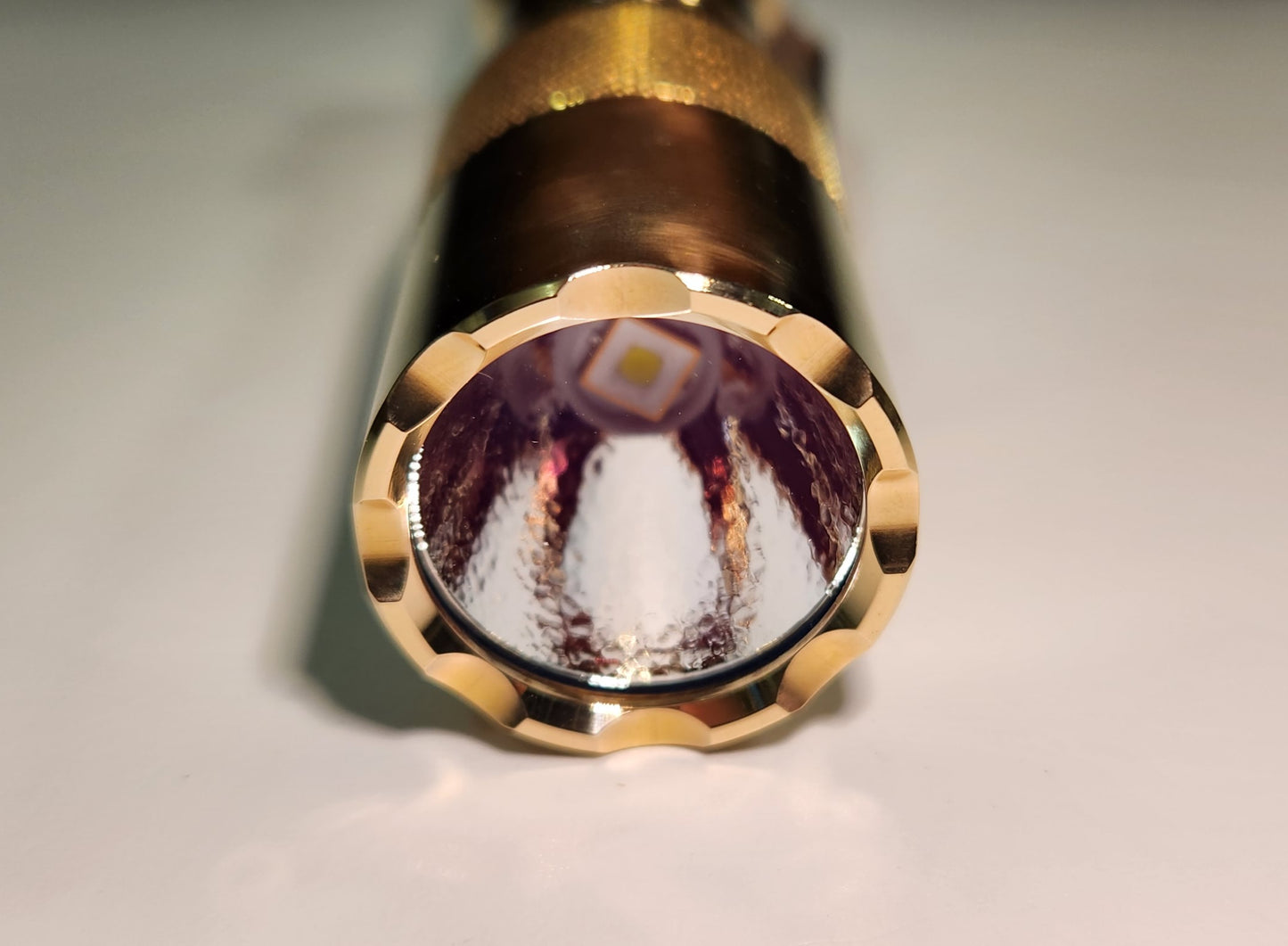

NEW! CRENELATED BRASS BEZEL >>> Crenelated Stainless Steel Bezel FW3A FW3T FW3C FW3B & FW1A FW1A Pro – JLHawaii808

OPTICS:

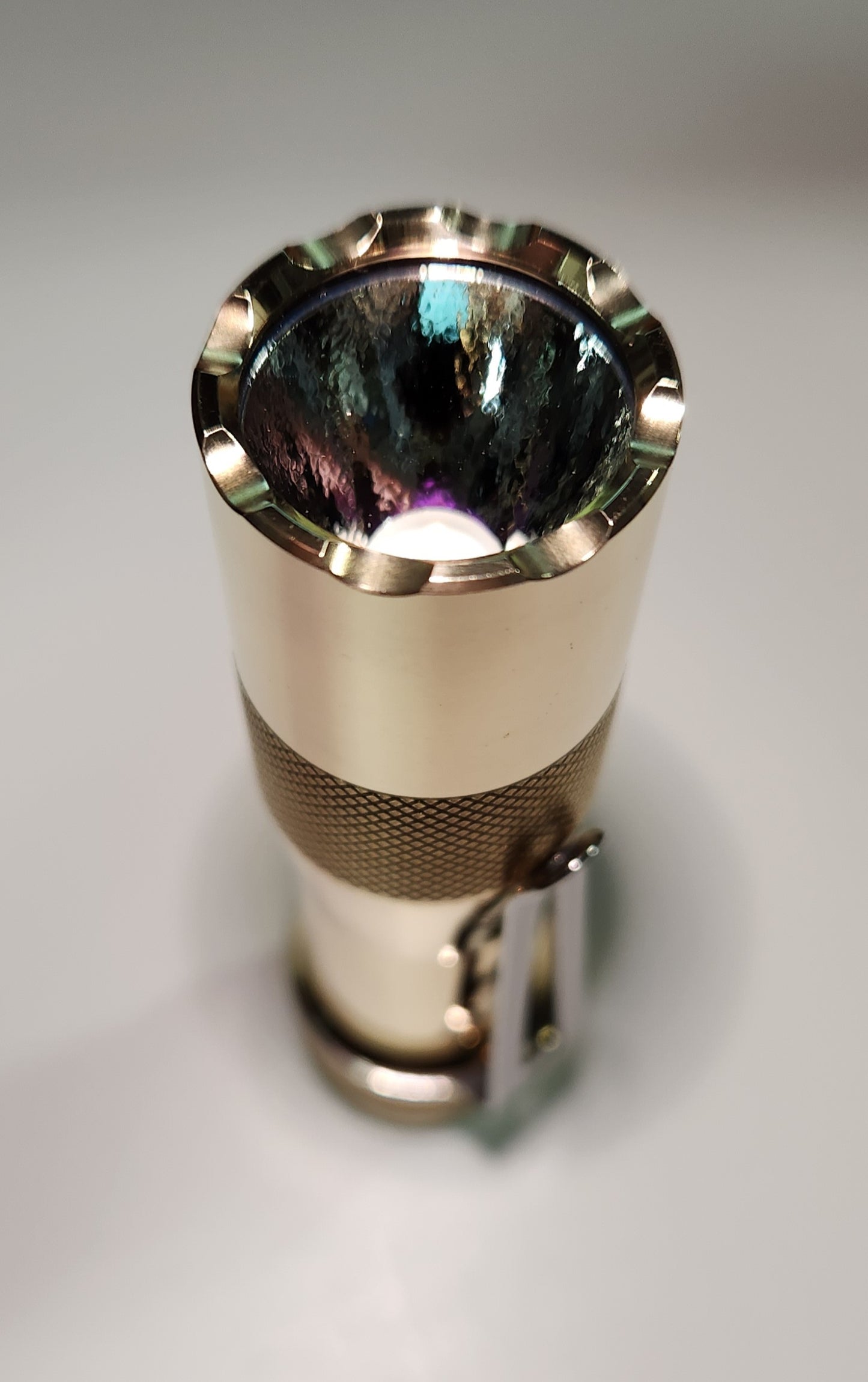

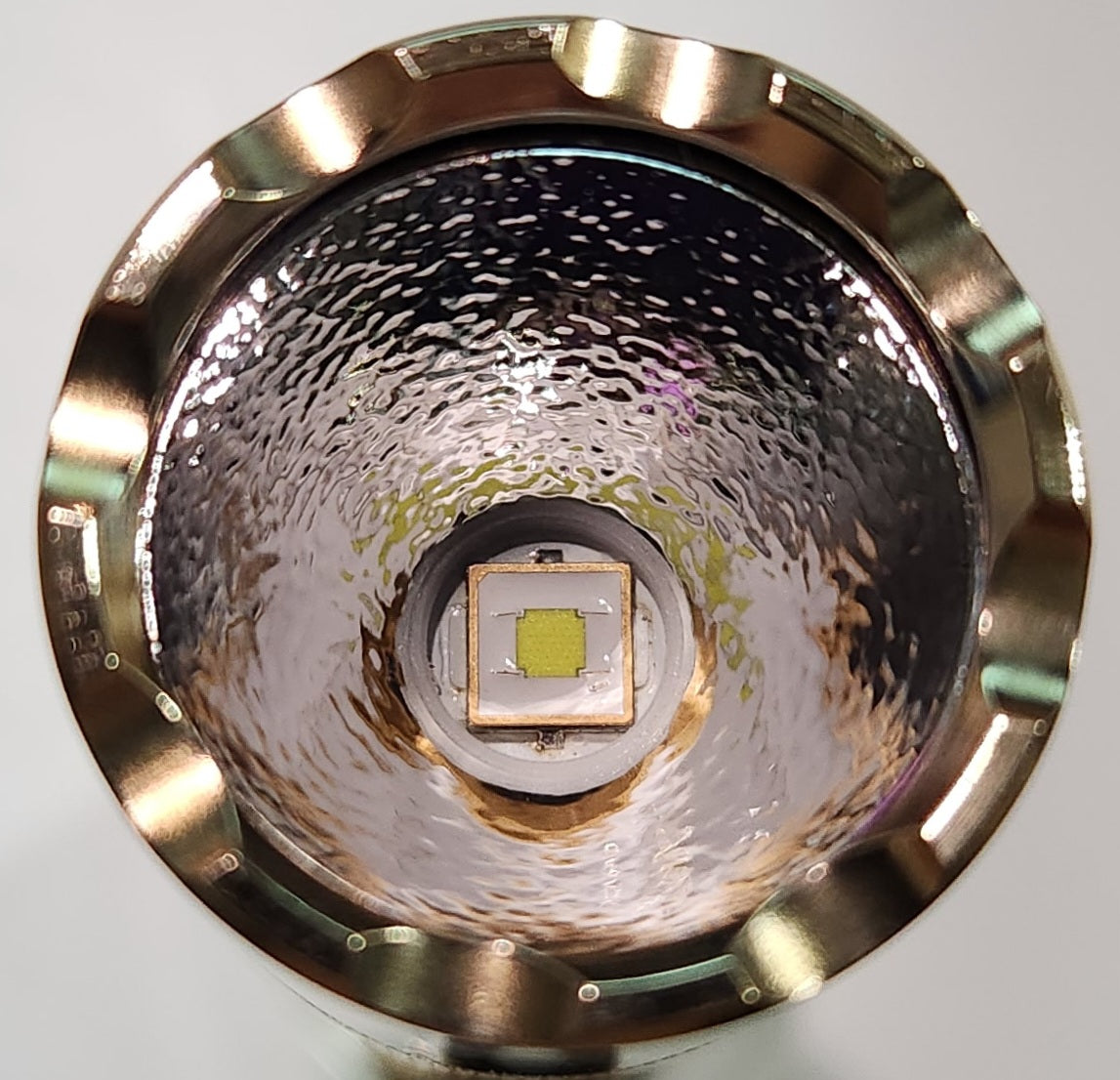

OP (ORANGE PEEL REFLECTOR)

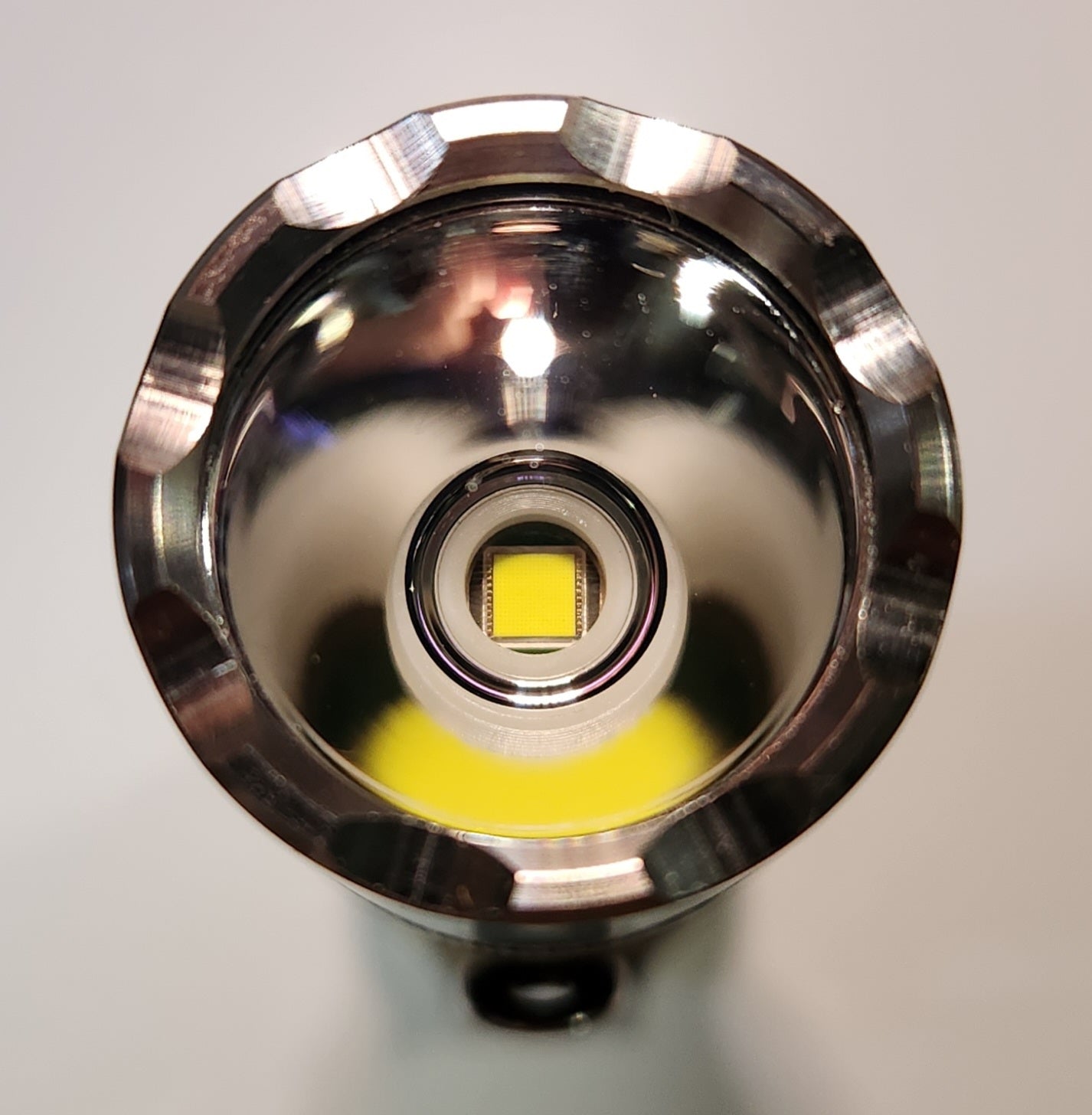

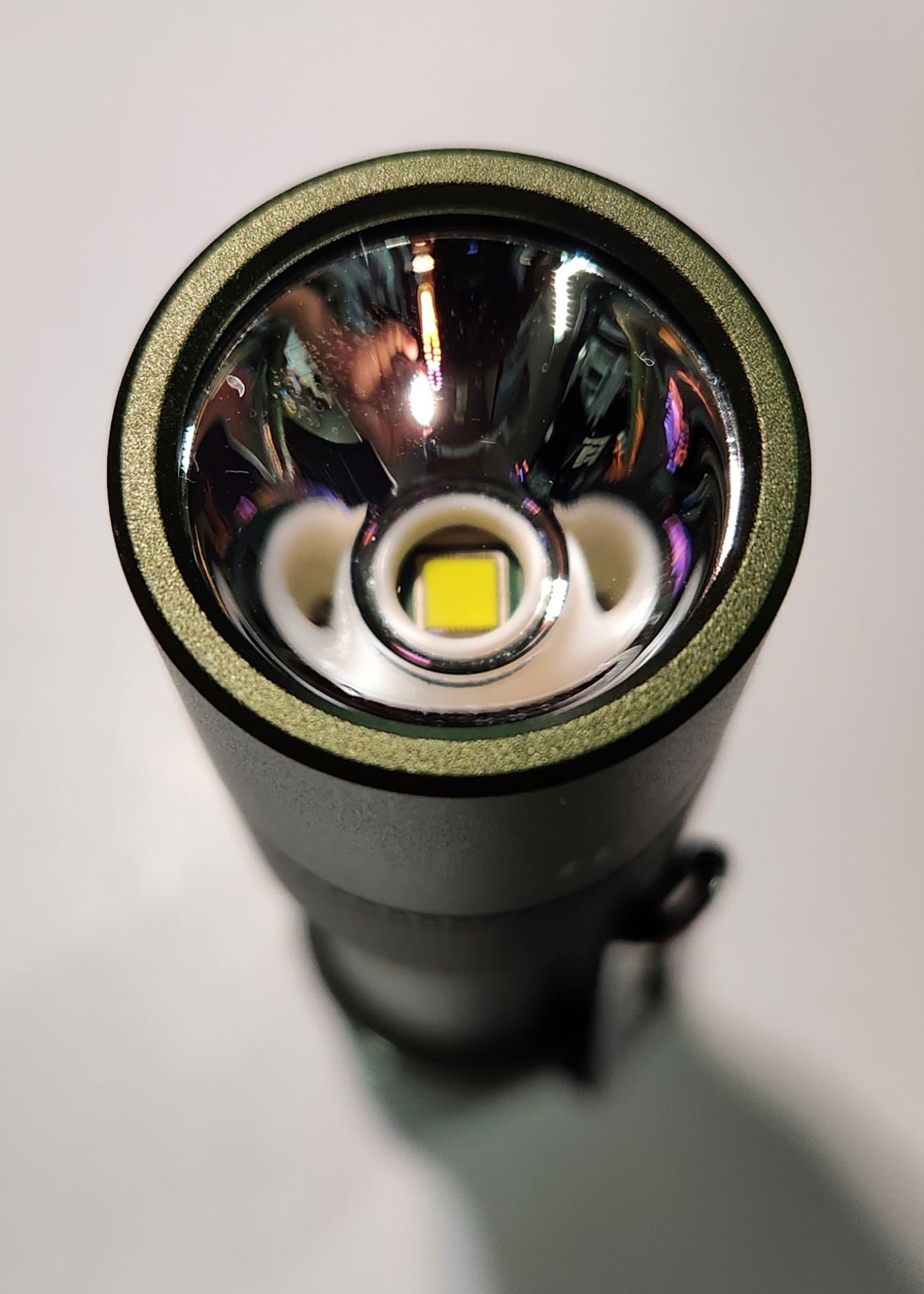

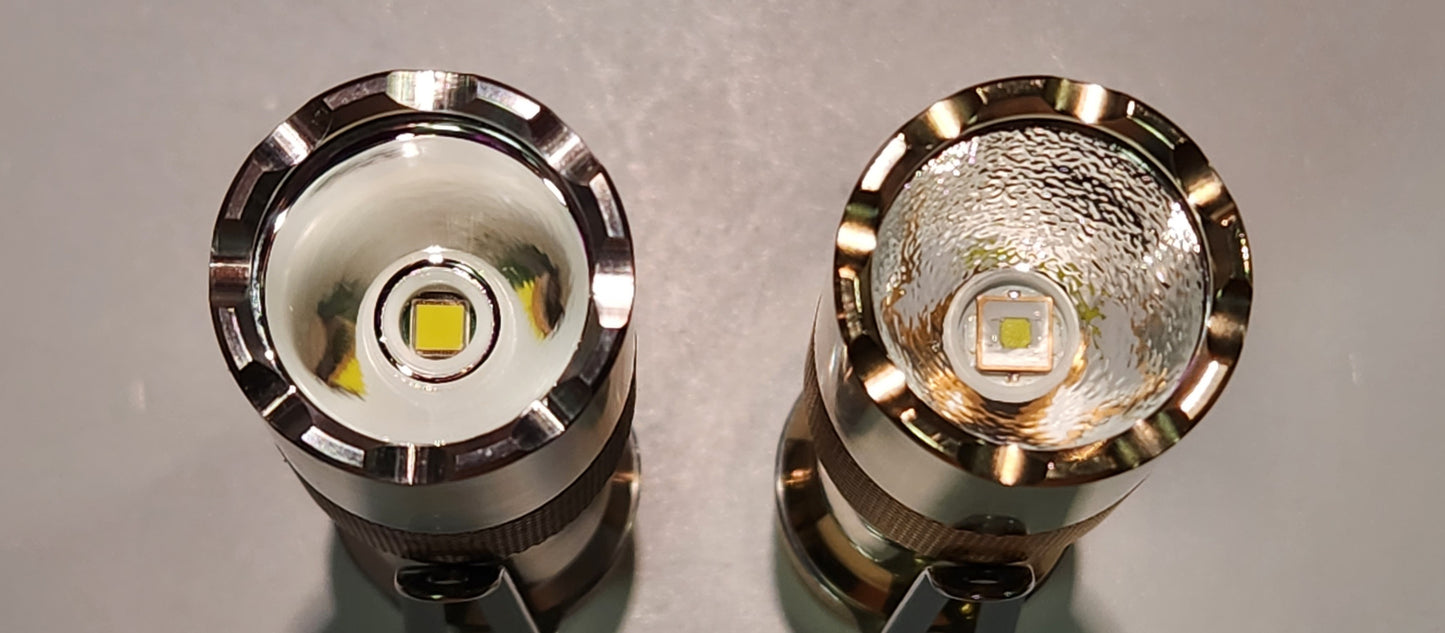

NEW! CONVOY SMO (SMOOTH REFLECTOR)

BEZEL IS MADE OF STAINLESS STEEL NOT TITANIUM

THIS IS BUILT TO ORDER AND WILL NEED A DAY TO BUILD. THANKS!

Specifications

• Emitter: CreeXHP50.2 LED with a 50,000 hours lifespan
• Reflector: Aluminum orange peel
• Lens: Glass with anti-reflective coating
• Flux: ~3500 lumens (CREE XHP50.2)
• Intensity: ~11,360cd, ANSI throw ~220 m
• Firmware: Free software called Andúril
• User interfaces: [1] Defaulted SMOOTH RAMPING. Instant access to TURBO mode is also provided. [2] STEPPED RAMPING UI. [3] MOMENTARY mode. [4] MUGGLE mode. [5] Electronic LOCKOUT.
• Other functions: Battery check, sunset, beacon, tactical strobe, party strobe, bike flasher, candlelight, lightning storm
• Battery: One 18650 cell. An unprotected cell is recommended. Max. length 66mm. The cell is not included.
• Driver: FET+7+1 driver. Low parasitic drain while OFF

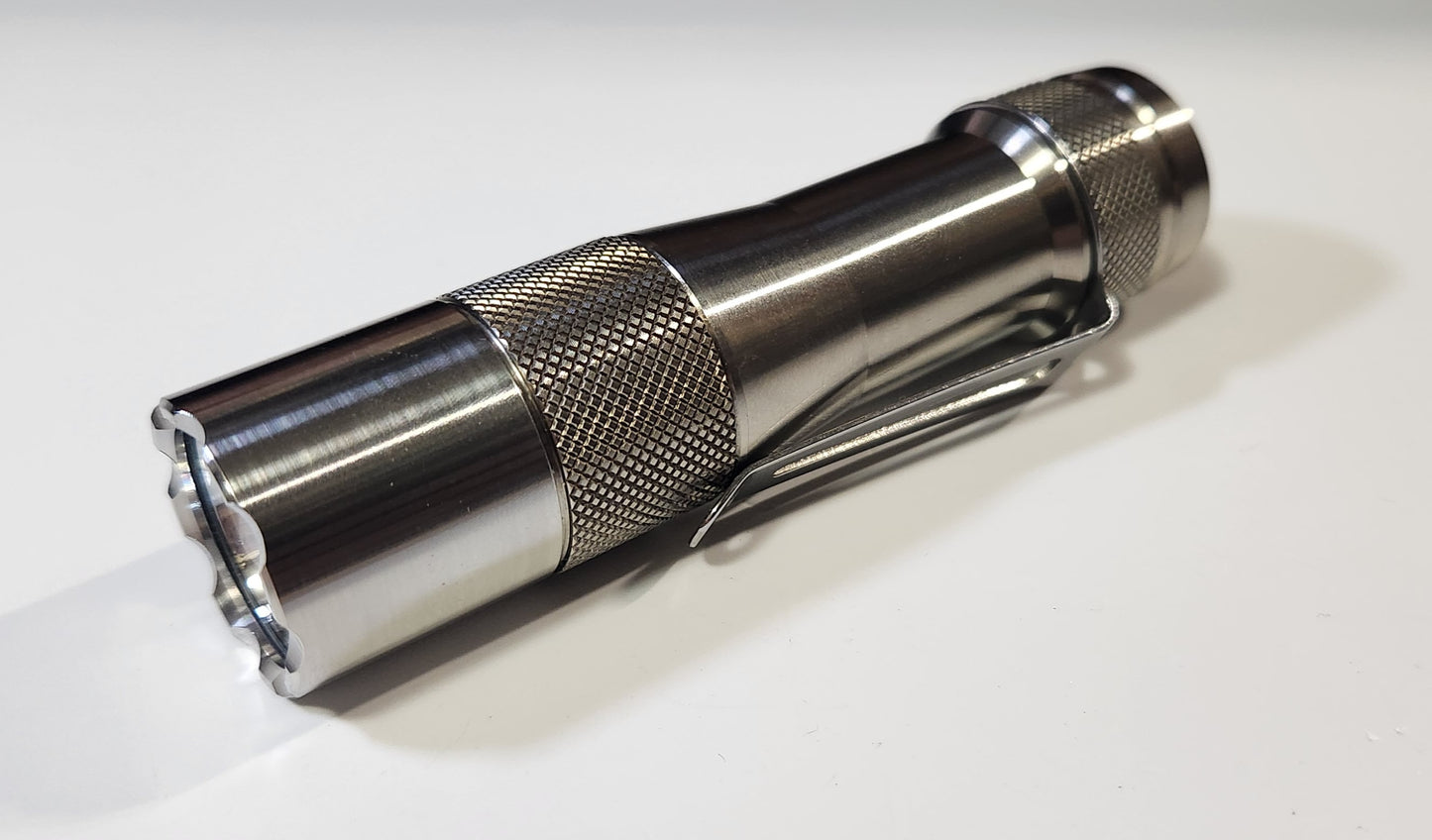

• Body: Full Titanium (STAINLESS-STEEL BEZEL)

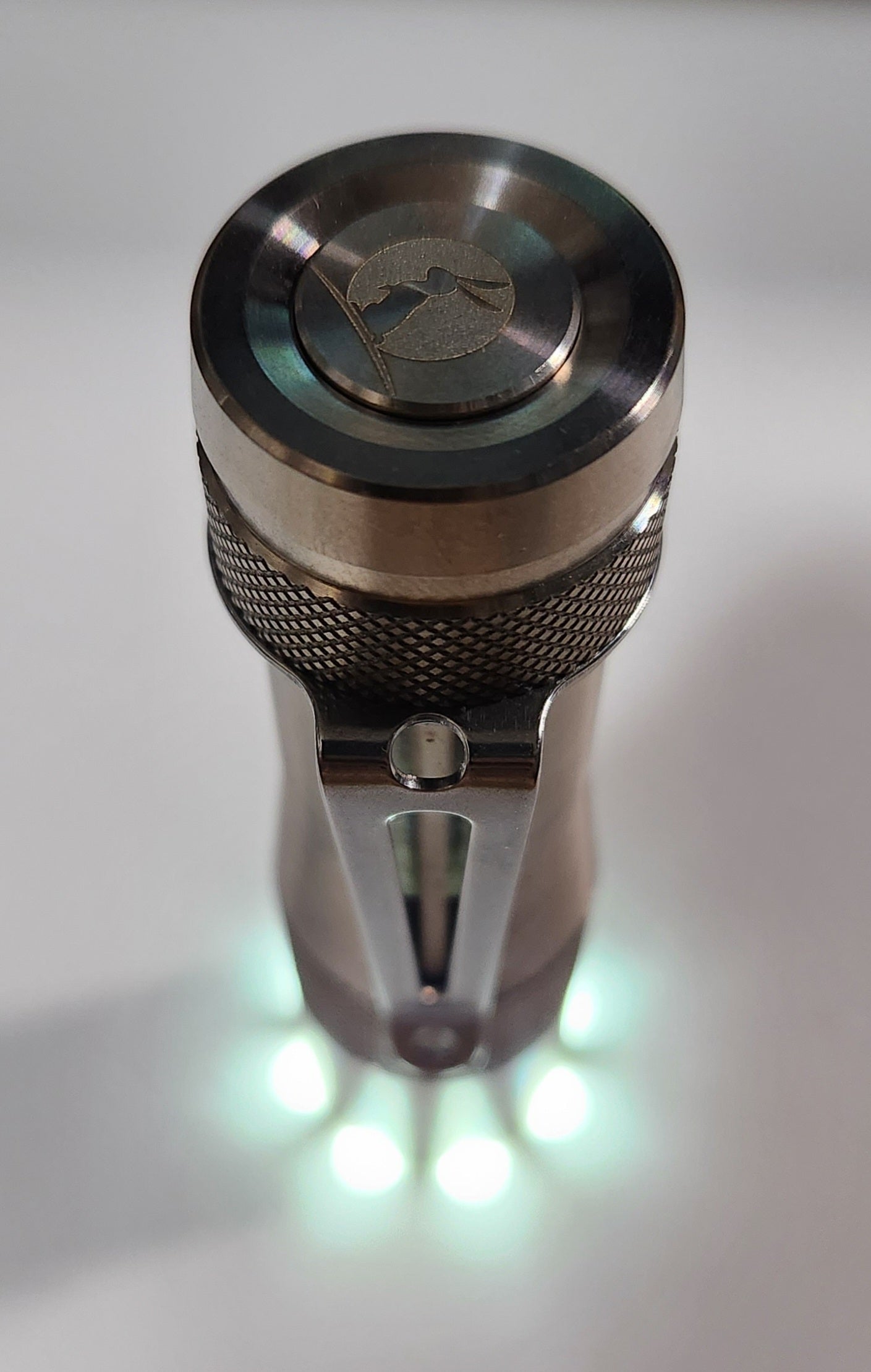

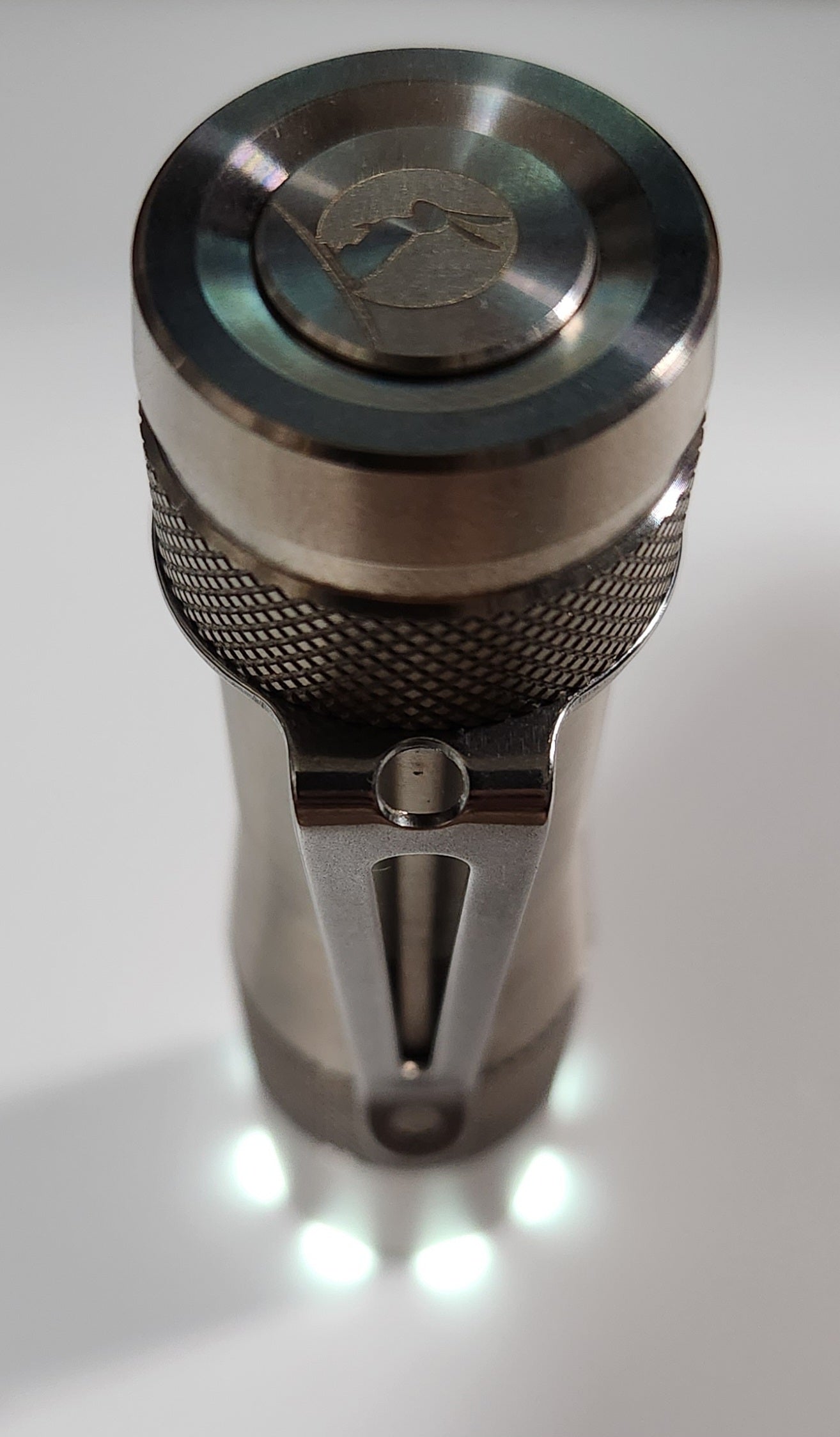

• Switch: Electronic tail switch
• Ingress rating: Equivalent to IPX8
• Weight: Approximately without cells
• Size: 25.5 mm Ø head x 100.7 mm length.
