LUMINTOP

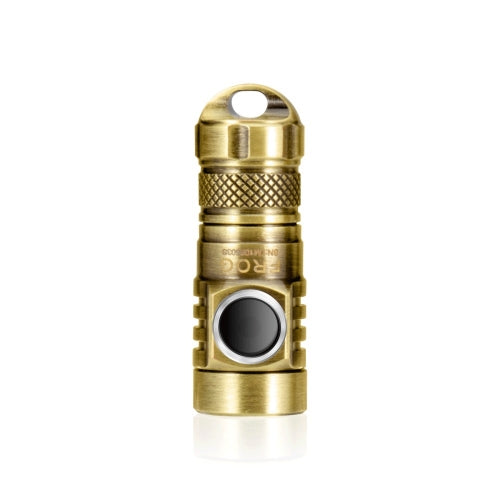

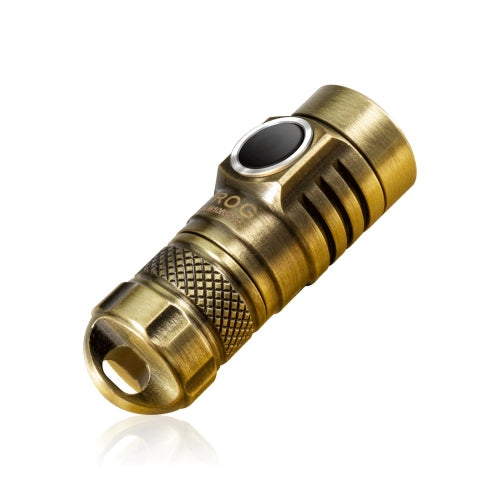

Lumintop Frog in Aluminum Color Brown 570 Lumens EDC Mini Flashlight

Lumintop Frog in Aluminum Color Brown 570 Lumens EDC Mini Flashlight

EMITTER OPTION
Regular price $39.88 USD
Regular price Sale price $39.88 USD
Sale Sold out
Shipping calculated at checkout.

Lumintop Frog Aluminum Brown

THESE ARE THE LAST LUMINTOP FROGS WITH THE NASIL SMOOTH RAMPING UI!

Firmware: Tom E’s open-source GPL NarsilM v1.3 adapted by Texas_Ace
User interface: [1] By default the GT Nano is set to use the very intuitive Narsil

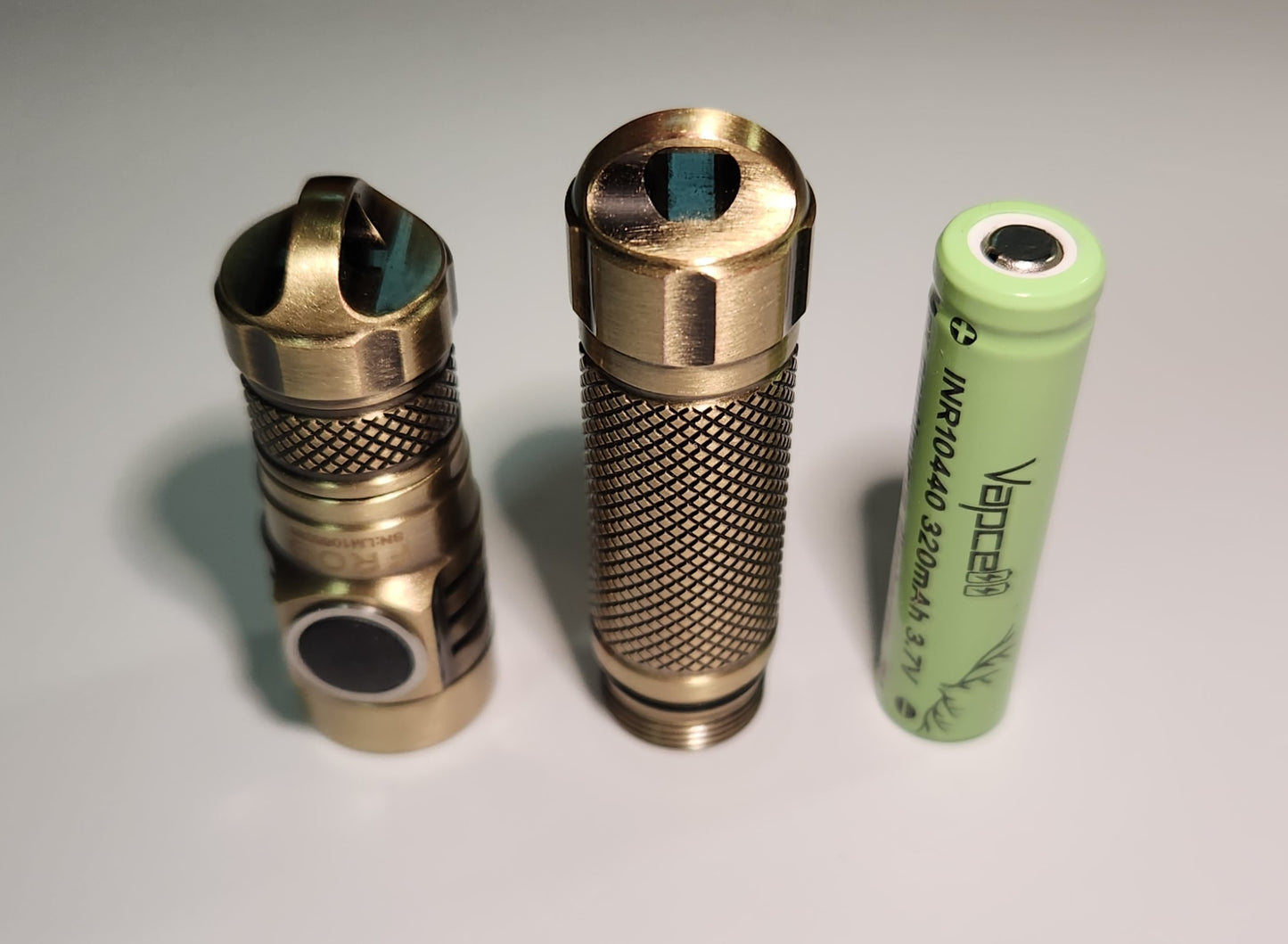

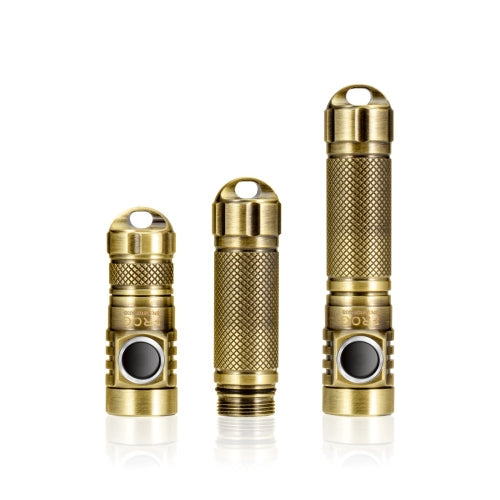

MATCHING 10440 EXTENSION TUBE >>> Lumintop Frog Aluminum Brown 10440 Extension Tube – JLHawaii808

PLEASE READ!

BATTERIES: 10180 & 10440 BATTERIES INCLUDED, IF THIS IS SOLD AND SHIPPED INTERNATIONALLY BATTERIES WILL BE REMOVED BEFORE SHIPPING - LITHIUM-ION BATTERIES ARE NOT ALLOWED SHIPPED GOING AIR FREIGHT!

Features:

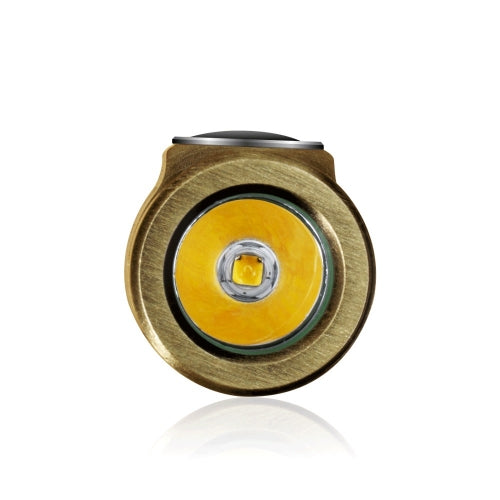

  • Emitter: Osram CSPMN1.TG (W2) 6000k
  • Flux: 700 lm/ 900 lm (10180/ 10440)
  • Throw:  ~250m
  • Power: 11W
  • User interface: Stepped with 5 modes setting
  • Battery:  One button-top 10180 Li-ion (included) or 10440 Li-ion (excluded) via the long tube
  • Optic: TIR optice lens
  • Body: Aluminum with Type III hard-coat anodizing
  • Button: Tactile with back-lit rubber boot
  • Ingress rating: Equivalent to IPX-8, underwater 2m
  • Weight: Approximately 11g without cells
  • Dimensions: 15.6 mm Ø head x 45mm length

Specification

ANSI/NEMA FL1 Moonlight Low Med High Turbo
Output 10180 1 Lumens 35 Lumens 175 Lumens 390 Lumens 600 Lumens
10440 1.5 Lumens 40 Lumens 220 Lumens 500 Lumens 750 Lumens
Runtime 10180 14h 1h 25min 26min 40S+25min 20S+25min
10440 58h 3h 45min 40S+42min 20S+42min
Distance 10180: 135m (Max) / 10440: 150m (Max)
Intensity 10180: 4556cd (Max) / 10440: 5670cd (Max)
Impact Resistant 1.5m
Waterproof IPX-8, underwater 2m
Light Source Luminus SST20 LED
Battery 1 X 10180 / 10440 Li-ion (A long tube is required when using the 10440 Li-ion battery, the tube and battery are sold separately.)
Power 11W (Max)
Size 15.6 X 14 X 45m
Net Weight 11g
Multi-Protections Anti-reverse protection, Over-heat protection, Low voltage protection

Notice: The above approximate data are lab-tested by using 3.7V/80mAh 10180 and 3.7V/320mAh 10440 Li-ion battery which may vary due to the difference between environment and batteries. The runtime on High and turbo are accumulated due to over-heat protection.
