EMISAR/NOCTIGON LED DRIVERS

NOTE: PLEASE READ BFORE PURCHASING! THESE DRIVERS ARE DESIGNED AND MADE TO USED IN HANK'S EMISAR/NOCTIGON LED FLASHLIGHTS, YOU MUST KNOW WHAT YOU ARE DOING BEFORE REPLACING OR TRYING TO MODIFIY YOUR FLASHLIGHT. 12V BOOST DRIVER'S REQUIRES SPECIFIC MCPCB (SOLD HERE) AND BE AWARE ON WHAT EMITTERS ARE USED AND IMPROPER FIRMWARE CAN OR WILL CAUSE DAMAGE TO YOUR EMITTERS (LED), TOYKEEPER'S LINK IS BELOW. ALL DRIVER'S ARE PRE-FLASHED WITH SPECIFIC FIRMWARE THE FET DRIVER'S WILL HAVE THE FET ENABLED. DRIVER'S ARE SOLD "AS IS" NO WARRANTY! IF YOU DON'T KNOW ASK!

IMPORTANT NOTE: ALL LINEAR + FET & TINT RAMP DRIVERS ARE DEFAULTED AT 9A REGULATED CURRENT IF YOU NEED TO LOWER OR INCREASE THE REGULATED CURRENT THERE IS A $5 CHARGE

Some Drivers will not have the wires soldered to it, I will send wires and you will need to solder it yourself!

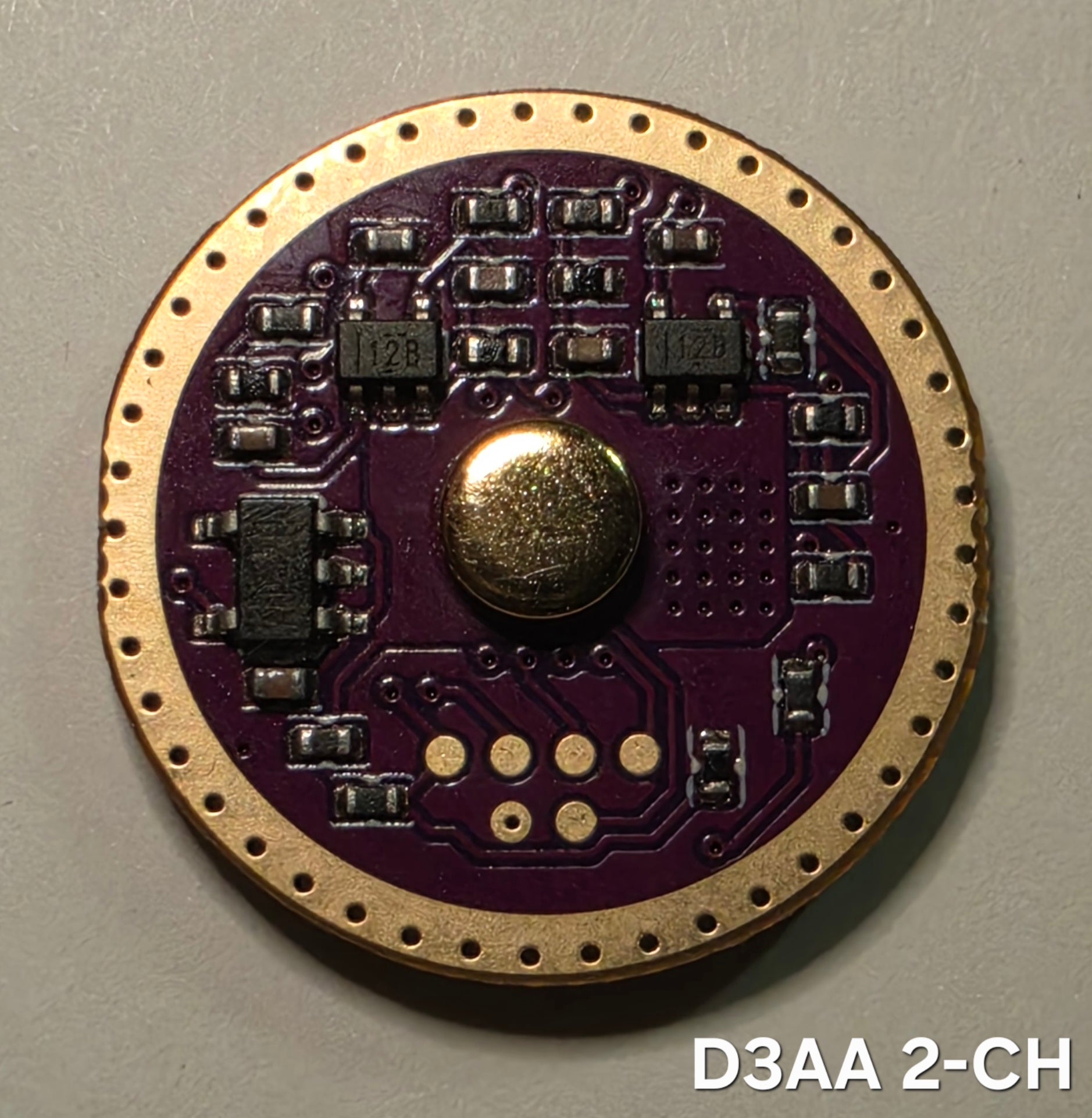

NEW! 18mm D3aa 9V 6A boost driver (TheFreeman)

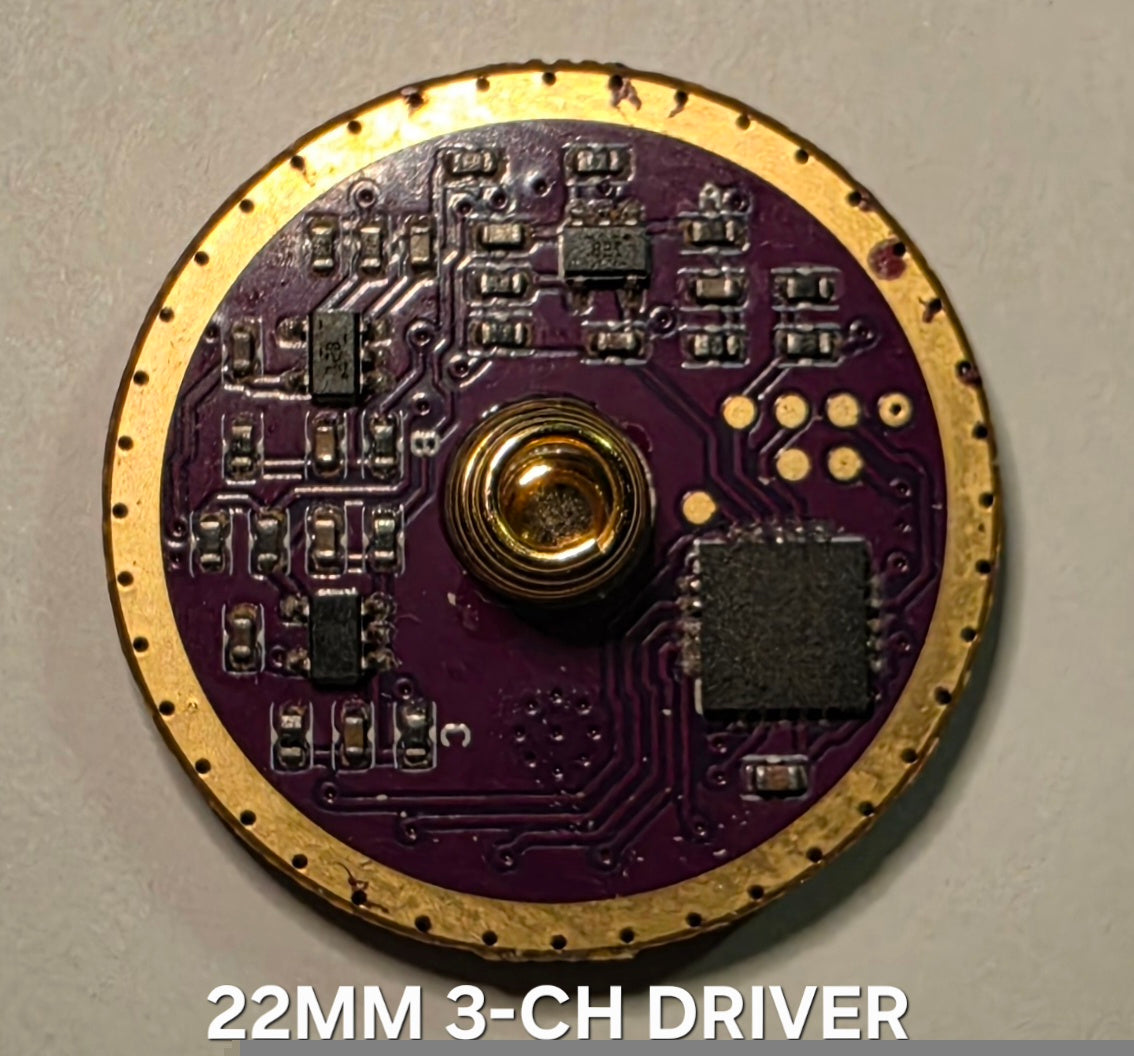

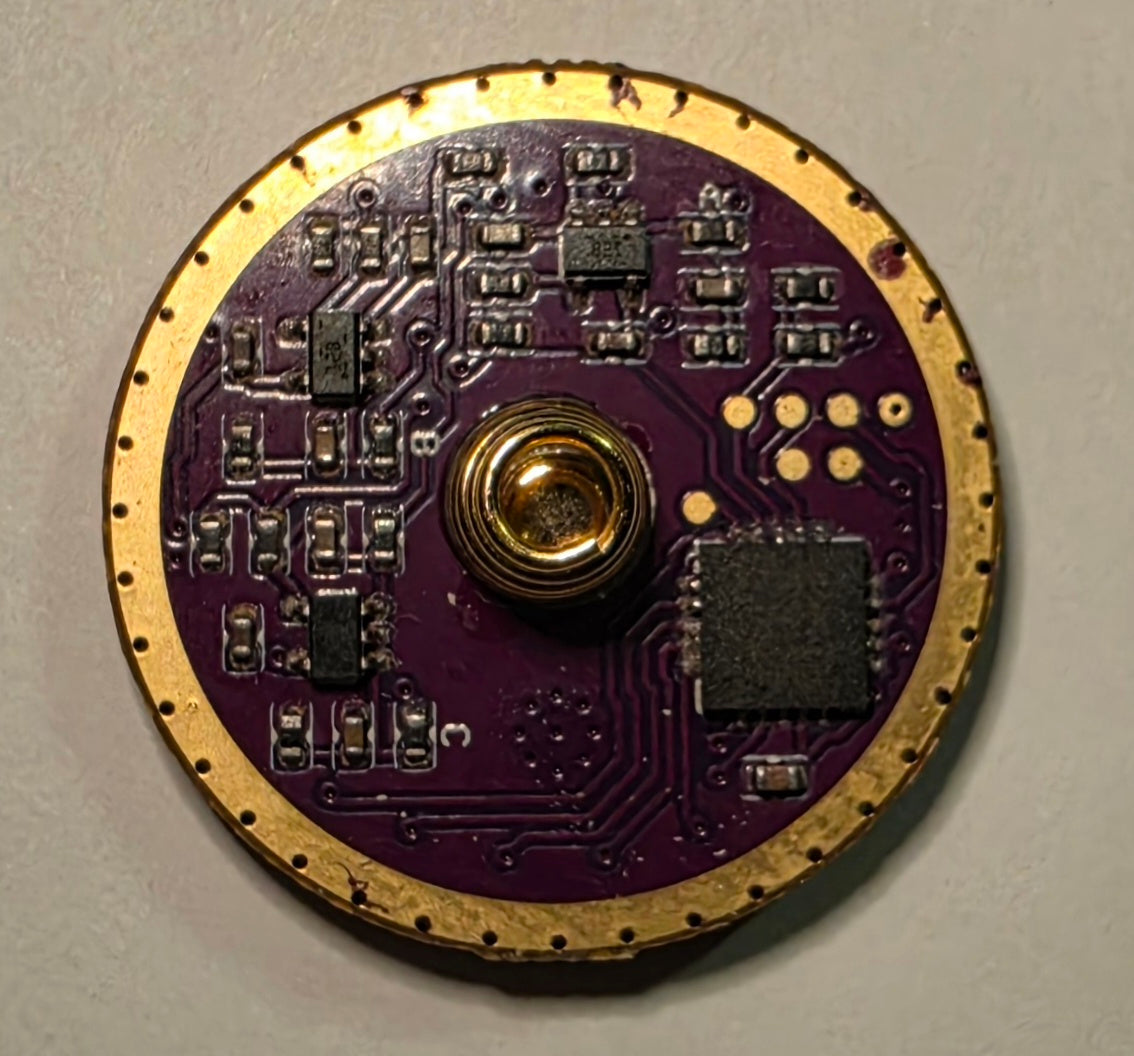

22mm D4V2 2A linear + FET

22mm D4V2 5A linear + FET

22mm D4V2 7.5A linear + FET

22mm D4V2 9A linear + FET

22mm D4V2/D1, DT8 & DW4 12V 2A boost driver

22mm D4V2/D1, DT8K & DW4 6V 4A boost driver

22mm D4V2/DW4 tint ramp driver

24mm D4K, D1K & DT8K 12A drivers

24mm D4K & DT8K tint ramp driver

24mm D4k/D1k 12V 2A boost driver

24mm D4k/D1k 6V 4A boost driver

25mm KR4 9A driver

25mm KR4 12V tint ramp driver

25mm KR4 12V 2A boost driver

31mm D4SV2 9A driver

31mm D4SV2 12V 2A boost driver

31mm D4SV2 tint ramp driver

ALL BOOST DRIVER'S ARE 12V WILL REQUIRE THE 12V MCPCB

ALL linear + FET driver has FET firmware already flashed

All Pre-wired need to flash ONLY BOOST DRIVER'S DOESN'T NEED TO BE FLASHED

Re-flashlight kit >>> Emisar Noctigon D4V2/D4SV2/KR4 Re-flashing Kit – JLHawaii808

D3aa re-flashing kit >>> UPDI Programmer Driver Re-flashing Kit Sofrin/Wurkkos/Emisar D3AA/D1AK – JLHawaii808

Toykeeper's repository (firmware) >>> http://toykeeper.net/torches/fsm/anduril2/

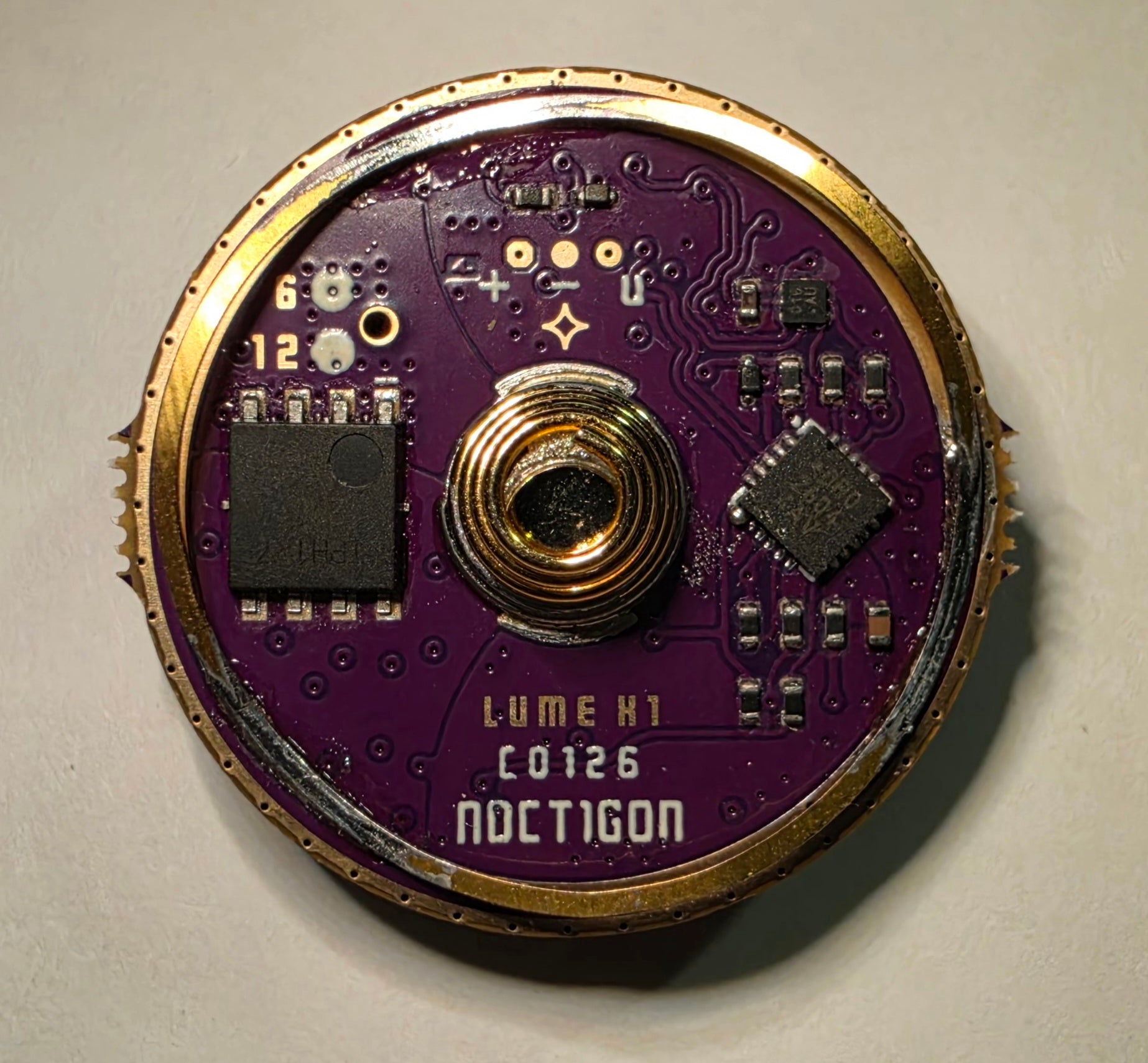

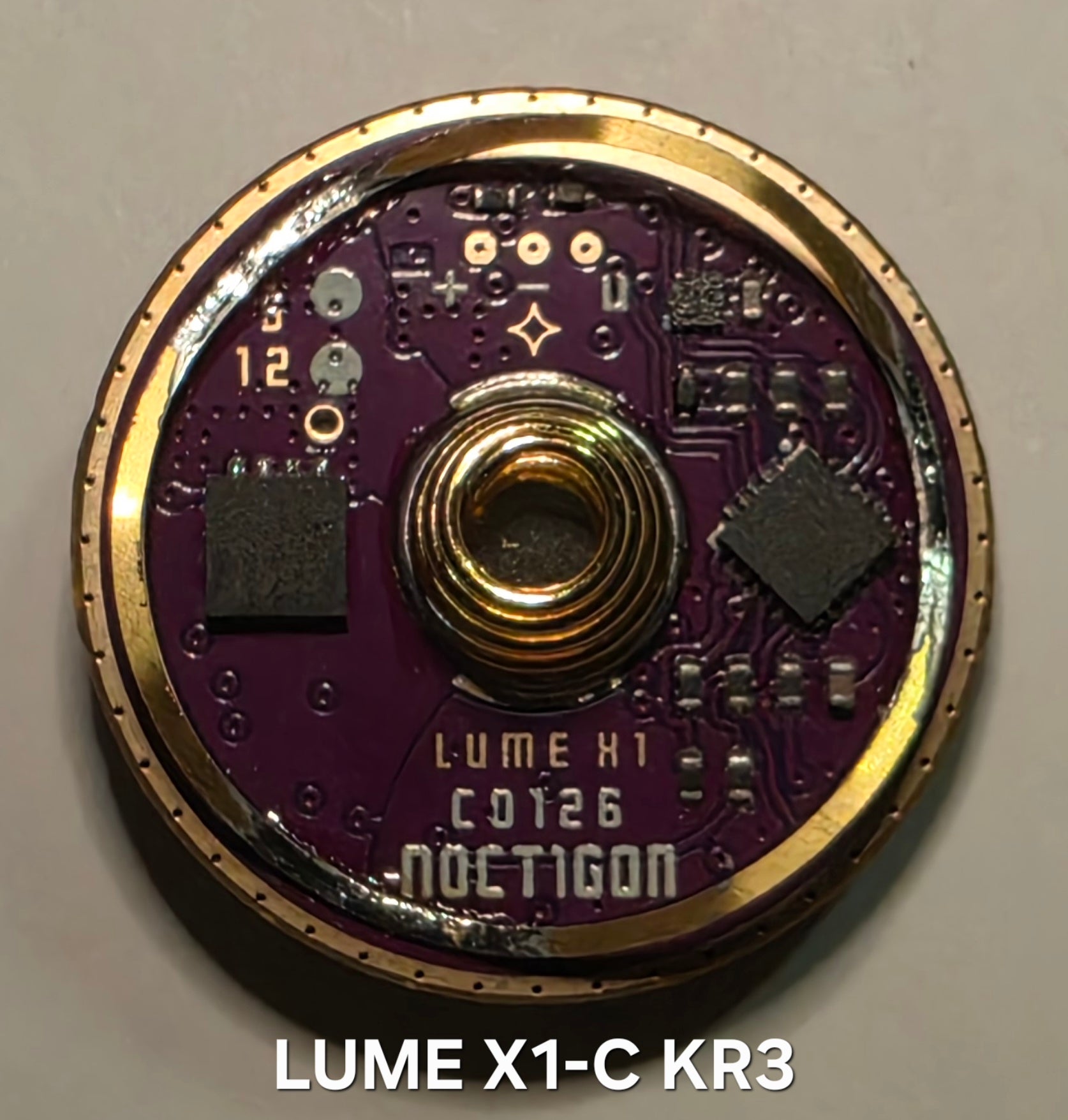

LUME X1

Notes & General Specifications

● 40W high-efficiency constant-current boost driver, >90% efficiency, over 95% max efficiency

● The Lume X1 is a high-power driver - for best performance, recommended to use low ESR, high CDR flat-top 21700 batteries such as Molicel P42, P45, P50, Samsung 50S, 40T, or Vapcell T50

● Output voltage: 12V (for 4S arrays, or multi-die emitters such as GT-FC40, XHP35, etc), 9V (for 3S arrays such as 3S3P E17A), or 6V (for 2S emitters such as XHP70/50 etc). Voltage and current configured via BOM adjustment

● ESD protection

● AVR32DD20 MCU including 3-pin UPDI flashing pads

● Ultra Dynamic Range - constant current brightness range >50 million: 1

● Anduril 2 open-source firmware

● Reverse Polarity Protection

● RGB and/or Switch AUX LEDs supported

● Dimensions: 24.0mm diameter, 1.6mm thickness, 4.0mm component max-Z-height (for driver cavity)
