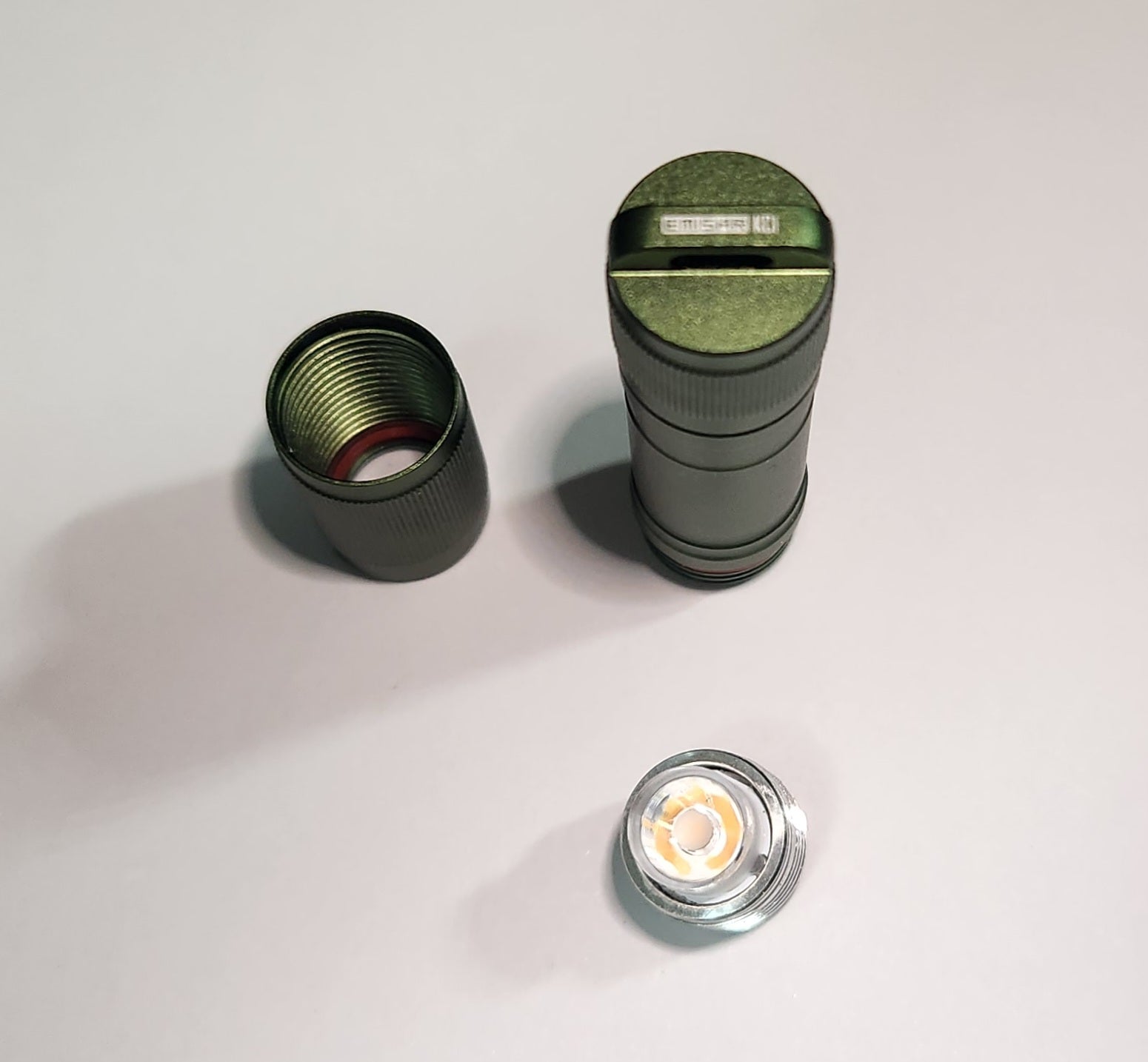

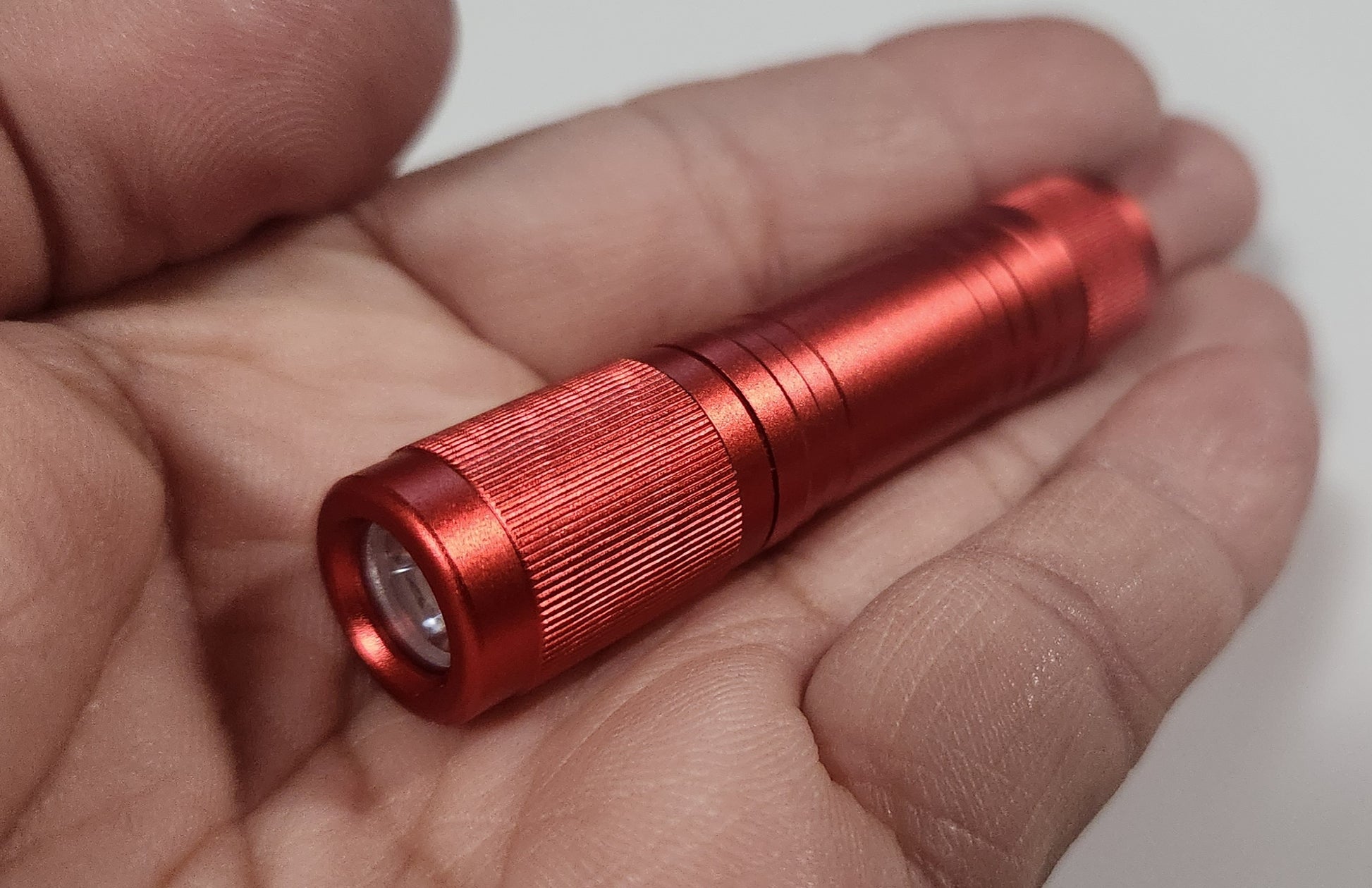

EMISAR KC1 (KEYCHAIN LED FLASHLIGHT)
WARNING! THE EMISAR KC1 IS DIRECT DRIVE WITH NO THERMO REGULATION. THE HIGHER THE CURRENT THE BATTERY THE HOTTER IT GETS, THIS IS A POWERFUL KEYCHAIN LIGHT! PLEASE READ WARNING BEFORE PURCHASING!
HANK'S OWN DESIGN!

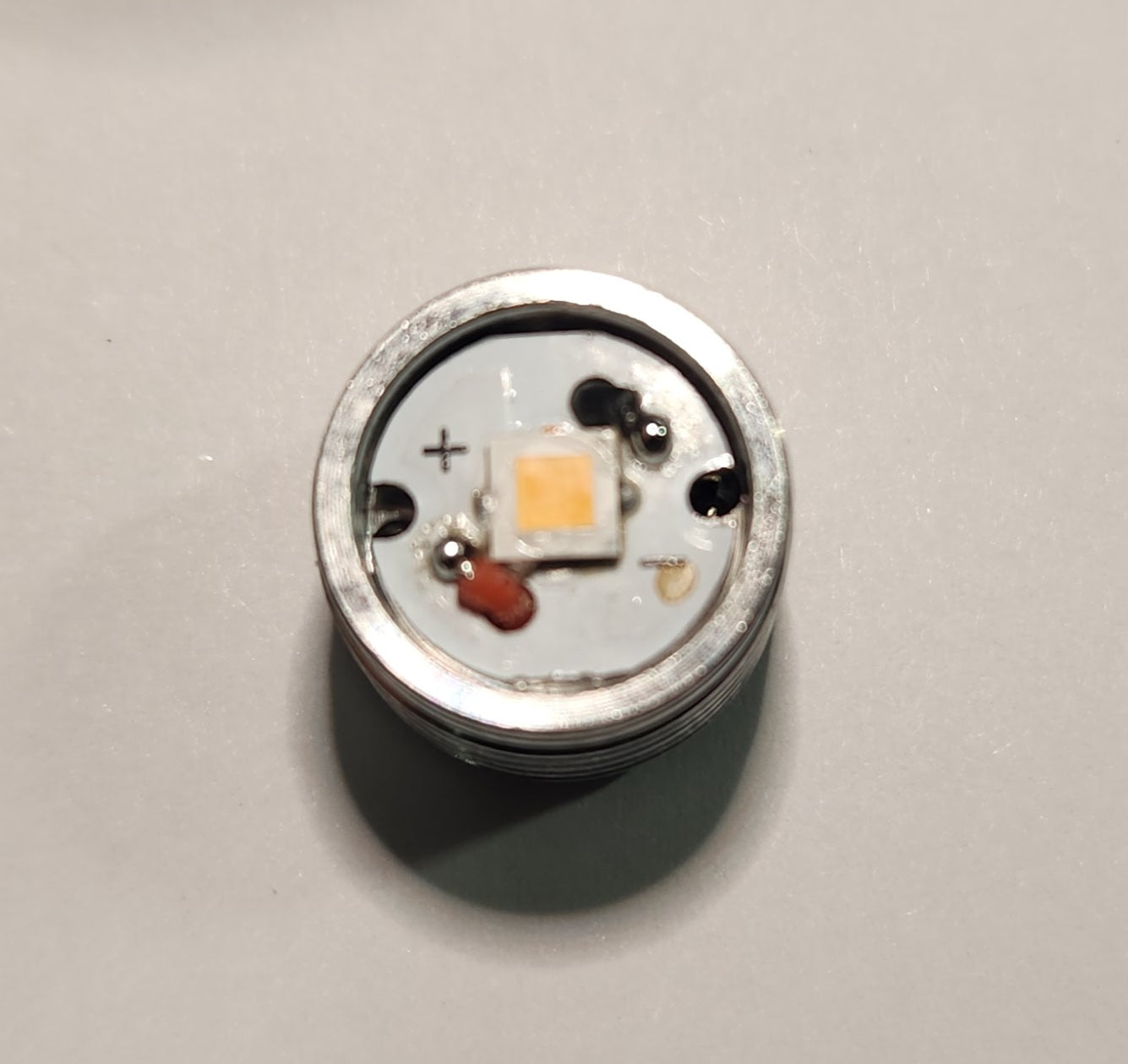

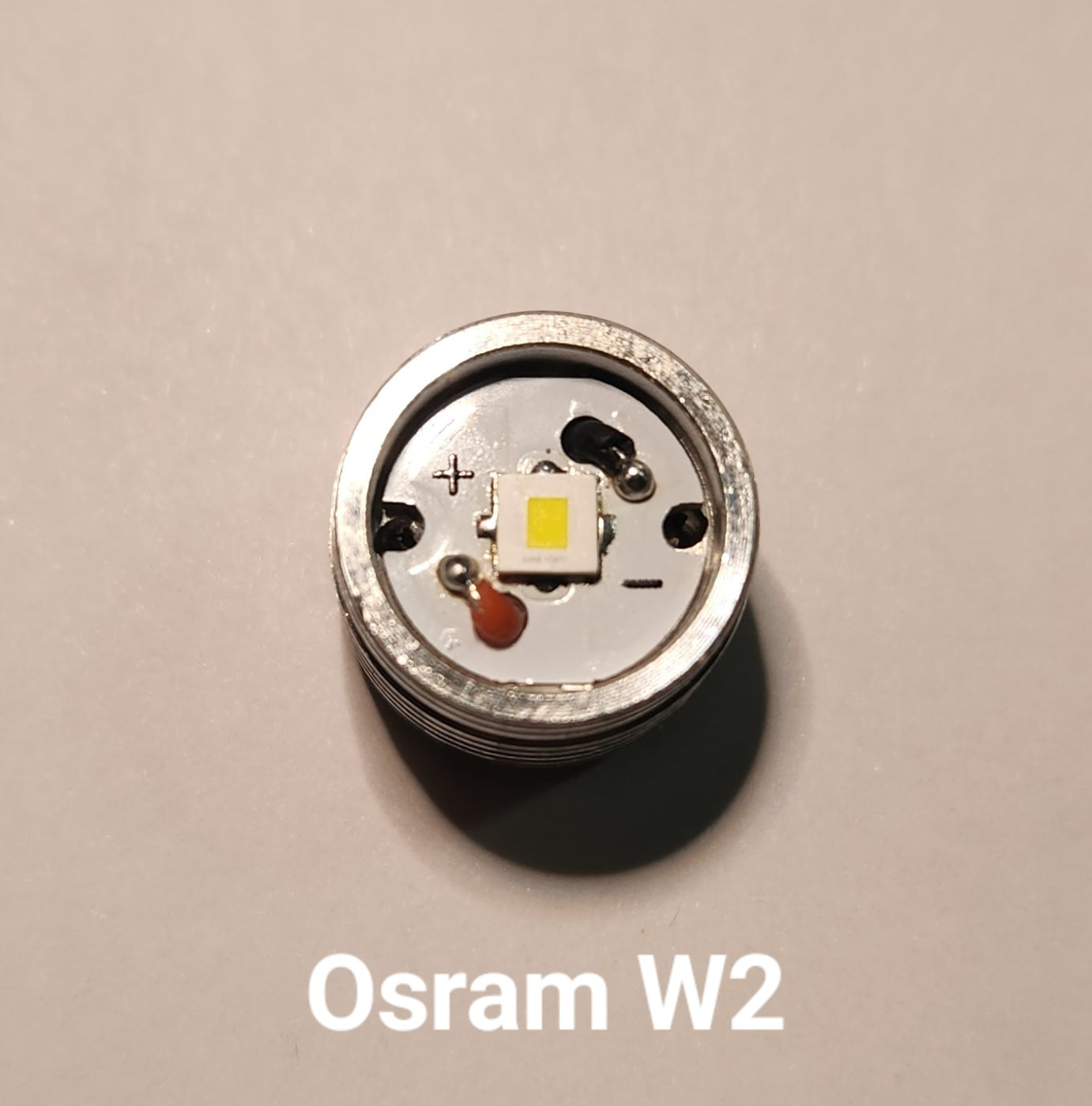

CUSTOM ALUMINUM MCPCB (DTP)

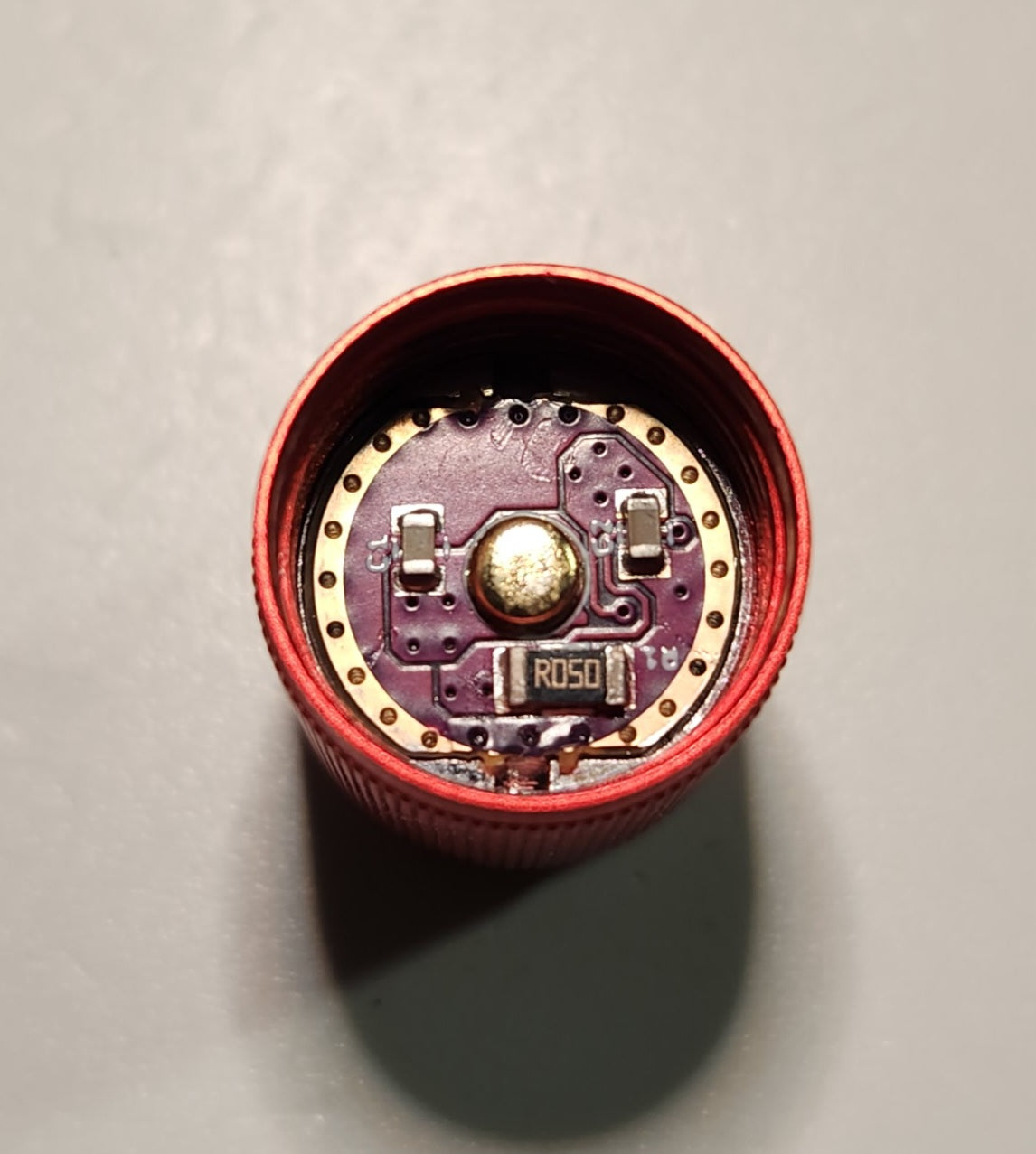

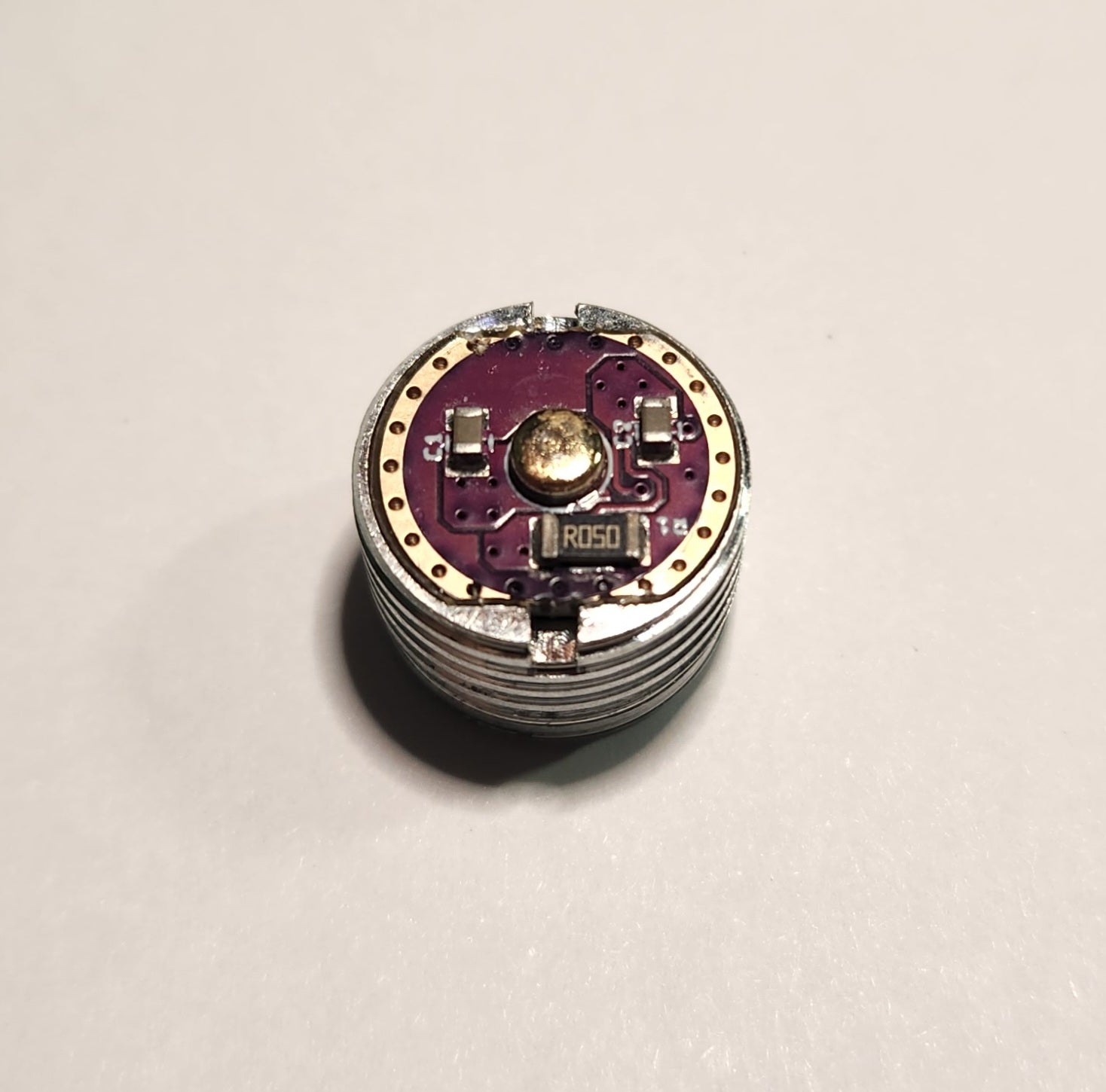

CUSTOM ALUMINUM DRIVER
1-MODE (HIGH ONLY)
2A DRIVER UNREGULATED (DIRECT DRIVE)
AAA OR 10440 BATTERY (FLAT TOP)
WARNING! THE EMISAR KC1 IS DIRECT DRIVE WITH NO THERMO REGULATION. THE HIGHER THE CURRENT THE BATTERY THE HOTTER IT GETS, THIS IS A POWERFUL KEYCHAIN LIGHT! PLEASE READ WARNING BEFORE PURCHASING!

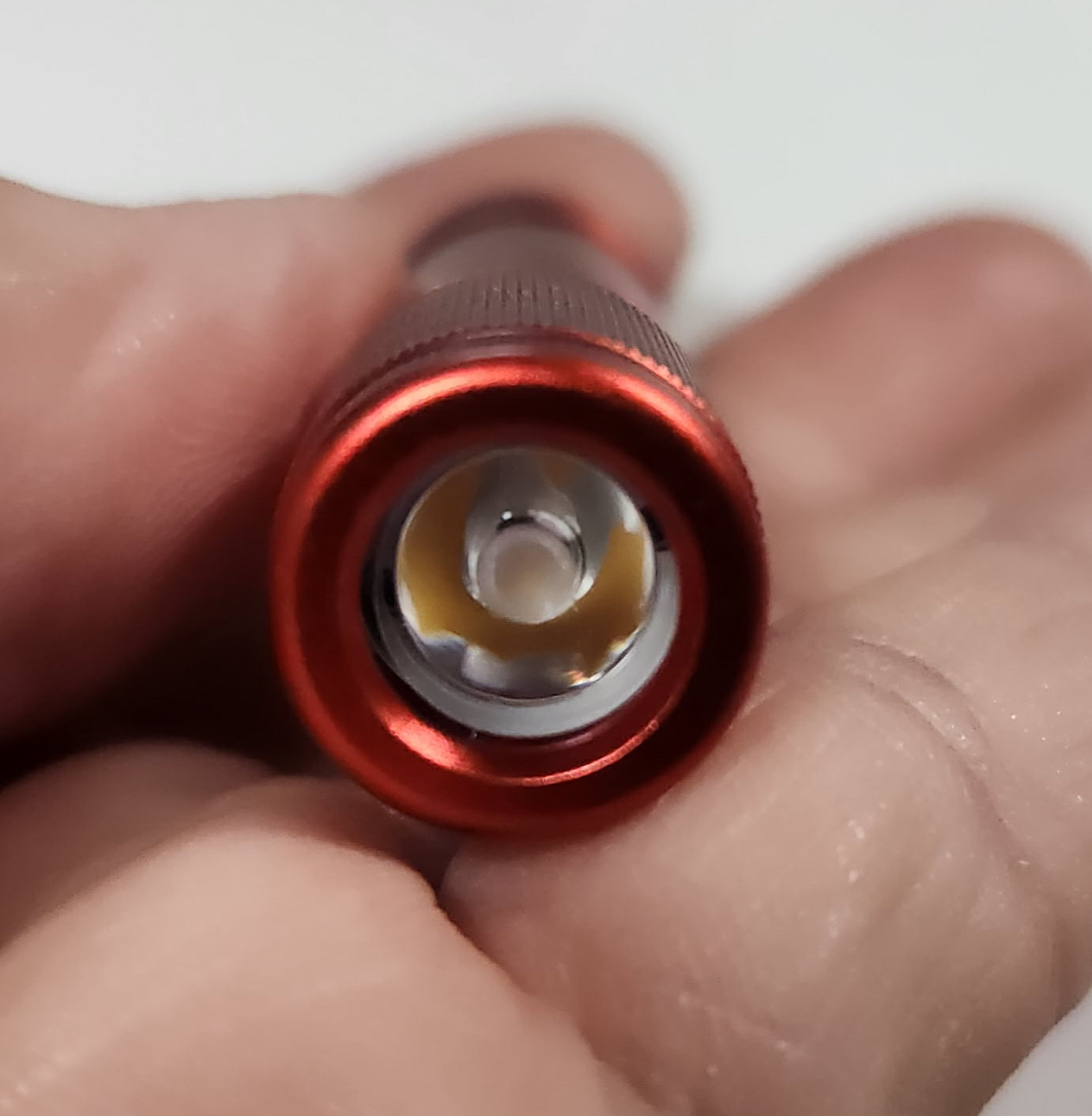

EMITTER:
DEFAULT: NICHIA 519A 5700K (DE-DOME)
OTHER EMITTERS AVAILABLE AS A OPTION (ADDITIONAL COST)
OUTPUT LUMENS:
80-120 LUMENS AAA ALKALINE BATTERY
100-140 LUMENS AAA LITHIUM (NON RECHARGABLE)
380-420 LUMENS 10440 3A LITHIUM-ION BATTERY

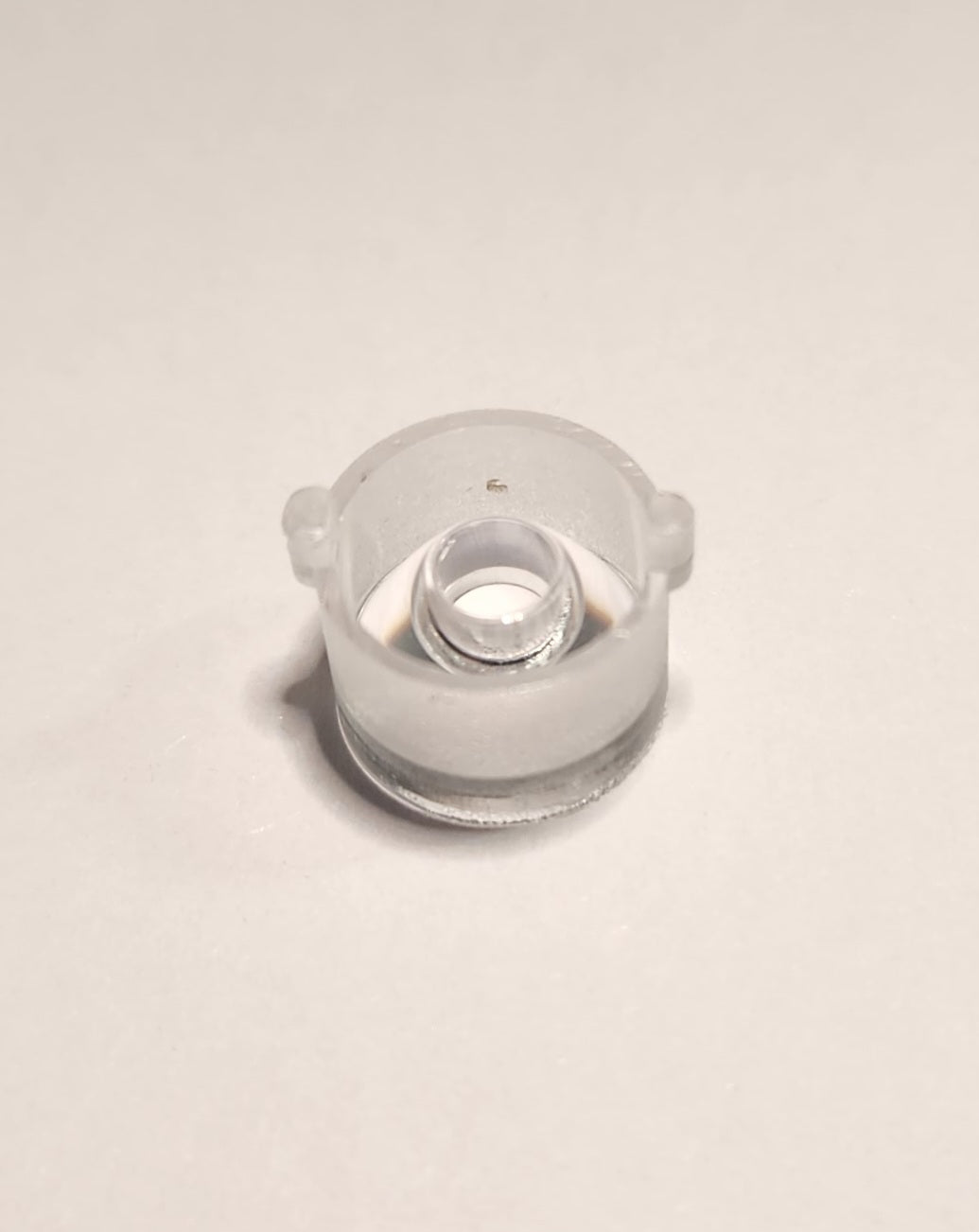

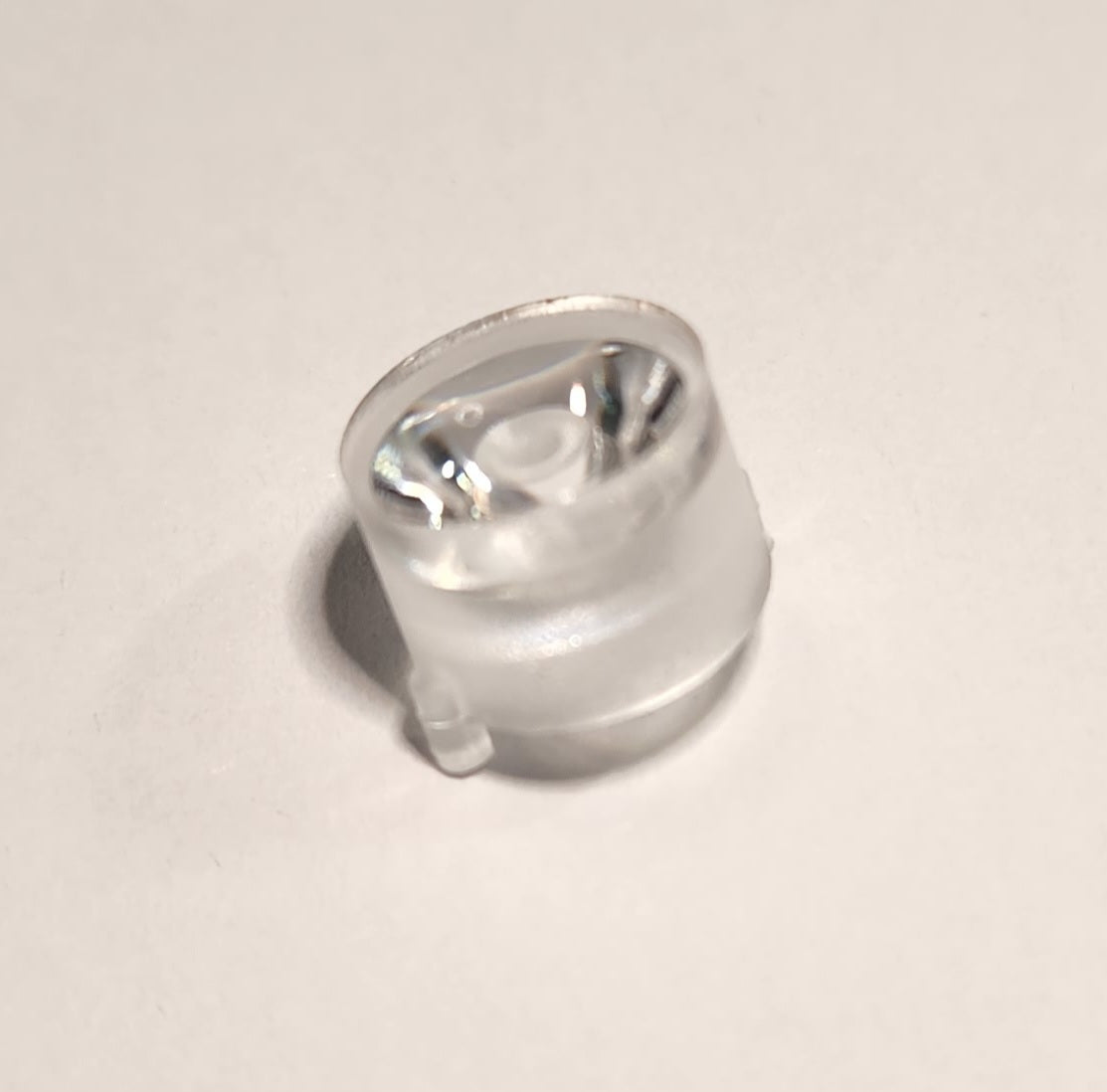

OPTICS:
TIR (DM1.12)

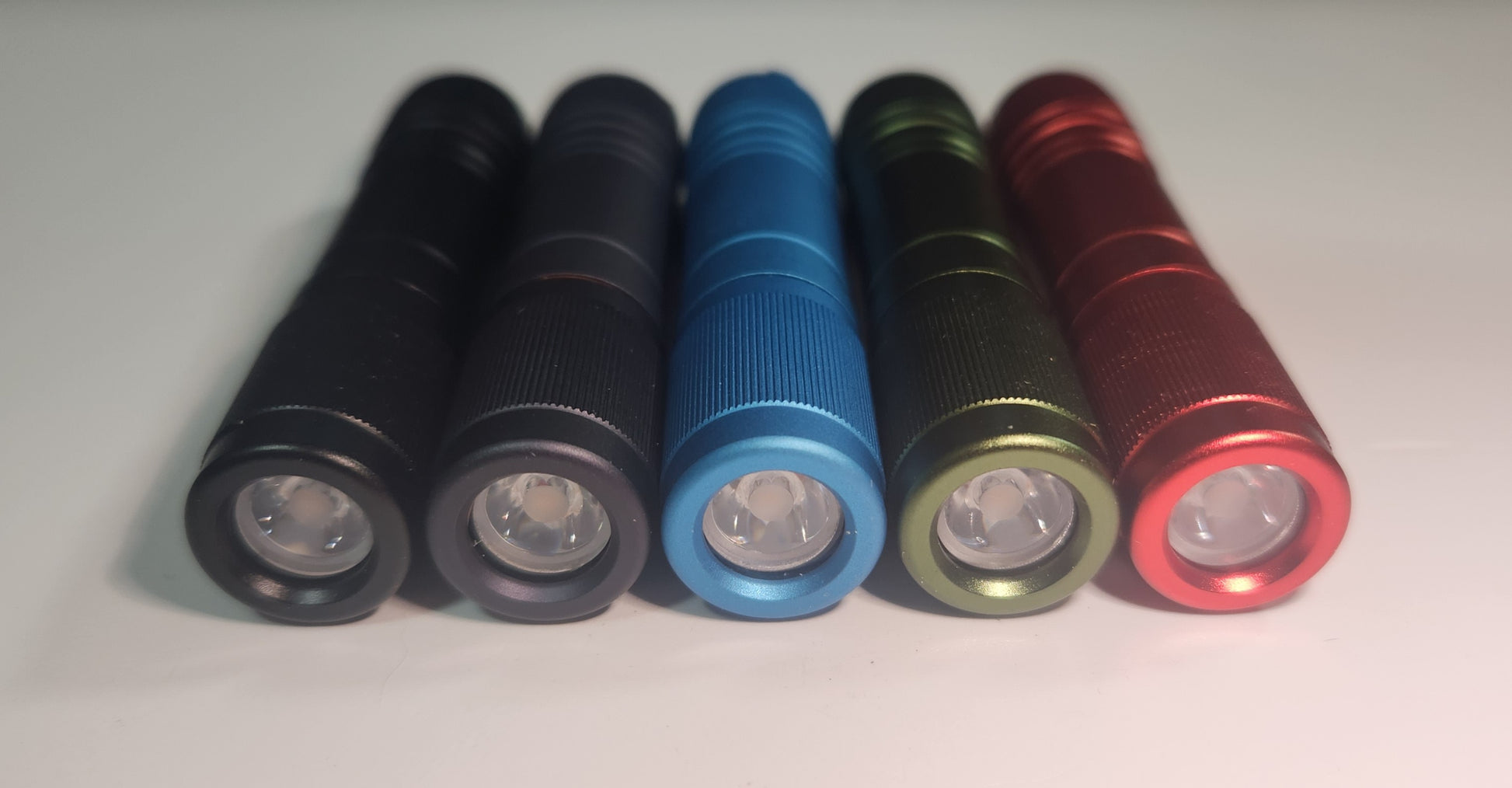

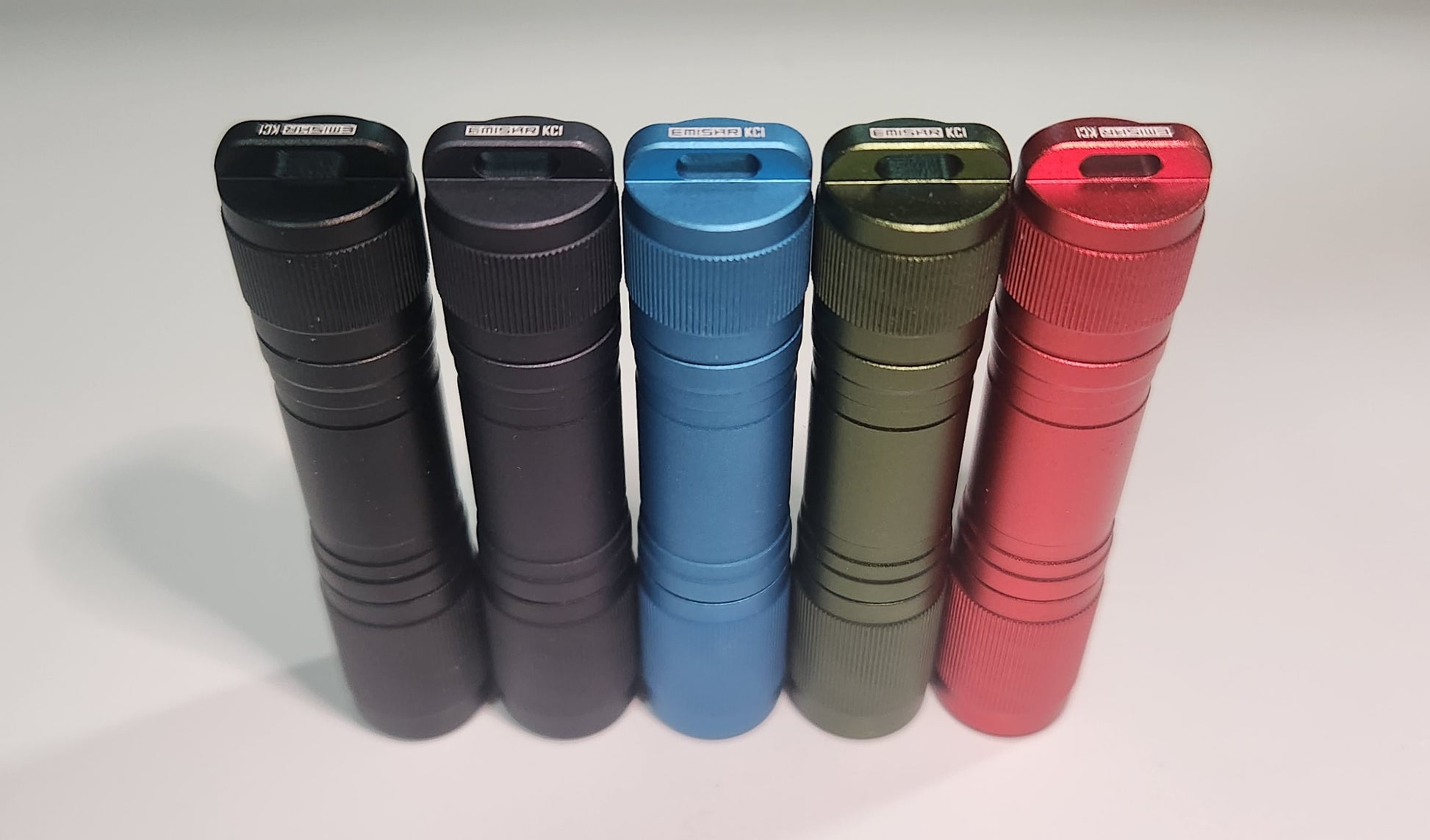

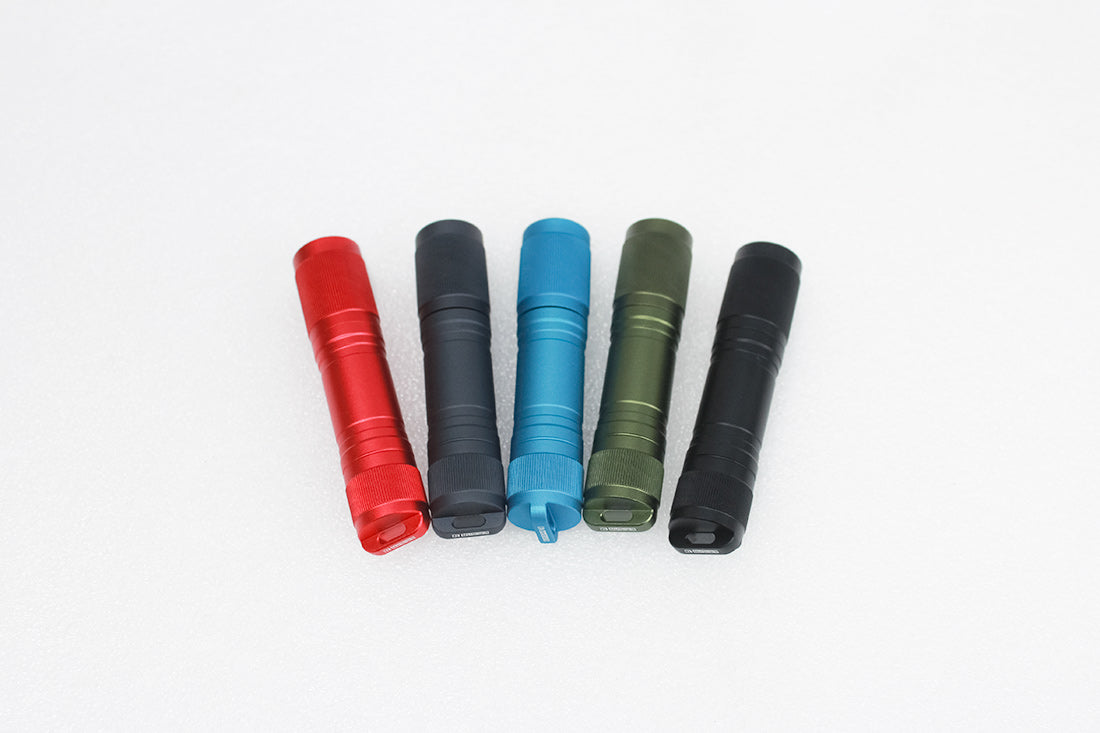

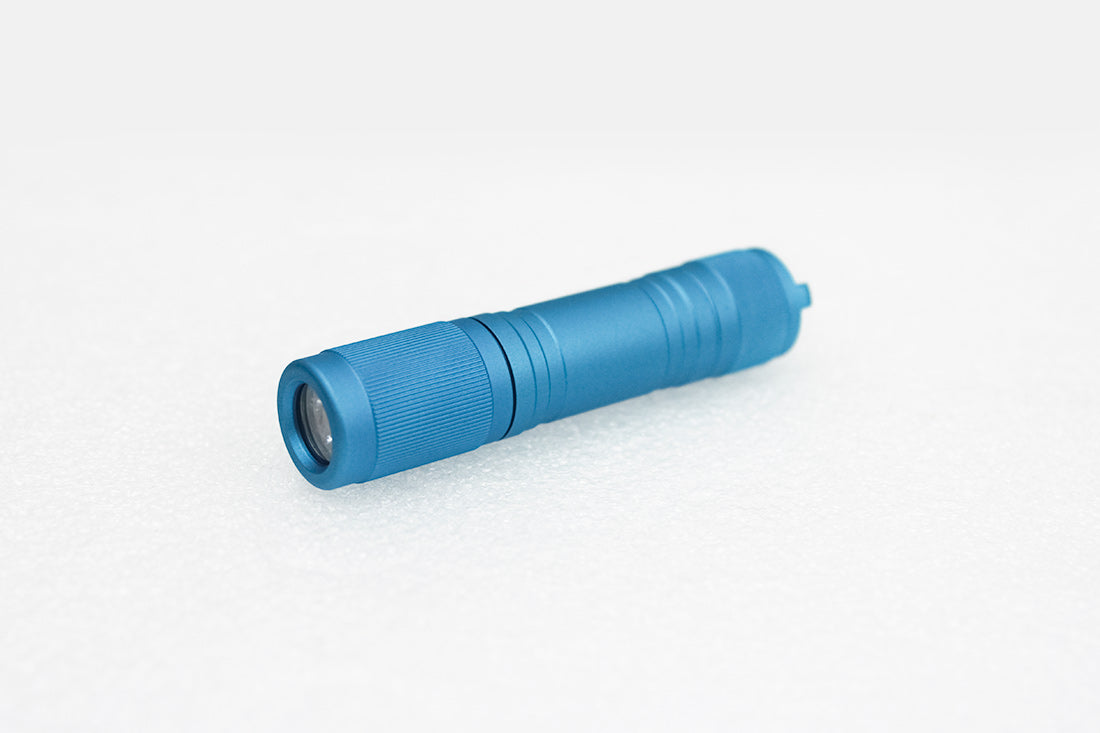

BODY COLOR:

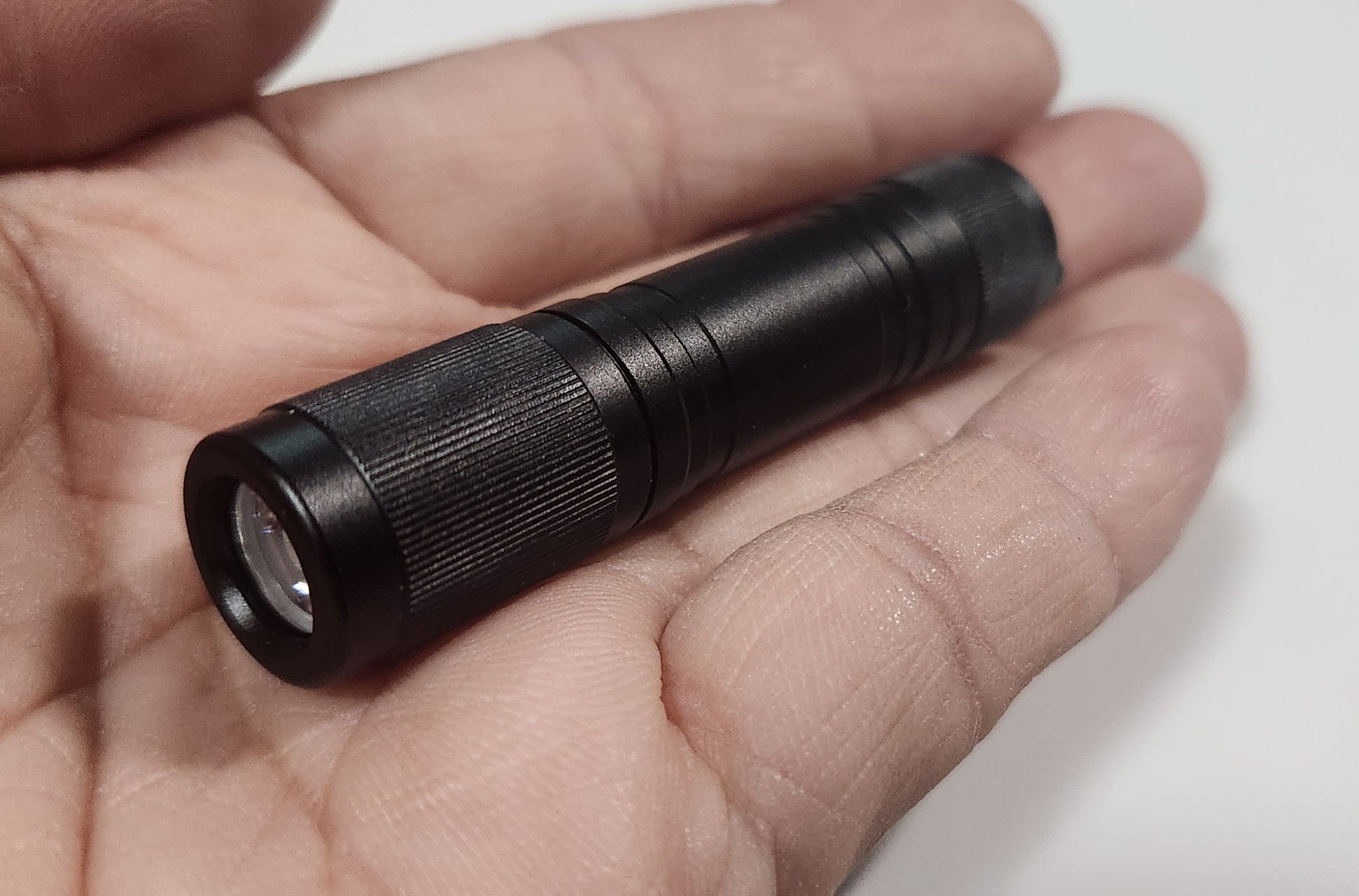

BLACK

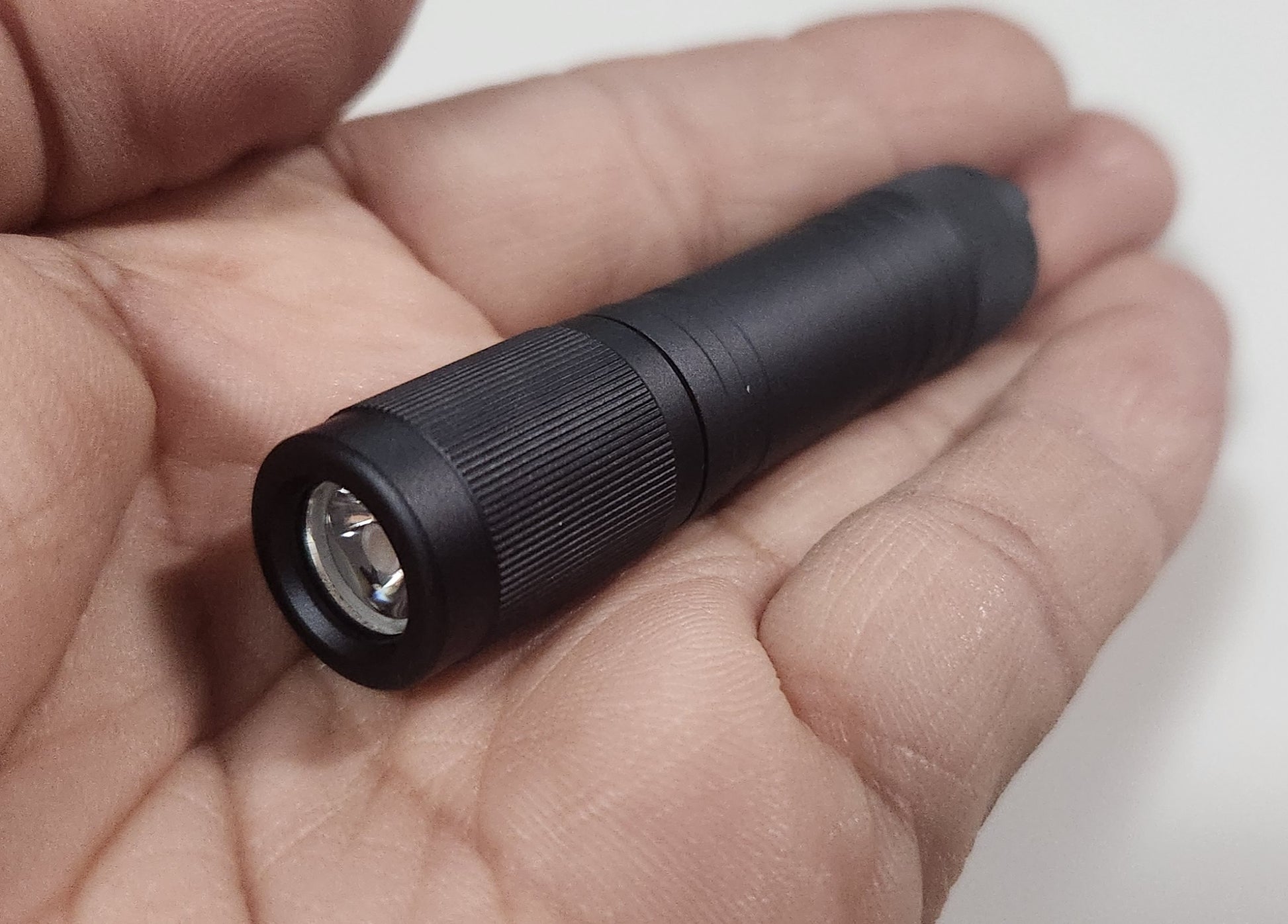

GRAY

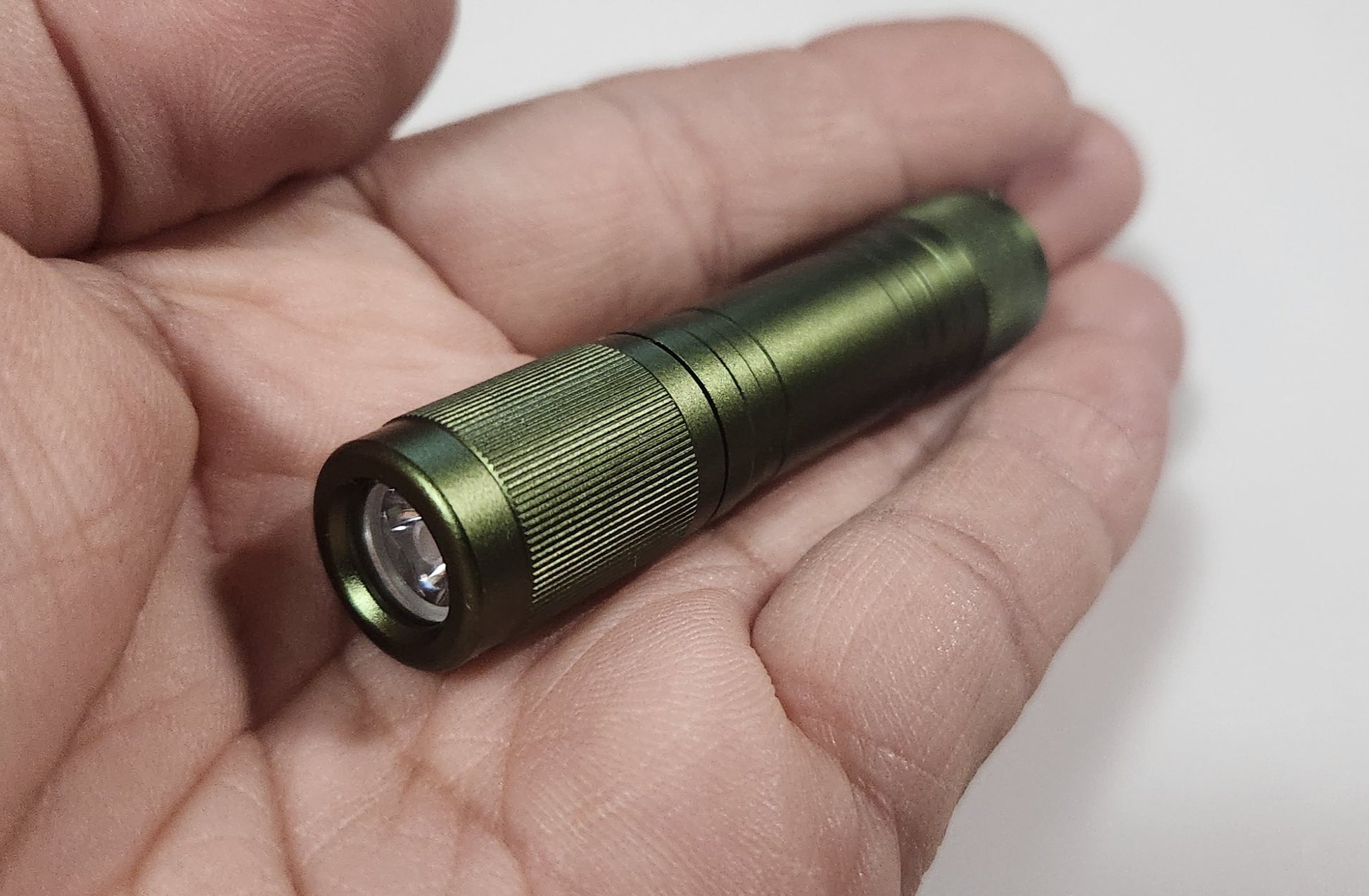

GREEN

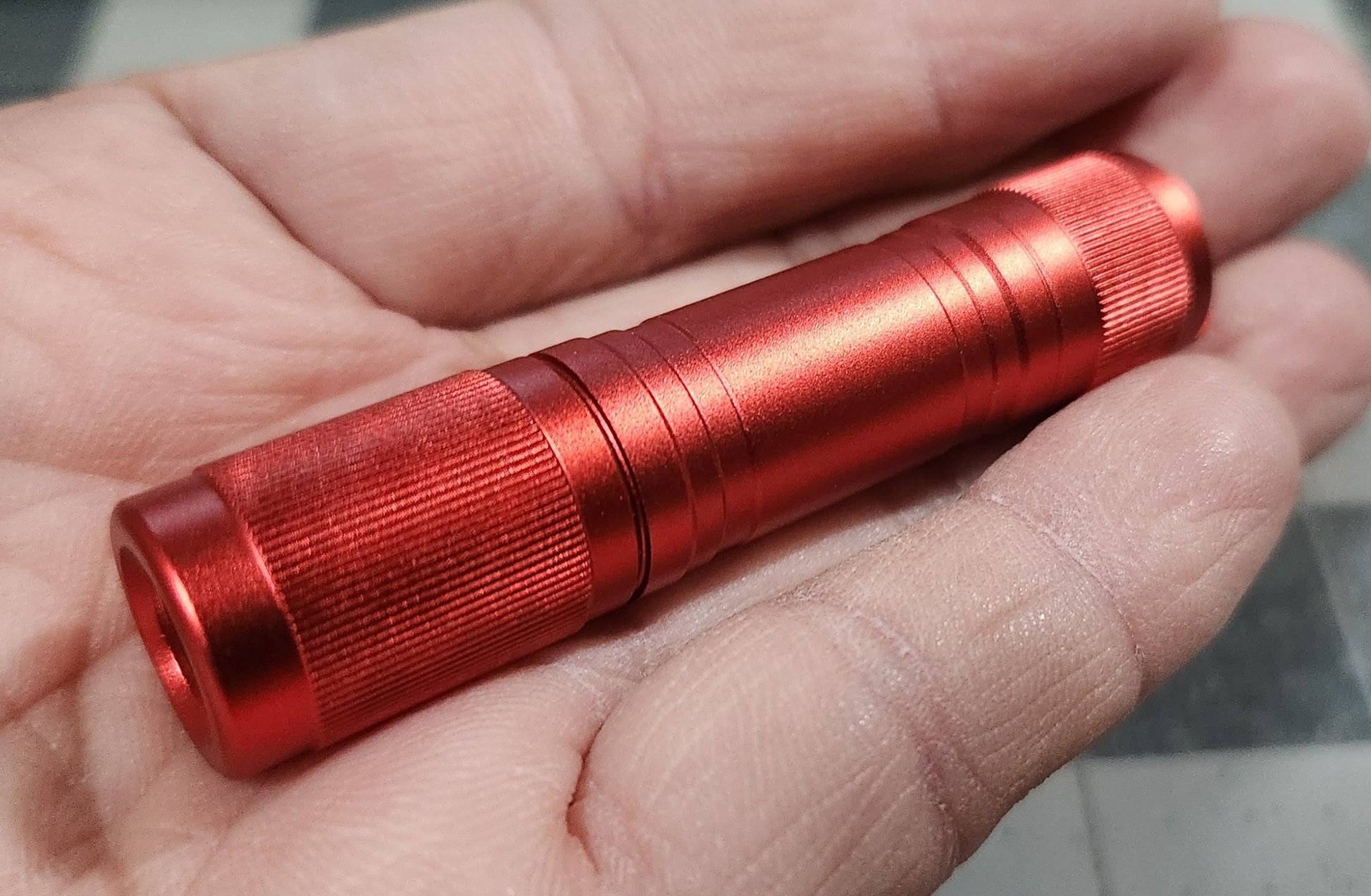

RED

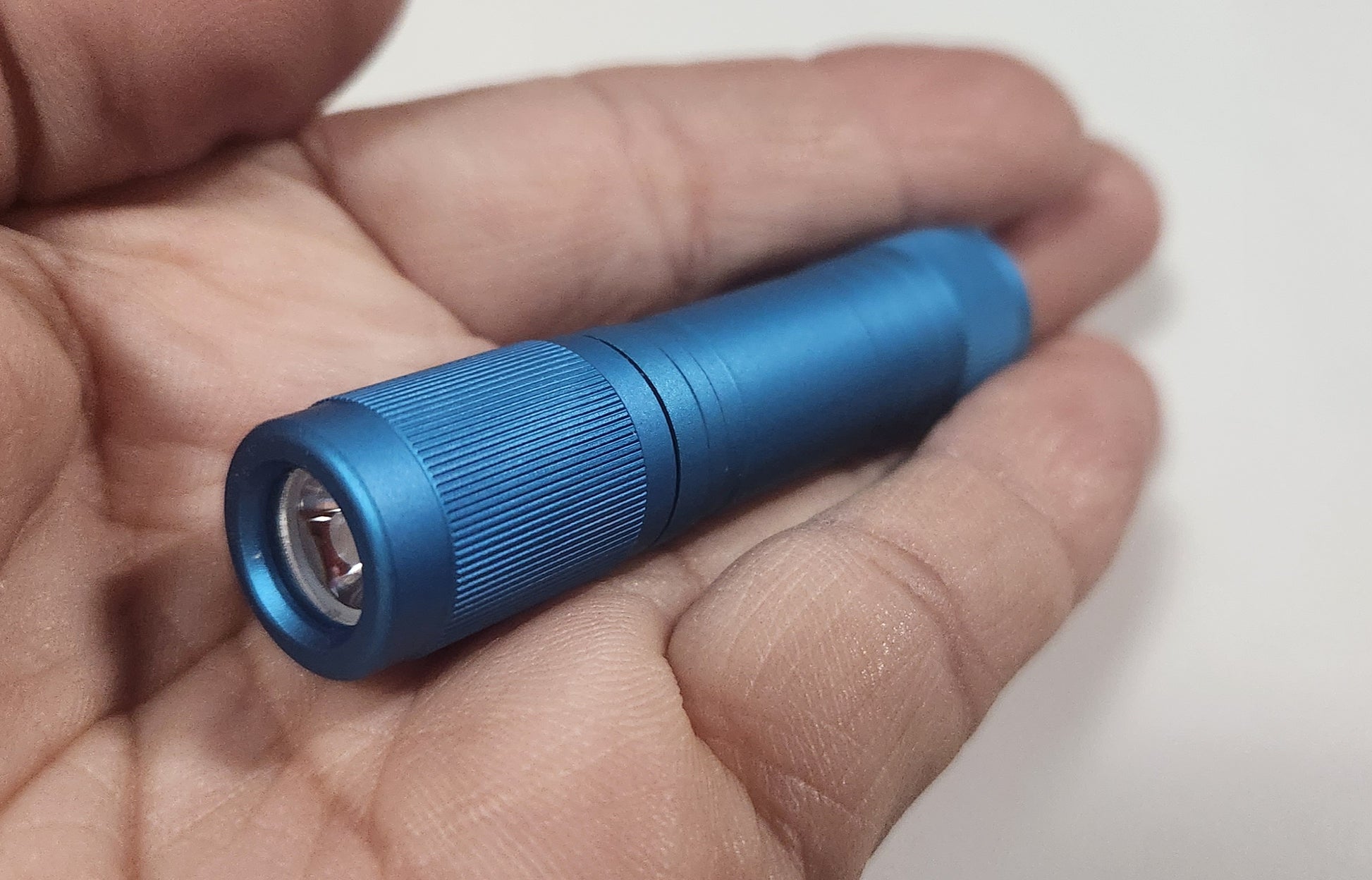

CYAN
MEASUREMENTS:
67.43MM LENGTH (2.65")
14.88MM DIAMETER (.58")
WEIGHT:
12.62 GRAMS (WITHOUT BATTERY)
21.95 GRAMS (WITH 10440 BATTERY)
BATTERY:
BATTERY NOT INCLUDED!
AAA 1.5V ALKALINE
AAA 1.5 LITHIUM (NON-RECHARGABLE)
AAA 1.2V NI-MH RECHARGEABLE

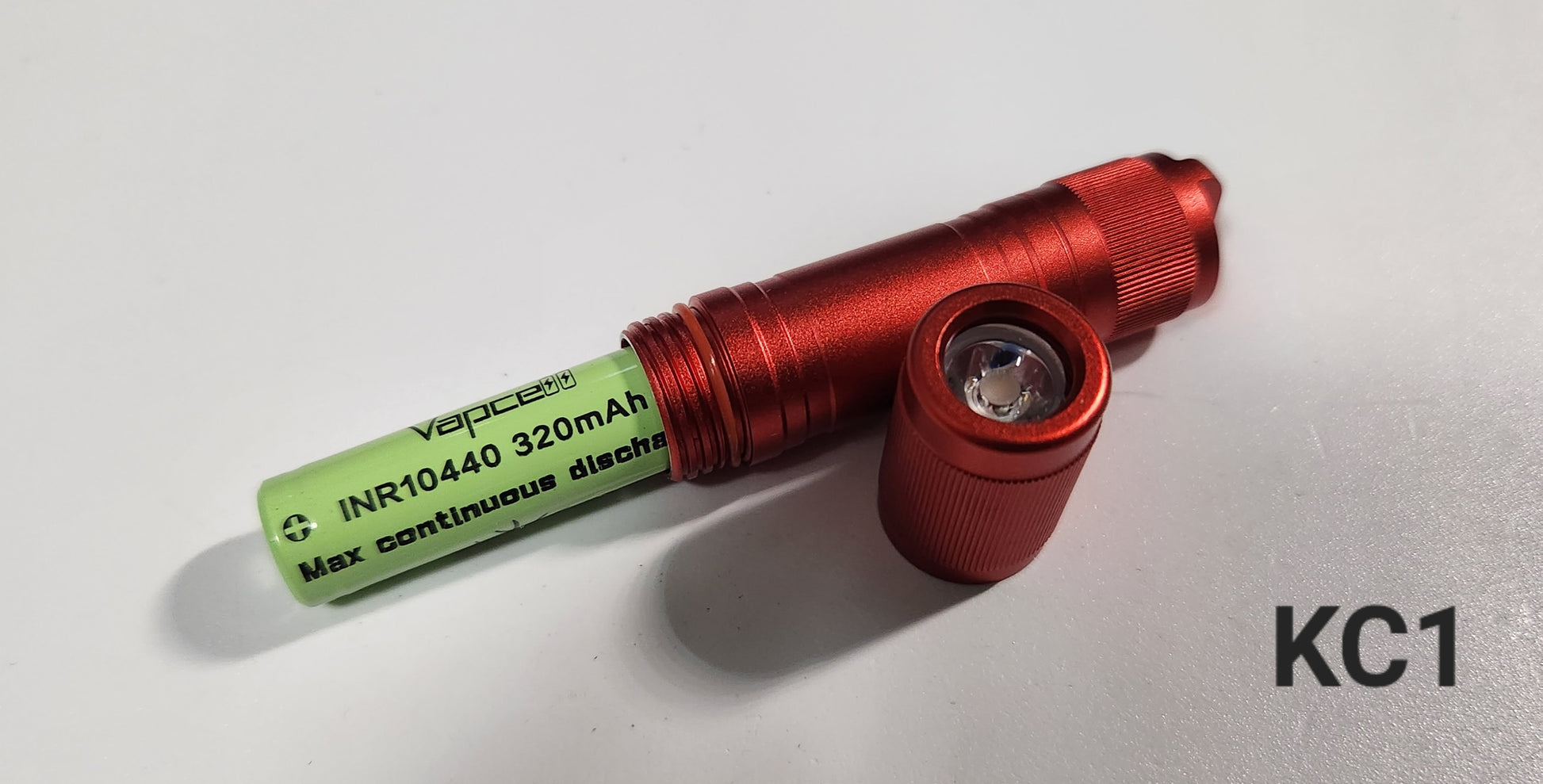

10440 3.7V LITHIUM RECHARGABLE (VAPCELL INR10440 3A BATTERY RECCOMENDED)
Features:
• CNC machined from aluminum
• Waterproof and dustproof to IP67 standard (up to 1 meter)
• Weight:12.3g
• Dimensions: 67mm(length) * 14.8mm(head) * 13.5mm(body)
OTF lumen output at start-up for Nihm, direct drive when 10440 is used

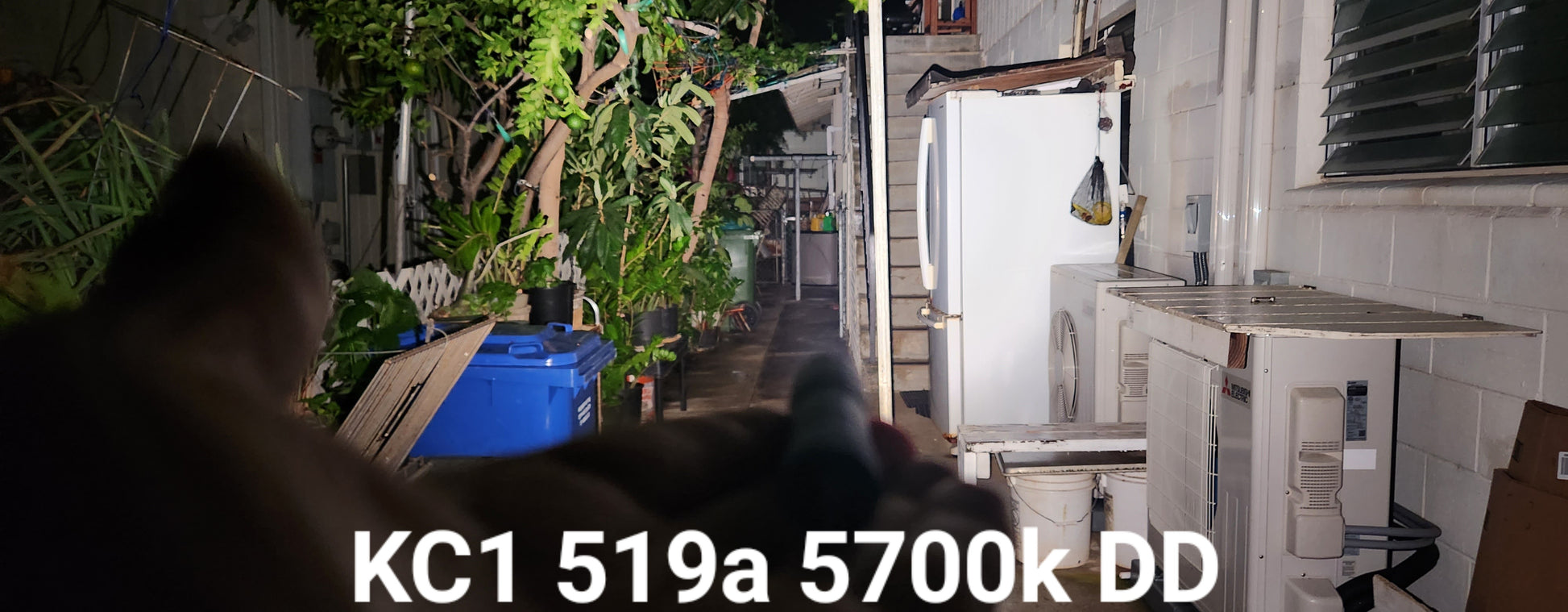

Nichia 5700K R9080 dedomed 519A around 85lm OTF
Nichia 4500K R9080 around 72lm OTF
Nichia 219B R9080 4500K around 90lm OTF
SST-20 6500K/5000K: 77lm
SST-20 4000K/2700K 95CRI: 106lm
