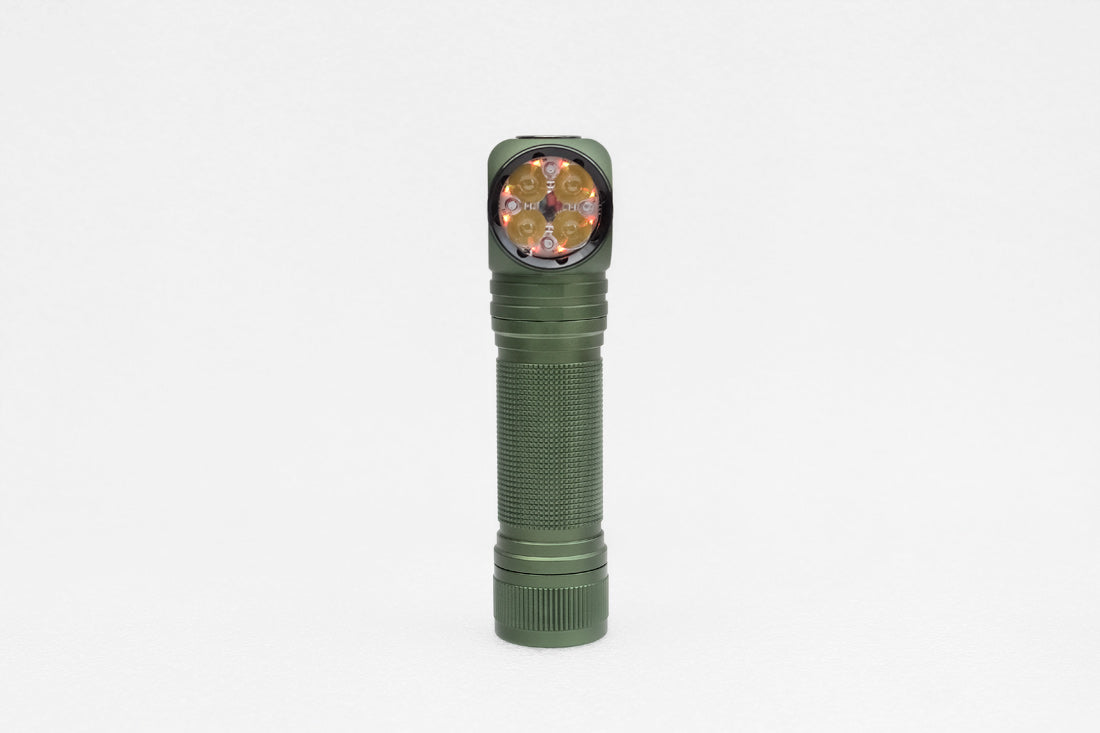

Emisar DW4K 2CH 2-CH 21700 Right Angle LED Flashlight *CUSTOM BUILT-TO-ORDER*

EMISAR DW4K DUAL CHANNEL (2-CH)

NOTE: THIS IS CUSTOM "BUILT-TO-ORDER" WILL SHIP ACCORDINGLY!

Emisar DW4 review by LuxWad >>> (163) Emisar DW4 - Rambling Review - YouTube

WARNING! Emisar DW4K puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing. Unprotected, 21700 flat top battery works only (not included in the price), DW4K does not work with protected battery or a button top.

5/20/2025:

There is new black PVD coated stainless parts available & with new black switch buttons! You can select your options at during the time of your custom build. If the option is not selectable it's not available, the metal switch buttons won't be available will the end of May. NOTE: new black switch buttons are painted so be careful not to press too hard or dig anything into the button switch. There will be new non-painted black buttons available in the next shipment. I will ship a spare button so you can replace it if it starts to wear.

USER INTERFACE:

ANDURIL 2 UI

DRIVER:

DUAL 9A LINEAR (NO FET)

DUAL 12A LINEAL (OPTIONAL DEPENDING ON THE EMITTERS)

NOTE: DUAL 12A WILL RUN HOTTER ESPECIALLY BOTH CHANNELS ARE ON

NO LUME X1 BOOST DRIVER

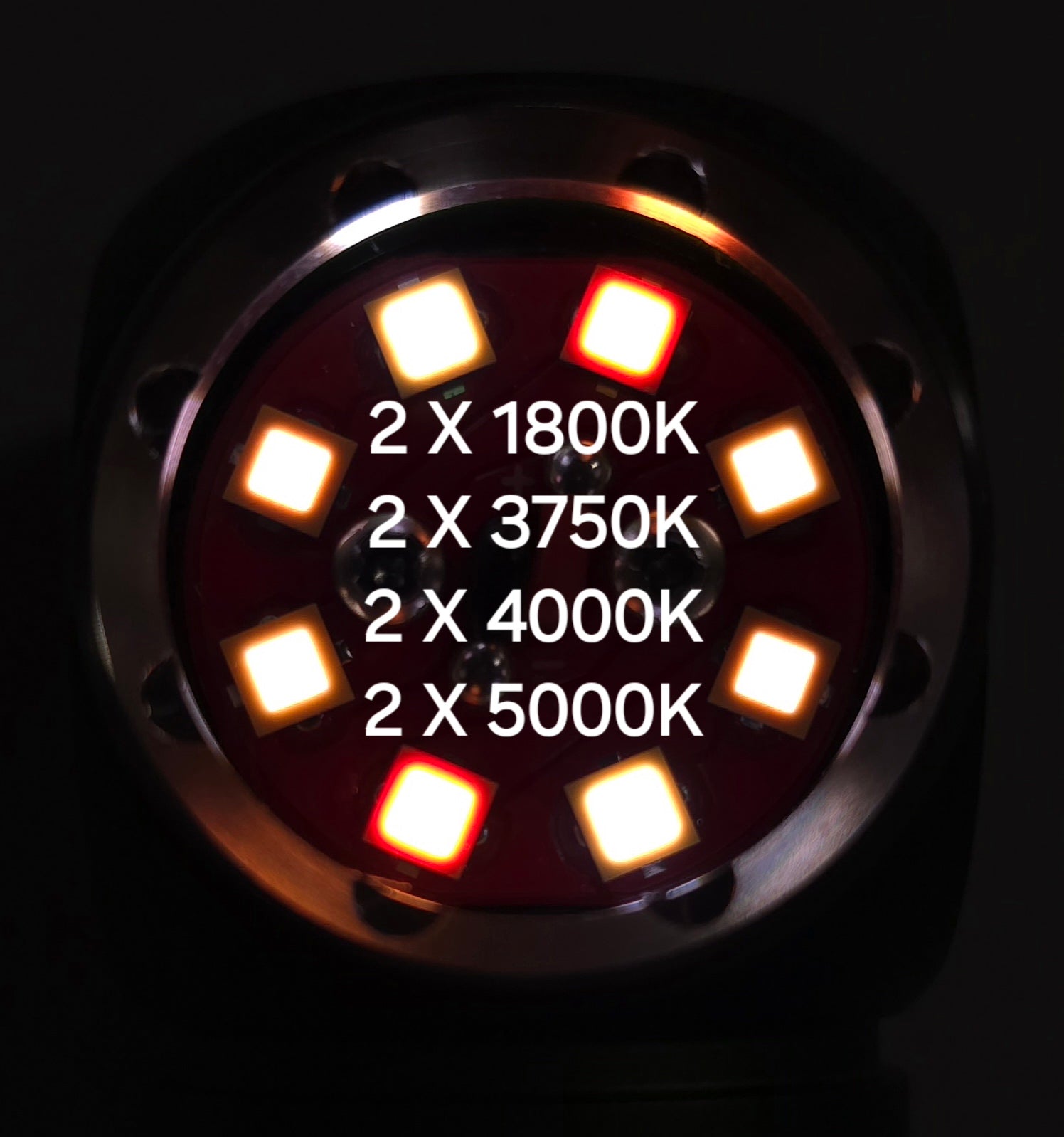

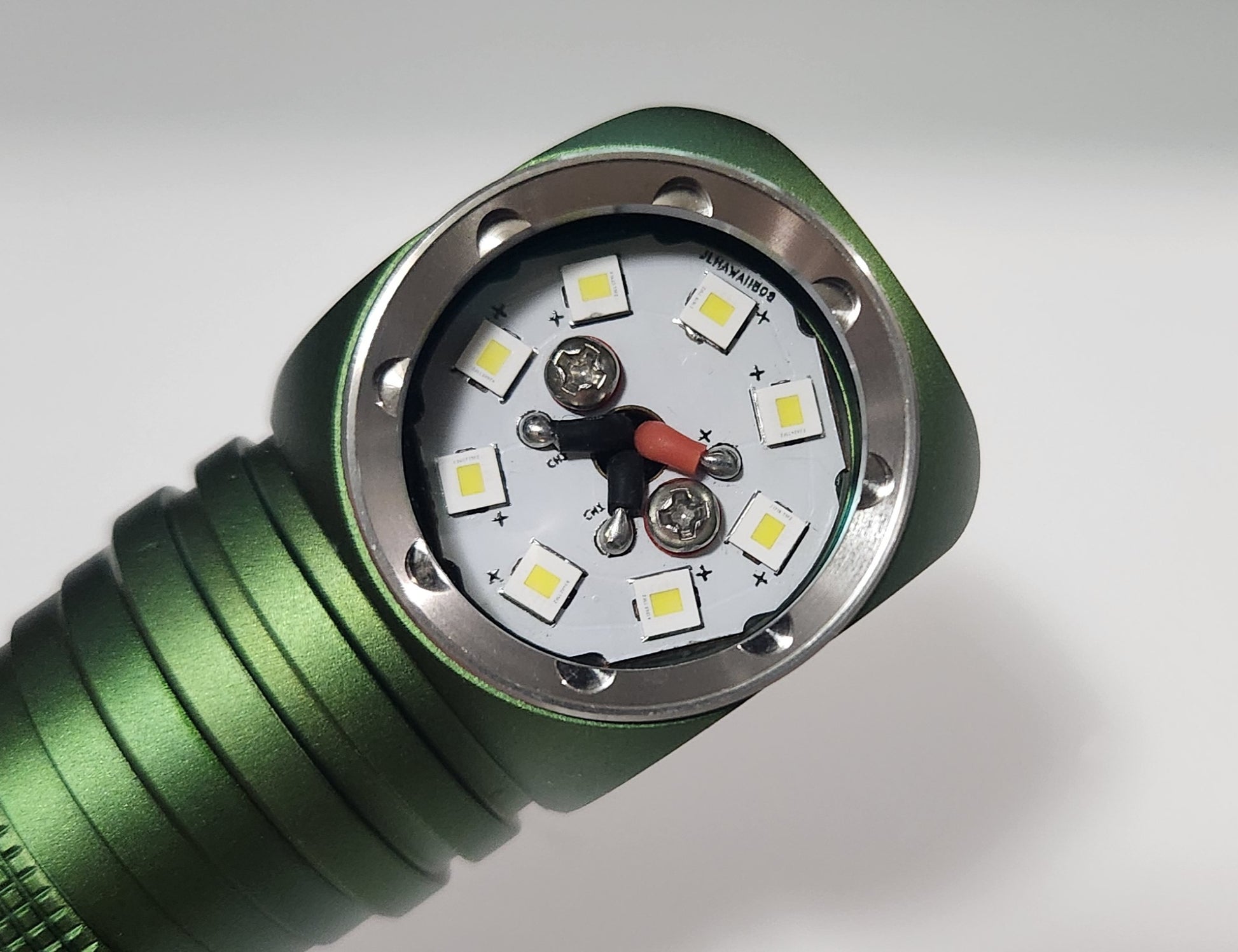

EMITTER OPTIONS:

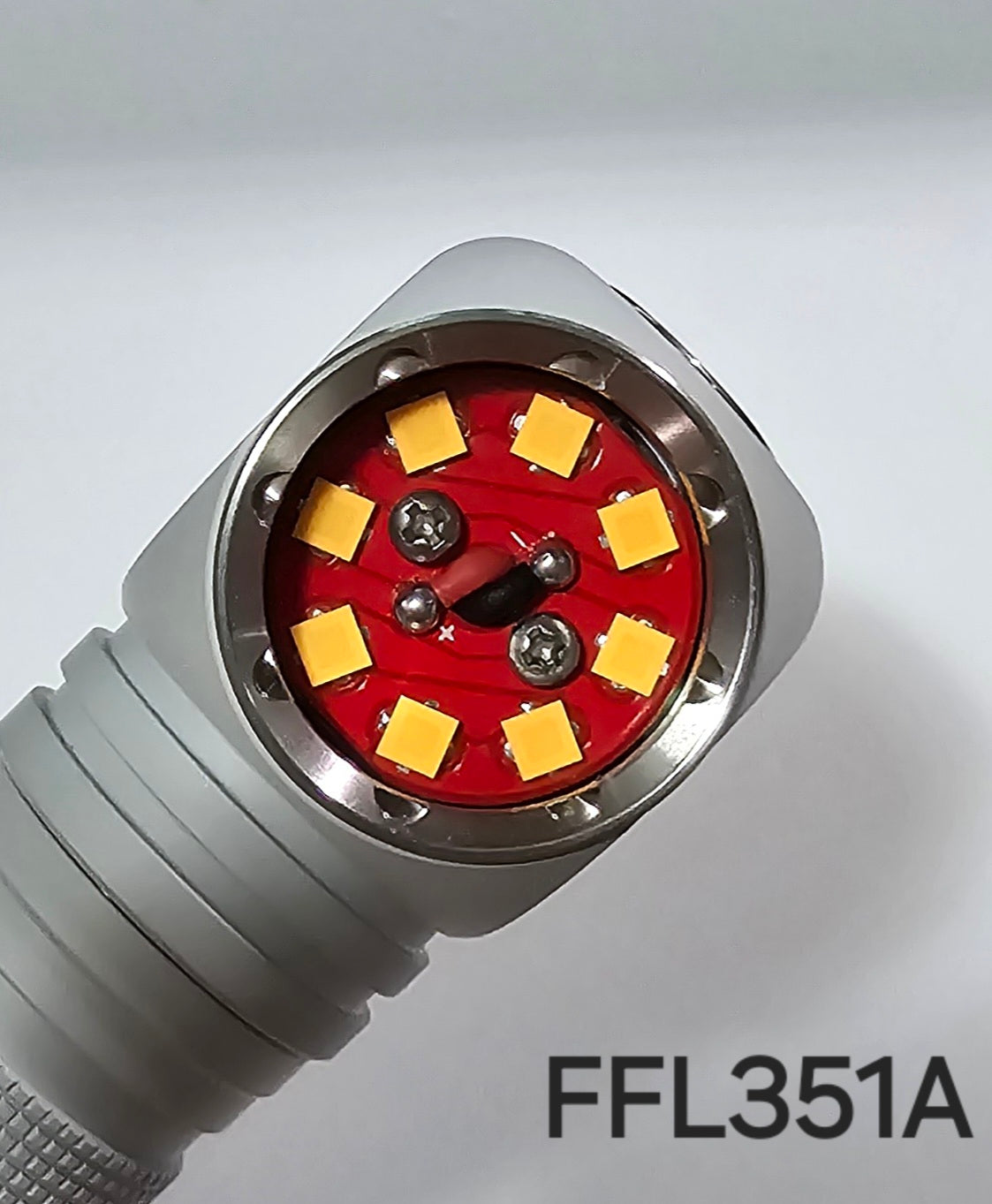

FFL351A & FFL351RD

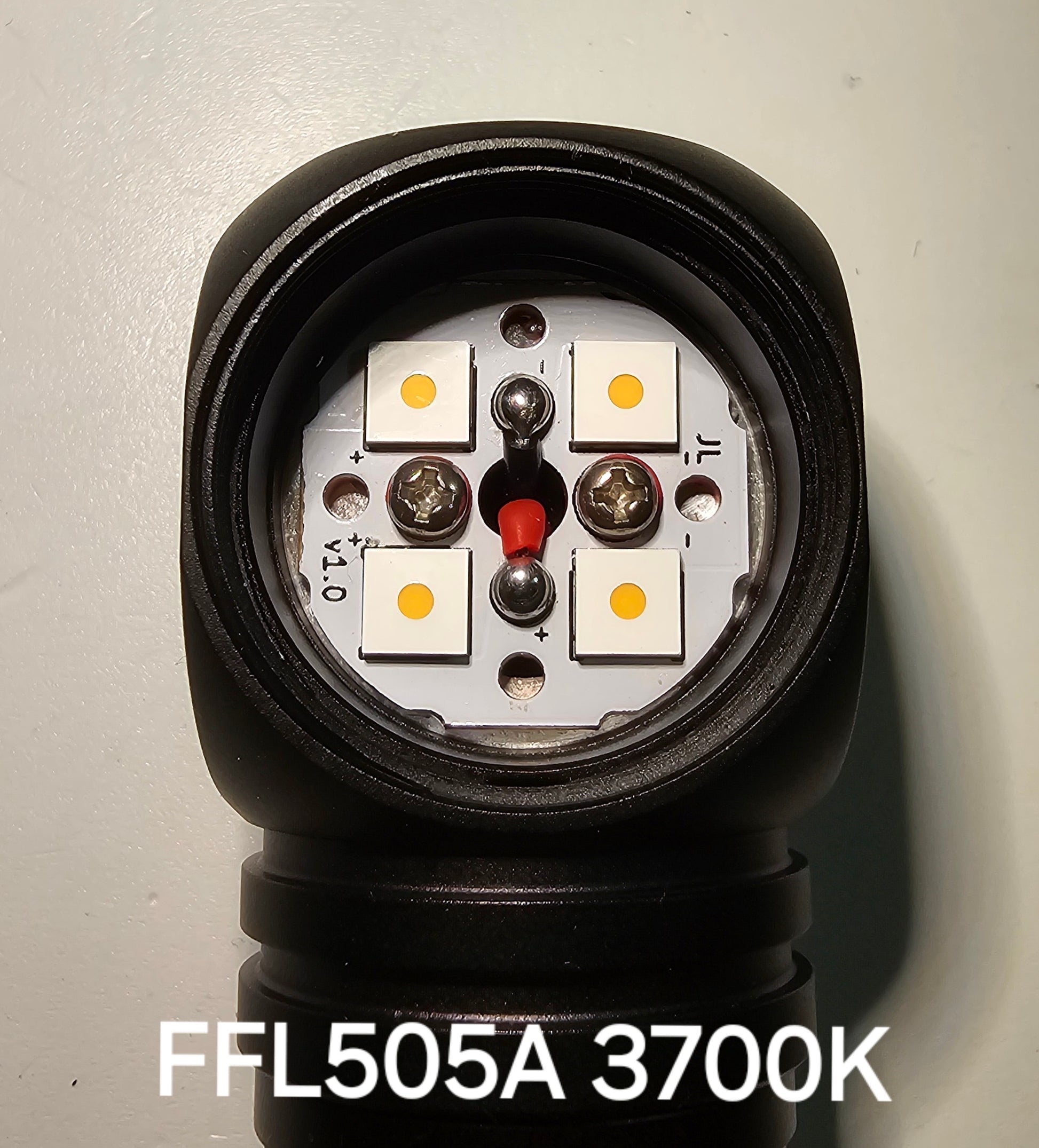

FFL505A (5050SMD)

NICHIA 219B, 219C AND 519A

NICHIA E21A

LUMINUS SST20

LUMINUS SST10 5W 365NM UV LED

LUMINUS SFT40 (5050SMD)

CREE XPE COLORS

2-CH QUAD DW4 LINK >>> Emisar DW4 Dual Channel Right Angle Work Light CUSTOM "BUILT-TO-ORDER" – JLHawaii808

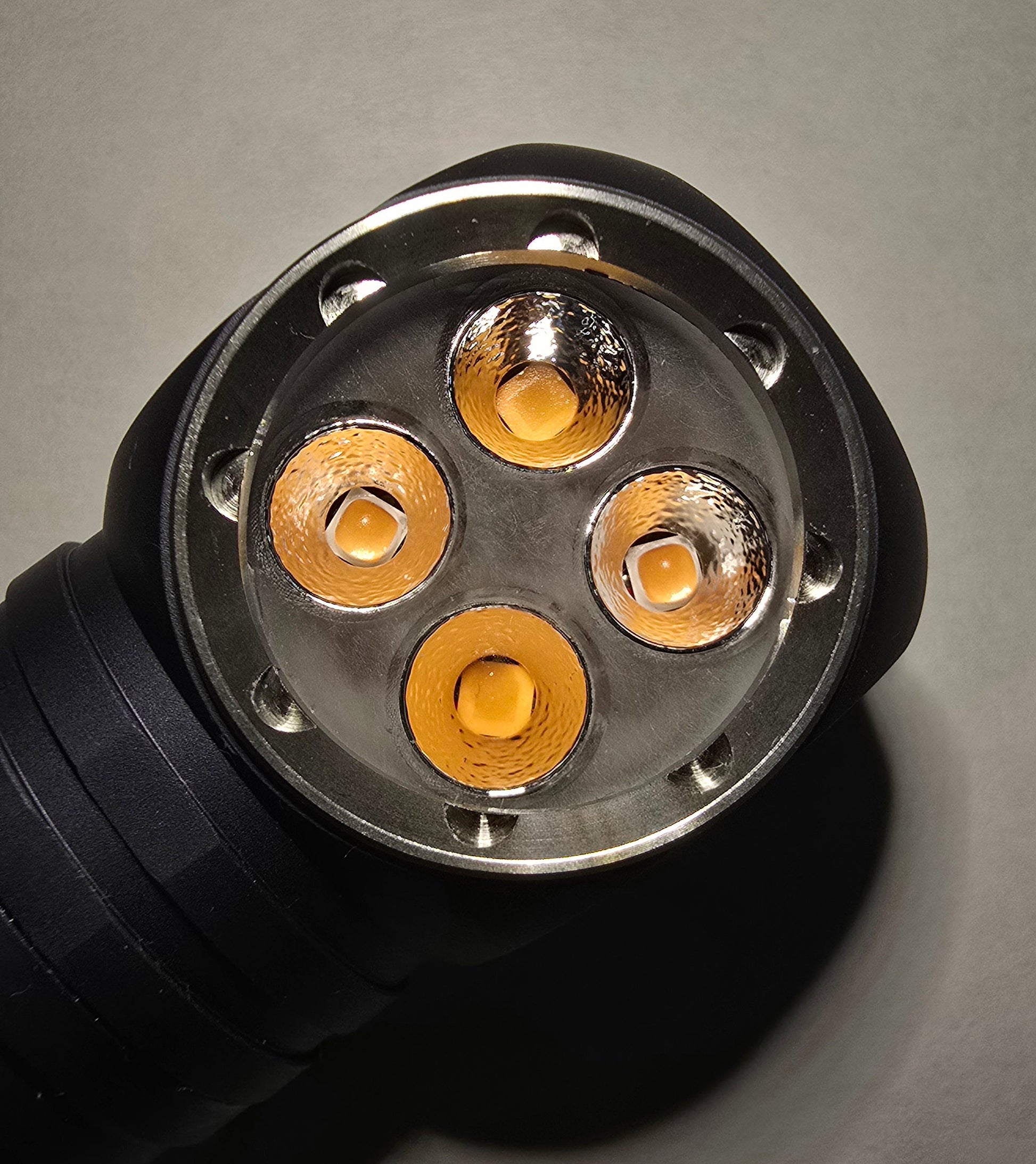

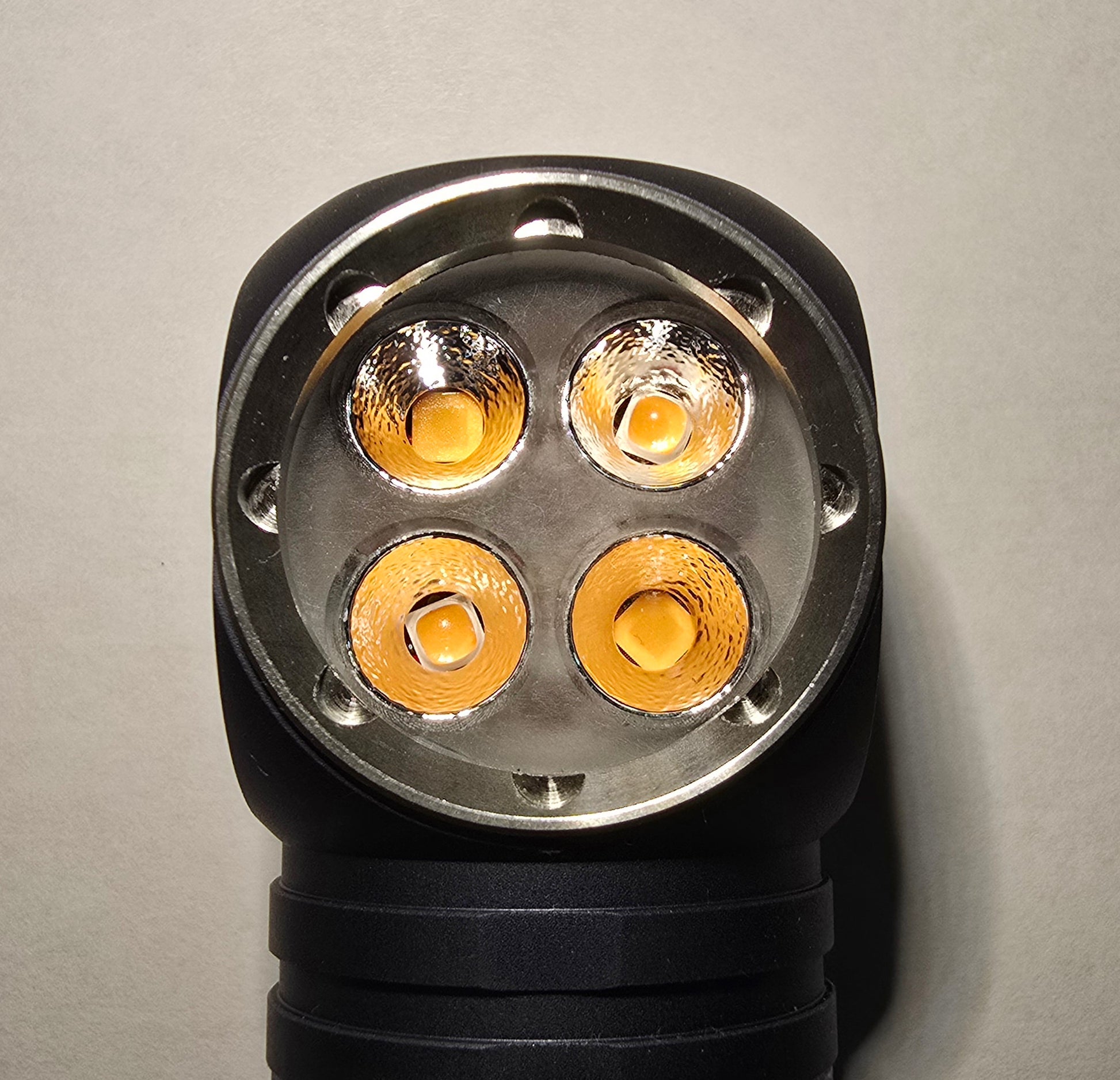

OPTICS:

CARCLO 10621 (SPOT)

CARCLO 10622 (STANDARD)

CARCLO 10623 (FLOODY)

NO OPTICS ON MULES

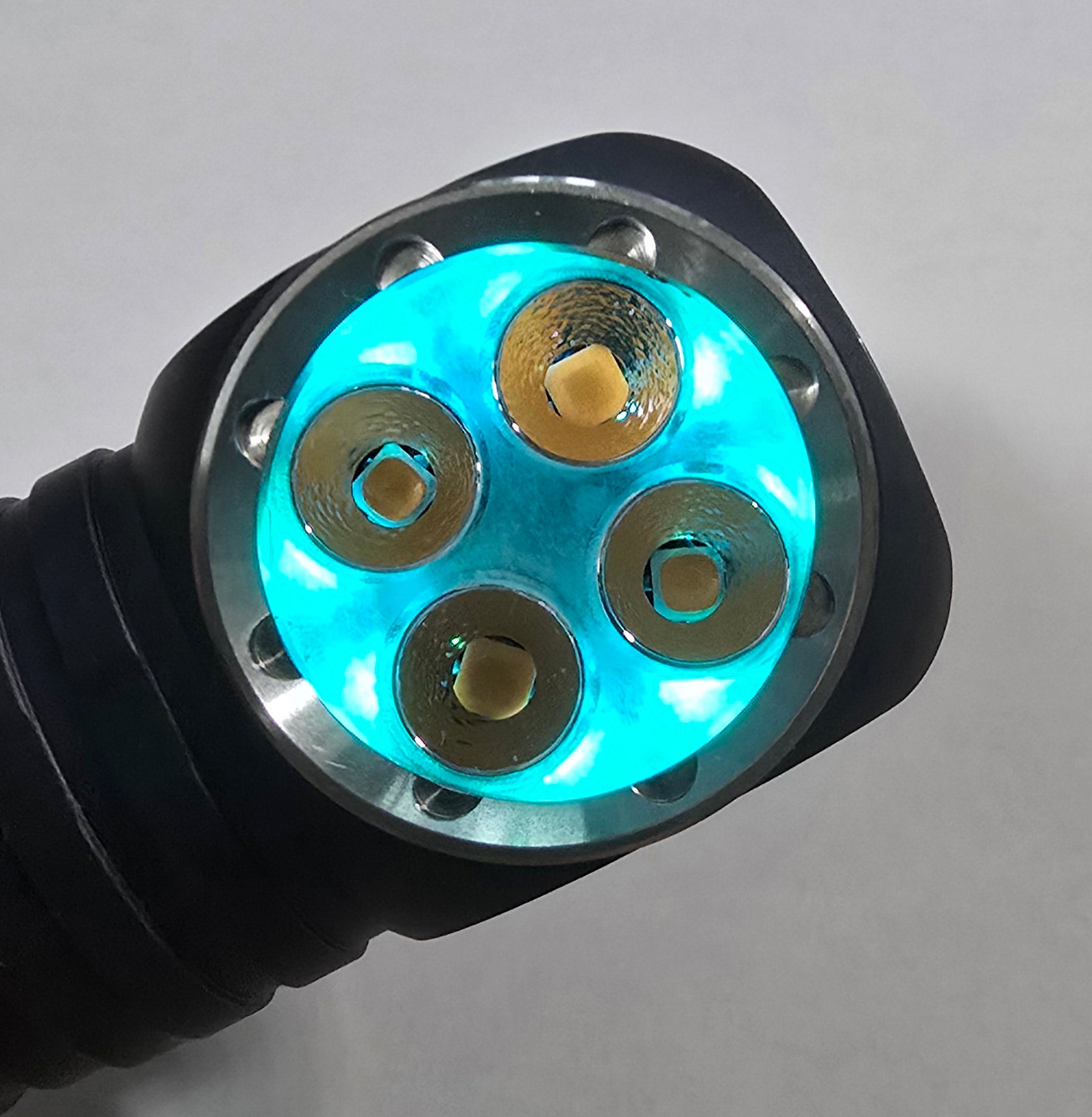

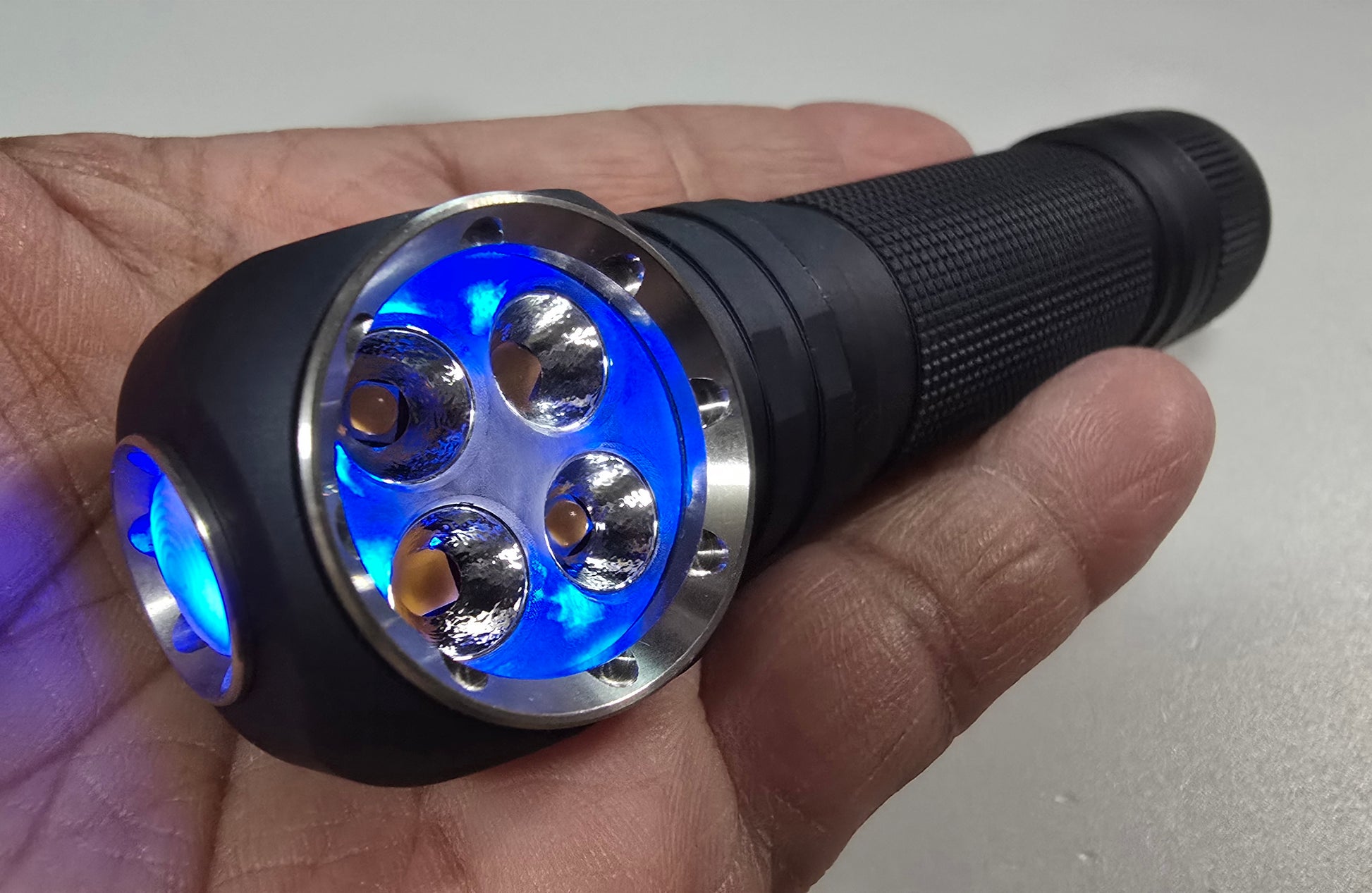

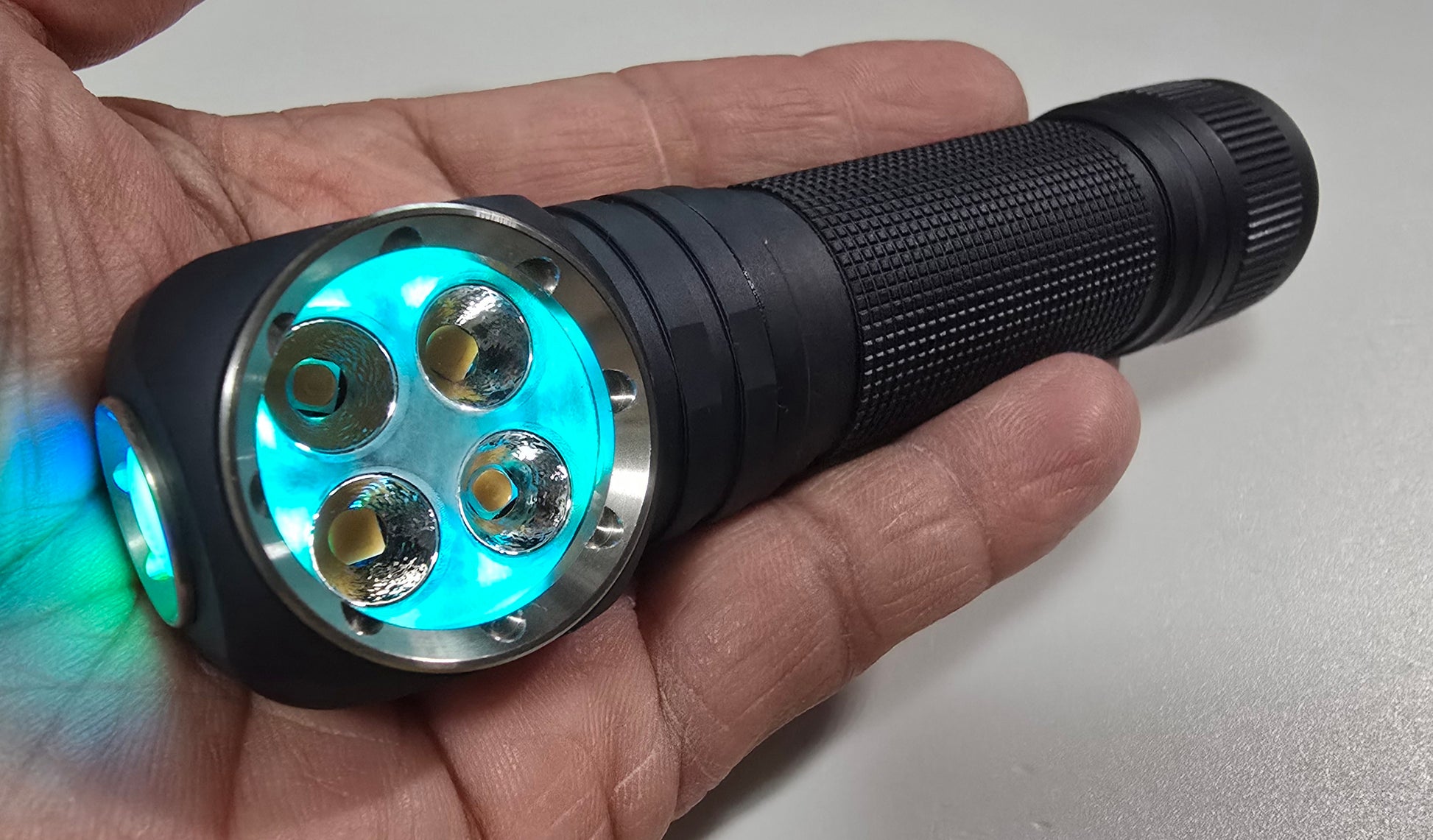

LIGHTED SWITH OPTION:

ALL COLORS & RGB

NO LIGHTED SW AVAILABLE

INCLUDED OPTIONS:

 DEEP CARRY POCKET CLIP

MAGNETIC CAP OPTION

ANDURIL 2 PRINTED INSTRUCTIONS

OPTIONAL ACCESSORIES:

21700 BATTERY (NOT INCLUDED)

HEADLAMP STRAP

BATTERY:

21700 FLAT TOP UNPROTECTED CELL (NOT INCLUDED) MIN 15A (10A BOOST DRIVER OR 12V LUME X1)

MOLICEL 45B LINK >>> Molicel P45B 4500mAh 21700 45A Lithium-ion Rechargeable Battery **** H – JLHawaii808

Molicel P42A link >>> Molicel P42A 21700 4200mAh 45A Li-Ion Rechargeable Battery **** HAS TO – JLHawaii808

Features:

• CNC machined from aircraft-grade aluminium

• Efficient UK made Carclo Quad LED optics (The E21A/E17A version use frosted optic, and the other version use clear optic)

• Unihead construction

• High lumen output and low moon output

• Ramping interface

• Electronic soft touch switch

• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.

• Temperature step-down

• Waterproof and dustproof to IP67 standard (up to 1 meter)

• Weight: 84g

• Dimensions: 118mm(length) * 30mm(head) * 26mm(body)

OTF lumen output at start-up for the direct drive version

XP-L HI : 4300lm

SST-20 6500K: 4200lm

SST-20 5000K: 4200lm

SST-20 4000K/3000K 95CRI: 3000lm

This product uses free software distributed under the terms of the GPLv3.

Source code is available from http://tiny.cc/TKAnduril

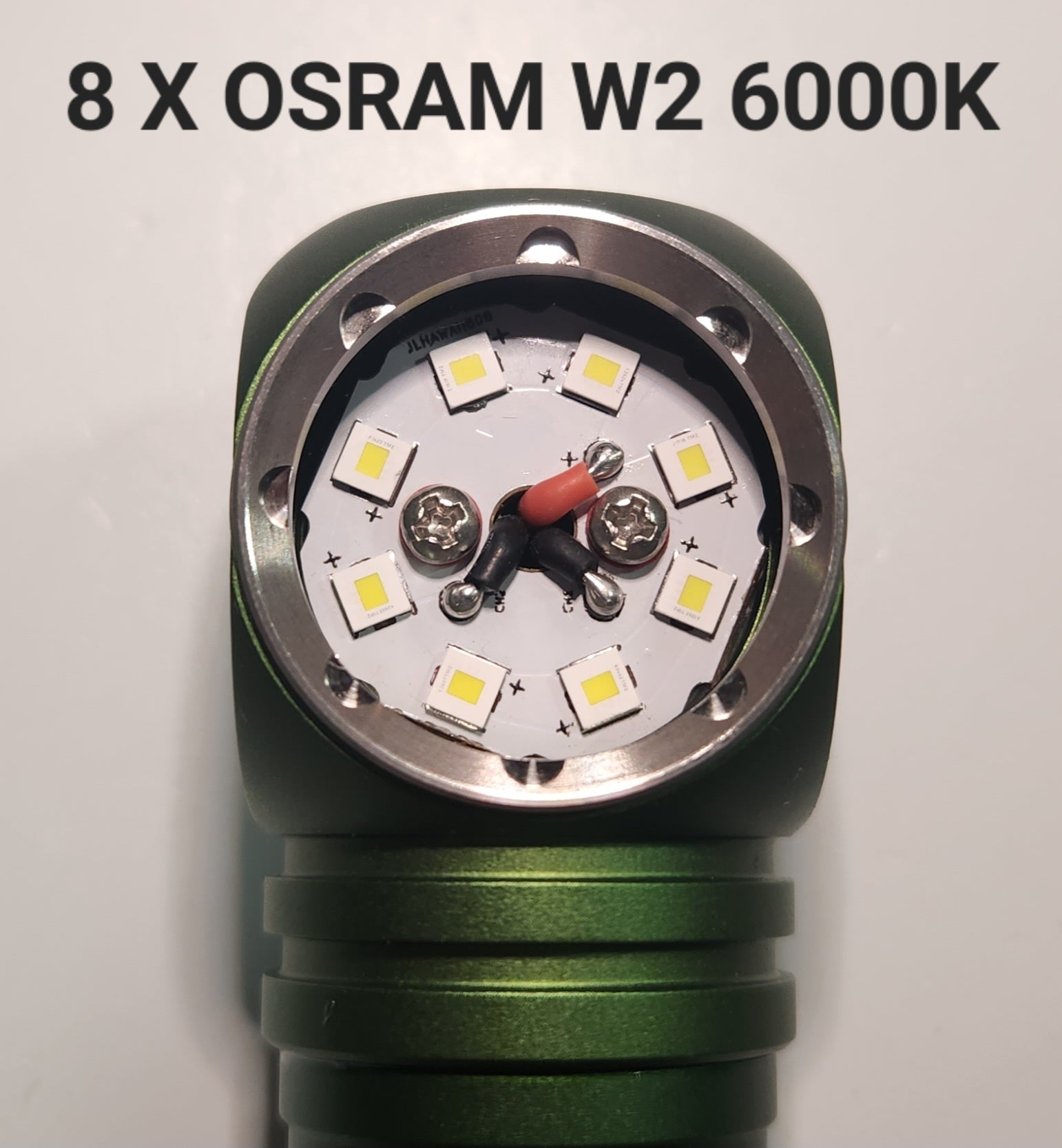

The boost driver upgrade is available for the quad version of XP-L HI, SST-20(except SST-20 deep red), Osram W1/W2, Nichia 219B R9080 versions, each LED receives 2A current. The driver is not compatible with Nichia E21A, Nichia E17A, and mule versions of the flashlight.

Please be noted that the boost driver version will have less output on turbo than the regular version, it is a more efficient driver (90-95%) with longer running time and less heat.
