Emisar DW4 8 X MULE Tint Ramp/Channel Switching *CUSTOM BUILT-TO-ORDER*

Emisar DW4 8 X MULE Tint Ramp/Channel Switching *CUSTOM BUILT-TO-ORDER*

2 total reviews

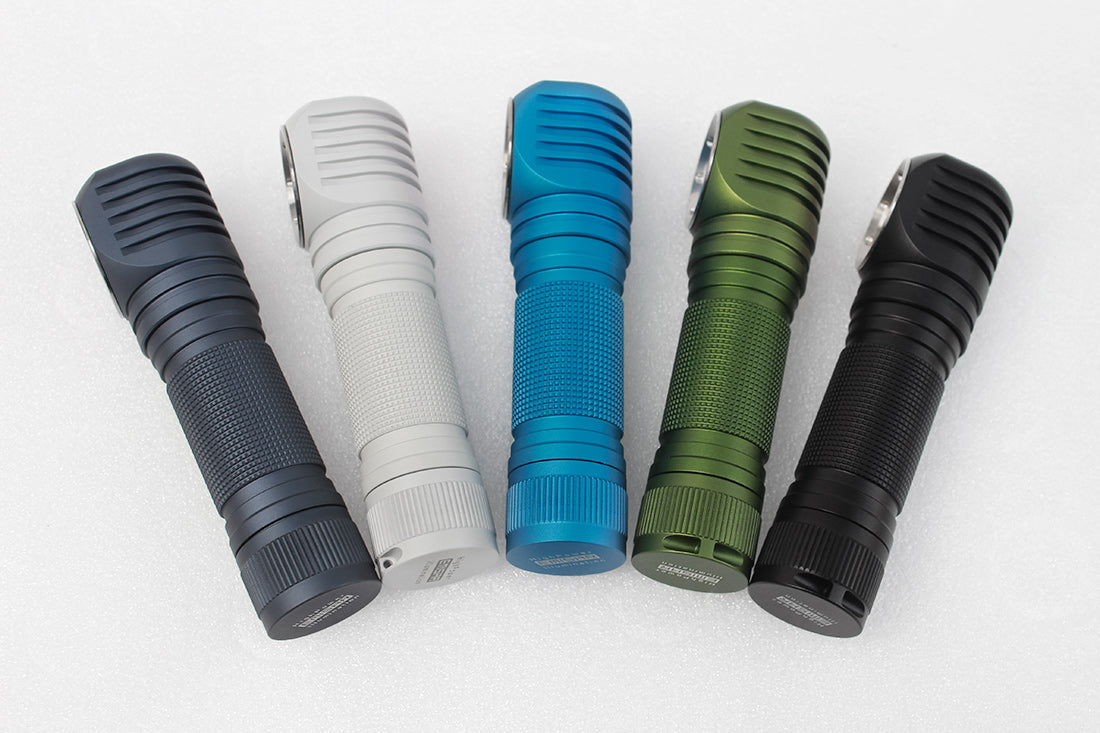

BODY COLOR
Regular price $119.88 USD
Regular price $119.99 USD Sale price $119.88 USD
Sale Sold out
Shipping calculated at checkout.

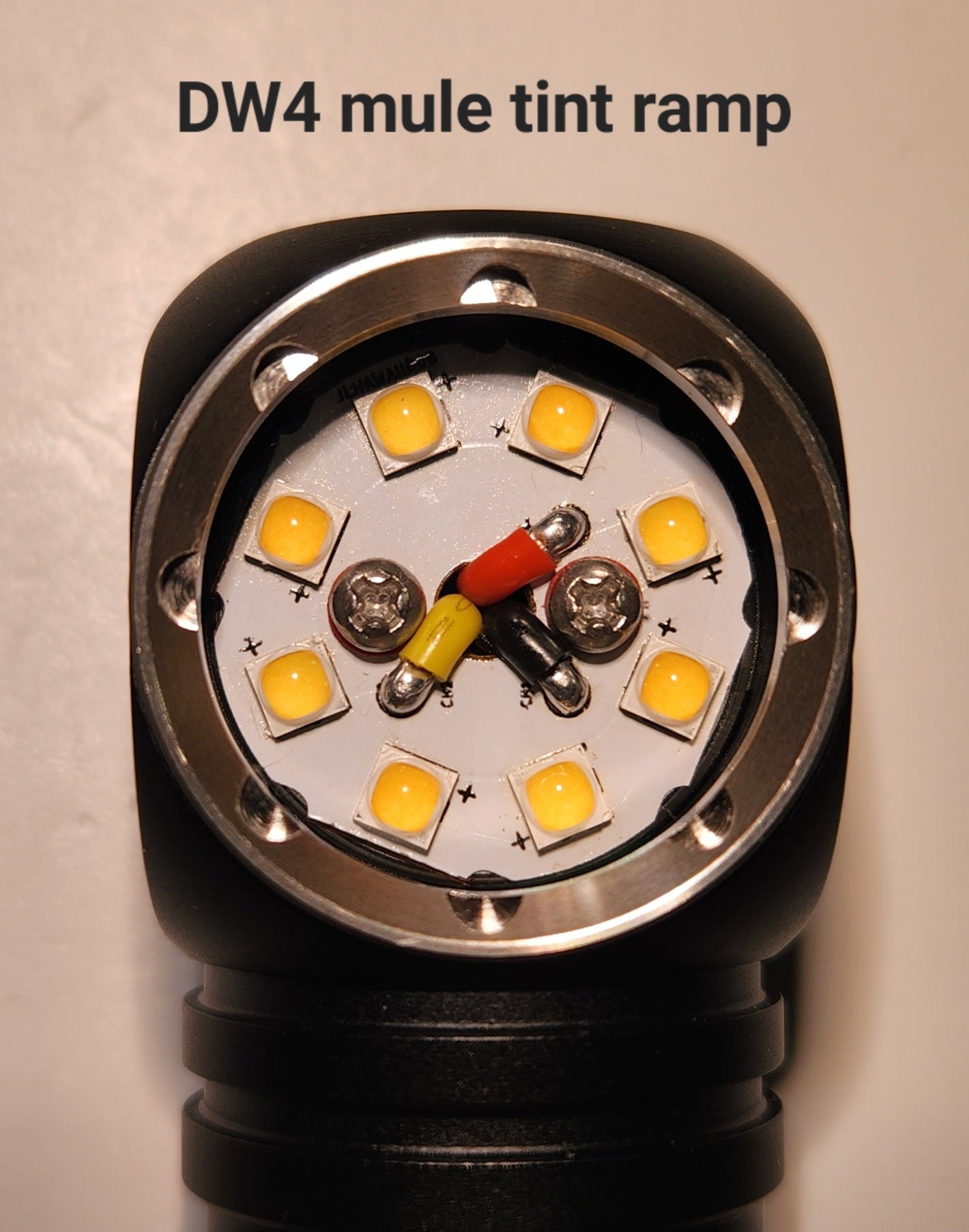

EMISAR DW4 TINT RAMP/CHANNEL SWITCHING MULE

NOTE: THIS IS CUSTOM "BUILT-TO-ORDER" WILL SHIP ACCORDINGLY!

Emisar DW4 review by LuxWad >>> (163) Emisar DW4 - Rambling Review - YouTube

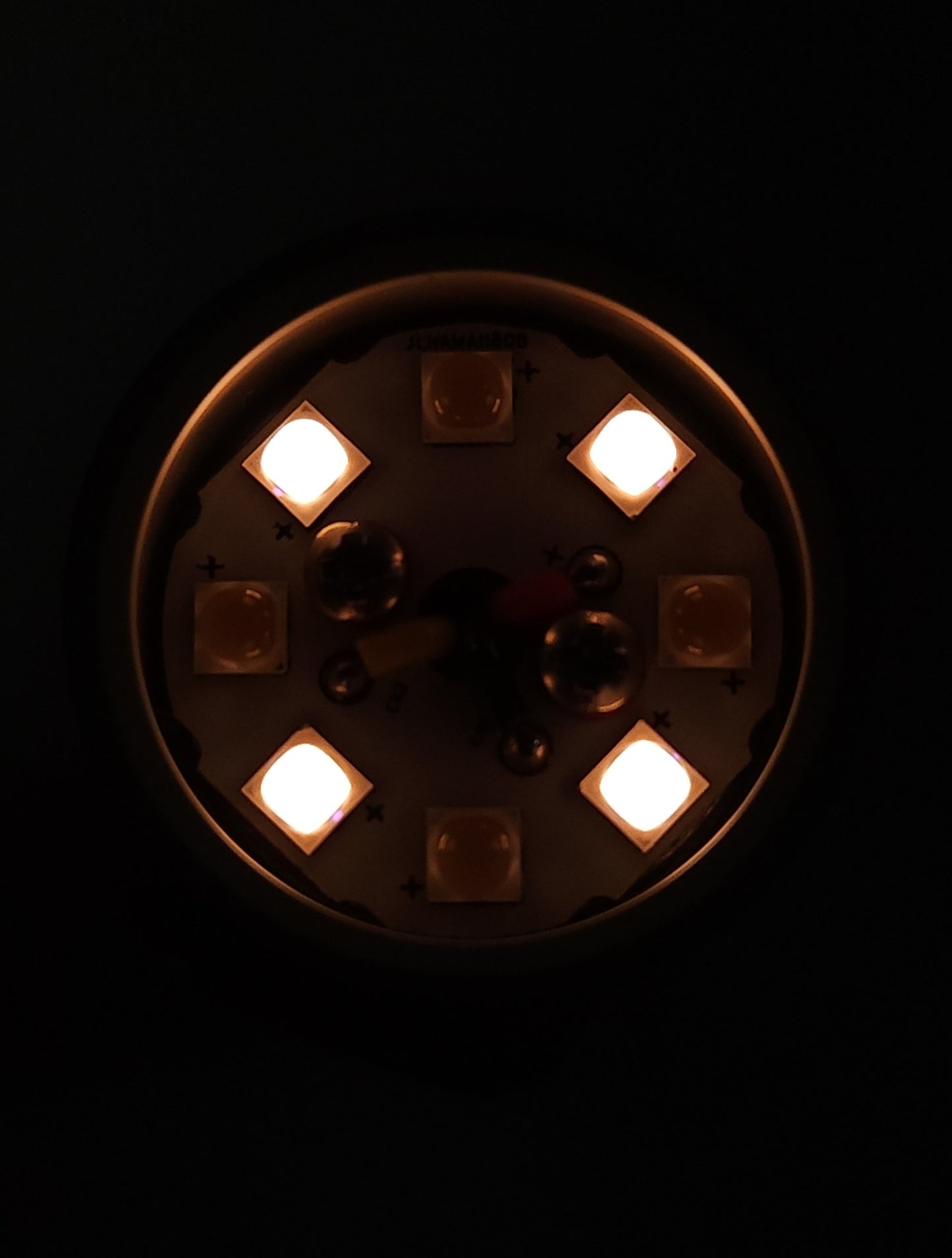

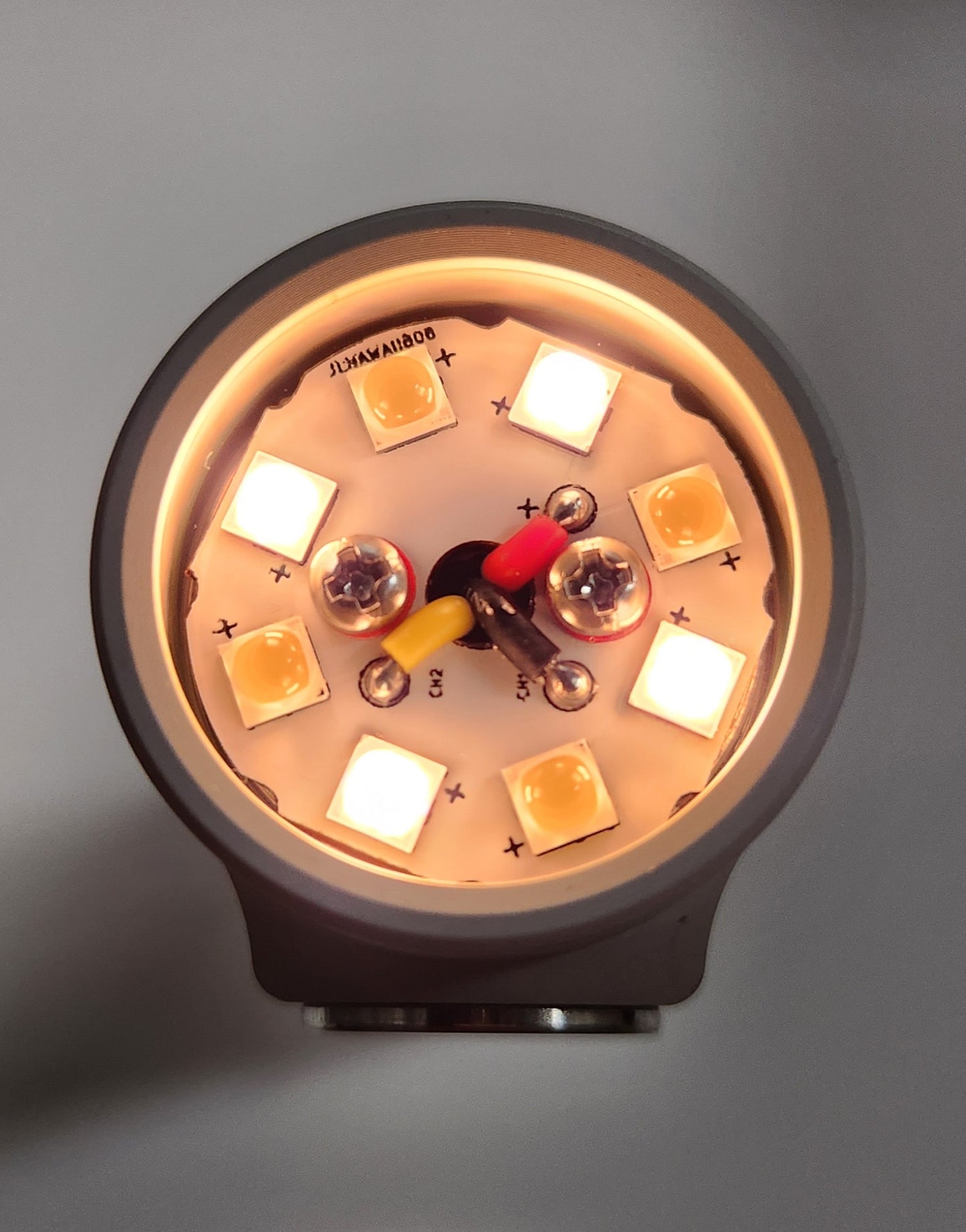

Anduril 2 firmware, user choose the tint ramping or instant channel switching (operation video for reference)

Advanced mode Off -> 9H, first menu item:

0C: tint-ramping (smooth)

1C: instant channel switching

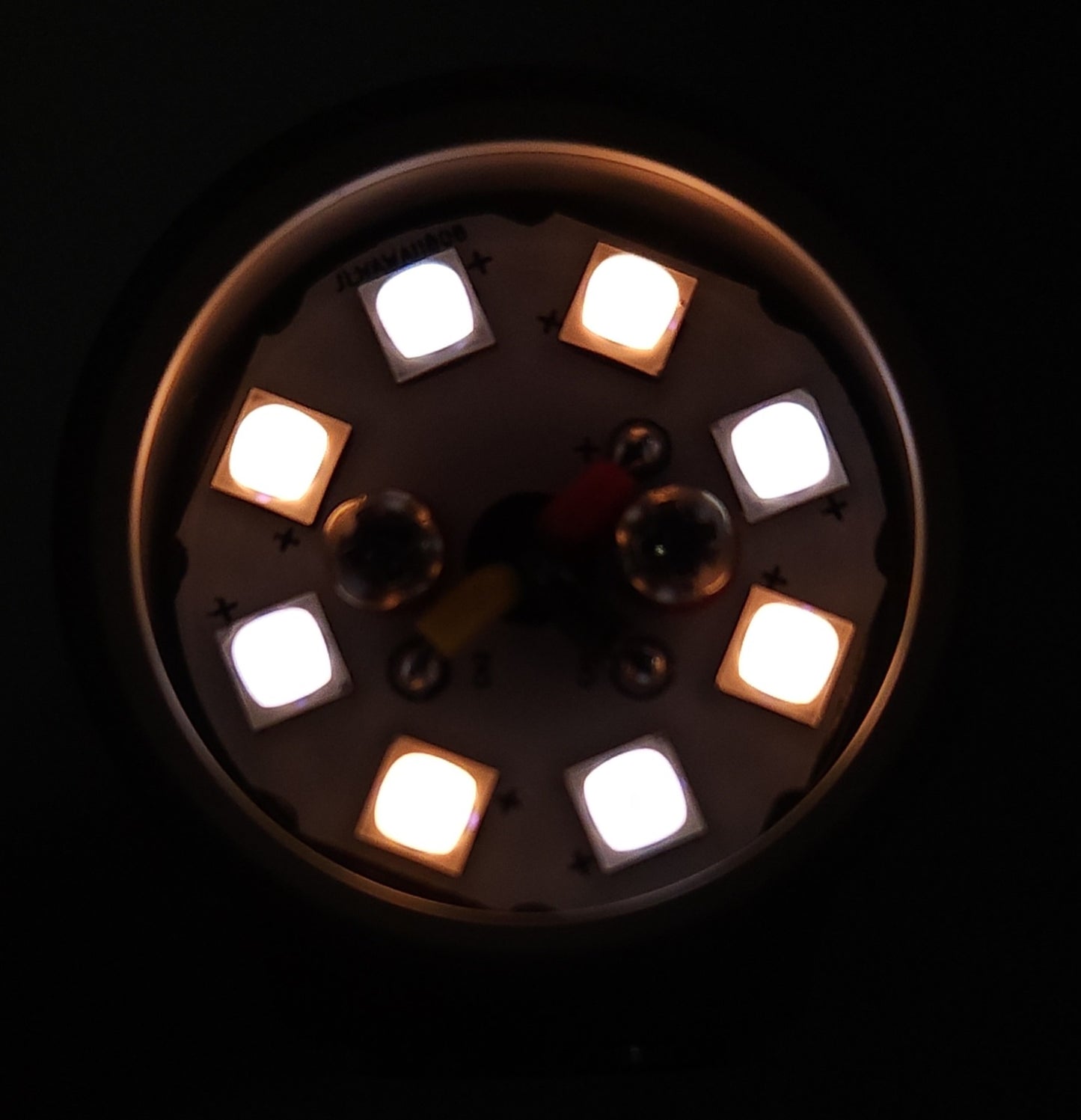

4 LEDs can be on at the same time with full power.

Emisar DW4 puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing. Unprotected, 18650 flat top battery works only (not included in the price), DW4 does not work with protected battery or a button top.

NOTE: IF YOU PURCHASE THE UV $20 OPTION YOU WILL NEED TO PURCHASE THE SAPPHIRE GLASS LENS SEPARATELY >>> Sapphire Crystal Lens For Lumintop Emisar or Noctigon LED Flashlight – JLHawaii808

USER INTERFACE:

ANDURIL 2 UI TINT RAMPING FIRMWARE

OPTIONAL NEW! 2-CH FIRMWARE

DRIVER:

DUAL 9A LINEAR DRIVER

EMITTER OPTION:

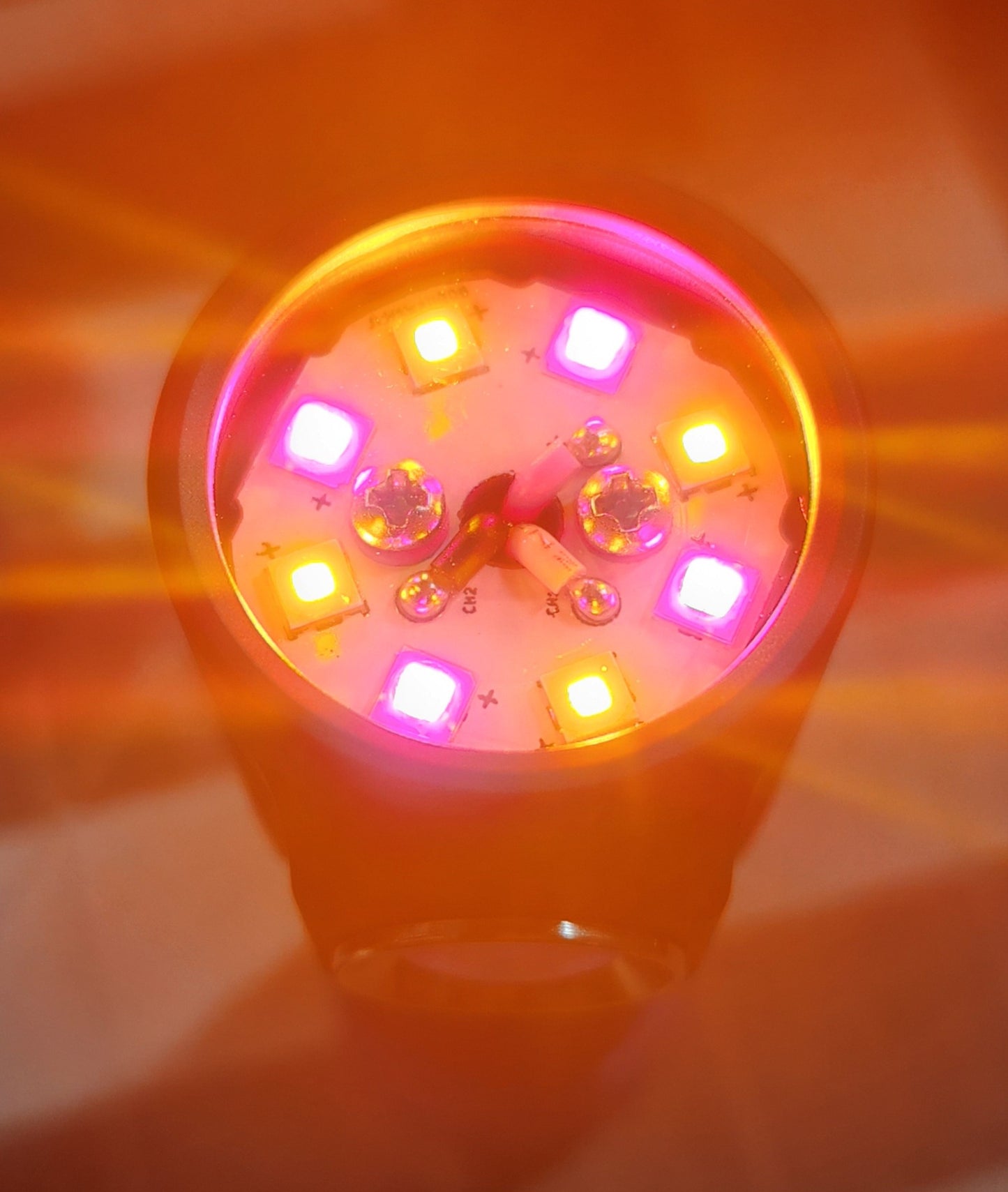

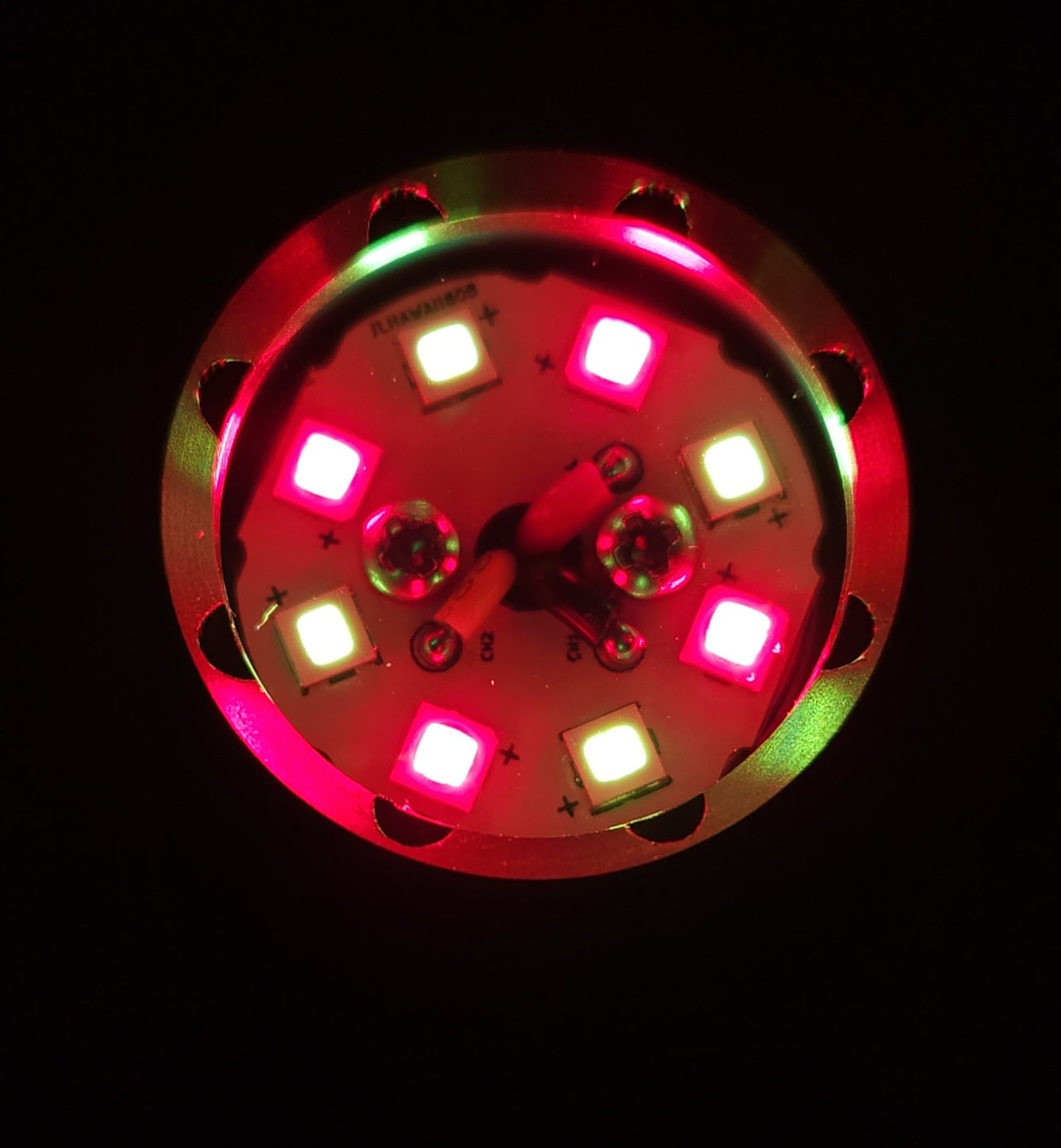

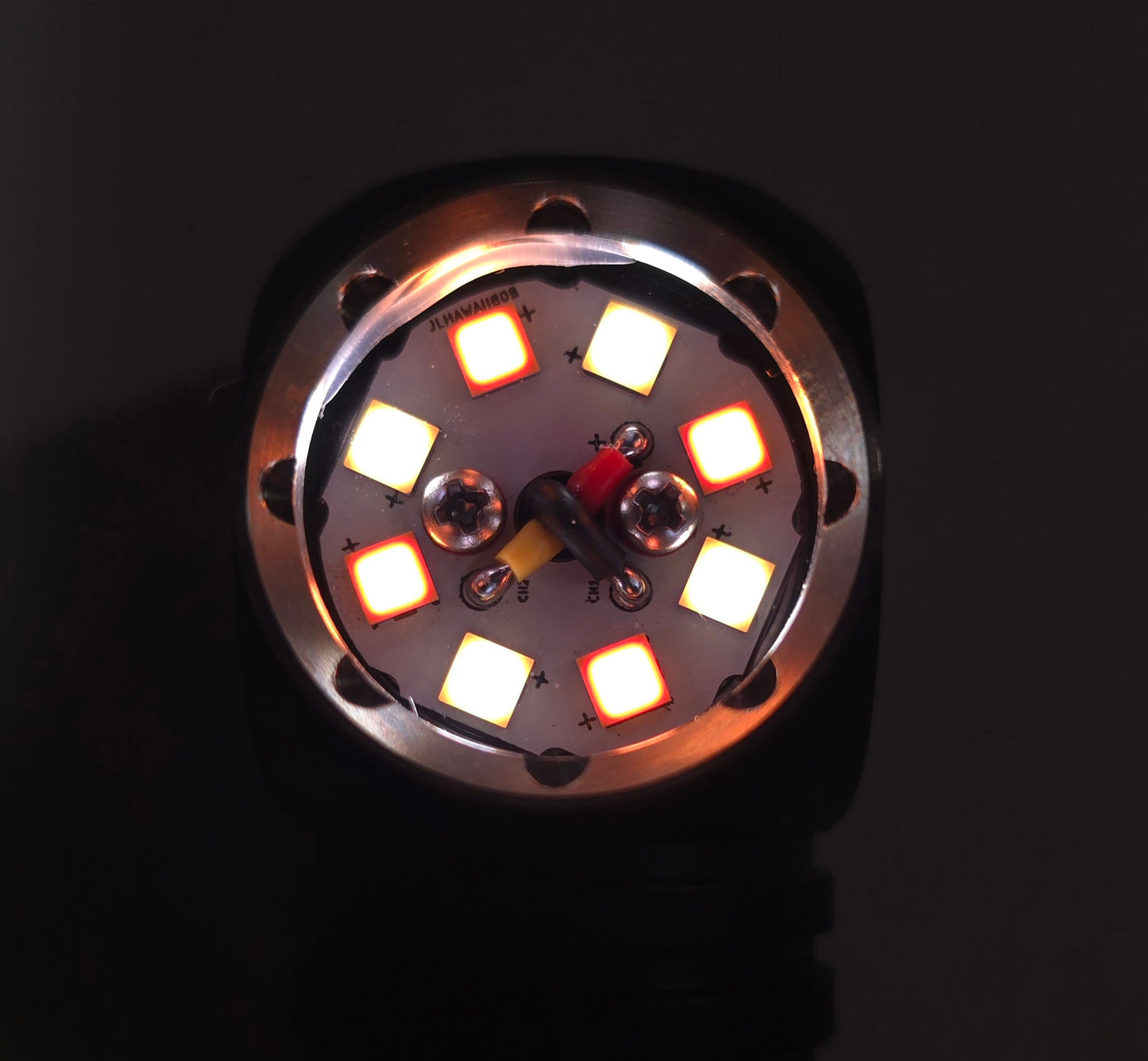

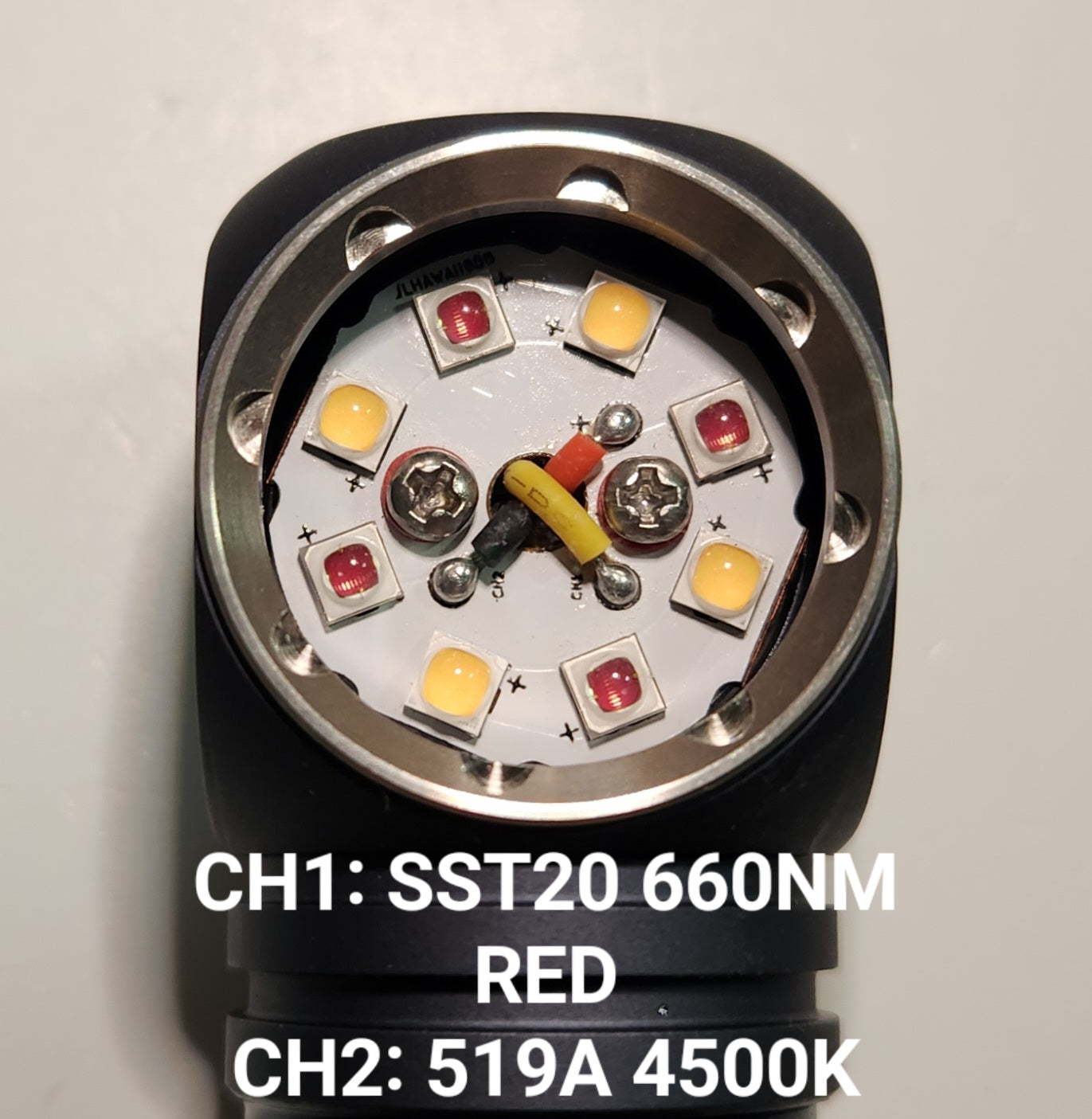

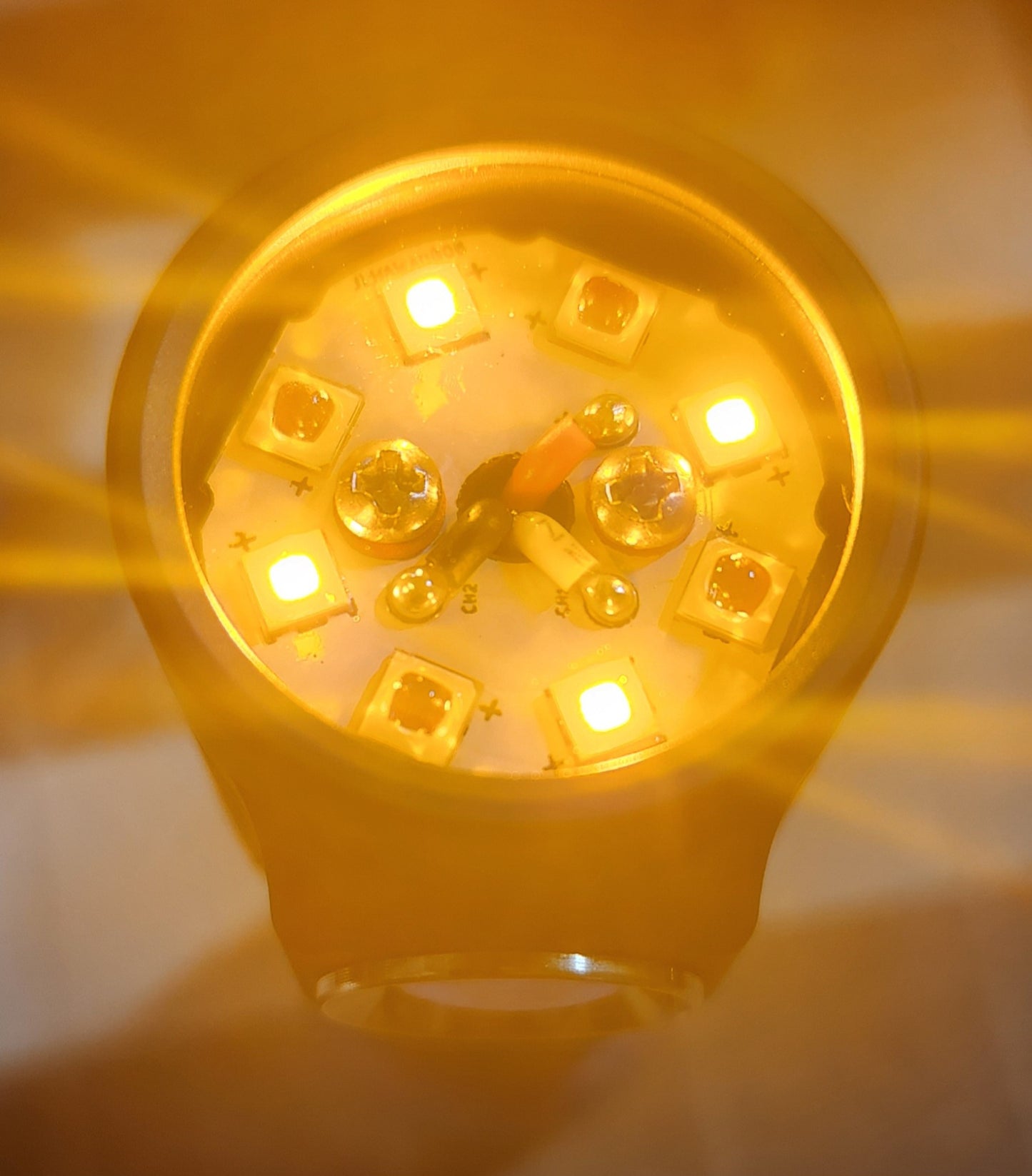

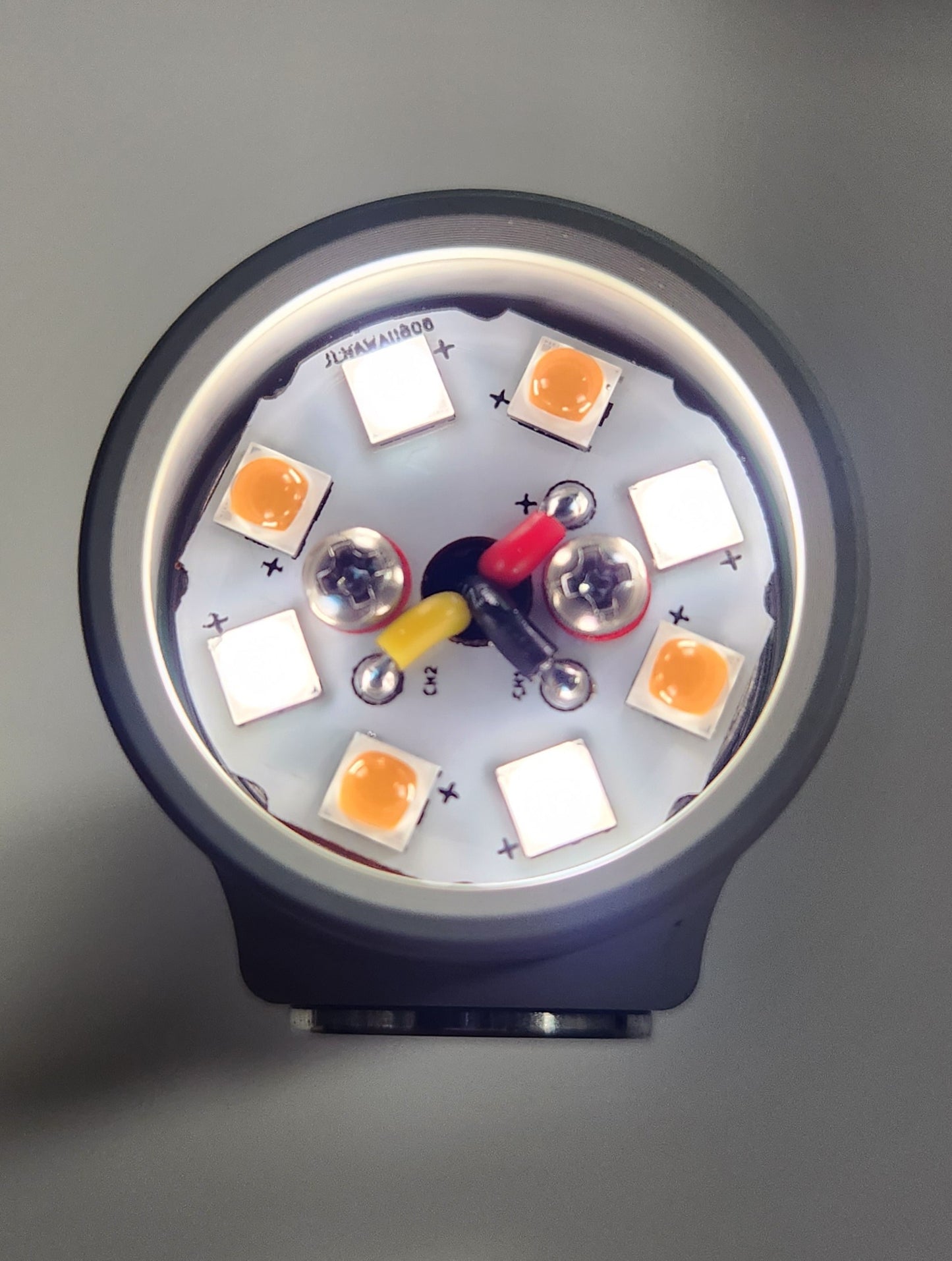

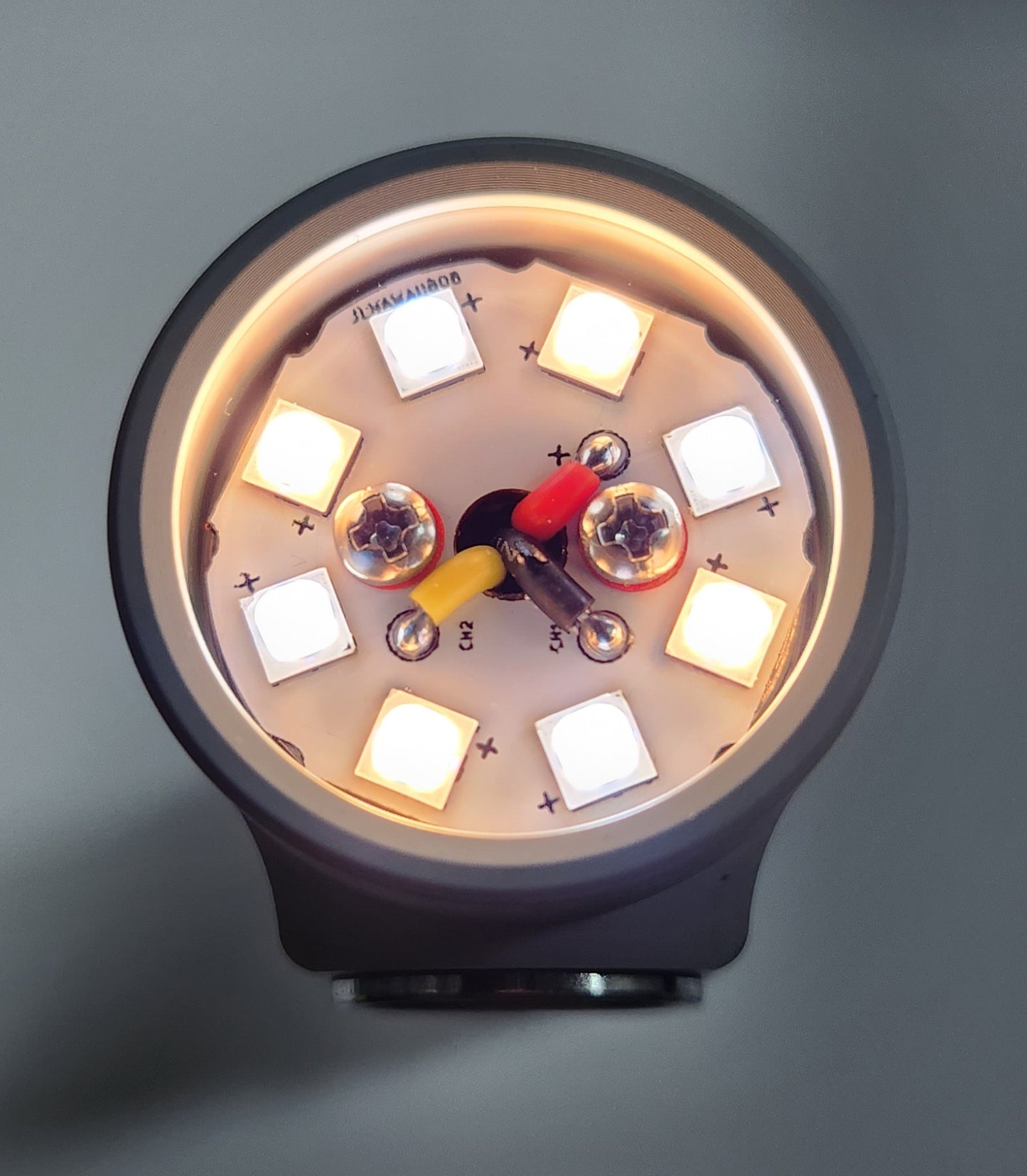

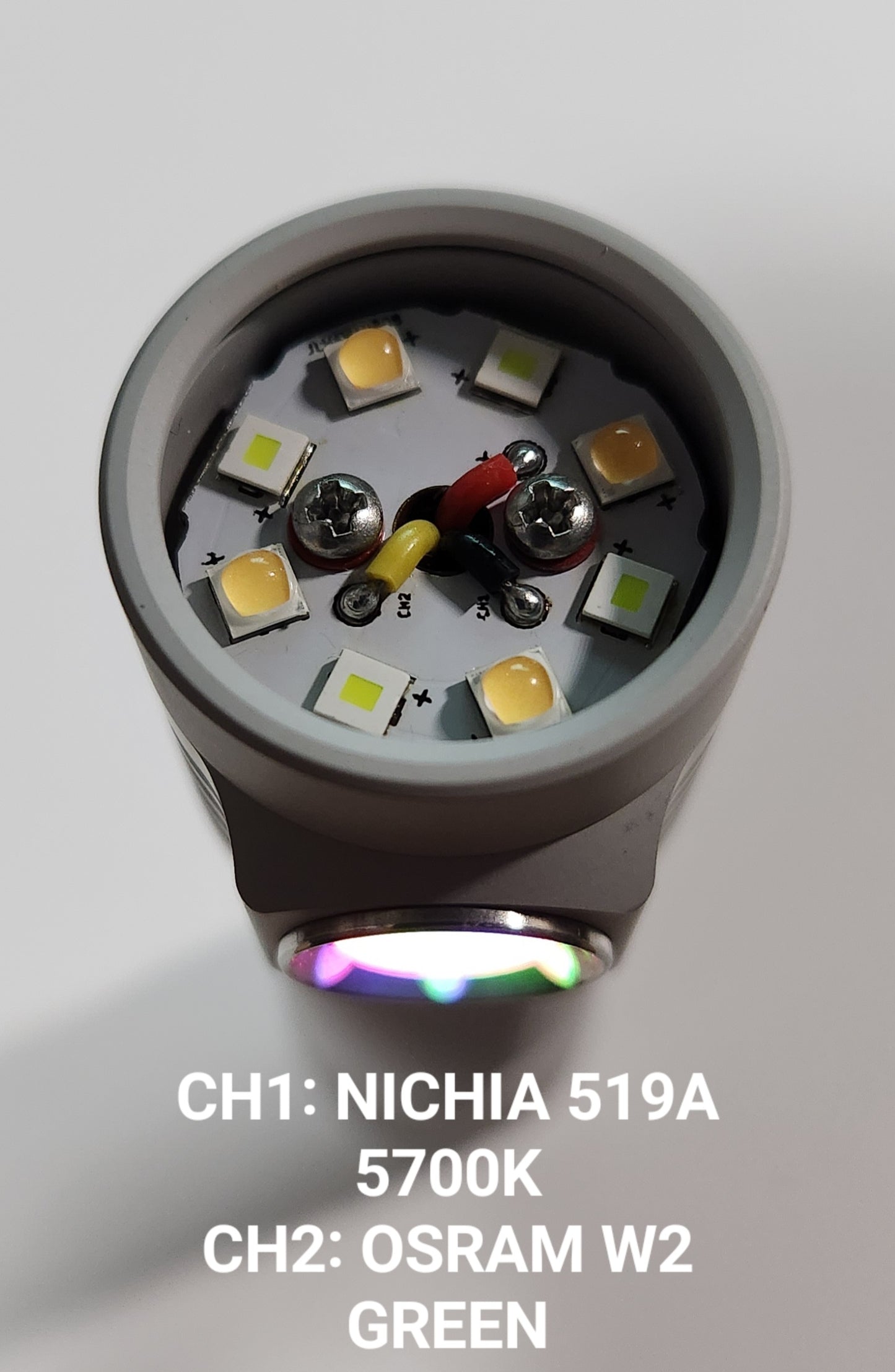

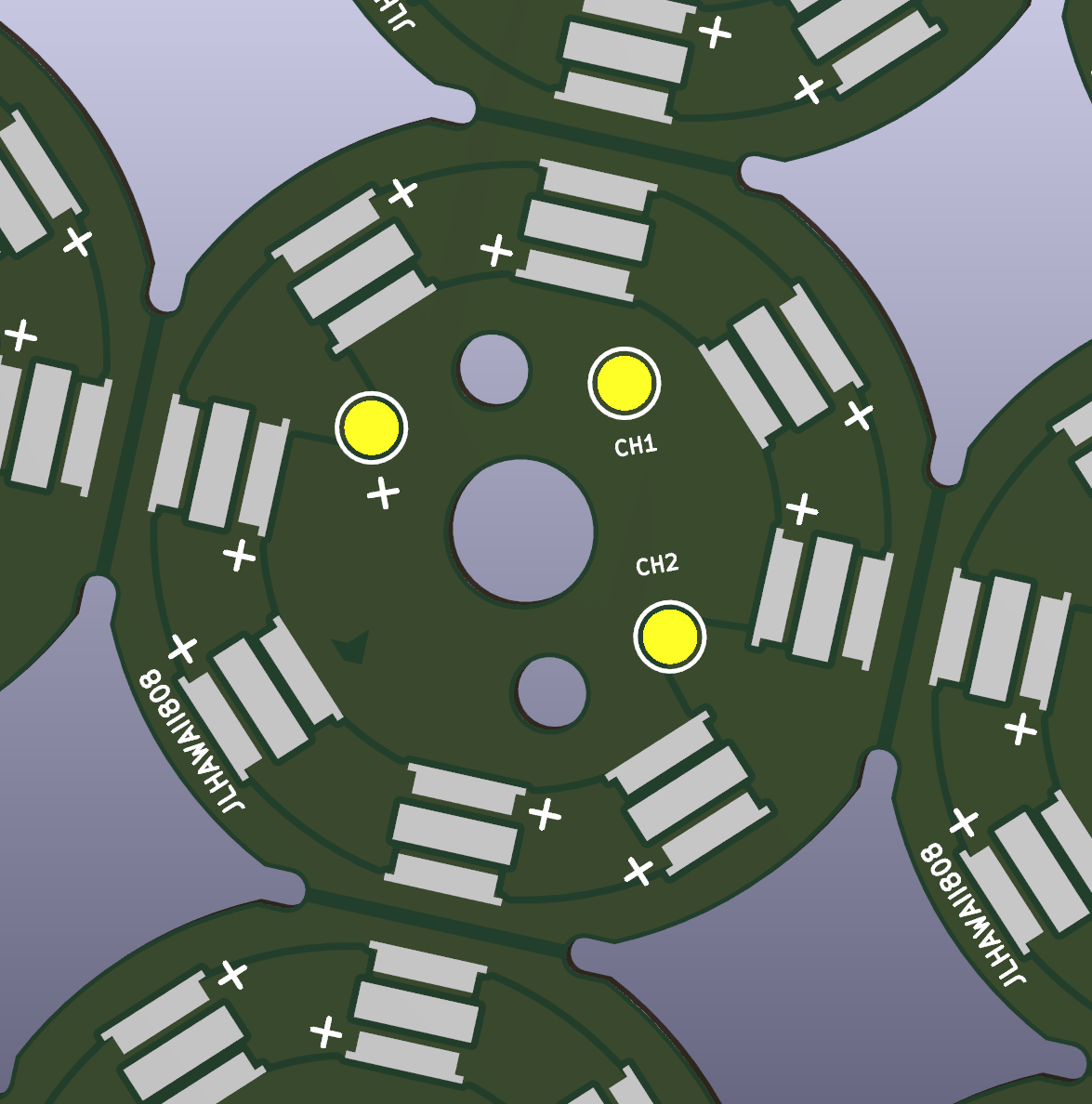

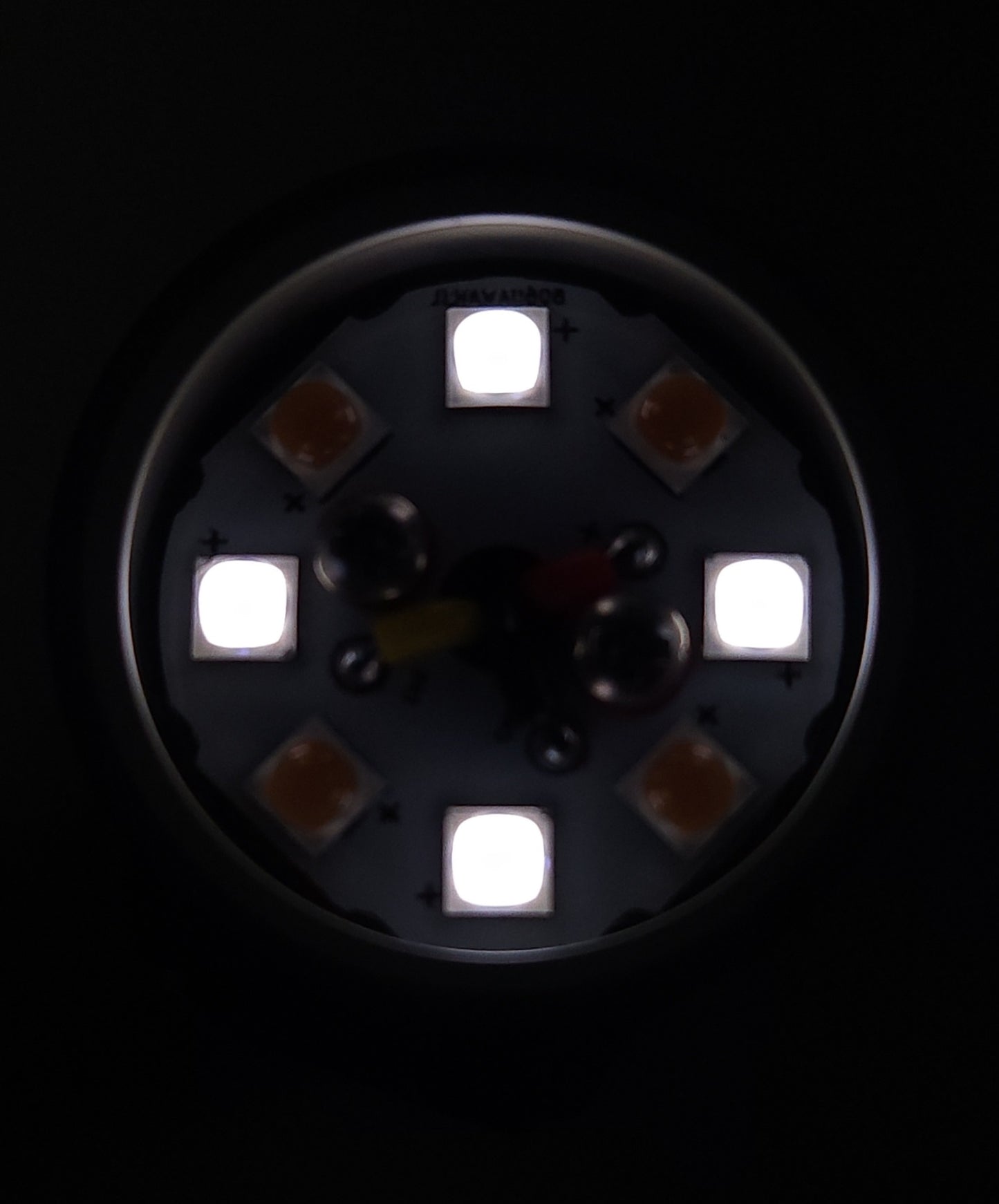

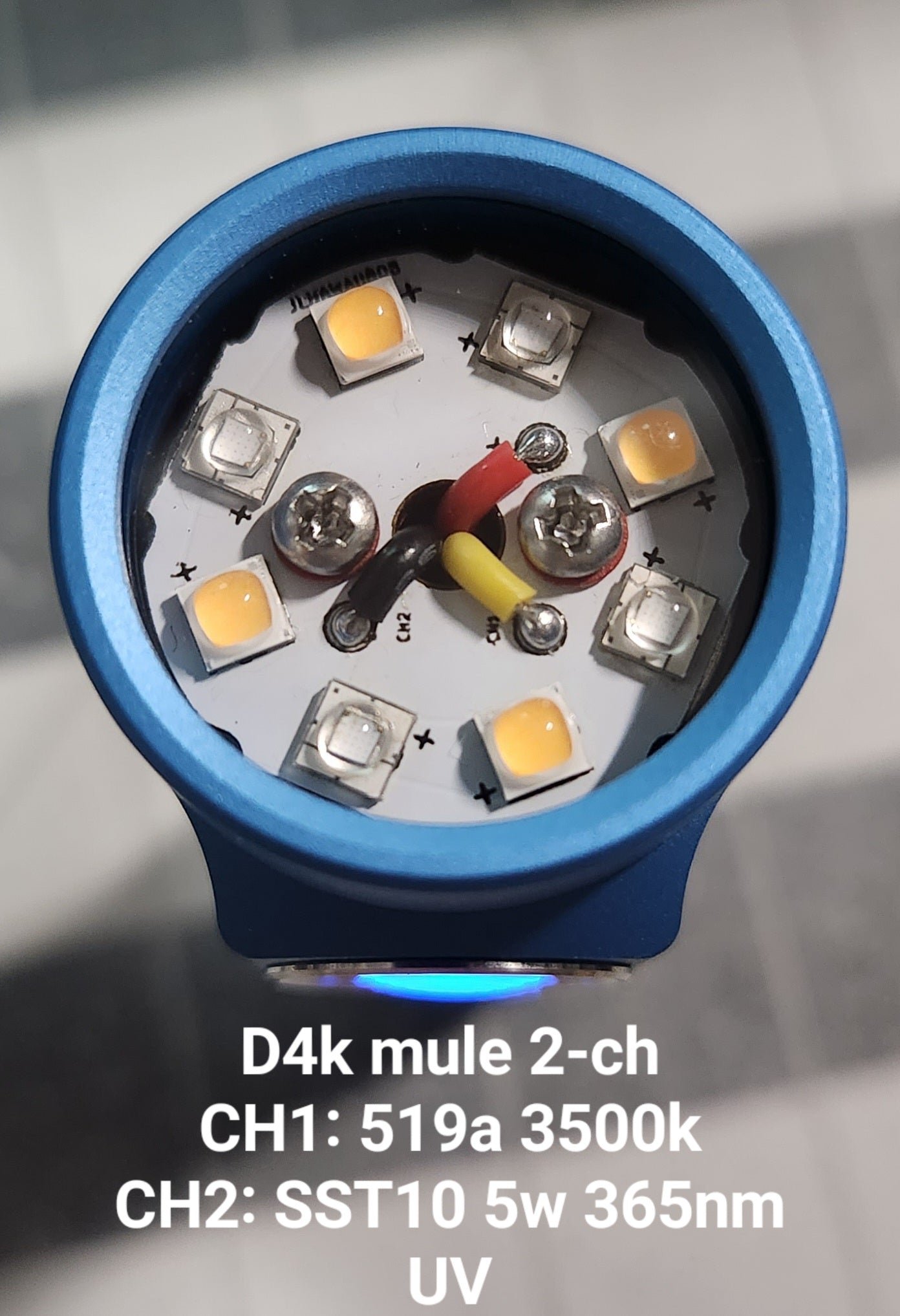

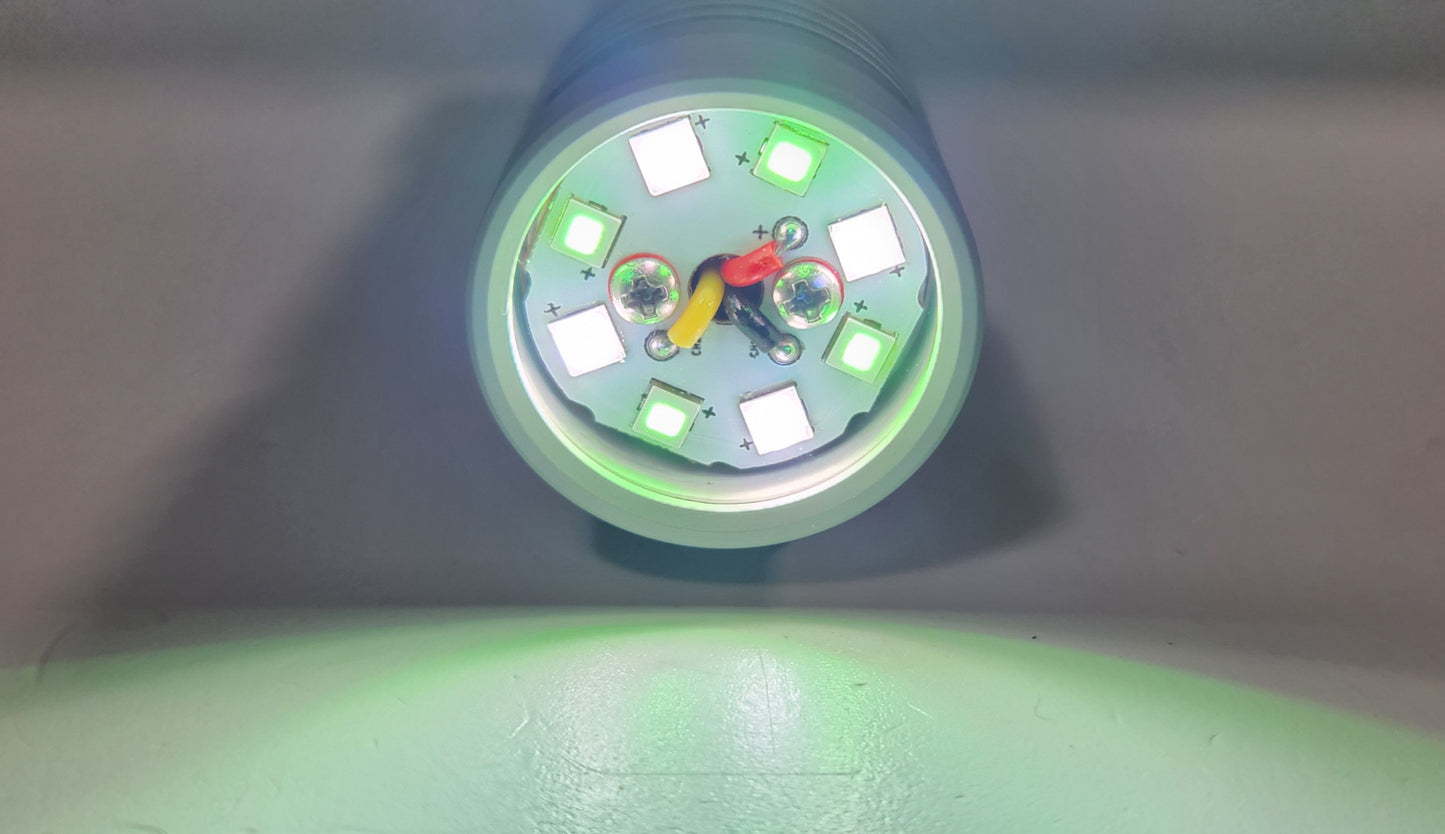

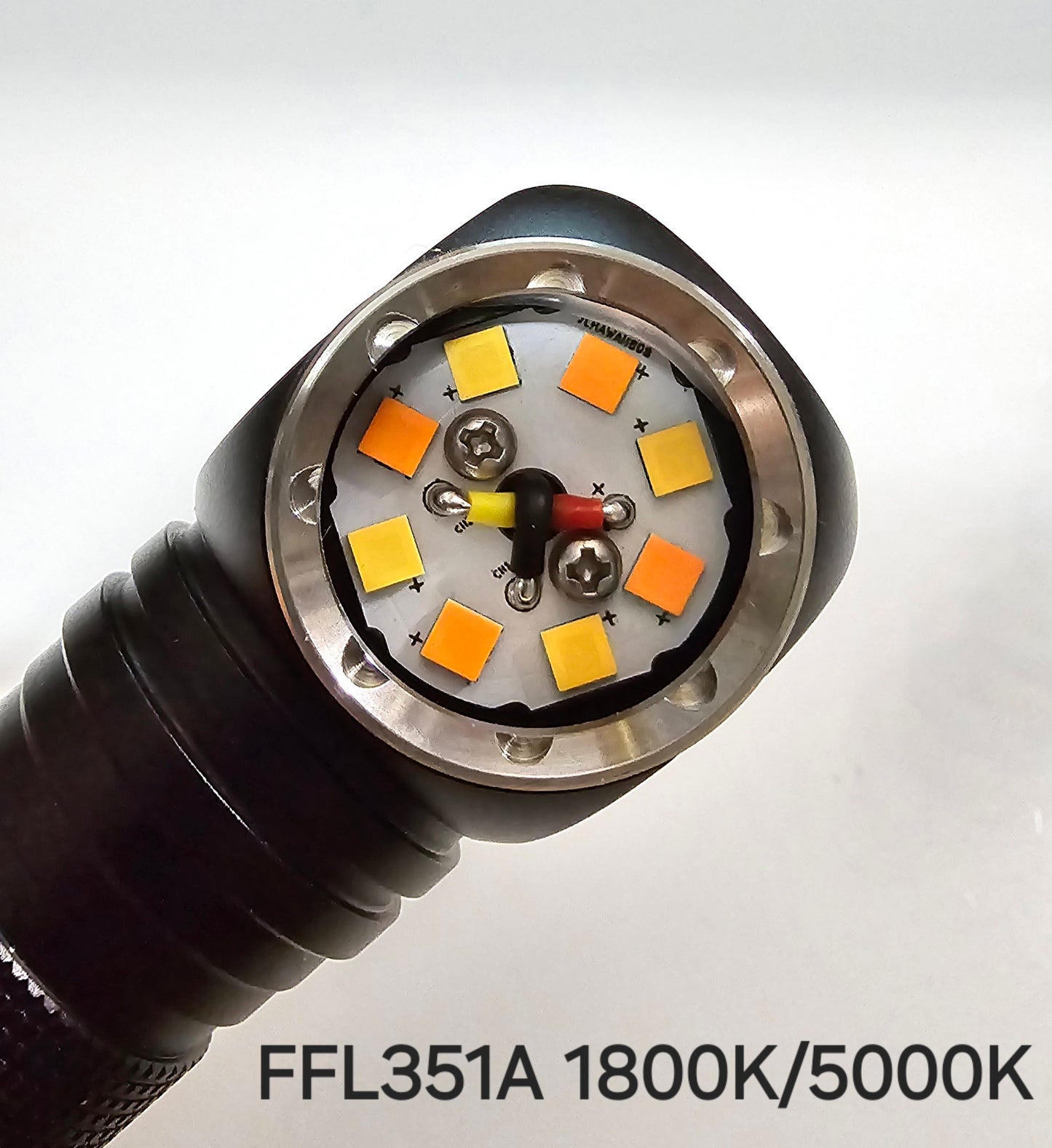

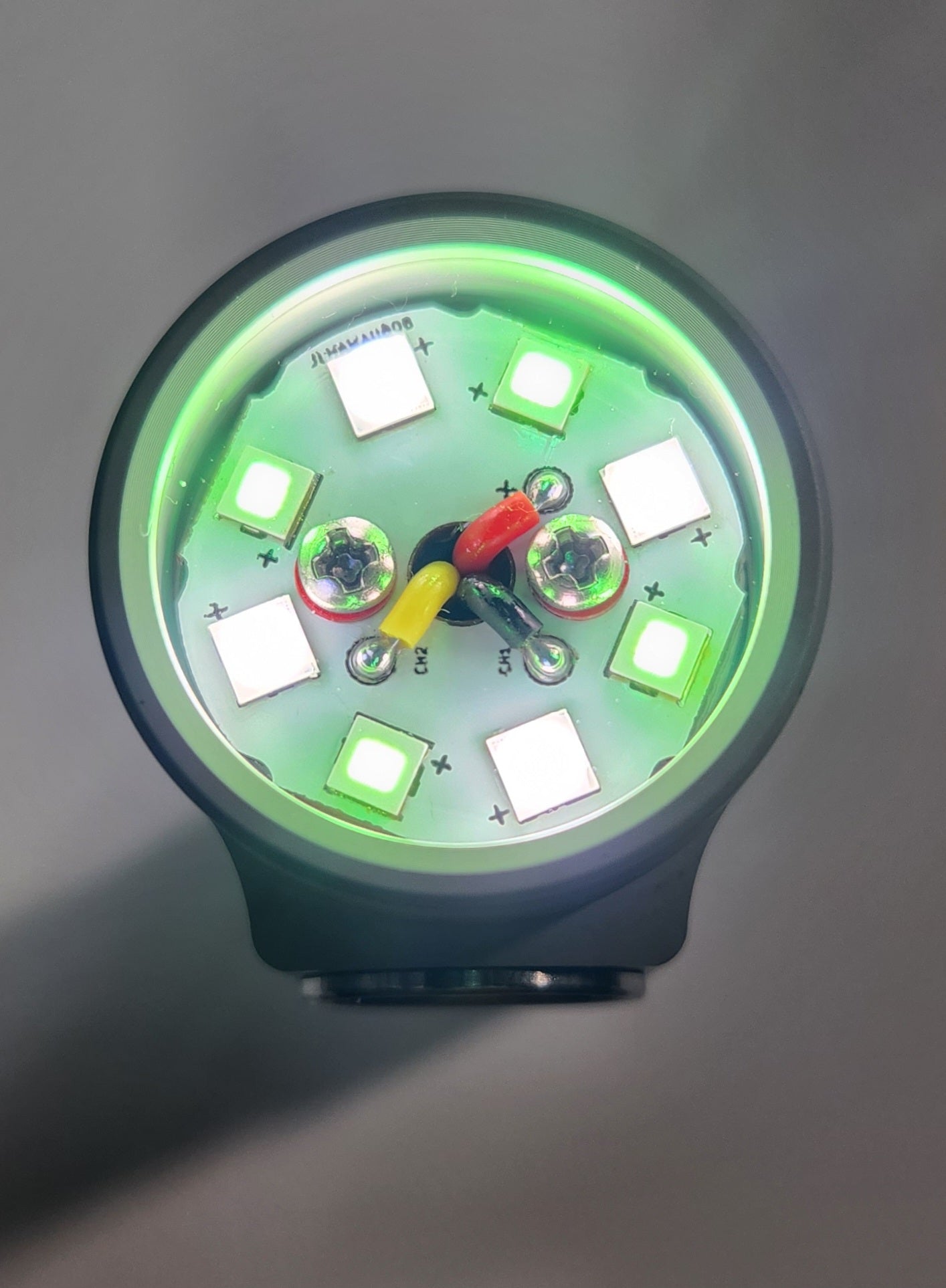

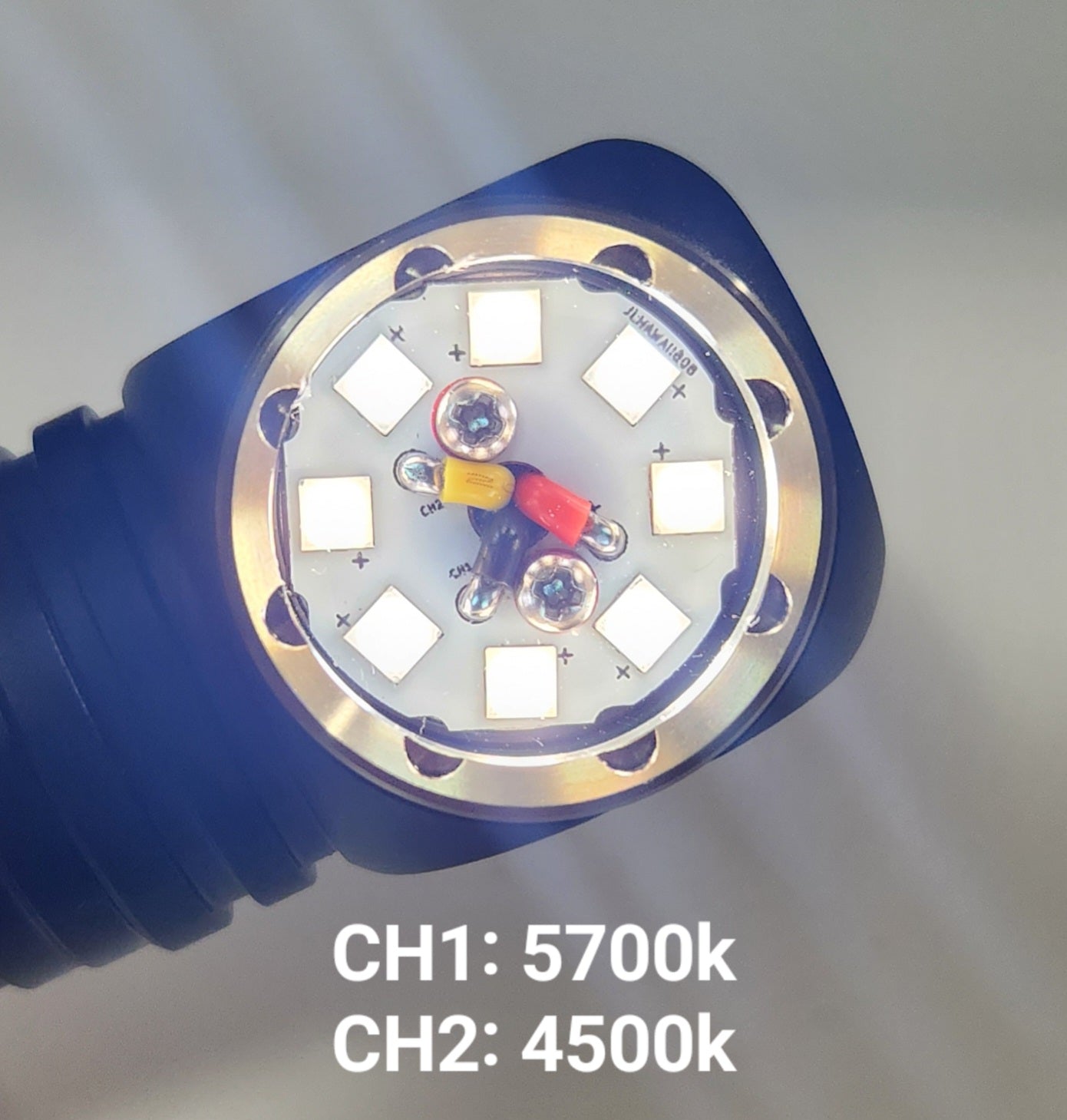

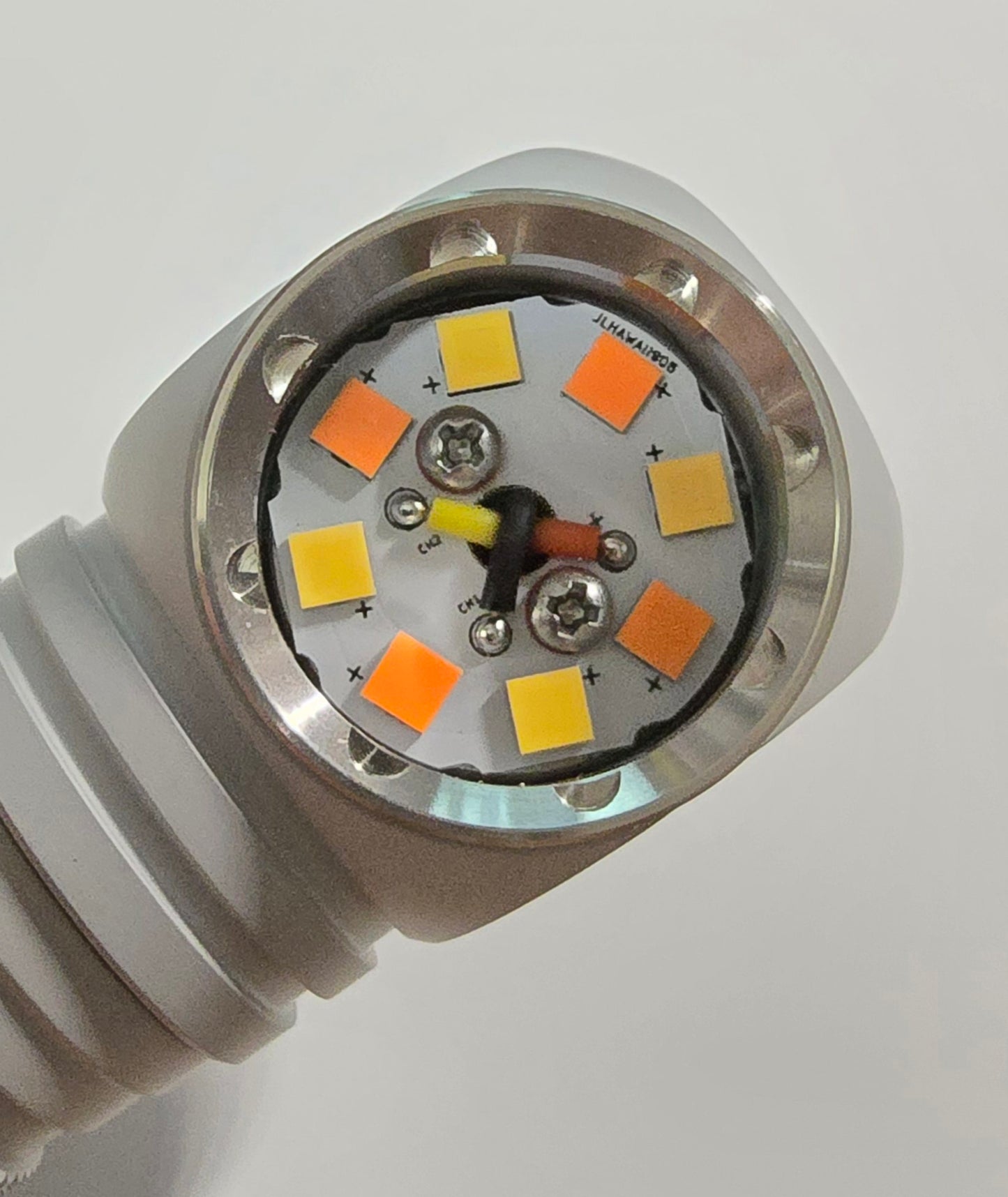

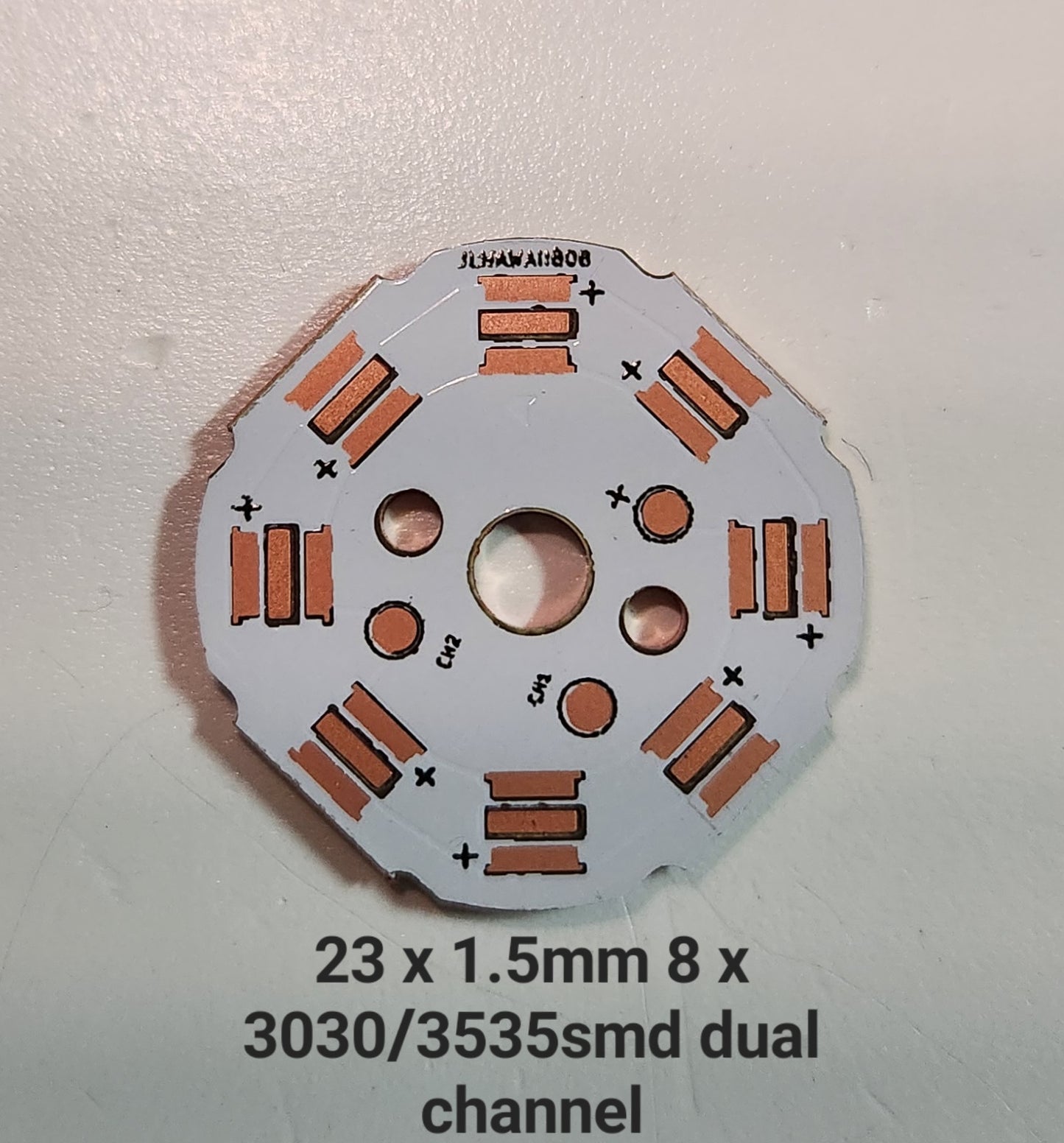

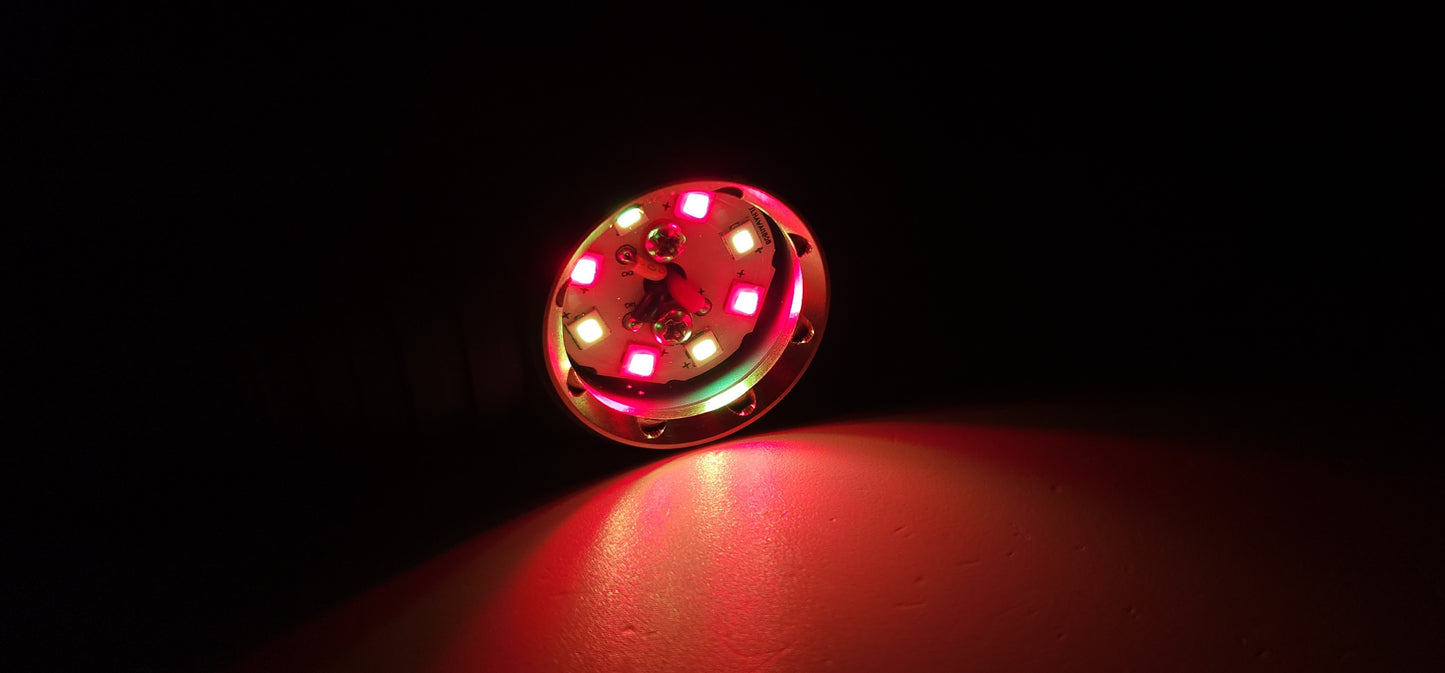

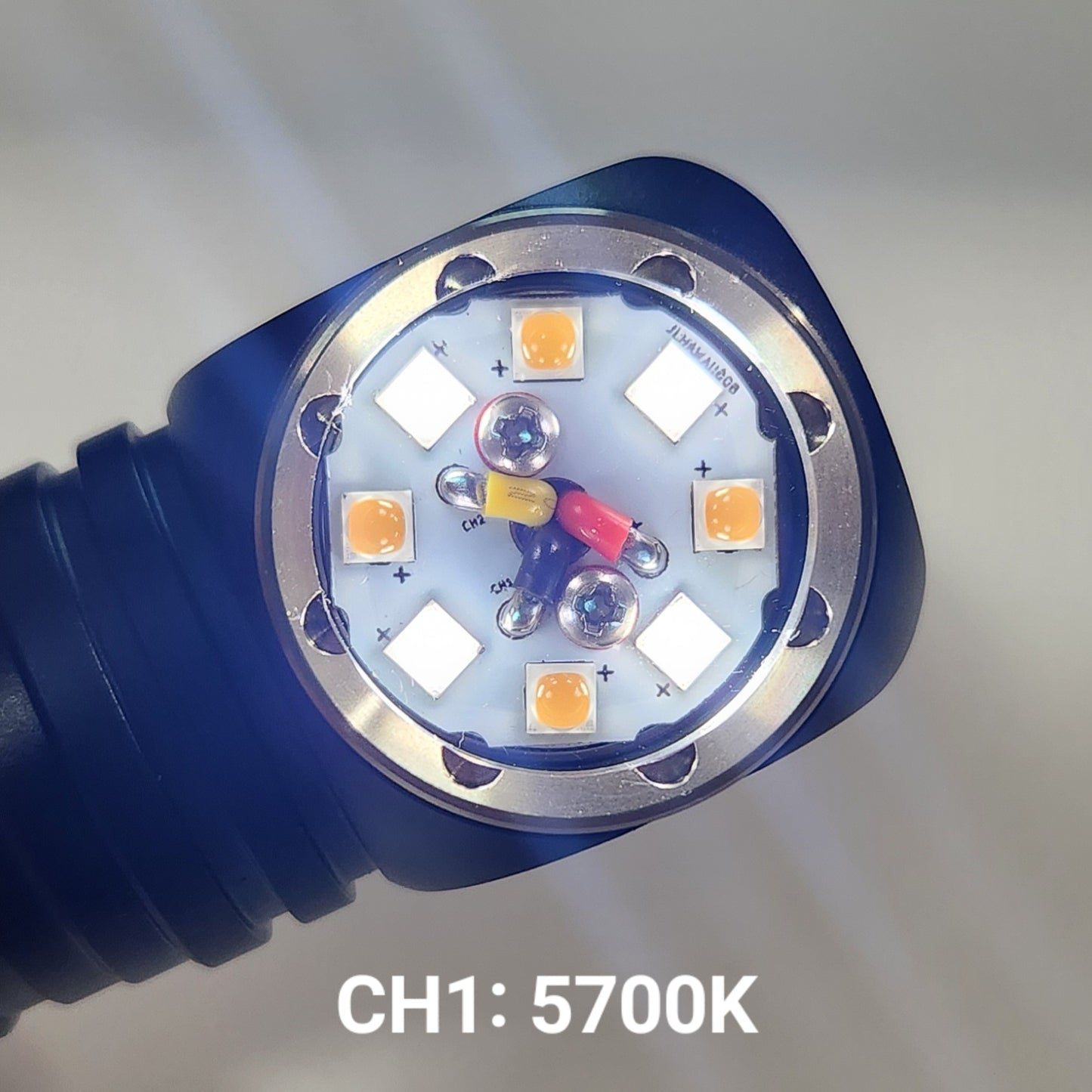

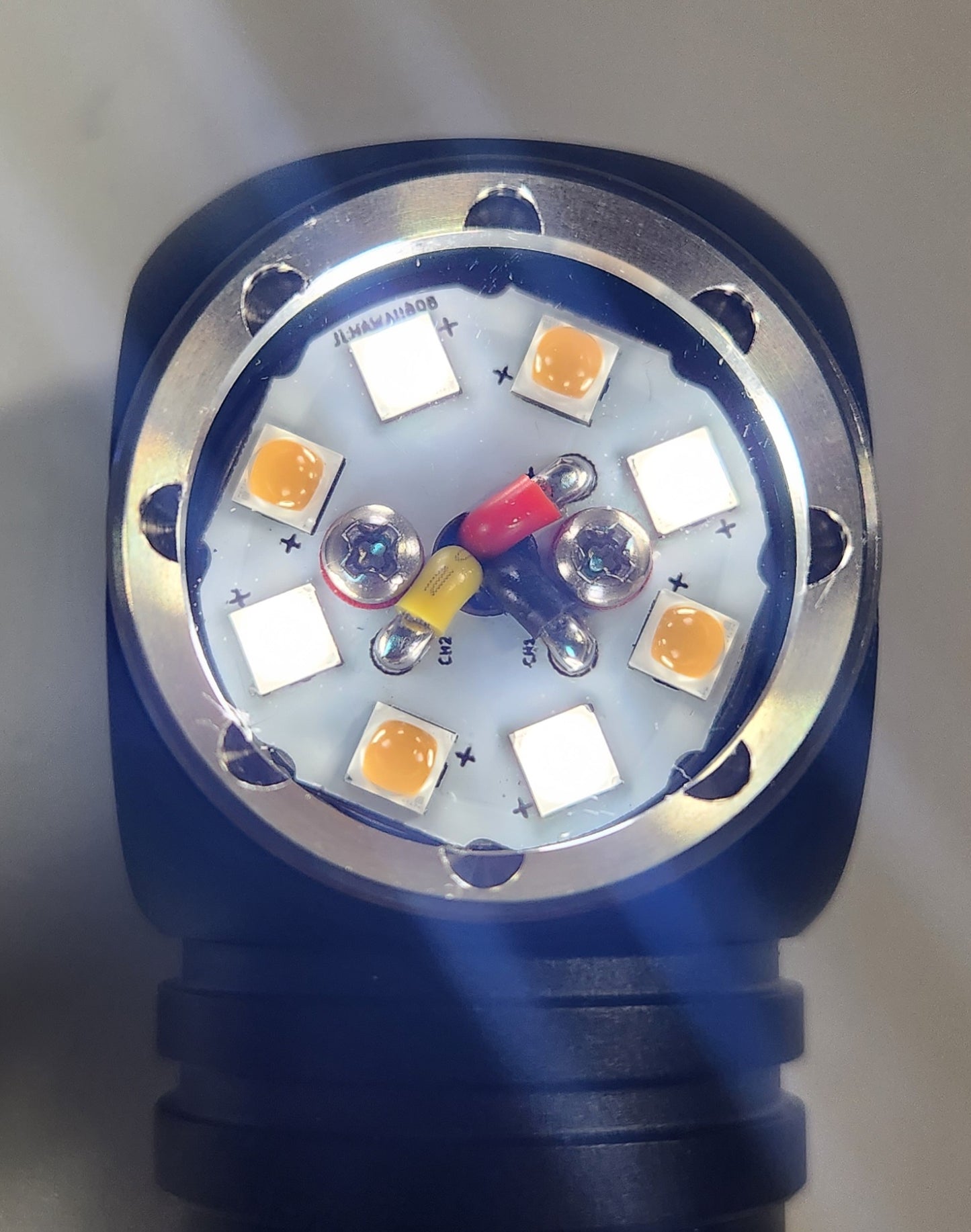

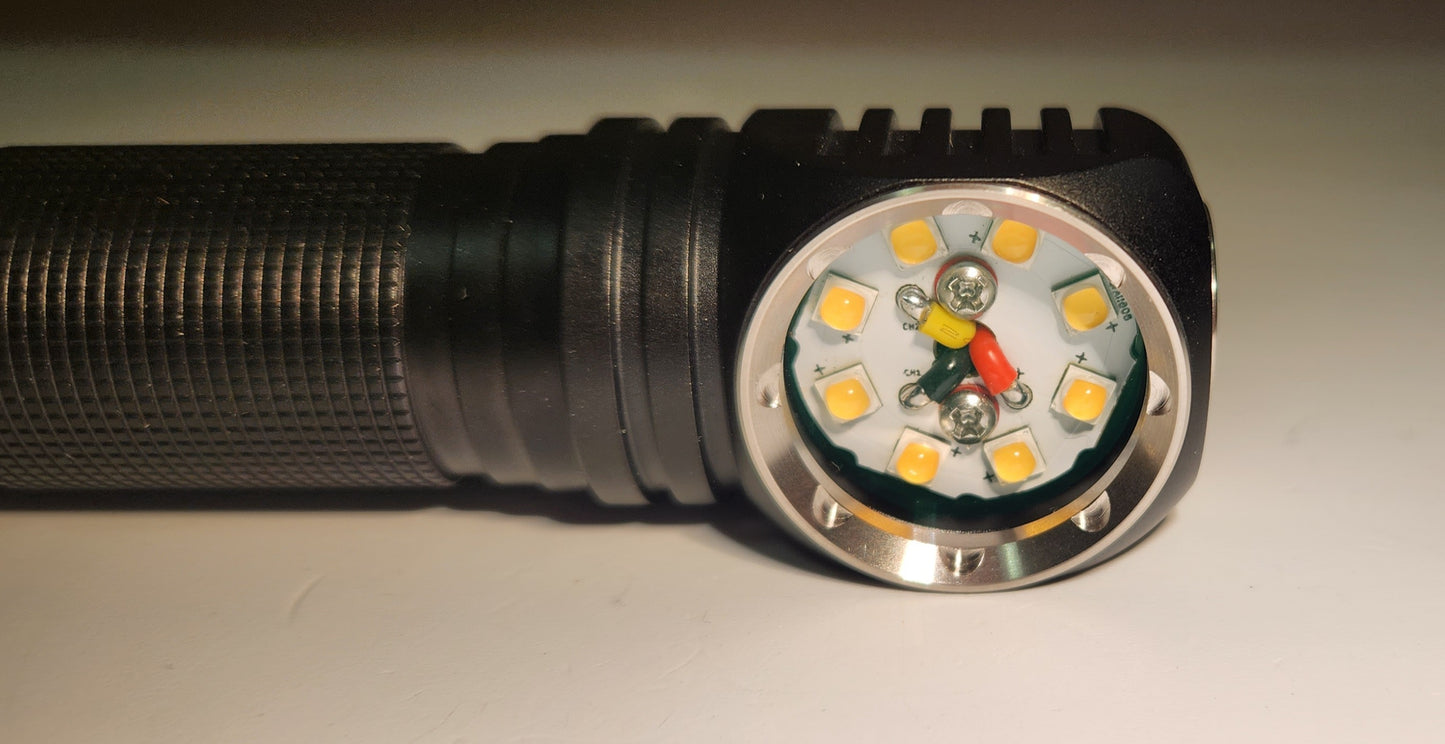

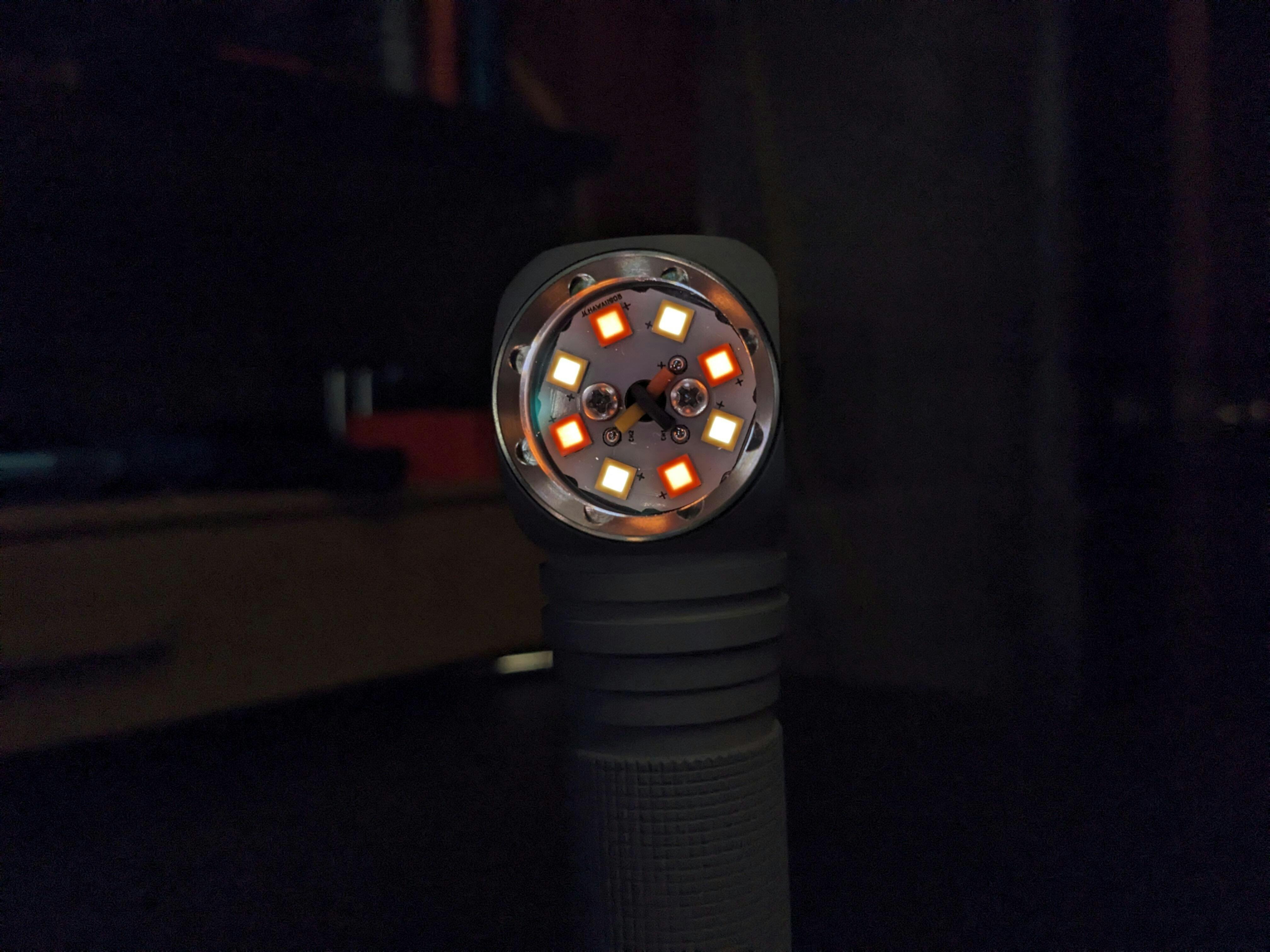

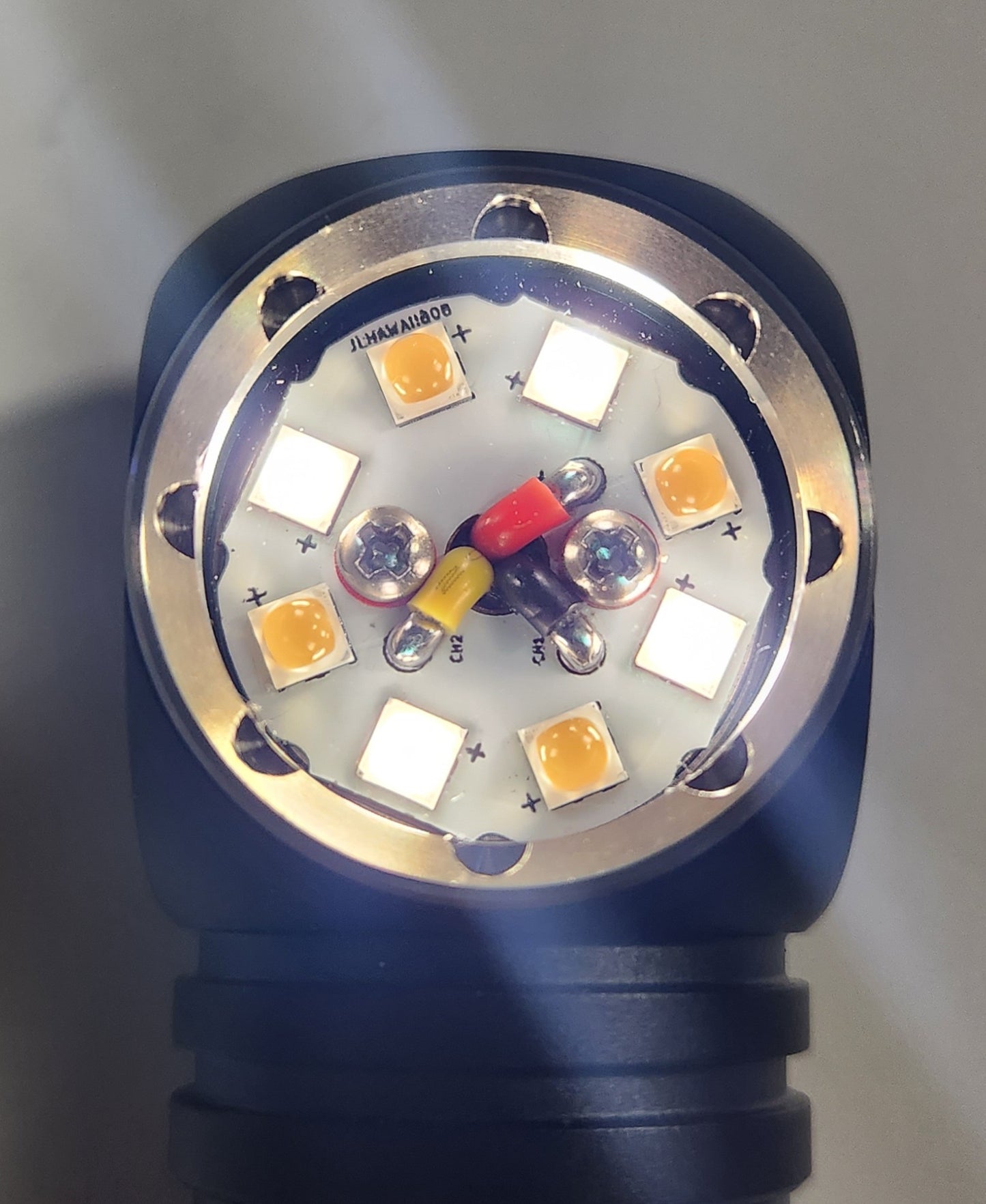

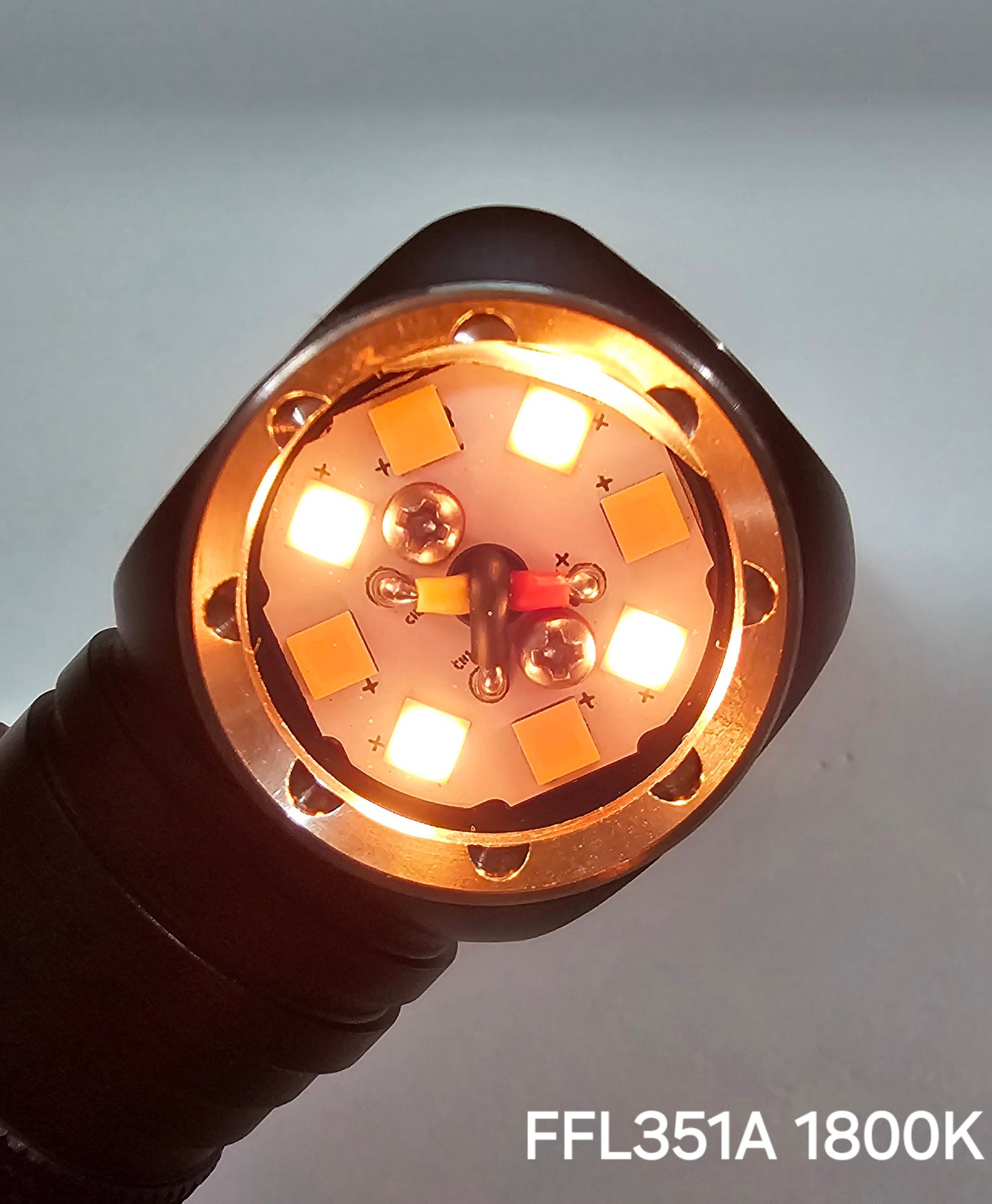

CH1: 4 X 3535 SMD

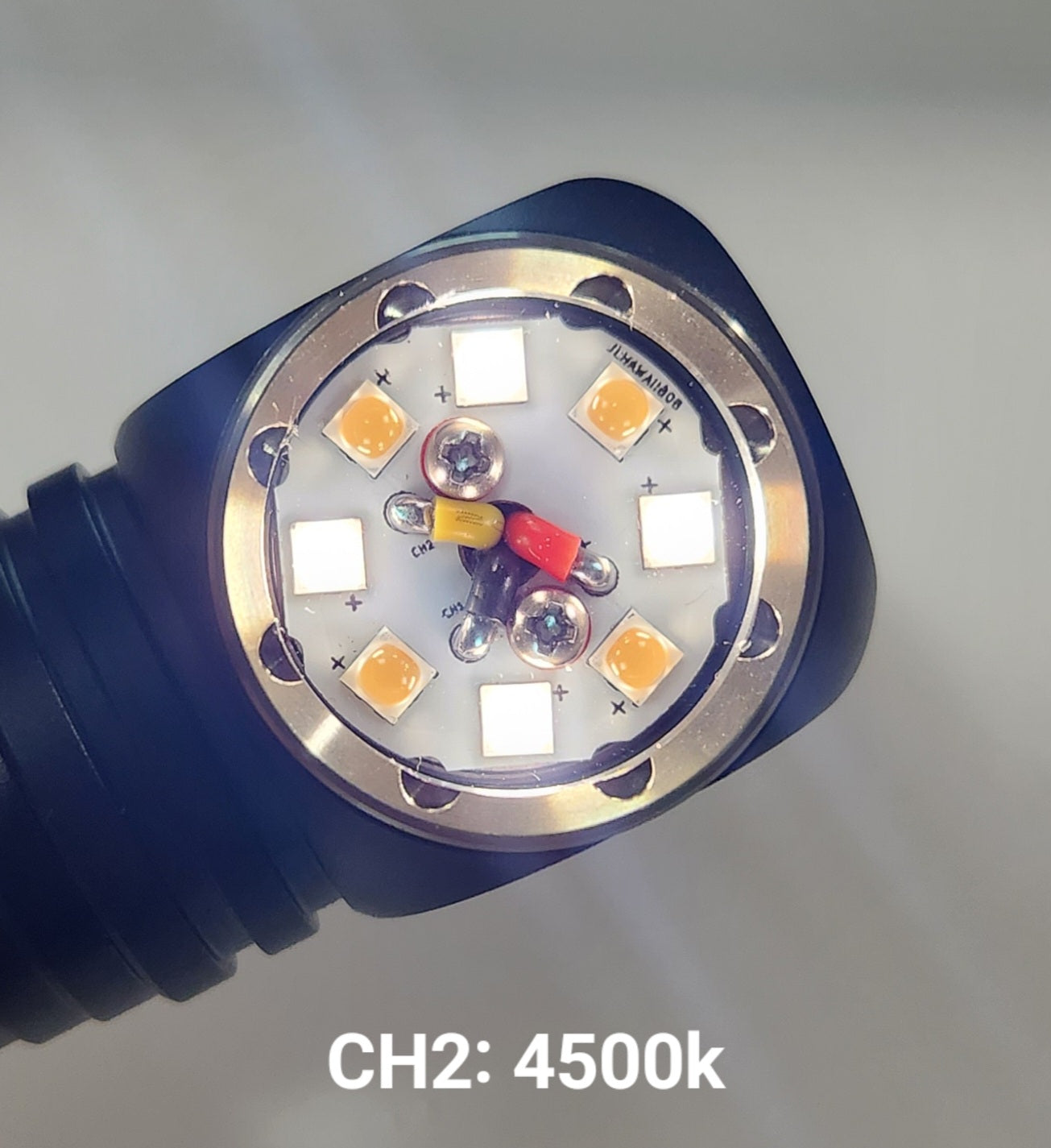

CH2: 4 X 3535 SMD

NOTE: 519A DEFAULT IS DOMED IF YOU PREFERED DE-DOME MESSAGE ME

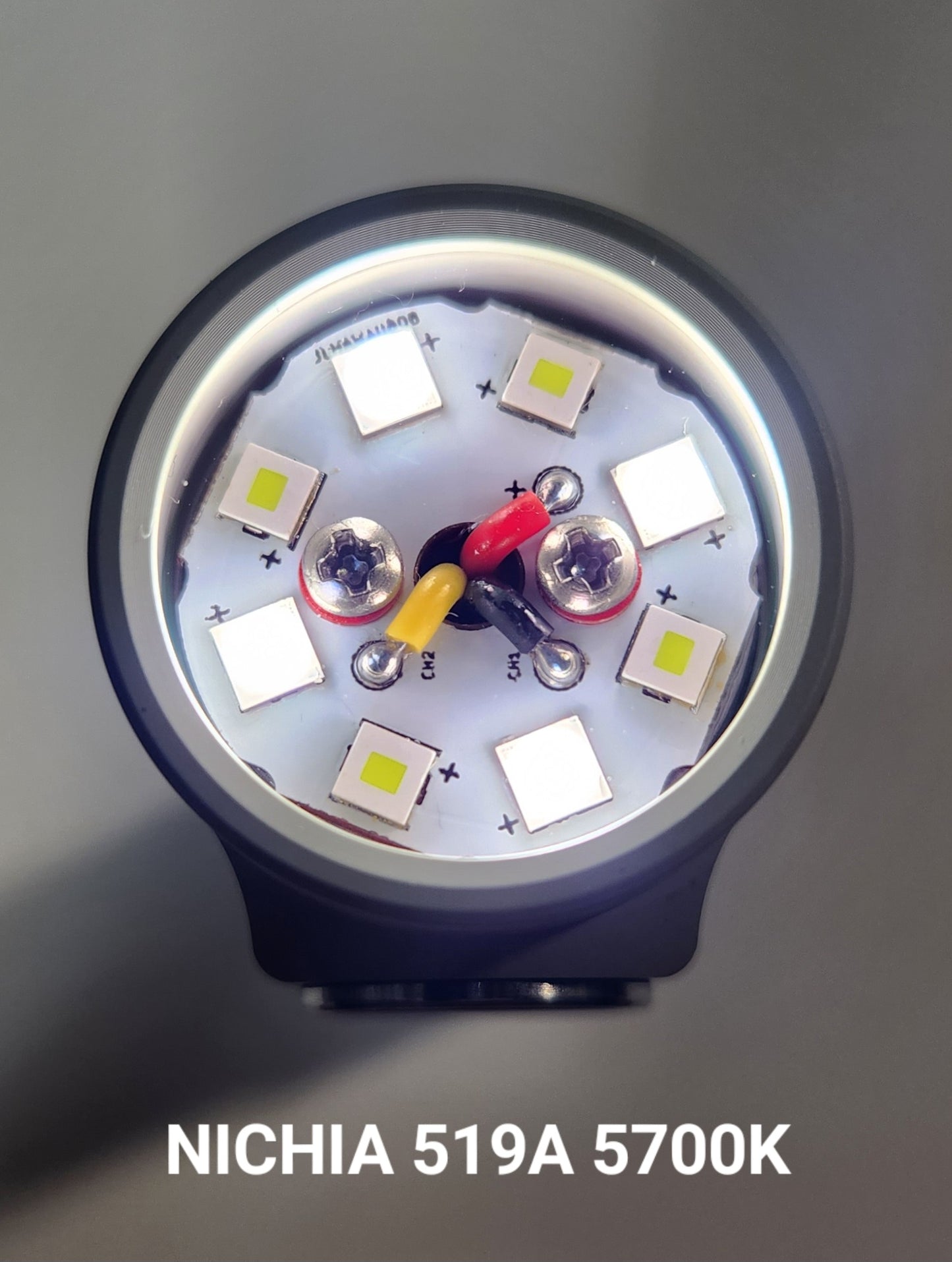

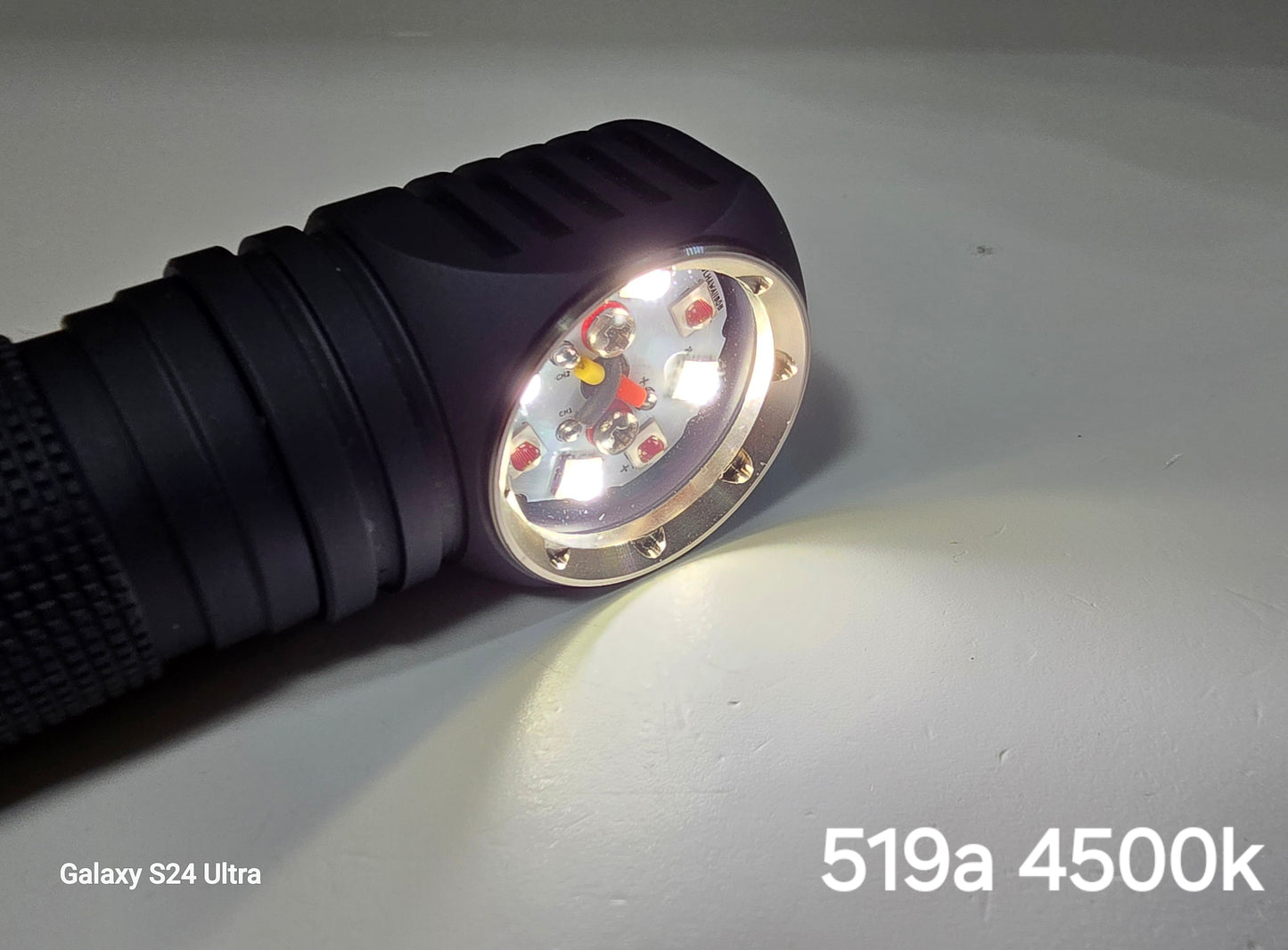

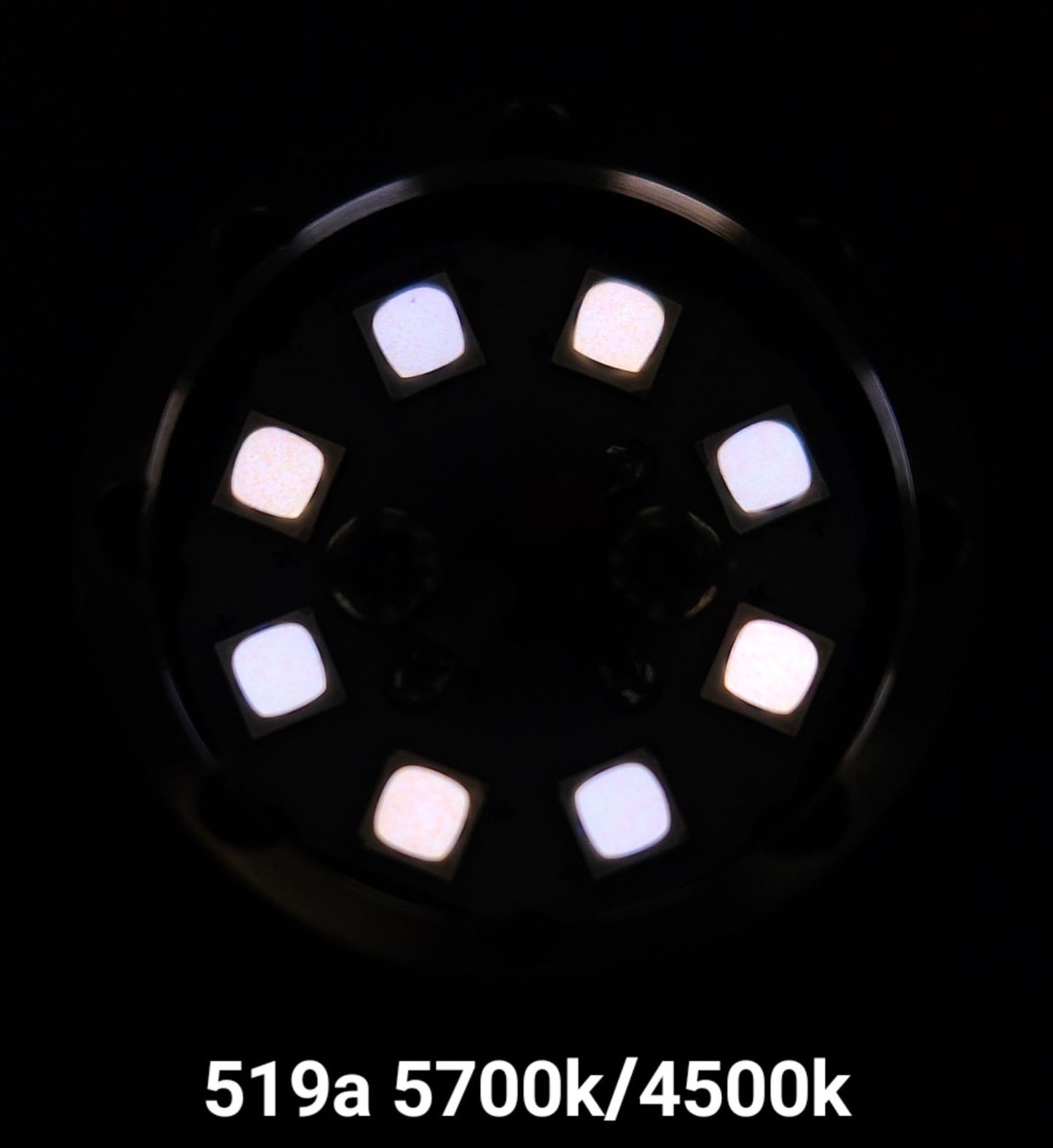

NICHIA 219B, 219C AND 519A

CREE XPL-HI 1A OR 3A

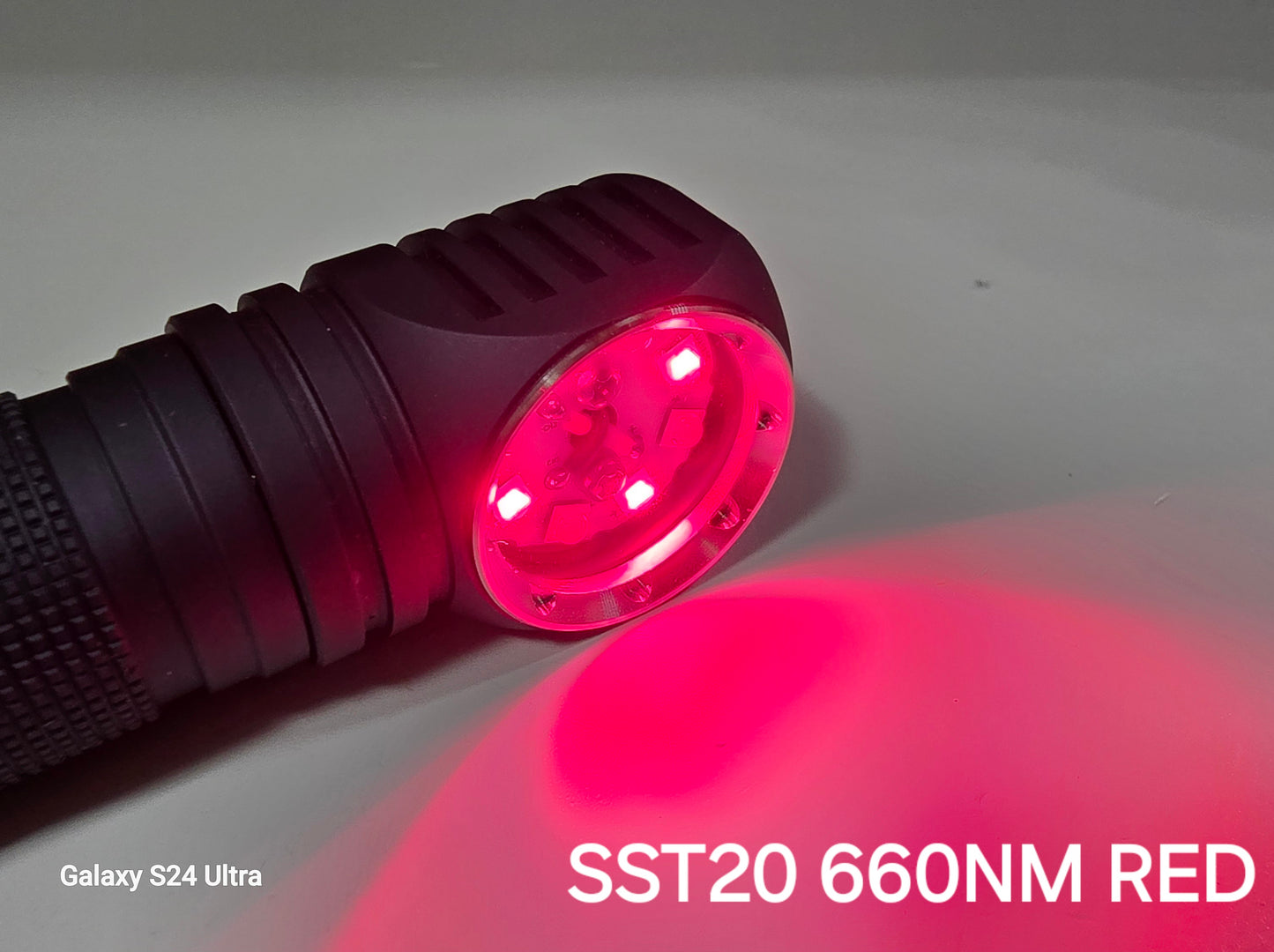

SST20 4000K FA3 OR FA4 BIN

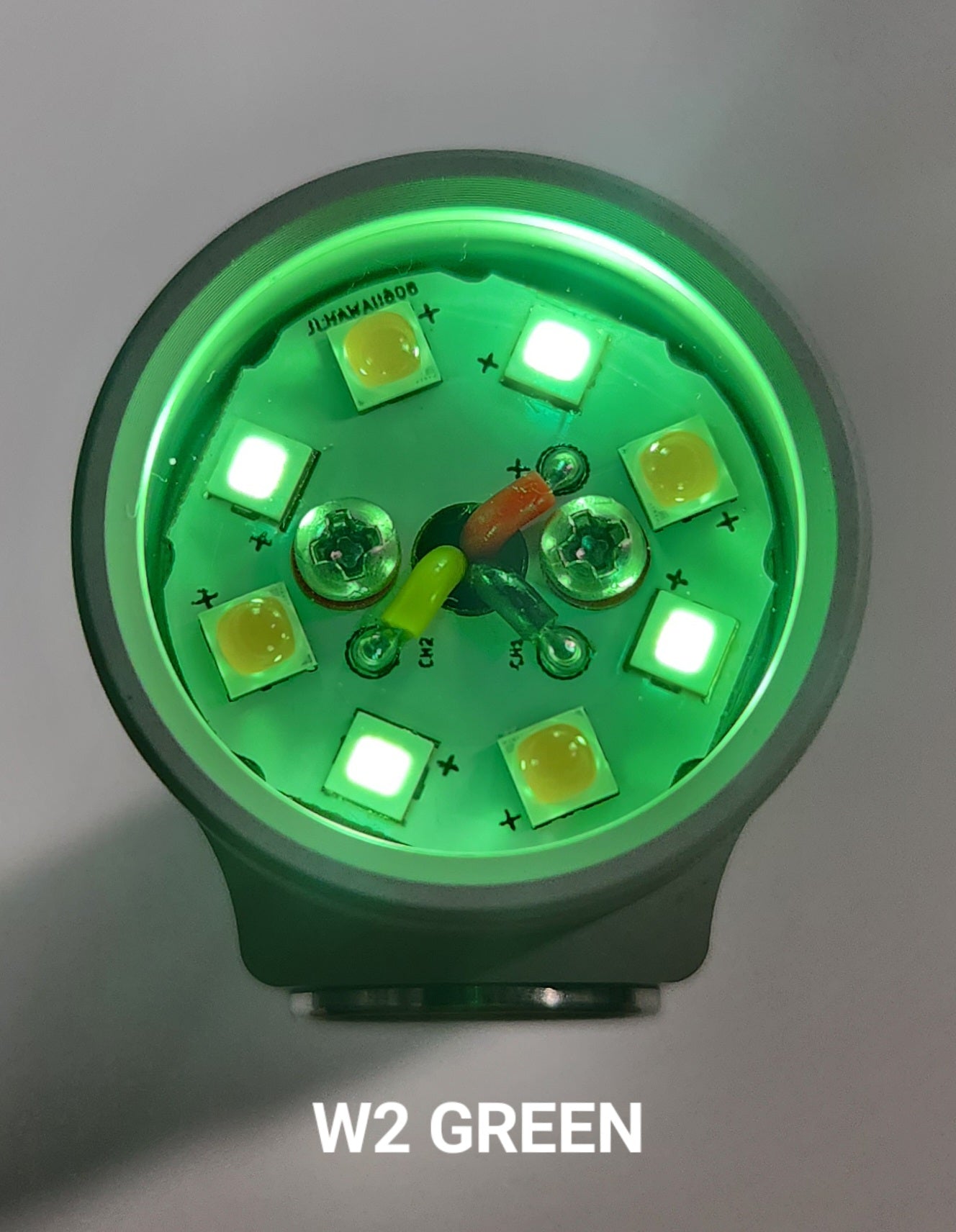

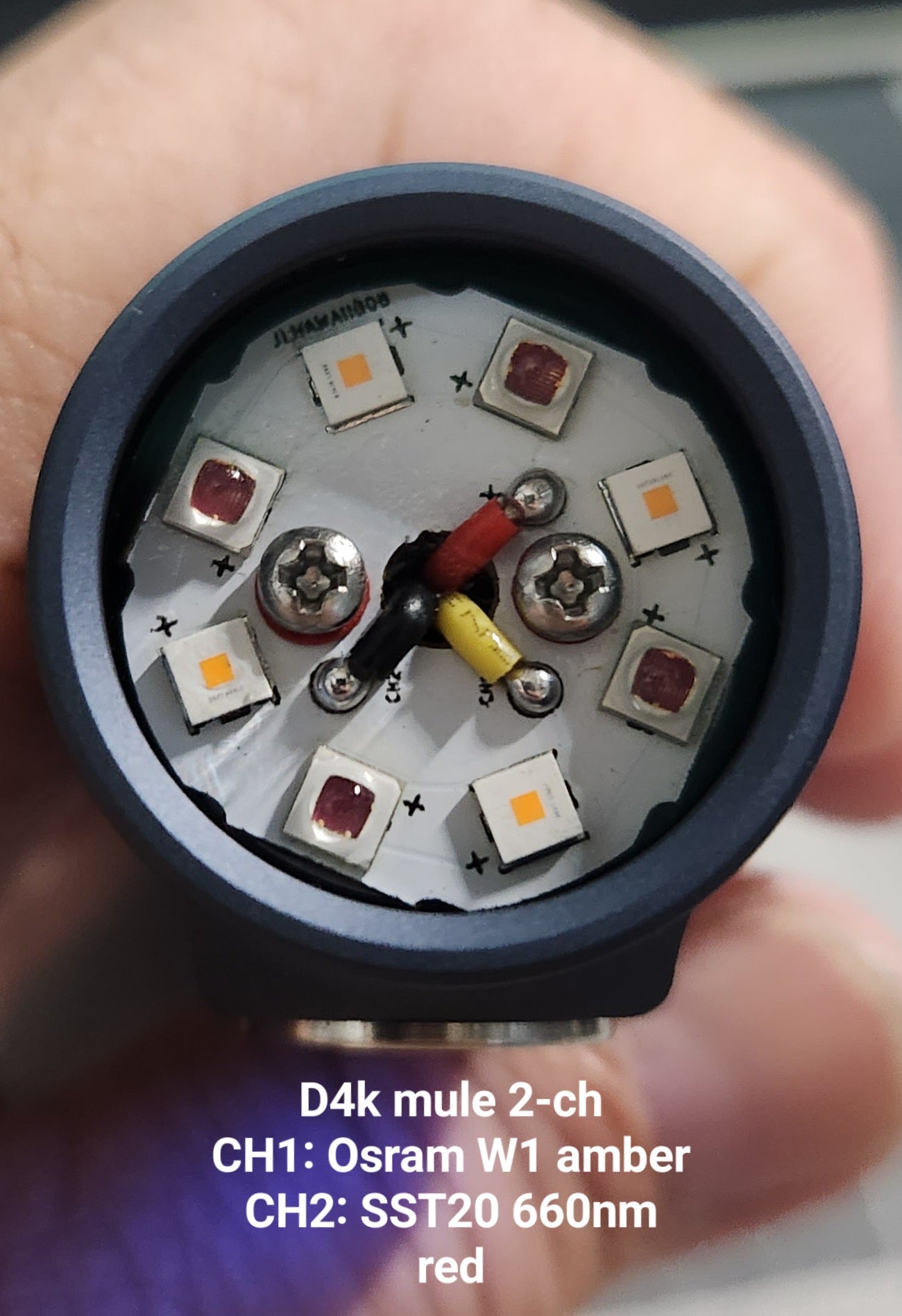

OSRAM W1/W1 WHITE OR COLORS

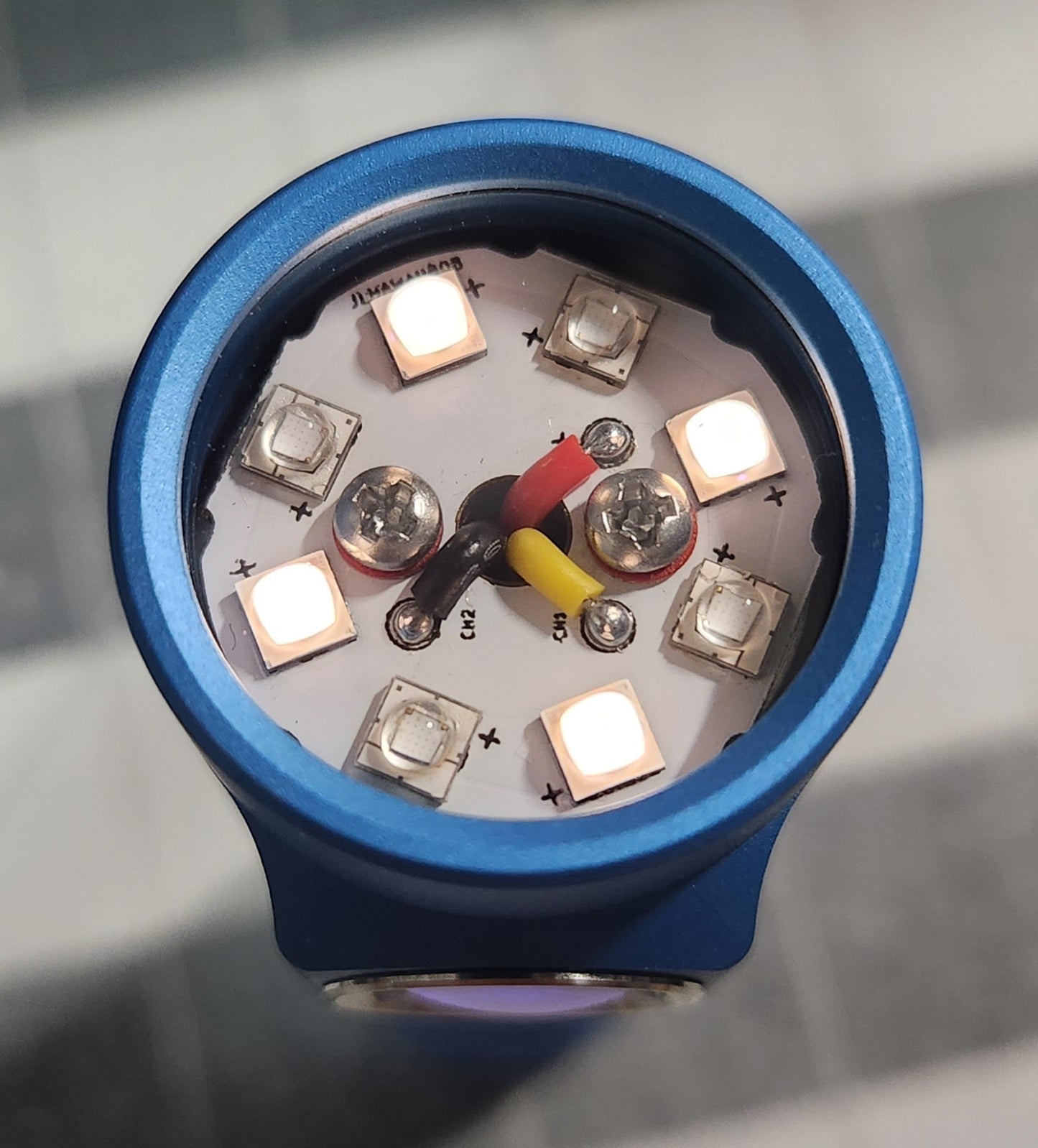

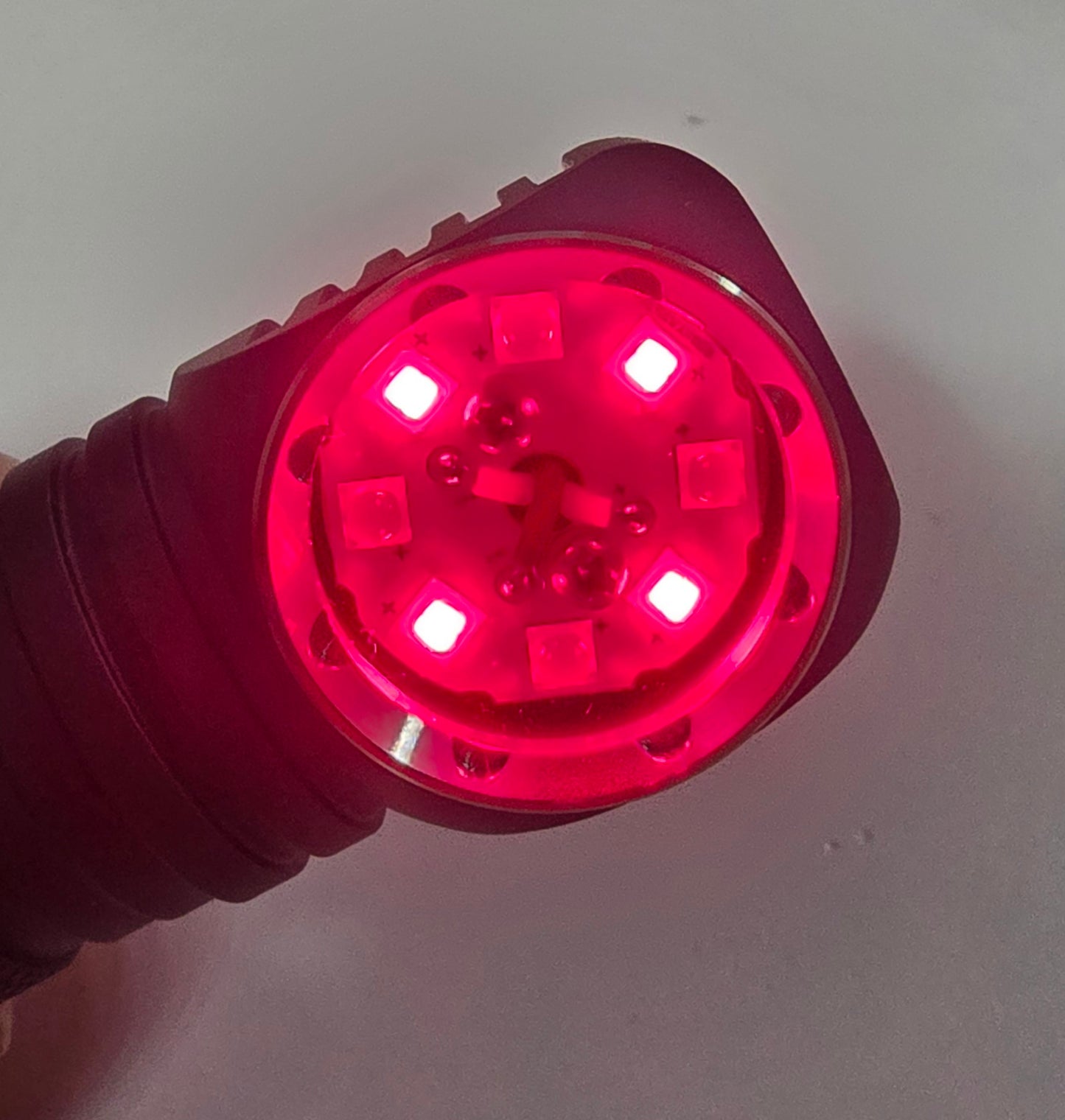

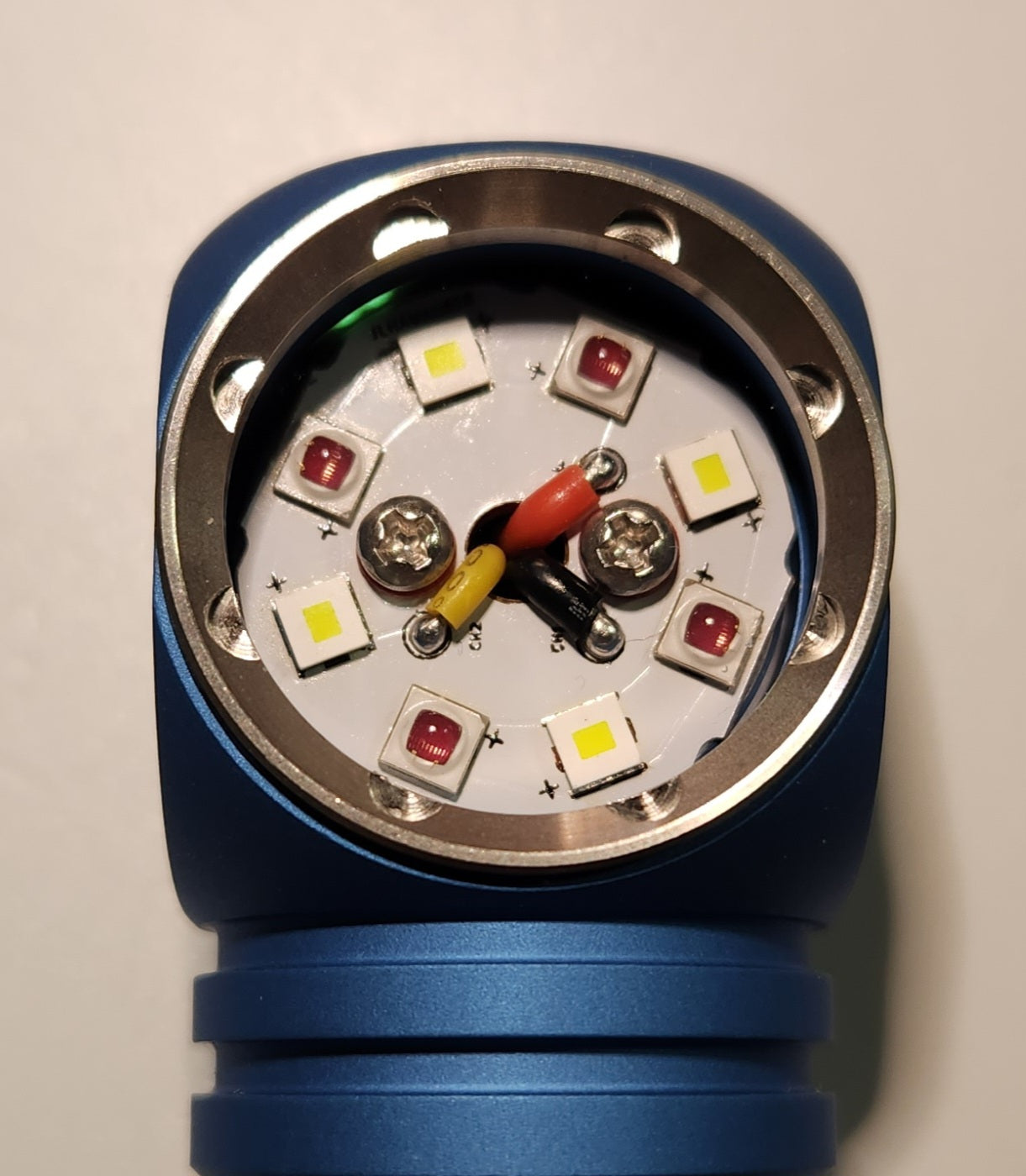

$20 OPTION FOR CH2 UV LEDS

OPTICS:

NO OPTICS STRICTLY FLOOD

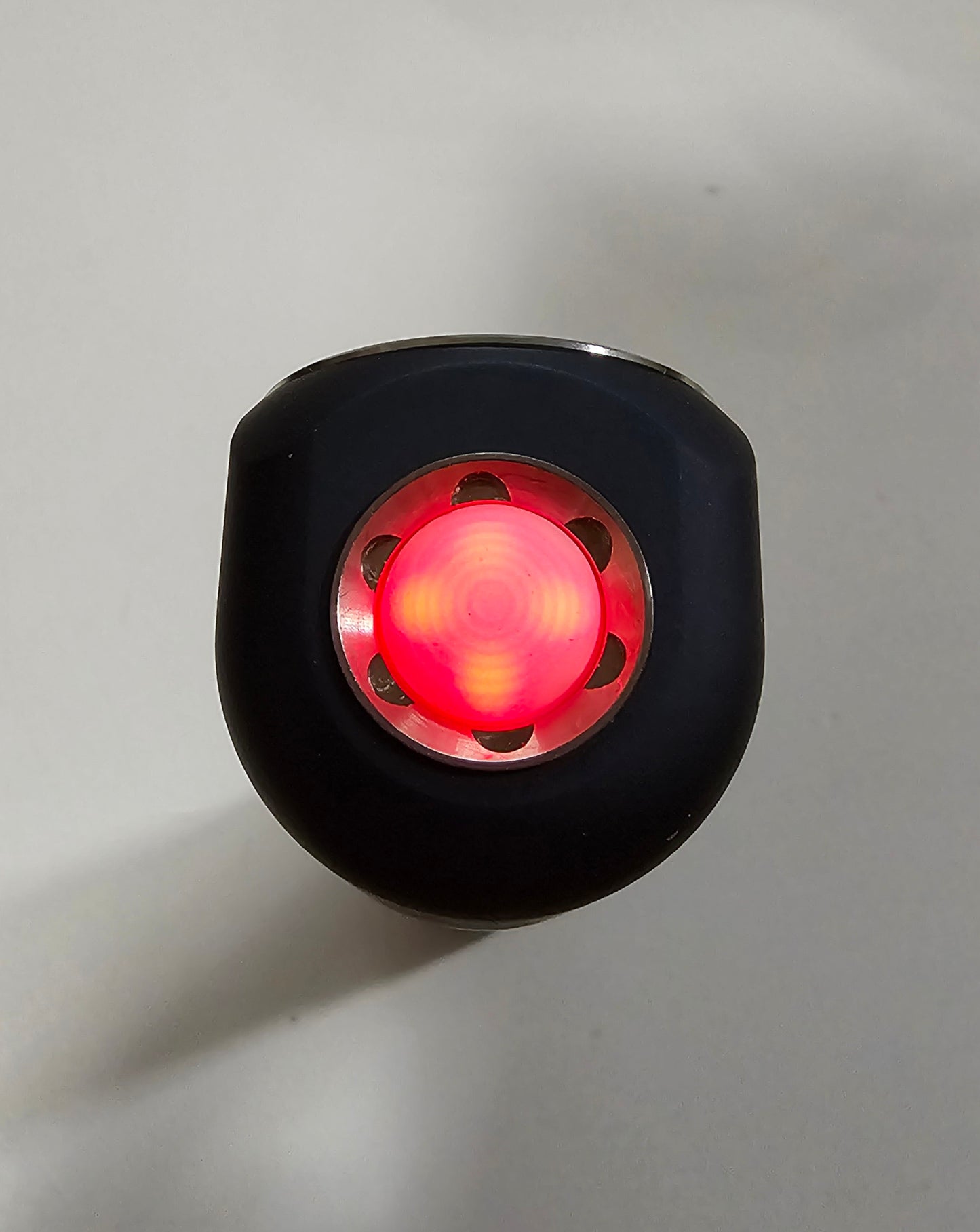

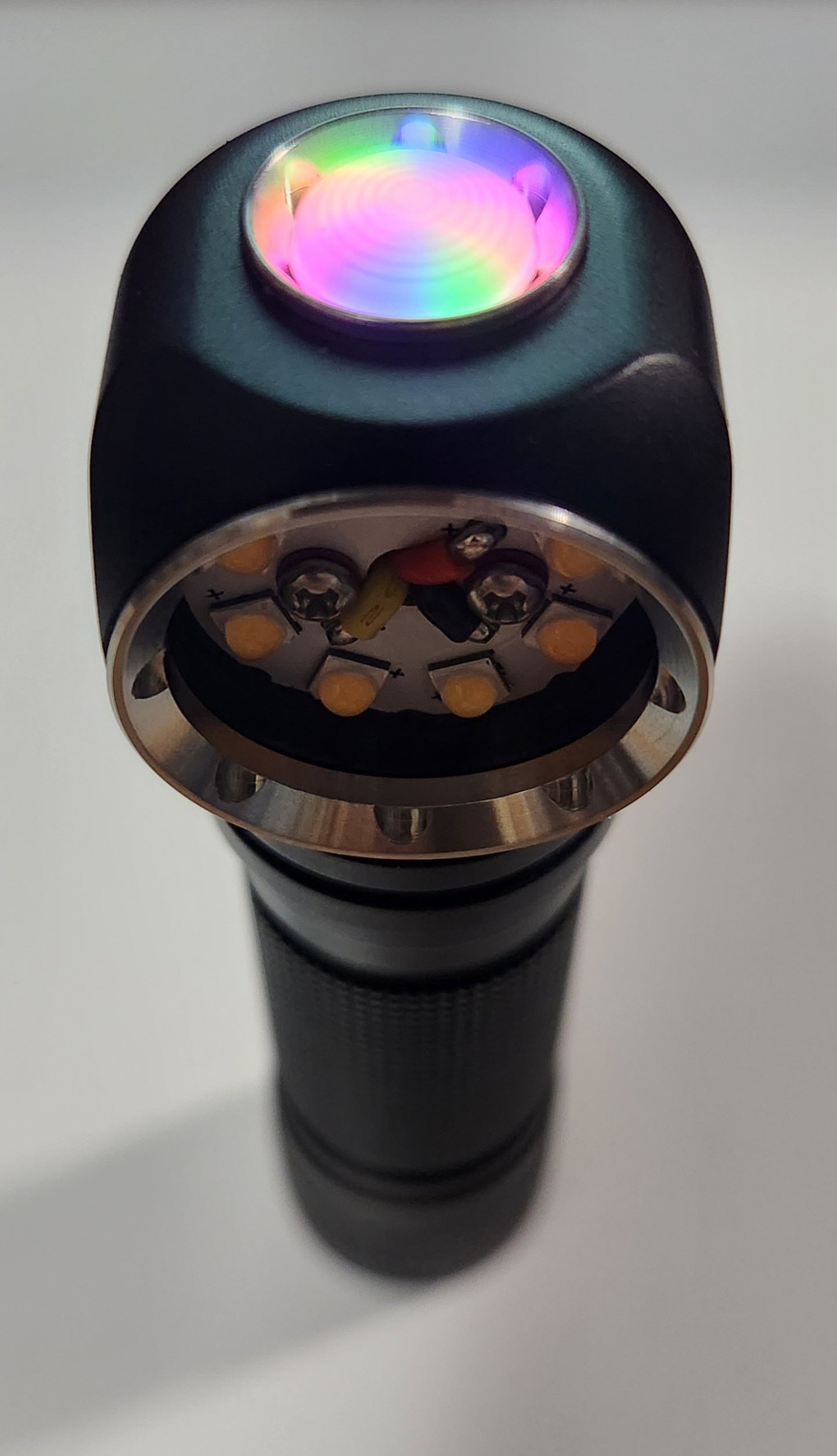

LIGHTED SWITH OPTION:

ALL COLORS & RGB

INCLUDED OPTIONS:

DEEP CARRY POCKET CLIP

MAGNETIC CAP OPTION

ANDURIL 2 PRINTED INSTRUCTIONS

OPTIONAL ACCESSORIES:

18650 BATTERY (NOT INCLUDED)

18350 SHORT TUBE

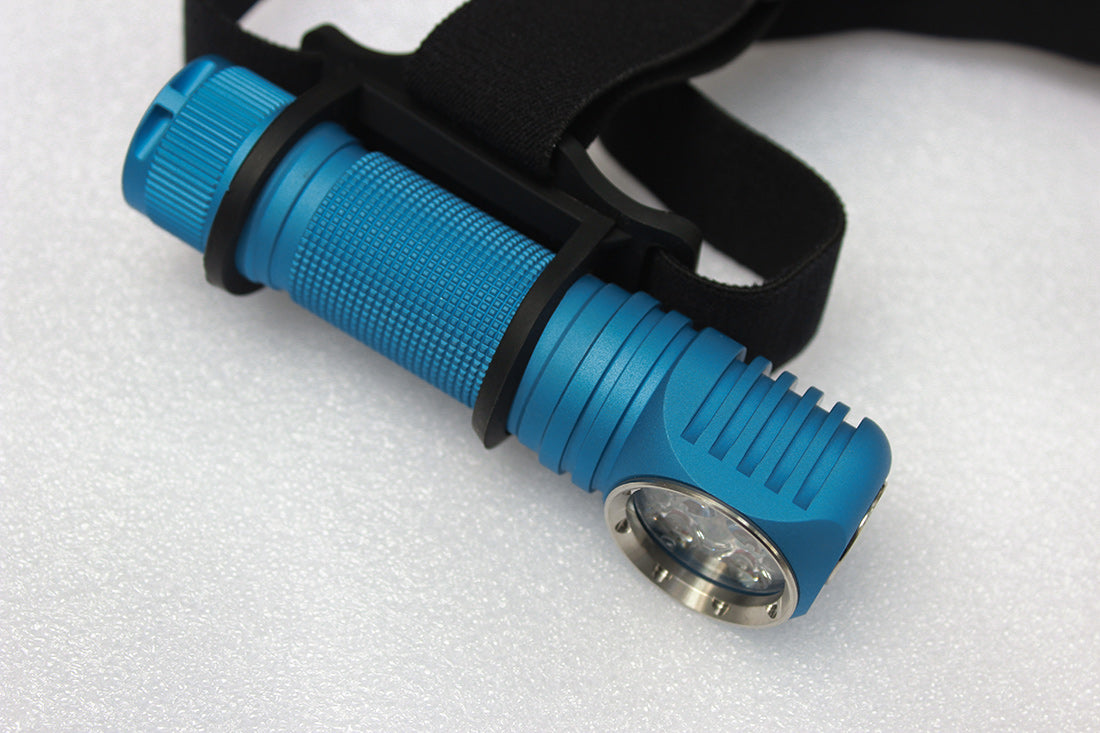

HEADLAMP STRAP

BATTERY:

18650 FLAT TOP UNPROTECTED CELL (NOT INCLUDED) MIN 15A (10A BOOST DRIVER)

Features:

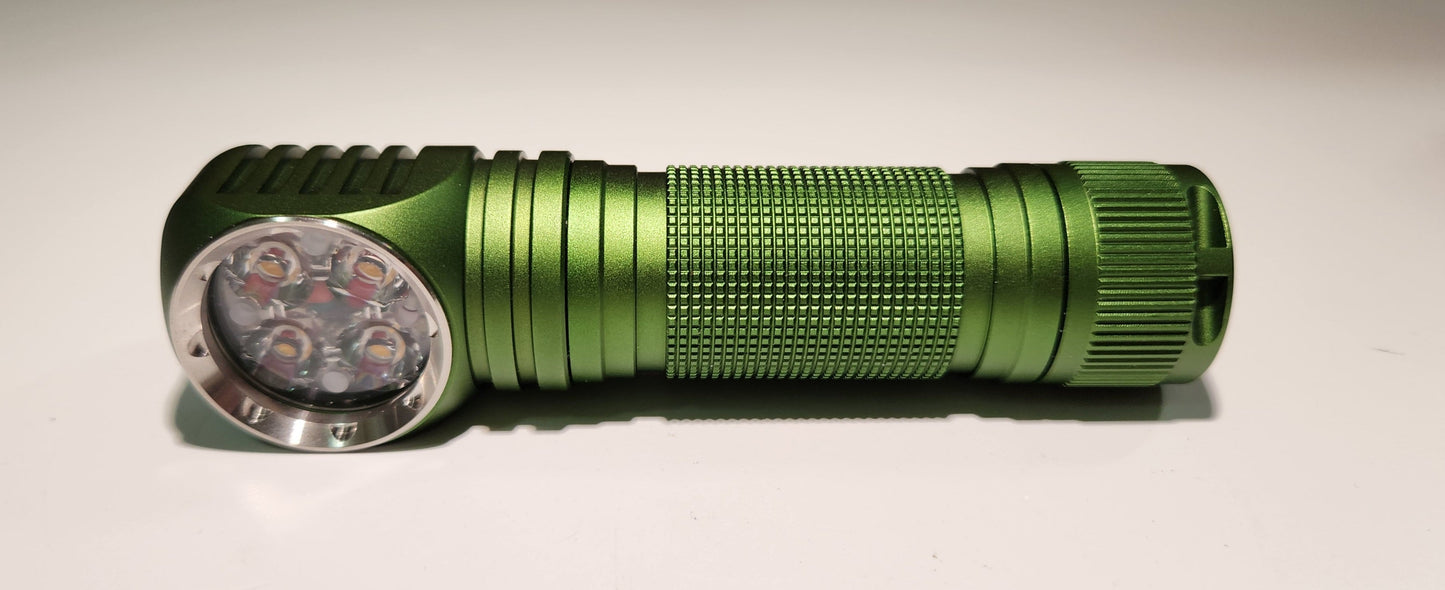

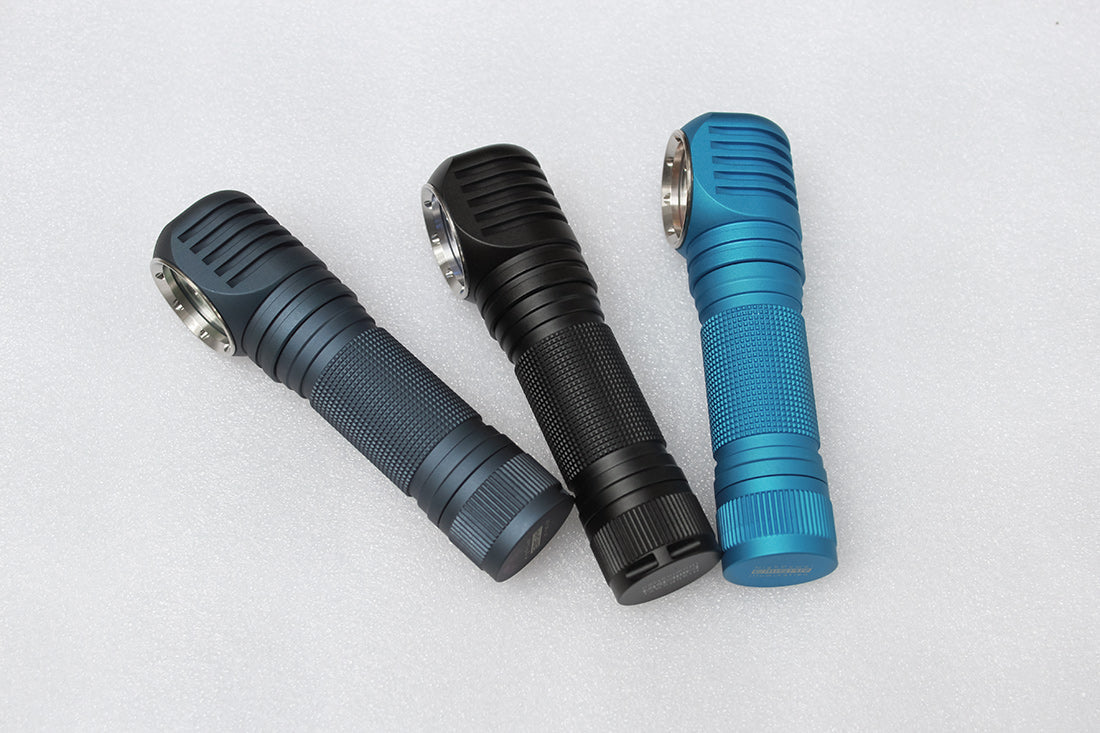

• CNC machined from aircraft-grade aluminum

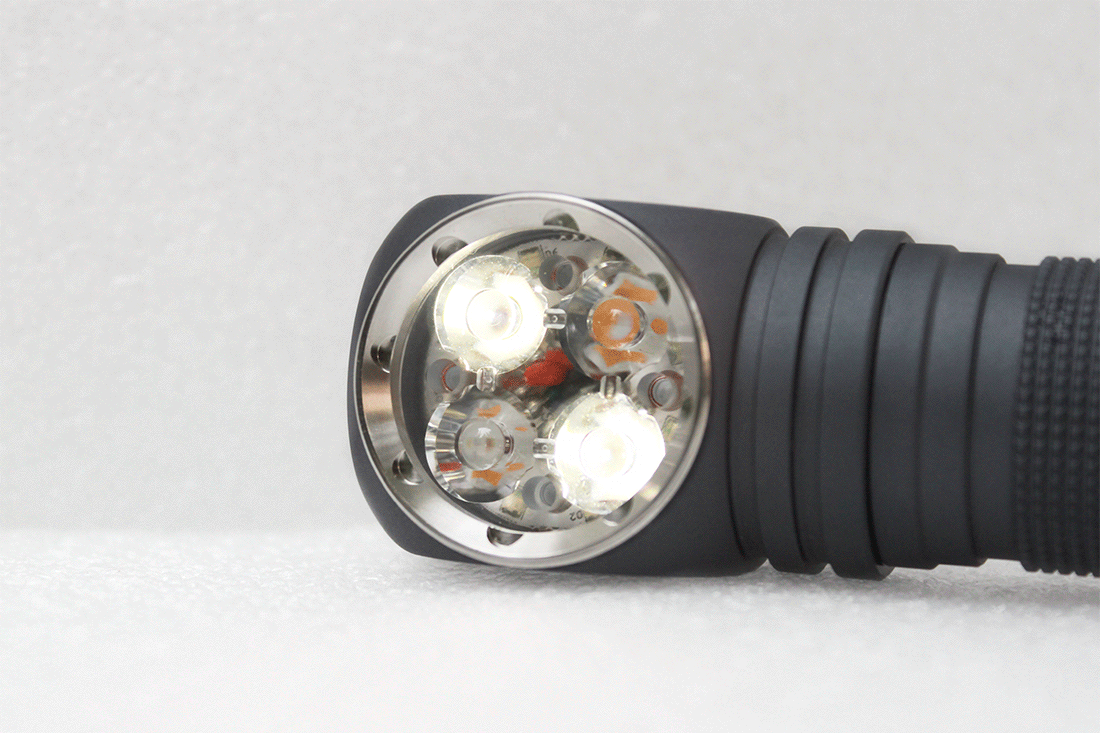

• Efficient UK made Carclo Quad LED optics (The E21A/E17A version use frosted optic, and the other version use clear optic)

• Unihead construction

• High lumen output and low moon output

• Ramping interface

• Electronic soft touch switch

• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.

• Temperature step-down

• Waterproof and dustproof to IP67 standard (up to 1 meter)

• Default 18650 body with optional 18500 or 18350 battery tube

• Weight: 128g

• Dimensions: 113mm(length) * 30mm(head) * 24mm(body)



OTF lumen output at start-up for the direct drive version

XP-L HI : 4300lm

SST-20 6500K: 4200lm

SST-20 5000K: 4200lm

SST-20 4000K/3000K 95CRI: 3000lm



This product uses free software distributed under the terms of the GPLv3.

Source code is available from http://tiny.cc/TKAnduril

The boost driver upgrade is available for the quad version of XP-L HI, SST-20(except SST-20 deep red), Osram W1/W2, Nichia 219B R9080 versions, each LED receives 2A current. The driver is not compatible with Nichia E21A, Nichia E17A, and mule versions of the flashlight.

Please be noted that the boost driver version will have less output on turbo than the regular version, it is a more efficient driver (90-95%) with longer running time and less heat.
