EMISAR D4V2 TITANIUM TINT 2-CH RAMP/CHANNEL SWITCHING
THIS IS CUSTOM "BUILT-TO-ORDER SO THIS WILL SHIP ACCORDINGLY!
The light works with flat top, unprotected battery only, button top or protected battery may damage the light

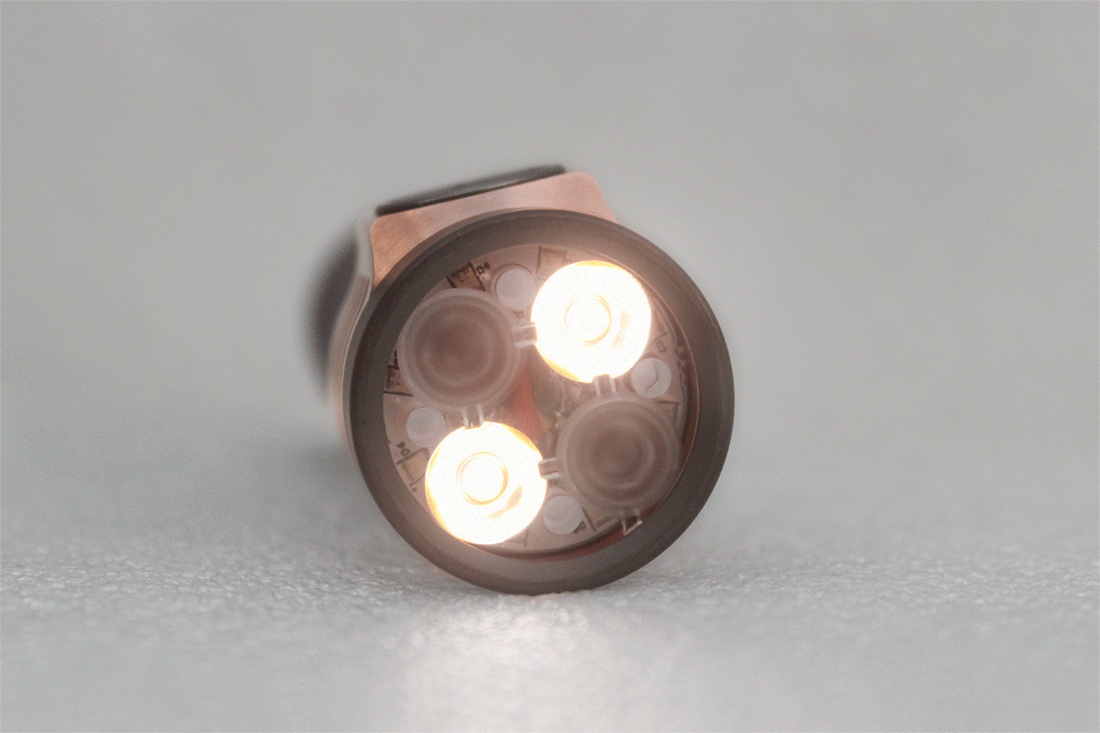

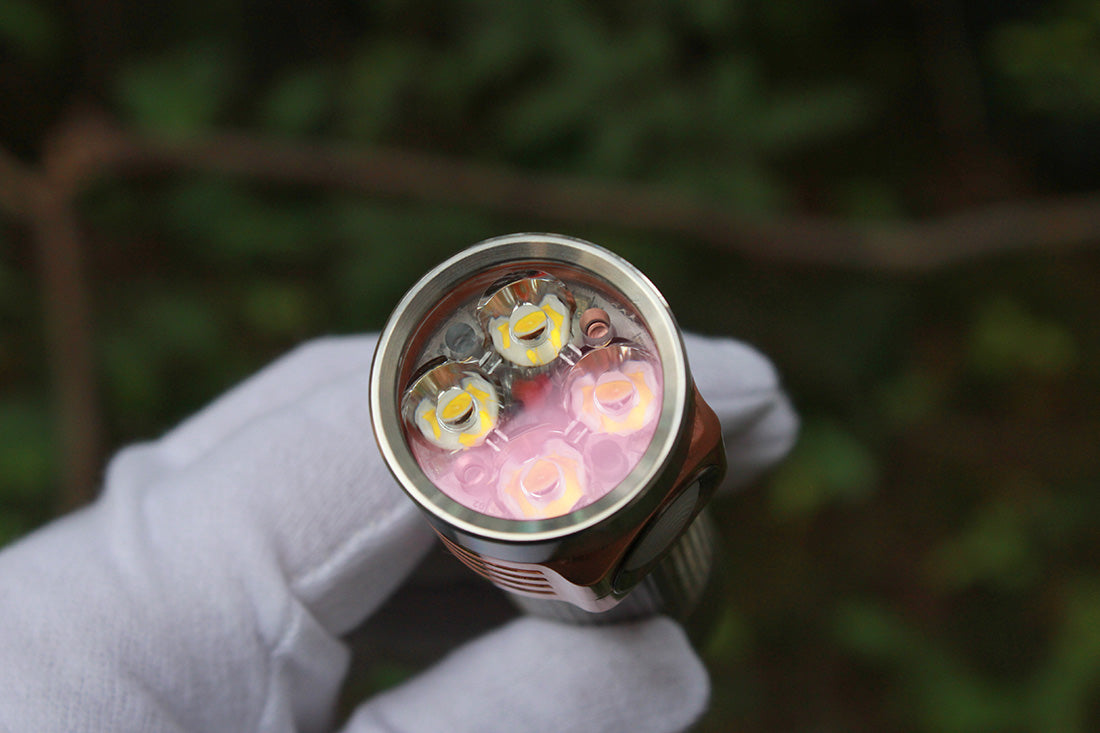

Anduril 2 firmware, user choose the tint ramping or instant channel switching (operation video for reference)
Advanced mode Off -> 9H, first menu item:
0C: tint-ramping (smooth)
1C: instant channel switching
Warning: Output will be dependent on cell model (Inc. Age) and temperature.
Emisar D4V2 Ti puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing.
High drain, flat top, unprotected battery required. (Not included in the price)
NEW! ZHU HYBIRD MULE OPTICS >>> ZHU Hybrid Mule Optic – JLHawaii808
Features:

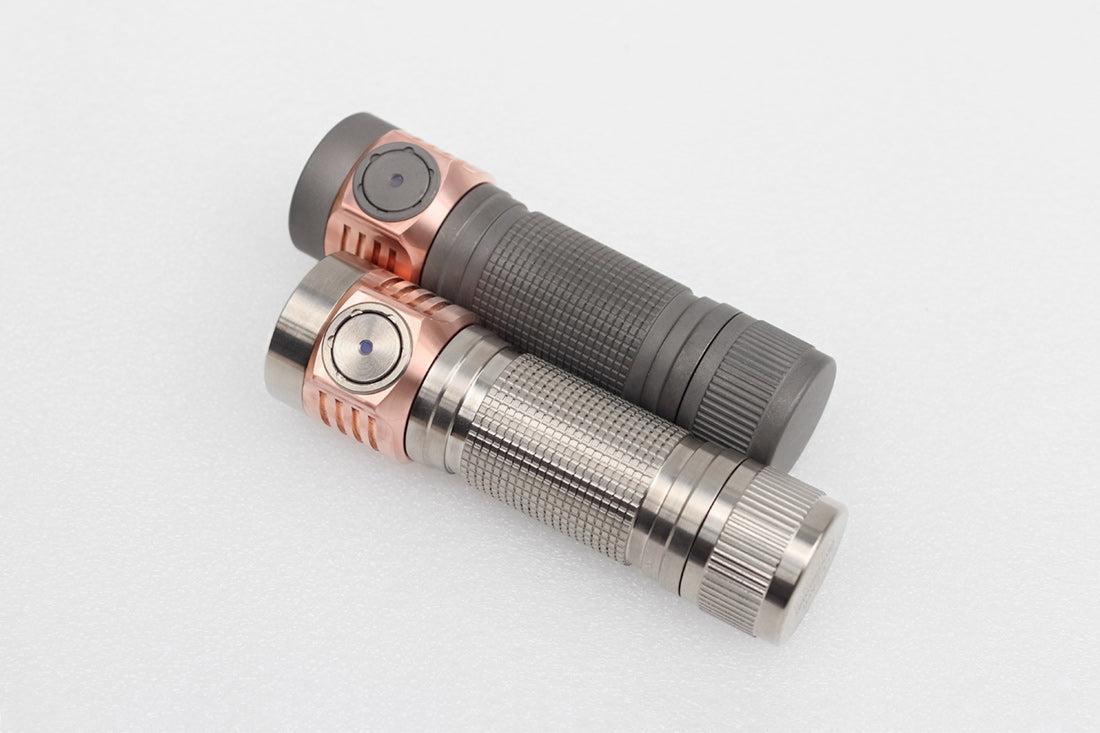

• CNC machined from Titanium and Copper.

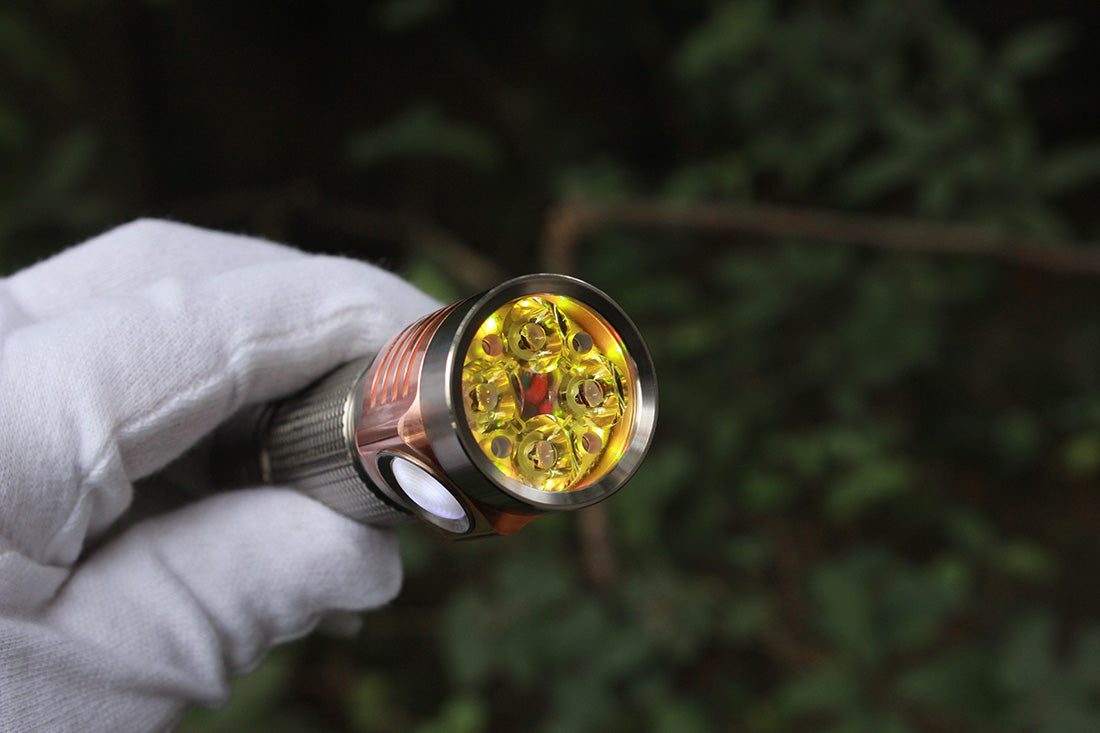

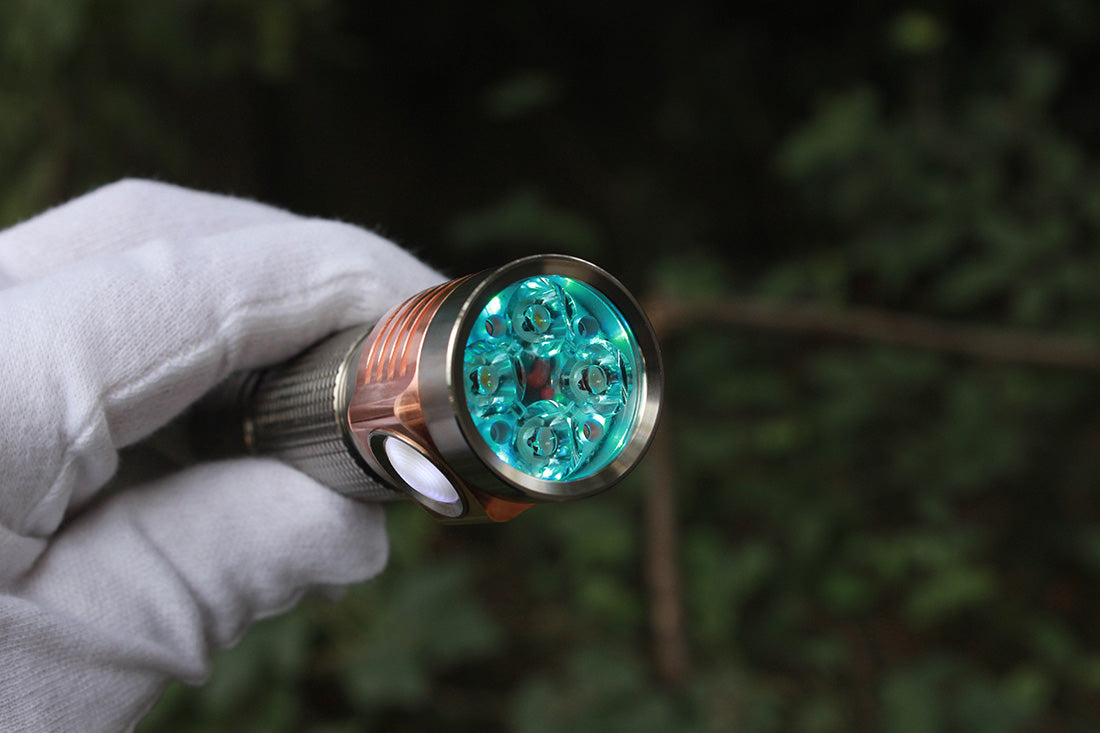

• Efficient UK made Carclo Quad LED optics
• Anti-reflective coated glass lens
• Unihead construction
• High lumen output and low moon output
• Ramping interface

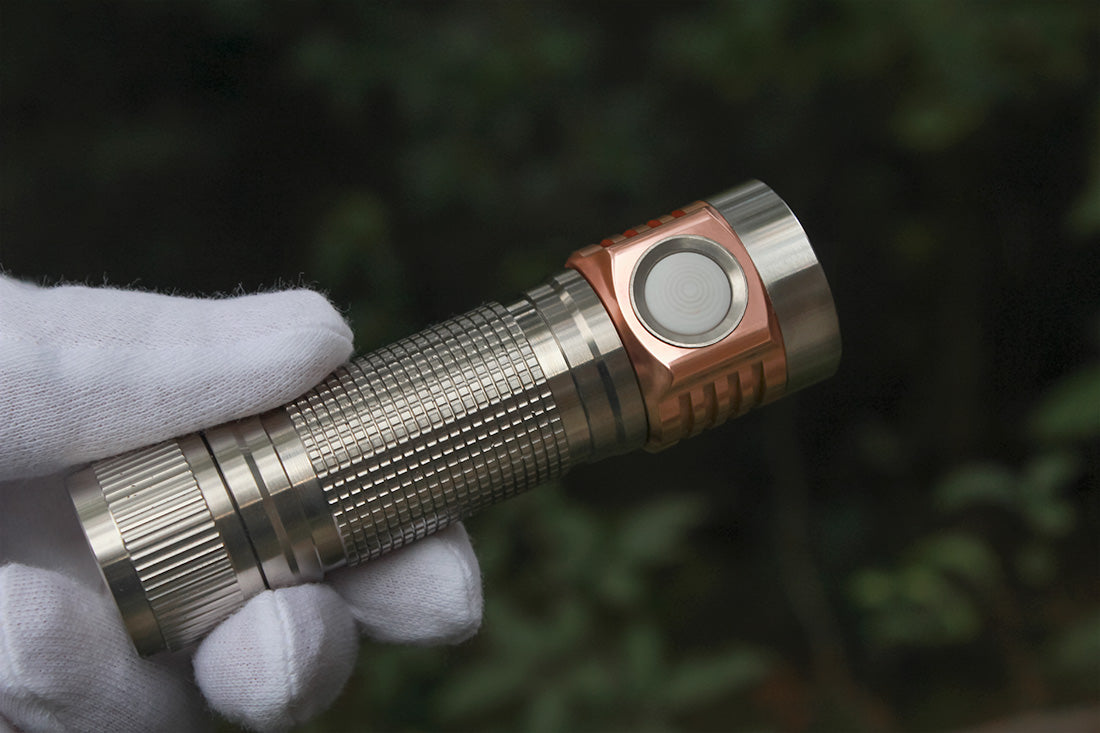

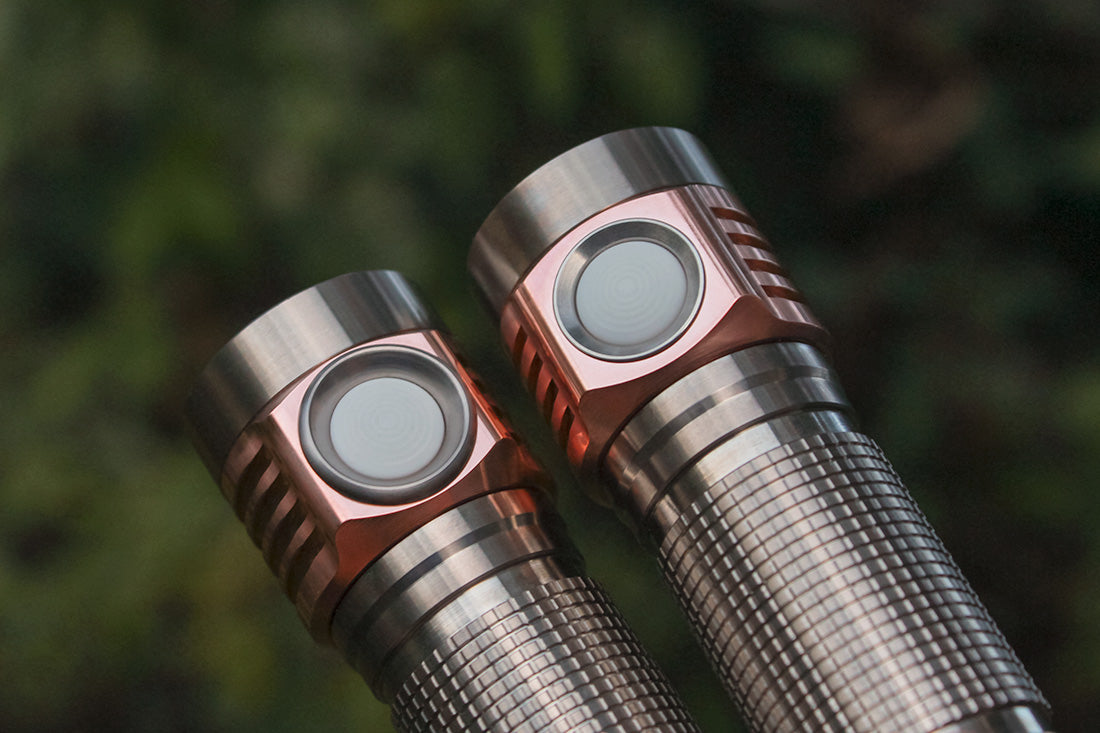

• Electronic soft touch switch
• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.
• Temperature step-down
• Waterproof and dustproof to IP67 standard (up to 1 meter)

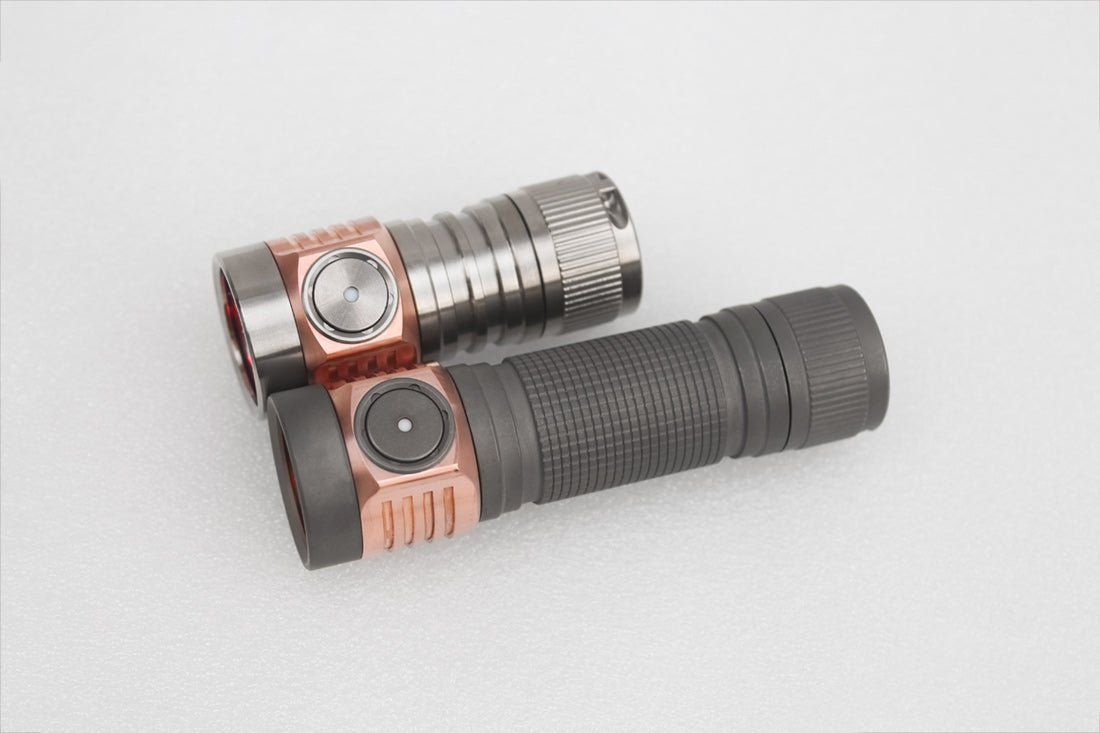

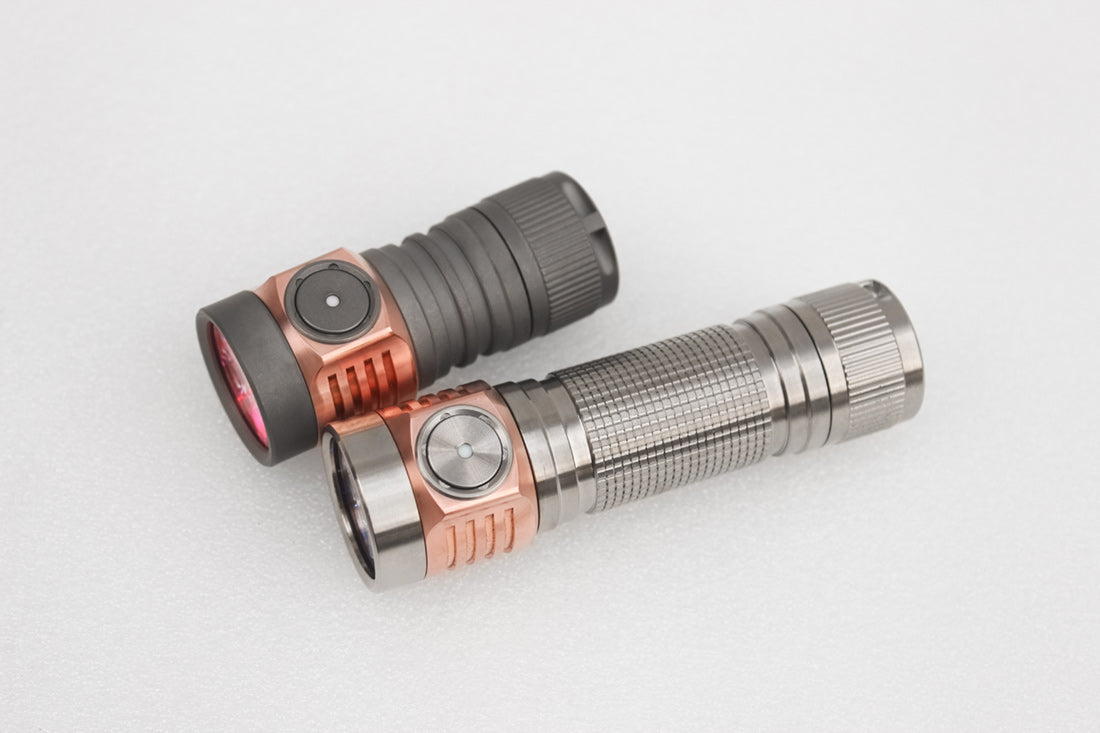

• Default 18650 body with optional 18350 battery tube
• Dimensions: 96mm(length) * 28mm(head) * 24mm(body), 65mm (lenght 18350)
USER INTERFACE:
ANDURIL 2 UI
NEW! 2-CH FIRMWARE AVAILABLE
DRIVER:

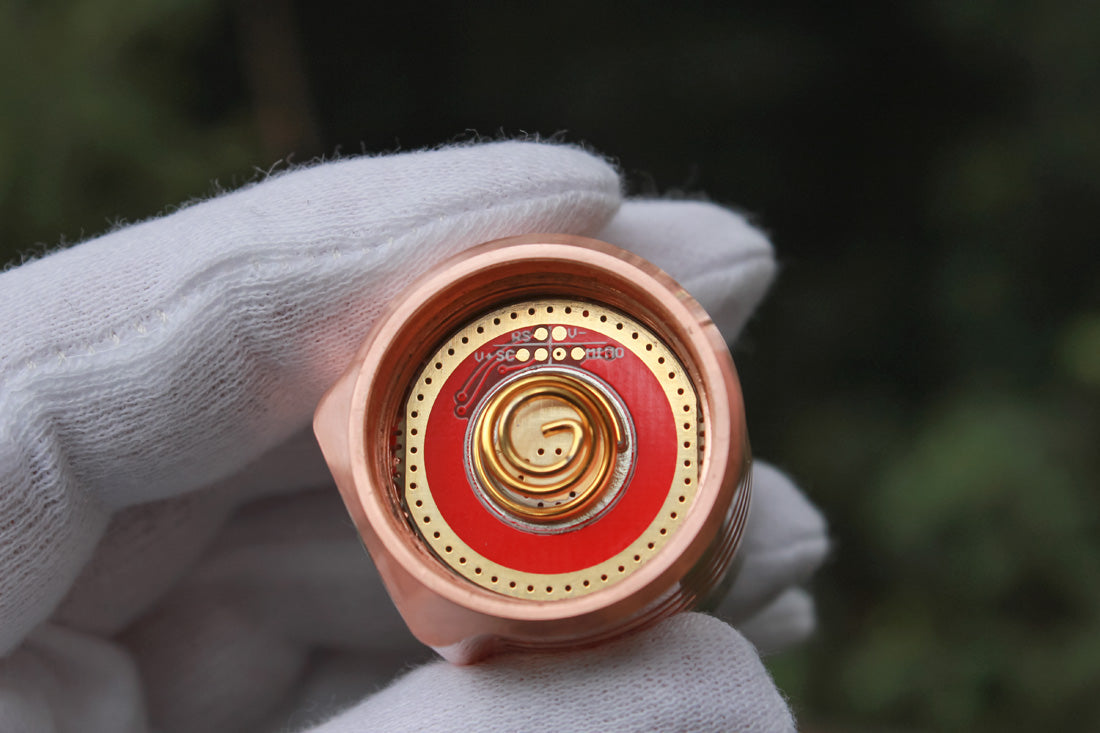

DUAL 9A TINT RAMP/CHANNEL SWITCHING DRIVER
EMITTER OPTION:
OPTICS:
CARCLO 10622 (STANDARD)
CARCLO 10621 (RECCOMENDED WITH OSRAM EMITTERS)
CARCLO 10623 (FLOODY)
BODY FINISH:

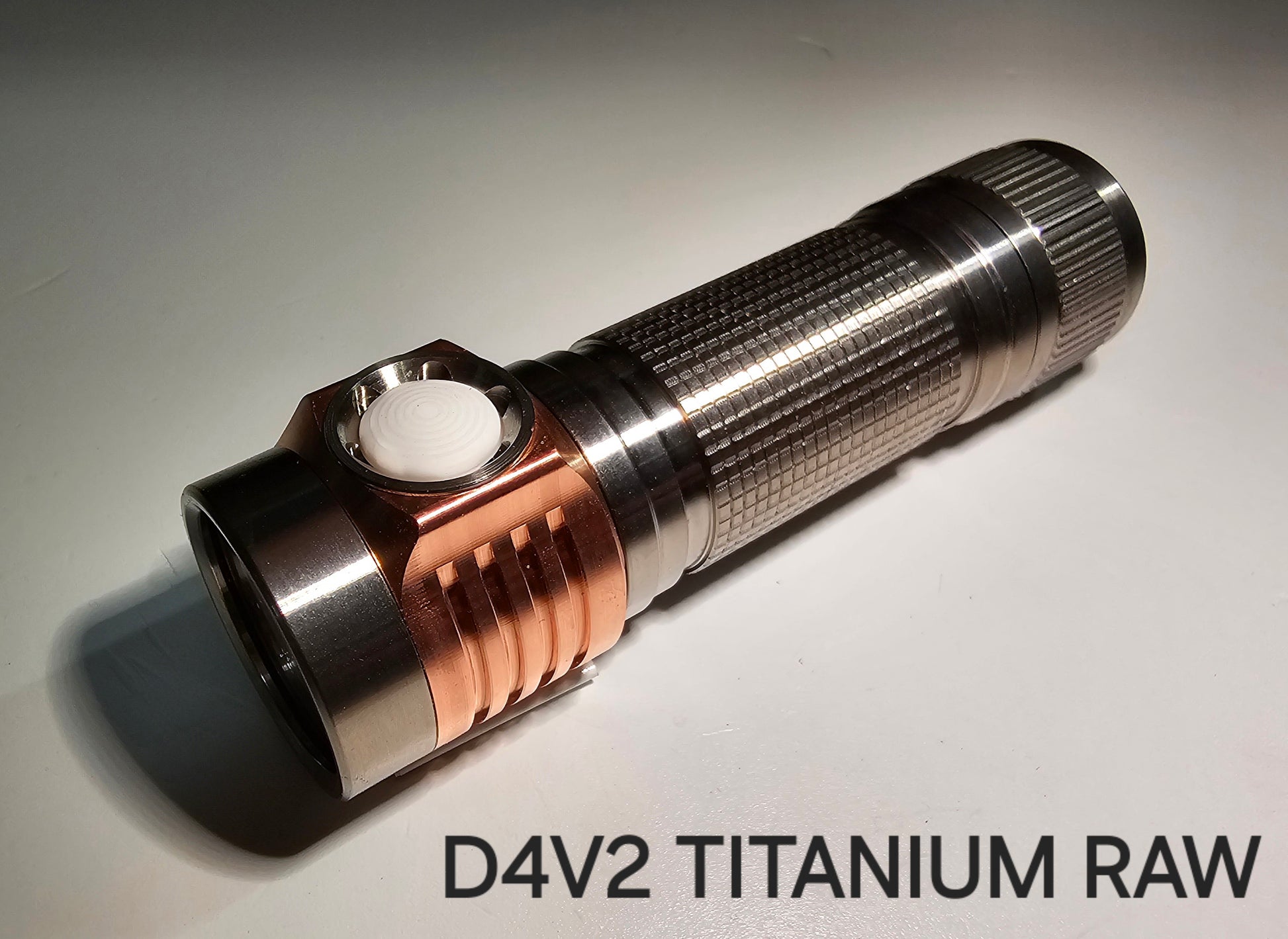

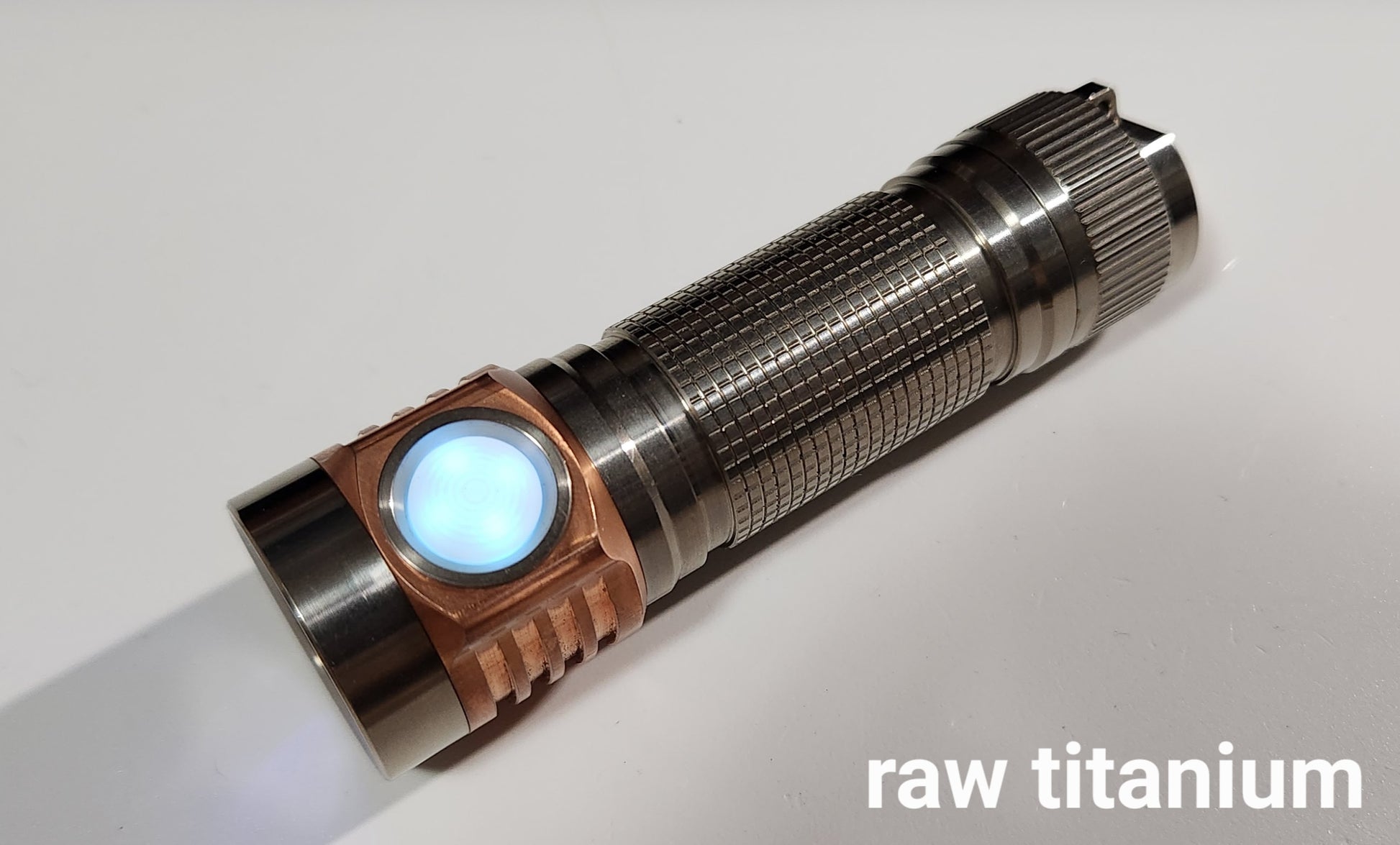

RAW TITANIUM

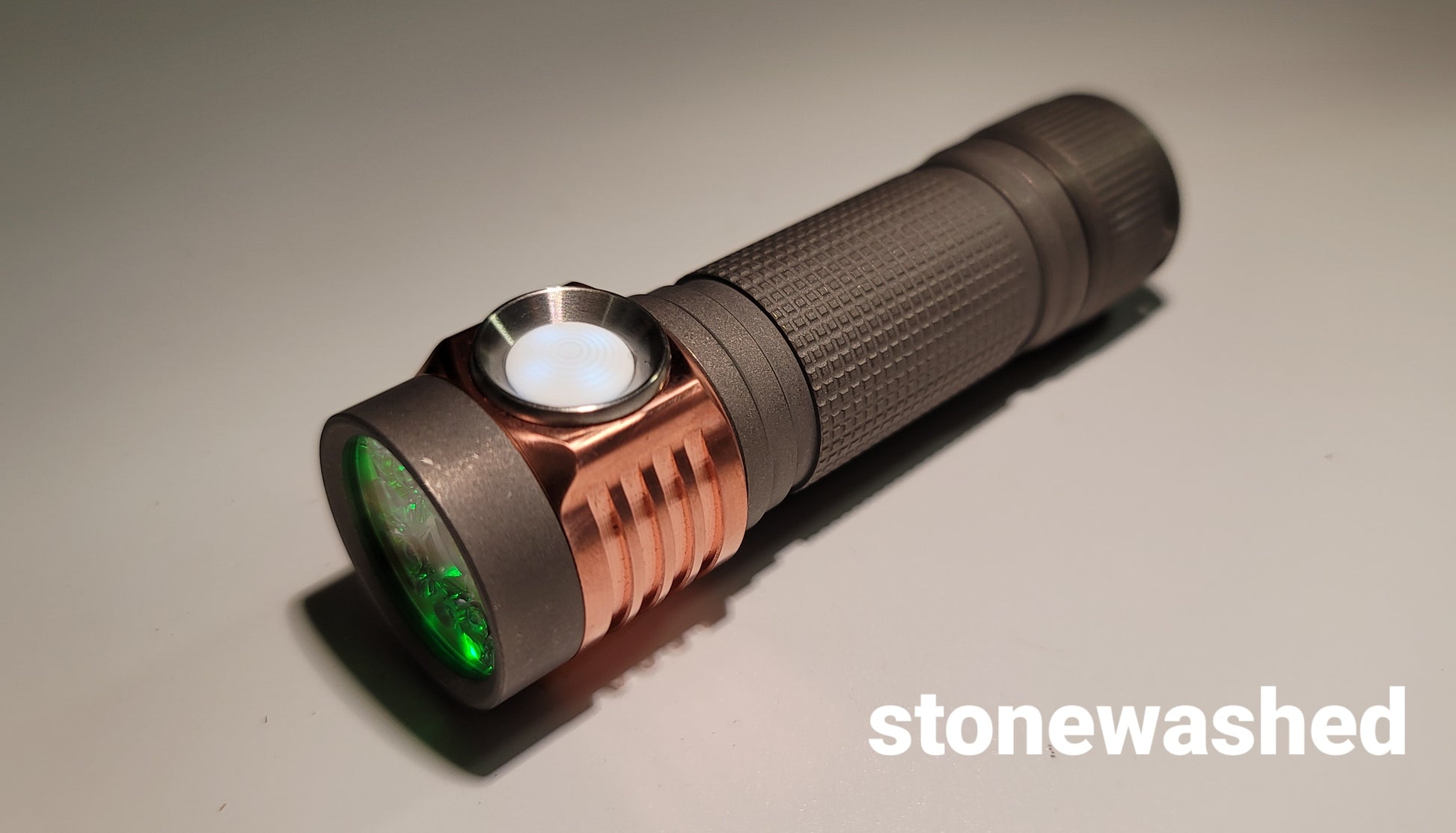

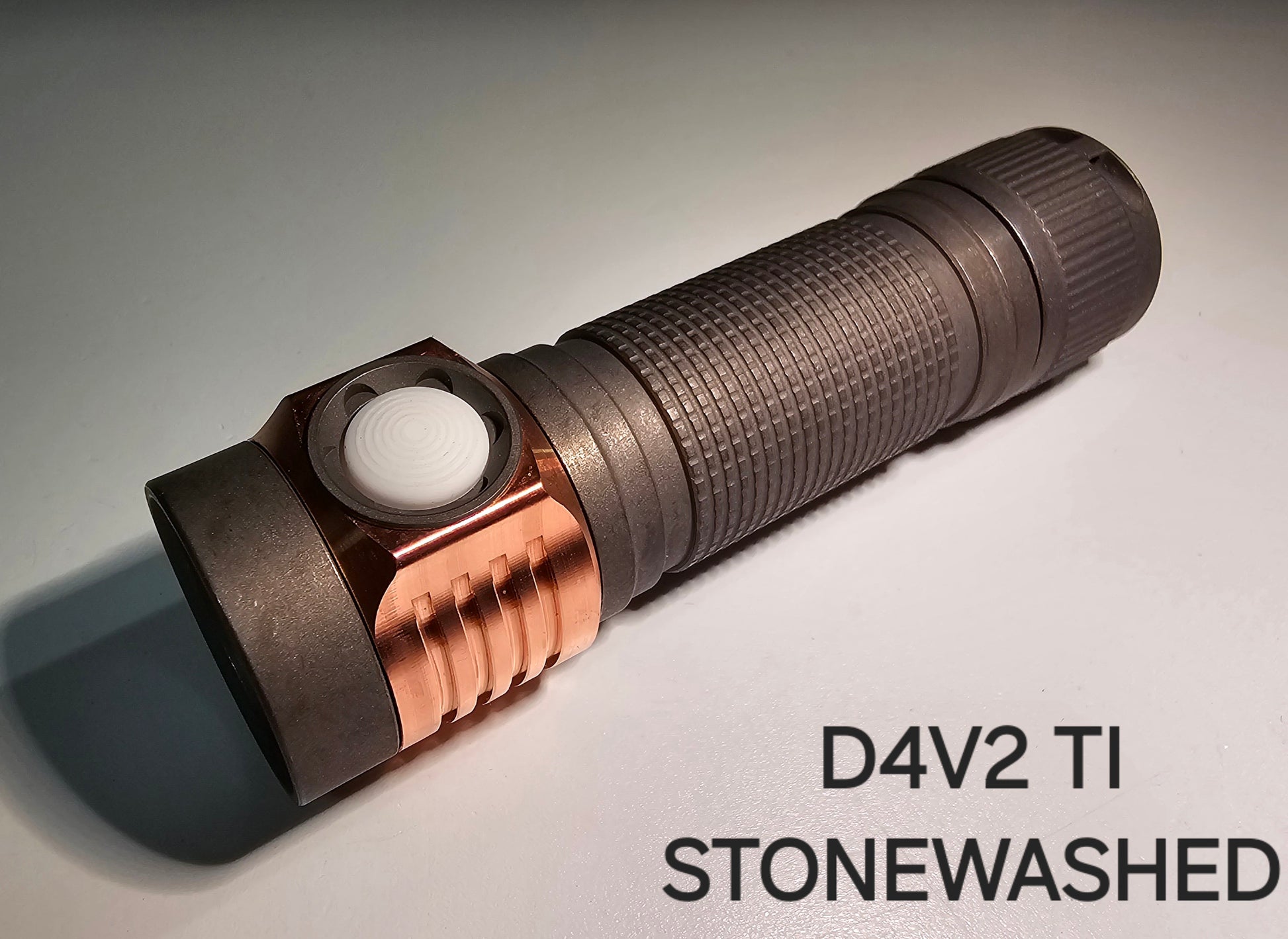

STONEWASHED TITANIUM ($5 ADDITIONAL)
INCLUDED OPTIONS:

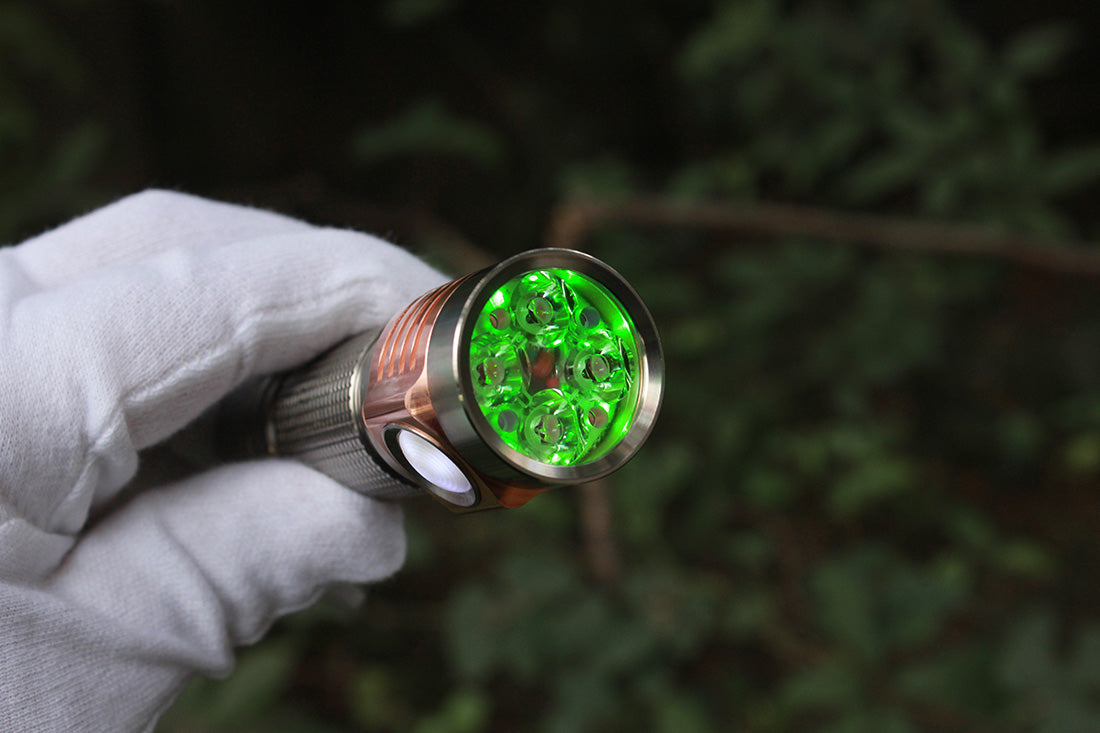

LIGHTED SW

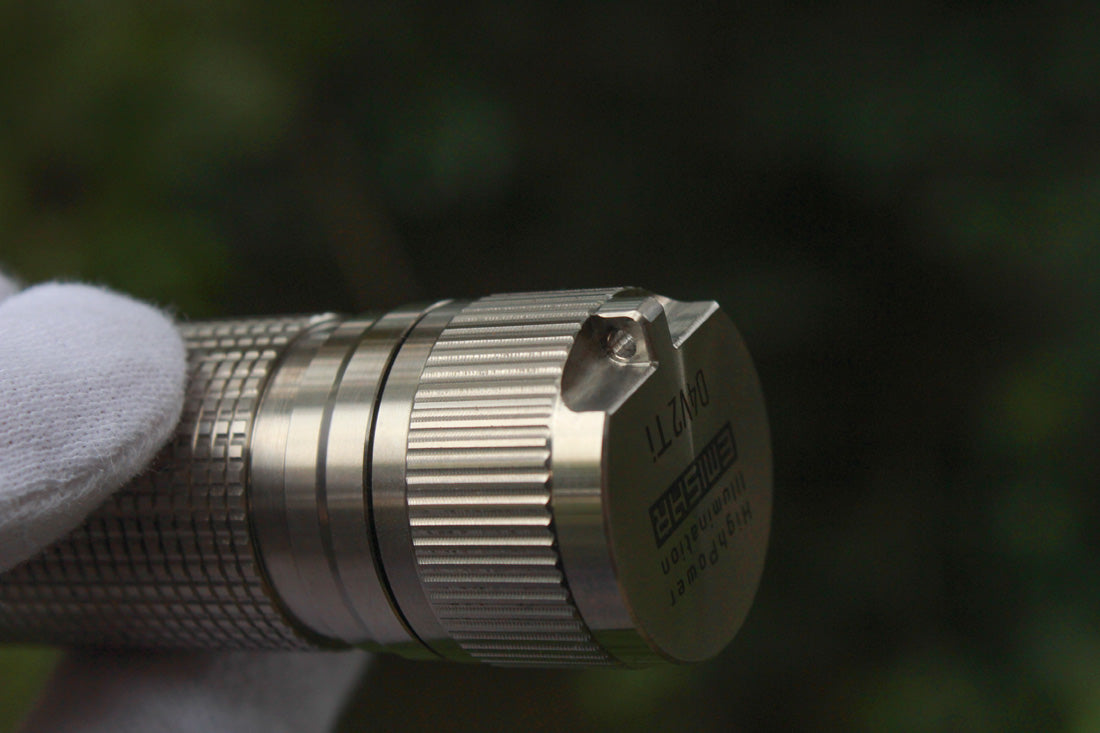

MAGNETIC CAP OPTION
DEEP CARRY CLIP
LANYARD
EXTRA ORINGS
ANDURIL 2 PRINTED INSTRUCTIONS
OPTIONAL ACCESSORIES:
18350 TITANIUM SHORT TUBE
RECCOMENDED BATTERY:
18650 FLAT TOP UNPROTECTED CELL (NOT INCLUDED) MIN 15-20A
MOLICEL P28A >>> Molicel P28A 18650 2800mAh 35A Lithium-Ion Rechargeable Battery – JLHawaii808
INCLUDED OPTIONS/ACCESSORIES:
DEEP CARRY POCKET CLIP
MAGNETIC CAP OPTION
LANYARD
EXTRA ORINGS
ANDURIL 2 UI INSTRUCTIONS
OTF lumen output at start-up:
Nichia 219C: 3000lm XP-L HI: 4300lm
SST-20 6500K: 4200lm
SST-20 5000K: 4200lm
SST-20 4000K/3000K 95CRI: 3000lm
This product uses free software distributed under the terms of the GPLv3.
Source code is available from http://tiny.cc/TKAnduril
