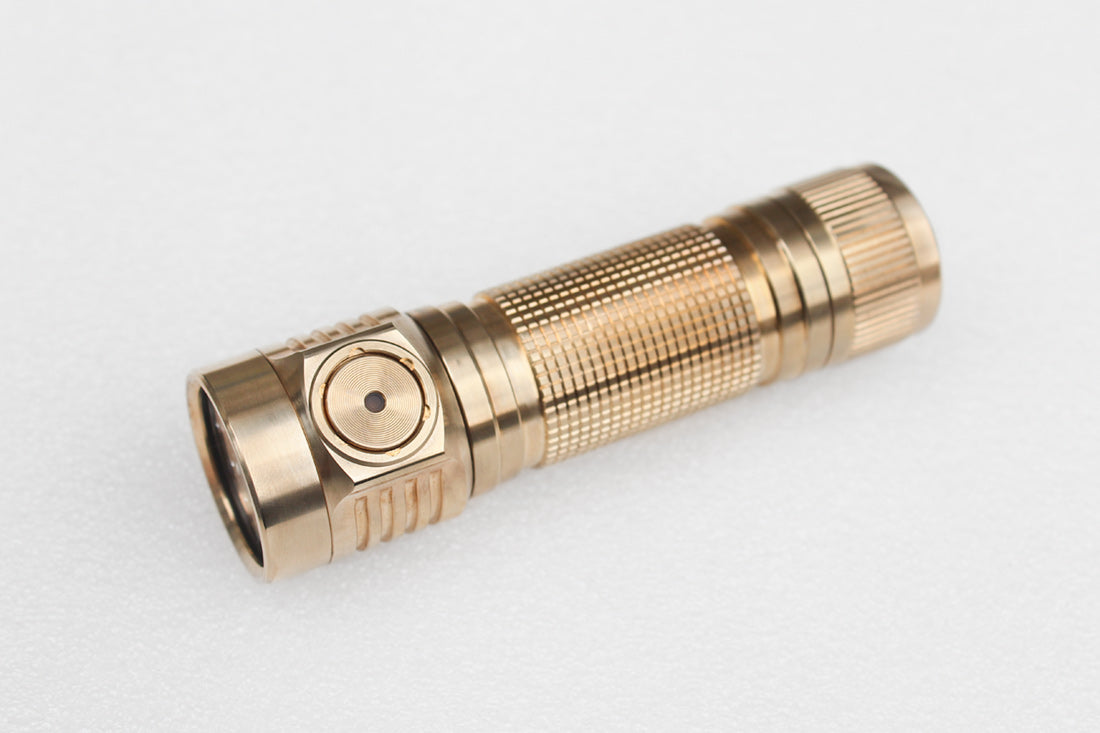

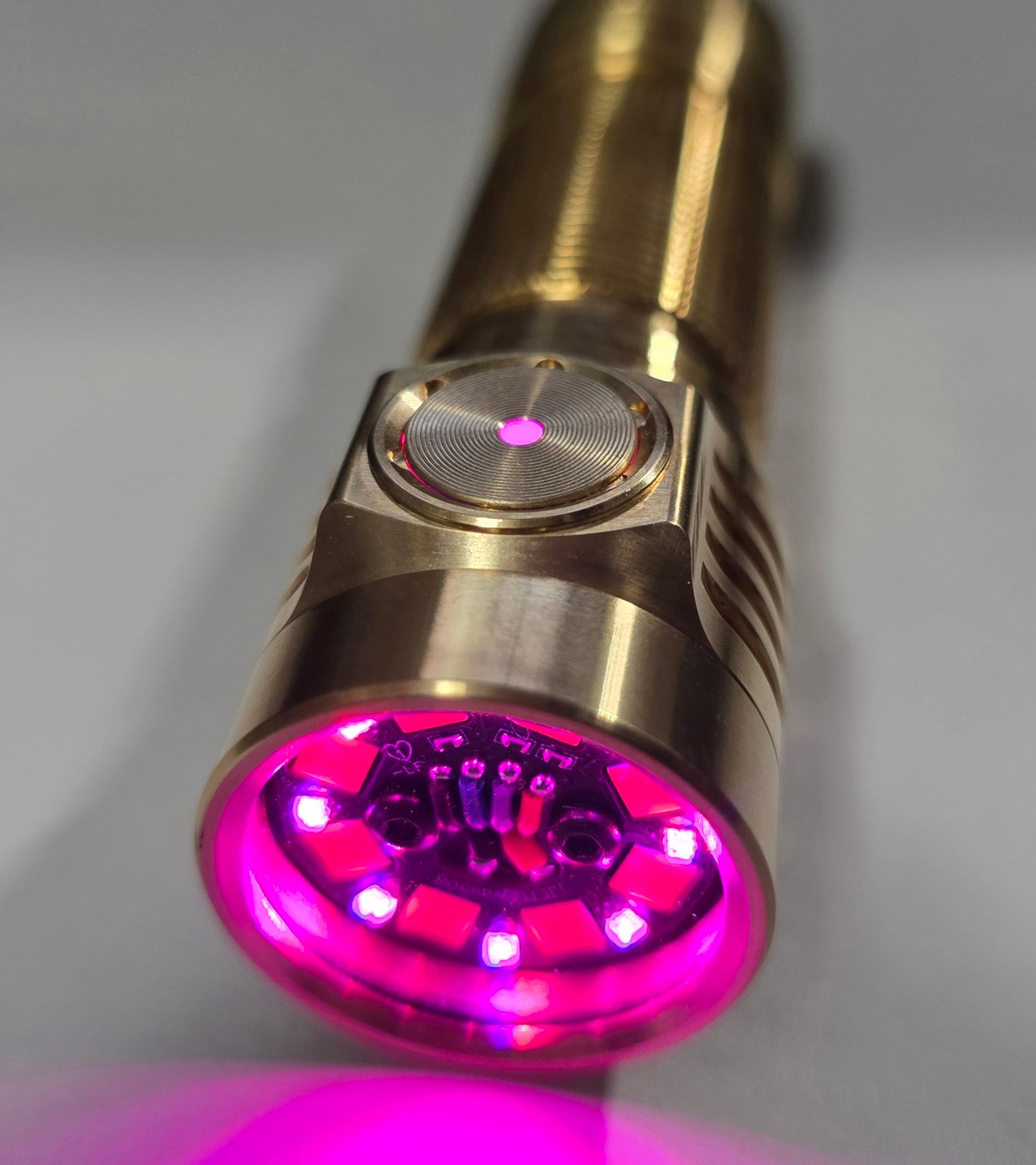

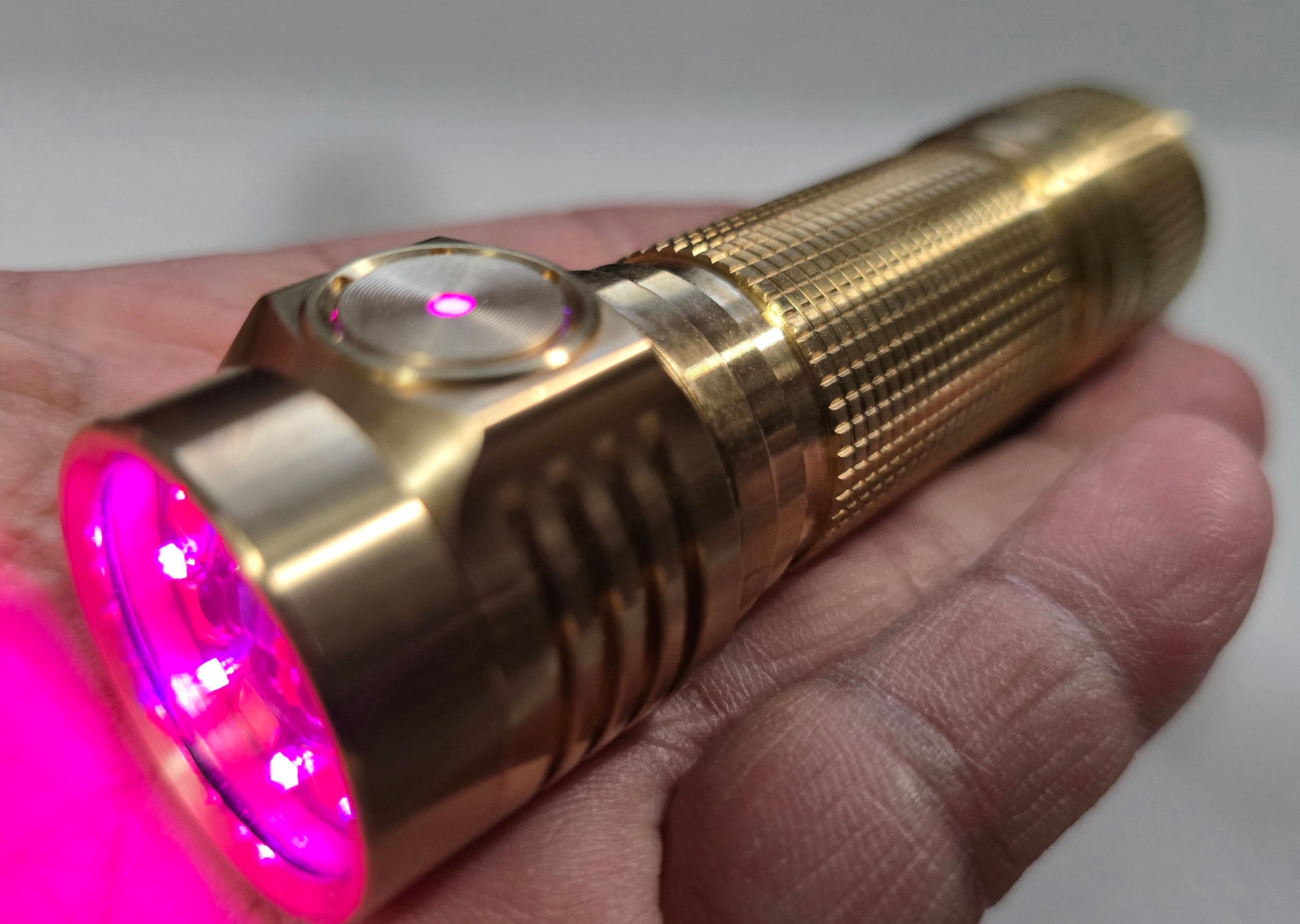

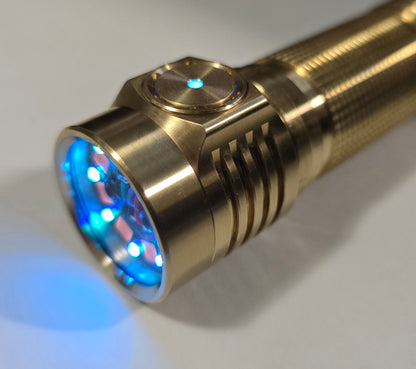

Emisar D4V2 Brass High Power LED Flashlight *CUSTOM BUILD-TO-ORDER*

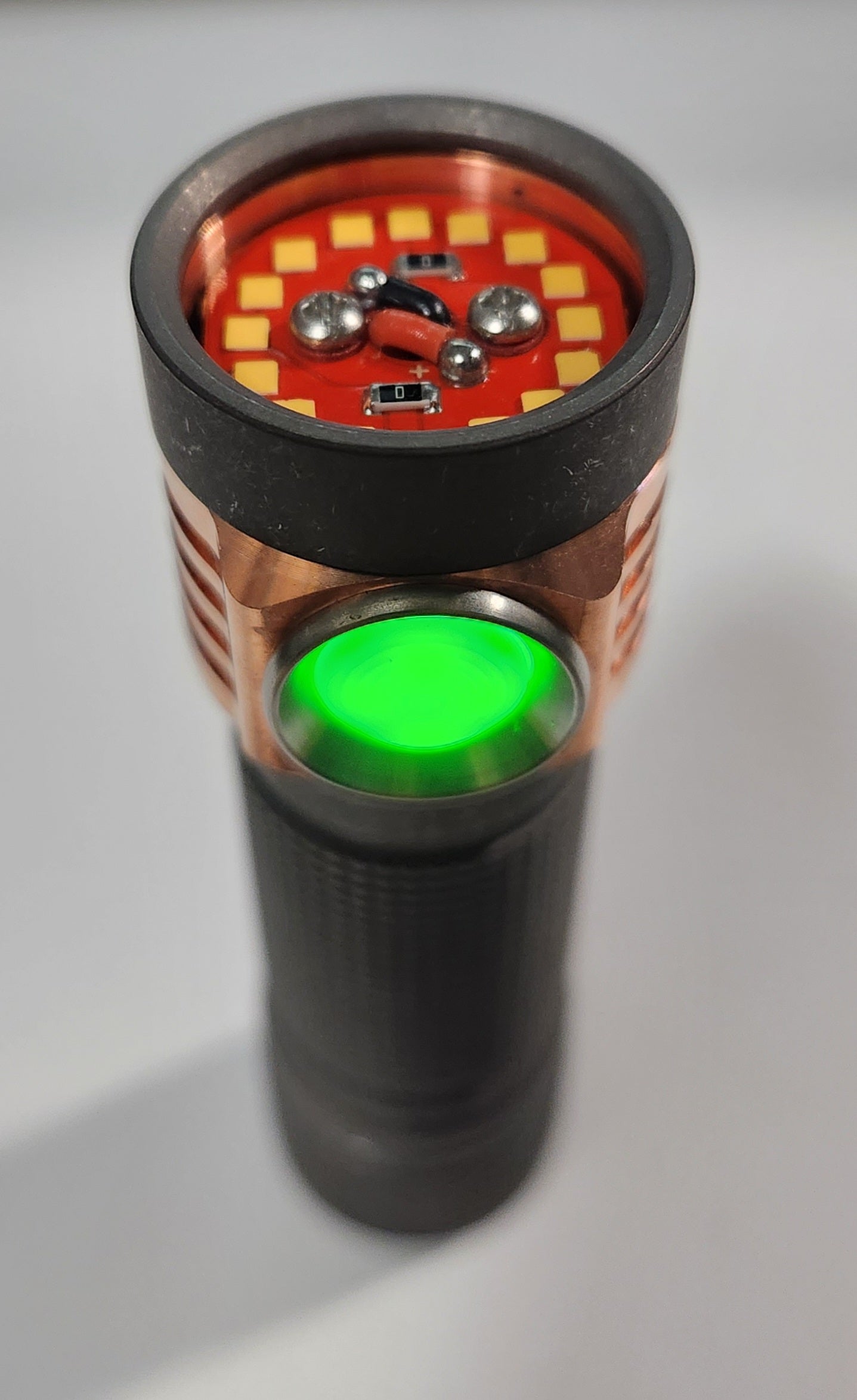

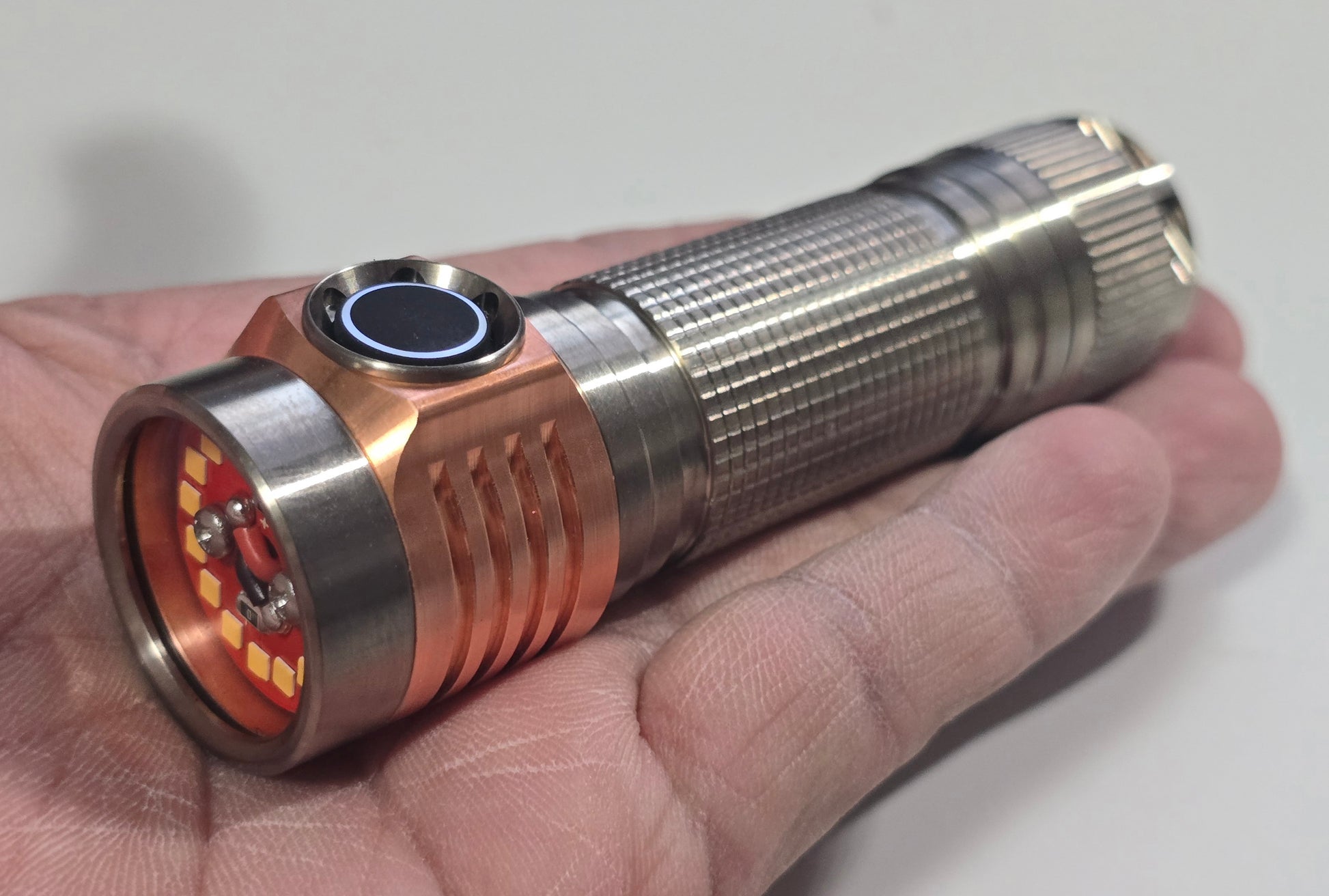

Emisar D4v2 Copper

Please be noted that the boost driver version will have 40% less output on turbo than the regular version, it is a more efficient driver (90-95%) with longer running time and less heat.

Emisar D4V2 puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing. Unprotected, flat top battery works only (not included in the price), D4V2 does not work with protected battery.

PLEASE READ BELOW BEFORE PURCHASING!

THESE ARE "CUSTOM" BUILT-TO-ORDER SO THESE WILL SHIP ACCORDINGLY!

BODY:

RAW BRASS

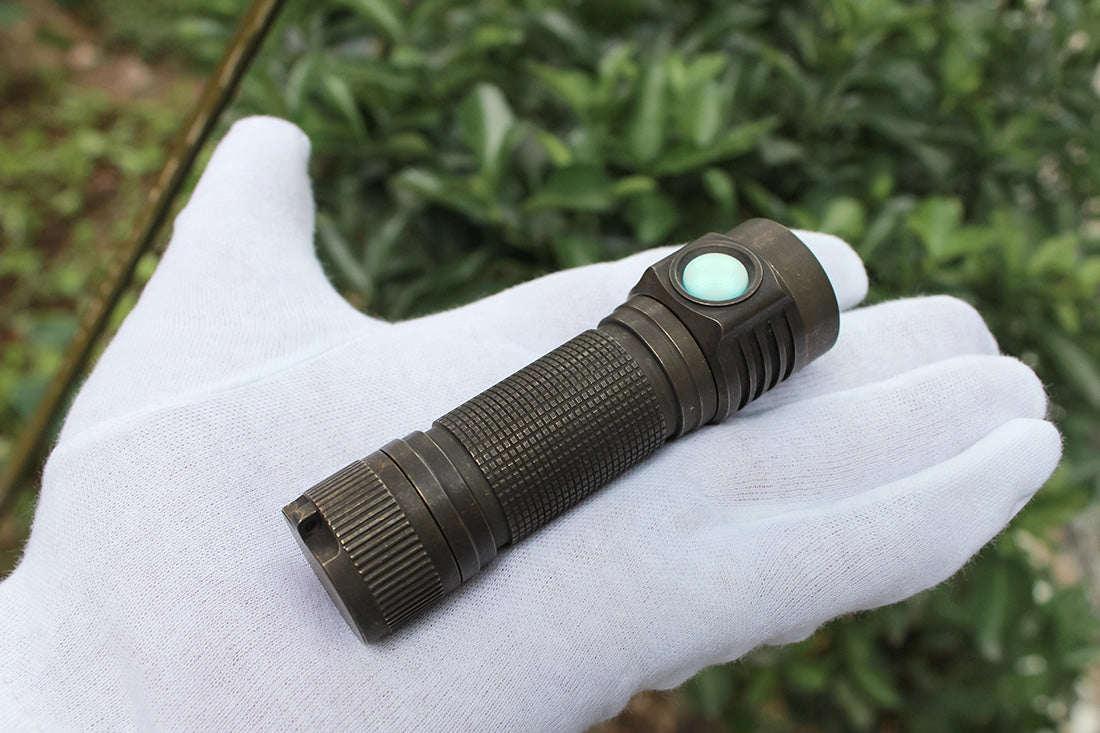

ANTIQUE BRASS (ADDITIONAL COST)

USER INTERFACE:

ANDURIL 2 UI

DRIVER:

9A LINEAR + FET

12A LINEAR (E21A ONLY)

12A 2A BOOST (OPTIONAL)

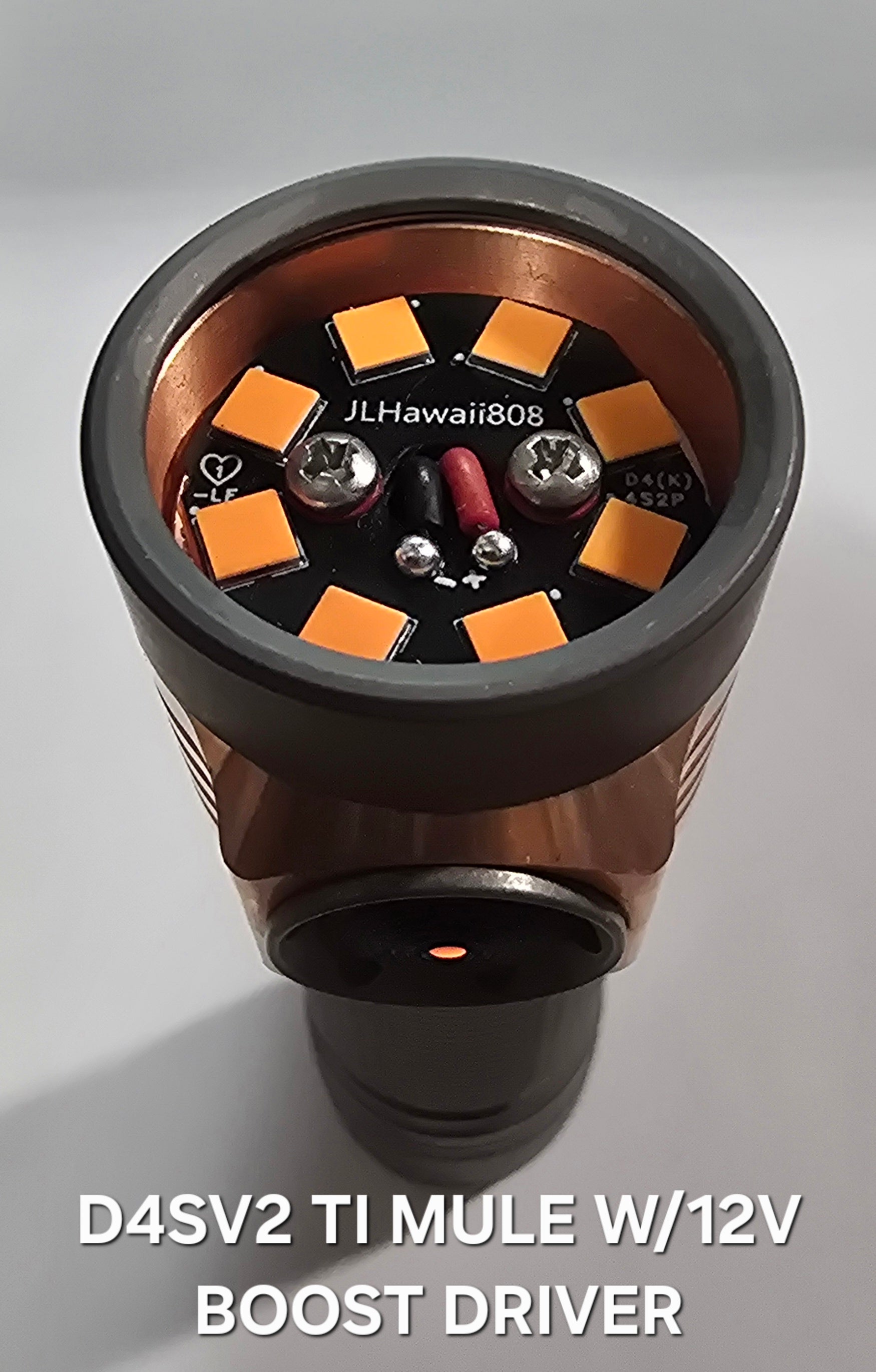

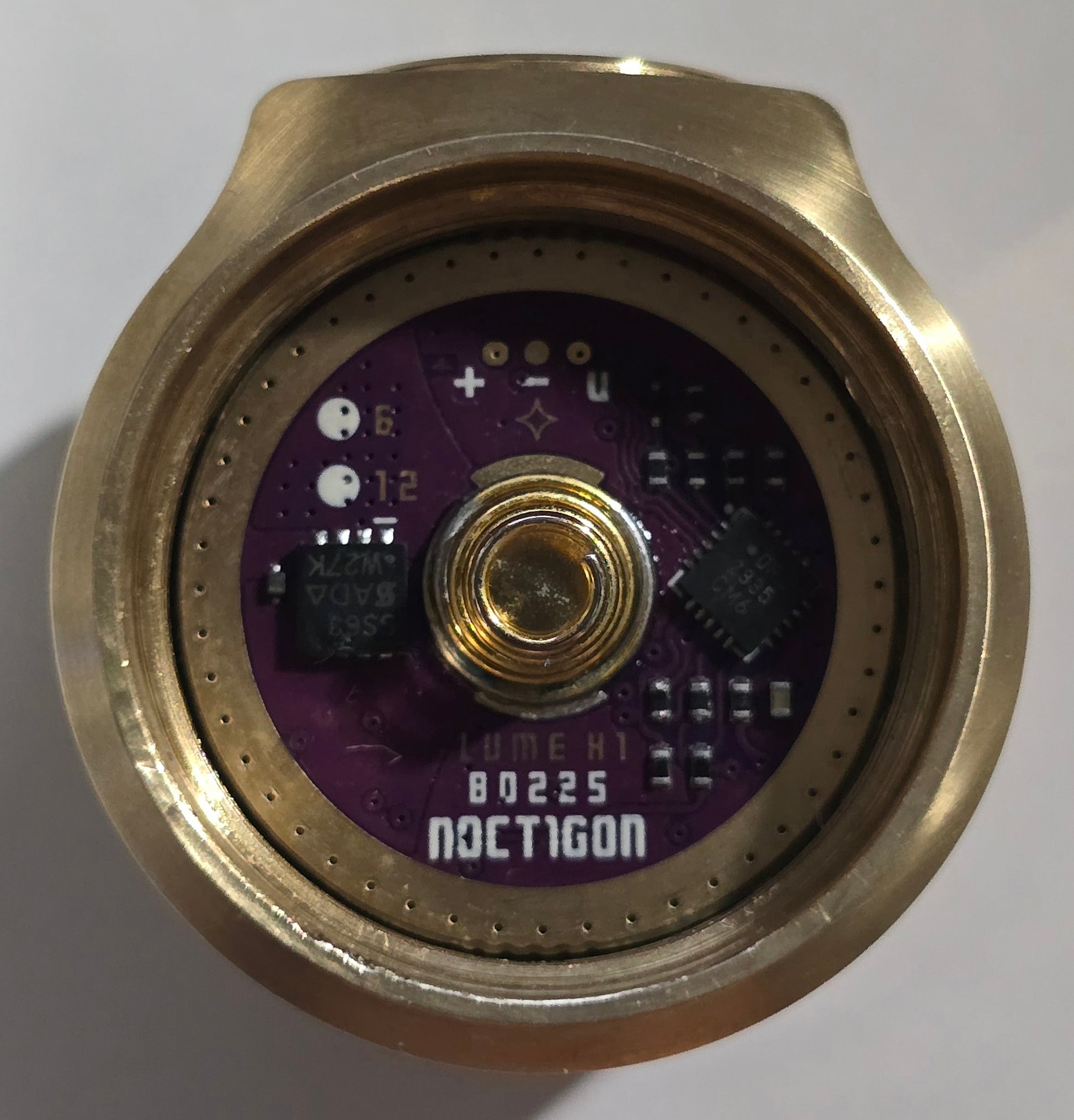

NEW! LUME X1 6 & 12V BOOST DRIVER AVAILABLE NOW!

EMITTER OPTIONS:

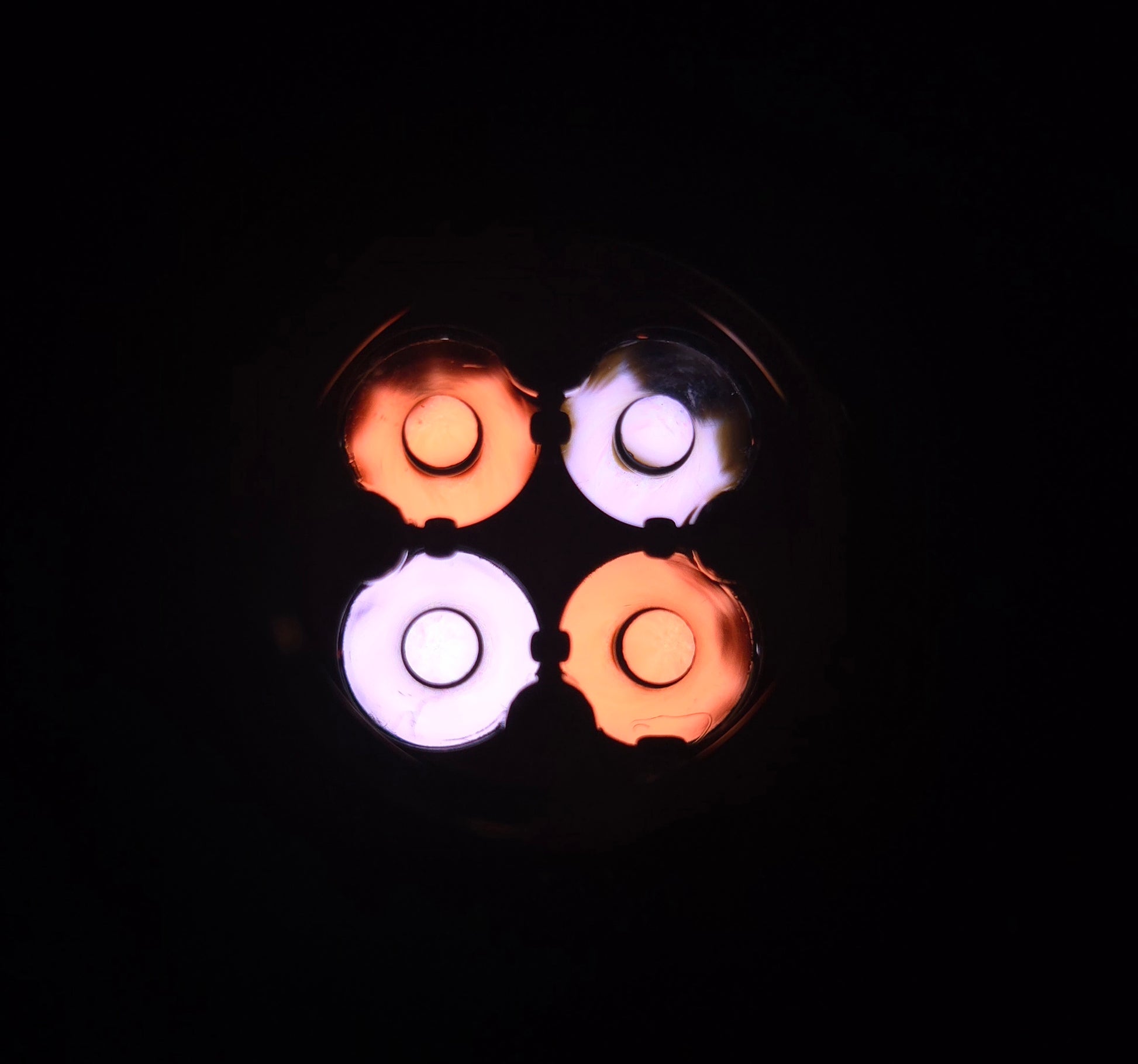

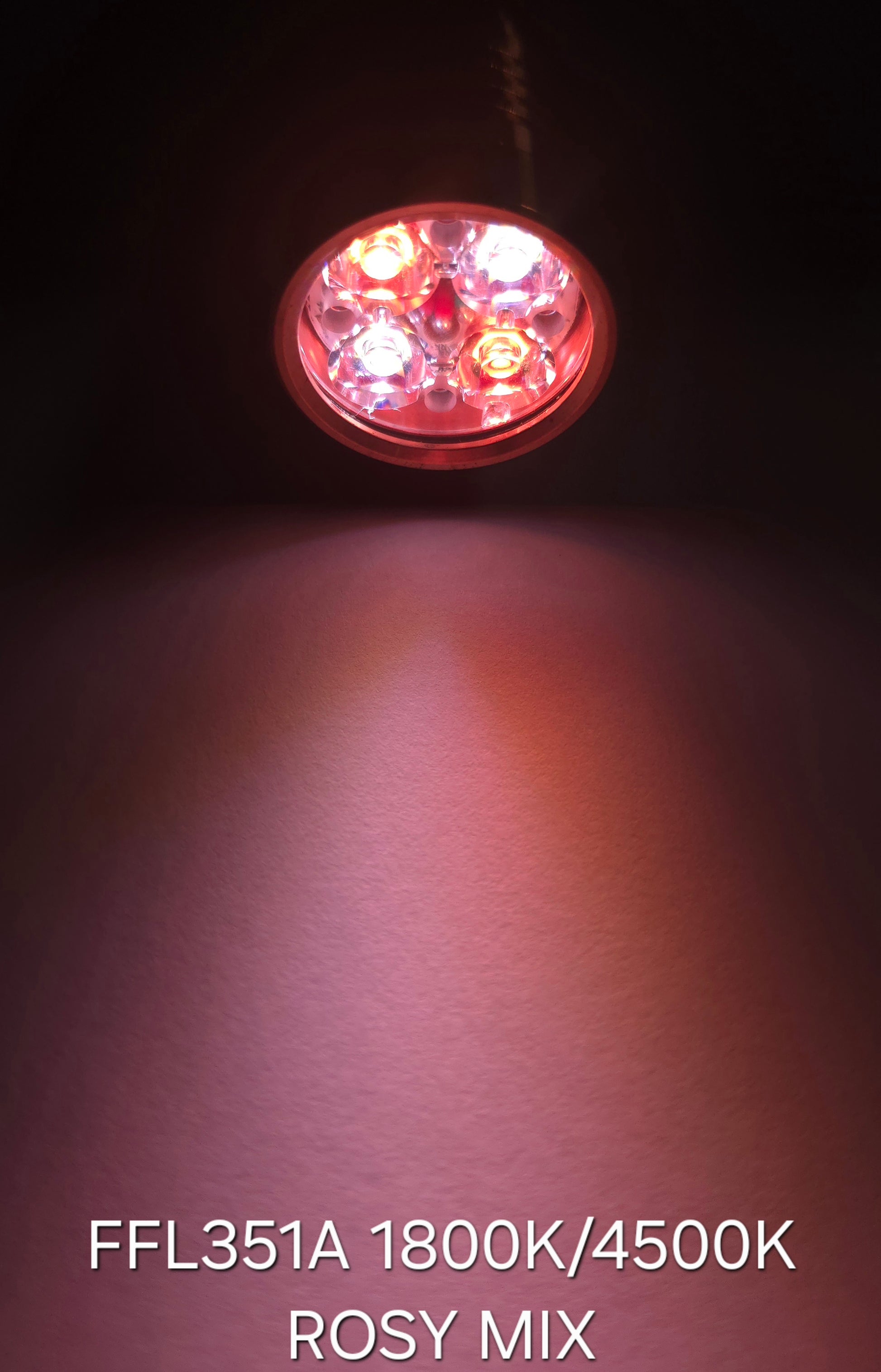

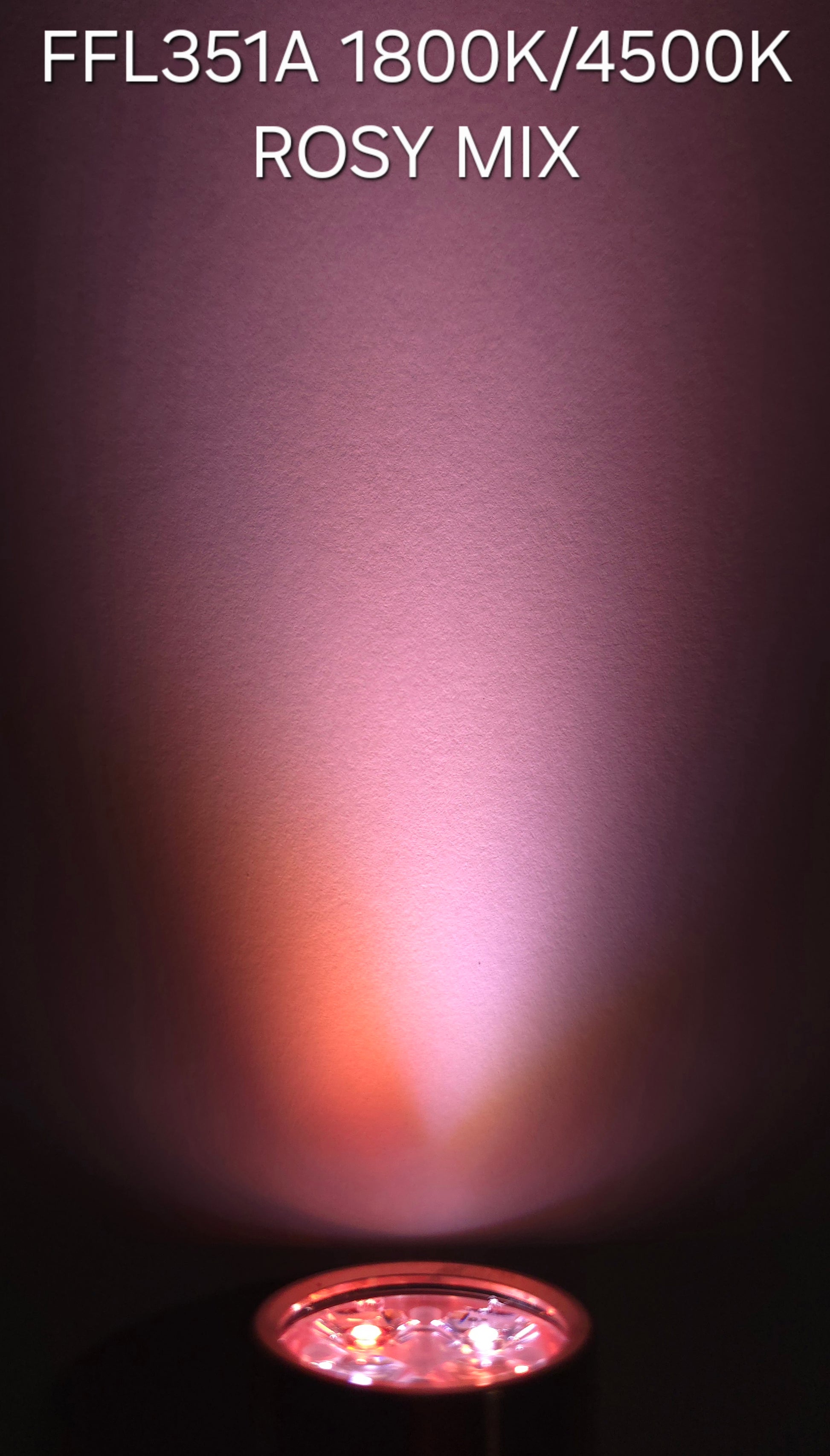

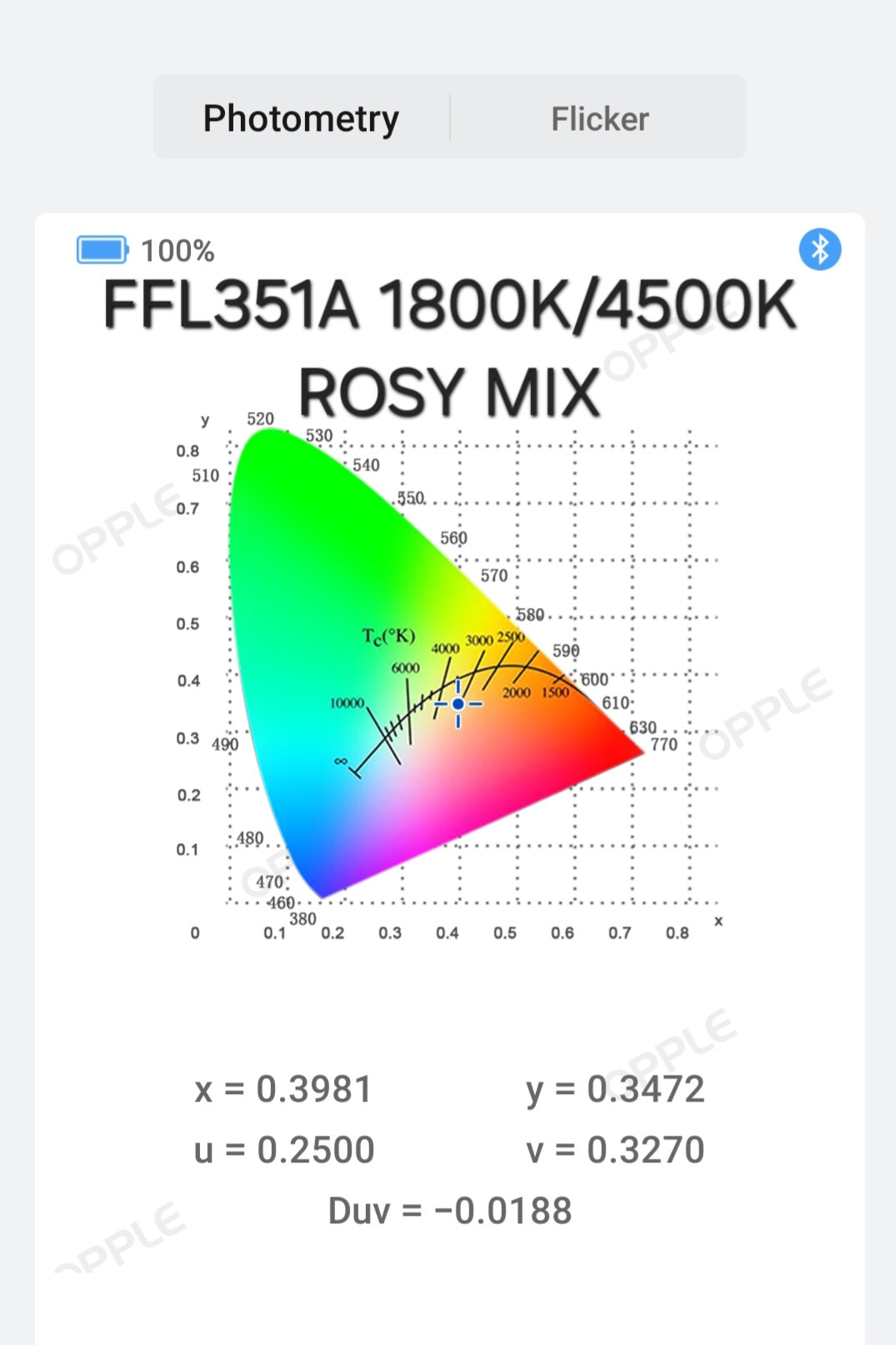

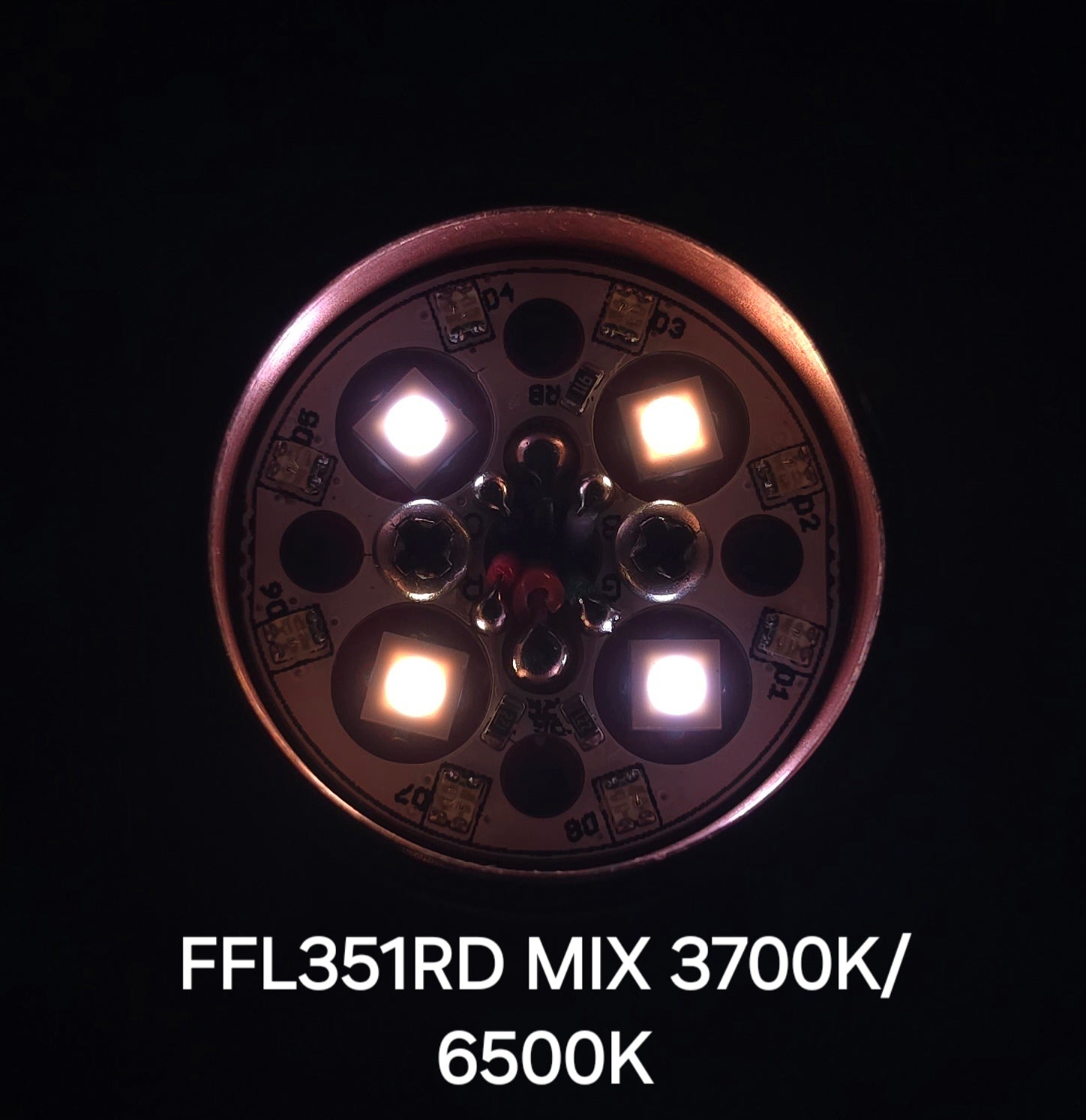

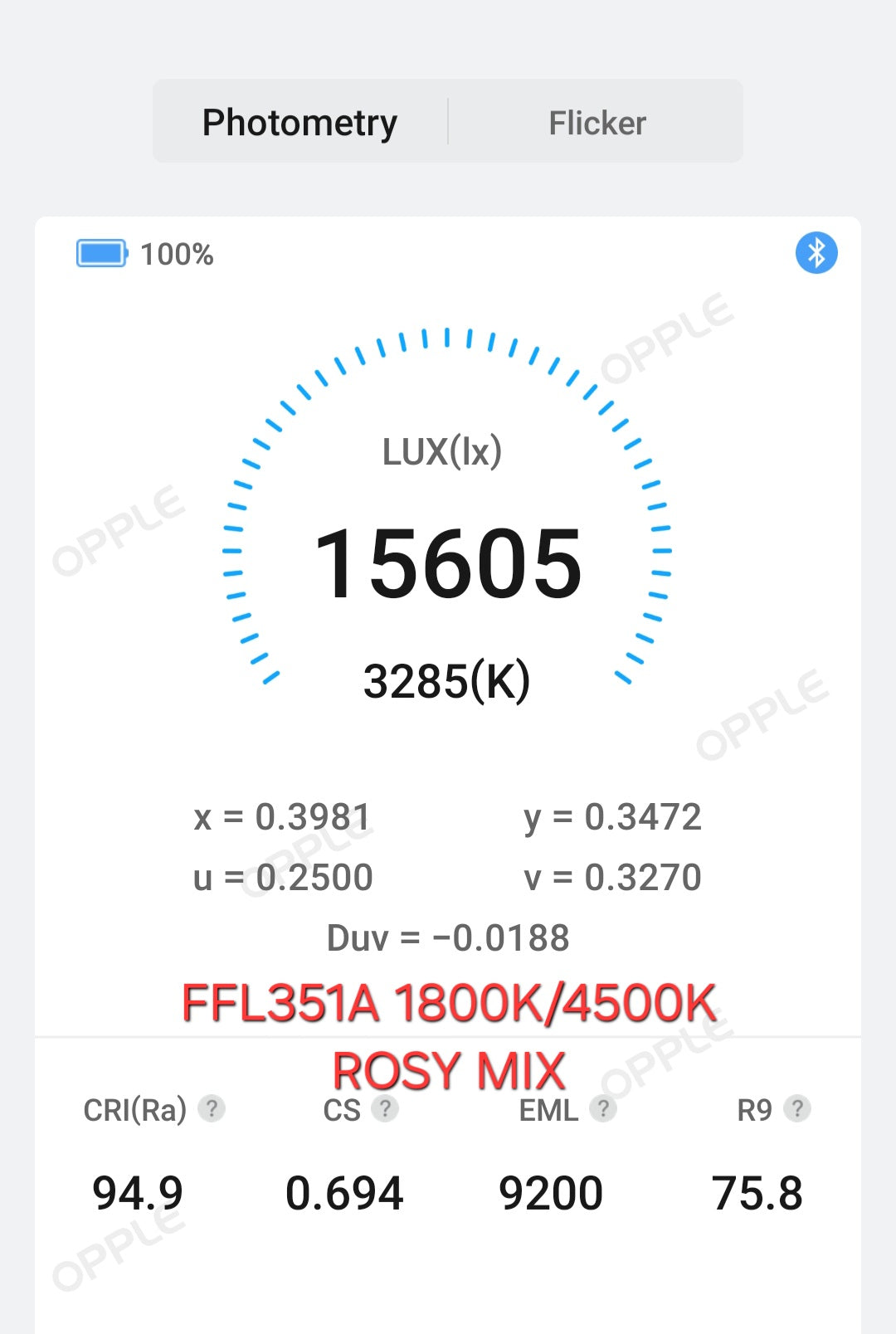

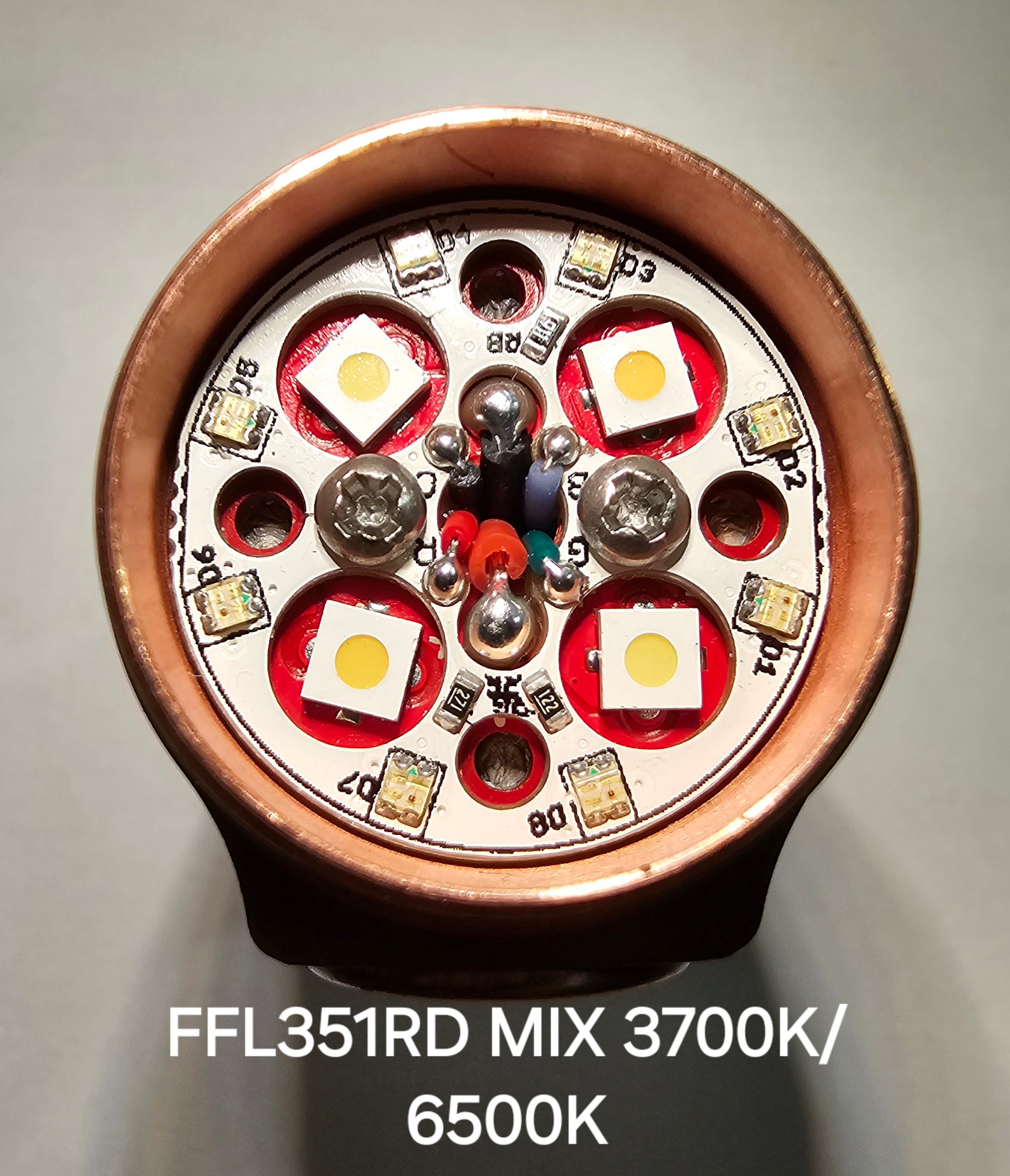

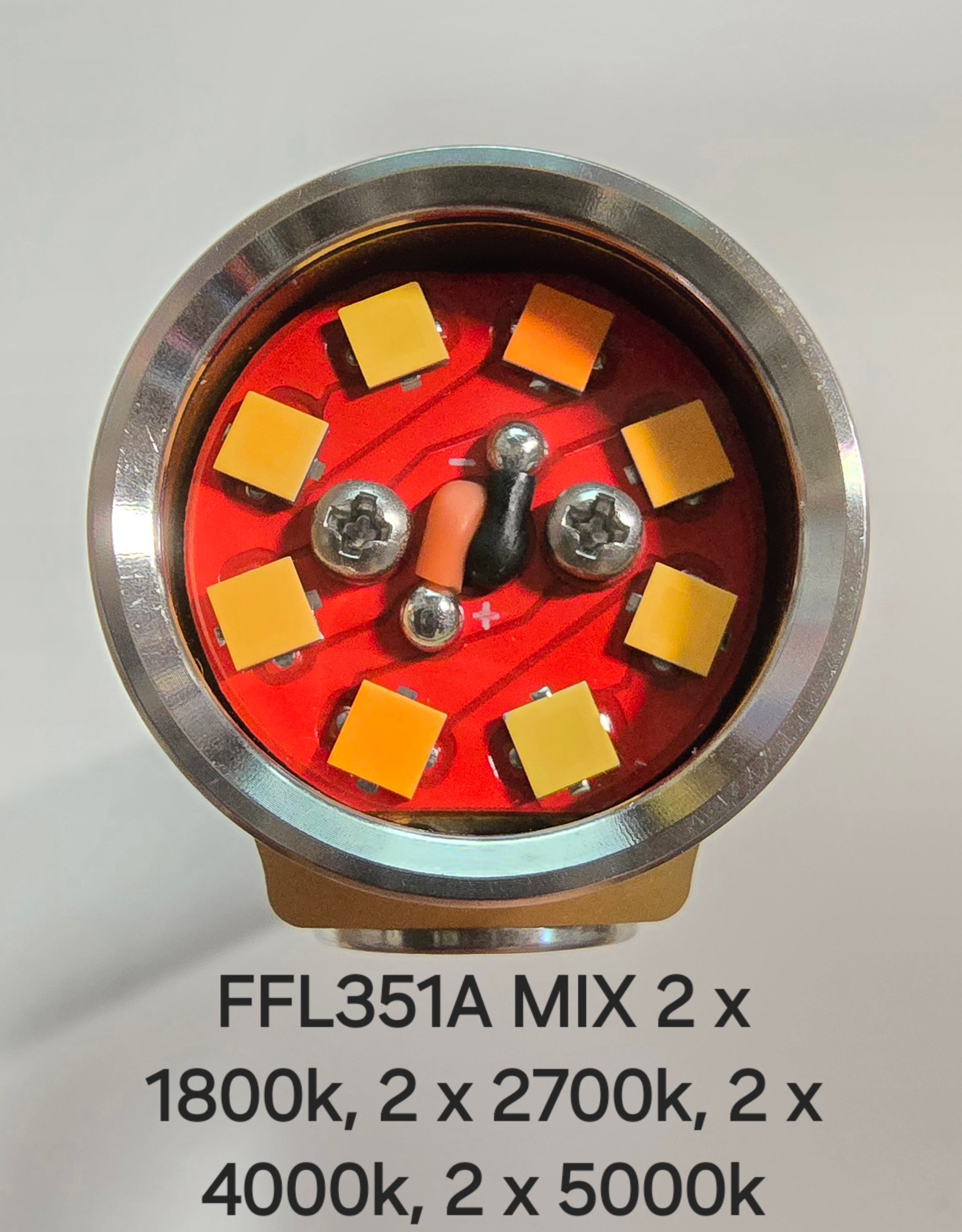

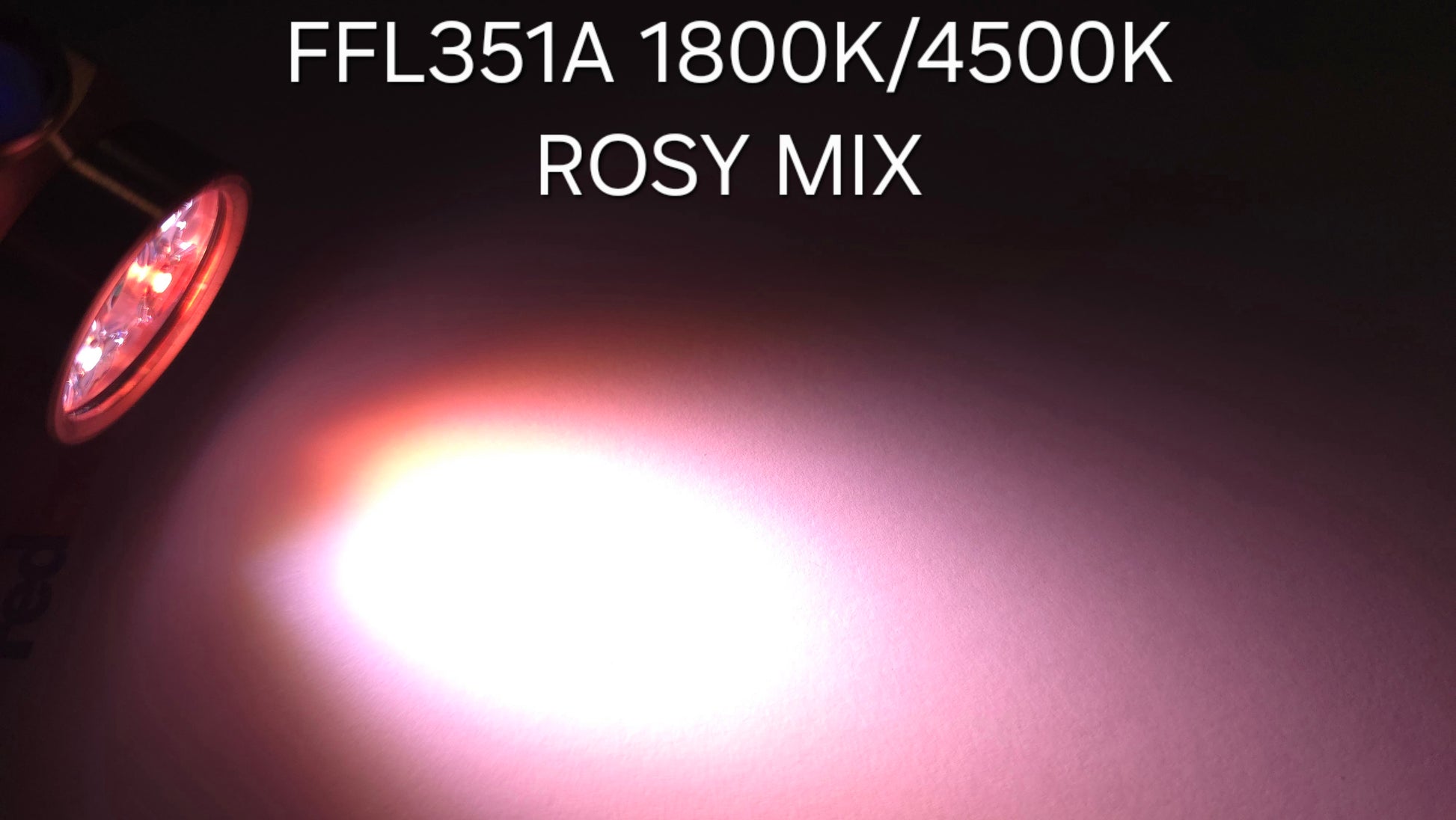

FFL351A & FFL351RD

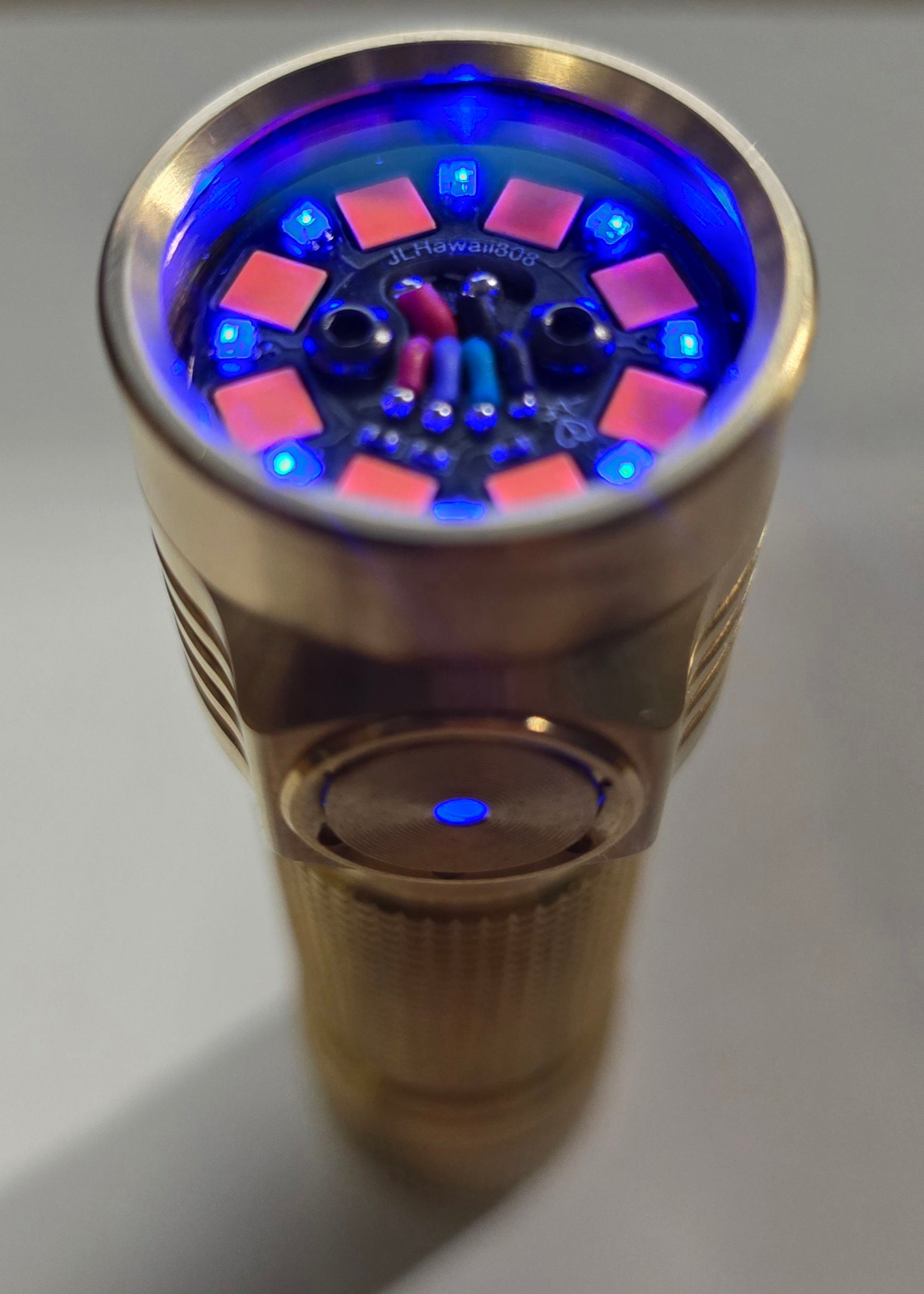

FFL505A (5050SMD) W/AUXILIARIES

NICHIA 219B, 219C AND 519A

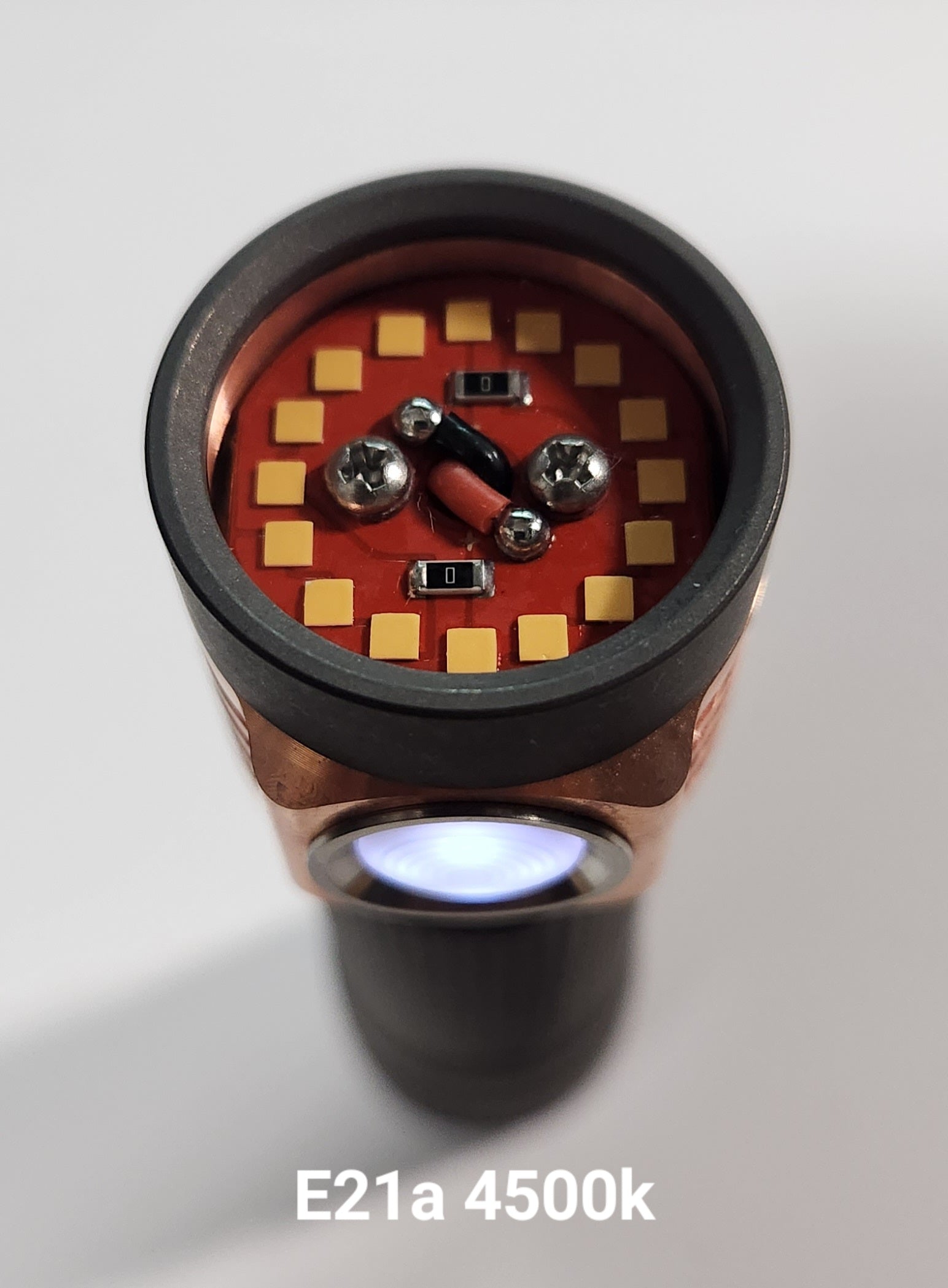

NICHIA E21A

LUMINUS SST20

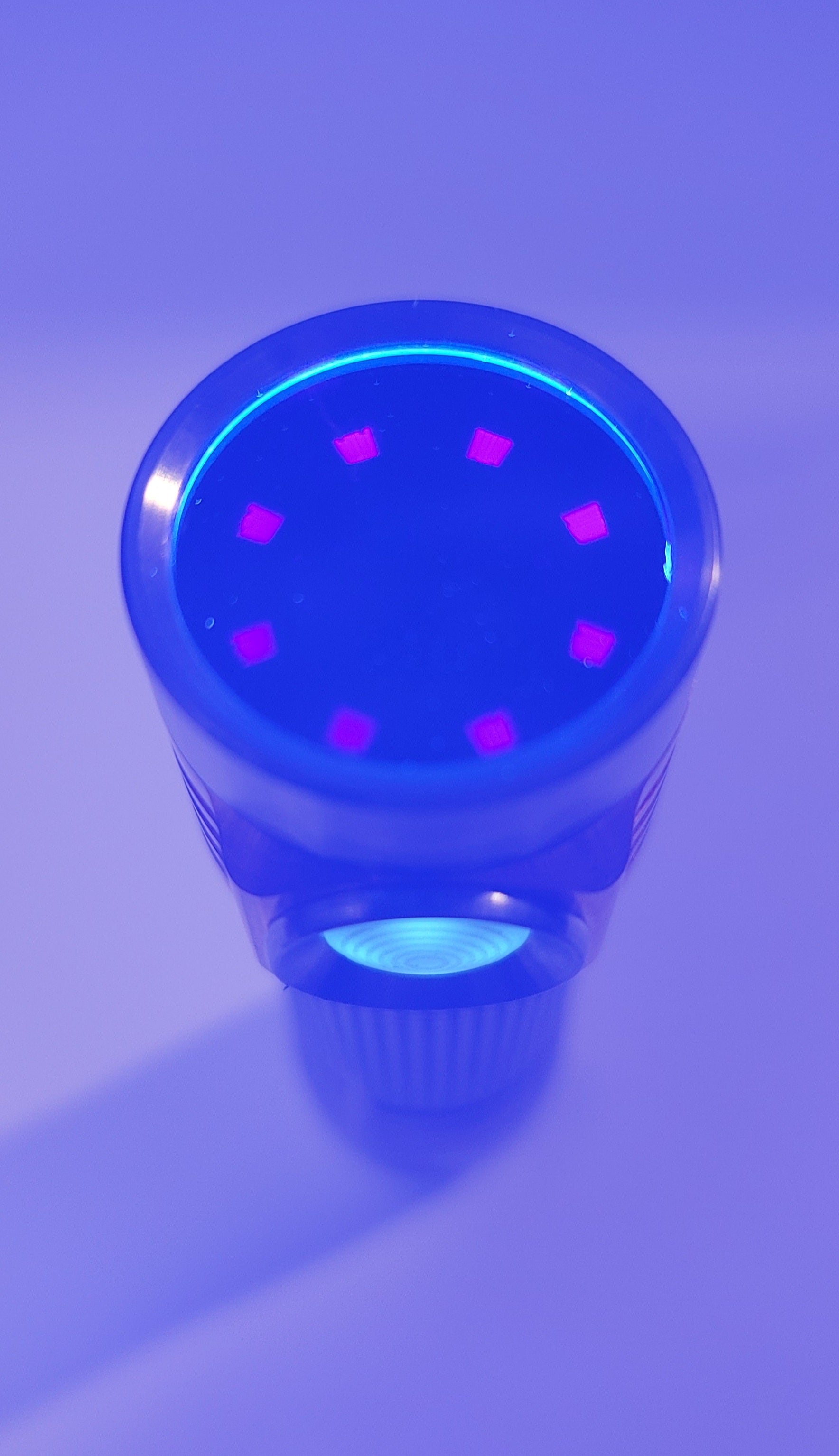

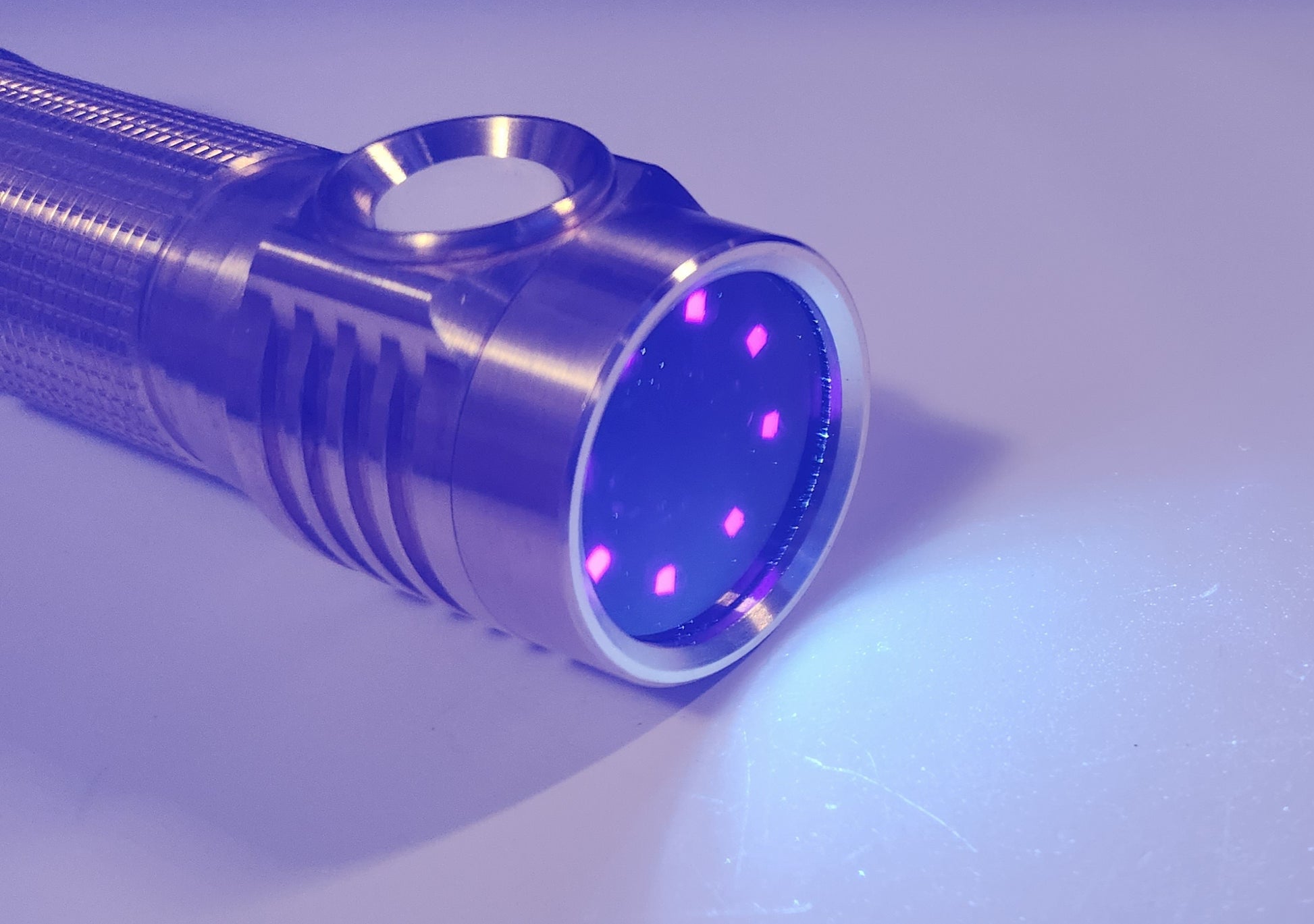

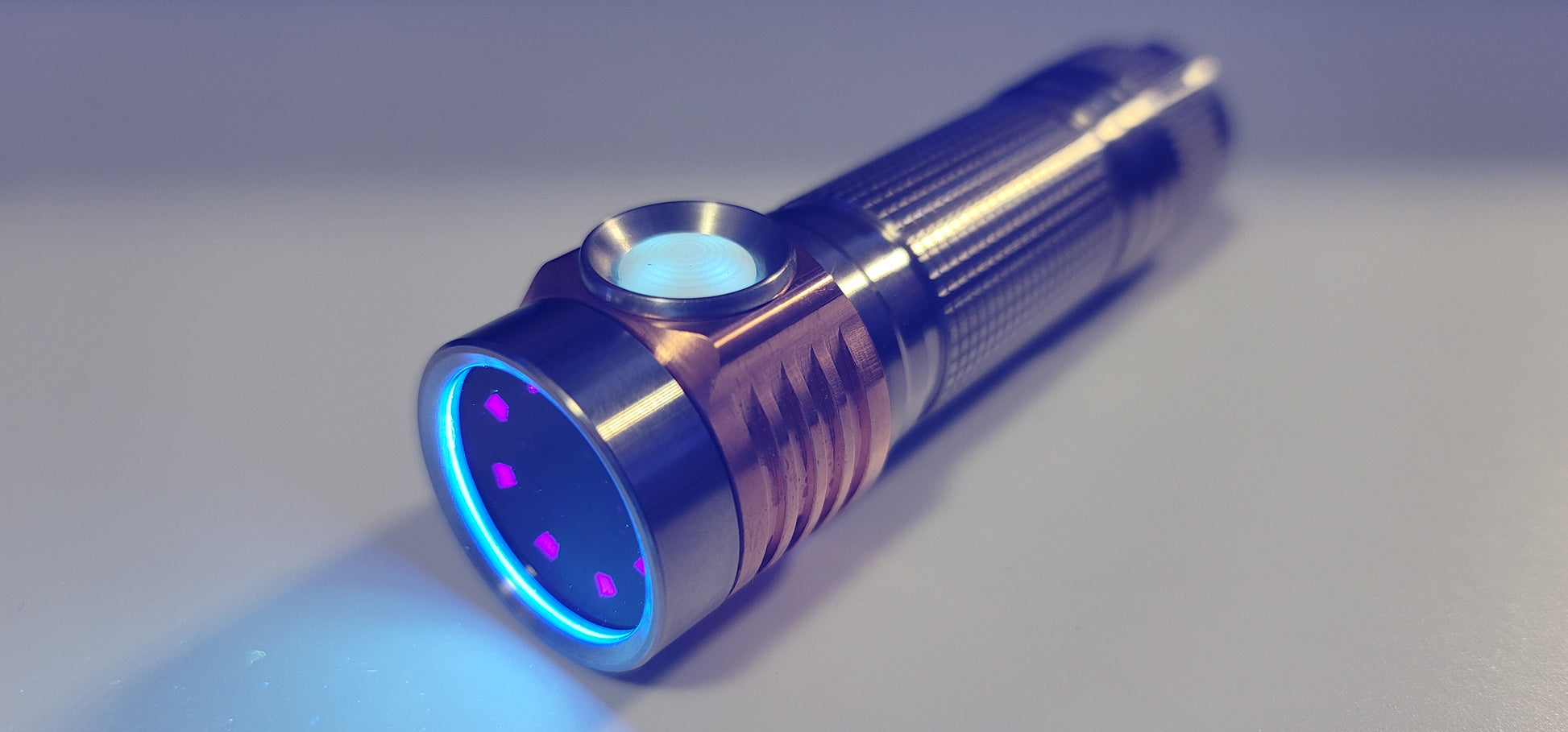

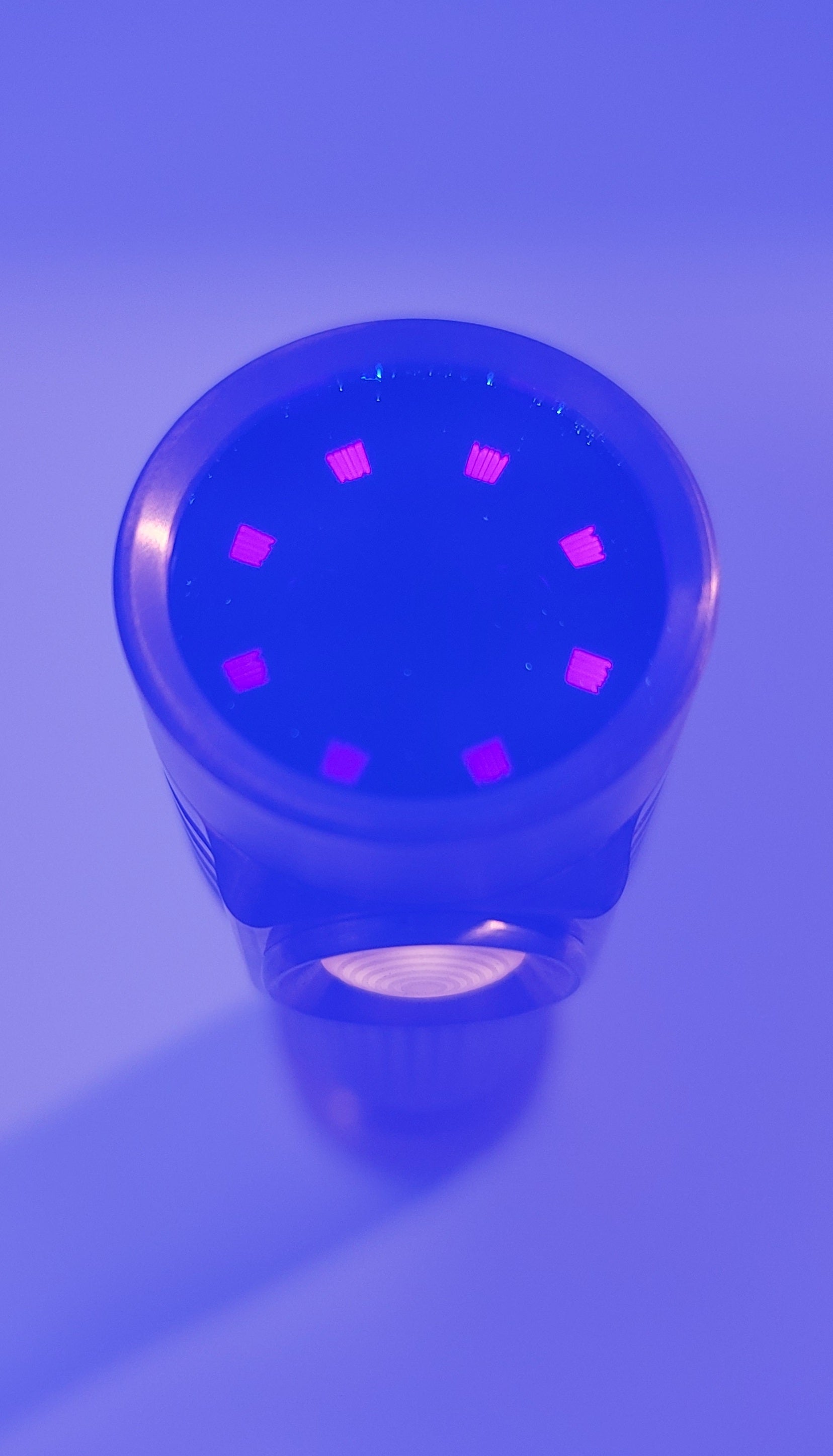

LUMINUS SST10 5W 365NM UV LED

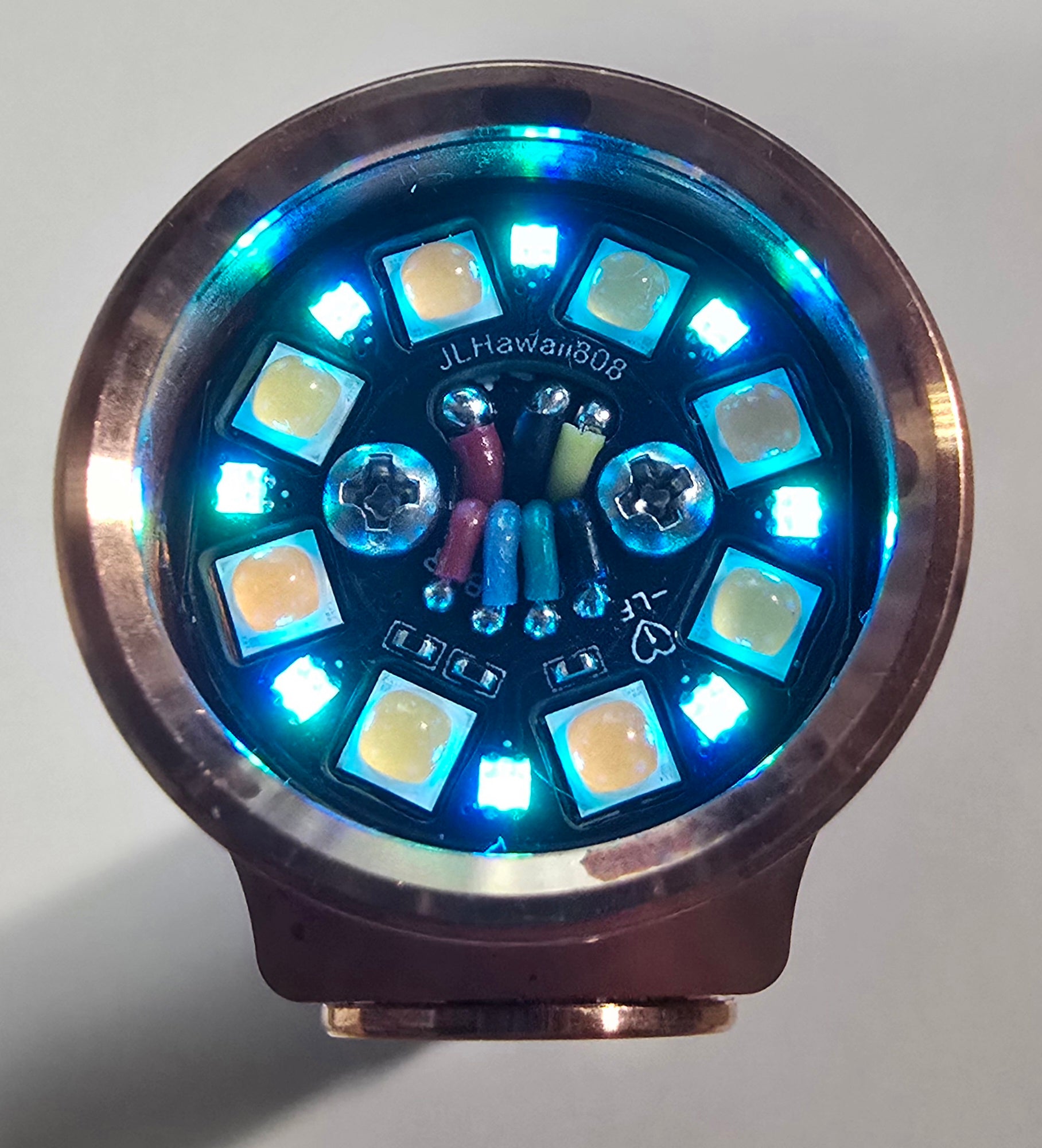

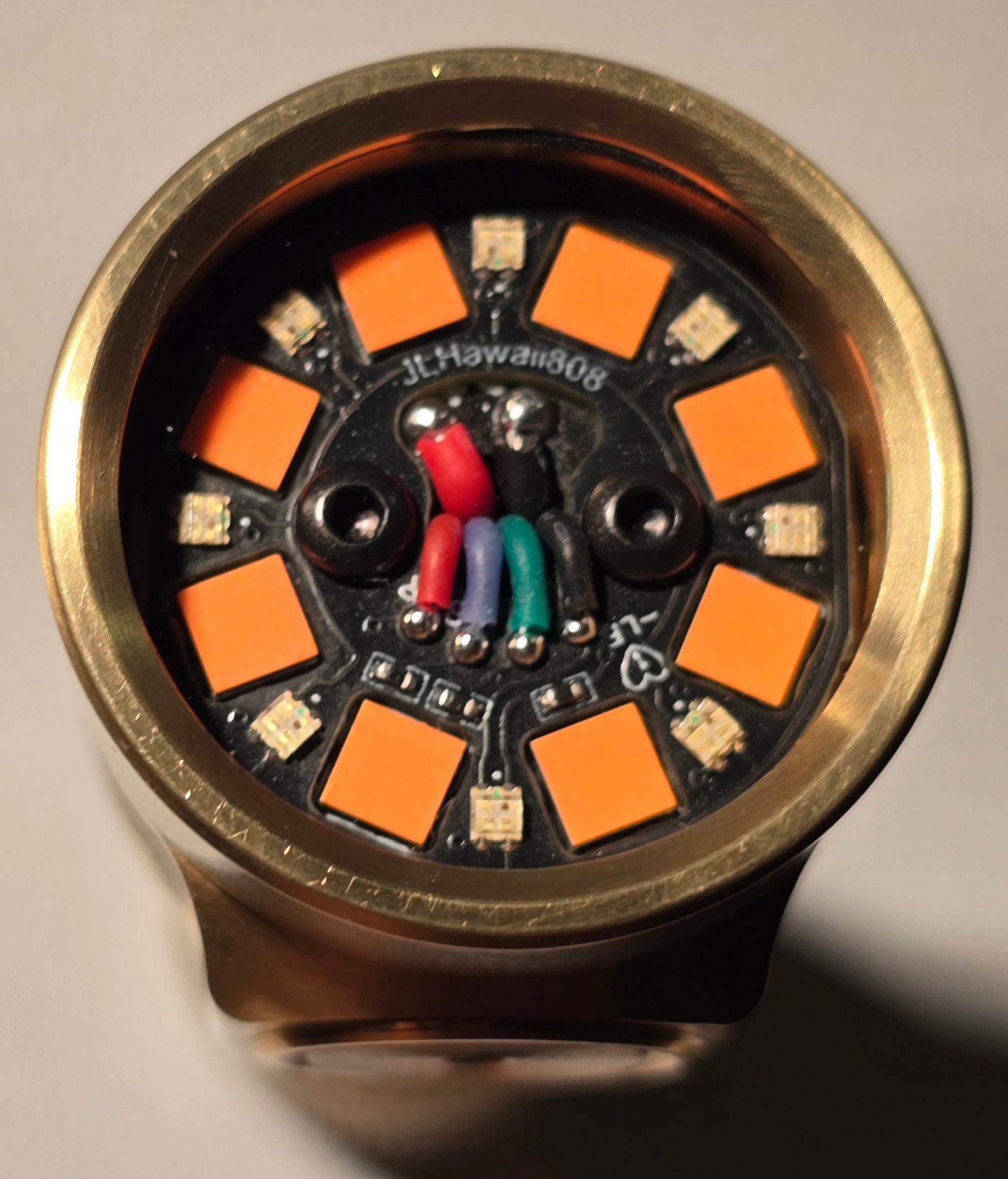

LUMINUS SFT40 (5050SMD) W/AUXILIARIES

CREE XPE COLORS

Optics:

NEW! HYBIRD MULE OPTICS >>> Hybrid Mule Optic Quad/Triple – JLHawaii808

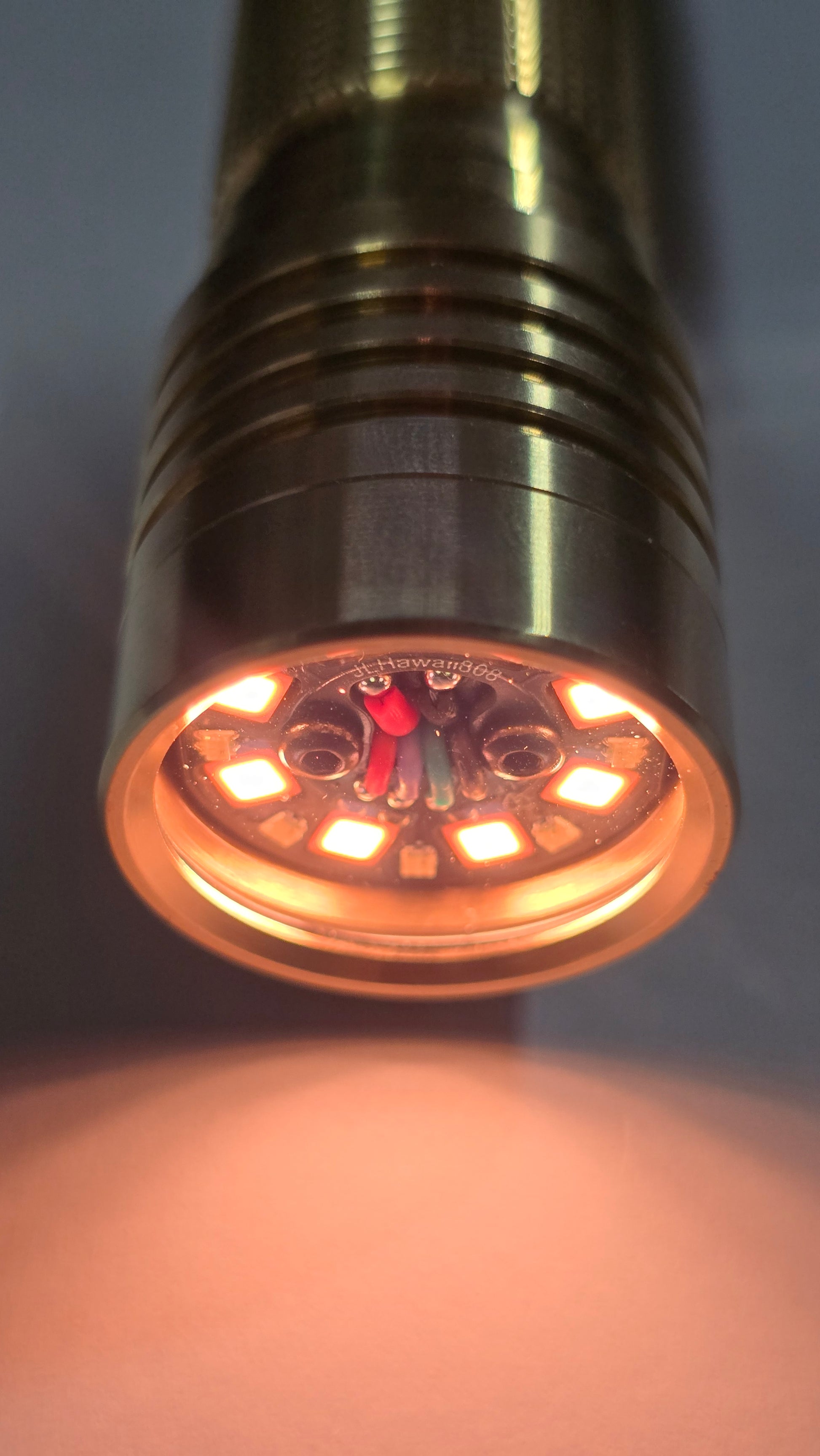

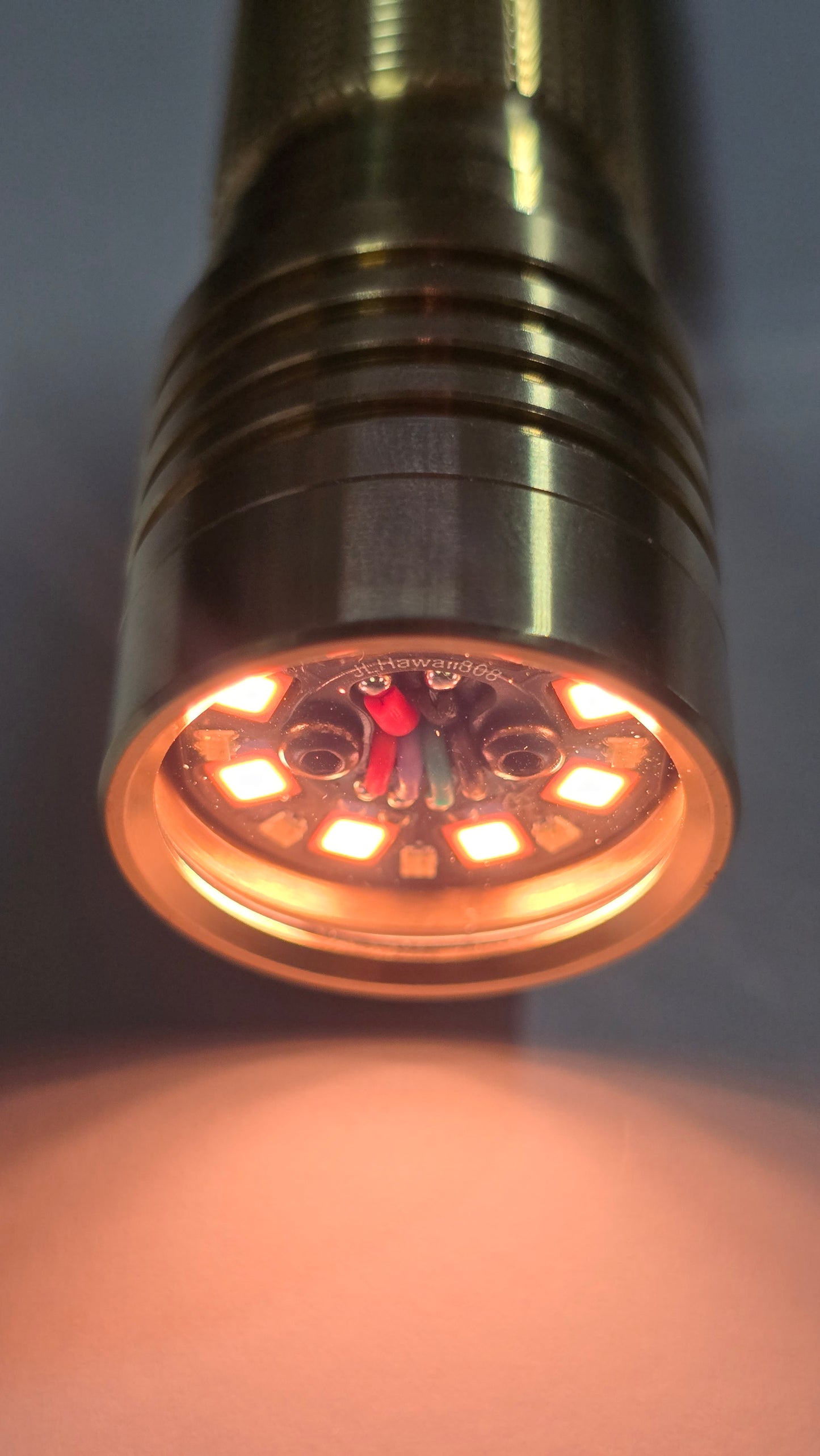

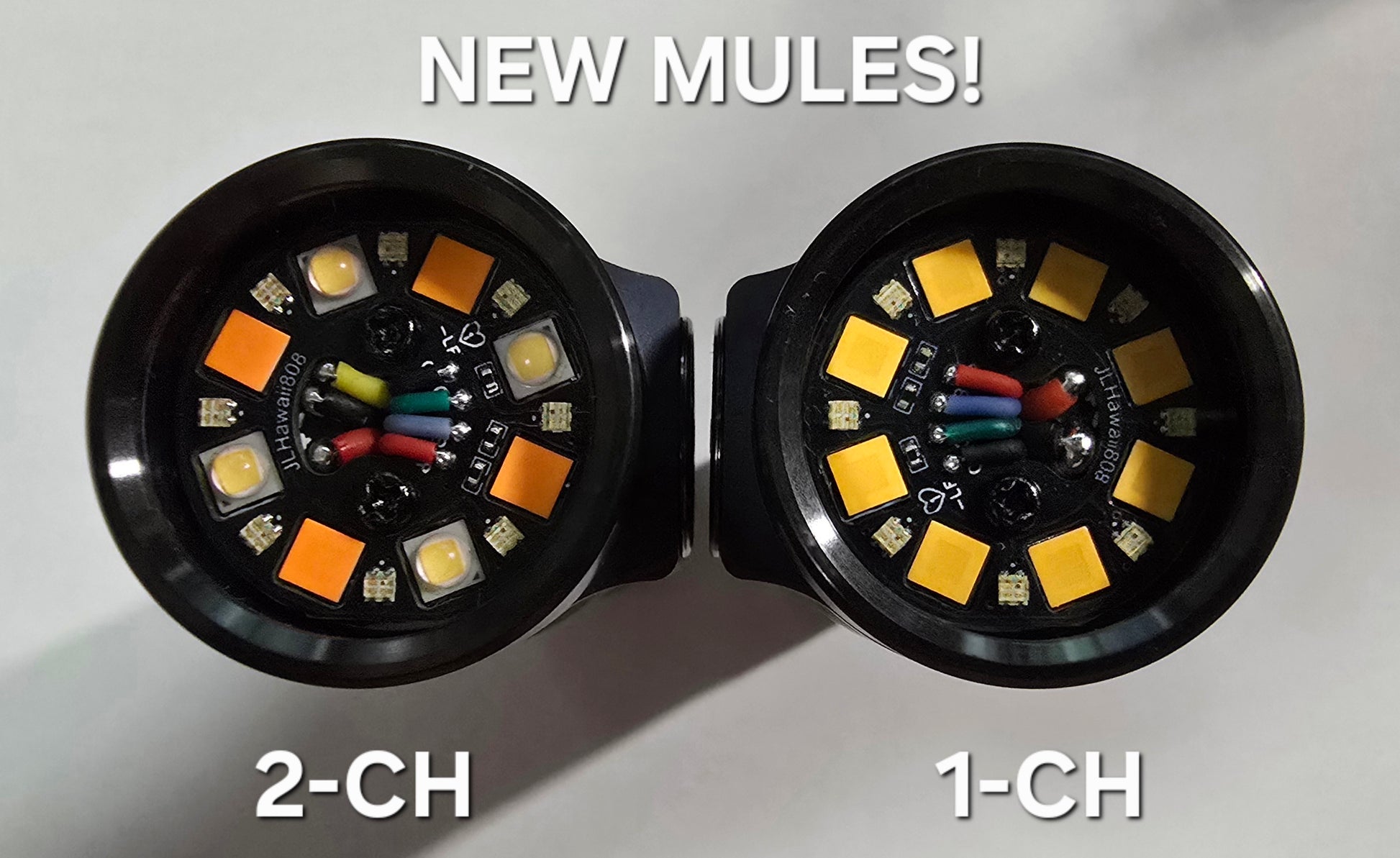

MULES:

3MM ALUMINUM MULE SPACER

NO OPTICS & AUXILIARIES

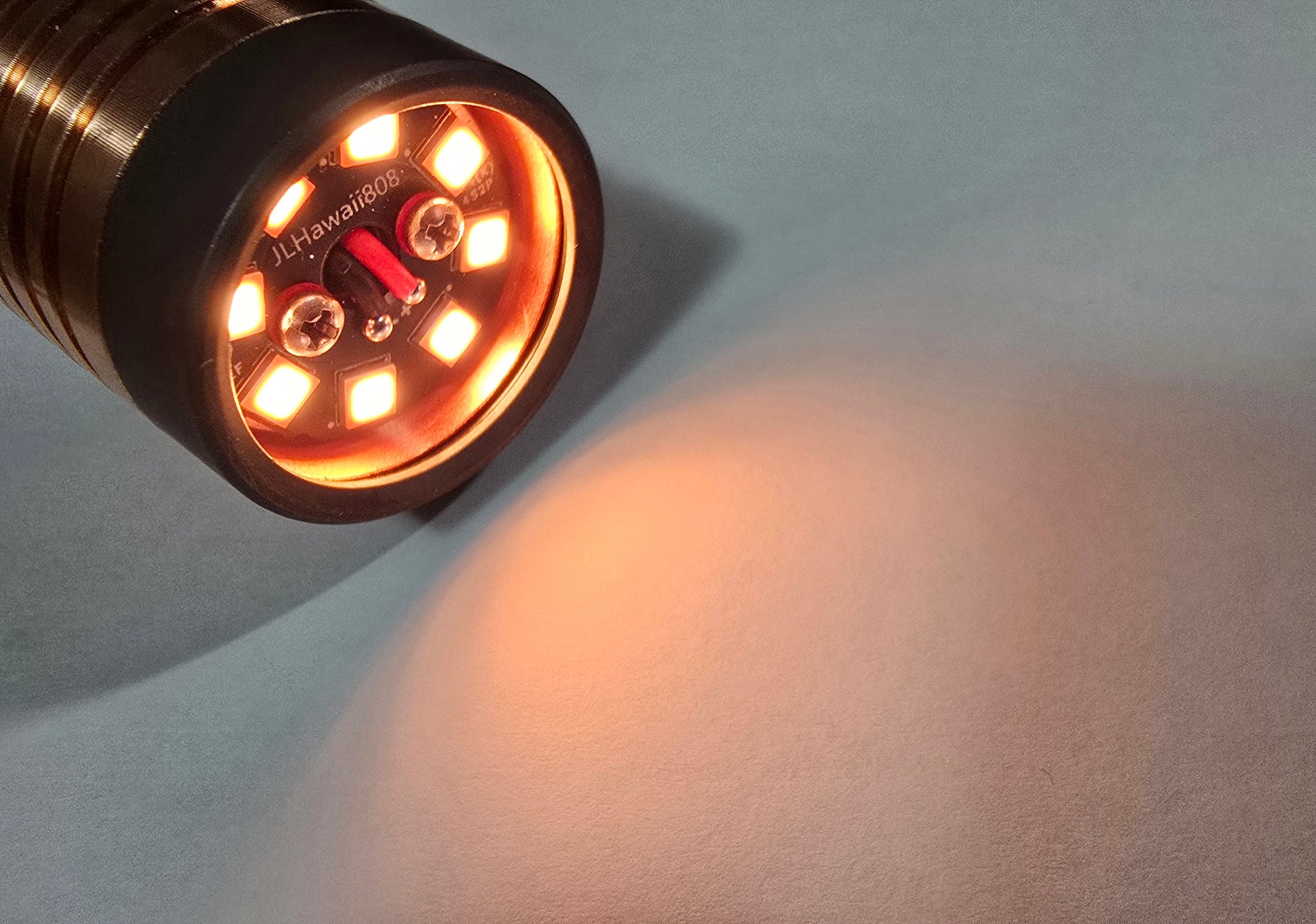

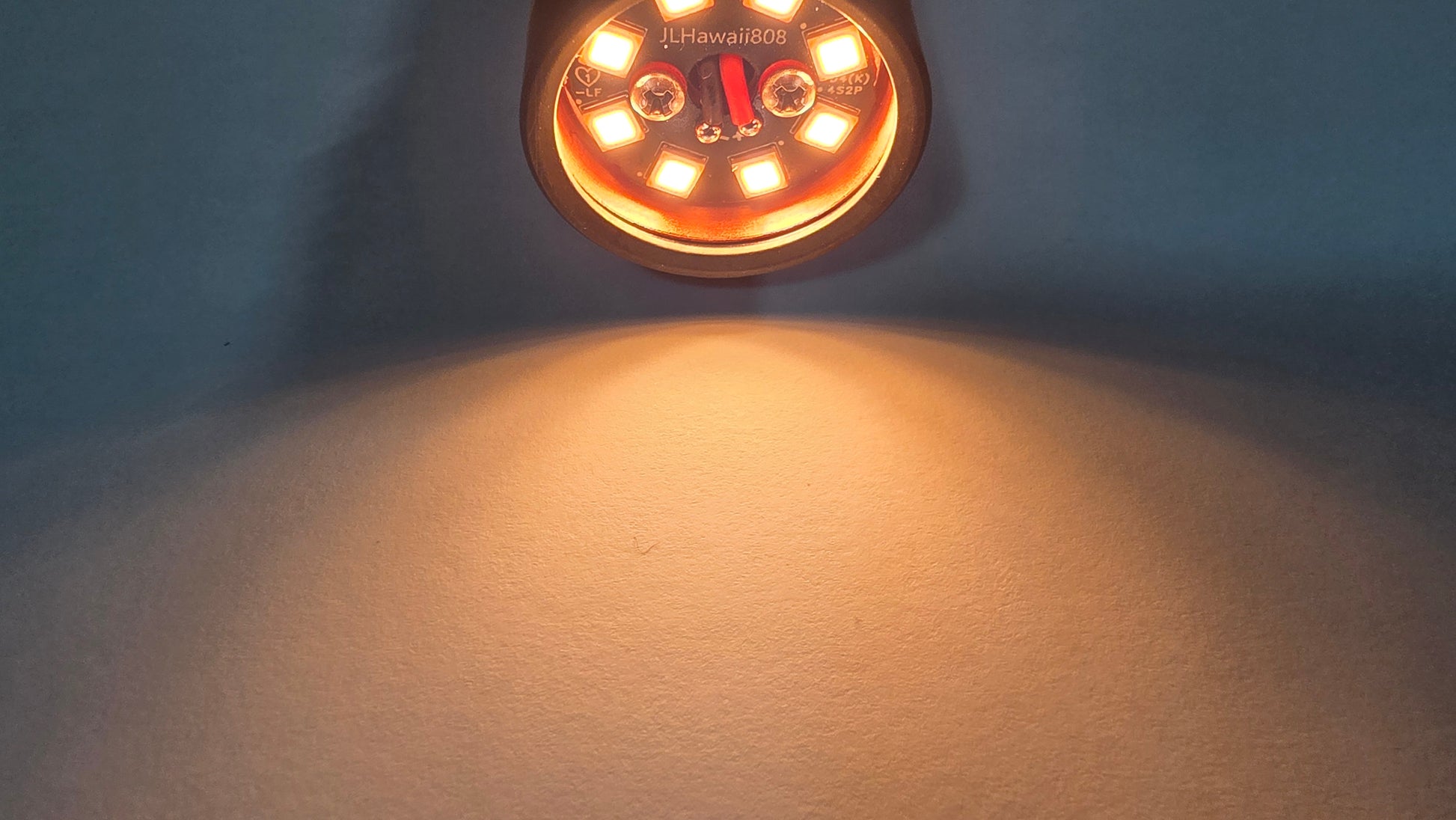

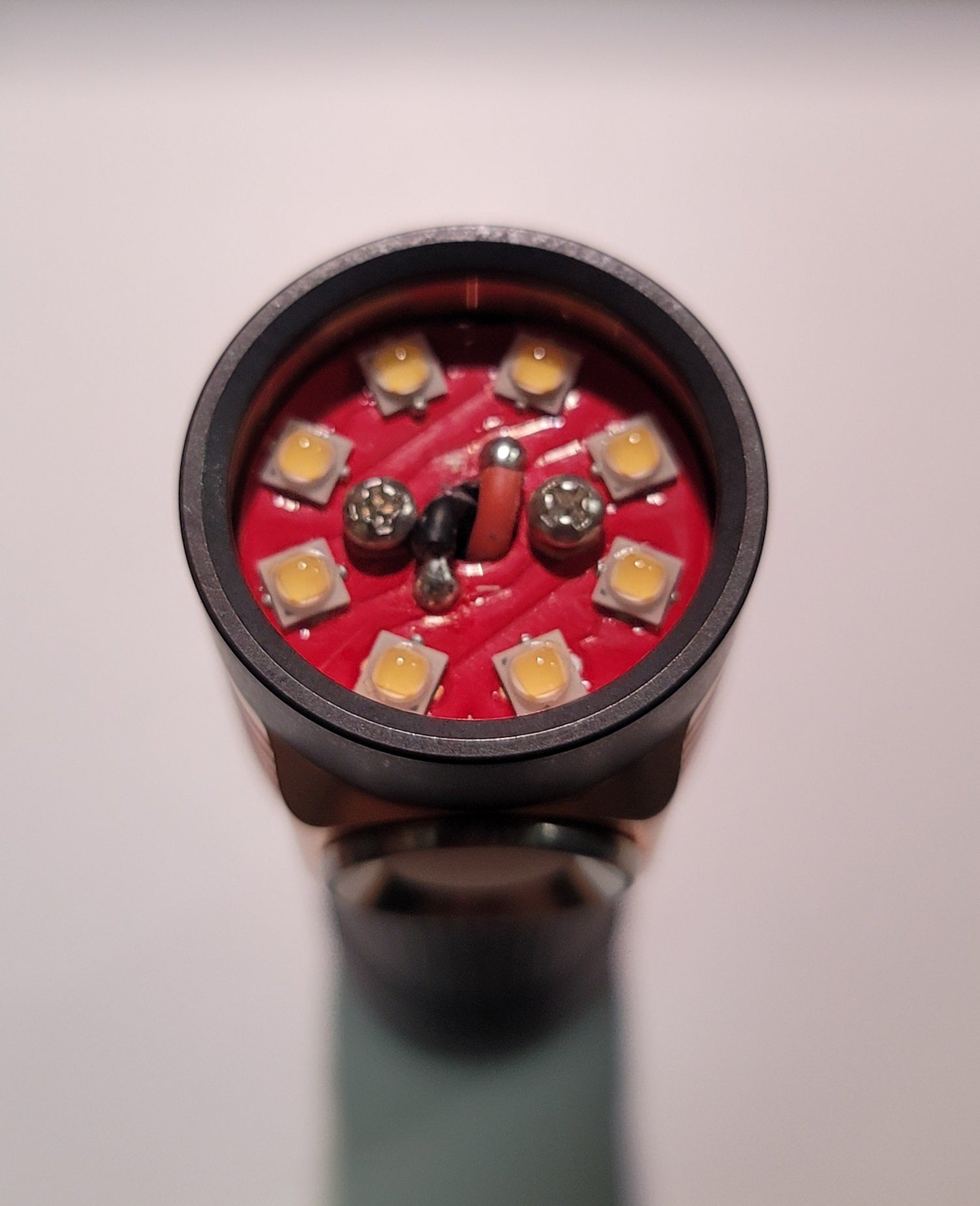

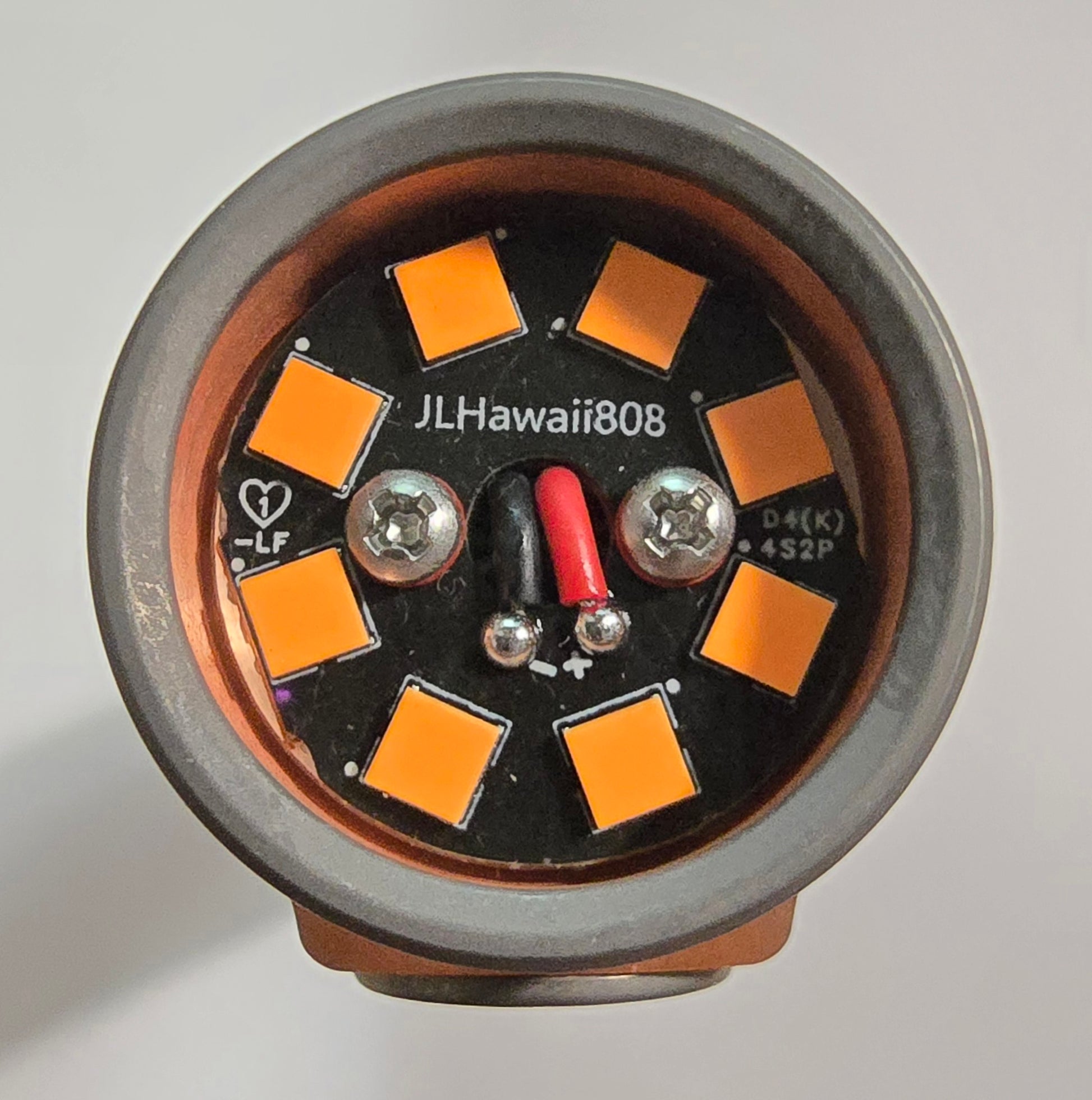

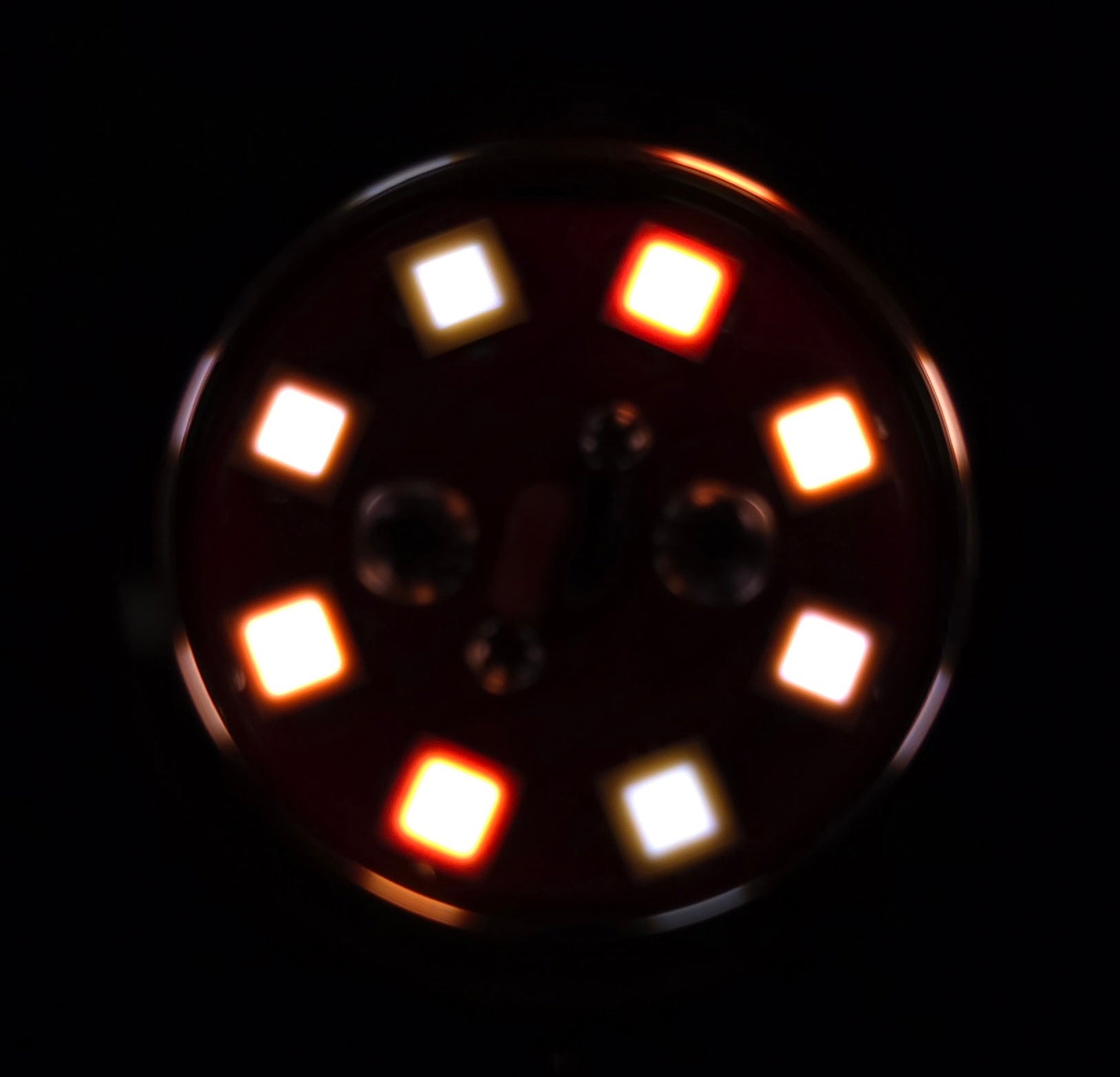

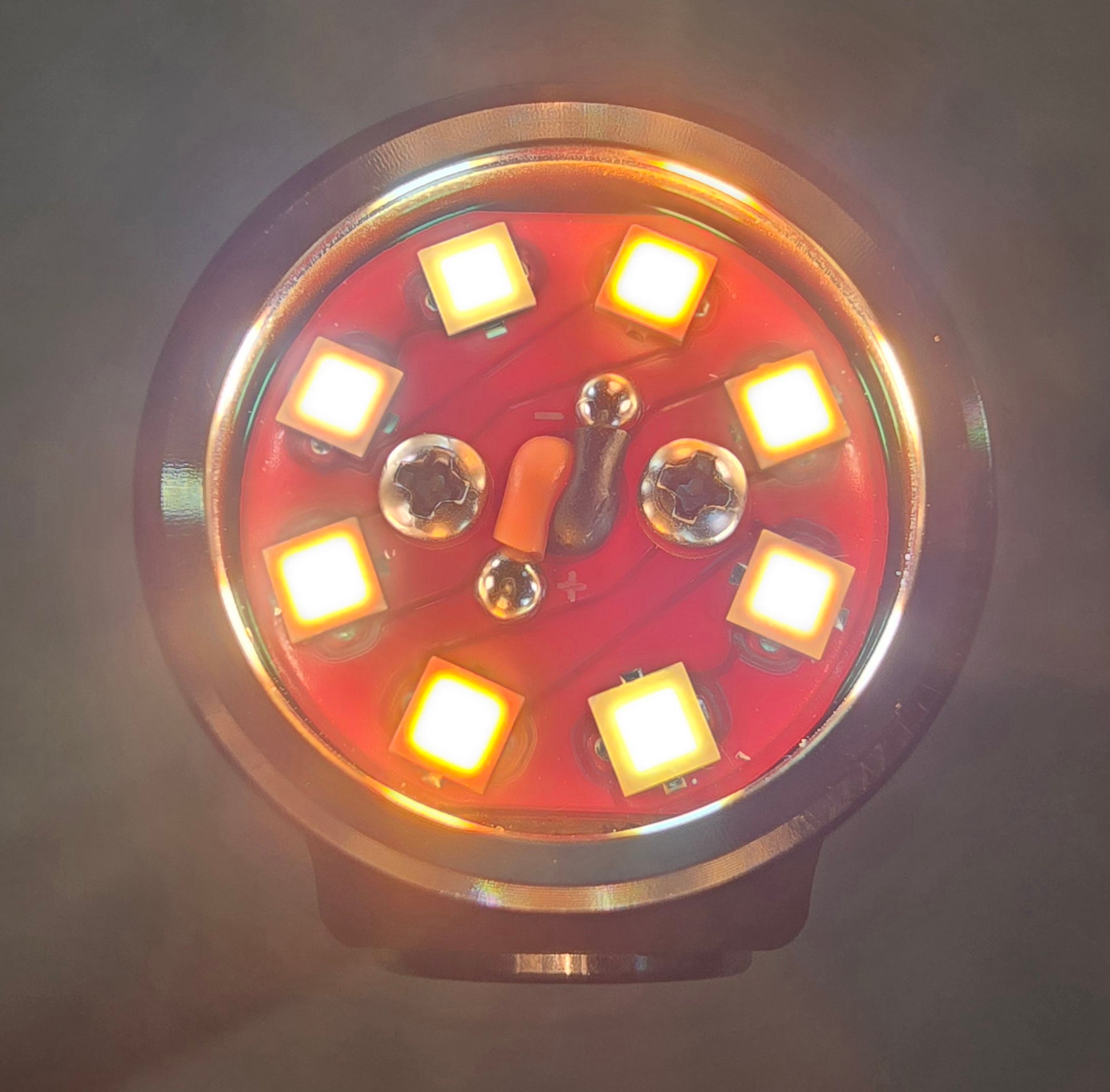

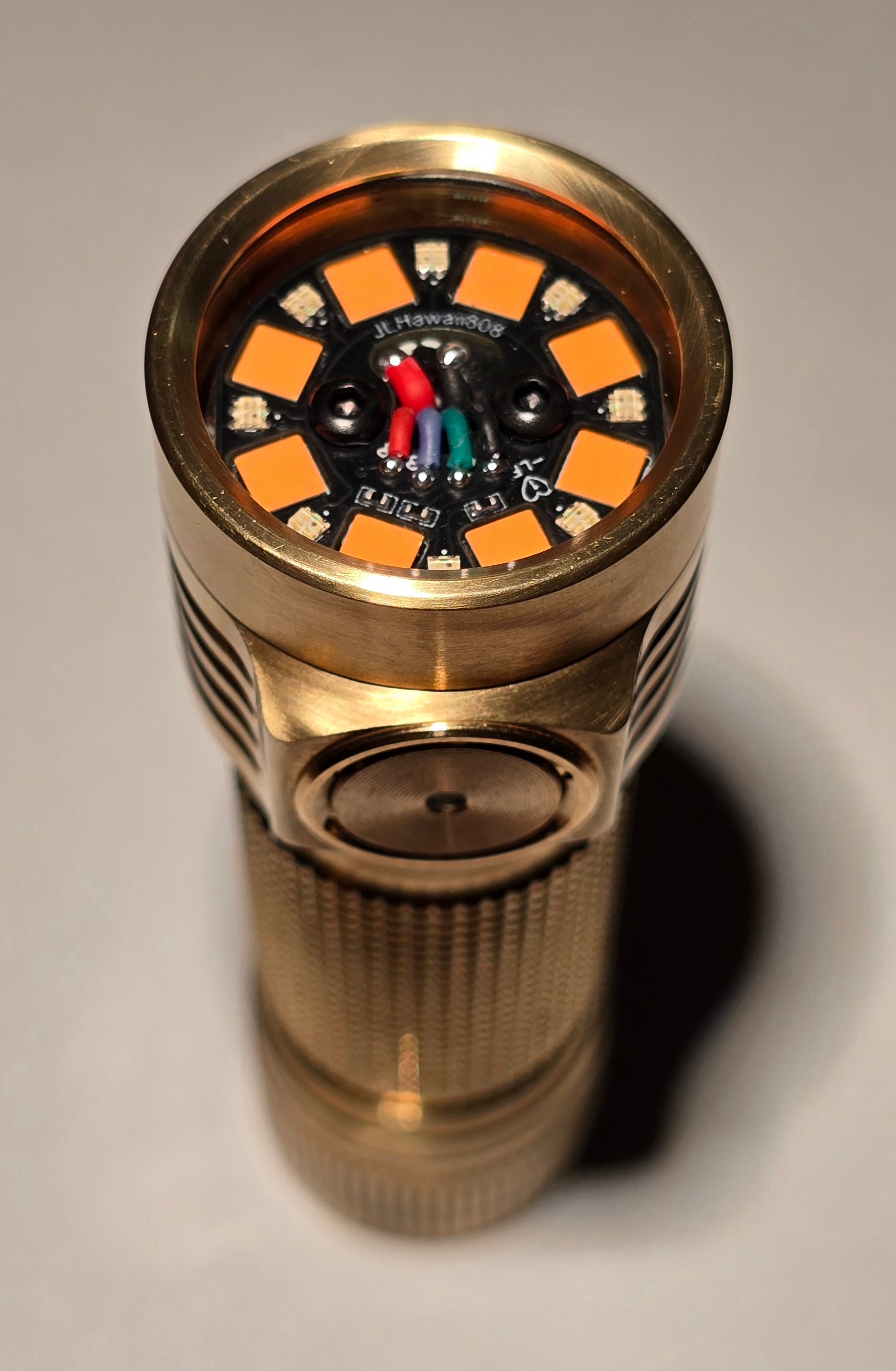

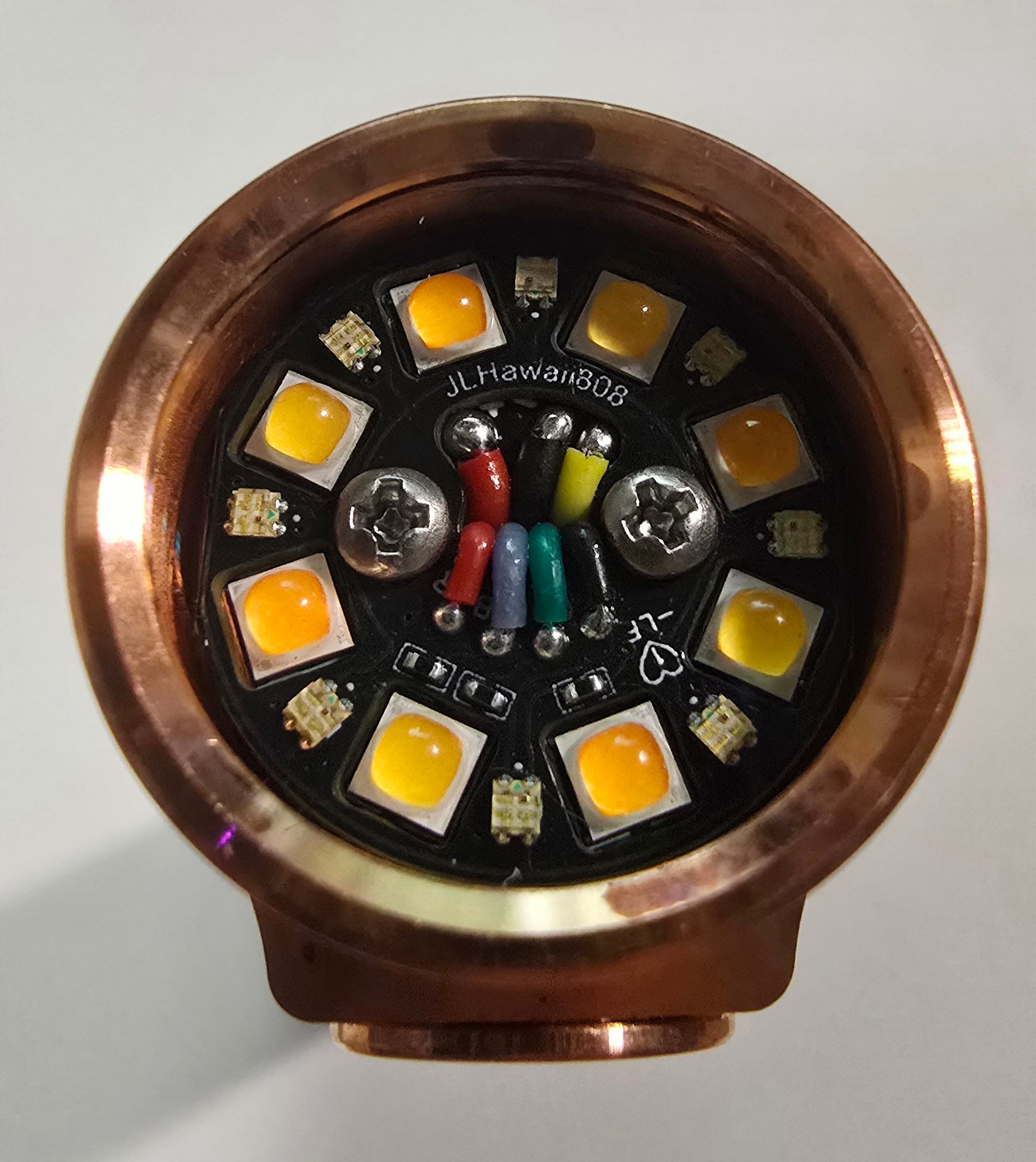

8 X EMITTERS 3535SMD LEDS

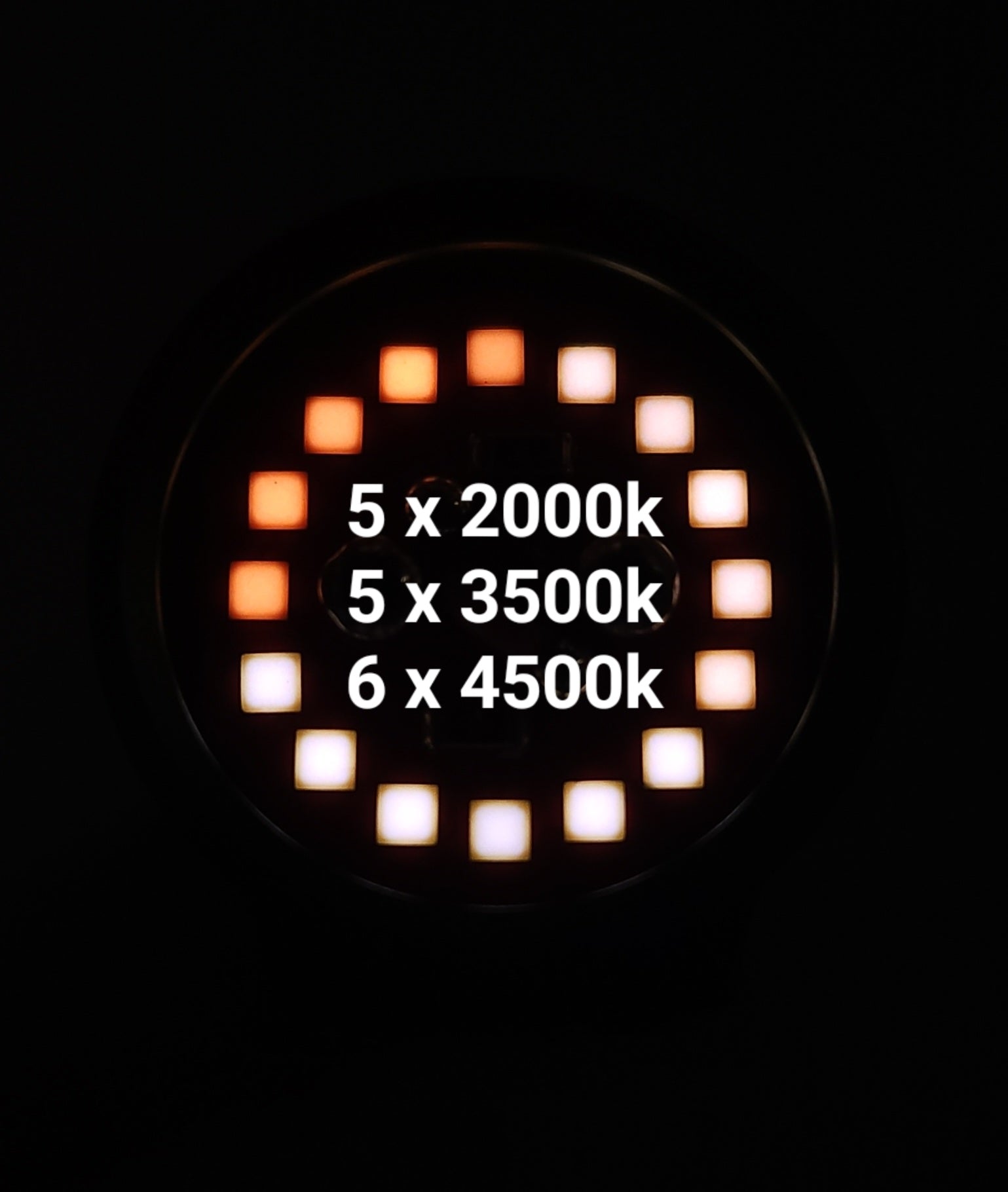

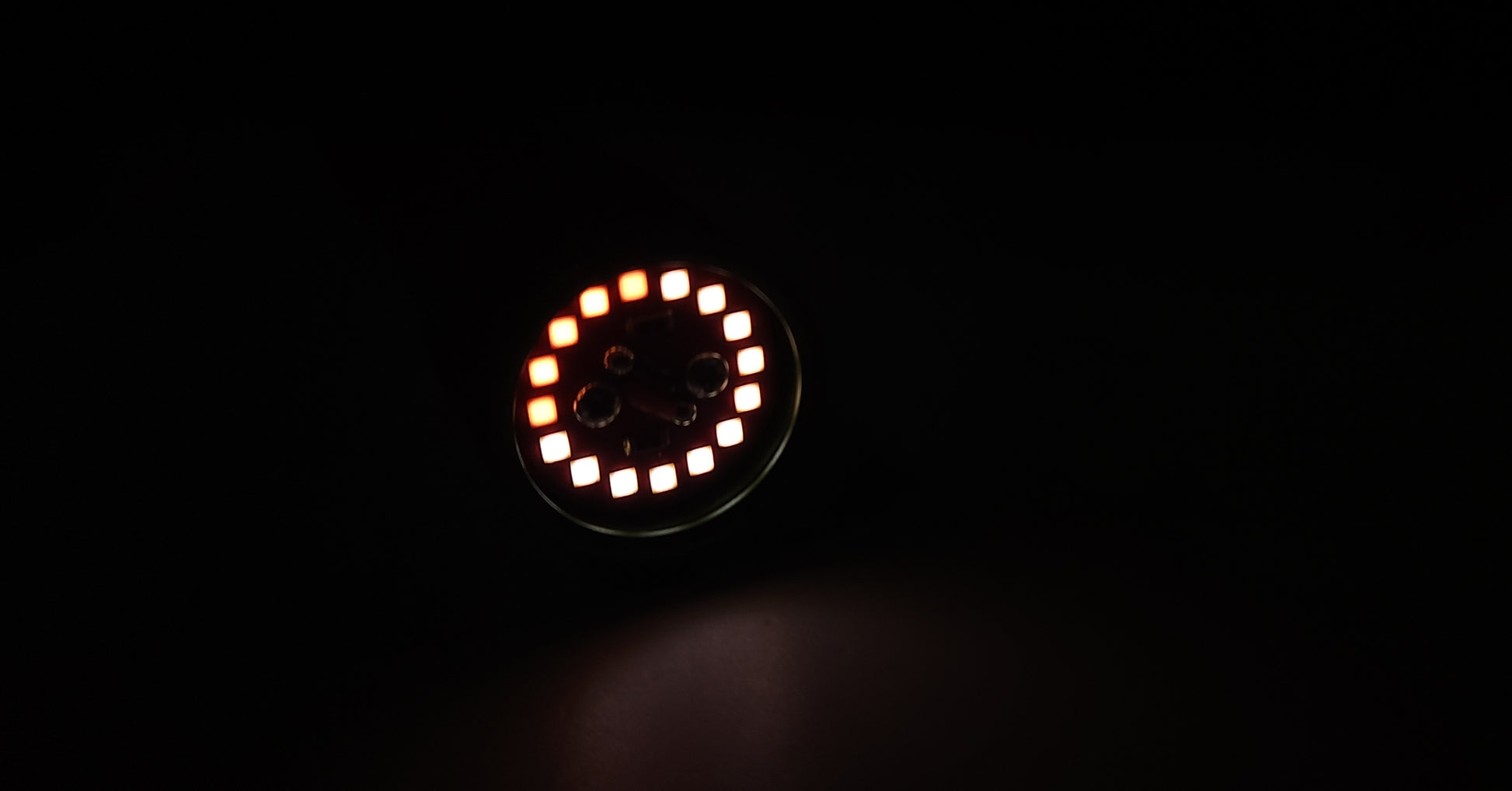

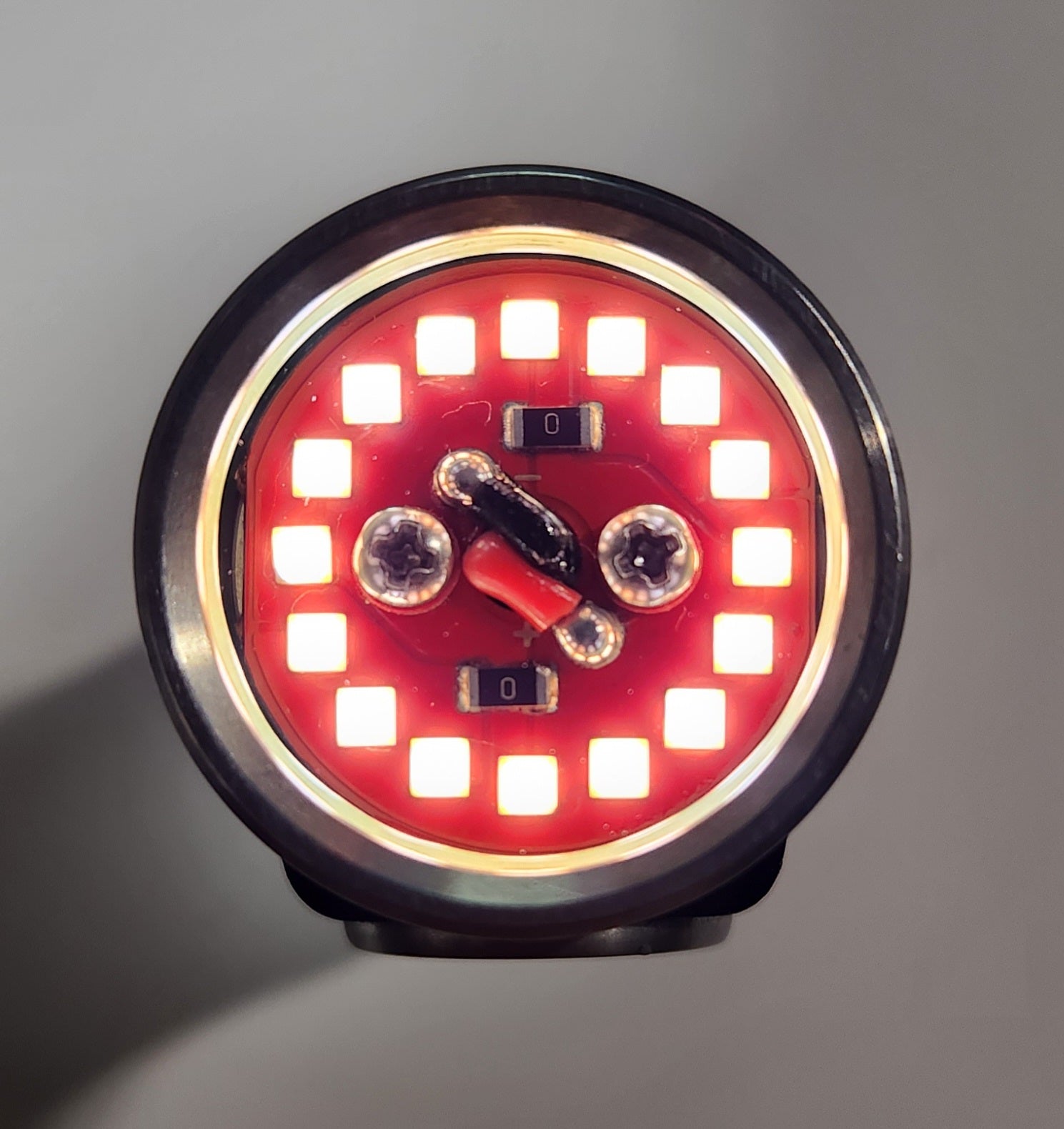

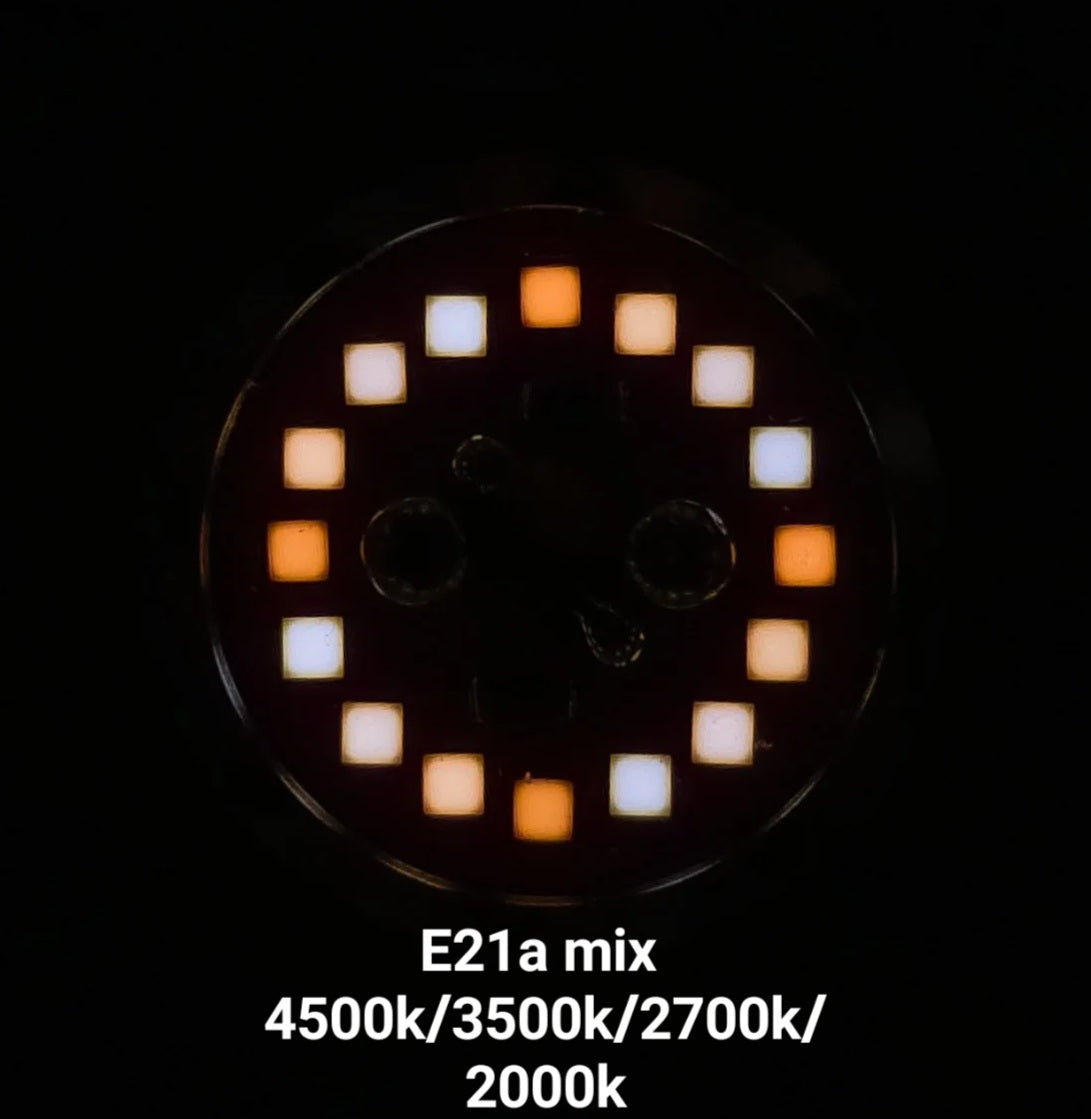

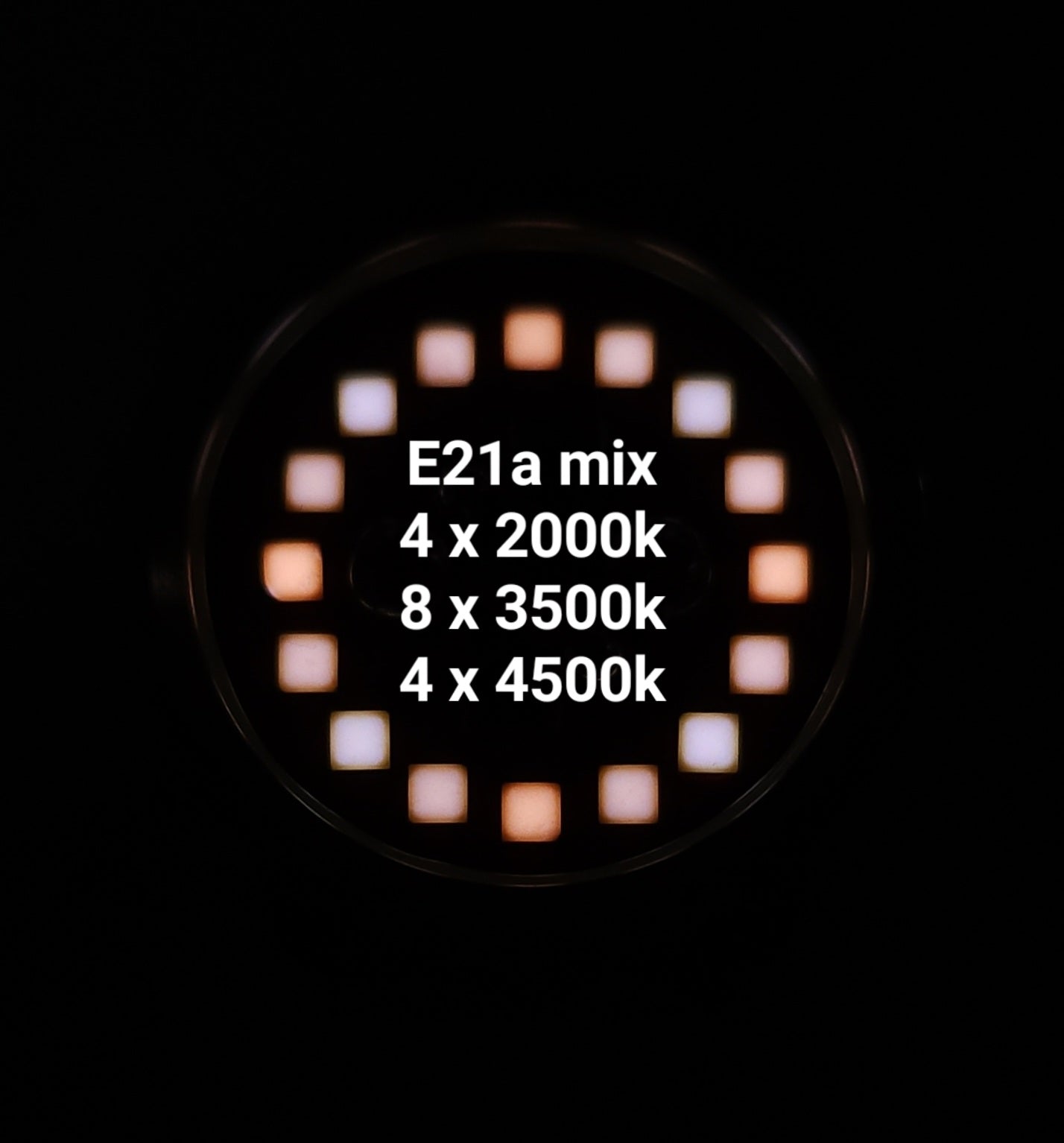

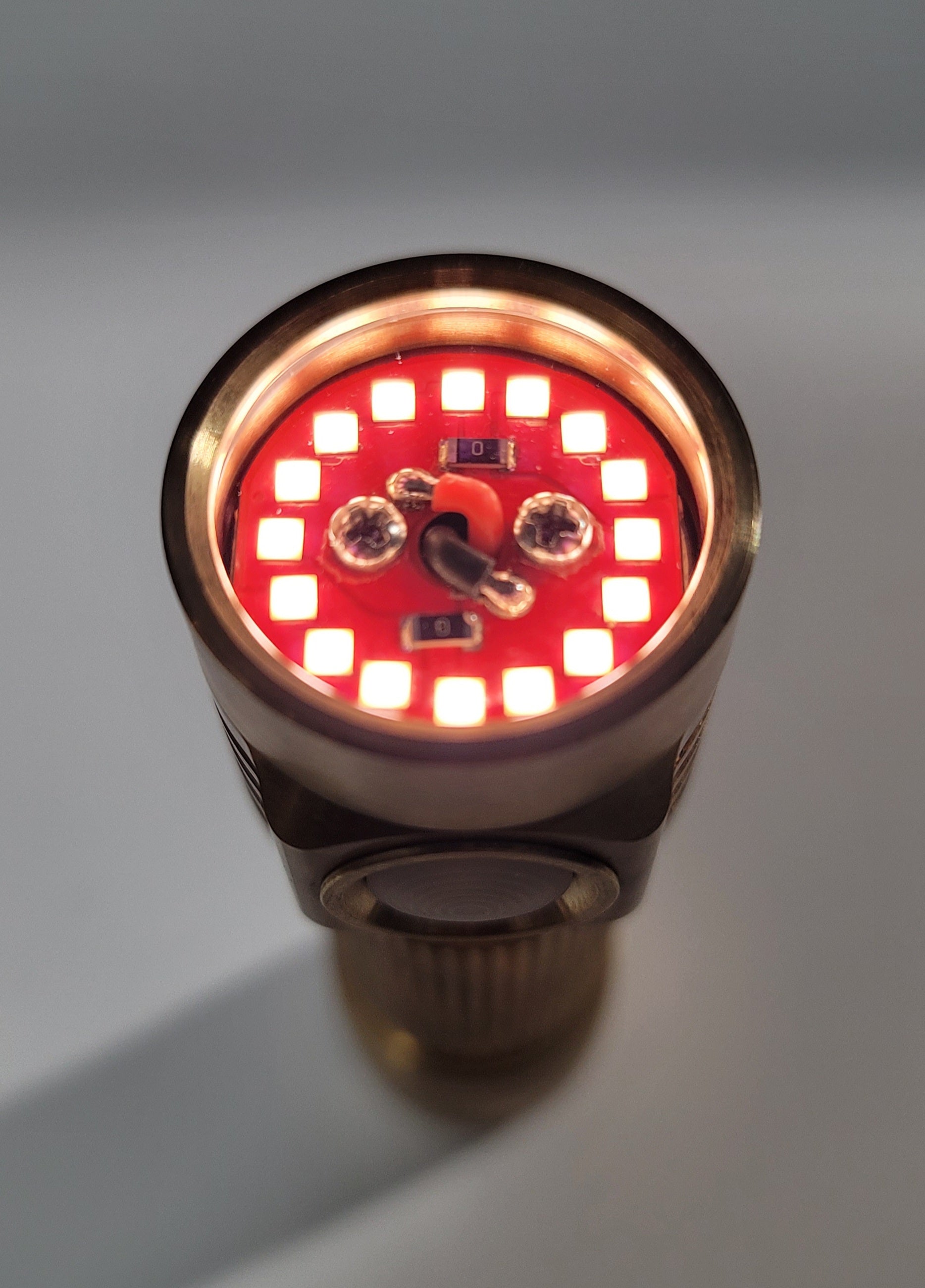

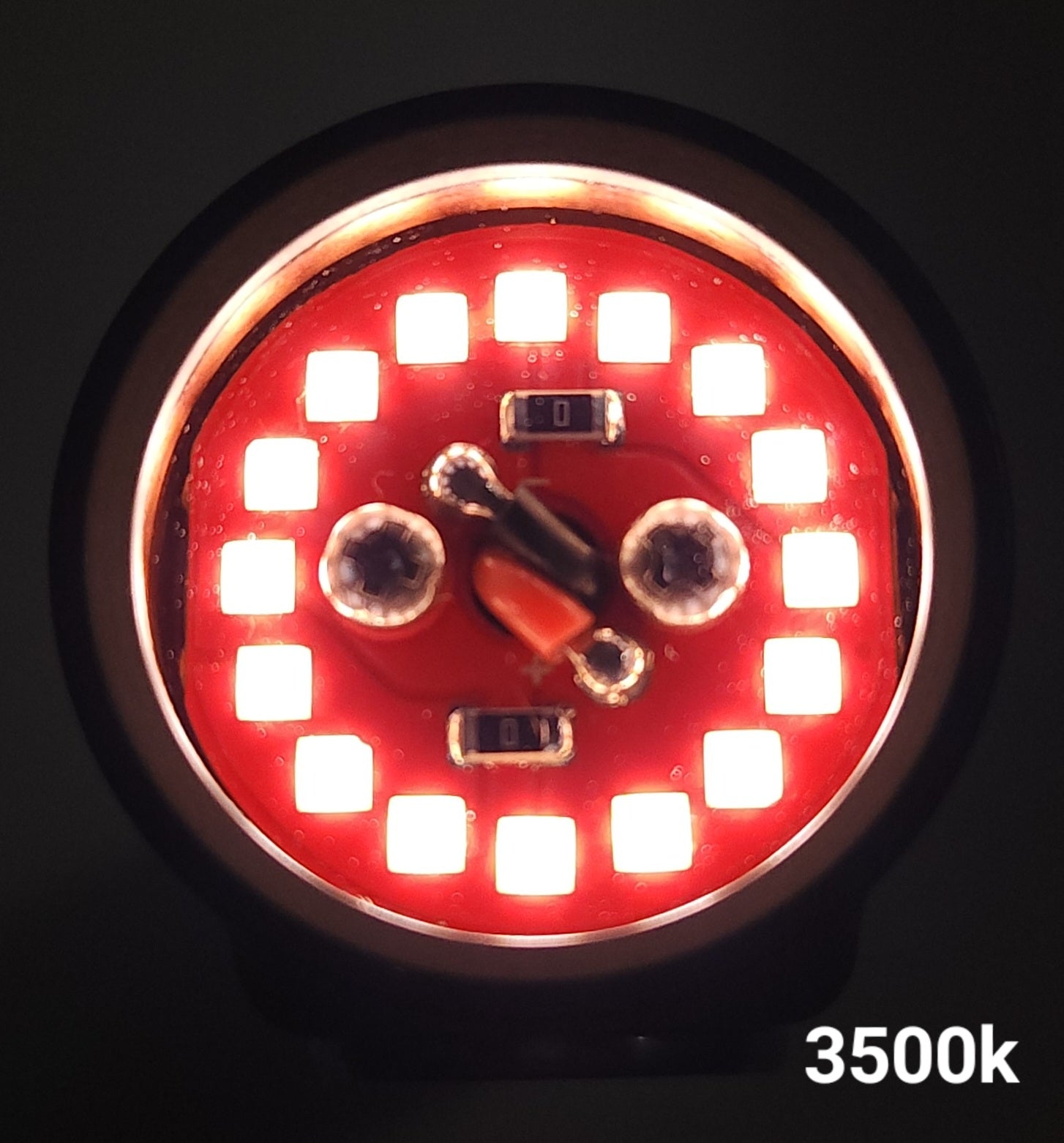

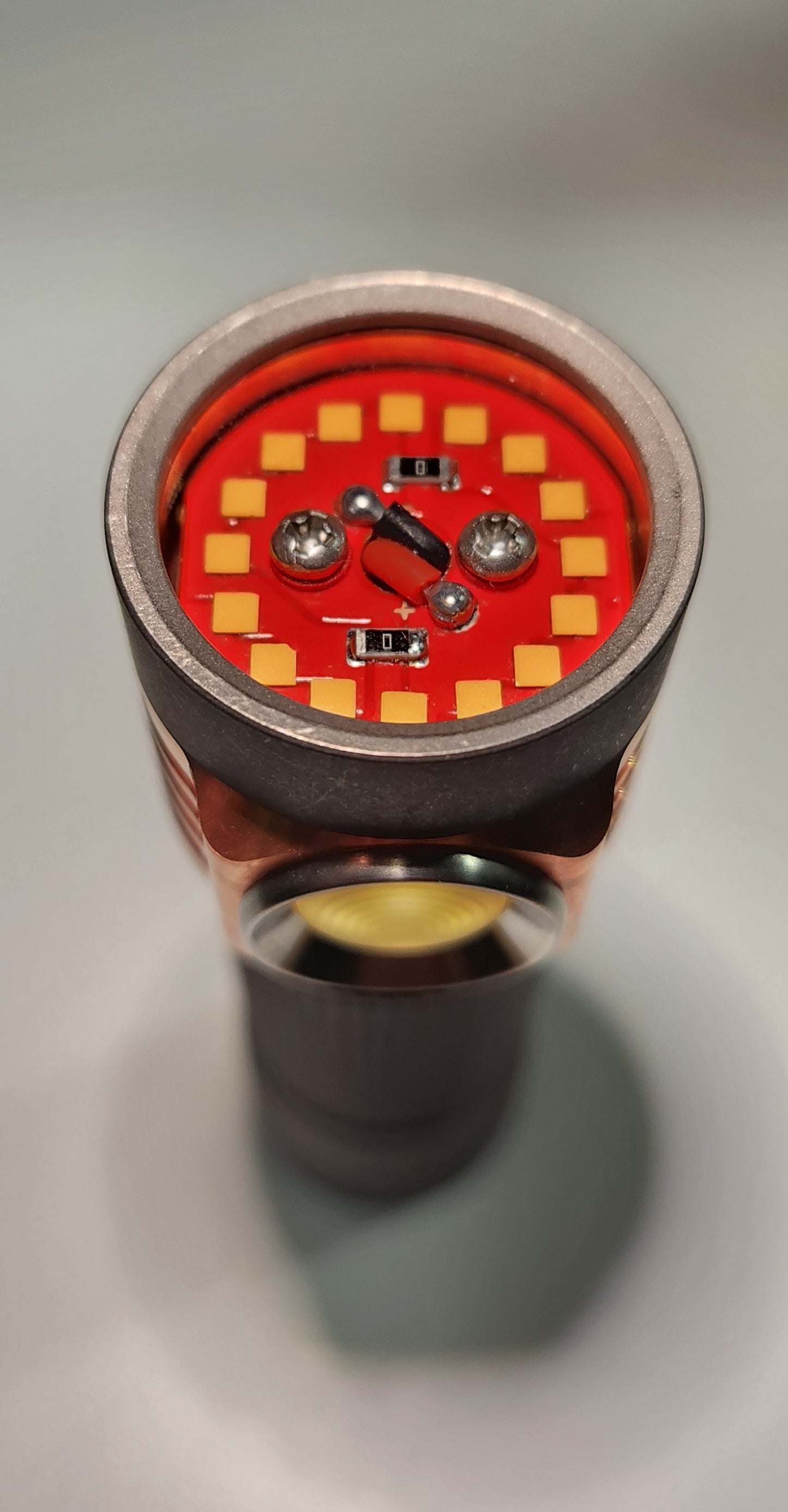

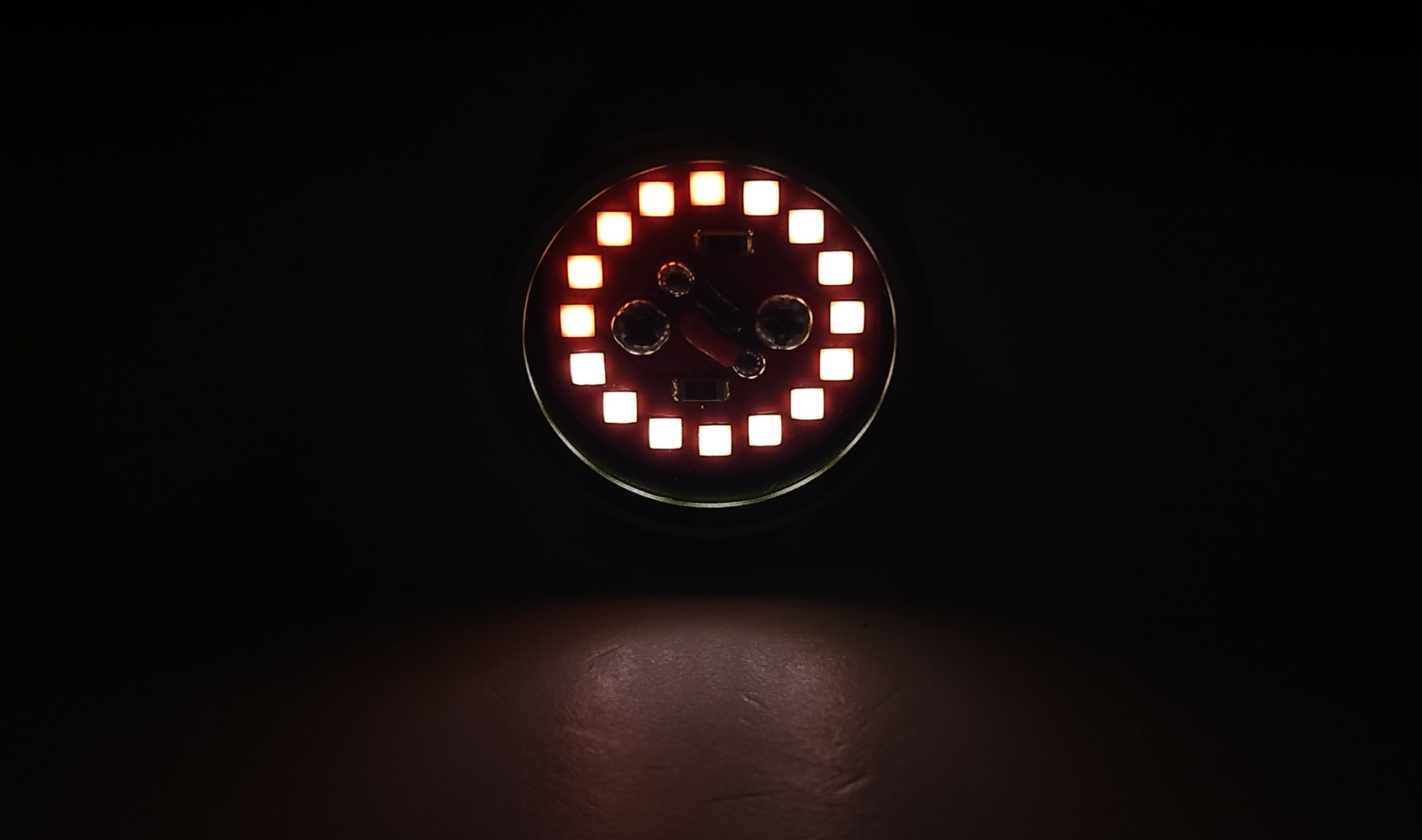

16 X EMITTERS E21A LEDS

 BRASS 2-CH VERSION >>> Emisar D4v2 Brass 2-CH 2CH High Power LED Flashlight *CUSTOM BUILD-TO- – JLHawaii808

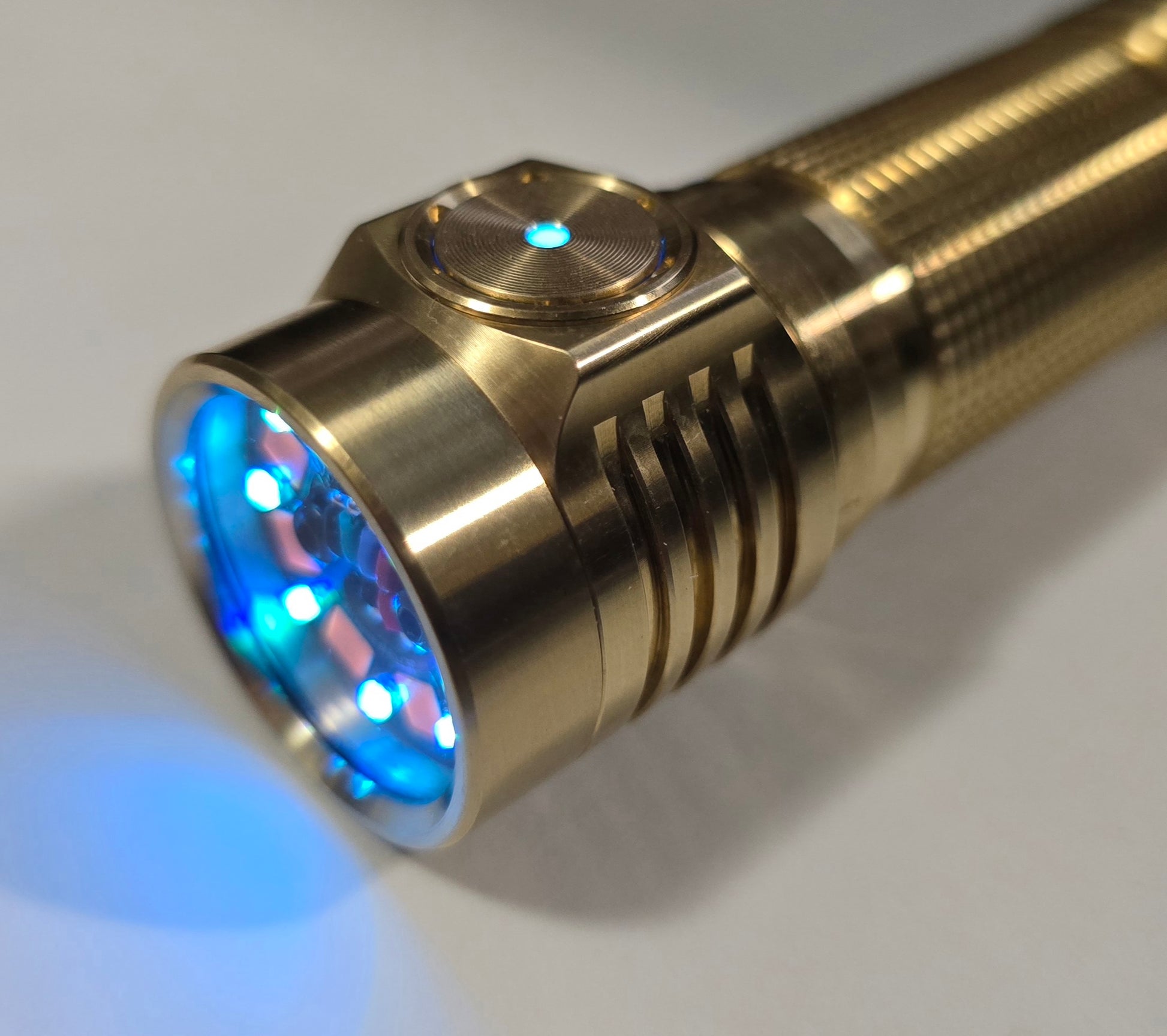

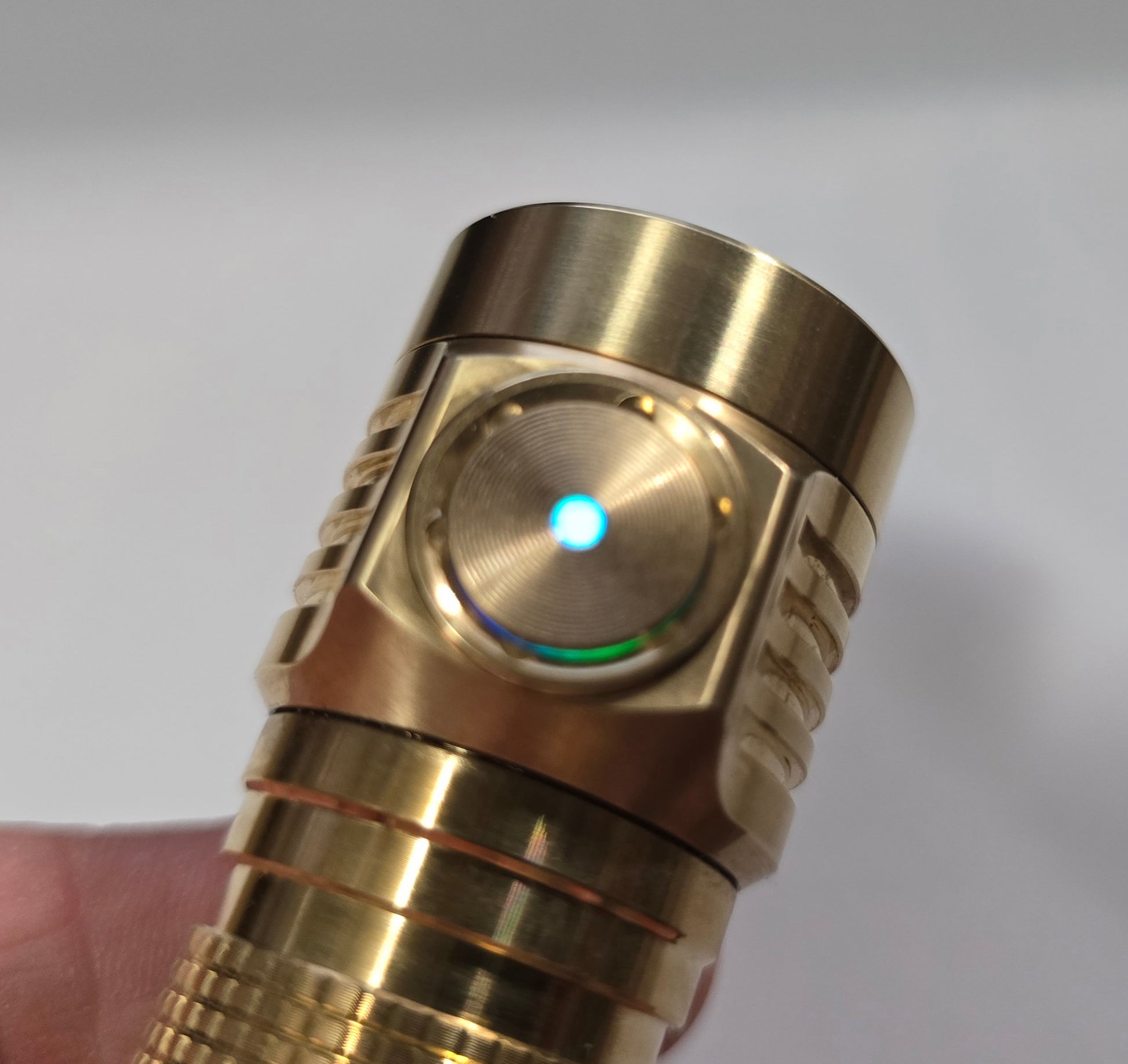

LIGHT SWITCH:

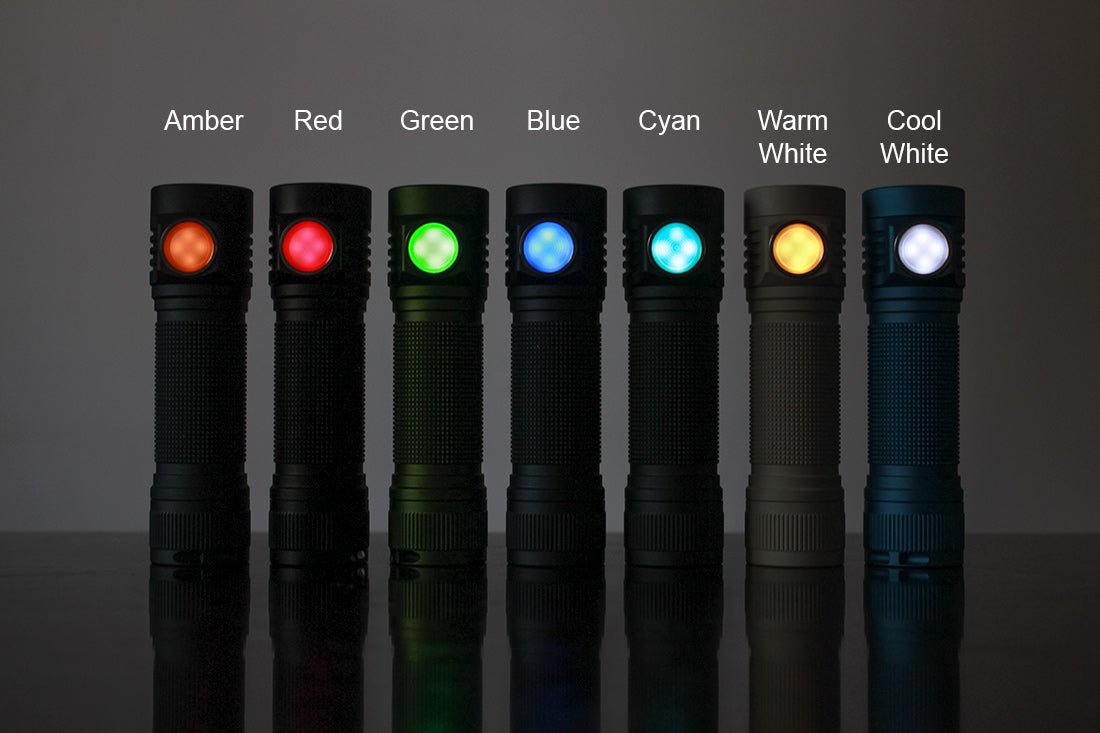

ALL COLORS + RGB

INCLUDEDS OPTIONS:

DEEP CARRY POCKET CLIP

MAGNETIC CAP

LANDYARD

EXTRA ORING

ANDURIL 2 PRINTED INSTRUCTIONS

RECCOMENDED BATTERY:

18650 FLAT TOP UNPROTECTED CELL (NOT INCLUDED) MIN 15-20A

MOLICEL 30B >>> MOLICEL INR-18650-P30B ULTRA HIGH POWER RECHARGEABLE LITHIUM-ION BATTE – JLHawaii808

Features:

• CNC machined from Brass.

• High end custom made N244M optic.

• Anti-reflective coated glass lens

• Unihead construction

• High lumen output and low moon output

• Ramping interface

• Electronic soft touch switch

• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.

• Temperature step-down

• Waterproof and dustproof to IP67 standard (up to 1 meter)

• Default 18650 body with optional 18350 battery tube

• Dimensions: 96mm(length) * 28mm(head) * 24mm(body), 65mm (lenght 18350)

This product uses free software of Anduril 2, distributed under the terms of the GPLv3.

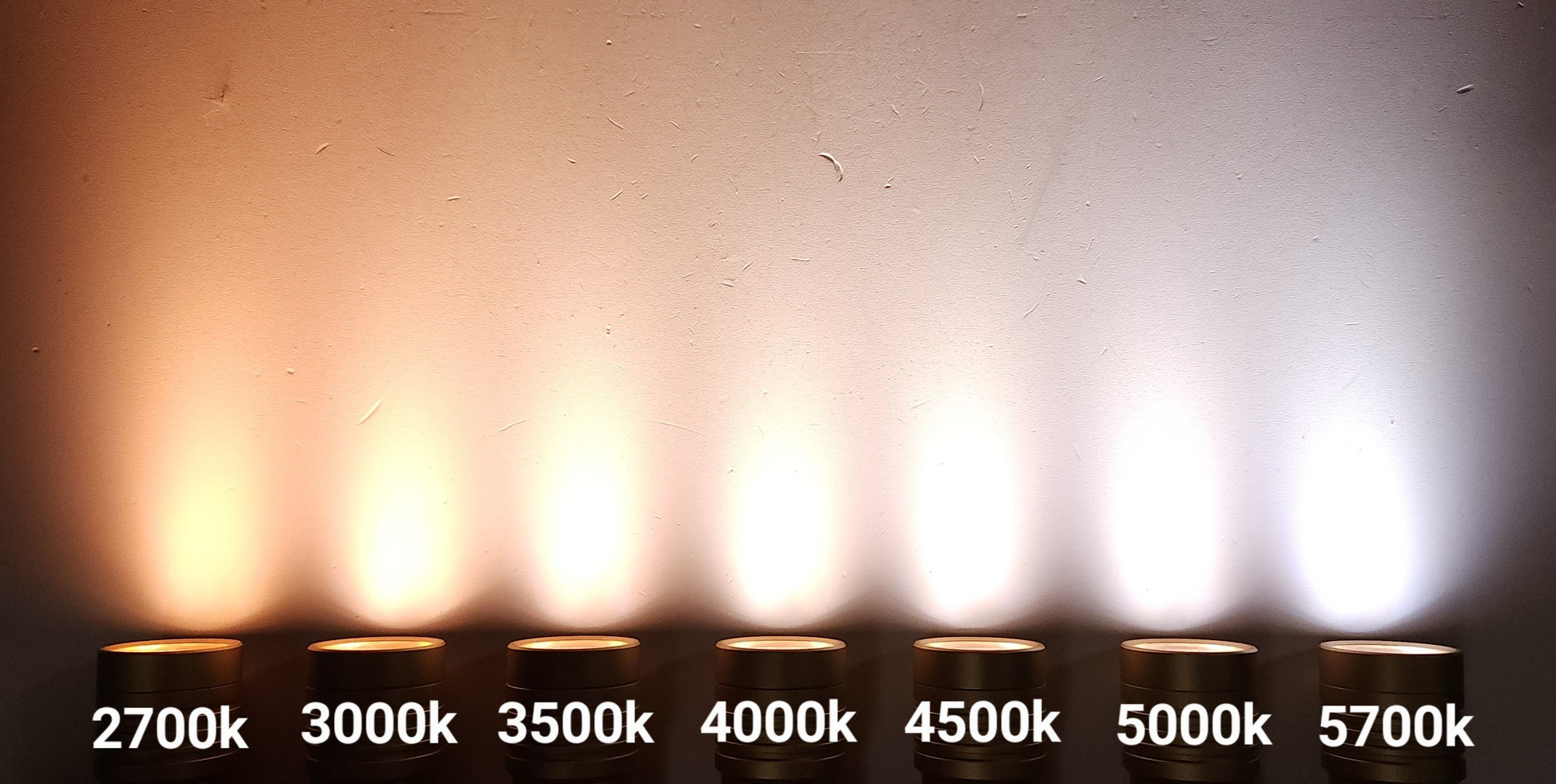

OTF lumen output at start-up for Lume X1 driver:

NTG35 5000K/4200K: 2900lm

NTG35 2700K: 2500lm

NTG35 1800K: 2000lm

519A 5700K/5000K DOMED: 2600lm

519A 4500K/4000K DOMED: 2400lm

519A 3500K/2700K DOMED: 2200lm

519A 1800K: 2000lm

519A 5700K/5000K DEDOMED(about 1300K CCT reduce): 2300lm

519A 4500K/4000K DEDOMED (about 1200K CCT reduce): 2100lm

519A 3500K/2700K DEDOMED (about 1200K CCT reduce): 1800lm

SST-20 6500K: 3200lm

SFT-25R 6500K/5000K: 3600lm

OTF Lumen output at start up for Linear + FET driver

519A 5700K/5000K: 3800lm

519A 4500K/4000K: 3500lm

519A 3500K/2700K: 3200lm

519A 1800K: 2600lm

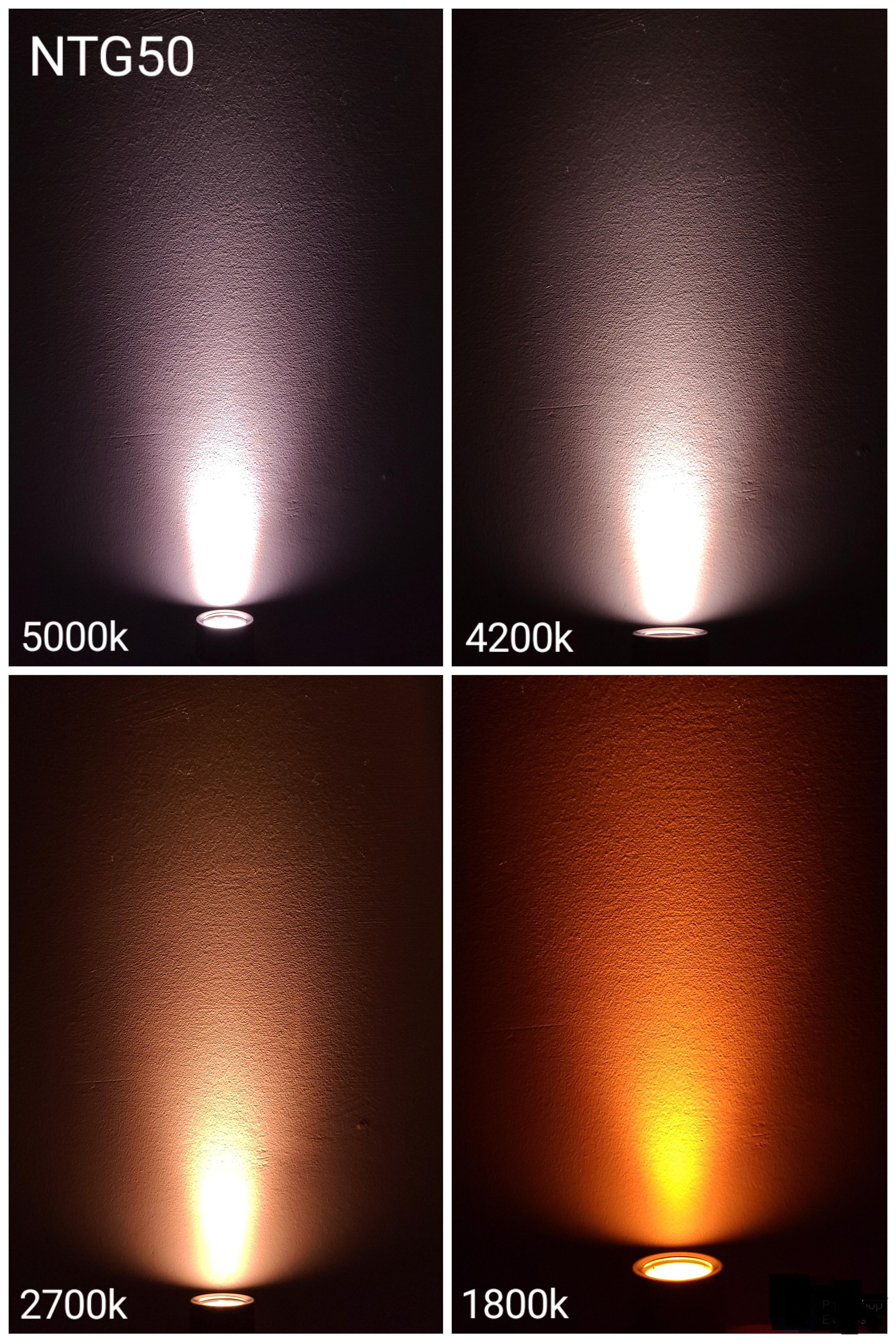

NTG35 5000K/4200K: 4200lm

NTG35 2700K: 3600lm

NTG35 1800K: 2800lm

SST-20 6500K: 4200lm

SFT-25R 6500K/5000K: 4800lm
