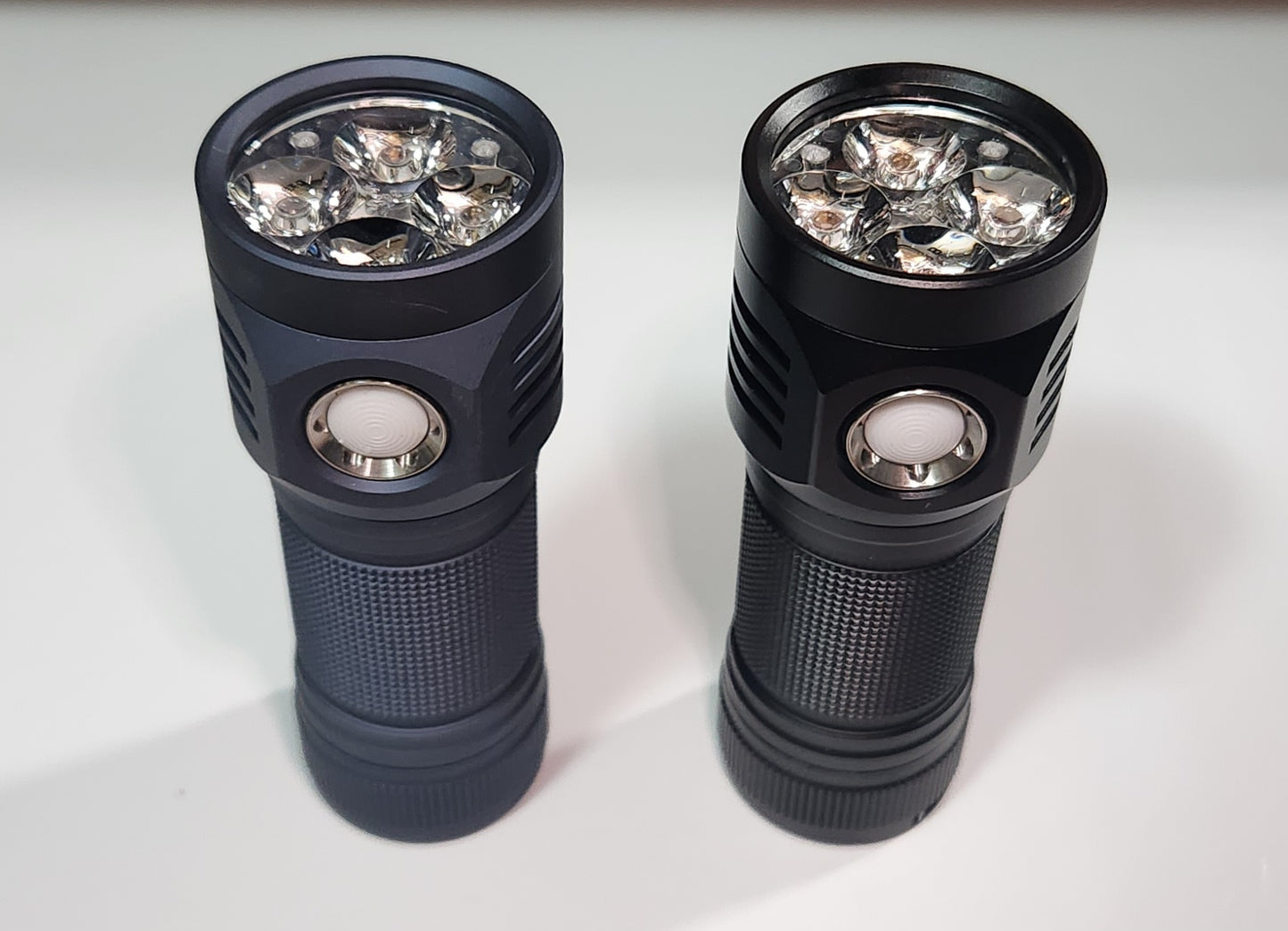

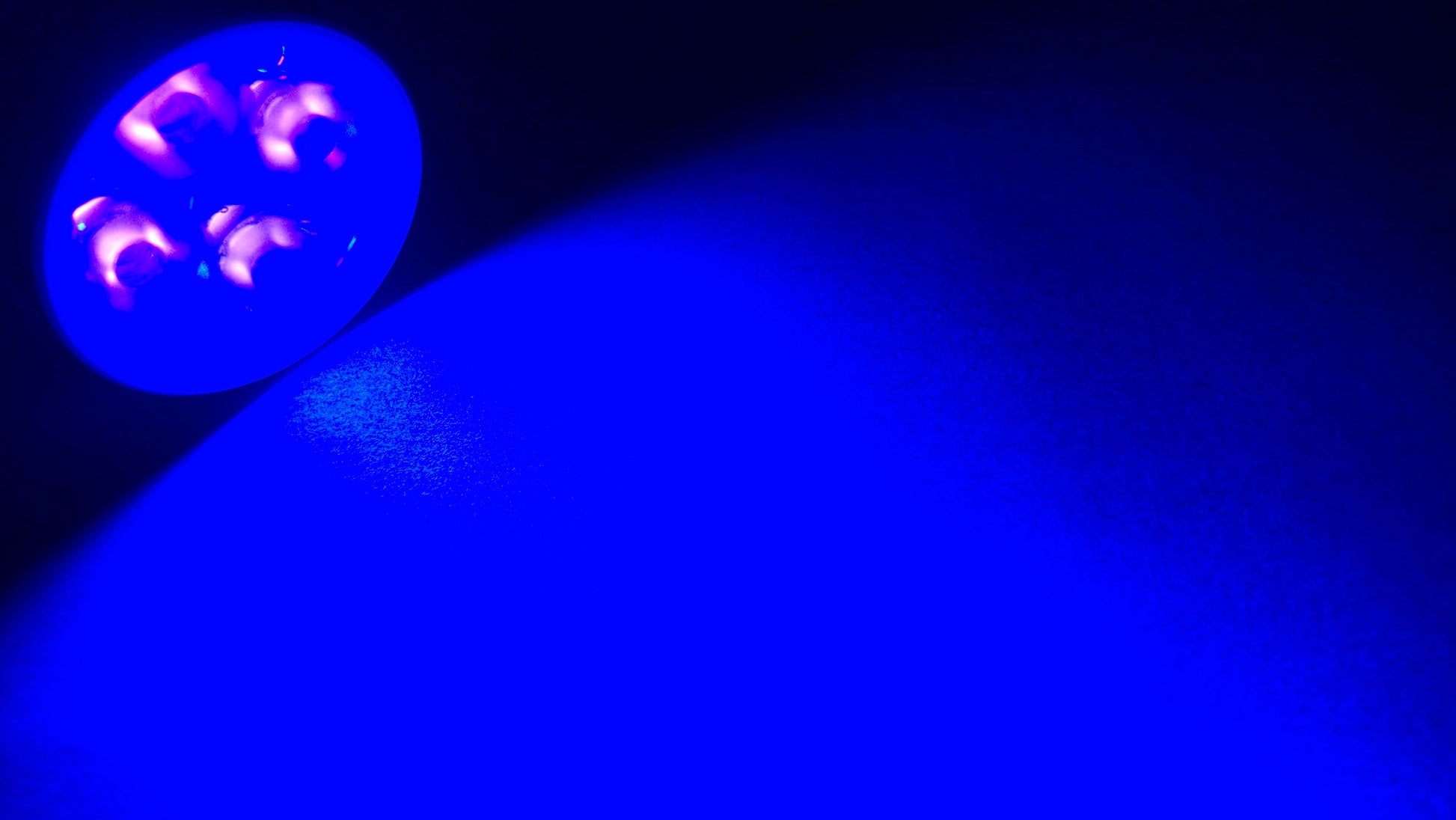

Emisar D4SV2 26650 2-CH 2CH Tint Ramp Led Flashlight

Name: Emisar D4SV2 26650 2-CH 2CH Tint Ramp Led Flashlight
Brand: EMISAR
Price: 80.88 USD
Availability: InStock

BODY COLOR BLACK (W/21700 TUBE DEFAULT) GRAY (W/21700 TUBE DEFAULT) CYAN (W/21700 TUBE DEFAULT) GREEN (W/21700 TUBE DEFAULT)

Product variants

$80.88

~~$89.99~~ $80.88

Sale Sold out

Shipping calculated at checkout.

Quantity

Emisar D4Sv2 2-CH tint ramp/channel switching

NOTE: THIS IS CUSTOM "BUILT-TO-ORDER" WILL SHIPPING ACCORDINGLY!

NEW! Anduril 2-CH firmware, user choose the tint ramping or instant channel switching,

Advanced mode Off -> 9H, first menu item:

0C: tint-ramping (smooth)

1C: instant channel switching

Warning! Emisar D4SV2 puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing.

Works with high drain unprotected 26650 cells under 69mm.

DRIVER:

Dual 9A or dual 12A drivers (depending on the emitters)

USER INTERFACE:

Anduril 2 ui

FIRMWARE:

New! 2-CH firmware

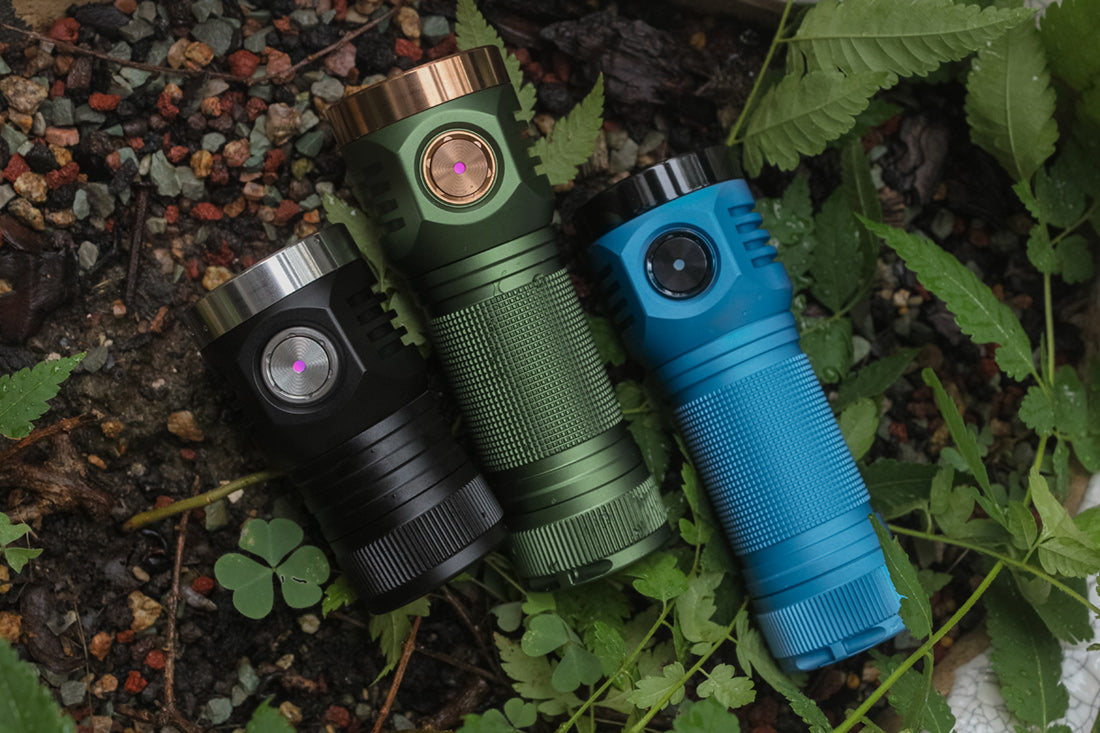

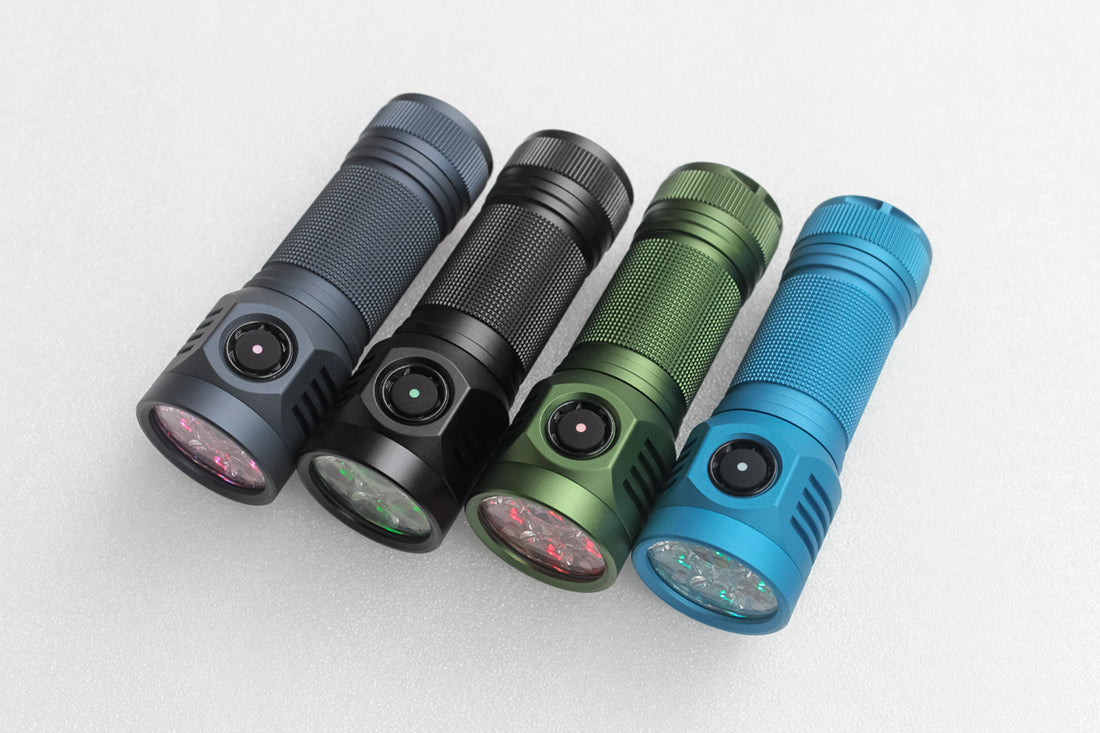

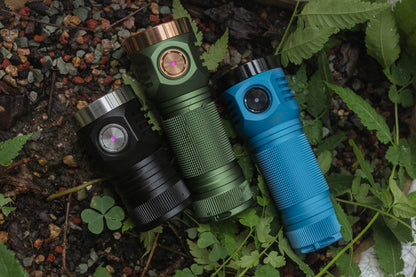

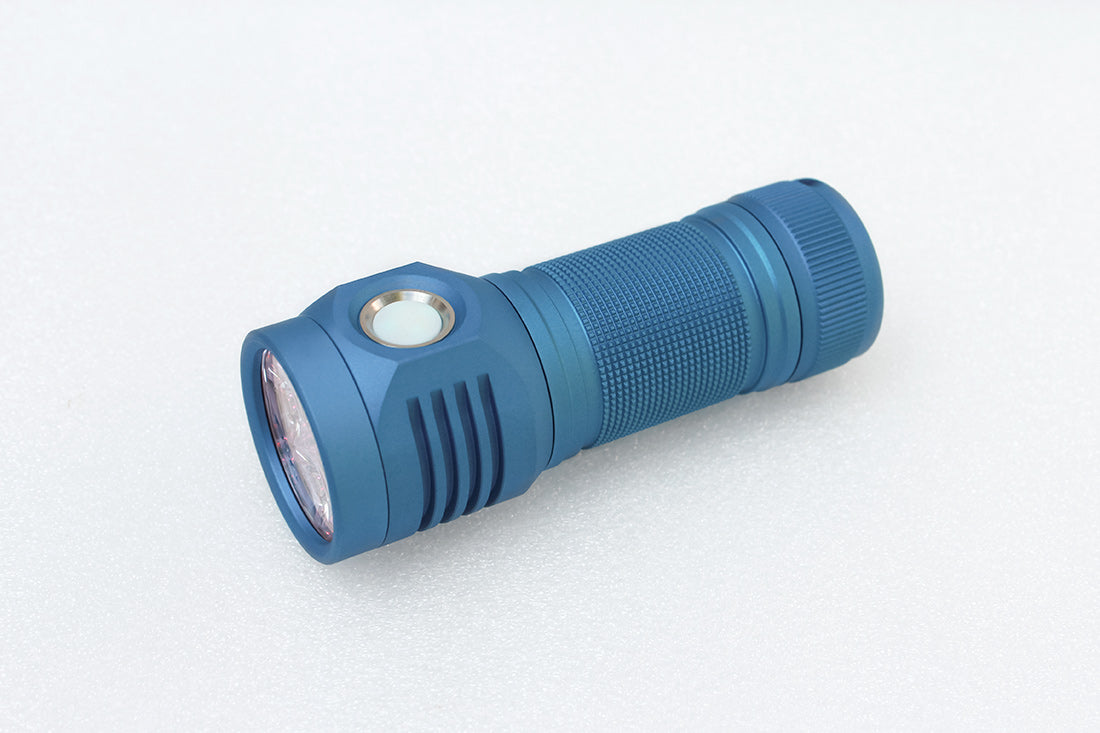

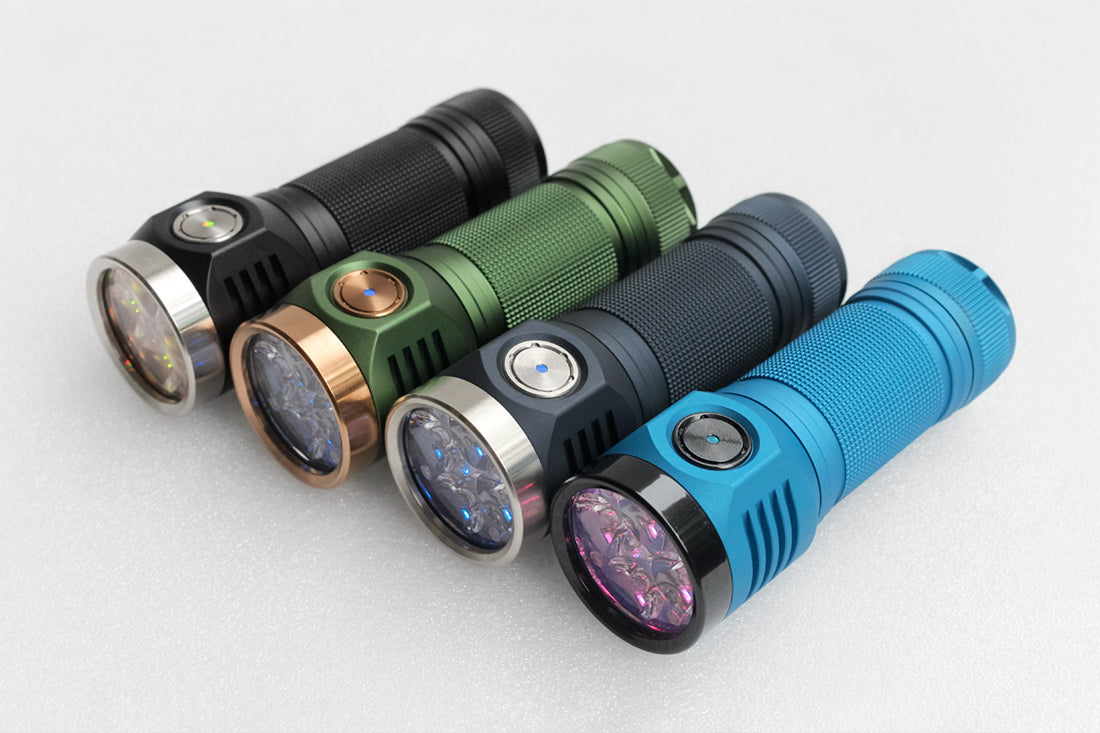

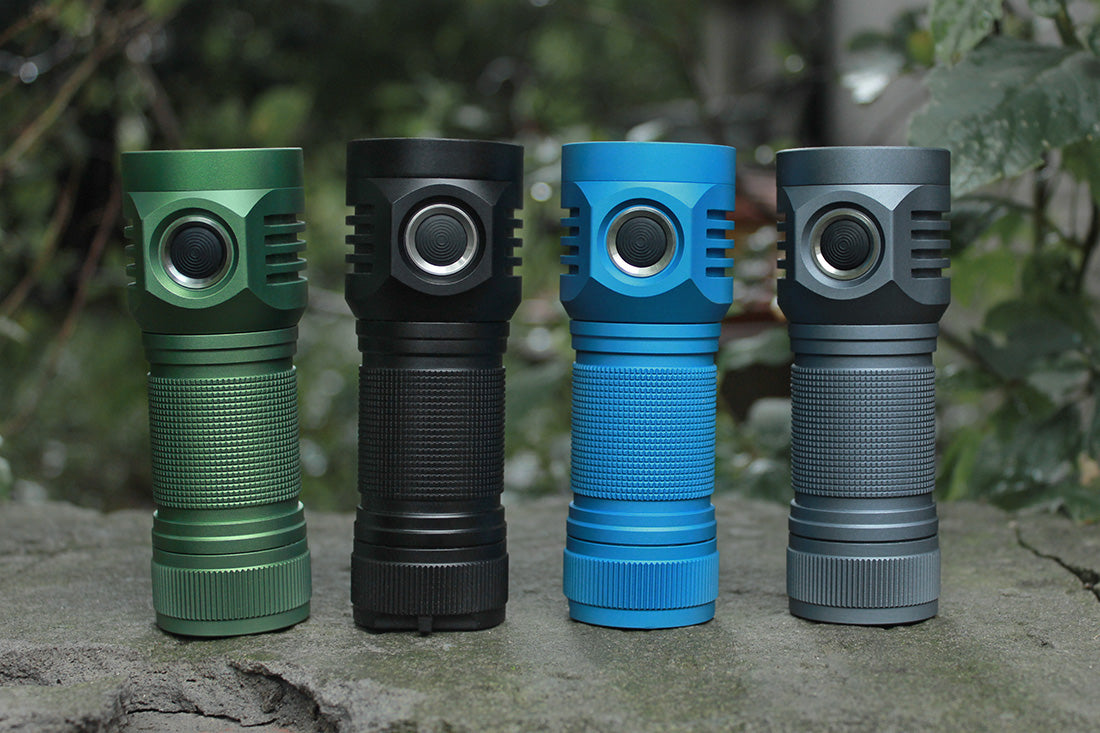

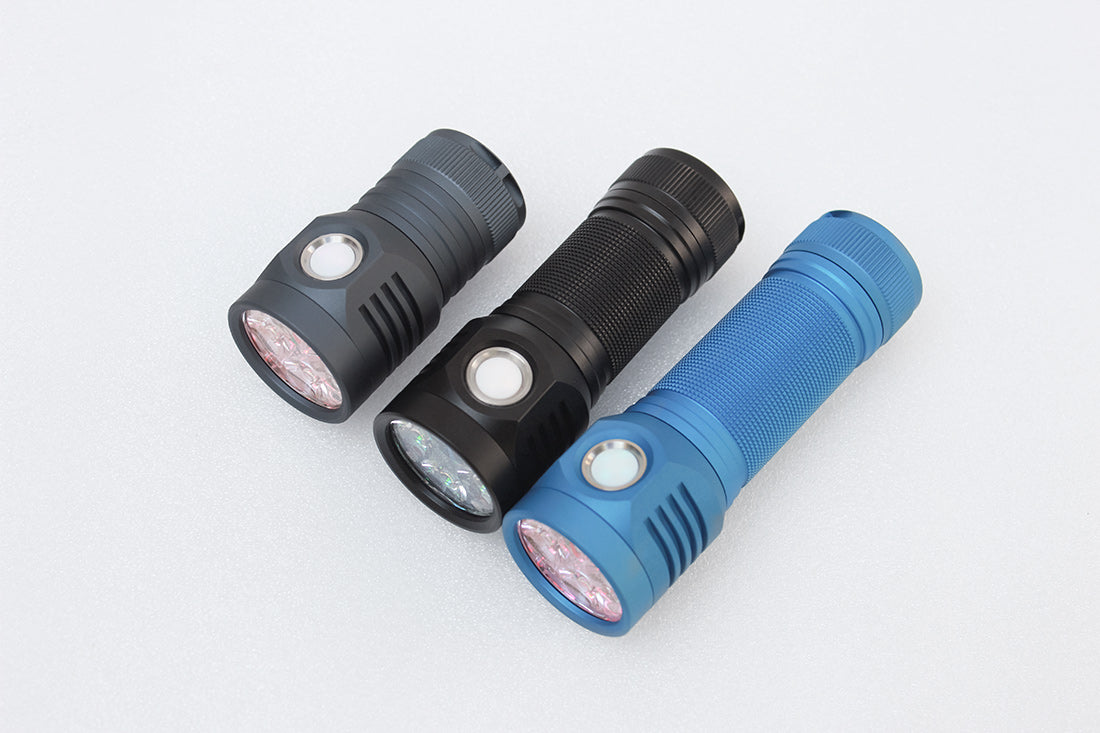

BODY COLORS:

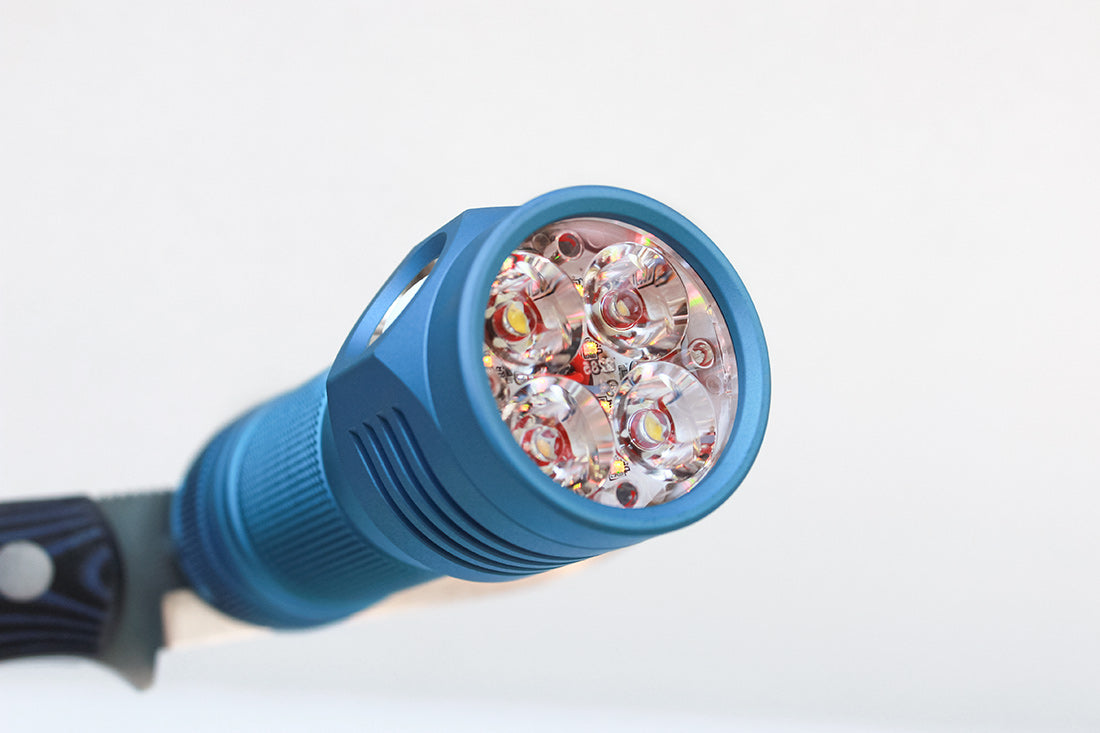

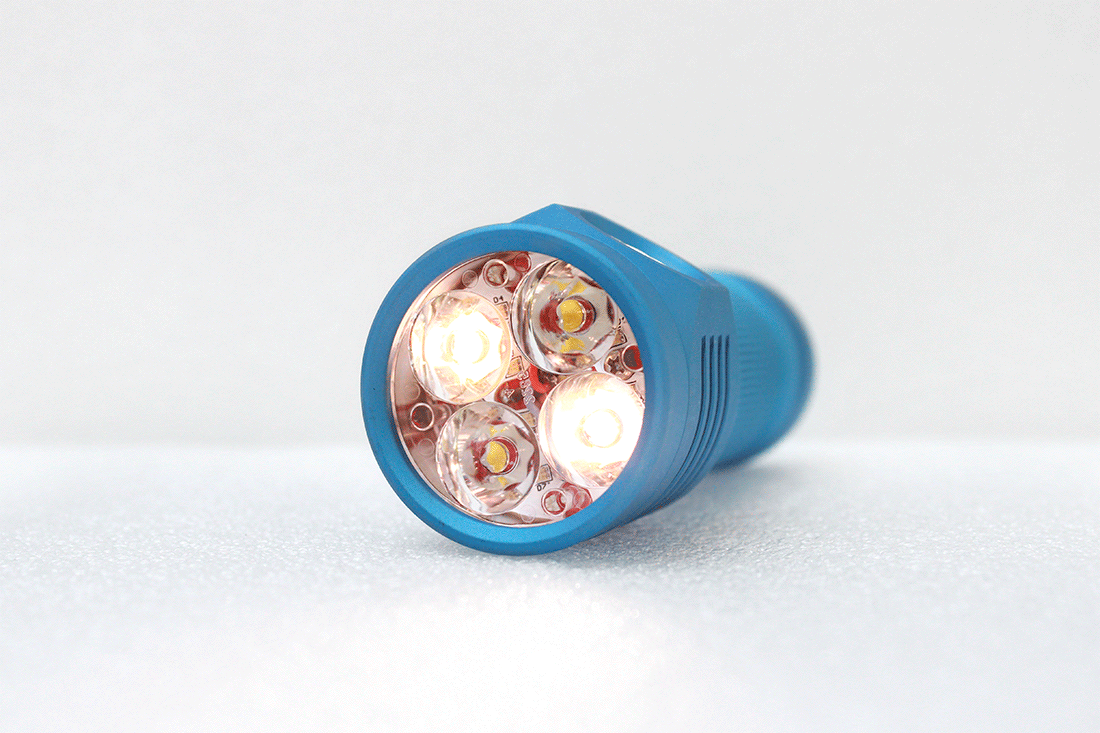

Black

Gray

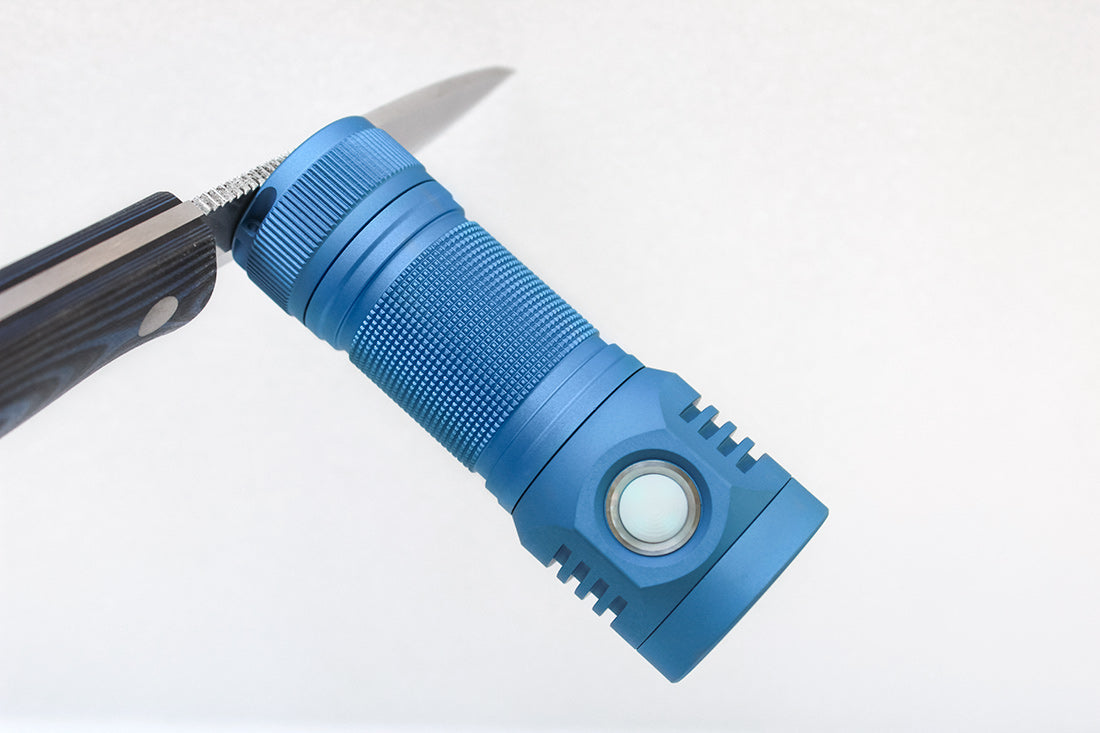

Cyan

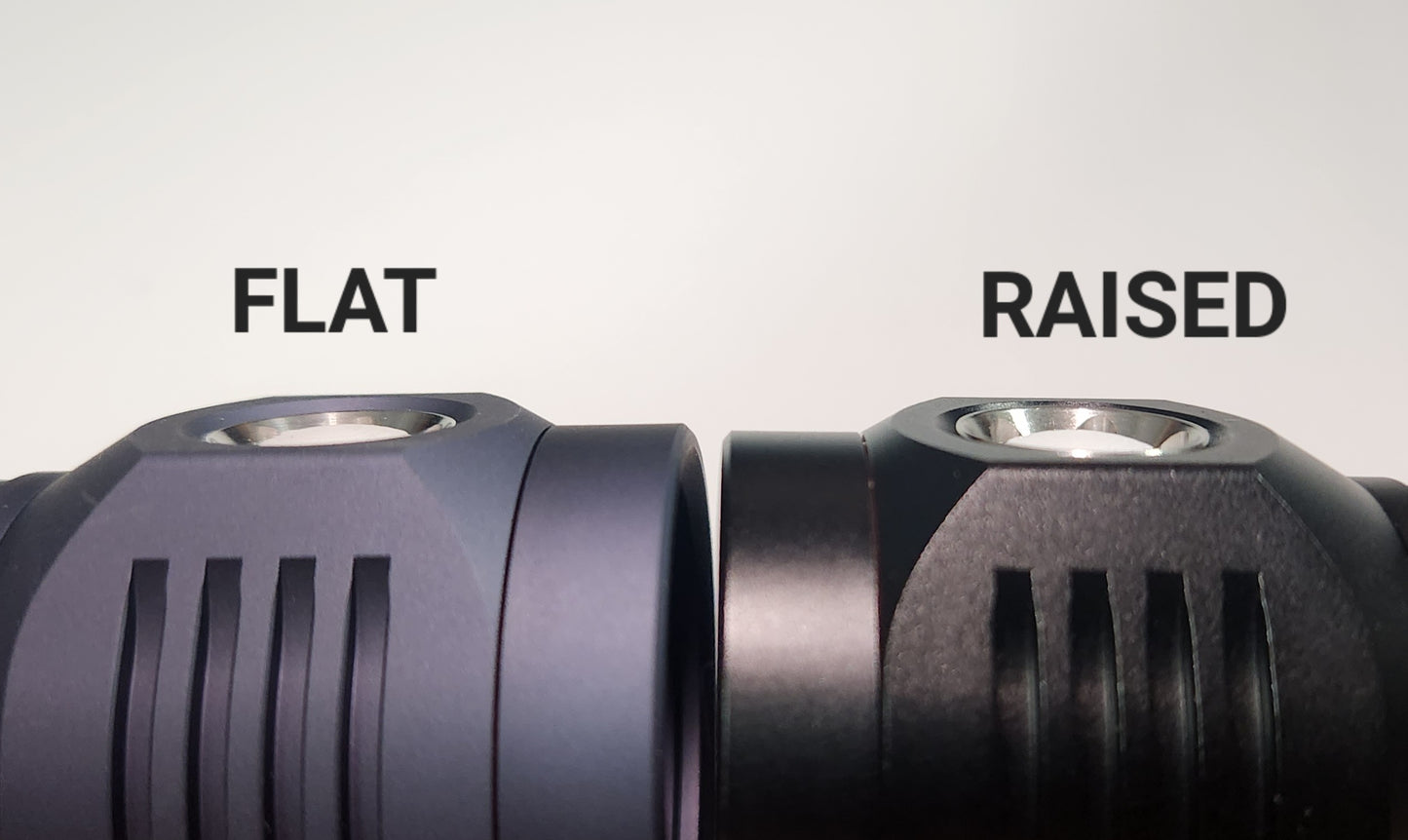

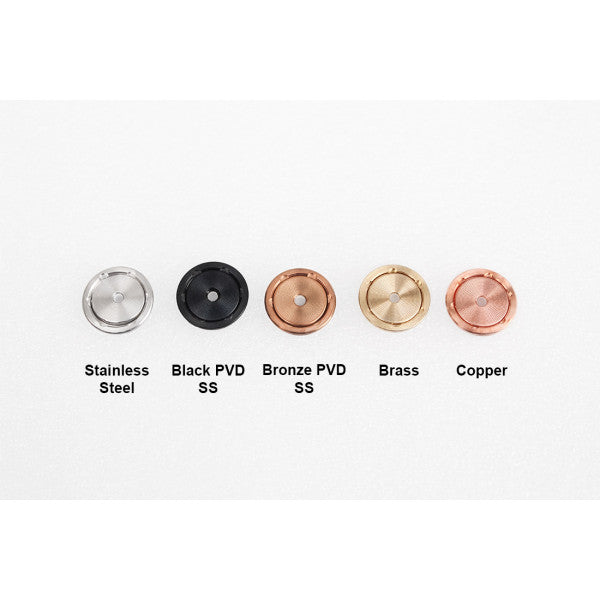

SWITCH RING:

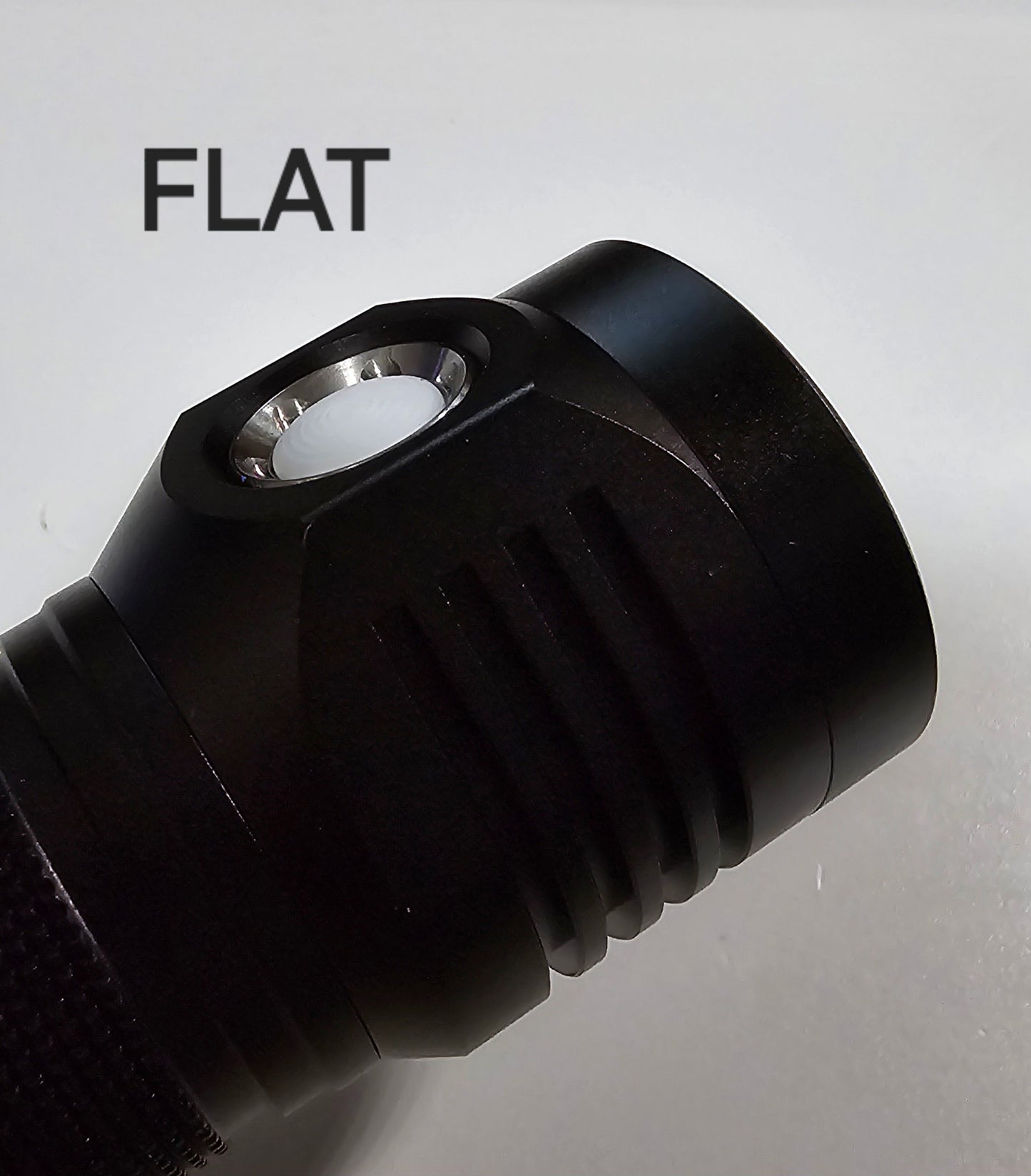

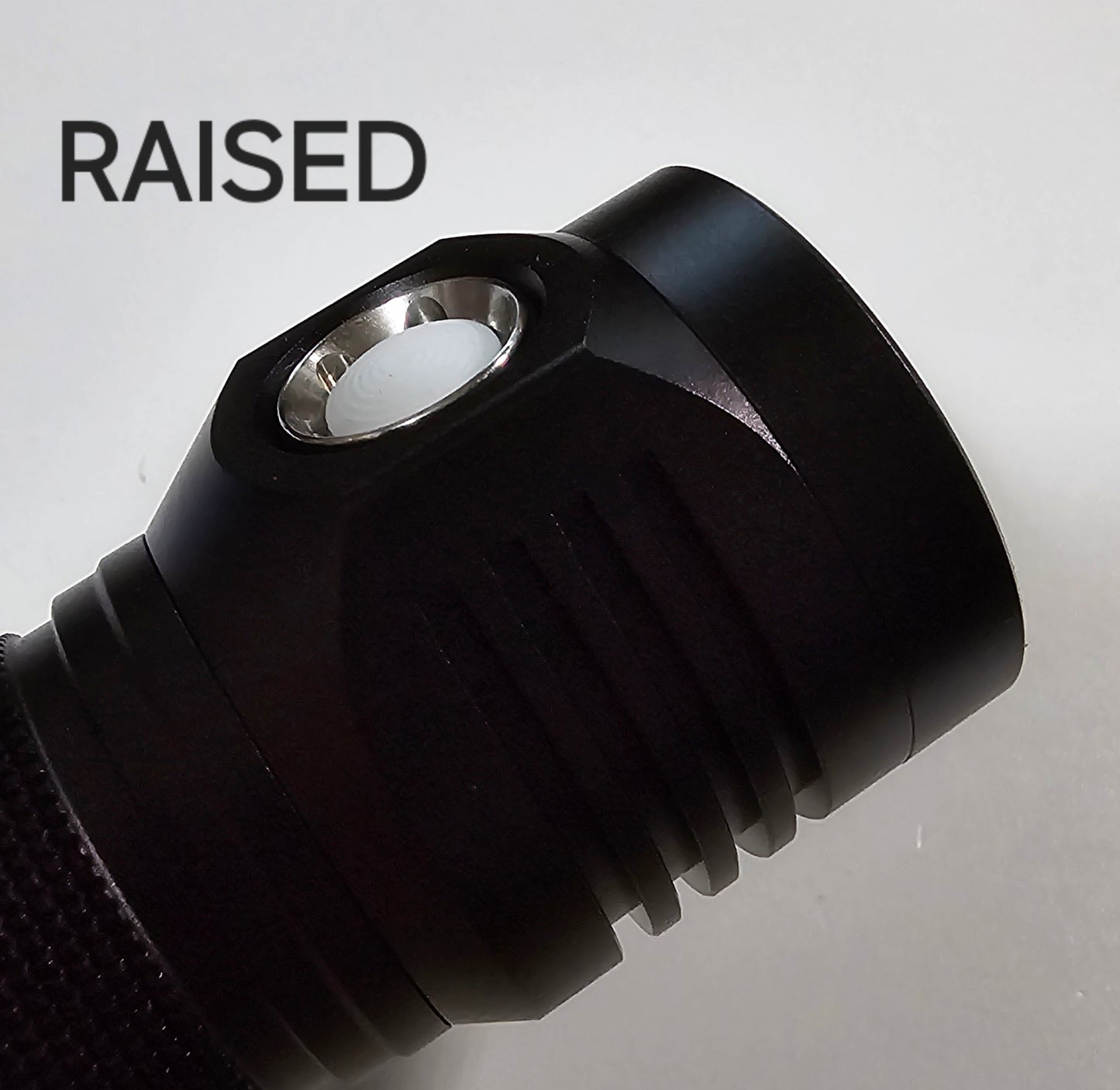

NEW! Threaded flat raised

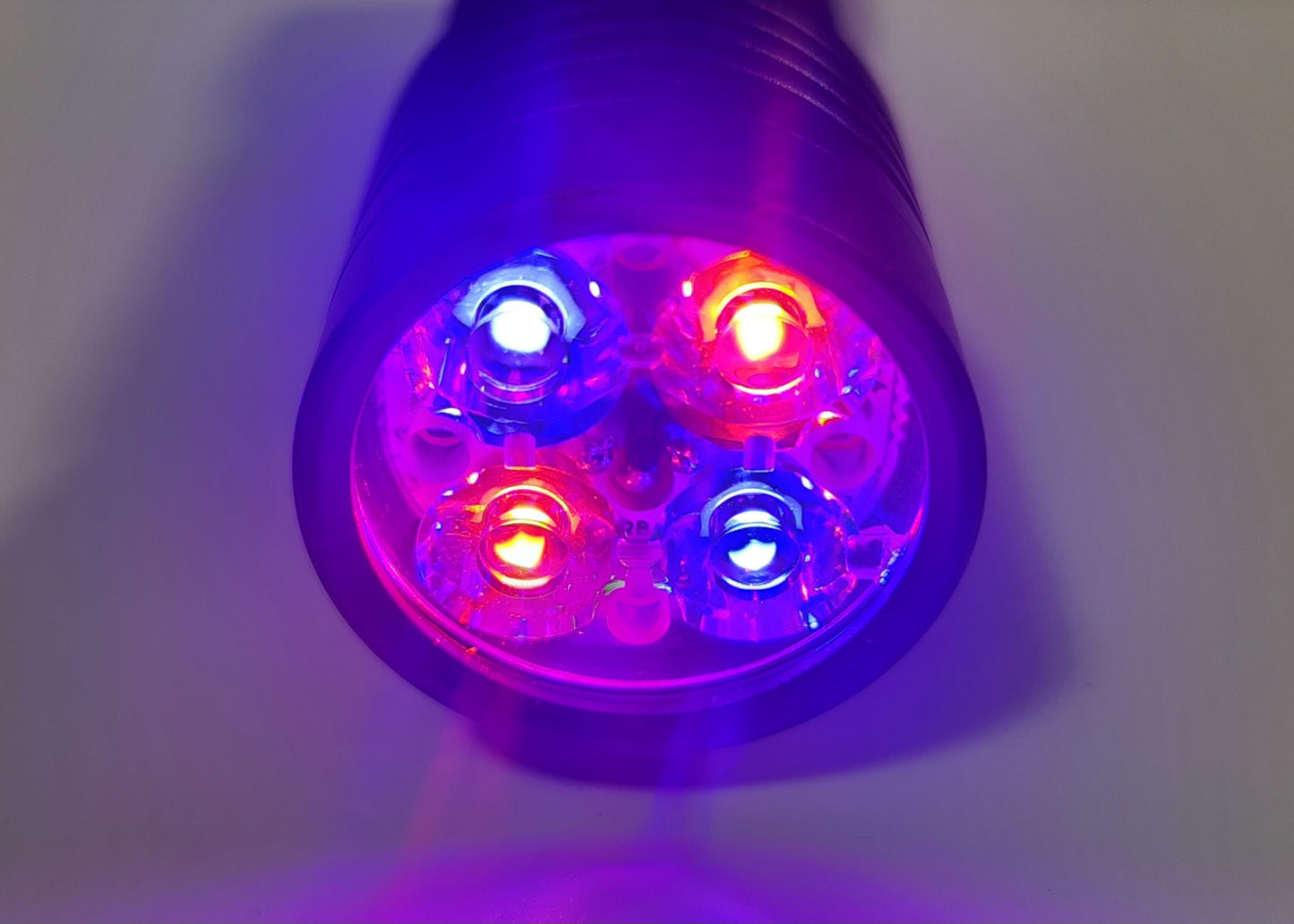

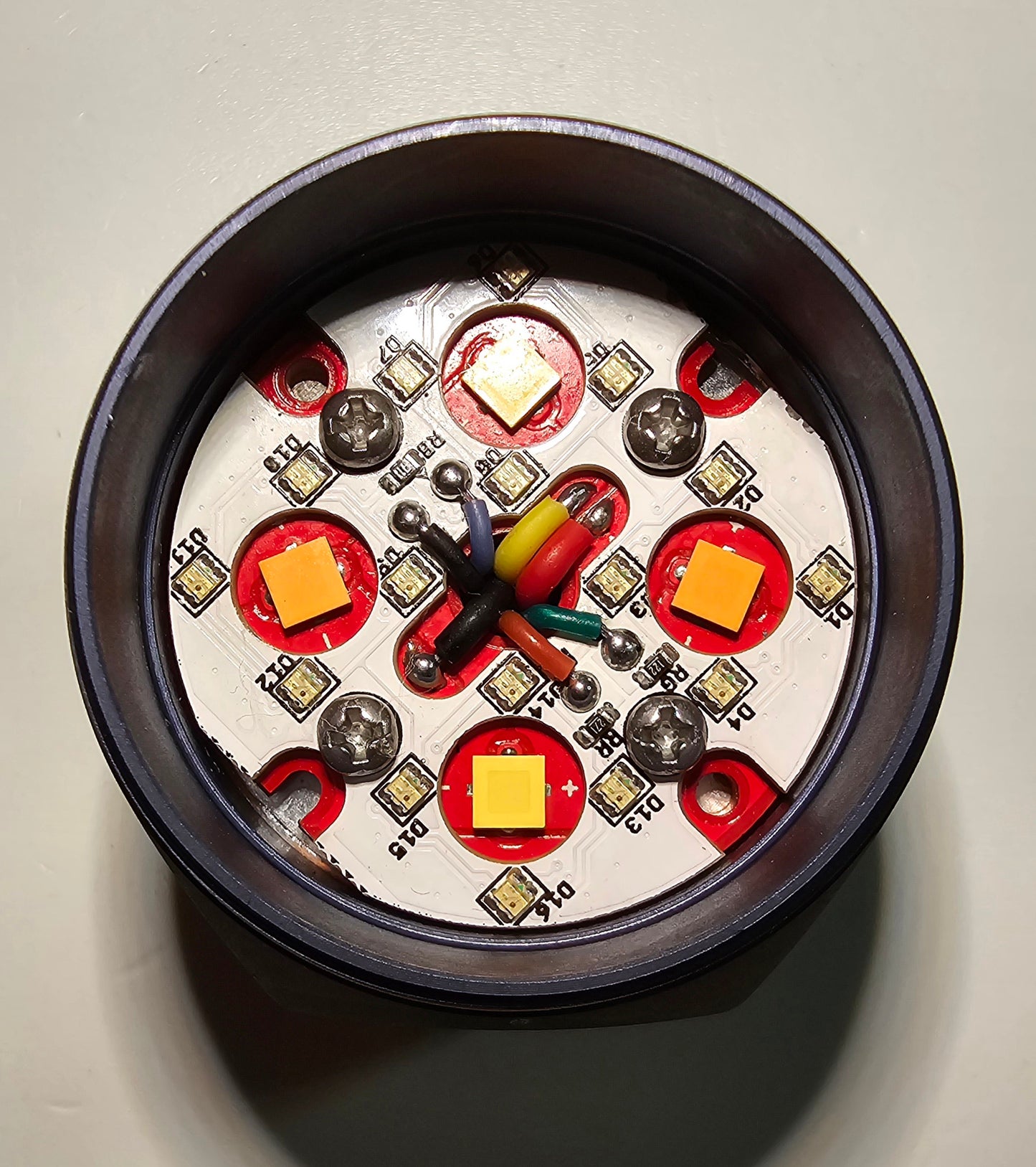

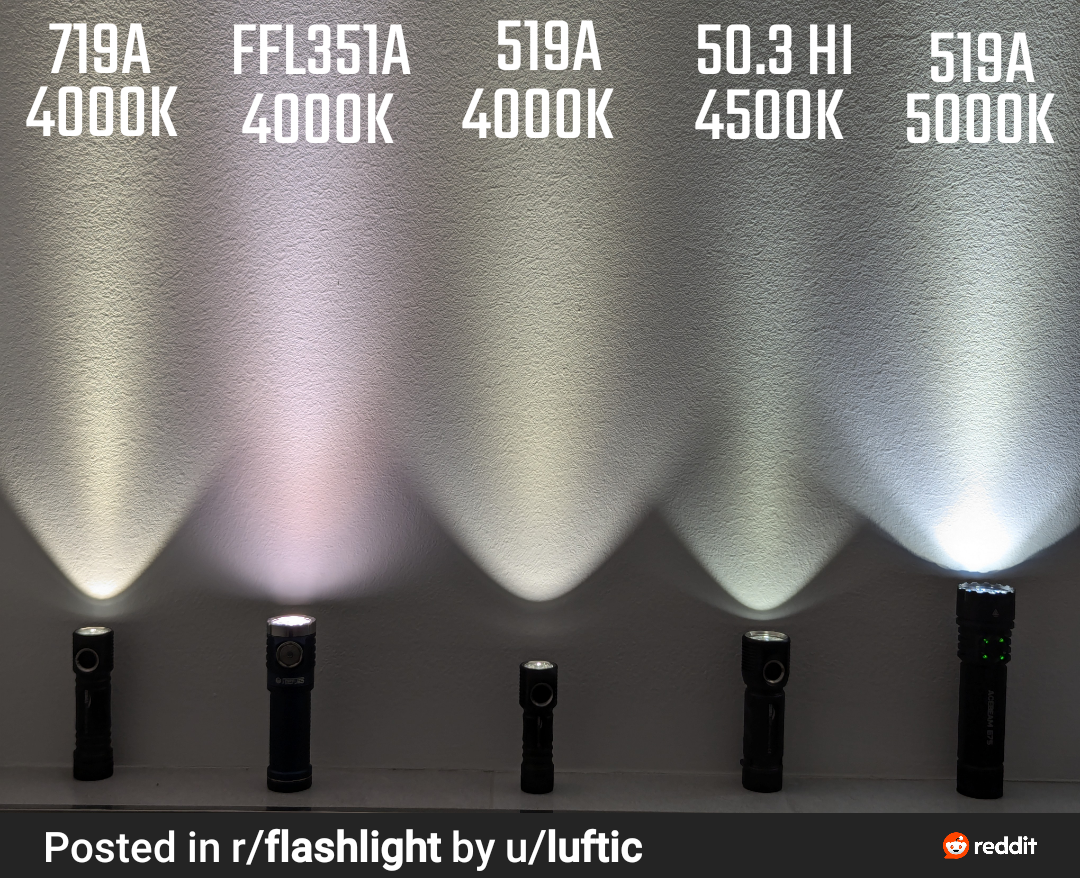

EMITTER OPTIONS:

3535smd only!

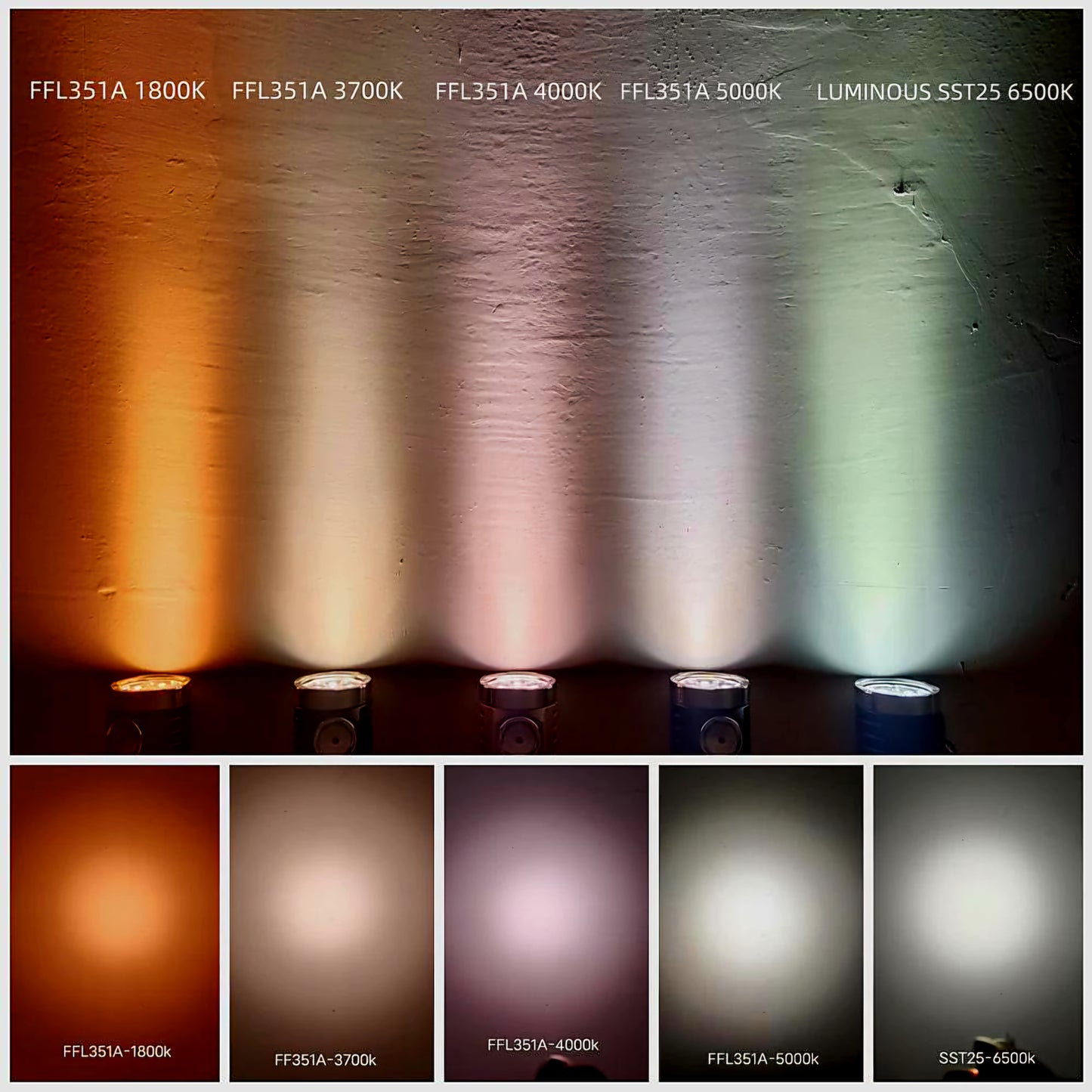

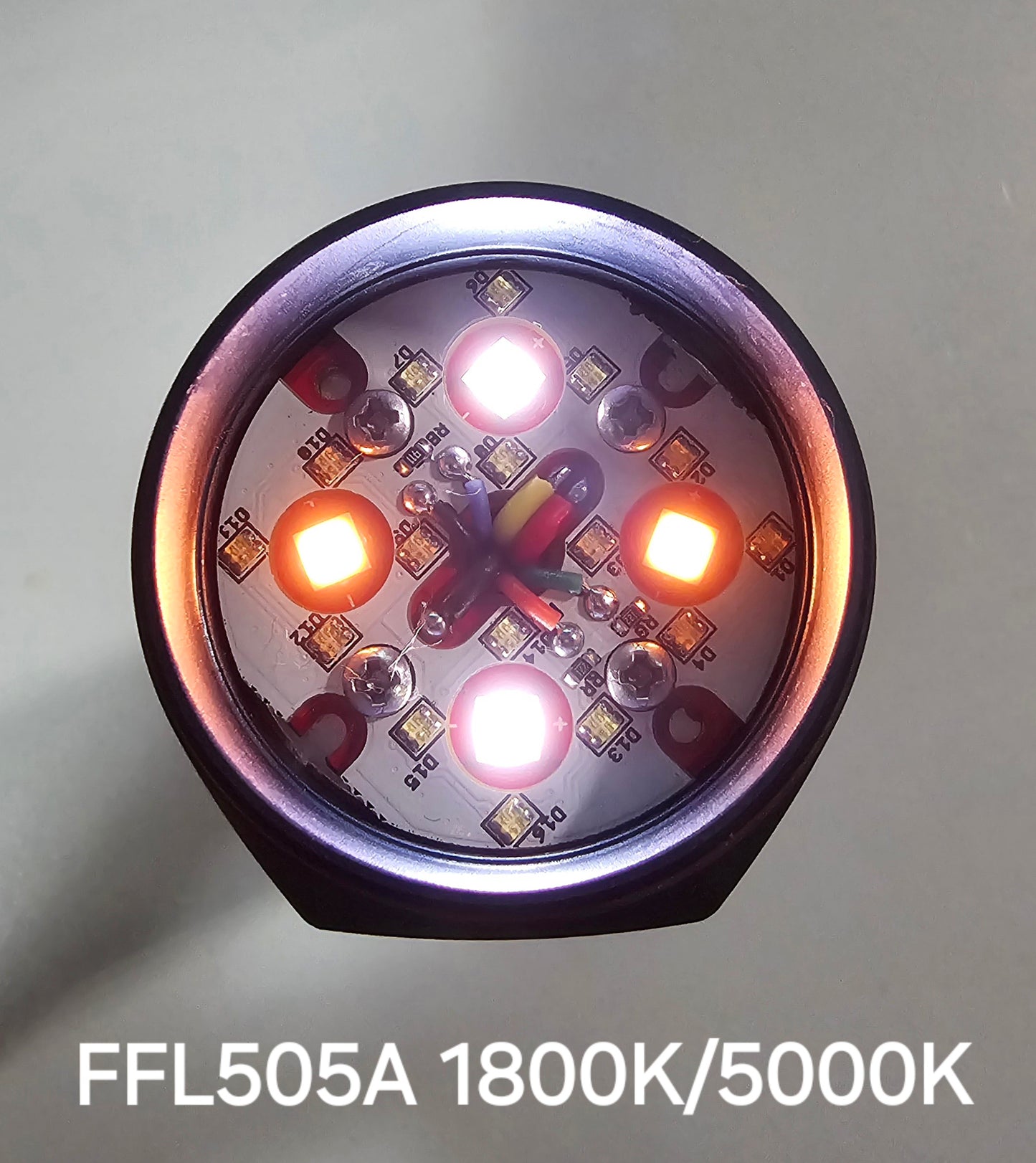

NEW! FFL351A/FFL351RD HIGH CRI EMITTERS!

NICHIA 219B

NICHIA 519A

OSRAM W1/W2

INCLUDED OPTIONS:

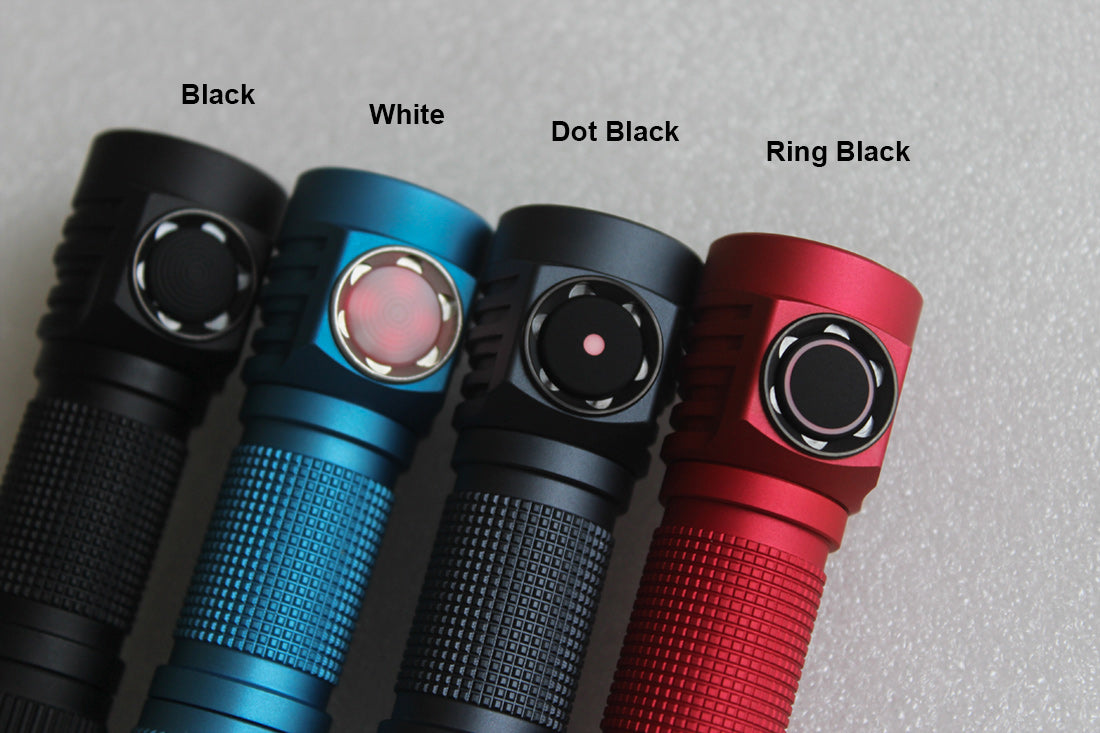

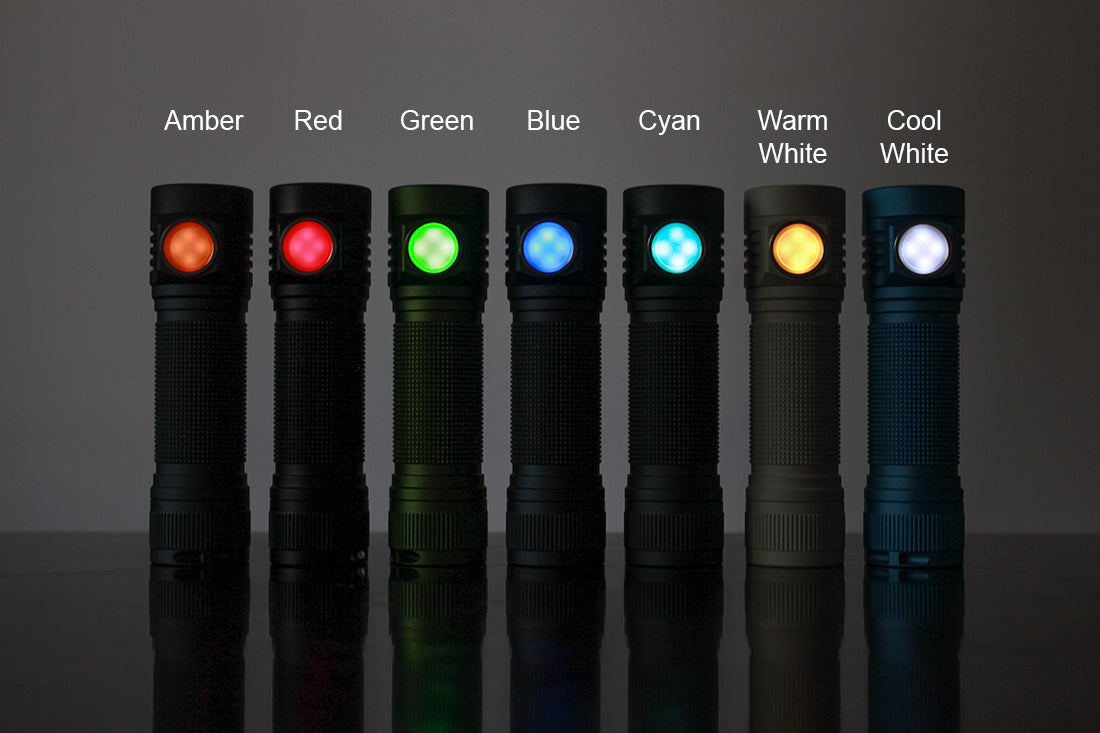

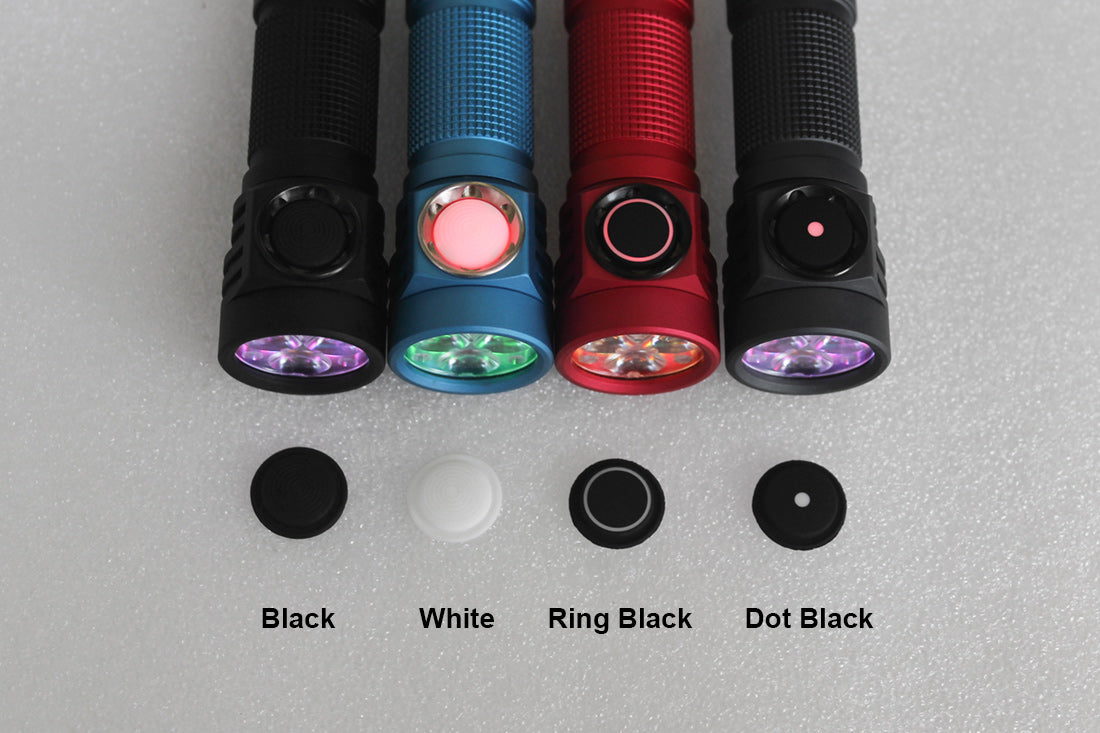

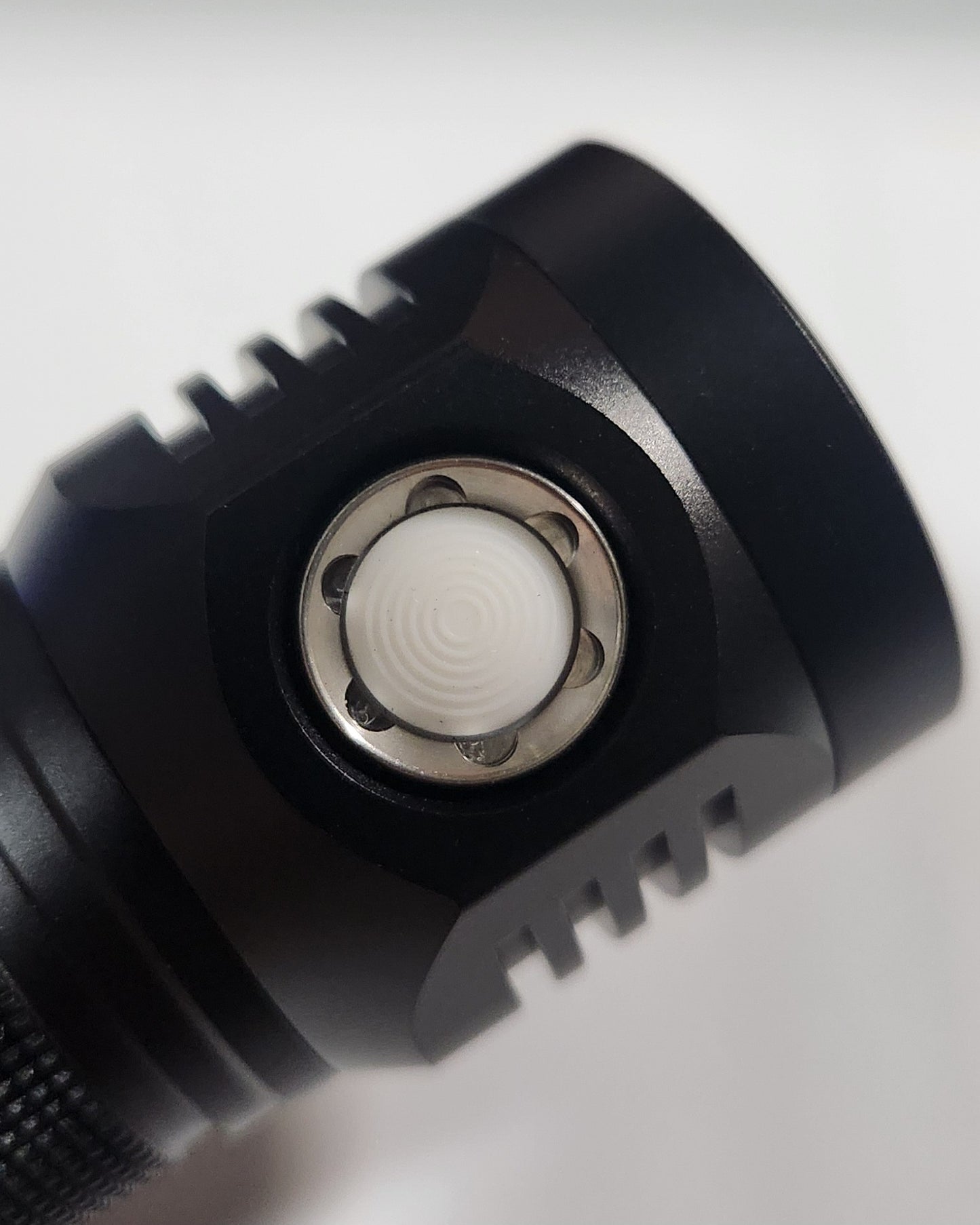

LIGHTED SWITCH OPTION

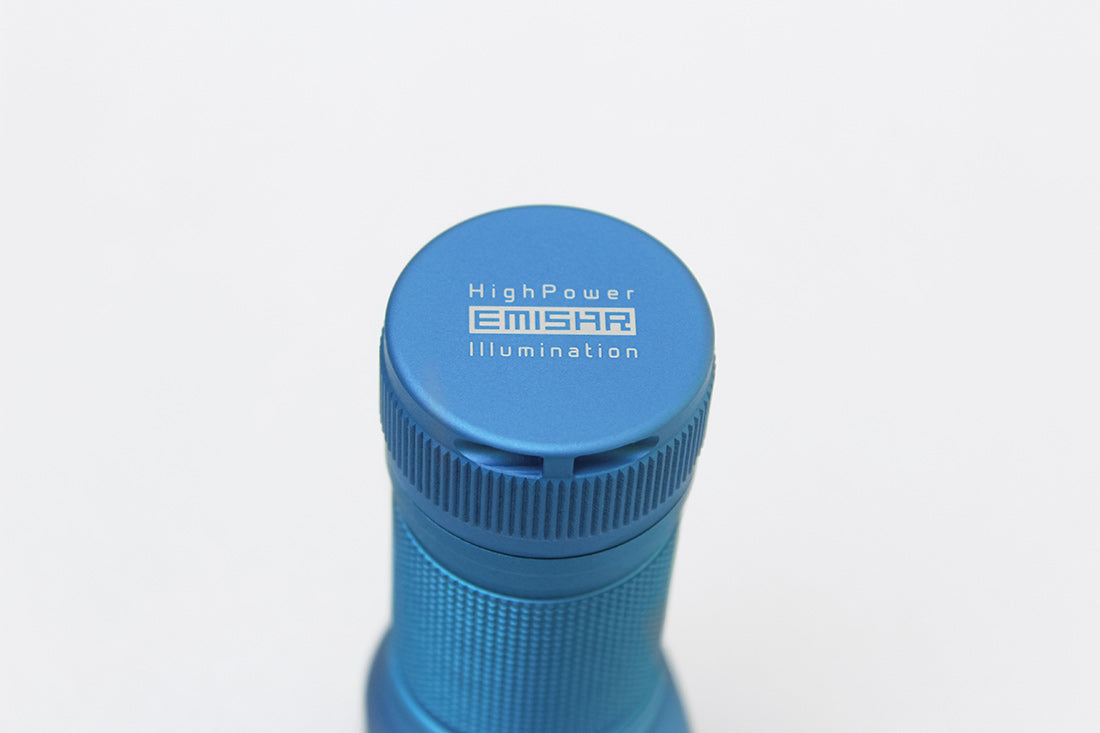

MAGNETIC TAILCAP

LANYARD

EXTRA ORINGS

ANDURIL 2 UI INSTRUCTIONS

BATTERY:

21700 flat top unprotected cell recommended (not included), optional 26650 or 26800 battery tube can be purchased separately. 25-30A min CDR (current discharge rating)

Molicel battery purchase link >>> Molicel P45B 4500mAh 21700 45A Lithium-ion Rechargeable Battery **** H – JLHawaii808

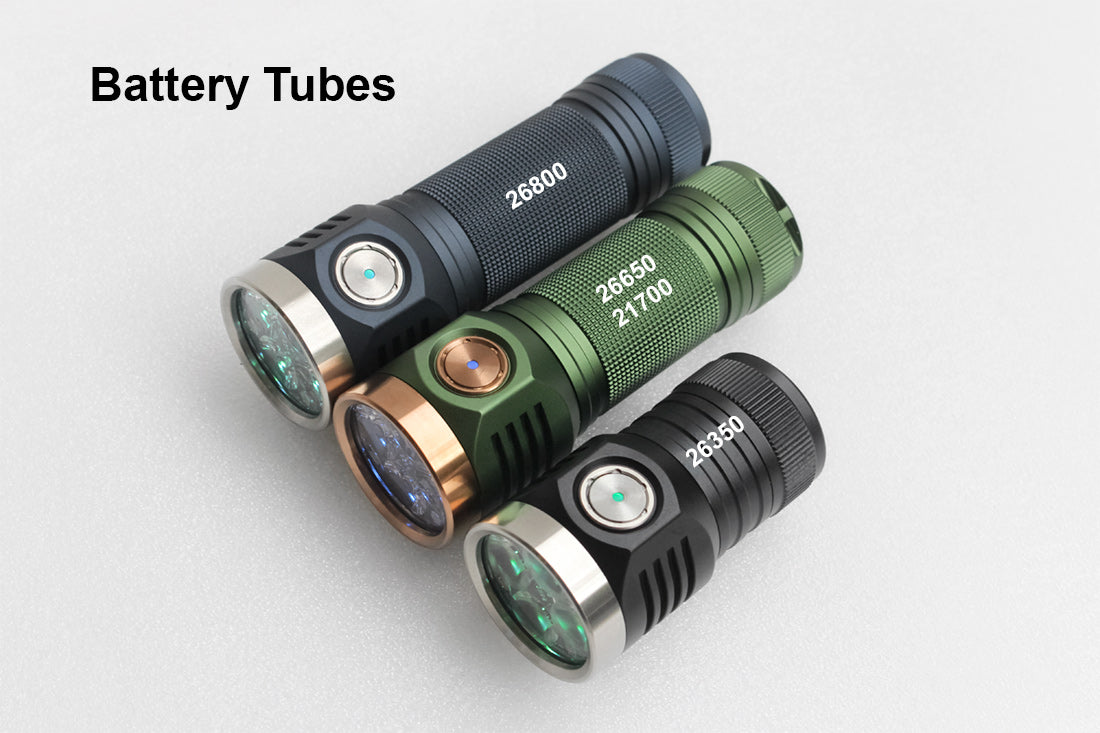

Optional battery tube

21700 or 26800 link >>> Emisar Noctigon Replacement Body/Tube/Head/Bezel Parts – JLHawaii808

Warning:

Output will be dependent on cell model (Inc. Age) and temperature.

Emisar D4S V2 puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing.

Works with high drain unprotected 26650 cell under 69mm.

Features:

• CNC machined from aircraft-grade aluminium

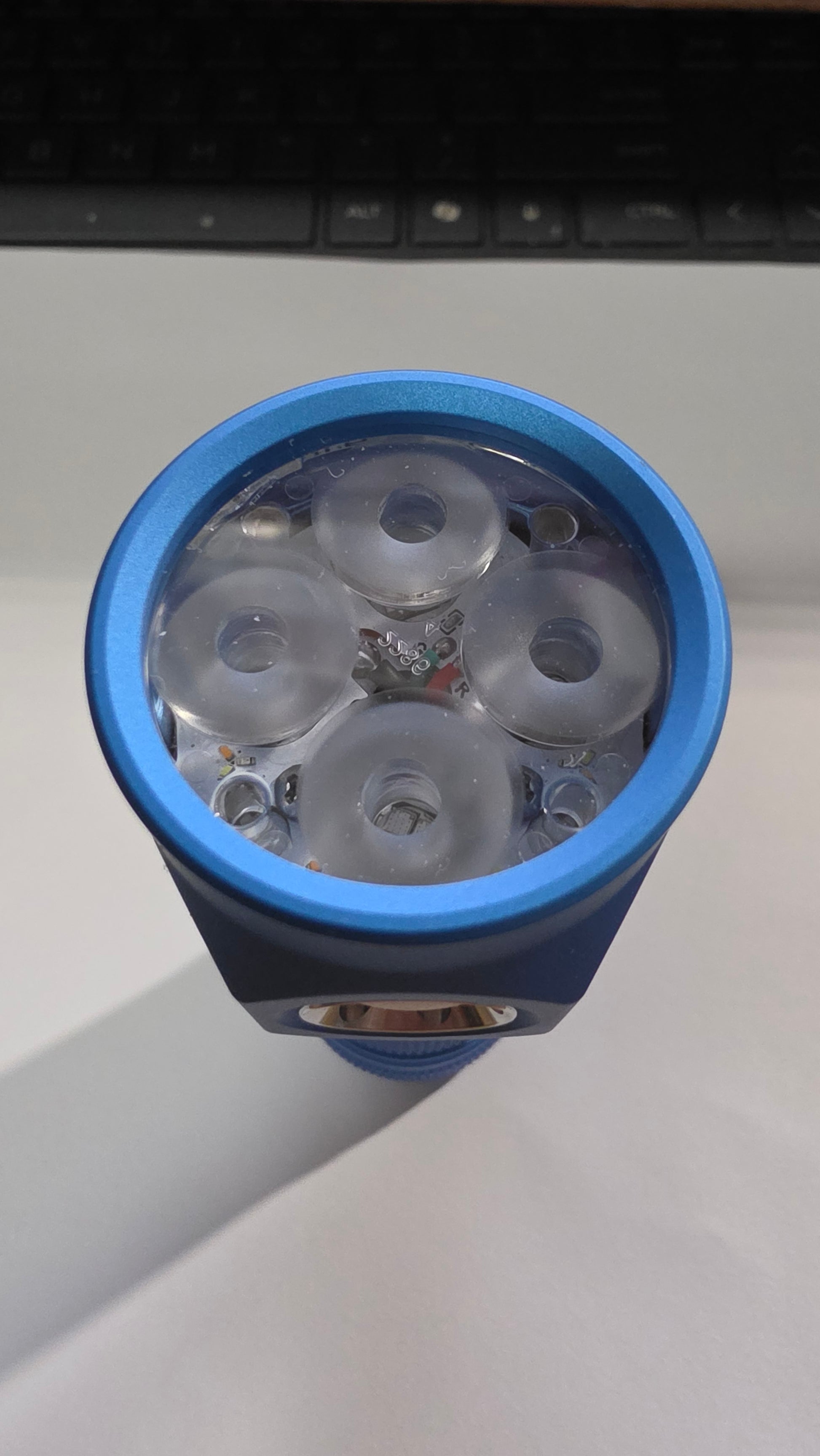

• Efficient LEDiL quad optic

• Double of triple the candela of D4 (depending on LEDs of D4)

• Anti-reflective coated glass lens

• Unihead construction

• High lumen output and low moon output

• Ramping interface

• Electronic soft touch switch

• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.

• Temperature step-down • More mass and MCPCB surface compared to D4

• Waterproof and dustproof to IP67 standard (up to 1 meter)

• Powered by a high drain 26650 cell (not included)

• Dimensions: 105mm(length) * 39mm(head) * 32mm(body)

This product uses free software of Anduril 2, distributed under the terms of the GPLv3.

Source code is available from http://tiny.cc/TKAnduril

WARRANTY: 1 year from the purchase date

love it

Light is perfect, love the versatility of the andruil program on the lights. It's super bright and works perfect for what i wanted it for. Also the customer service is fantastic, gave him a description of what I wanted the light to do and went with the recommended configuration, performs exactly as I wanted it to. So many options it's definitely a way to really geek out on something if you want to. Shipped fast as can be as well, I am very happy with all aspects of the service and the light.

2-channel general use perfection!

As a mechanic/handyman, this thing, with a magnetic tailcap, is a WORKHORSE, not a WOW light. Order it with W1 "throwy" emitters on one channel, and something "floody" on channel 2, like 519a domed in 3000k to 4000k. Then program Anduril to delete all the "mixed" channels and leave only FLOOD and THROW and you have the perfect mechanic's torch, with beautiful flood for up-close work, and the occasional distance spotlight when needed. Jackson does a beautiful job centering the W1 emitters with the optics, which I understand can be quite tricky. Guarantee when you put all the toys away, this guy becomes your most used light! Thanks Jackson!

Whole buncha stars!

The light: D4Sv2, cyan, 26800, ch1 519a, ch2 W1.
This is my primary edc work light as a master electrician and IBEW foreman. Gobs of runtime. Excellent magnet and flood CRI for working on gear and panels in the dark all day long. Awesome throw in the W1 channel for jobsite walkdowns and investigations, especially doing night or facility work. Fits great into a Viperade leather belt holster. SO happy. Slap the 26350 tube on it and it’s great around the house in your pocket. 26xxx format cells are a little less common now, but still VERY worth the purchase. I will probably buy a 21700 tube from here before long.

The service: Without peer. Mr Lee is ALWAYS quick to text, email, Reddit, with any issues. If he sees a problem in your order, he will initiate contact and work it out. Even in his way to FedEx! Unbelievable. Sometimes I might even like less contact! (Joking!)

The warranty: Within a month or so of purchase, one of my 519a emitters began to melt. I posted on Reddit asking if it was a problem or what to do. Mr Lee responded in the thread (you can look it up), AND emailed me a postage-paid return slip within like hours. I sent it back, felt lost and sad without it for a few days, and BAM! He shipped it back to me all fixed up and shiny at zero cost whatsoever. Incredible.

Buy it! Buy it here! You’ll be happy you did! Quote me on that!
