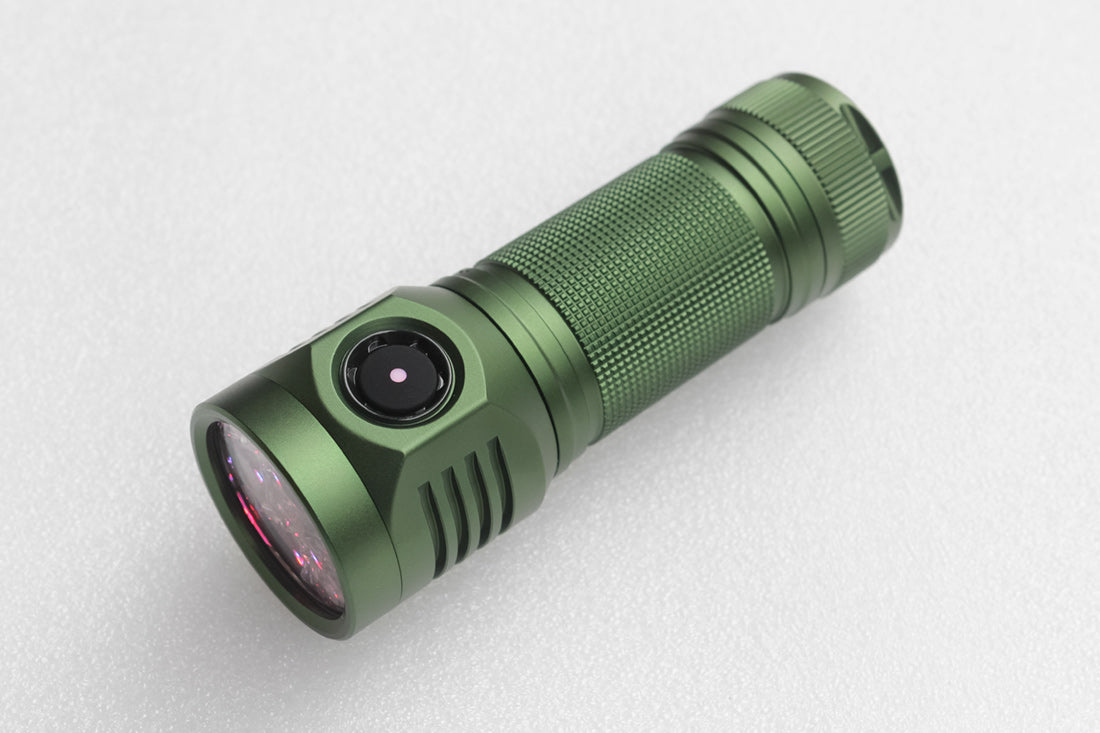

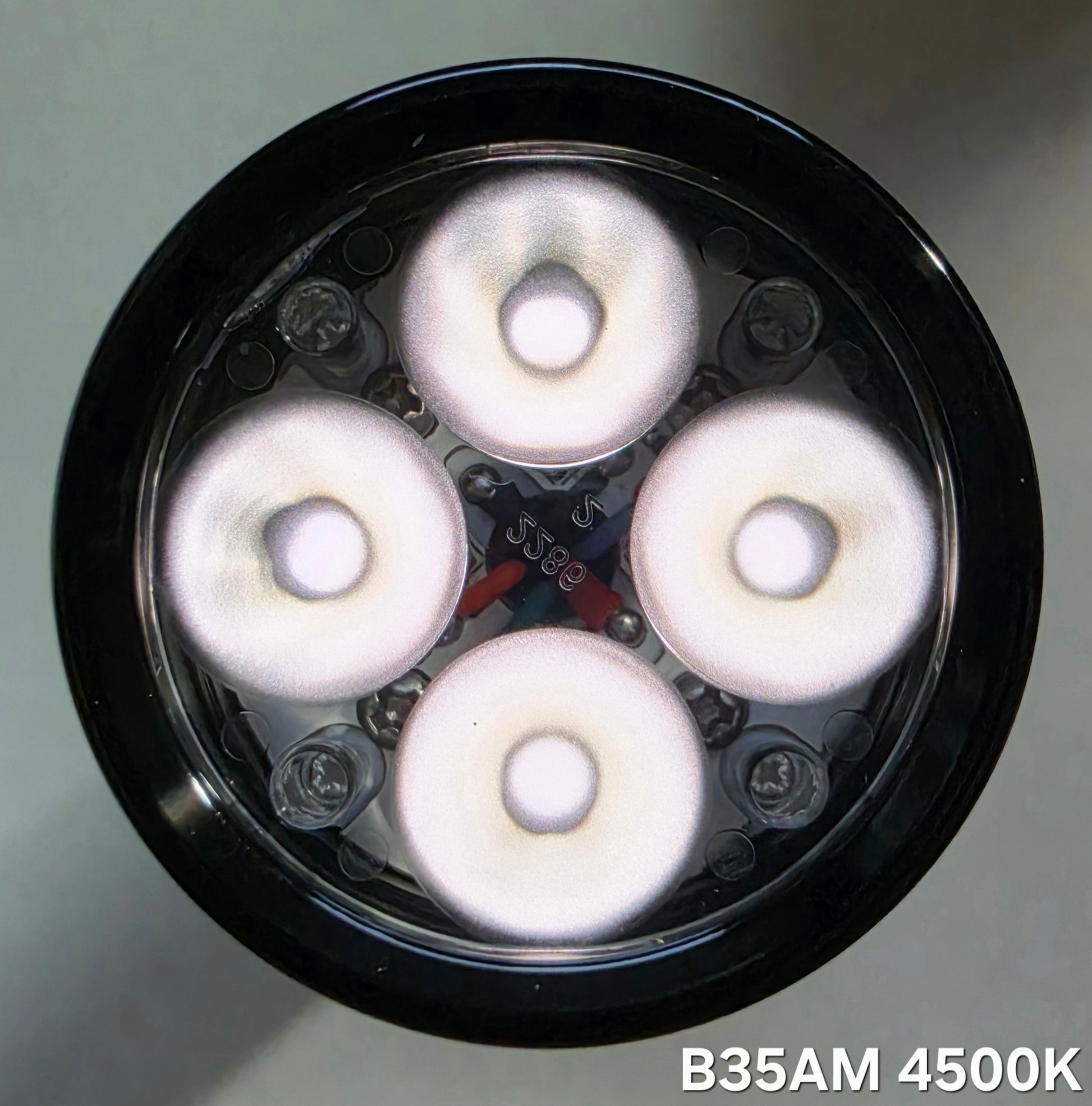

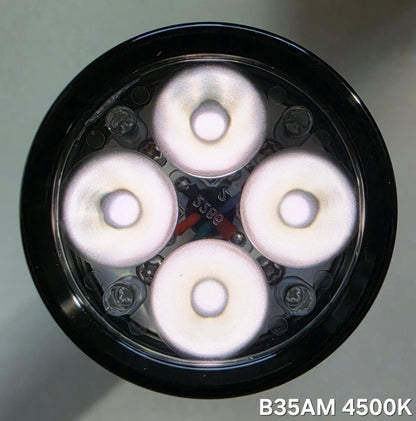

EMISAR D4SV2
NOTE: THIS IS CUSTOM "BUILT-TO-ORDER" WILL SHIPPING ACCORDINGLY!
The boost driver upgrade is available for the quad version of XP-L HI, SST-20, Osram W1/W2, Nichia 219B R9080 versions, each LED receives 2A current. The driver is not compatible with Nichia E21A, Nichia E17A, and mule versions of the flashlight.
Please be noted that the boost driver version will have 40% less output on turbo than the regular version, it is a more efficient driver (90-95%) with longer running time and less heat.
My D4sv2 are built with the lighted switch option by default cost is added to the total price of the D4sv2. Hank doesn't include tbe lighted switch options.
Emisar D4SV2 puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing.
Works with high drain unprotected 26650 cells under 69mm.
DRIVER:
12A LINEAR + FET *RECCOMENDED*
$16 12V BOOST DRIVER OPTION NEED TO PURCHASE SEPERATELY >>> Emisar Noctigon LED Driver – JLHawaii808
USER INTERFACE:
ANDURIL 2 UI

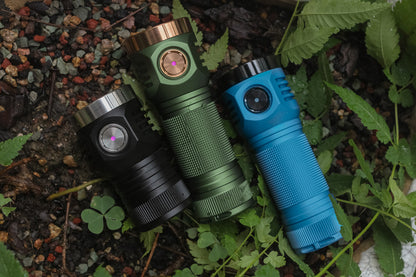

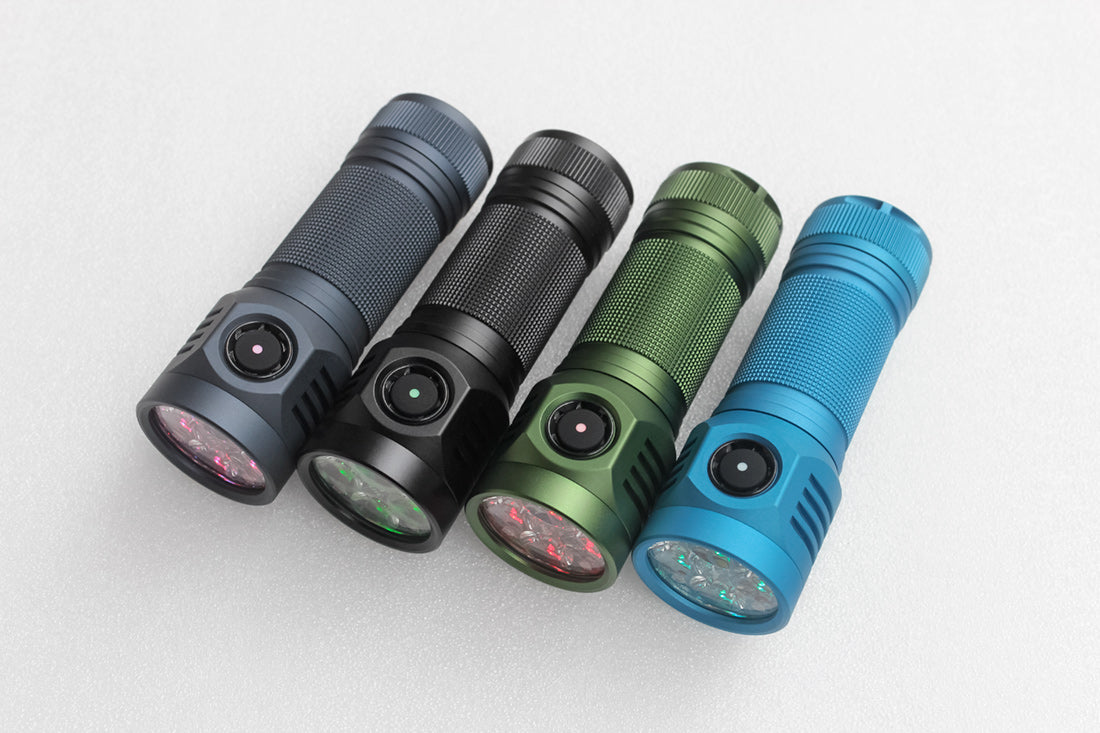

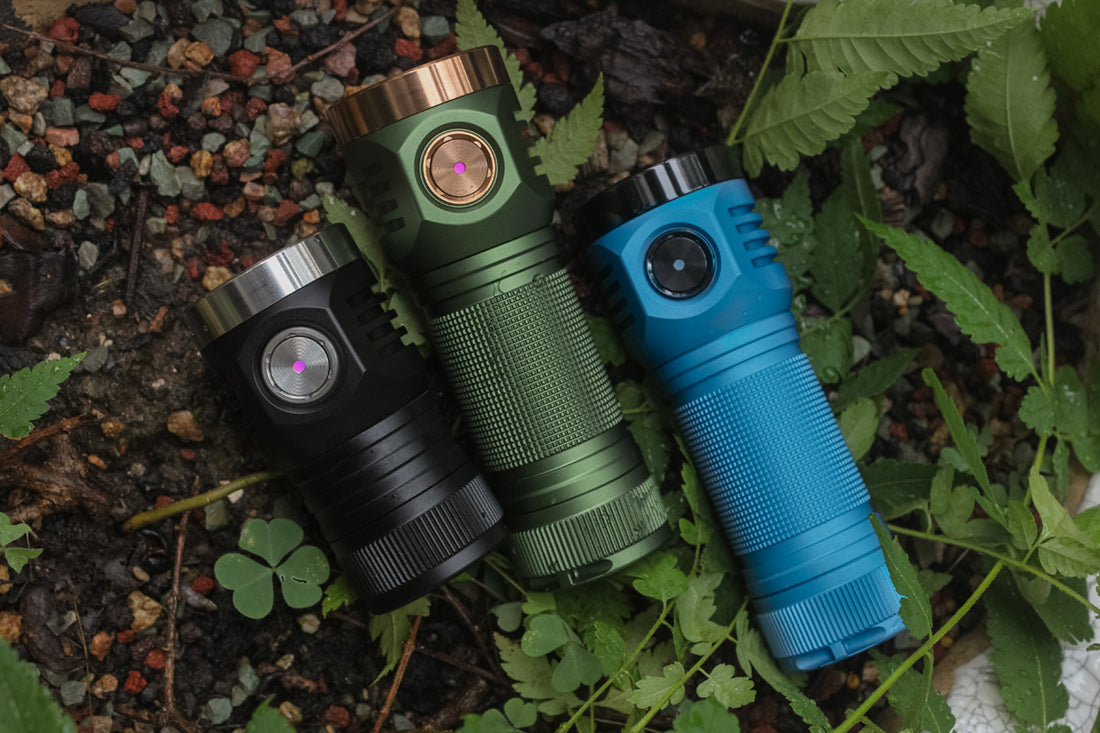

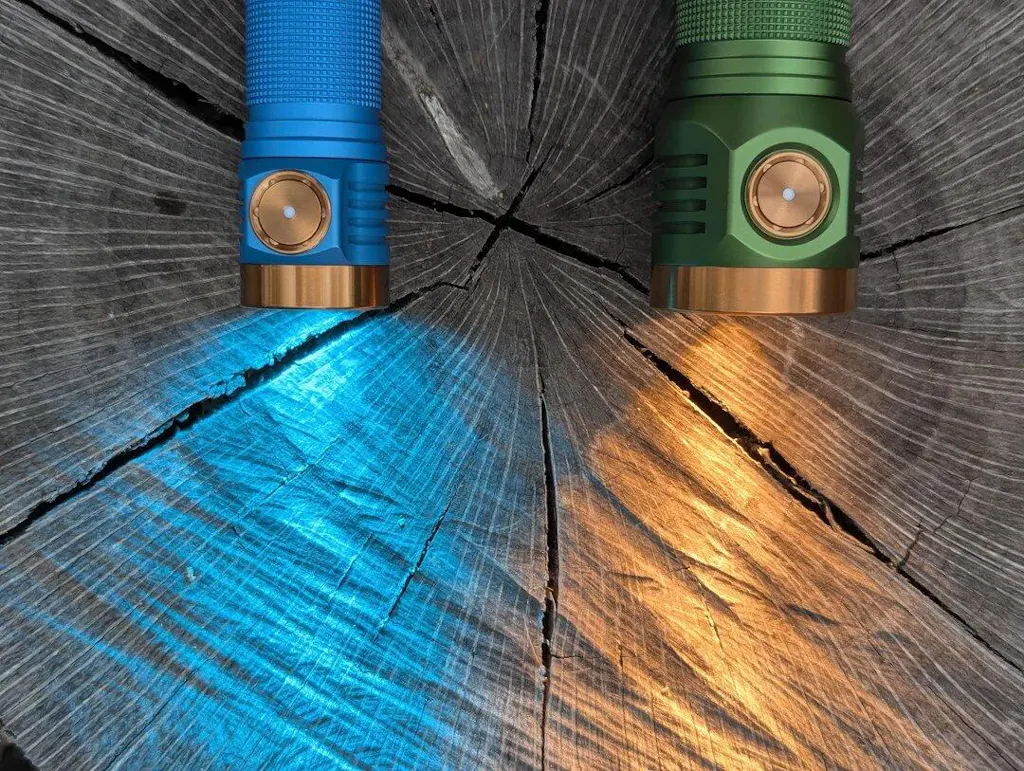

BODY COLORS:
BLACK
GRAY
CYAN

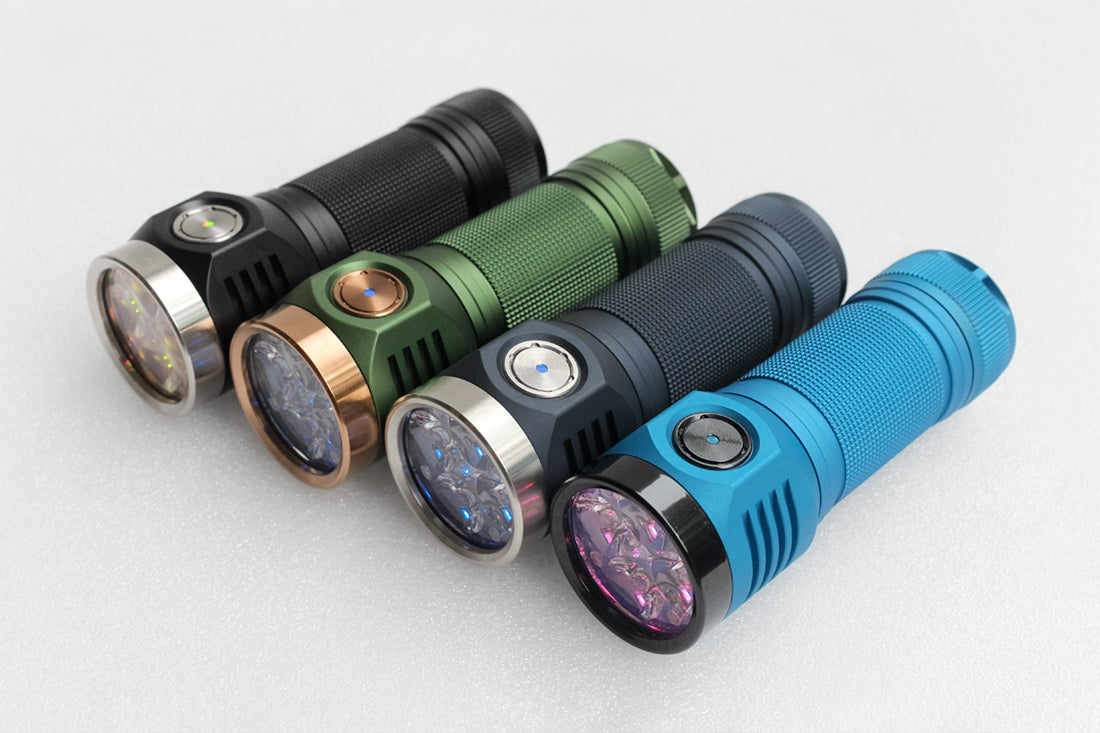

SWITCH RING:
NEW! THREADED FLAT OR RASIED RINGS!

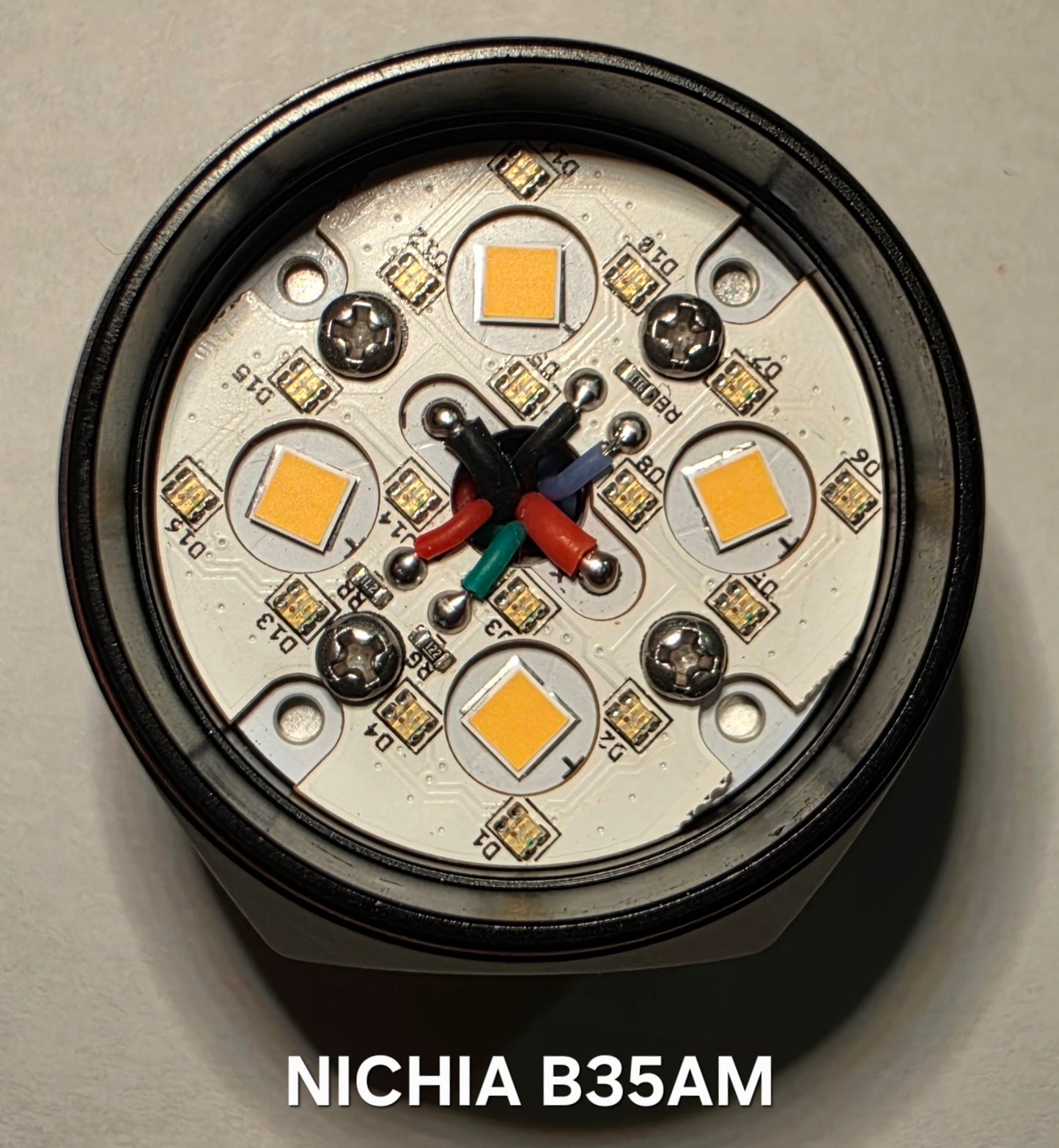

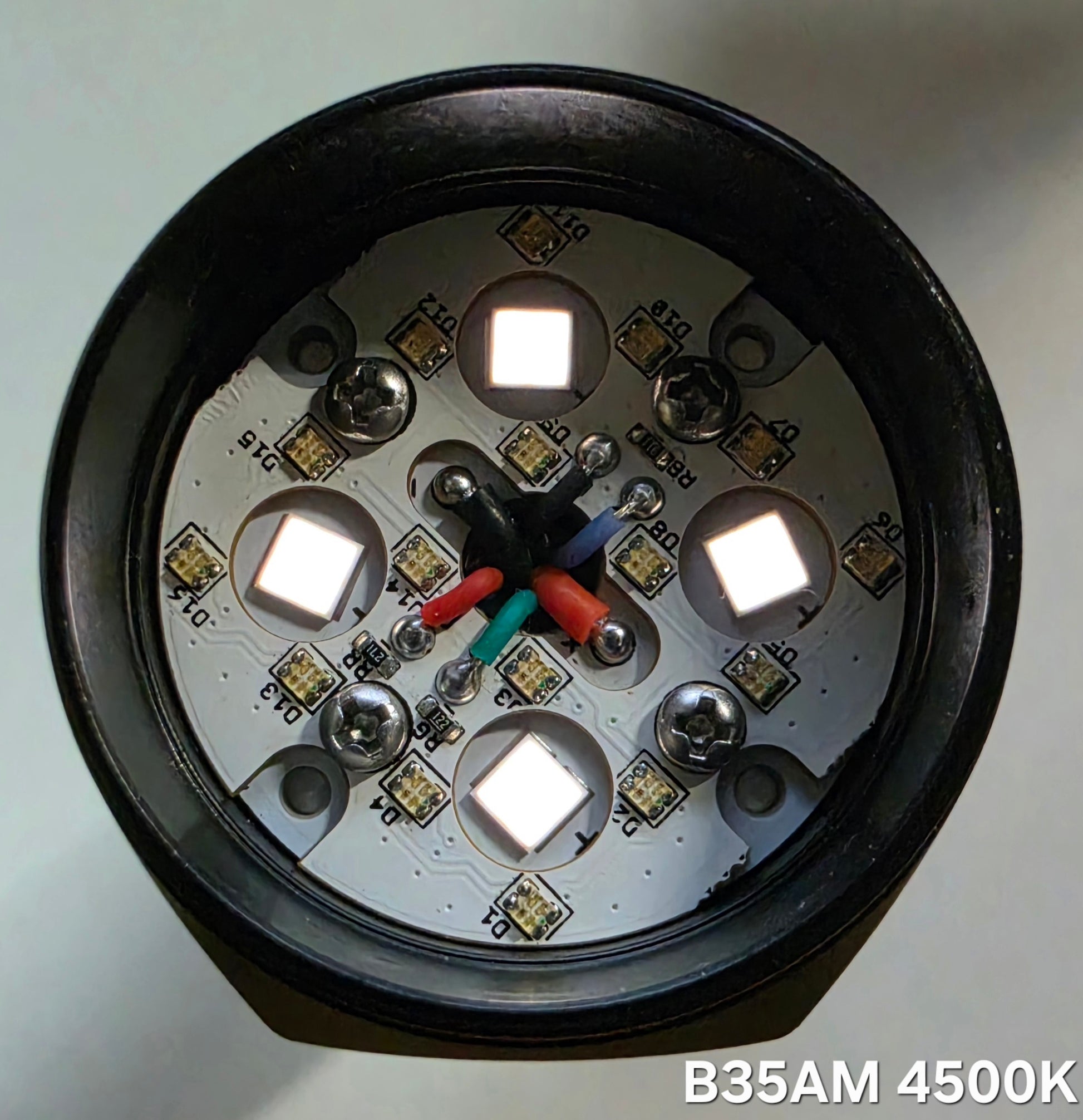

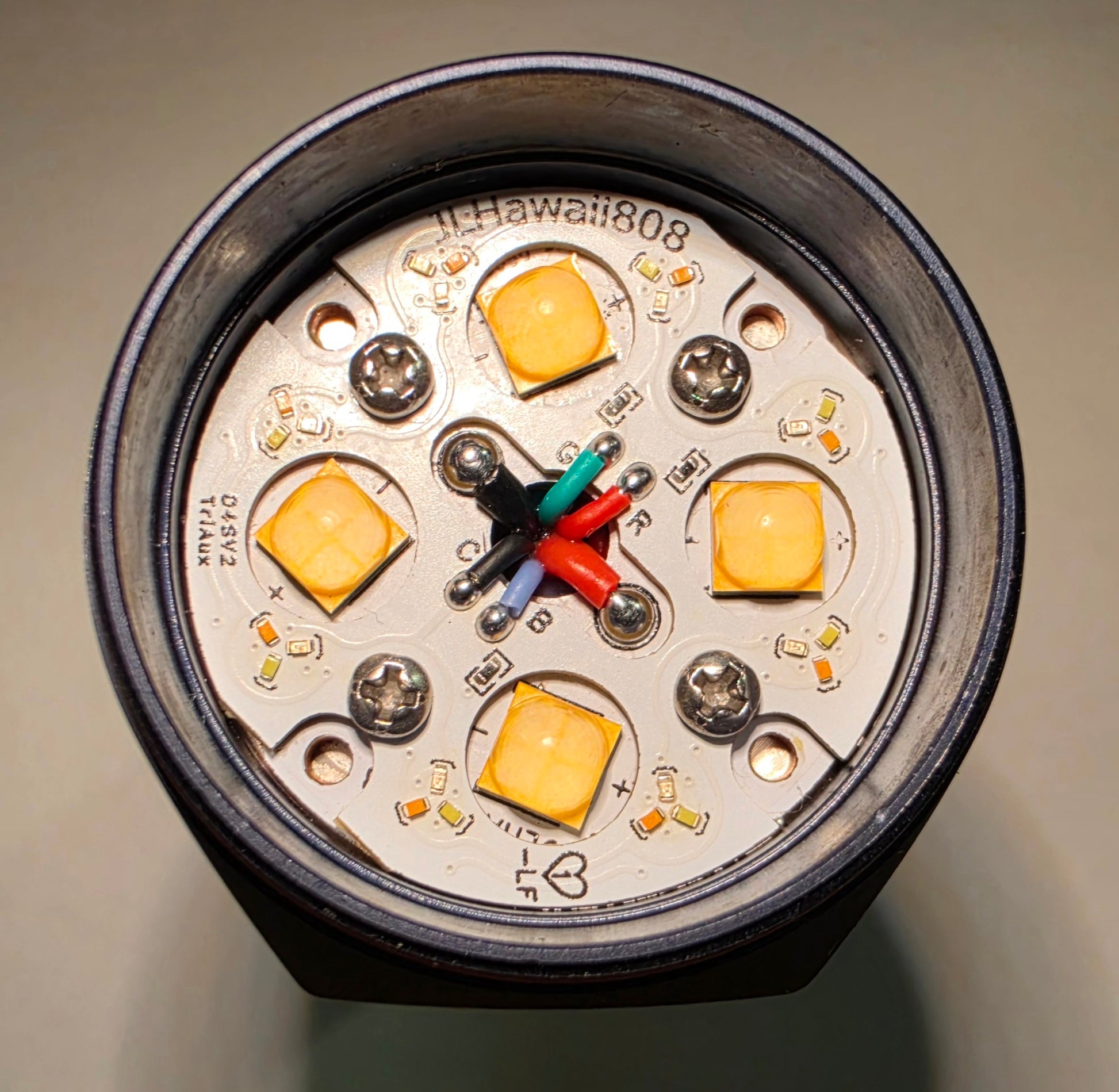

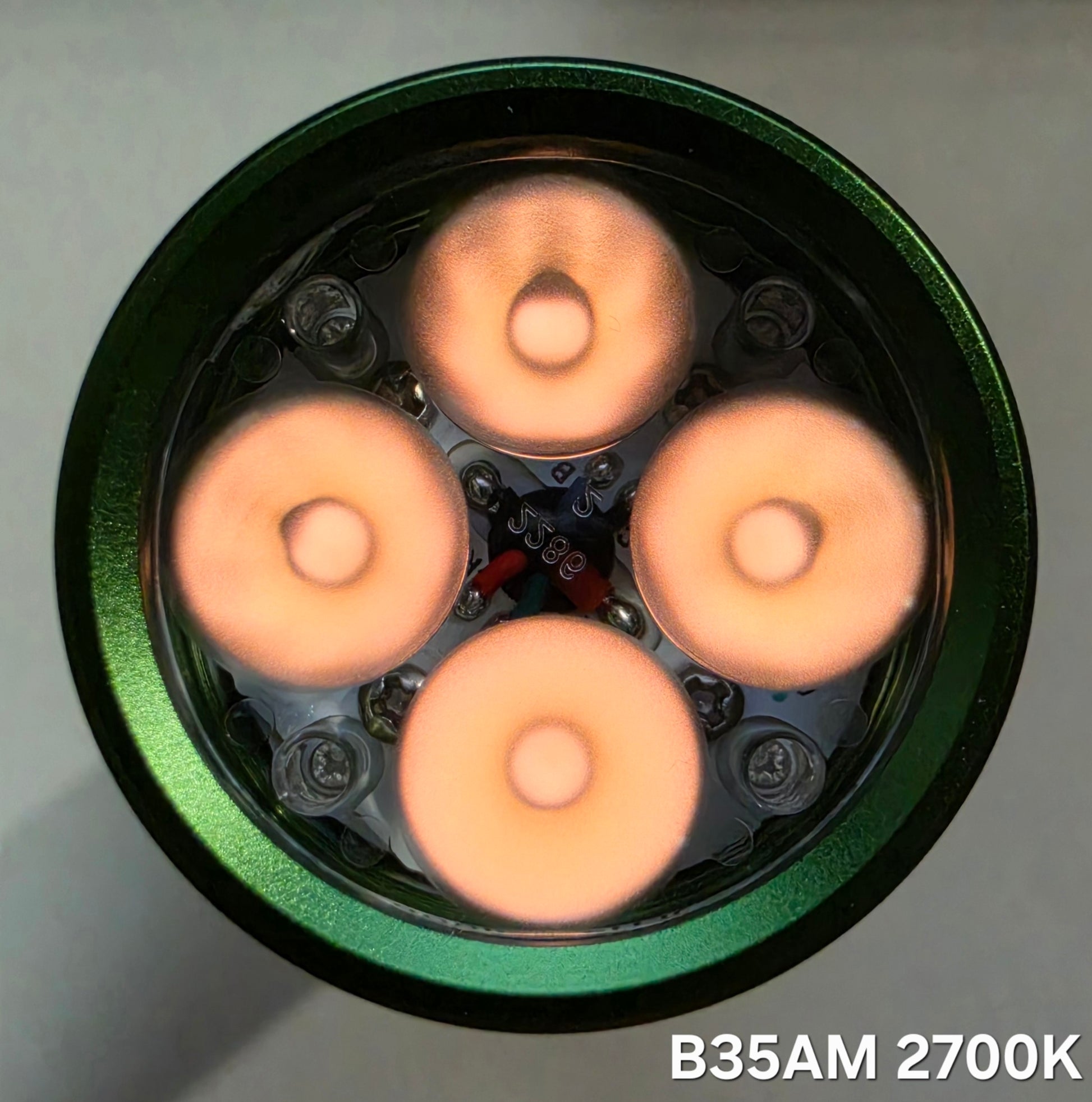

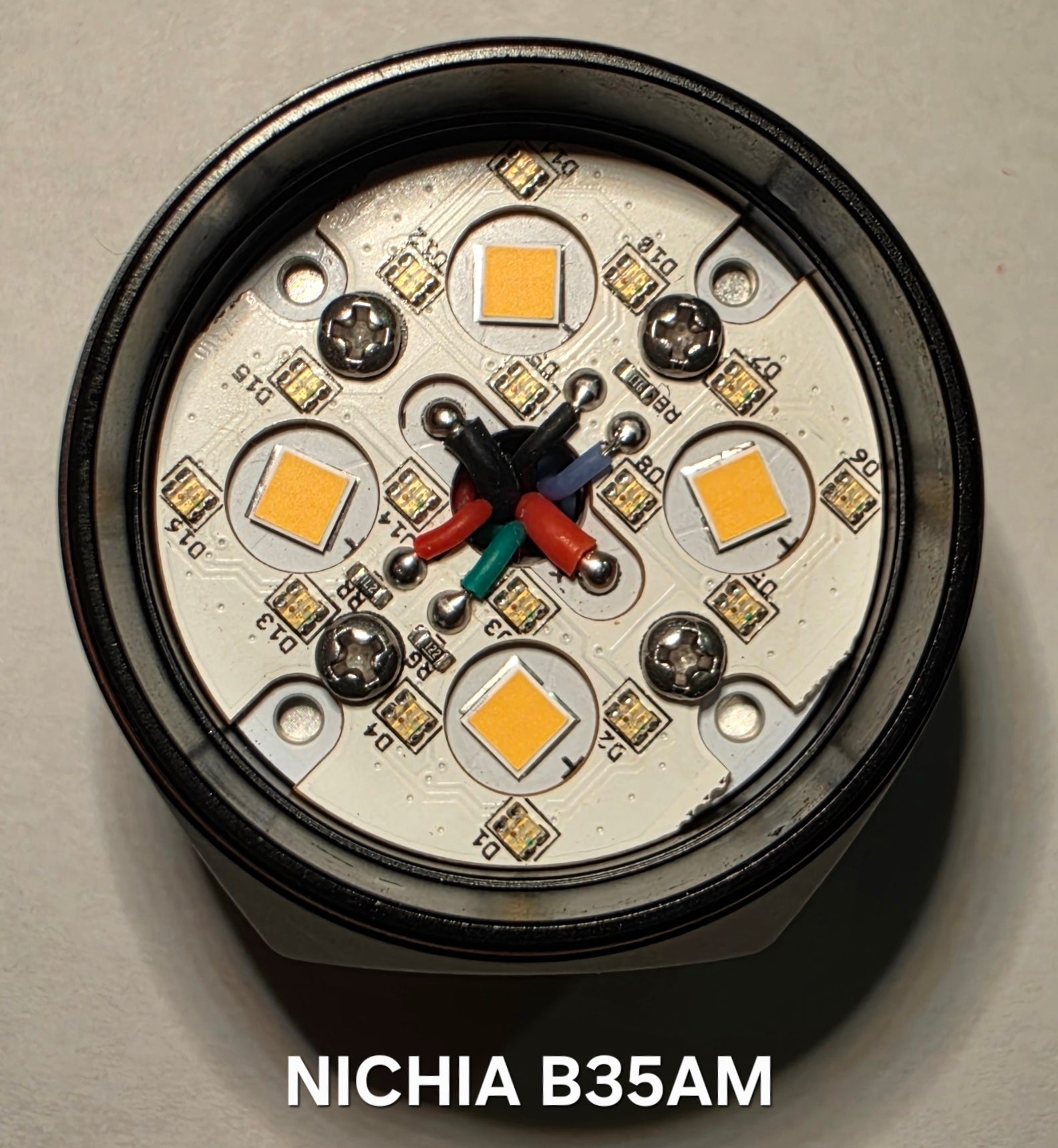

EMITTER OPTIONS:
LUMINUS SFT40 PURCHASE LINK >>> Emisar D4SV2 Luminus SFT40 26650 High Power LED Flashlight "CUSTOM BUI – JLHawaii808

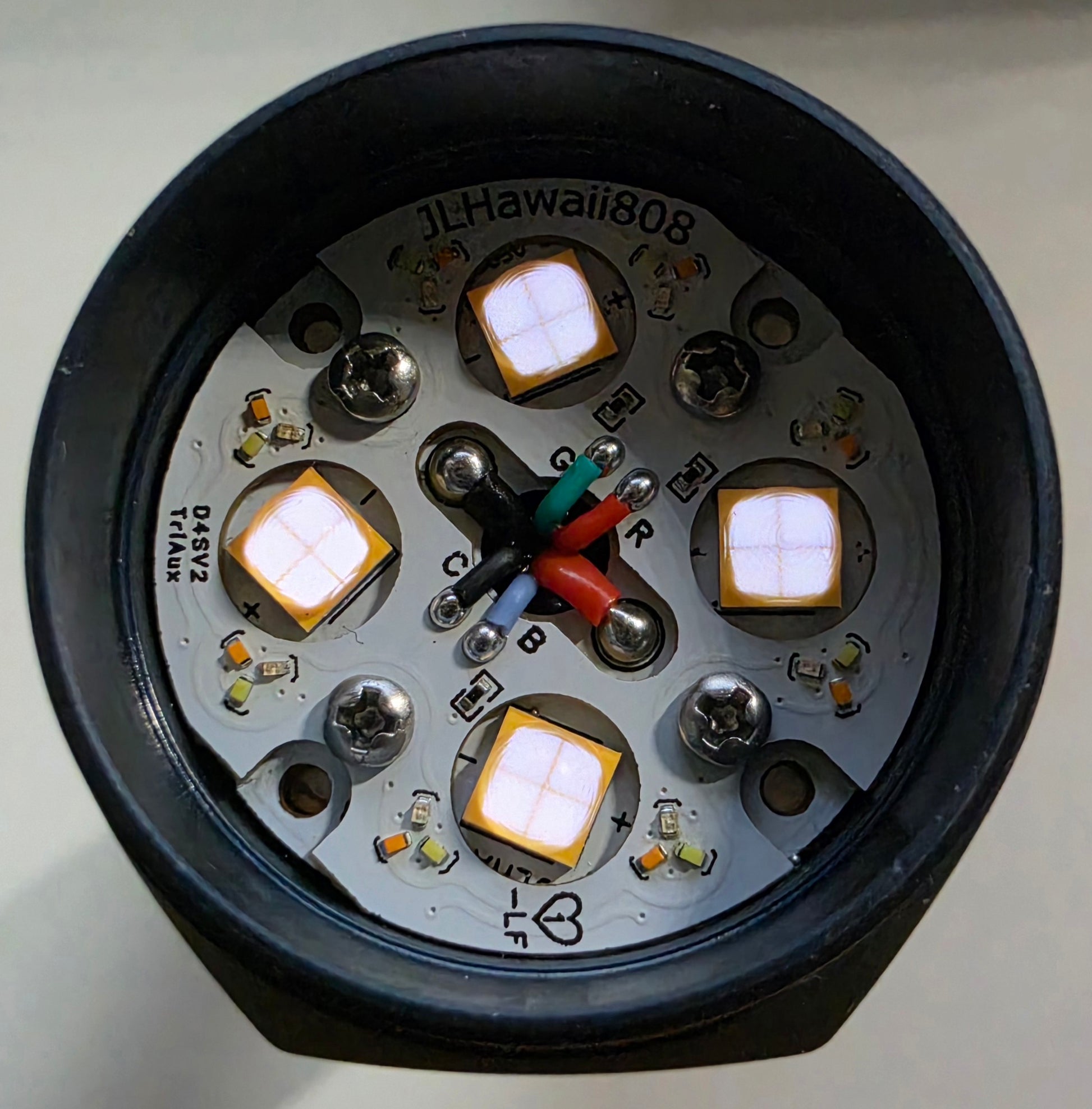

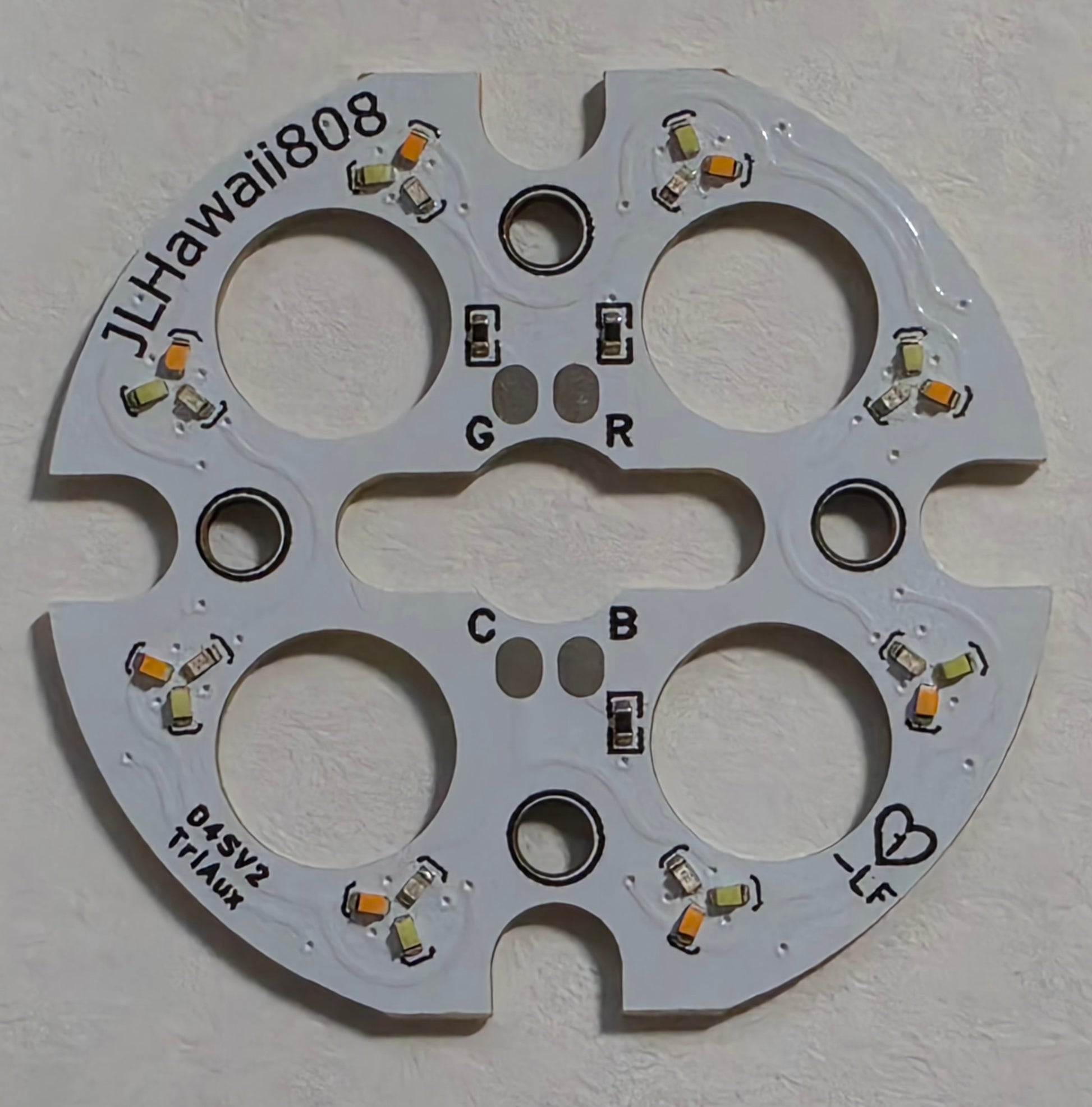

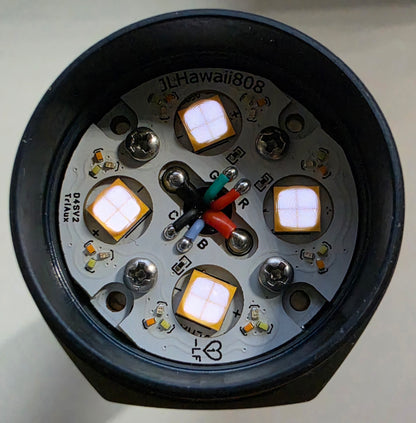

OSRAM W1/W2 (NEW CUSTOM 3030 MCPCB DESIGNED FOR THESE EMITTERS)
NICHIA 519A
+ MORE
INCLUDED OPTIONS:
LIGHTED SWITCH OPTION
MAGNETIC TAILCAP
LANYARD
EXTRA ORINGS
ANDURIL 2 UI INSTRUCTIONS

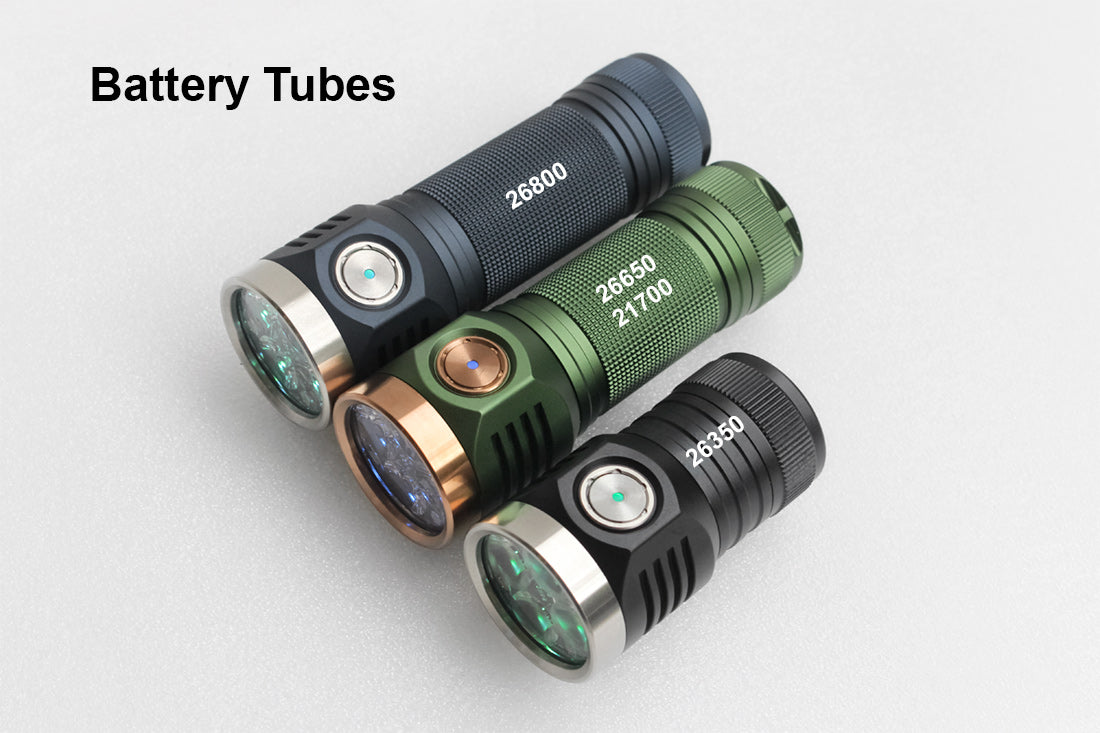

BATTERY:
26650 high drain unprotected flat top cell recommended min 20A (NOT INCLUDED)
Features:
• CNC machined from aircraft-grade aluminum
• Efficient LEDiL quad optic
• Double of triple the candela of D4 (depending on LEDs of D4)
• Anti-reflective coated glass lens
• Unihead construction
• High lumen output and low moon output
• Ramping interface
• Electronic soft touch switch
• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.
• Temperature step-down • More mass and MCPCB surface compared to D4
• Waterproof and dustproof to IP67 standard (up to 1 meter)
• Powered by a high drain 26650 cell (not included)
• Dimensions: 105mm(length) * 39mm(head) * 32mm(body)
OTF lumen output and candela at start-up
XP-G2 S4: 3300lm / 40,000cd
Nichia 219C: 3000lm / 20,000cd
XP-L HI: 4300lm / 45,000cd
XP-L HD: 5100lm / 27,000cd
SST-20 6500K: 4200lm / 58,000cd
SST-20 5000K: 4000lm / 55,000cd
SST-20 4000K/3000K 95CRI: 3000lm / 41,000cd
NICHIA 519A: 3900-4000 LUMENS
OSRAM W1/W1: W2 5000 LUMENS
SFT40: 8000-9000 LUMENS
This product uses free software distributed under the terms of the GPLv3.
Source code is available from http://tiny.cc/TKAnduril
