EMISAR

Emisar D4SV2 18 x LED Mule 2 Channel Tint Ramp *CUSTOM BUILT-TO-ORDER*

Emisar D4SV2 18 x LED Mule 2 Channel Tint Ramp *CUSTOM BUILT-TO-ORDER*

BODY COLOR
$119.88
$89.99 $119.88
Sale Sold out
Shipping calculated at checkout.

NEW! Custom Emisar D4SV2 "MULE" 2-CH

NOTE: THIS IS CUSTOM "BUILT-TO-ORDER" WILL SHIPPING ACCORDINGLY!

NEW! Anduril 2-CH firmware, user choose the tint ramping or instant channel switching,

Advanced mode Off -> 9H, first menu item:

0C: tint-ramping (smooth)

1C: instant channel switching

WARNING! The Emisar D4SV2 "MULE" puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing.

Works with high drain unprotected 26650 cells under 69mm. Optional 21700 tube available

Custom "MULE" (strictly flood)

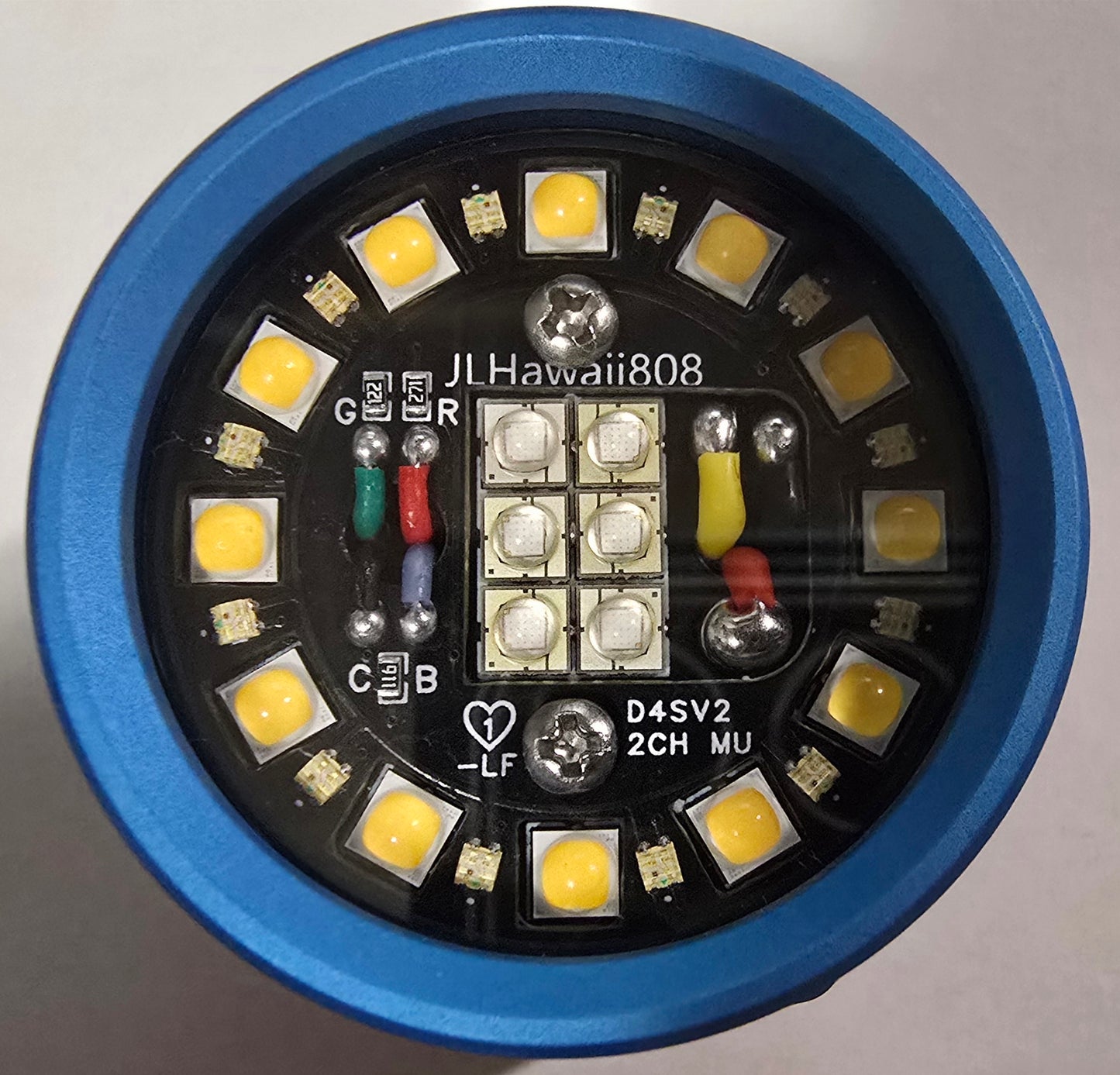

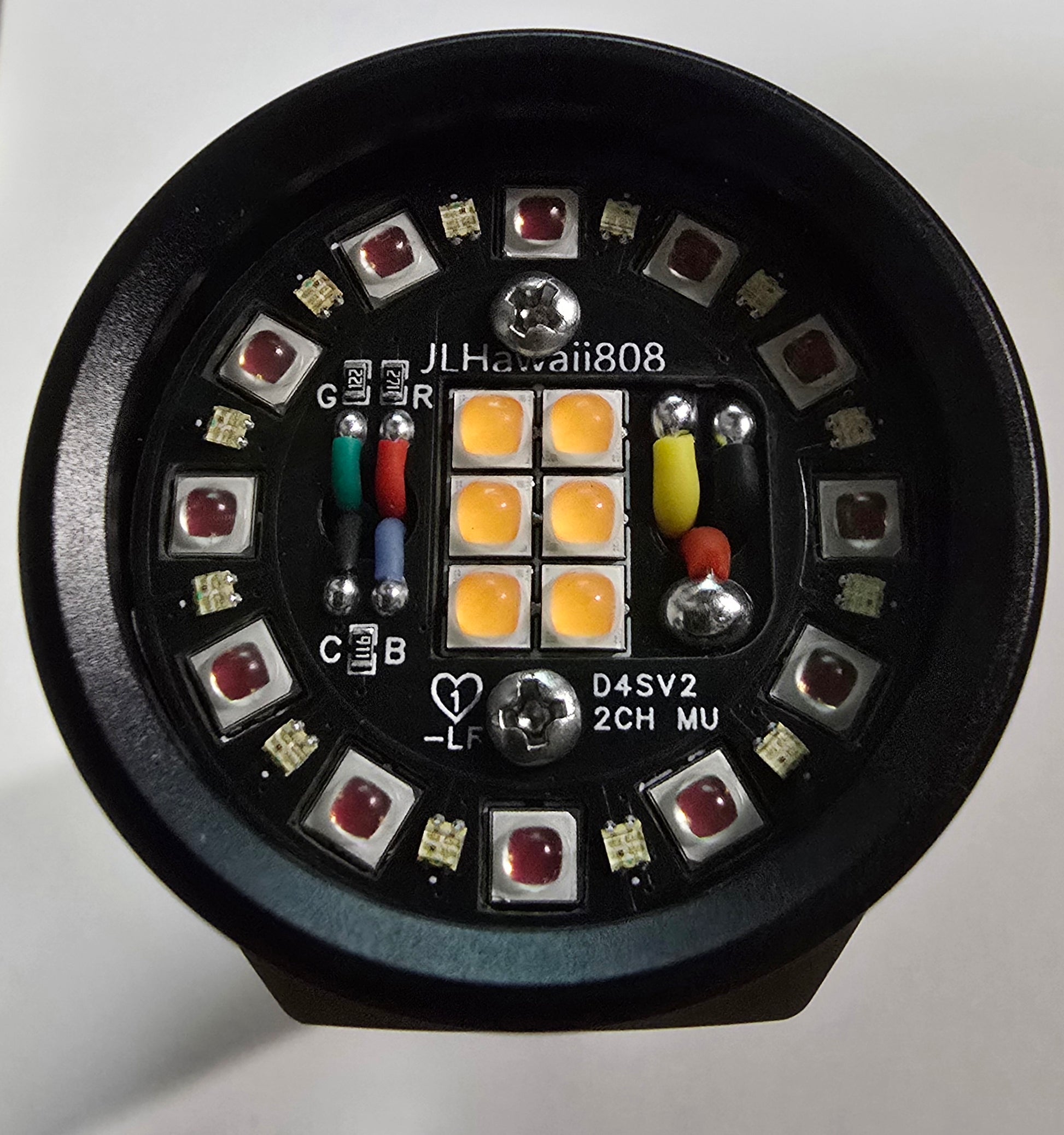

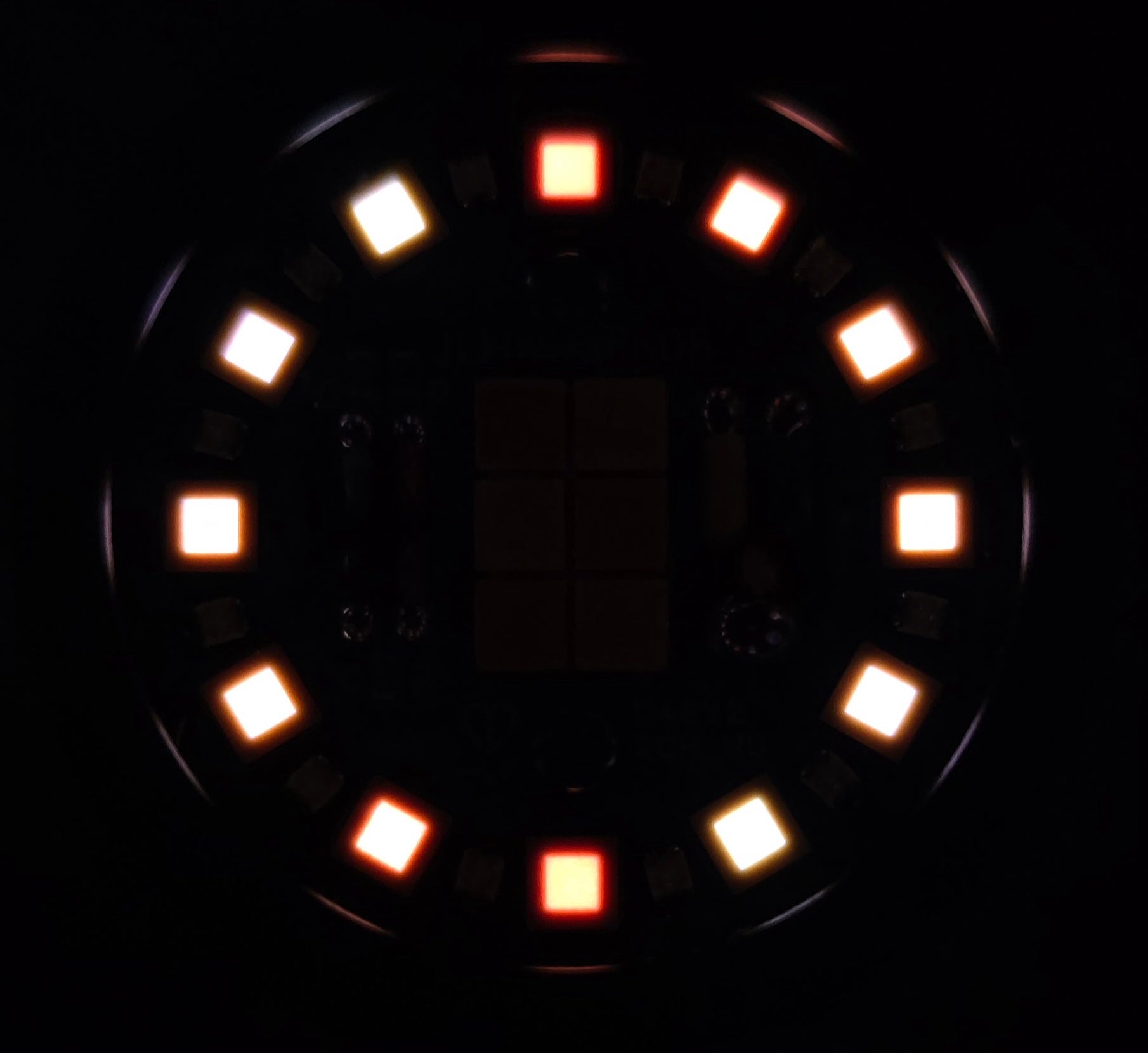

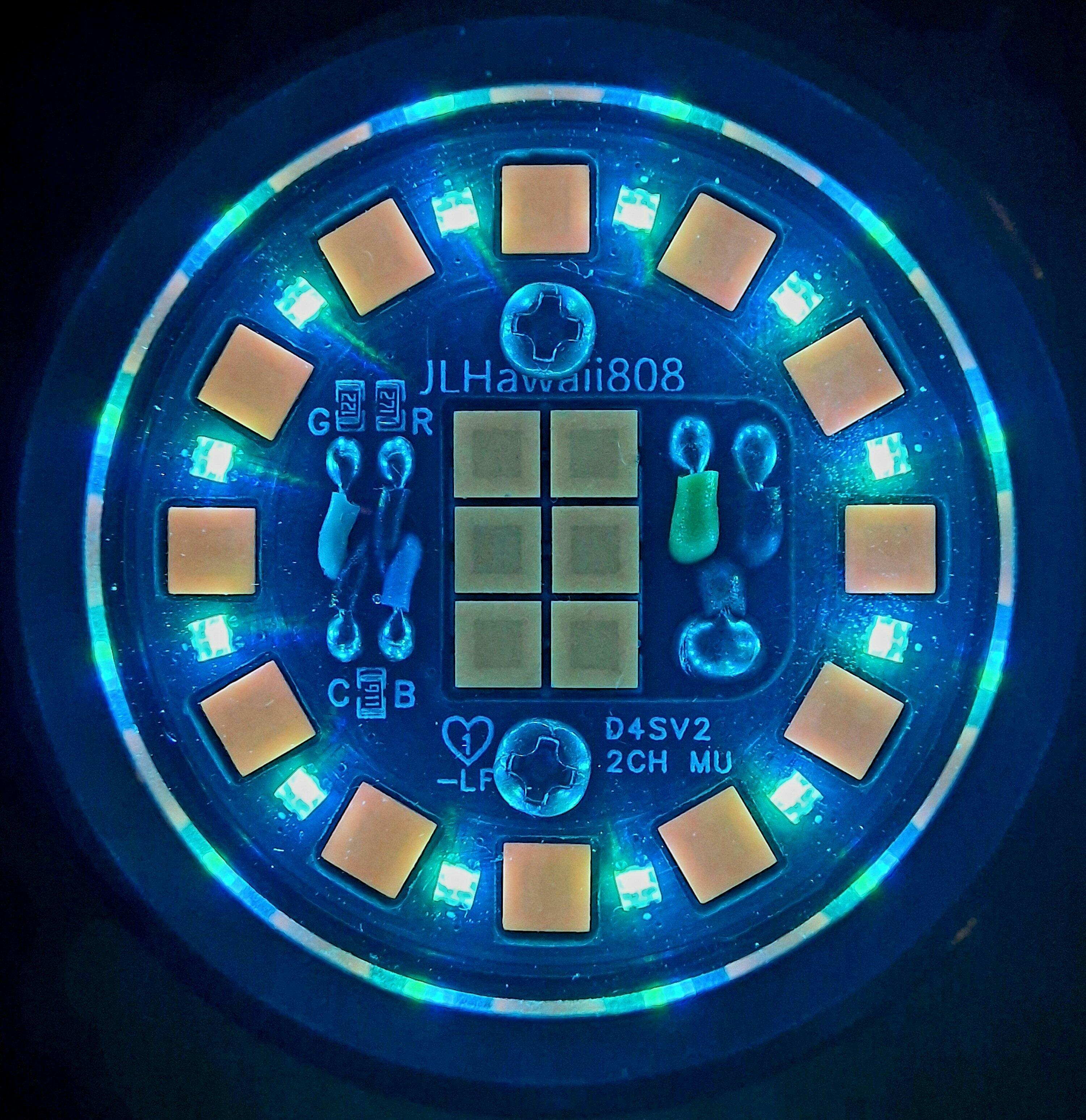

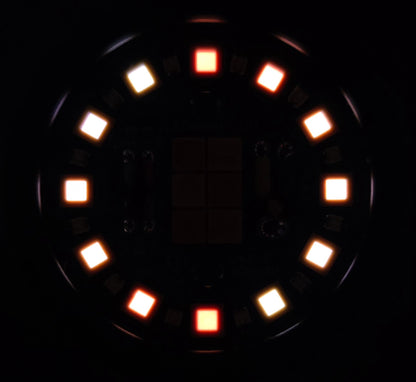

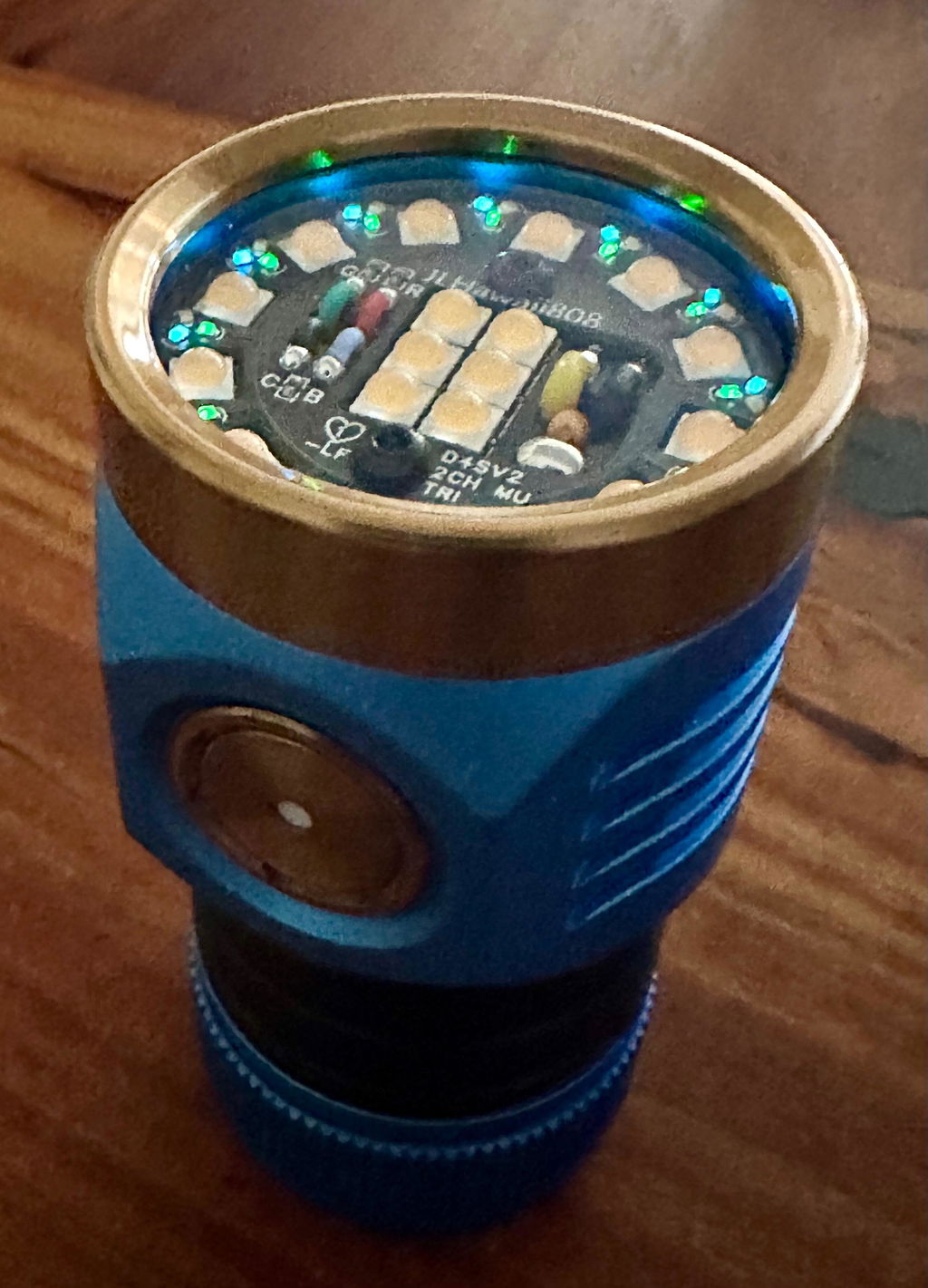

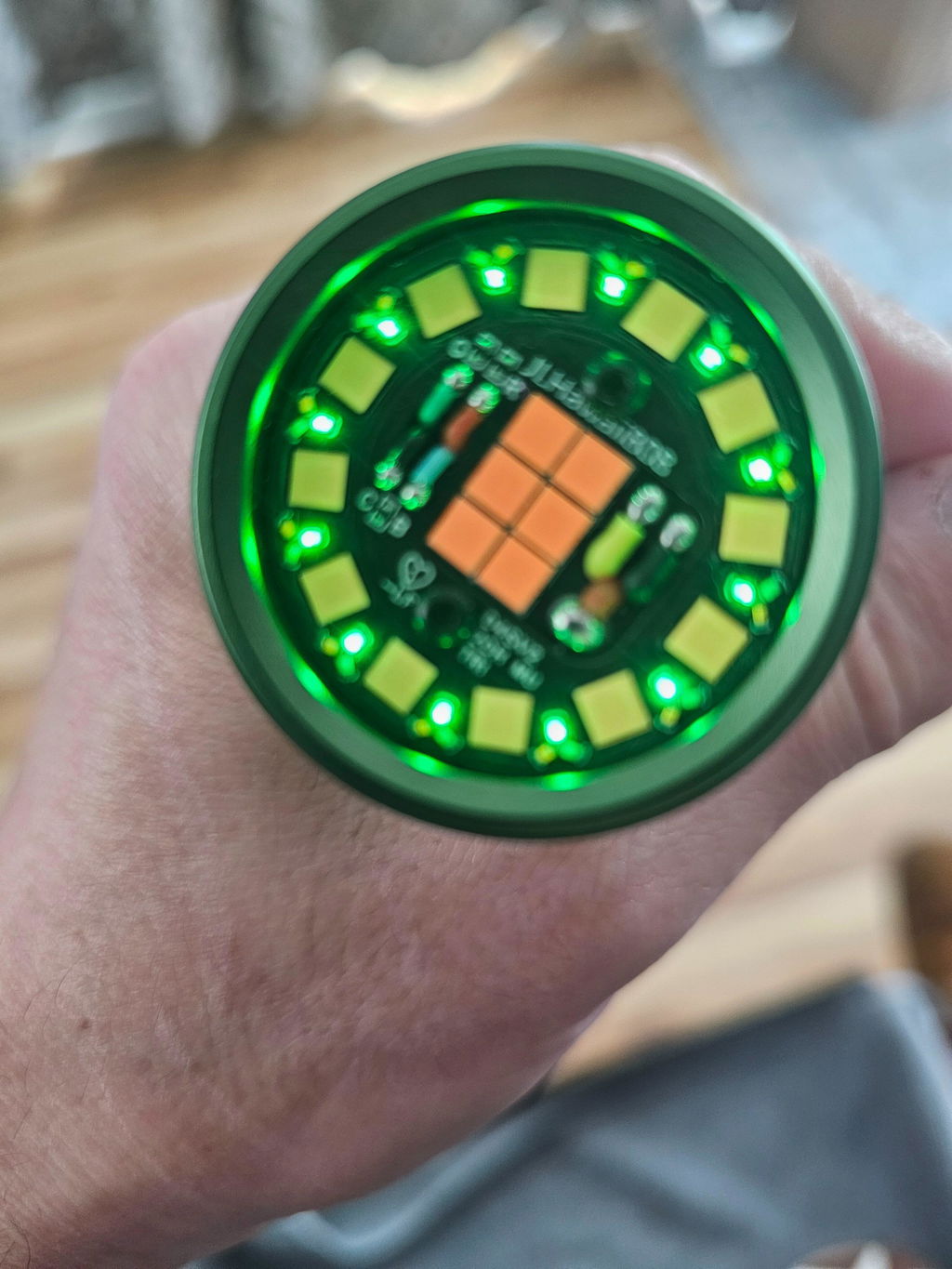

CH1: 12 x 3535smd LED's (outer leds)

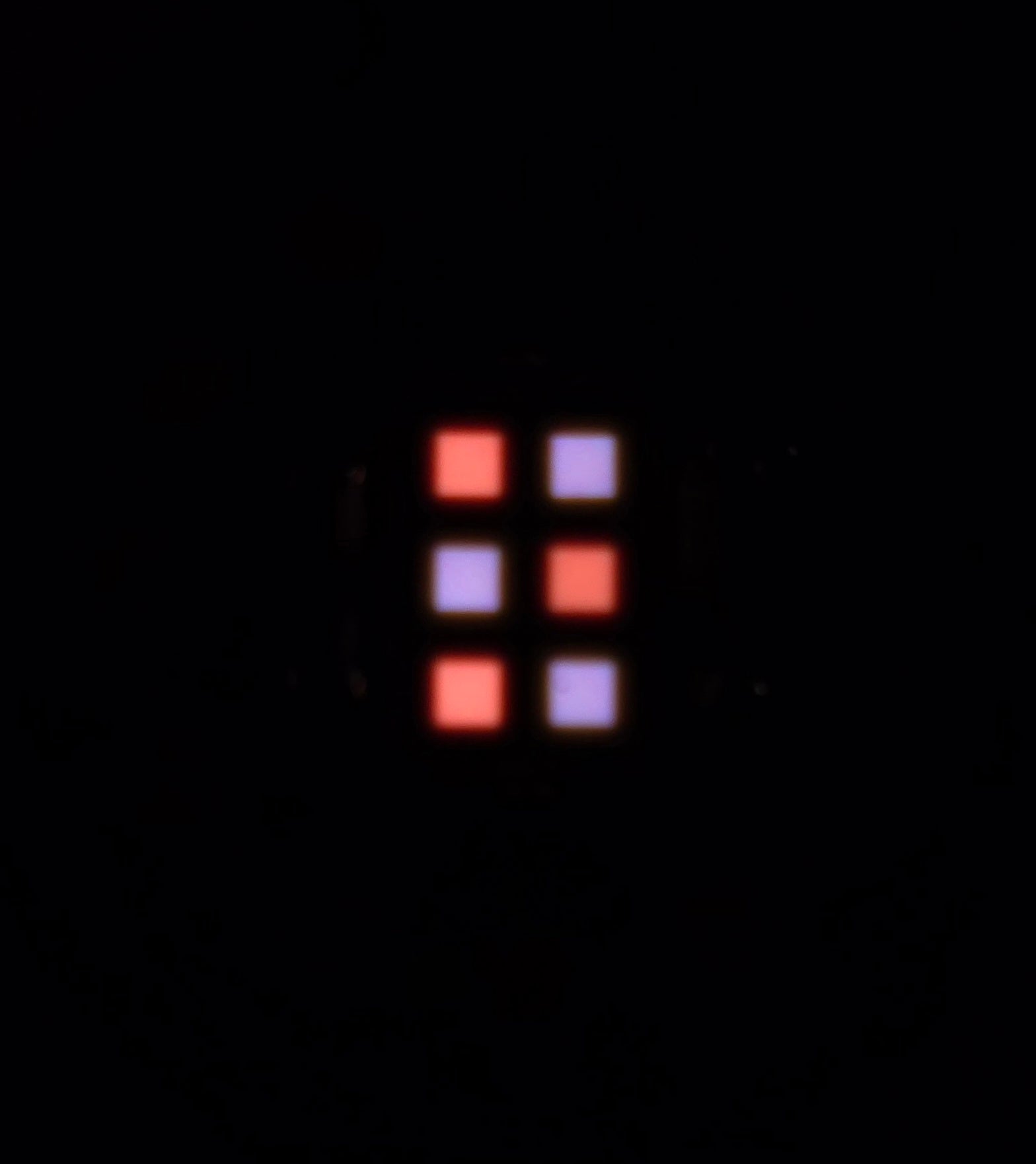

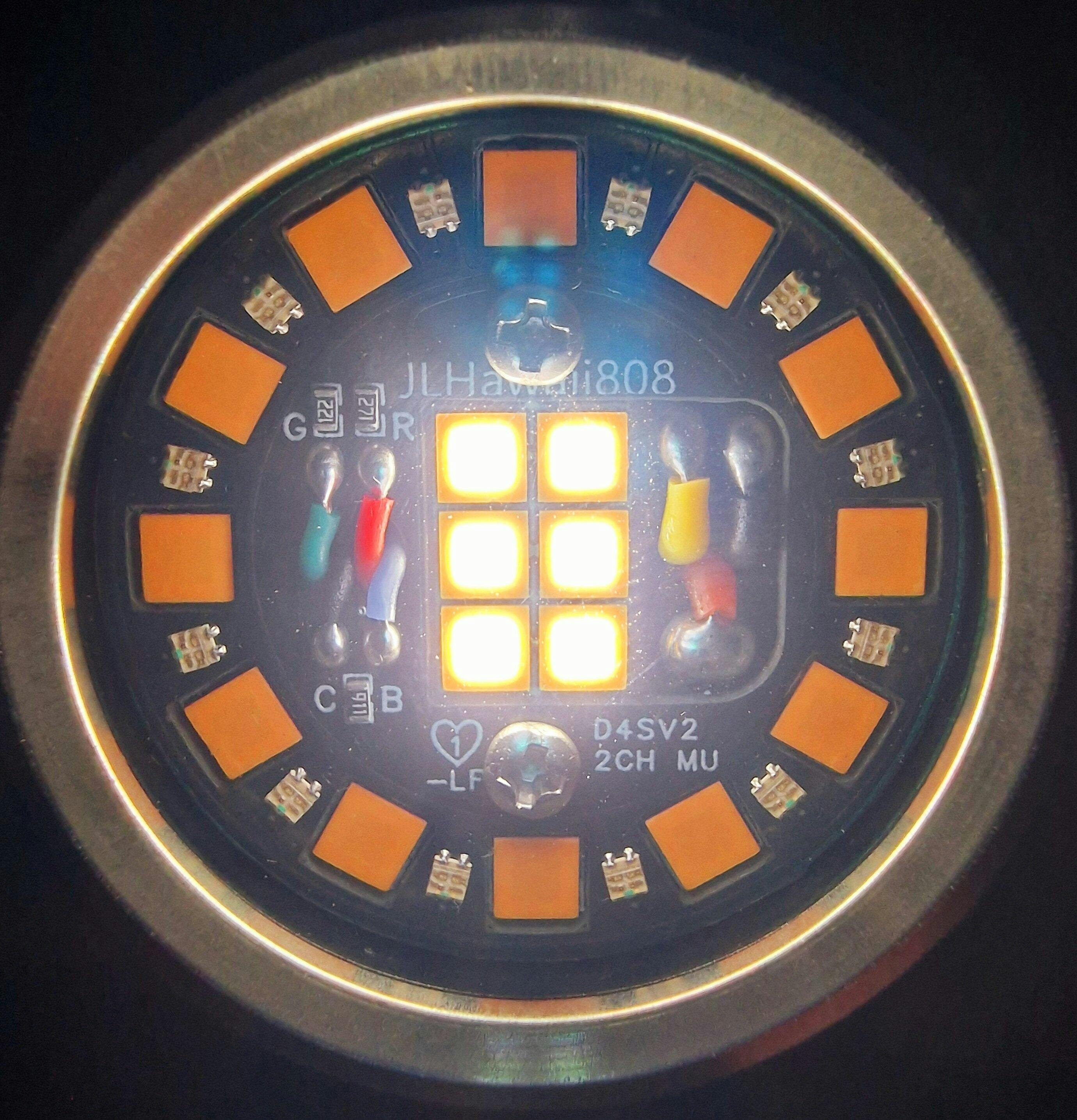

CH2: 6 x 3535smd (center rectangle pattern)

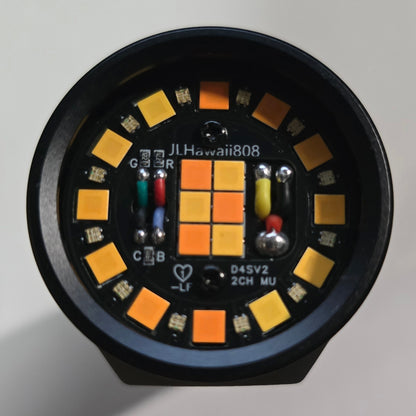

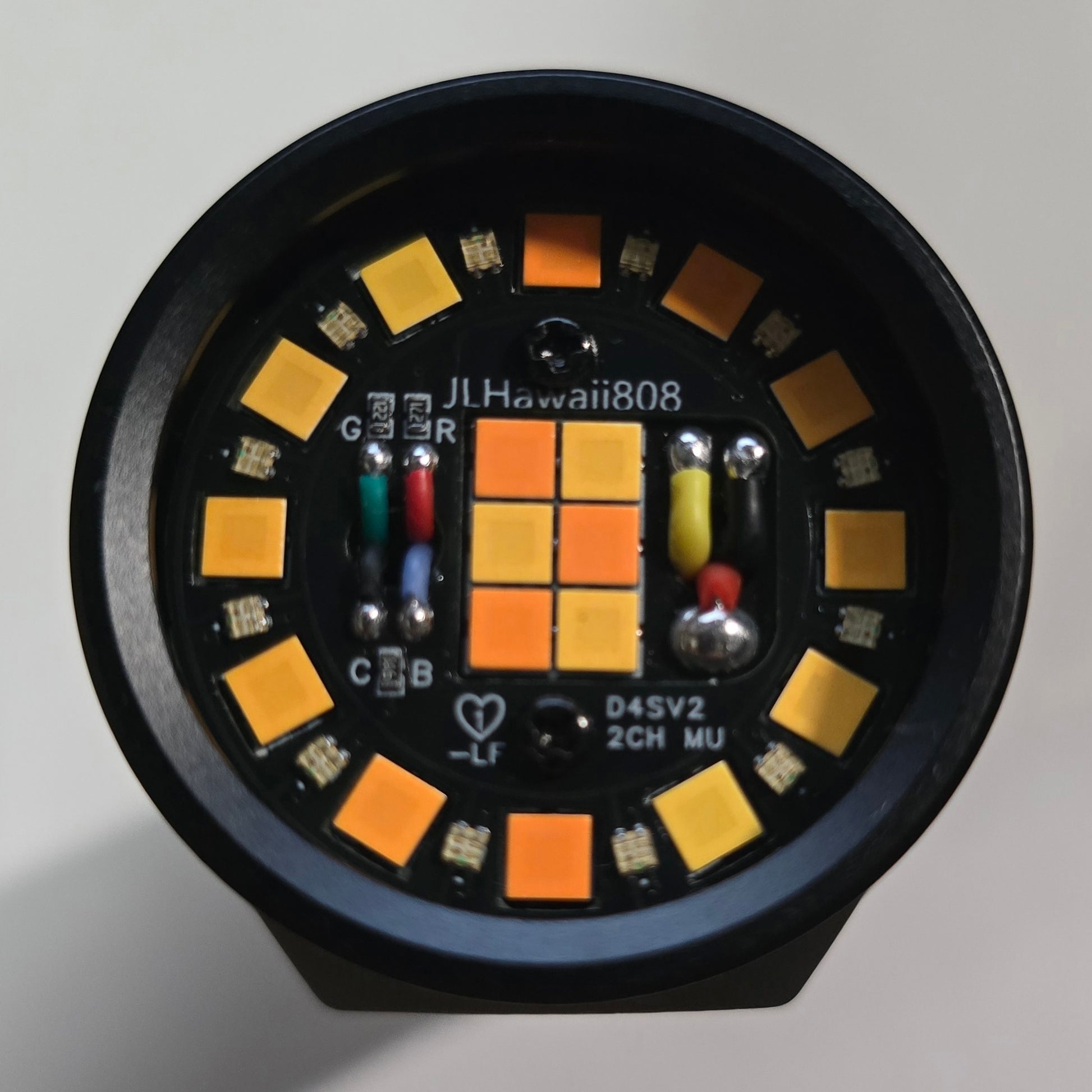

Custom 2-CH MCPCB

Custom 4mm aluminum mule spacer

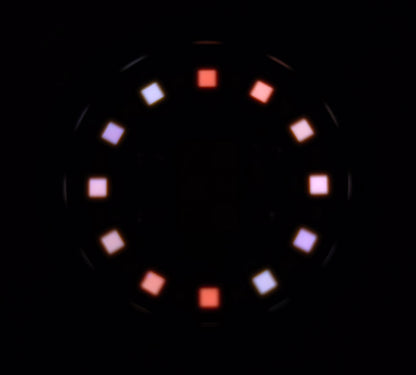

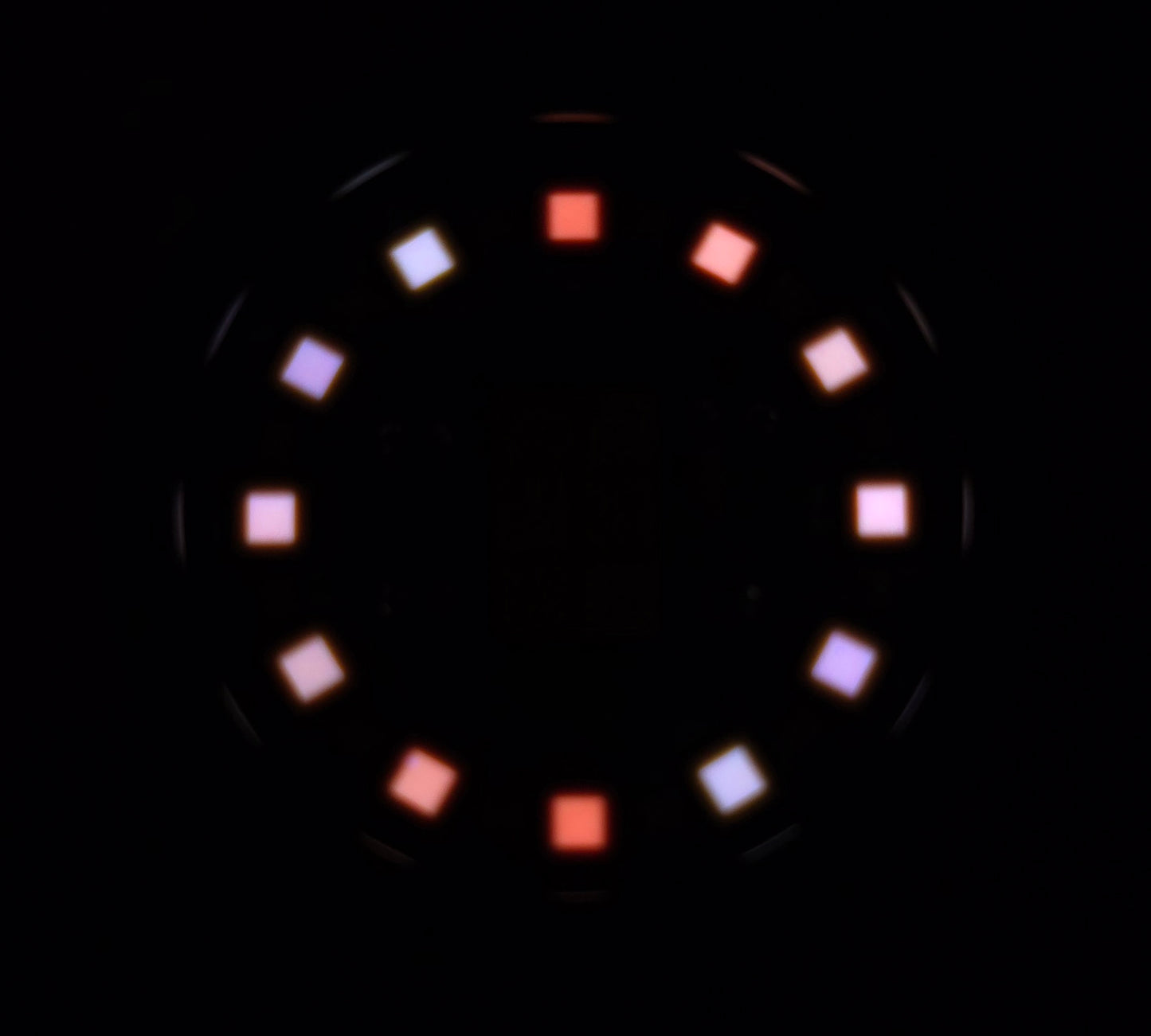

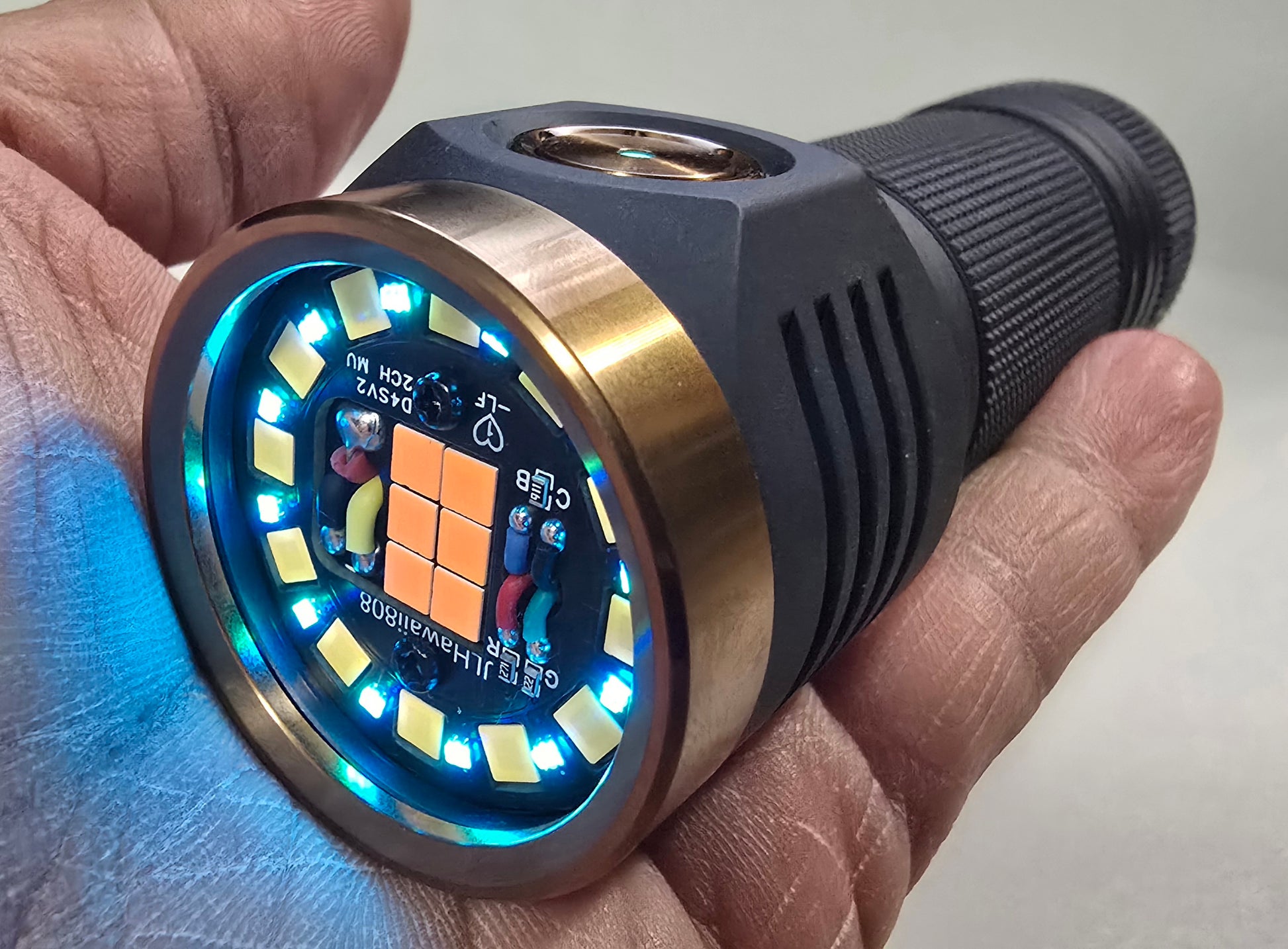

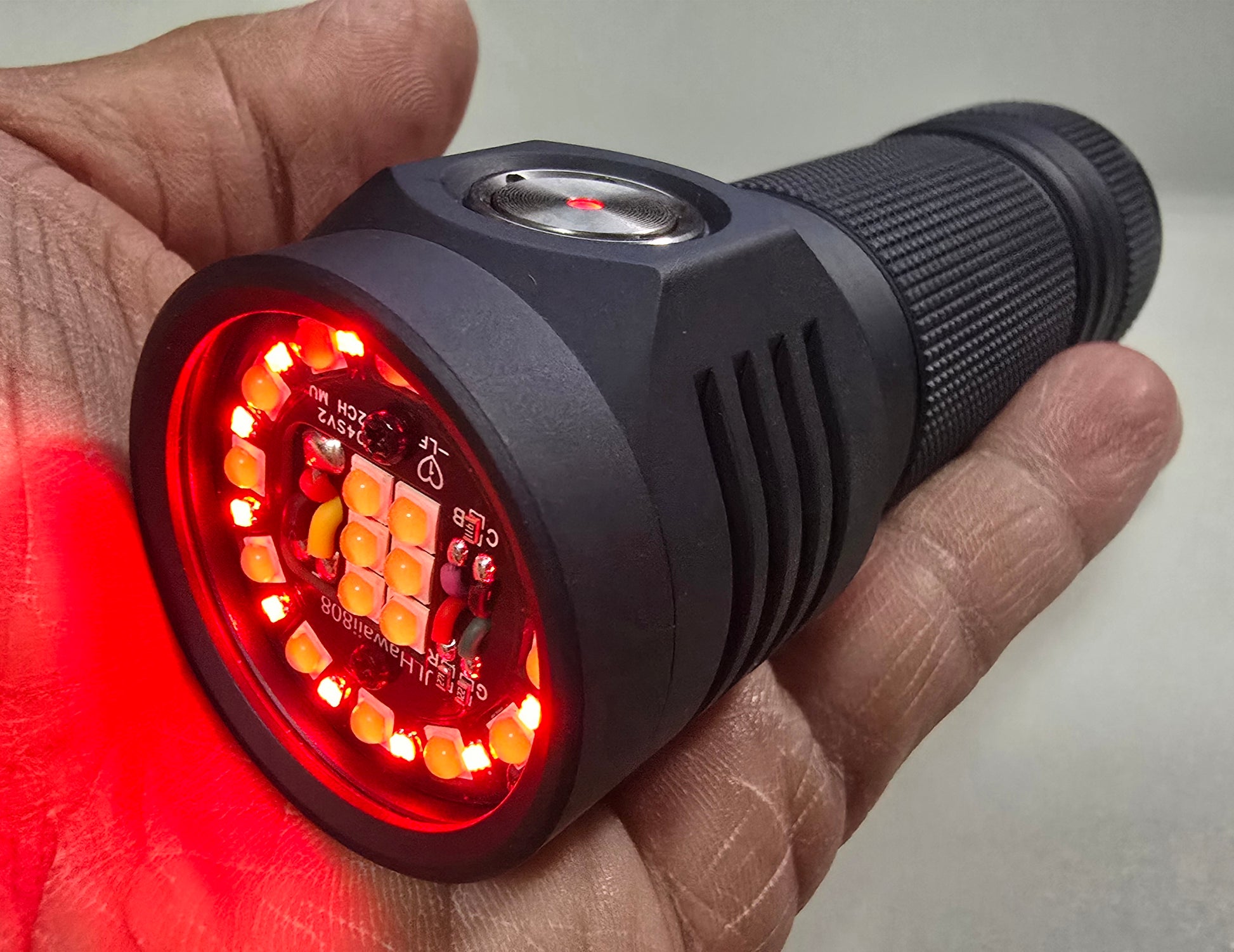

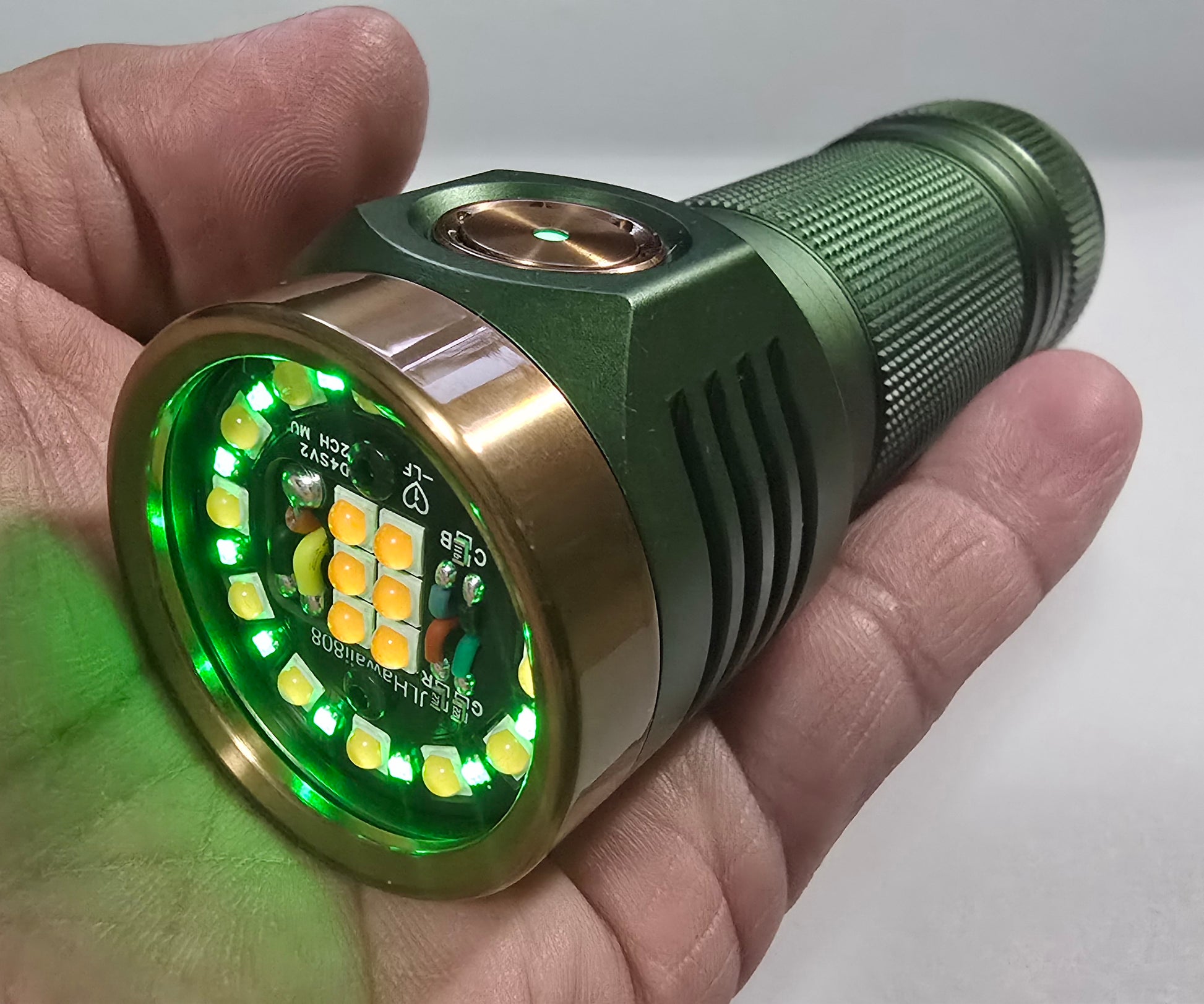

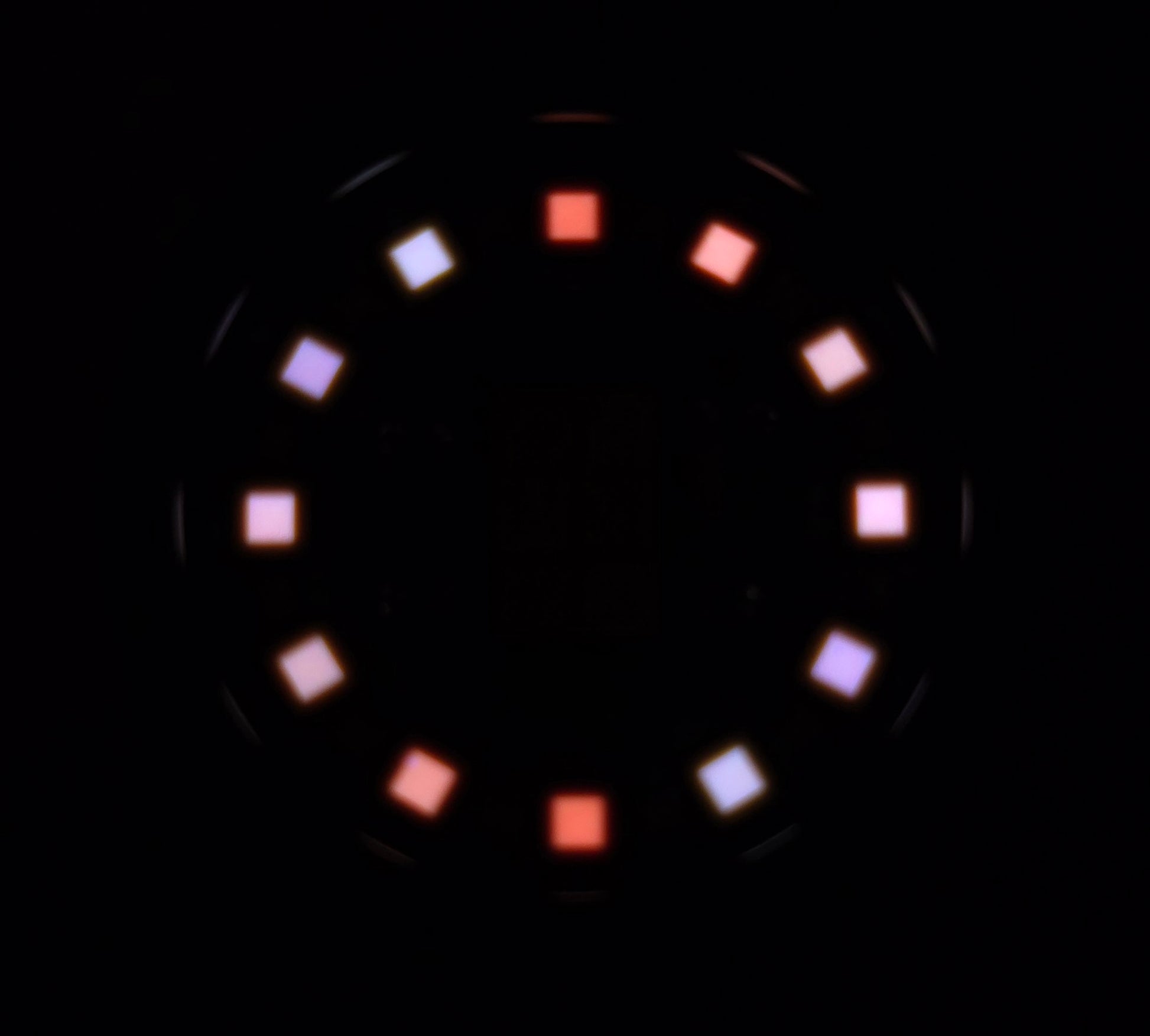

Custom 12 x RGB led auxiliaries (separate aux board)

DRIVER:

Dual 9A or dual 12A drivers (depending on the emitters)

CH1: 12A LINEAR + FET

CH2: 12A LINEAR

USER INTERFACE:

Anduril 2 UI

FIRMWARE:

New! 2-CH firmware

BODY COLORS:

Black

Gray

Cyan

SWITCH RING:

NEW! Threaded flat raised

EMITTER OPTIONS:

3535smd only!

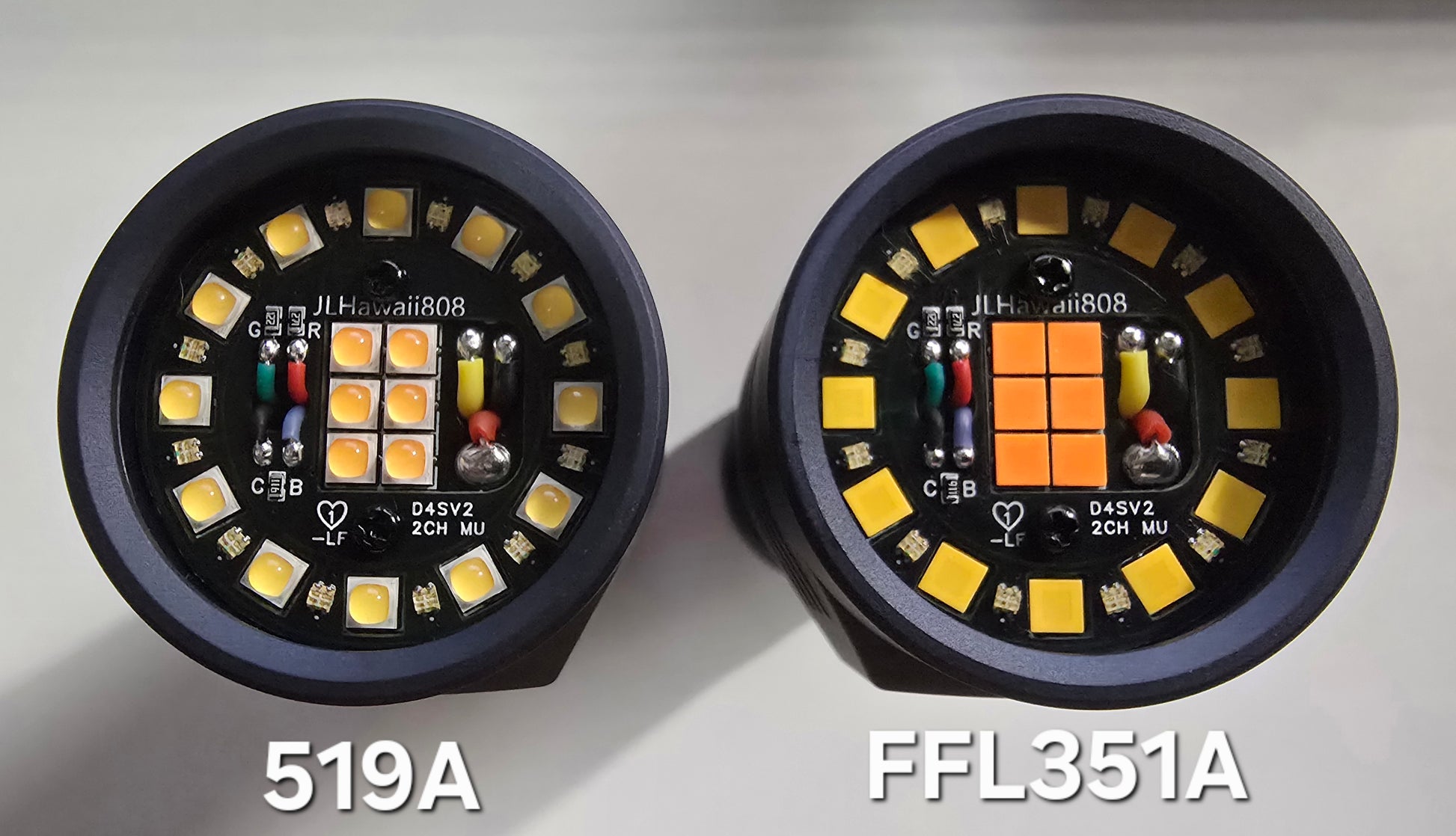

NEW! FFL351A/FFL351RD HIGH CRI EMITTERS!

NICHIA 219B

NICHIA 519A

OSRAM W1/W2

INCLUDED OPTIONS:

LIGHTED SWITCH OPTION

MAGNETIC TAILCAP

LANYARD

EXTRA ORINGS

ANDURIL 2 UI INSTRUCTIONS

BATTERY:

25A 26650 flat top unprotected cell recommended (not included), optional 21700 battery tube can be purchased separately.

Molicel battery purchase link >>> Molicel P42A 21700 4200mAh 45A Li-Ion Rechargeable Battery **** HAS TO – JLHawaii808

Optional battery tube

21700 or 26800 link >>> Emisar Noctigon Replacement Body/Tube/Head/Bezel Parts – JLHawaii808



Warning:

Output will be dependent on cell model (Inc. Age) and temperature.

Emisar D4S V2 puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing.

Works with high drain unprotected 26650 cell under 69mm.

Features:

• CNC machined from aircraft-grade aluminium

• Efficient LEDiL quad optic

• Double of triple the candela of D4 (depending on LEDs of D4)

• Anti-reflective coated glass lens

• Unihead construction

• High lumen output and low moon output

• Ramping interface

• Electronic soft touch switch

• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.

• Temperature step-down • More mass and MCPCB surface compared to D4

• Waterproof and dustproof to IP67 standard (up to 1 meter)

• Powered by a high drain 26650 cell (not included)

• Dimensions: 105mm(length) * 39mm(head) * 32mm(body)

This product uses free software of Anduril 2, distributed under the terms of the GPLv3.

Source code is available from http://tiny.cc/TKAnduril

Customer Reviews

Based on 7 reviews
100%
(7)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
e
evan

jackson makes the best lights ever! and his customer service is something ive never experienced anywhere else. so worth the money and the shipping is lightning quick. absolutely insanely good mule light as well

e
evan
D4SV2

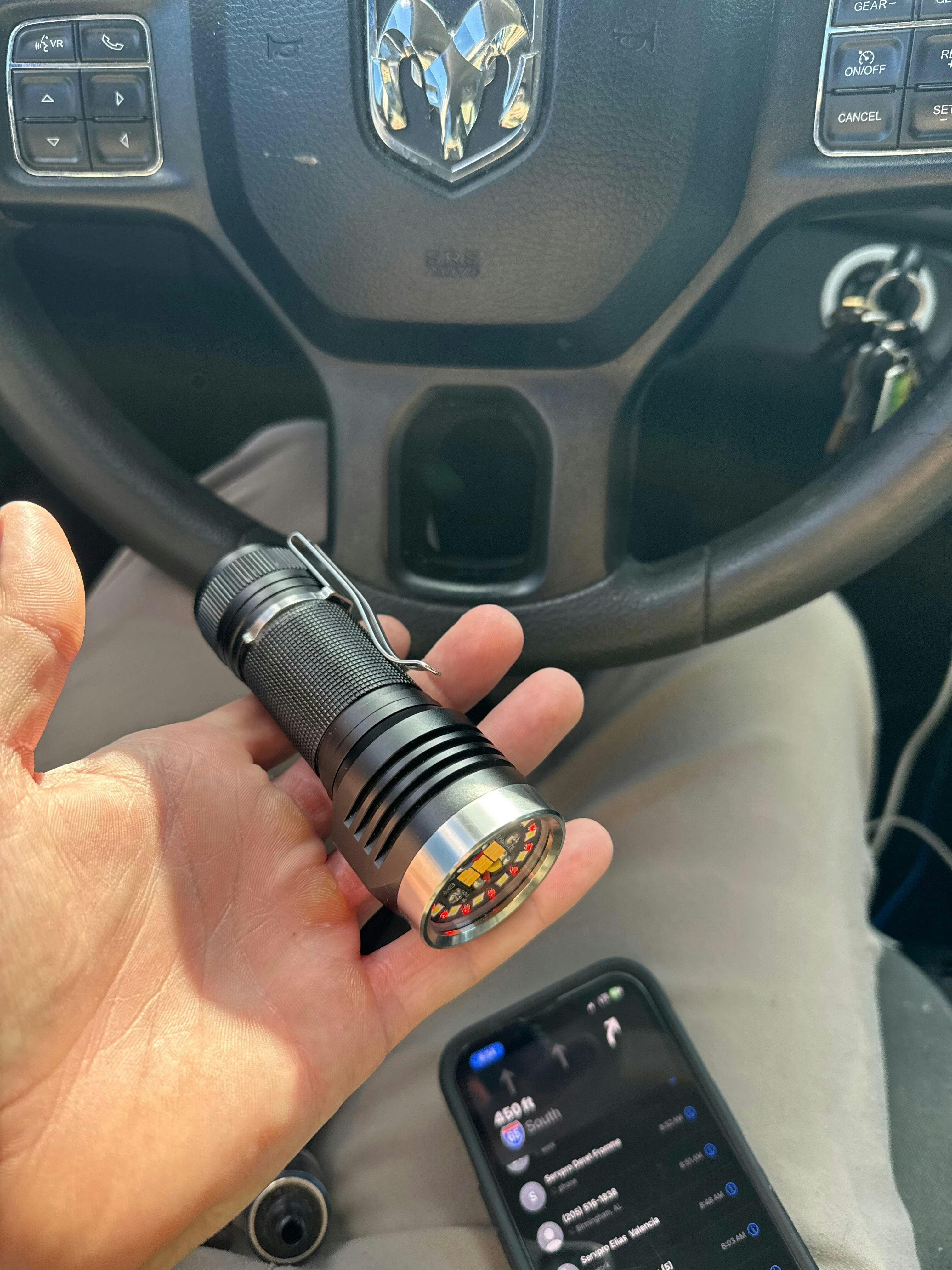

man, this light is so rad. i slapped a pocket clip on that thing and it’s been with me ever since! jackson is once again making some of the best custom mules out there and such a pleasure to work with. if you’re ever unsure just read this and know that jackson is worth the extra couple bucks.

User picture
M
Michael
Geiles Teil !

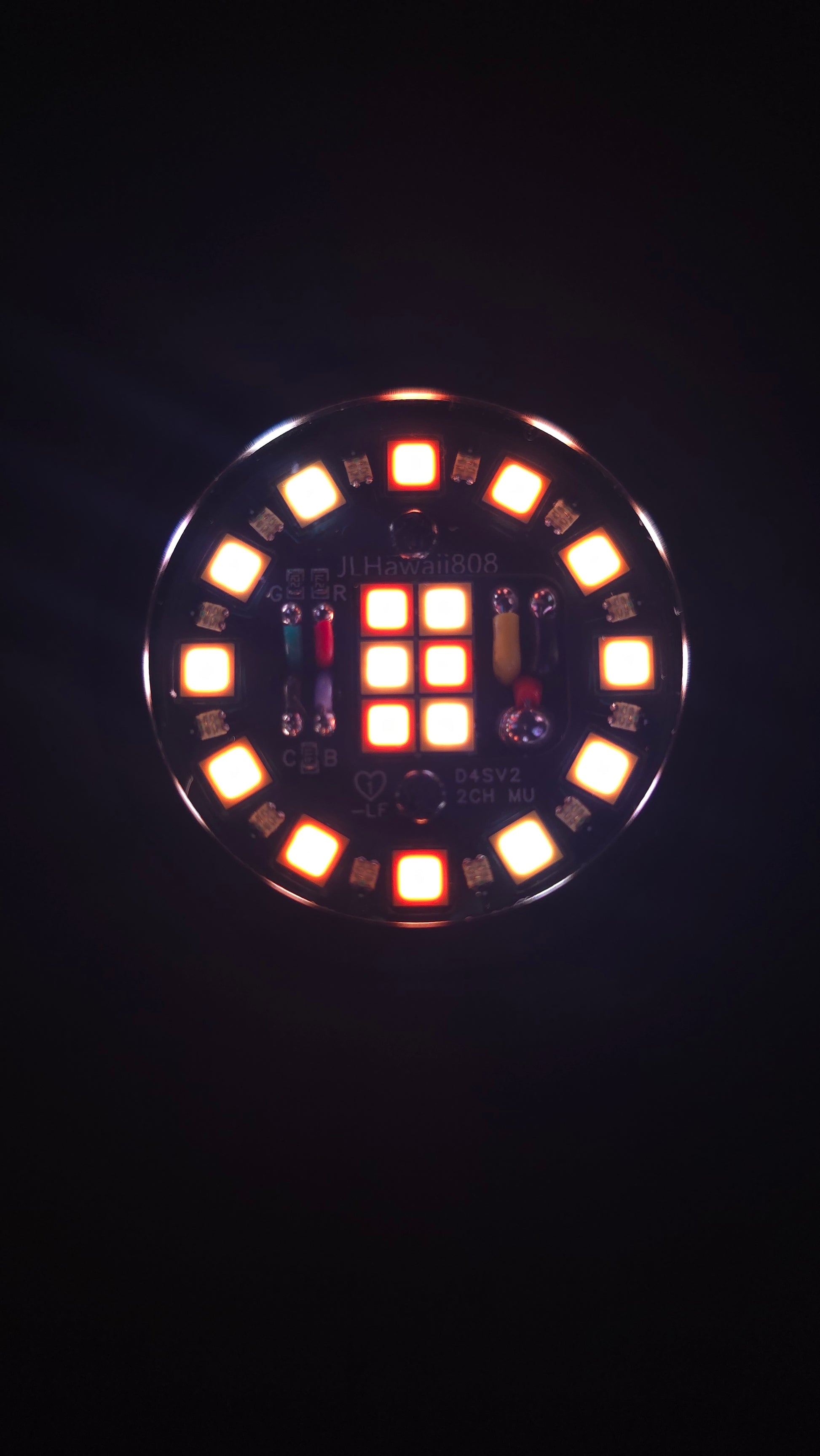

Hab sie mit FFL351A 1800k und 4500k bestellt und sie ist mittlerweile angekommen …. Sehr schönes rosy Licht und toller Anblick ! TFTF

User picture
A
Anonymous
This is just incredible 😲

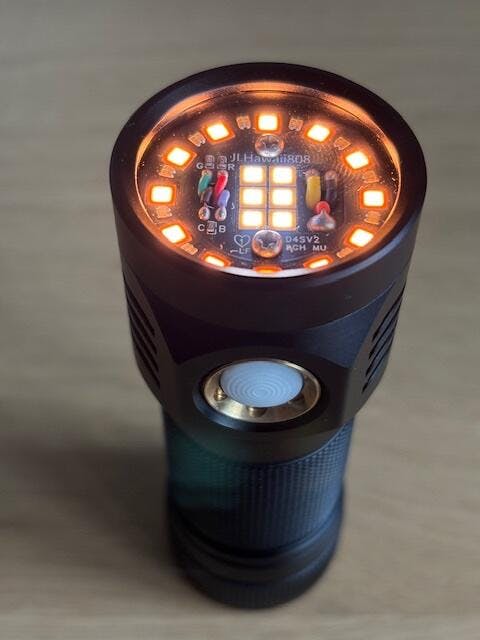

This is my first light from Jackson Lee/Emisar, and I’ve got to say, I’m seriously impressed by the attention to detail on this light. From the placement of the aux emitters to the amazing selection of main LEDs you can choose from, it’s just top-notch.

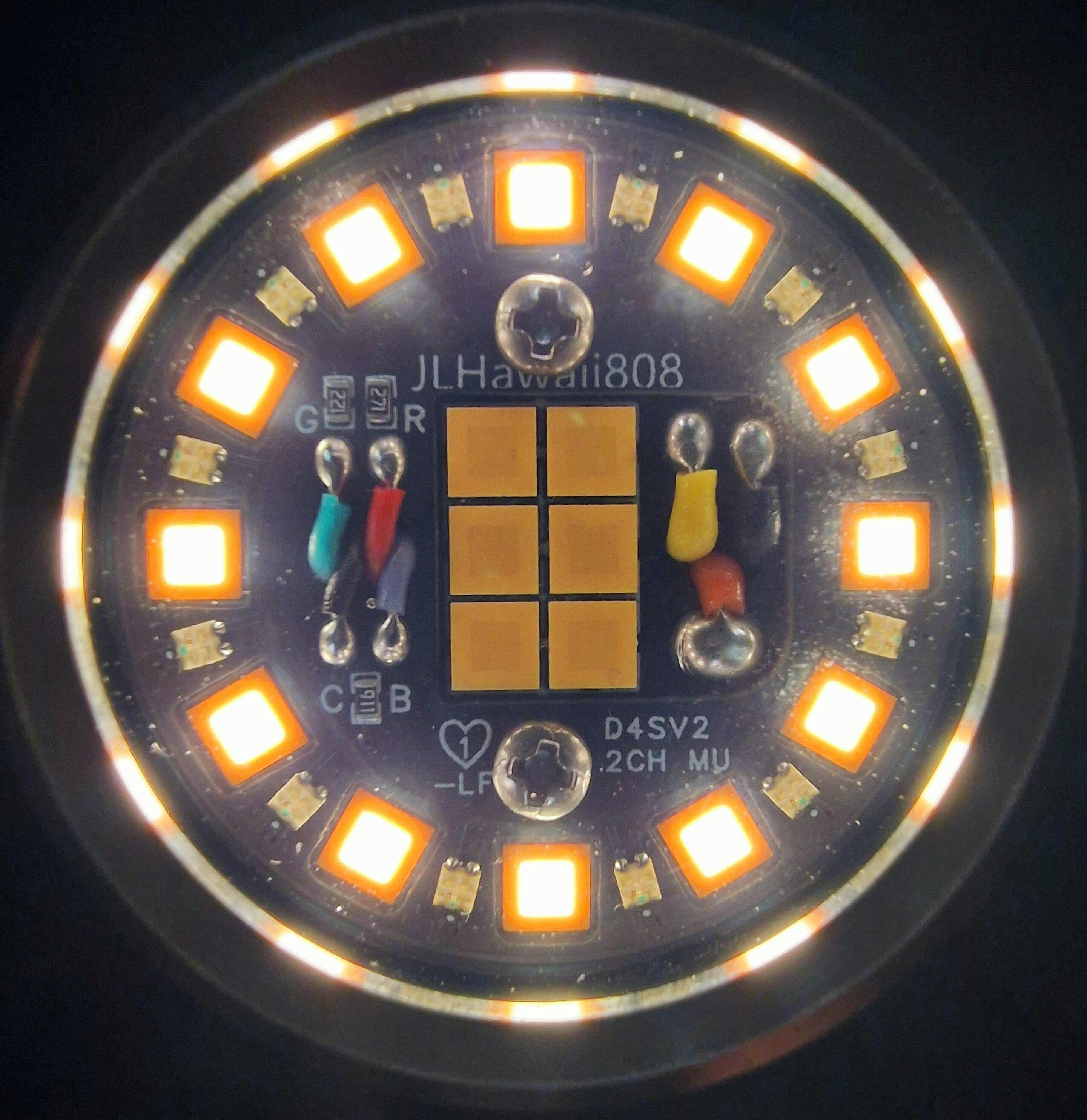

The MCPCB used here is also beautifully made, and the overall design solutions are incredibly well executed and neatly arranged. The soldering is also impeccably done.
It’s definitely not the last time I’ll be buying from here.

User picture User picture User picture
J
Jay Strid
His best work yet!

Jackson's work has always been top notch, but these new two channel mules are just incredible. Easily the best pocket work light I've ever seen. Incredible quality of light in a wide flood coupled with a huge battery and good sized host for heat dissipation means you can run these darn near all day.

12
