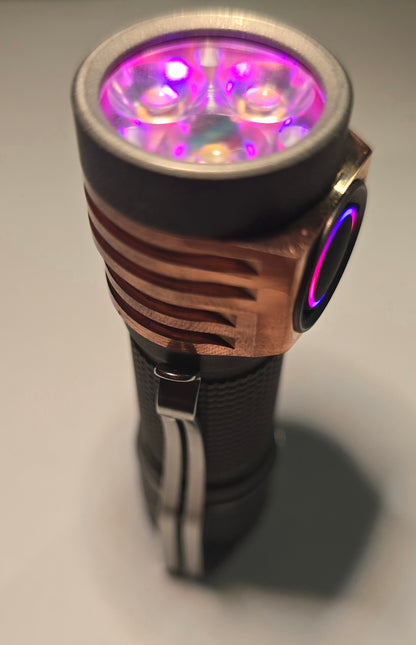

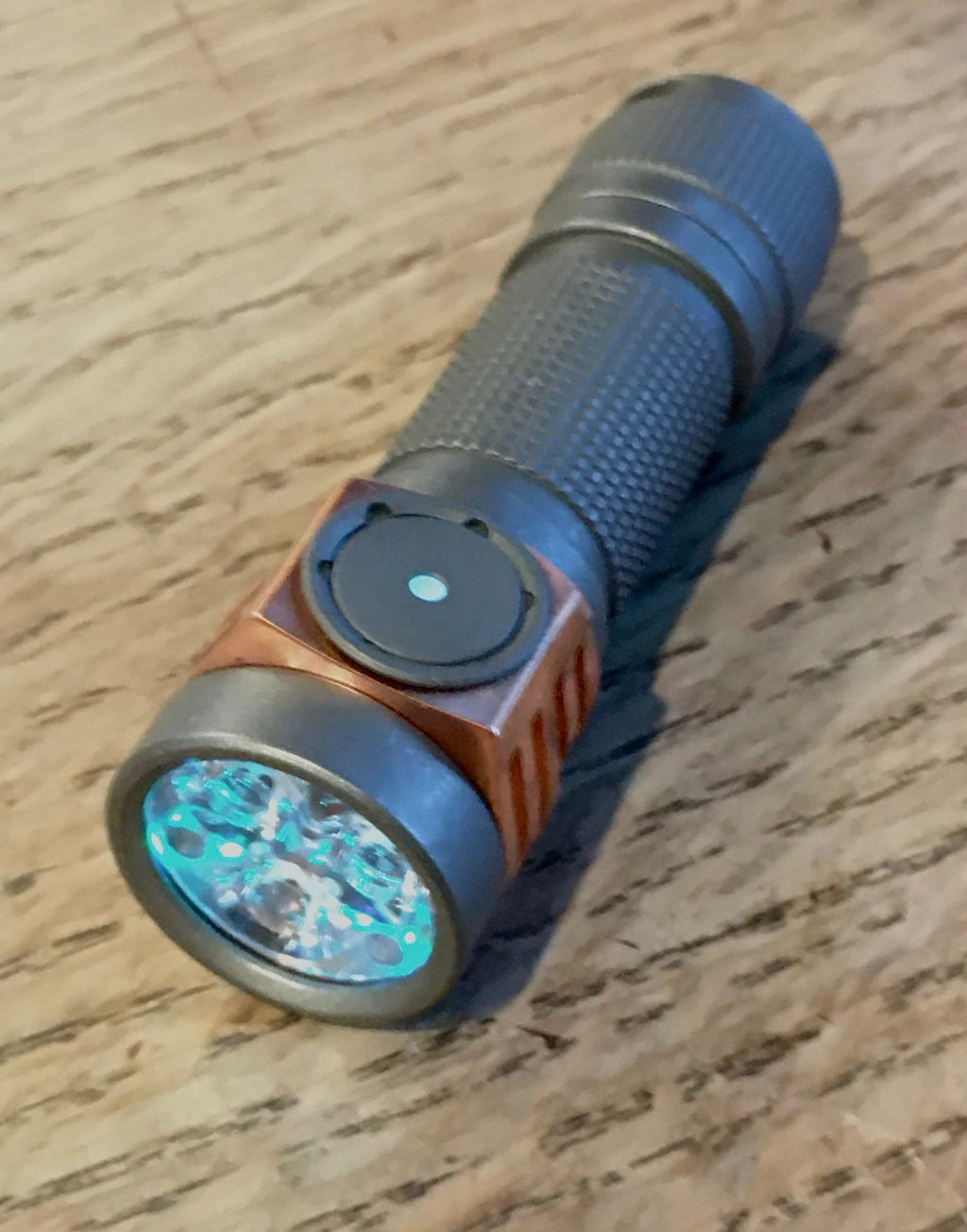

EMISAR D3AA TI TITANIUM COLORFUL SERIES AA/14500 COMPACT LED FLASHLIGHT
THE D3AA WILL BE ASSEMBELED HERE AND IS "CUSTOM BUILT-TO-ORDER" SO WILL SHIP ACCORDINGLY! EXPECT SHIPPING DELAYS!
The light works with button top & flat top unprotected 14500 battery (not included in the price), D3AA does not work with protected battery. I do recommend flat tops!
The light will be flashed with latest firmware before shipping, however, the current reflashing kit in the market may not be compatible with D3AA.
REFLASHING KIT LINK >>> https://jlhawaii808.com/products/updi-programmer-driver-reflashling-kit?utm_medium=product-links&utm_content=android
https://iot3.opple.com/lightmaster/index.html#/report/fd98de51c07846ada74d2da2c6e32c63
USER INTERFACE:
ANDURIL 2 UI
DRIVER:
9V 6A THEFREEMAN BOOST HIGH EFFICENCY DRIVER
2A PER LED TRIPLE VERSION
1A PER LED ON MULE VERSION
NEW 3-PIN REFLASHING PAD CAN BE PURCHASED HERE >>> https://jlhawaii808.com/products/updi-programmer-driver-reflashling-kit?utm_medium=product-links&utm_content=android
https://budgetlightforum.com/t/emisar-d3aa-driver-technical-information/223513

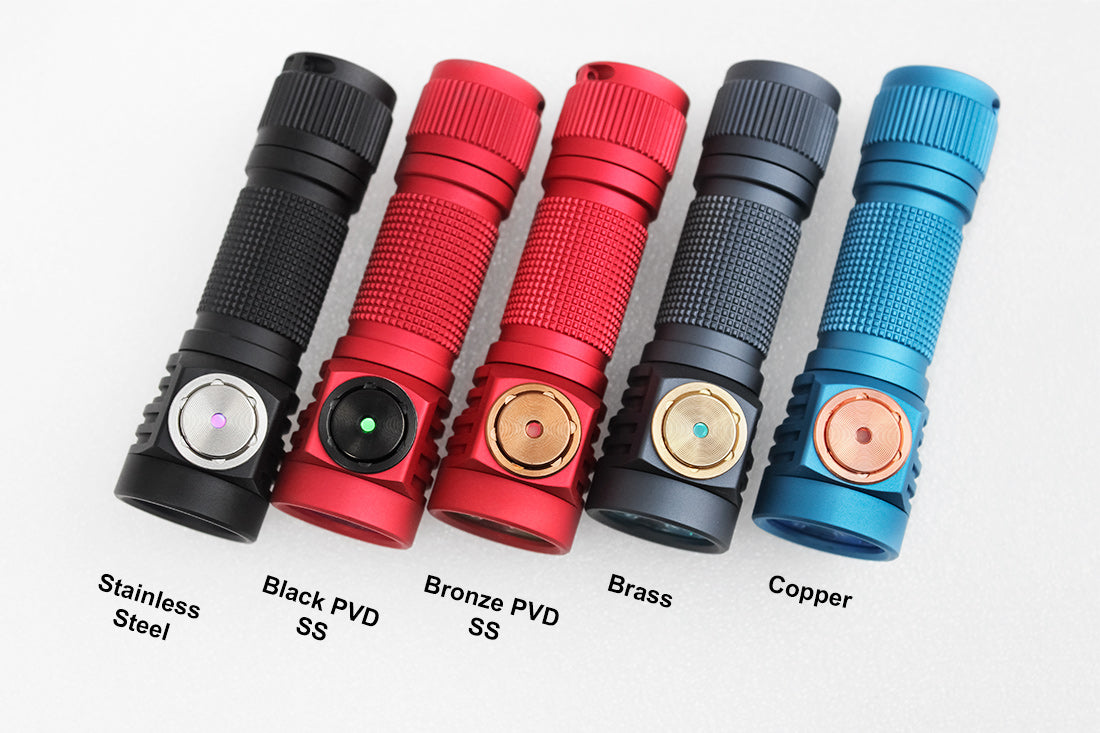

LIGHTED SWITCH:
ALL COLORS + RGB

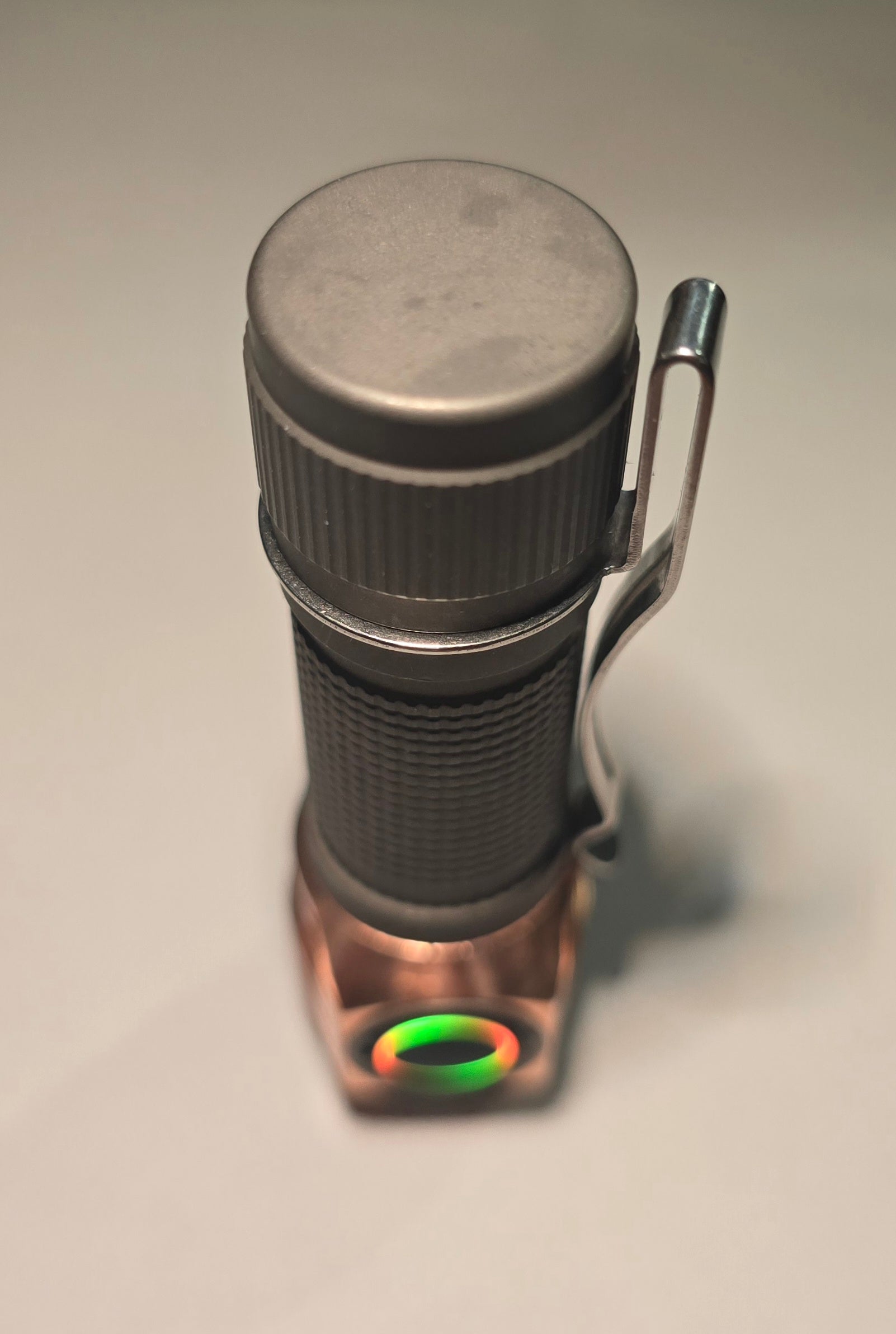

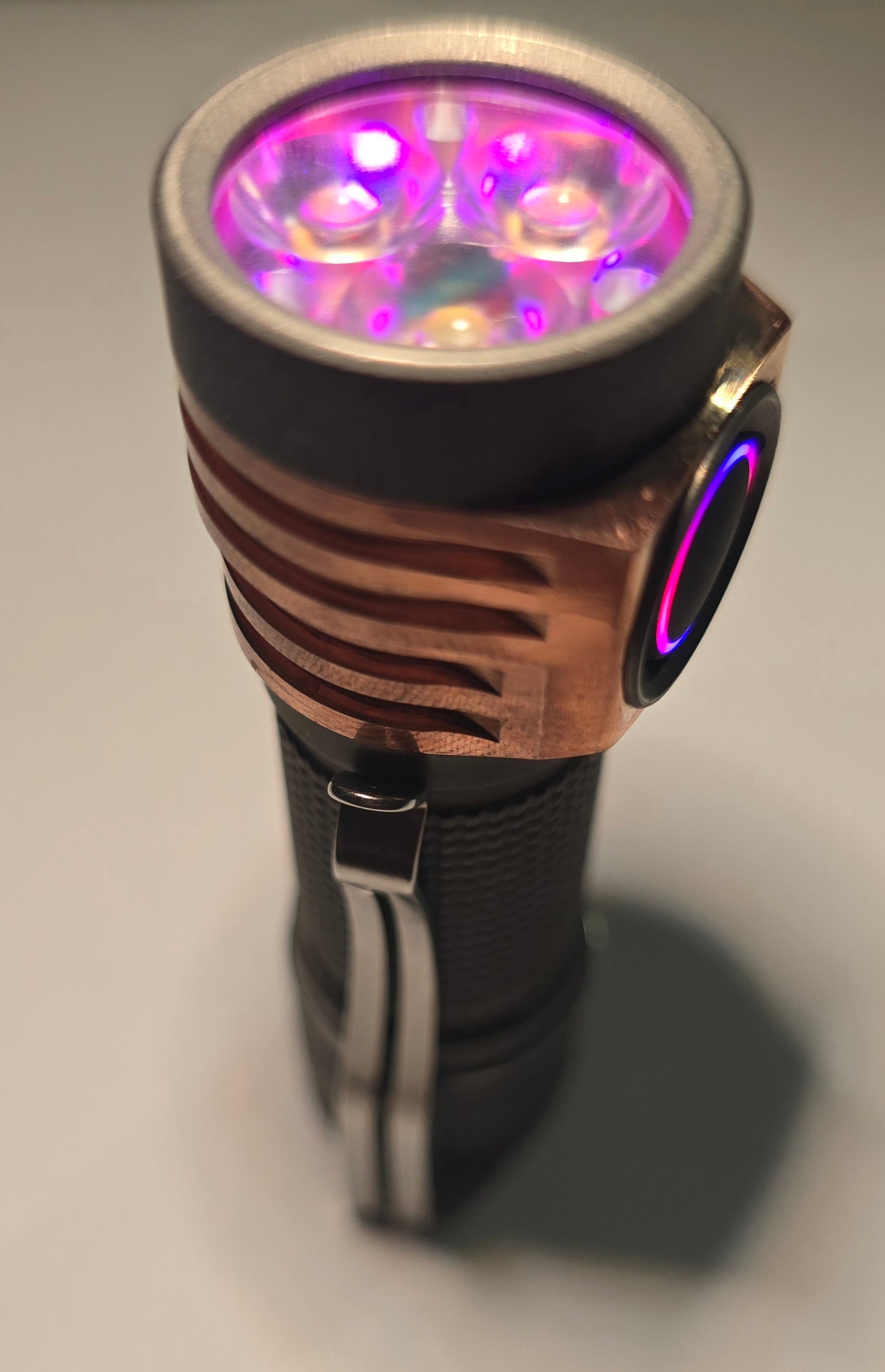

AUXILIARIES:
RGB
NO AUXILIARIES ON UV MULE

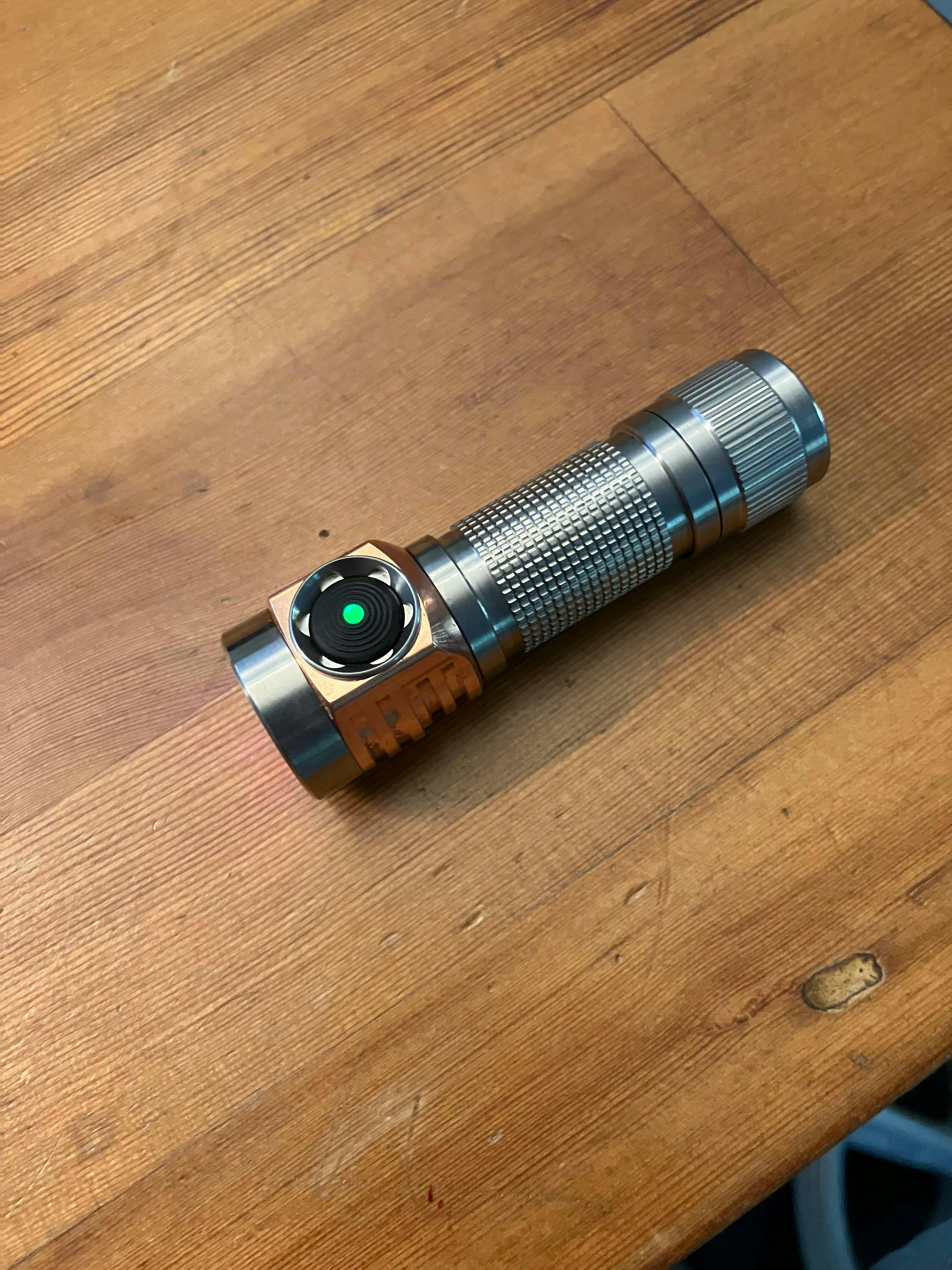

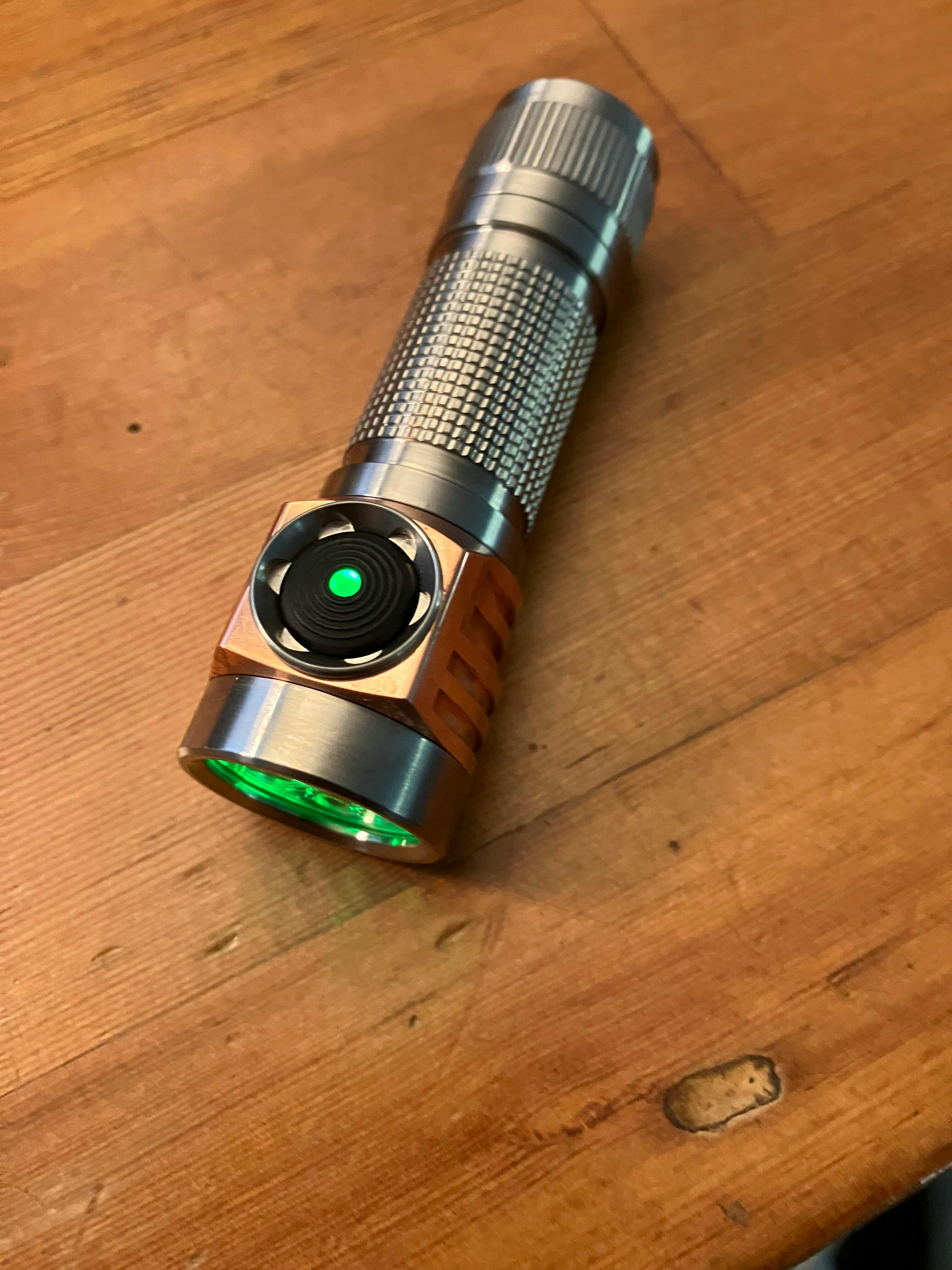

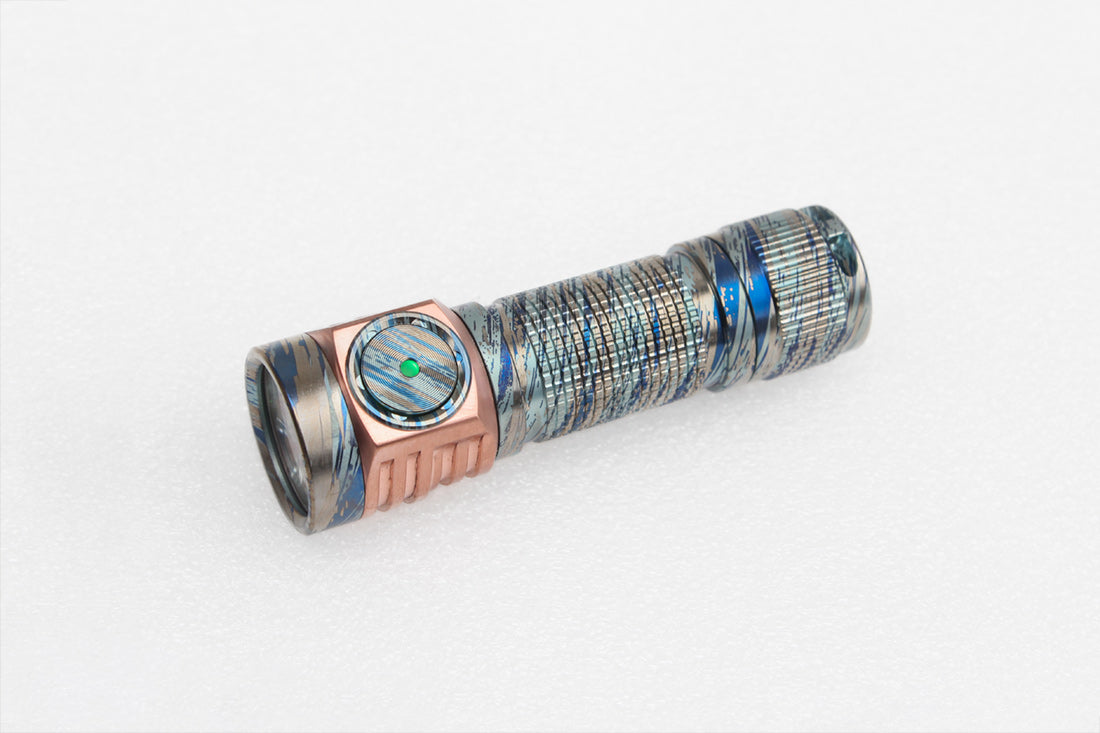

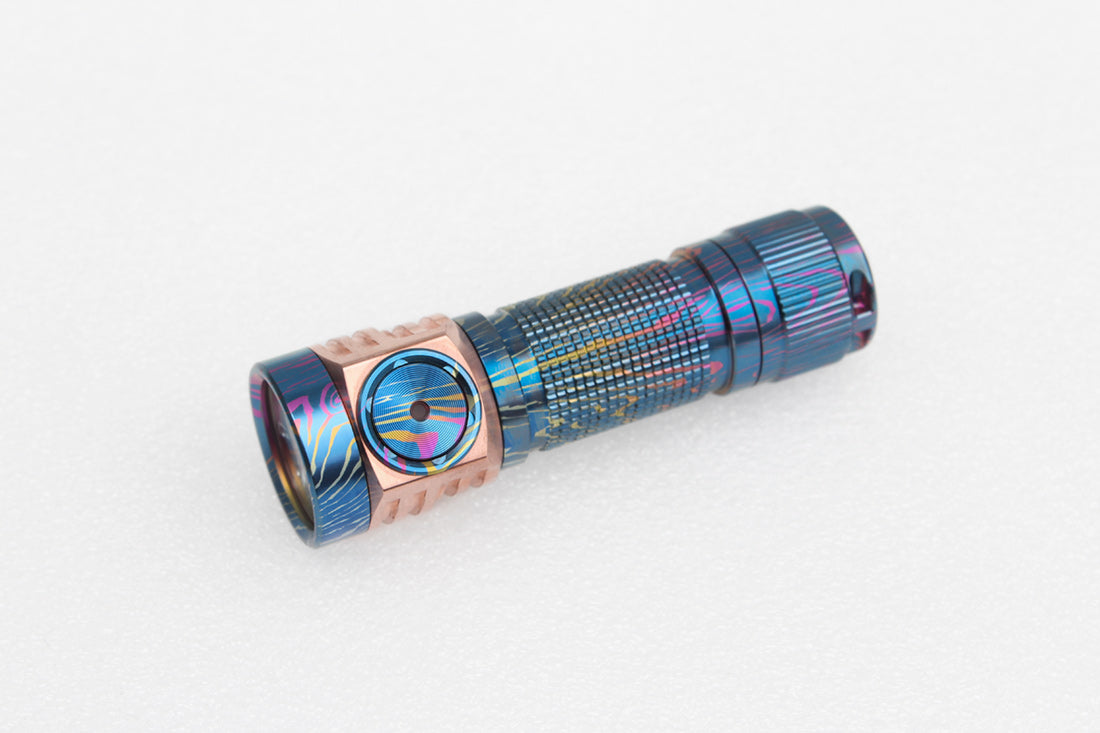

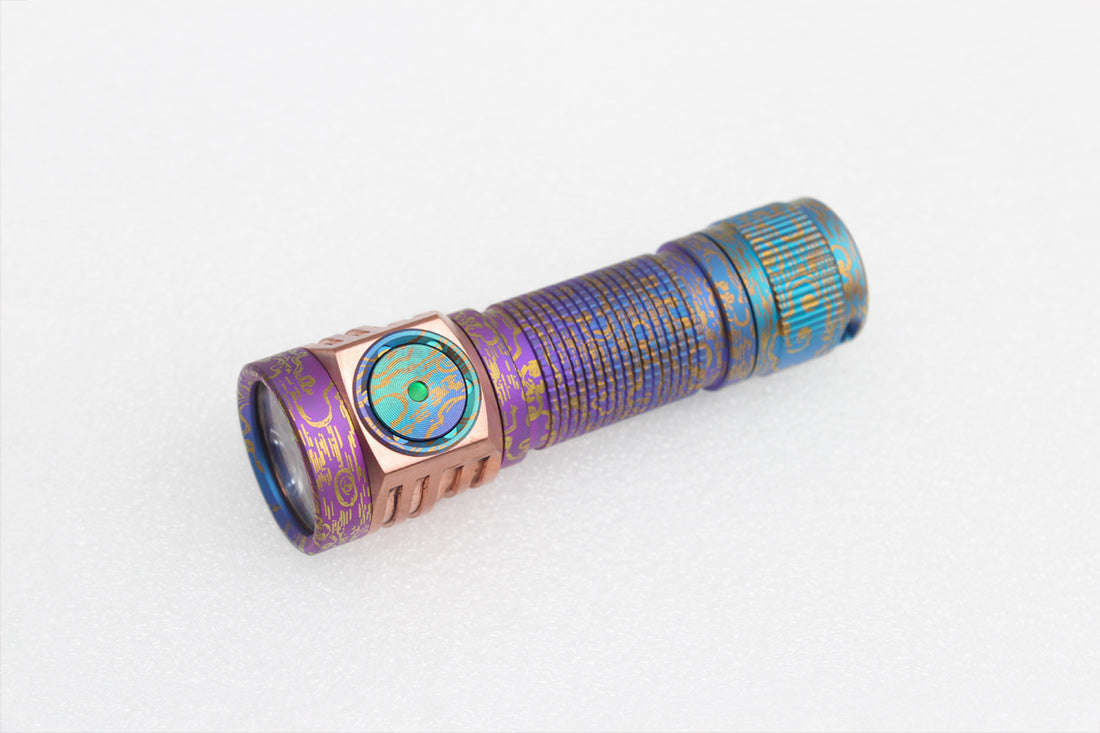

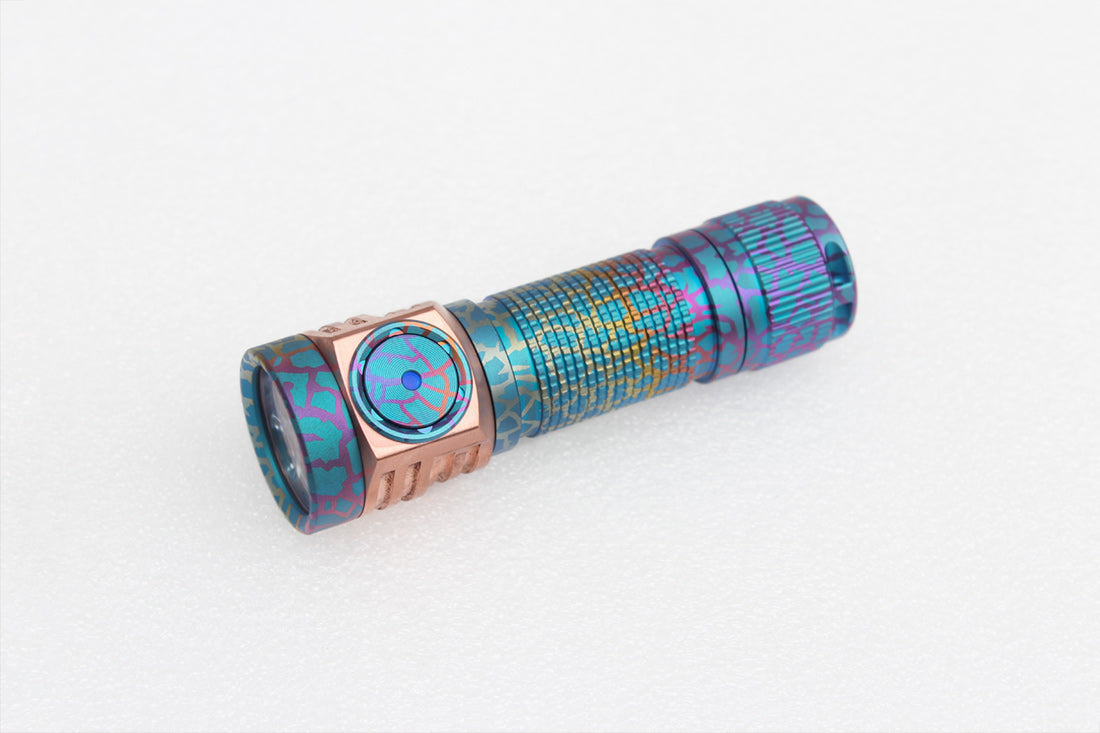

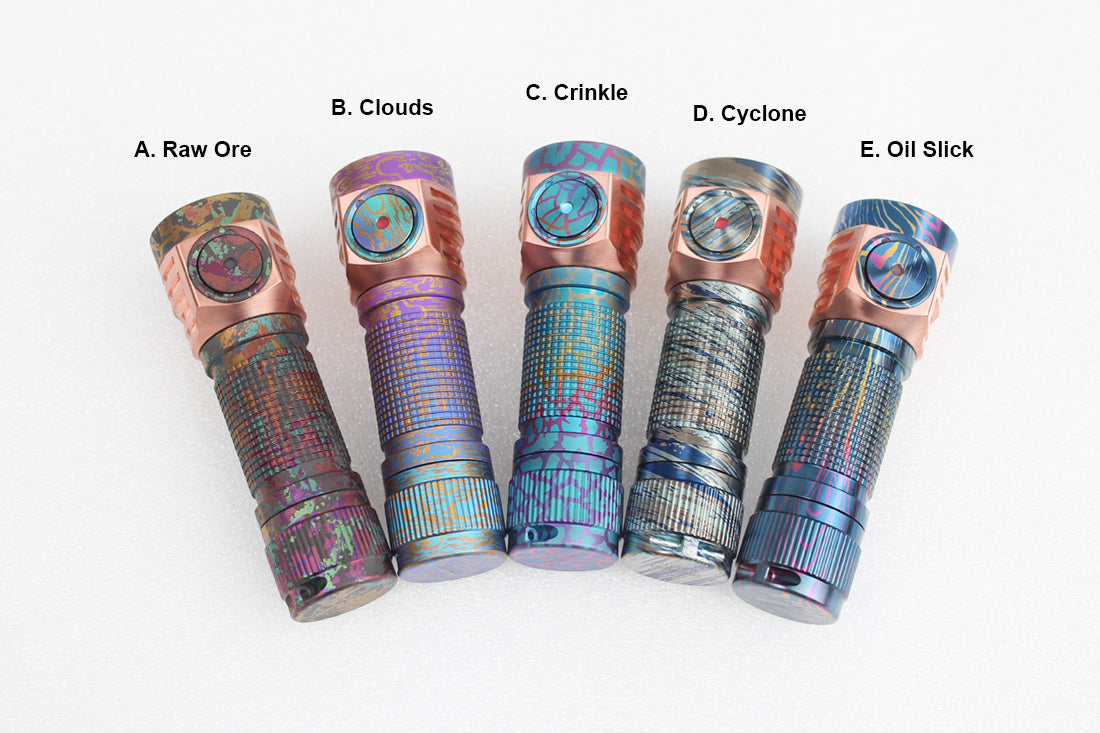

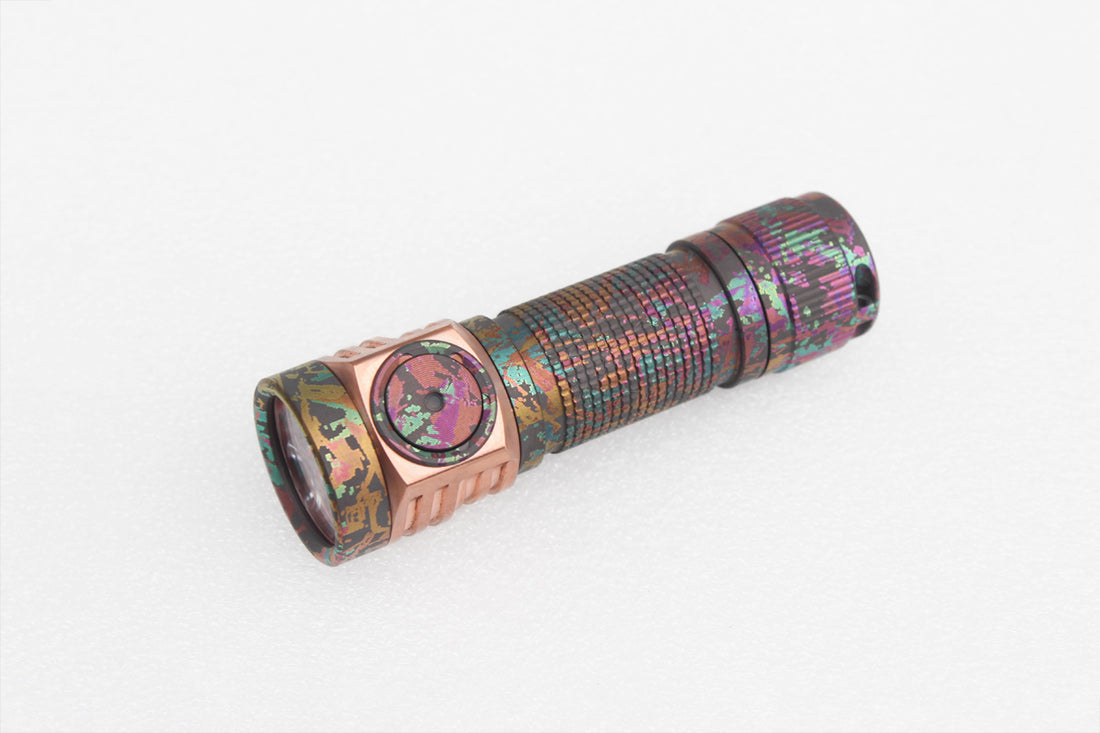

BODY:
RAW TITANIUM + CU
STONEWASHED TITANIUM + CU (ADDITIONAL COST)
EMITTERS:
TRIPLE & MULE OPTIONED
NEW! FFL351A & FFL351RD EMITTERS
NICHIA 519A
NICHIA 219B
NICHIA 219C 4000K ONLY
SST10 5W 365NM UV LEDS
SST20
SFT25R
OSRAM
5050SMD EMITTERS (5MMX5MM)
FFL505A 3700K 906CRI ROSY BIN
FFL505A 6500K 96CRI
SFT40 3000K
SFT40 5000K
SFT40 6500K
NOTE: MULES HAS A 3MM ALUMINUM SPACER + A NEW CUSTOM AUX BOARD (NO AUX ON UV)
OPTICS:
CARCLO 10511 (STANDARD)
CARCLO 10507 (SPOT) PLEASE SELECT FOR THROWY EMITTERS LIKE OSRAM, FFL351RD AND SFT25R
CARCLO 10508 (FLOODY)
NO OPTICS ON MULES
ZWB2 365NM FILTER FOR UV OPTION
INCLUDED ACCESSORIES:

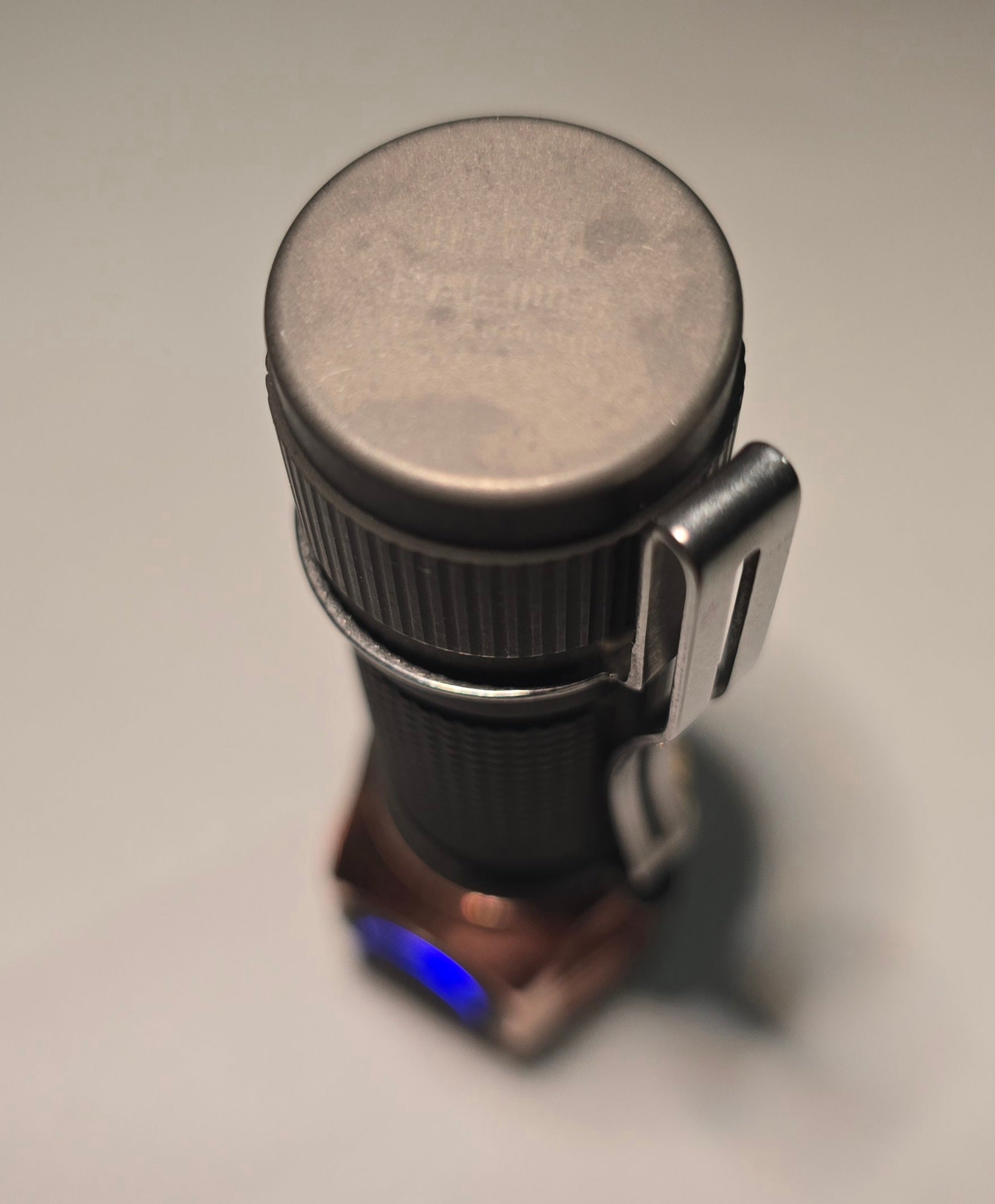

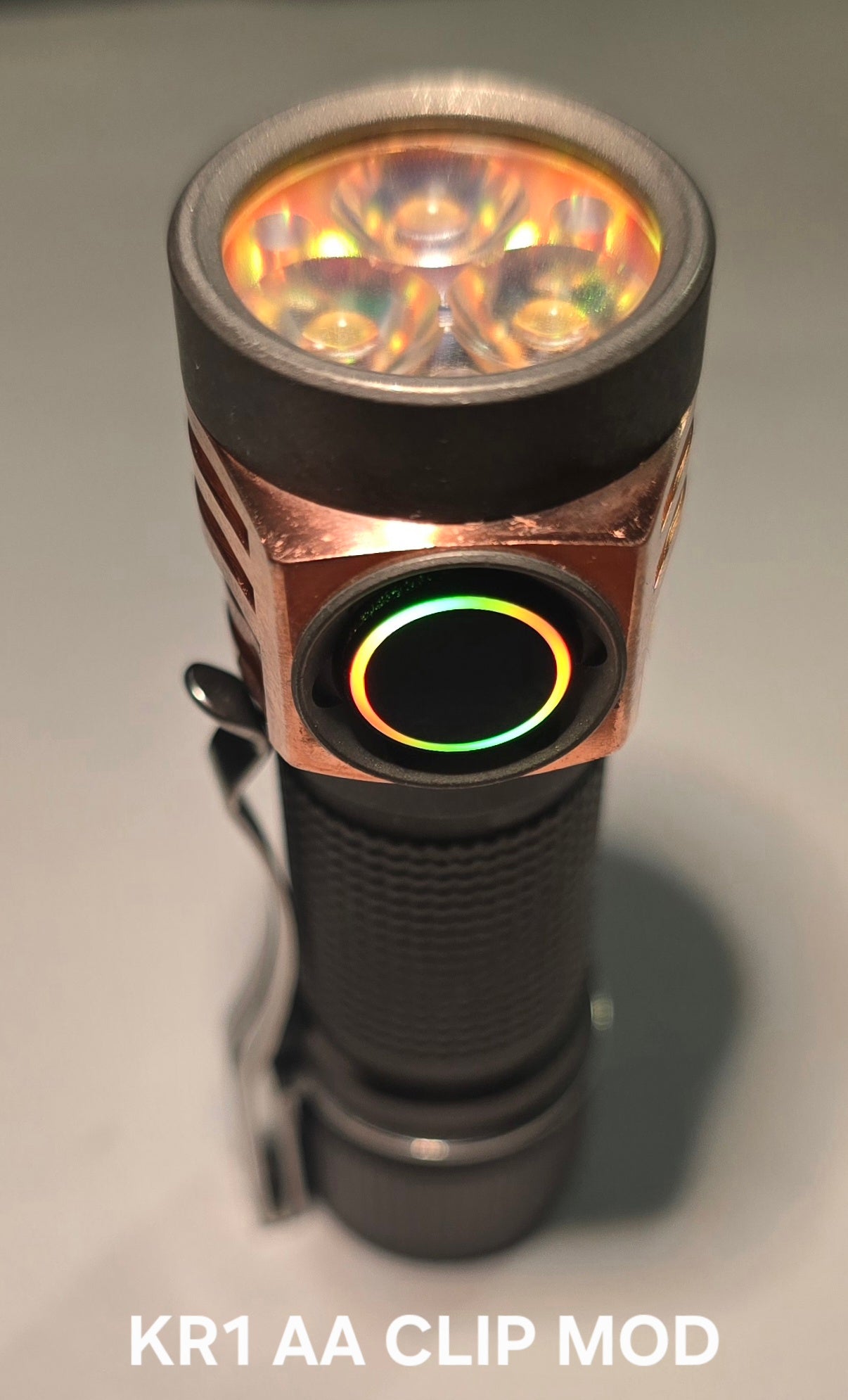

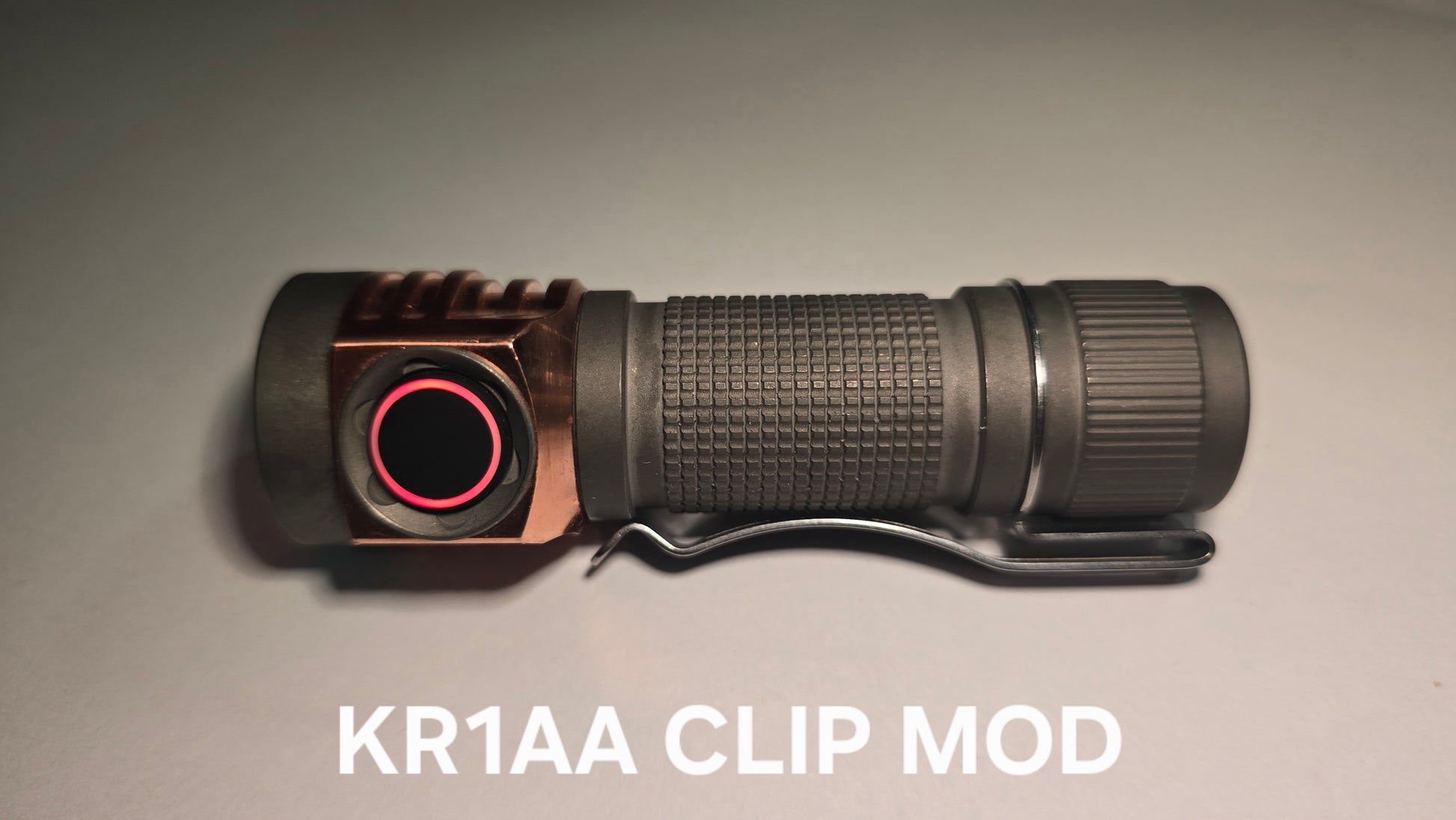

SS POCKET CLIP
MAGNETIC CAP OPTION INCLUDED
LANYARD & SPARE ORINGS
BATTERY:
BATTERY NOT INCLUDED
AA OR 14500
14500 HIGH DRAIN UNPROTECTED CELL BUTTON OR FLAT TOP RECCOMENDED. 10A RECCOMENDED! DO NOT USED PROTECTED 14500 BATTERIES THEY HAVE A PROTECTION CIRCUIT AND IT CAN BE TOO LONG, CAN CAUSE DAMAGE TO THE DRIVER
VAPCELL H10 FLAT OR BUTTON TOP PURCHASE LINK >>> VAPCELL H10 14500 10A LITHIUM-ION RECHARGEABLE BATTERY – JLHawaii808
FEATURES:
• High efficiency boost driver
• CNC machined from titanium and copper
• Efficient UK made Carclo triple 10511 optic by default
• Unihead construction
• High lumen output and low moon output
• Ramping interface
• Electronic soft touch switch
• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.
• Temperature step-down
• Waterproof and dustproof to IP67 standard (up to 1 meter)
• Weight:72g without magnet)
• Dimensions: 78.3mm(length) * 24mm(head) * 19mm(body)
• Lumen Rating per LED option and cell 14500 (2A) / NiMH (0.6A):
519A 5700K R9080 1540lm OTF / 510lm OTF
519A 4500K R9080 1540lm OTF / 510lm OTF
519A 2700K R9080 1240lm OTF / 420lm OTF
219B 4500K R9080 1200lm OTF / 460lm OTF
SFT-25 2198lm OTF / 780lm OTF
SST-20 6500K/5000K 2075lm OTF / 765lm OTF
SST-20 4000K 95 CRI 1455lm OTF / 530lm OTF
SST-20 2700K 95 CRI 1350lm OTF / 485lm OTF
This product uses free software of Anduril 2, distributed under the terms of the GPLv3. https://toykeeper.net/anduril
