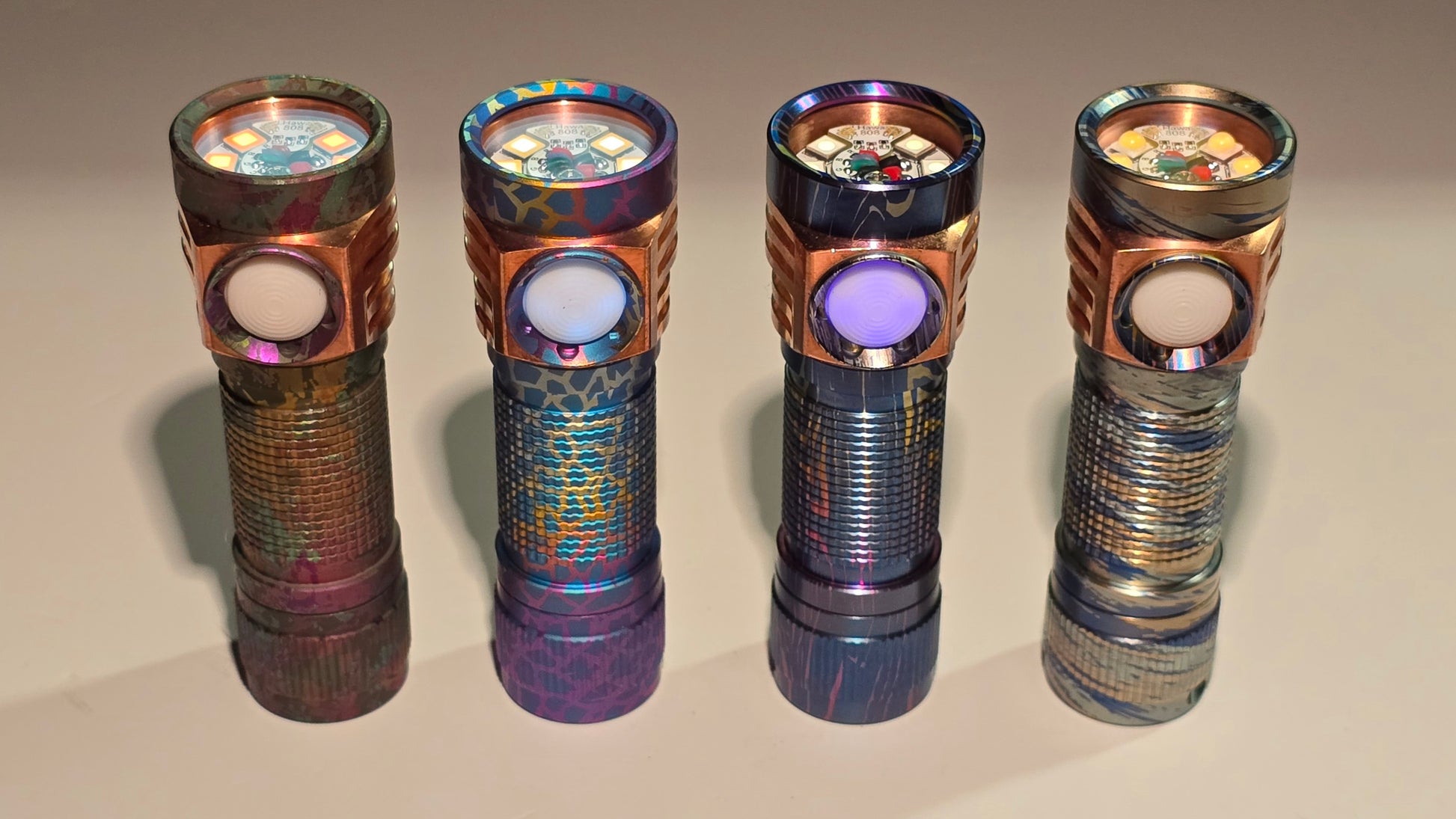

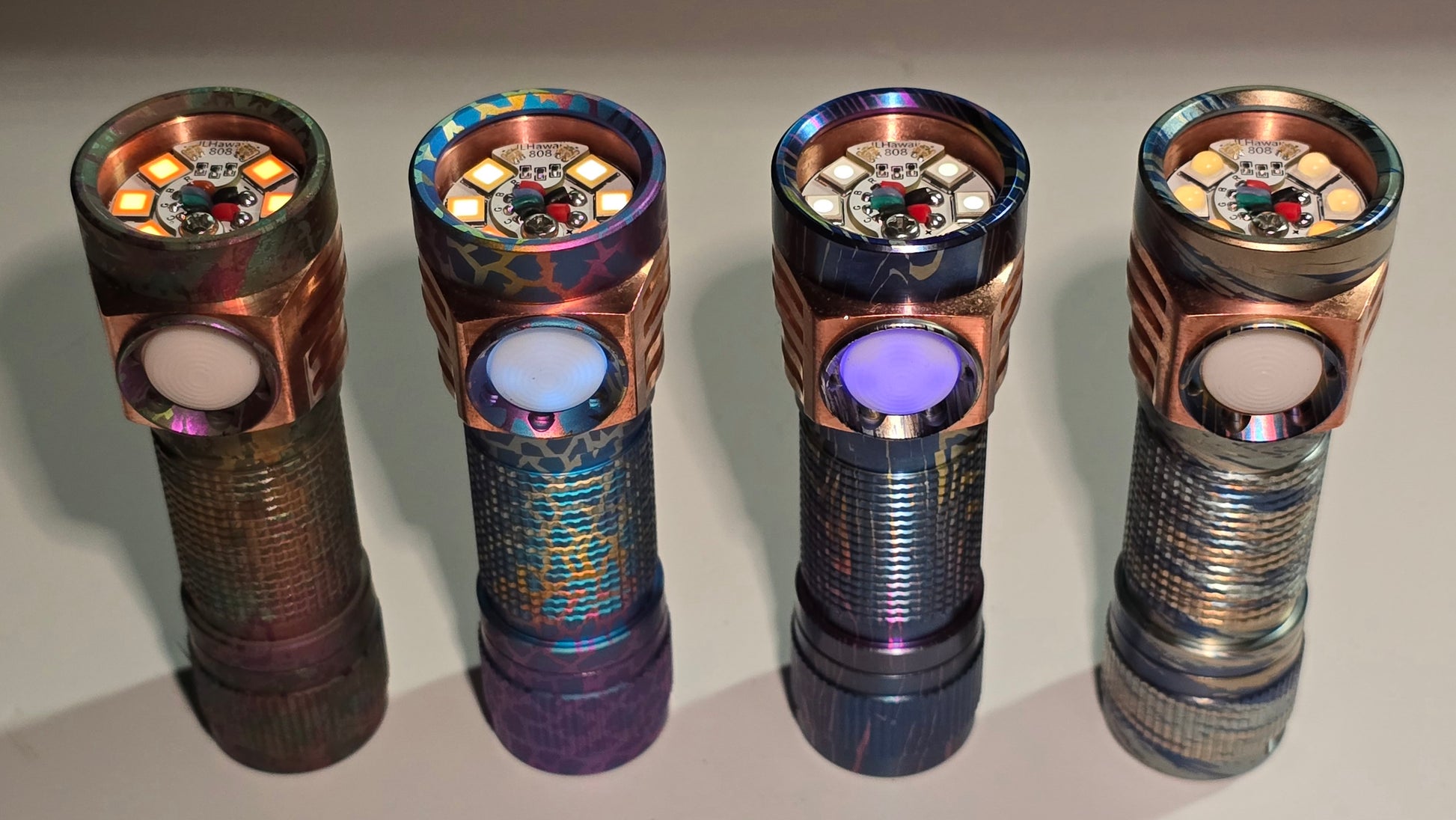

EMISAR D3AA TI TITANIUM COLORFUL SERIES AA/14500 COMPACT LED FLASHLIGHT
THE D3AA WILL BE ASSEMBELED HERE AND IS "CUSTOM BUILT-TO-ORDER" SO WILL SHIP ACCORDINGLY! EXPECT SHIPPING DELAYS!
The light works with button top & flat top unprotected 14500 battery (not included in the price), D3AA does not work with protected battery. I do recommend flat tops!
The light will be flashed with latest firmware before shipping, however, the current reflashing kit in the market may not be compatible with D3AA.
REFLASHING KIT LINK >>> https://jlhawaii808.com/products/updi-programmer-driver-reflashling-kit?utm_medium=product-links&utm_content=android
https://iot3.opple.com/lightmaster/index.html#/report/fd98de51c07846ada74d2da2c6e32c63
USER INTERFACE:
ANDURIL 2 UI
DRIVER:
9V 6A THEFREEMAN BOOST HIGH EFFICENCY DRIVER
2A PER LED
1A PER LED ON MULE VERSION
NEW 3-PIN REFLASHING PAD CAN BE PURCHASED HERE >>> https://jlhawaii808.com/products/updi-programmer-driver-reflashling-kit?utm_medium=product-links&utm_content=android
https://budgetlightforum.com/t/emisar-d3aa-driver-technical-information/223513
LIGHTED SWITCH:
ALL COLORS + RGB

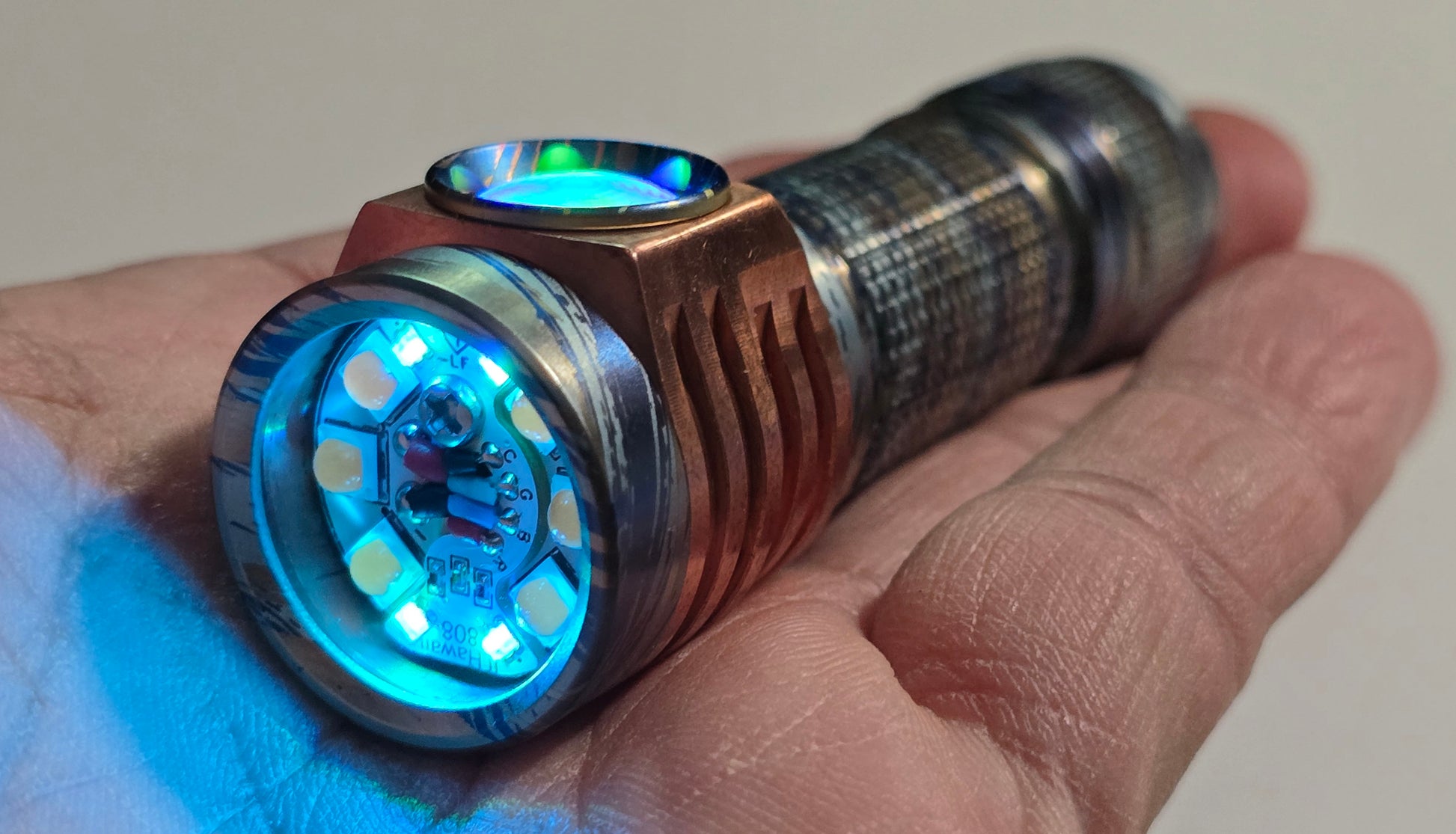

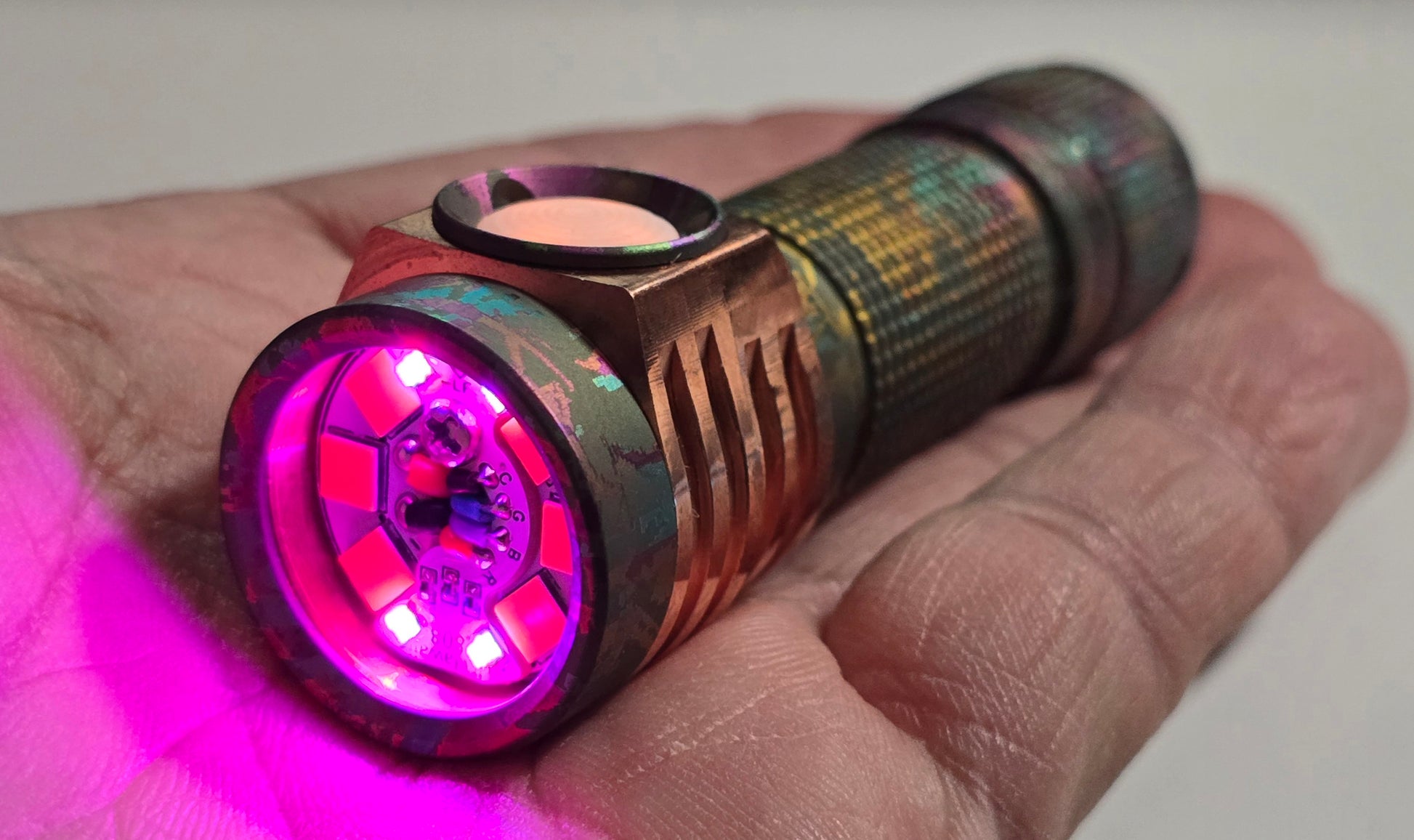

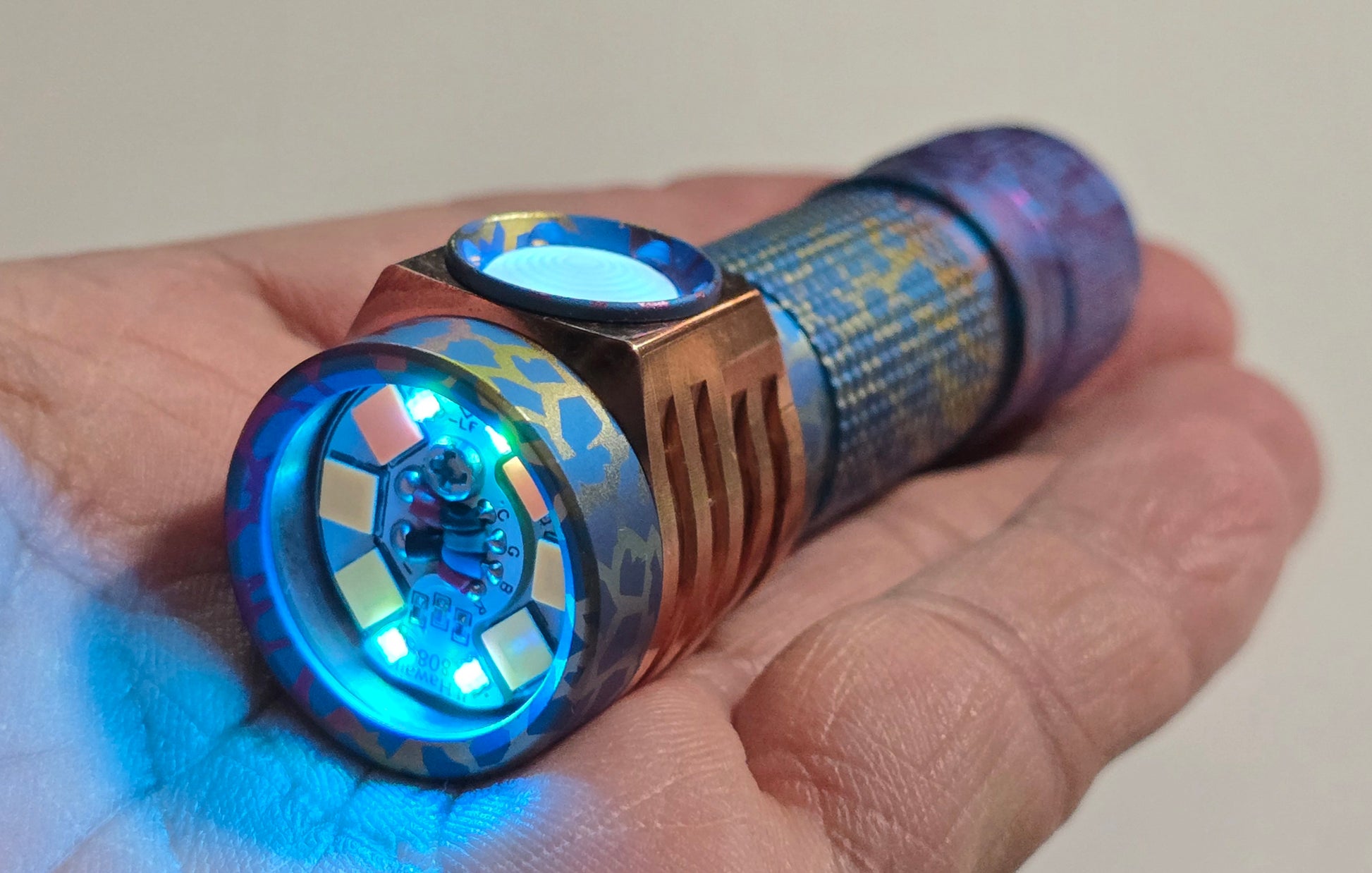

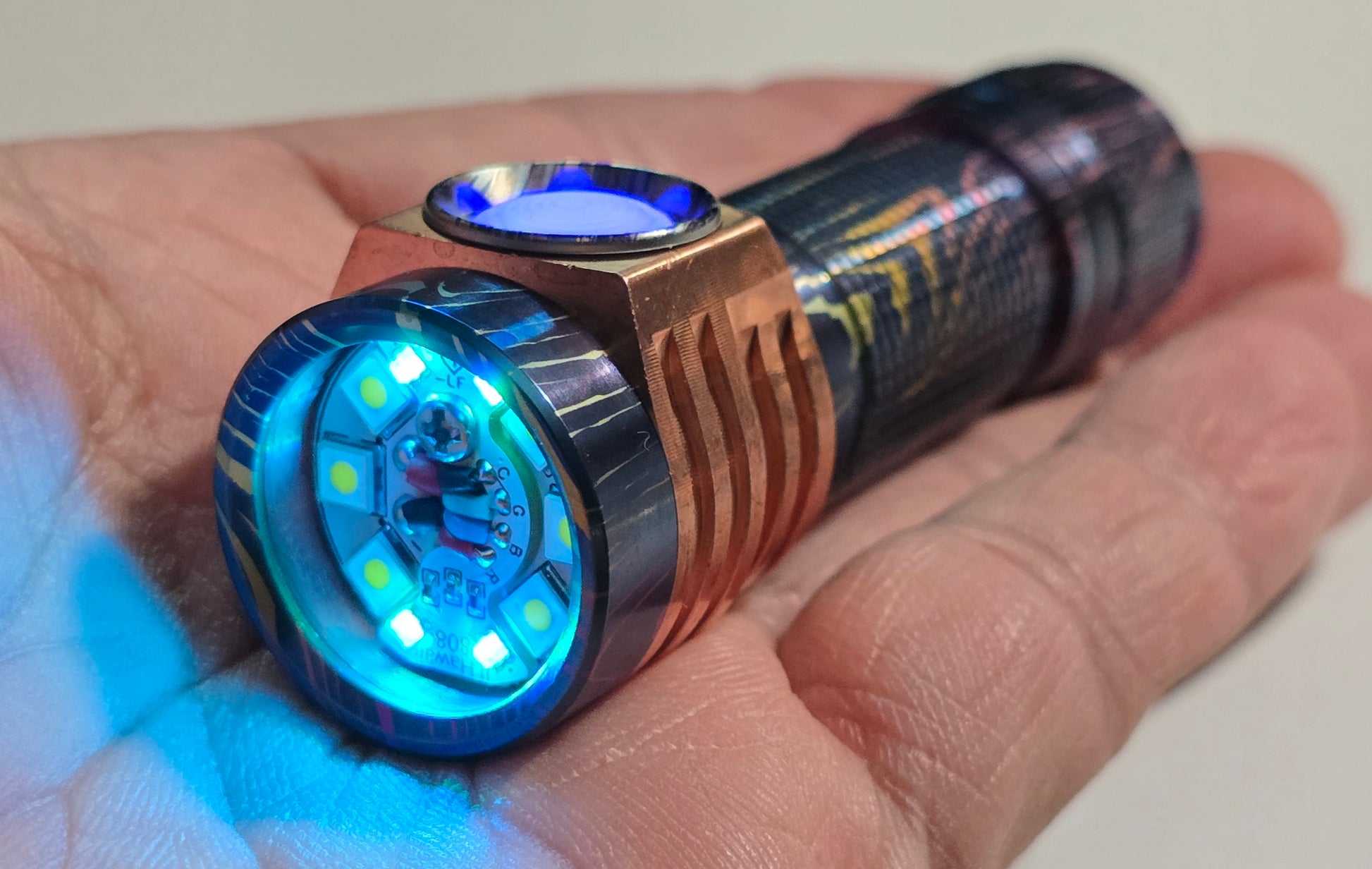

AUXILIARIES:
RGB
NO AUXILIARIES ON UV MULE
BODY:

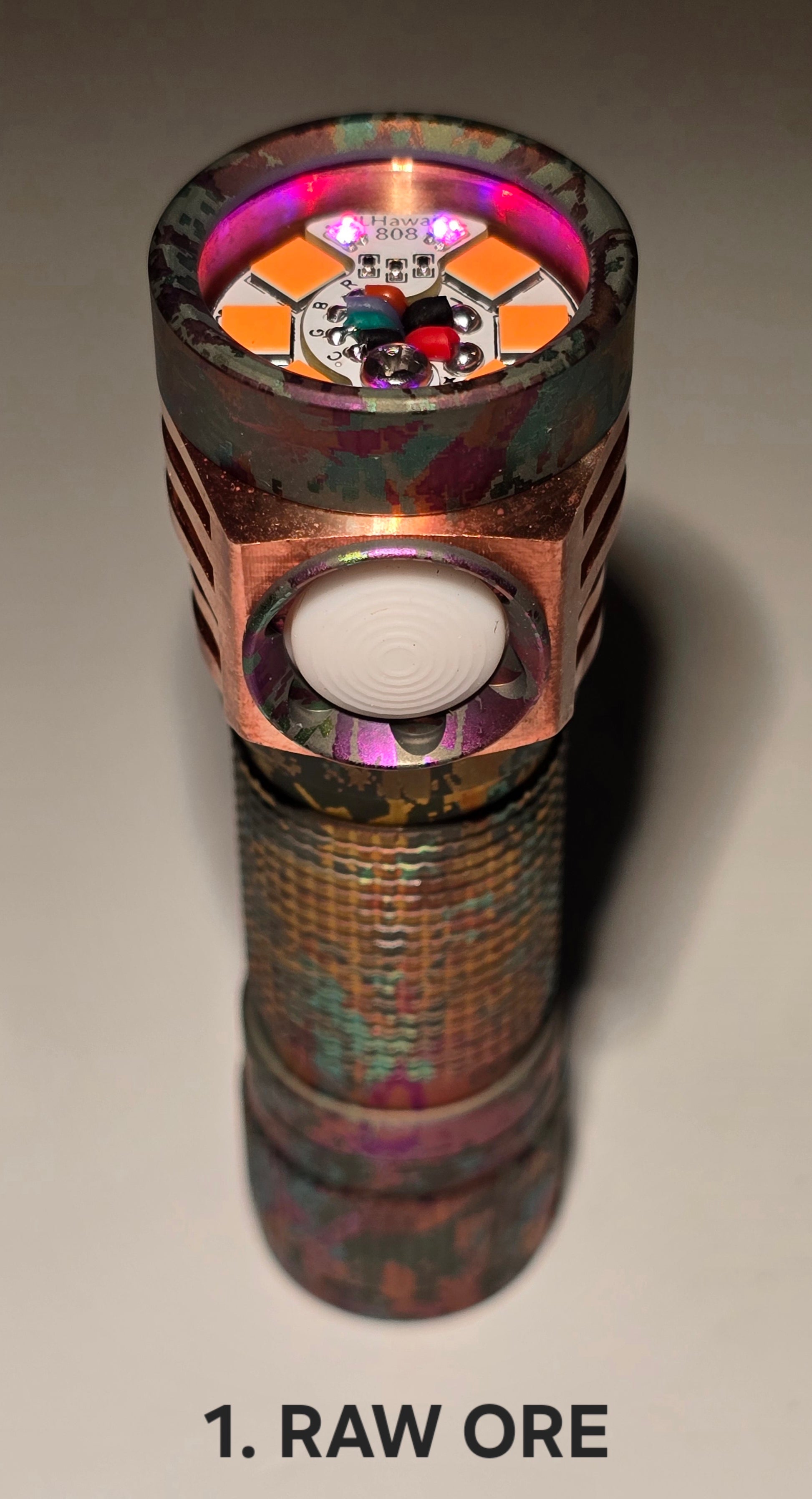

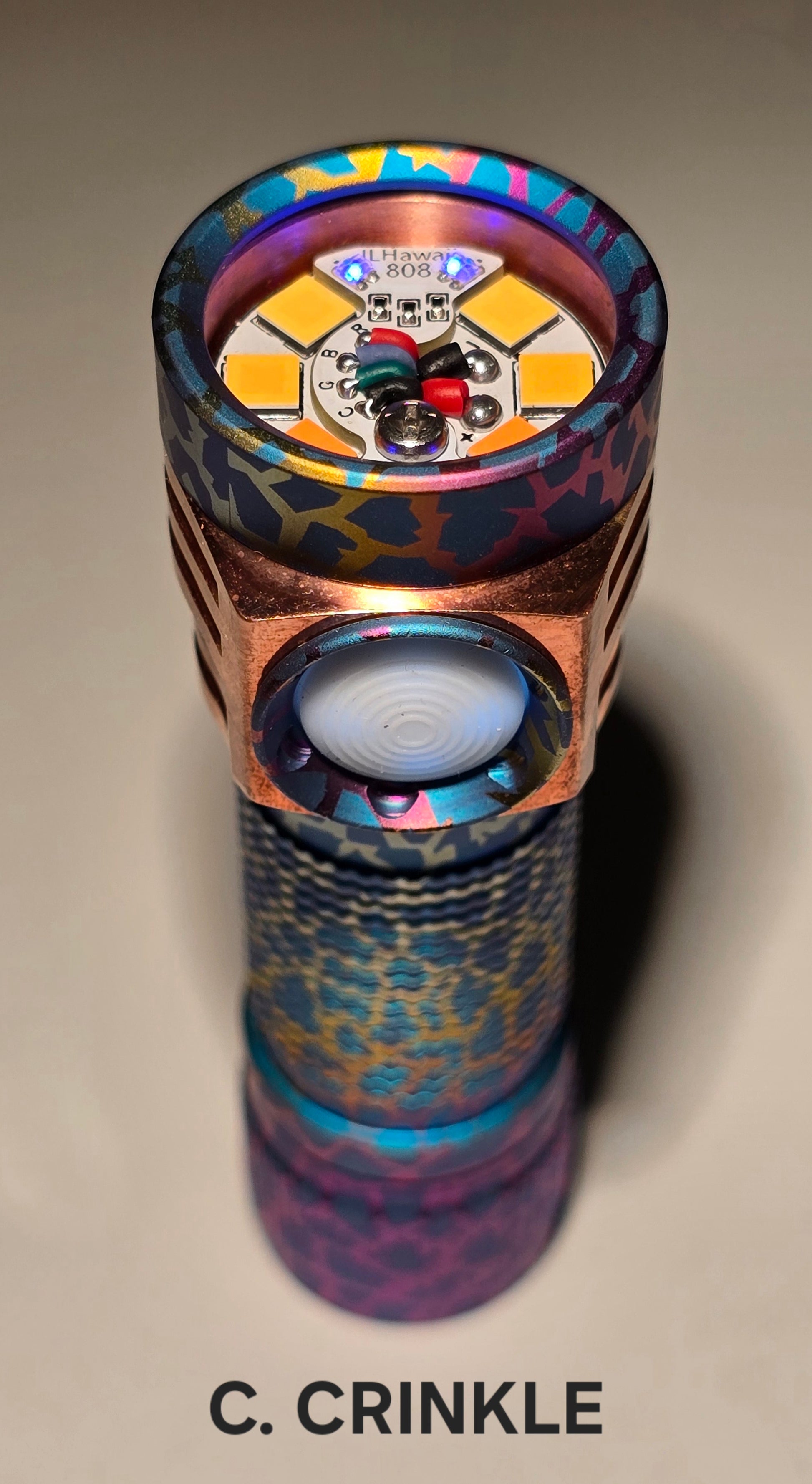

RAW TITANIUM ANODIZED

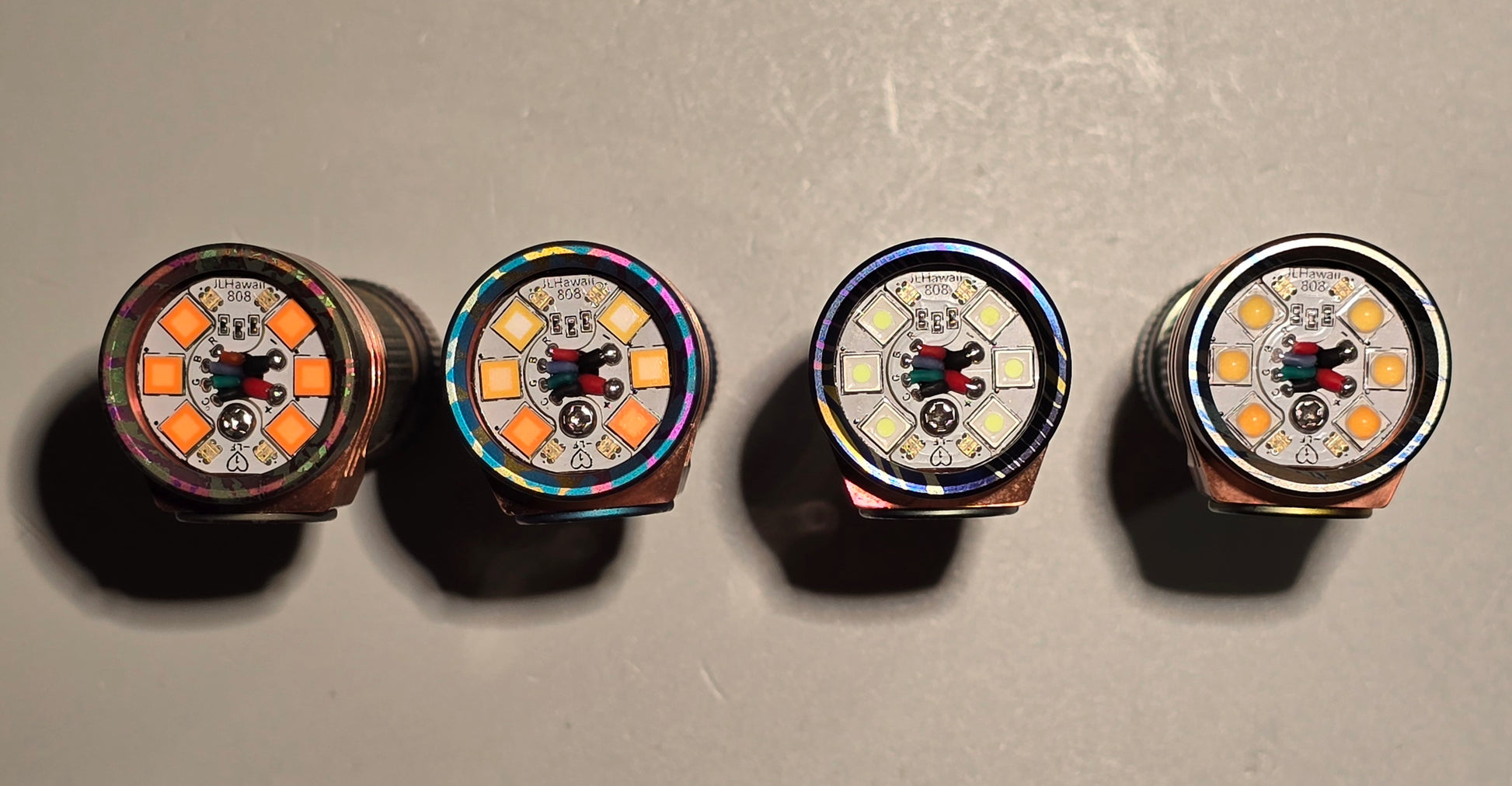

EMITTERS:
TRIPLE & MULE OPTIONED

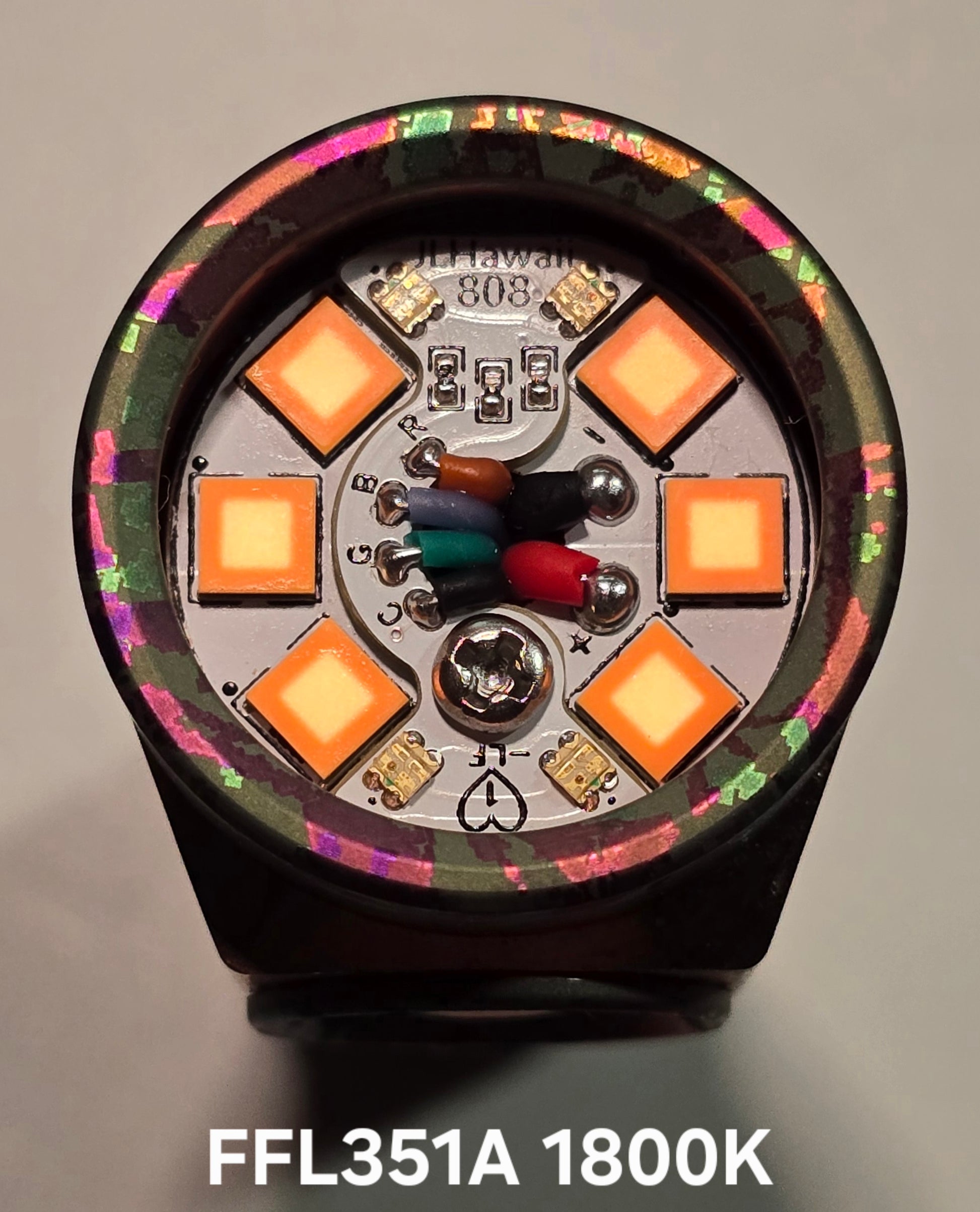

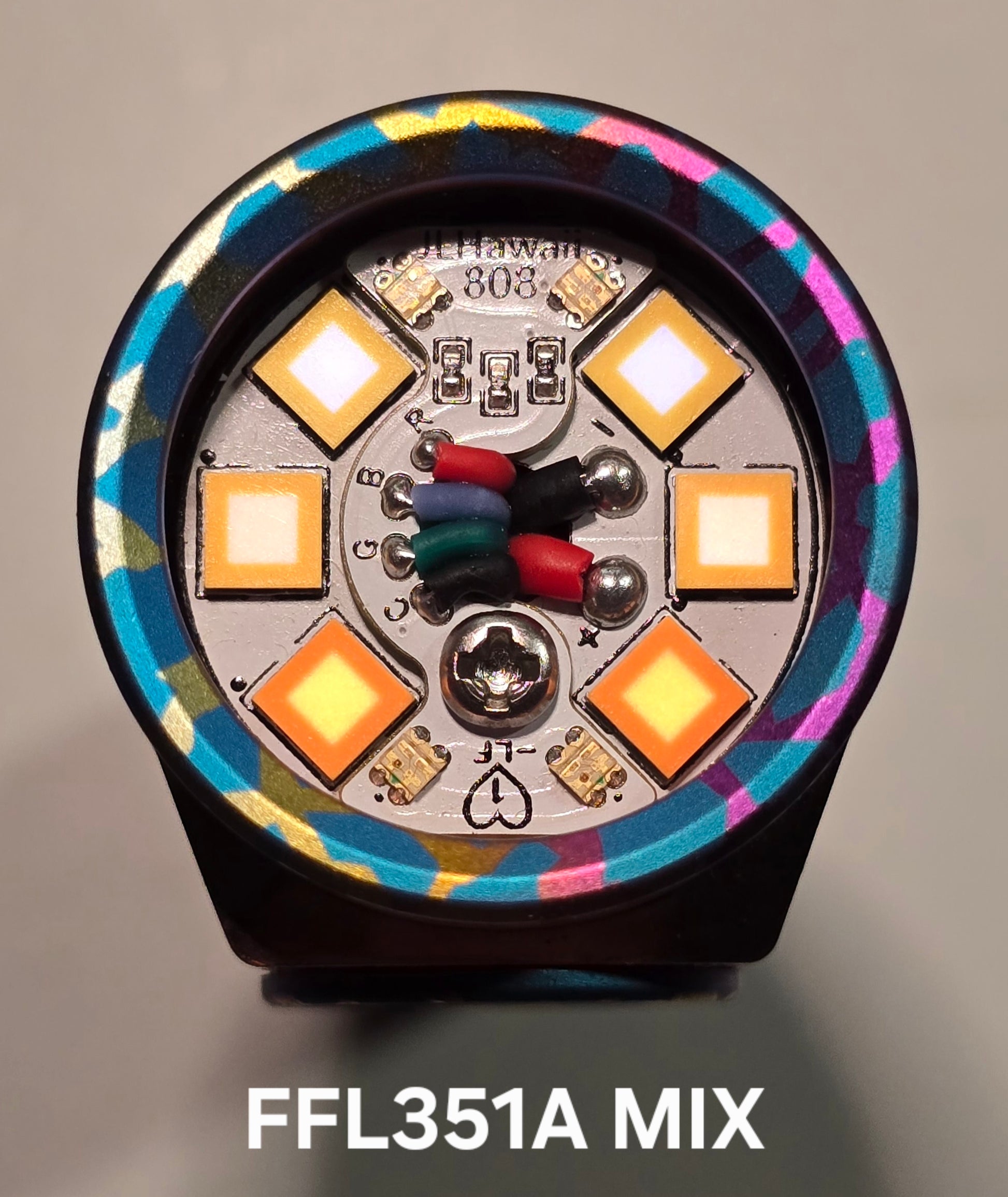

NEW! FFL351A & FFL351RD EMITTERS

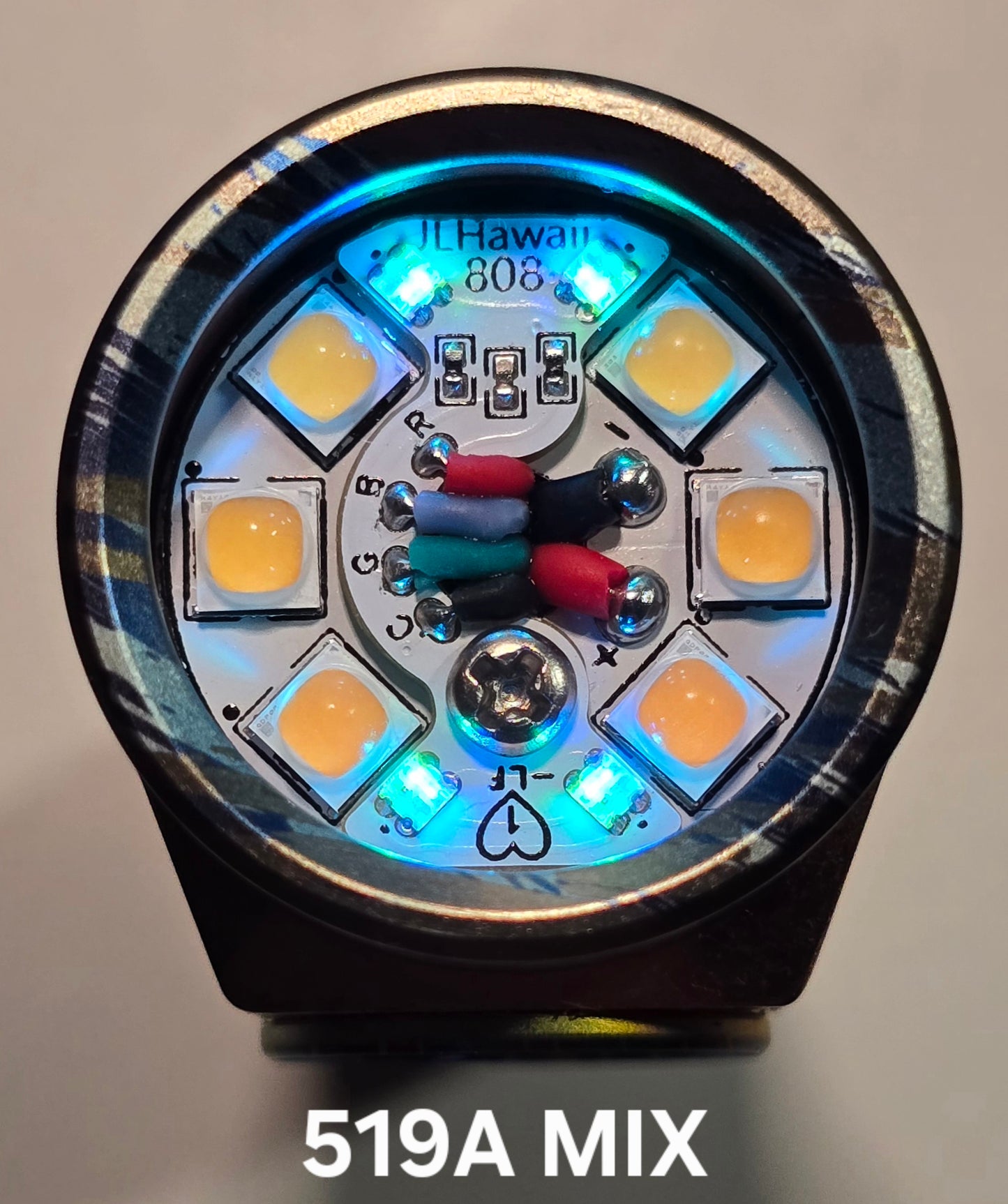

NICHIA 519A
NICHIA 219B
NICHIA 219C 4000K ONLY
SST10 5W 365NM UV LEDS
SST20

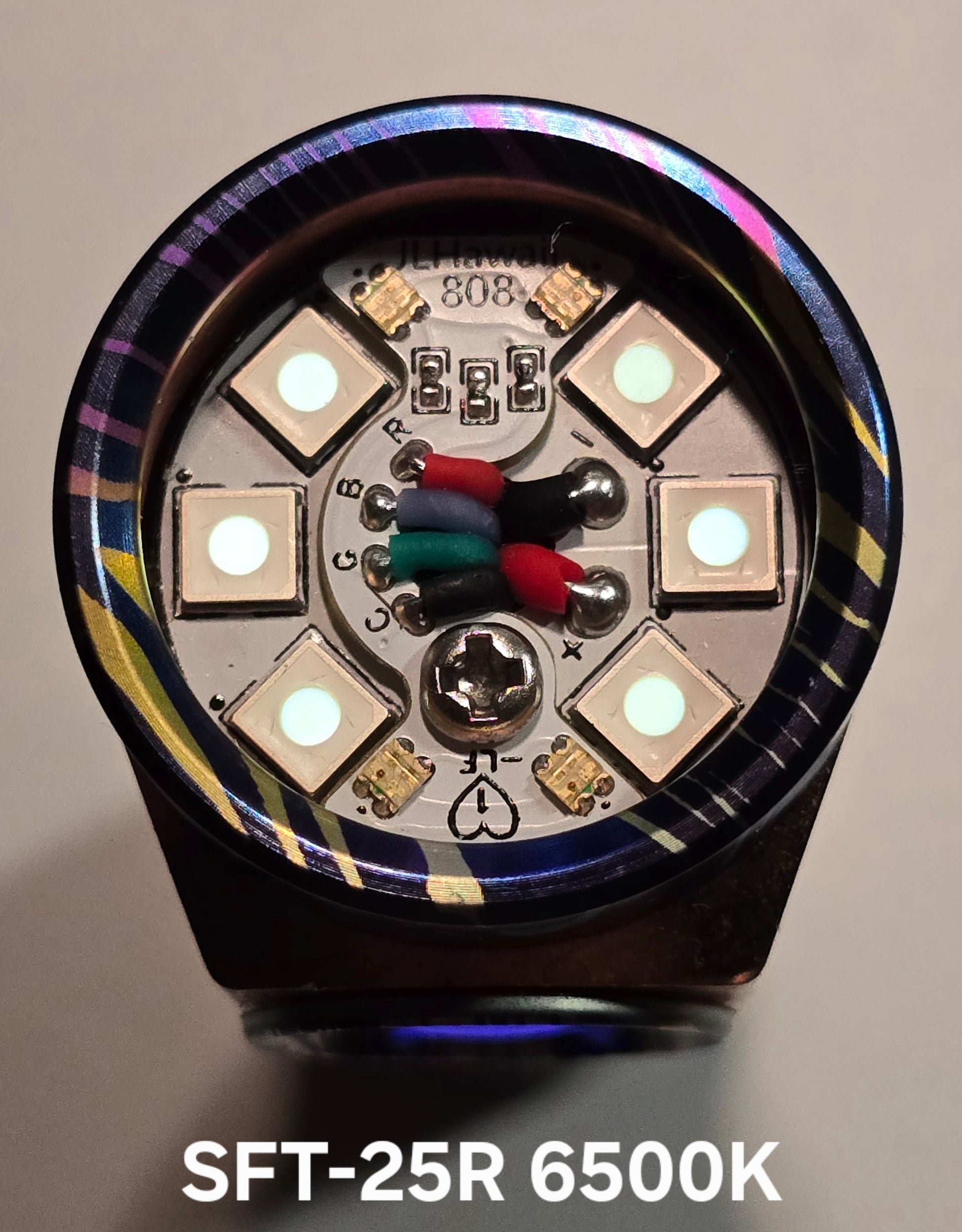

SFT25R
OSRAM
NOTE: MULES HAS A 3MM ALUMINUM SPACER + A NEW CUSTOM AUX BOARD (NO AUX ON UV)
OPTICS:
CARCLO 10511 (STANDARD)
CARCLO 10507 (SPOT)
CARCLO 10508 (FLOODY)
NO OPTICS ON MULES
ZWB2 365NM FILTER FOR UV OPTION
INCLUDED ACCESSORIES:
SS POCKET CLIP
MAGNETIC CAP OPTION INCLUDED
LANYARD & SPARE ORINGS
BATTERY:
BATTERY NOT INCLUDED
AA OR 14500
14500 HIGH DRAIN UNPROTECTED CELL BUTTON OR FLAT TOP RECCOMENDED. 10A RECCOMENDED! DO NOT USED PROTECTED 14500 BATTERIES THEY HAVE A PROTECTION CIRCUIT AND IT CAN BE TOO LONG, CAN CAUSE DAMAGE TO THE DRIVER
VAPCELL H10 FLAT OR BUTTON TOP PURCHASE LINK >>> VAPCELL H10 14500 10A LITHIUM-ION RECHARGEABLE BATTERY – JLHawaii808
FEATURES:
• High efficiency boost driver
• CNC machined from aluminum
• Efficient UK made Carclo triple 10511 optics by default
• Unihead construction
• High lumen output and low moon output
• Ramping interface
• Electronic soft touch switch
• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.
• Temperature step-down
• Waterproof and dustproof to IP67 standard (up to 1 meter)
• Weight:38.5g (without magnet)
• Dimensions: 78.3mm(length) * 24mm(head) * 19mm(body)
• Lumen Rating per LED option and cell 14500 (2A) / NiMH (0.6A):
519A 5700K R9080 1540lm OTF / 510lm OTF
519A 4500K R9080 1540lm OTF / 510lm OTF
519A 2700K R9080 1240lm OTF / 420lm OTF
219B 4500K R9080 1200lm OTF / 460lm OTF
KW CSLPM1.TG W2 1760lm OTF / 640lm OTF
SST-20 6500K/5000K 2075lm OTF / 765lm OTF
SST-20 4000K 95 CRI 1455lm OTF / 530lm OTF
SST-20 2700K 95 CRI 1350lm OTF / 485lm OTF
This product uses free software of Anduril 2, distributed under the terms of the GPLv3. https://toykeeper.net/anduril
