Emisar

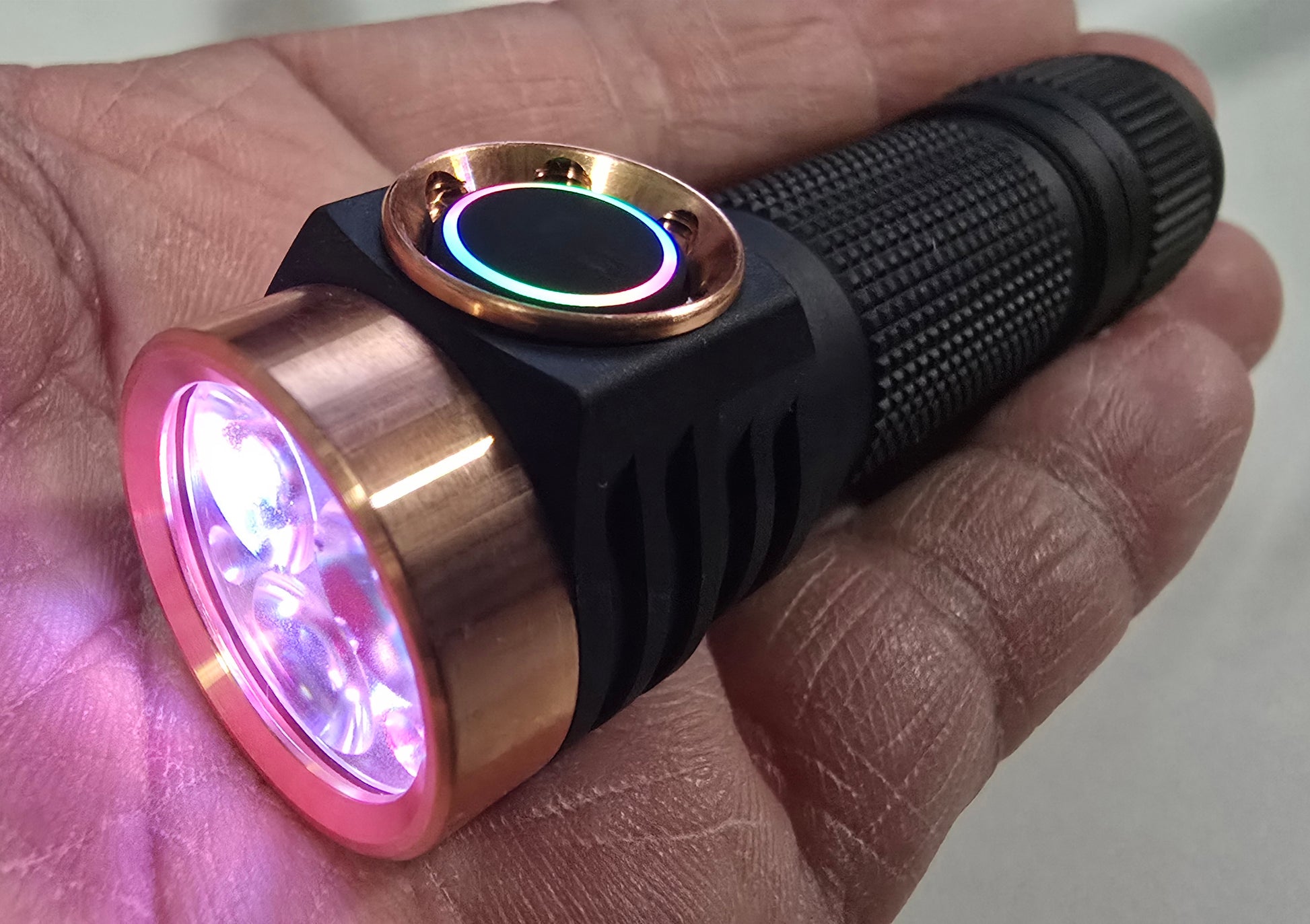

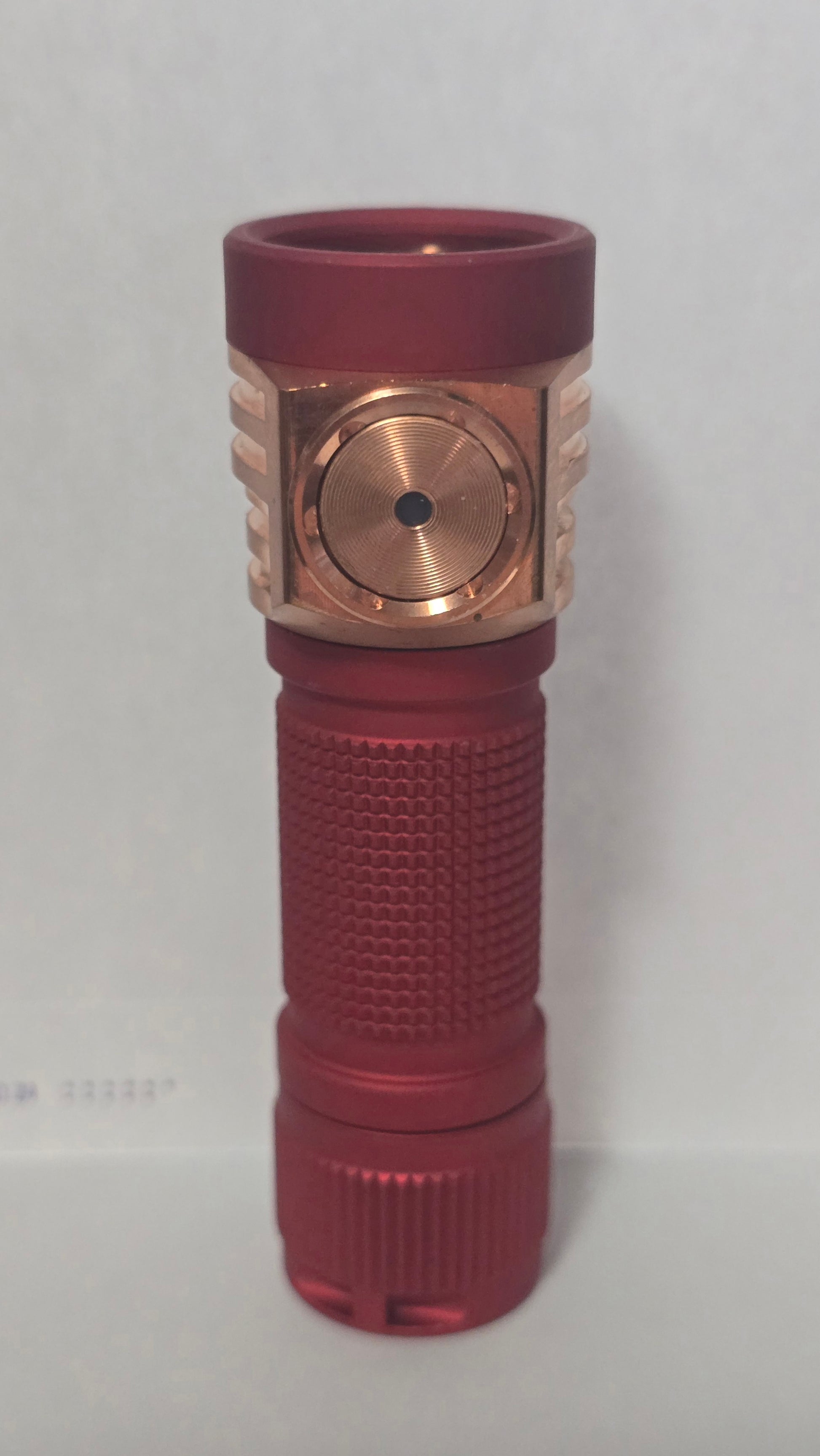

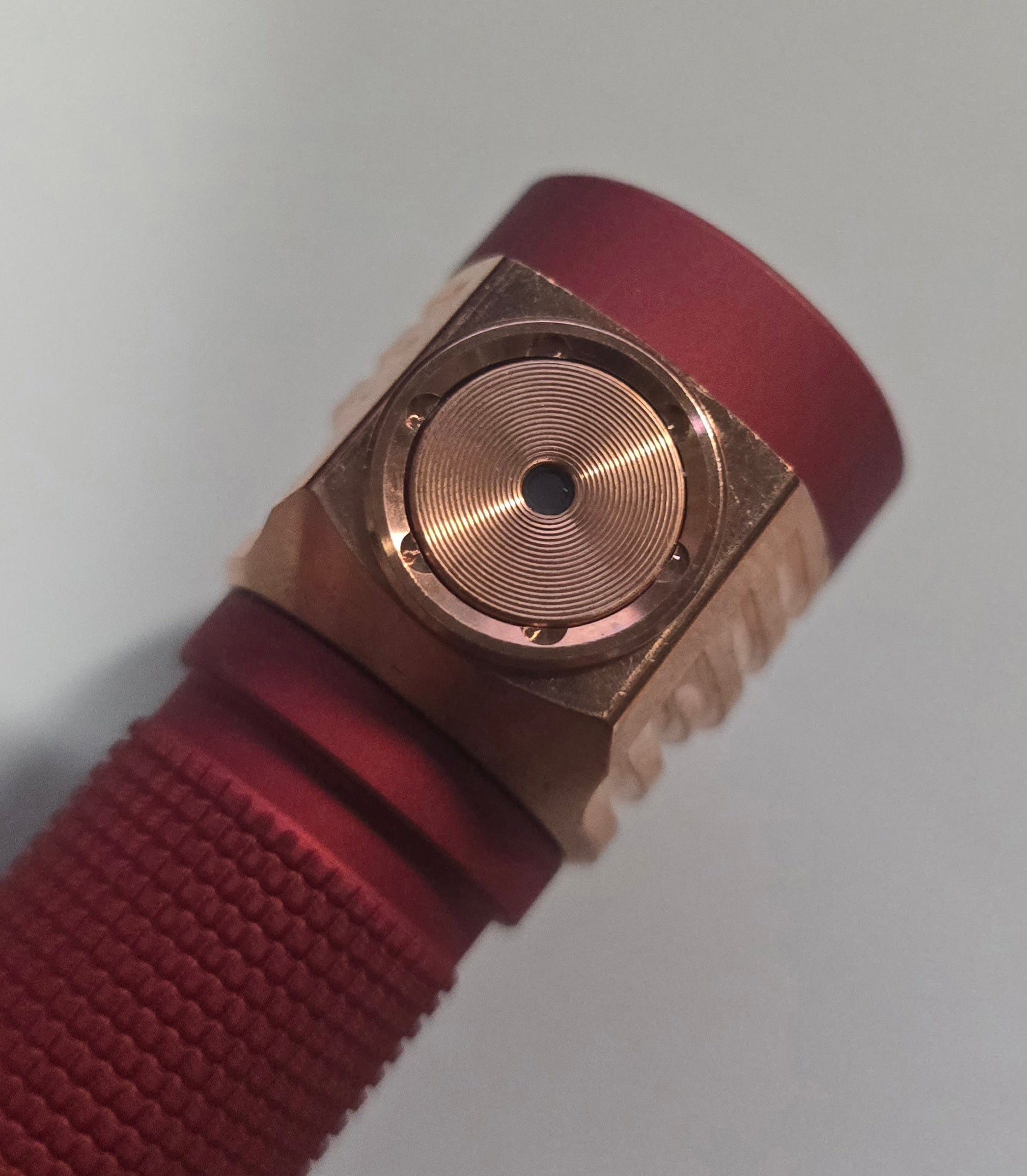

Emisar D3AA AA/14500 Premium Compact LED Flashlight

Emisar D3AA AA/14500 Premium Compact LED Flashlight

BODY COLOR
Regular price $57.88 USD
Regular price $59.99 USD Sale price $57.88 USD
Sale Sold out
Shipping calculated at checkout.

EMISAR D3AA AA/14500 COMPACT LED FLASHLIGHT

THE D3AA WILL BE ASSEMBELED HERE AND IS "CUSTOM BUILT-TO-ORDER" SO WILL SHIP ACCORDINGLY! EXPECT SHIPPING DELAYS!

THERE WILL BE 2 VERSIONS 2 DIFFERENT PRICES "SST20" AND A "PREMIUM" VERSION BECAUSE OF THE COST OF THE EMITTERS

The light works with button top & flat top unprotected 14500 battery (not included in the price), D3AA does not work with protected battery.

The light will be flashed with latest firmware before shipping, however, the current reflashing kit in the market may not be compatible with D3AA.

REFLASHING KIT LINK >>> https://jlhawaii808.com/products/updi-programmer-driver-reflashling-kit?utm_medium=product-links&utm_content=android

USER INTERFACE:

ANDURIL 2 UI

DRIVER:

9V 6A THEFREEMAN BOOST HIGH EFFICENCY DRIVER

2A PER LED

NEW 3-PIN REFLASHING PAD CAN BE PURCHASED HERE >>> https://jlhawaii808.com/products/updi-programmer-driver-reflashling-kit?utm_medium=product-links&utm_content=android

https://budgetlightforum.com/t/emisar-d3aa-driver-technical-information/223513

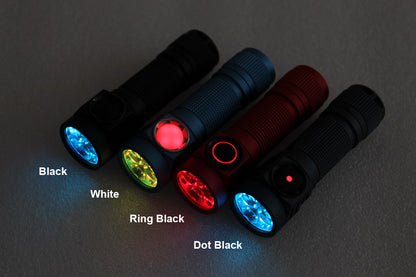

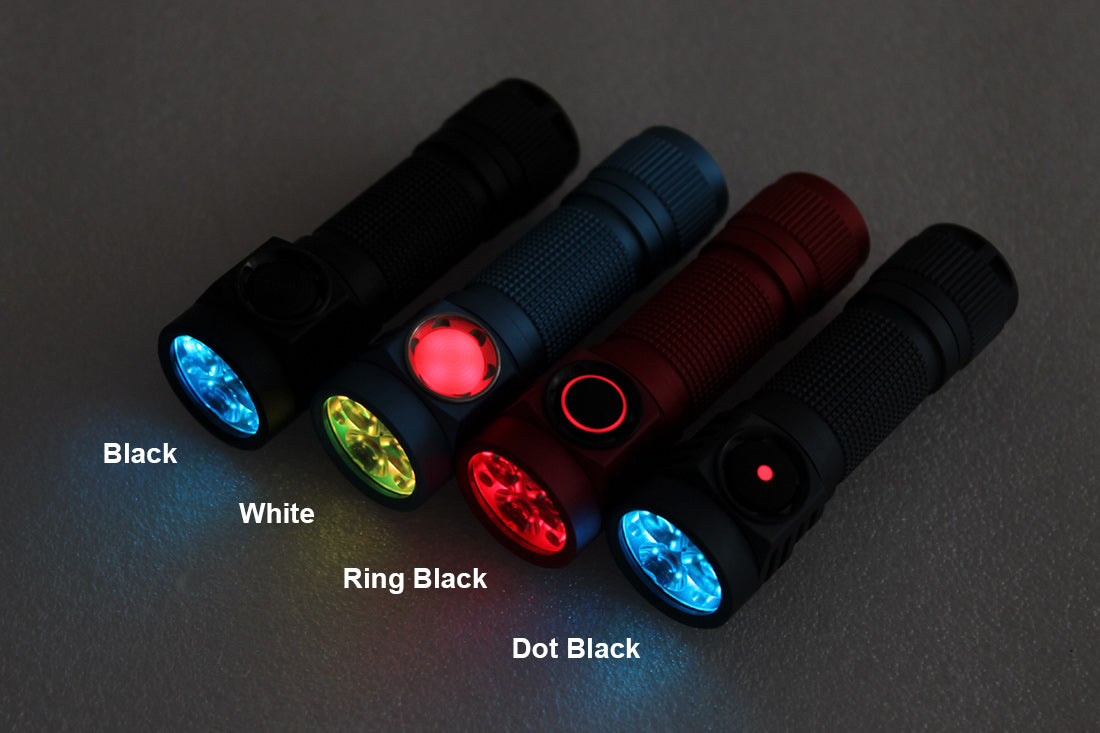

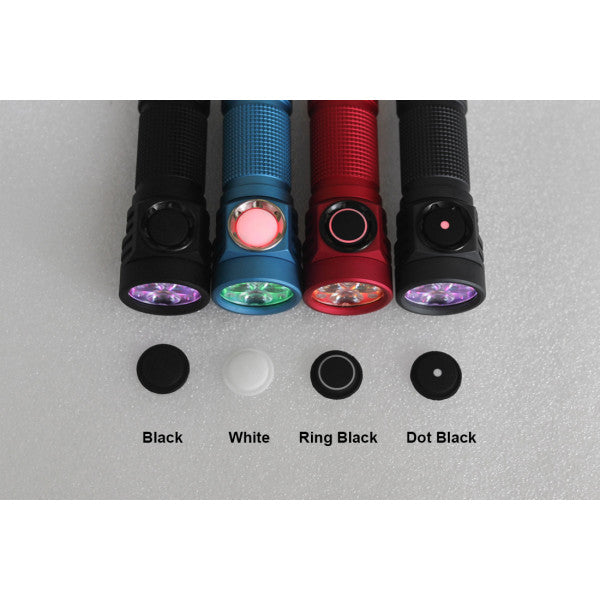

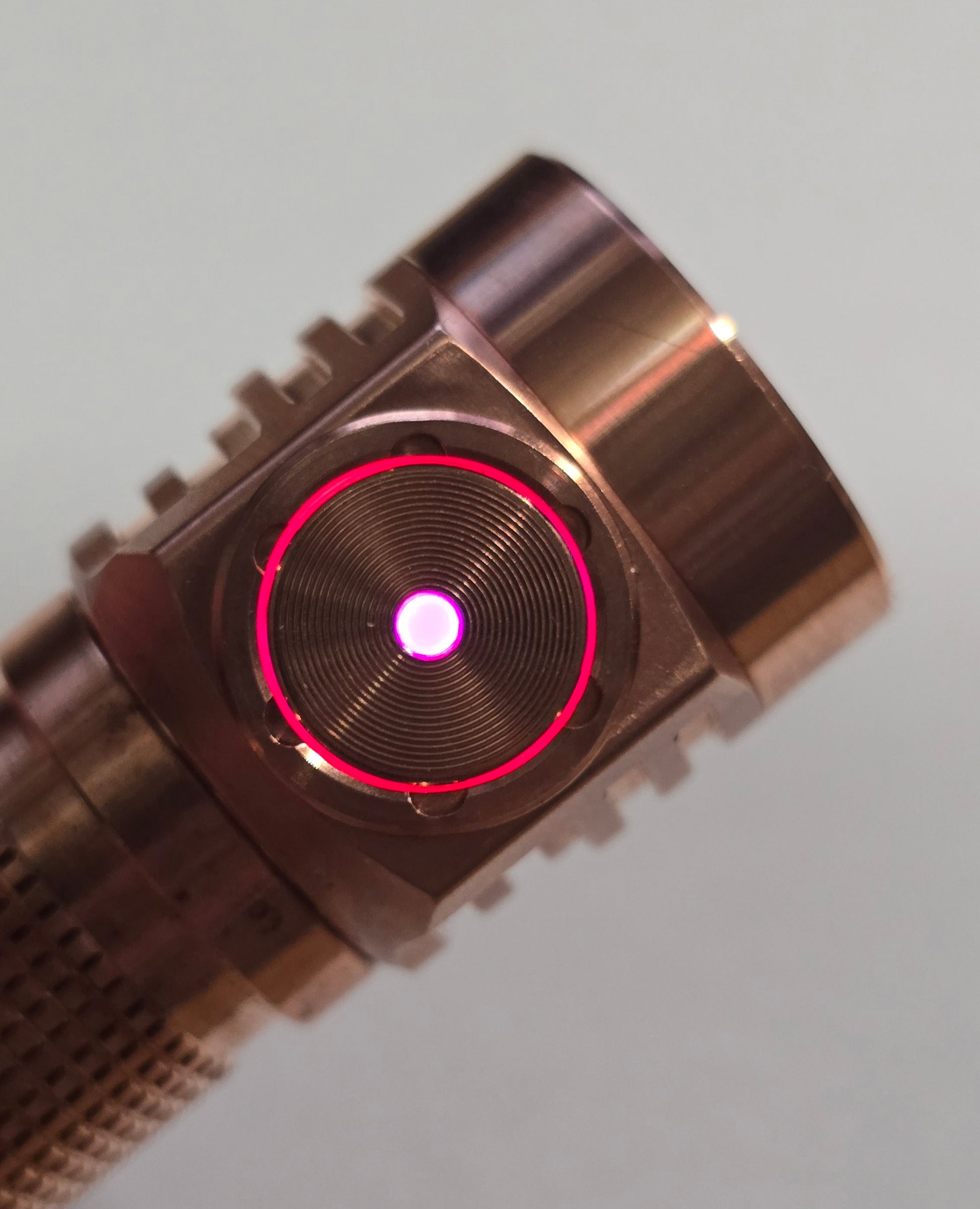

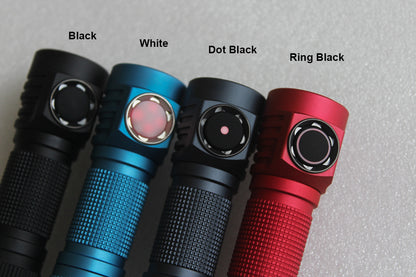

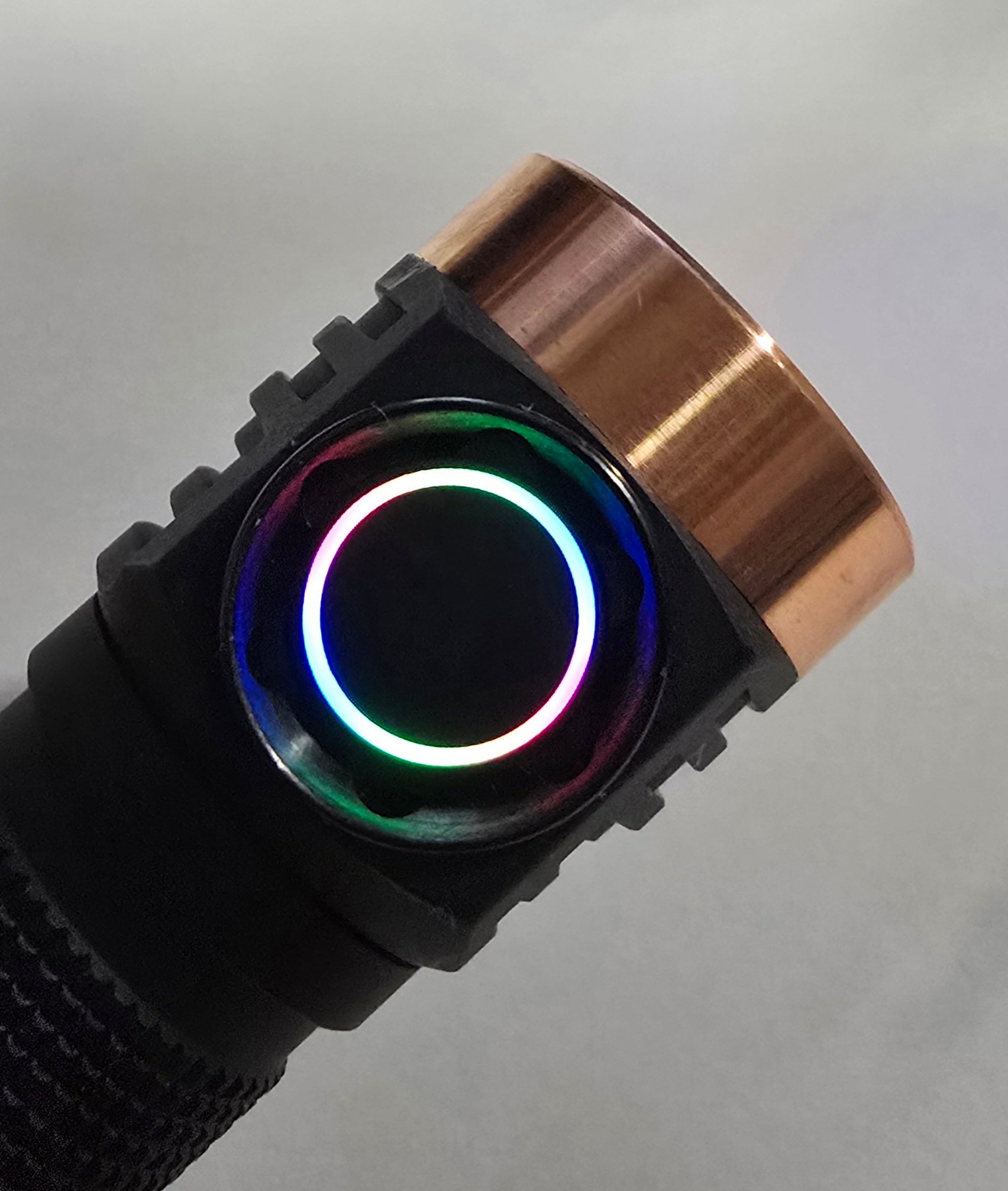

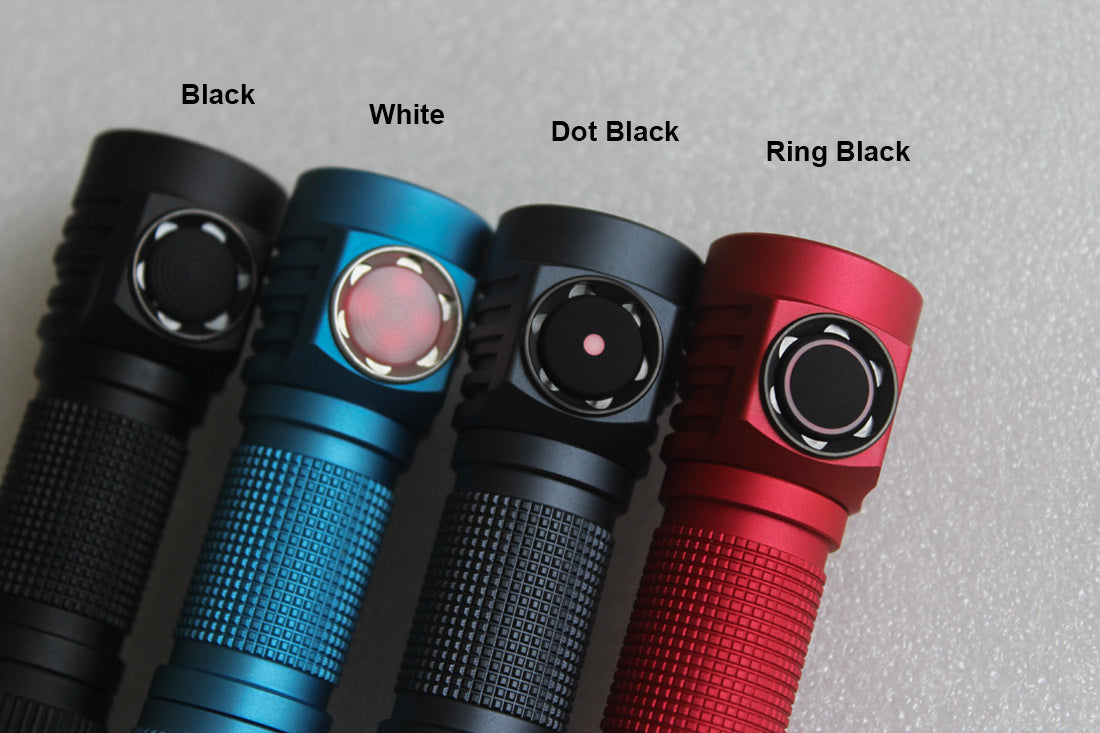

LIGHTED SWITCH:

ALL COLORS + RGB

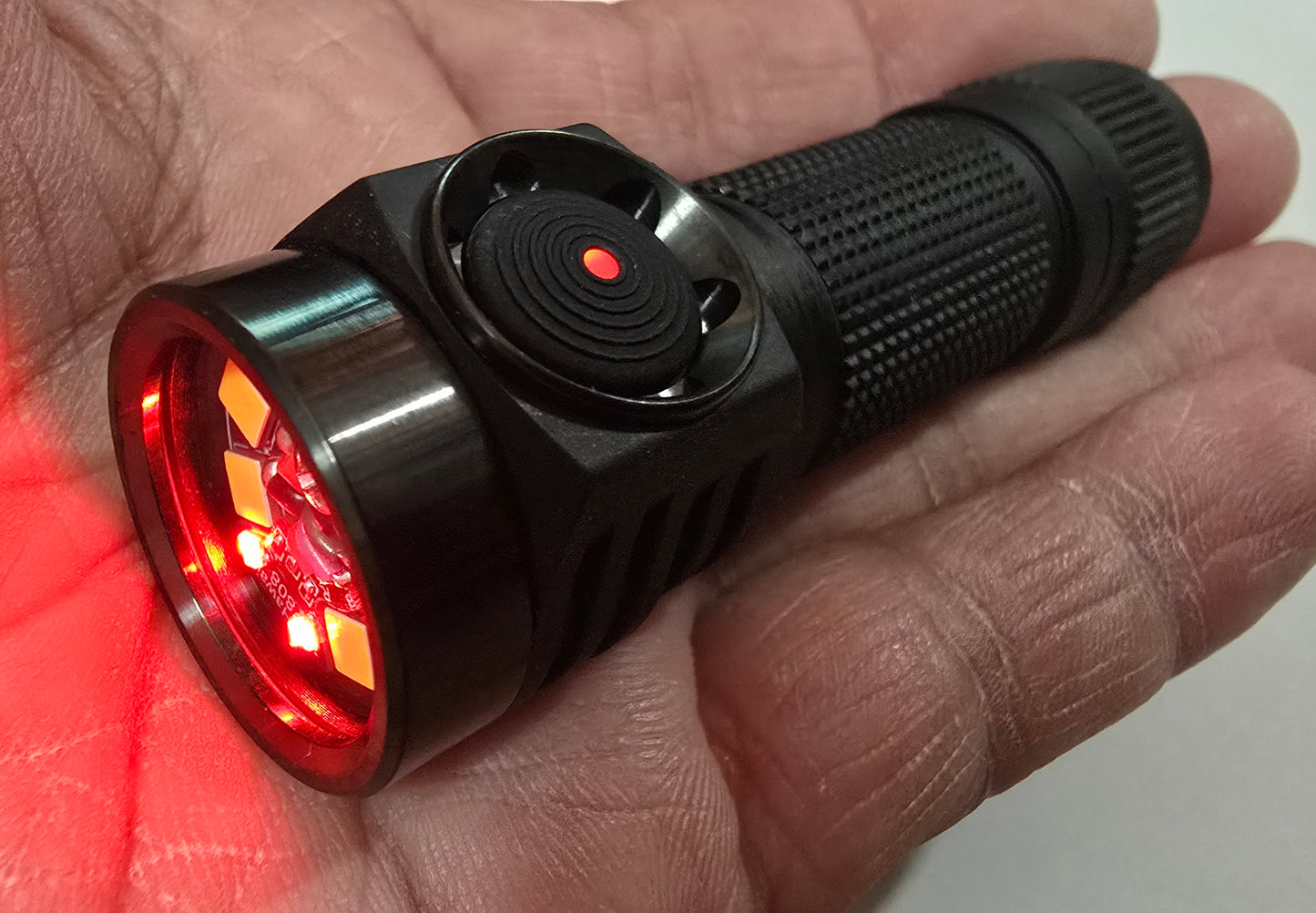

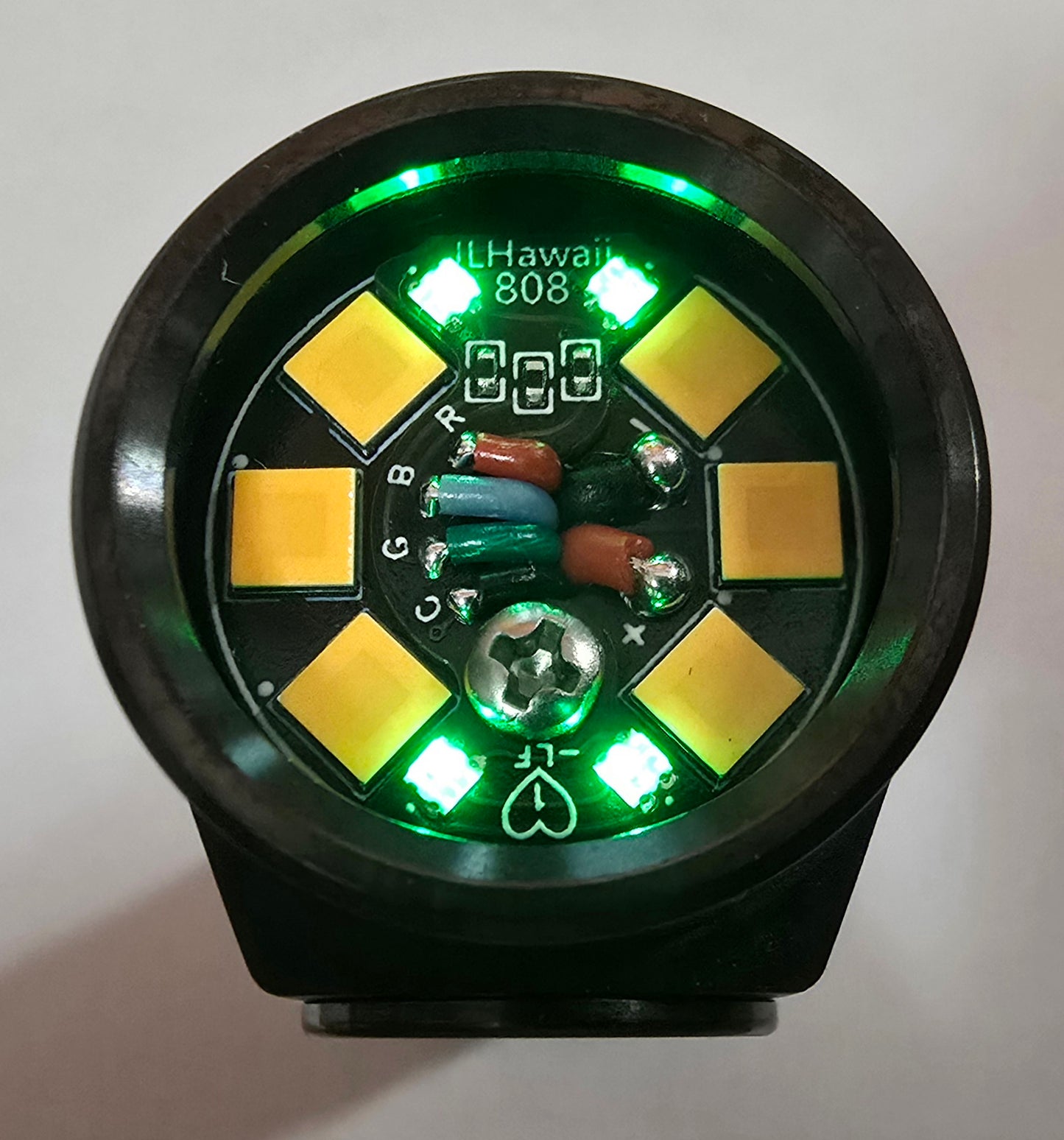

AUXILIARIES:

RGB

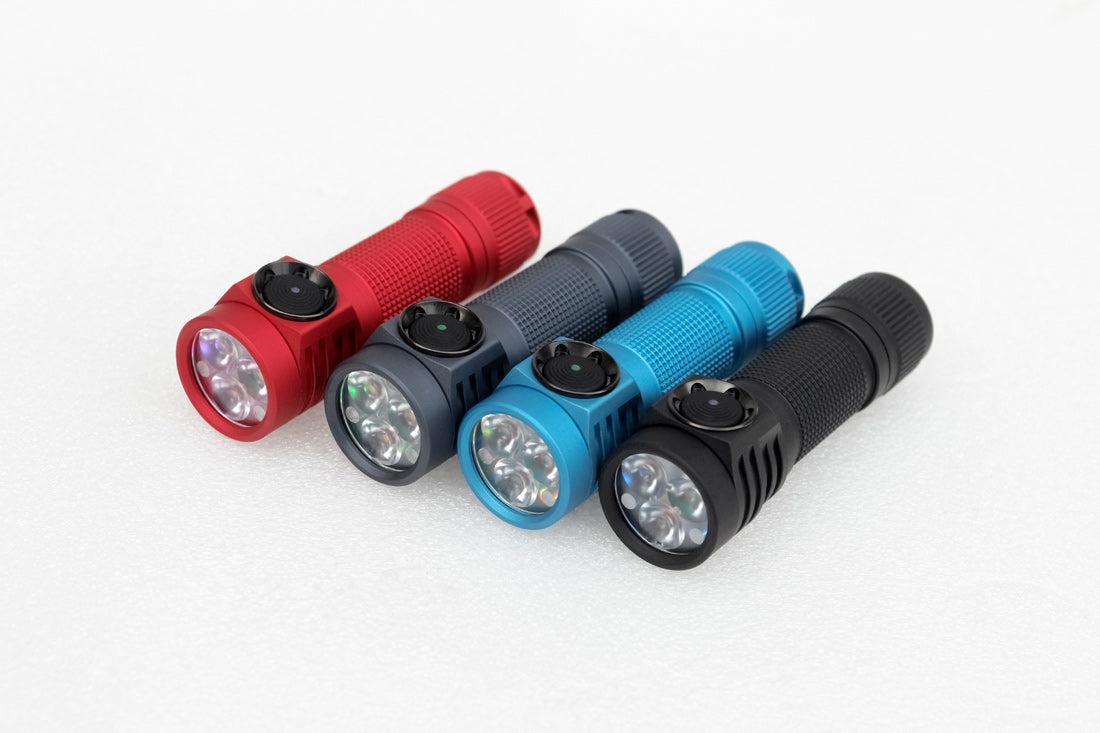

BODY COLORS:

BLACK

GRAY

CYAN

RED

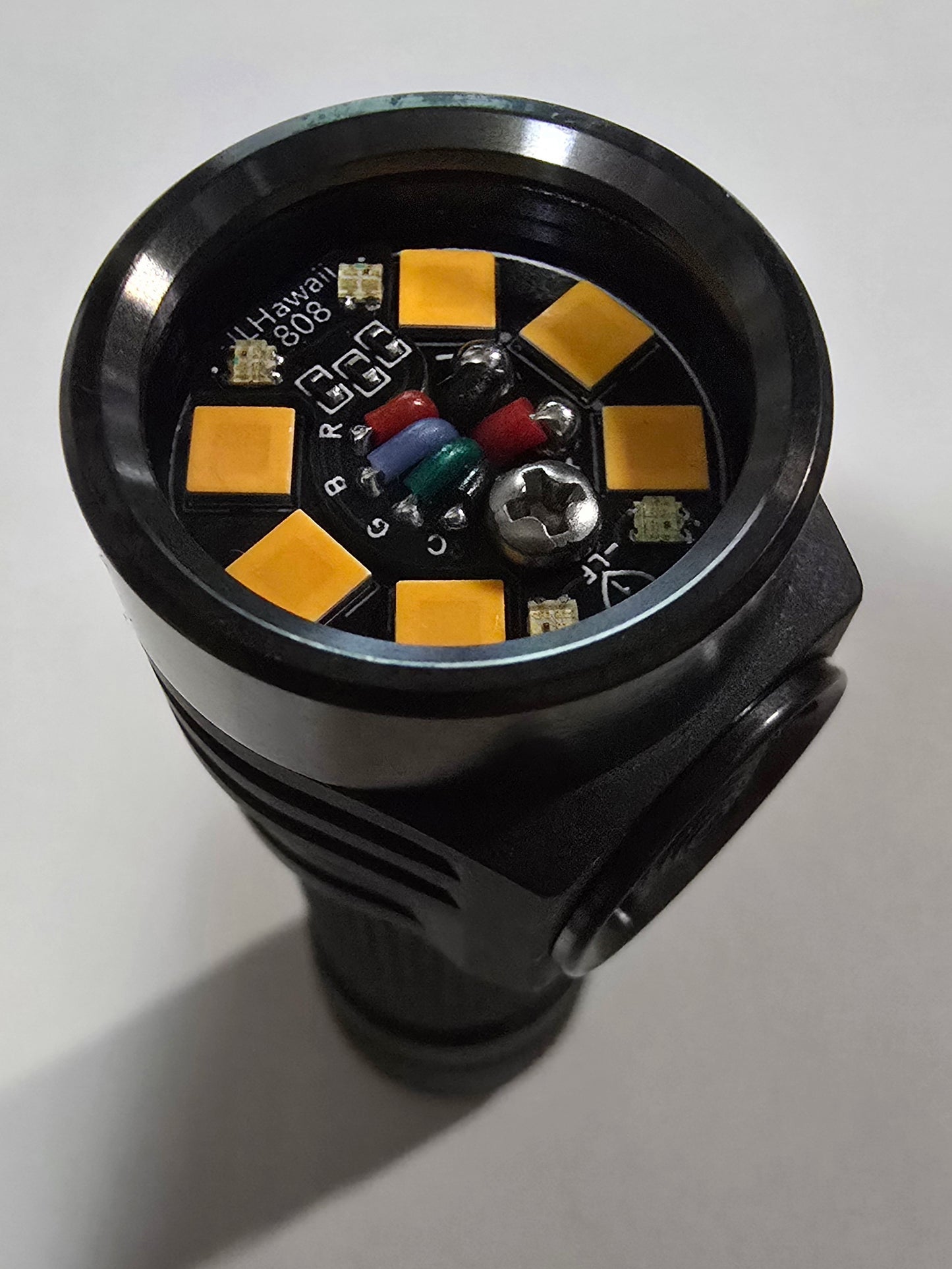

EMITTERS:

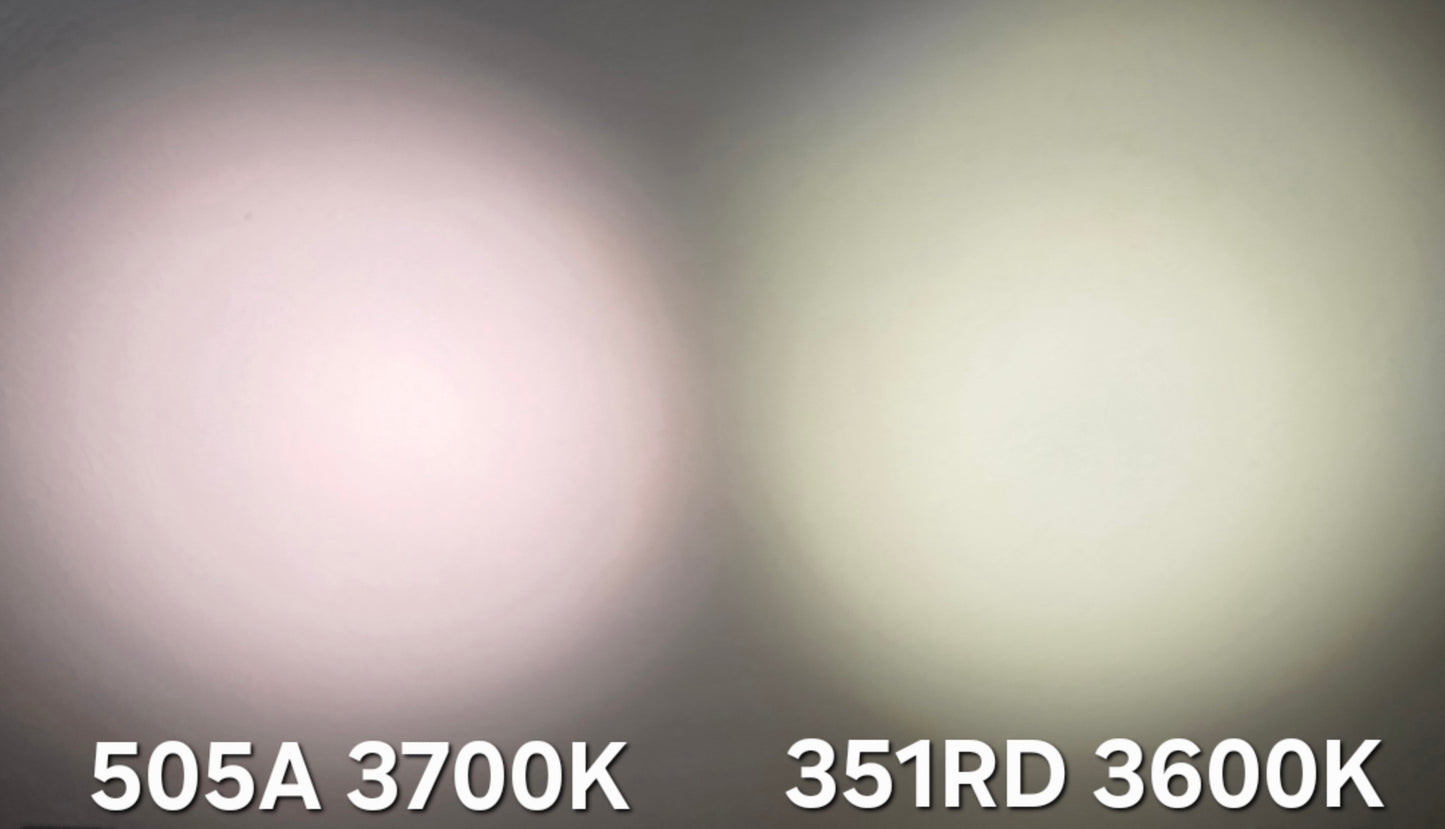

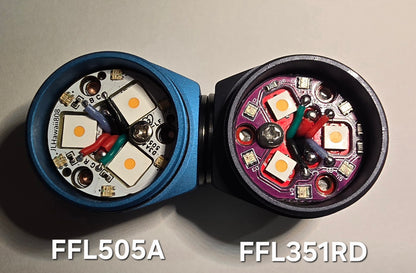

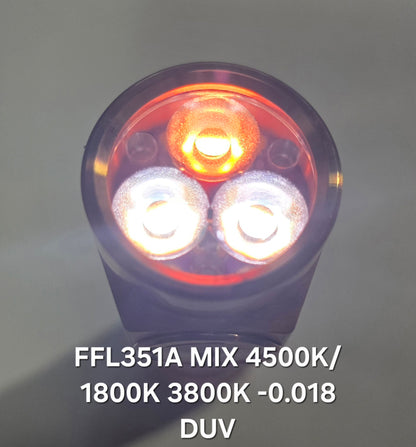

NEW! FFL351A & FFL351RD EMITTERS (LIMITED STOCK)

NICHIA 519A

NICHIA 219B

SST20 4000K FA4 BIN

OSRAM

OPTICS:

CARCLO 10511 (STANDARD)

CARCLO 10507 (SPOT)

CARCLO 10508 (FLOODY)

INCLUDED ACCESSORIES:

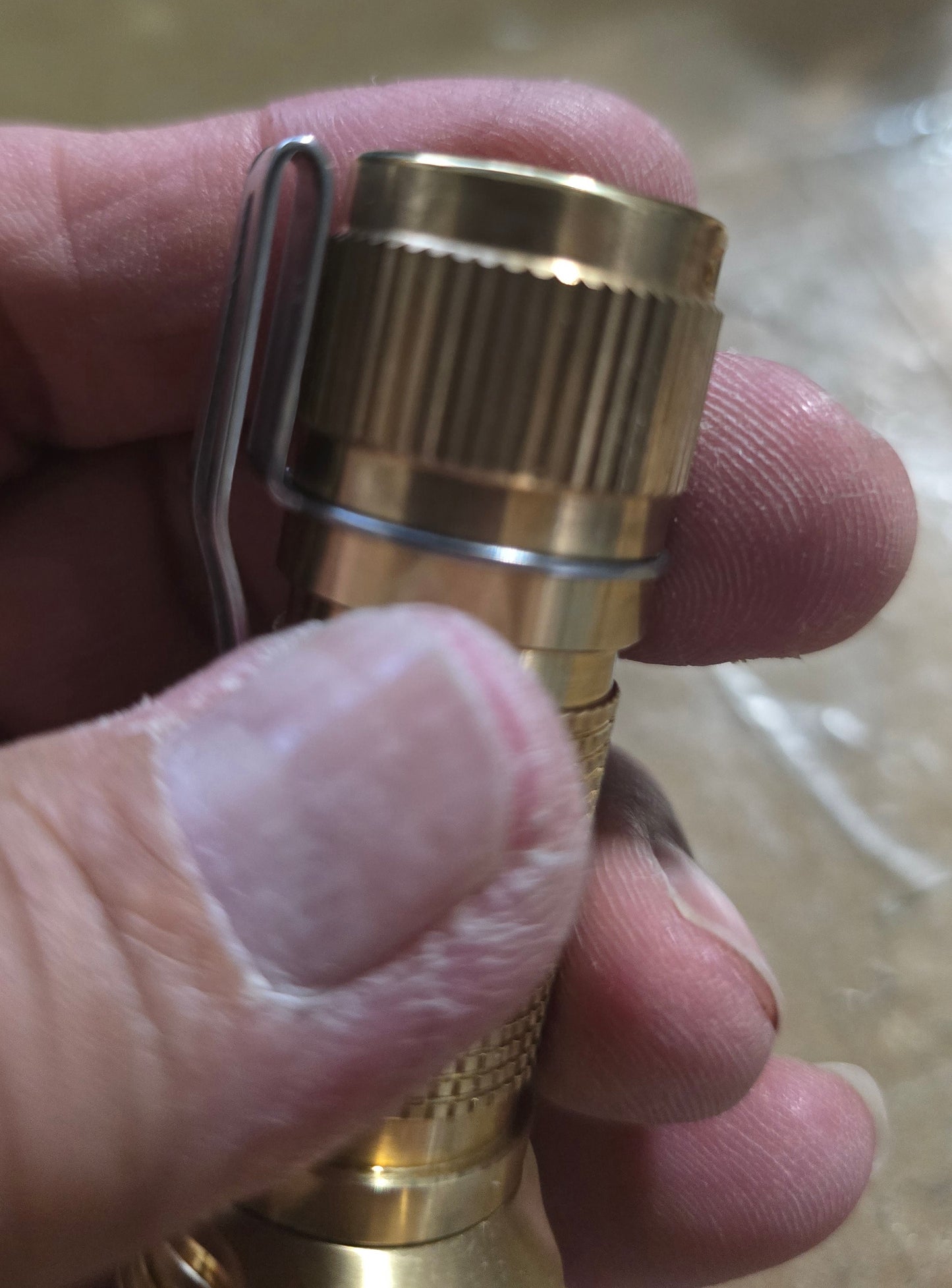

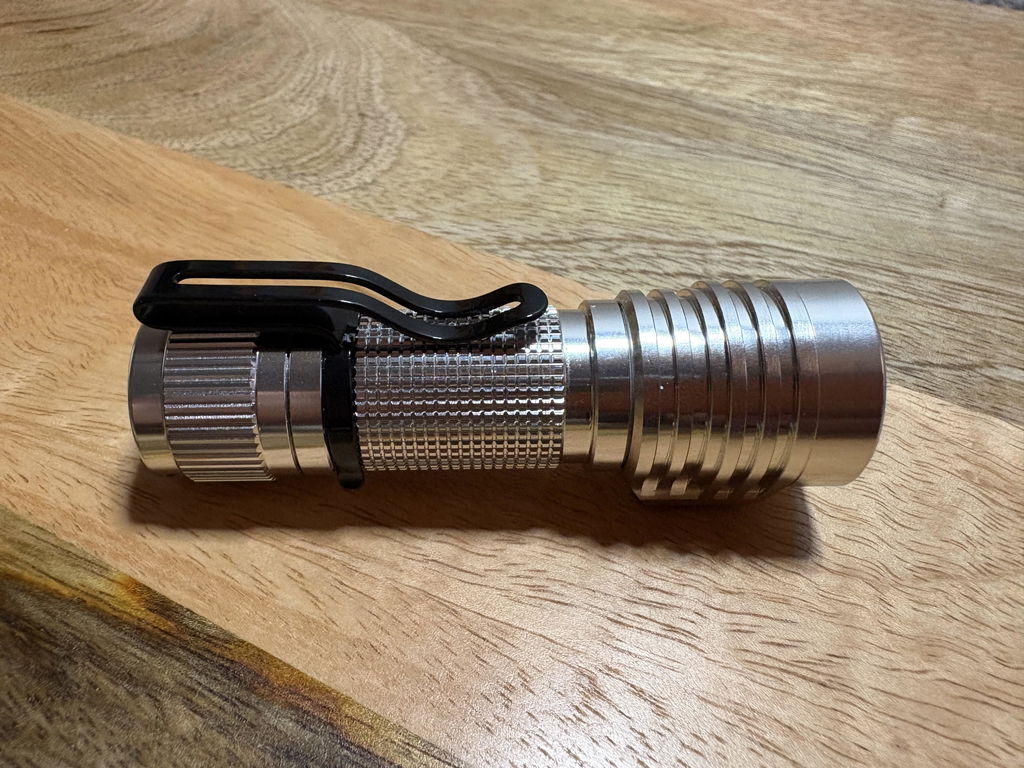

SS POCKET CLIP

MAGNETIC CAP OPTION INCLUDED

OPTIONAL ACCESSORIES:

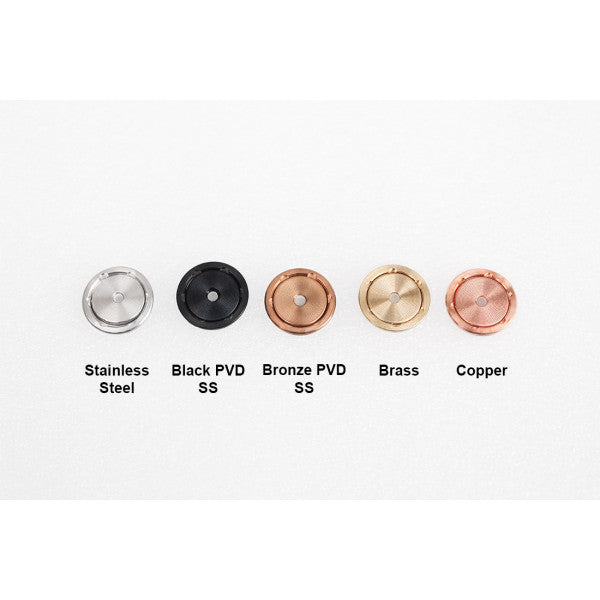

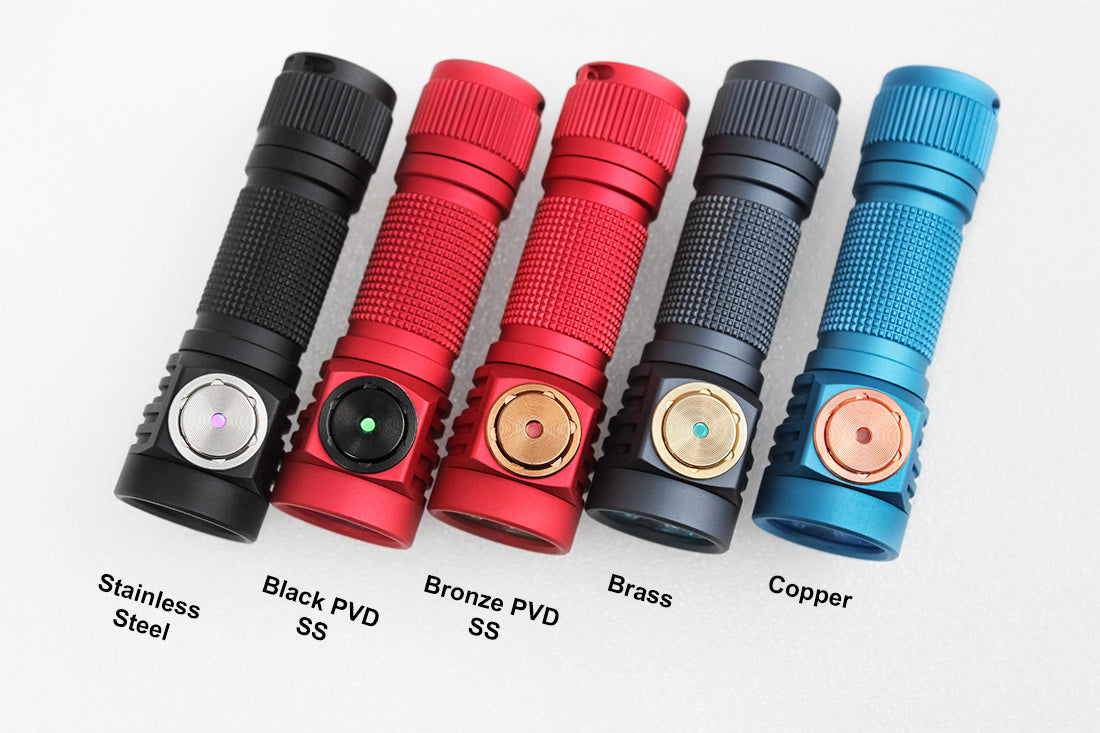

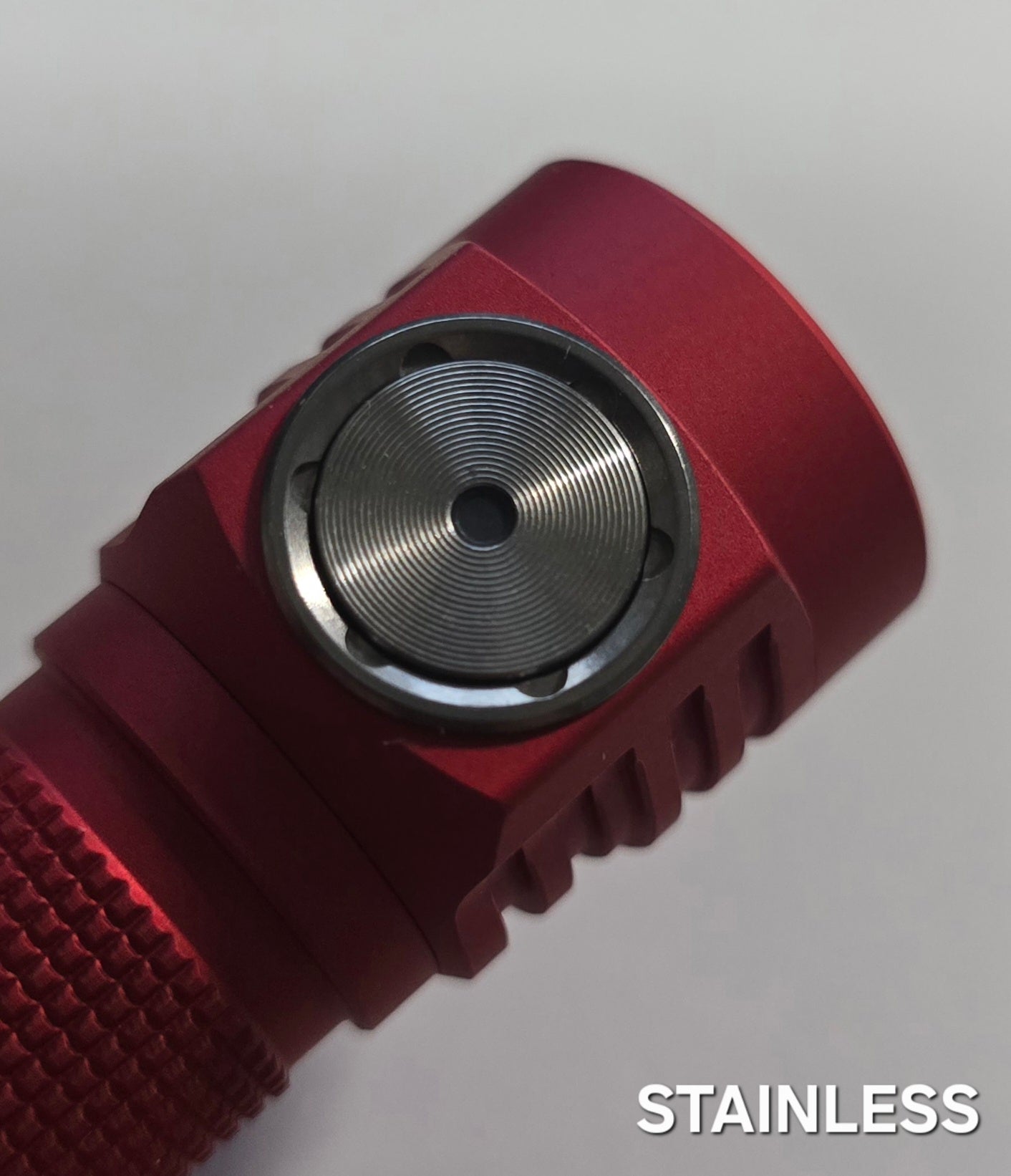

STAINLESS BEZEL >>> Emisar Noctigon Replacement Bezels – JLHawaii808

BATTERY:

BATTERY NOT INCLUDED

AA OR 14500

14500 HIGH DRAIN UNPROTECTED CELL BUTTON OR FLAT TOP RECCOMENDED. 10A RECCOMENDED! DO NOT USED PROTECTED 14500 BATTERIES THEY HAVE A PROTECTION CIRCUIT AND IT CAN BE TOO LONG, CAN CAUSE DAMAGE TO THE DRIVER

VAPCELL H10 BUTTON  LAT OR BUTTON TOP PURCHASE LINK >>> VAPCELL H10 14500 10A LITHIUM-ION RECHARGEABLE BATTERY – JLHawaii808

FEATURES:

• High efficiency boost driver

• CNC machined from aluminum

• Efficient UK made Carclo triple 10511 optics by default

• Unihead construction

• High lumen output and low moon output

• Ramping interface

• Electronic soft touch switch

• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.

• Temperature step-down

• Waterproof and dustproof to IP67 standard (up to 1 meter)

• Weight:38.5g (without magnet)

• Dimensions: 78.3mm(length) * 24mm(head) * 19mm(body)

• Lumen Rating per LED option and cell 14500 (2A) / NiMH (0.6A):

519A 5700K R9080 1540lm OTF / 510lm OTF

519A 4500K R9080 1540lm OTF / 510lm OTF

519A 2700K R9080 1240lm OTF / 420lm OTF

219B 4500K R9080 1200lm OTF / 460lm OTF

KW CSLPM1.TG W2 1760lm OTF / 640lm OTF

SST-20 6500K/5000K 2075lm OTF / 765lm OTF

SST-20 4000K 95 CRI 1455lm OTF / 530lm OTF

SST-20 2700K 95 CRI 1350lm OTF / 485lm OTF

This product uses free software of Anduril 2, distributed under the terms of the GPLv3. https://toykeeper.net/anduril
