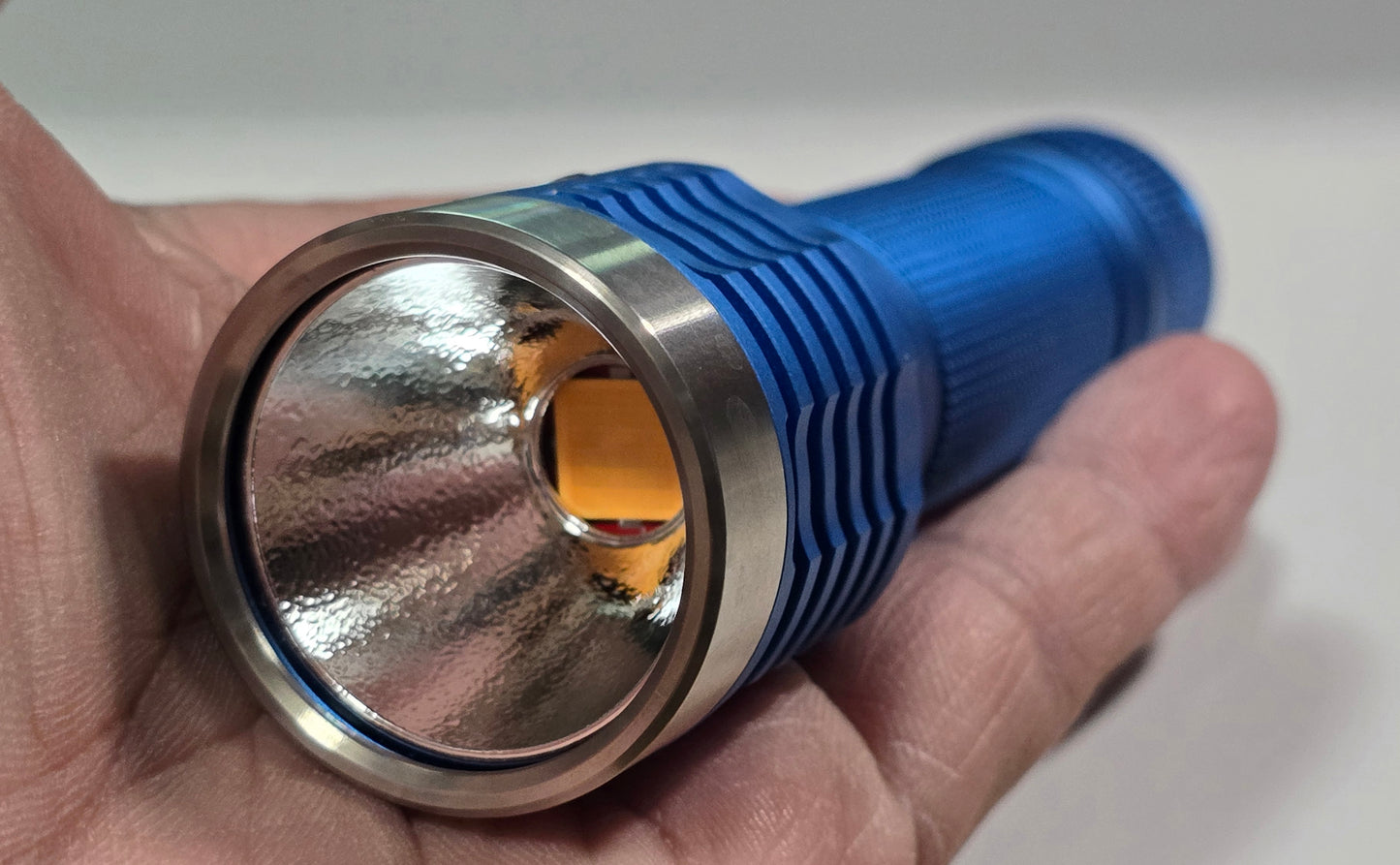

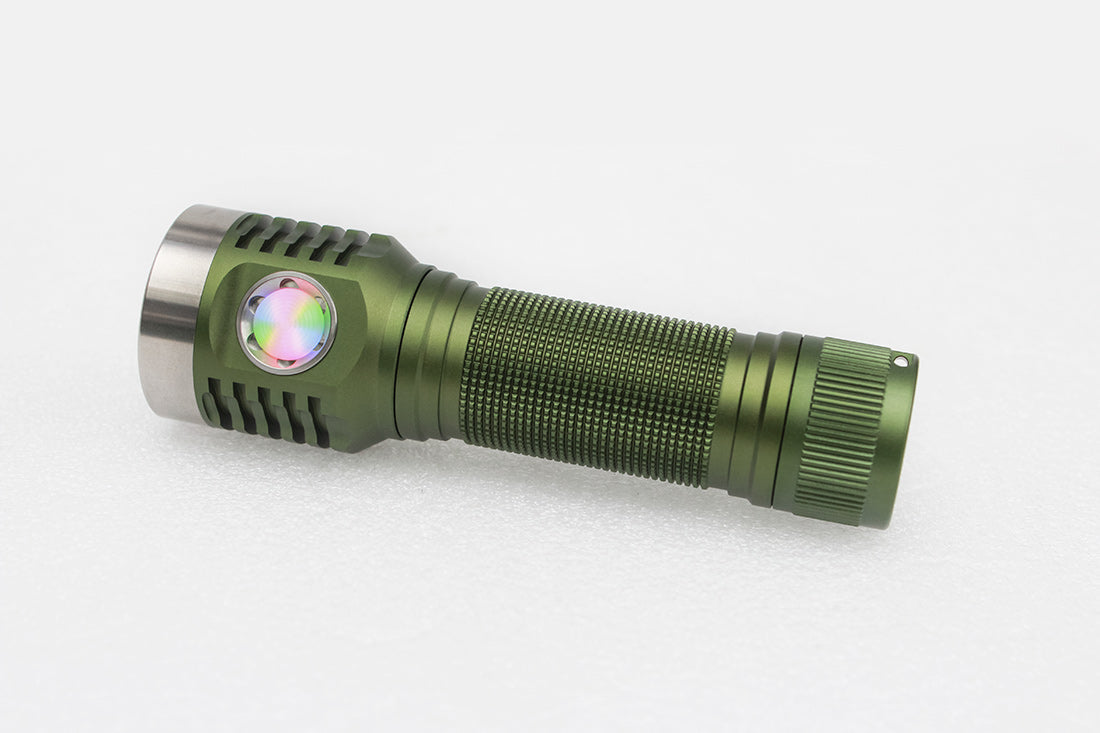

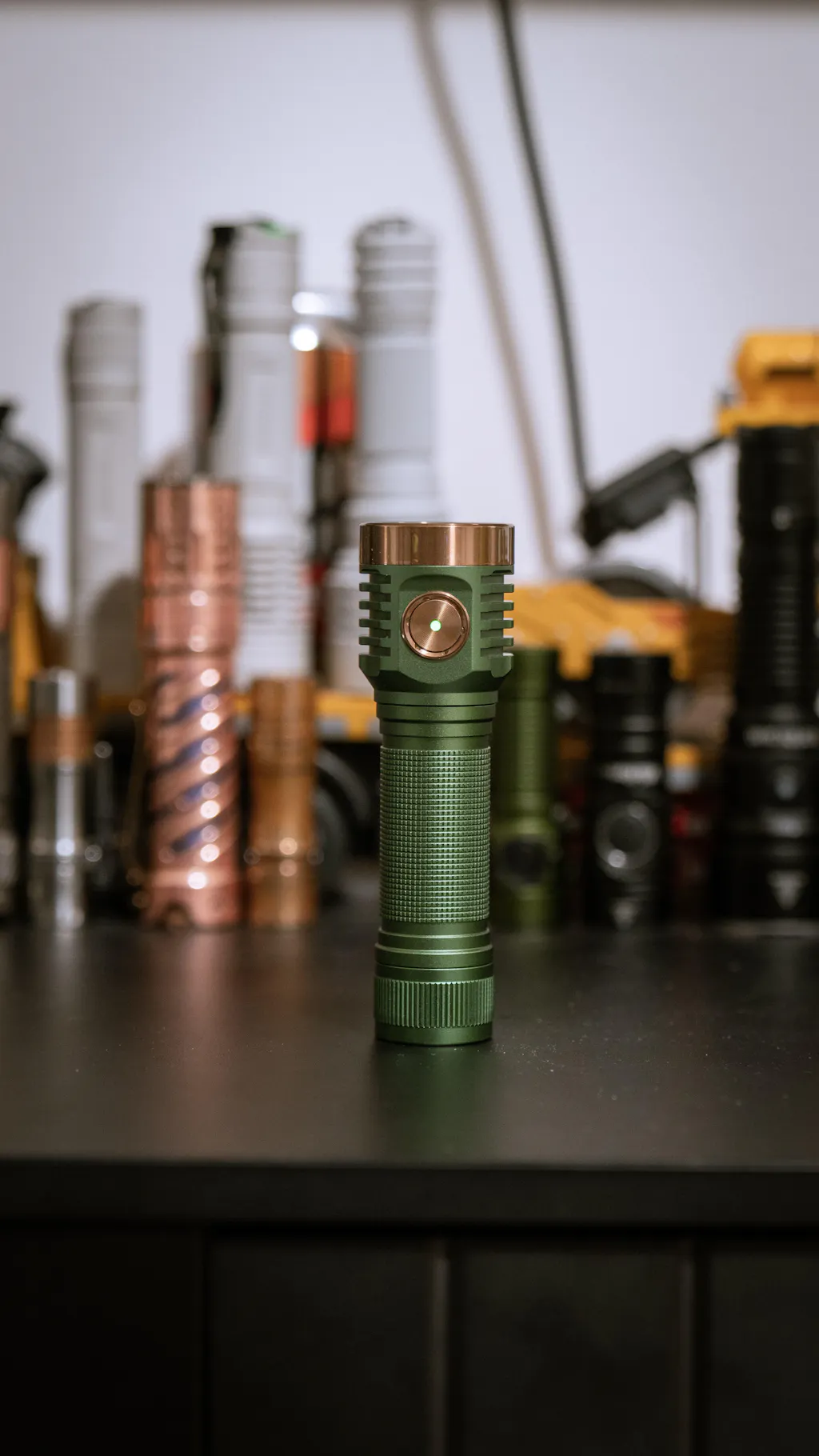

Emisar D1K 21700 Mini Pocket Thrower LED Flashlight CUSTOM "BUILT-TO-ORDER"

EMISAR D1K 21700

NOTE: THIS IS CUSTOM "BUILT-TO-ORDER, WILL SHIP ACCORDINGLY!

21700 Mini Pocket Thrower

NEW BATCH HEADS WILL AVAILABLE THE END OF DECEMBER OR BEGINNING OF JANUARY 2025. THIS WILL FIT THE NEW LUME X1 DRIVER!

WARNING! The Emisar D1K puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing.

USER INTERFACE:

ANDURUIL 2 UI

DRIVER:

9A LINEAR (CURRENT WILL BE MODIFIED)

9A LINEAR + FET (ONLY SBT90.2 & SFN60)

$15 ADDITIONAL EMISAR 6V 4A BOOST DRIVE FOR FFL707A (LOAD TEST 7A MAX TURBO) LUME X1 6V 6A BOOST

NEW! LUME X1 12V 3A AND 6V 4A BOOST

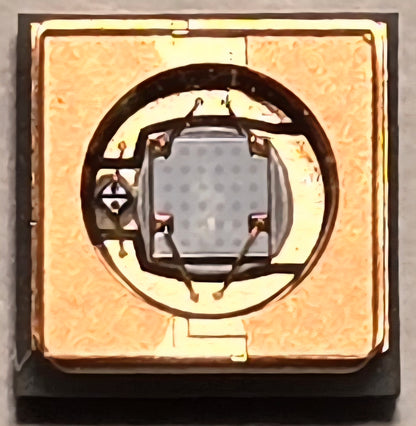

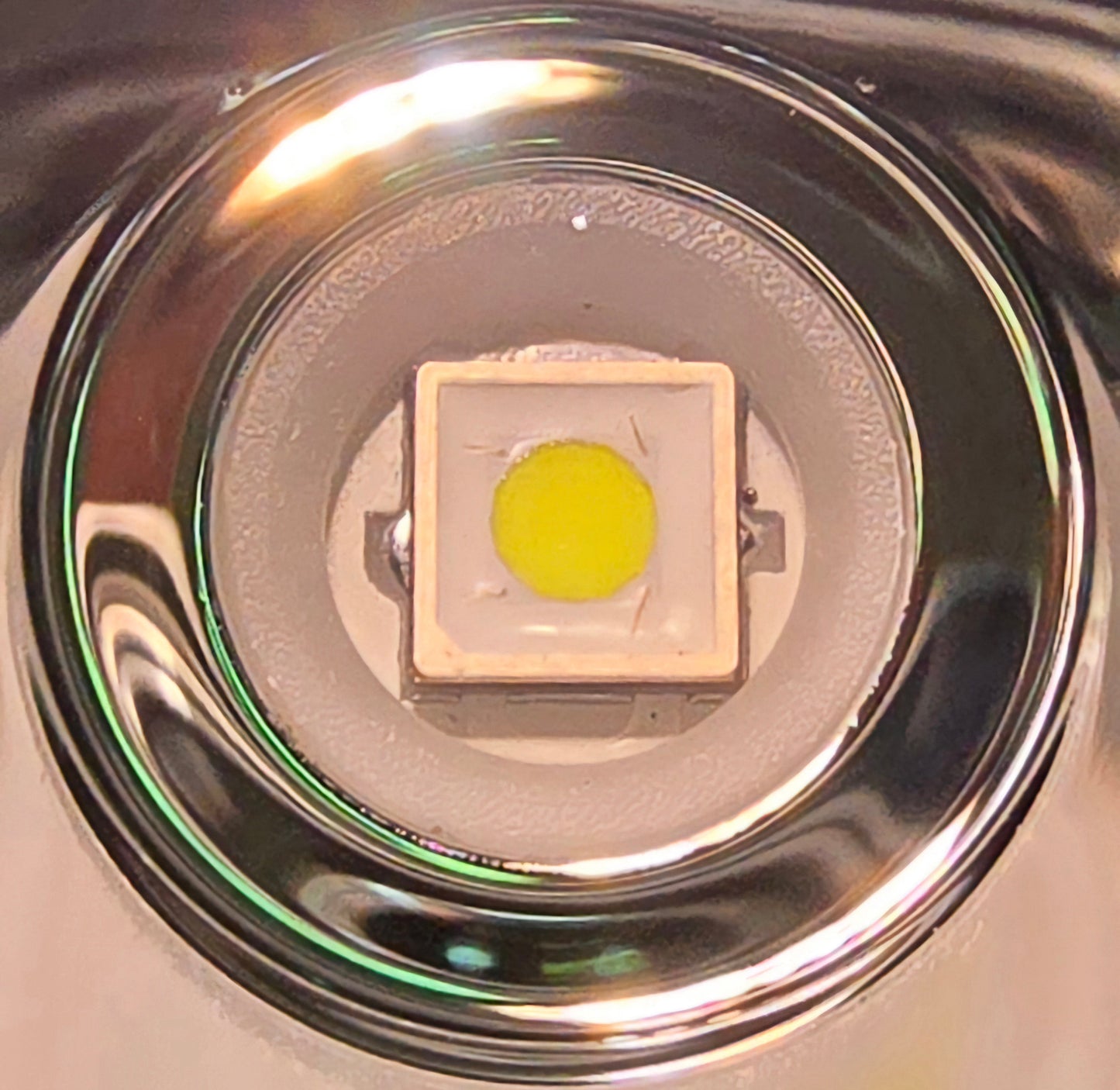

FFL505A LED:

FFL505A (FIREFLYLITE)

5050SMD

3V

7.5A

RD (ROUND DIE)

THROWY EMITTER

EXCELLECT CHOICE FOR HIGH CRI AND LONG THROW WITH A TIGHT BEAM IDENTICAL TO THE OSRAM EMITTERS

505A COLOR TEMP:

3700K 96CRI (ROSY BIN)

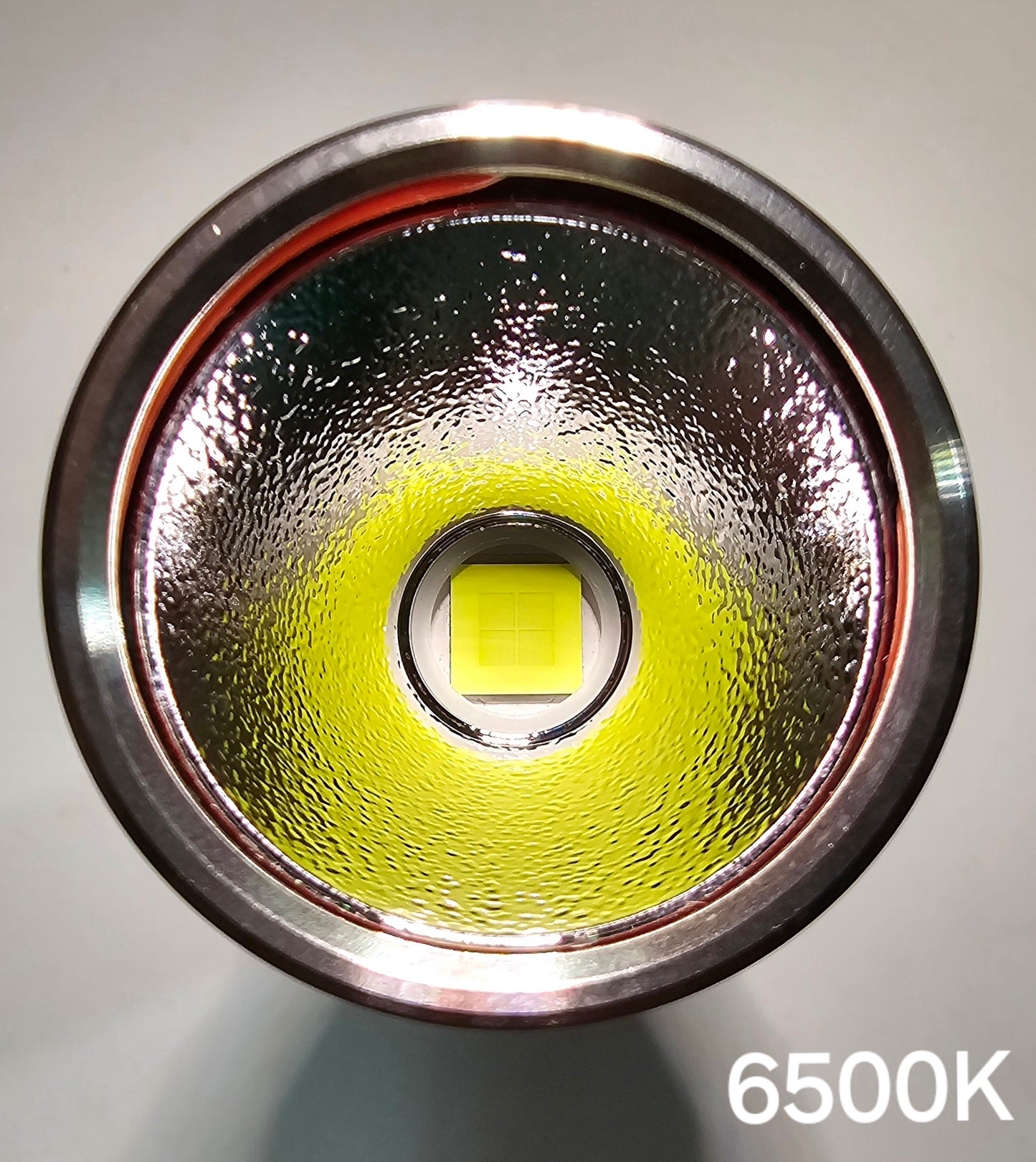

6500K 96-97CRI 6500K

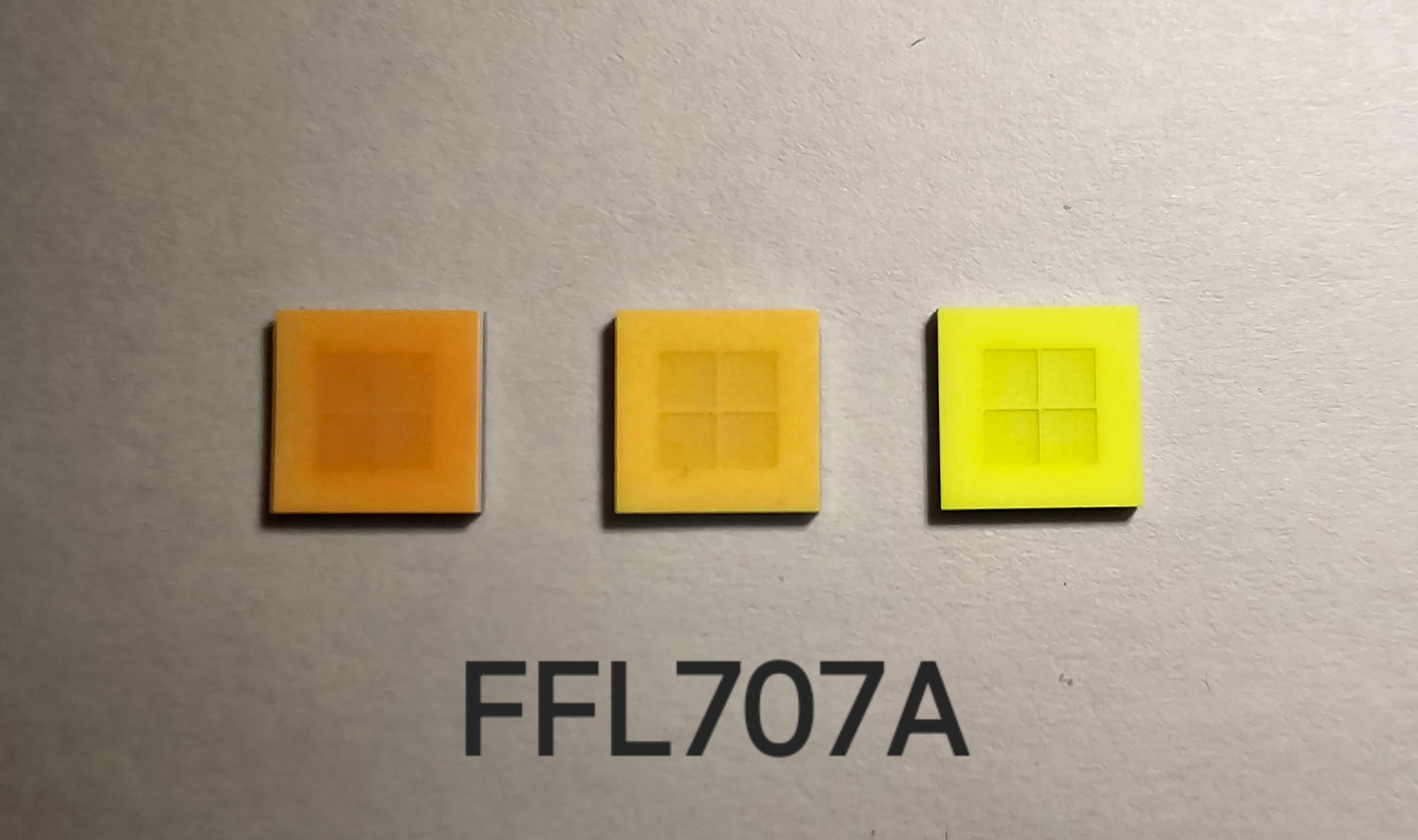

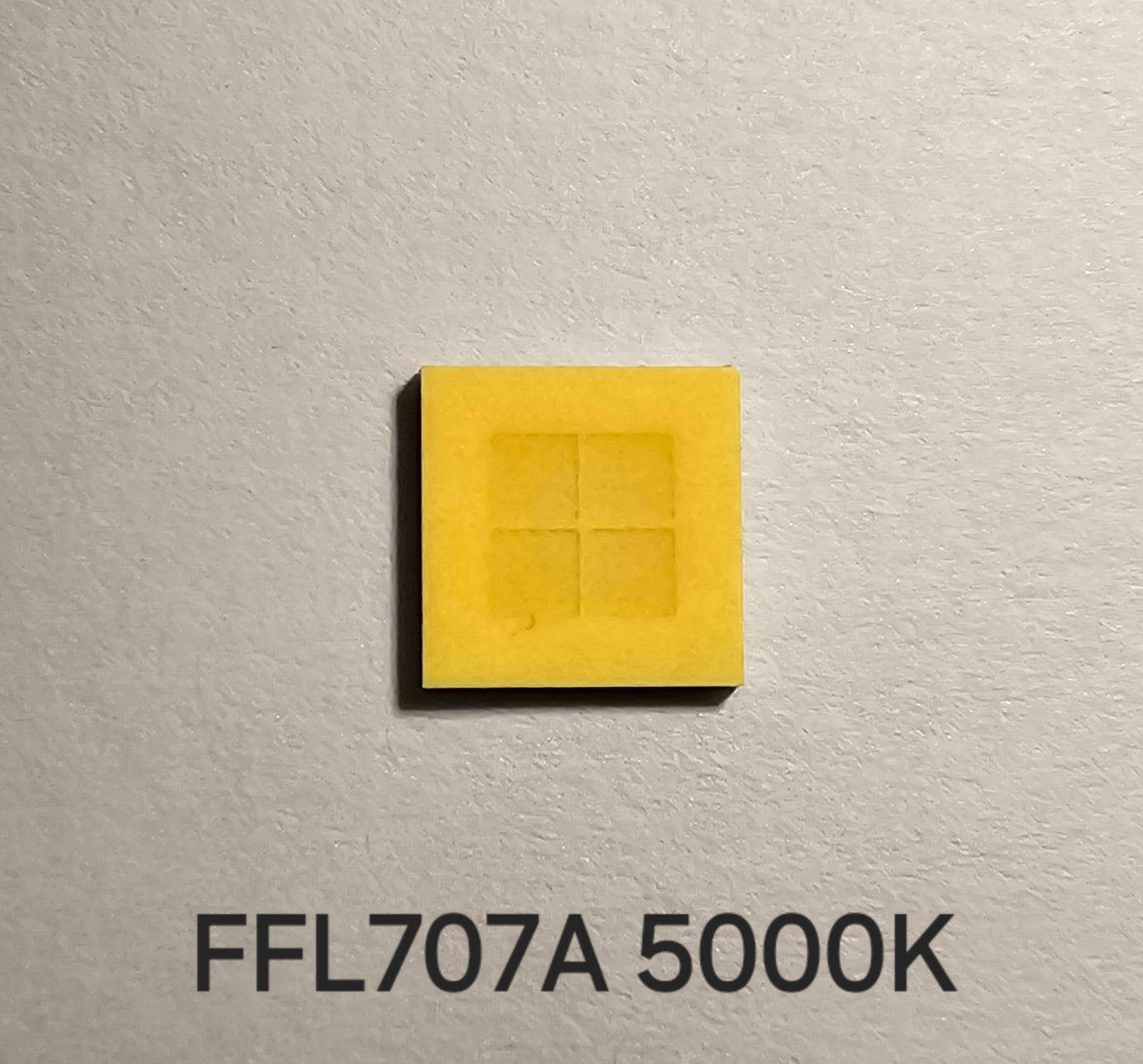

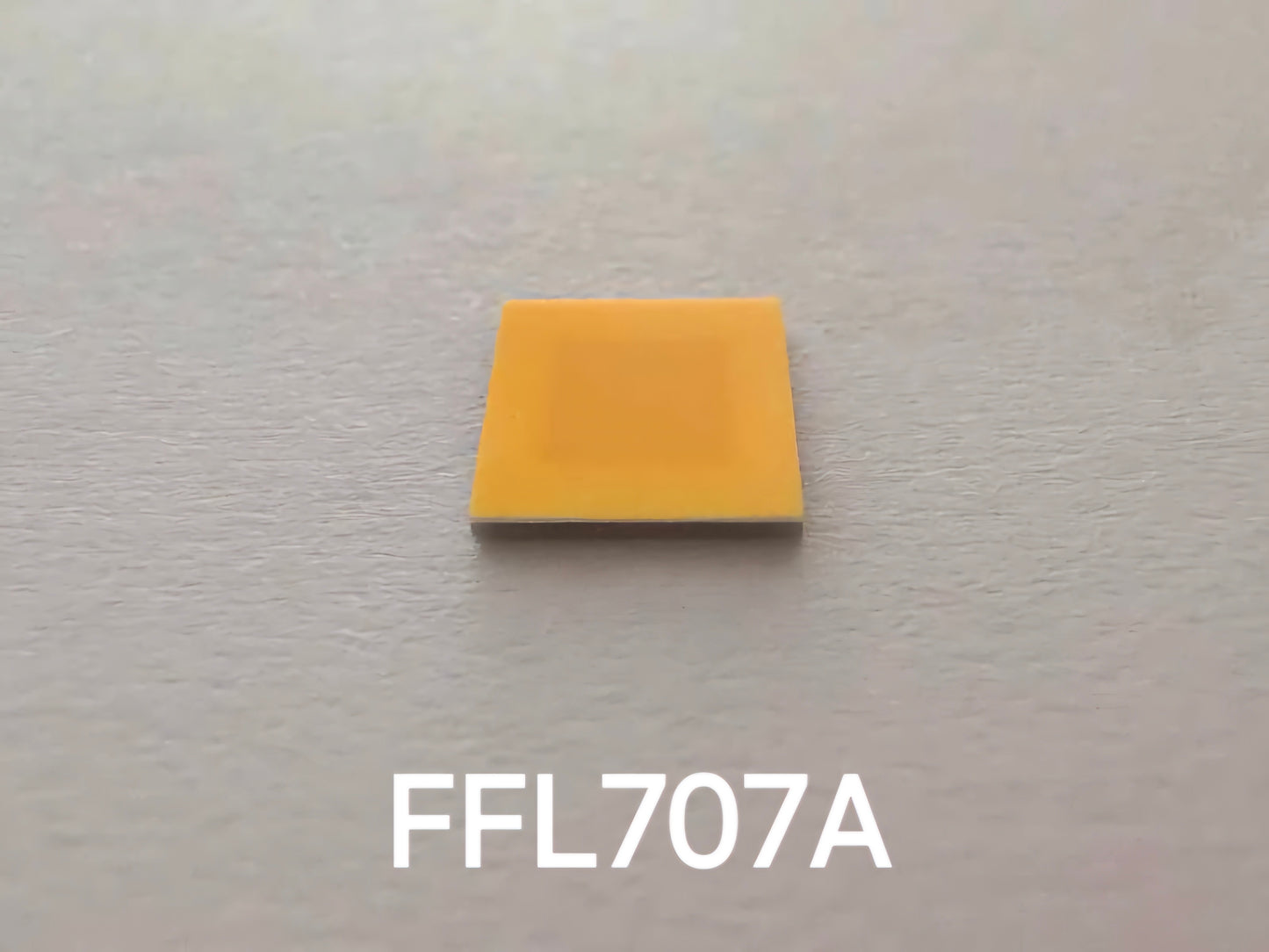

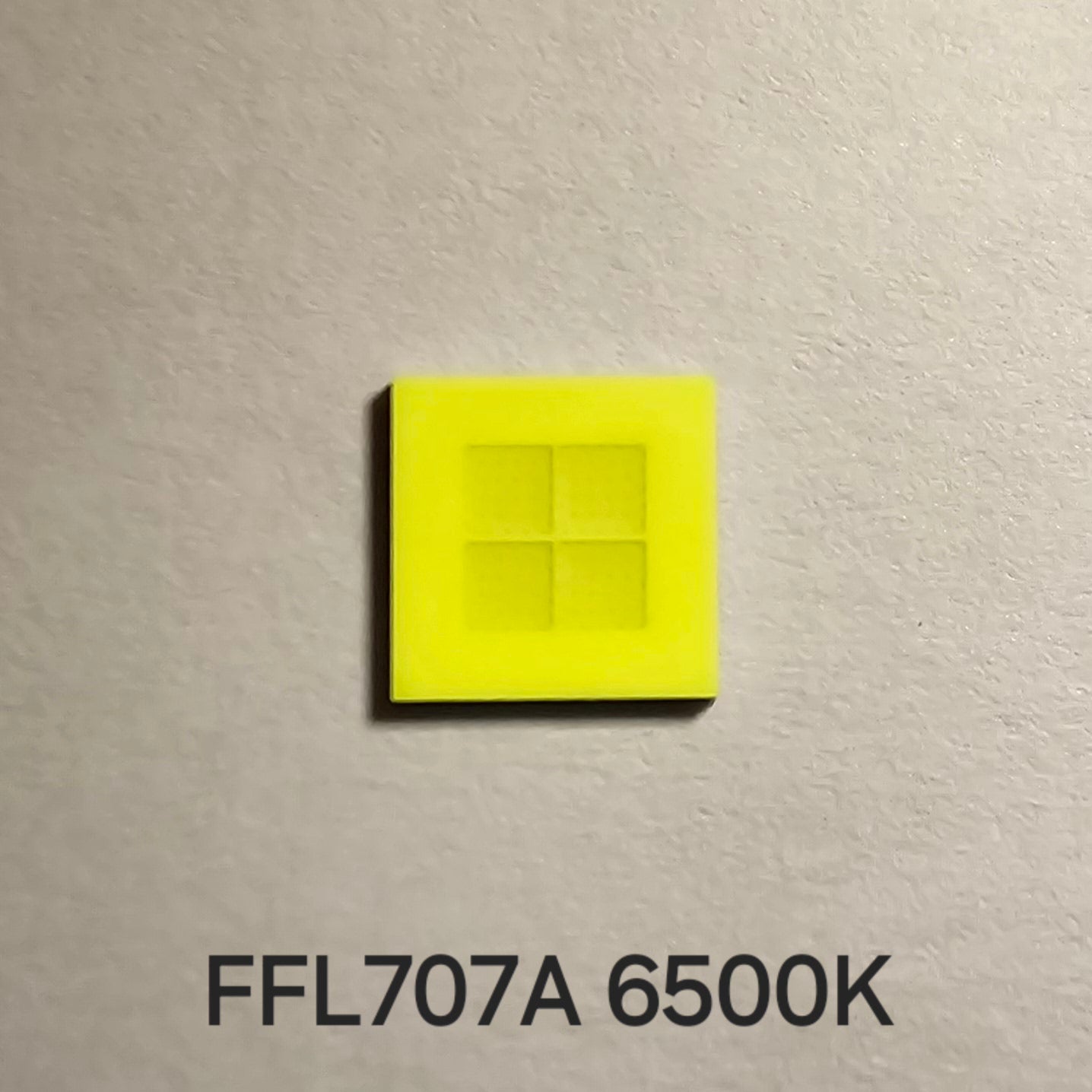

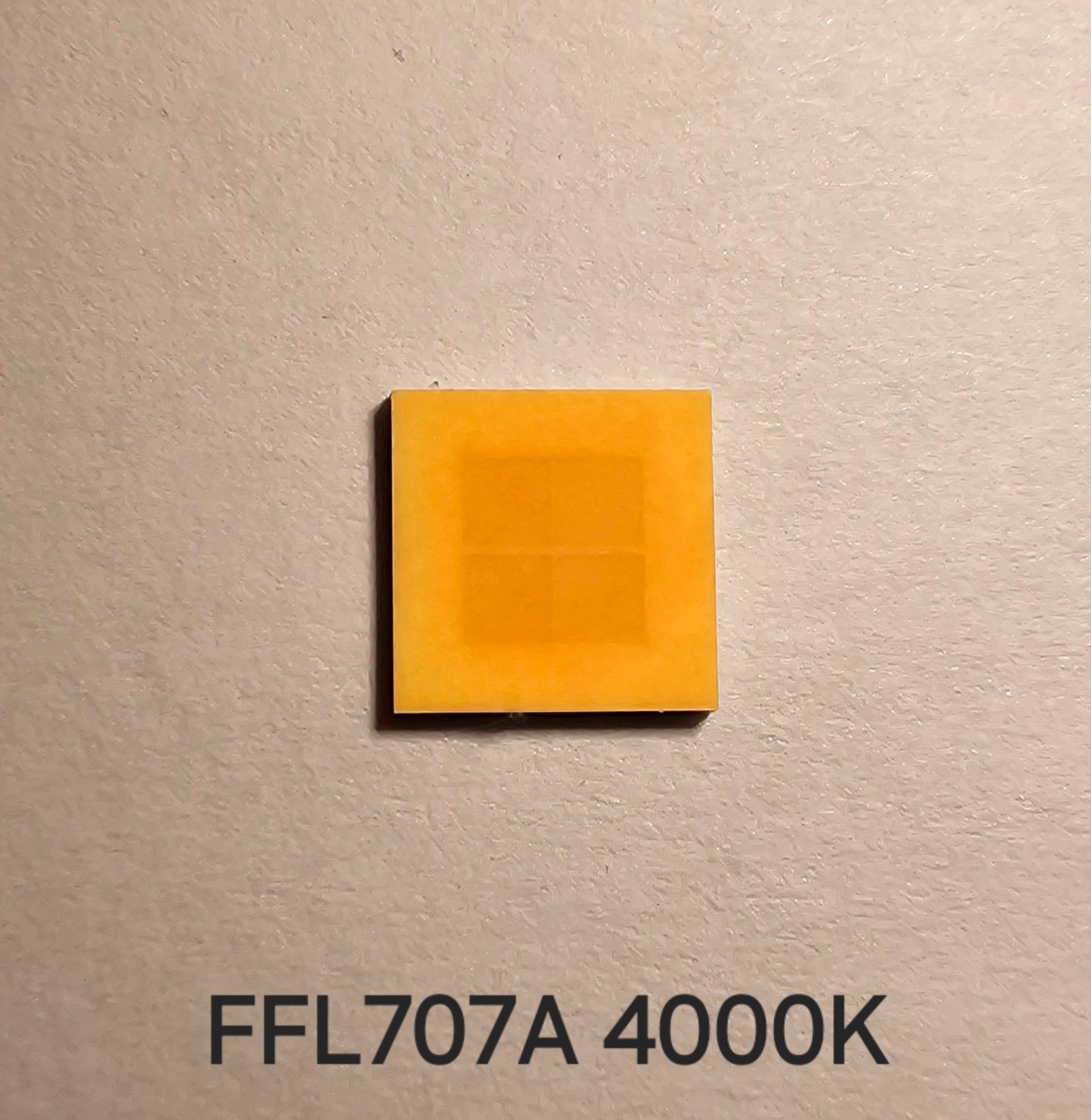

FFL707A LED:

FFL707A 6V (FIREFLYLITE)

7070SMD

6V

6.5A

8A MAX

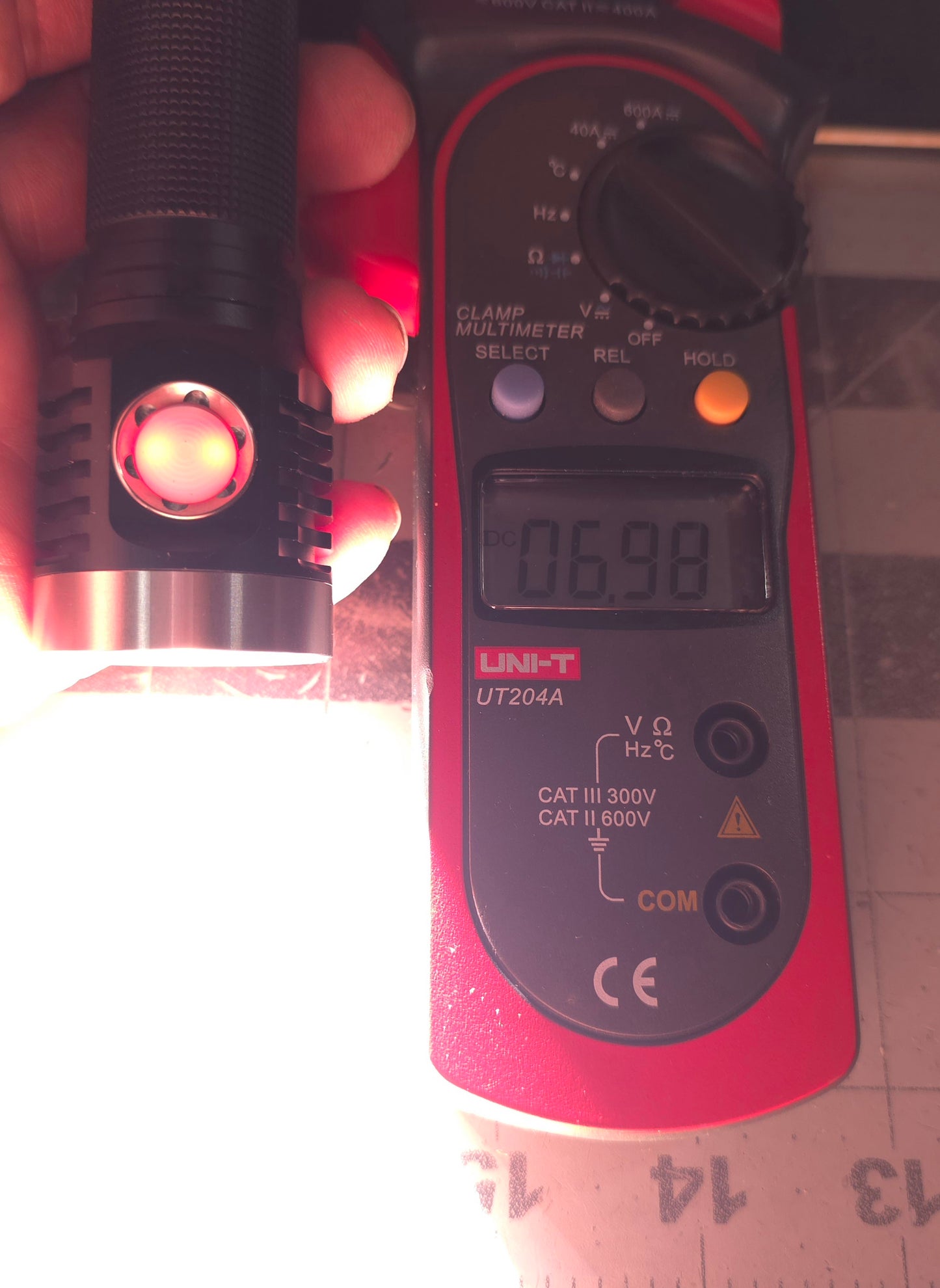

6V BOOST DRIVER IS 4A SO THE OUTPUT WILL BE LESS BUT LESTED THE DRIVER PUSHED OUT OVER 7A

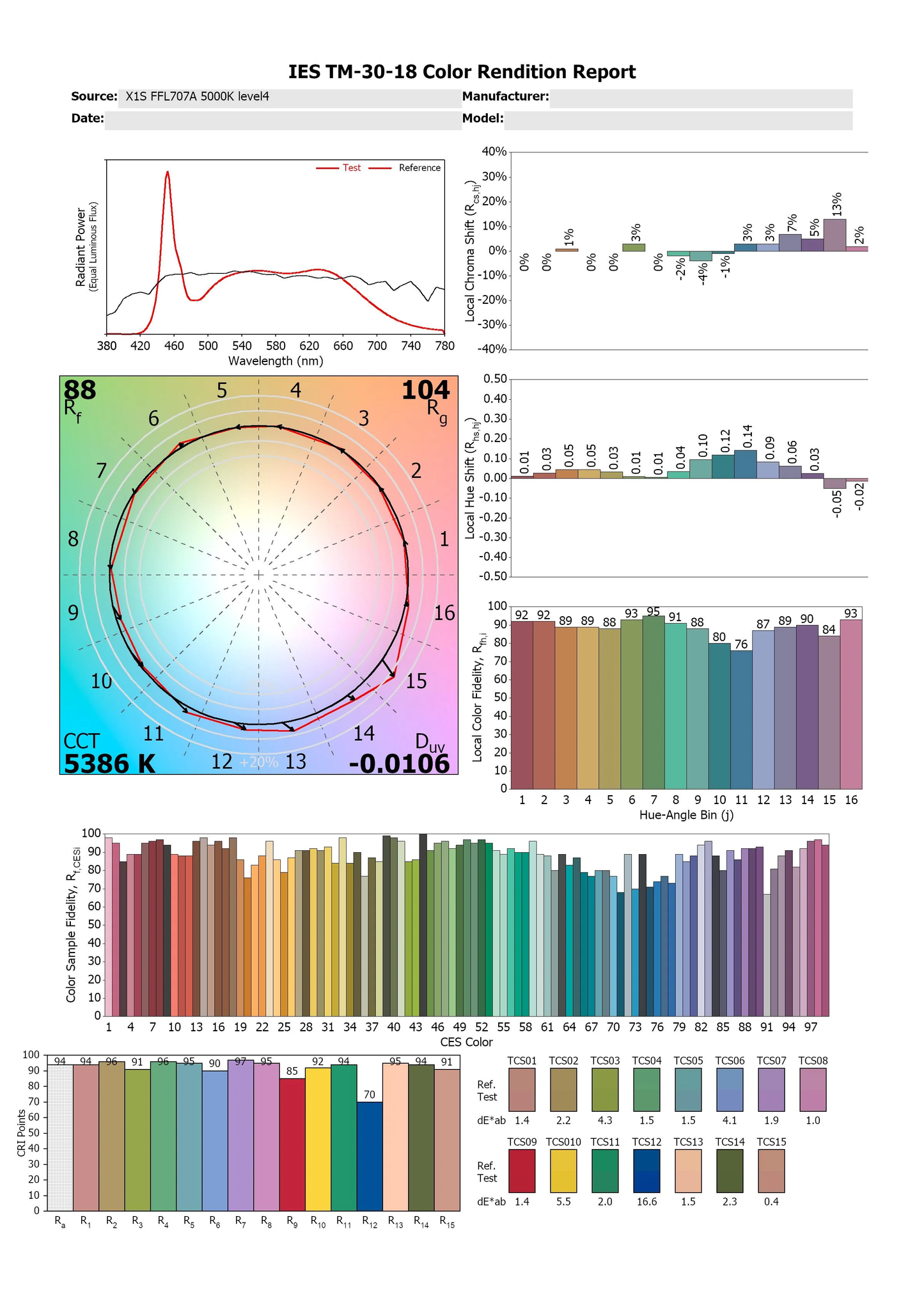

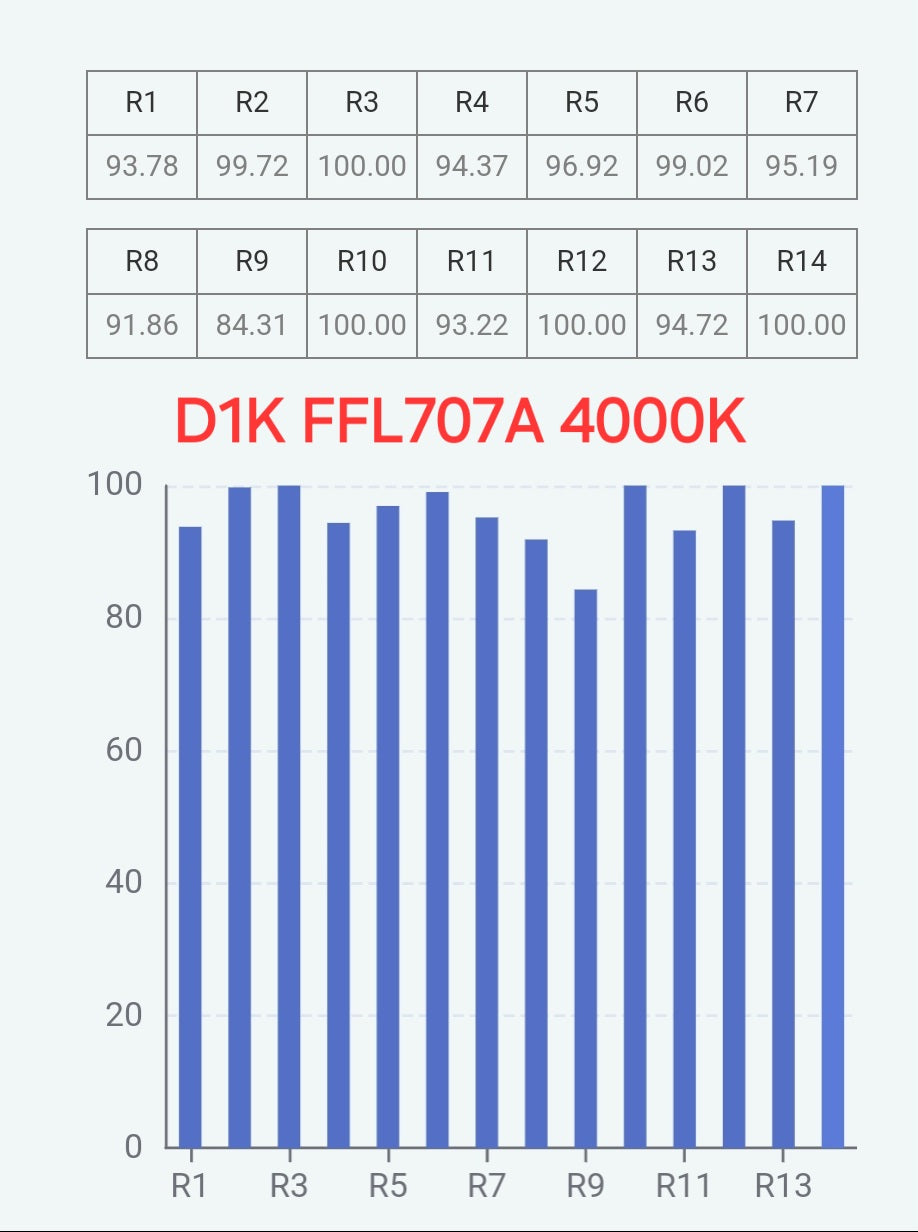

707A COLOR TEMP:

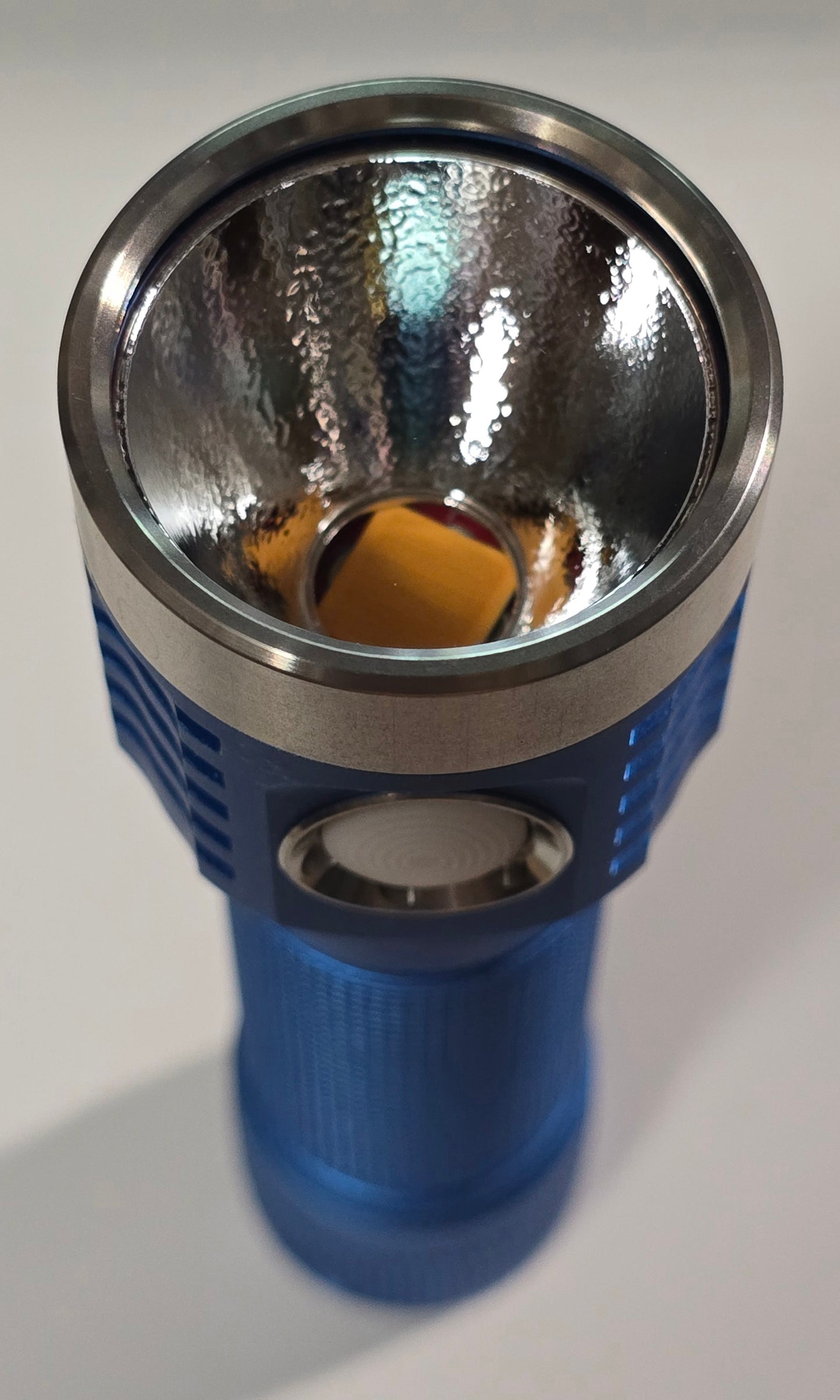

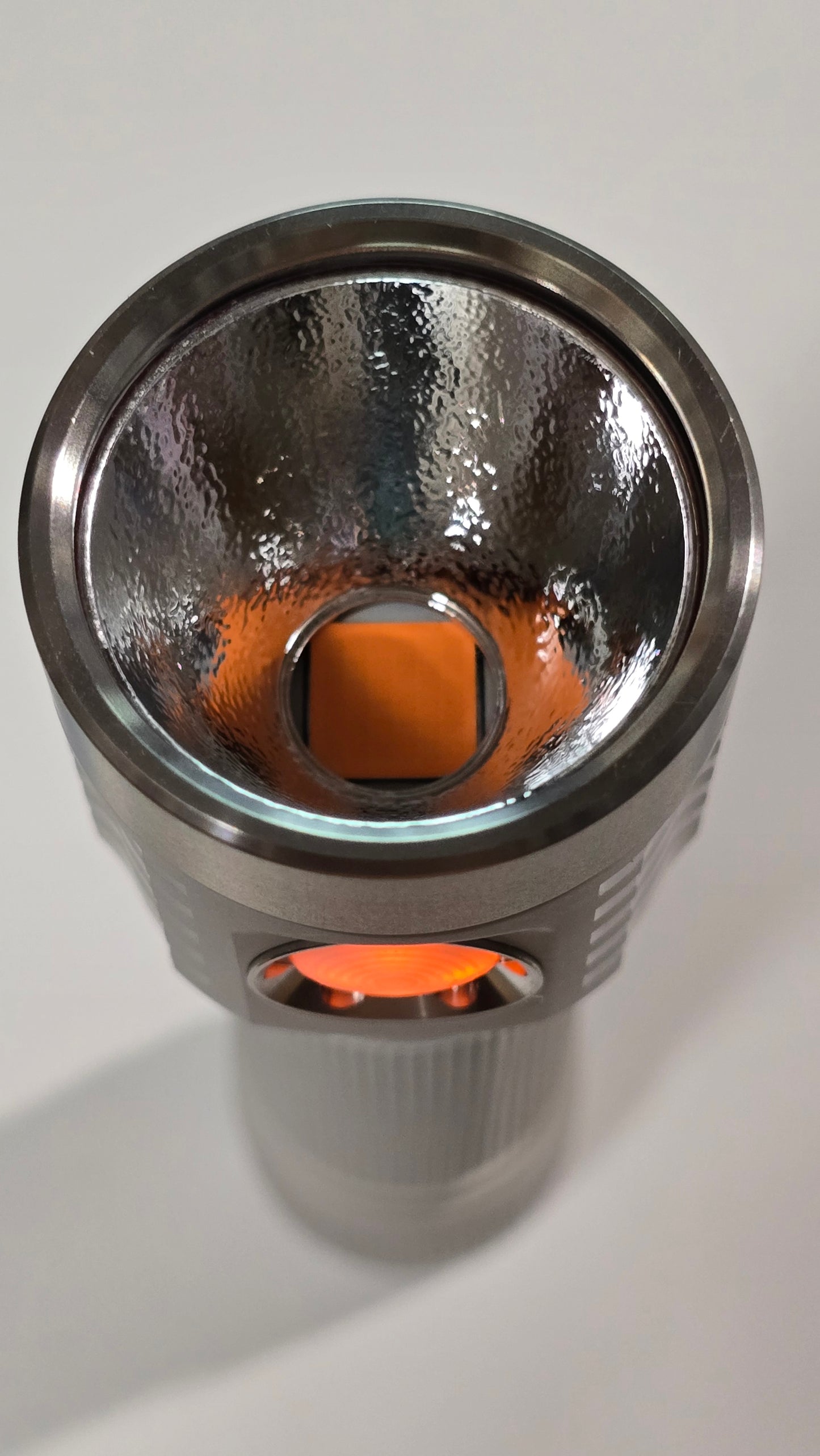

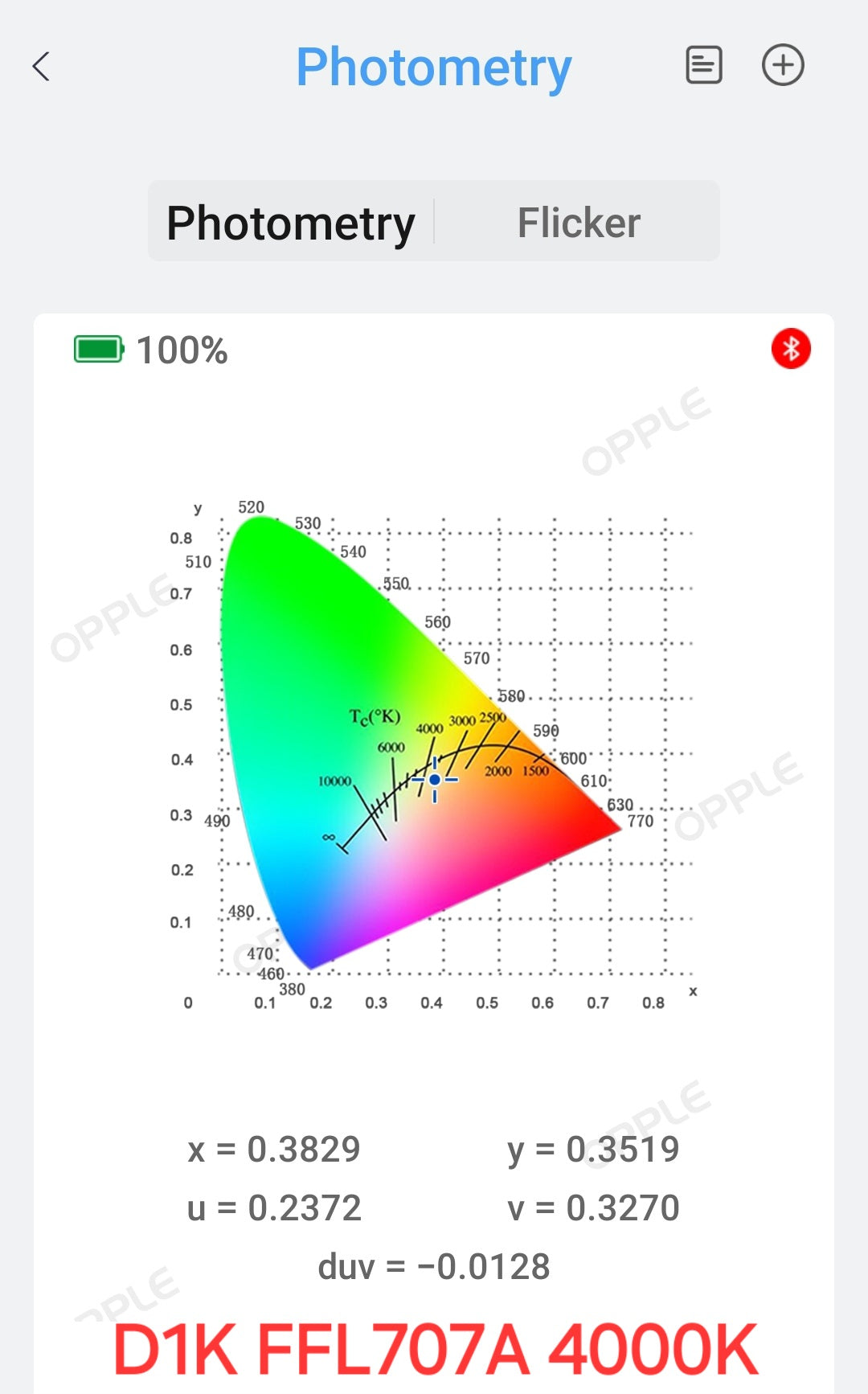

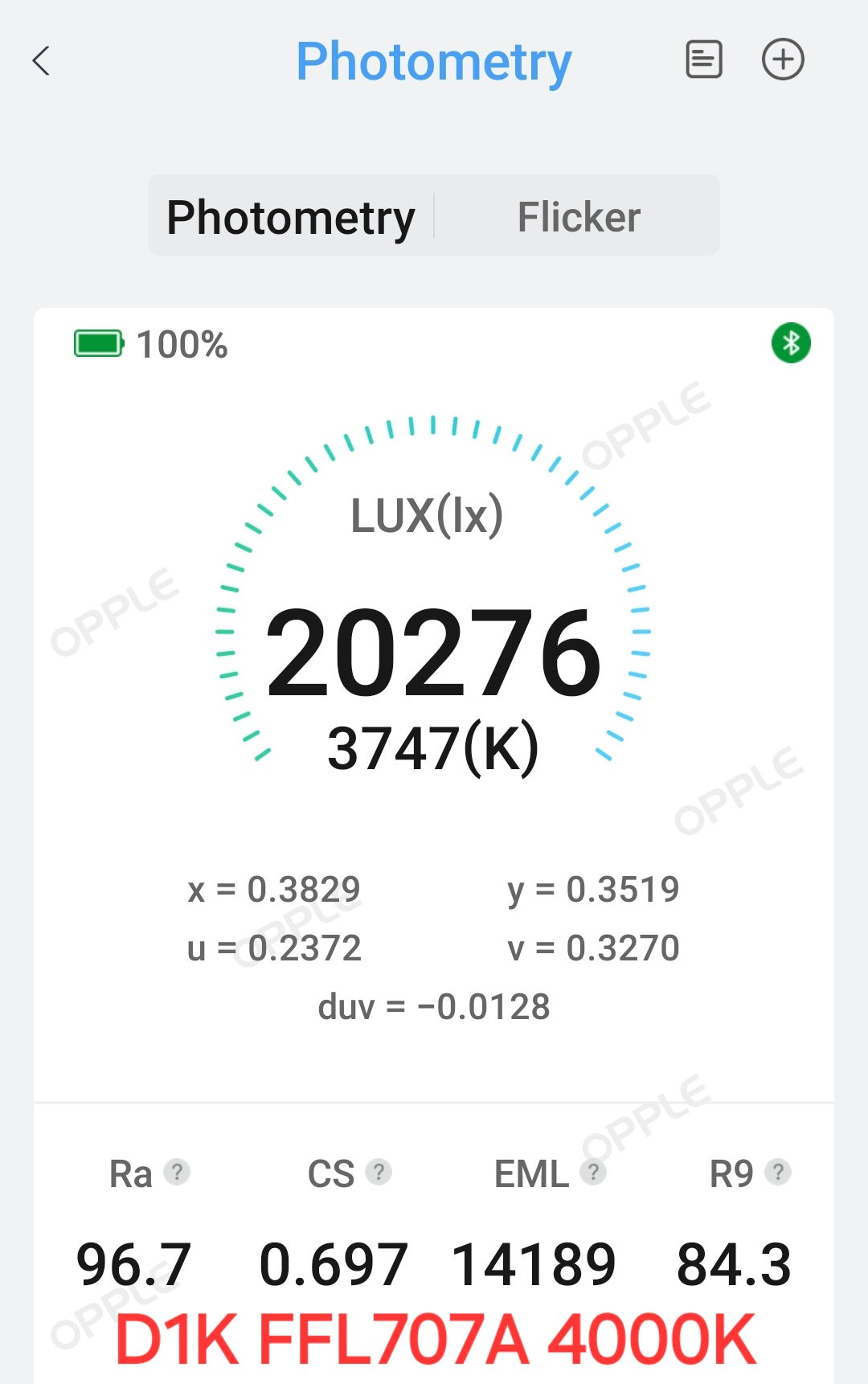

VERY POPULAR! 4000K 96CRI @ 3000LM ROSY BIN (VERY ROSY)

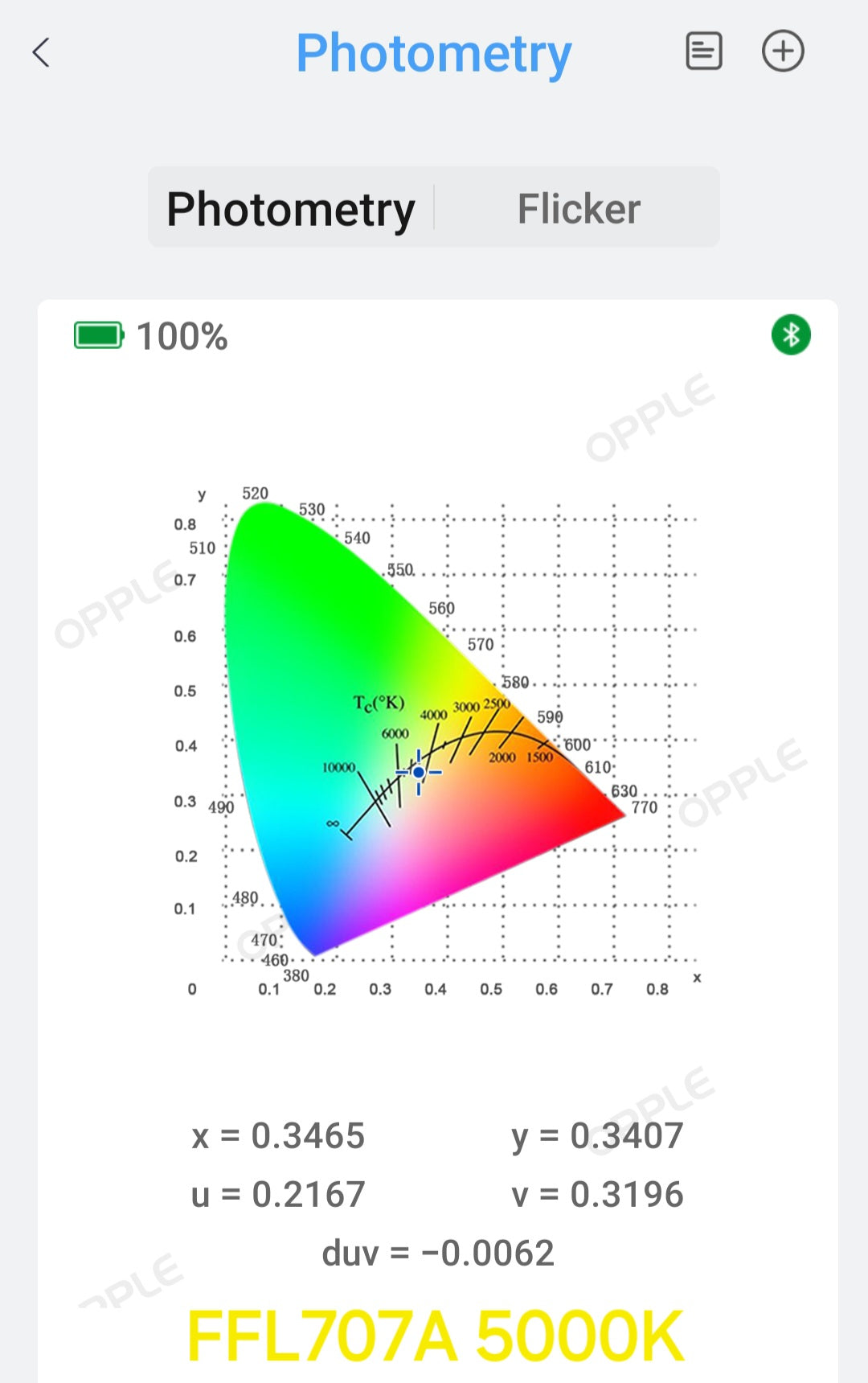

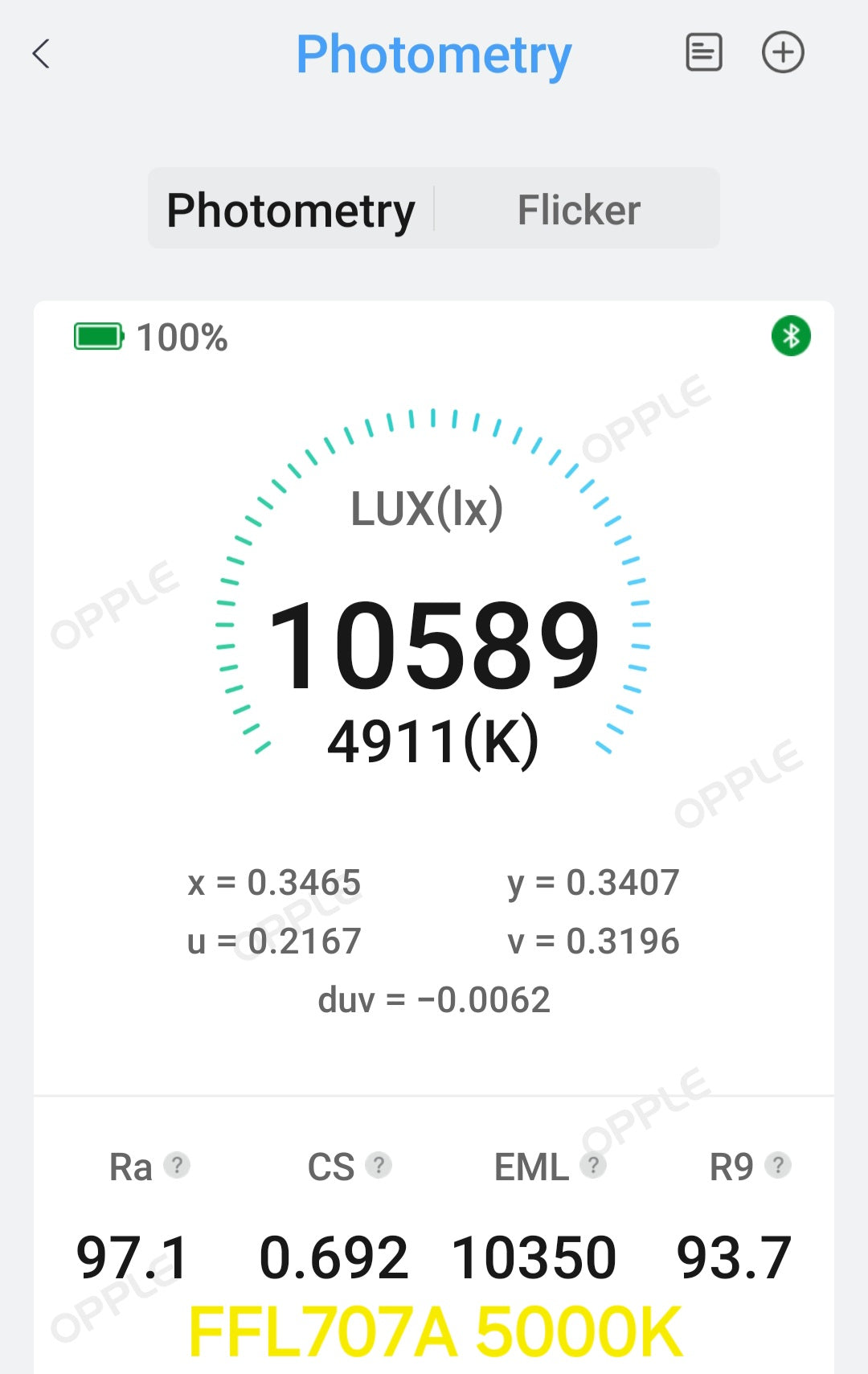

5000K 95CRI @ 3200LM

6500K 70CRI @ 4200LM
TKLAMP LUMEN TEST 3200LM

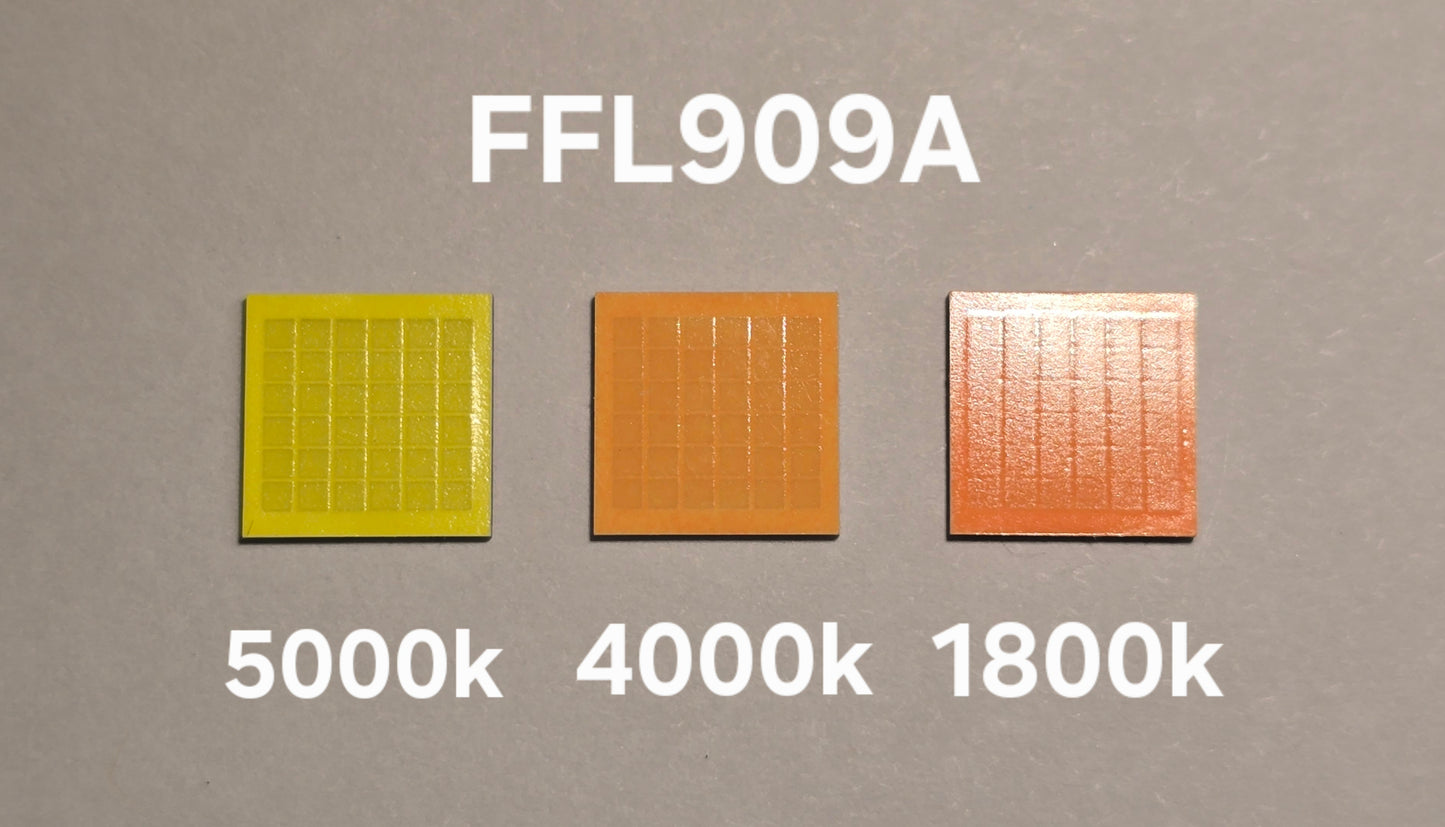

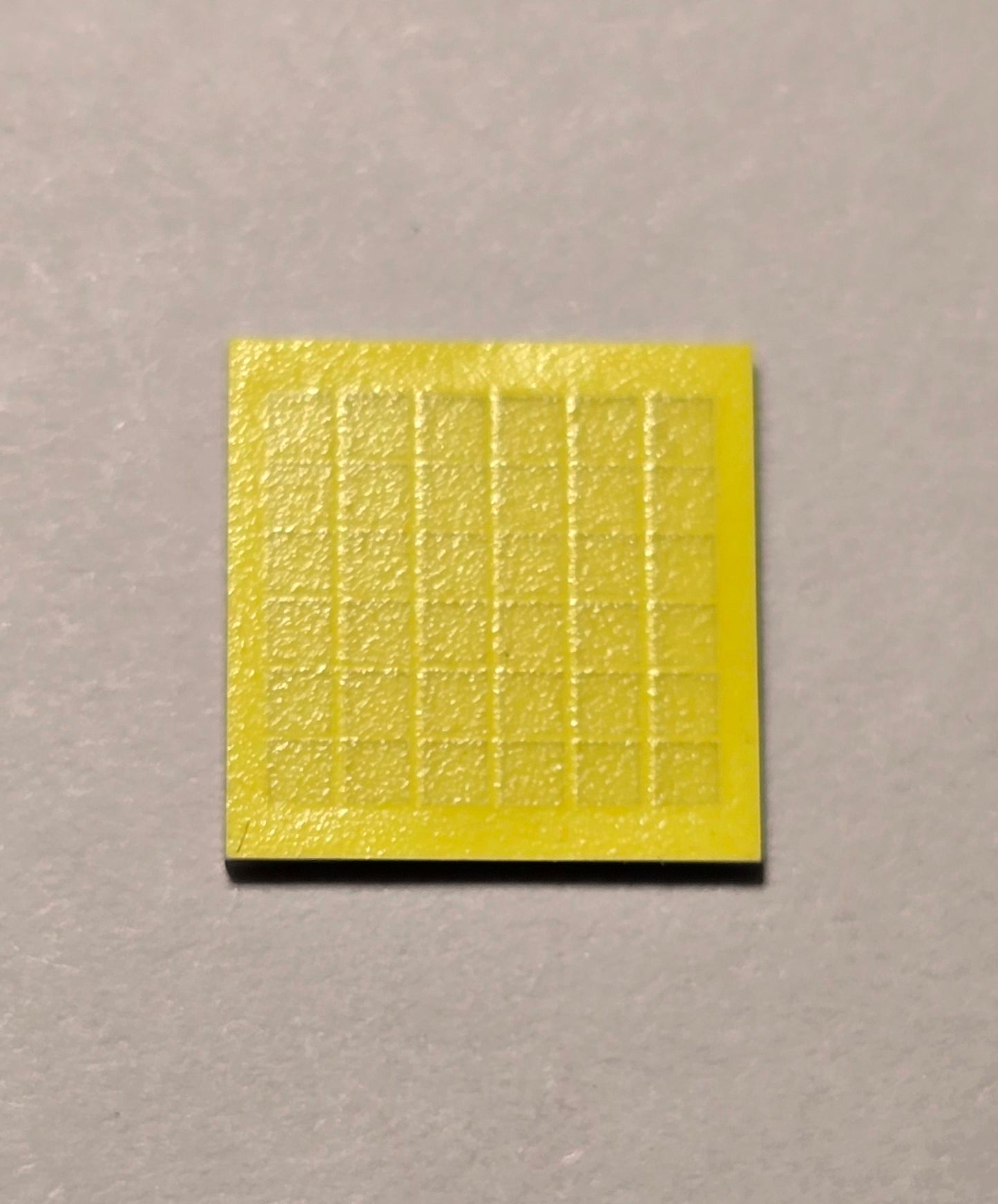

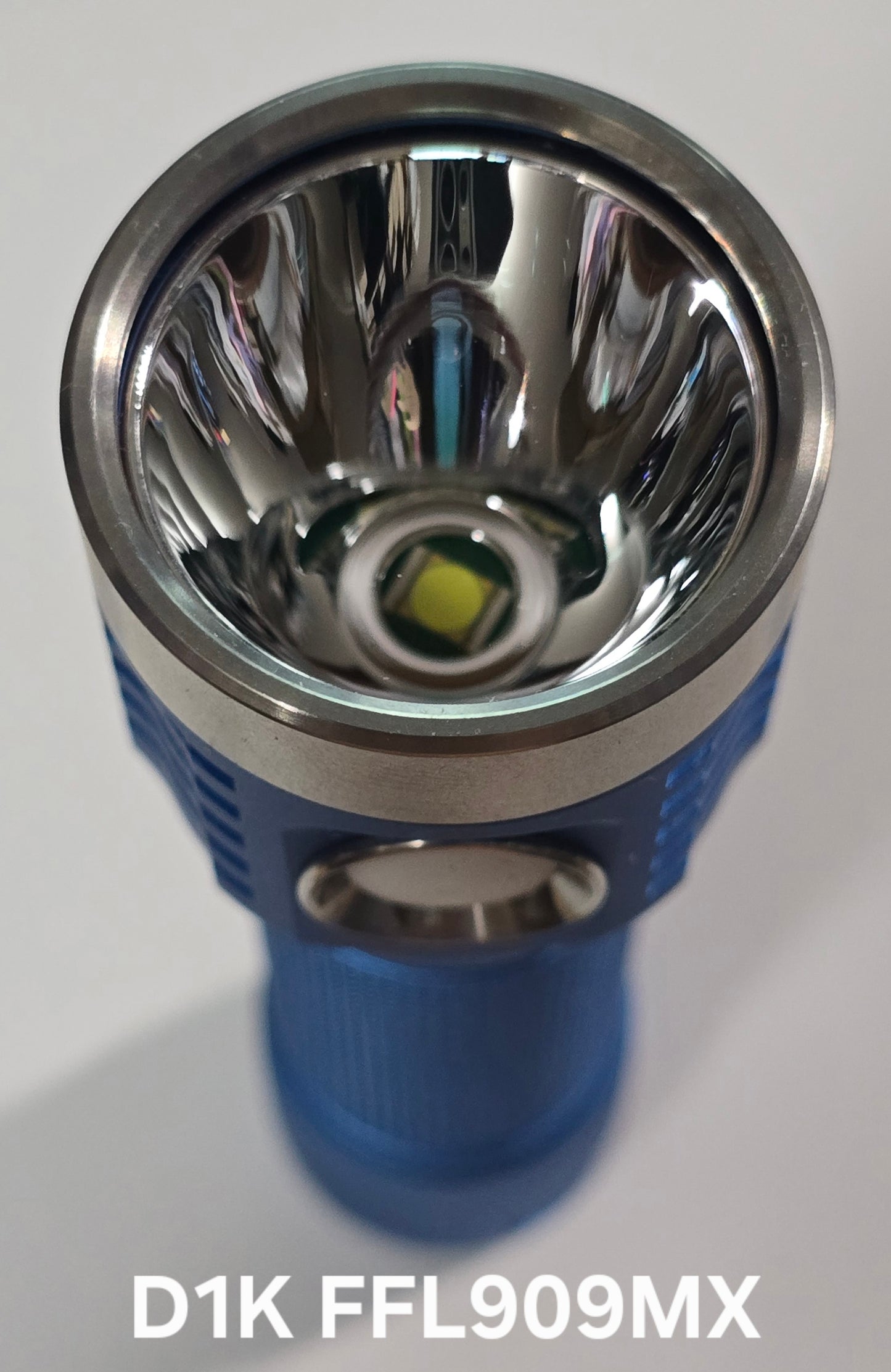

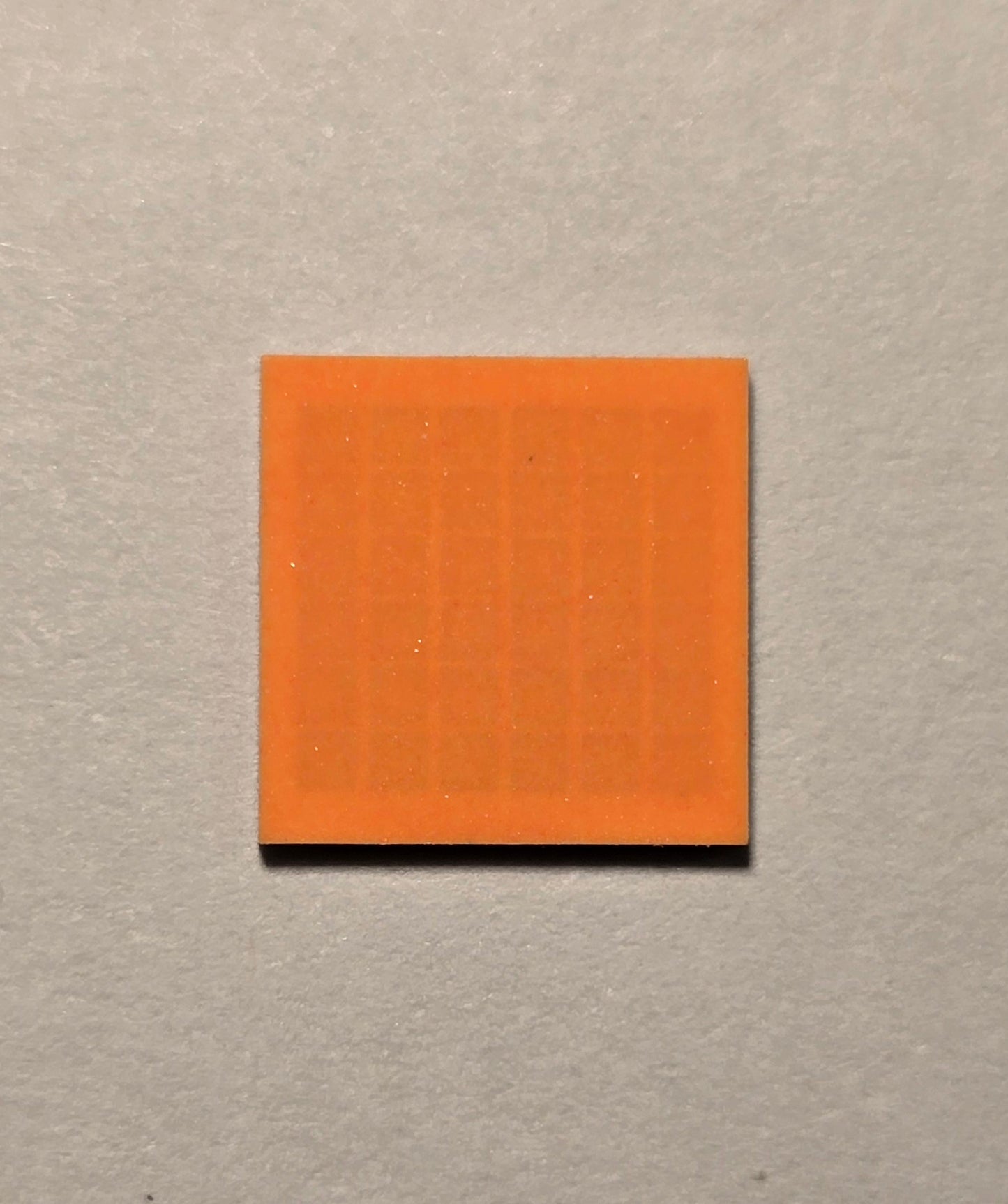

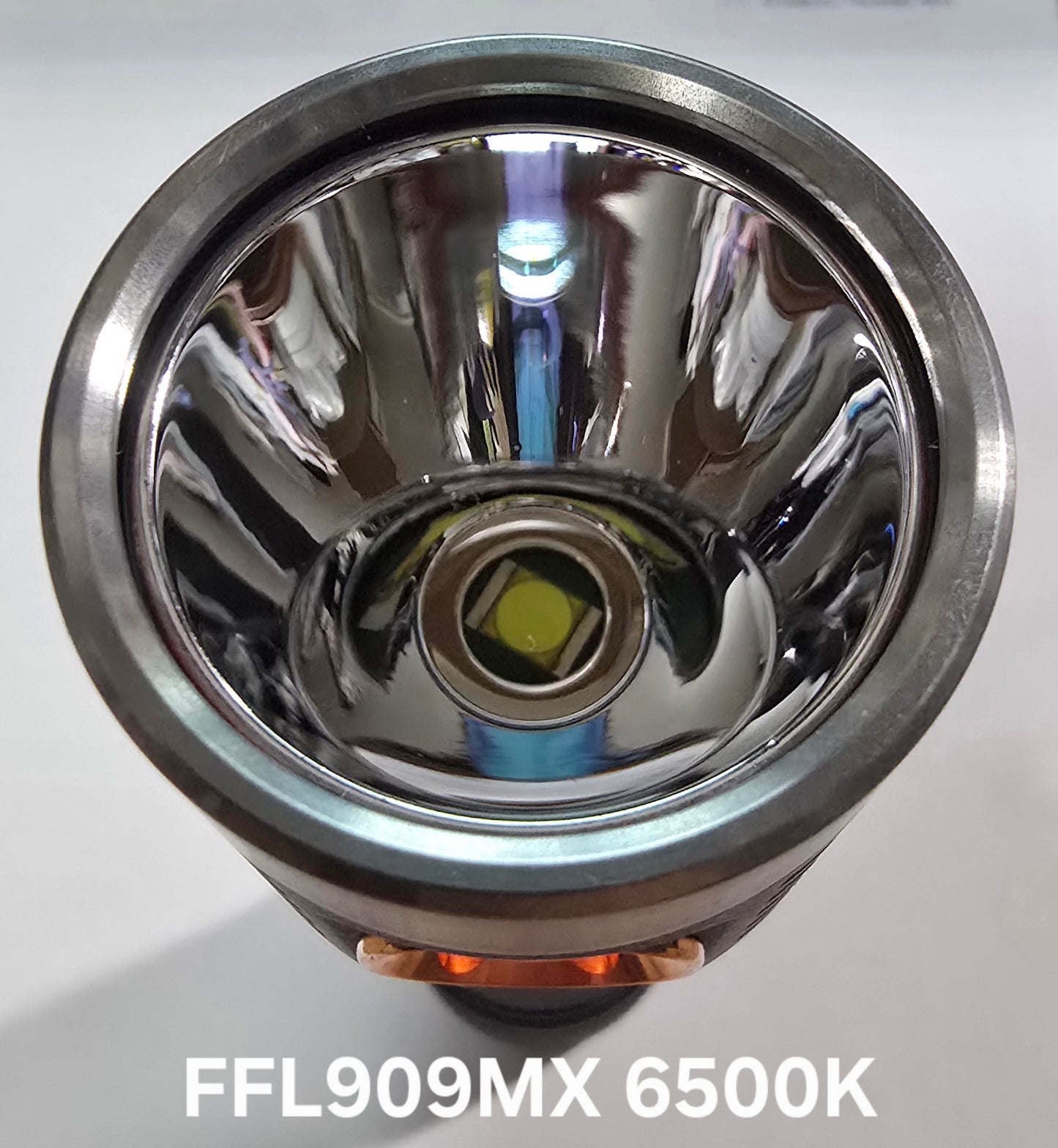

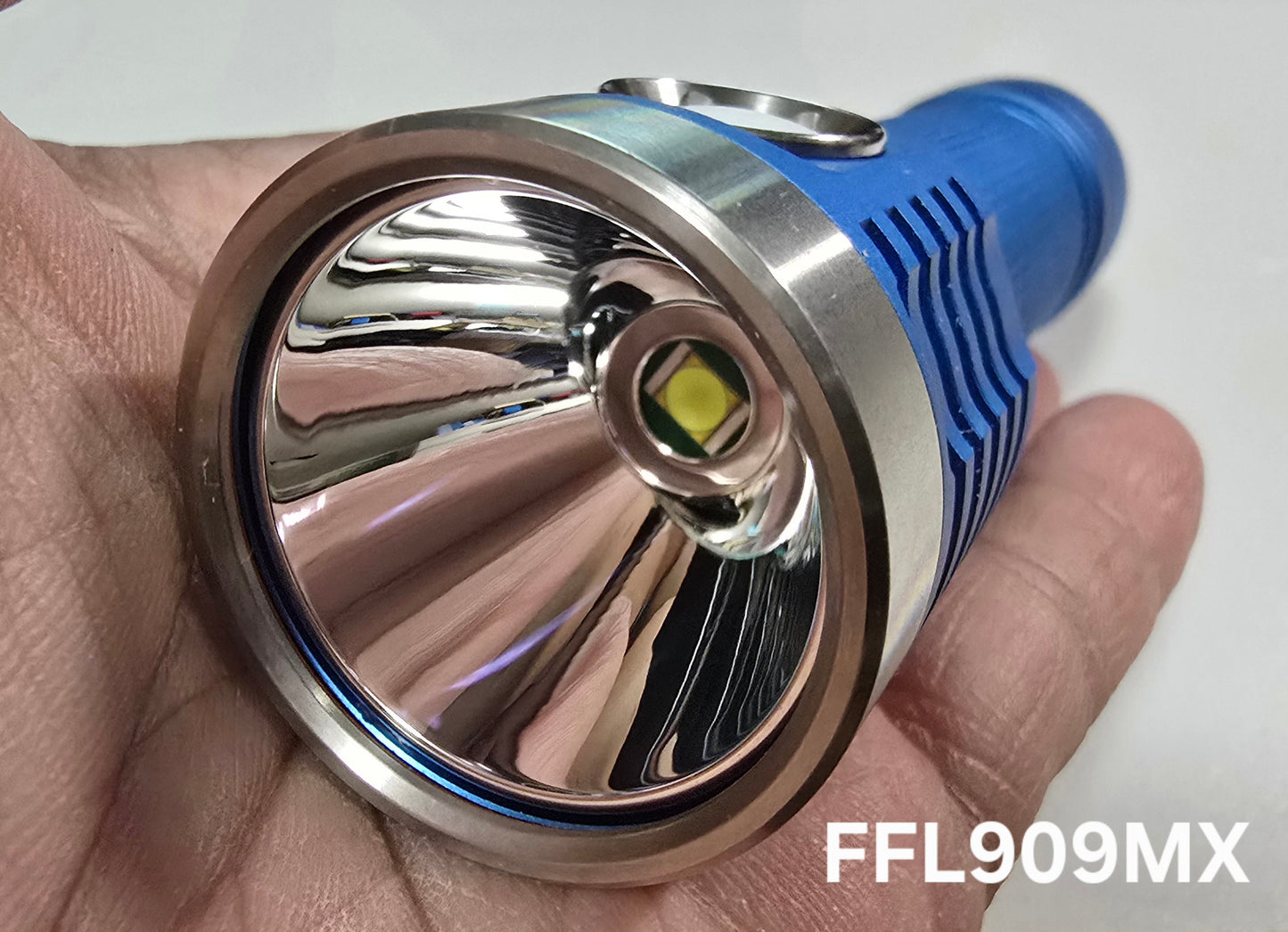

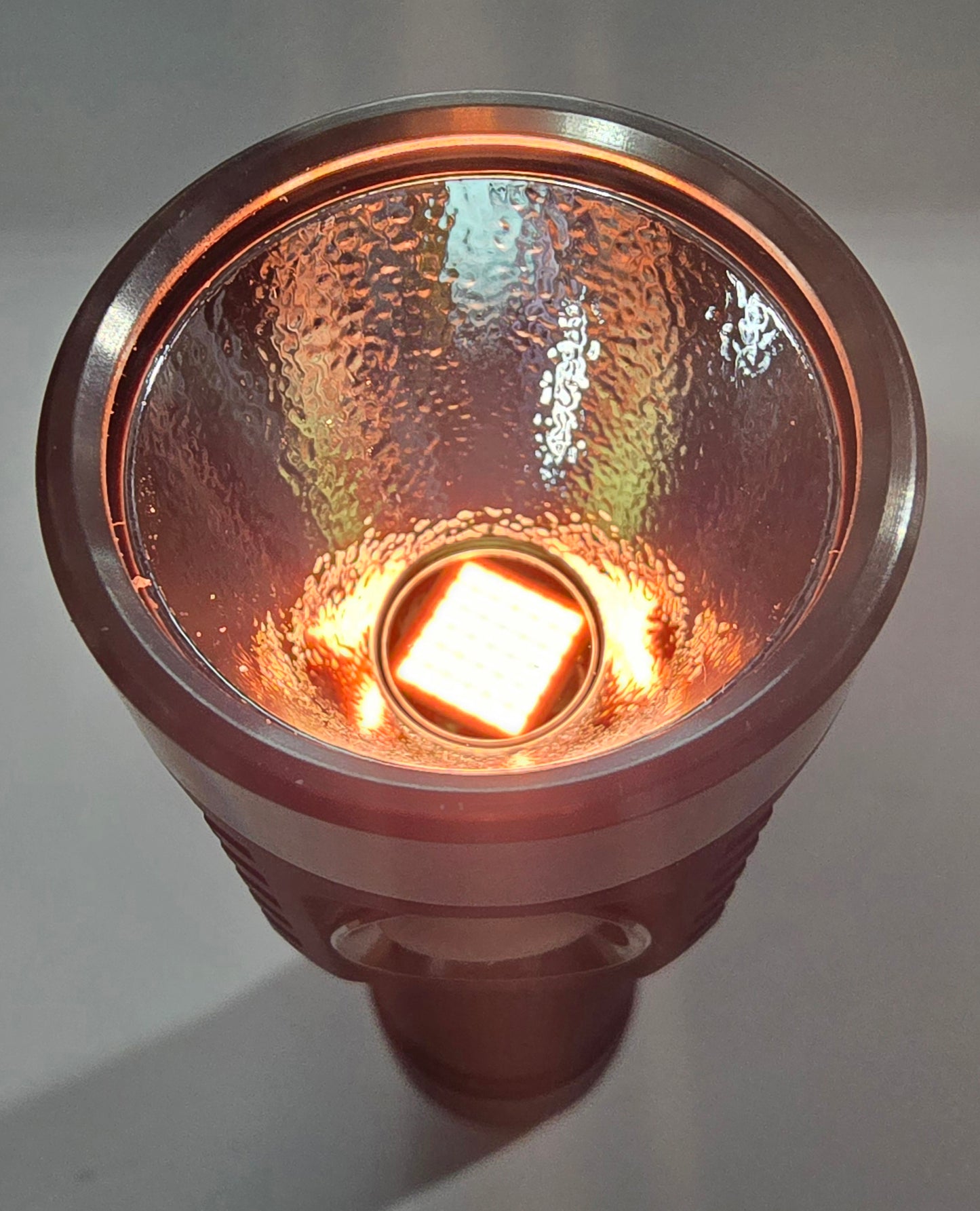

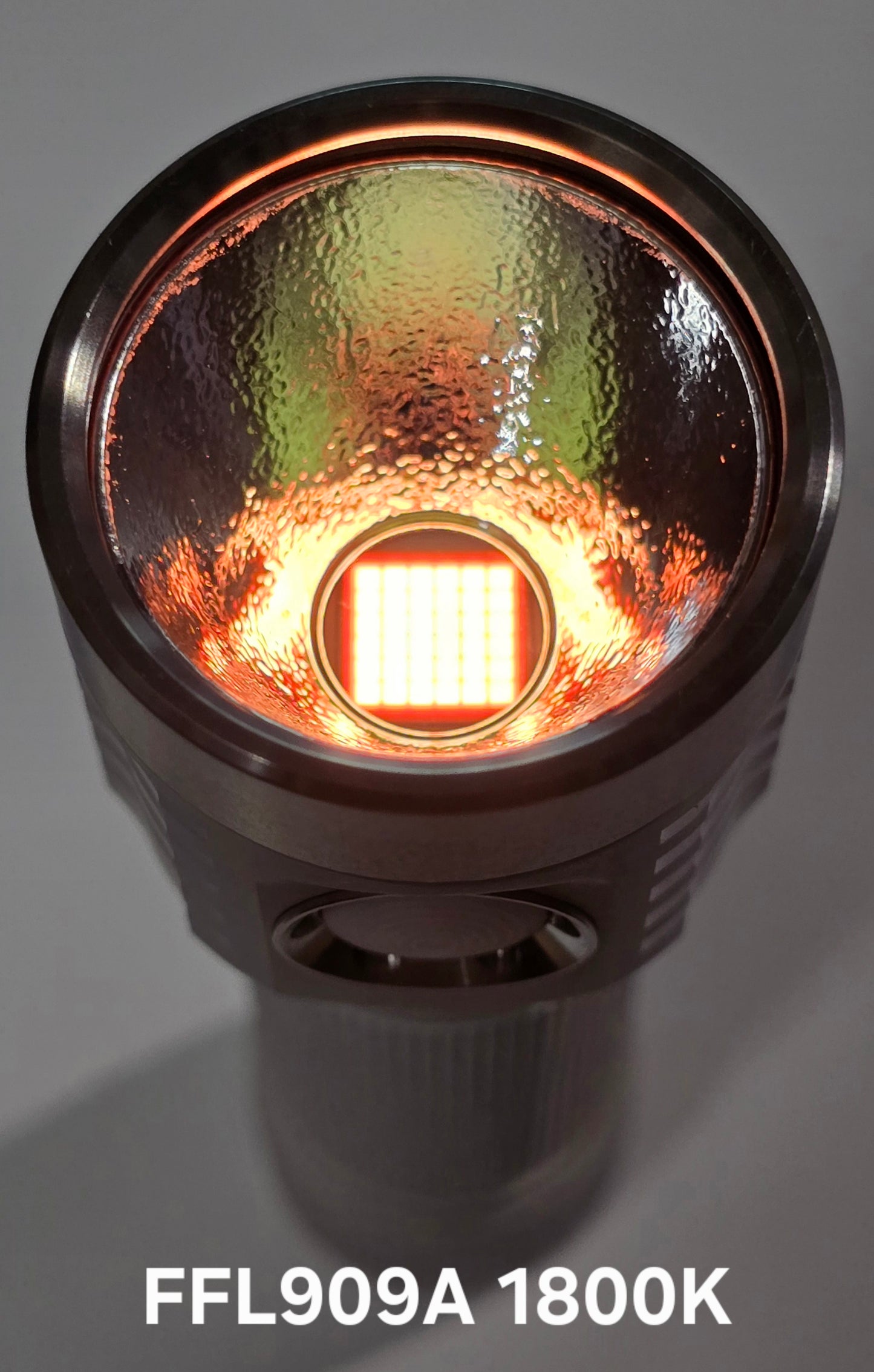

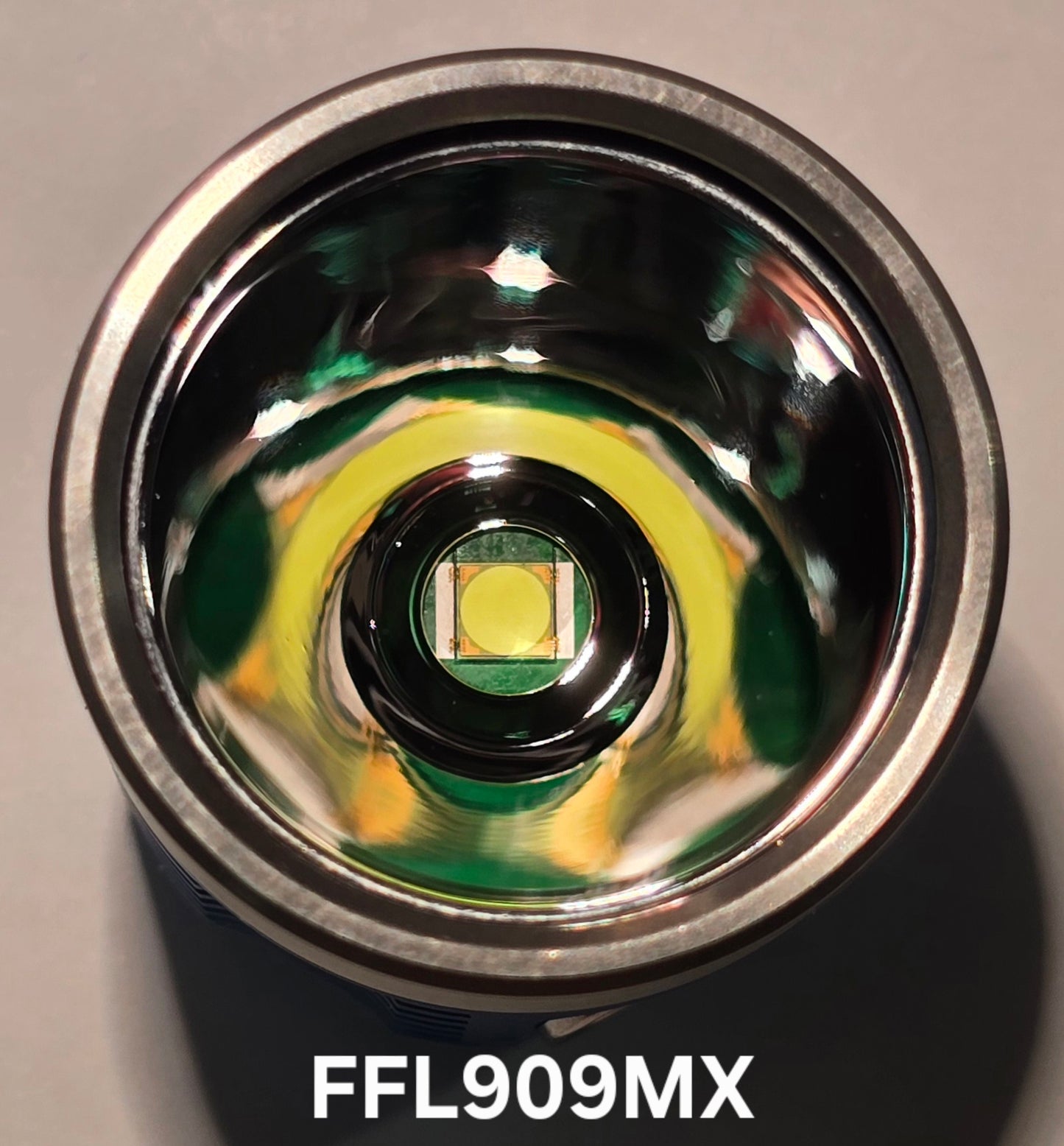

FFL909A SPECS (MOST POPULAR!) >>>

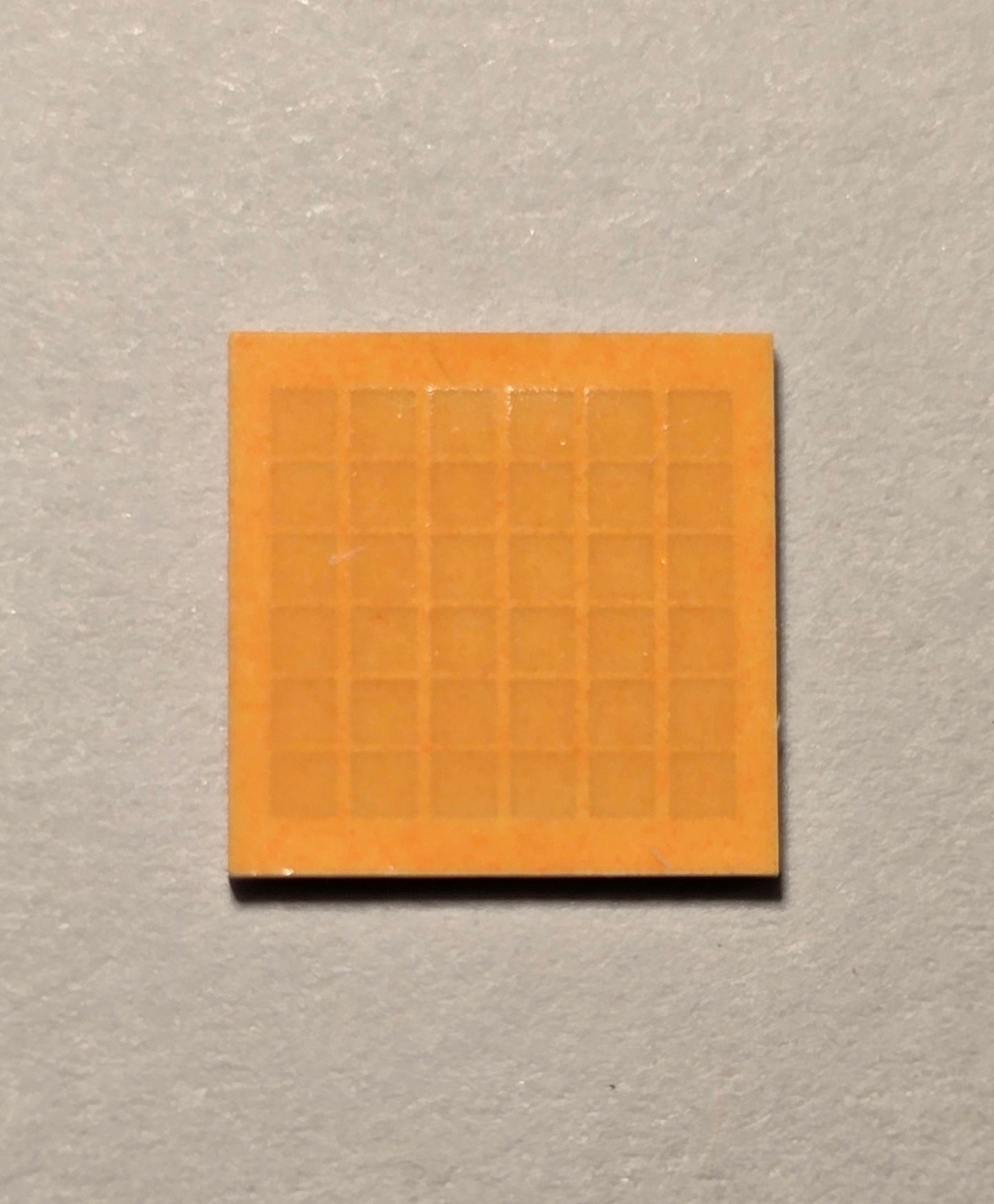

FFL909A (FIREFLYLITE)

9090SMD

9MM X 9MM

VF 2.78V

40A MAX CURRENT

100W

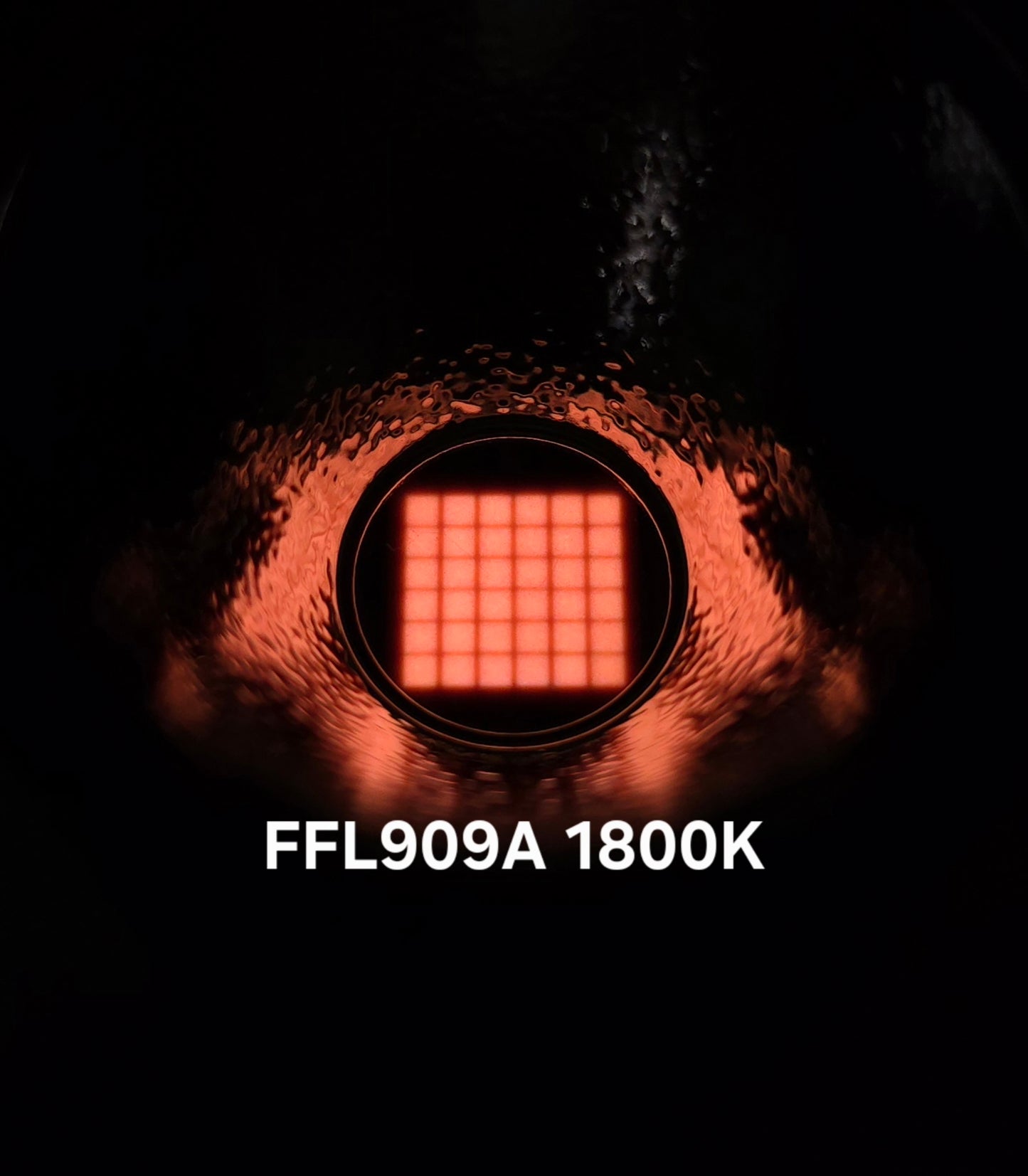

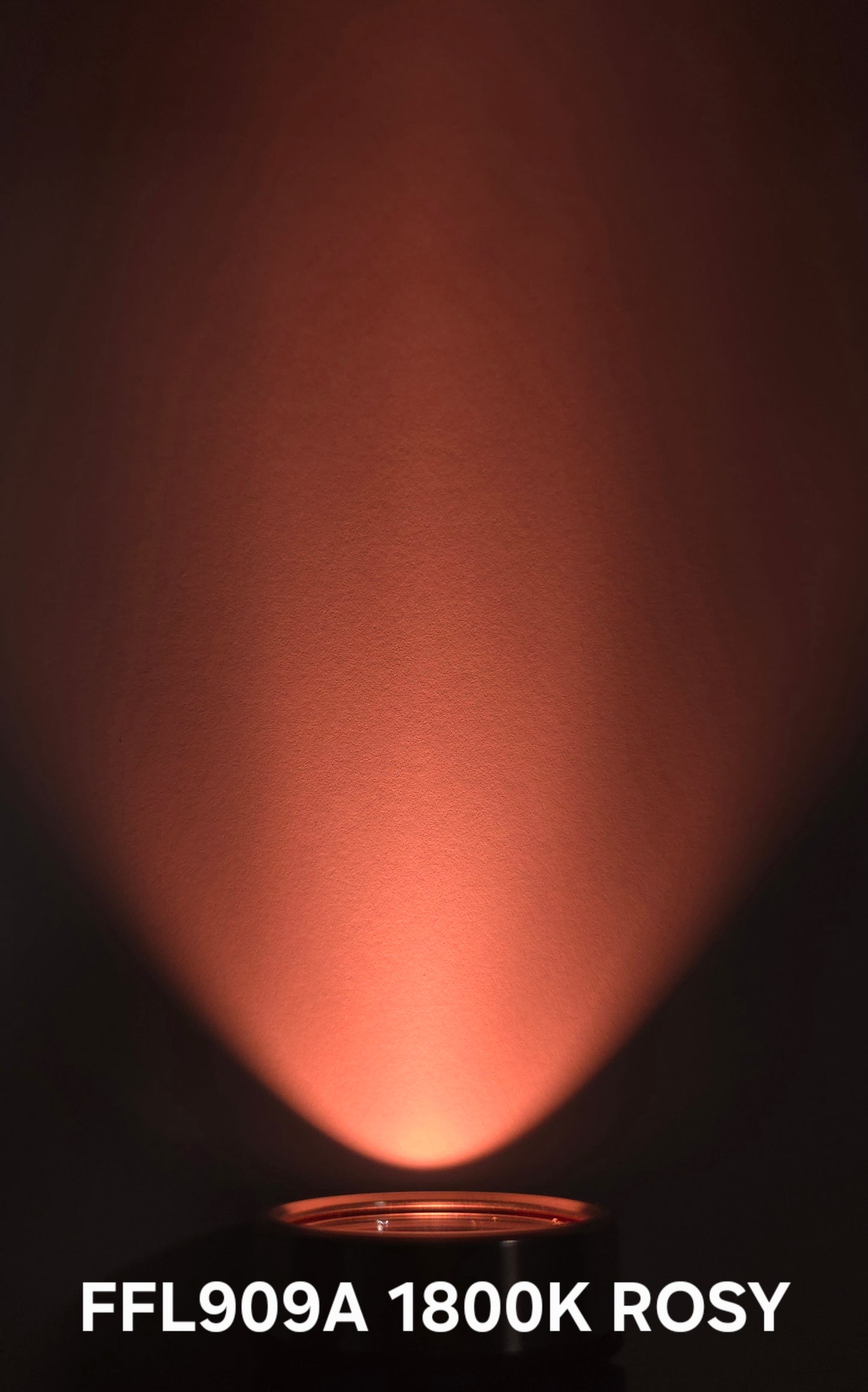

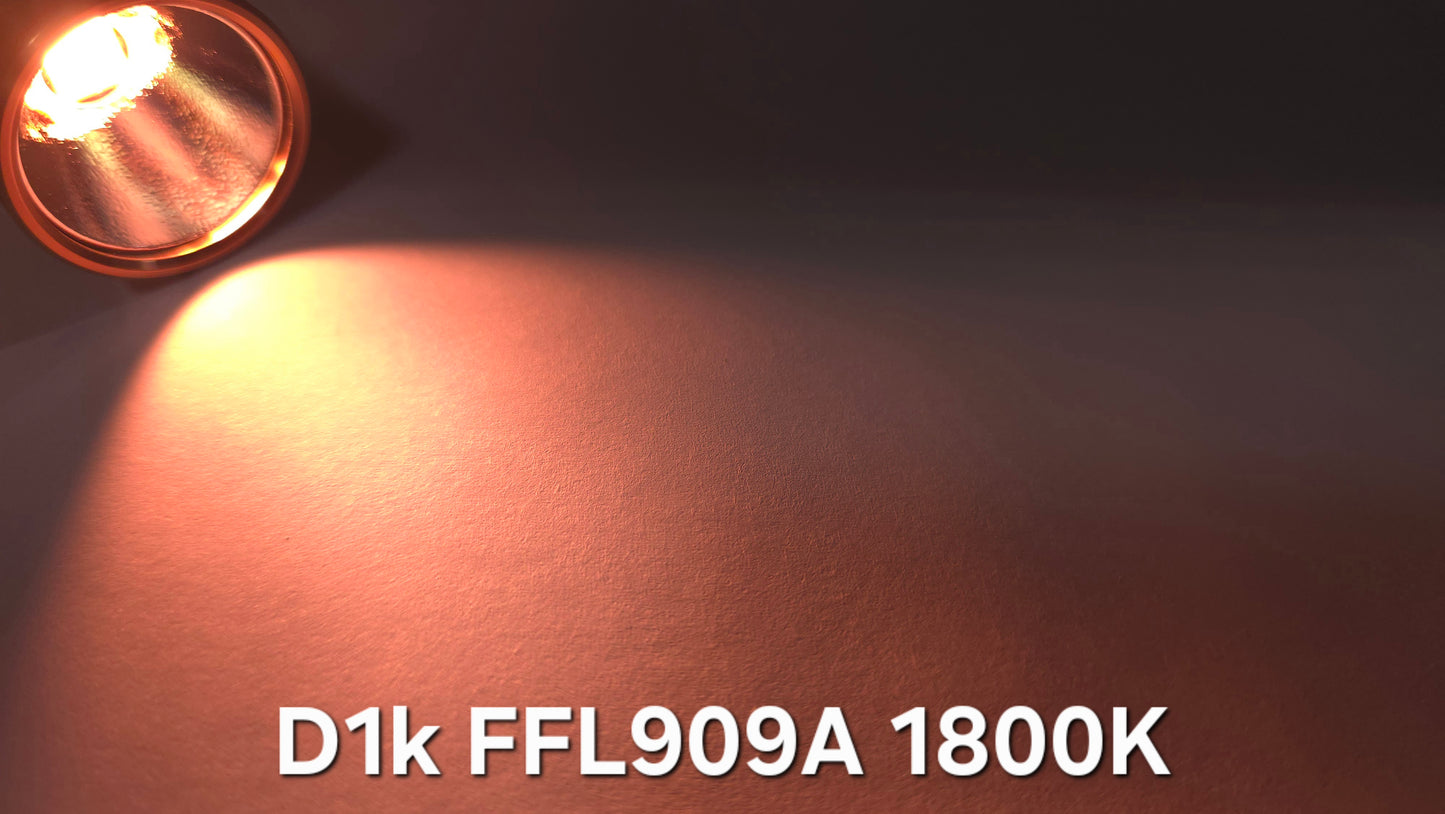

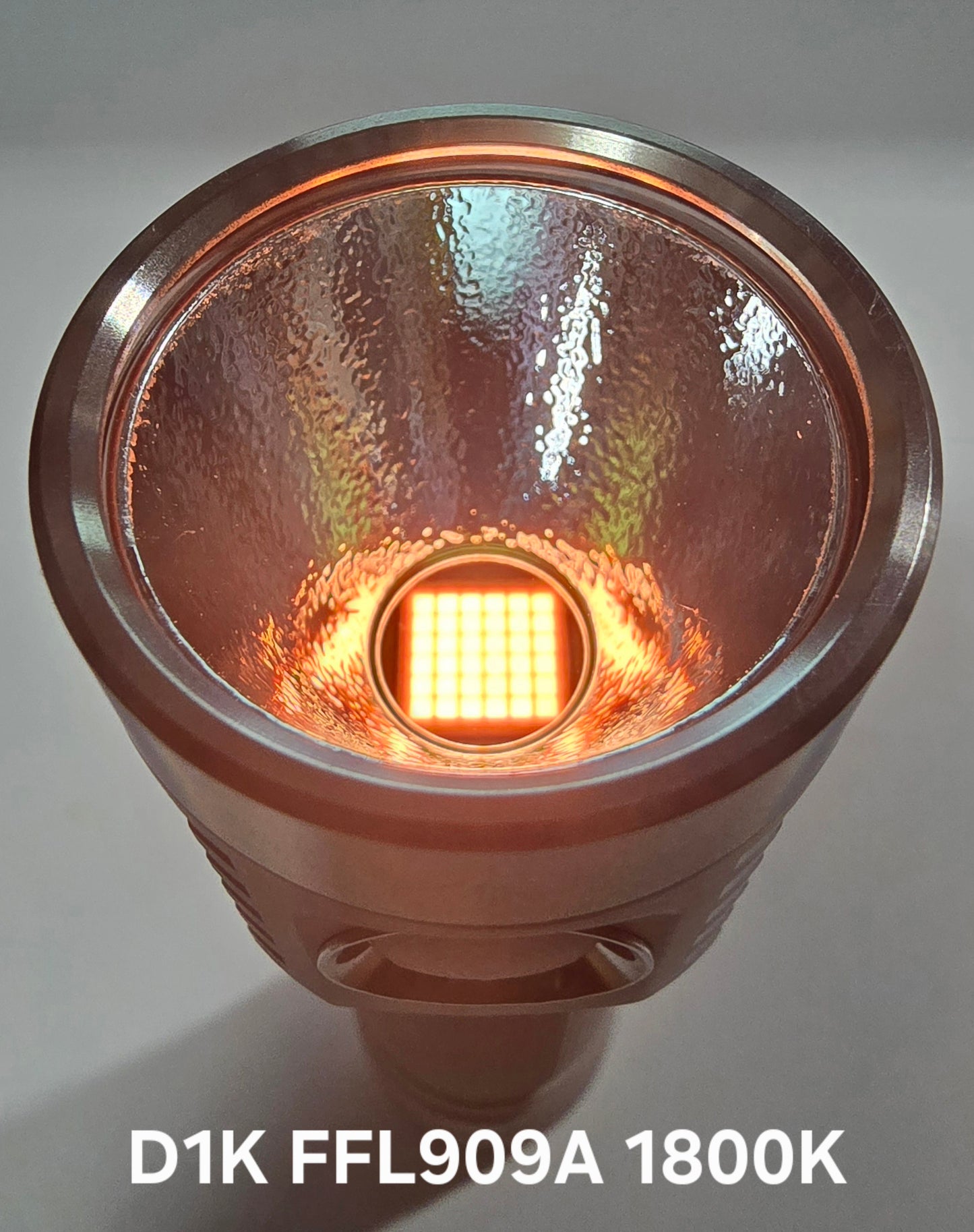

1800K 90CRI 247LM @ 1A 170LM PER WATT

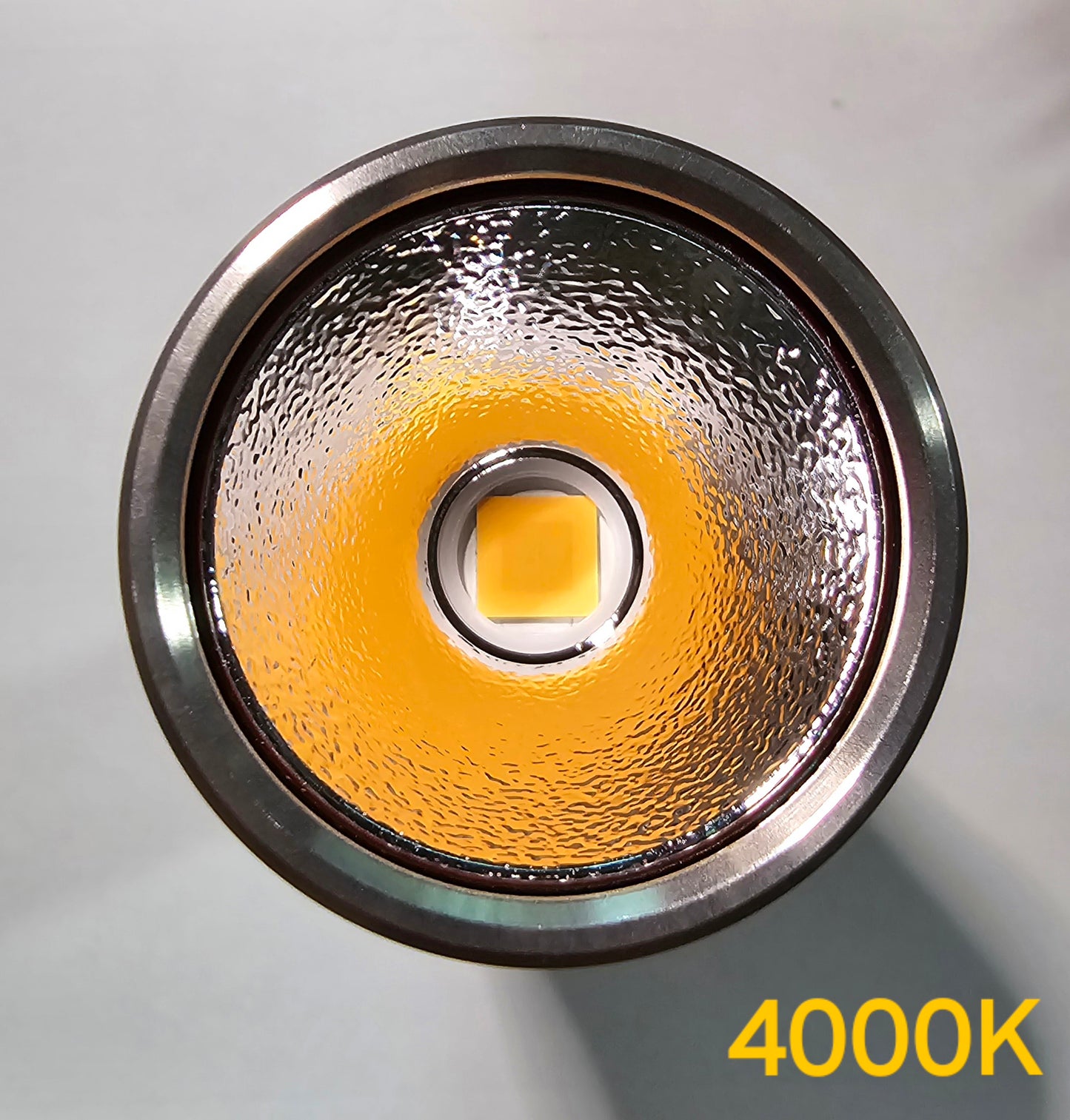

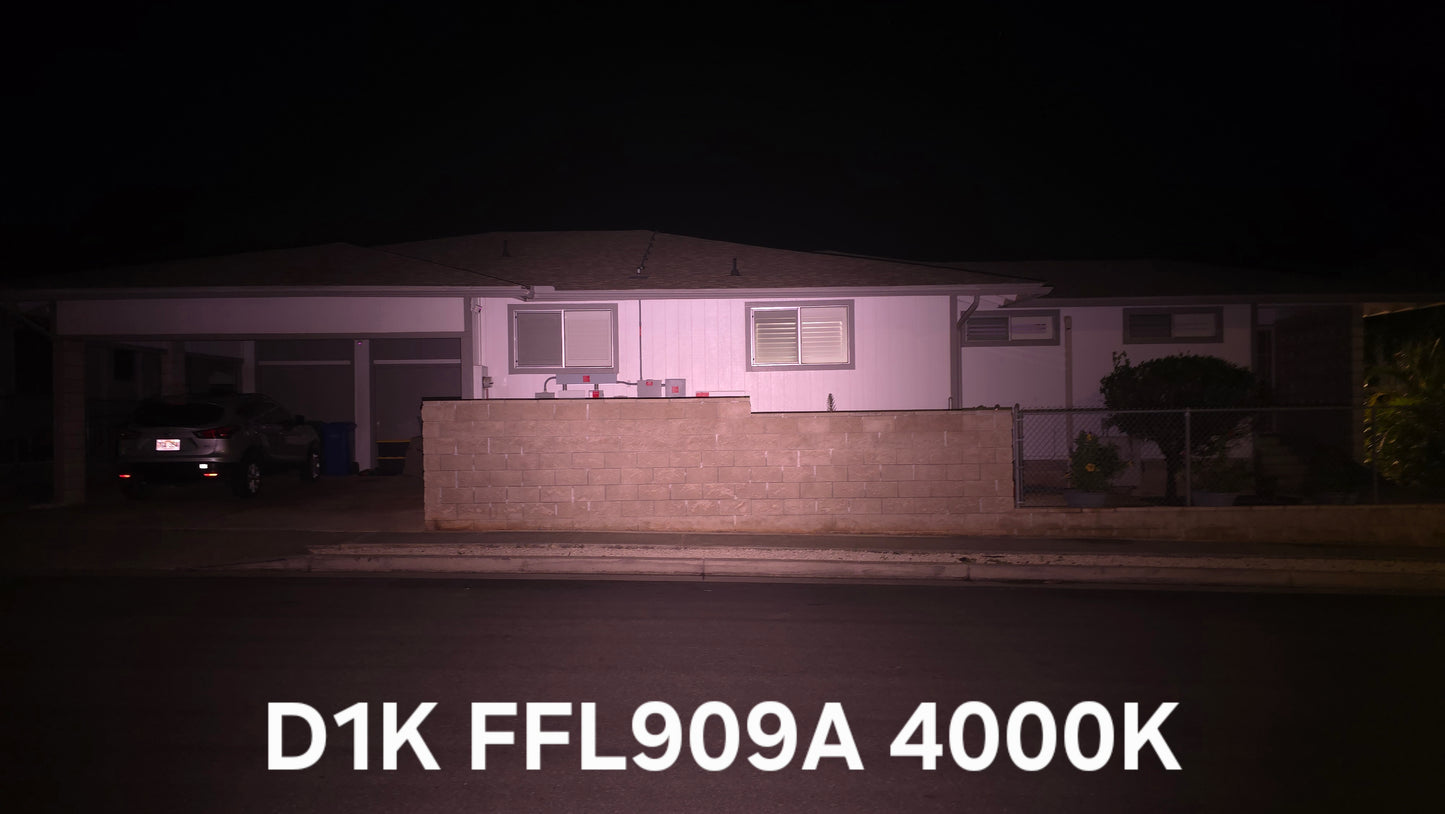

4000K 92 CRI ROSY BIN 313LM @ 1A 113LM PER WATT (5400LM D1K)

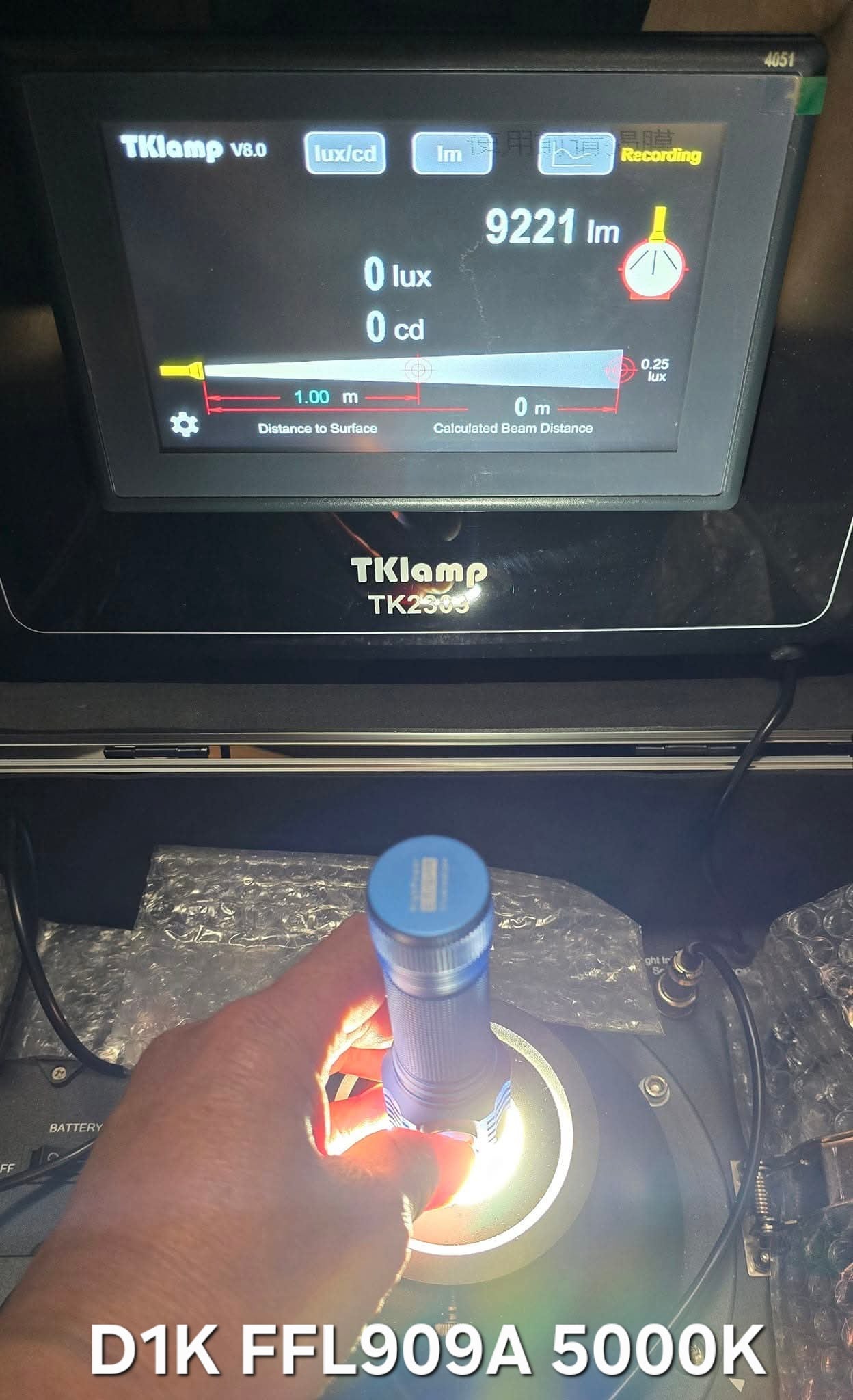

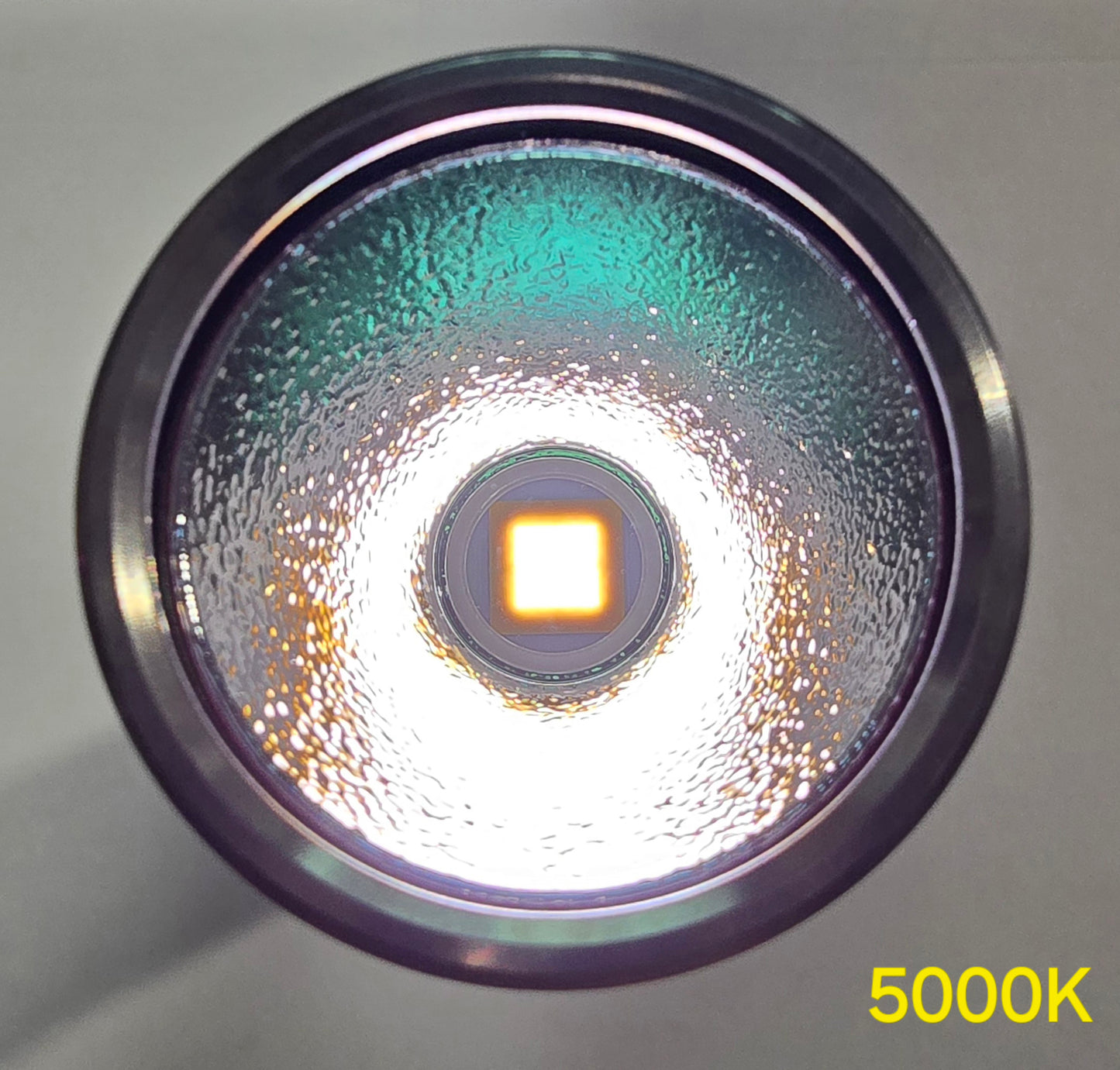

5000K 70CRI 475LM @ 1A 170LM PER WATT (8400LM D1K)

LUMINUS LED:

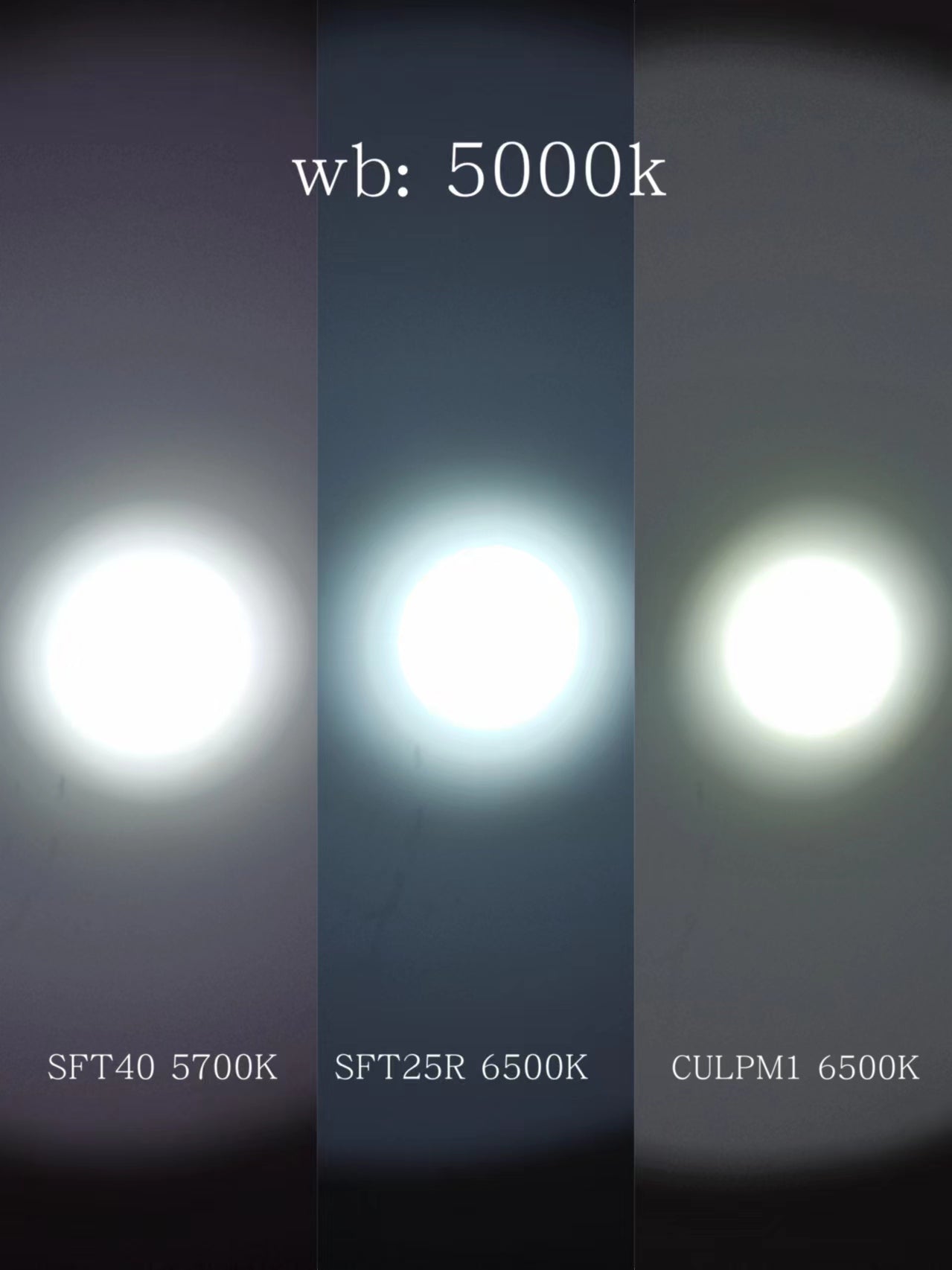

SFT25R G1 BIN (6500K)

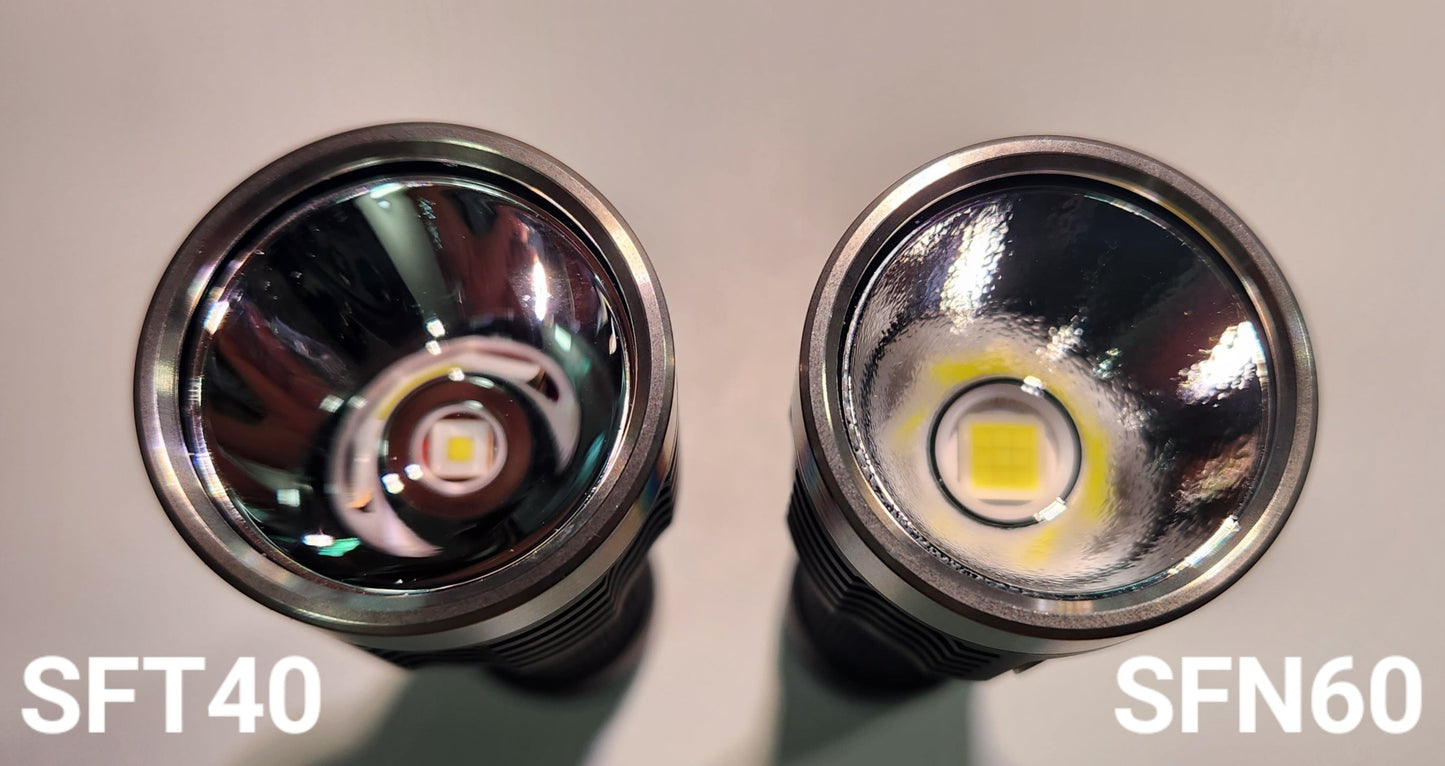

SFT40 (3000K HD2, 5000K & 6500K)

SBT90.2 5700K

OSRAM LED:

OSRAM W2.1/W2.2

SAN'AN LED:

SFN60 (HIGH LUMENS)

HIGH LUMES!

7070SMD

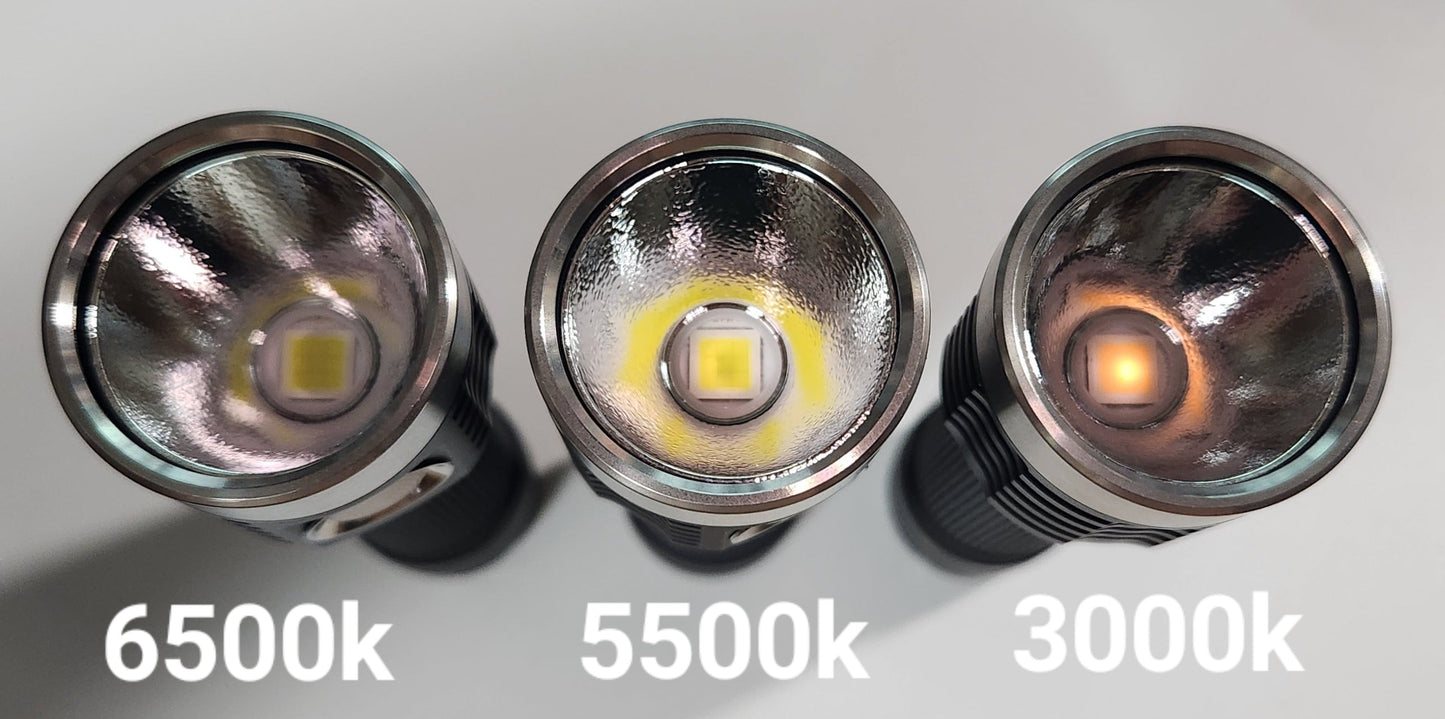

6500K

5500K

3000K

SFN60 OUTPUT LUMENS:

4000-5000LM (20A)

9000LM MAX (35A)

TKLAMP LUMEN TEST 6800LM

COLOR TEMP:

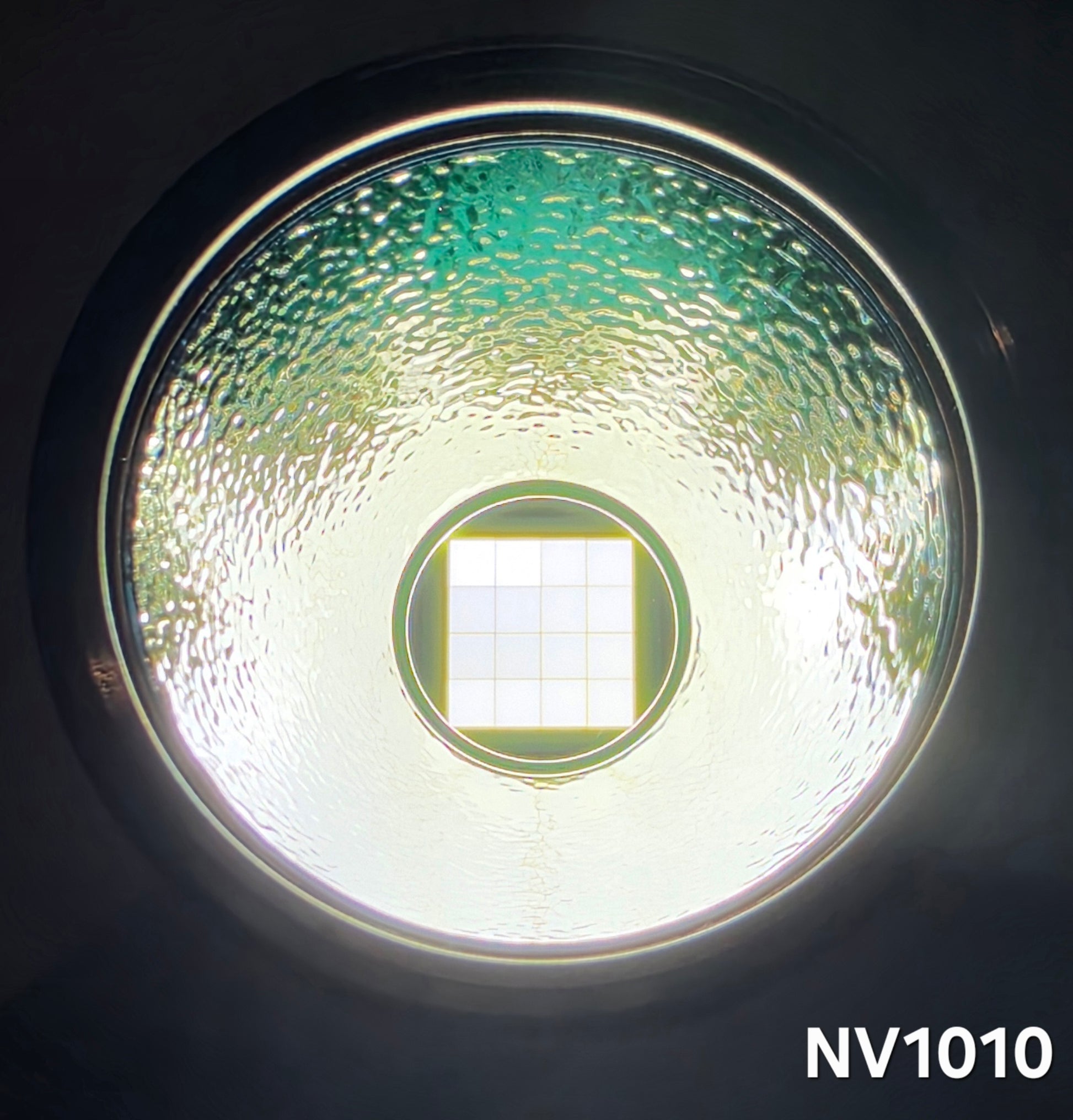

REFLECTOR OPTIONS:

DEPENDING ON THE EMITTERS USED WILL BE EITHER SMO OR OP

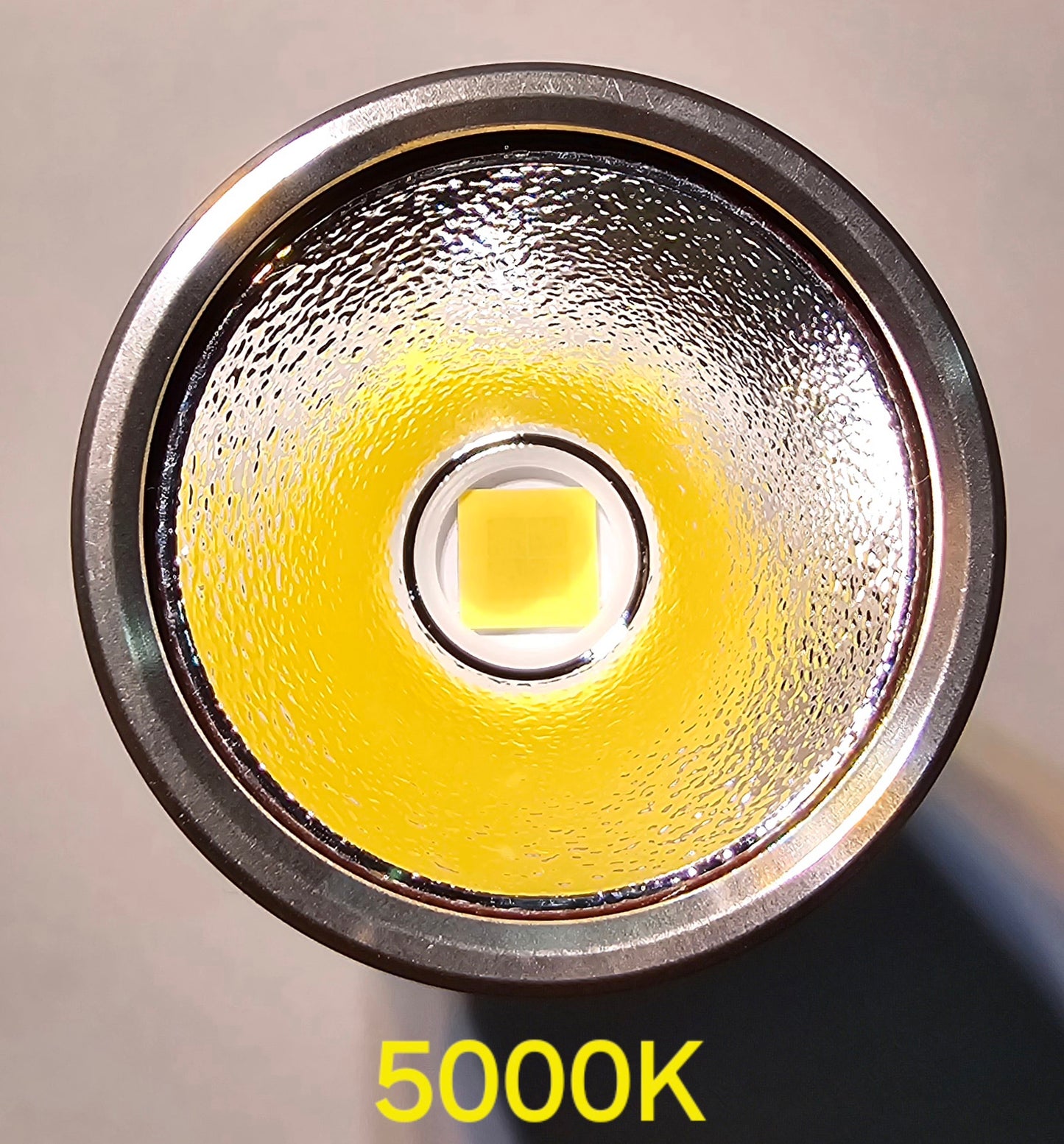

OP (ORANGE PEEL)

SMO (SMOOTH)

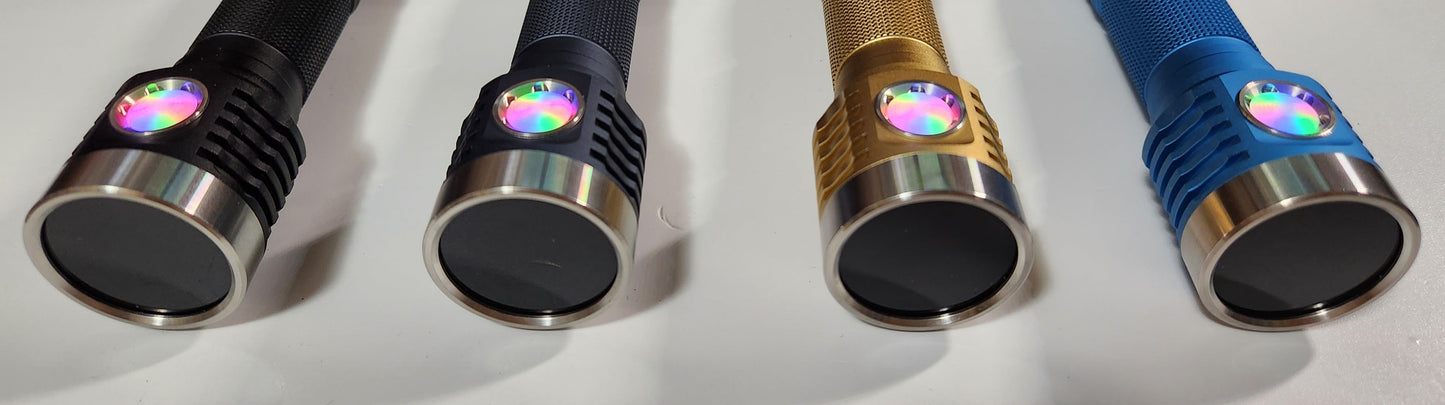

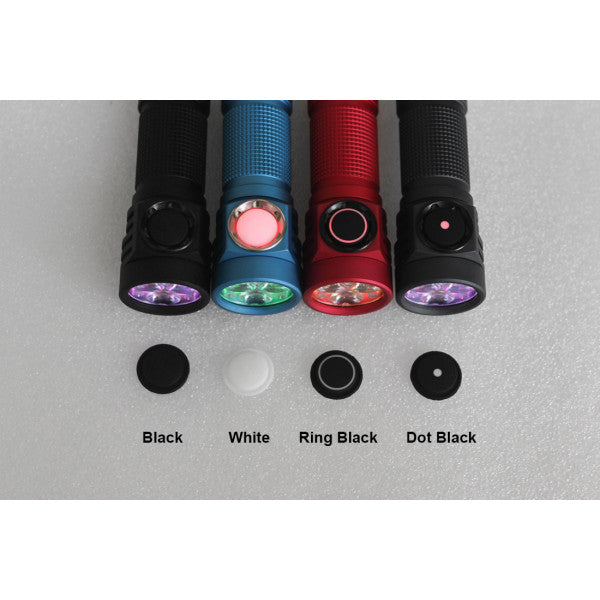

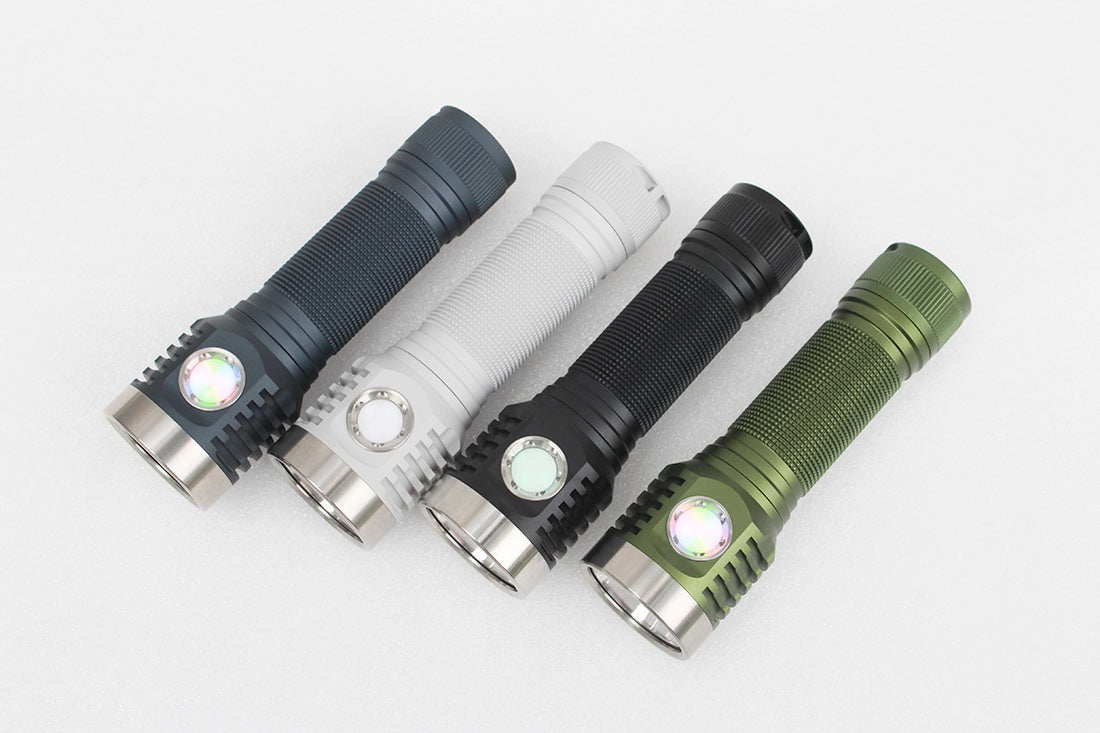

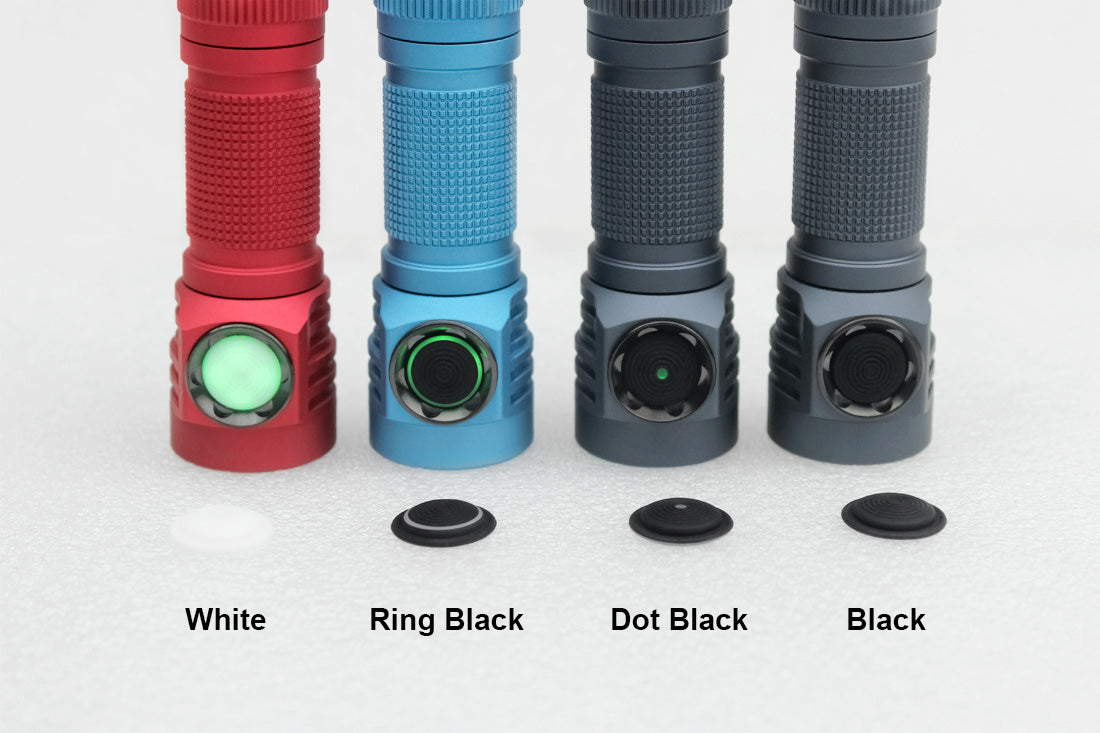

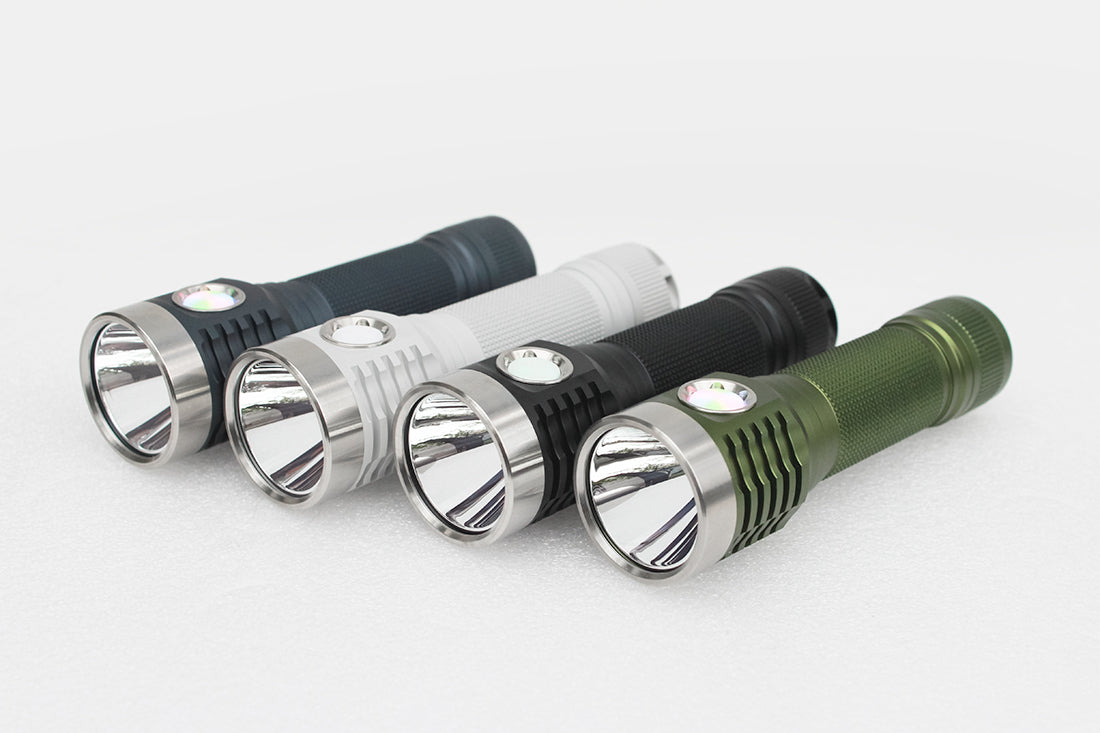

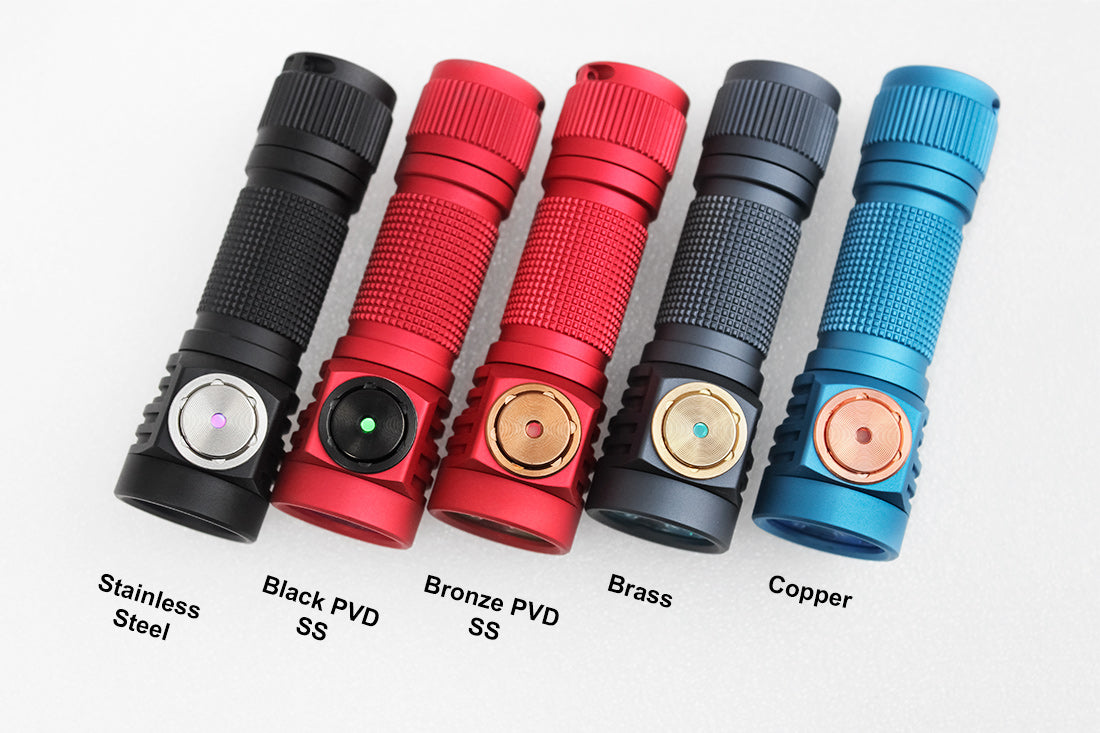

BODY COLORS:

BLACK

GRAY

CYAN

GREEN

STONEWHITE ($5 ADDITIONAL)

INCLUDED OPTIONS:

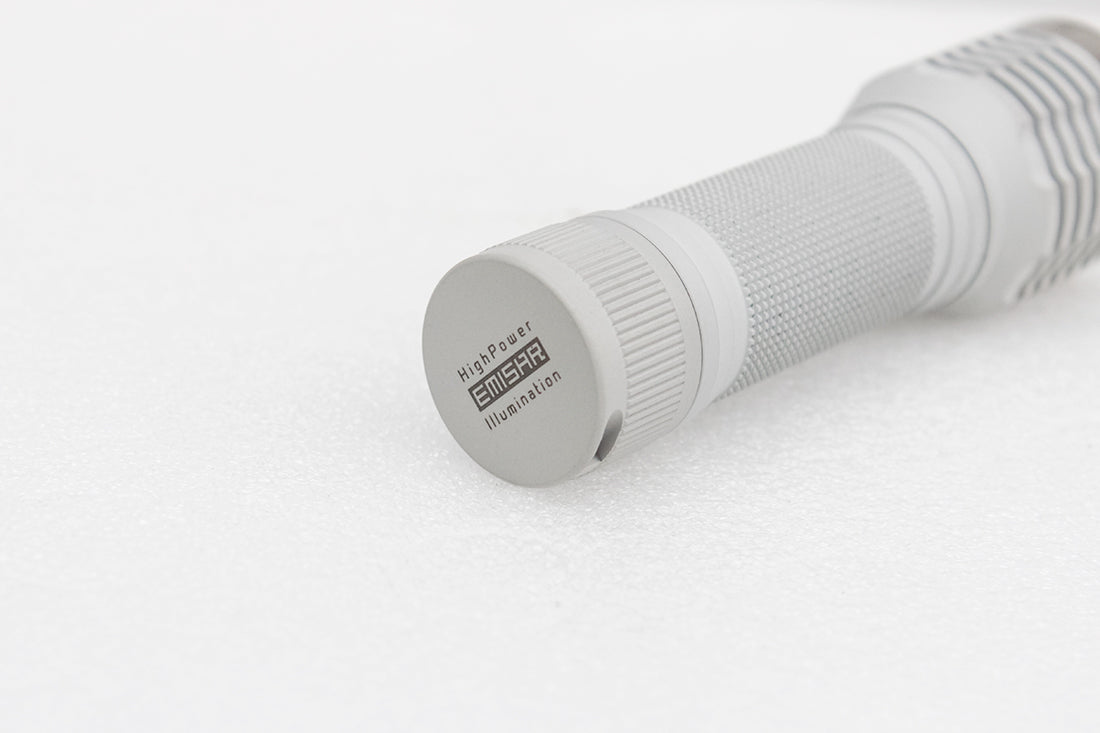

MAGNETIC CAP

OPTIONAL ACCESSORIES:

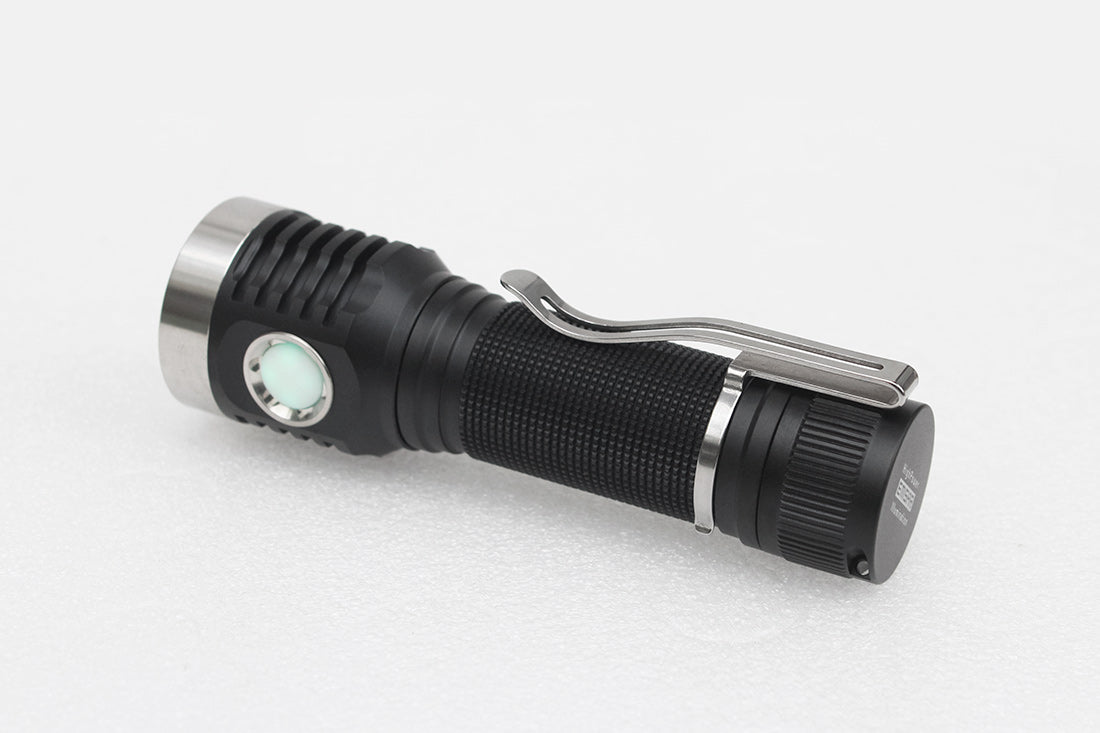

DEEP CARRY POCKET CLIP

POCKET CLIP PURCHASE LINK >>> Emisar Noctigon Stainless Pocket Clips – JLHawaii808

21700 BATTERY (NOT INCLUDED)

BATTERY PURCHASE LINK >>> Molicel P45B 4500mAh 21700 45A Lithium-ion Rechargeable Battery **** H – JLHawaii808

Molicel P42A link >>> Molicel P42A 21700 4200mAh 45A Li-Ion Rechargeable Battery **** HAS TO – JLHawaii808

Features:

• CNC machined from aircraft-grade aluminum

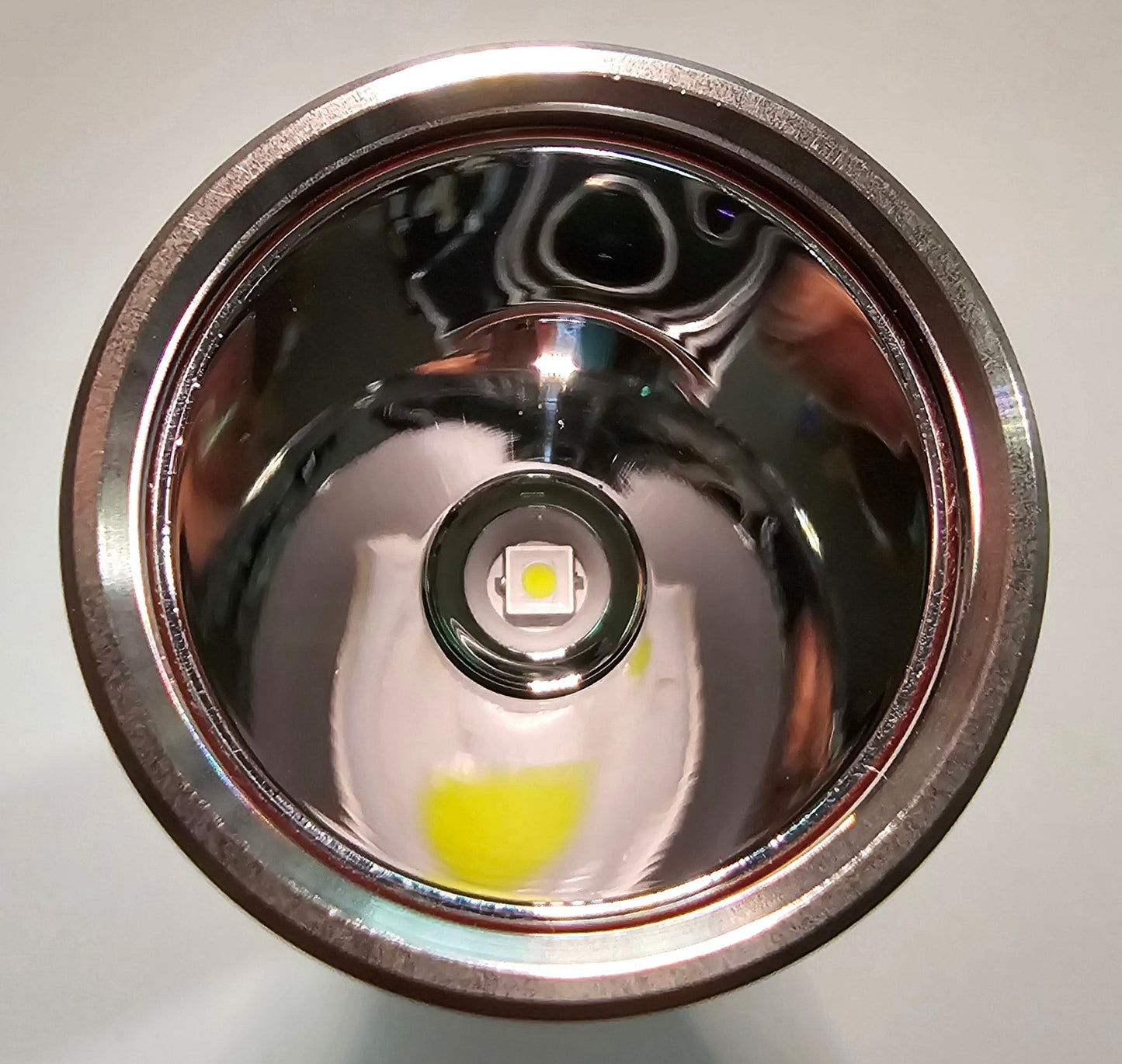

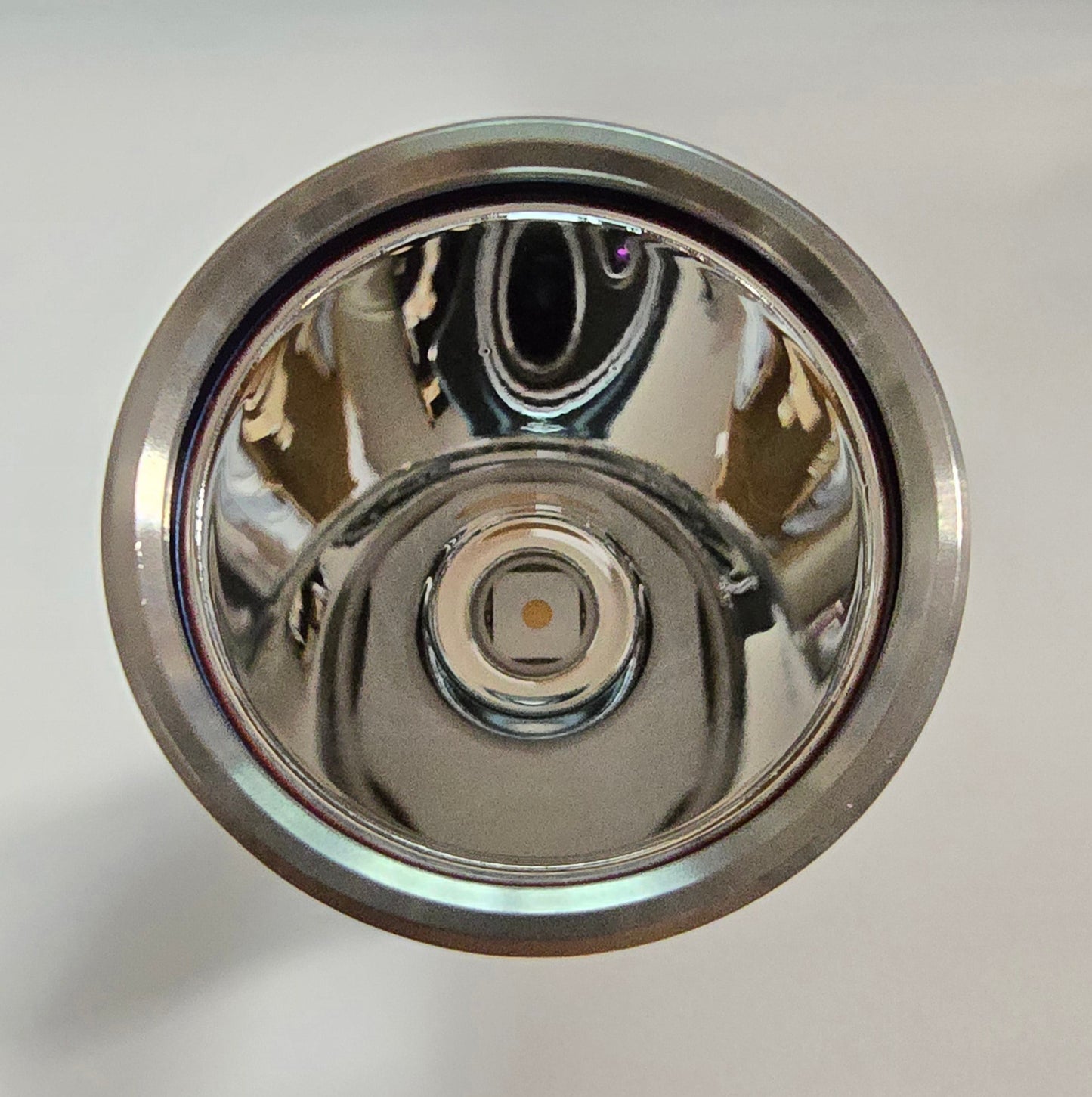

• Smooth aluminum reflector

• Unihead construction

• High lumen output and low moon output

• Ramping interface

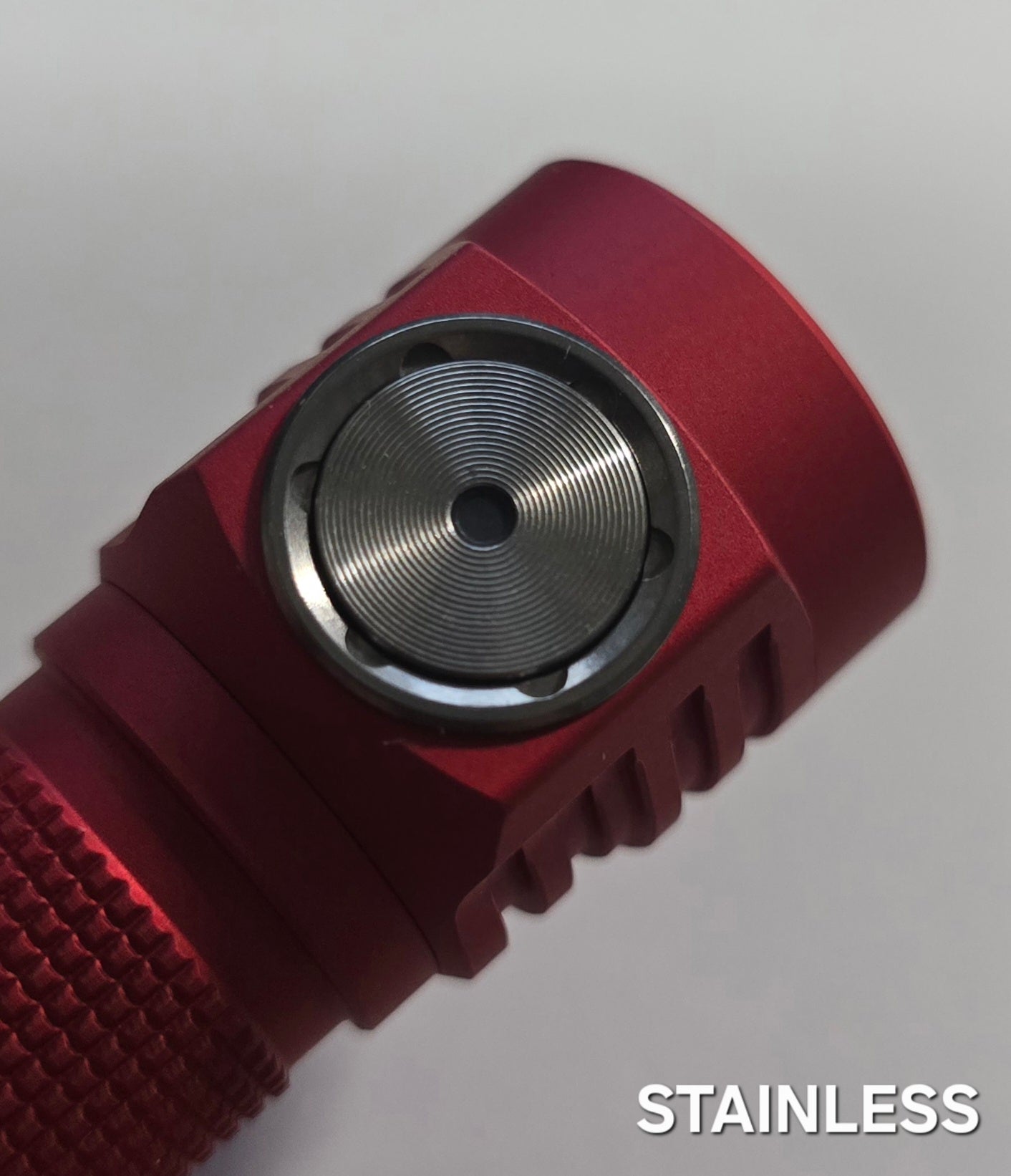

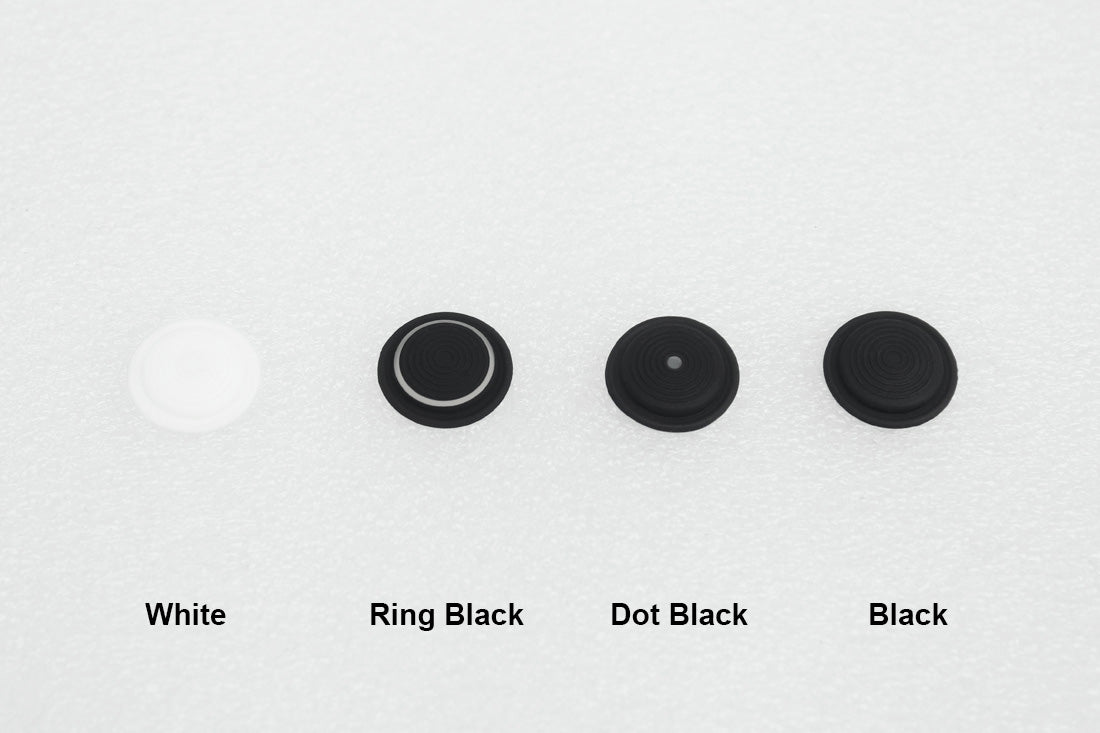

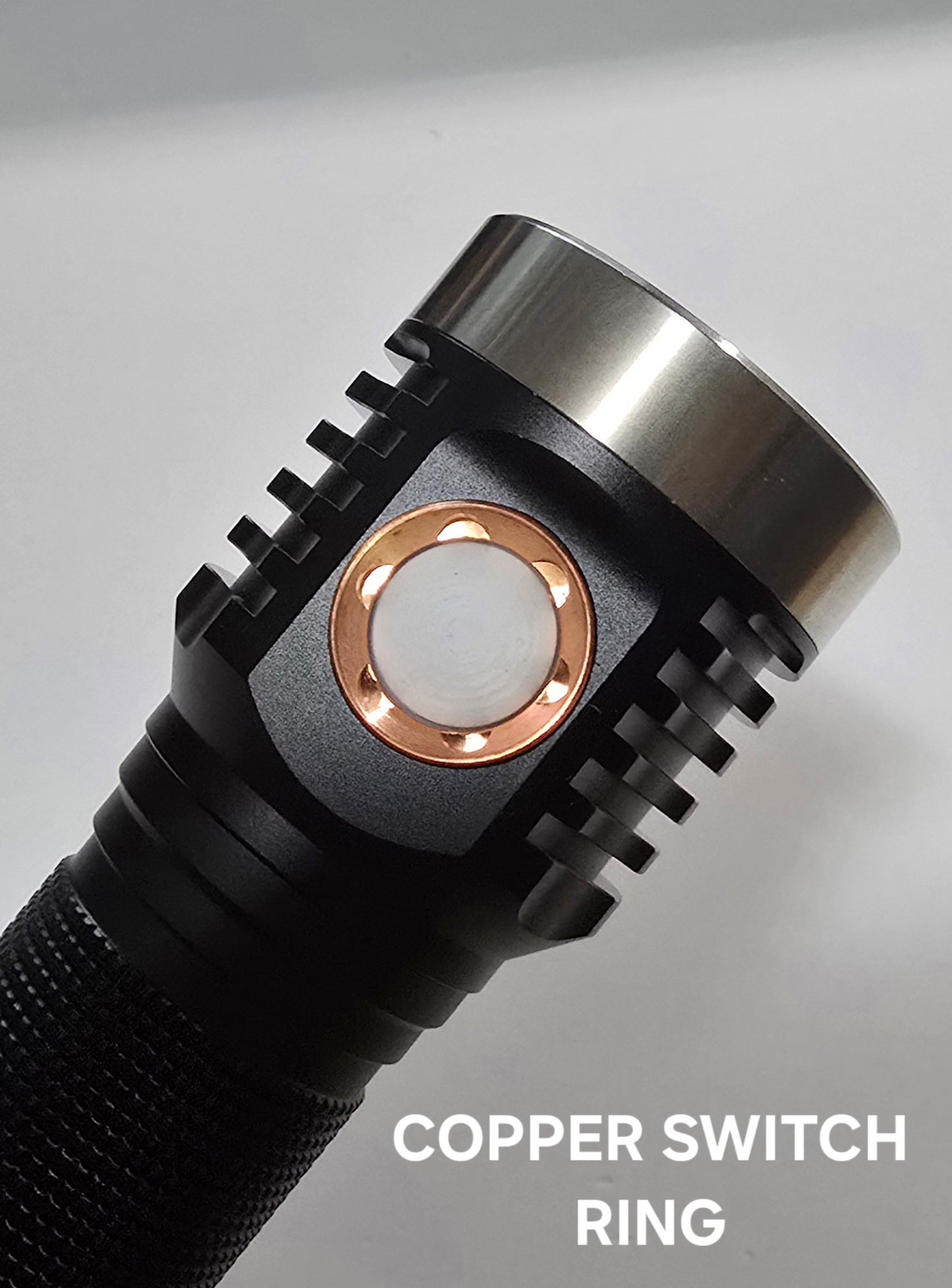

• Electronic soft touch switch

• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.

• Temperature step-down • Waterproof and dustproof to IP67 standard (up to 1 meter)

• Weight: 89g

• Dimensions: 114mm(length) * 35mm(head) * 26.5mm(body)

SFT-25 6500K: 1500lm, Lux : 120Kcd (120,000cd)

W1 (Osram CSLNM1.TG): 900lm, Lux : 110Kcd (110,000cd)

W2 (Osram CSLPM1.TG): 1300lm, Lux: 100Kcd (100,000cd)

XHP70.3 HI: 2200lm, Lux: 25Kcd (25,000cd)

SST-40 5000K/6500K: 2200lm, Lux: 29Kcd (29,000cd)

SFT-40 6500K: 1600lm, Lux: 100Kcd (100,000cd)

FC-40: 1600lm, Lux: 14Kcd (14,000cd)

519A dedomed: 1200lm, Lux: 20Kcd (20,000cd)

SBT90.2: 4000lm, Lux: 100Kcd (100,000cd)

B35AM: 1000lm, Lux: 12Kcd (12,000cd)

SFN60 3V, 6500K/5500K, 5000lm, Lux: 55Kcd (55,000cd)

SFN60 3V, 3000K, 4000lm, Lux:44Kcd(44,000cd)



This product uses free software of Anduril 2, distributed under the terms of the GPLv3.
