ReyLight

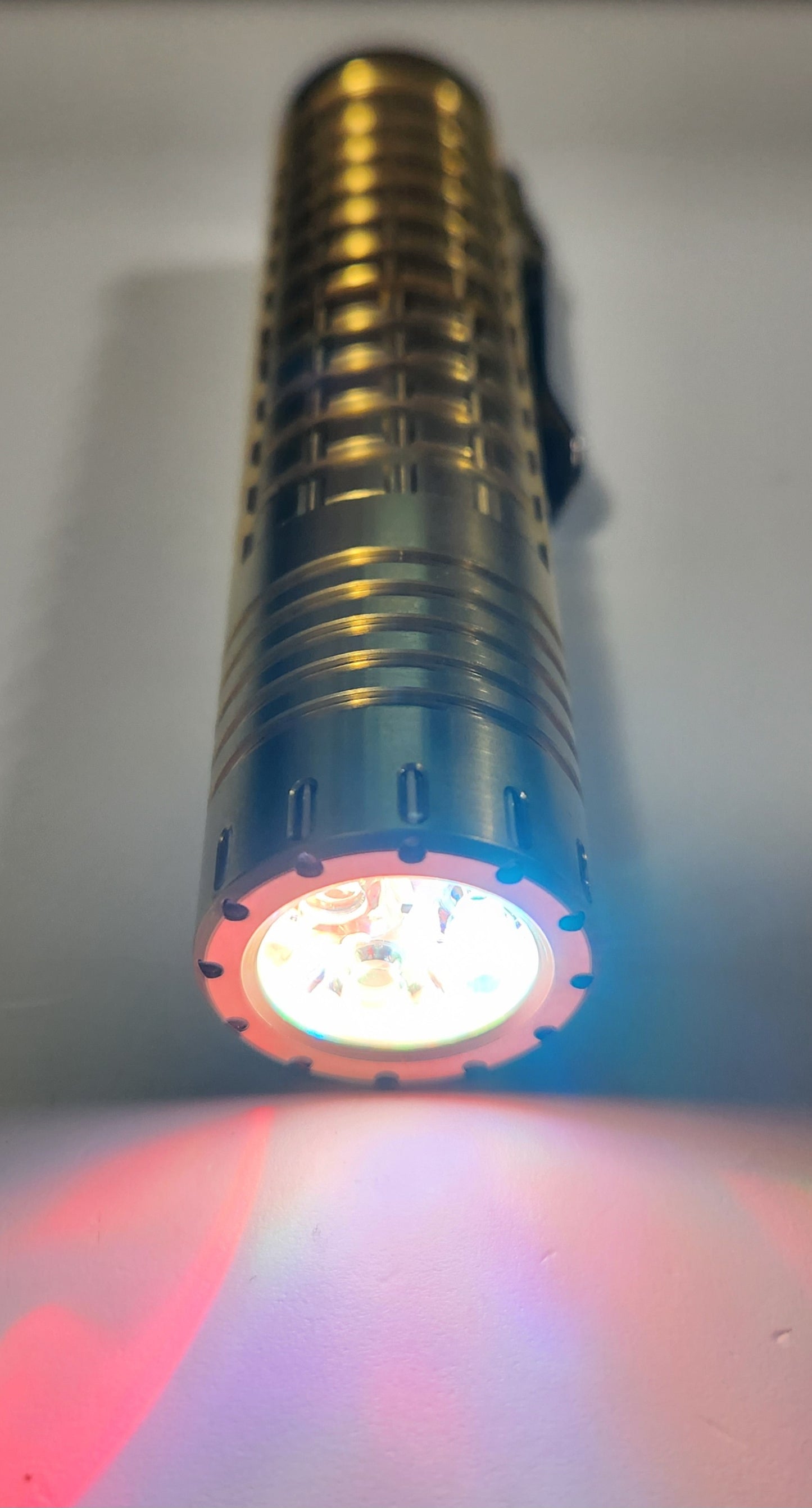

ReyLight Dawn Triple V2 Titanium, Copper or Brass Custom + RGB Auxiliaries

ReyLight Dawn Triple V2 Titanium, Copper or Brass Custom + RGB Auxiliaries

Regular price $249.88 USD
Regular price $279.99 USD Sale price $249.88 USD
Sale Sold out
Shipping calculated at checkout.
BODY FINISH

REYLIGHT DAWN TRIPLE CUSTOM + AUXILIARIES!

NOTE: THIS IS CUSTOM BUILT-TO-ORDER WILL SHIP ACCORDINGLY!

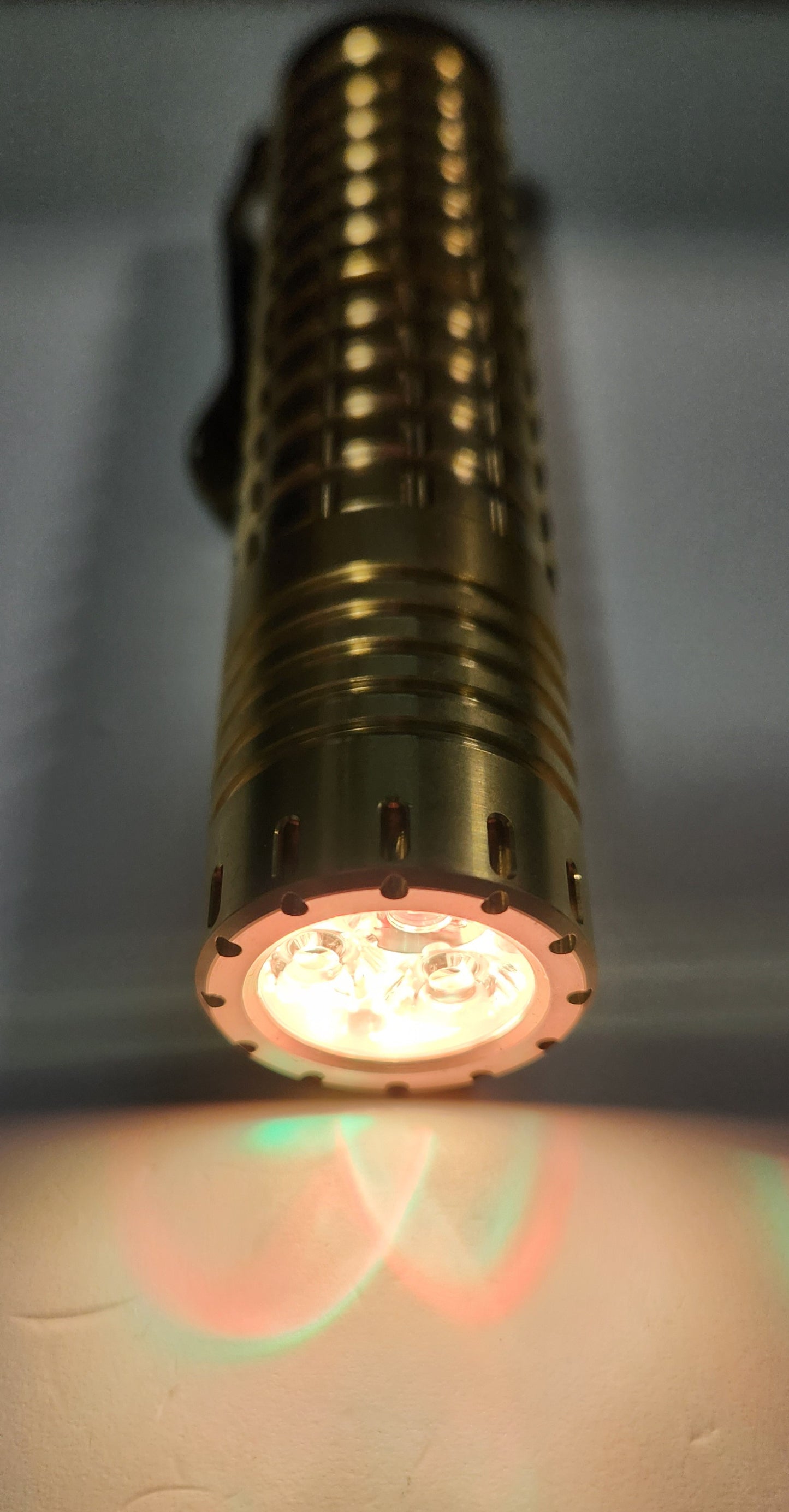

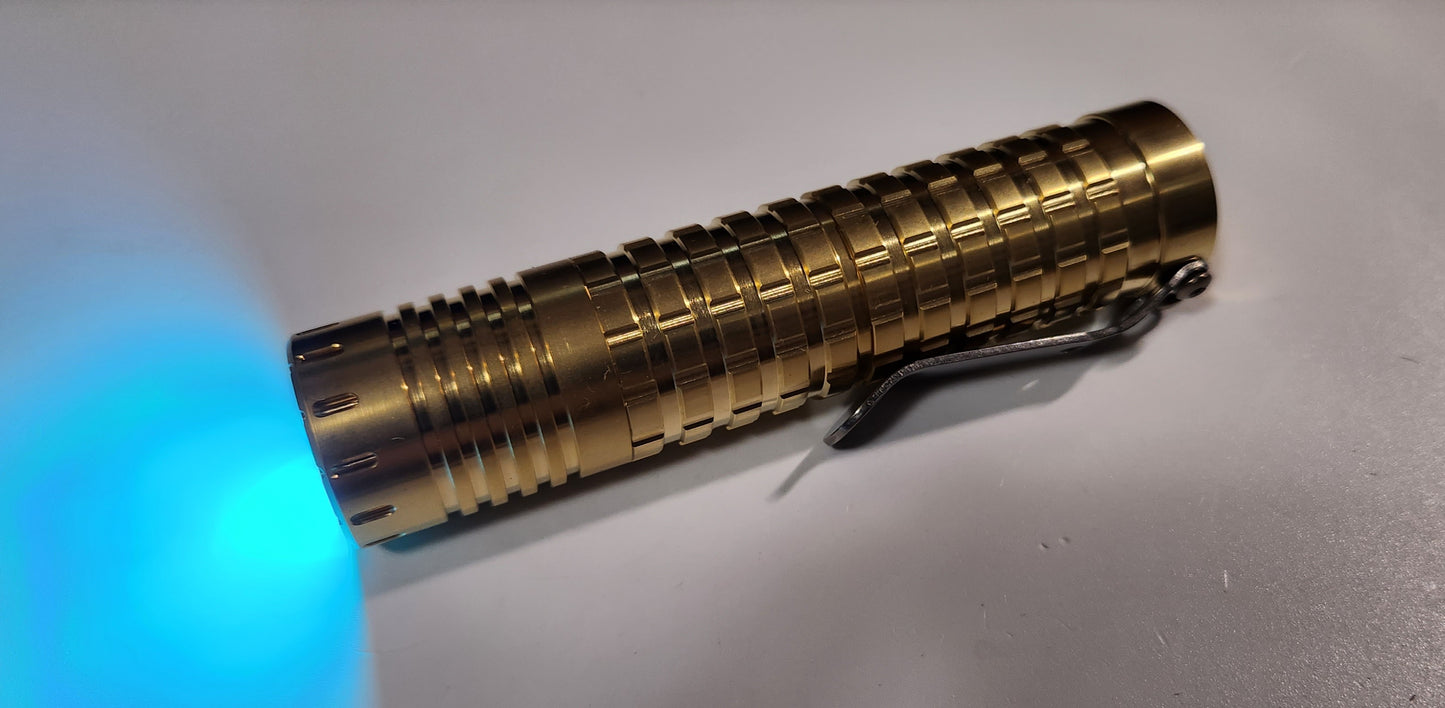

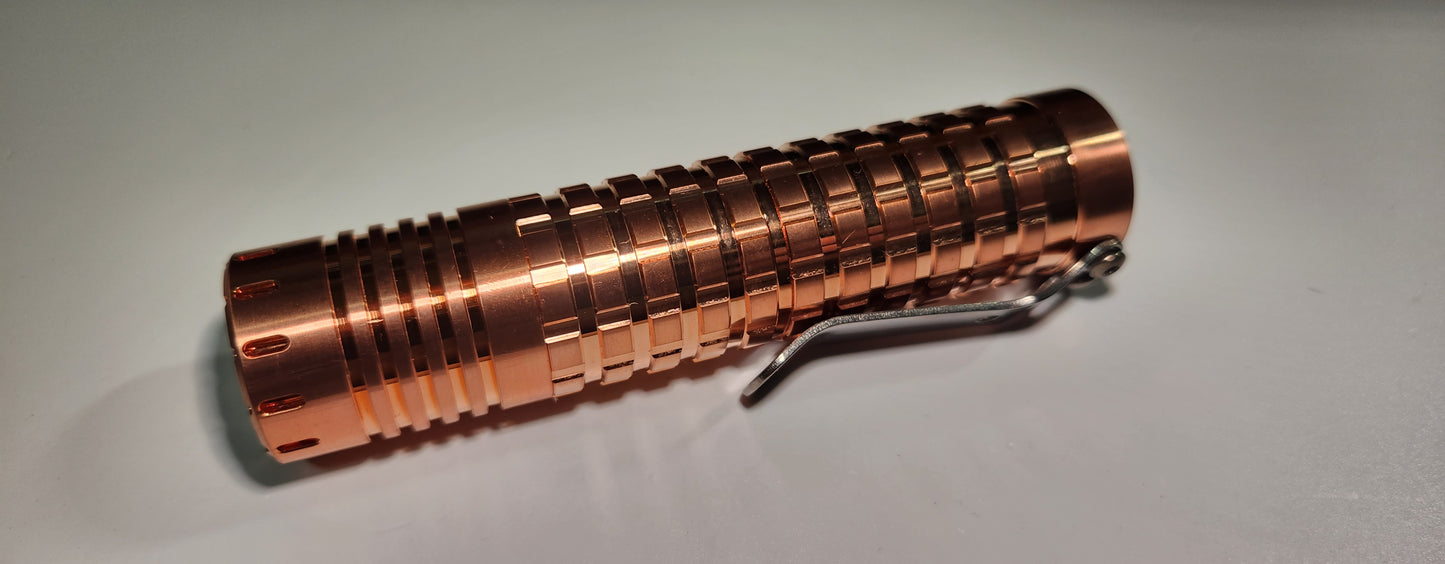

TITANIUM RAW, TITANIUM STONEWASHED, BRASS OR COPPER

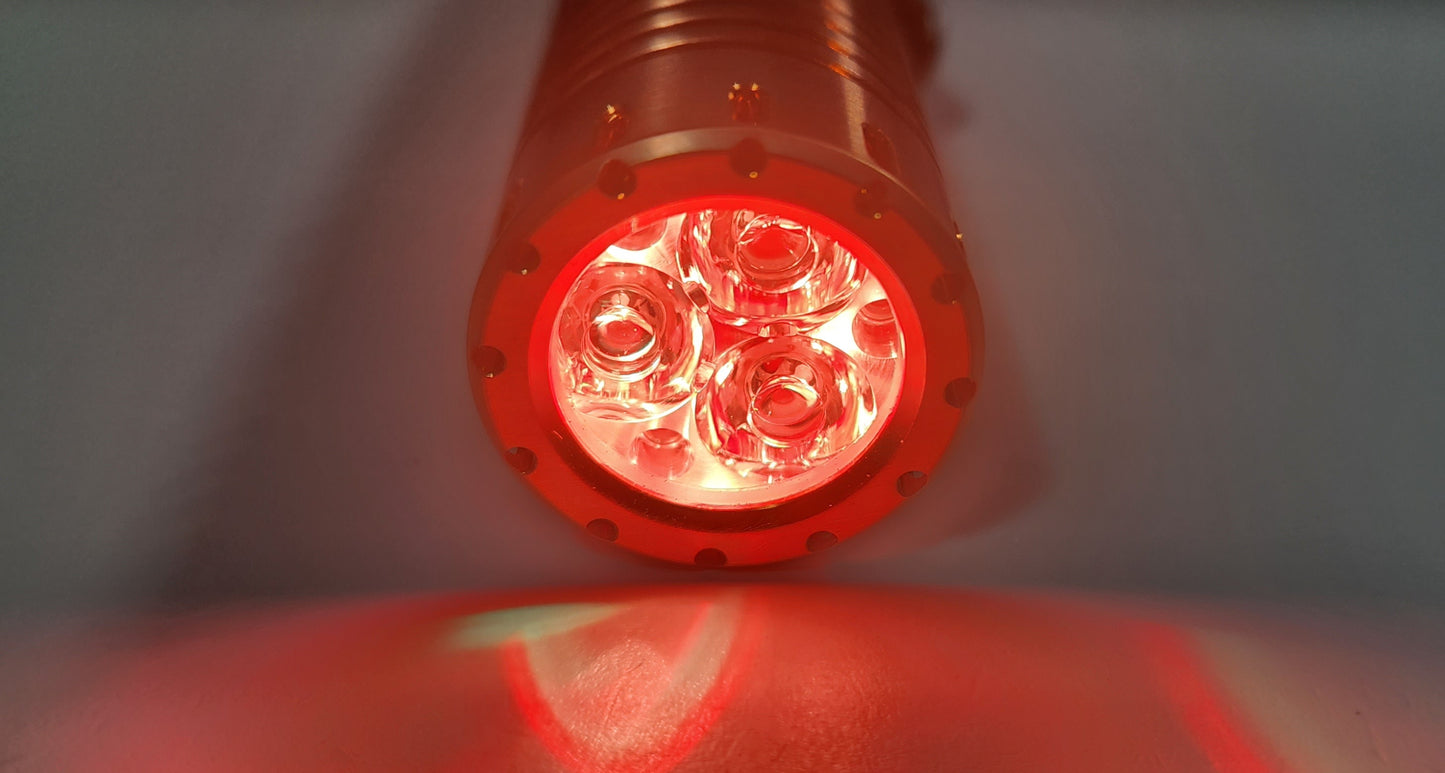

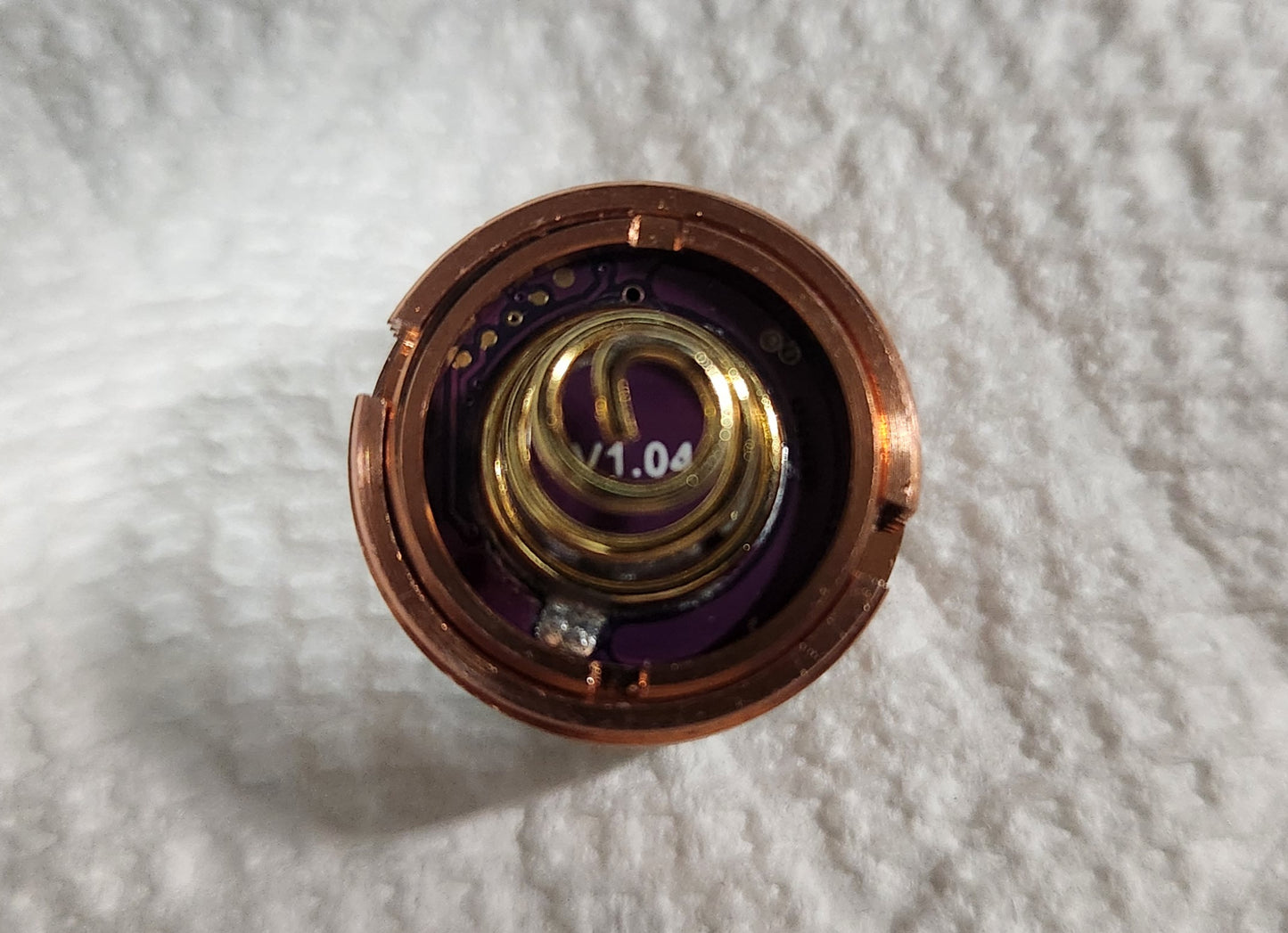

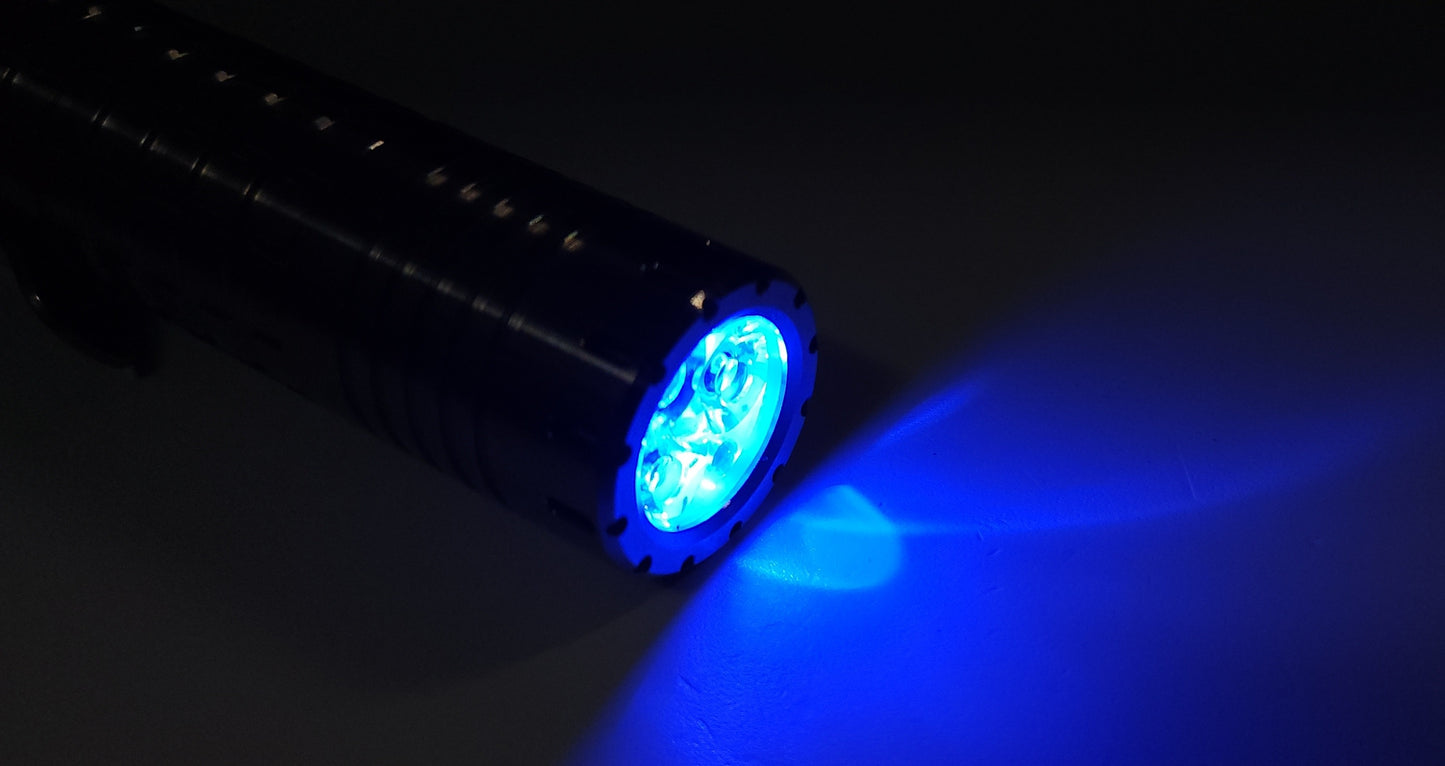

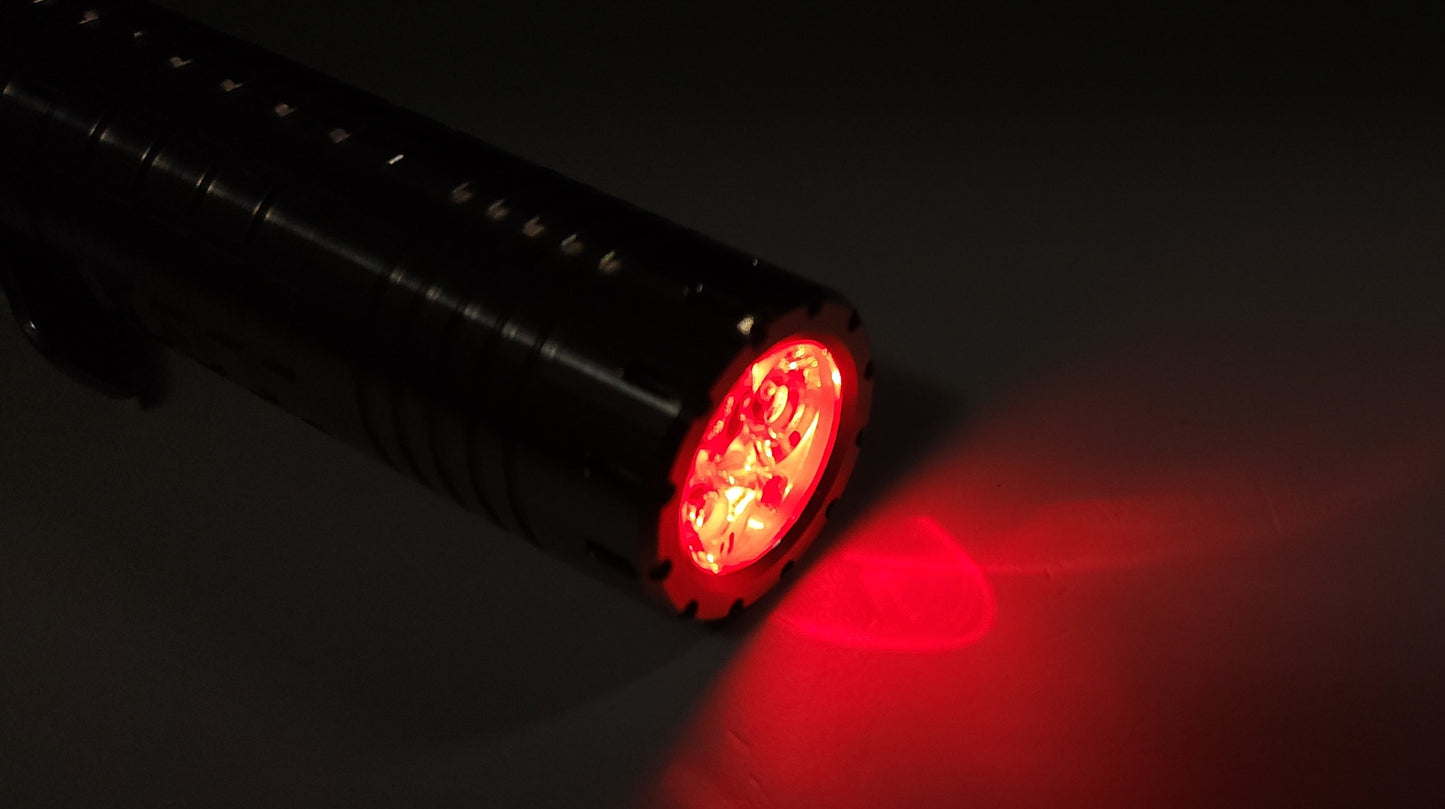

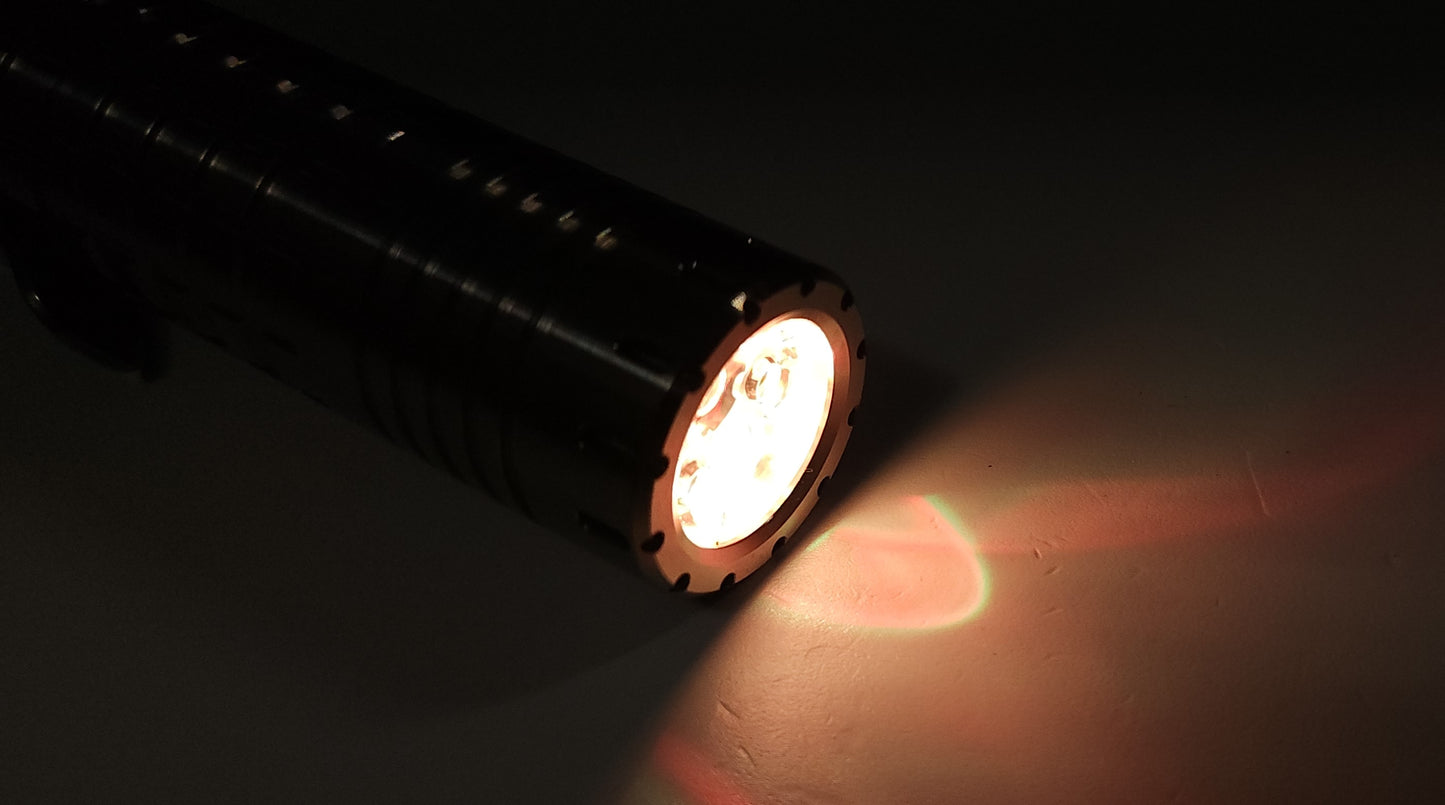

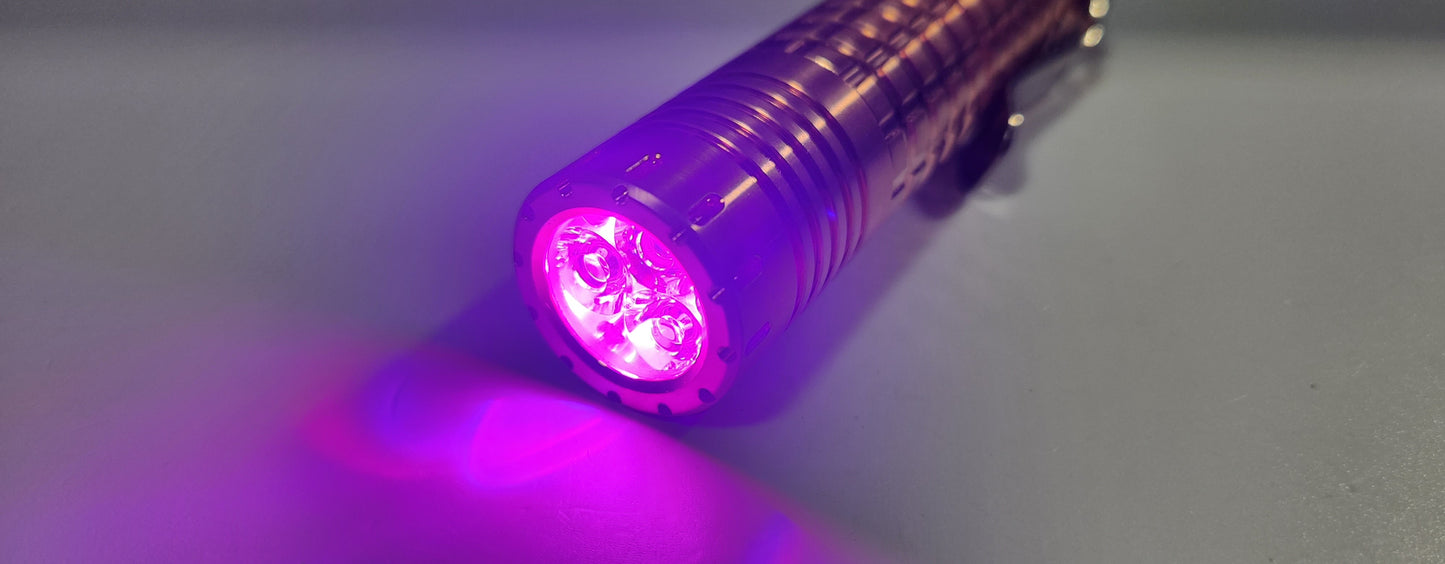

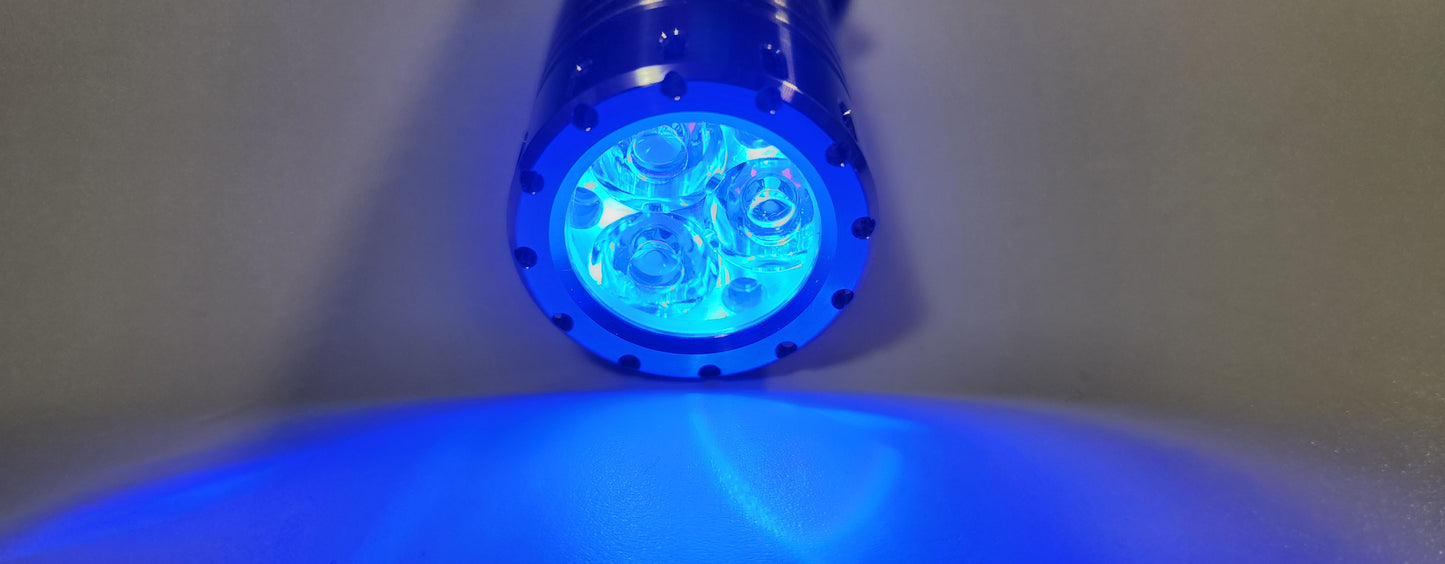

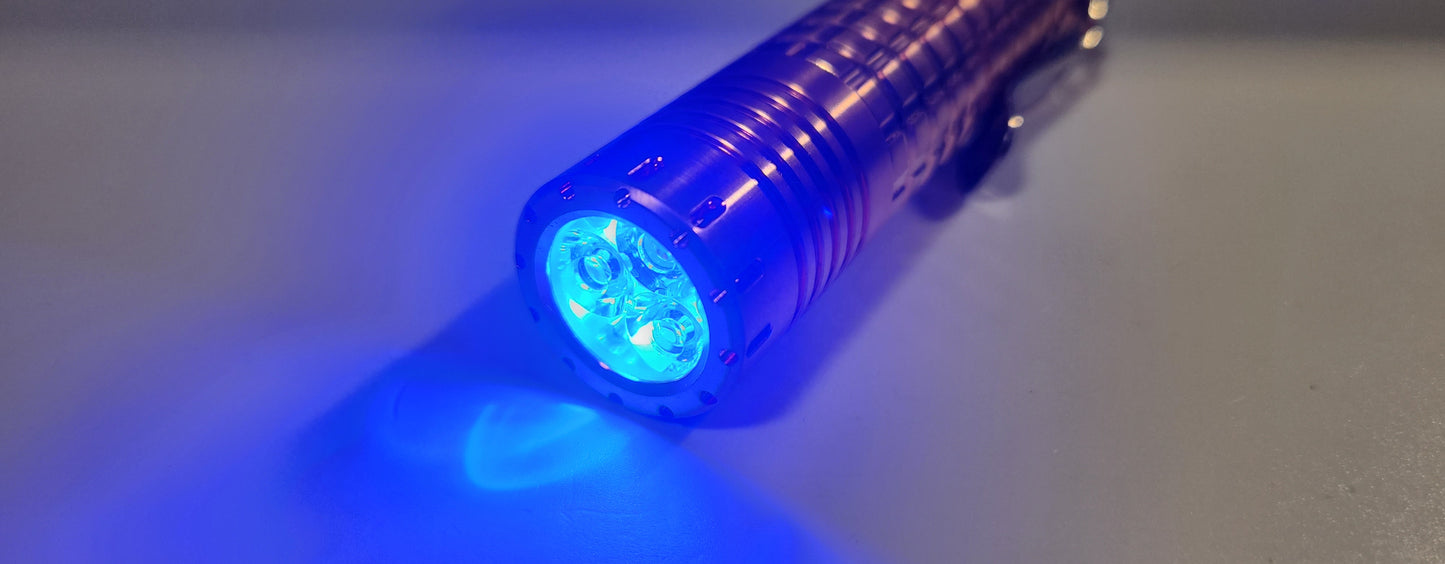

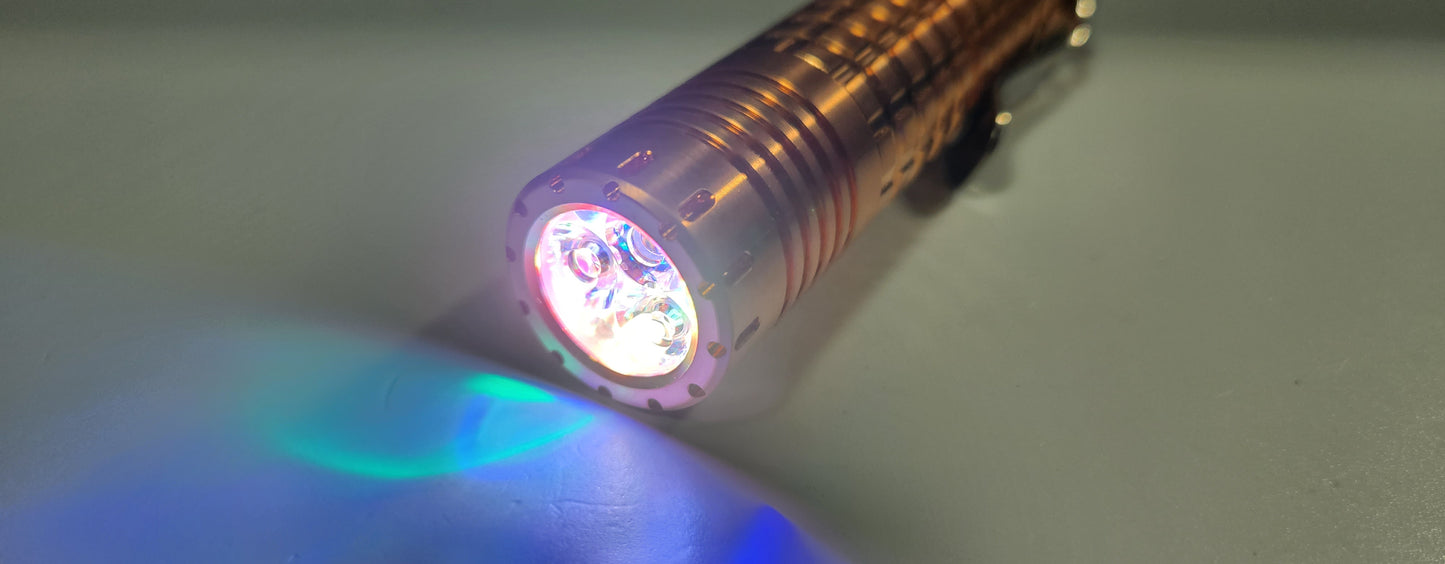

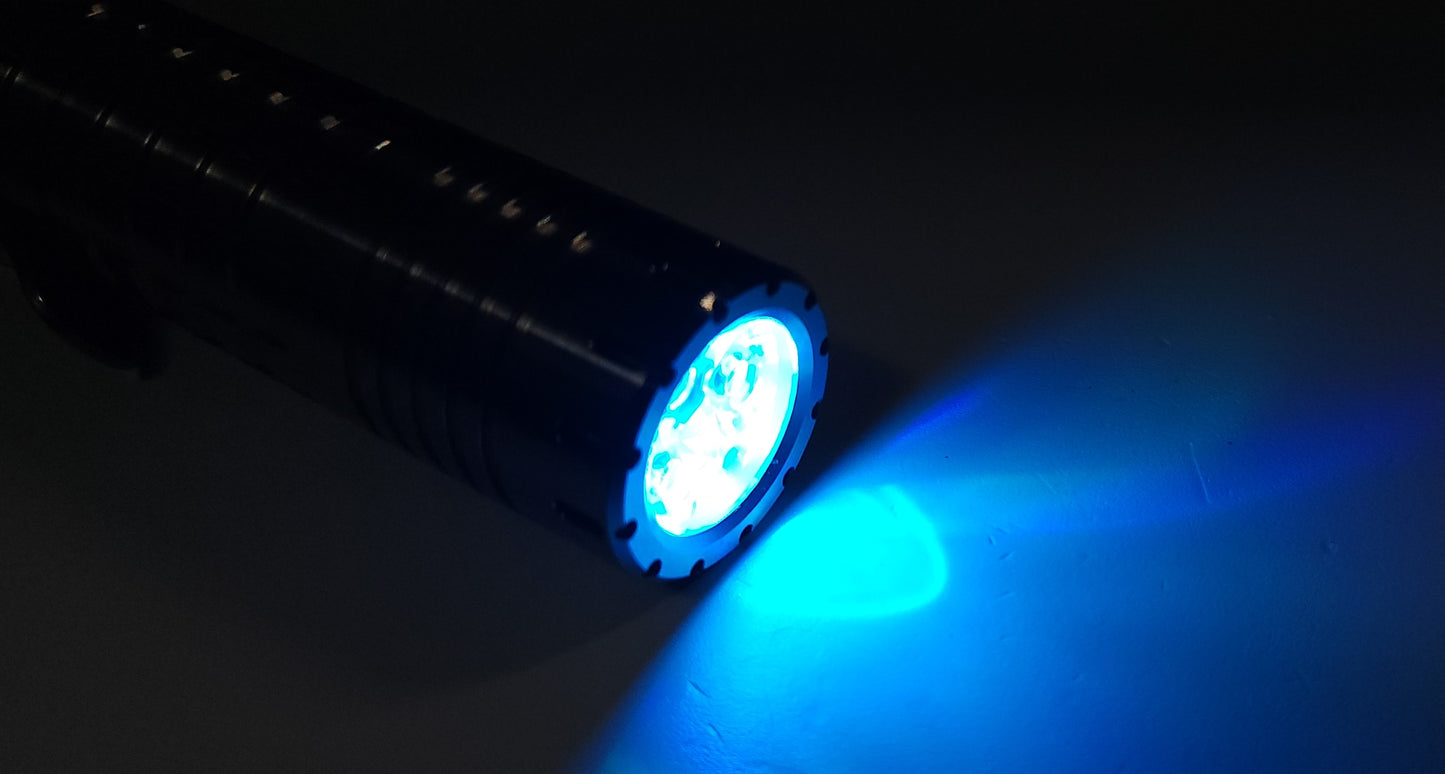

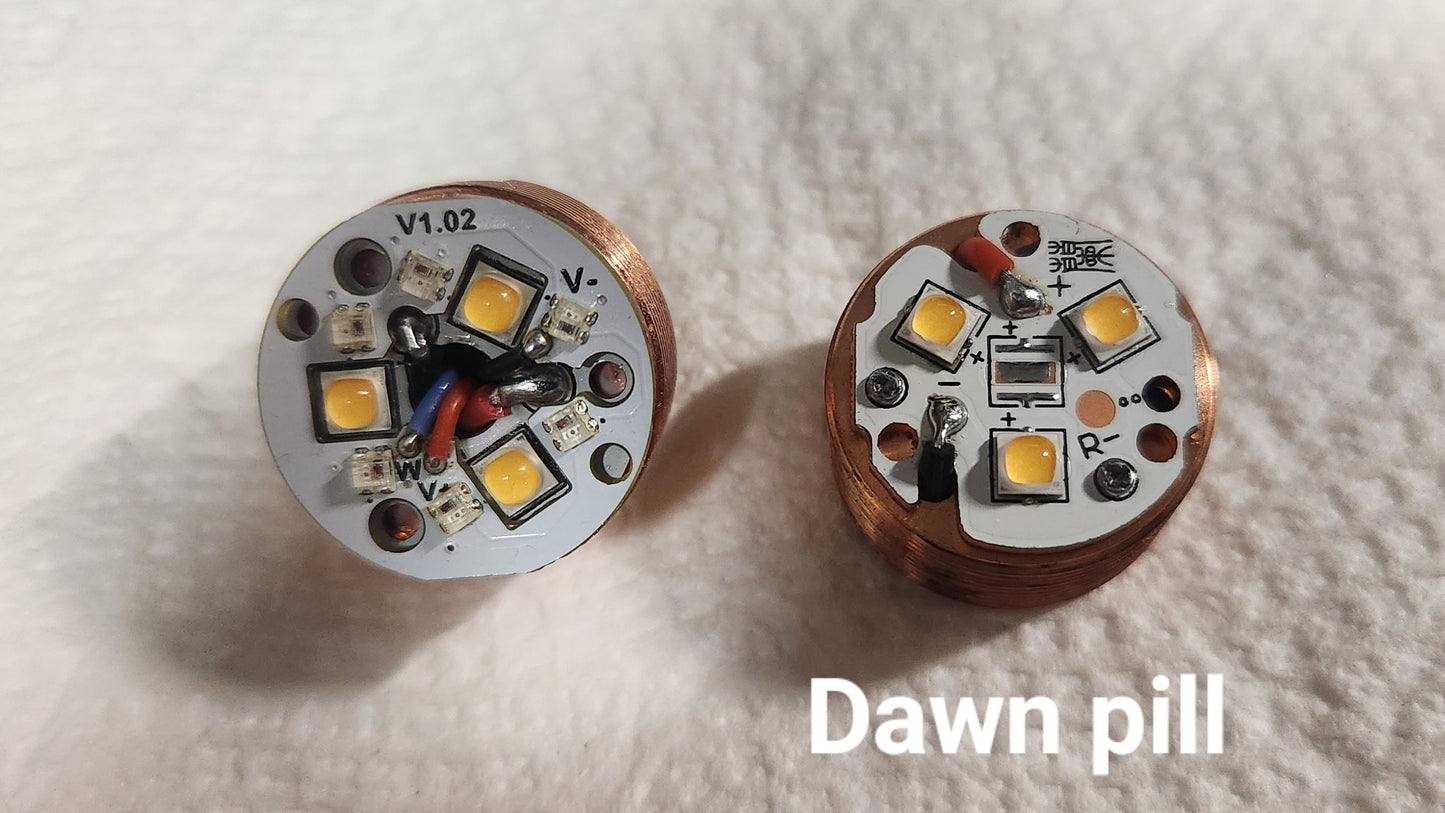

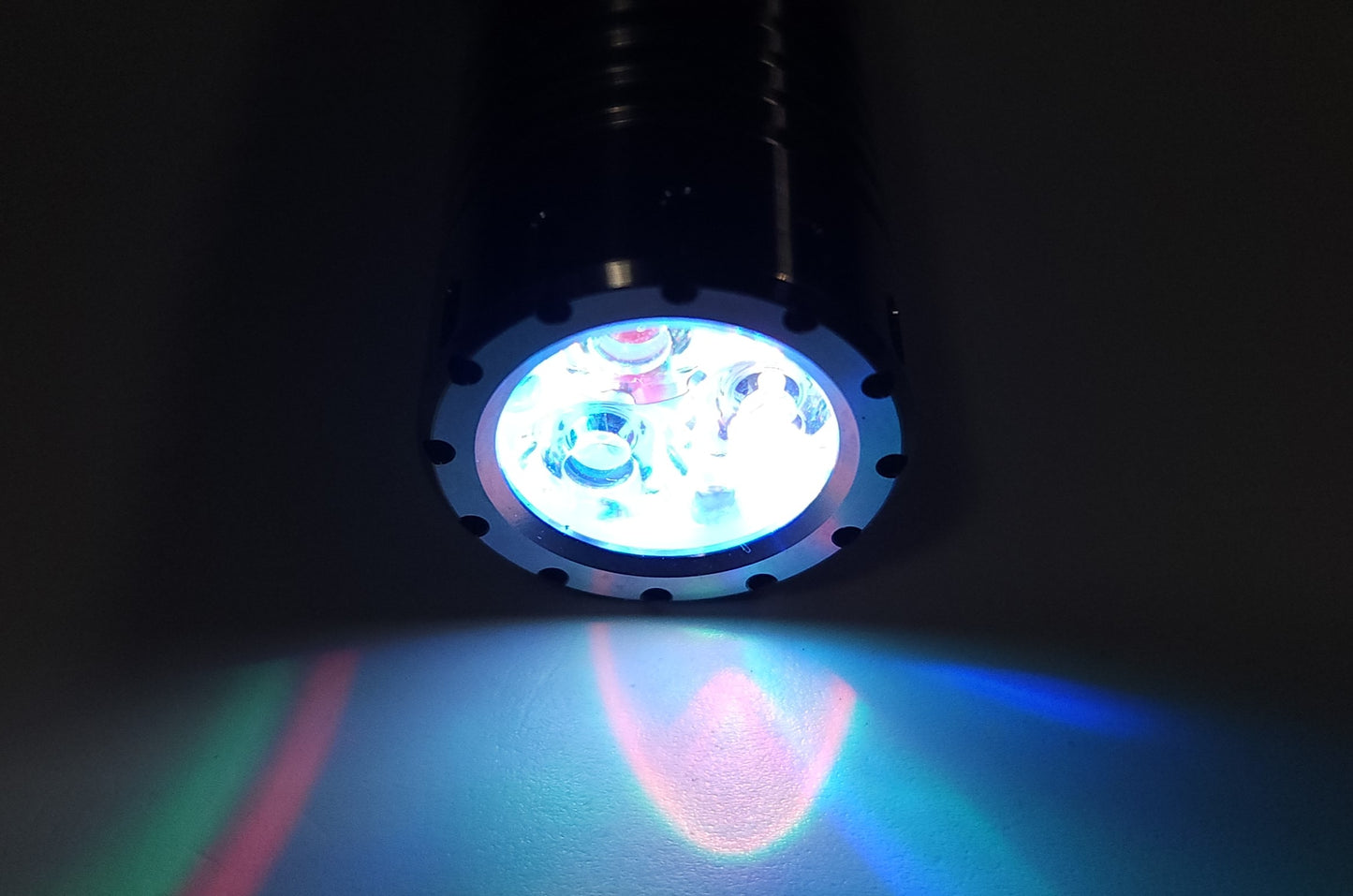

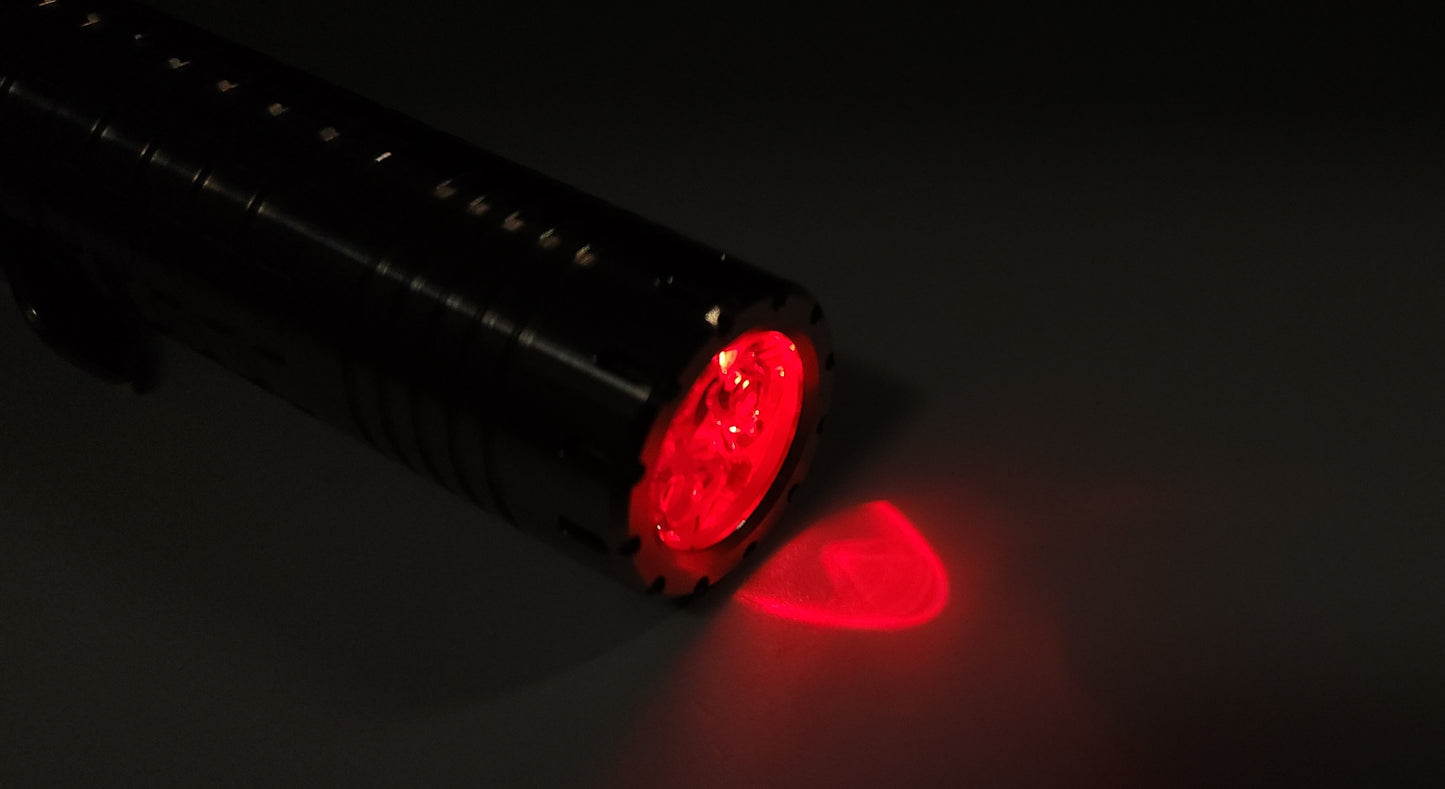

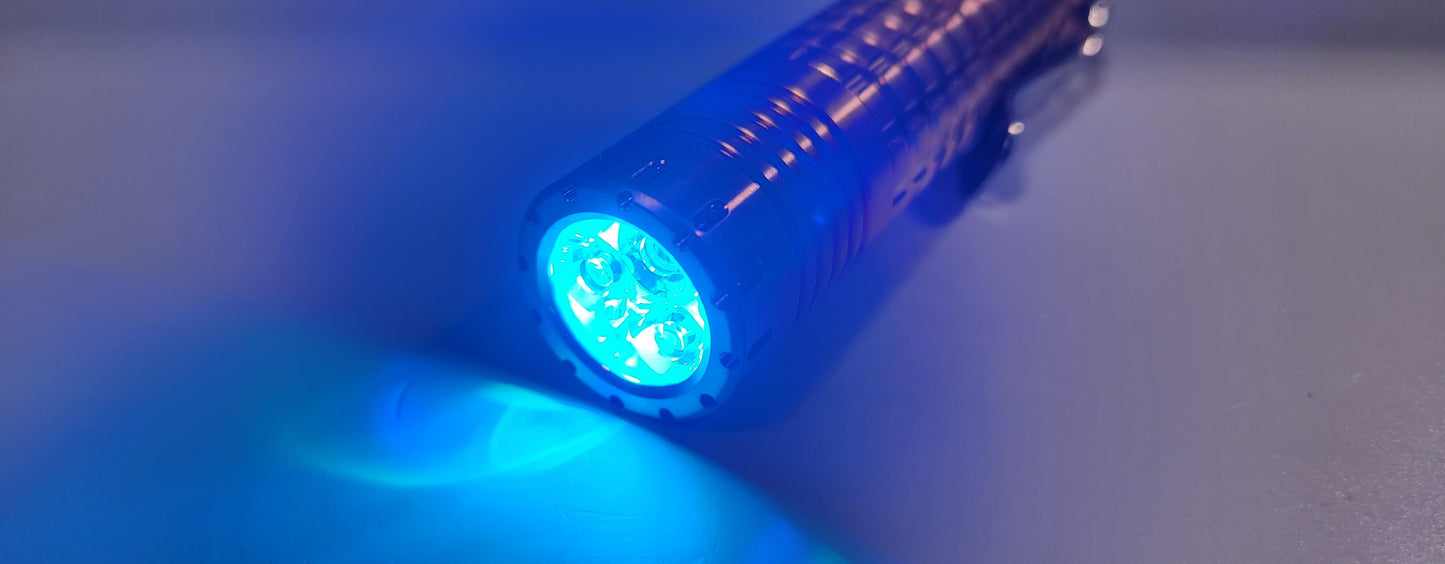

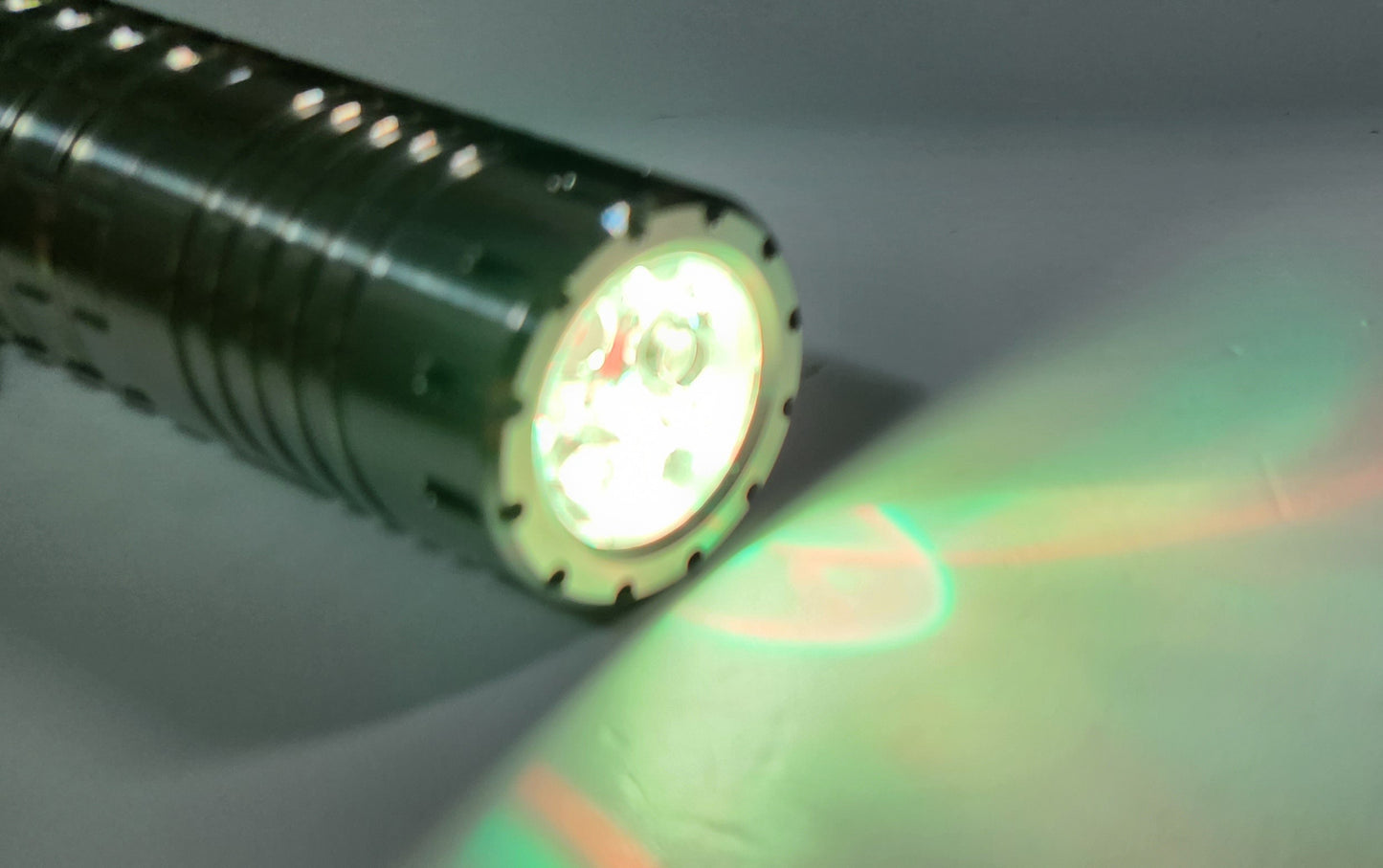

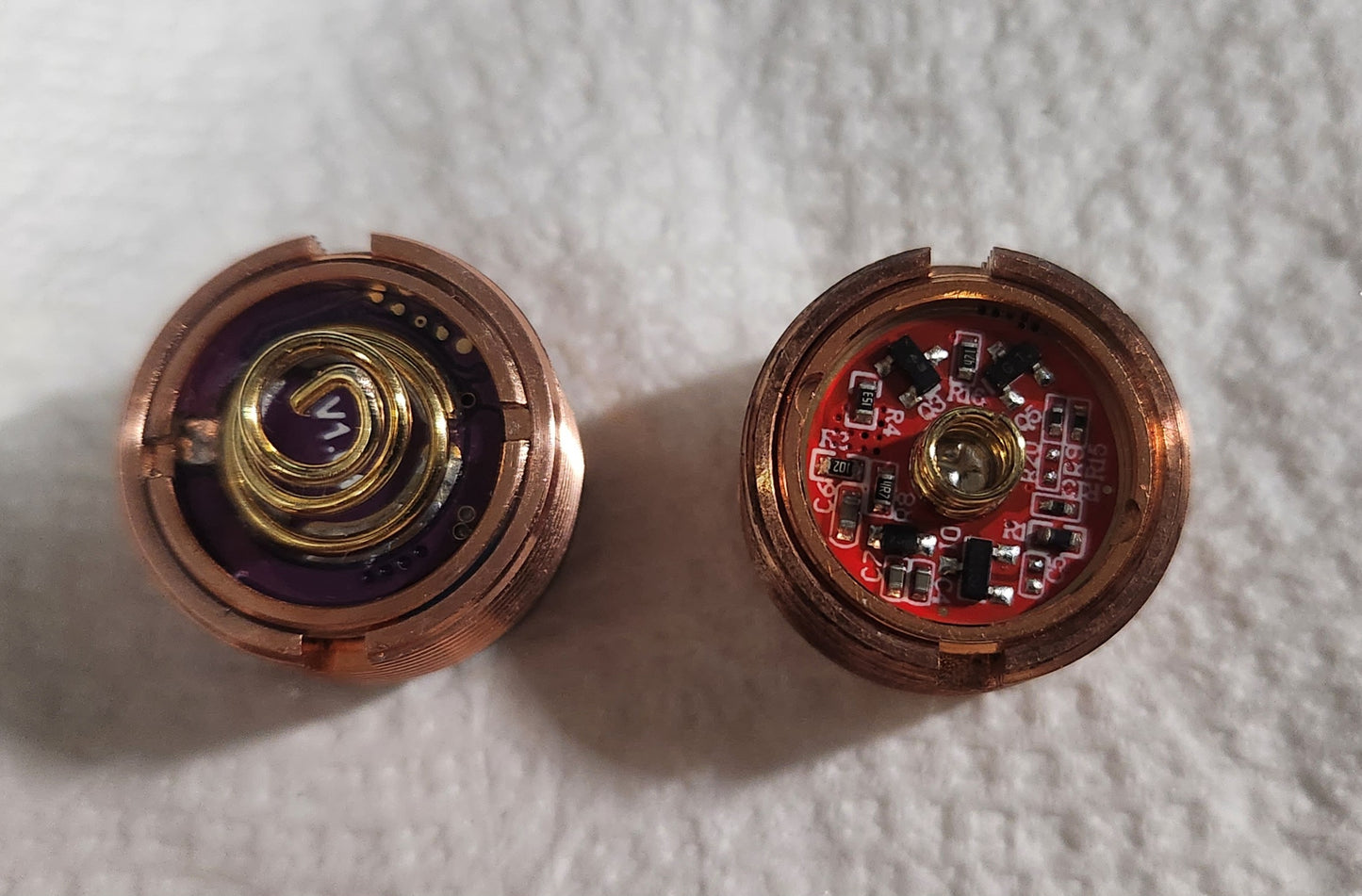

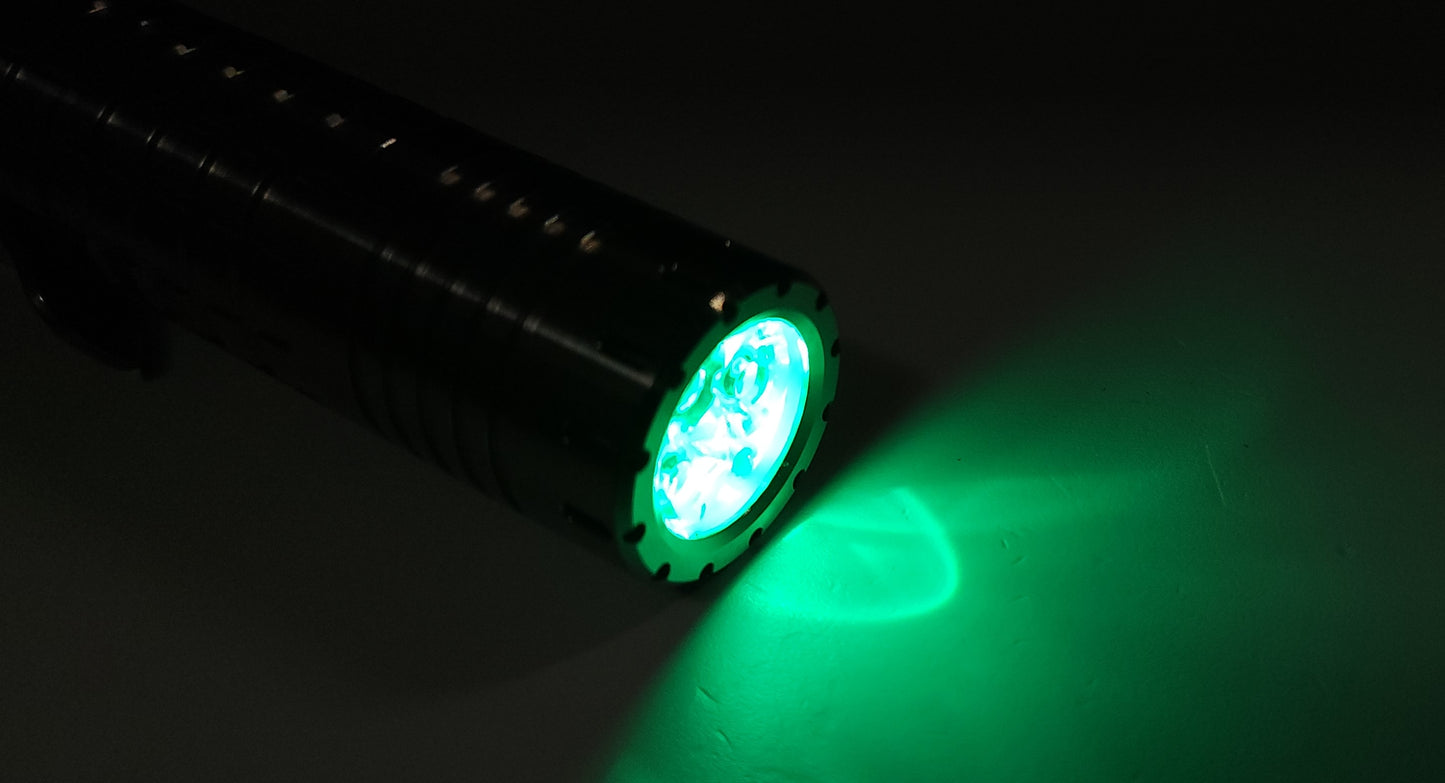

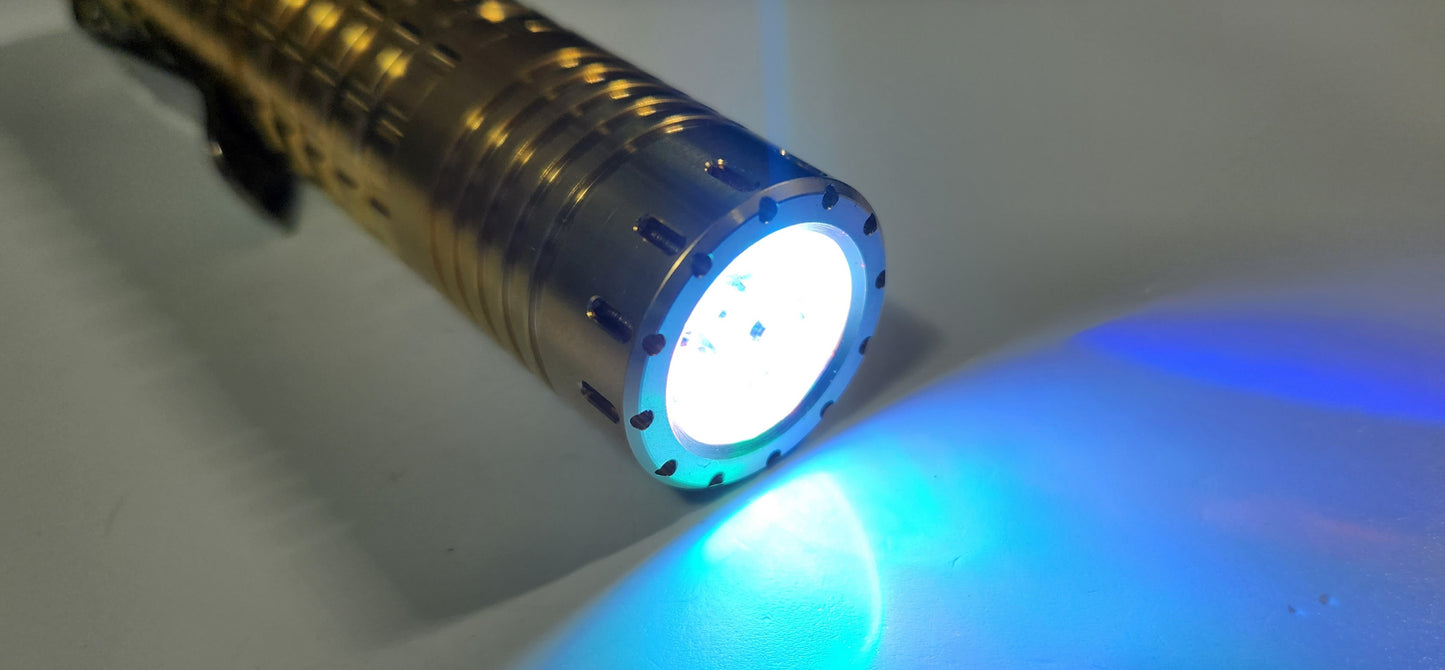

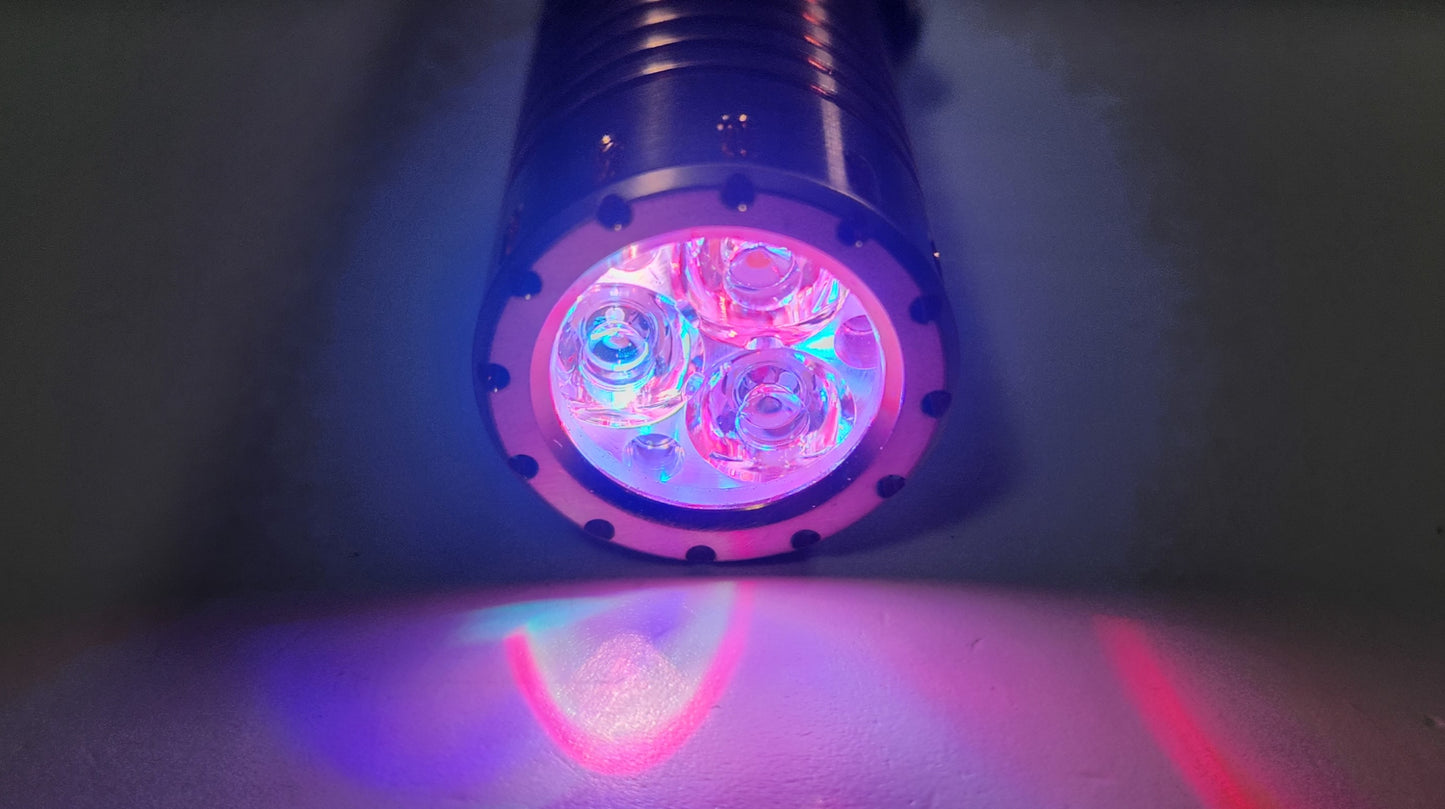

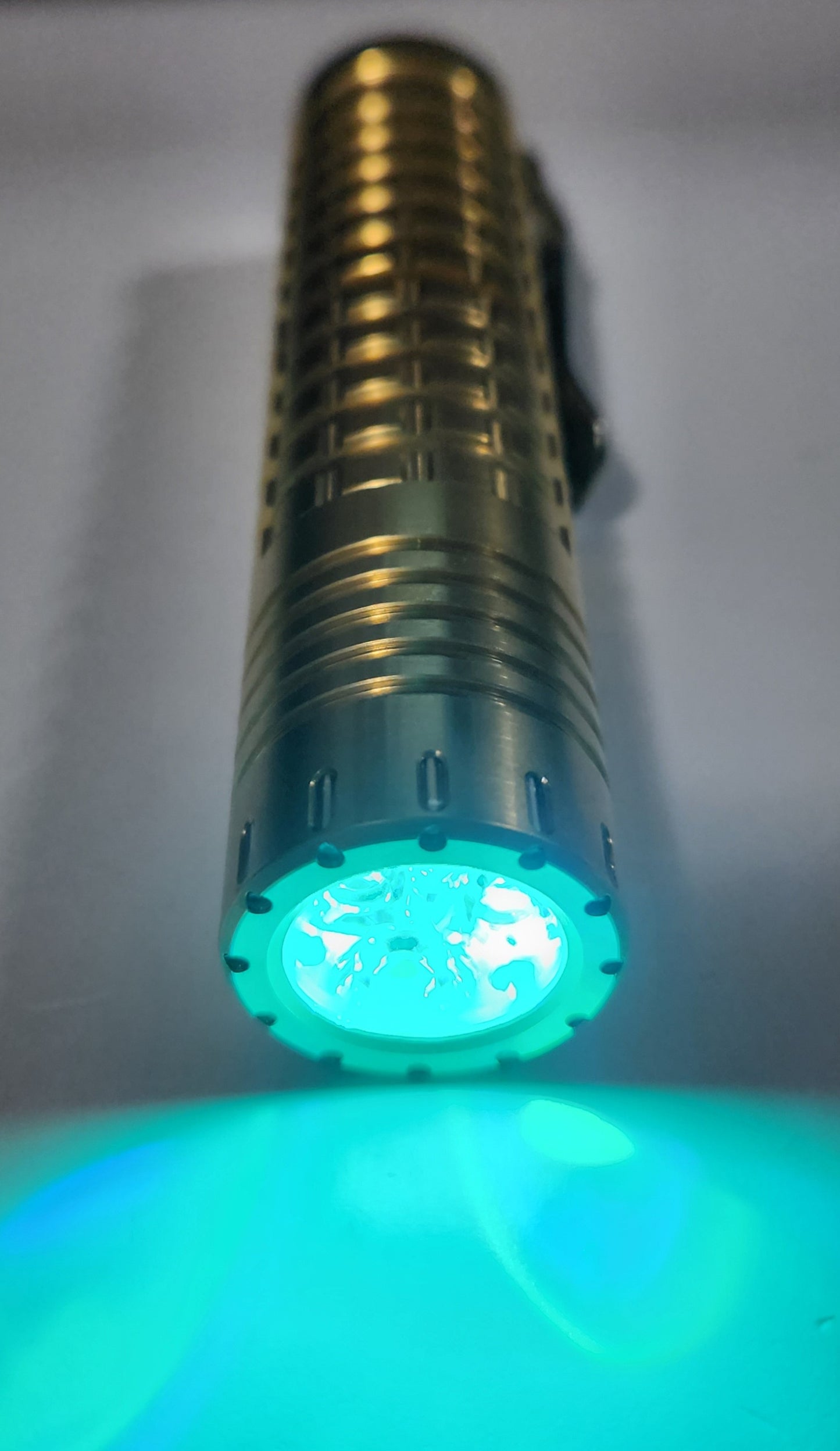

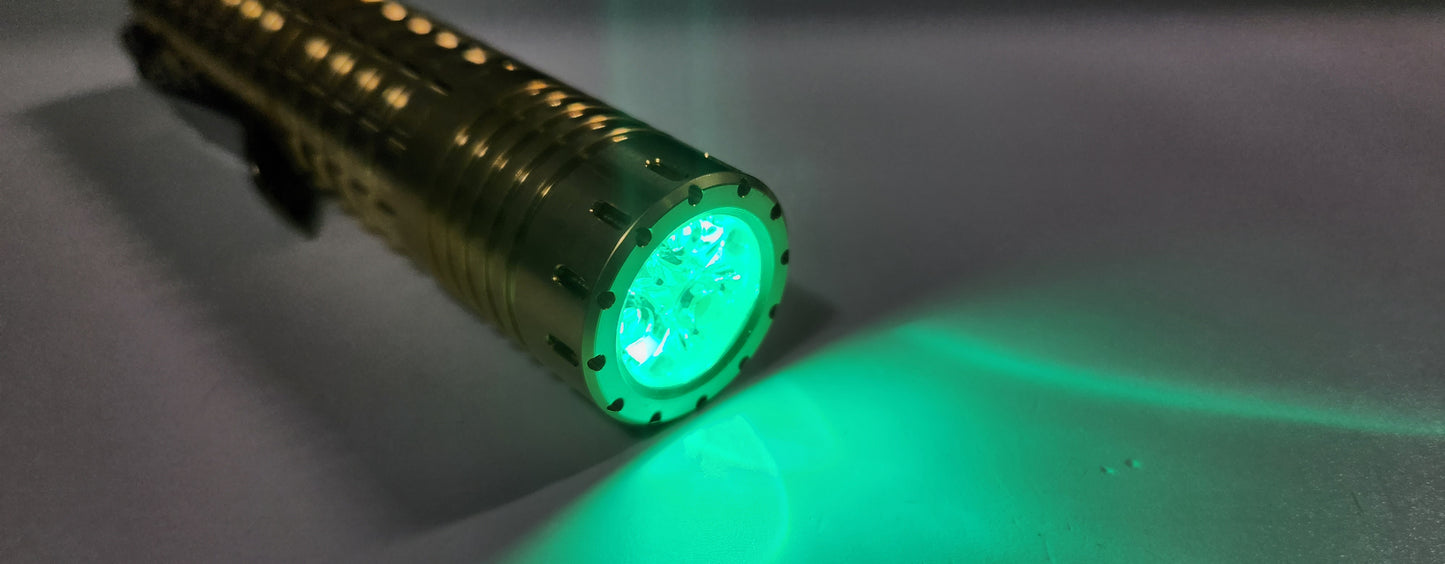

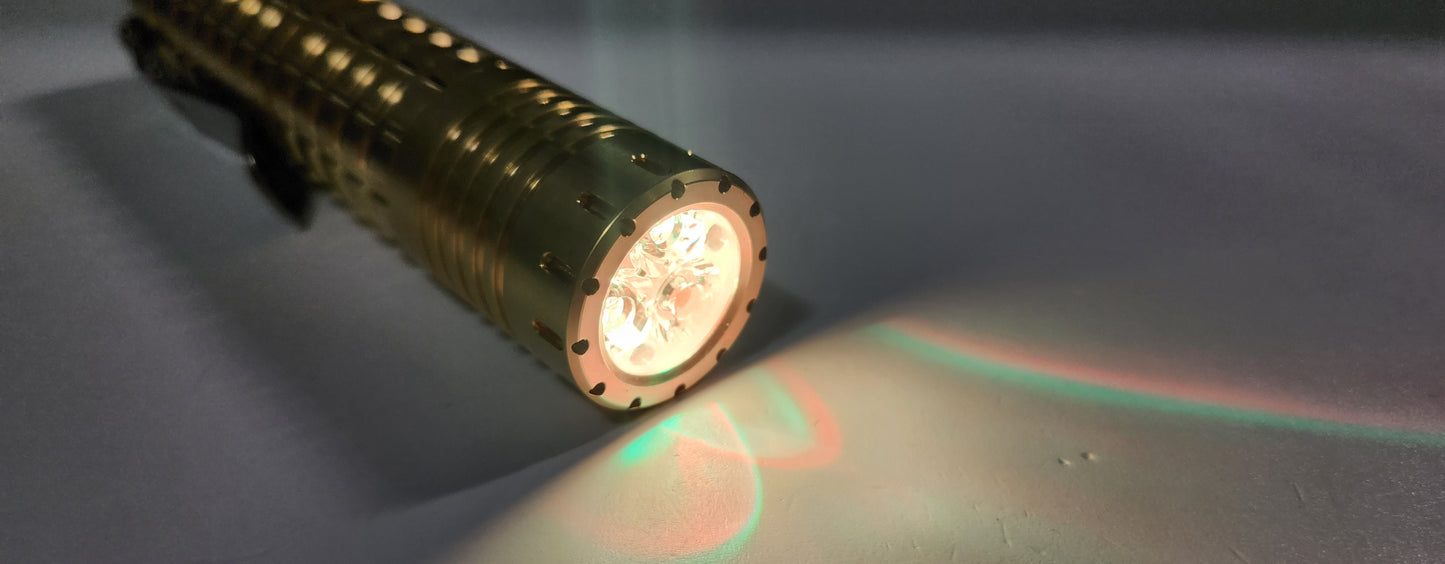

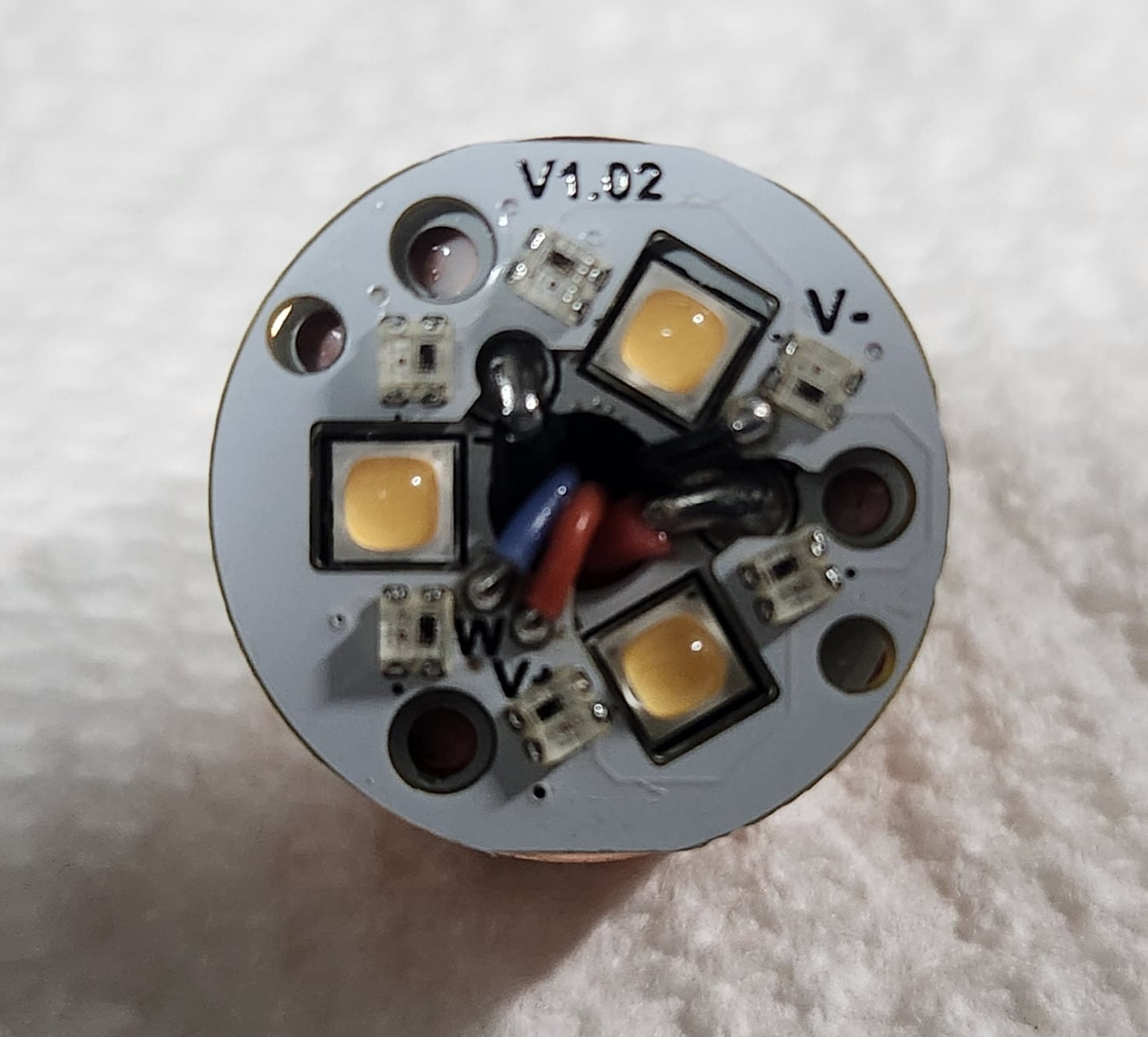

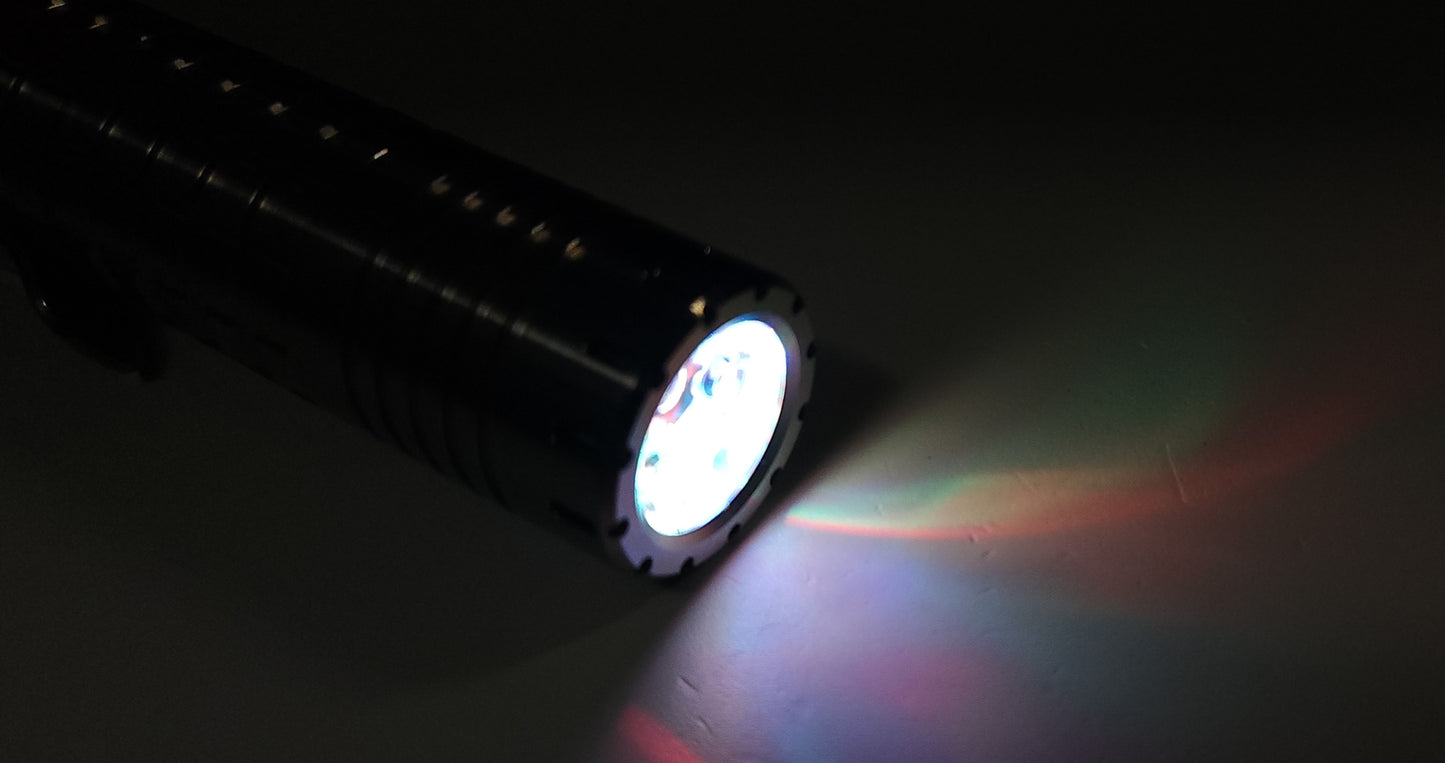

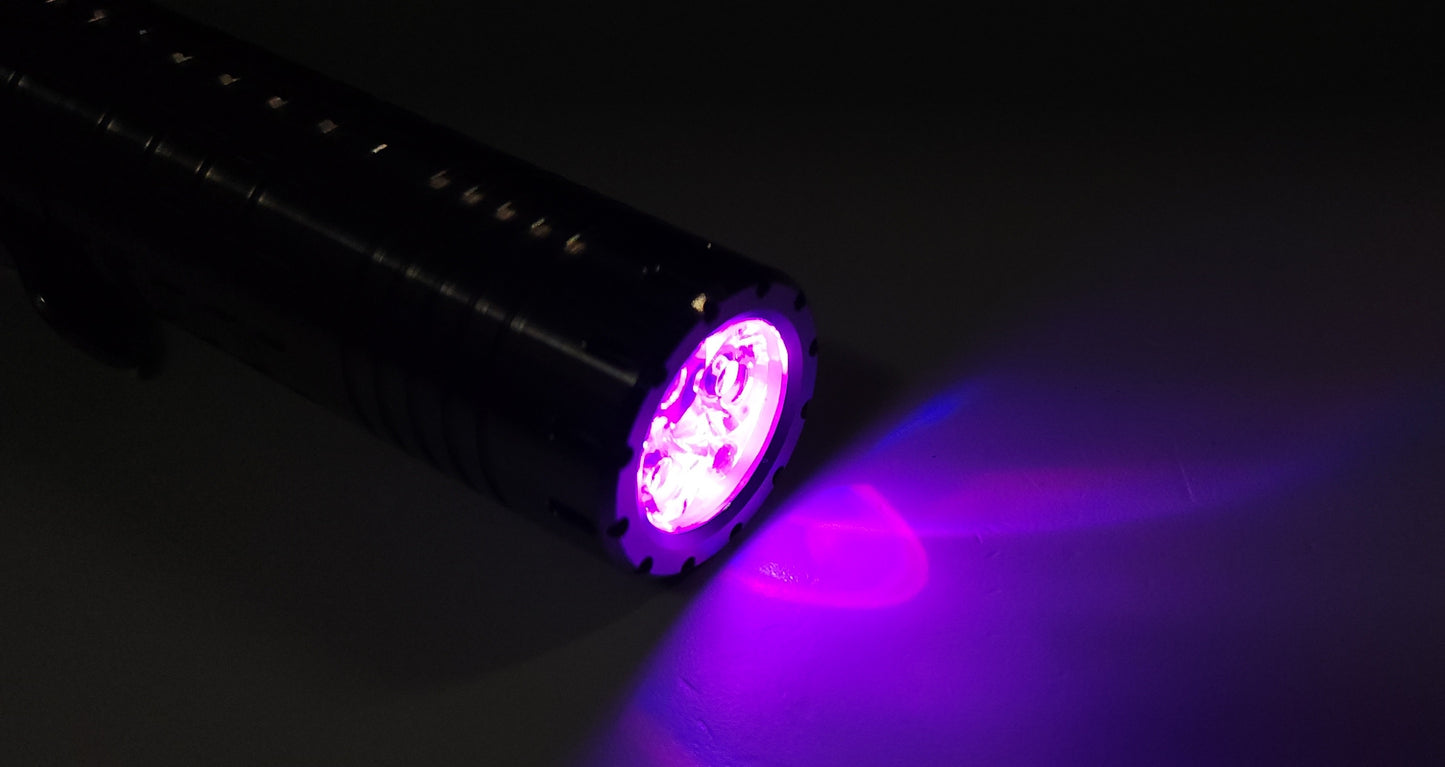

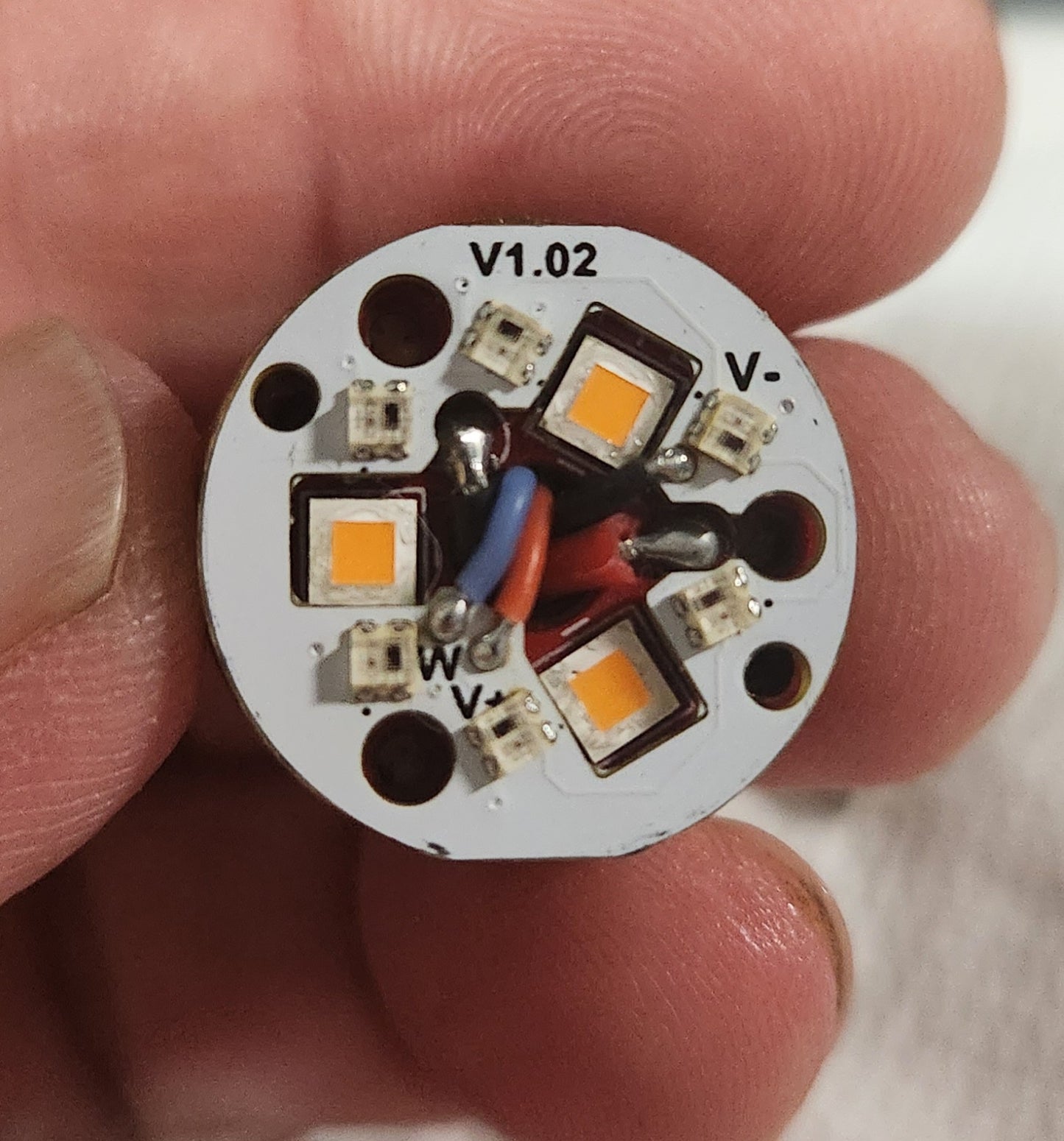

Maeerux XT3/MT3 Driver + Lumintop triple MCPCB + V1.02 RGB aux board ($90 ADDITIONAL)

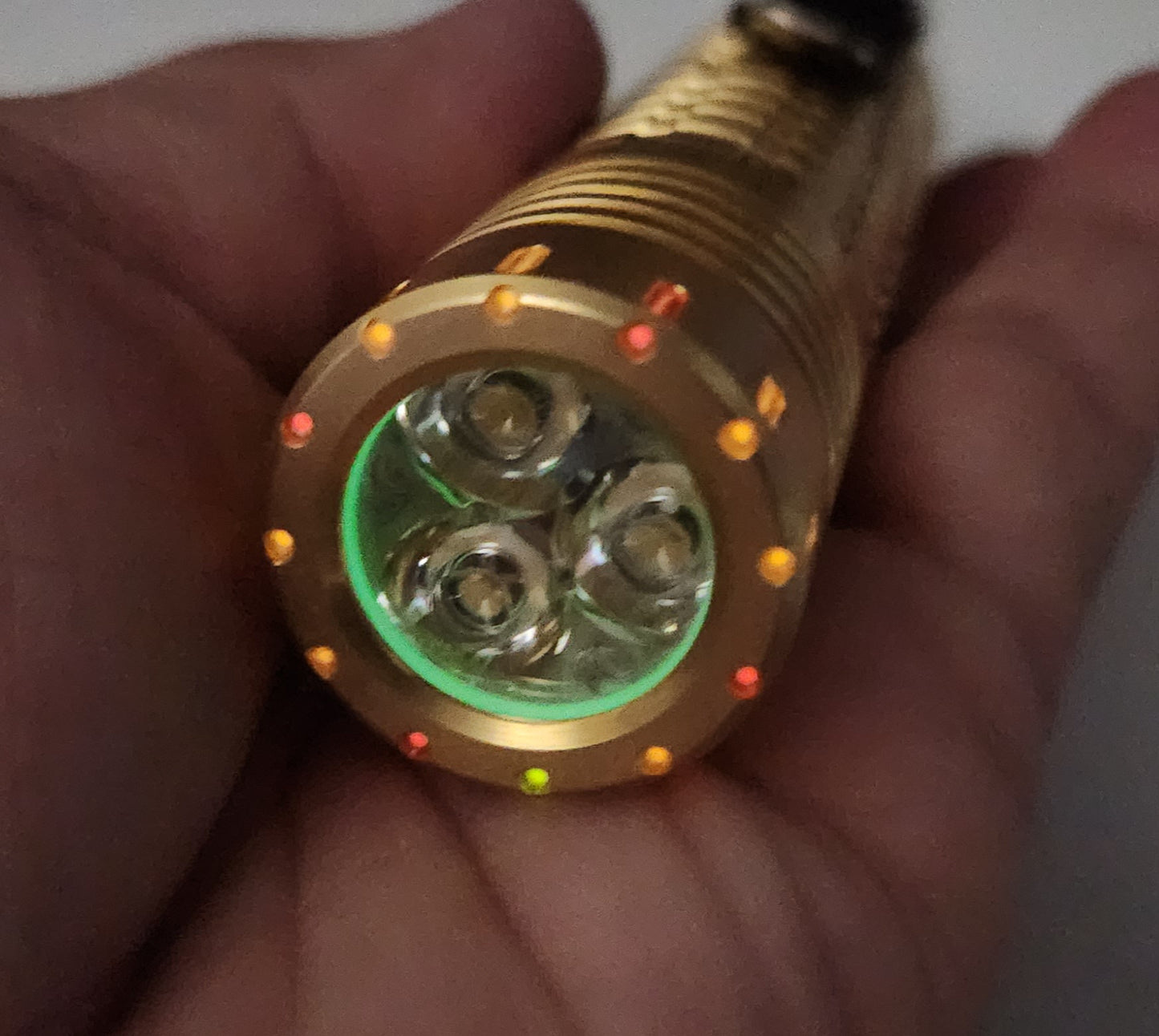

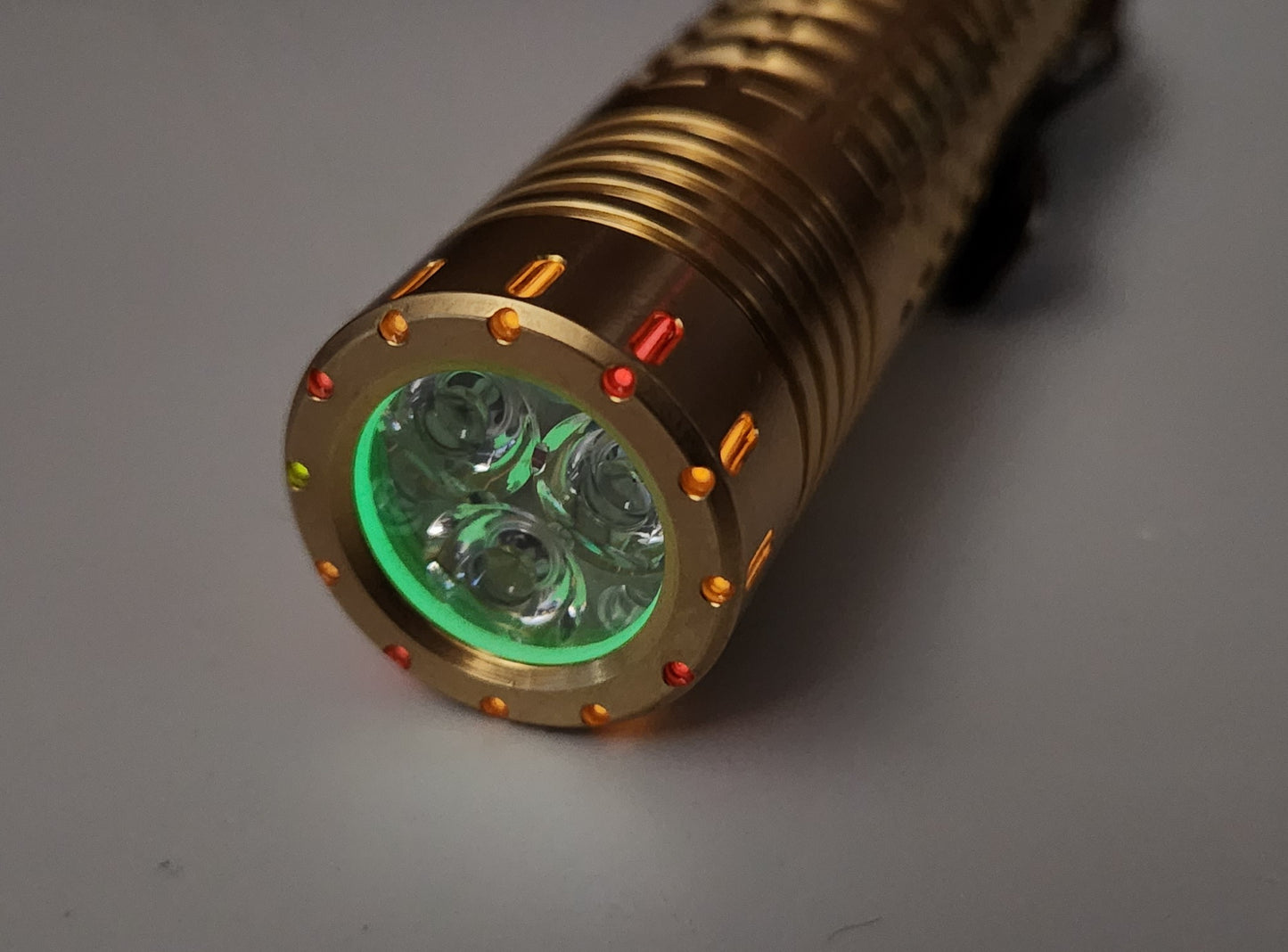

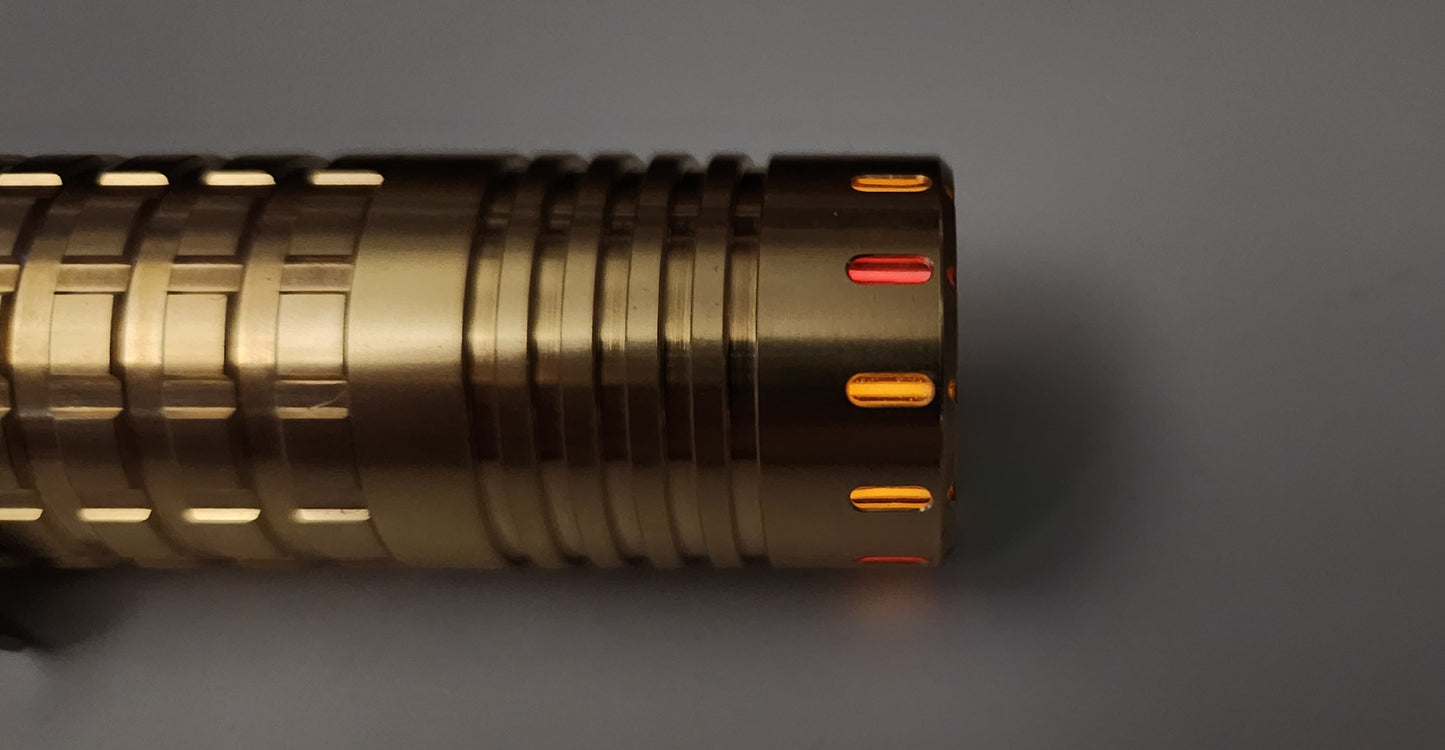

NEW! 12 + 3 TRITIUM SLOTS (15 TOTAL)

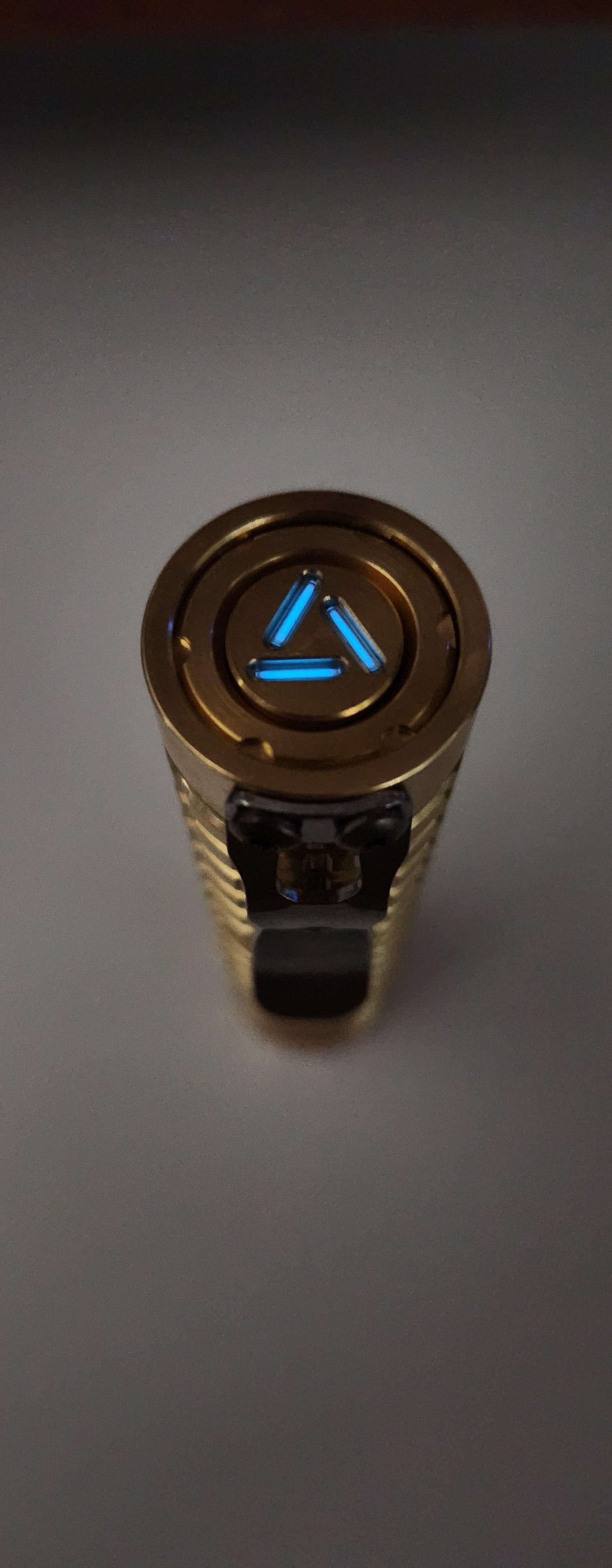

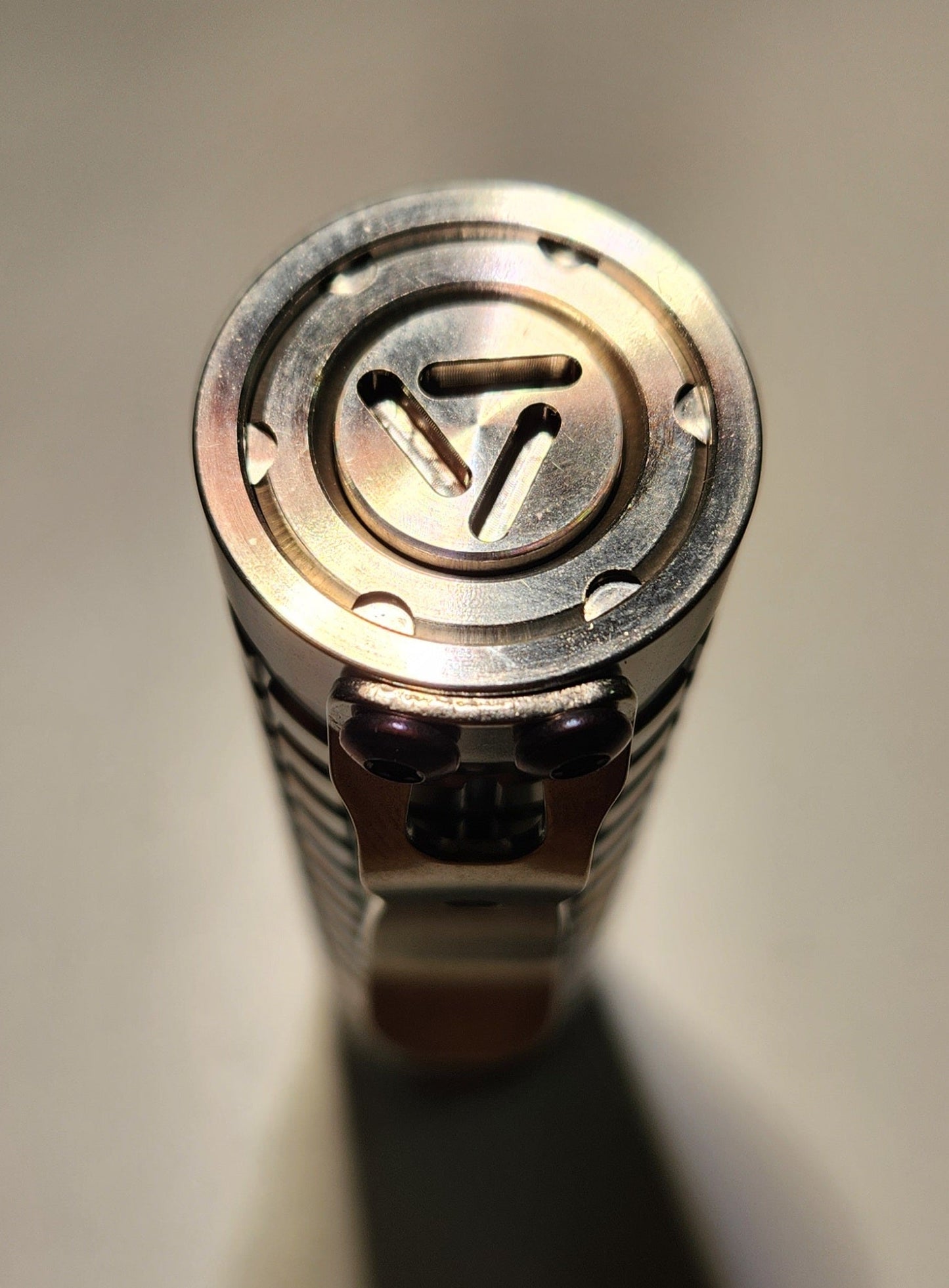

NEW! TRIPLE TRIANGLE STYLE TRITIUM SLOT TAIL SWITCH BUTTON!

EMITTER OPTION:

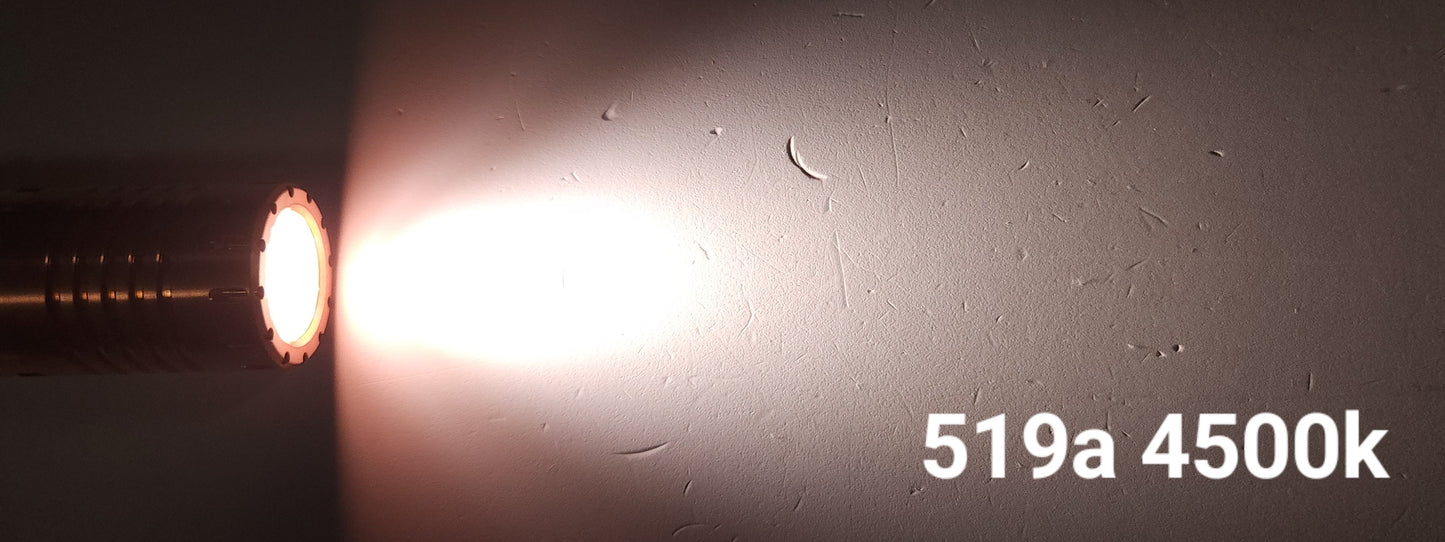

NICHIA 519A

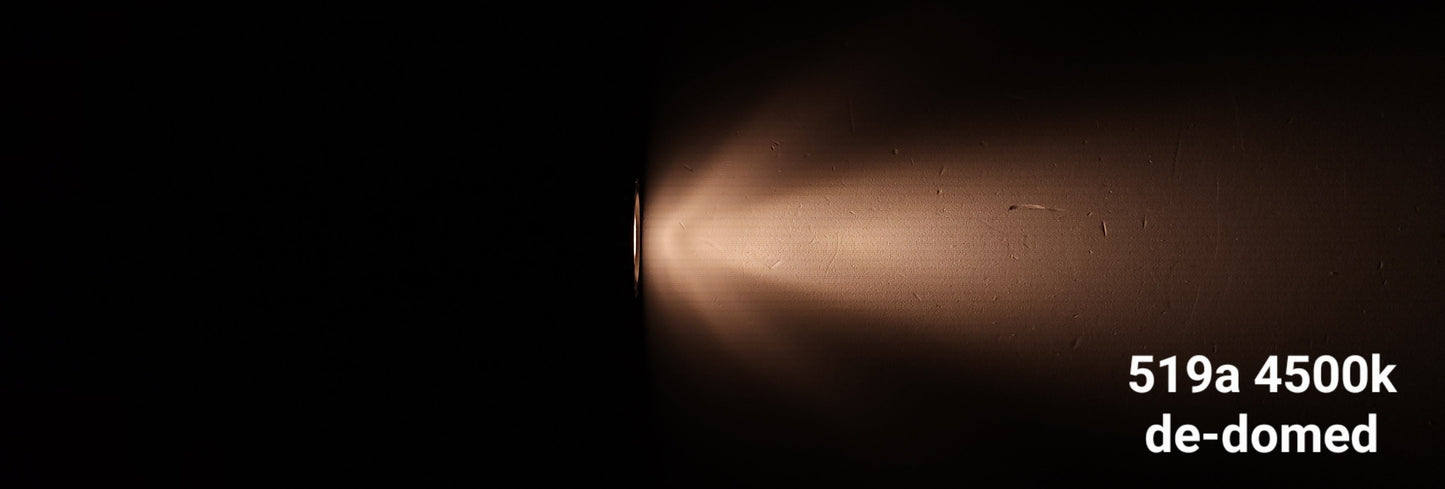

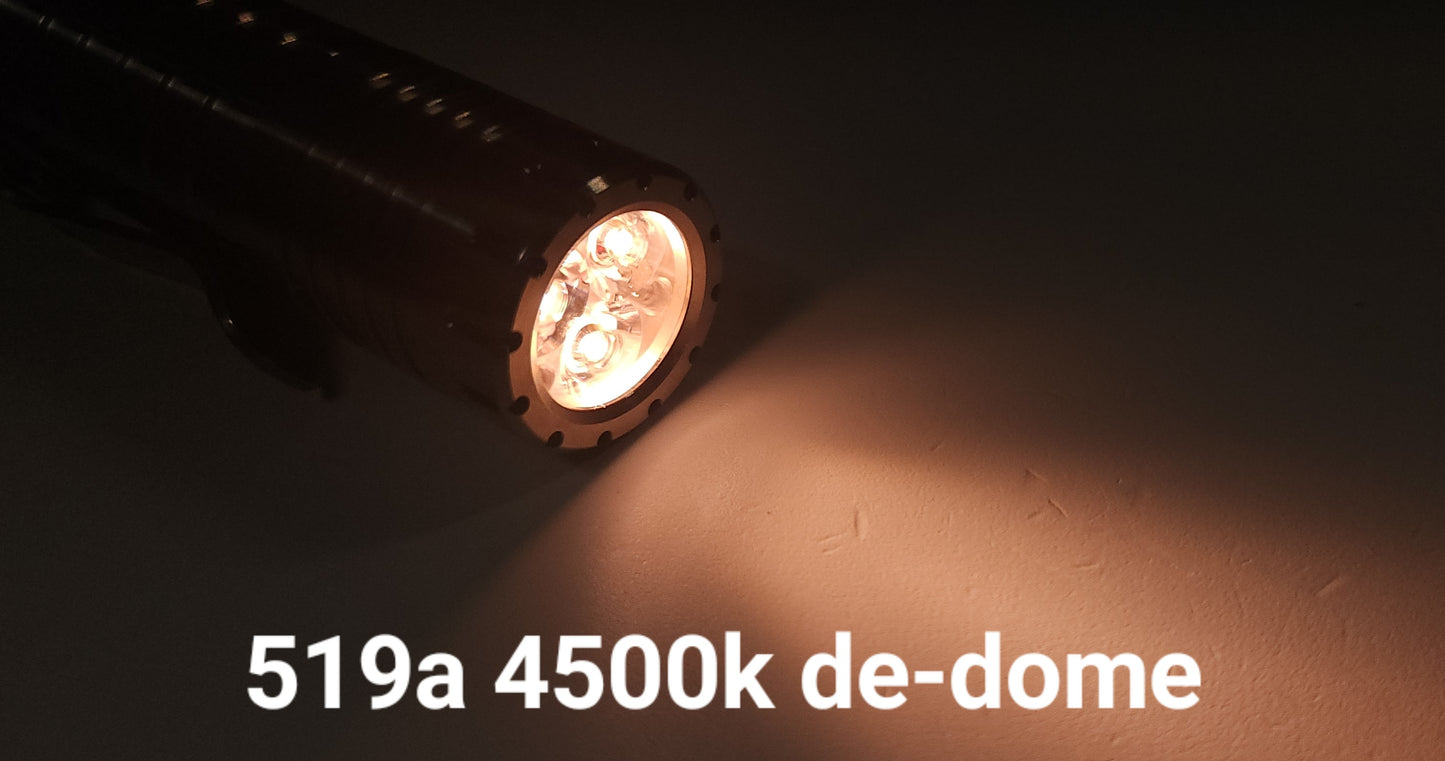

DE-DOME OPTIONAL ***MESSAGE ME***

2700K

3000K

3500K

4000K

4500K

5000K

5700K

OUTPUT LUMENS: 2800-3000LM



SPECIFICATIONS:

It has been 4 years since the 1st edition of Triple Ti.
Now it’s the time for the all-new designed Triple Ti – Dawn 2.1
Here are the specifications:

-Nichia 519A with a max output of 3,000 lumens. A true power of breaking the Dawn.

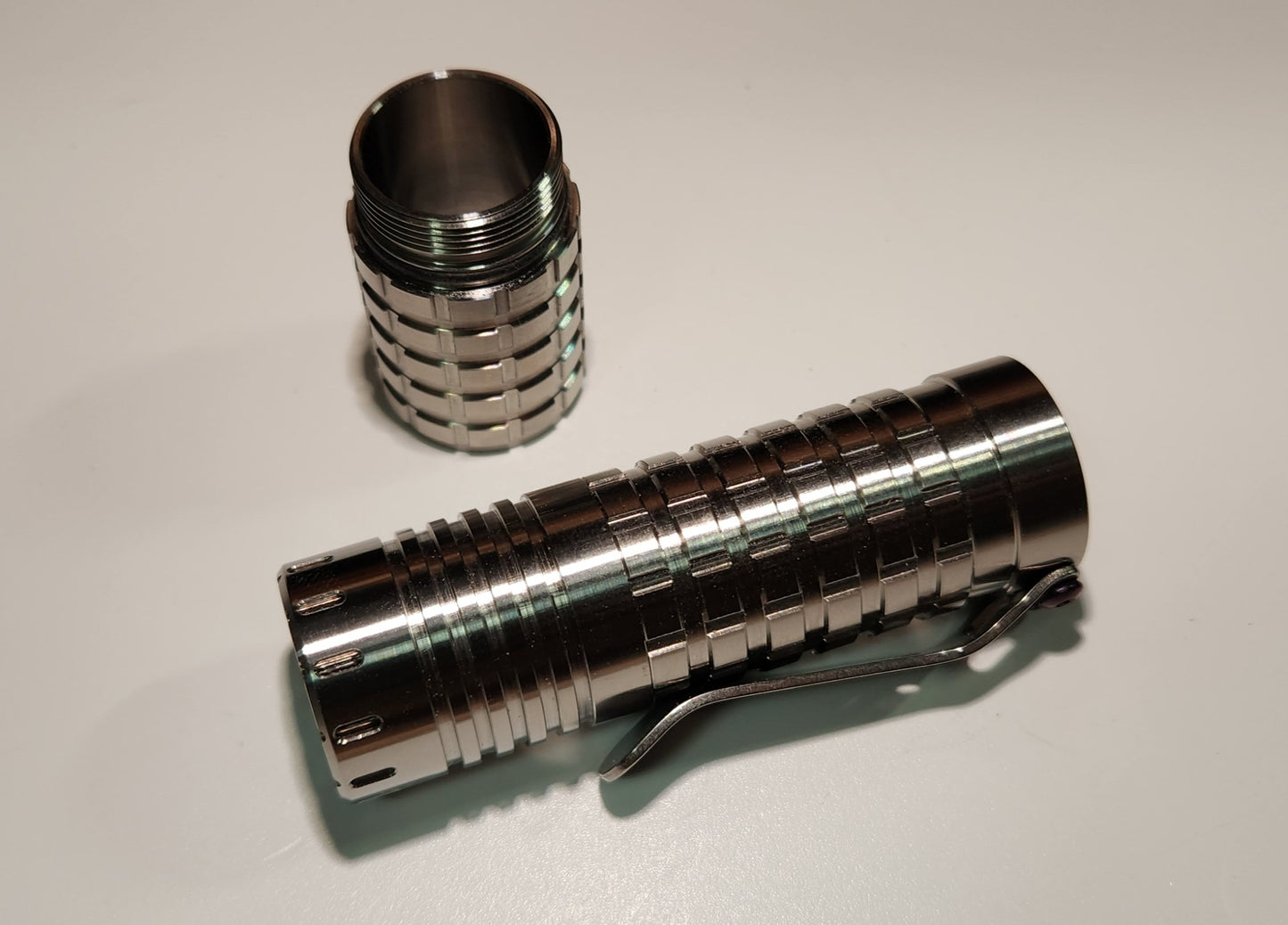

-Battery: single 18650 or 18350. It comes with 18650 battery extension!
– The Sapphire lens provides unbelievable high scratch resistance and durability, as well as adding long lasting value to this art piece.
– Glow in the dark gasket provides an upscale appearance.
-Custom-made rubber cap molding provides superior waterproof ability.
– Improved CNC tuning provides better quality of machining.
-Custom-made Ti clip and screws, are compatible with SF clips.
-Unlimited combination of tritium vials (12 trit-slots around head, and 2 trit-slots on the tail button).
-tritium size: 1.5*6mm (not included)

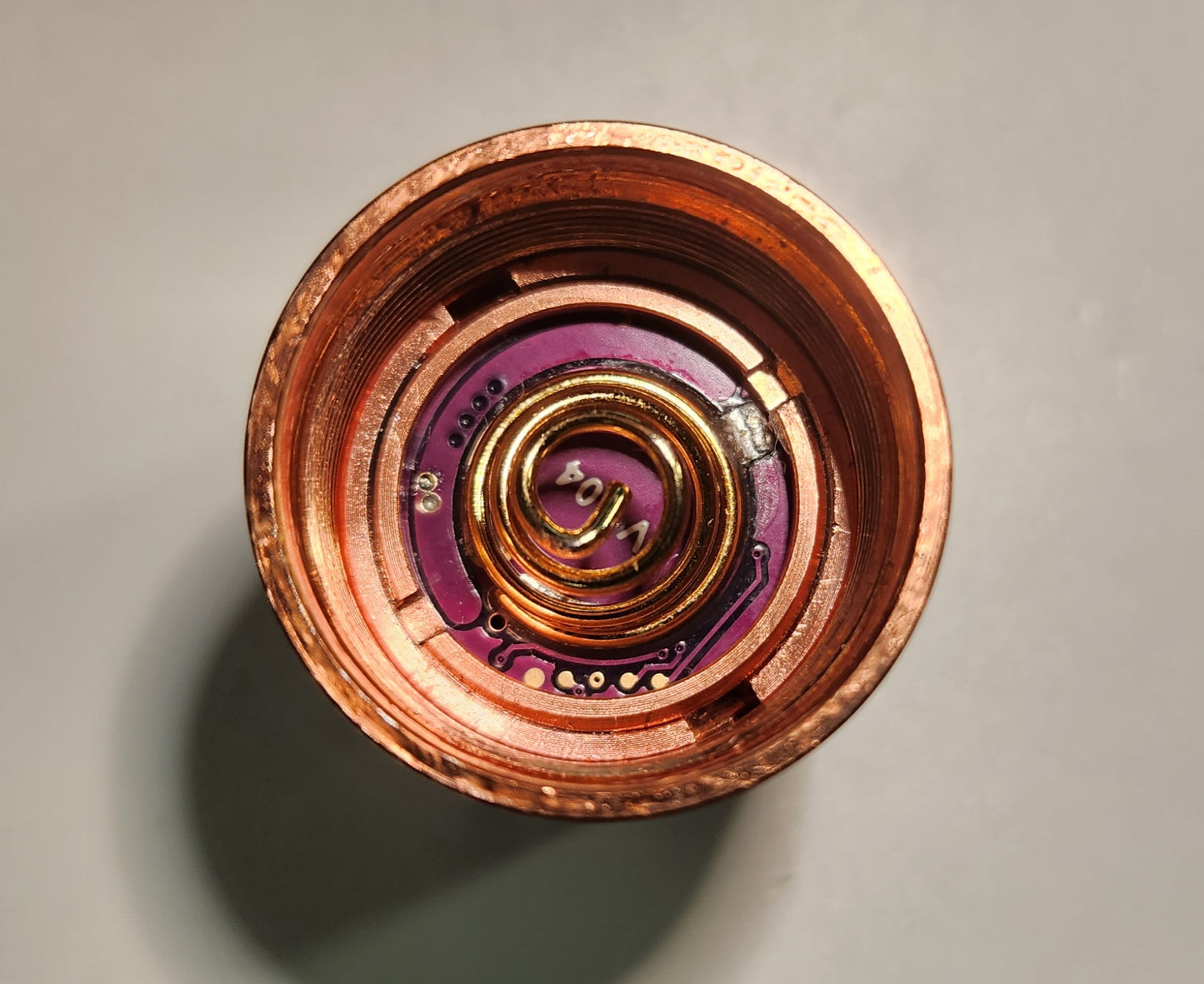

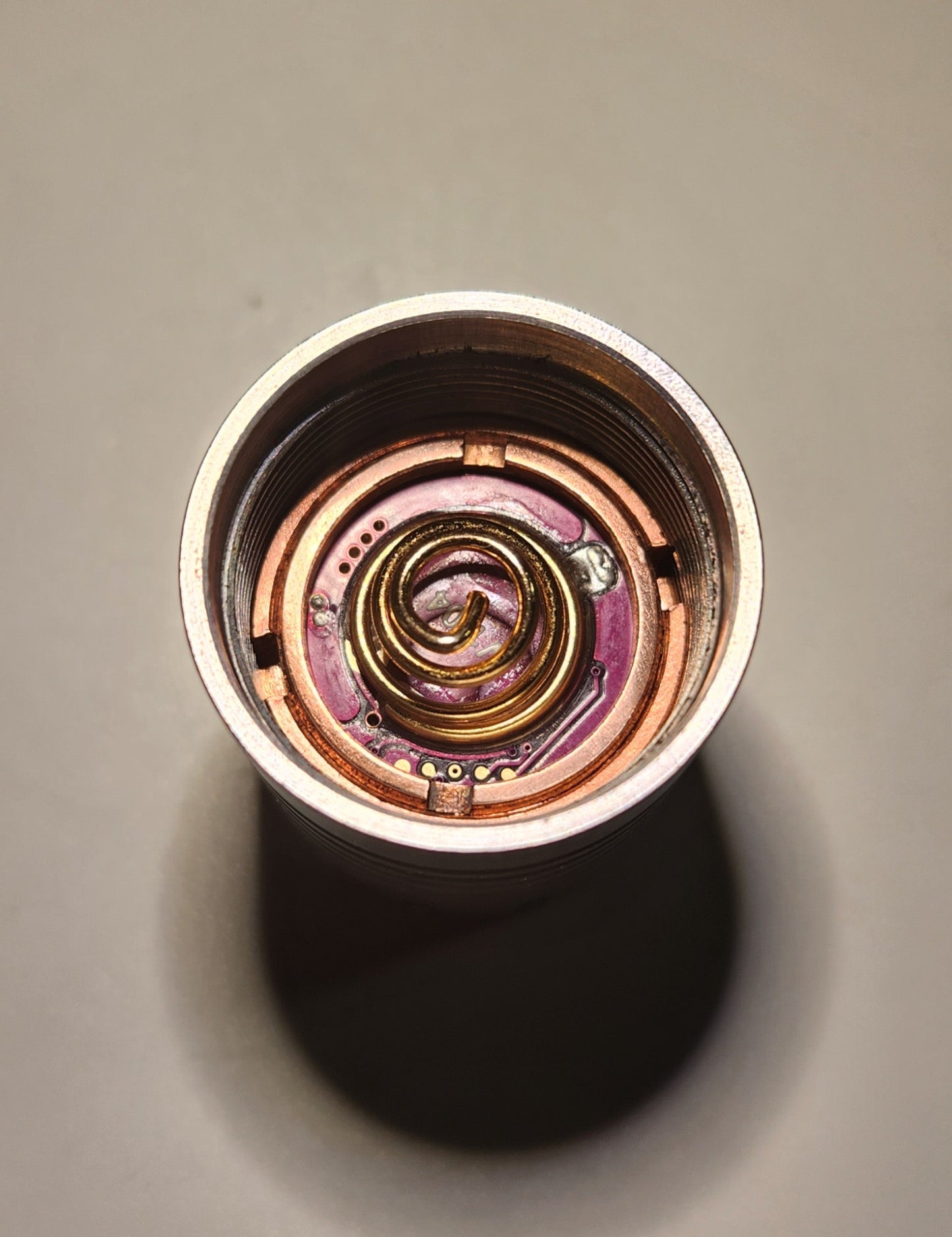

– TA driver with modified TK’s Bistro firmware, 23 groups of modes.
-Reverse polarity protection
-LVP (low voltage protection) for Li-ion battery
-Diameter is 25mm, 18650 length 112mm, 120g£¨18350 length 83mm£¨97g

-Battery 18650 high drain unprotected FLAT TOP cells recommended 10-15A, some flat tops will work. Nichia 519a Samsung 30q recommended





After 2+ years waiting, finally we have DAWN back.

-Nichia 219B SW45K R9080
-or XPL HI 6000K
-Battery: single 18650 or 18350. It comes with 18650 battery extension!    (DO NOT use double 18350)
– The Sapphire lens provides unbelievable high scratch resistance and durability, as well as adding long lasting value to this art piece.
– Glow in the dark gasket provides an upscale appearance.
-Custom-made rubber cap molding provides superior waterproof ability.
– Improved CNC tuning provides better quality of machining.
-Custom-made Ti clip and screws, are compatible with SF clips.
-Unlimited combination of tritium vials (12 trit-slots around head, and 2 trit-slots on the tail button).
-tritium size: 1.5*6mm (not included)
-Reverse polarity protection
-LVP (low voltage protection) for Li-ion battery
-Diameter is 25mm, 18650 length 112mm, 120g, 18350 length 83mm 97g

Suggested battery: Sony C5, C6, Sanyo 18650GA, Samsung 30Q, LG HG2.
Keeppower Xtar efest 18350.

Only unprotected battery is suggested.  The protected one might be too long and cause a problem. The circuit itself has protection already.

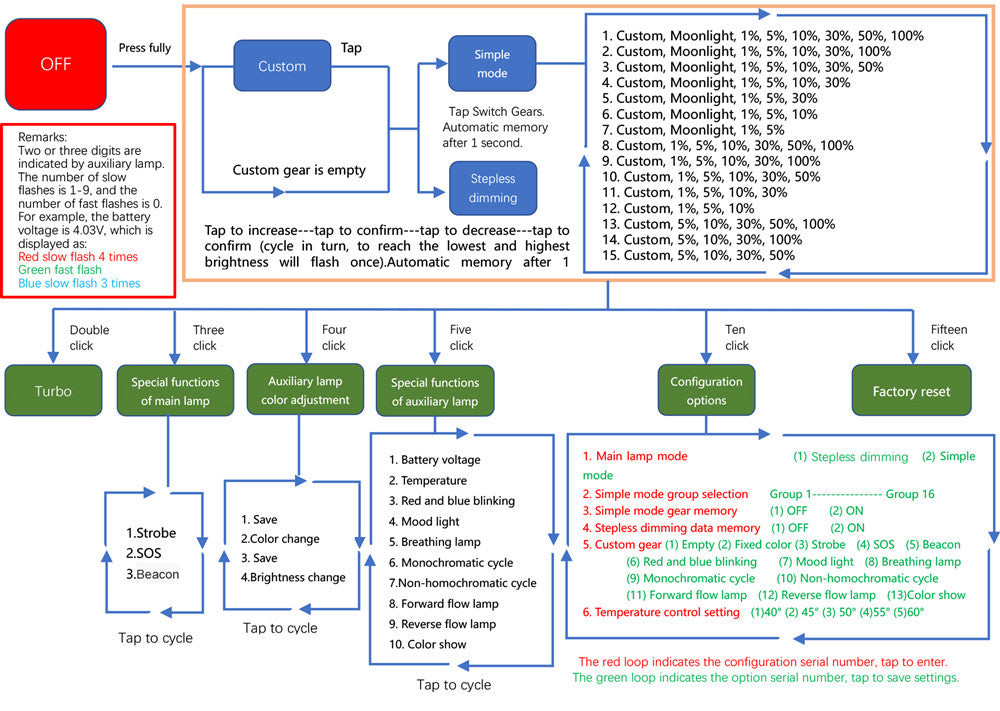

Programming Guide

1. Turn on the light.

2. Press the button 8+ times. The light will now blink once, then strobe, blink twice, then strobe, blink three times, then strobe…After 5 blinks and a strobe, the sequence repeats.

a. 1 blink: mode group selection. Press the button to enter this menu.

i. 1 blink: (ML)-2%-20%-100%

ii. 2nd blink: (ML)-10%-40%-100%

iii. 3rd blink: (ML)-2%-10%-50%

iv. 4th blink: (ML)-50%-100%-strobe-SOS

It then repeats. Press the button during any blink to select that mode group.

b. 2 blinks: mode memory on-off toggle (default off). Press the button during the two blinks or during the strobe after to turn mode memory on. Repeat to turn mode memory off.

c. 3 blinks: moonlight mode off-on toggle (default on). Press the button during the three blinks or during the strobe after to turn moonlight off. Repeat to turn moonlight on.

d. 4 blinks: mode order toggle (default LMH). Press the button during the four blinks or during the strobe after to change the mode order from Low Medium High to High Medium Low. Repeat to reverse the order.

e. 5 blinks: factory reset. Press the button during the five blinks or during the strobe after to reset the light to factory settings.

Shortcut: quick double tap to turbo.
