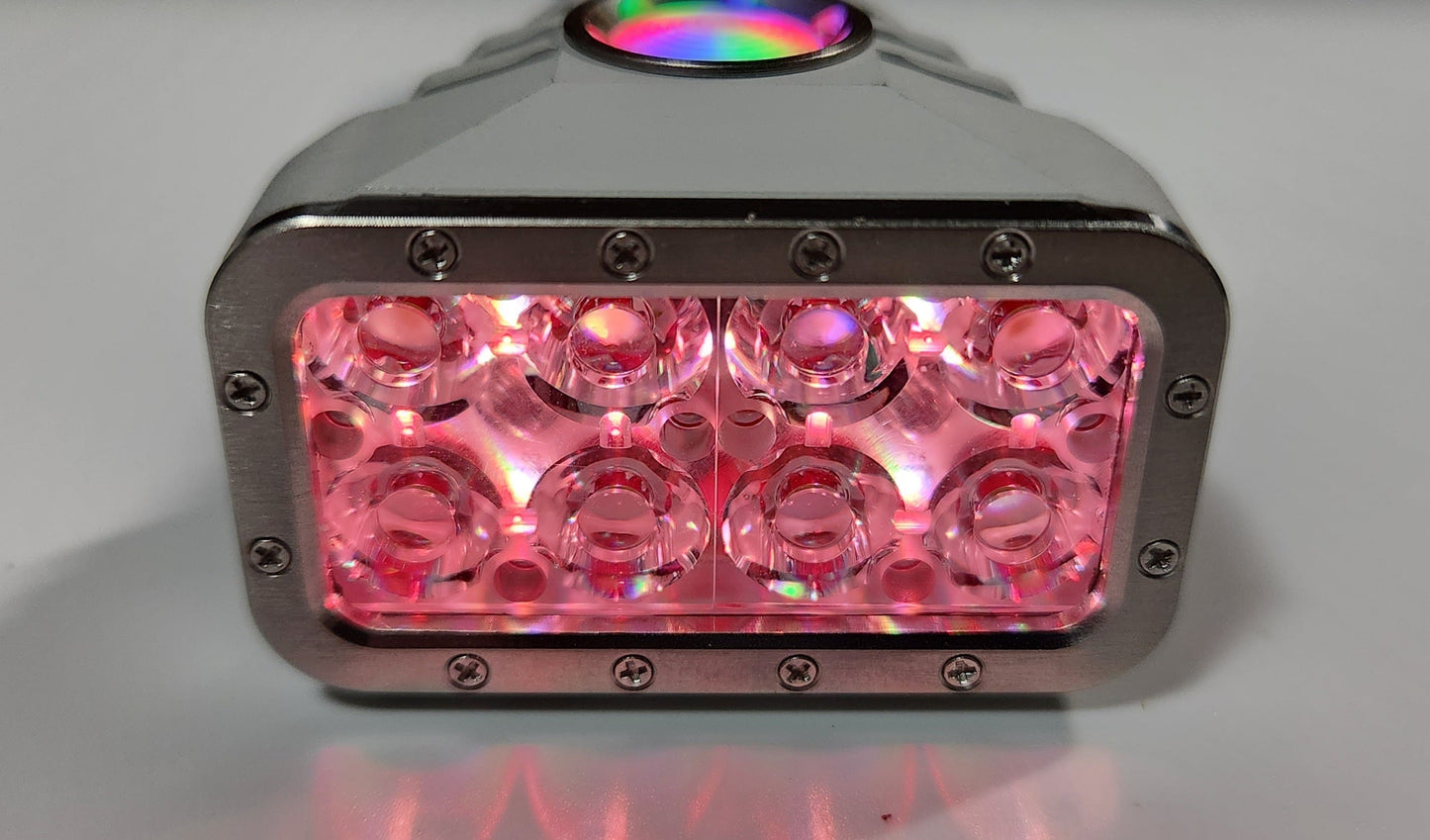

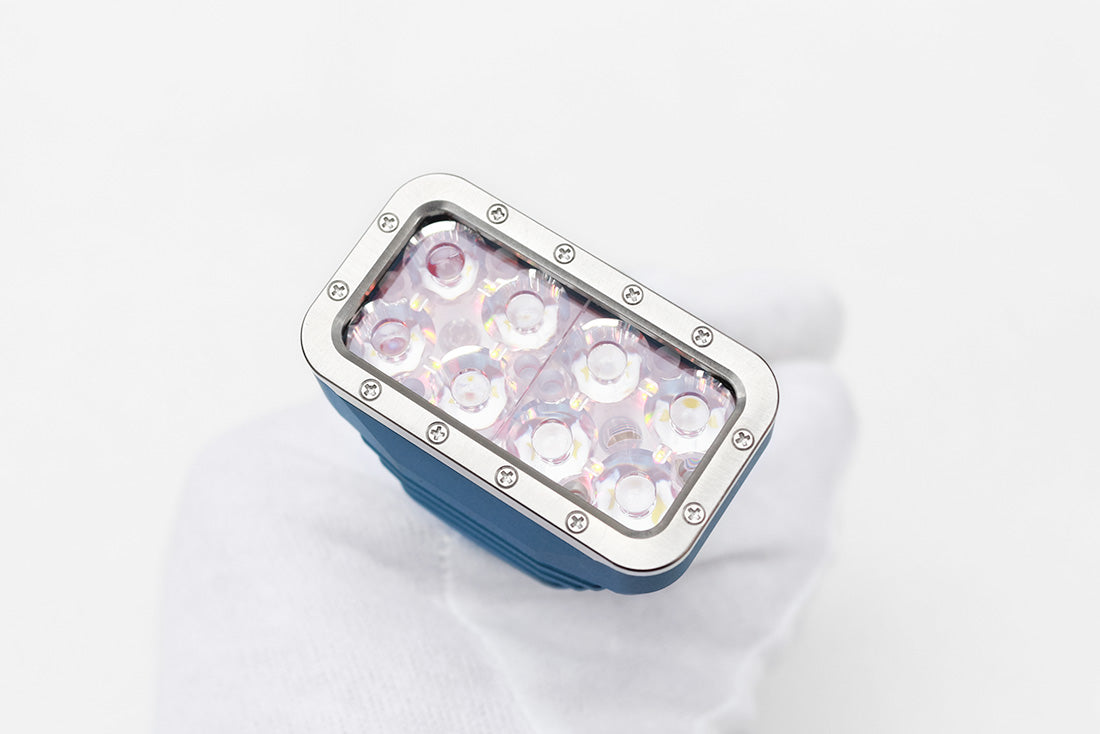

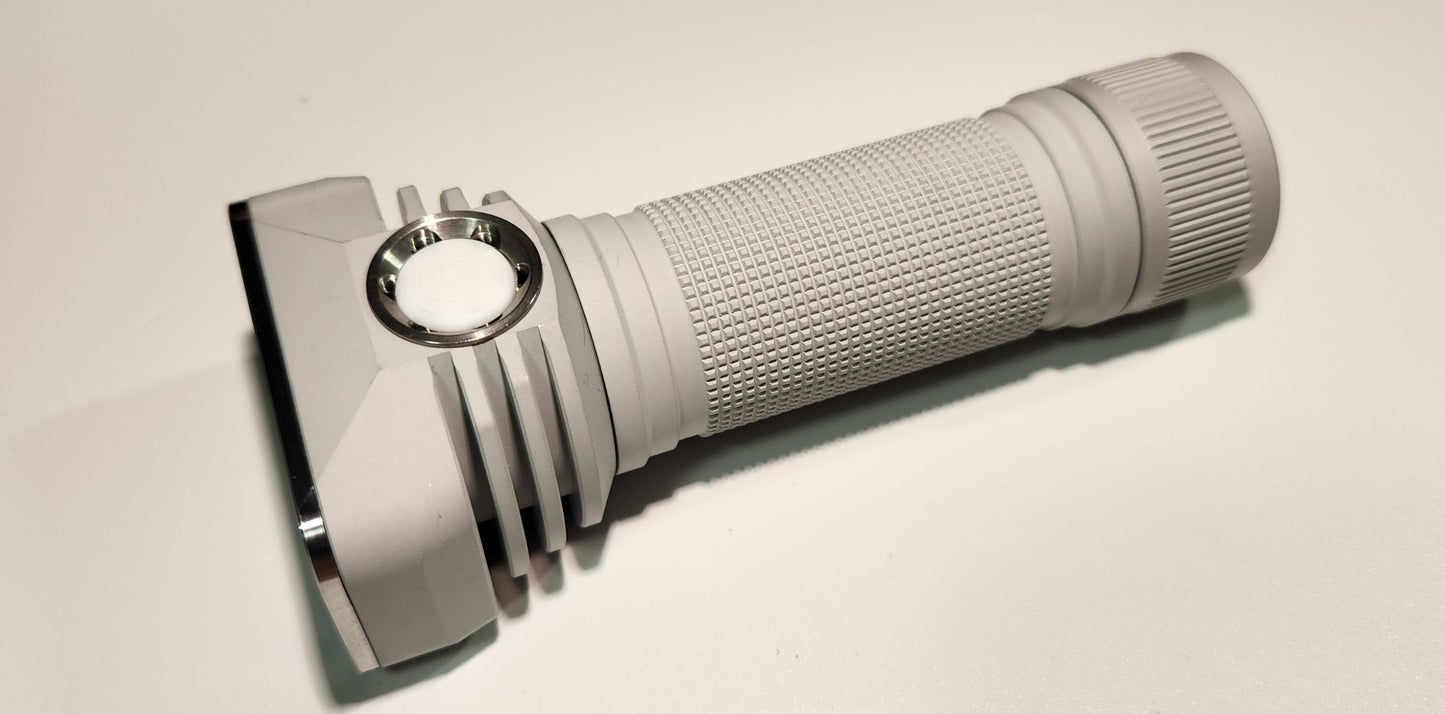

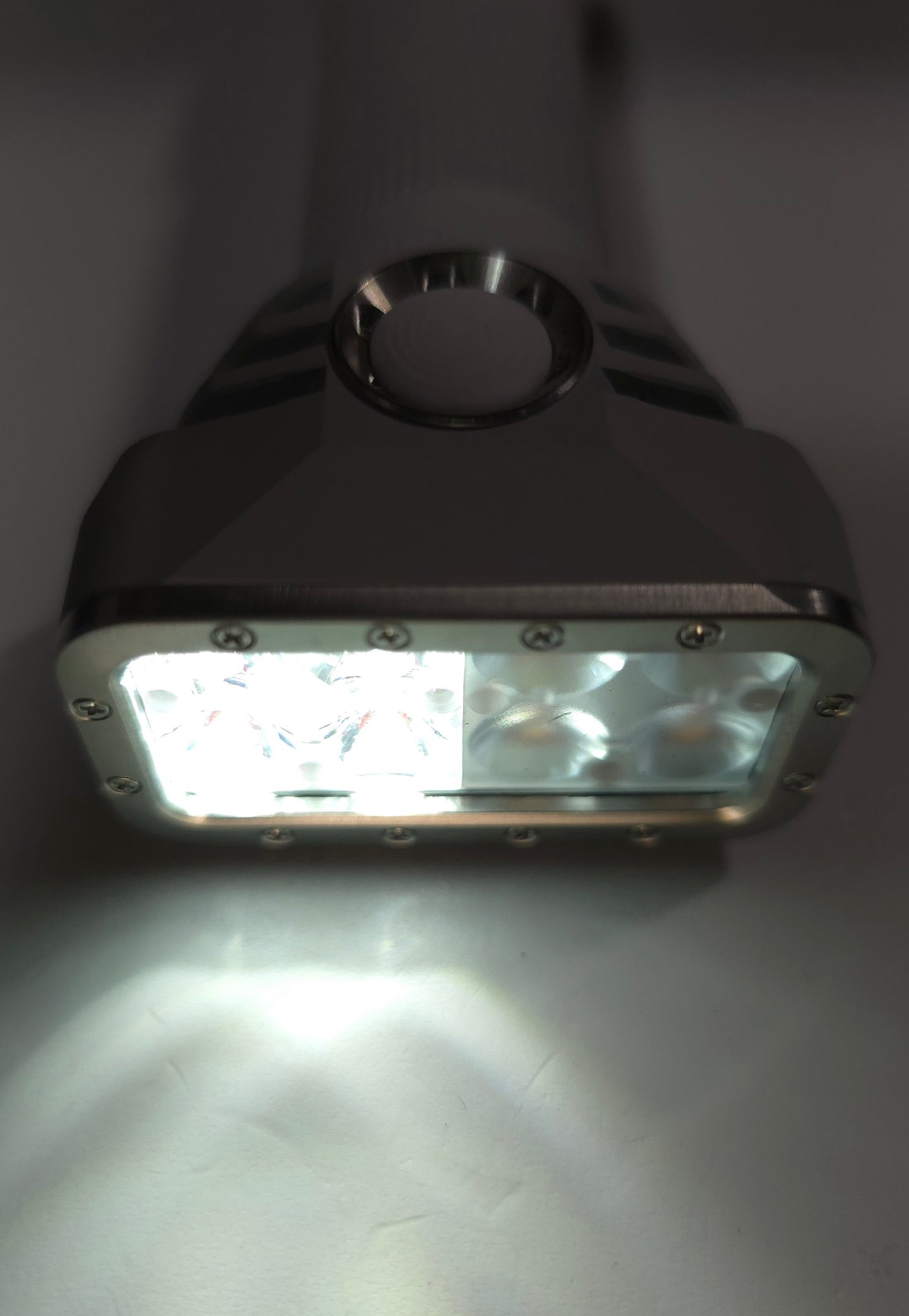

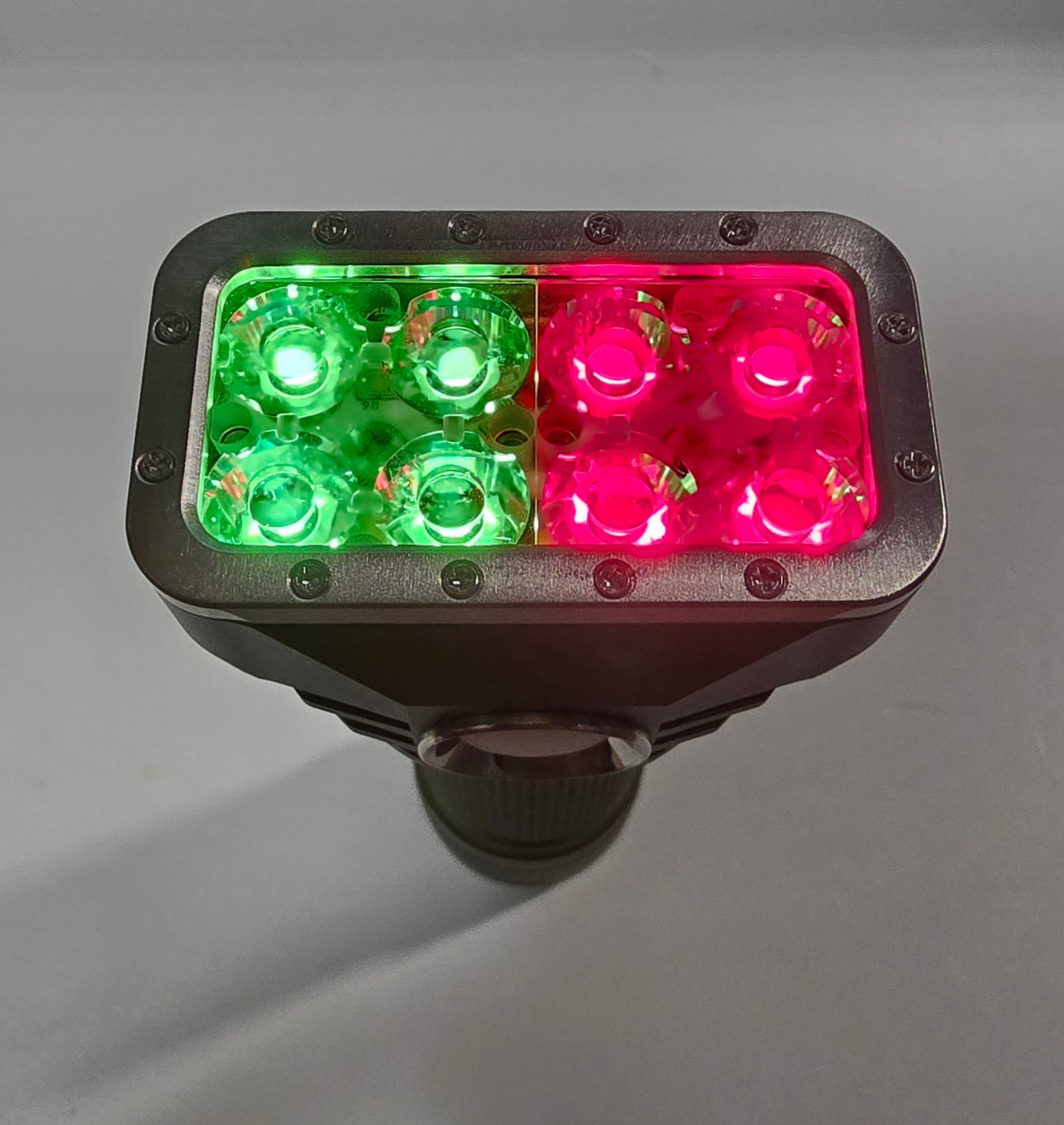

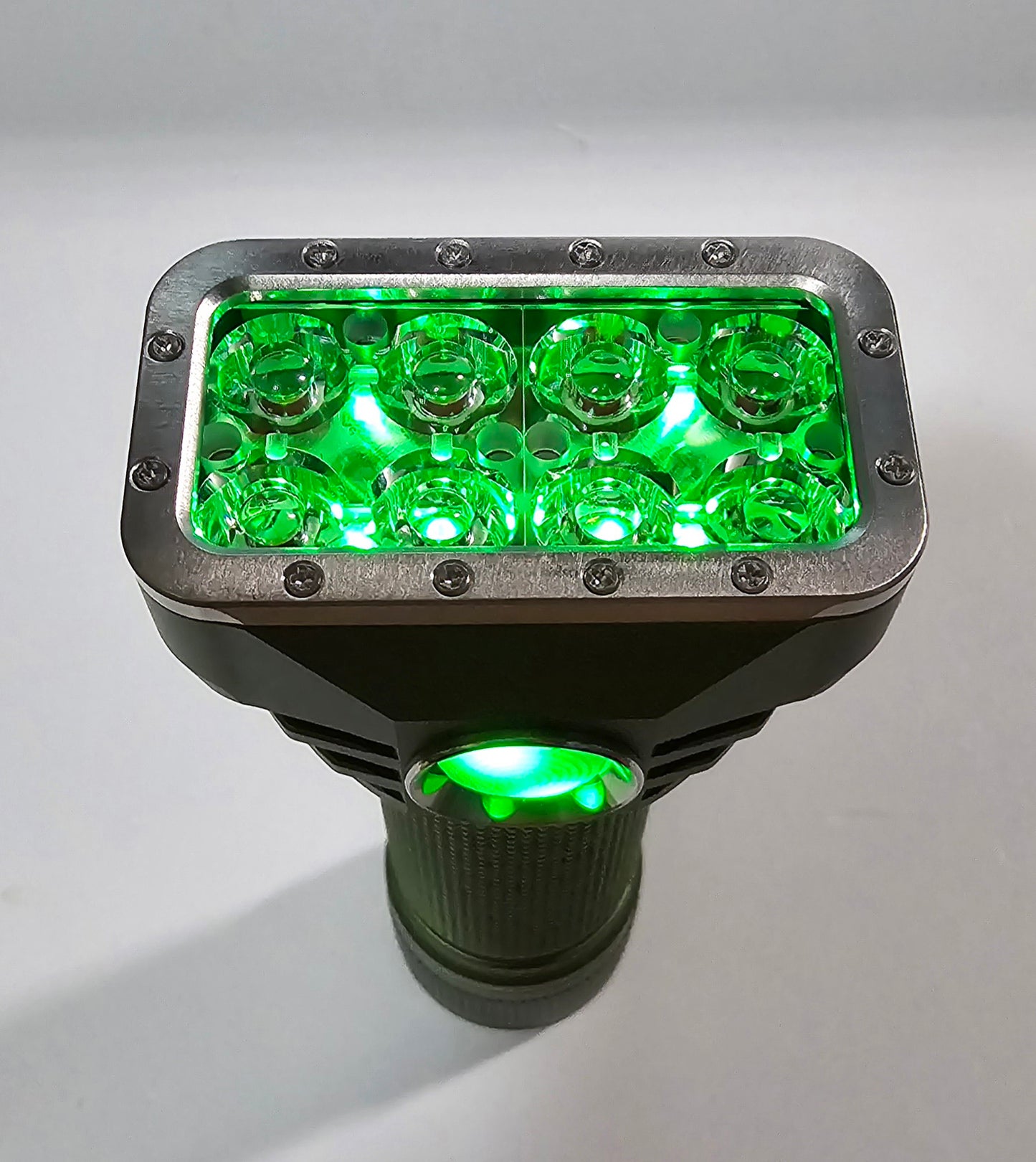

Emisar DT8K Tint Ramp 21700 8 LED High Power LED Flashlight CUSTOM "BUILT-TO-ORDER"

Emisar DT8K W/Tint Ramp Instant Channel Switching

NOTE: THIS IS CUSTOM "BUILT-TO-ORDER", WILL SHIP ACCORDINGLY!

Warning: Output will be dependent on cell model (incl.age) and temperature.

Emisar DT8K puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing.

High drain, flat top, unprotected battery 21700 required. (Not included in the price)

Each DT8K is tested before shipping, please DO NOT apply extra force to the screws in the head.

WARNING! The Emisar DT8K puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing.

5/20/2025:

There is new black PVD coated stainless parts available & with new black switch buttons! You can select your options at during the time of your custom build. If the option is not selectable it's not available, the metal switch buttons won't be available will the end of May. NOTE: new black switch buttons are painted so be careful not to press too hard or dig anything into the button switch. There will be new non-painted black buttons available in the next shipment. I will ship a spare button so you can replace it if it starts to wear.

USER INTERFACE:

ANDURIL 2 UI

DRIVER:

DUAL 9A CONSTAT CURRENT + FET (CURRENT DEPENDS ON EMITTERS)

FIRMWARE:

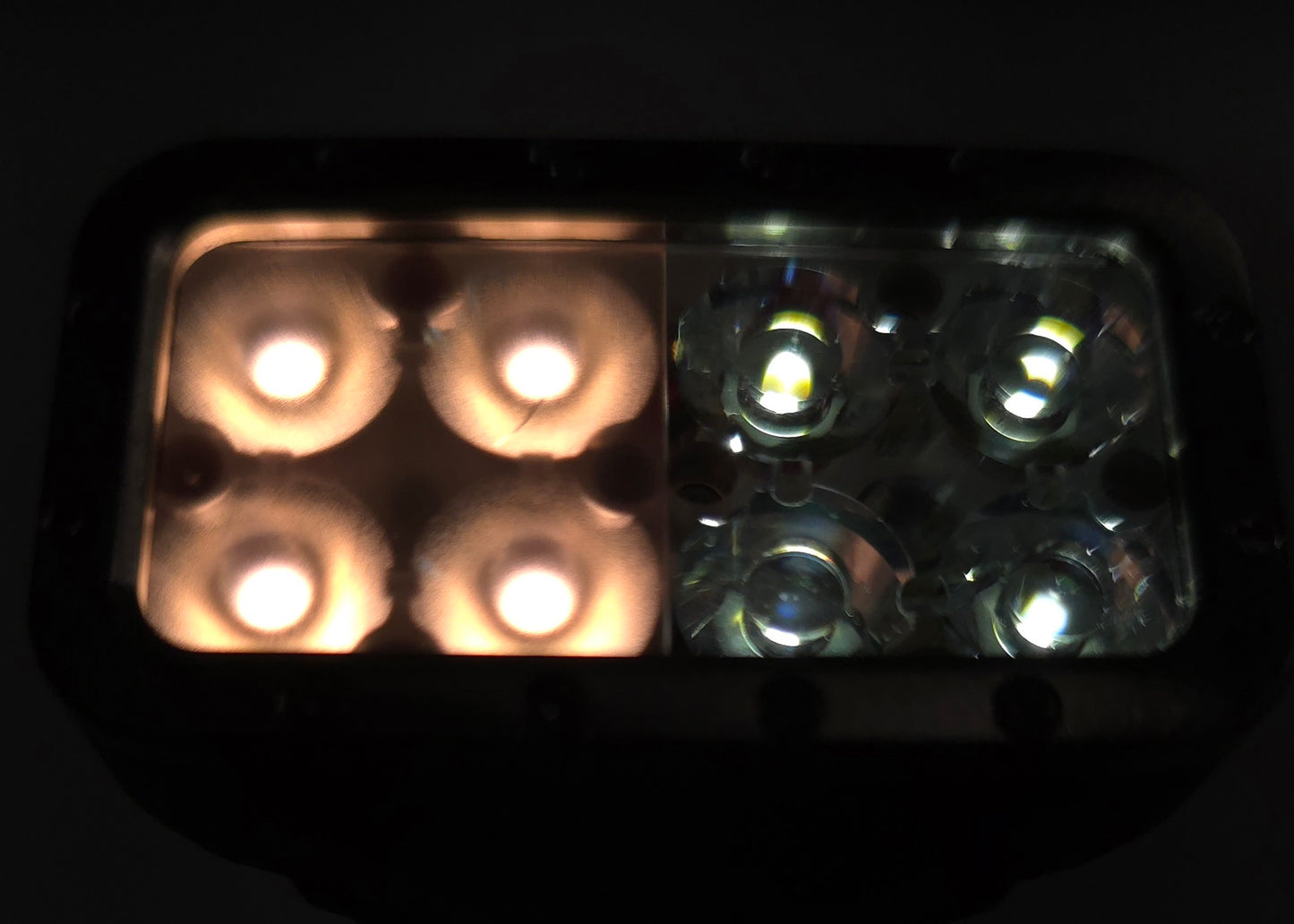

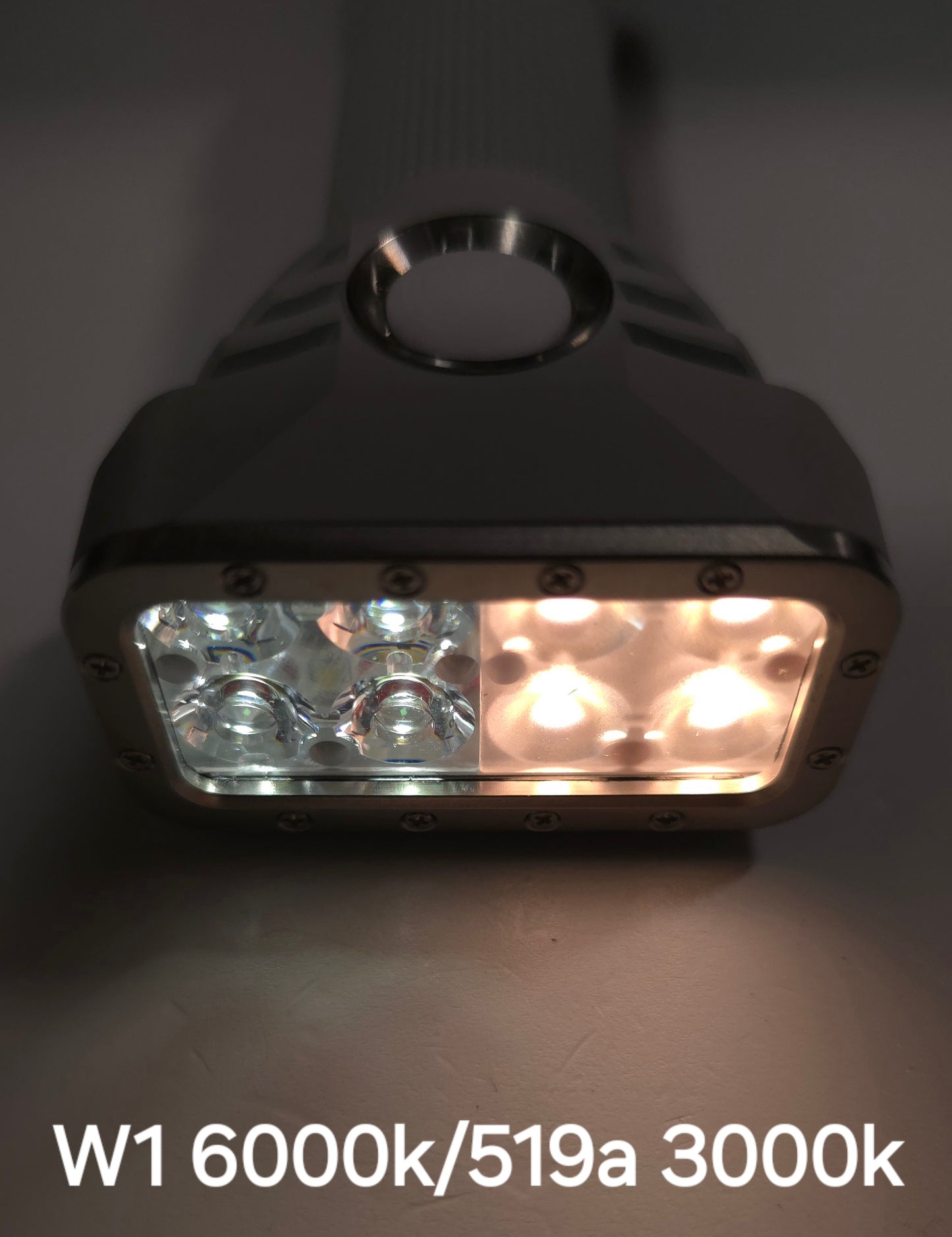

TINT RAMP/CHANNEL SWITCHING (DEFAULT)

NEW 2-CH FIRMWARE

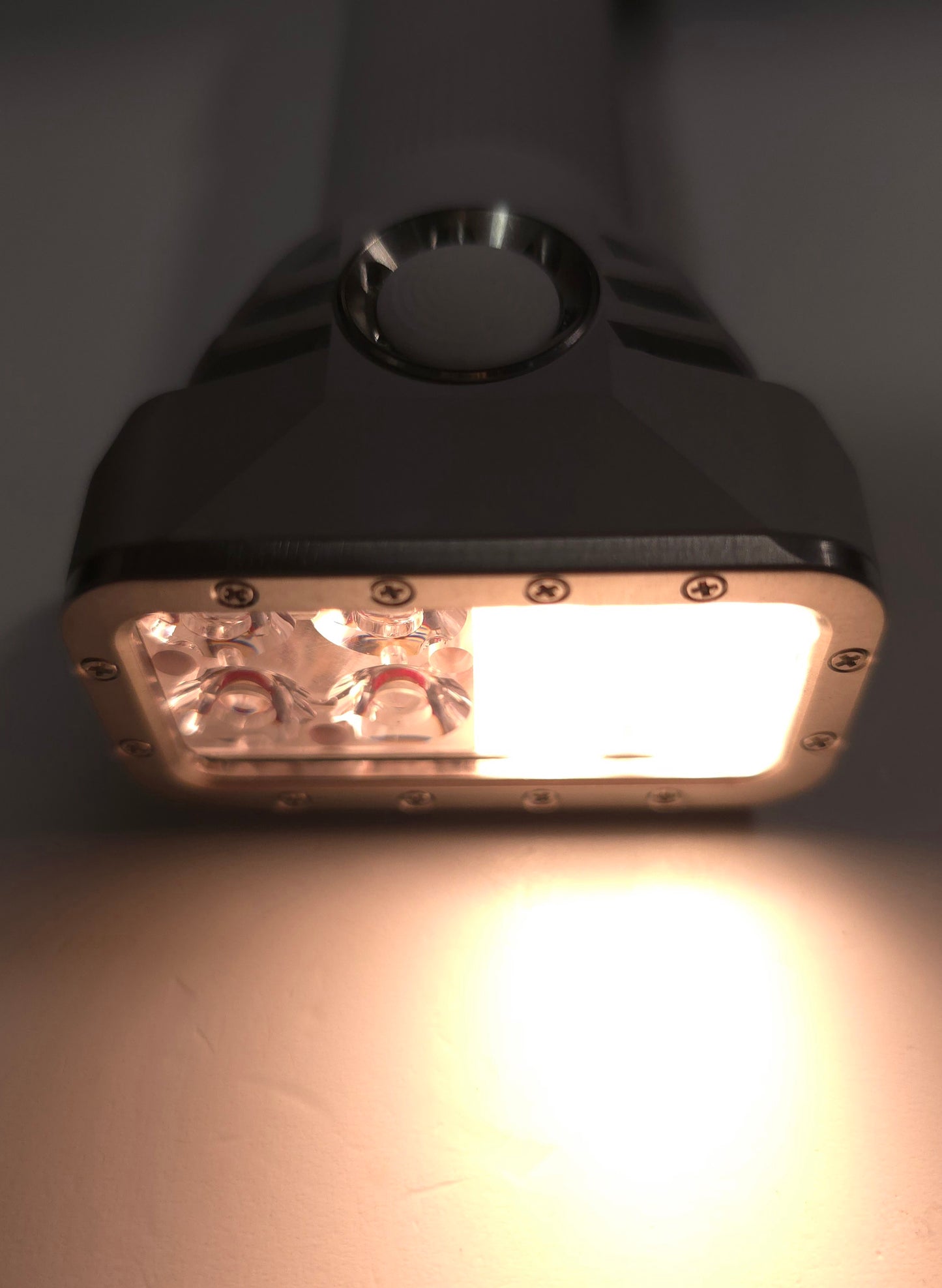

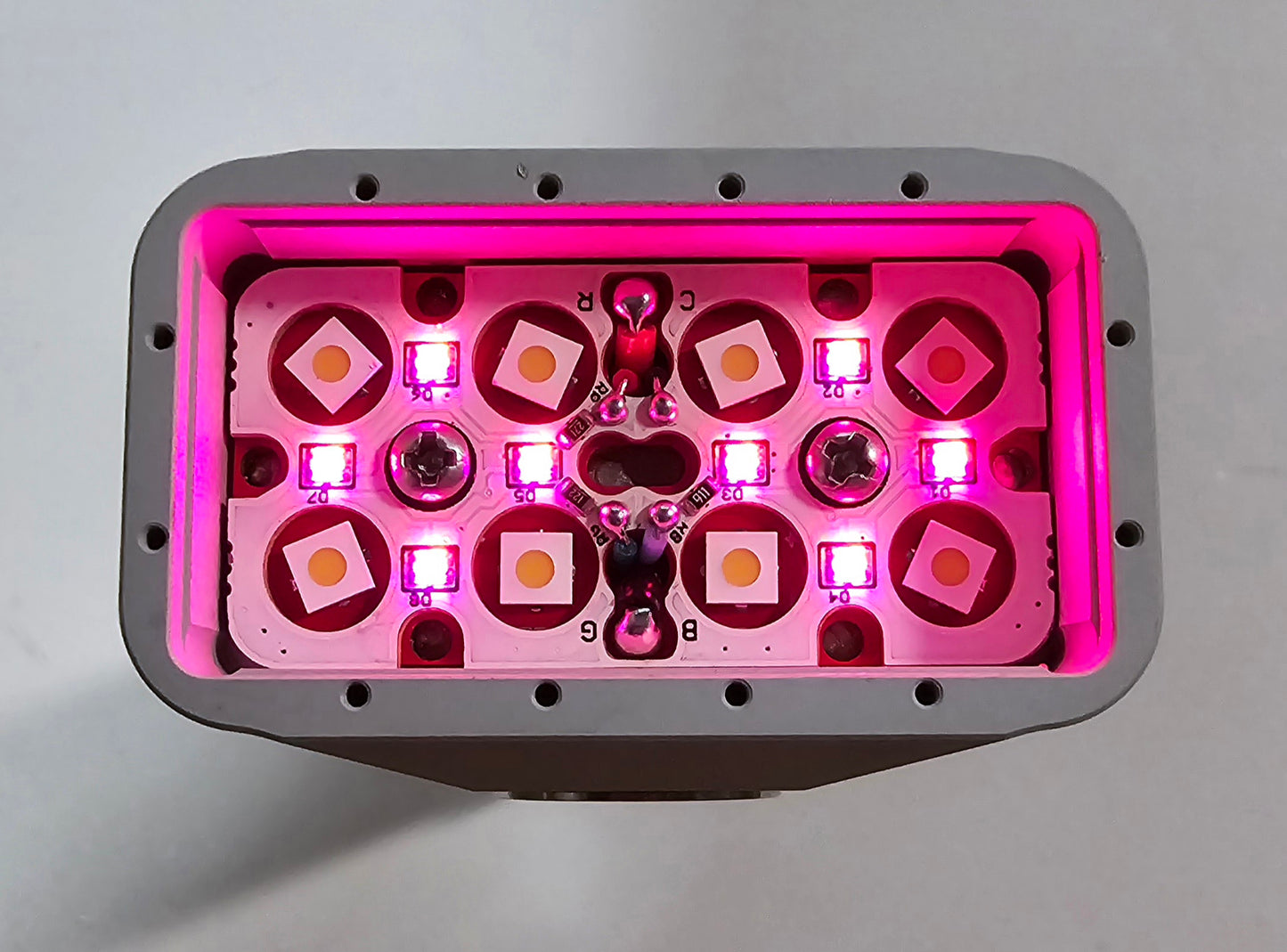

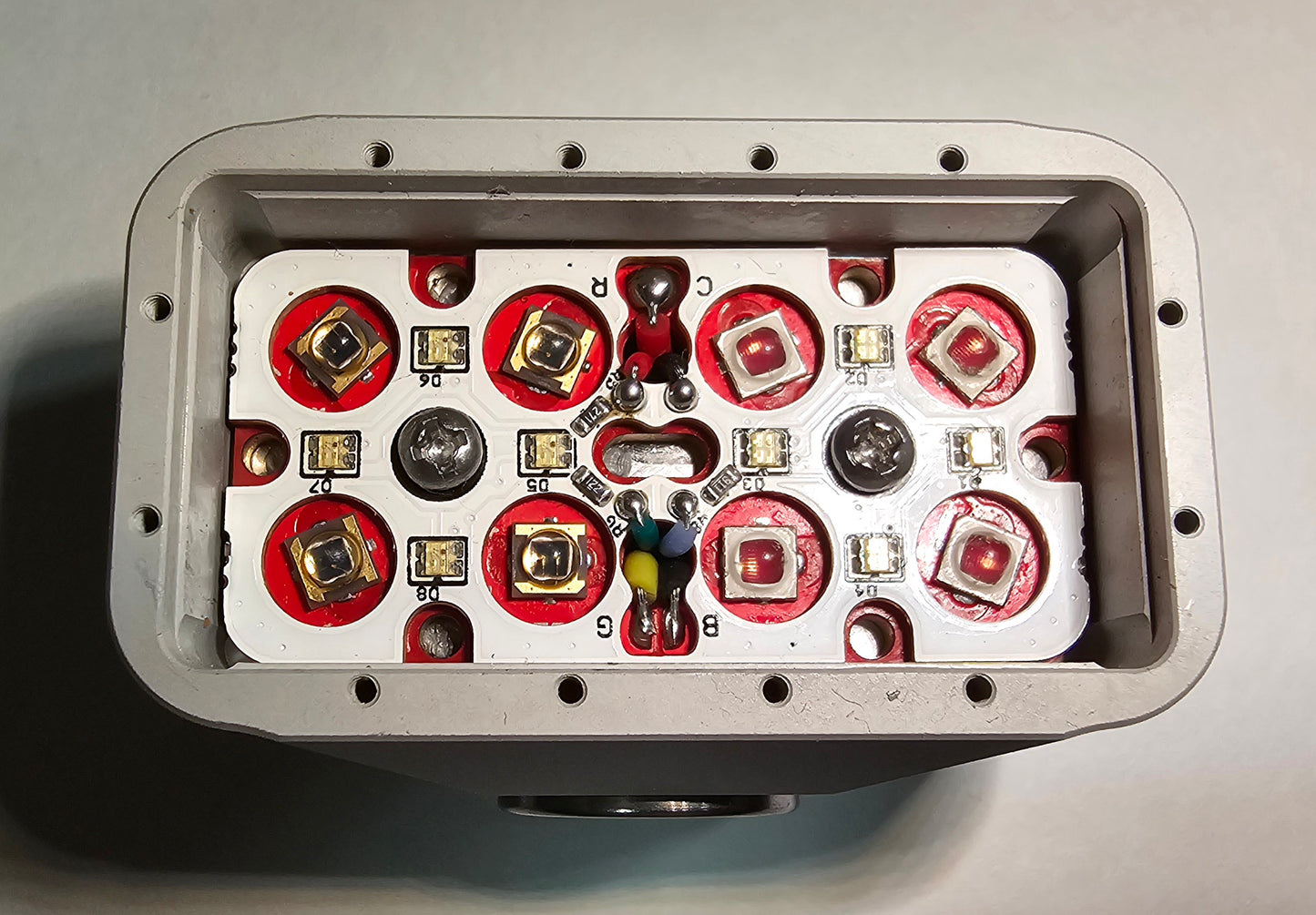

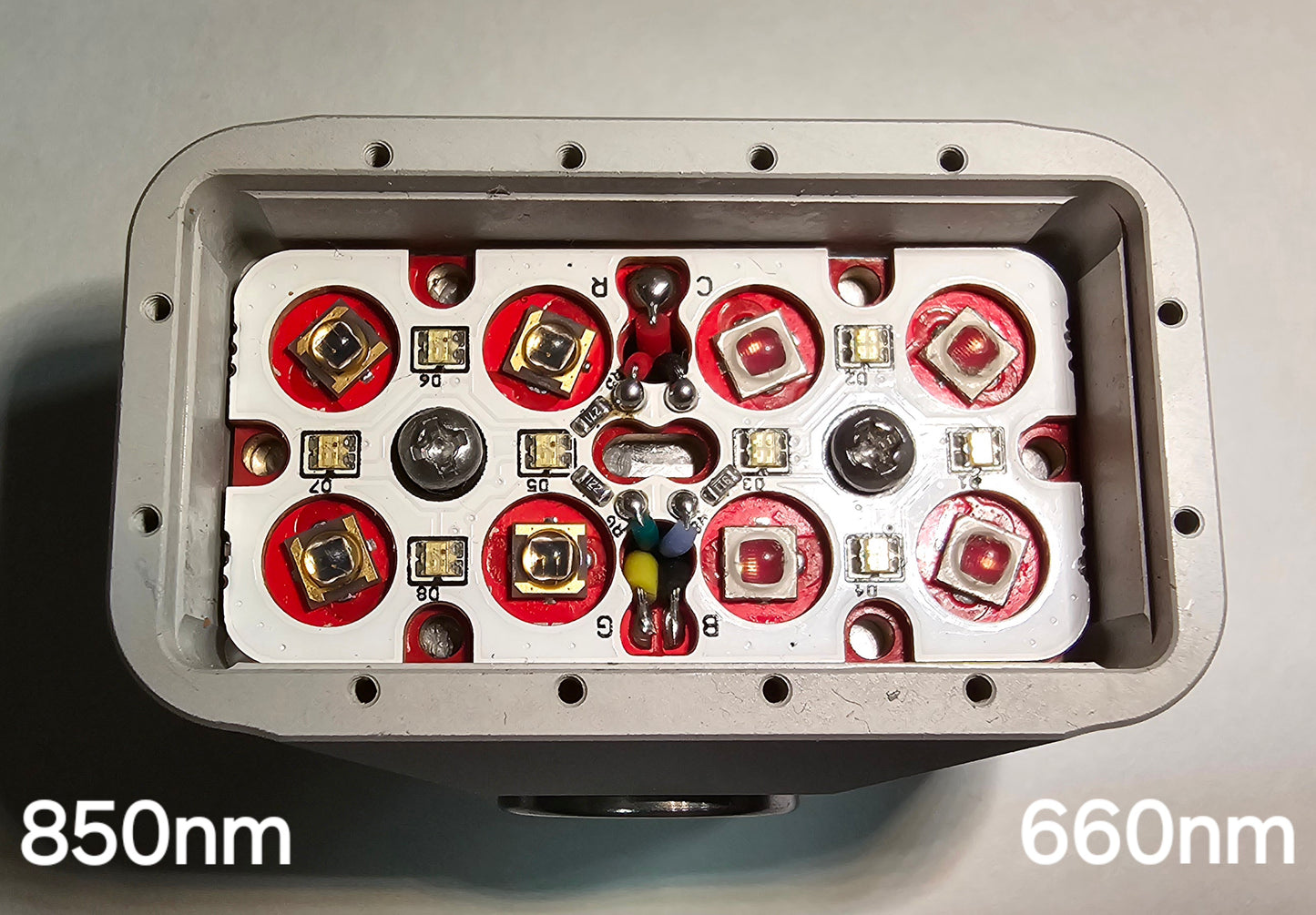

MCPCB:

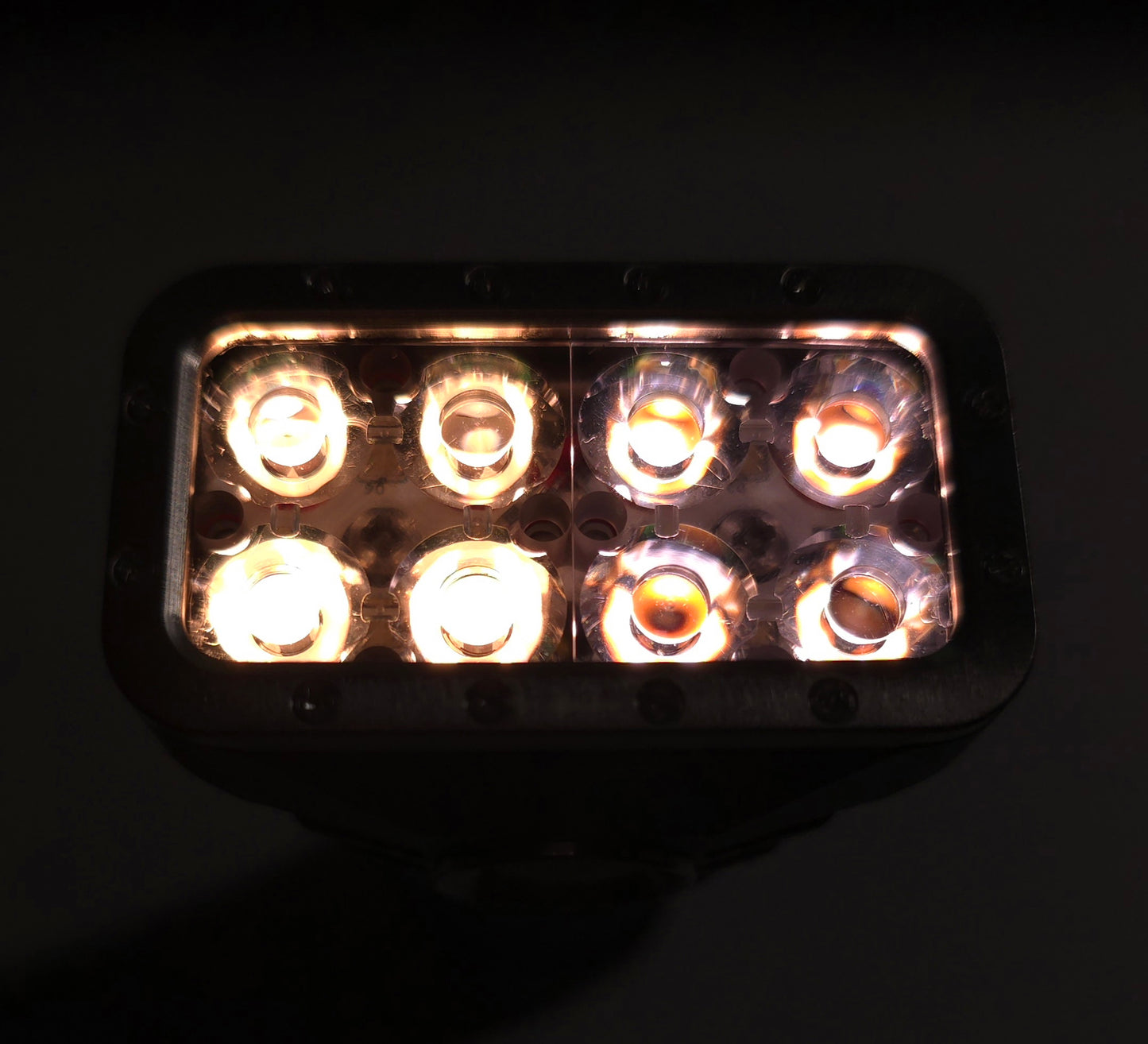

STANDARD (L & R)

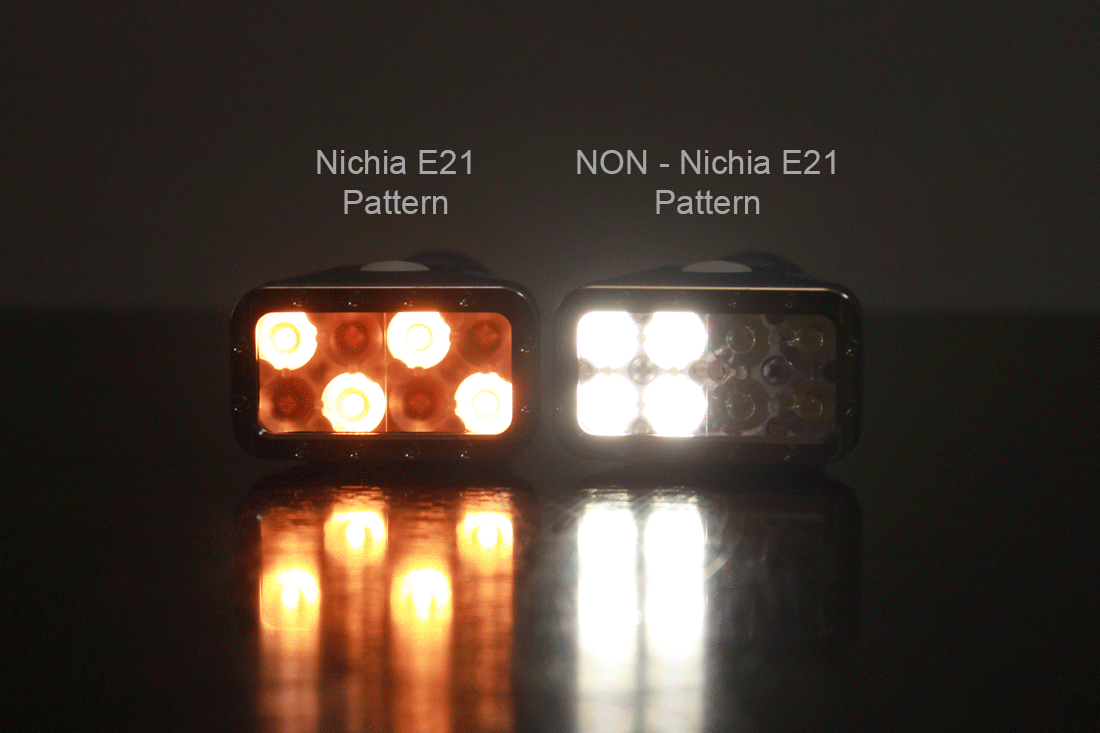

STAGGERED (E21A PATTERN)

NOTE: STAGGERED PATTERN ONLY USE ONE OPTIC SPOT OR FLOOD FOR BOTH CHANNELS

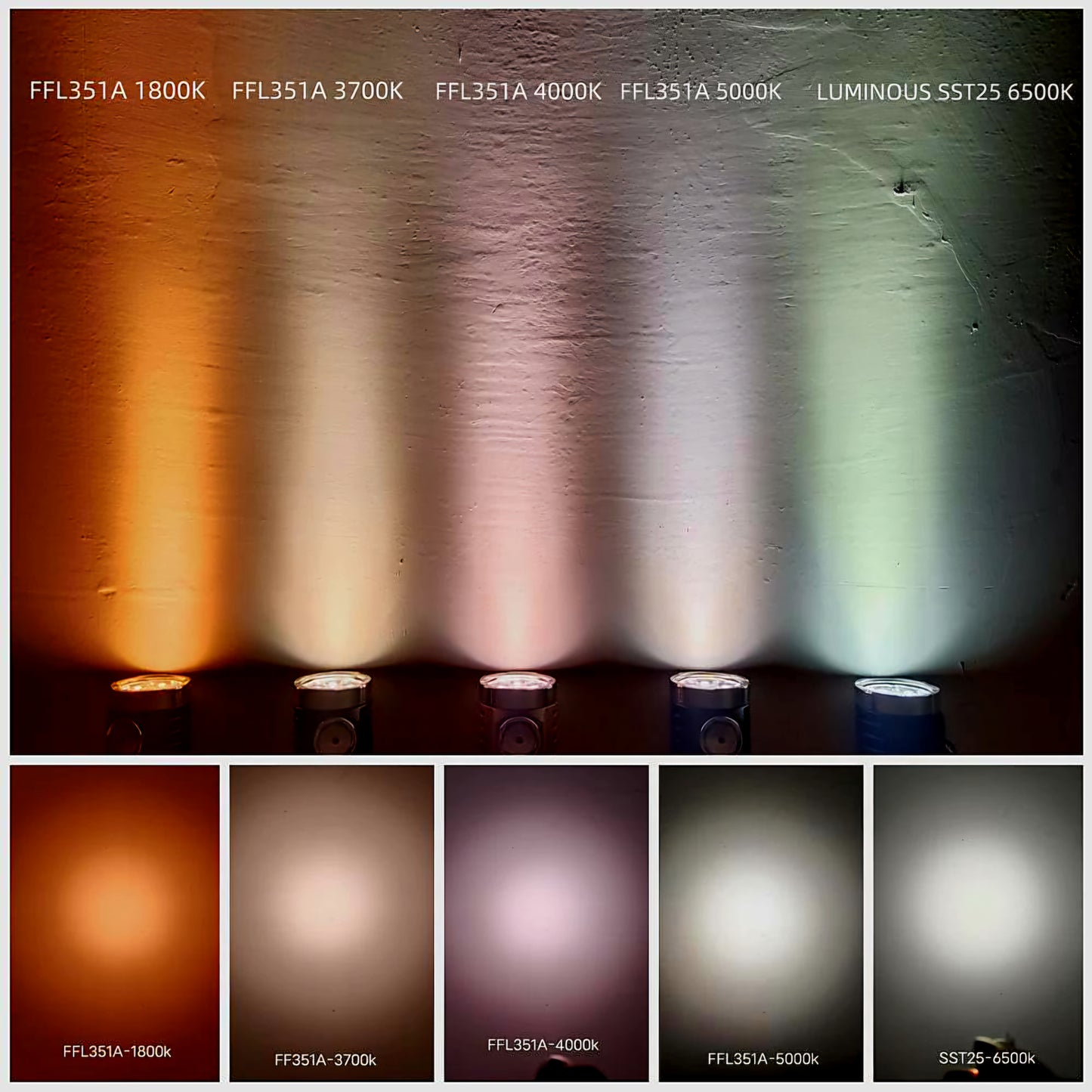

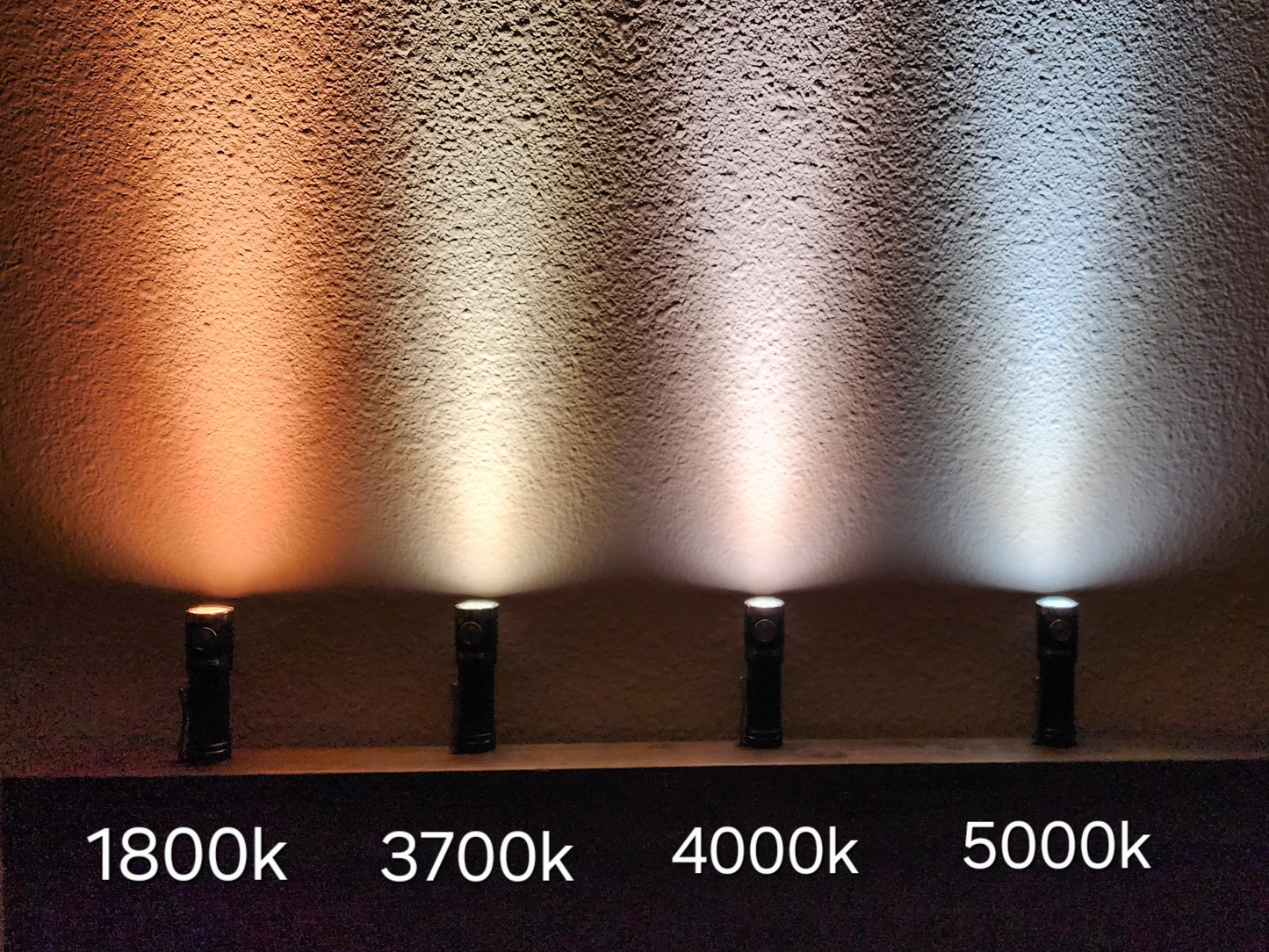

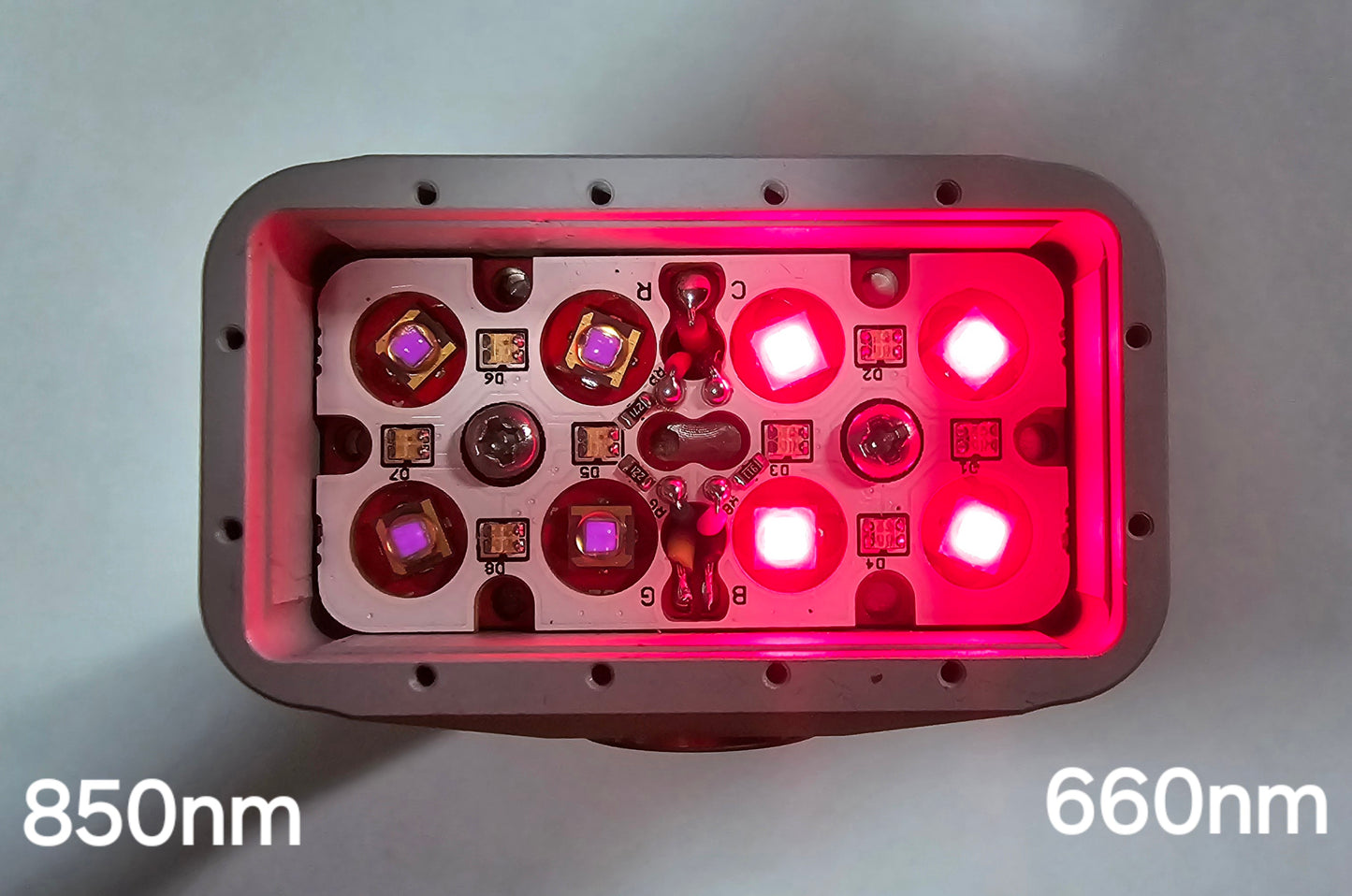

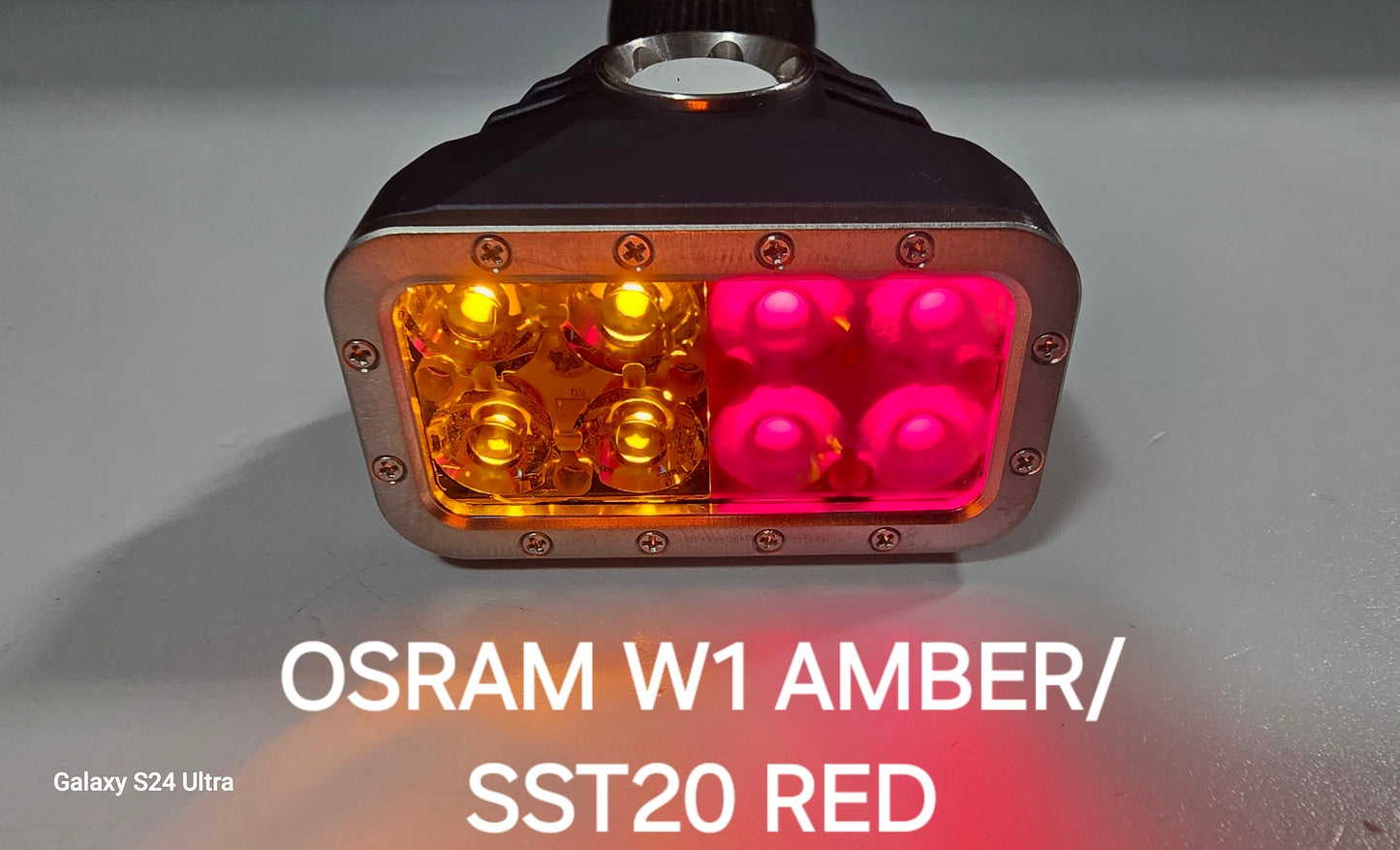

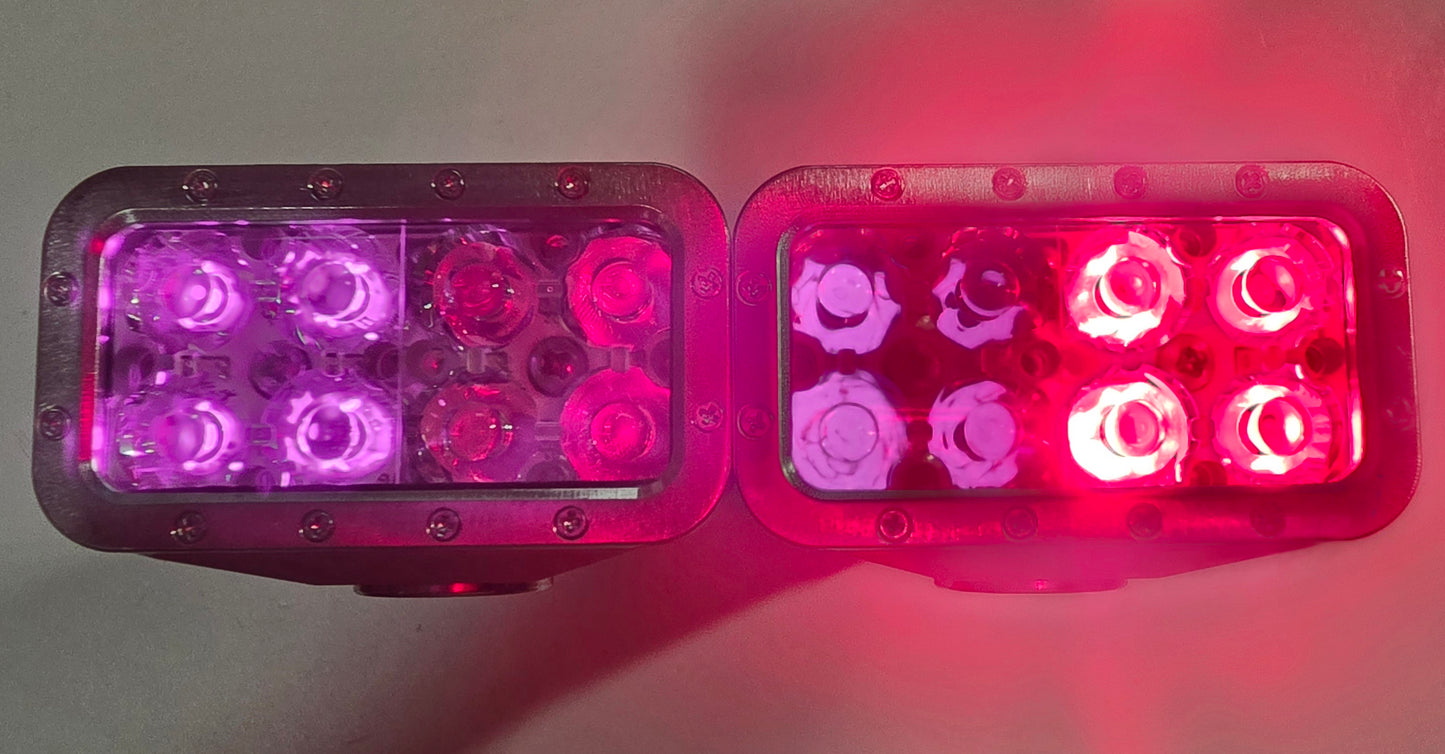

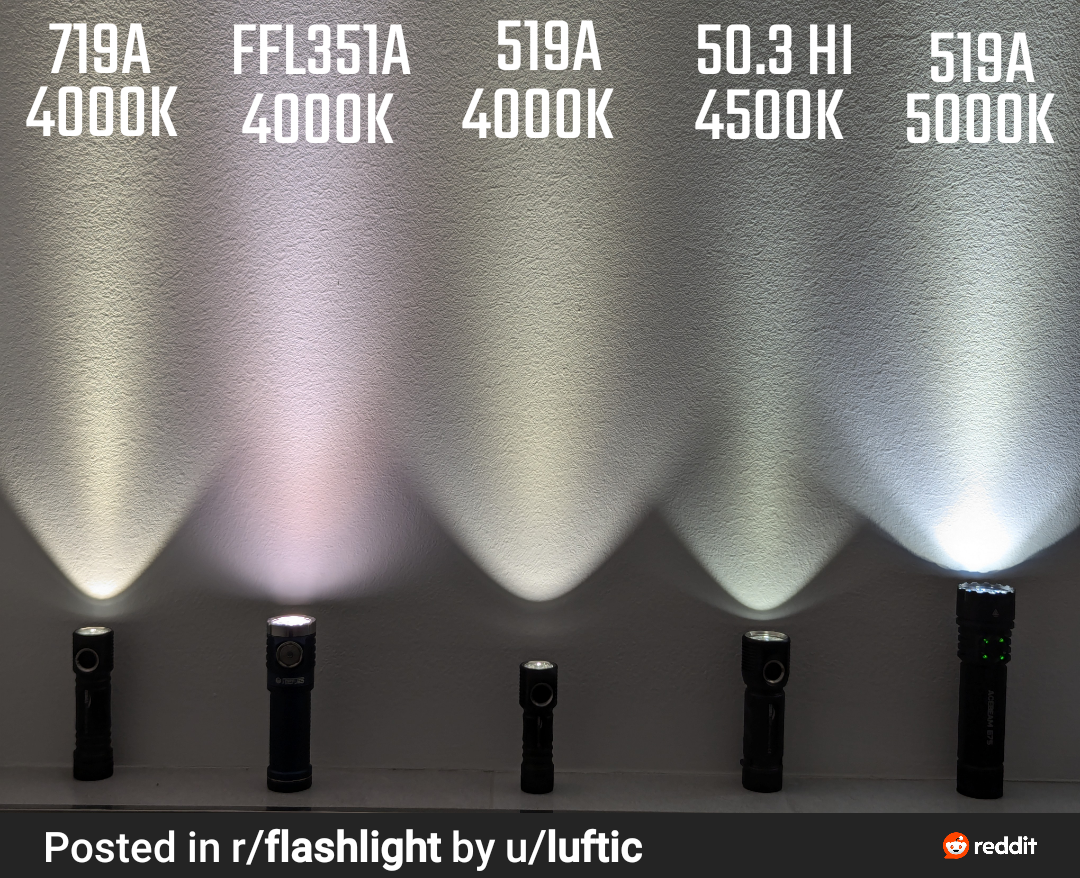

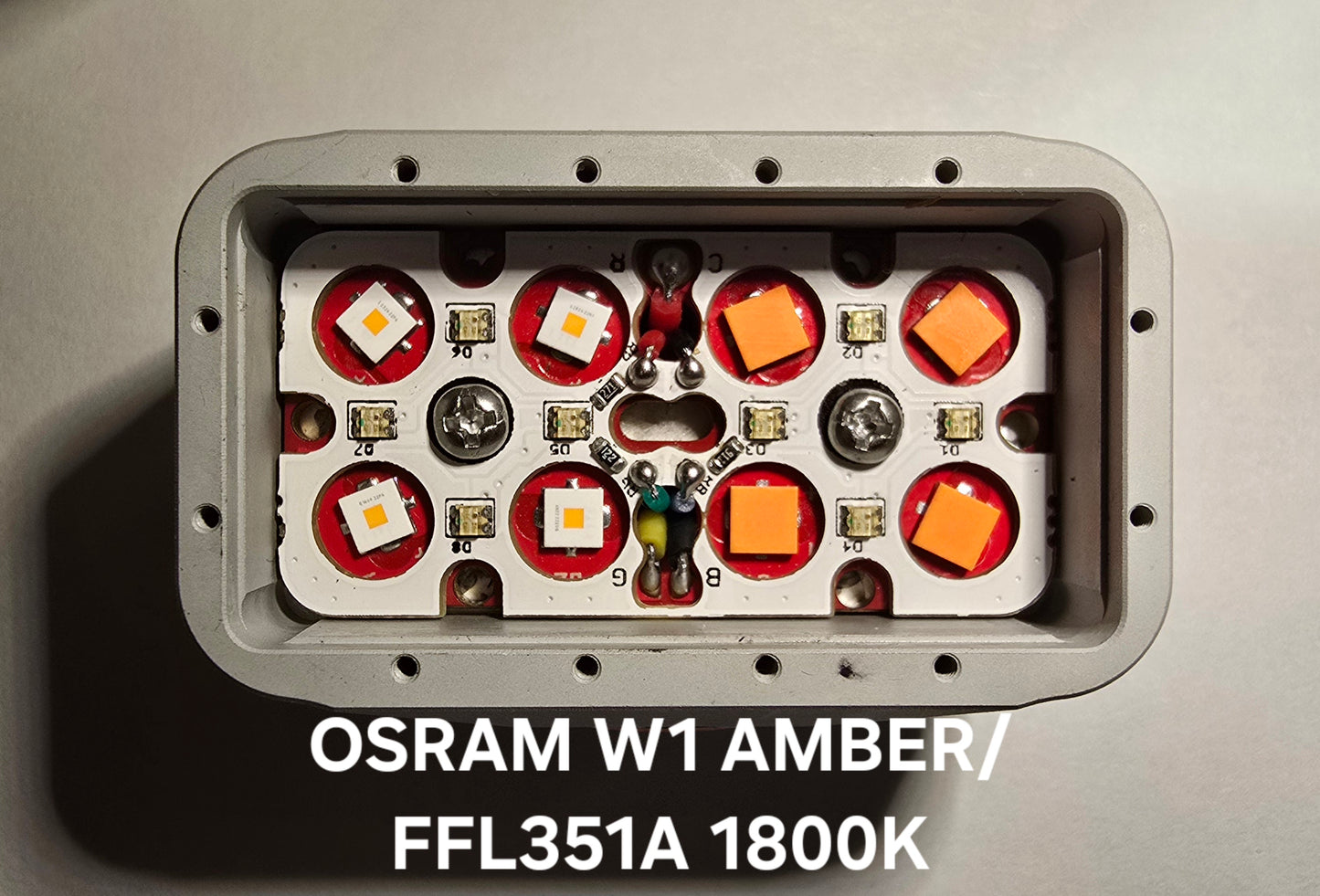

EMITTER OPTIONS:

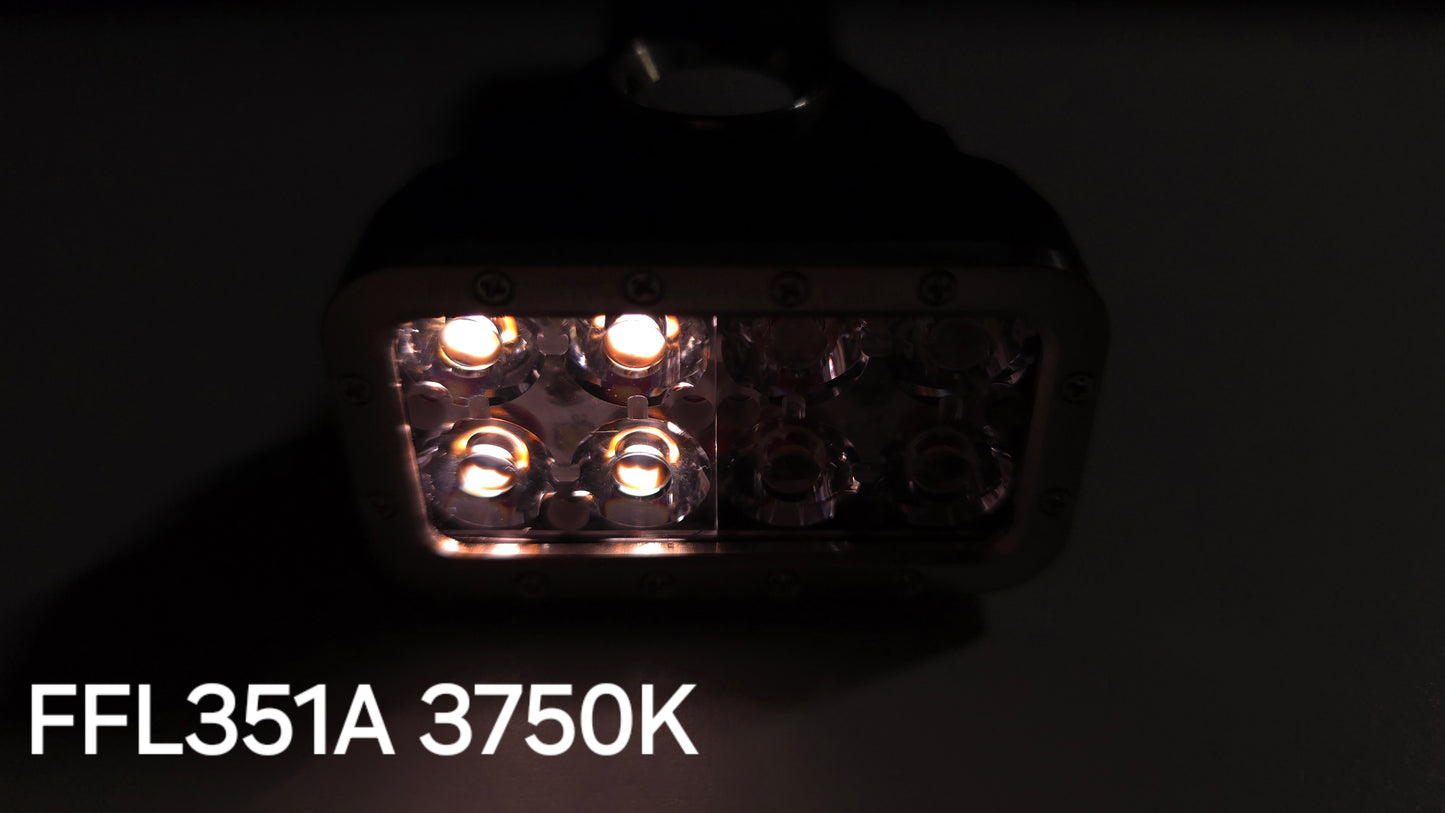

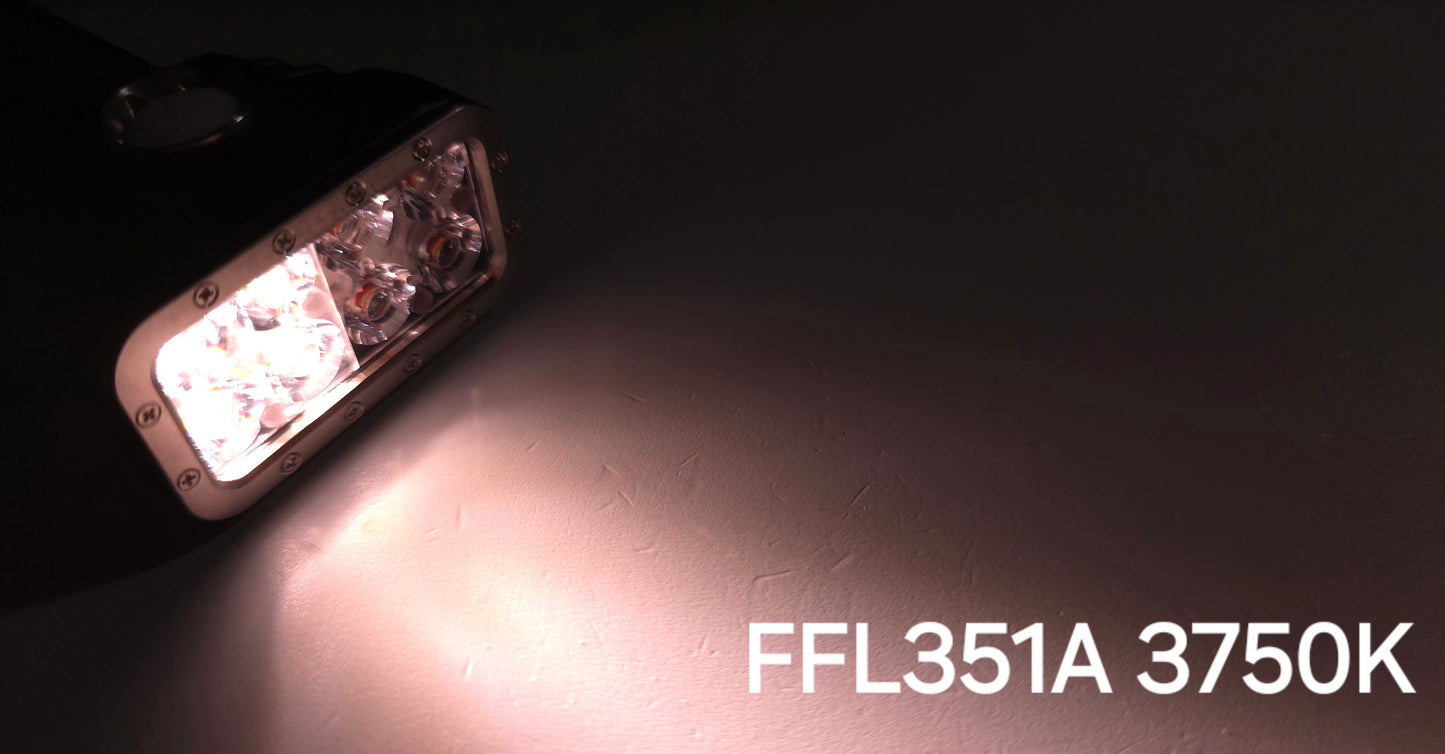

NEW FF EMITTERS!

NICHIA

LUMINUS

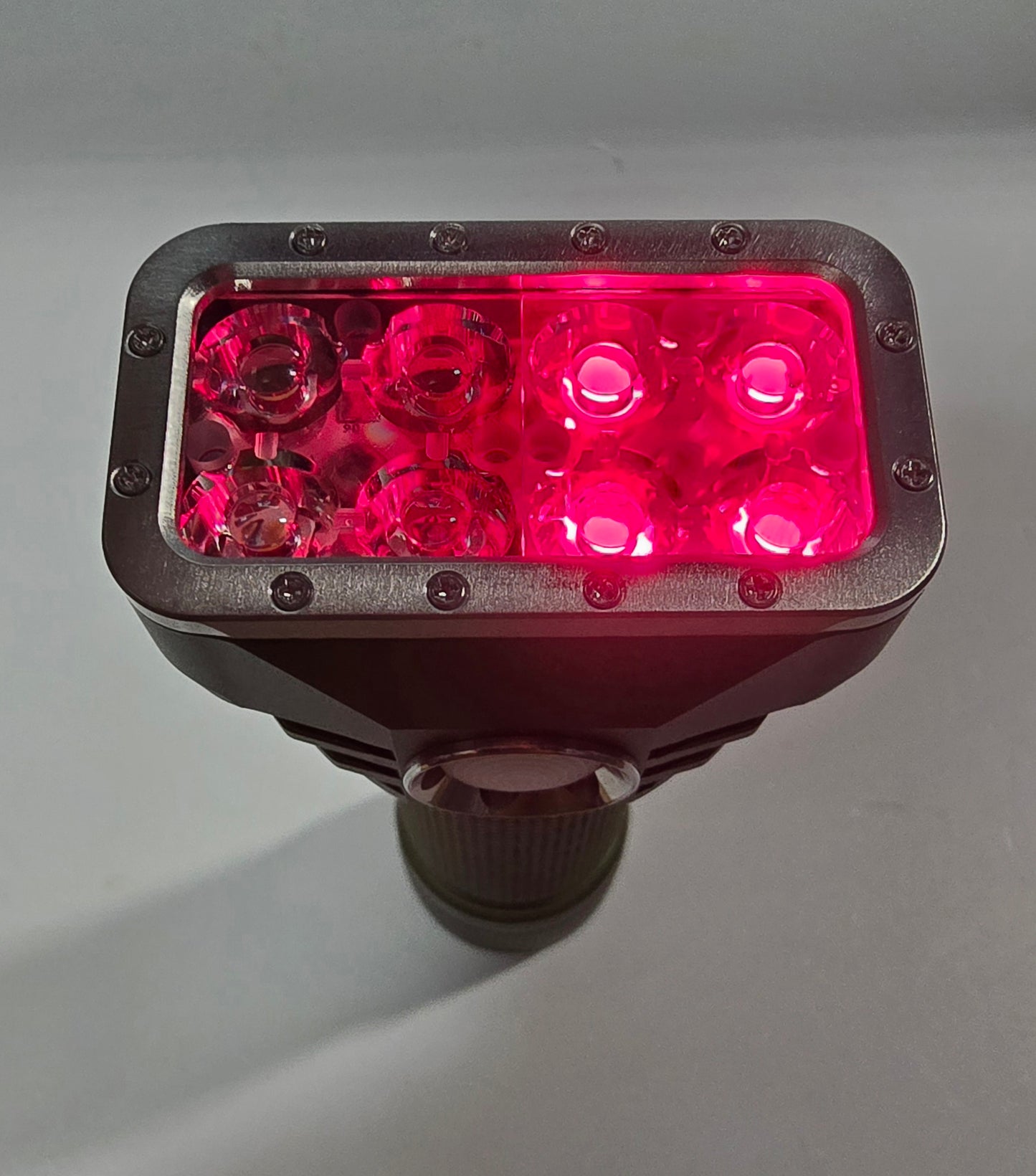

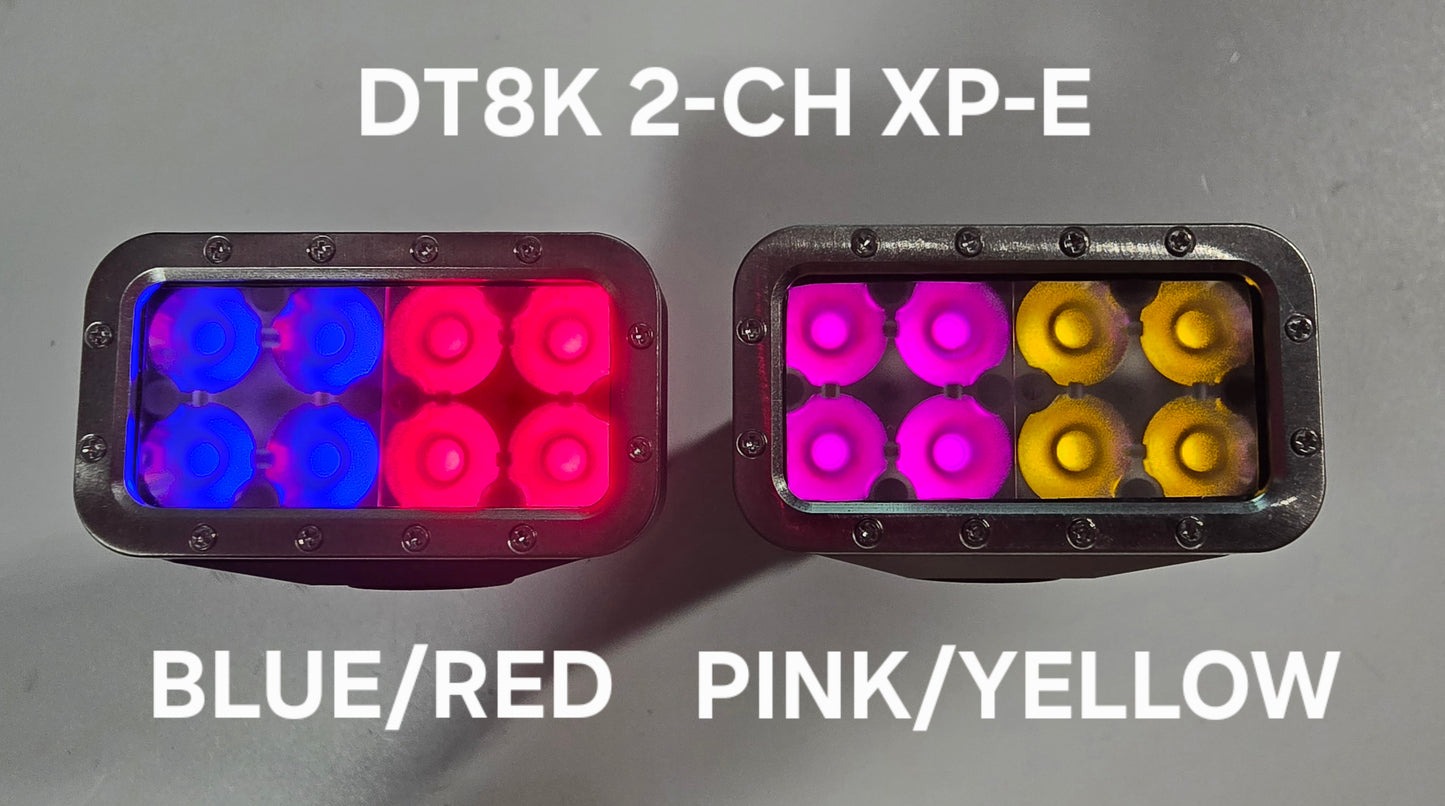

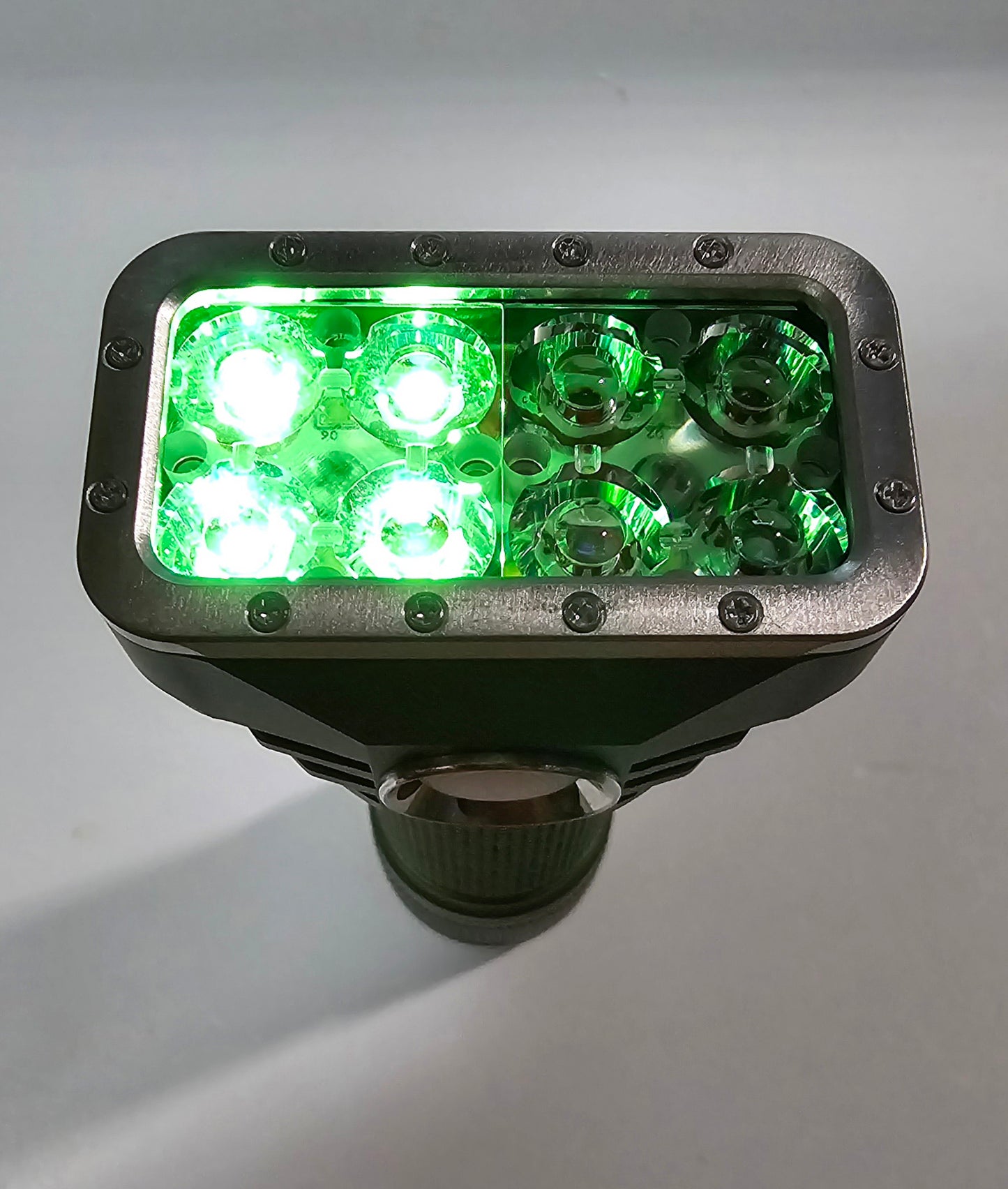

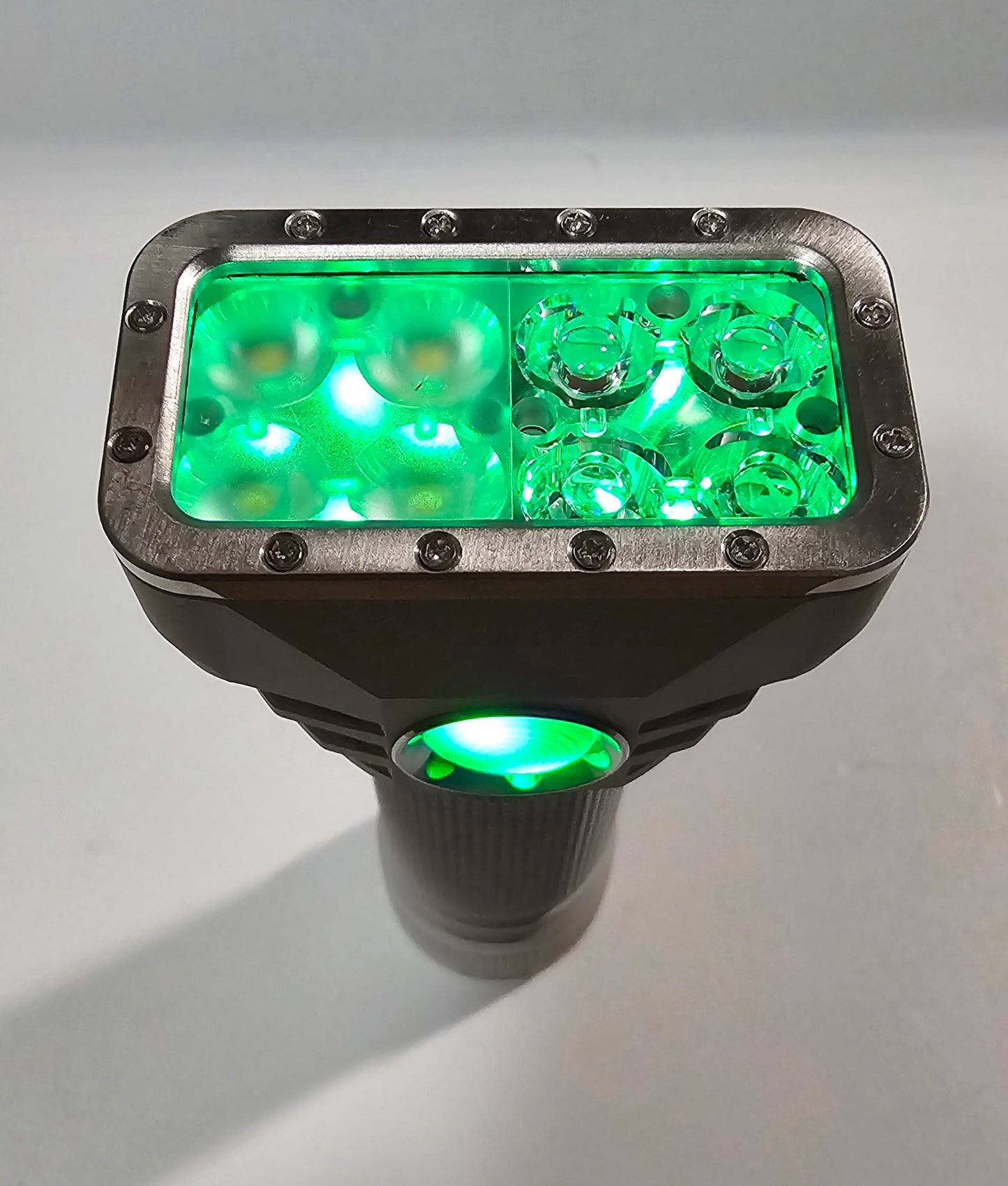

CREE XP-E COLORS

OSRAM

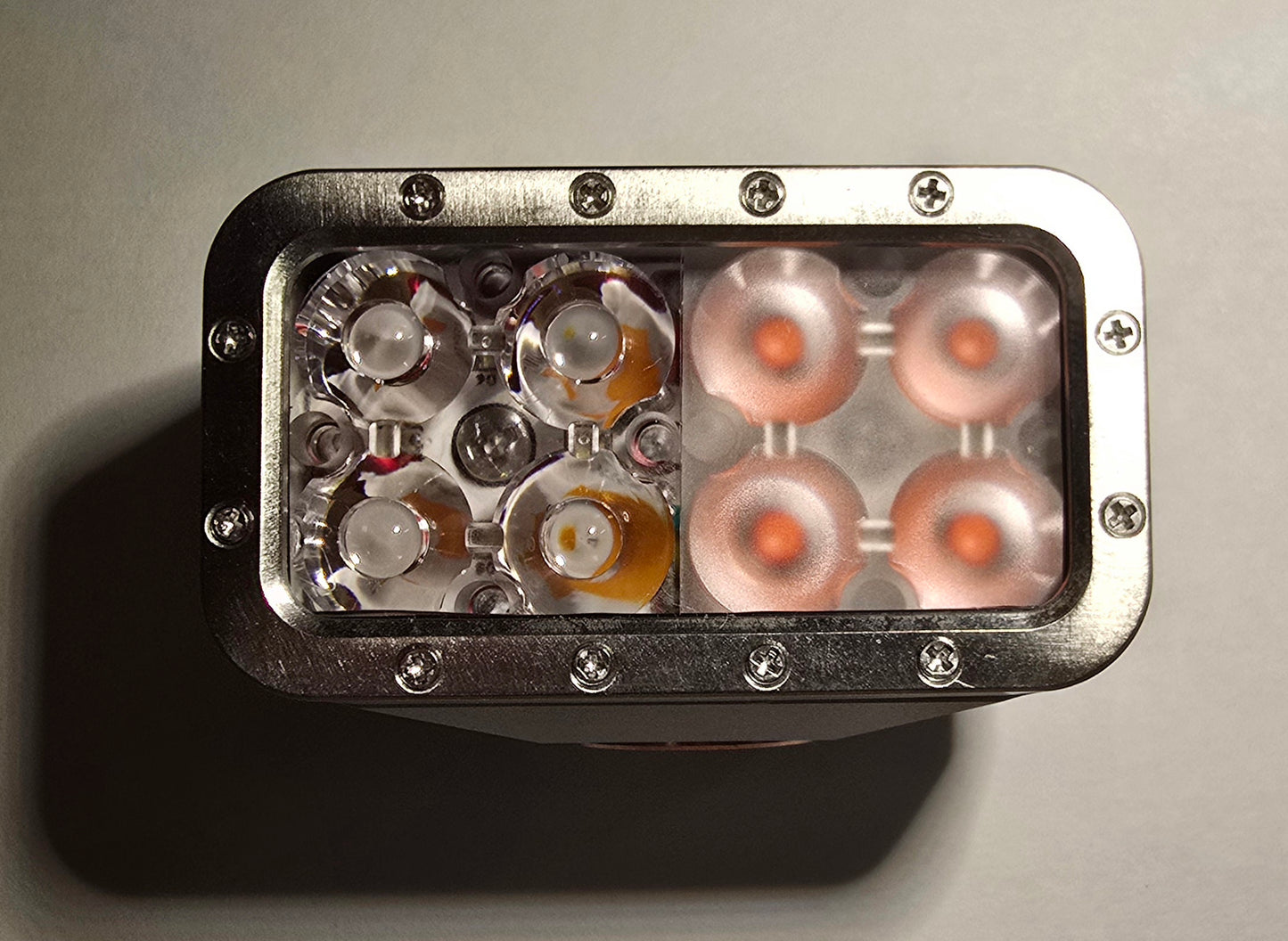

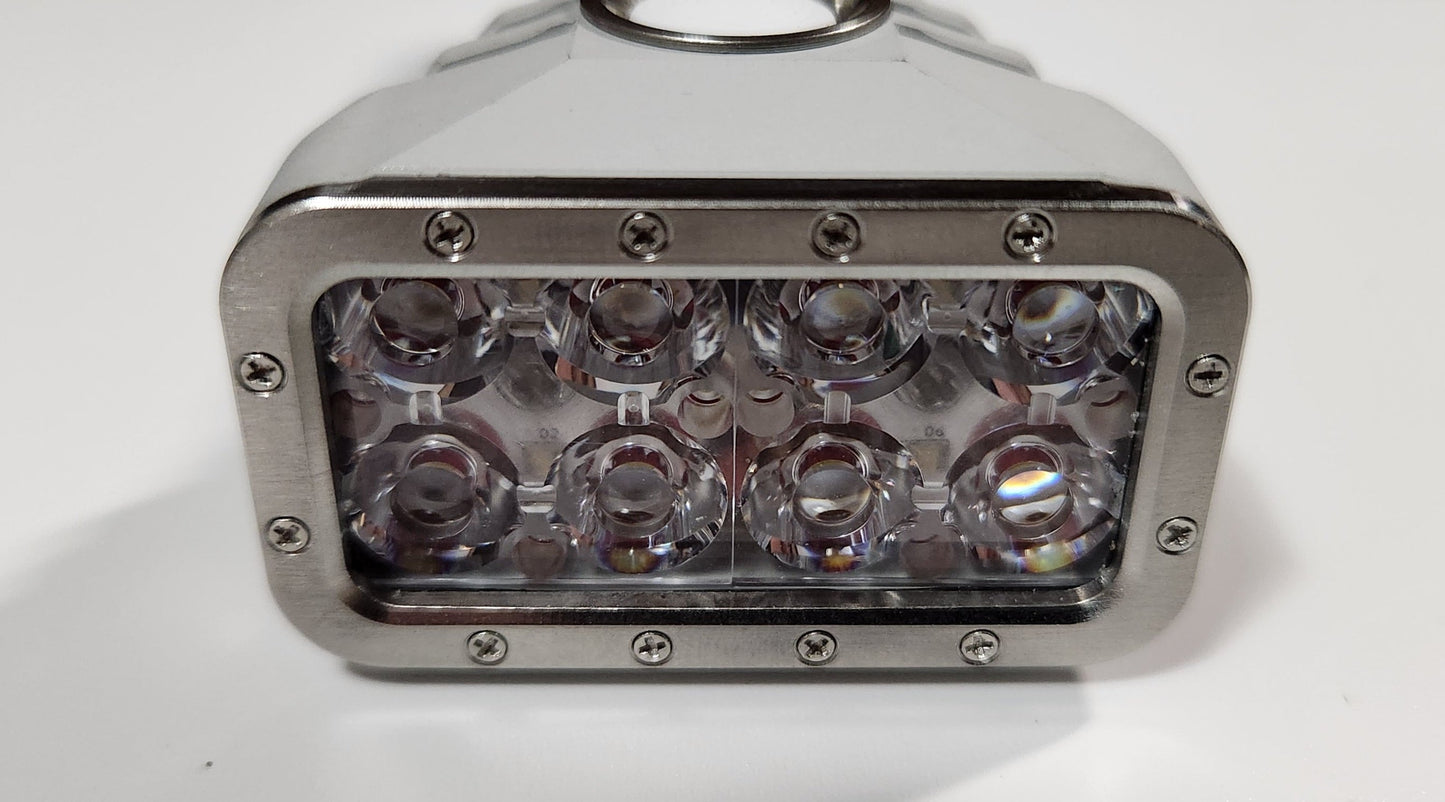

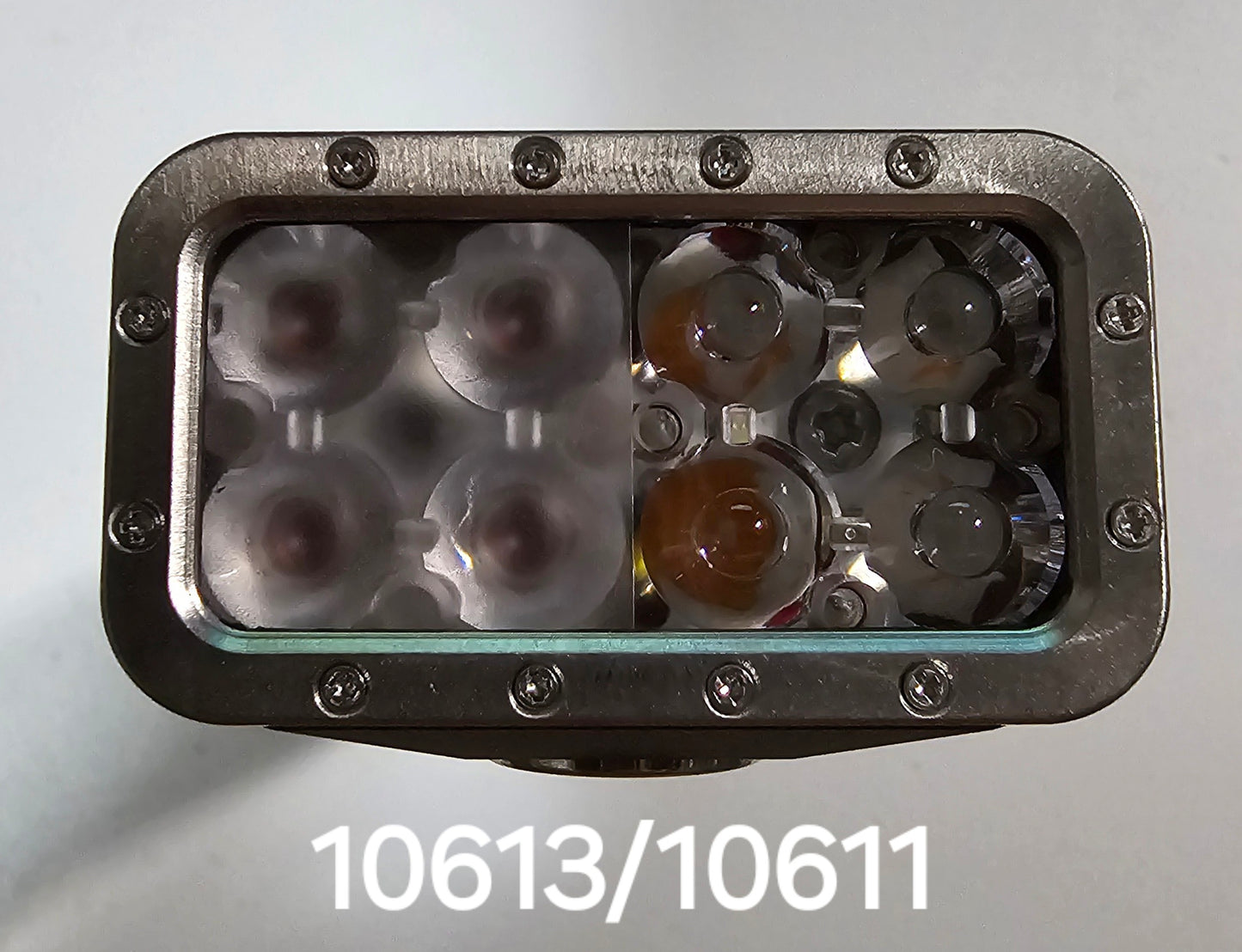

OPTICS:

CARCLO 10611 (SPOT)

CARCLO 10613 (FLOODY)

OUTPUT LUMENS:

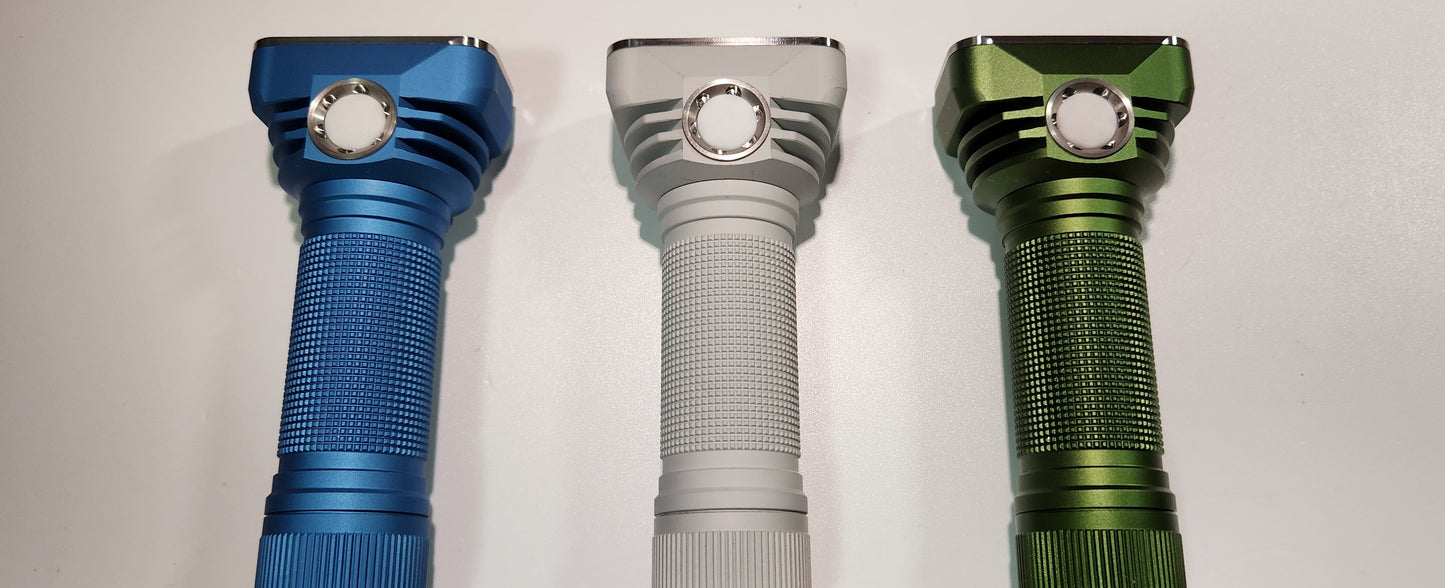

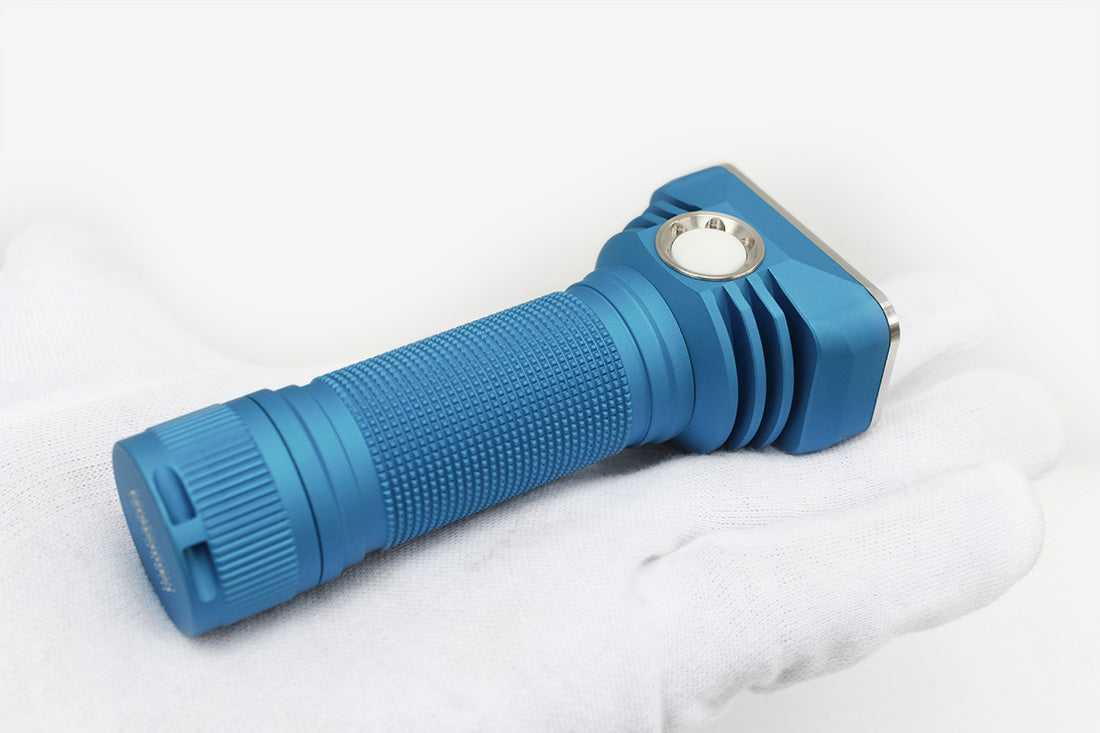

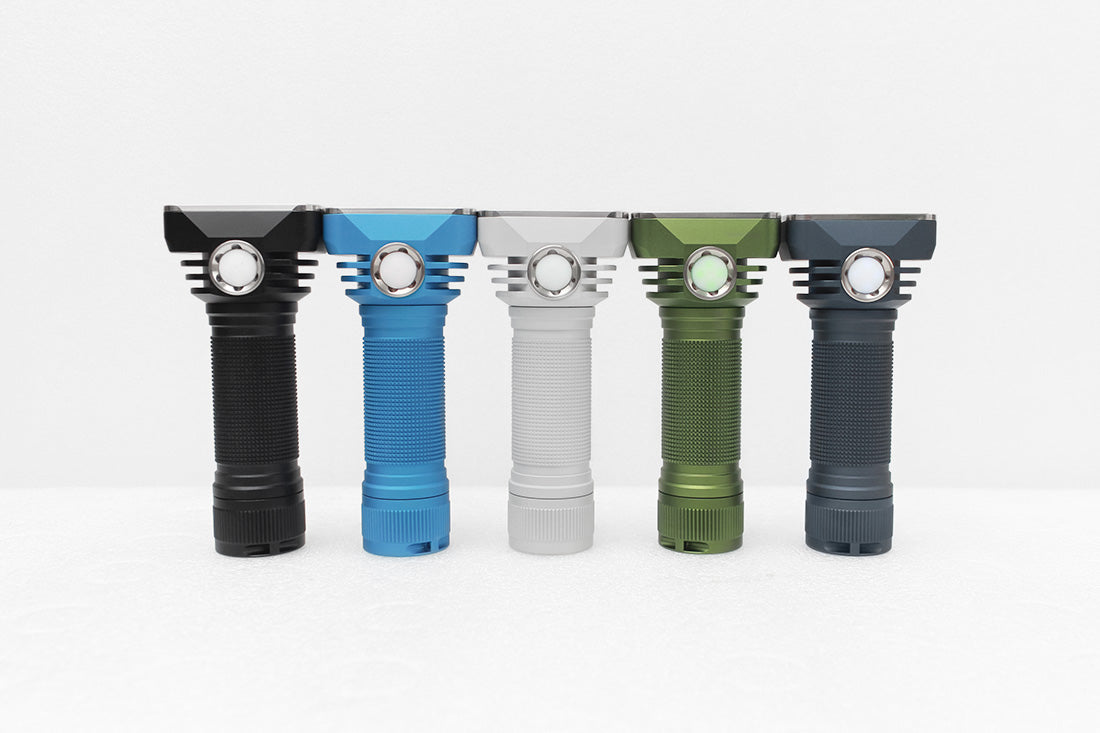

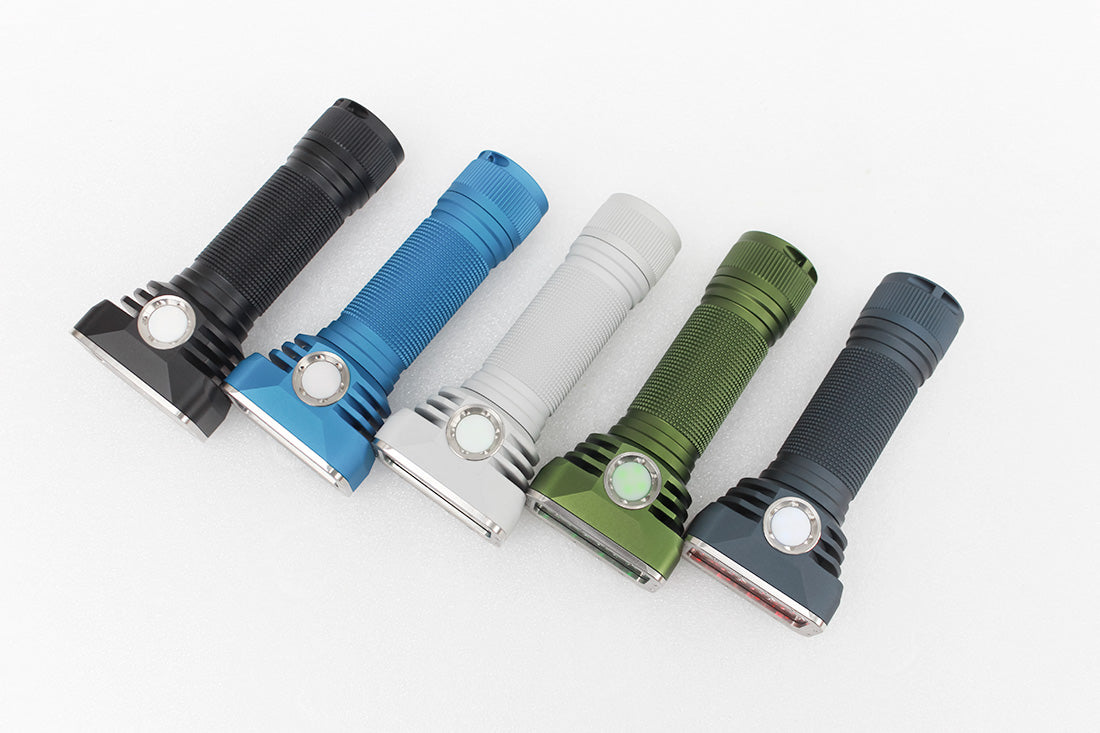

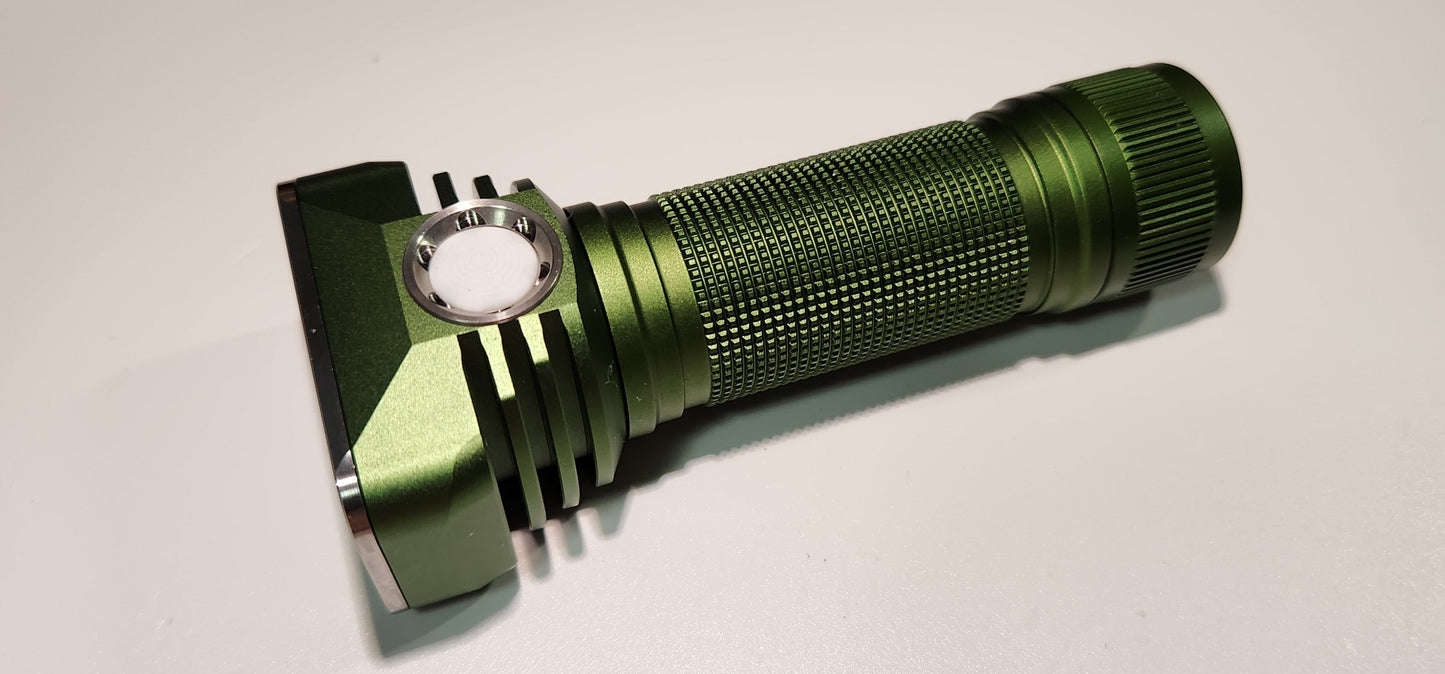

BODY COLORS:

BLACK

GRAY

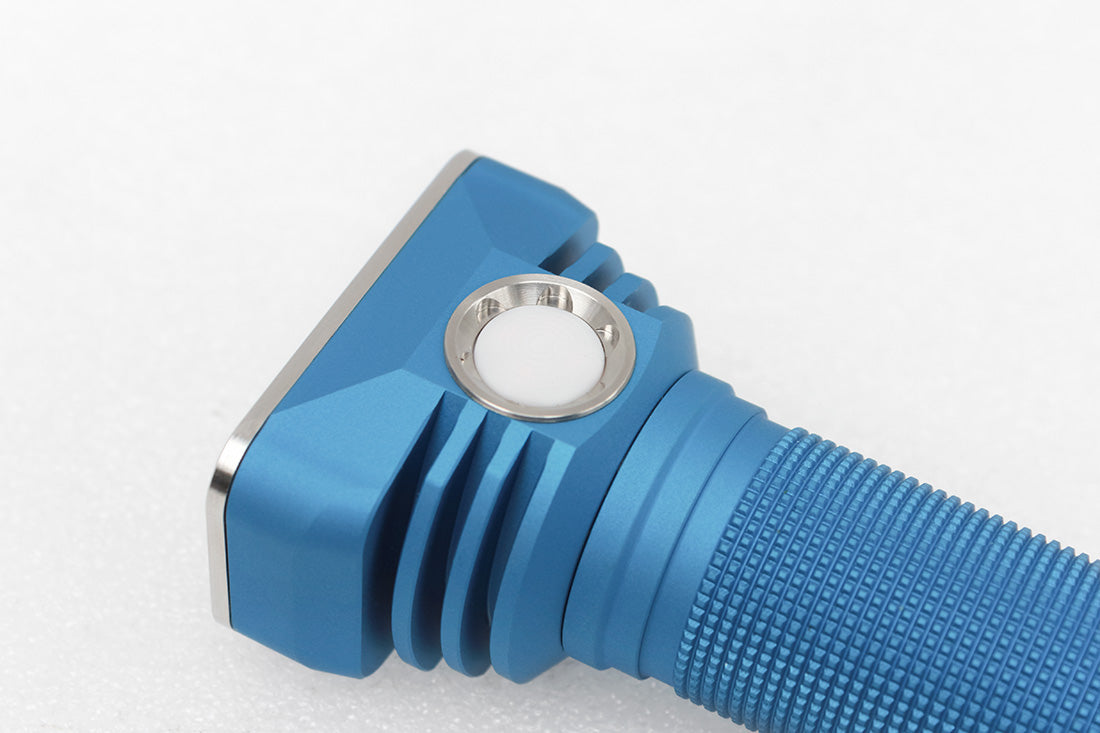

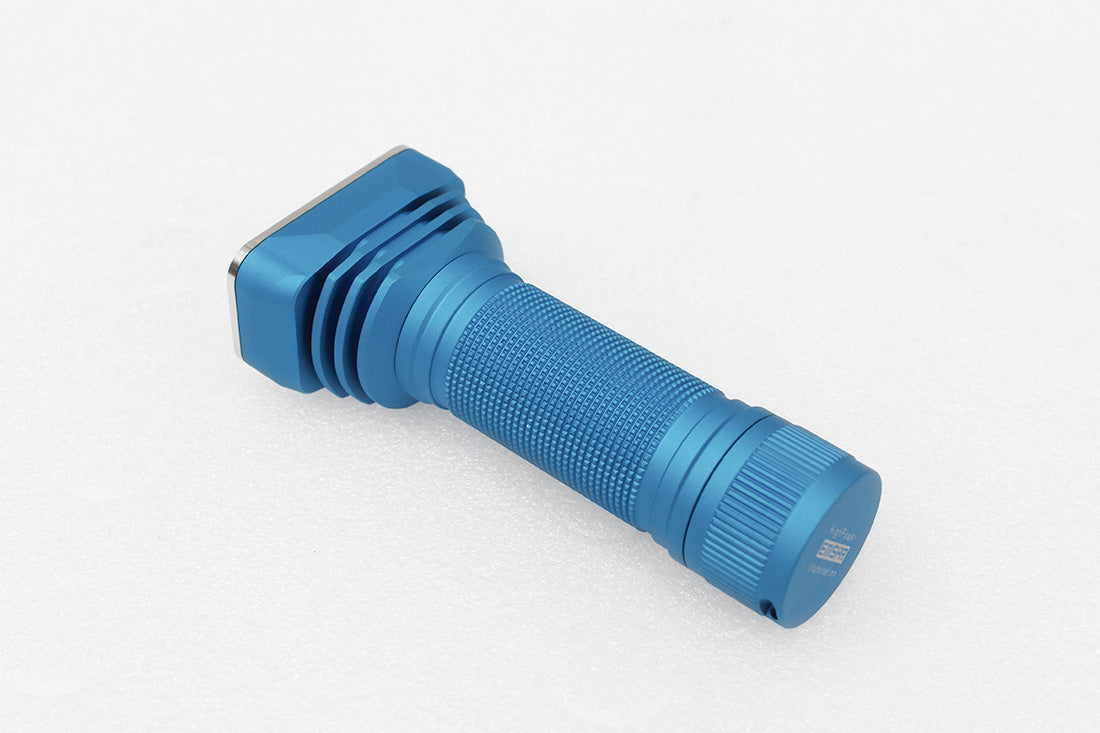

CYAN

GREEN

STONEWHITE ($5 ADDITIONAL)

INCLUDED ACCESSORIES:

DEEP CARRY POCKET CLIP

MAGNETIC CAP

RECCOMENDED BATTERY:

NOT INCLUDED

MOLICEL P45B >>> Molicel P45B 4500mAh 21700 45A Lithium-ion Rechargeable Battery **** H – JLHawaii808

Features:

Advanced mode Off -> 9H, first menu item:

0C: tint-ramping (smooth)

1C: instant channel switching

Warning: Output will be dependent on cell model (incl.age) and temperature.

Emisar DT8K puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing.

High drain, flat top, unprotected 21700 battery required. (not included in the price)

Each DT8 is tested before shipping, please DO NOT apply extra force to the screws in the head.

Features:

• Latest Anduril 2 firmware

• Efficient UK made Carclo Quad LED optics. ( SST-20 and 519A versions use clear/spot optics, Nichia E21A version uses frosted optics.

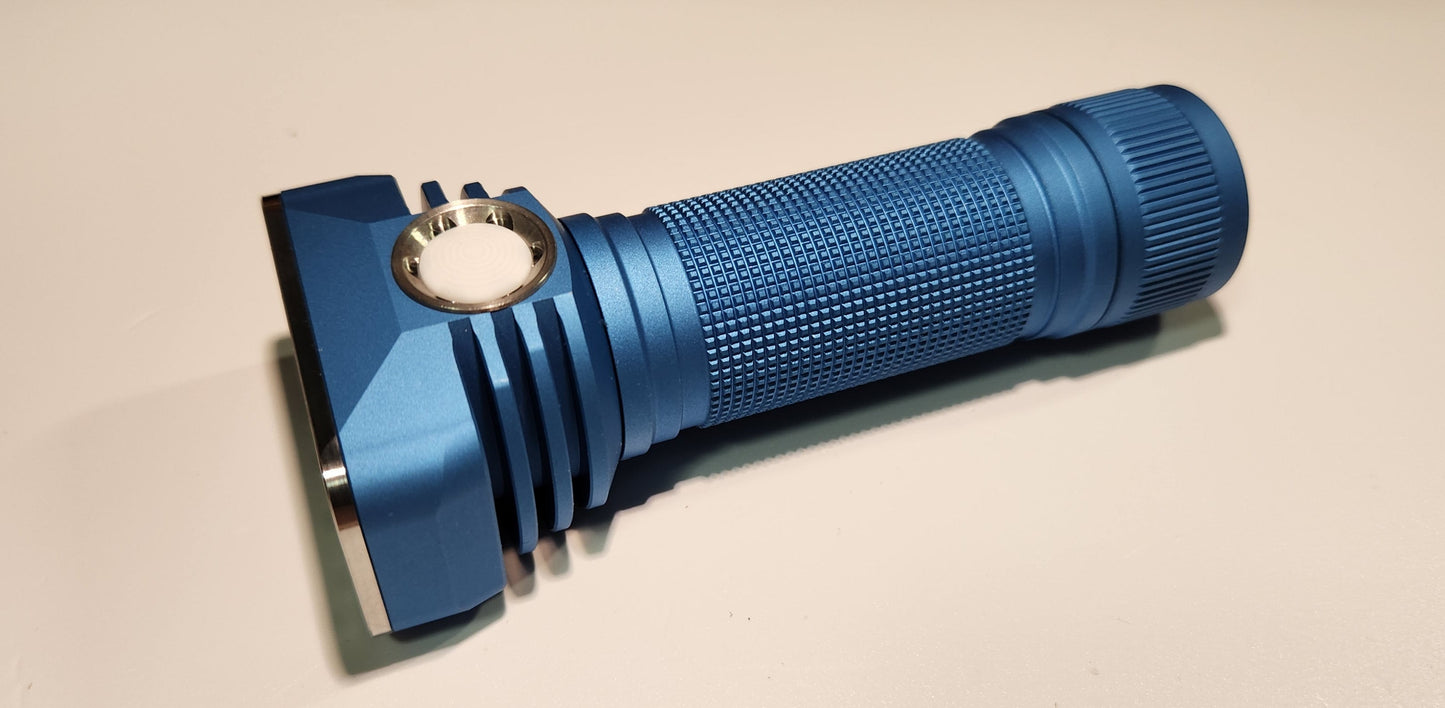

• CNC machined from Aluminum & Stainless steel.

• Anti-reflective coated glass lens

• Unihead construction

• High lumen output

• Ramping interface

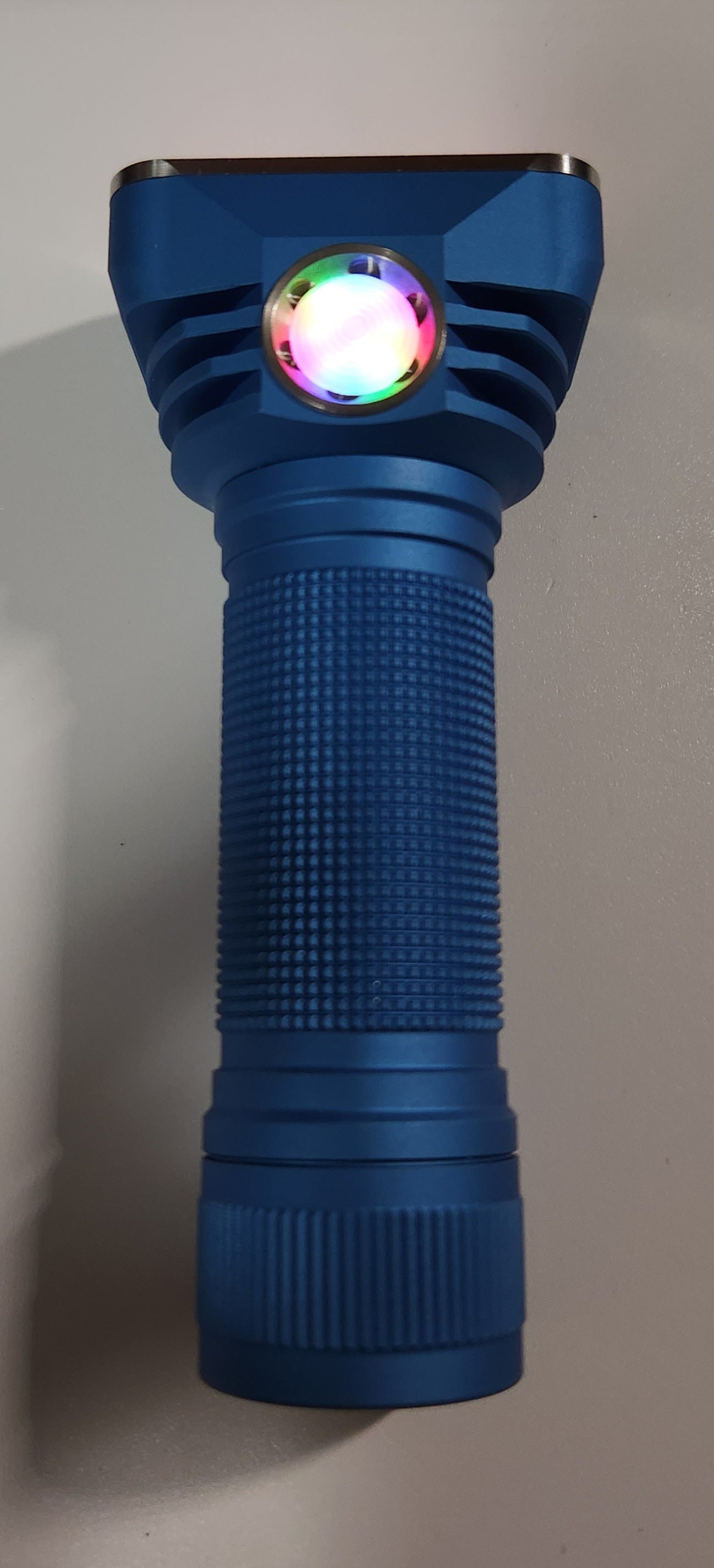

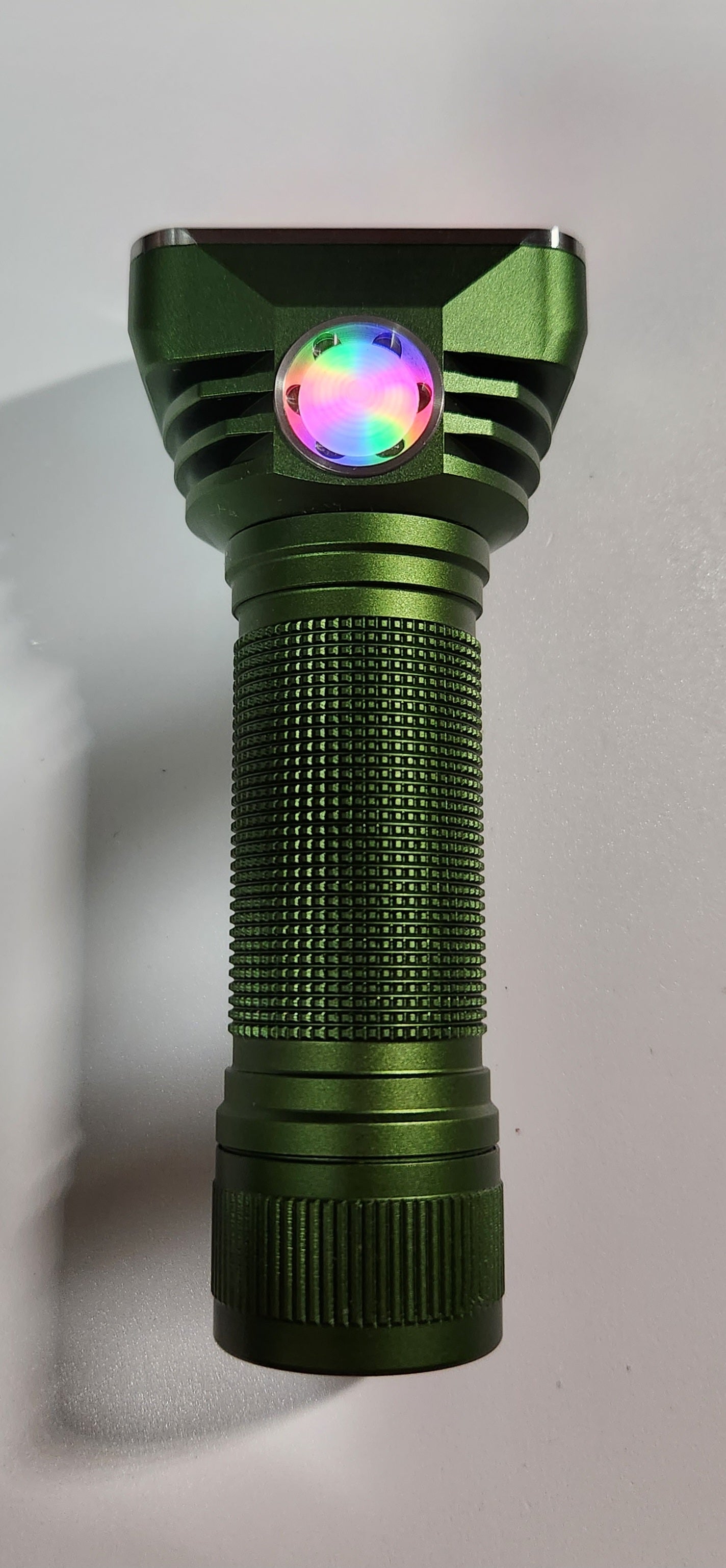

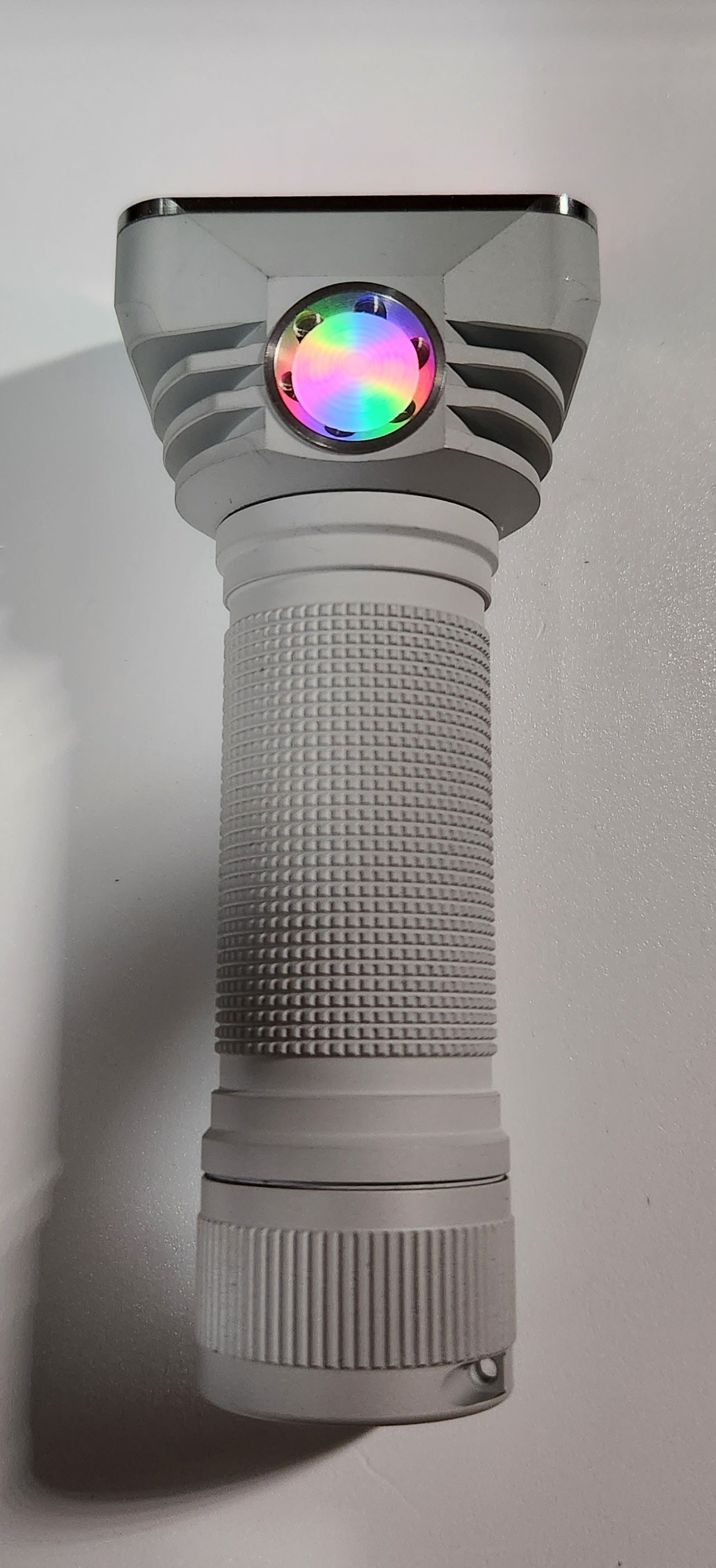

• Electronic soft touch switch

• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.

• Temperature step-down

• Waterproof and dustproof to IP67 standard (up to 1 meter)

• Dimensions: 105mm(length) * 27*45.8mm (head) * 25mm(body)

• Weight: 94g

OTF lumen output and candela at start-up:

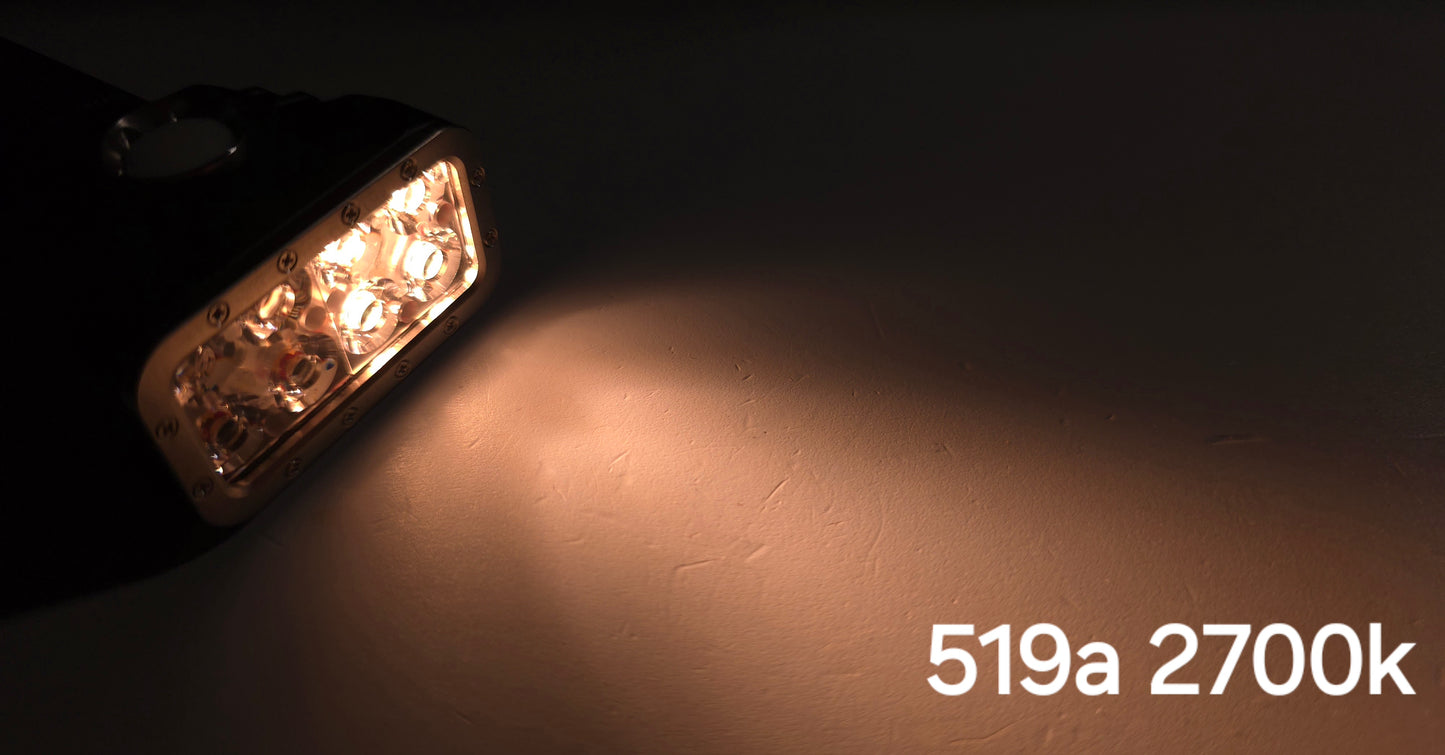

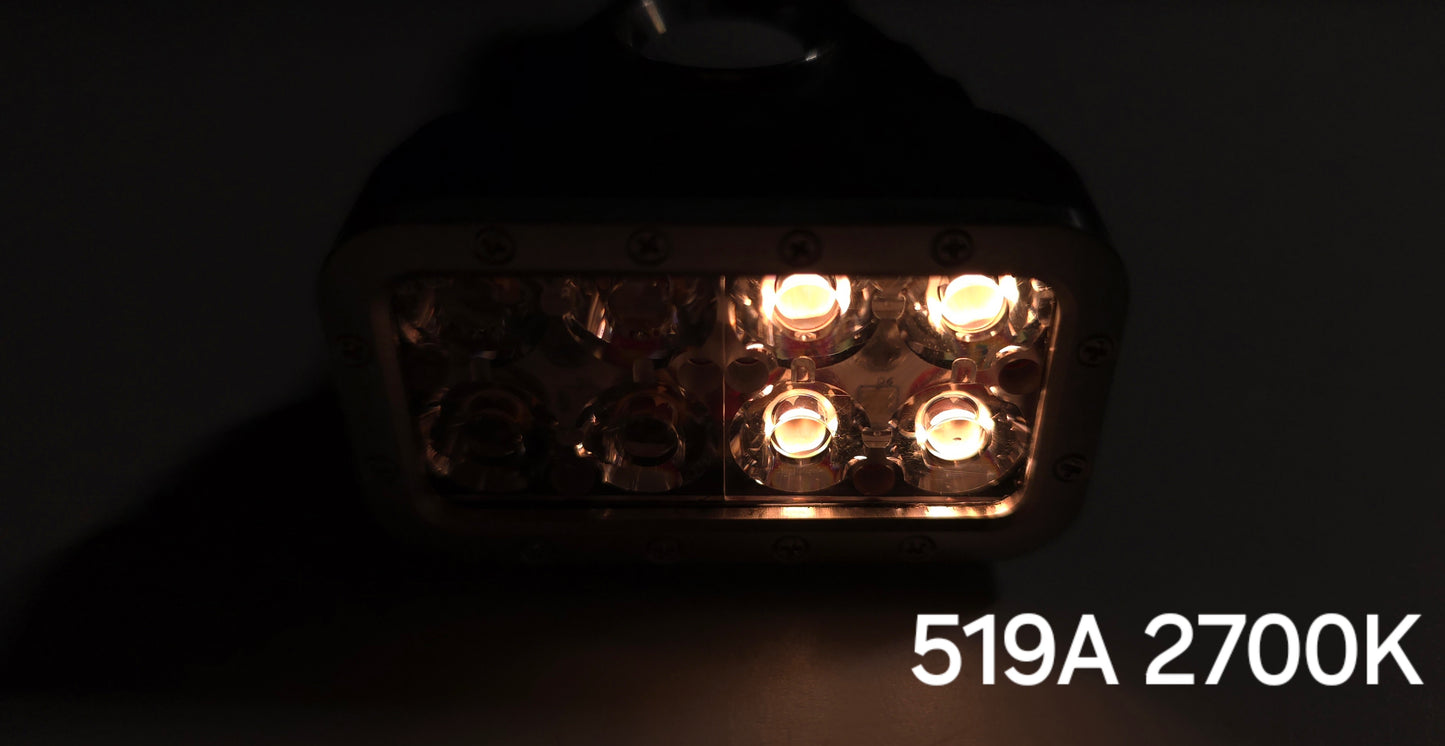

Nichia 519A dome on: 6700lm (30,000 cd)

SST-20 6500K / 5000K: 6500lm (45,000 cd)

SST-20 4000K/3000K 95CRI: 4600lm (32,000 cd)

Nichia E21A version: 1800lm

This product uses free software distributed under the terms of the GPLv3.
