Emisar/Noctigon Replacement Glass/Optics

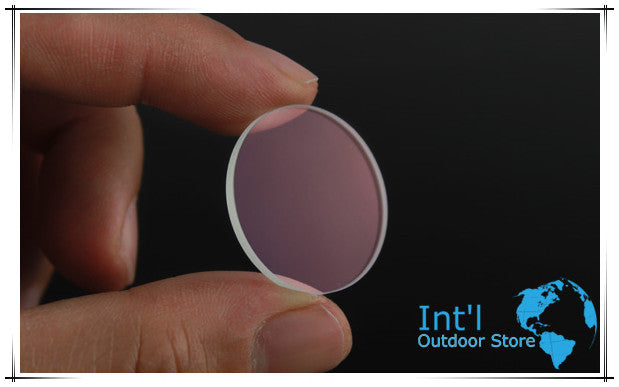

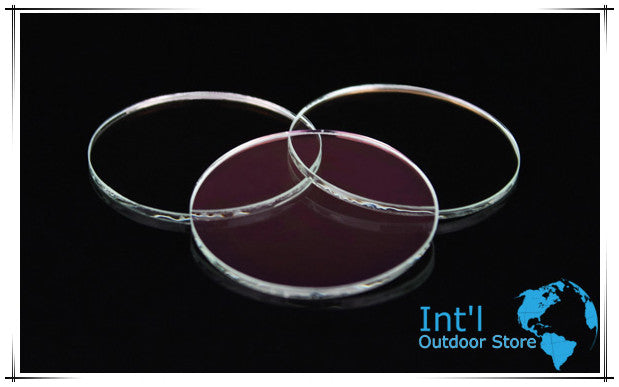

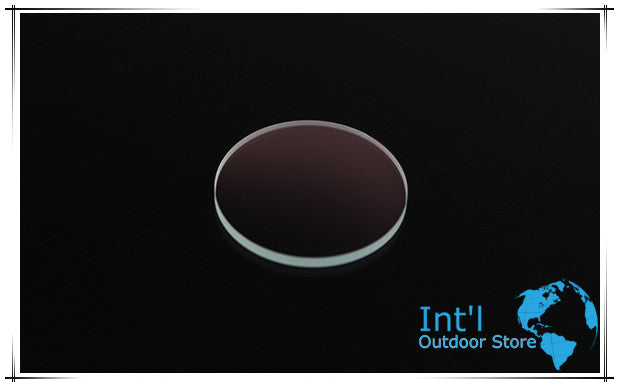

100% ORGINAL REPLACEMENT GLASS/OPTICS

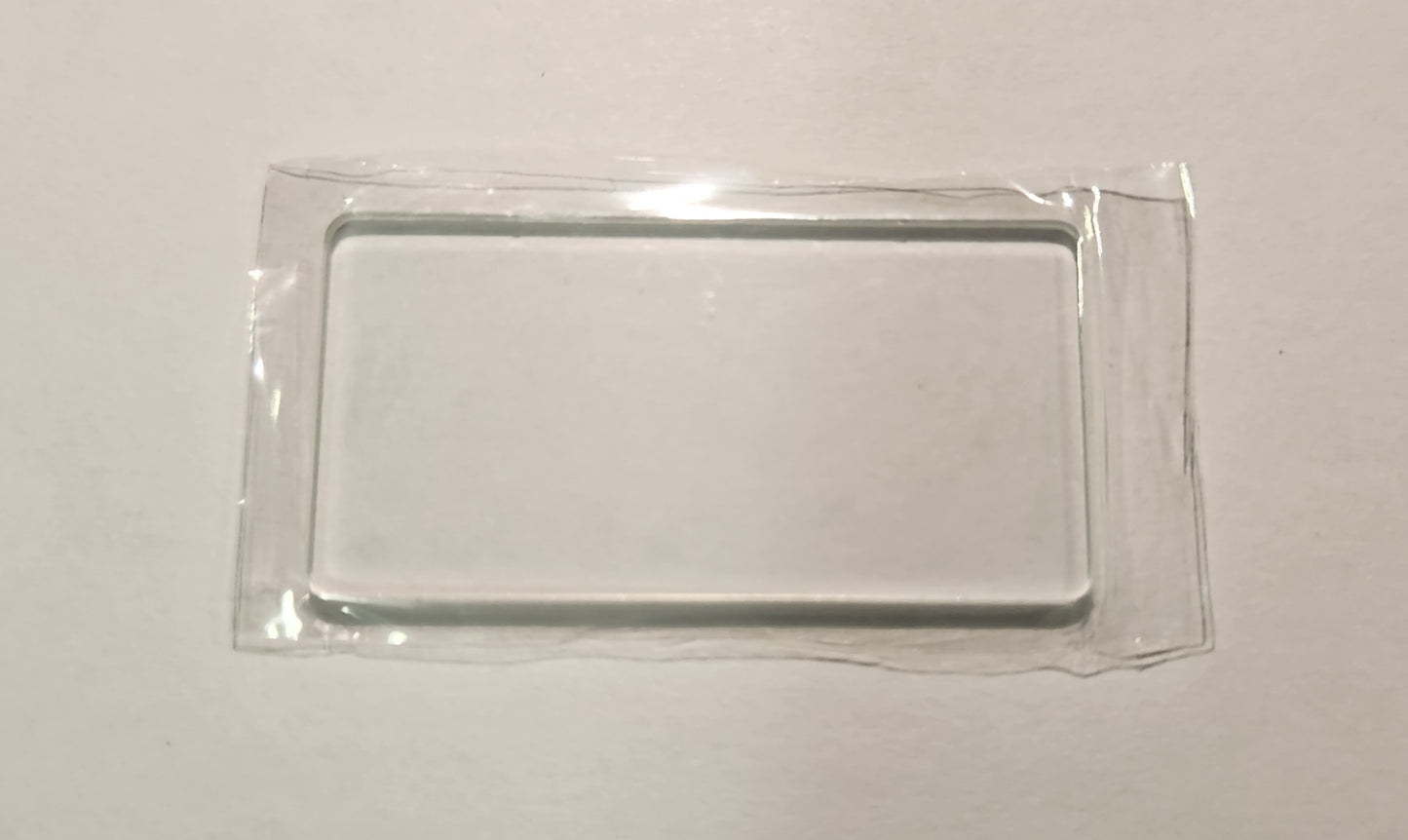

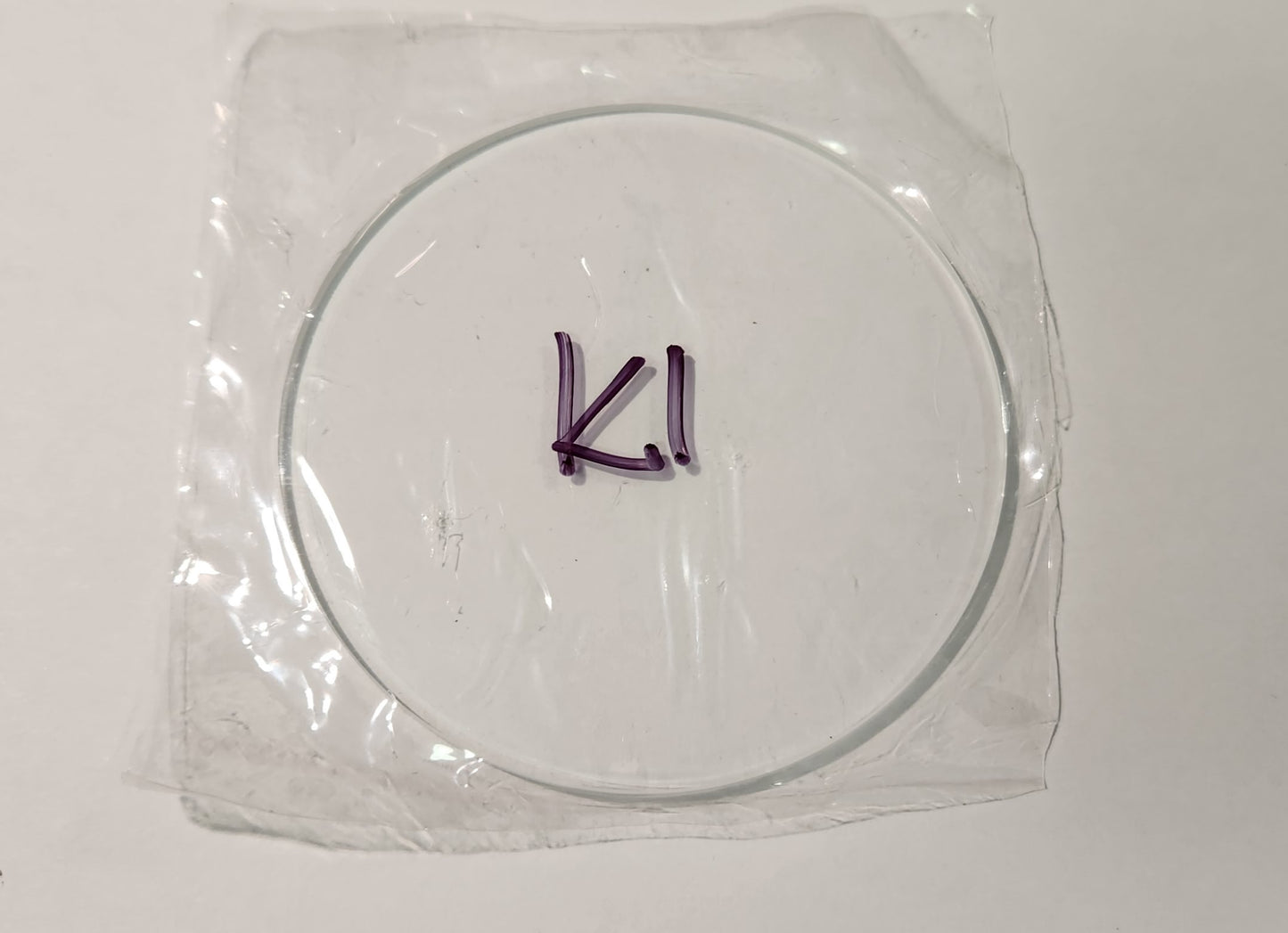

K1 68 X 2.5MM

D18 55 X 2MM

D4SV2 36 X 2MM

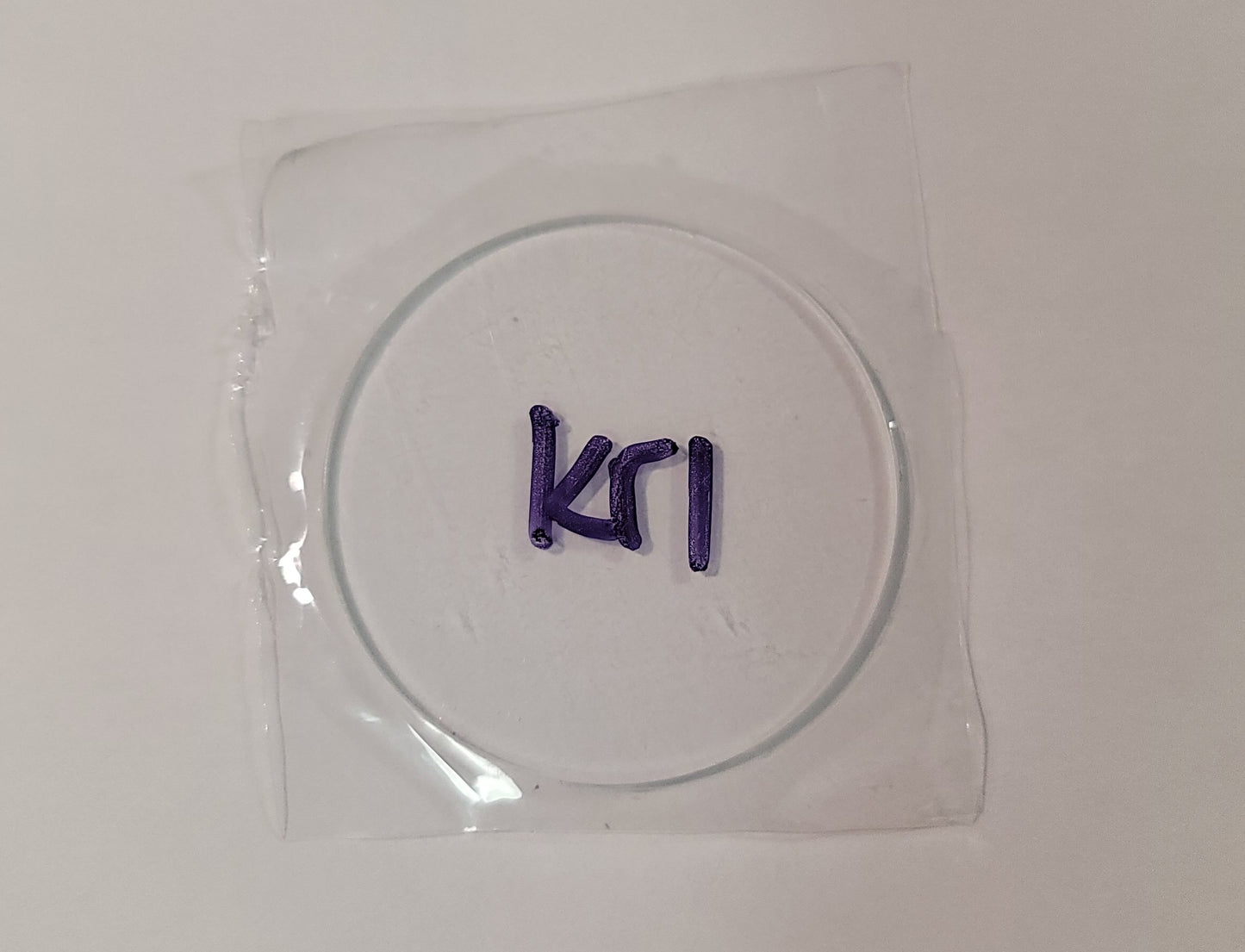

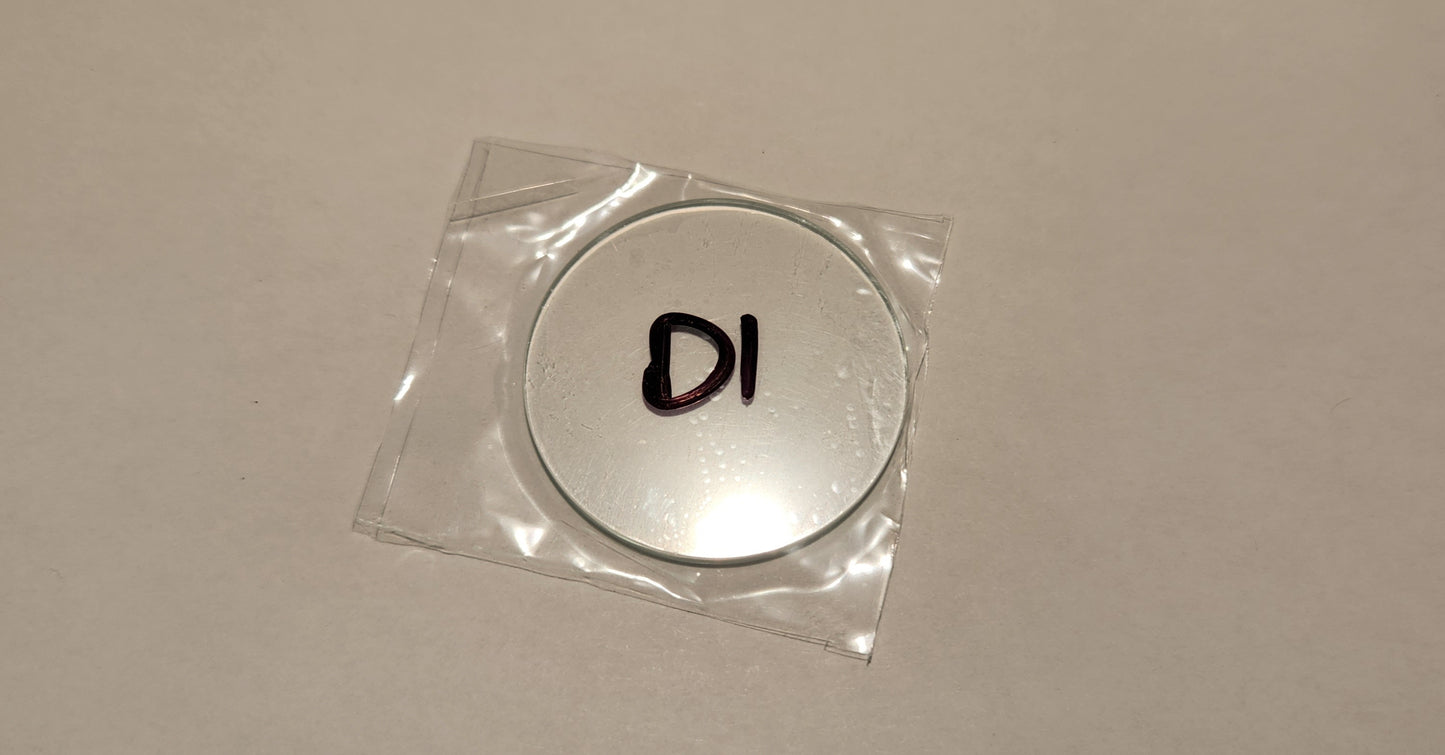

D1/D1K/KR1 32.1.5MM

D4V2/D4K 25.5 X 1.5MM

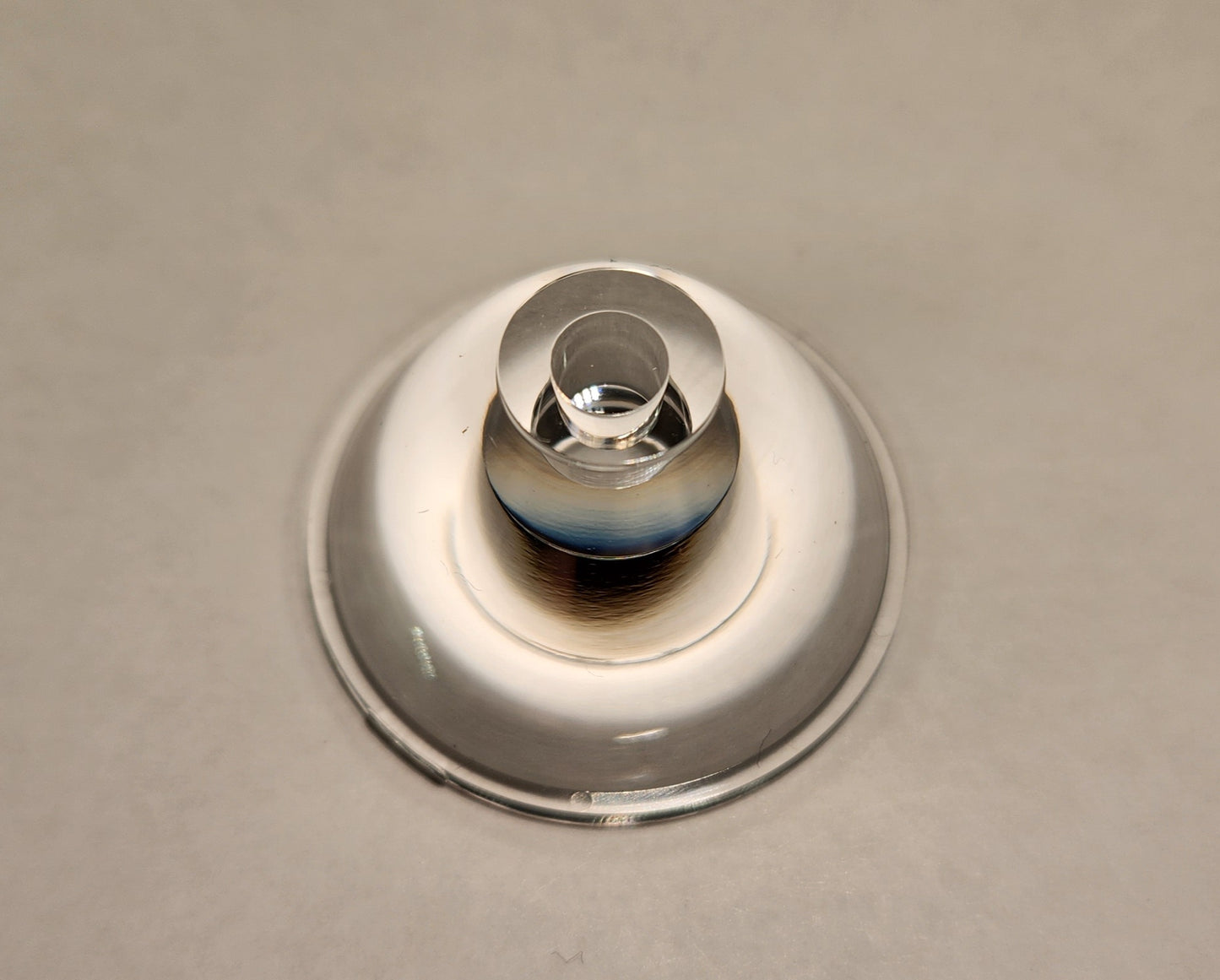

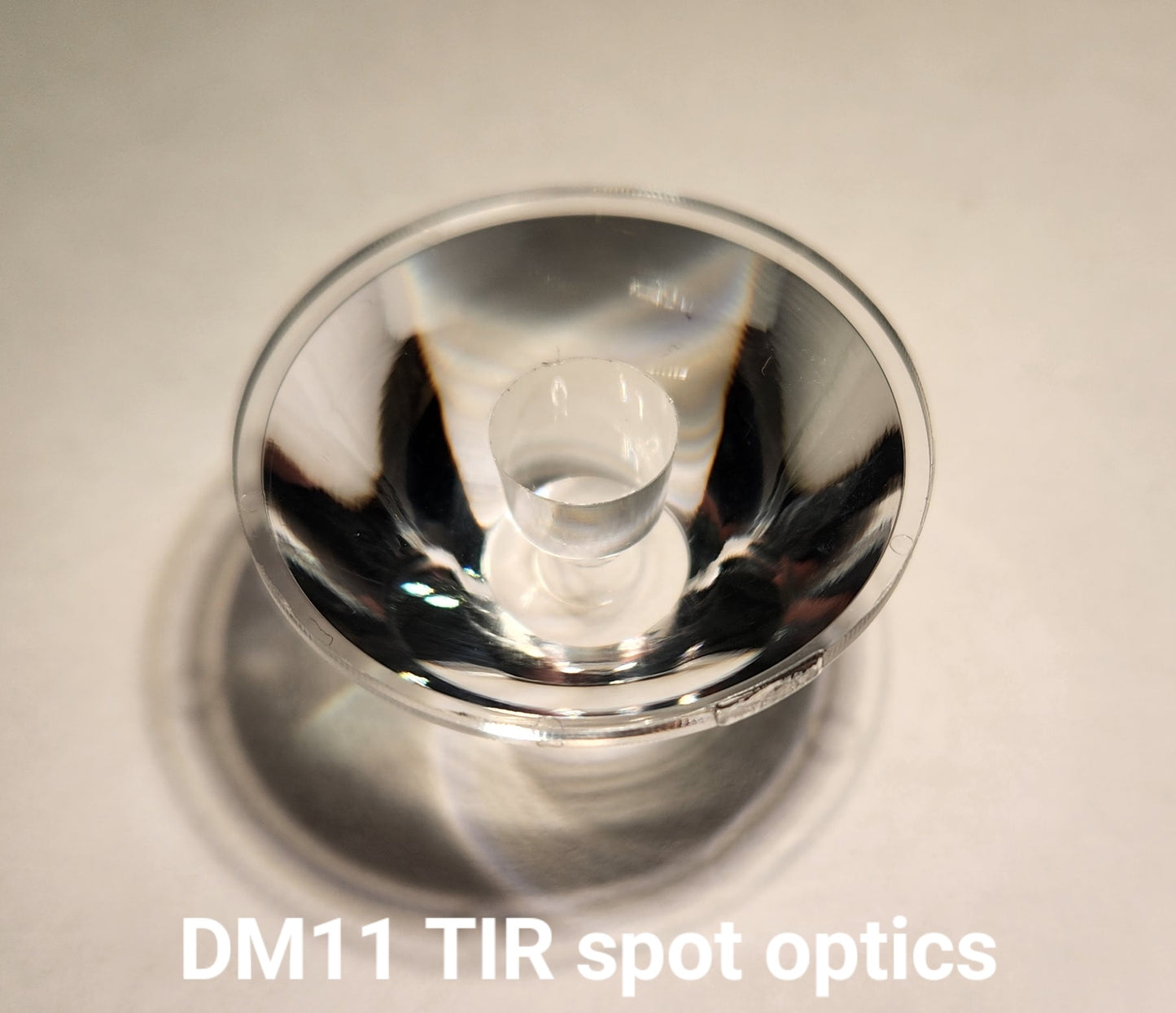

DM11/DM1.12 TIR SPOT OPTICS 30 X 17MM (5MM LED OPENING)

DA1K

NOTE: SOME WILL HAVE A SLIGHTLY MORE OR LESS ON THE AR COATINGS ON THE GLASS

CARCLO TRIPLE OPTICS:

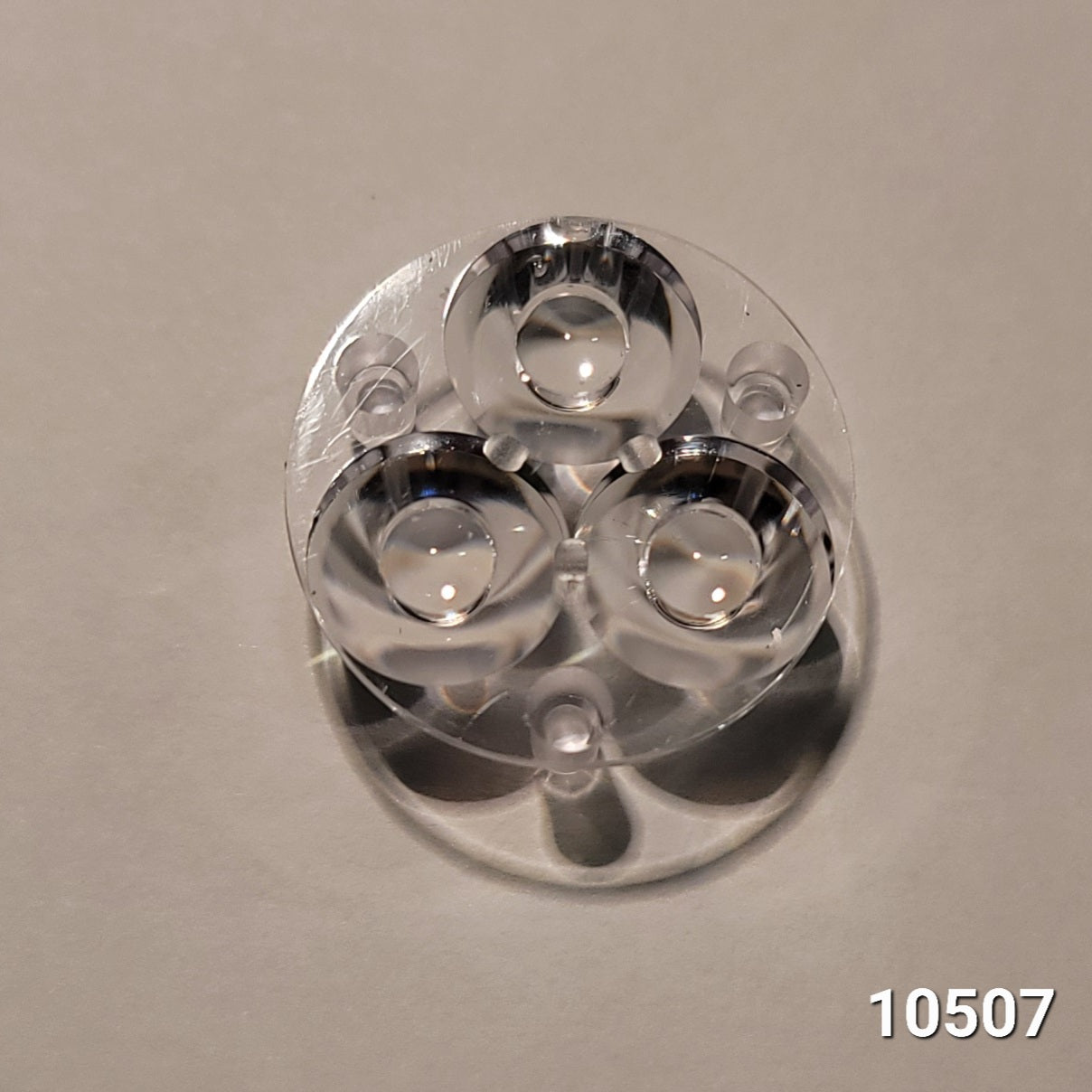

10507: 10MM TRIPLE NARROW SPOT

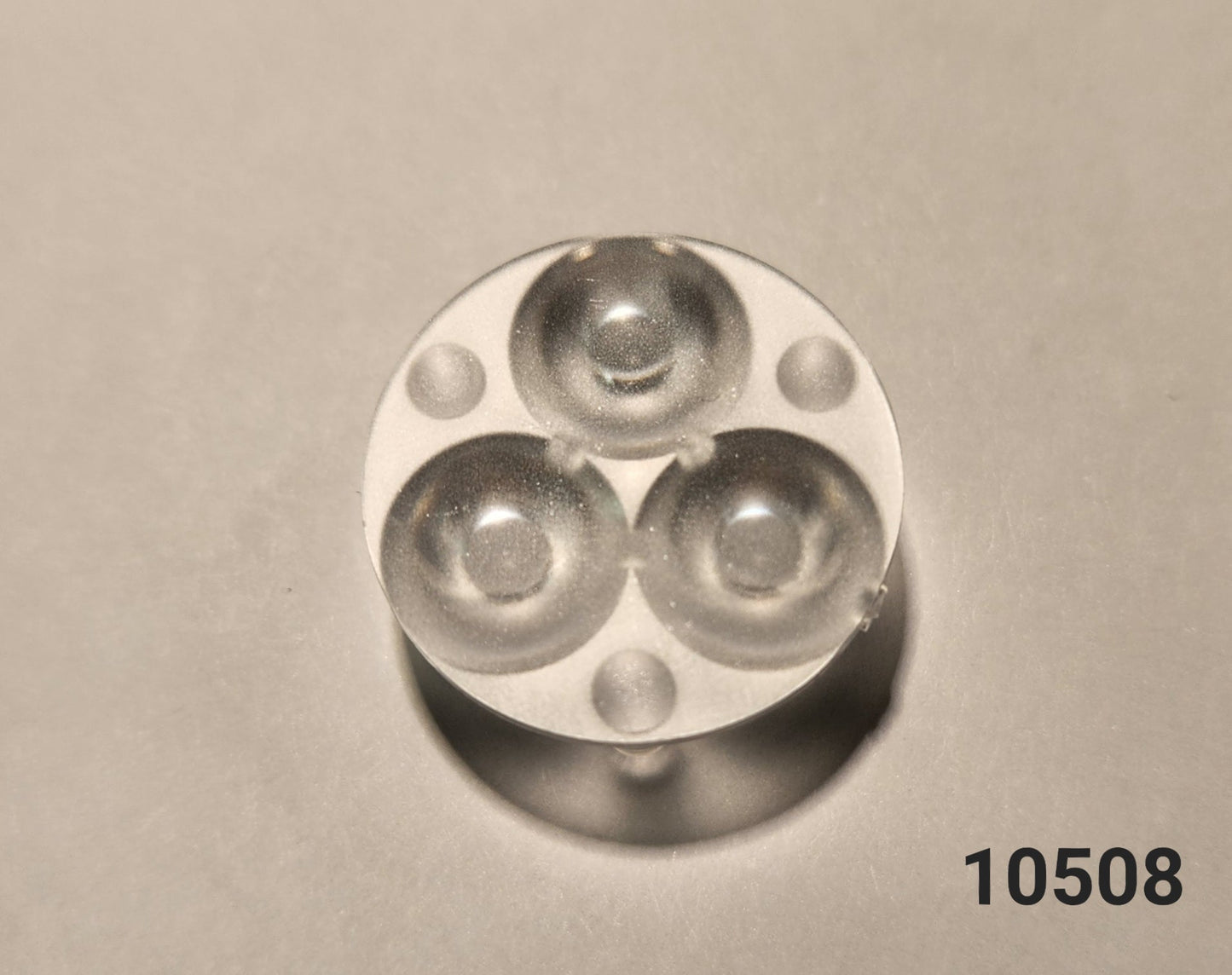

10508: 10MM MED SPOT FROSTED

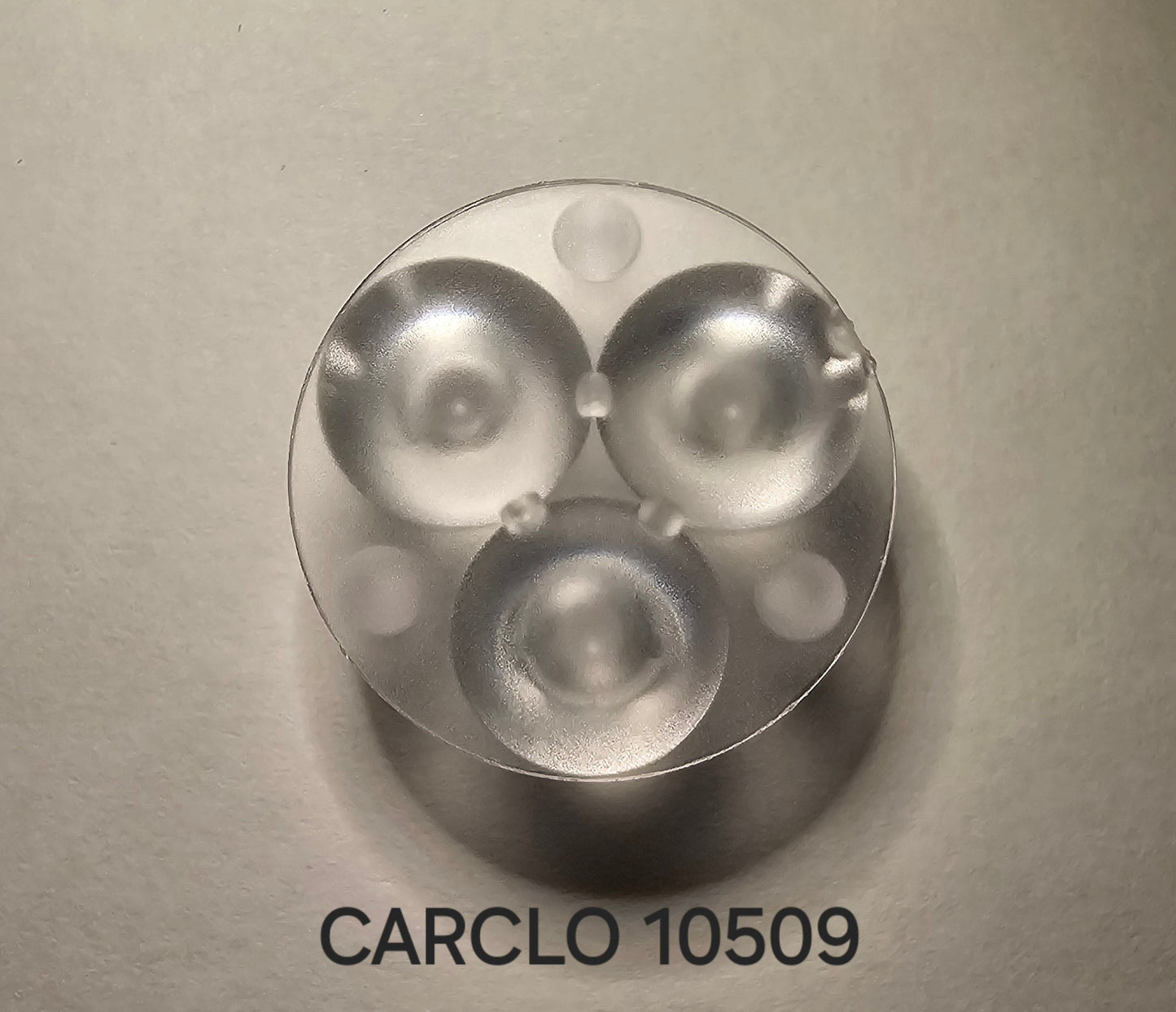

10509: 10MM WIDE SPOT FROSTED

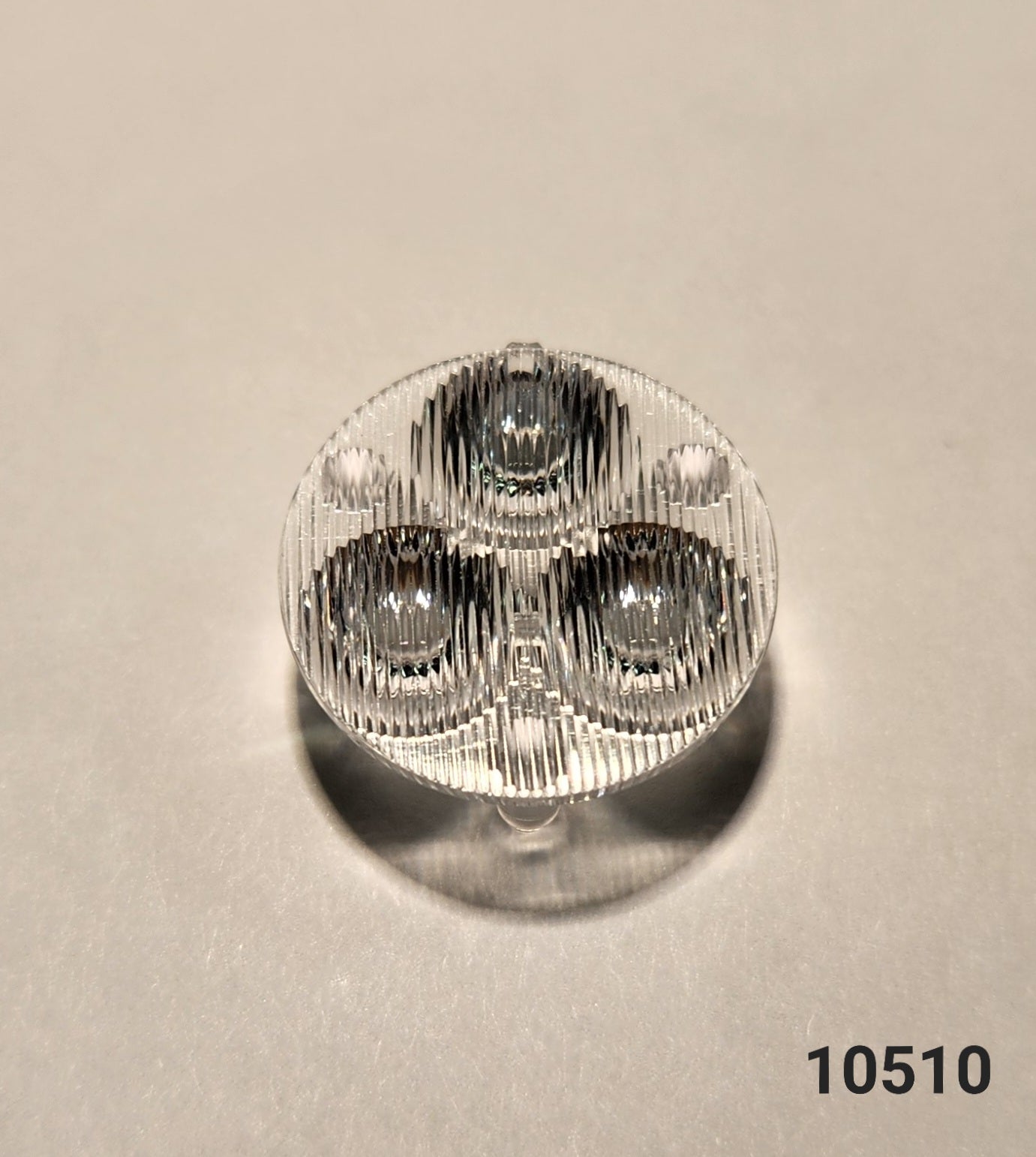

10510: 10MM ELLIPTICAL RIPPLE LINEAR

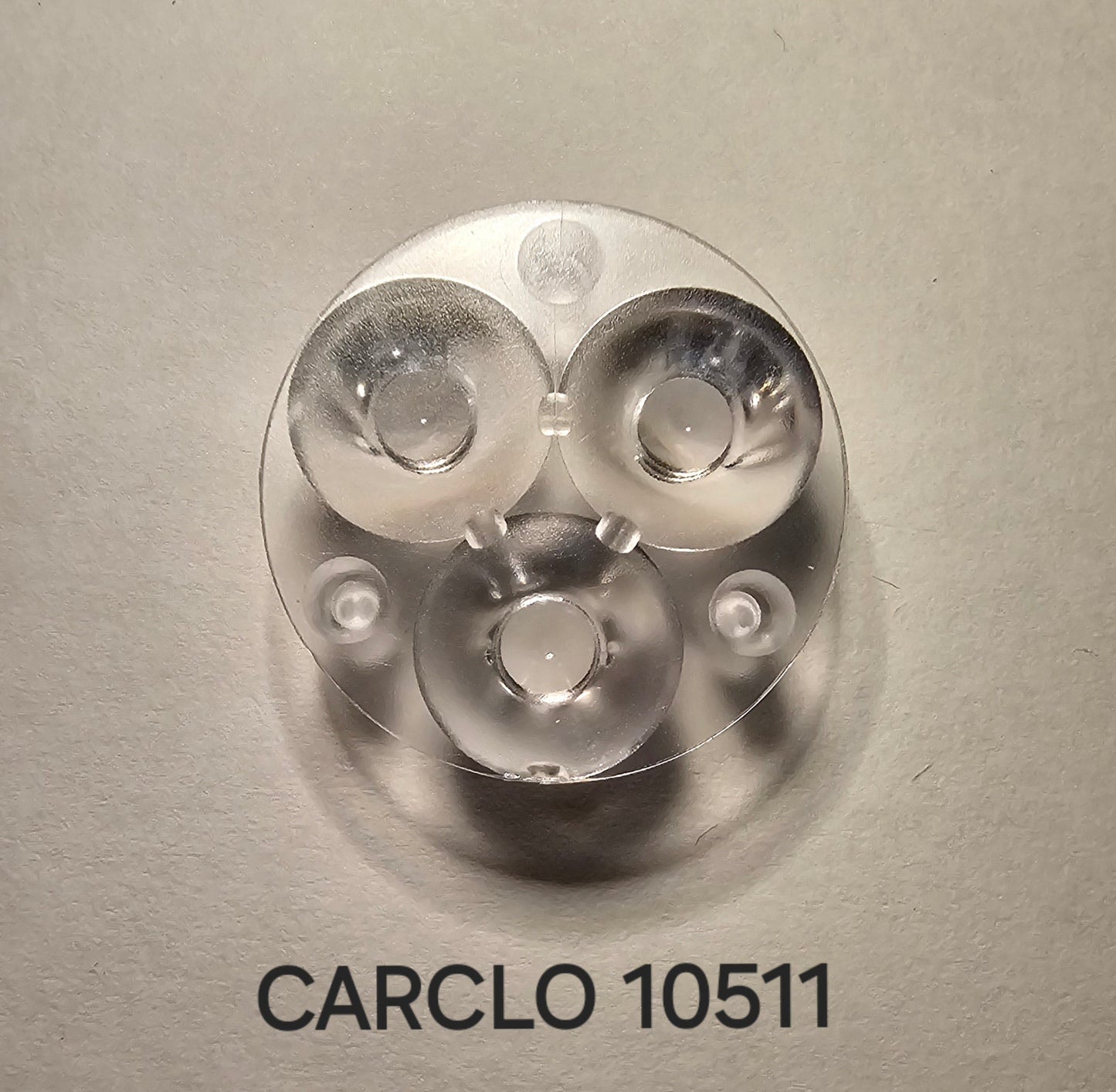

10511: 10MM NARROW SPOT FROSTED

Carclo triple optics description:

Carclo Triple Optic

Dimensions: Diameter 20mm, Total height 7.5mm, Height installed 6mm

Material: Polycarbonate (not PMMA)

Compatible with the Noctigon 3XP Advanced Triple LED MCPCBs.

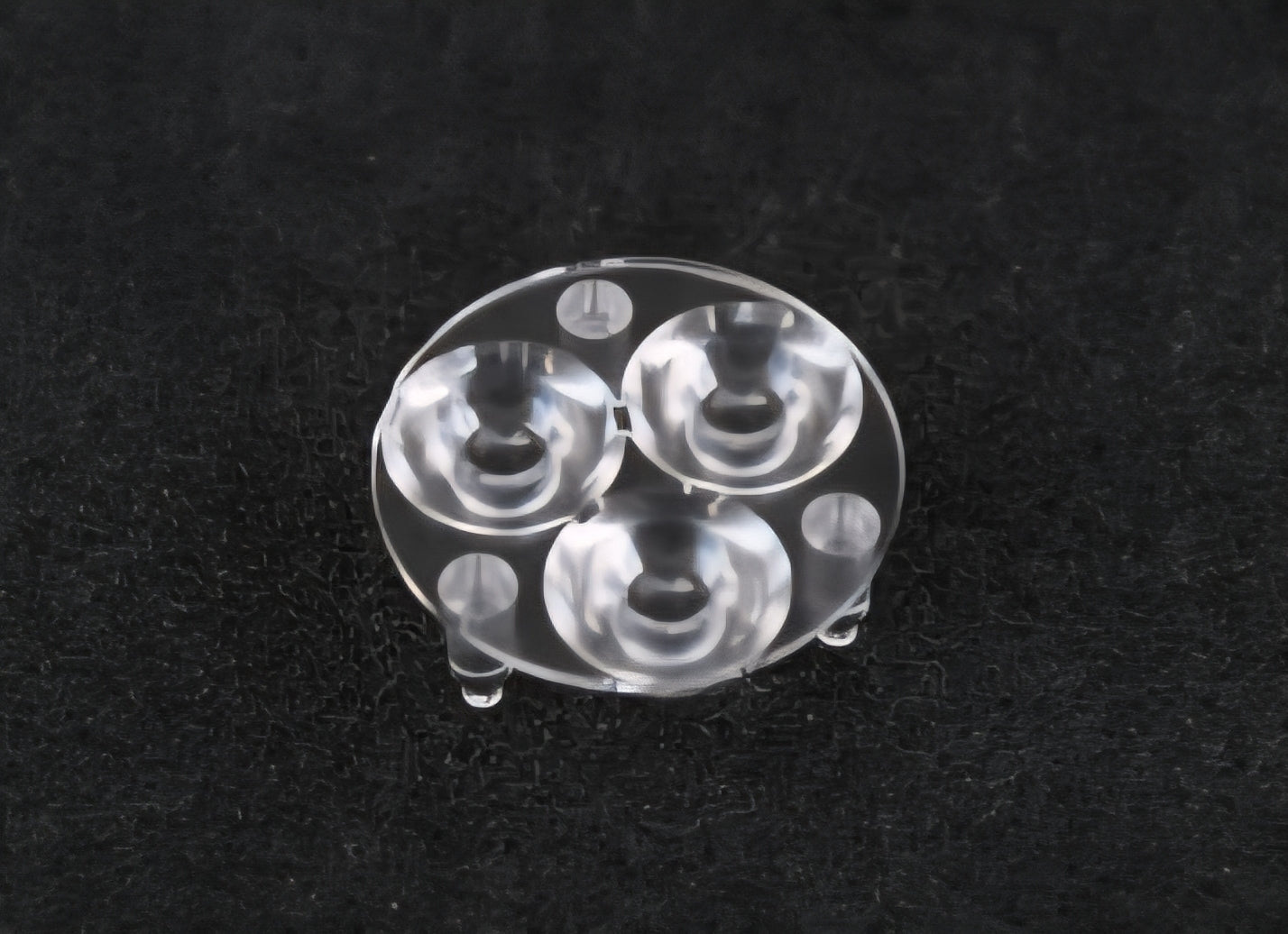

New! Noctigon triple optics

N203M (STANDARD)

N203W (FLOODY)

Noctigon triple optics description:

Noctigon N203M (medium angle) / N203W (wide angle) triple Optic

Dimensions: Diameter 20mm, Total height 7.4mm, Height installed 6mm

Compatible with the Noctigon 3XP Advanced Triple LED MCPCBs.

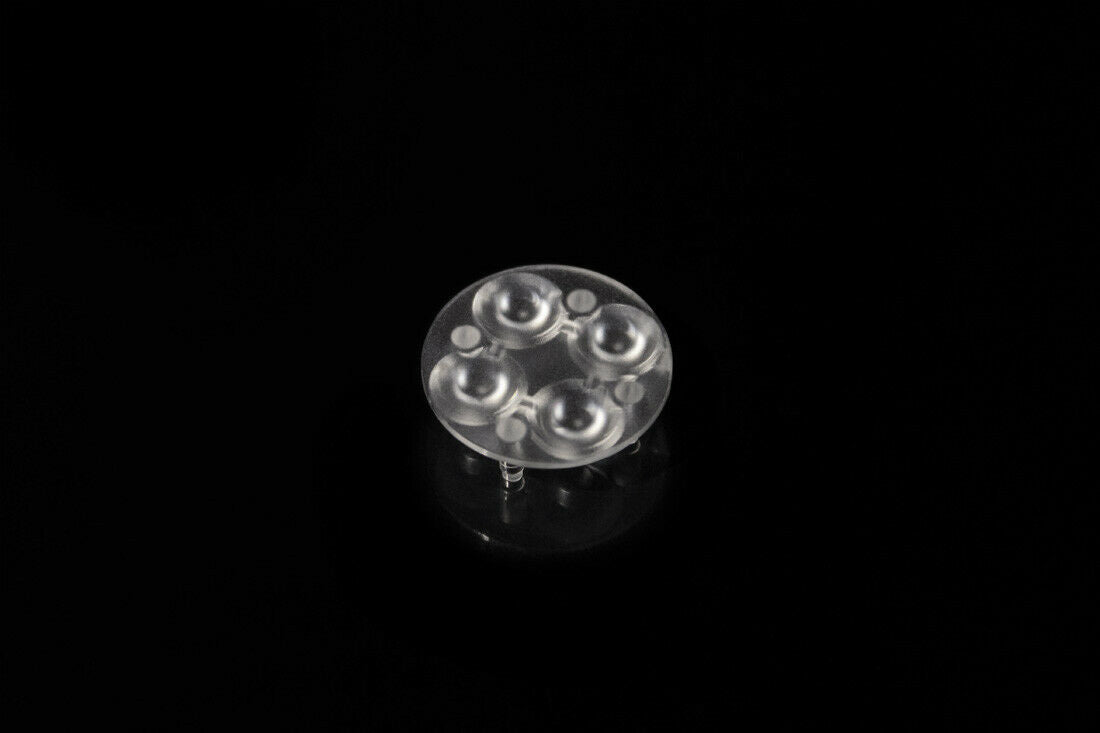

CARCLO QUAD OPTICS:

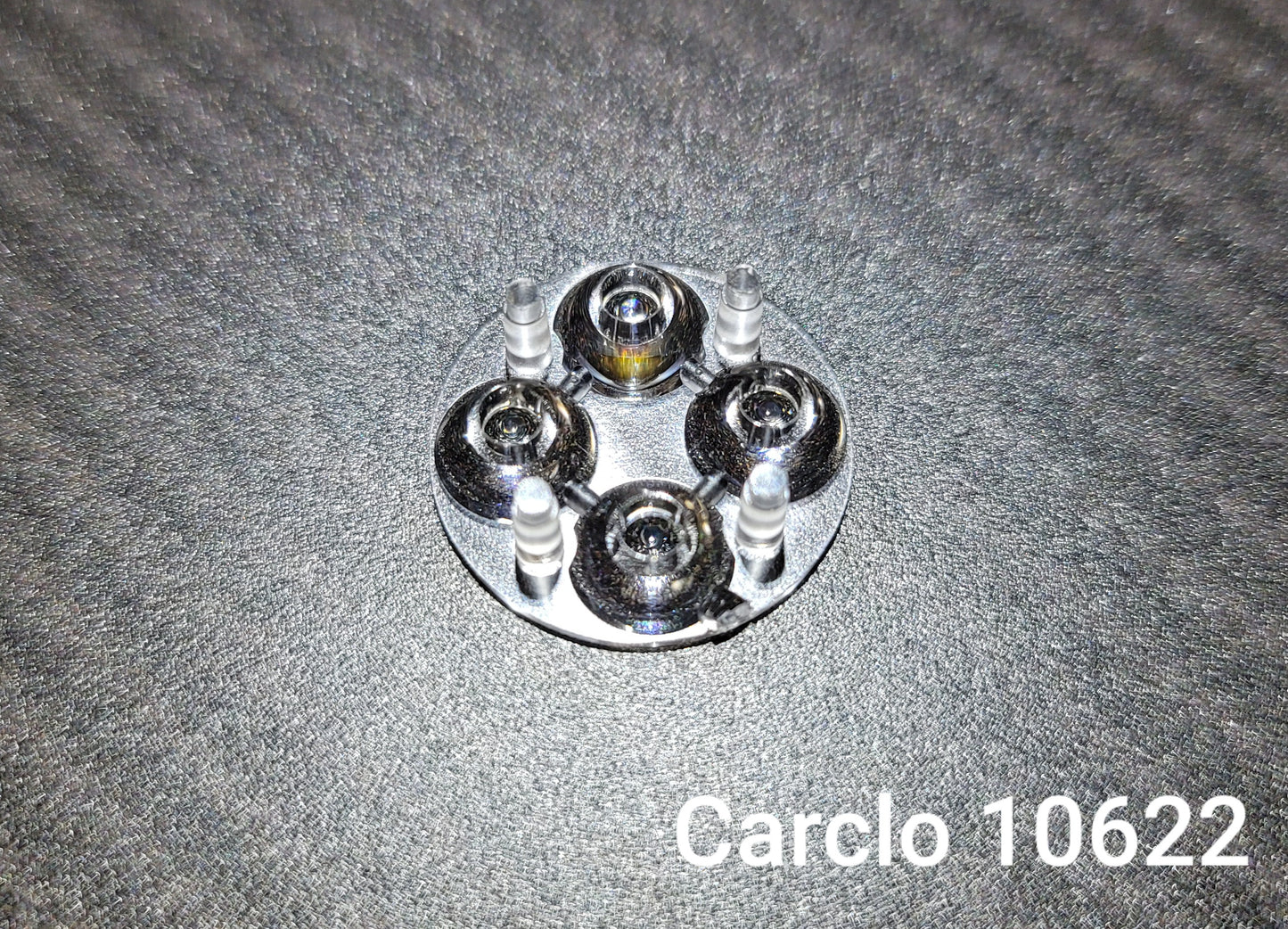

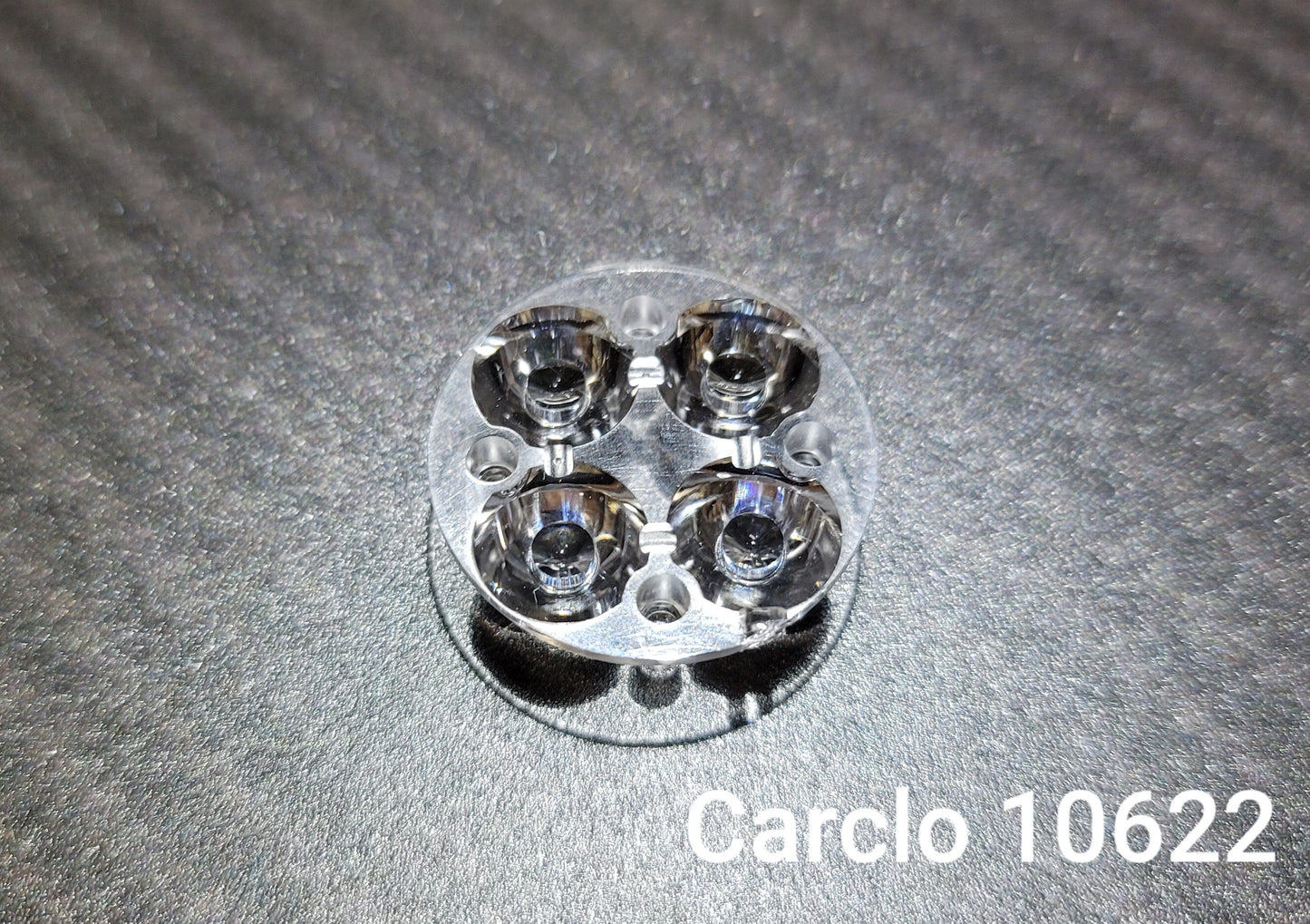

10622 (CLEAR MED SPOT)

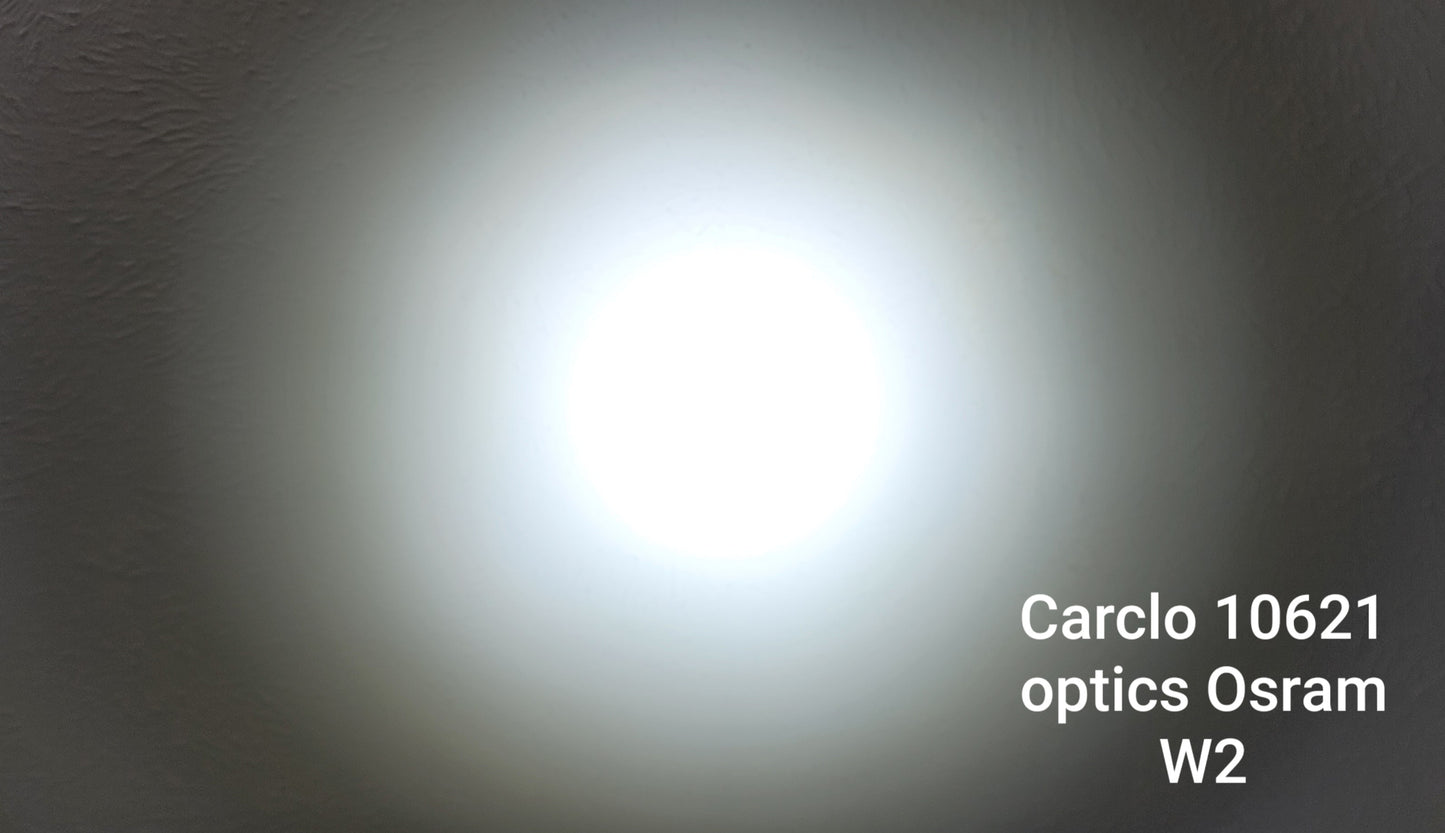

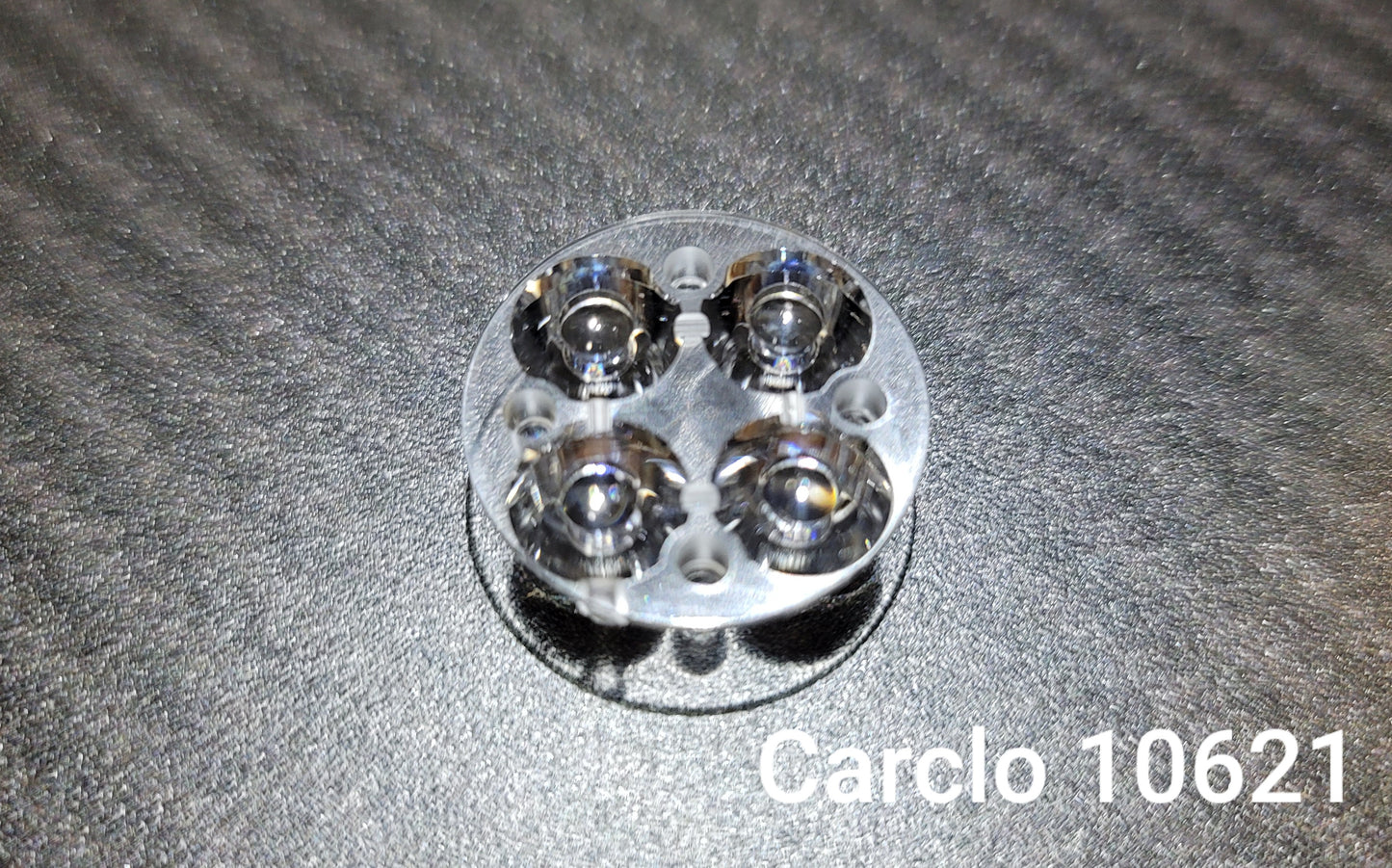

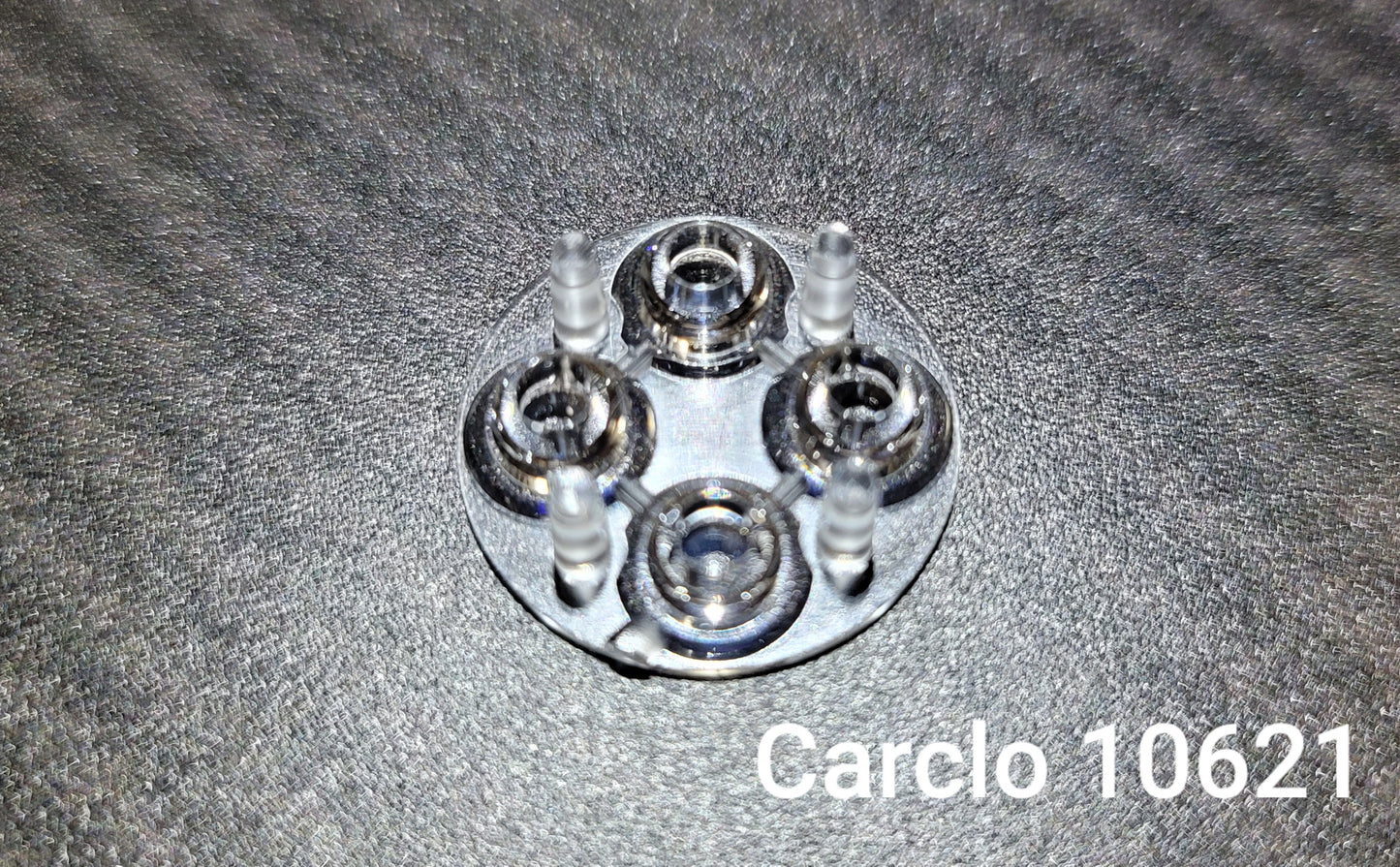

10621 (CLEAR SPOT)

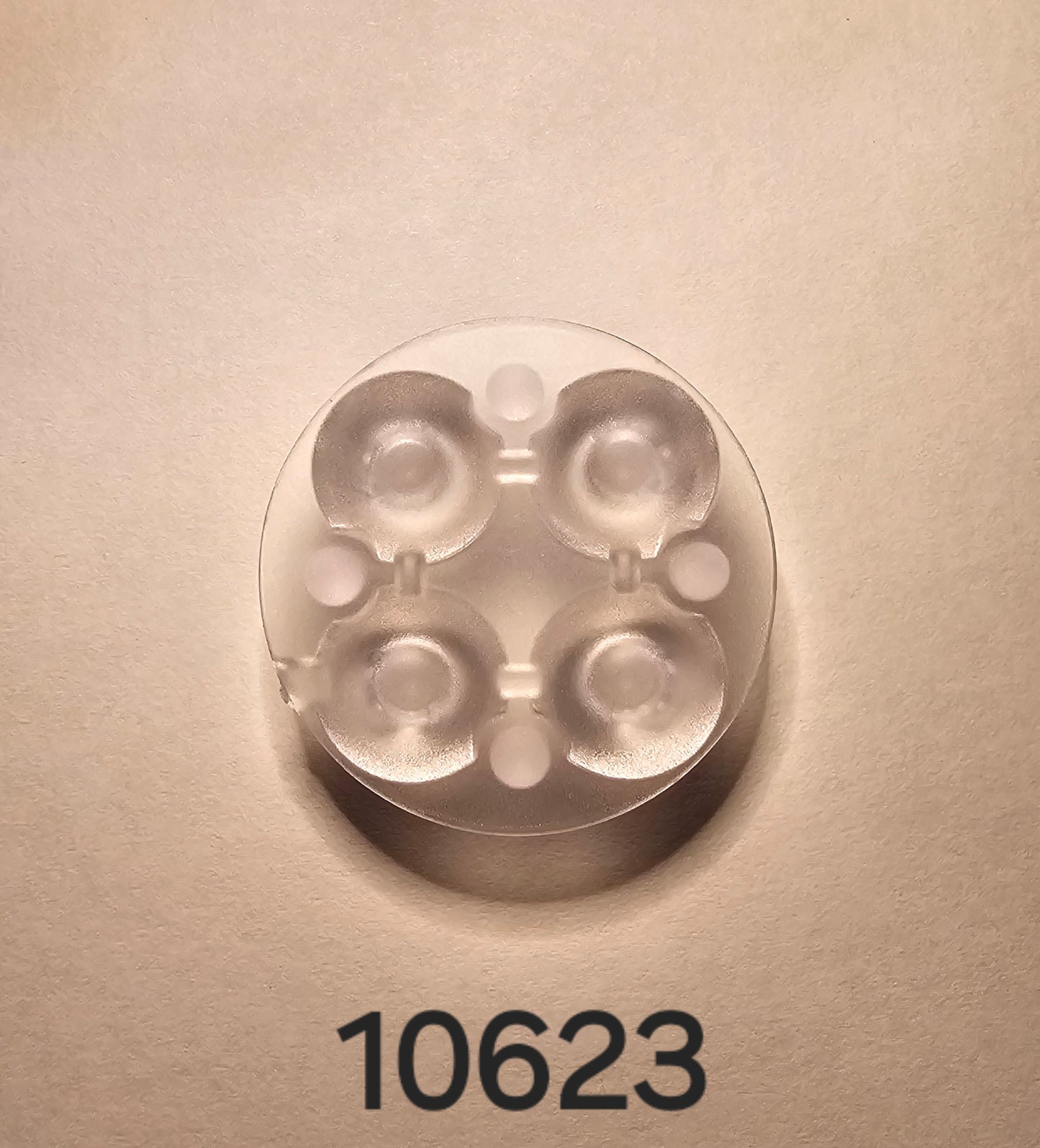

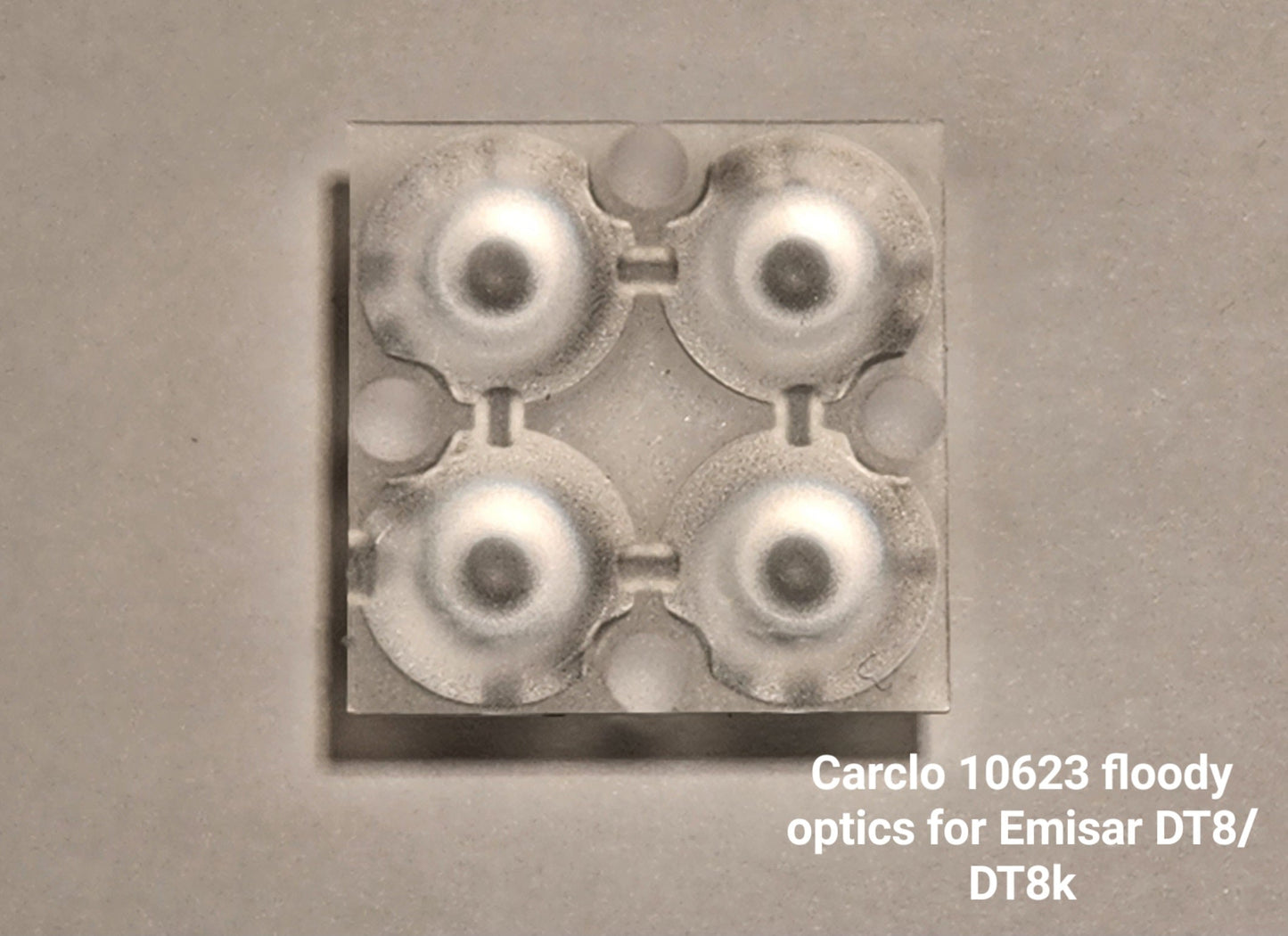

10623 (MED SPOT FROSTED)

CARCLO 10624 (WIDE SPOT FLOOD)

Carclo quad optics description:

Carclo Quad Optic Spot

Dimensions: Diameter 24mm

Total height 7.5mm

Height installed 6mm

Material:Polycarbonate (not PMMA)

Compatible with the Noctigon 4XP Quad LED MCPCBs.

New! Noctigon quad optics

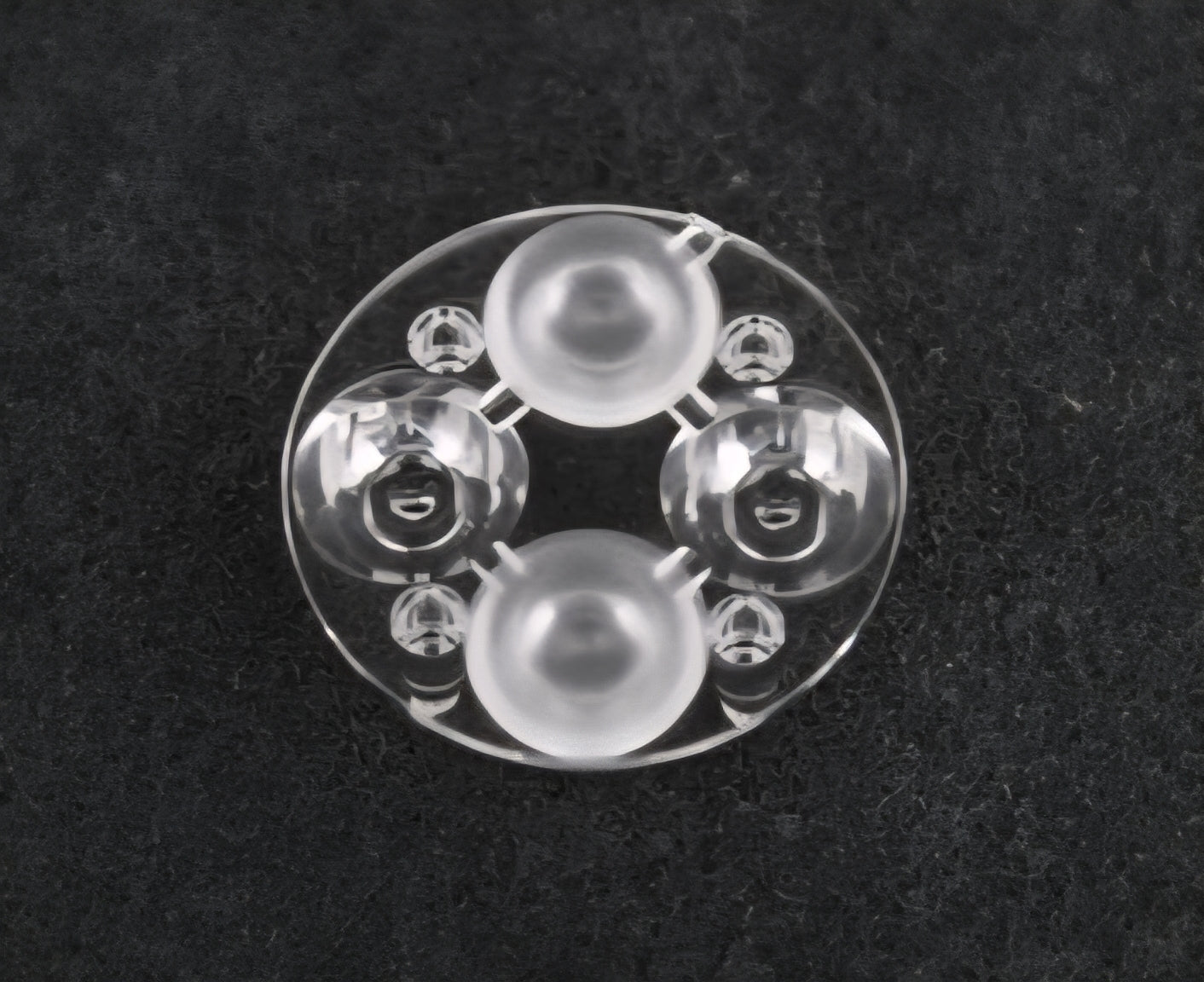

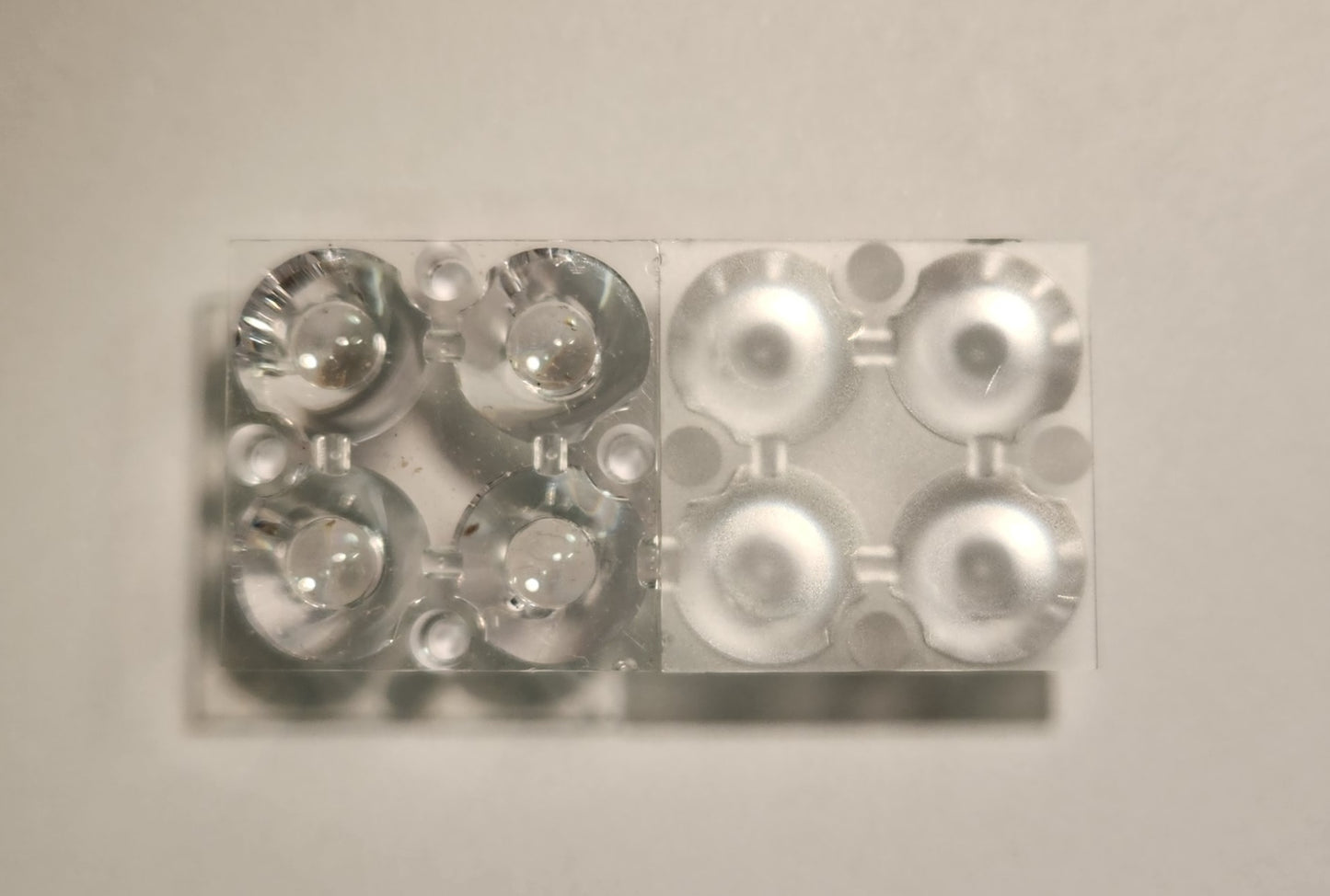

N244SW (SPOT/FLOOD 2-CH OPTICS)

N244M (MEDIUM)

N244W (FLOODY)

Noctigon quad optics description:

• Noctigon N244 series 10mm Quad Optic

• Diameter 24mm

• Total height 7.5mm

• Height installed 6mm Material

• N244W (wide angle optic, provides floody beam pattern)

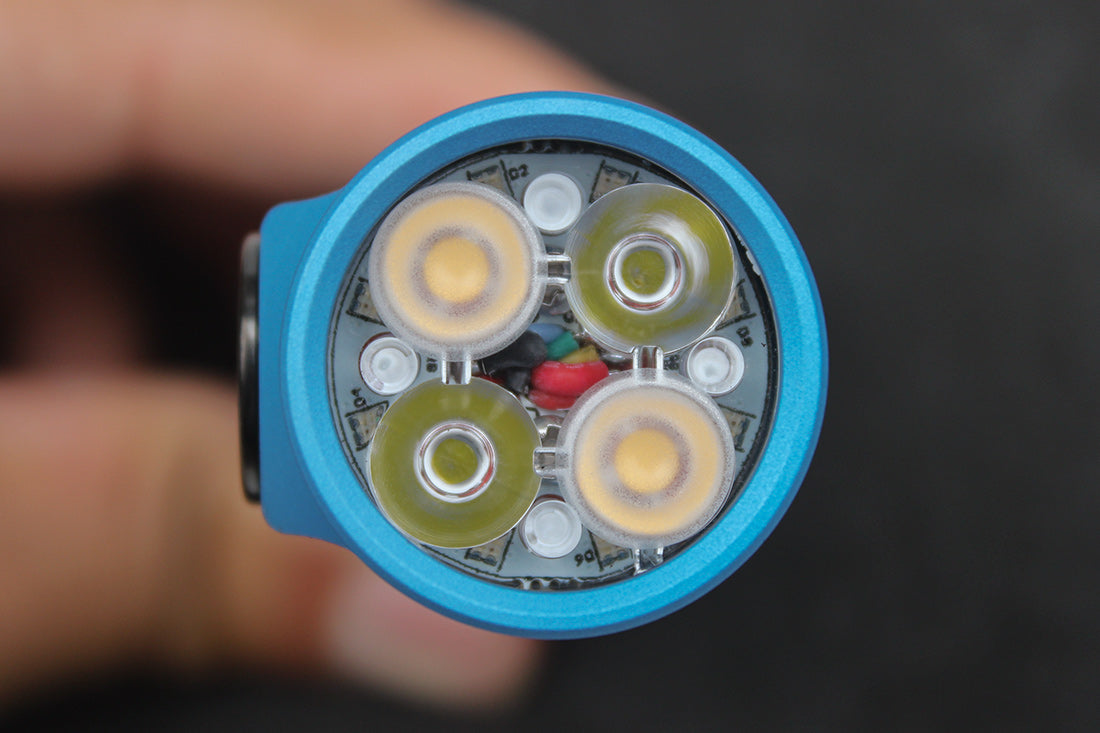

• N244SW (small angle & wide angle combination, provides floody beam pattern + spot beam pattern)

• N244M (medium angle optic, provides even beam pattern)

• Compatible with the Noctigon 4XP quad LED MCPCBs, works fine with D4V2, D4K, KR4 quad flashlights

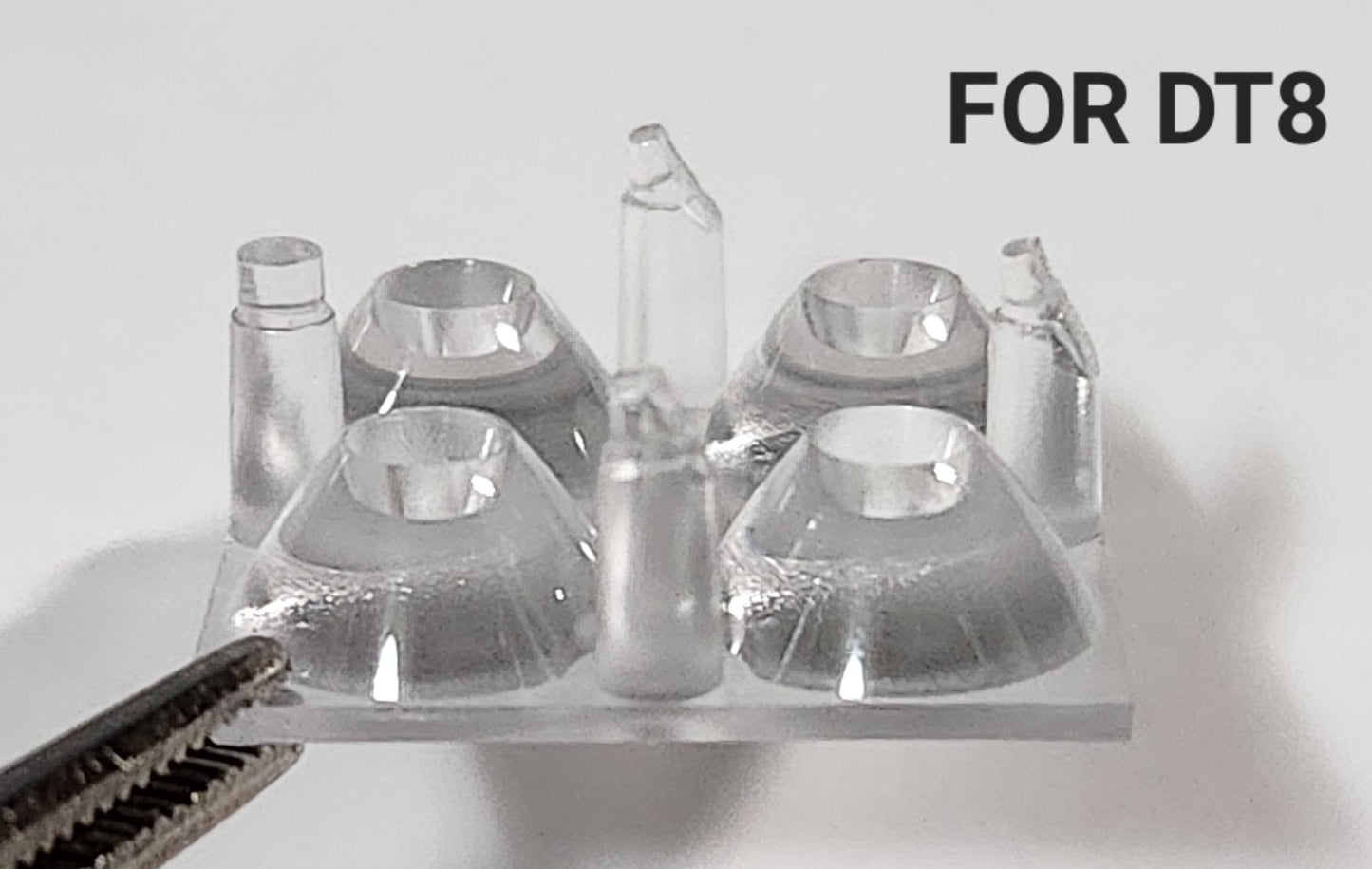

DT8/DT8K OPTICS:

Carclo 10610 narrow spot

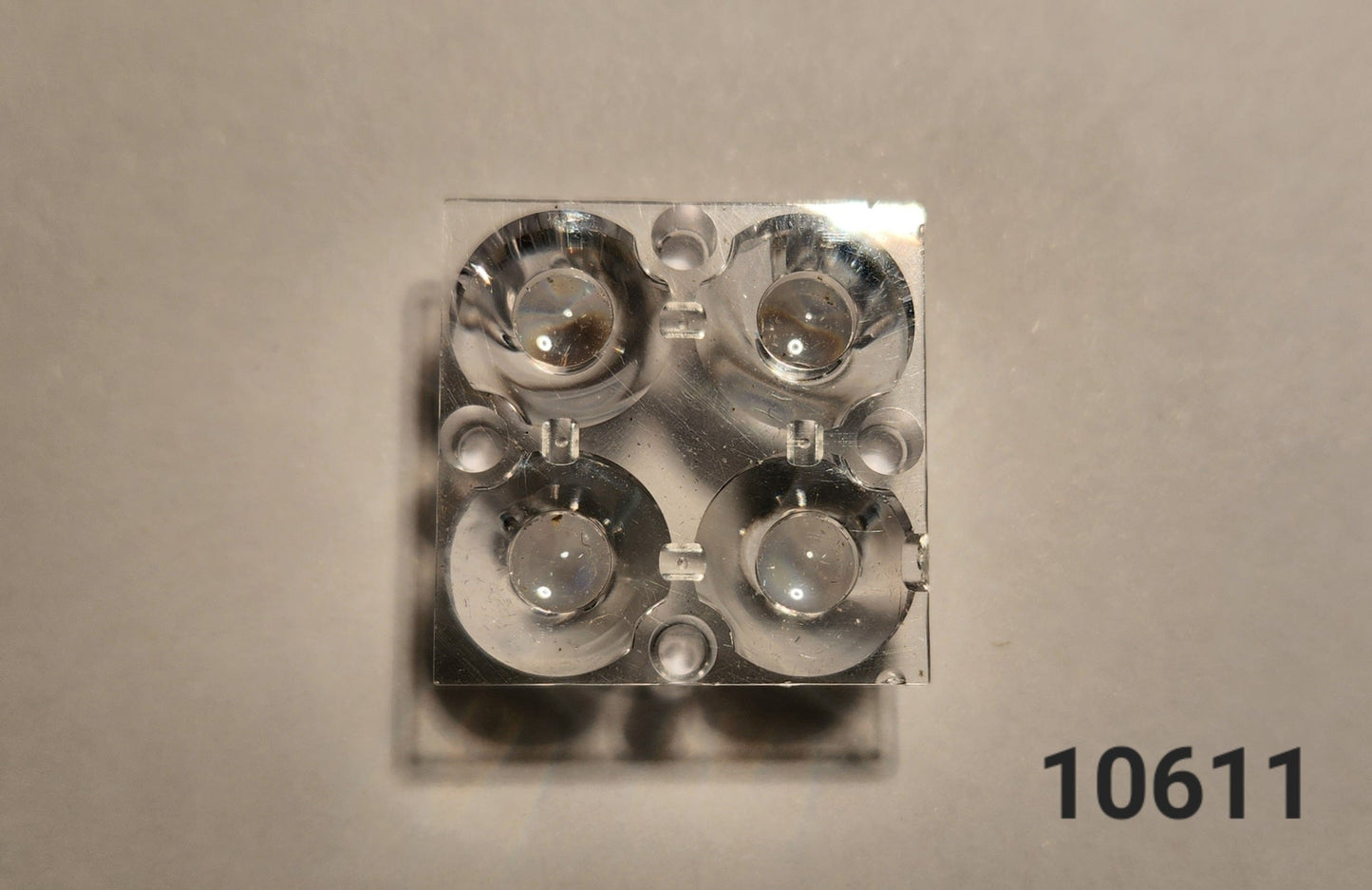

Carclo 10611 plain spot optics

Carclo 10613 floody optics

DT8 and DT8K will need slight modifications if it doesn't fit (SEE PICTURE)

LEDIL quad optics for D4sv2 description:

Description:

Ledil Angie-S: Spot Beam (2285)

Ledil Angie-M: Medium Beam (2286)

Noctigon custom N344W (FLOODY/WIDE BEAM)

Dimensions:

Diameter 34mm,

Total height 10.67mm,

Height installed 9.22mm

Material: PMMA Compatible with the Noctigon 4XP 33mm MCPCB

DA1K OPICS:

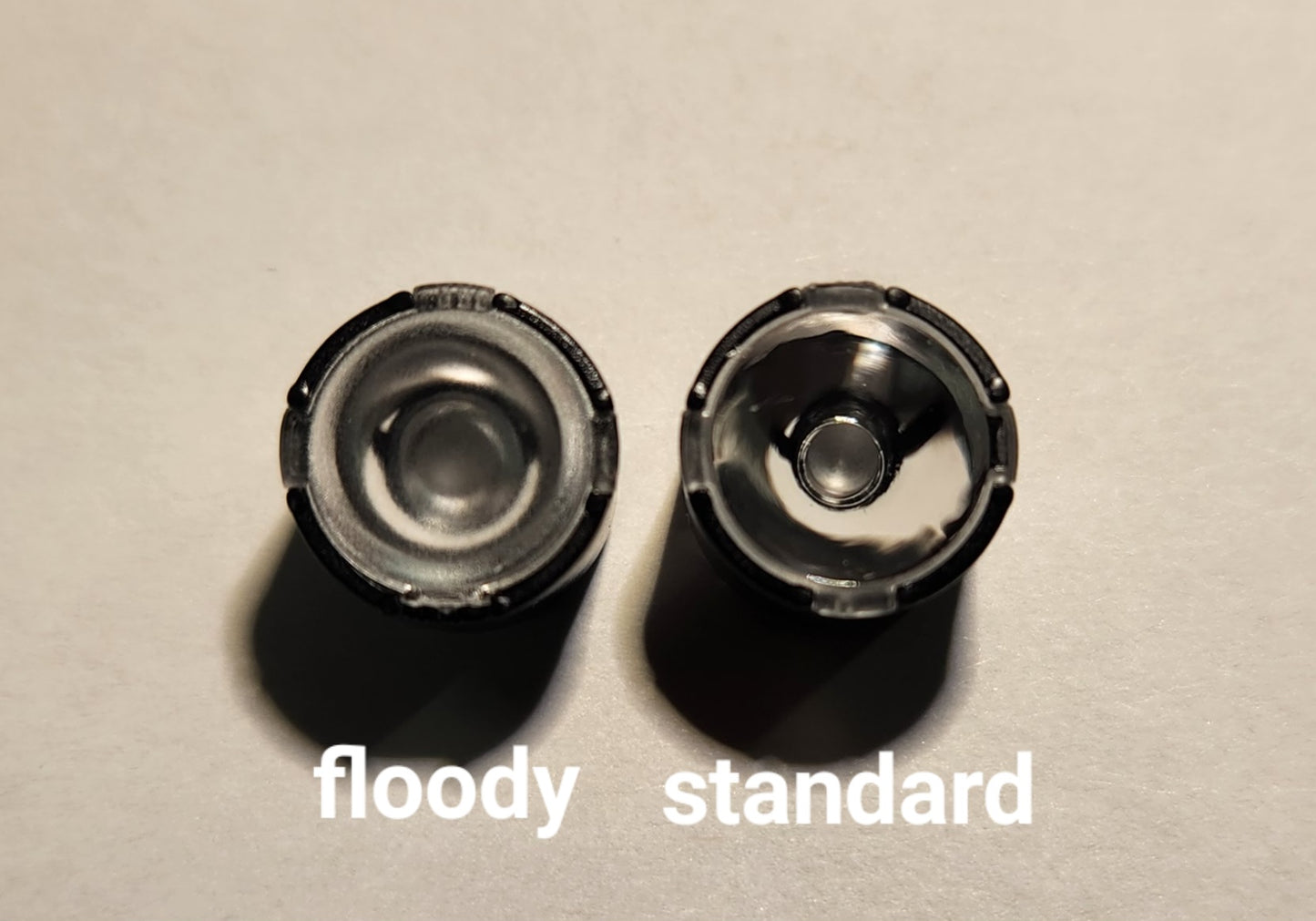

NOCTION N261S (STANDARD/SPOT)

NOCTIGON N261W

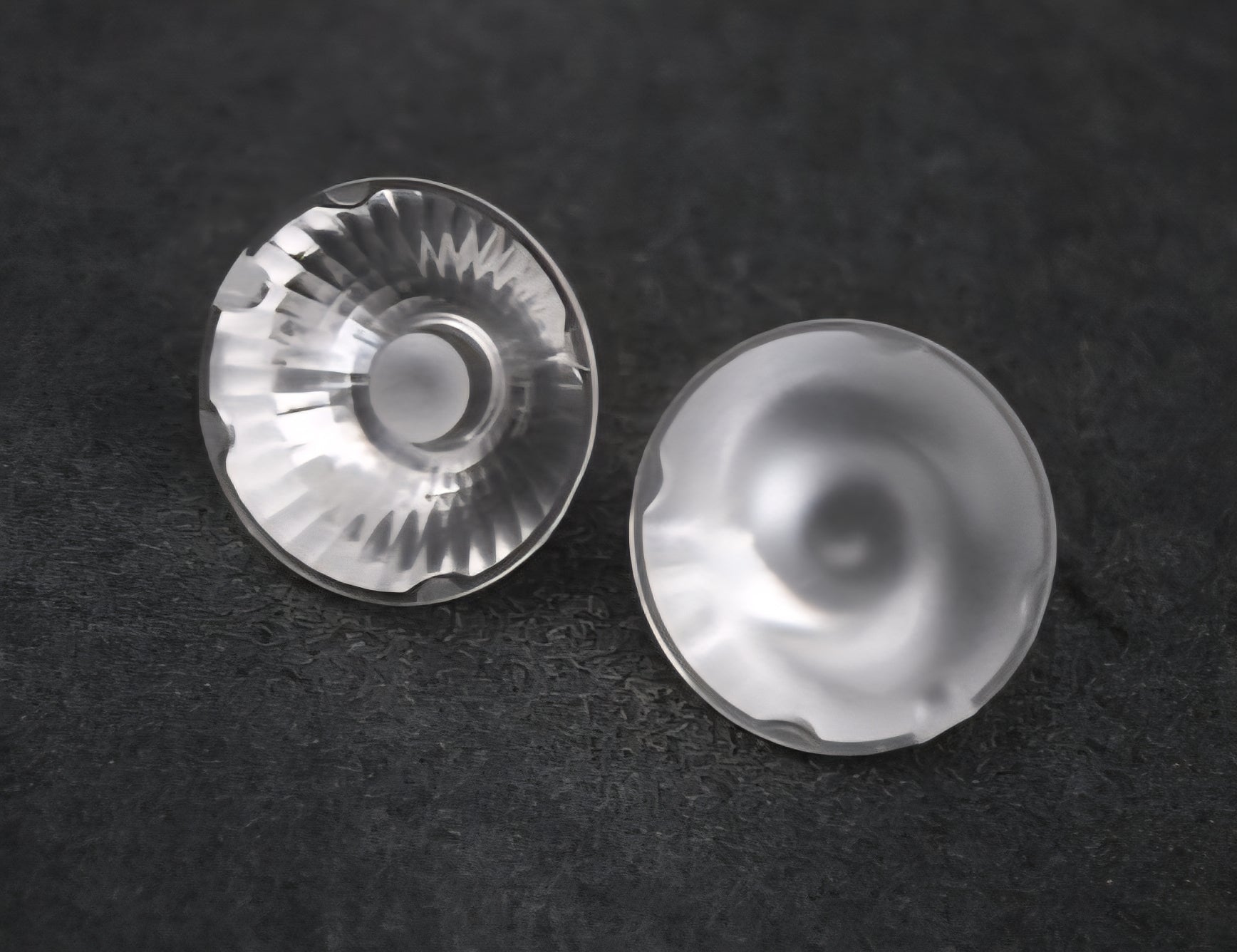

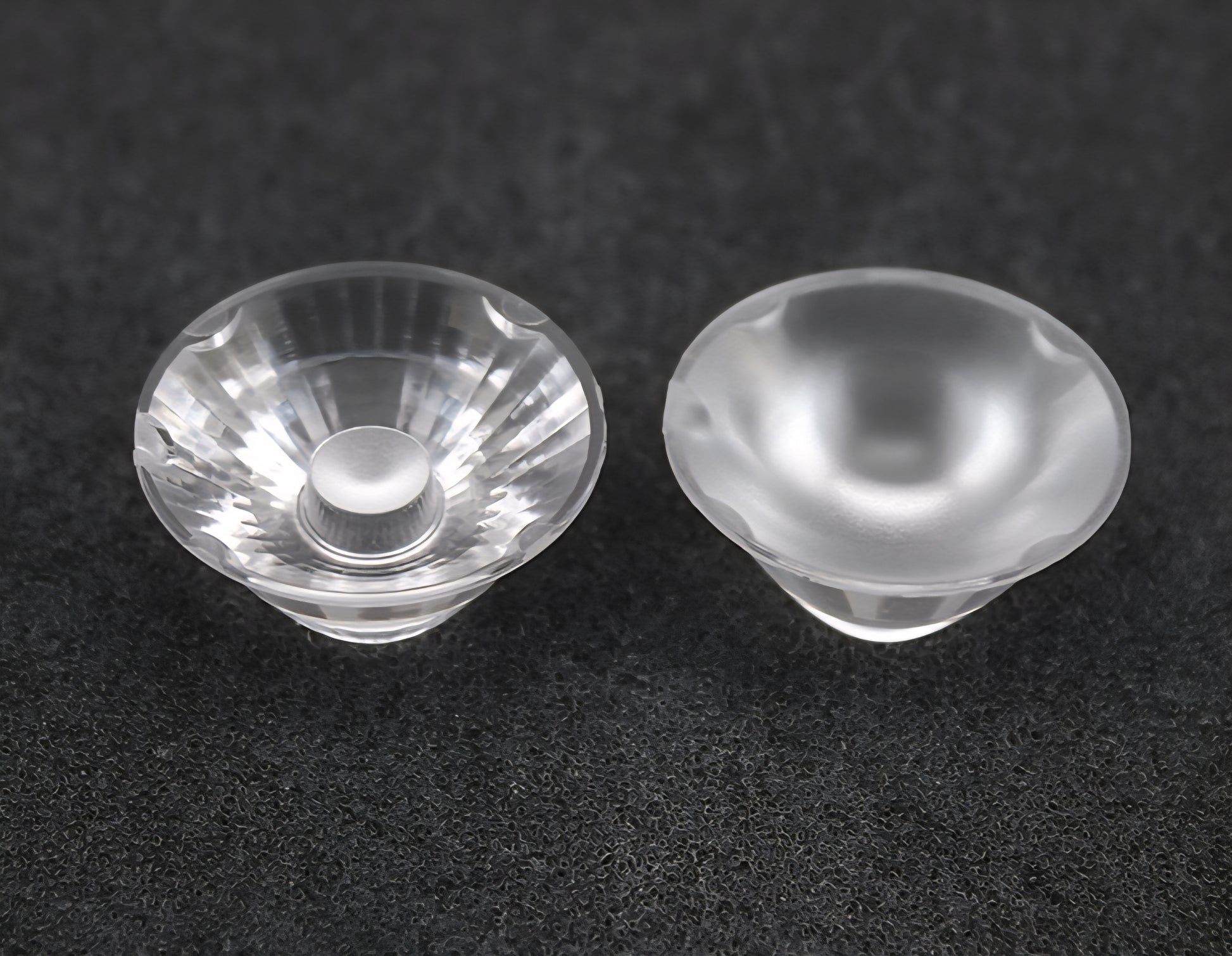

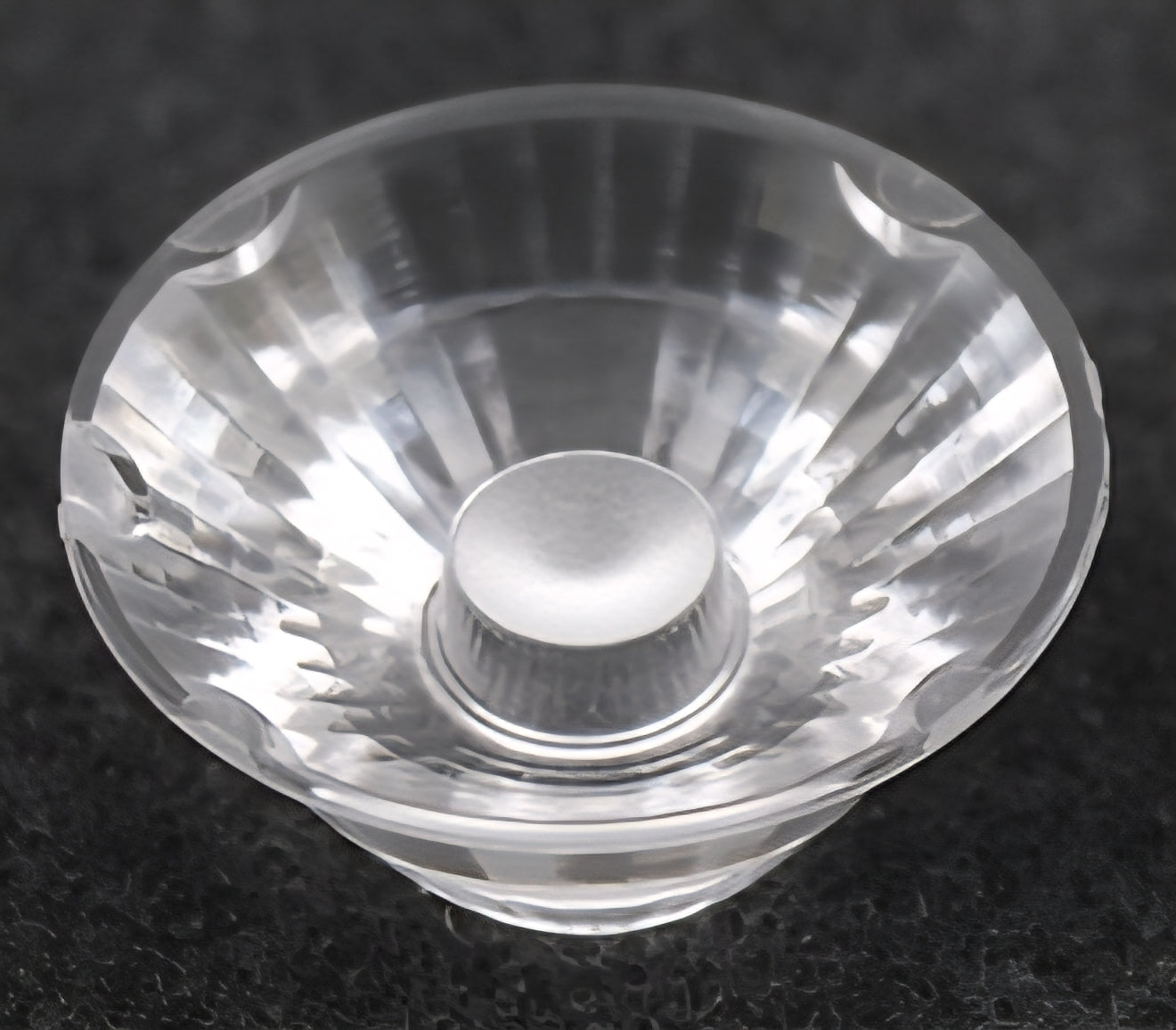

Throwy clear VS floody forsted optic for D1/DA1K AND KR1K

The throwy clear optic throws about 3 times further than the frosted optic, which is compatible with SFT-70, XHP50.3 HI, NTG50, XHP70.3 HI LEDs.

CARCLO DA1K FROSTED OPTICS:

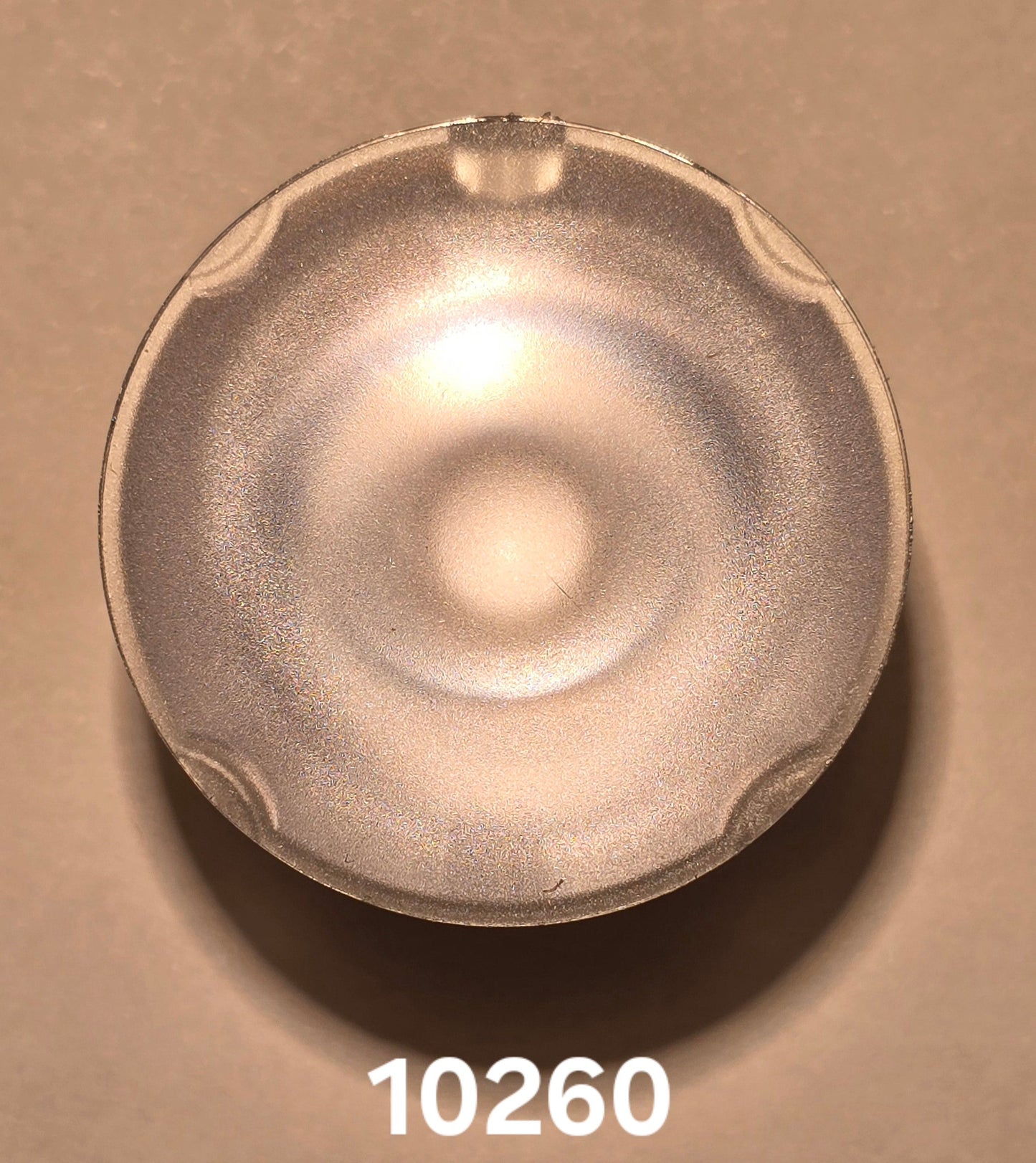

10260 WIDE SPOT FROSTED

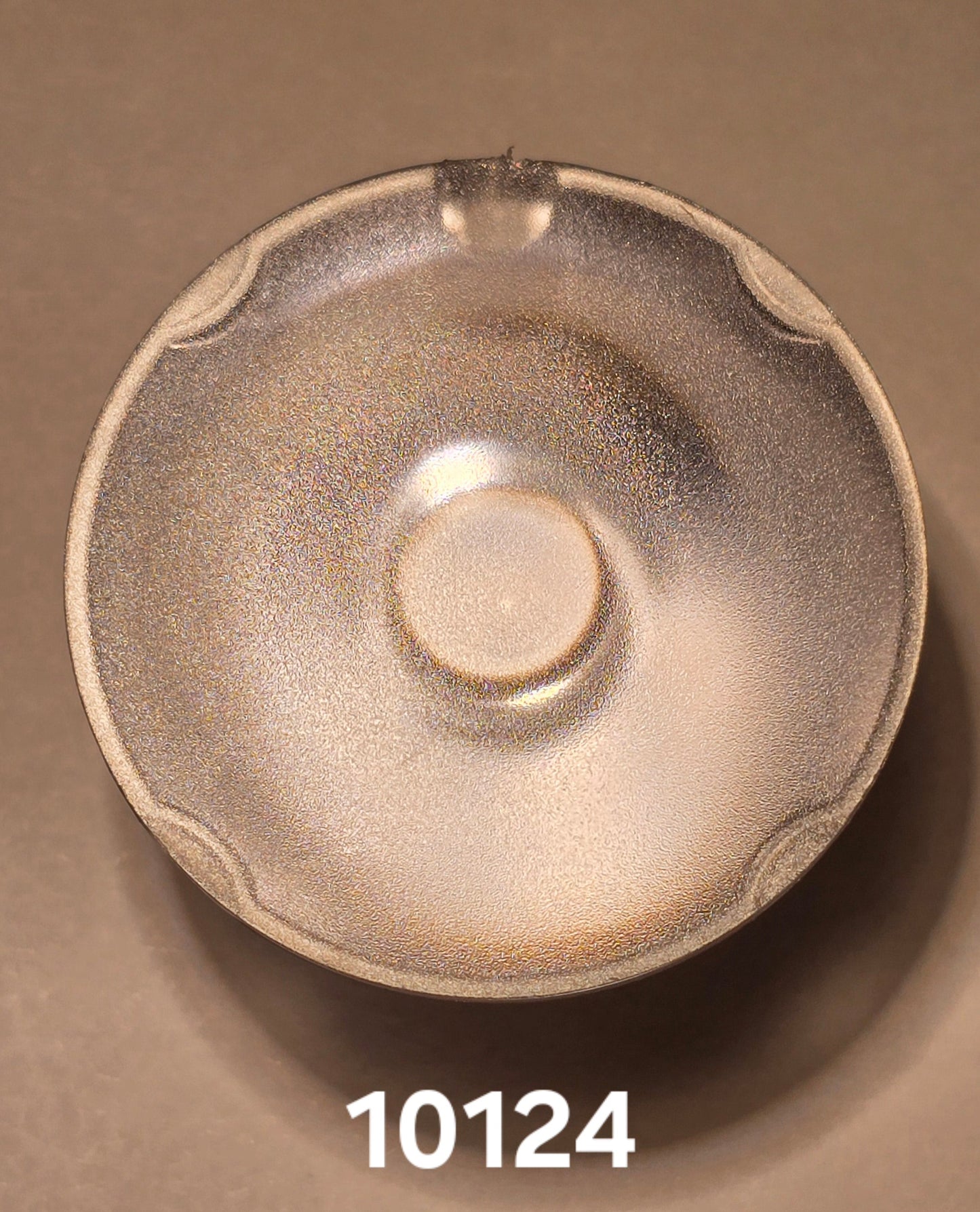

10124 NARROW SPOT FROSTED

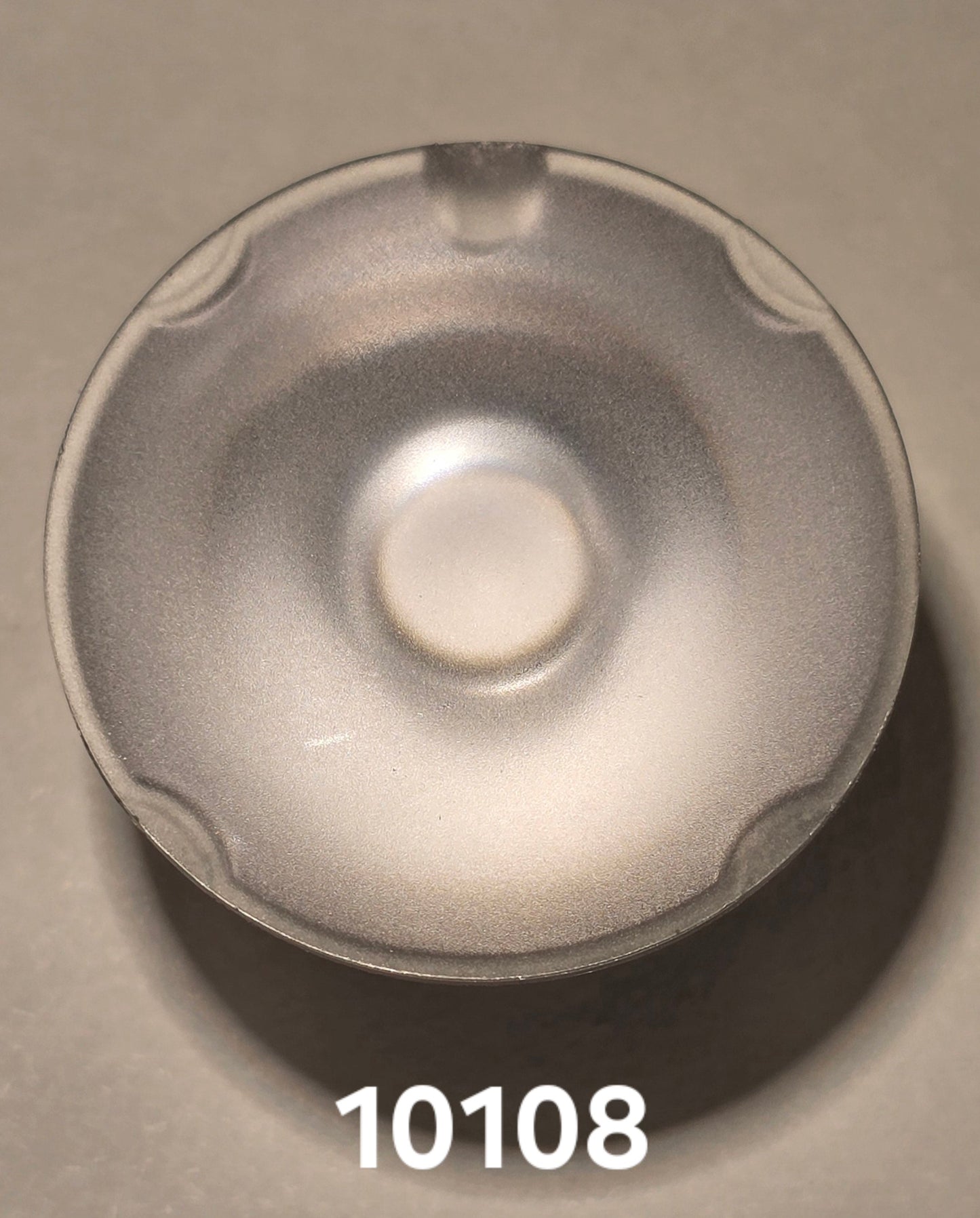

10108 MED SPOT FROSTED

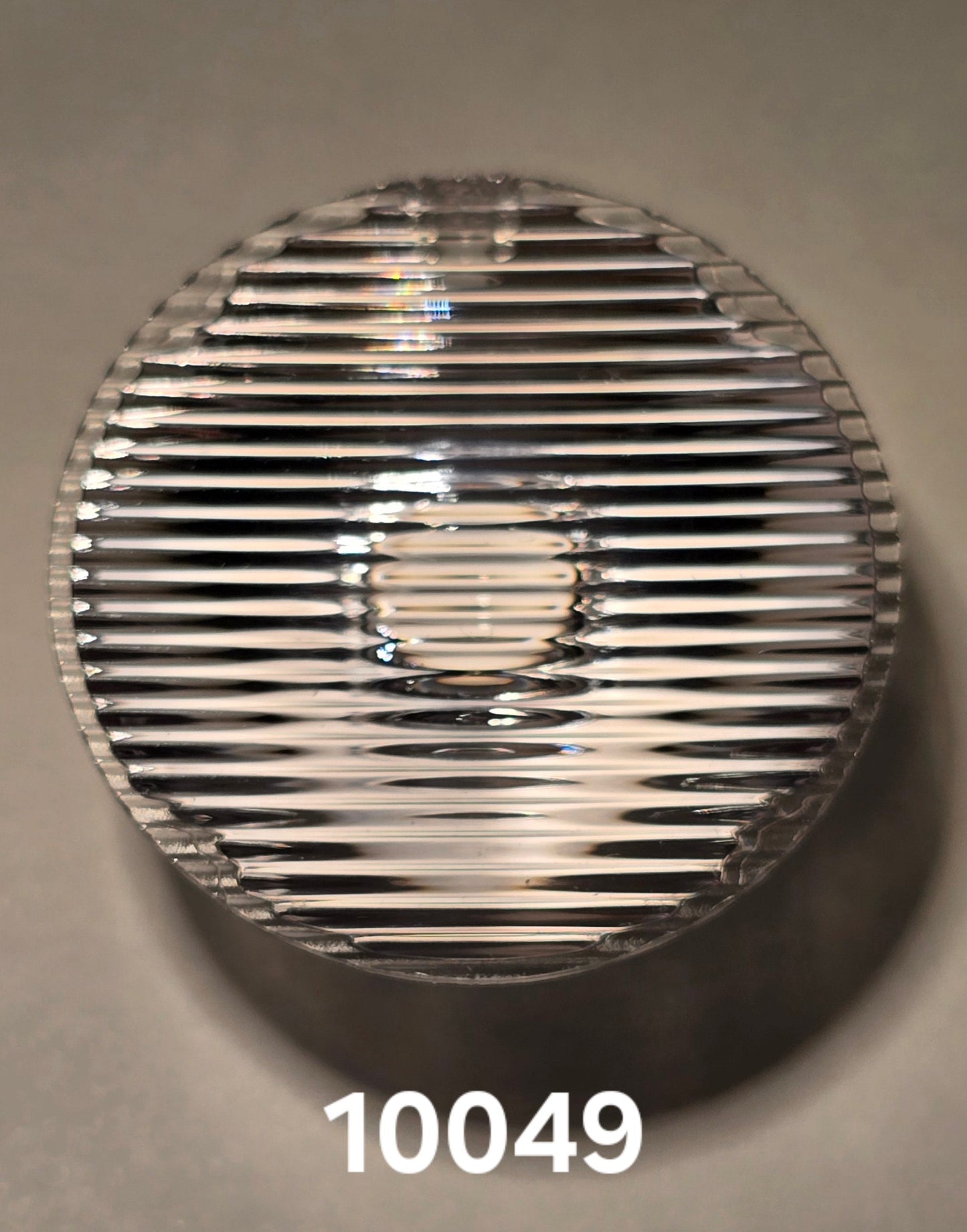

10049 ELLIPTICAL RAMP RIPPLE LINEAR

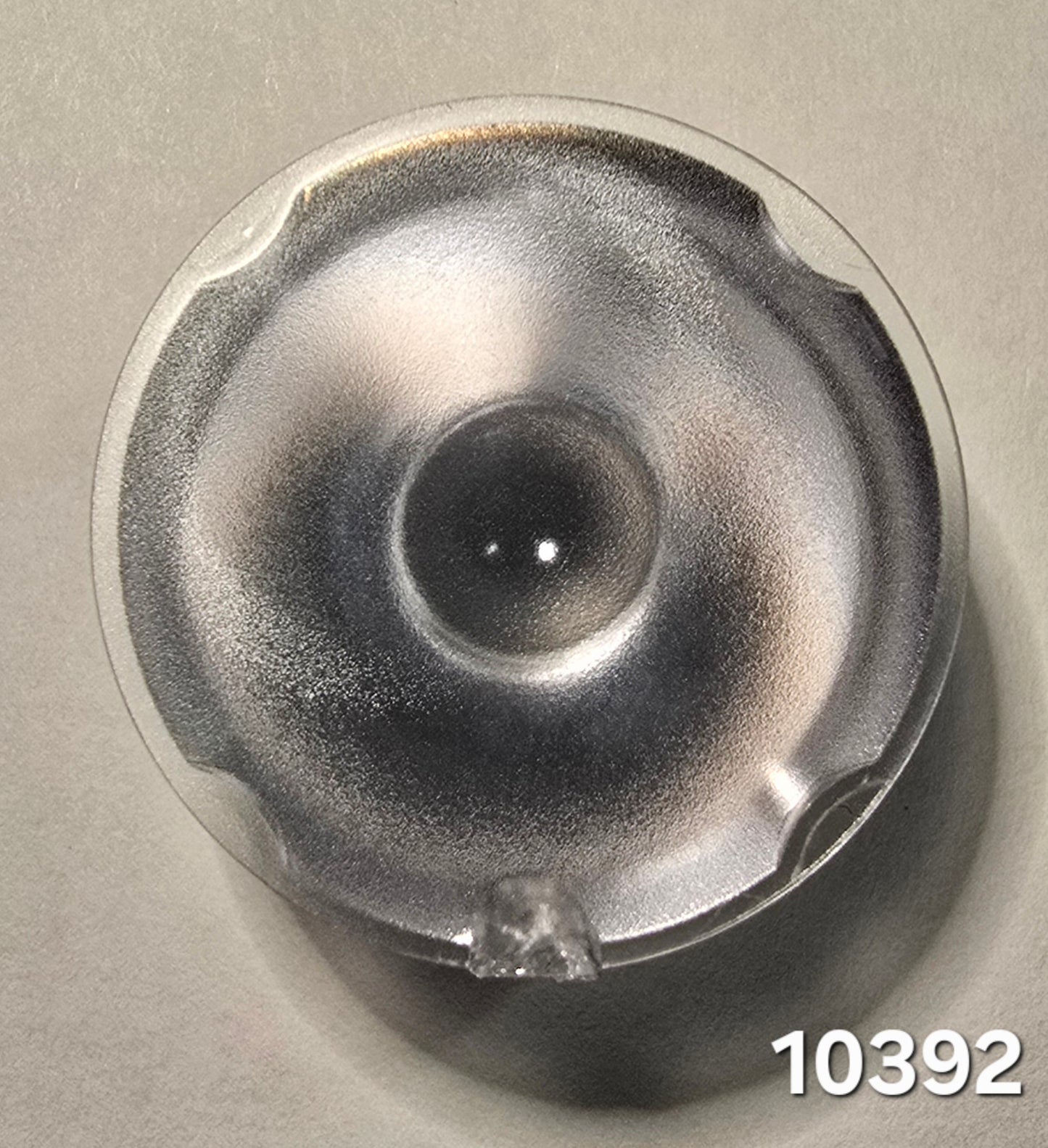

10392 NARROW SPOT FROSTED

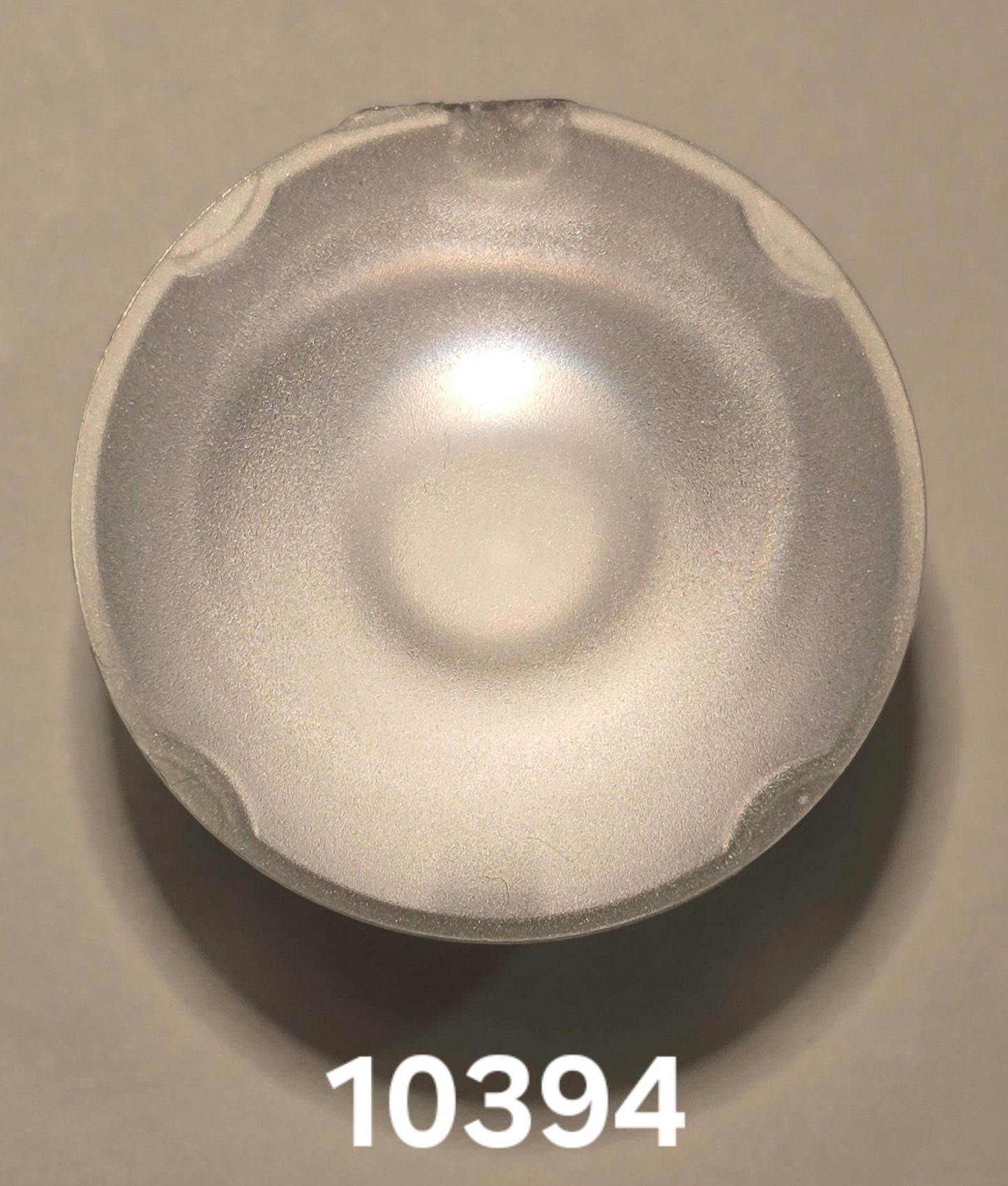

10394 WIDE SPOT FROSTED (STOCK DEFAULT)

CARCLO DA1K CLEAR SPOT OPTICS:

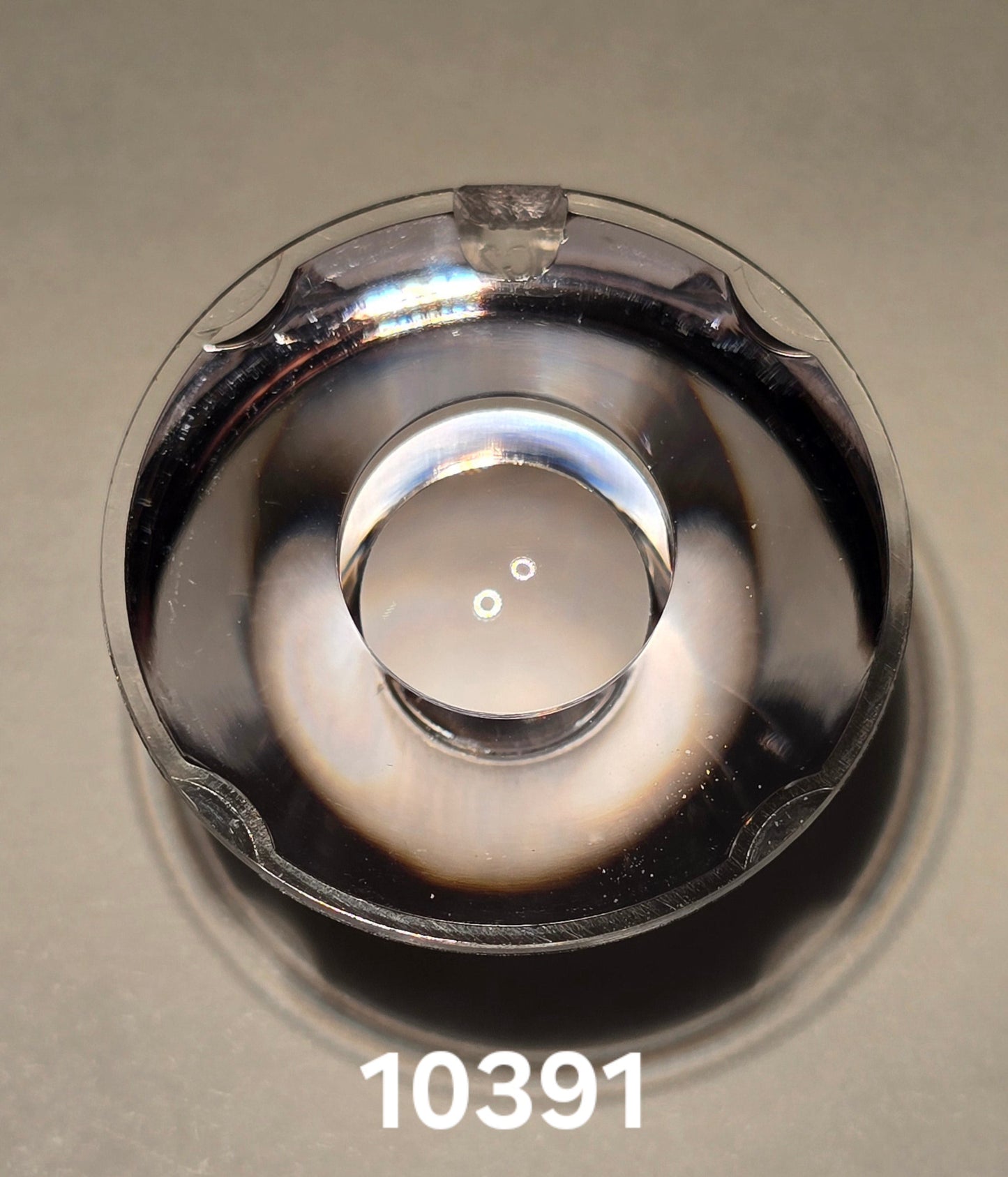

10391 NARROR SPOT PLAIN

10048 NARROW SPOT PLAIN

NOTE: SOME OR MOST OF THE CLEAR SPOT OPTICS WILL HAVE SCRATCHES DUE TO THEM SHIPPING IT ALL IN A BAG UNFORTUNATELY THATS HOW ITS SHIPPED UNLESS I PURCHASE 100 AND IT WILL BE SHIPPED IN A TRAY.

LEDIL OPTICS:

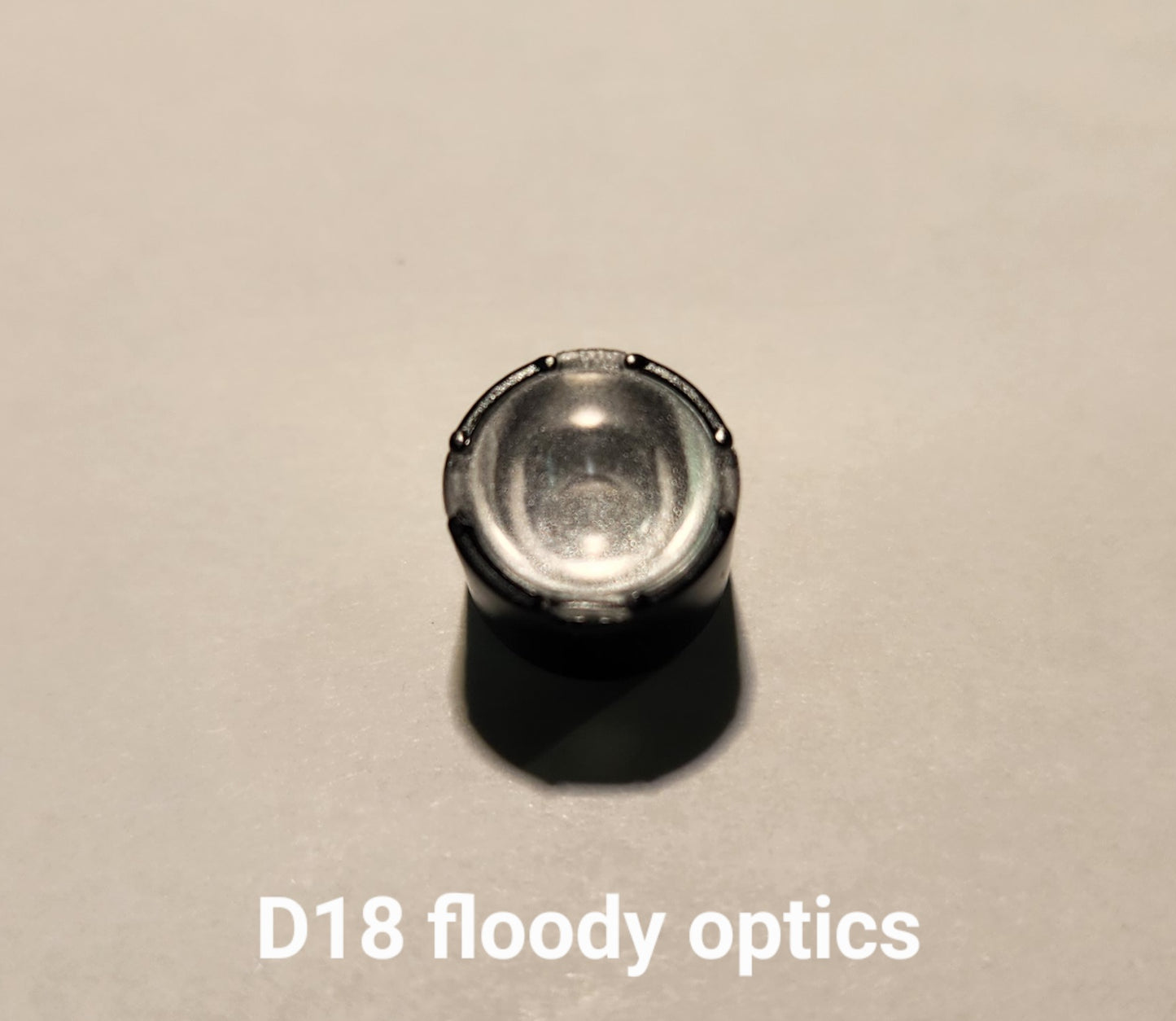

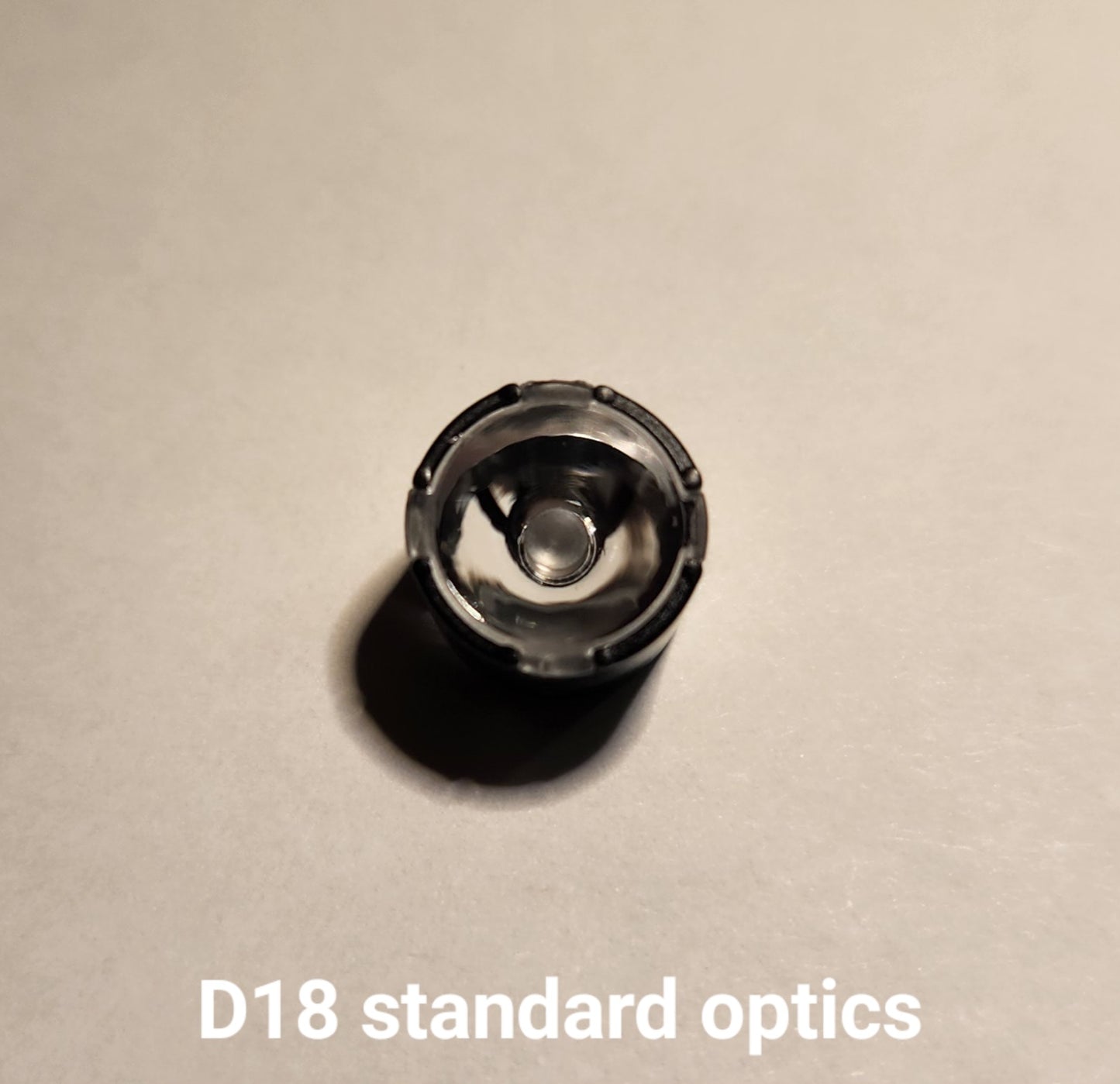

D18 SPOT OR FLOODY

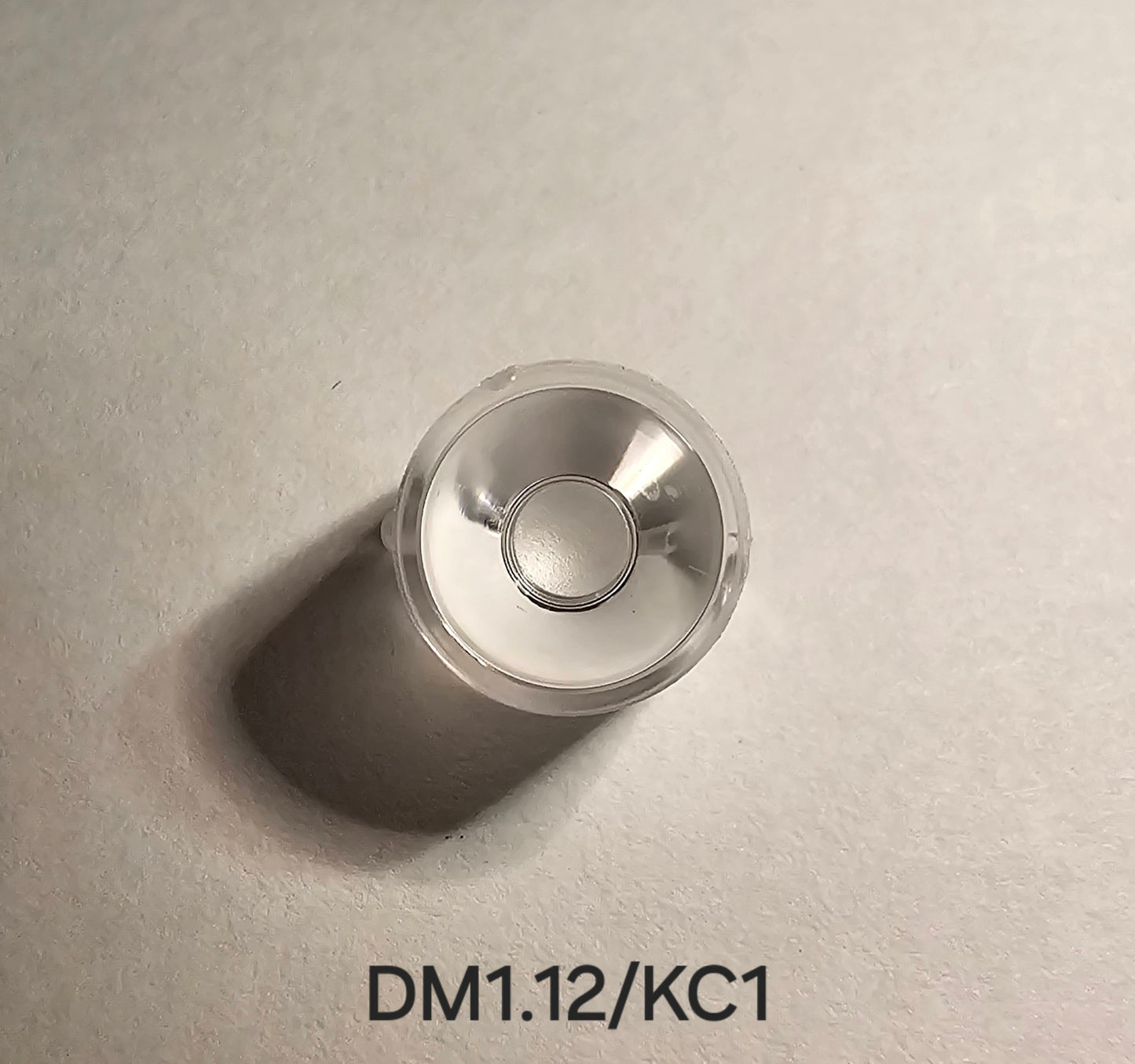

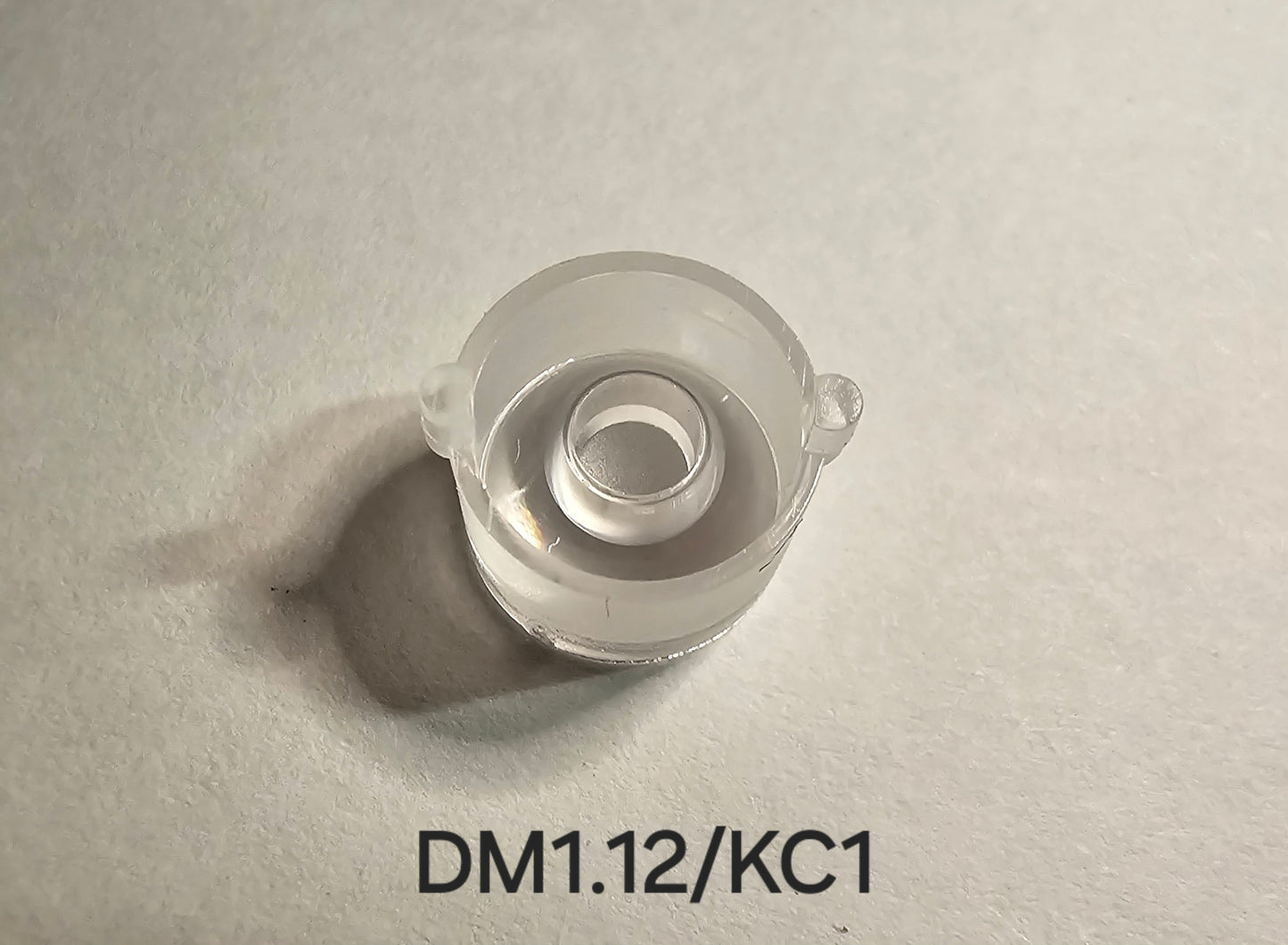

DM1.12/KC1 SPOT OPTICS

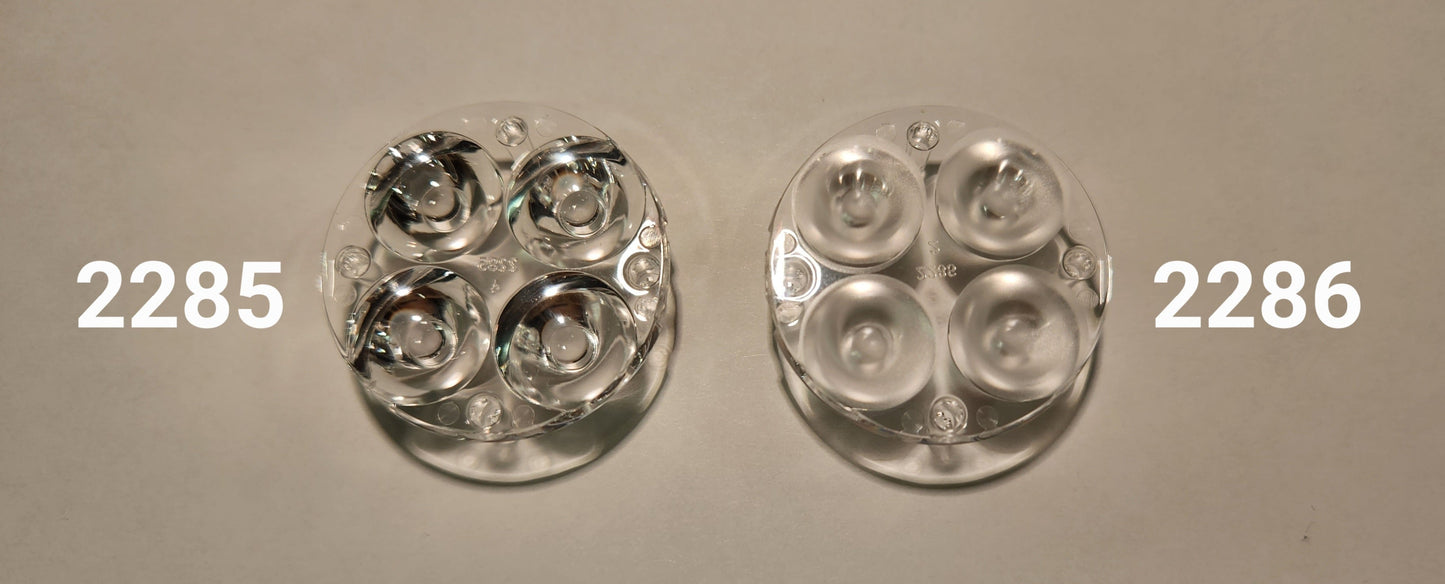

LEDIL 2286 (D4SV2 FLOODY)

LEDIL 2285 (D4SV2 SPOT)

LEDIL/NOCTIGON OPTICS Description:

Ledil Angie-S: Spot Beam (2285)

Ledil Angie-M: Medium Beam (2286)

N344W: Wide Beam (NOCTIGON CUSTOM)

Dimensions:

Diameter 34mm,

Total height 10.67mm,

Height installed 9.22mm

Material: PMMA Compatible with the Noctigon 4XP 33mm MCPCB
