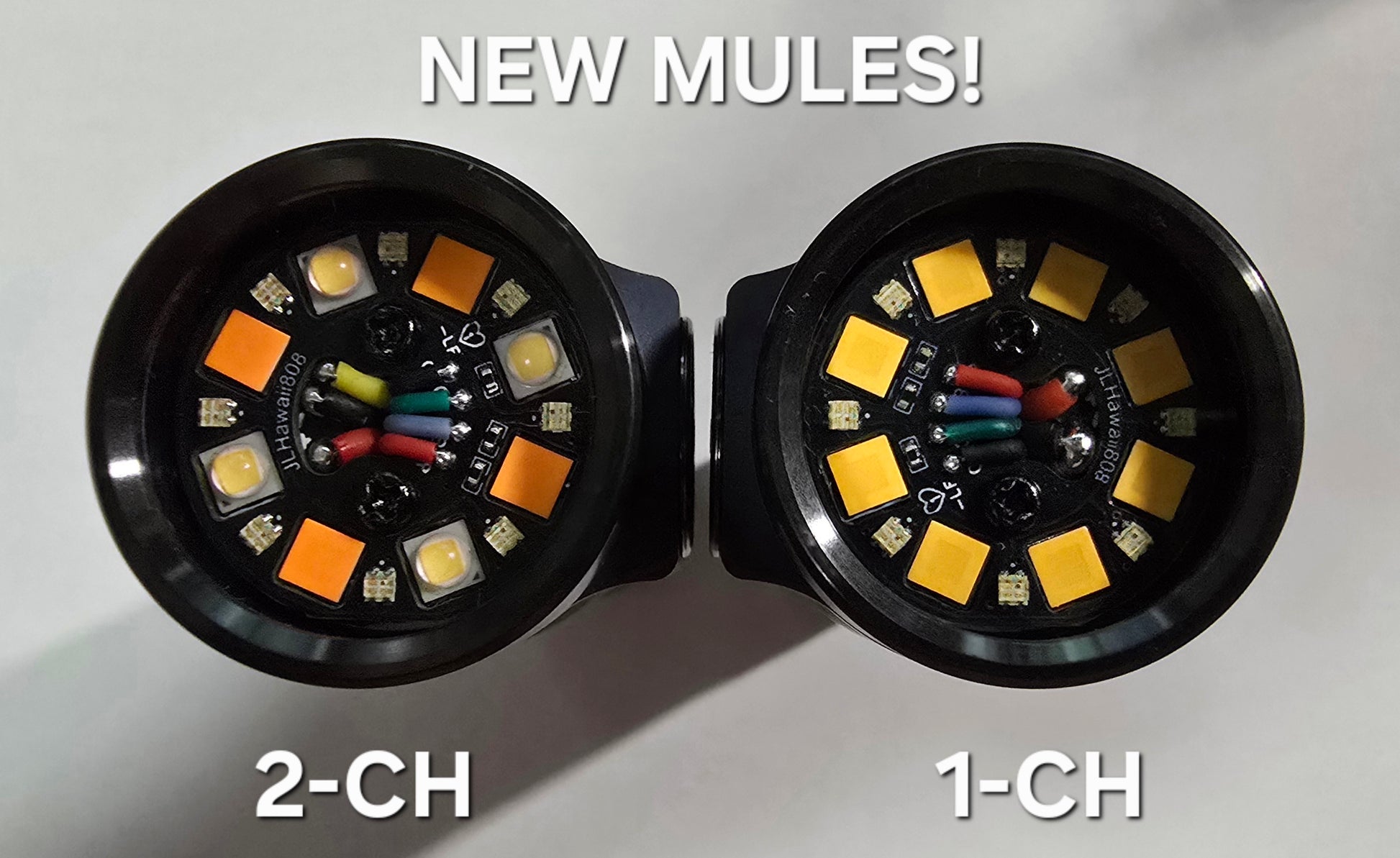

EMISAR DW4K *MULE* DUAL CHANNEL (2-CH)
WILL BE AVAILABLE END OF DECEMBER OR 2024 OR BEGINING OF JANUARY 2025!
NOTE: THIS IS CUSTOM "BUILT-TO-ORDER" WILL SHIP ACCORDINGLY!
Emisar DW4 review by LuxWad >>> (163) Emisar DW4 - Rambling Review - YouTube
Emisar DW4K puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing. Unprotected, 21700 flat top battery works only (not included in the price), DW4K does not work with protected battery or a button top.
USER INTERFACE:
ANDURIL 2 UI
DRIVER:
DUAL 9A LINEAR (NO FET)
DUAL 12A LINEAR (OPTIONAL DEPENDING ON THE EMITTERS)
NOTE: DUAL 12A WILL RUN HOTTER ESPECIALLY BOTH CHANNELS ARE ON
NO LUME X1 BOOST DRIVER
EMITTER OPTIONS:

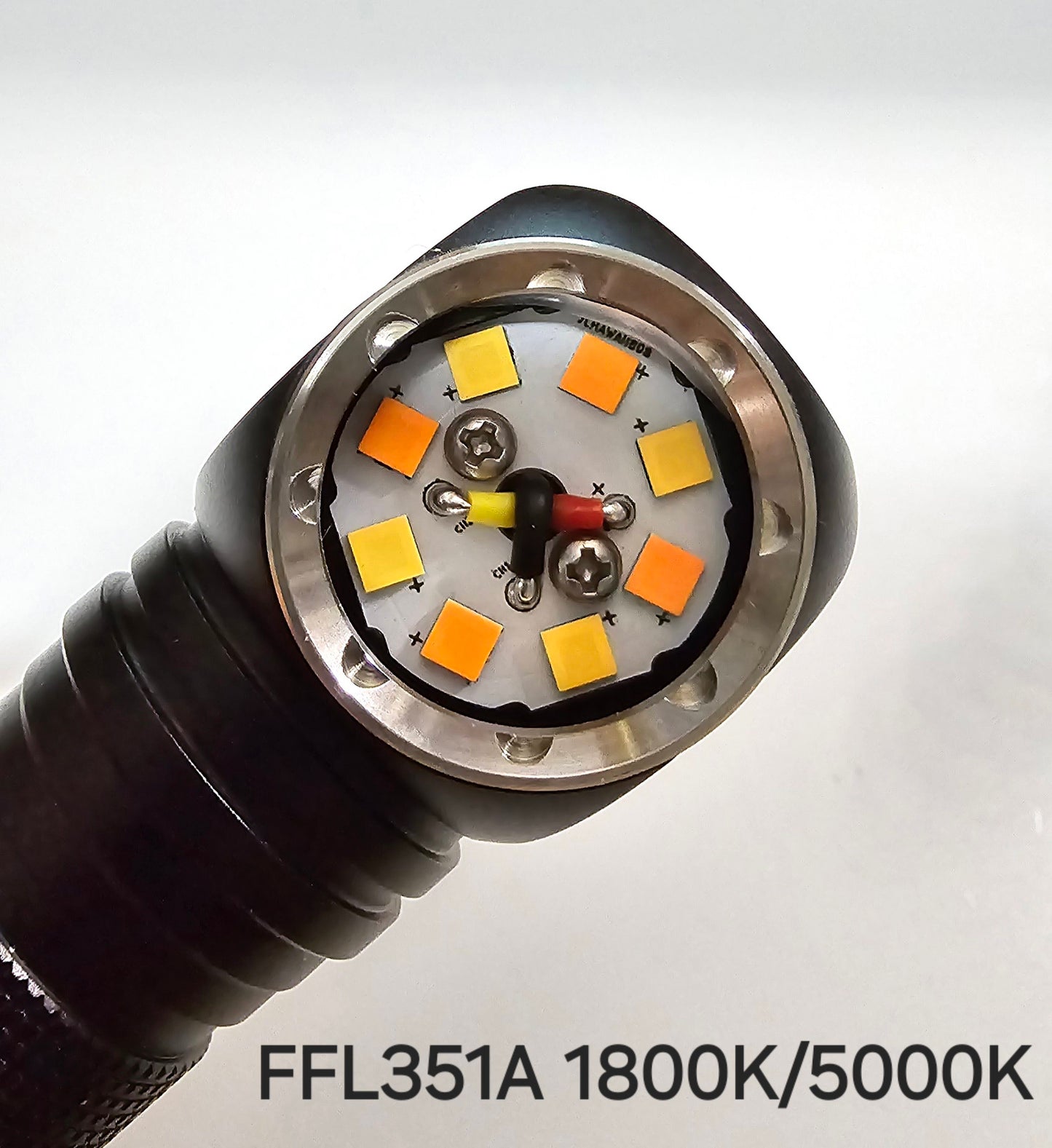

FFL351A & FFL351RD
FFL505A (5050SMD)
NICHIA 219B, 219C AND 519A
NICHIA E21A
LUMINUS SST20
LUMINUS SST10 5W 365NM UV LED
LUMINUS SFT40 (5050SMD)
CREE XPE COLORS
2-CH QUAD DW4 LINK >>> Emisar DW4 Dual Channel Right Angle Work Light CUSTOM "BUILT-TO-ORDER" – JLHawaii808
OPTICS:
CARCLO 10621 (SPOT)
CARCLO 10622 (STANDARD)
CARCLO 10623 (FLOODY)
NO OPTICS ON MULES
LIGHTED SWITH OPTION:
ALL COLORS & RGB
NO LIGHTED SW AVAILABLE
INCLUDED OPTIONS:
DEEP CARRY POCKET CLIP
MAGNETIC CAP OPTION
ANDURIL 2 PRINTED INSTRUCTIONS
OPTIONAL ACCESSORIES:
21700 BATTERY (NOT INCLUDED)
HEADLAMP STRAP
BATTERY:
21700 FLAT TOP UNPROTECTED CELL (NOT INCLUDED) MIN 15A (10A BOOST DRIVER OR 12V LUME X1)
MOLICEL 45B LINK >>> Molicel P45B 4500mAh 21700 45A Lithium-ion Rechargeable Battery **** H – JLHawaii808
Features:
• CNC machined from aircraft-grade aluminum
• Efficient UK made Carclo Quad LED optics (The E21A/E17A version use frosted optic, and the other version use clear optic)
• Unihead construction
• High lumen output and low moon output
• Ramping interface
• Electronic soft touch switch
• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.
• Temperature step-down
• Waterproof and dustproof to IP67 standard (up to 1 meter)
• Default 18650 body with optional 18500 or 18350 battery tube
• Weight: 128g
• Dimensions: 113mm(length) * 30mm(head) * 24mm(body)
OTF lumen output at start-up for the direct drive version
XP-L HI : 4300lm
SST-20 6500K: 4200lm
SST-20 5000K: 4200lm
SST-20 4000K/3000K 95CRI: 3000lm
This product uses free software distributed under the terms of the GPLv3.
Source code is available from http://tiny.cc/TKAnduril
The boost driver upgrade is available for the quad version of XP-L HI, SST-20(except SST-20 deep red), Osram W1/W2, Nichia 219B R9080 versions, each LED receives 2A current. The driver is not compatible with Nichia E21A, Nichia E17A, and mule versions of the flashlight.
Please be noted that the boost driver version will have less output on turbo than the regular version, it is a more efficient driver (90-95%) with longer running time and less heat.
