Emisar DA1 18650 LED Flashlight W/Lume X1 Driver *CUSTOM BUILT-TO-ORDER*

DA1 has been updated with more throwy optic, it throws about 3 times longer than the previous 10394 optic. (E17A 1850K is with the frosted 10394 optic by default)

Emisar DA1 puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing. Unprotected, flat top 18650 battery works only (not included in the price), DA1 does not work with protected or button top battery.

Features:

• New Lume X1 driver installed by default, 6V 6A for SFT-70, XHP50.3 HI, XHP70.3 HI LEDs, and 9V 3A for the 9*E17A 1850K LEDs

• CNC machined from aircraft-grade aluminum

• High end custom made optic

• Unihead construction

• High lumen output and low moon output

• Ramping interface

• Electronic soft touch switch

• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.

• Temperature step-down

• Waterproof and dustproof to IP67 standard (up to 1 meter)

• Weight:68g

• Dimensions: 114mm(length) * 30mm(head) * 24mm(body)

OTF lumen output & candela on turbo mode:

SFT-70 6500K 70CRI - 2850lm OTF / 46,400cd

SFT-70 5000K 73CRI - 2650lm OTF / 41,600cd

SFT-70 3000K 95CRI 90-R9 - 1700lm OTF / 22,400cd

(SFT-70 LED tint shifts on high and turbo mode, which means the CCT will be

higher than the stated CCT on high and turbo mode)

NTG50 5000K - 2700lm OTF / 25,600cd

NTG50 4200K - 2500lm OTF / 22,400cd

NTG50 2700K - 2250lm OTF / 19,200cd

NTG50 1800K - 1750lm, OTF / 14,000cd

XHP70.3 HI R9050 5000K P2 / 5700K M2: 4000lm OTF / 21,200cd

XHP70.3 HI R9050 4000K/3000K N4: 3740lm OTF / 17,000cd

(XHP7.3 HI 70CRI 5000K, 4000K, 3000K are also available, please let us know the order number if you need them)

9*E17A 1850K: 1350lm OTF

This product uses free software of Anduril 2, distributed under the terms of the GPLv3.

Source code is available from https://toykeeper.net/anduril

NEW TOYKEEPER'S LASTEST VERSION ANDURIL 2 UI

DRIVER:

LONEOCEANS NEW! LUME X1 HIGH EFFICIENT CONSTANT CURRENT BOOST LED DRIVER

DRIVER INFORMATION >>> https://github.com/loneoceans/anduril/tree/trunk/hw/hank/lume-x1#readme

EMITTER OPTION:

FFL5009R AND FFL5009D (DOME VERSION)

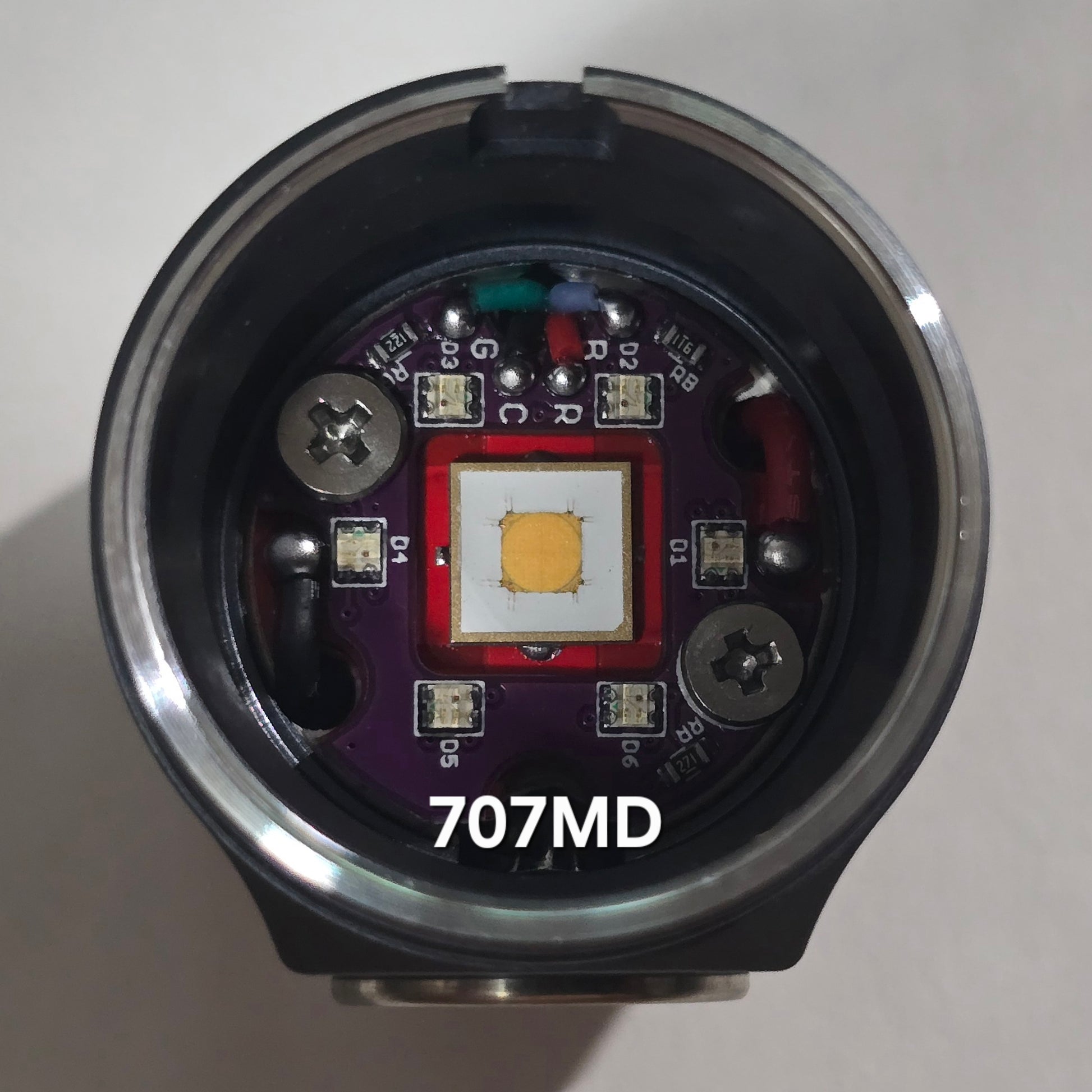

FFL707A (4000K ROSY, 5000K AND 6500K)

9 X NICHIA E17A EMITTERS 1850K & AZURE AVAILABLE

CREE XHP50.3

CREE XHP70.3

SFT-70

NICHIA E17A 1850K & AZURE

OPTICS:

New! Noctigon N261S

TIR FROSTED

CLEAR SPOT OPTIC AVAILABLE

Optional Carclo DA1k options purchase link >>> Emisar/Noctigon Replacement Glass/Optics – JLHawaii808

NOTE: SQUARISH BEAM (HOT SPOT) IF THE CLEAR SPOT OPTIC USED!

BODY COLOR:

BLACK

GRAY

GREEN

CYAN

RED

INCLUDED:

LANYARD & EXTRA ORINGS

MAGNETIC TAILCAP OPTION

OPTIONAL SS BEZEL >>> Emisar Noctigon Replacement Bezel/Switch Ring – JLHawaii808

BATTERY:

18650 FLAT TOP UNPROTECTED CELL (NOT INCLUDED)

BATTERY LINK >>> MOLICEL INR-18650-P30B ULTRA HIGH POWER RECHARGEABLE LITHIUM-ION BATTE – JLHawaii808

LUME X1 DRIVER

Notes & General Specifications

● 40W high-efficiency constant-current boost driver, >90% efficiency, over 95% max efficiency

● The Lume X1 is a high-power driver - for best performance, recommended to use low ESR, high CDR flat-top 21700 batteries such as Molicel P42, P45, P50, Samsung 50S, 40T, or Vapcell T50

● Output voltage: 12V (for 4S arrays, or multi-die emitters such as GT-FC40, XHP35, etc), 9V (for 3S arrays such as 3S3P E17A), or 6V (for 2S emitters such as XHP70/50 etc). Voltage and current configured via BOM adjustment

● ESD protection

● AVR32DD20 MCU including 3-pin UPDI flashing pads

● Ultra Dynamic Range - constant current brightness range >50 million: 1

● Anduril 2 open-source firmware

● Reverse Polarity Protection

● RGB and/or Switch AUX LEDs supported

● Dimensions: 24.0mm diameter, 1.6mm thickness, 4.0mm component max-Z-height (for driver cavity)

WARRANTY: 1 year from the purchase date
