EMISAR D4V2 TITANIUM TINT 2-CH RAMP/CHANNEL SWITCHING



THIS IS CUSTOM "BUILT-TO-ORDER SO THIS WILL SHIP ACCORDINGLY!

The light works with flat top, unprotected battery only, button top or protected battery may damage the light

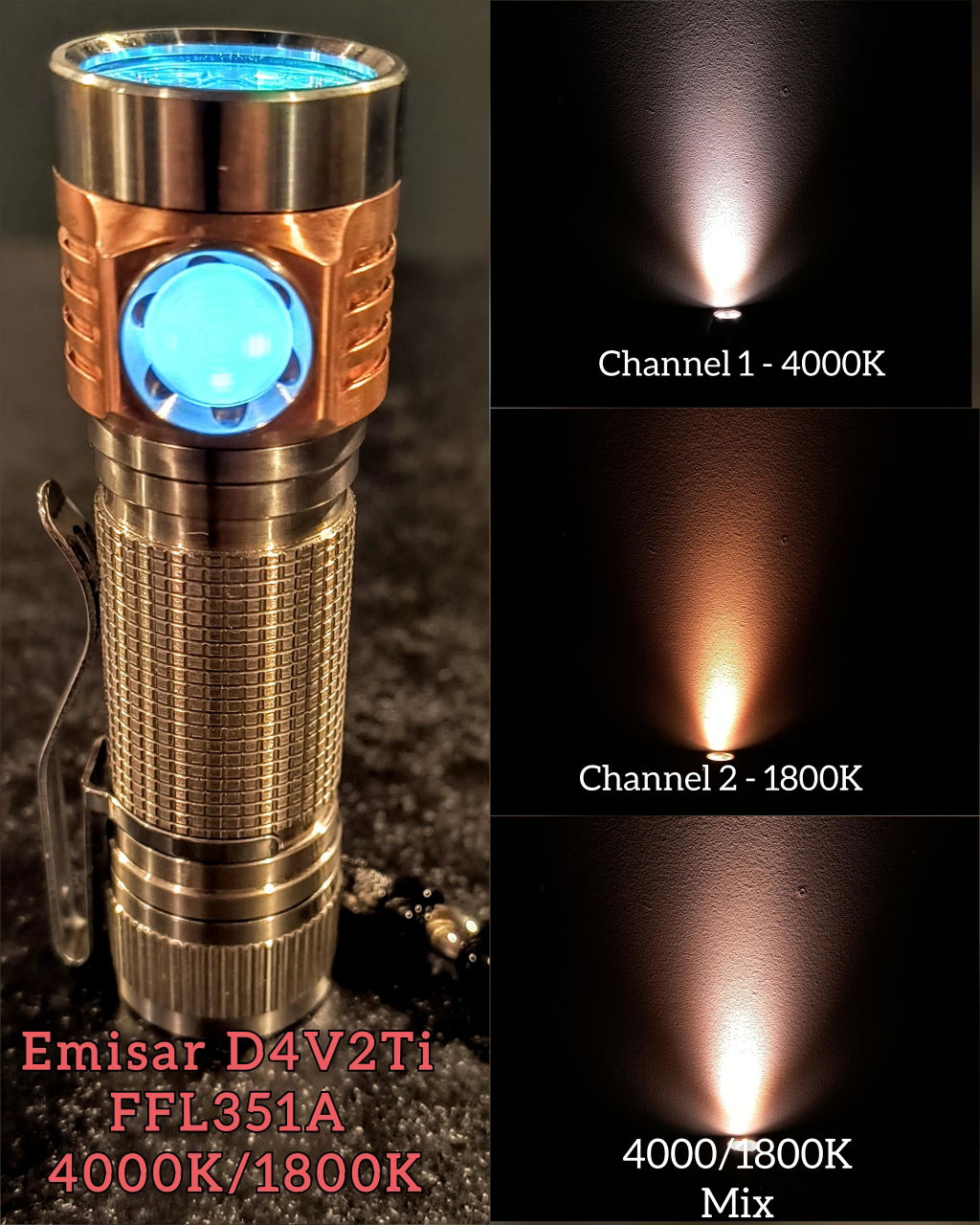

Anduril 2 firmware, user choose the tint ramping or instant channel switching (operation video for reference)

Advanced mode Off -> 9H, first menu item:

0C: tint-ramping (smooth)

1C: instant channel switching

 Warning: Output will be dependent on cell model (Inc. Age) and temperature.

Emisar D4V2 Ti puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing.

 High drain, flat top, unprotected battery required. (Not included in the price)

NEW! ZHU HYBIRD MULE OPTICS >>> ZHU Hybrid Mule Optic – JLHawaii808

Features:

• CNC machined from Titanium and Copper.

• Efficient UK made Carclo Quad LED optics

• Anti-reflective coated glass lens

• Unihead construction

• High lumen output and low moon output

• Ramping interface

• Electronic soft touch switch

• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.

• Temperature step-down

• Waterproof and dustproof to IP67 standard (up to 1 meter)

• Default 18650 body with optional 18350 battery tube

• Dimensions: 96mm(length) * 28mm(head) * 24mm(body), 65mm (lenght 18350)





USER INTERFACE:

ANDURIL 2 UI

NEW! 2-CH FIRMWARE AVAILABLE

DRIVER:

DUAL 9A TINT RAMP/CHANNEL SWITCHING DRIVER

EMITTER OPTION:

OPTICS:

CARCLO 10622 (STANDARD)

CARCLO 10621 (RECCOMENDED WITH OSRAM EMITTERS)

CARCLO 10623 (FLOODY)

BODY FINISH:

RAW TITANIUM

STONEWASHED TITANIUM ($5 ADDITIONAL)

INCLUDED OPTIONS:

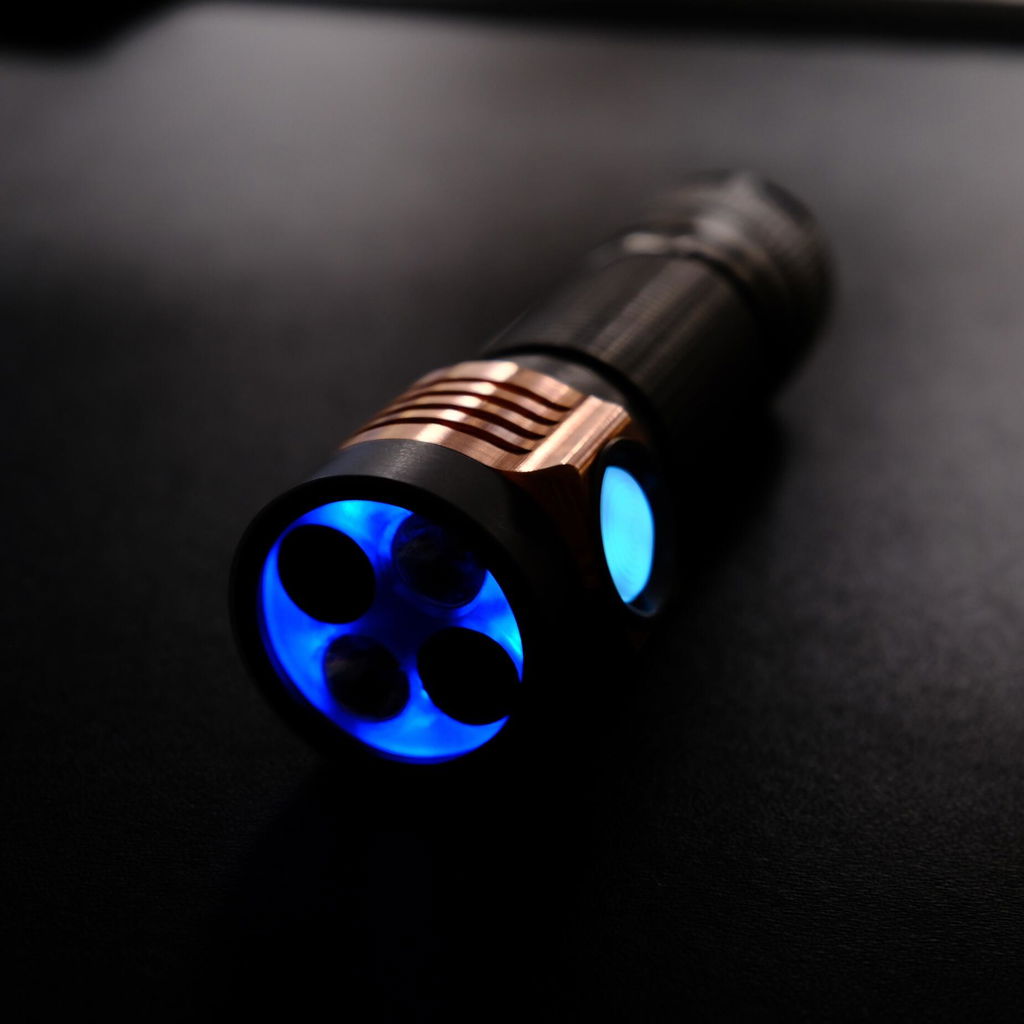

LIGHTED SW

MAGNETIC CAP OPTION

DEEP CARRY CLIP

LANYARD

EXTRA ORINGS

ANDURIL 2 PRINTED INSTRUCTIONS

OPTIONAL ACCESSORIES:

18350 TITANIUM SHORT TUBE

RECCOMENDED BATTERY:

18650 FLAT TOP UNPROTECTED CELL (NOT INCLUDED) MIN 15-20A

MOLICEL P28A >>> Molicel P28A 18650 2800mAh 35A Lithium-Ion Rechargeable Battery – JLHawaii808

INCLUDED OPTIONS/ACCESSORIES:

DEEP CARRY POCKET CLIP

MAGNETIC CAP OPTION

LANYARD

EXTRA ORINGS

ANDURIL 2 UI INSTRUCTIONS



OTF lumen output at start-up:

Nichia 219C: 3000lm XP-L HI: 4300lm

SST-20 6500K: 4200lm

SST-20 5000K: 4200lm

SST-20 4000K/3000K 95CRI: 3000lm



This product uses free software distributed under the terms of the GPLv3.

Source code is available from http://tiny.cc/TKAnduril
