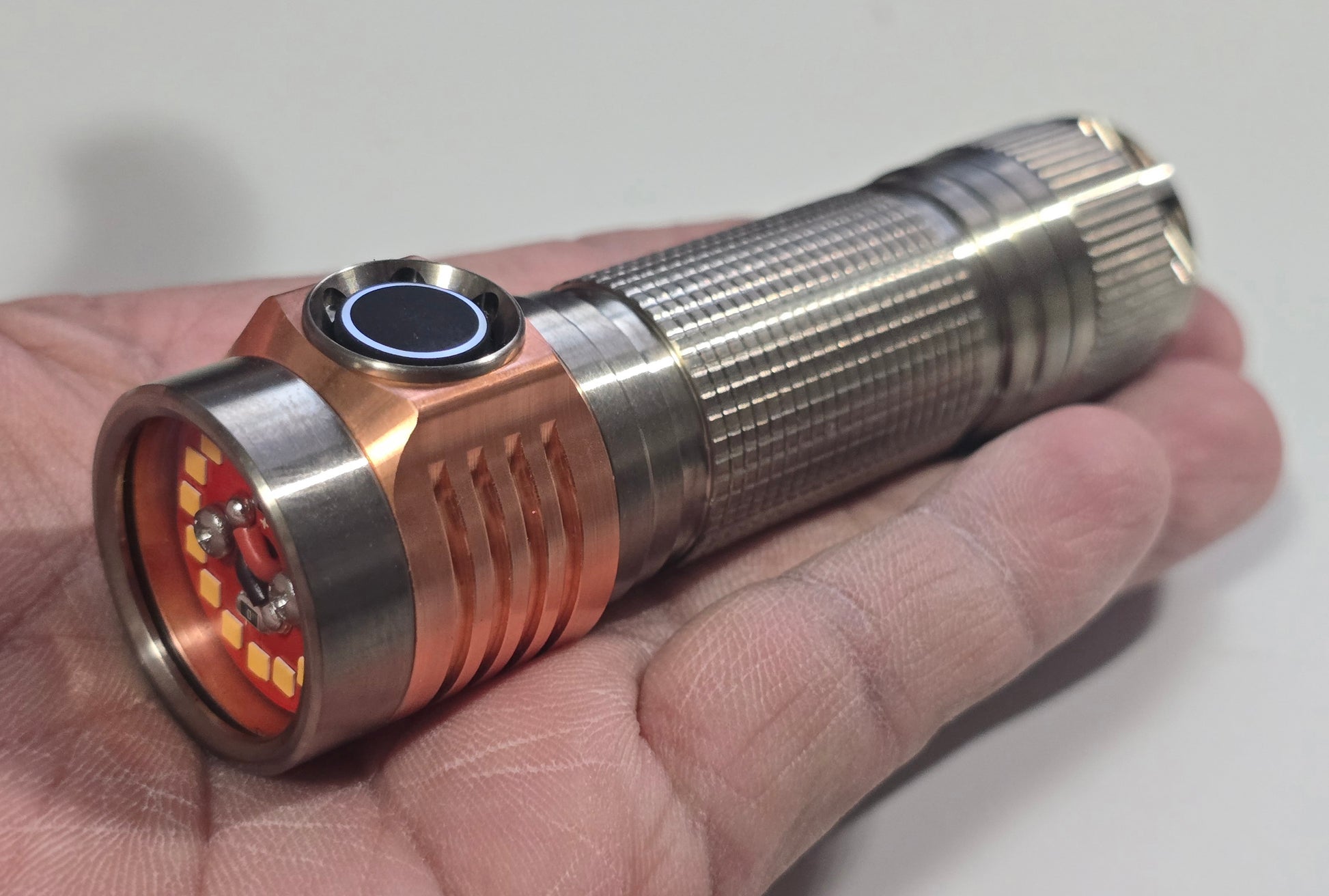

EMISAR D4V2 TITANIUM *CUSTOM BUILT-TO-ORDER*
RAW OR STONEWASHED
Please be noted that the boost driver version will have 40% less output on turbo than the regular version, it is a more efficient driver (90-95%) with longer running time and less heat.
Emisar D4V2 puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing. Unprotected, flat top battery works only (not included in the price), D4V2 does not work with protected battery.
PLEASE READ BELOW BEFORE PURCHASING!
THESE ARE "CUSTOM" BUILT-TO-ORDER SO THESE WILL SHIP ACCORDINGLY!
USER INTERFACE:
ANDURIL 2 UI
DRIVER:
9A LINEAR + FET
12A LINEAR (E21A ONLY)

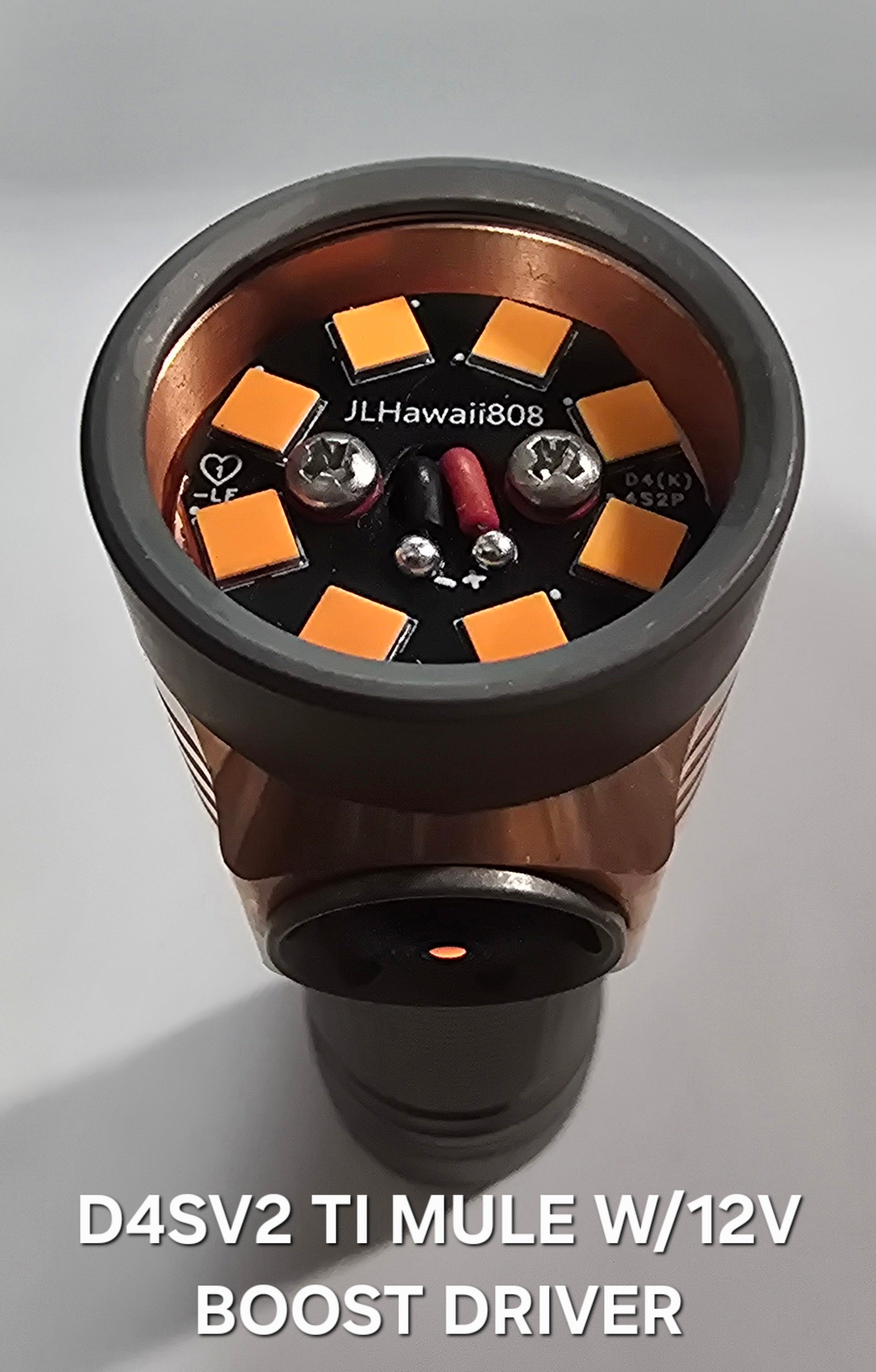

12A 2A BOOST (OPTIONAL)
NO LUME X1 DRIVER'S FOR THE D4V2
NOTE: BOOST DRIVER AVAILABLE ONLY ON THE QUAD 3535SMD EMITTERS 5050SMD AND MULES ARE NOT AVAILABLE
EMITTER OPTIONS:
FFL351A & FFL351RD
FFL505A (5050SMD) W/AUXILIARIES
NICHIA 219B, 219C AND 519A
NICHIA E21A
LUMINUS SST20
LUMINUS SST10 5W 365NM UV LED
LUMINUS SFT40 (5050SMD) W/AUXILIARIES
CREE XPE COLORS

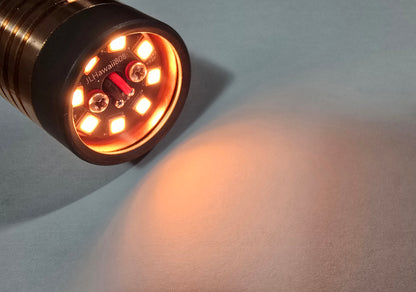

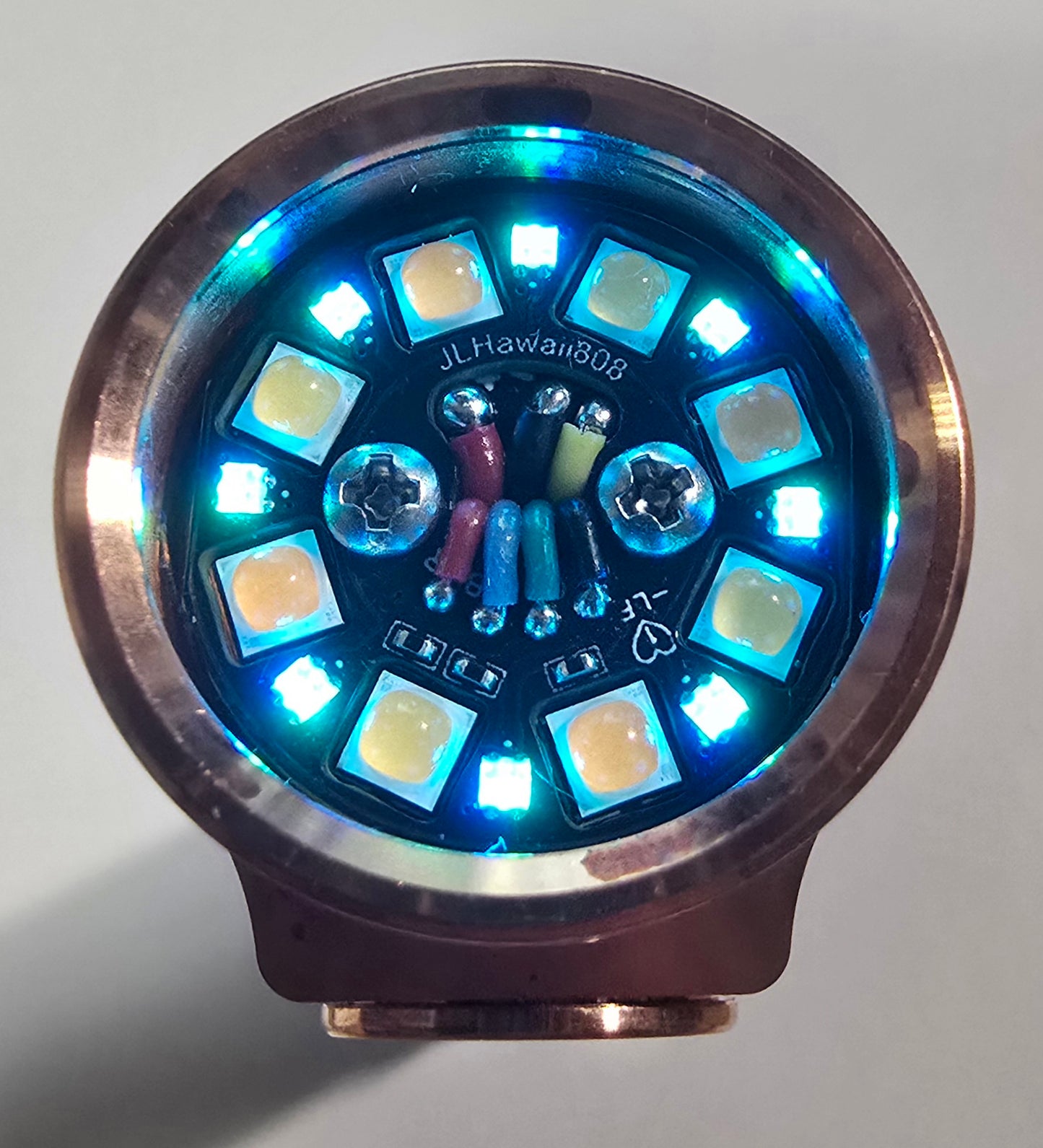

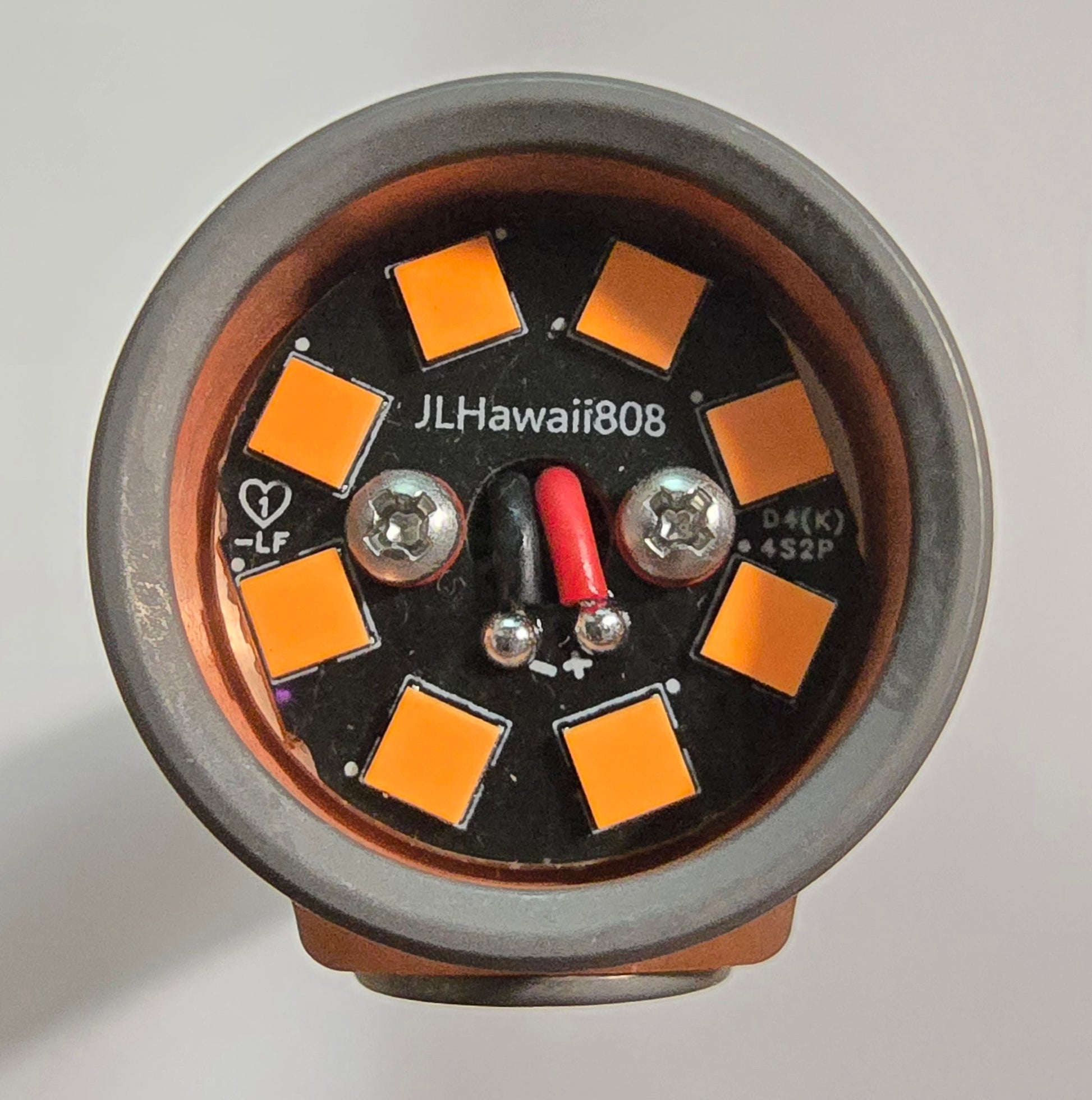

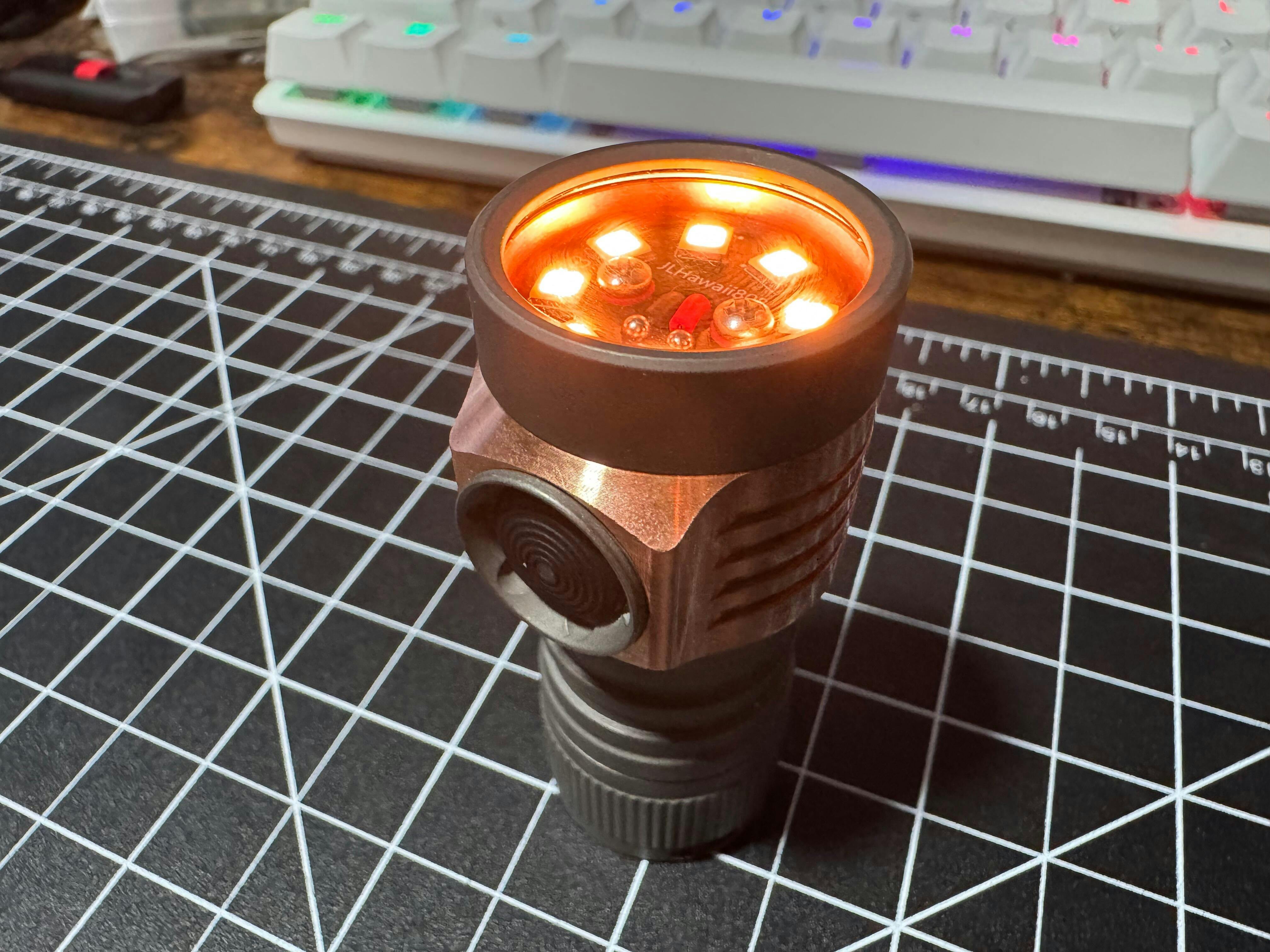

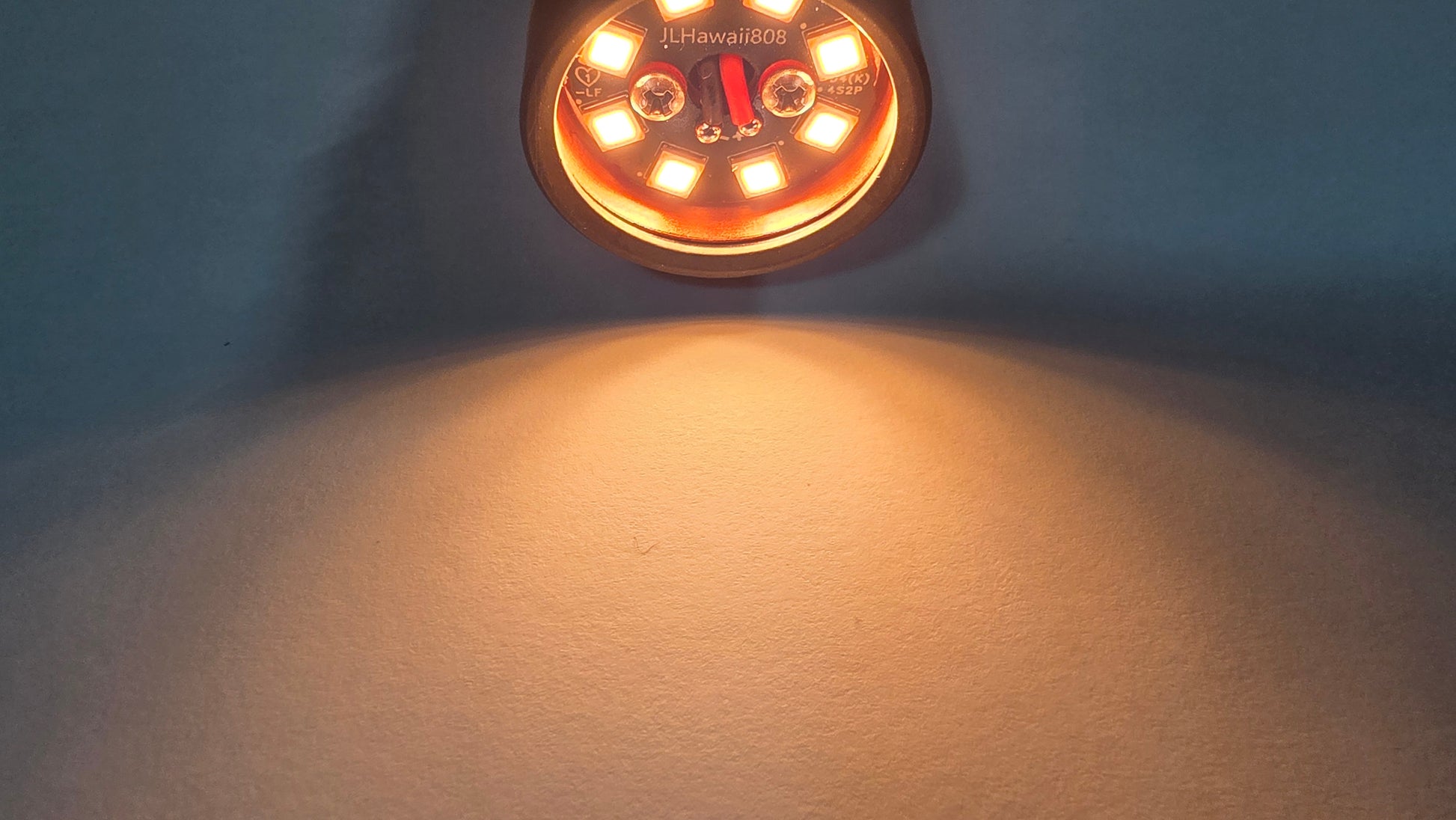

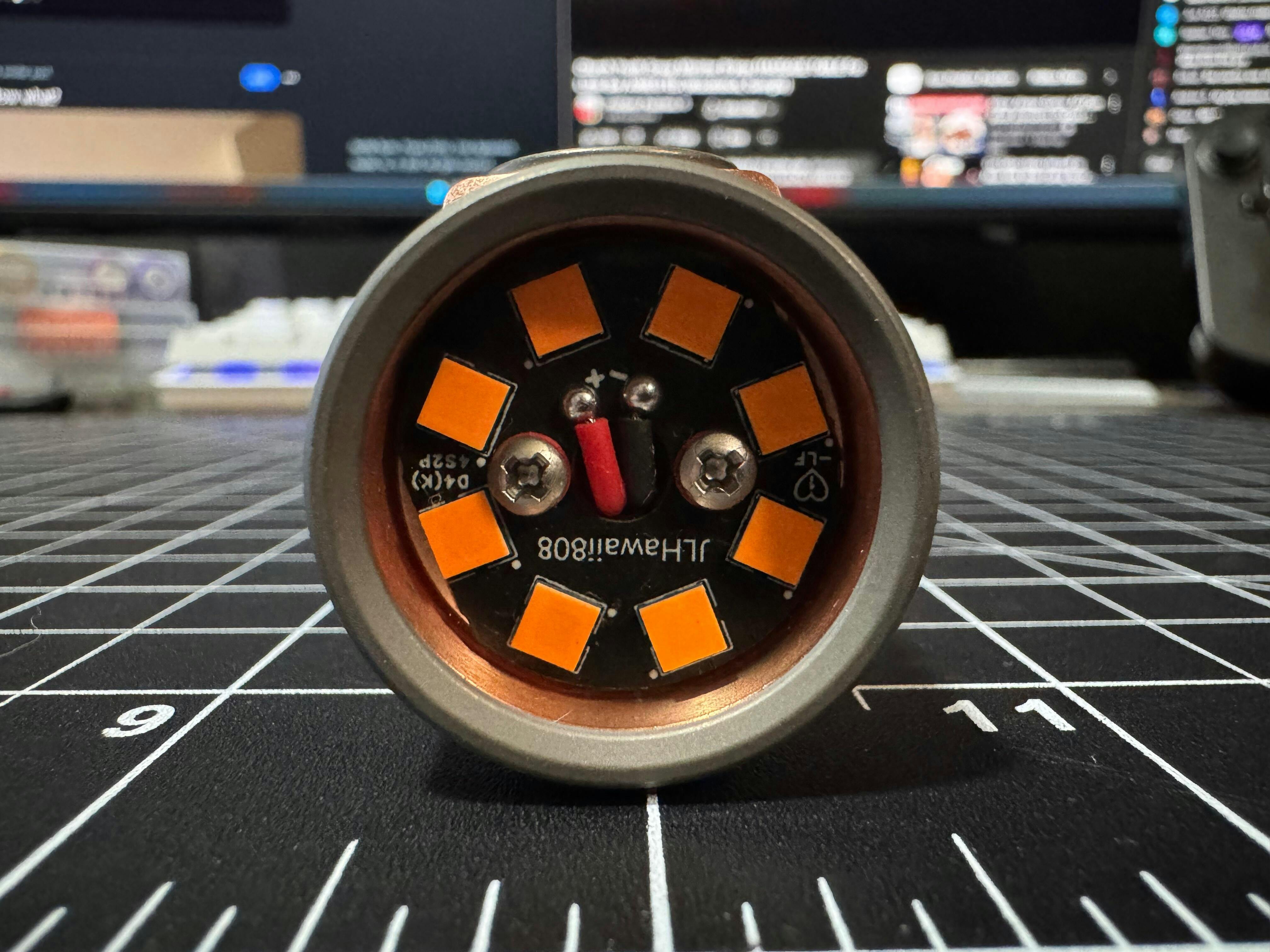

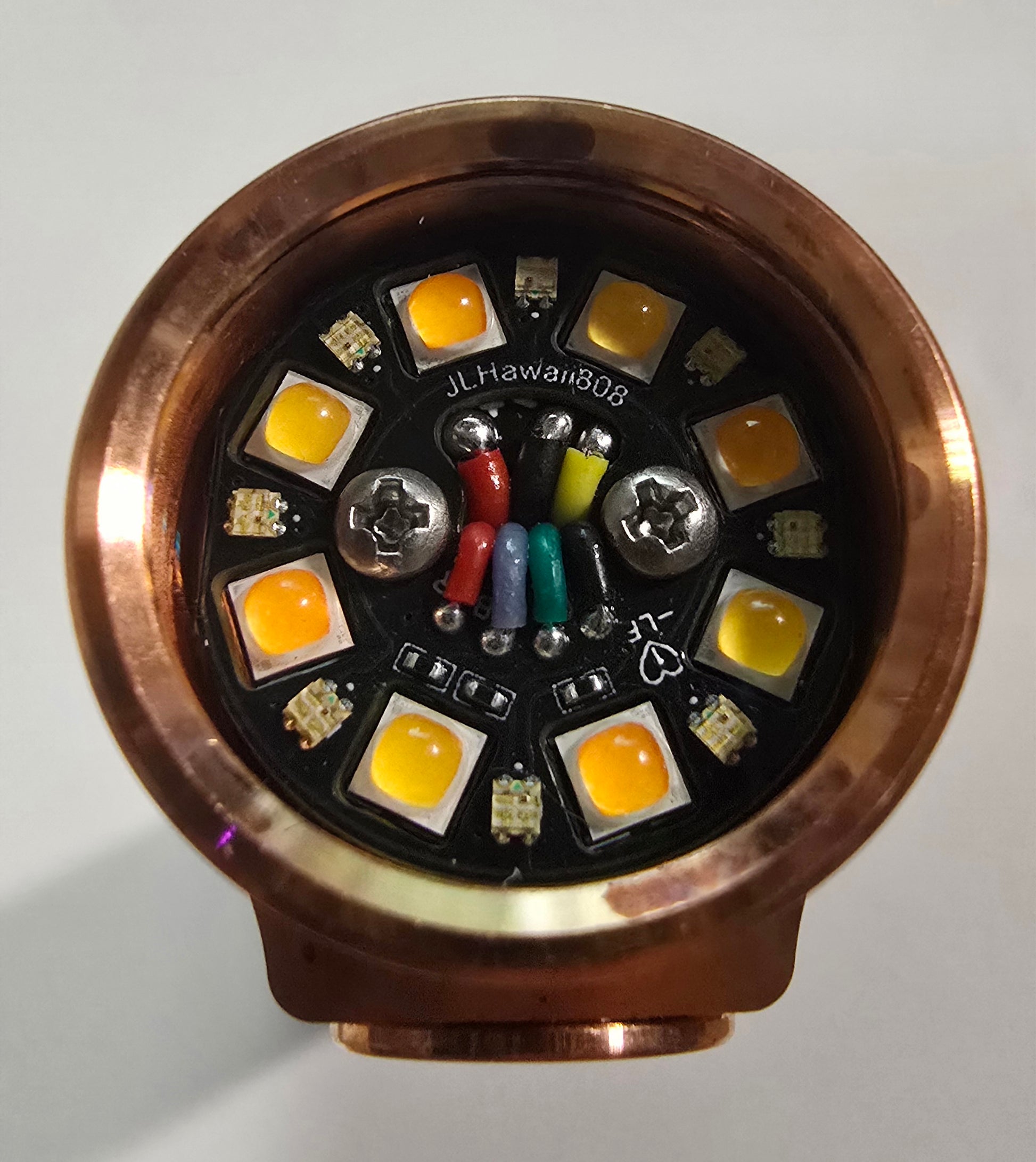

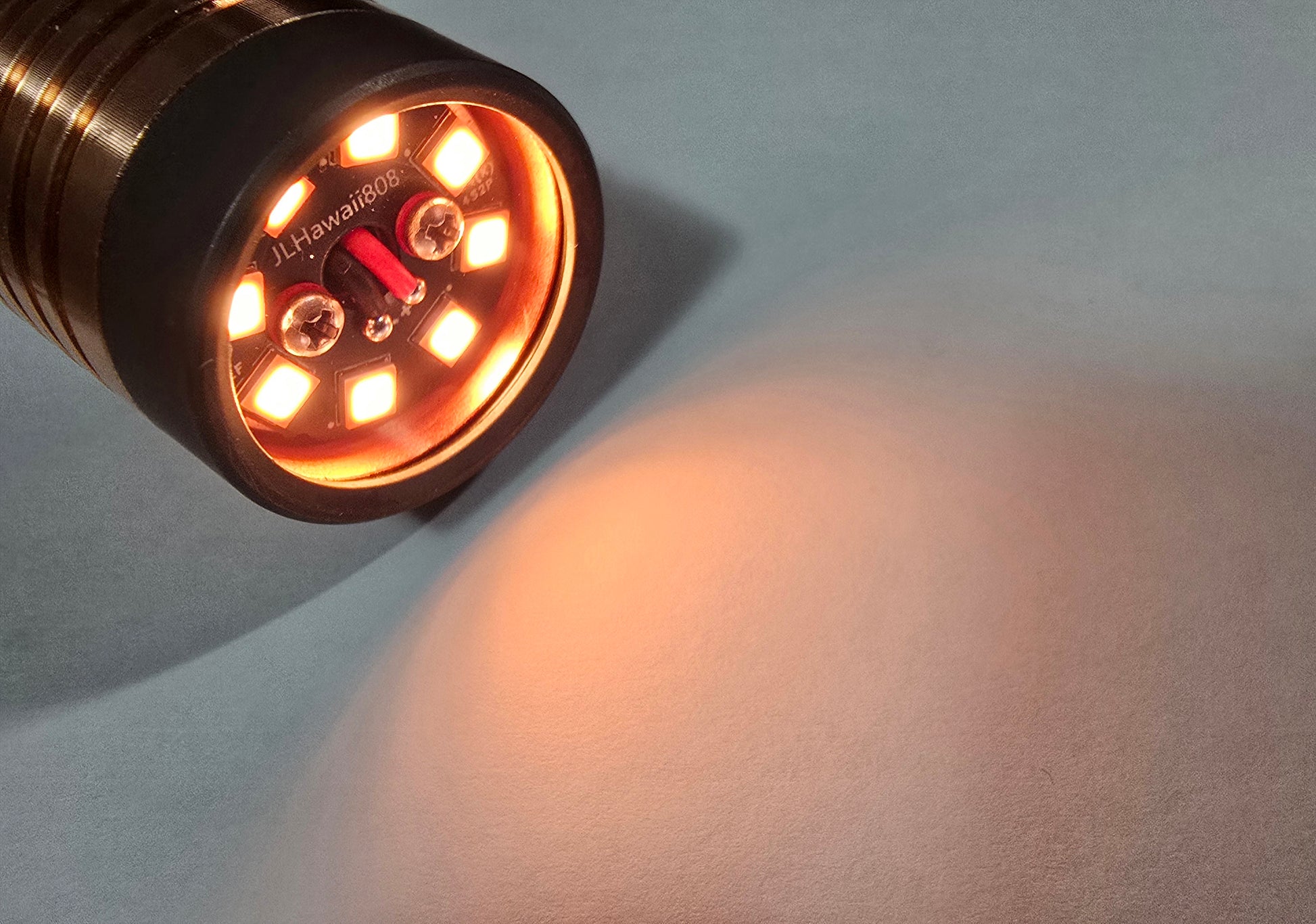

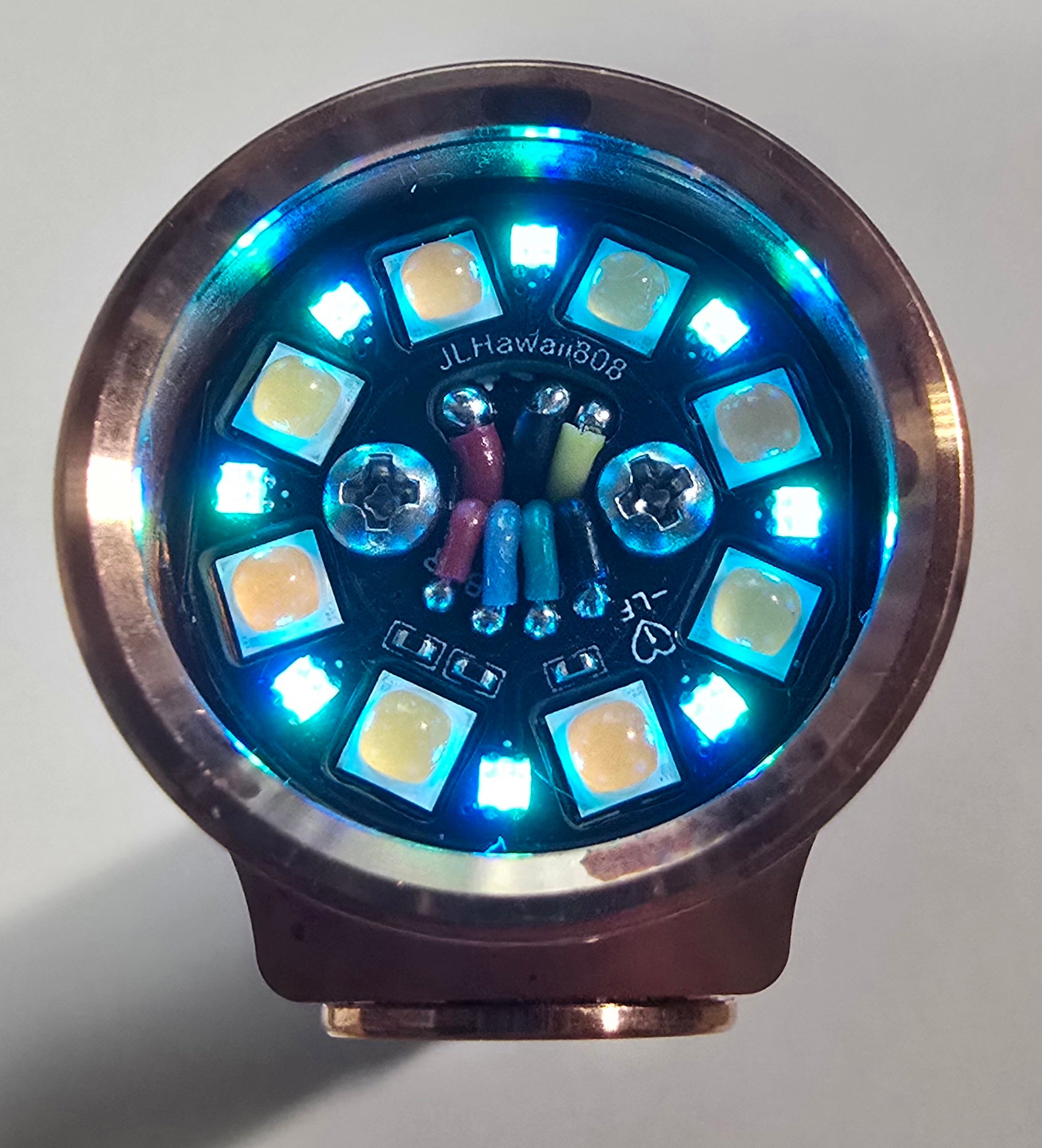

MULES:
3MM ALUMINUM MULE SPACER
NO OPTICS & AUXILIARIES
8 X EMITTERS 3535SMD LEDS
16 X EMITTERS E21A LEDS
2-CHANNEL D4V2 TITANIUM MULE LINK HERE >>> Emisar D4V2/D4K Titanium Tint Ramp 8 x Mule High Power LED Flashlight – JLHawaii808
BODY:
RAW TITANIUM
STONEWASHED TITANIUM (ADDITIONAL COST)

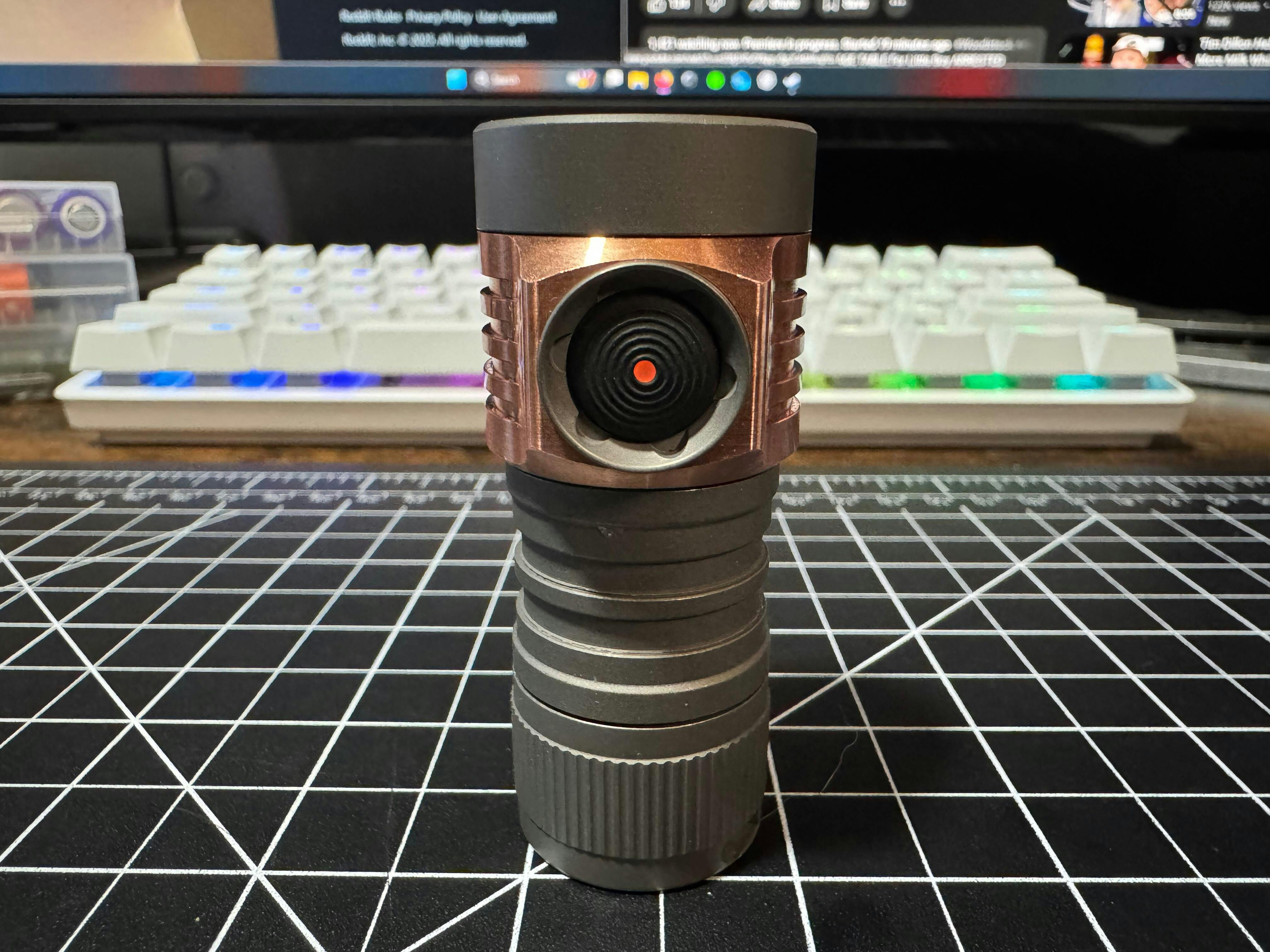

LIGHT SWITCH:
ALL COLORS + RGB
INCLUDEDS OPTIONS:
DEEP CARRY POCKET CLIP
MAGNETIC CAP
LANDYARD
EXTRA ORING
ANDURIL 2 PRINTED INSTRUCTIONS
Features:
• CNC machined from Titanium and Copper.
• Efficient UK made Carclo Quad LED optics
• Anti-reflective coated glass lens
• Unihead construction
• High lumen output and low moon output
• Ramping interface
• Electronic soft touch switch
• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.
• Temperature step-down
• Waterproof and dustproof to IP67 standard (up to 1 meter)
• Default 18650 body with optional 18350 battery tube
• Dimensions: 96mm(length) * 28mm(head) * 24mm(body), 65mm(lenght 18350)
OTF lumen output at start-up:
Nichia 519A : 3800lm
Nichia E21A : 1200lm
SST-20 6500K/5000K: 4200lm
SST-20 4000K/2700K 95CRI: 3000lm
This product uses free software distributed under the terms of the GPLv3.
Source code is available from http://tiny.cc/TKAnduril
