EMISAR D4V2 *CUSTOM BUILT-TO-ORDER*
Please be noted that the boost driver version will have 40% less output on turbo than the regular version, it is a more efficient driver (90-95%) with longer running time and less heat.
Emisar D4V2 puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing. Unprotected, flat top battery works only (not included in the price), D4V2 does not work with protected battery.
PLEASE READ BELOW BEFORE PURCHASING!
THESE ARE "CUSTOM" BUILT-TO-ORDER SO THESE WILL SHIP ACCORDINGLY!
USER INTERFACE:
ANDURIL 2 UI
DRIVER:
9A LINEAR + FET
12A LINEAR (E21A ONLY)
12A 2A BOOST (OPTIONAL)
NO LUME X1 DRIVER'S FOR THE D4V2

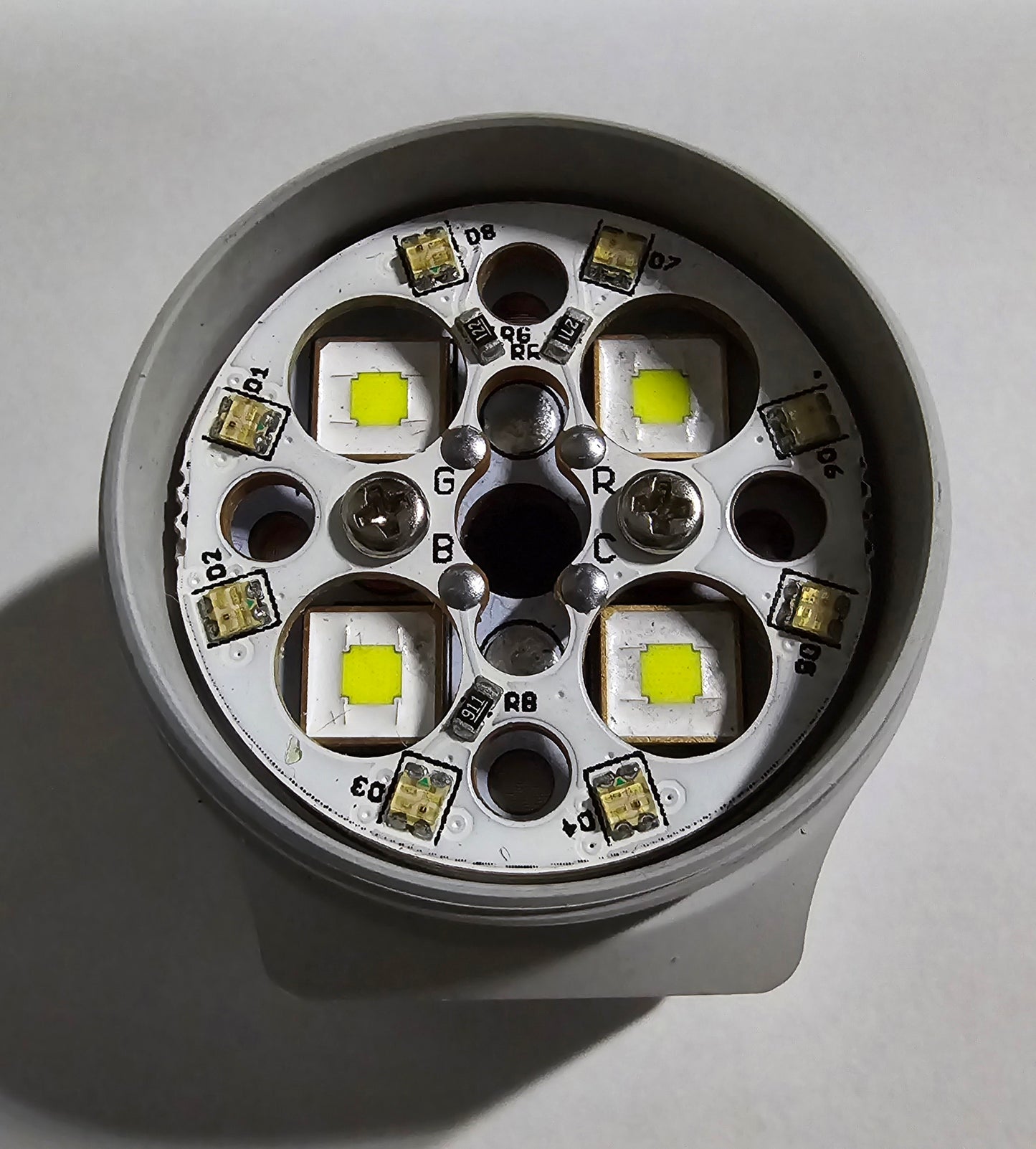

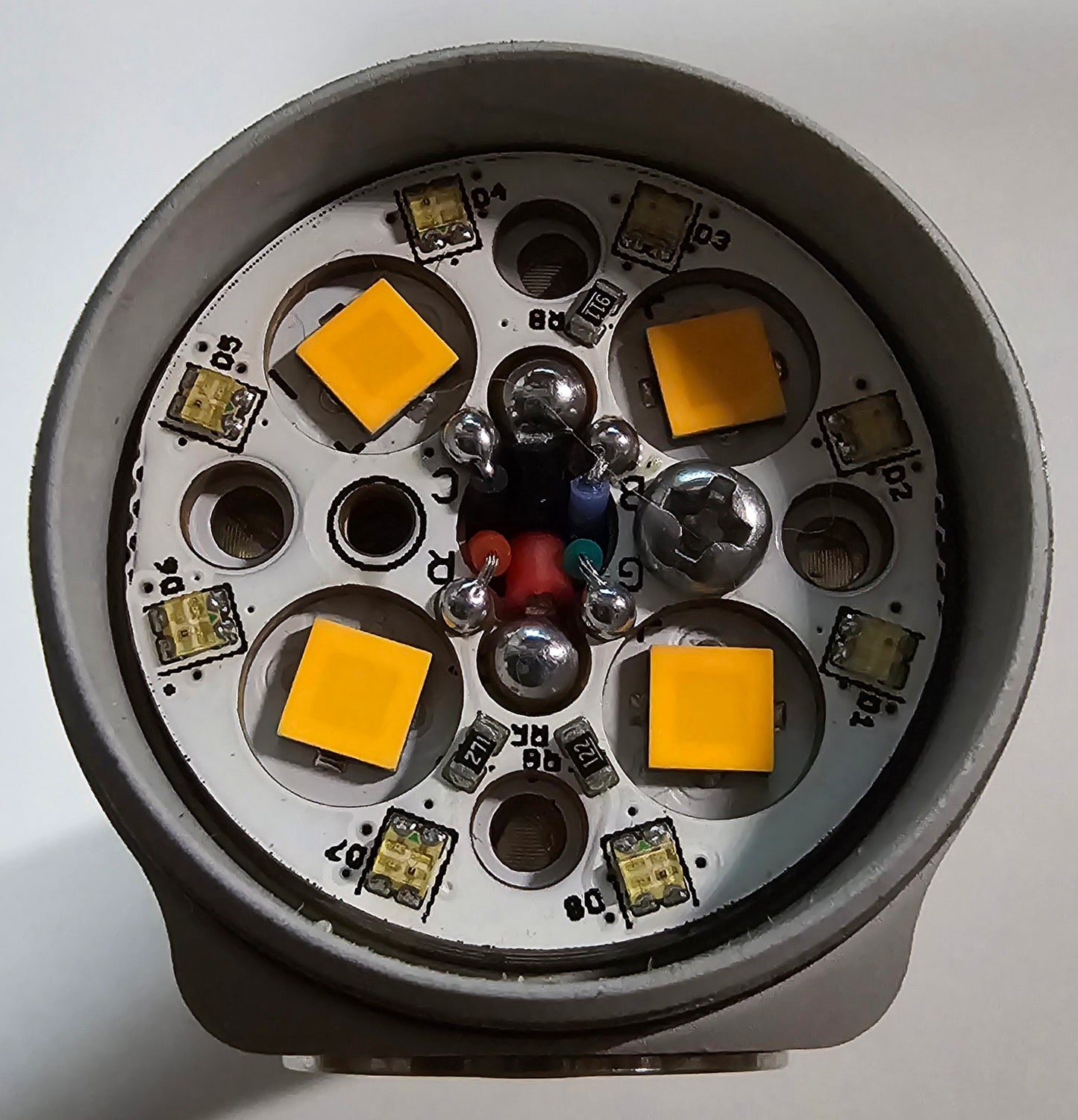

EMITTER OPTIONS:

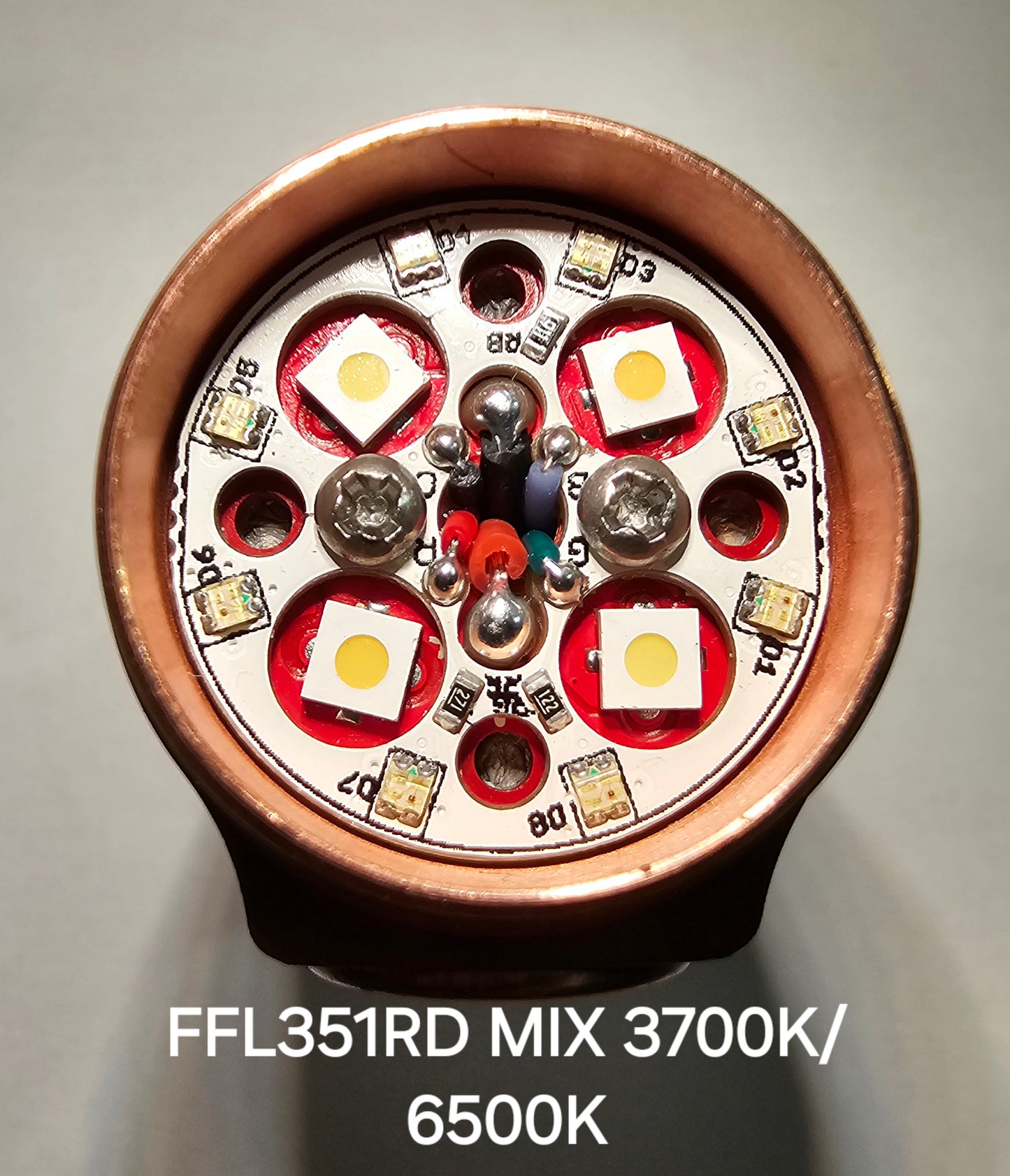

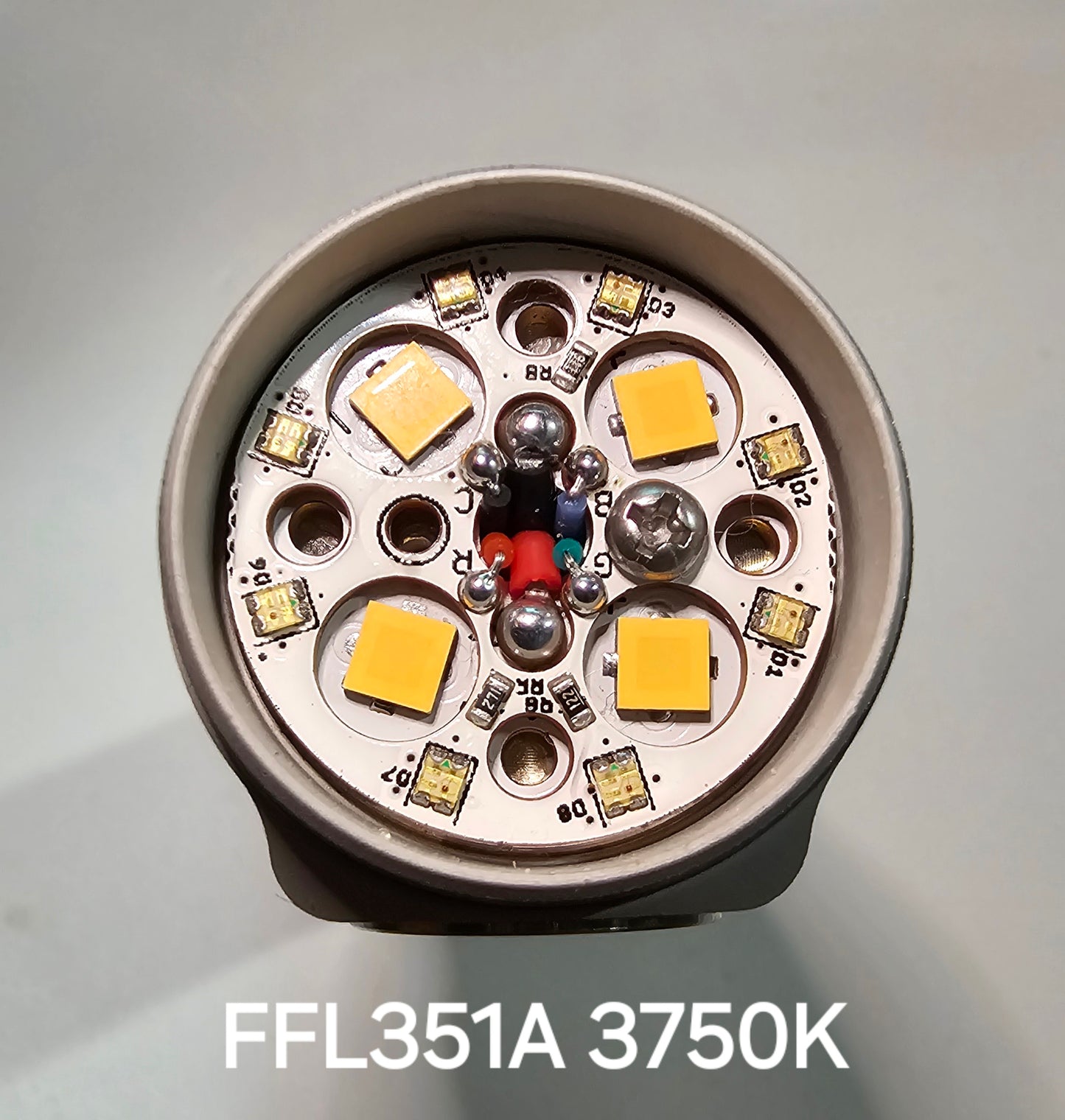

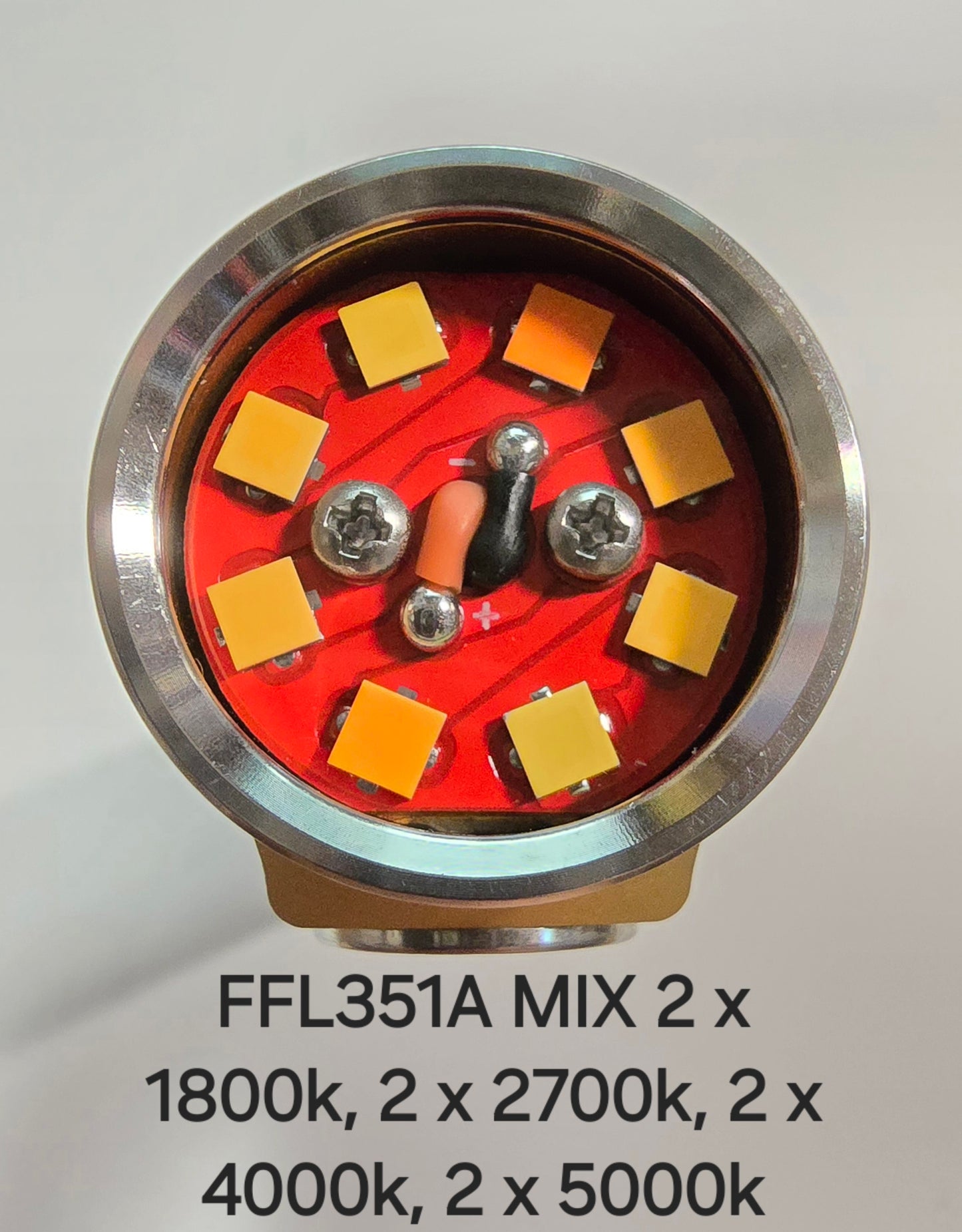

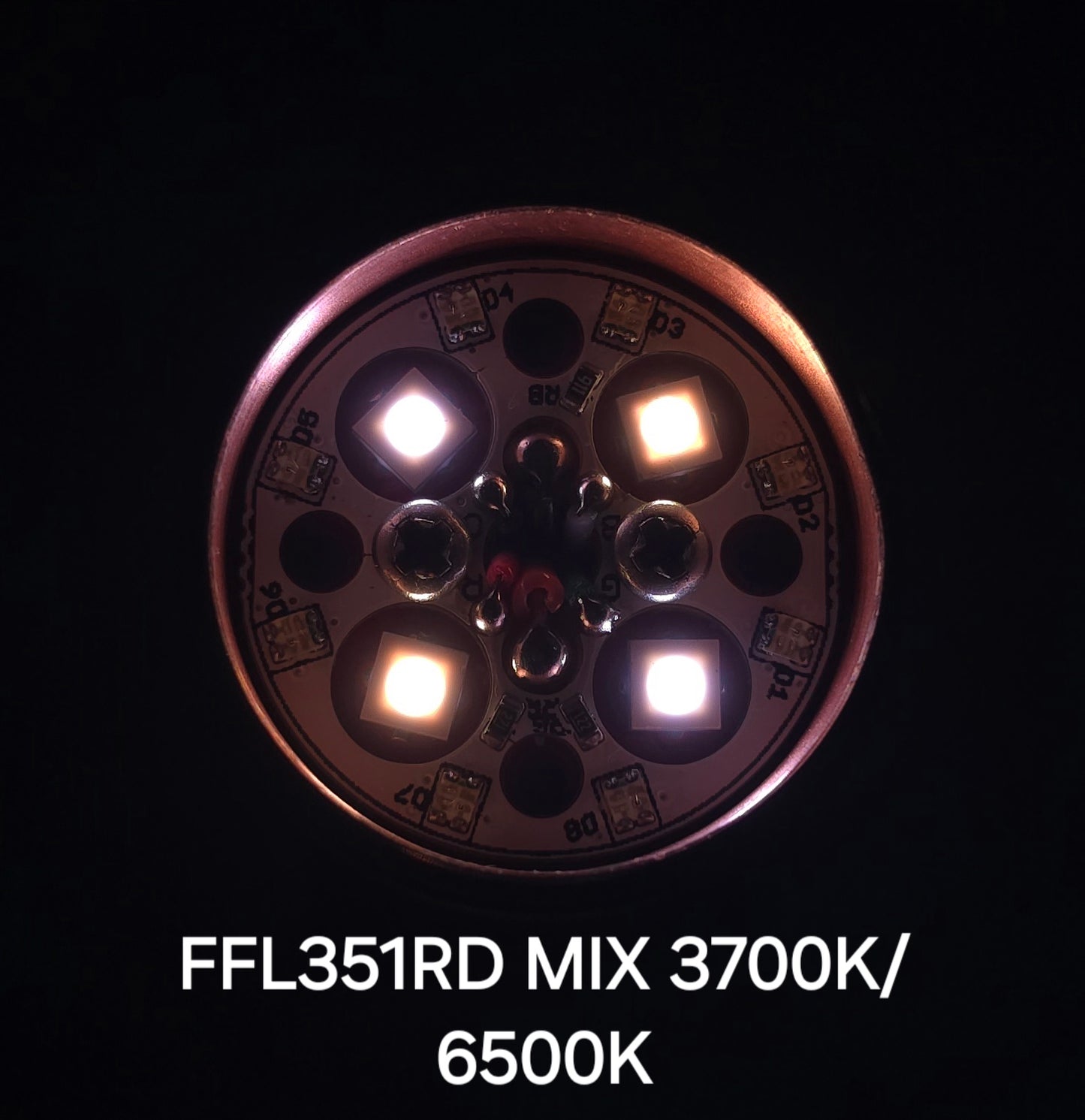

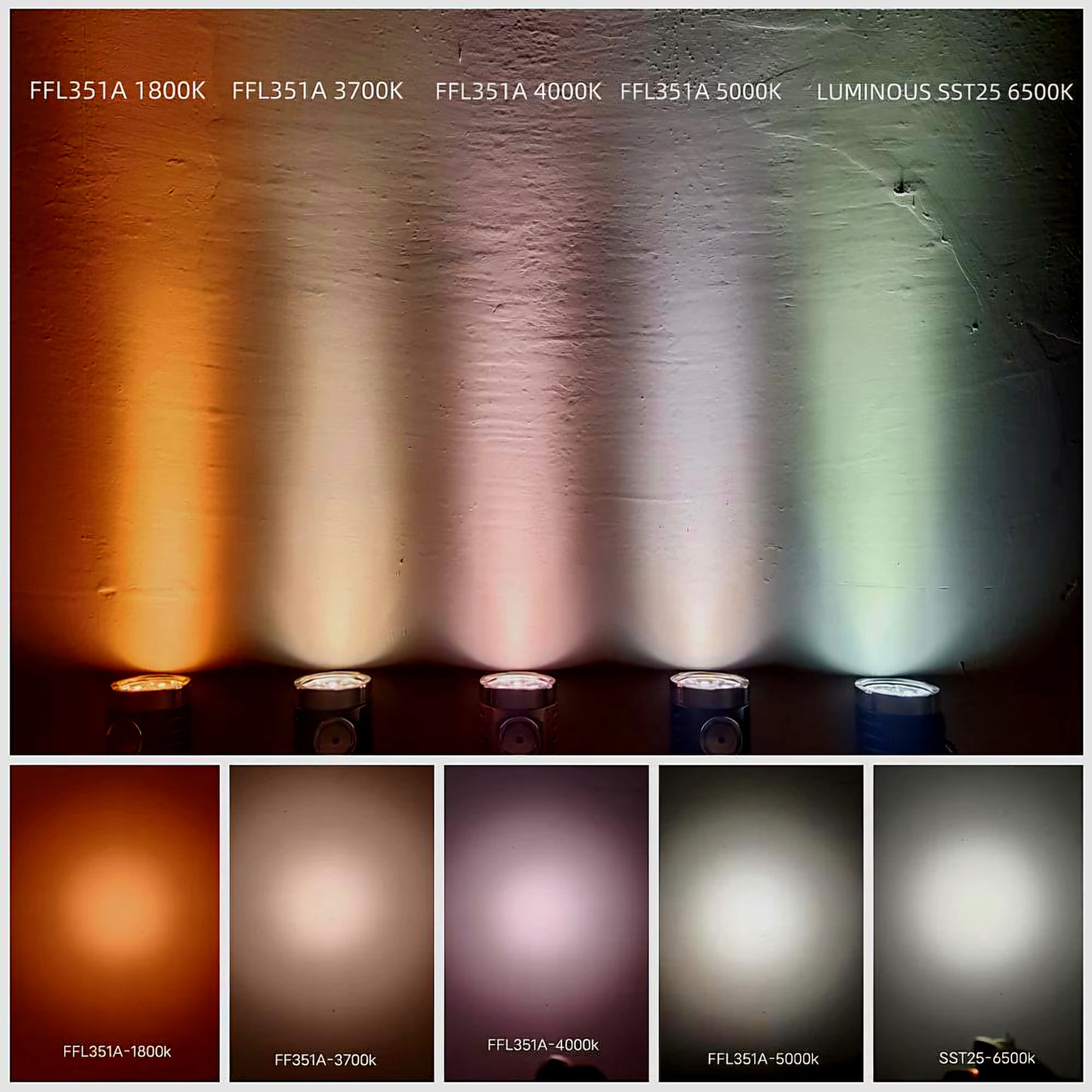

FFL351A & FFL351RD
FFL505A (5050SMD)

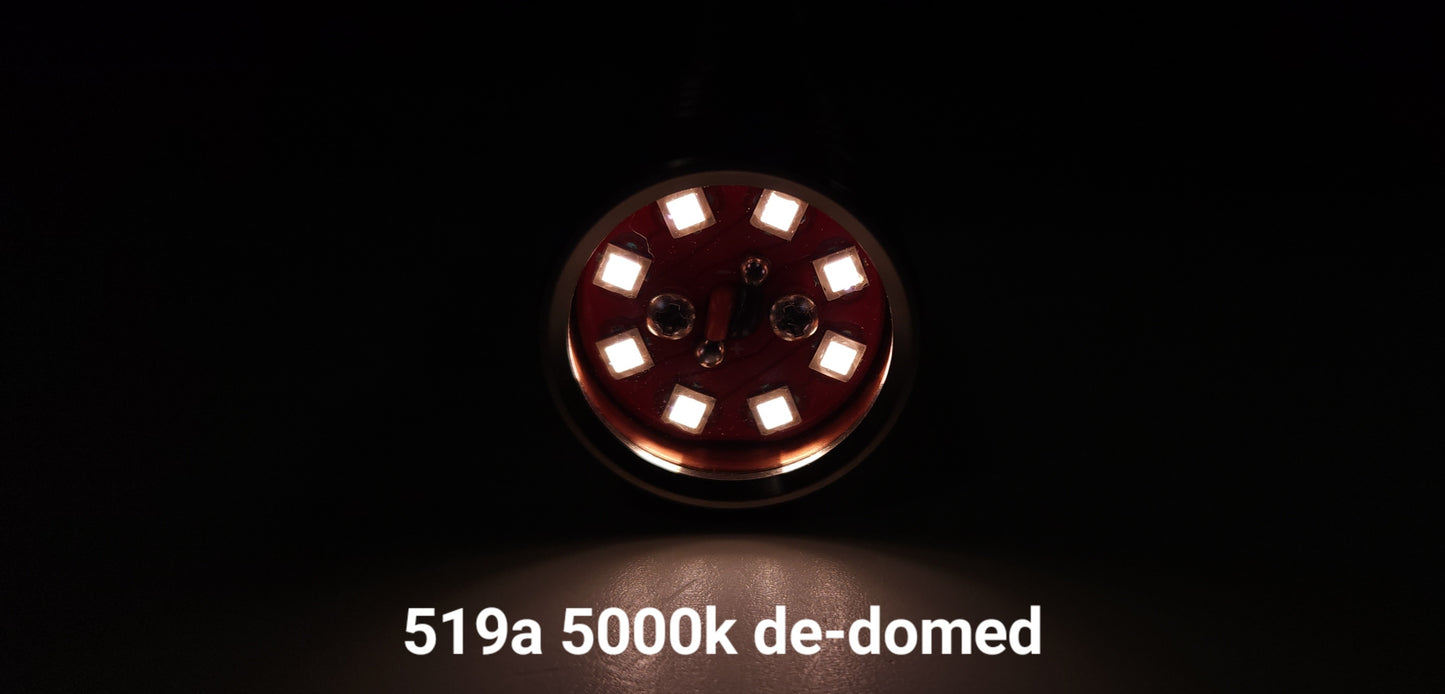

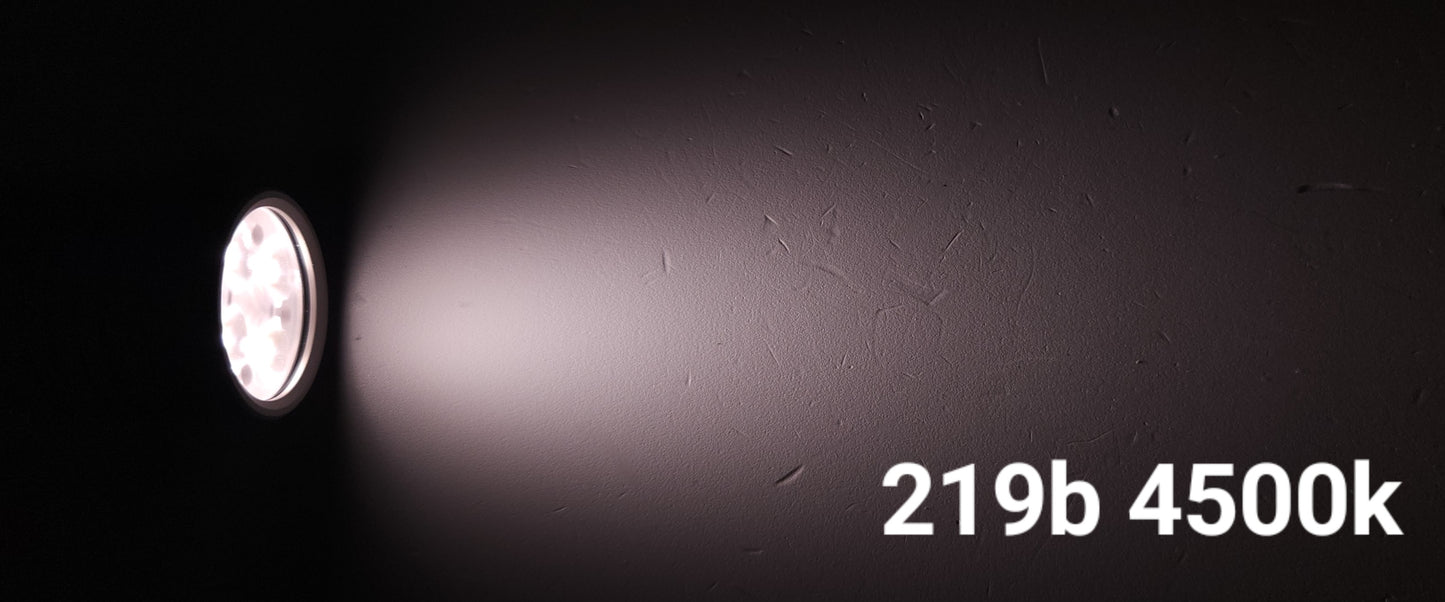

NICHIA 219B, 219C AND 519A
NICHIA E21A
LUMINUS SST20

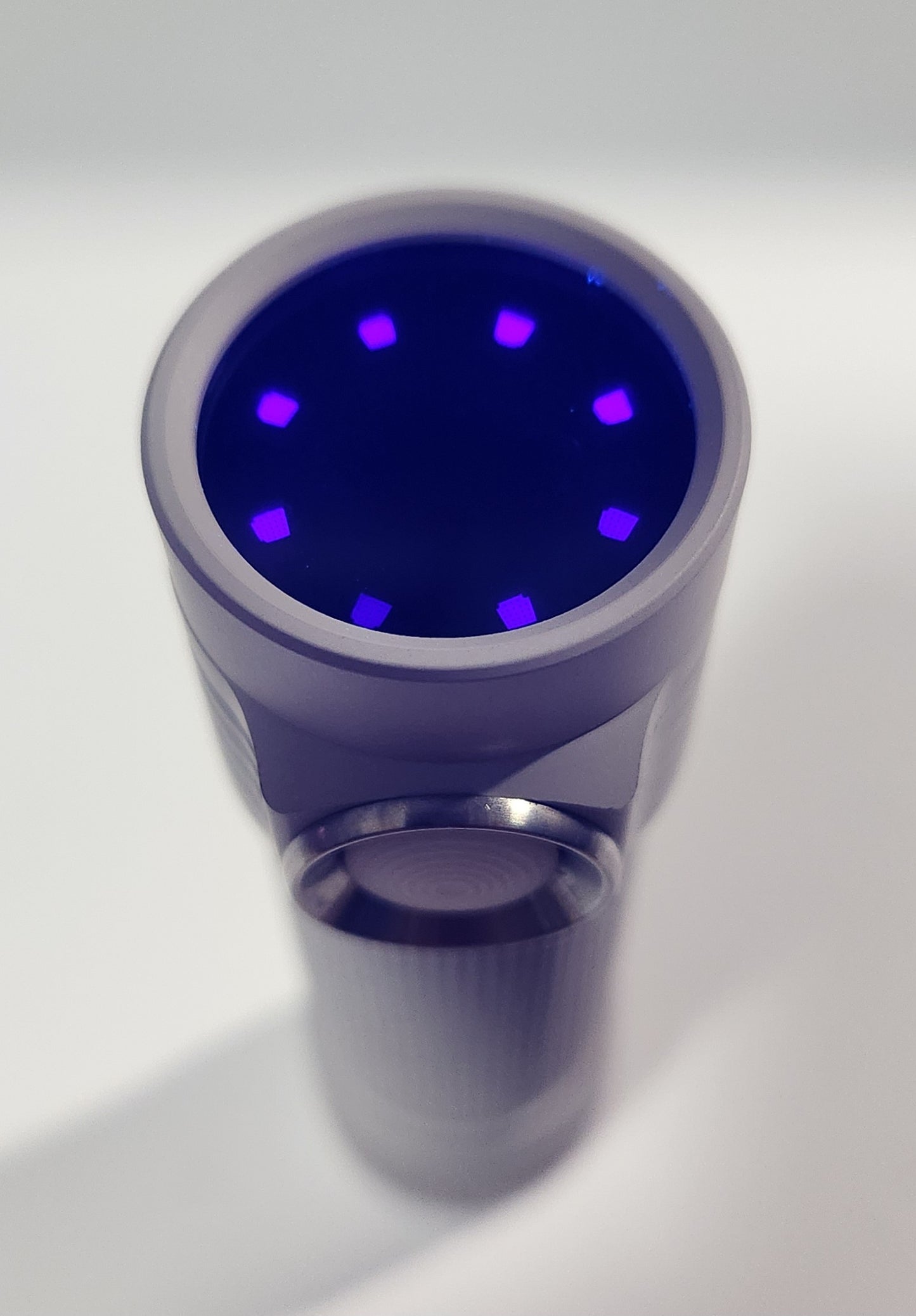

LUMINUS SST10 5W 365NM UV LED
LUMINUS SFT40 (5050SMD)
CREE XPE COLORS

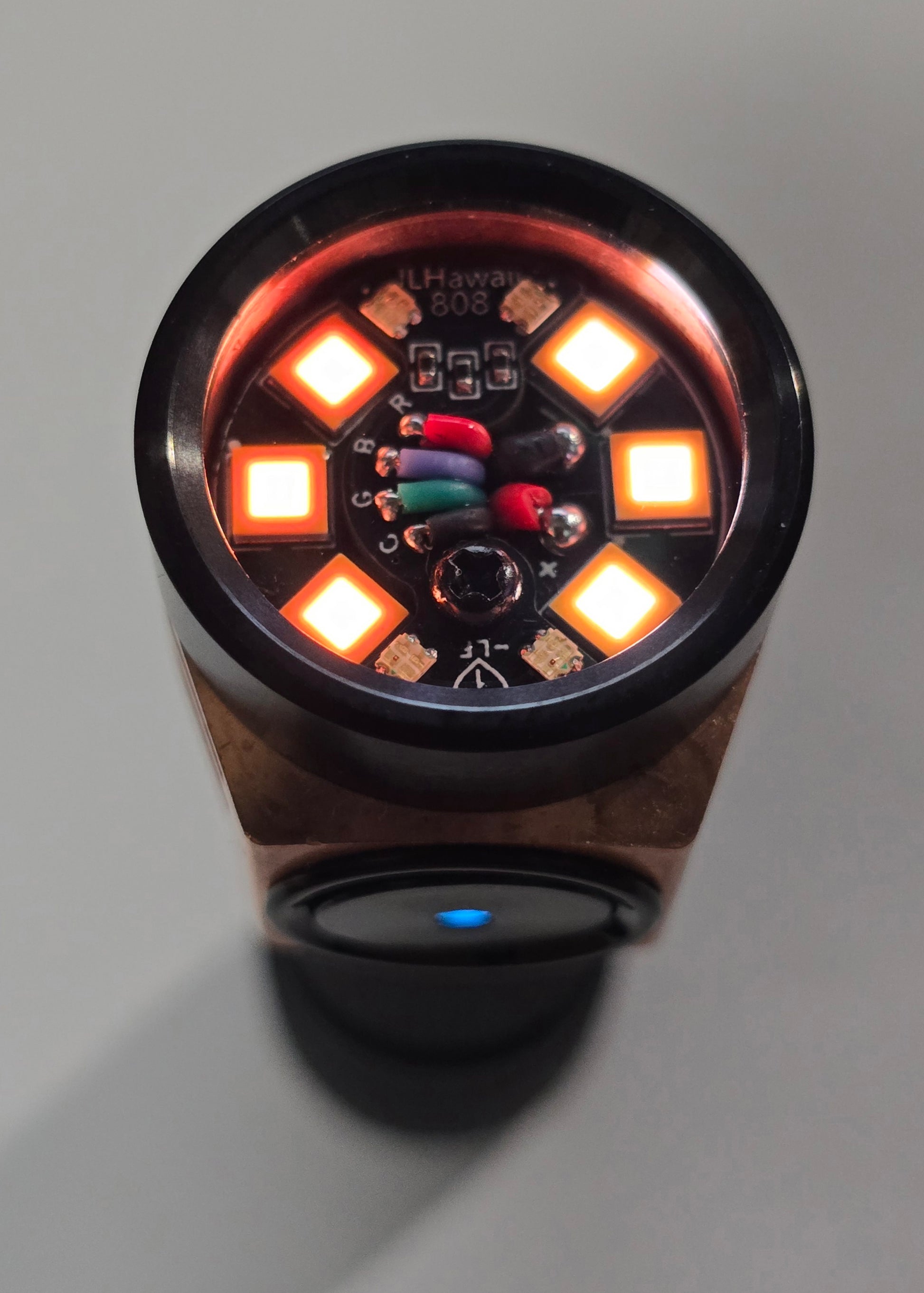

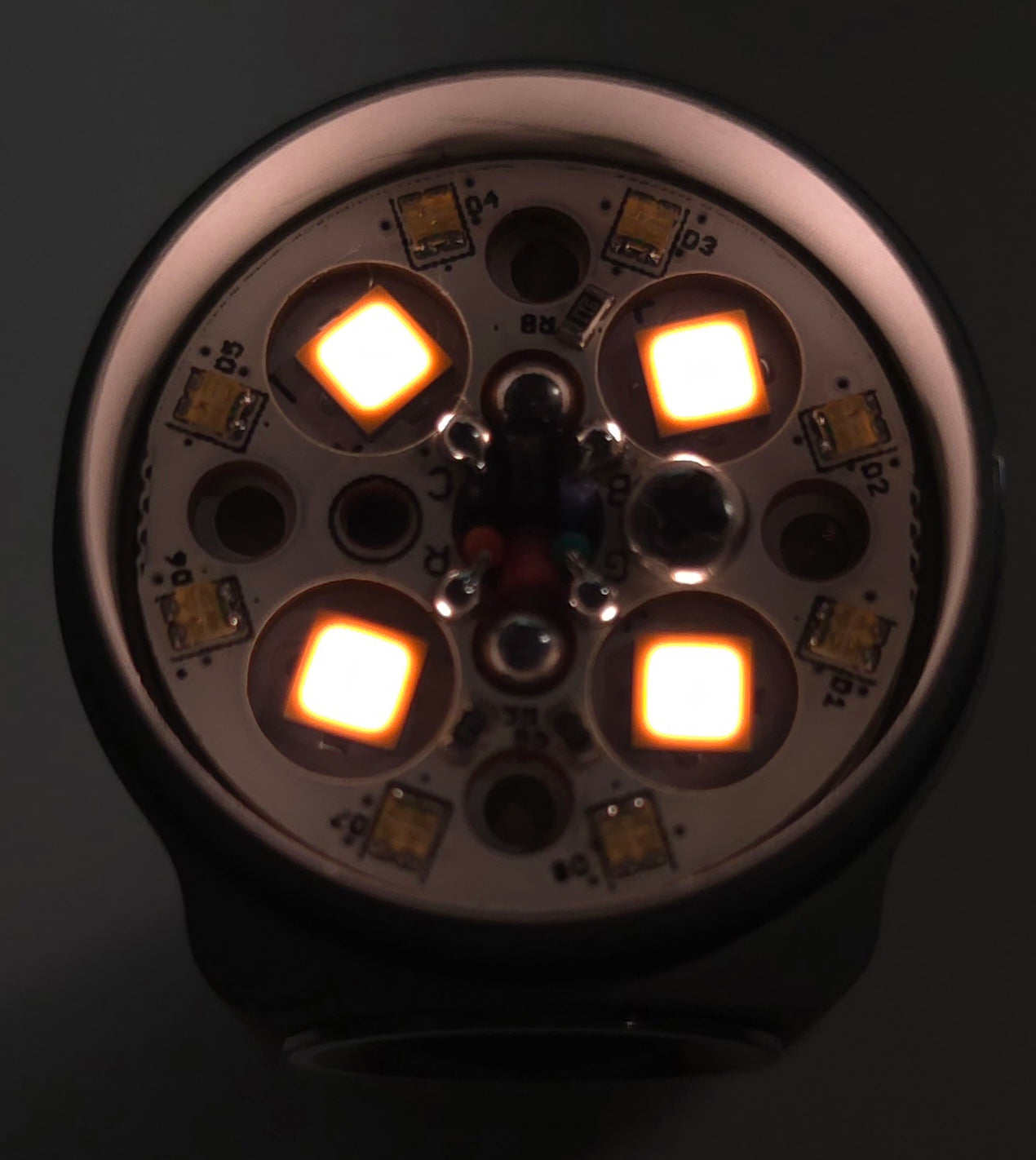

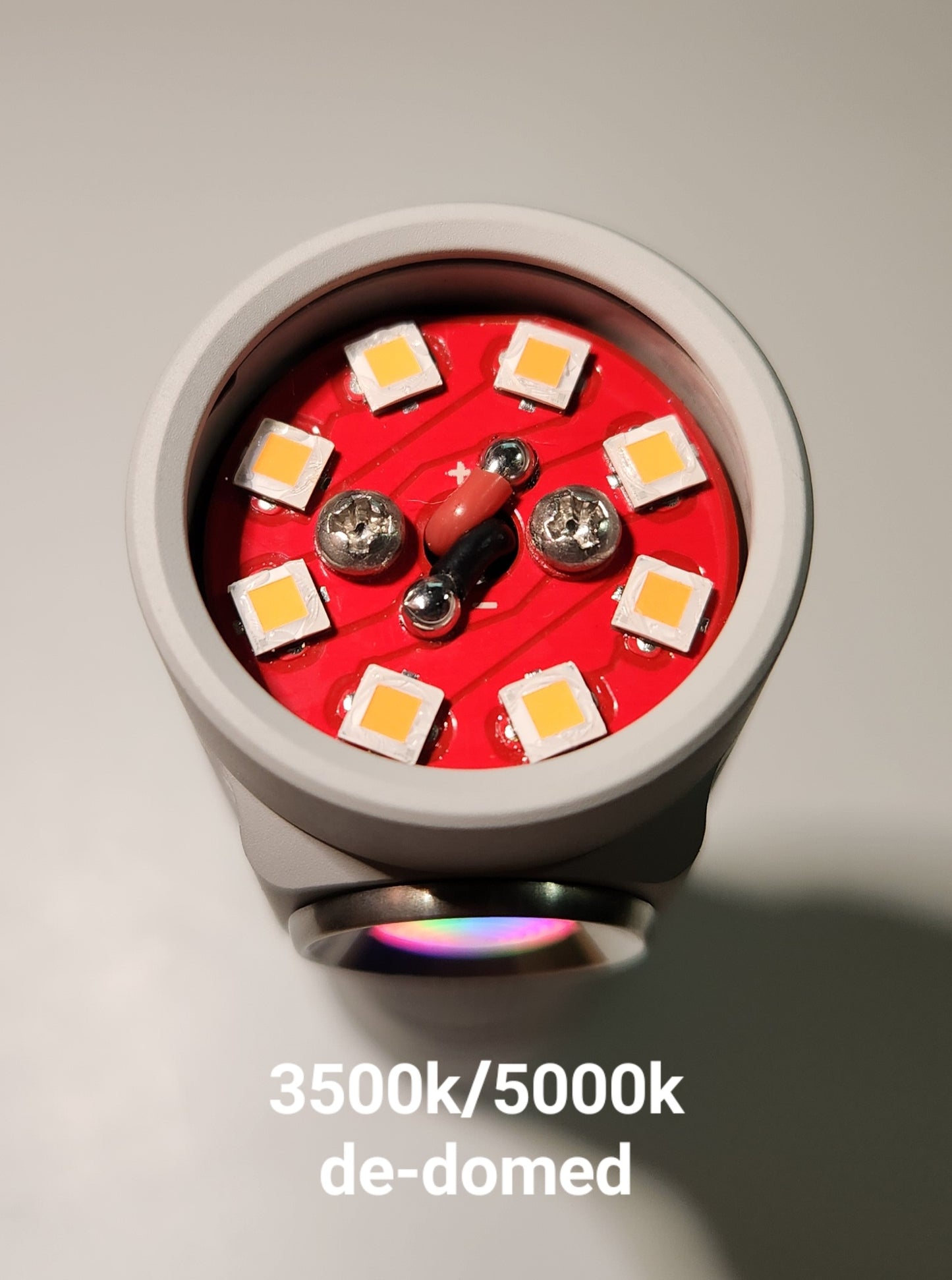

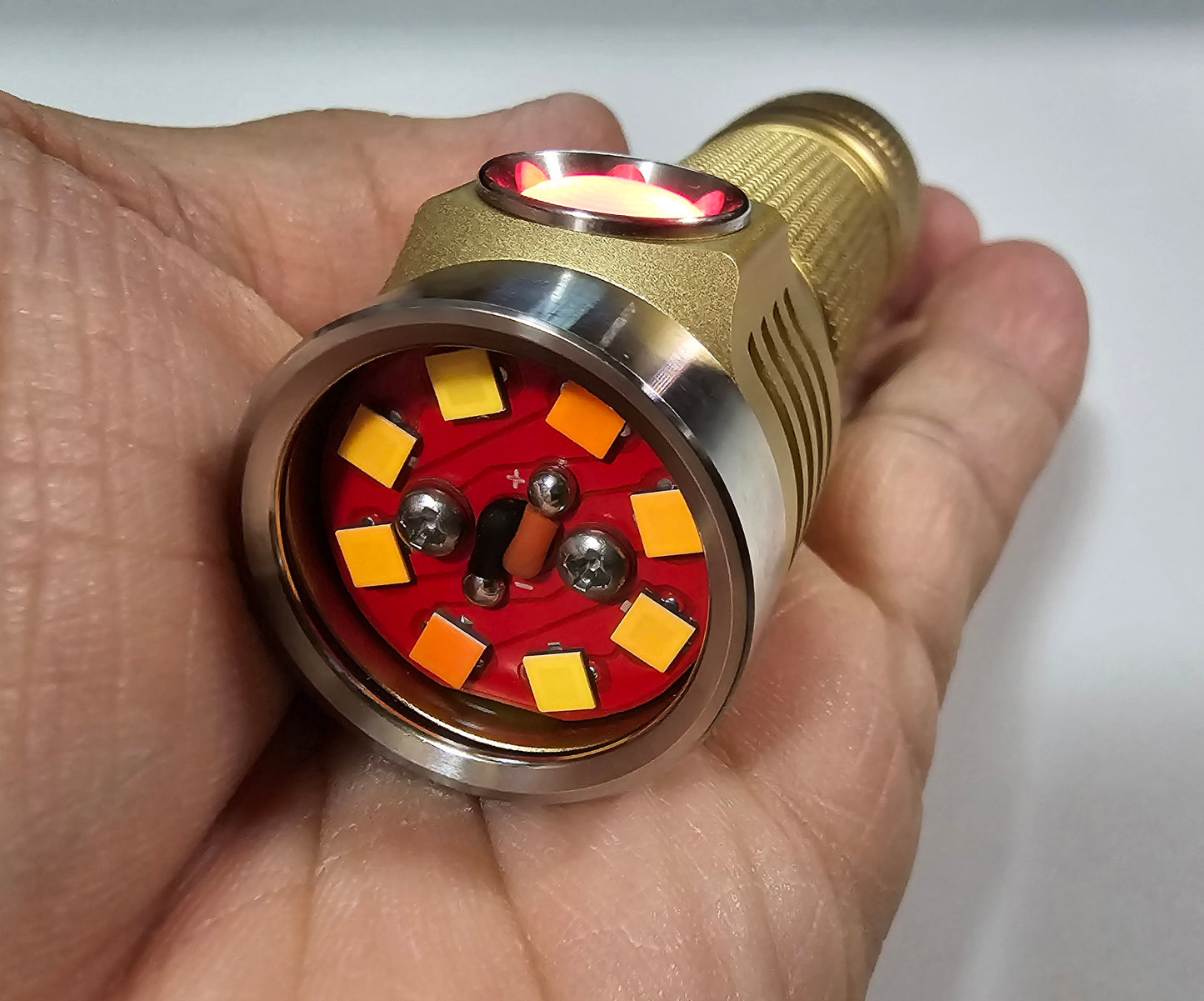

MULES:
3MM ALUMINUM MULE SPACER
NO OPTICS & AUXILIARIES

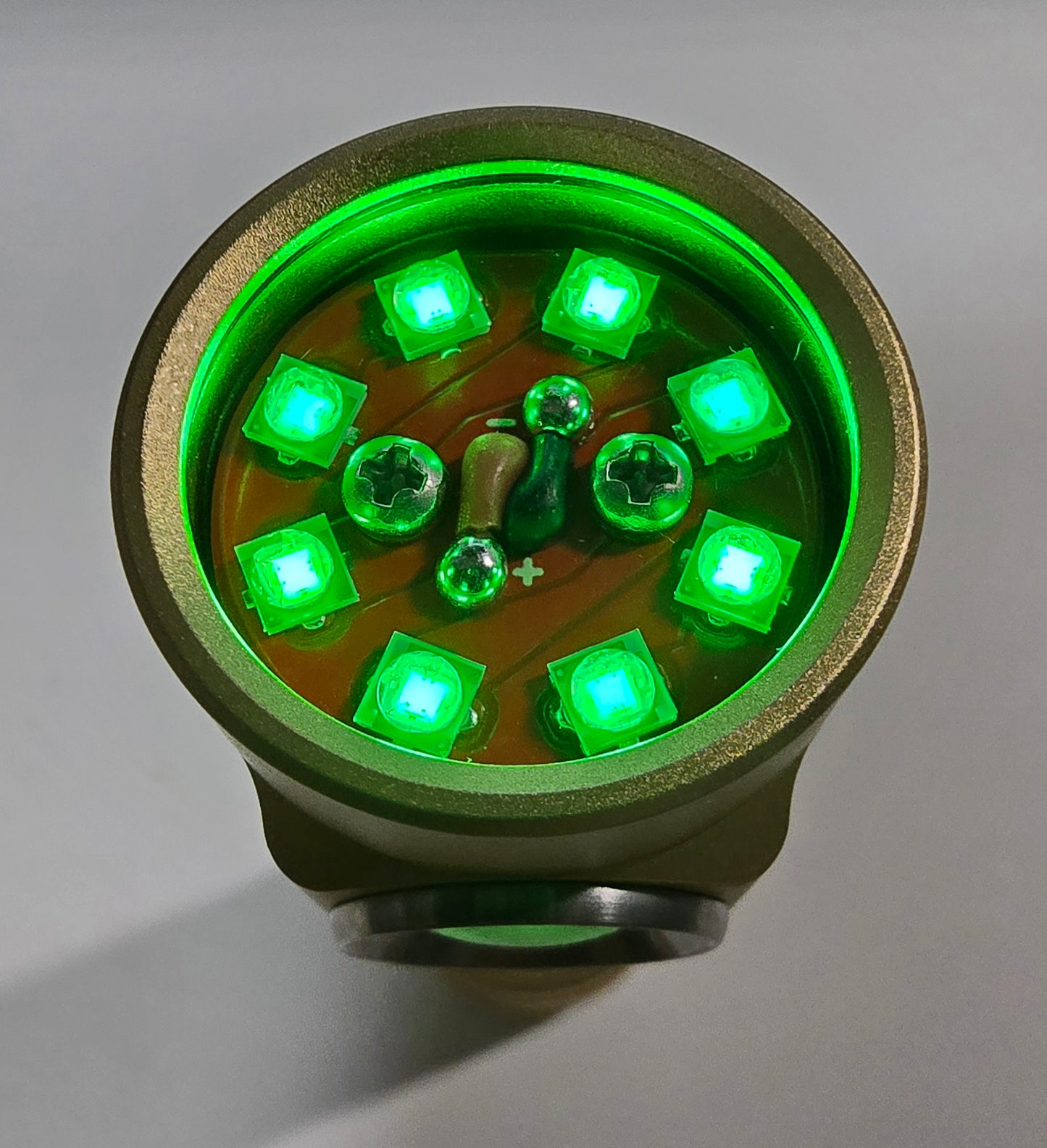

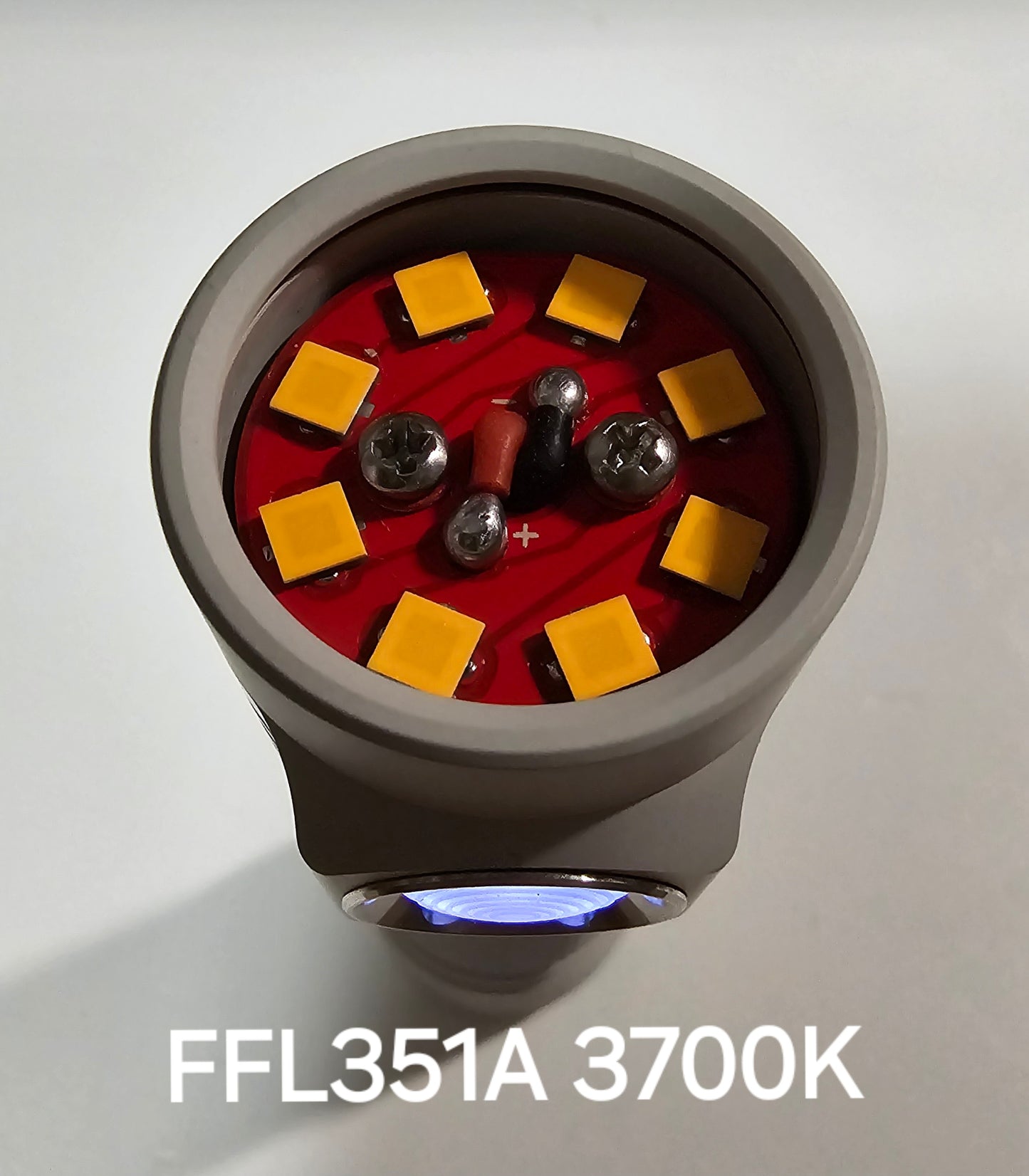

8 X EMITTERS 3535SMD LEDS
16 X EMITTERS E21A LEDS
2-CHANNEL KR4 MULE LINK HERE >>>

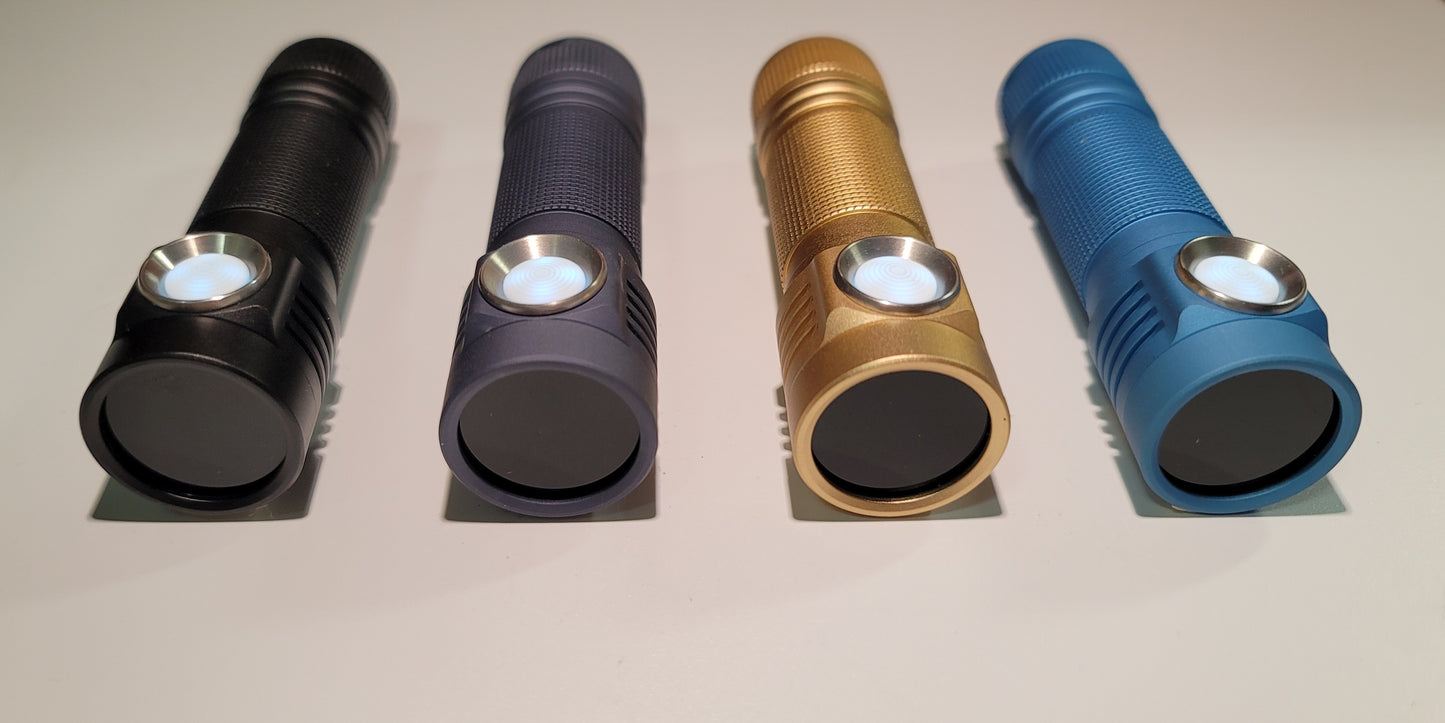

BODY COLOR:
BLACK
GRAY
SAND
CYAN (OLDER STOCK PRESSED SWITCH RING)

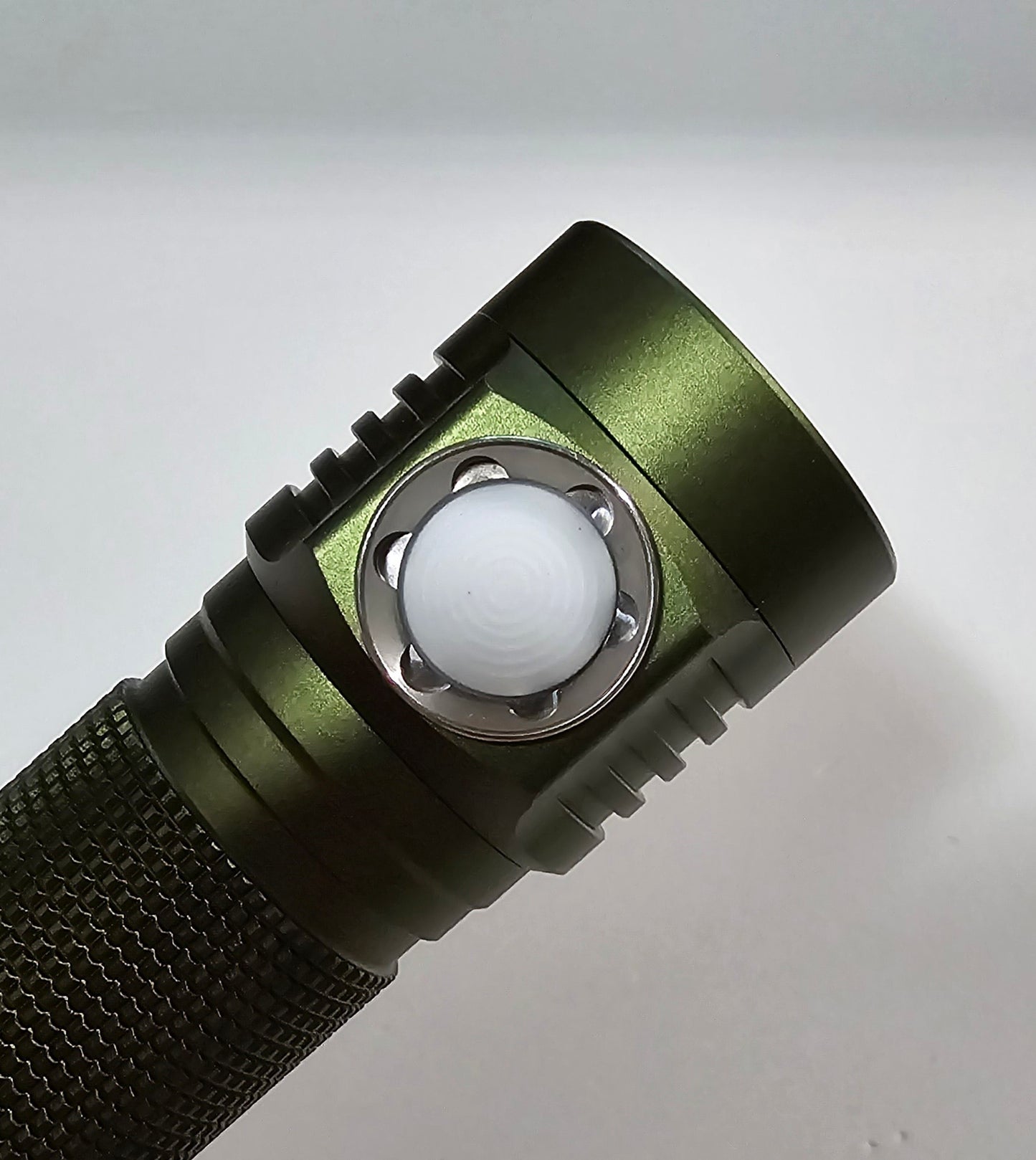

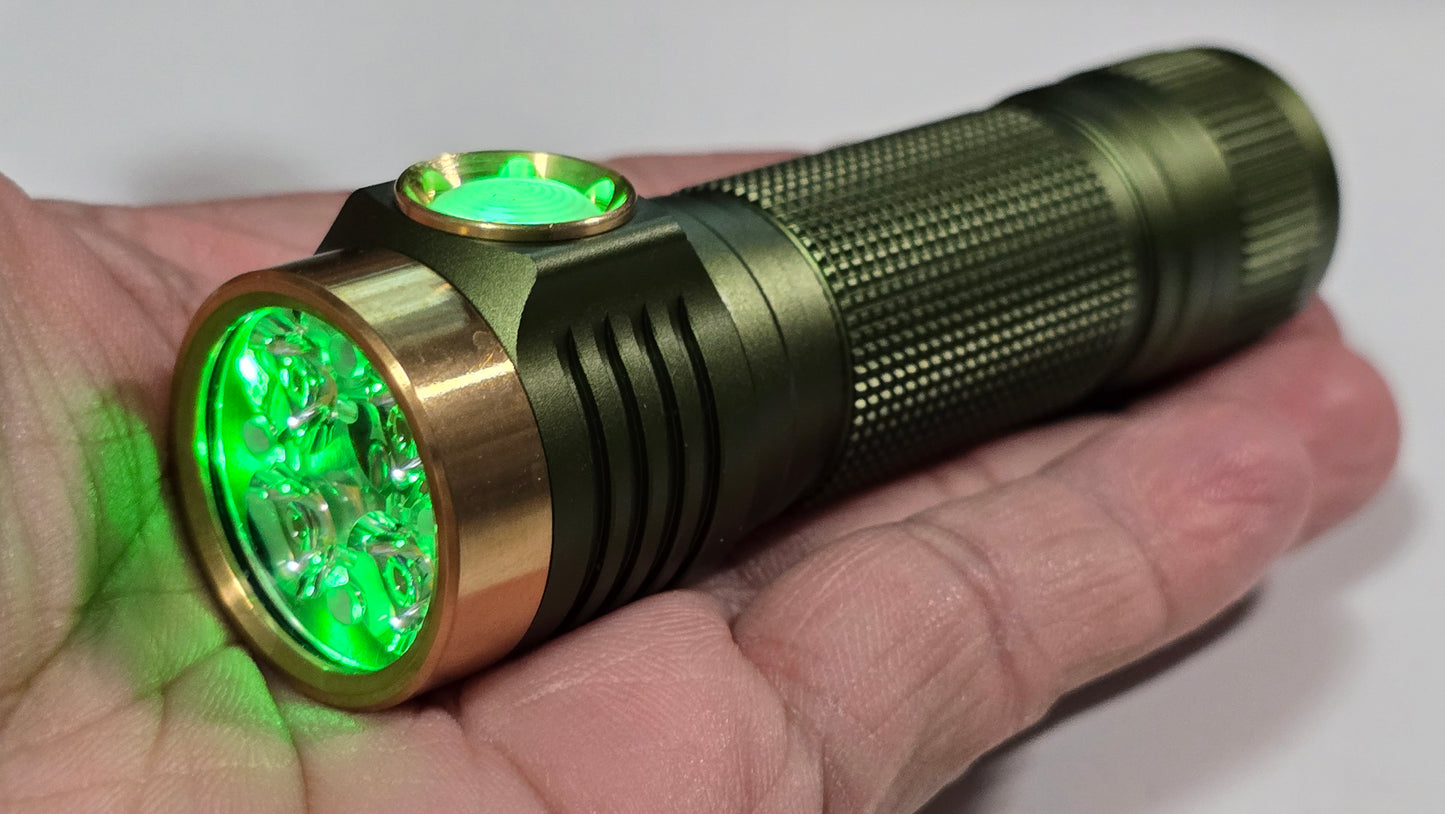

GREEN
STONEWHITE (OLDER STOCK PRESSED SWITCH RING)

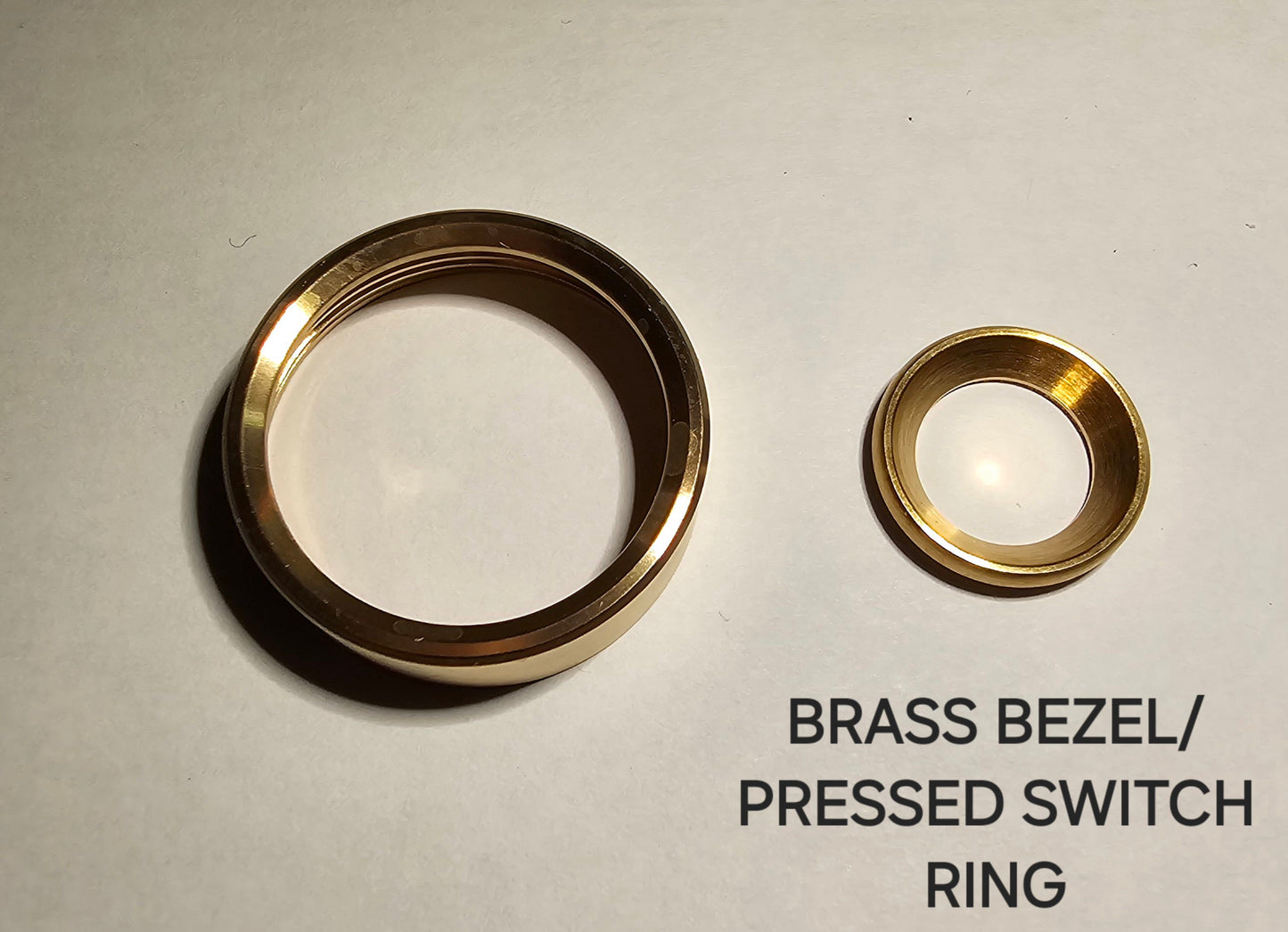

NOTE: SOME ARE OLDER STOCK WITH THE PRESSED SWITCH RING

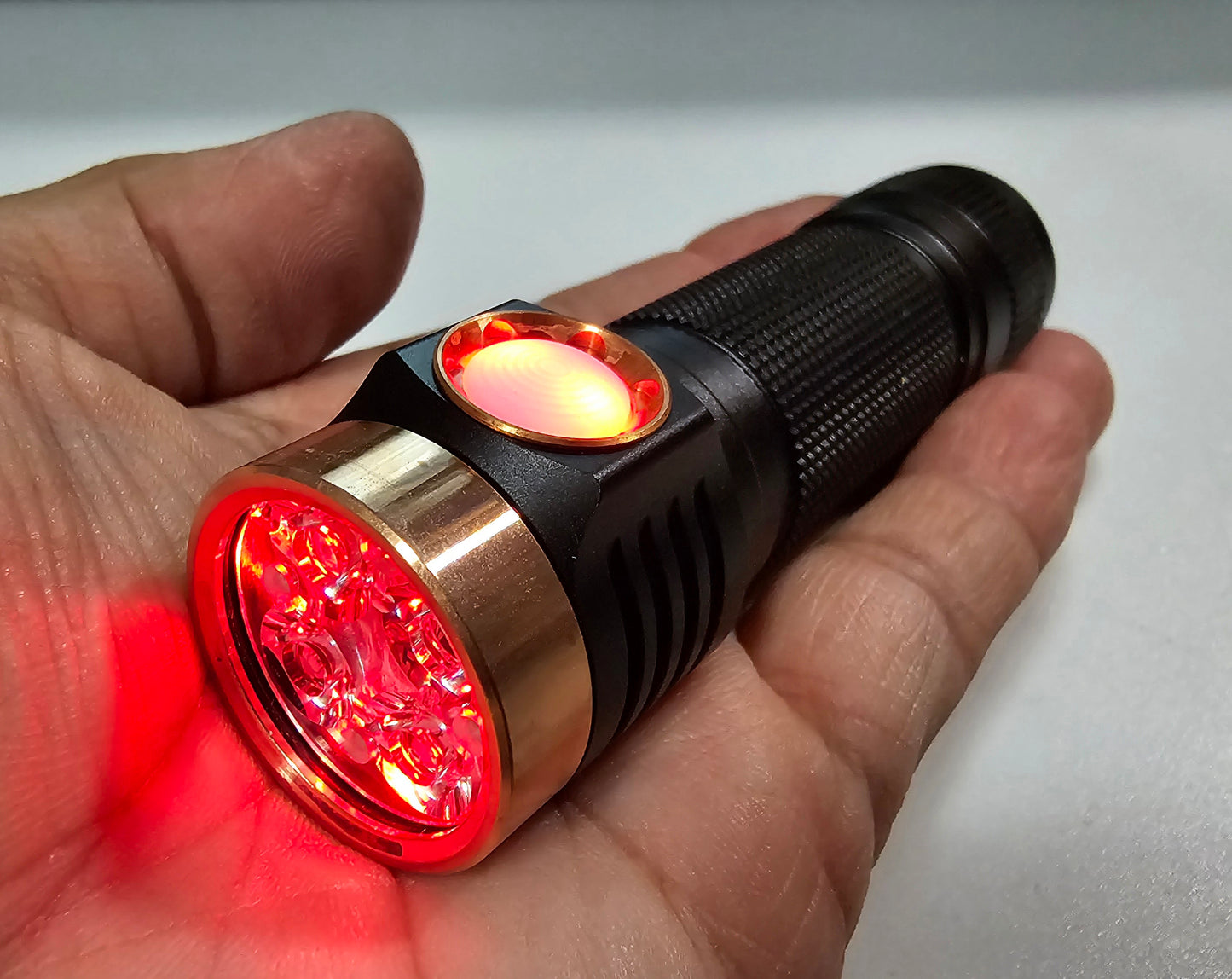

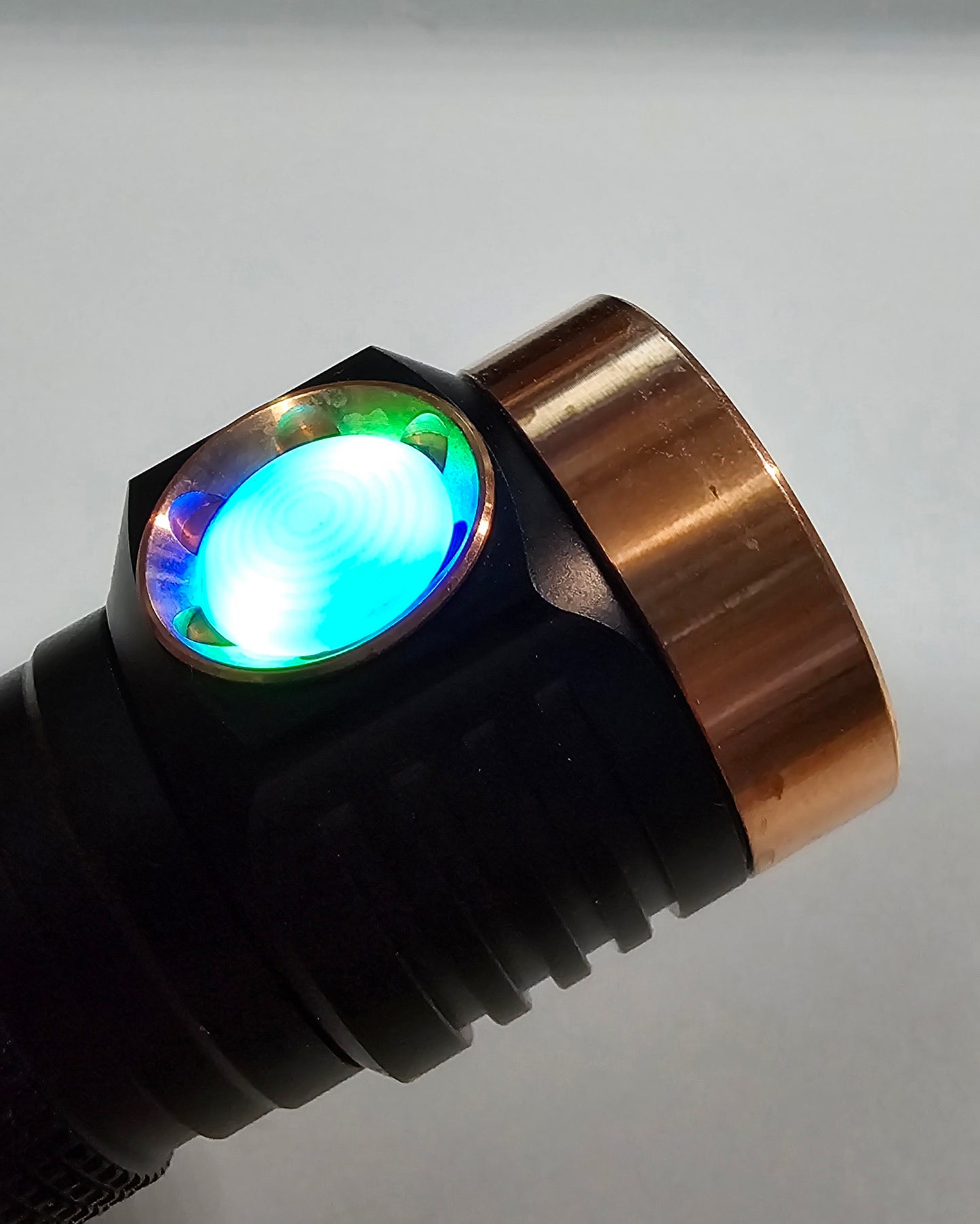

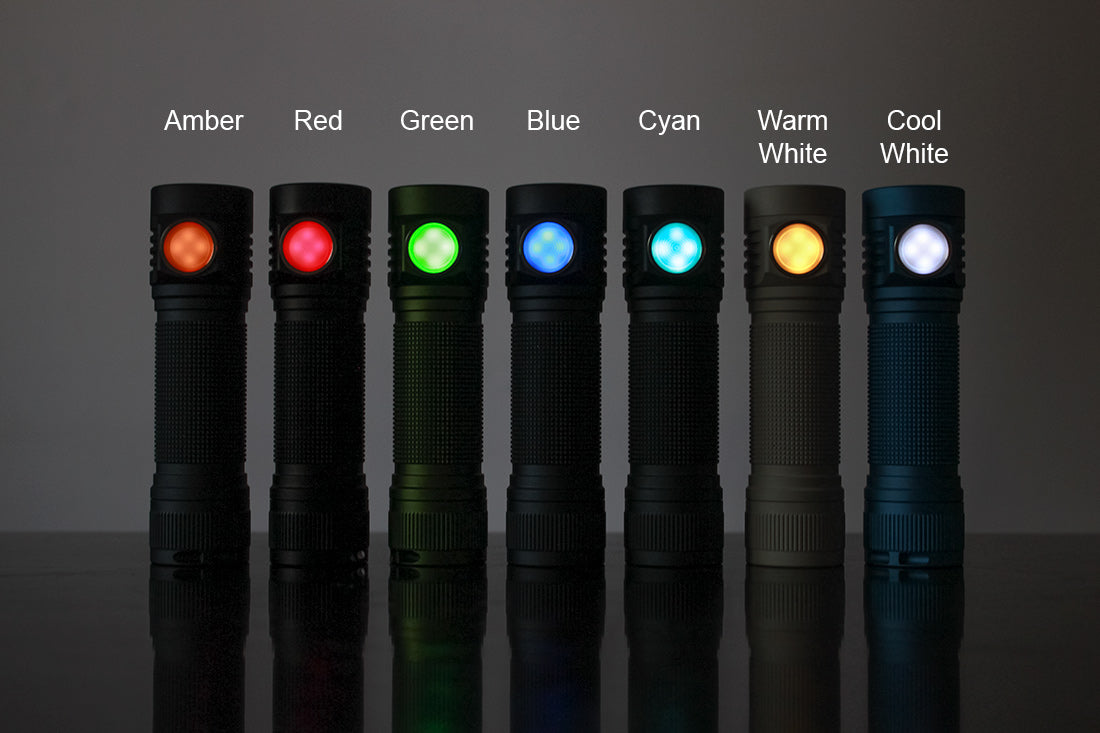

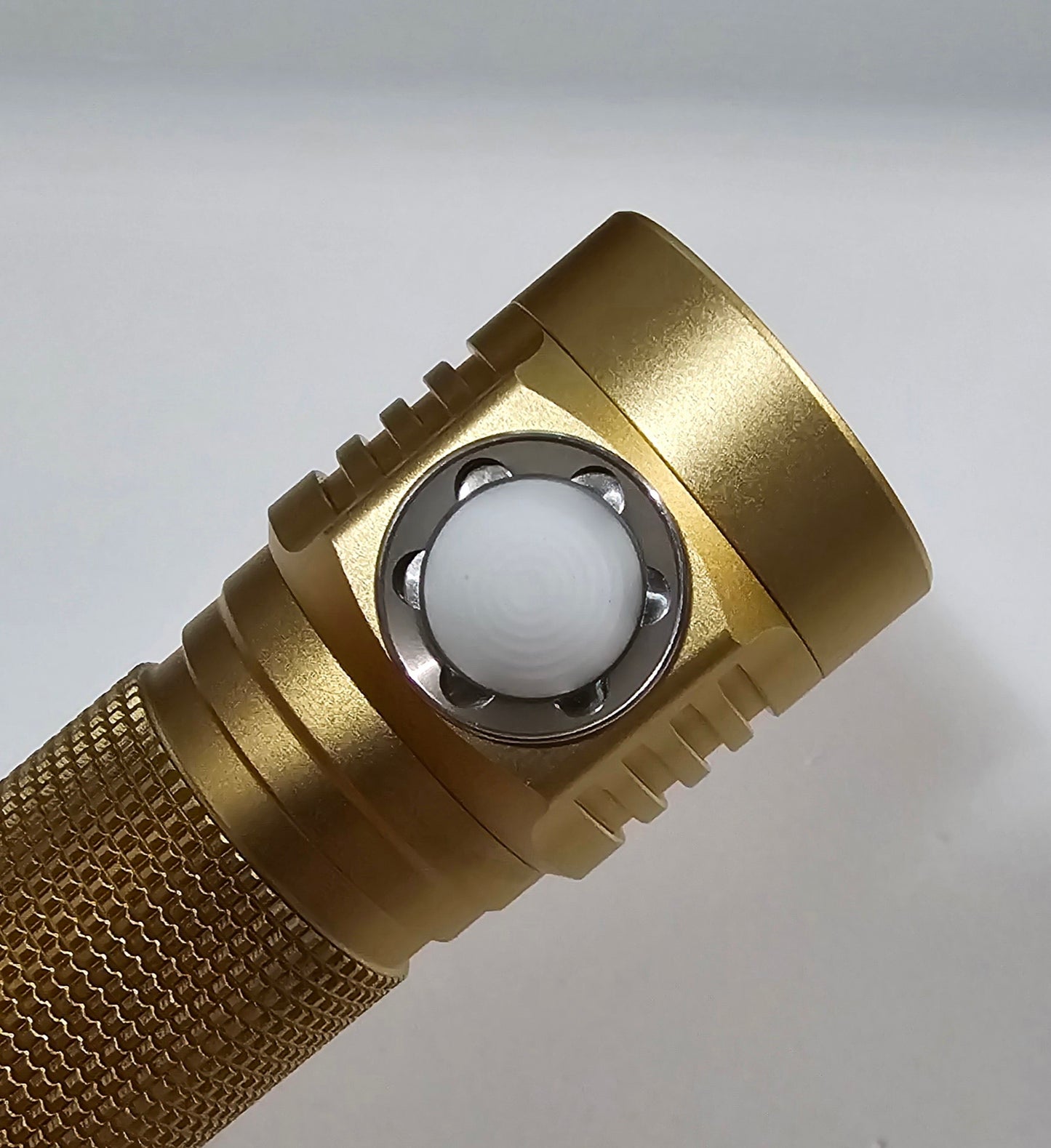

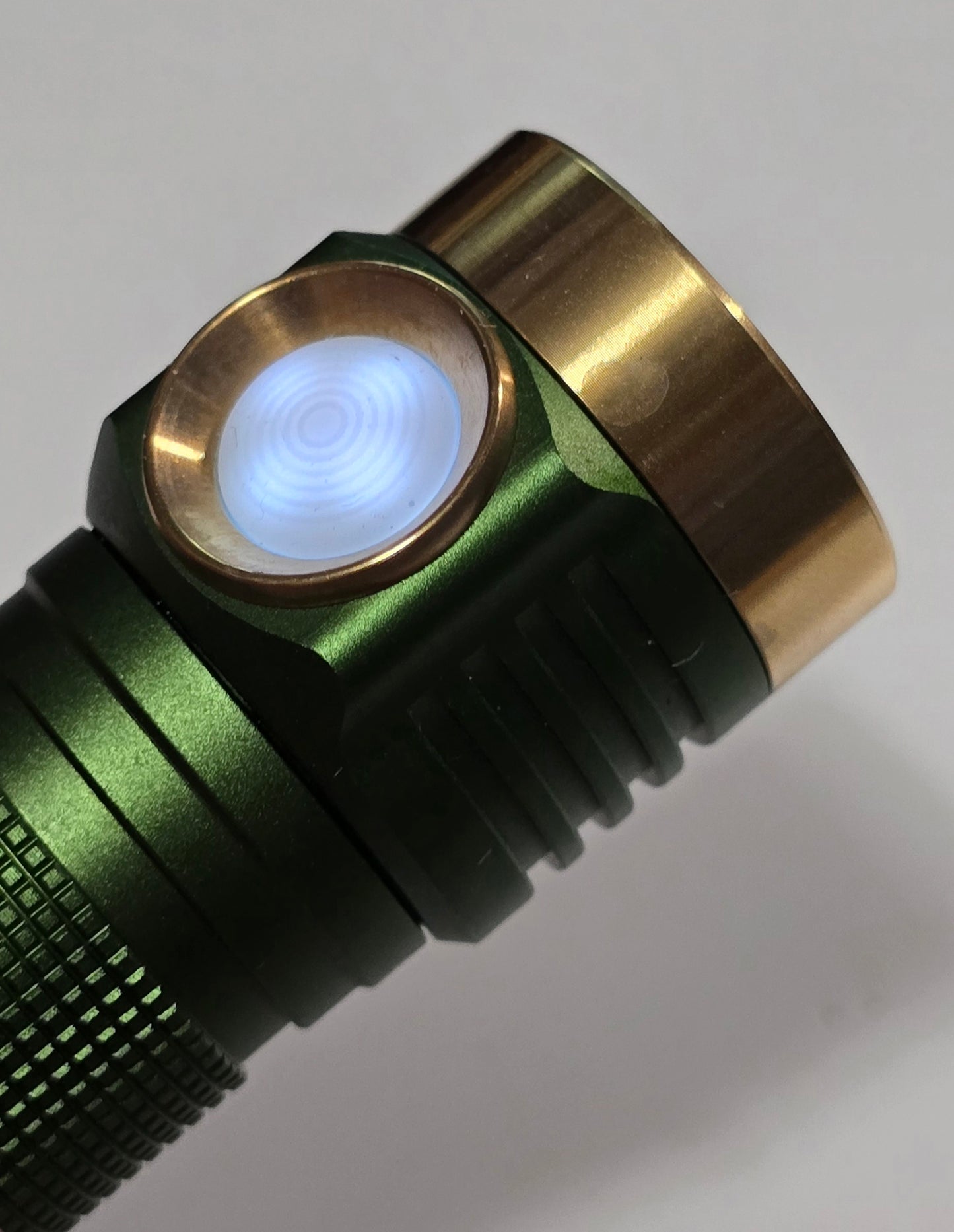

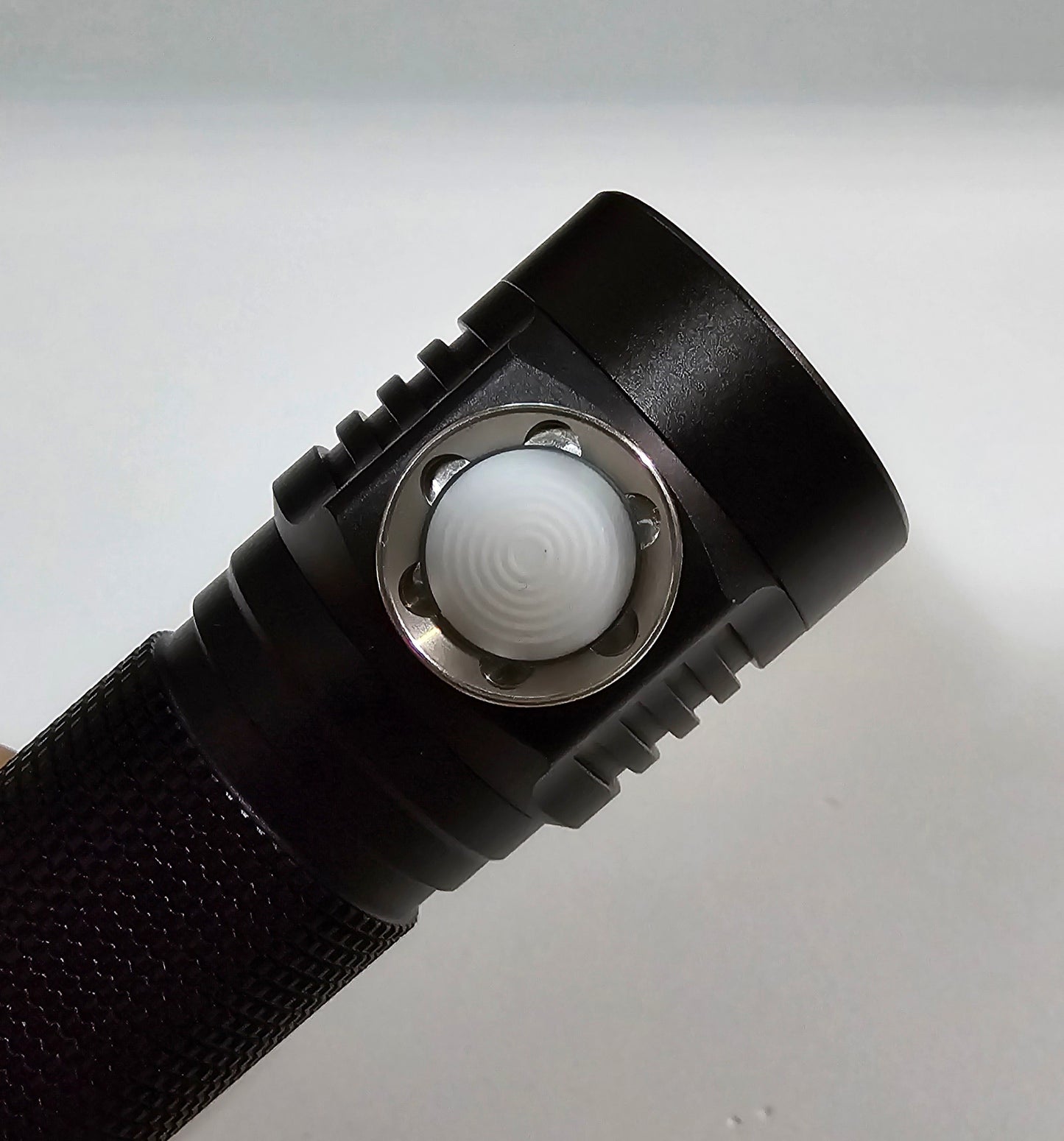

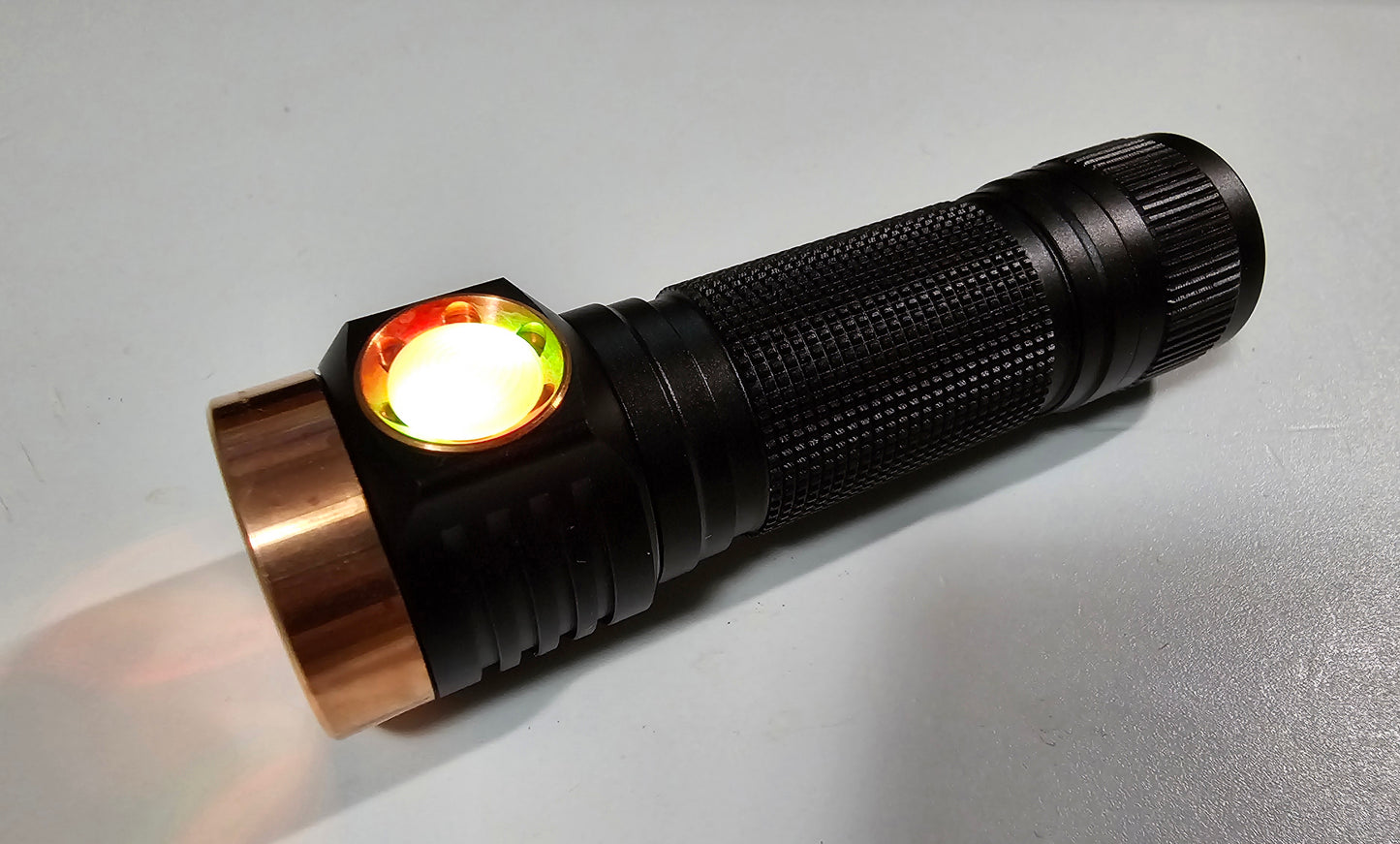

LIGHT SWITCH:

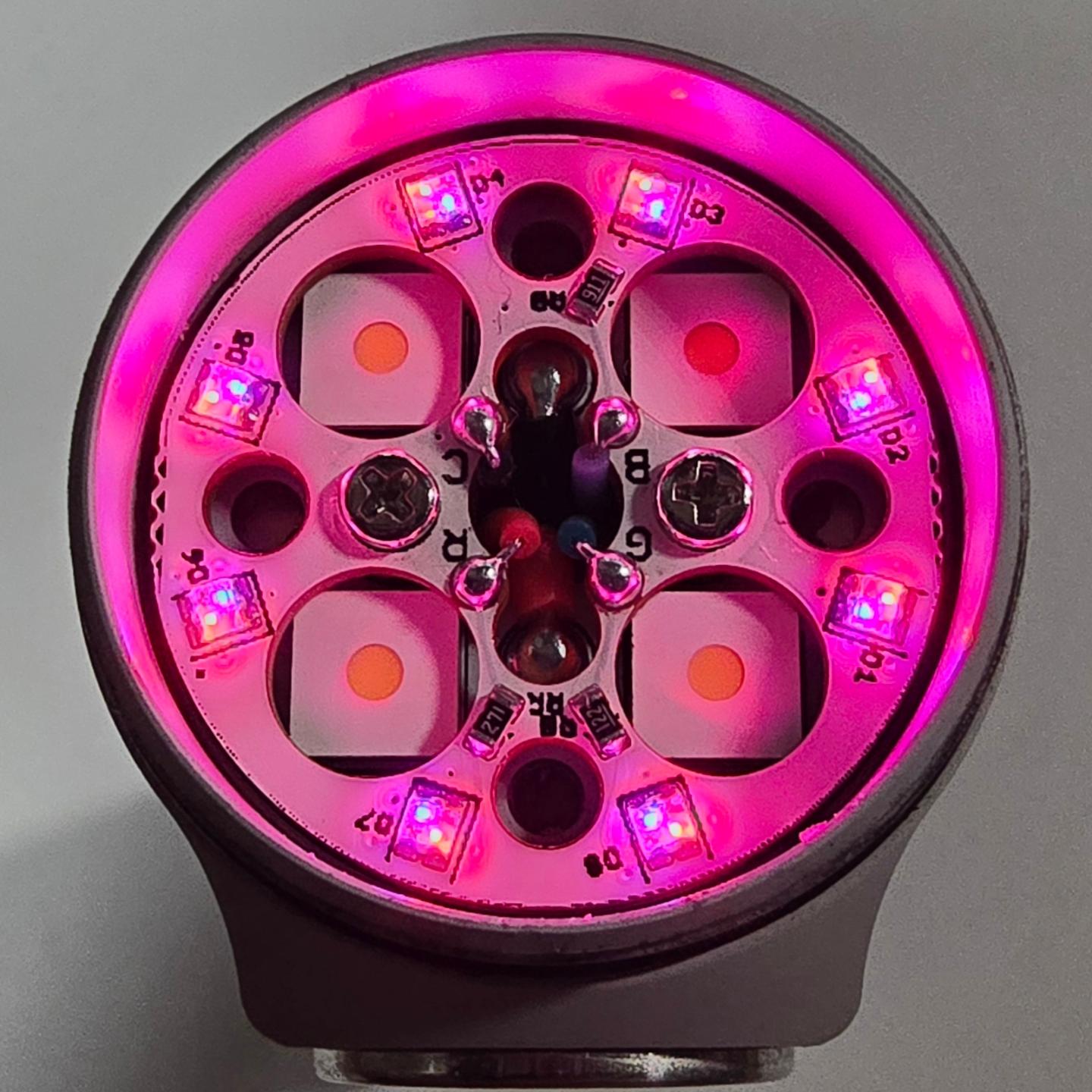

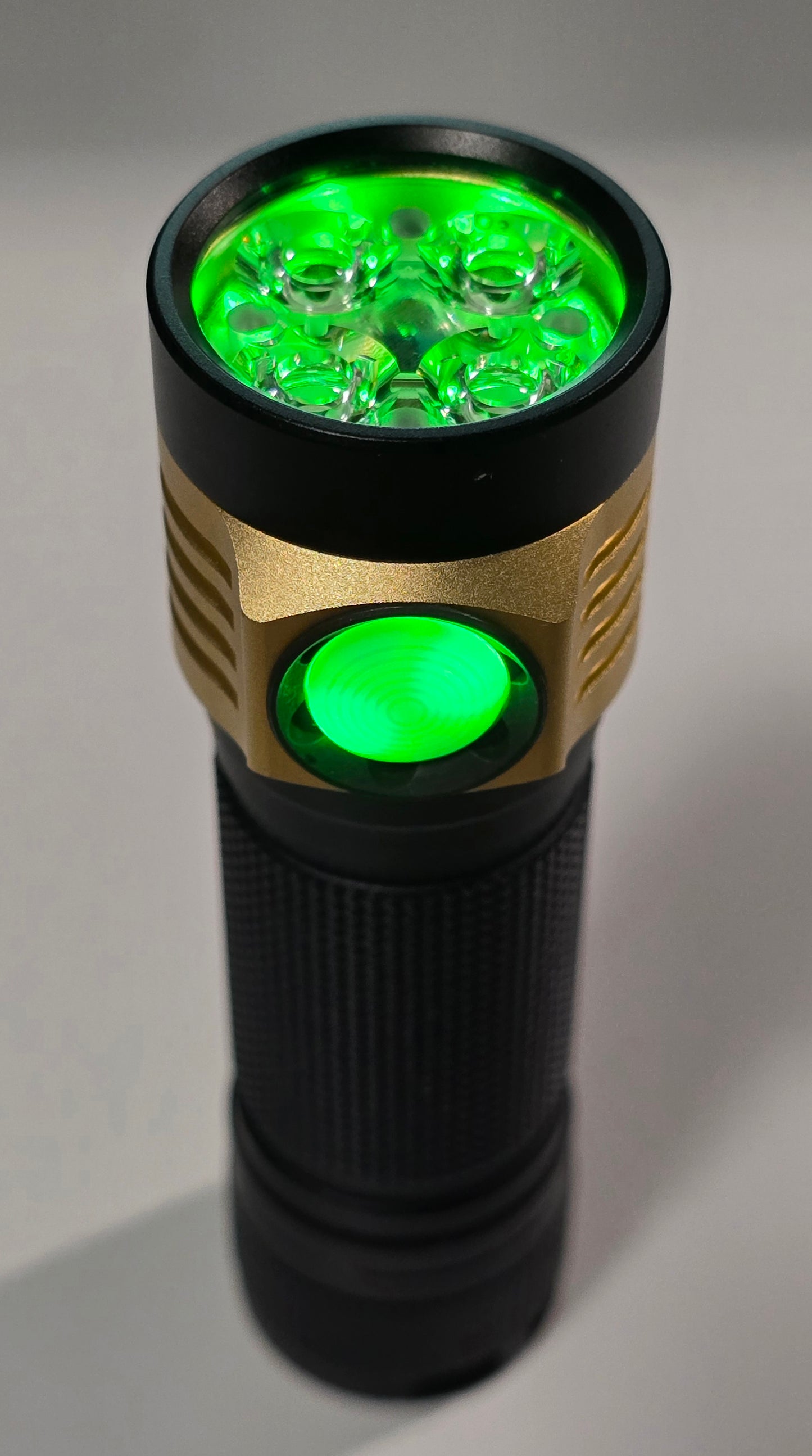

ALL COLORS + RGB
INCLUDEDS OPTIONS:

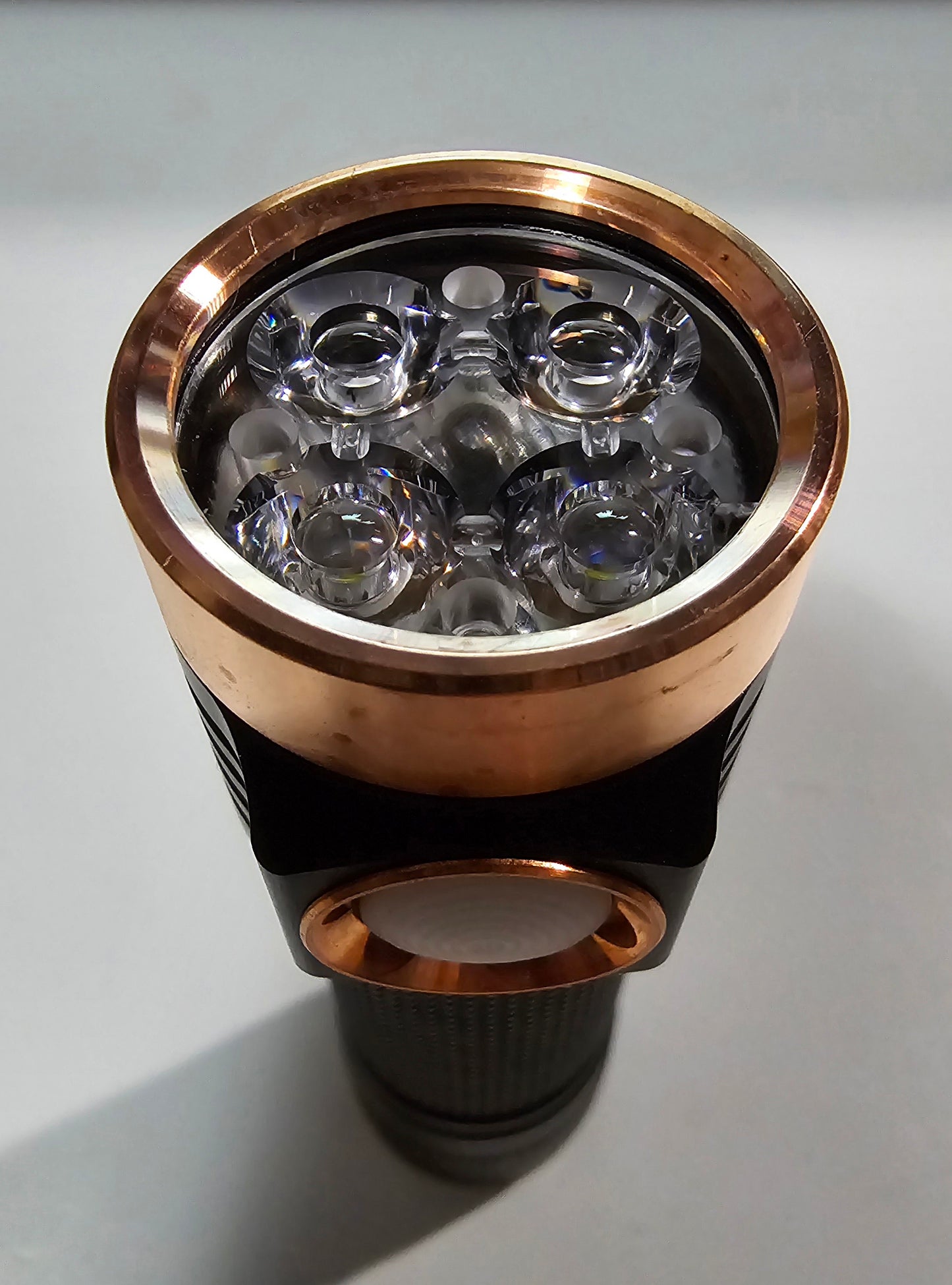

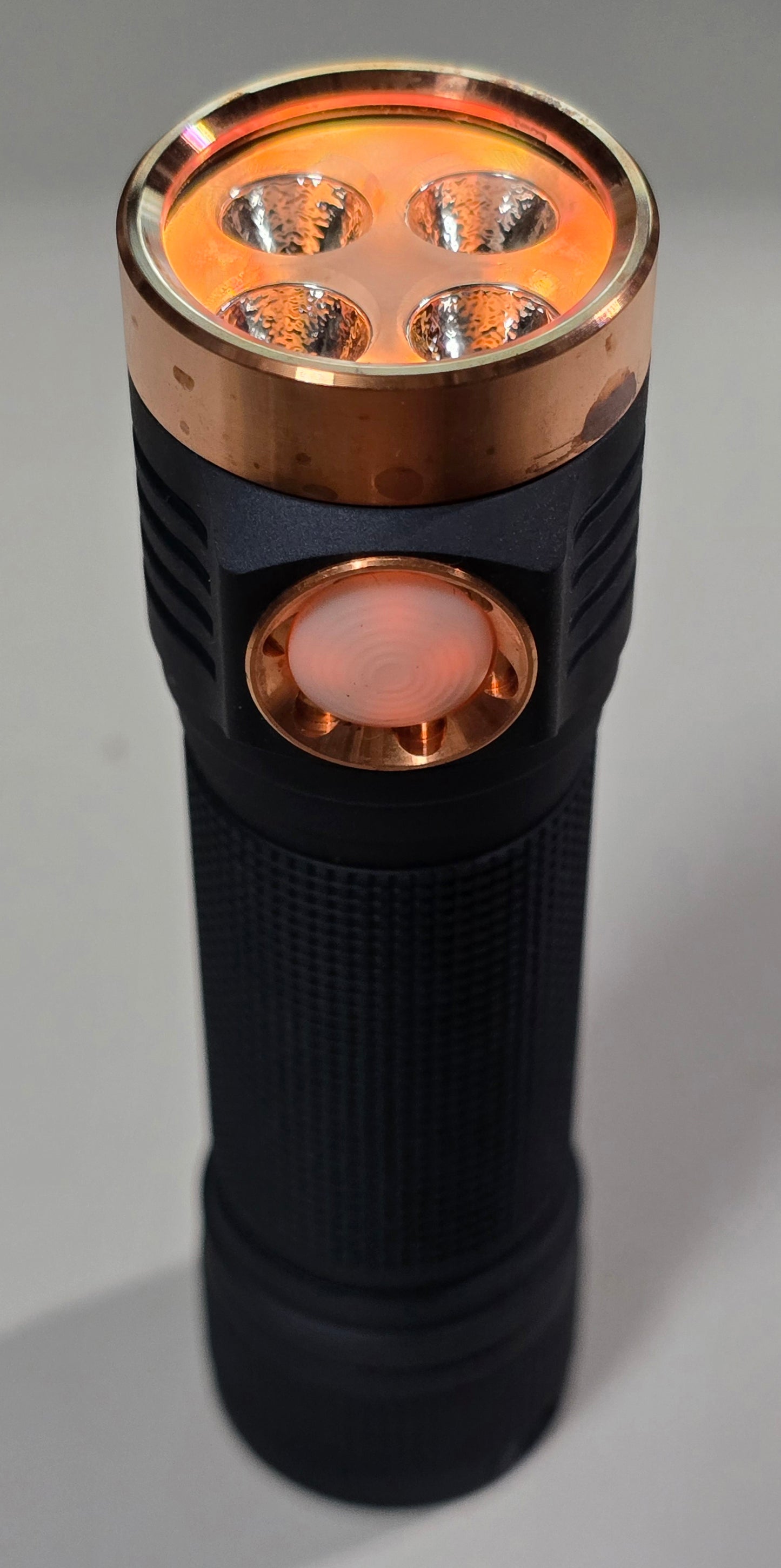

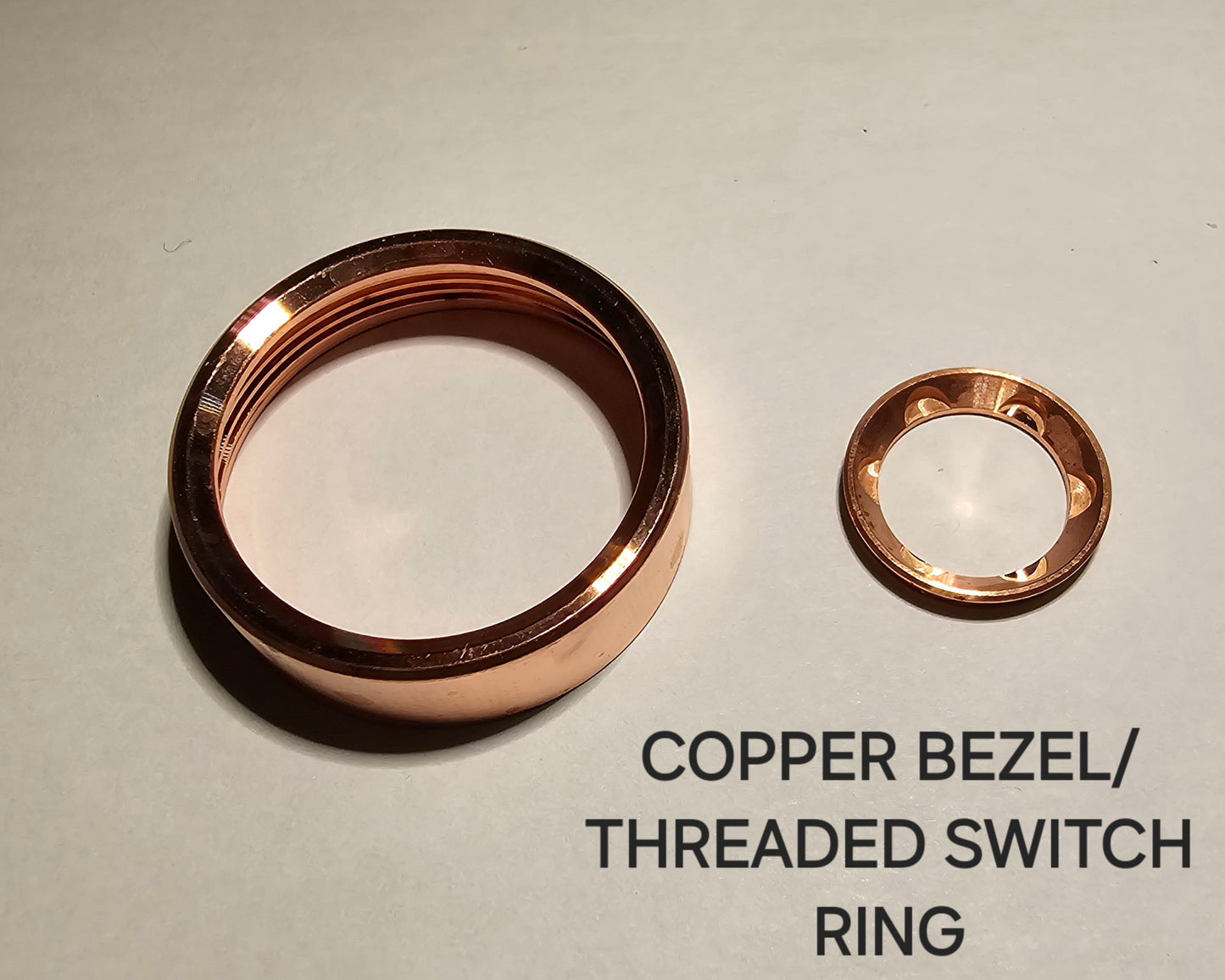

STAINLESS BEZEL
DEEP CARRY POCKET CLIP
MAGNETIC CAP
LANDYARD
EXTRA ORING
ANDURIL 2 PRINTED INSTRUCTIONS
Features:
• CNC machined from aircraft-grade aluminum
• Efficient UK made Carclo Quad LED optics
• Unihead construction
• High lumen output and low moon output
• Ramping interface

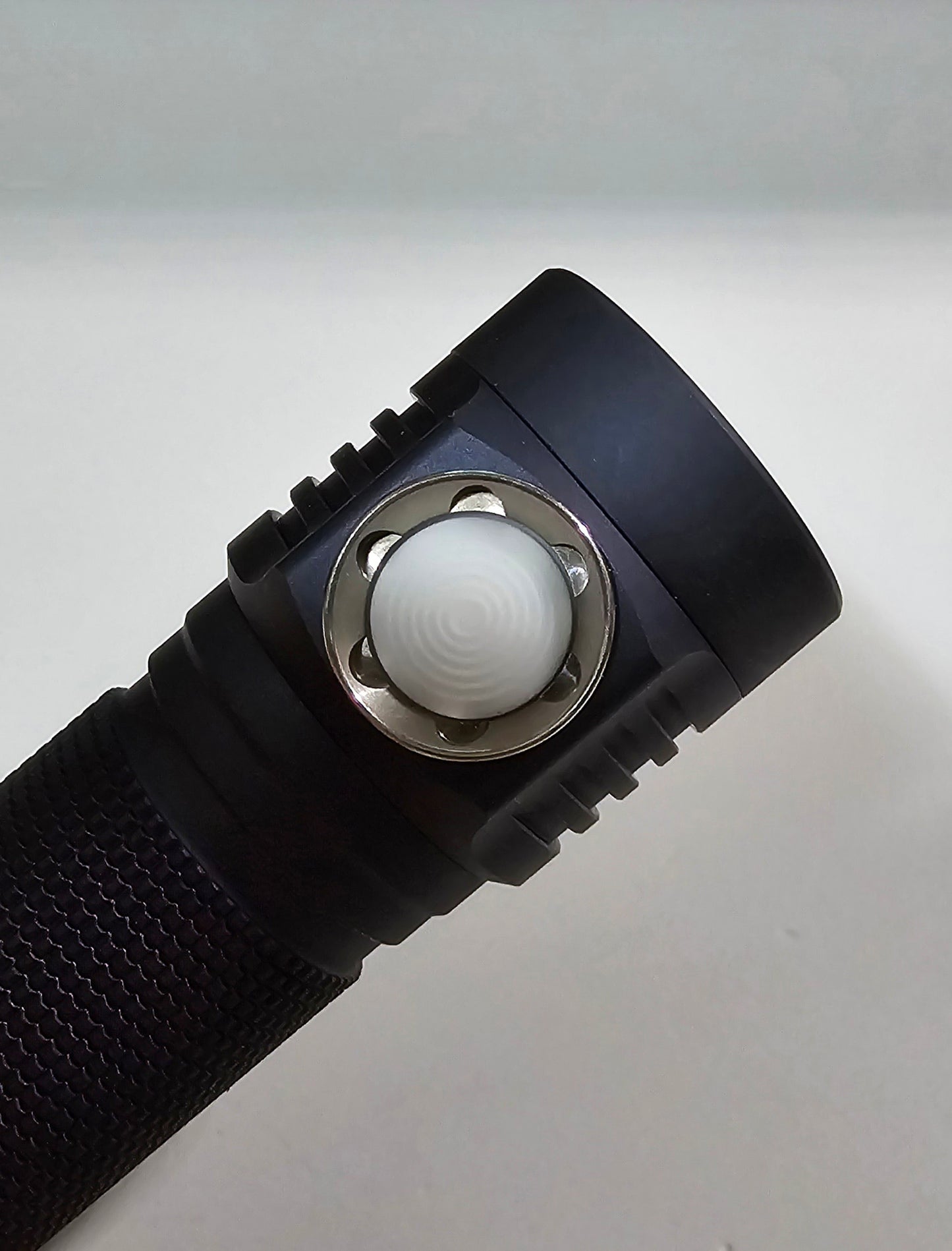

• Electronic soft touch switch
• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.
• Temperature step-down
• Waterproof and dustproof to IP67 standard (up to 1 meter)
• Default 18650 body with optional 18500 or 18350 battery tube
• Dimensions: 95mm(length) * 28mm(head) * 24mm(body), 80mm(lenght 18500), 65mm(lenght 18350)
OTF lumen output at start-up:

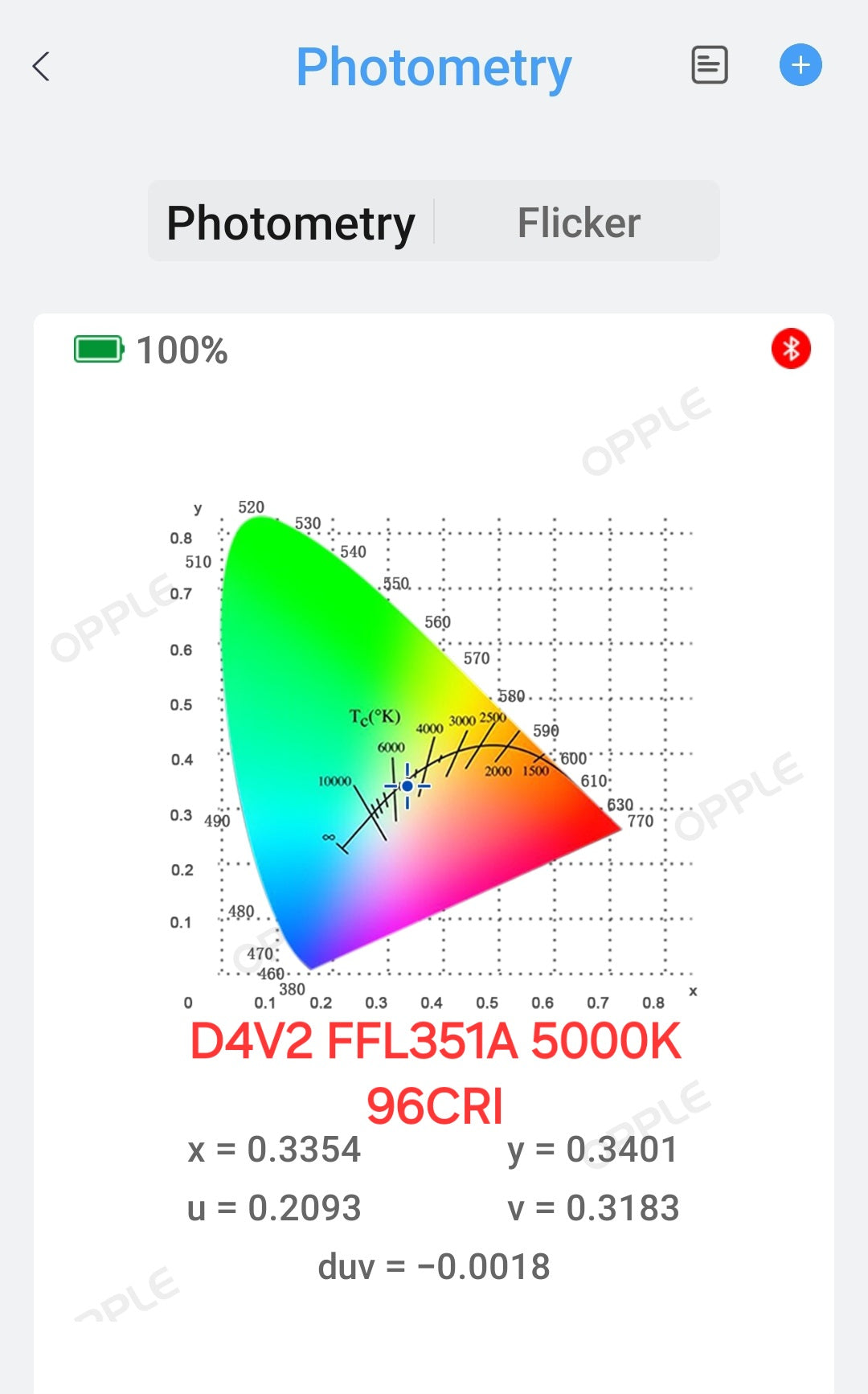

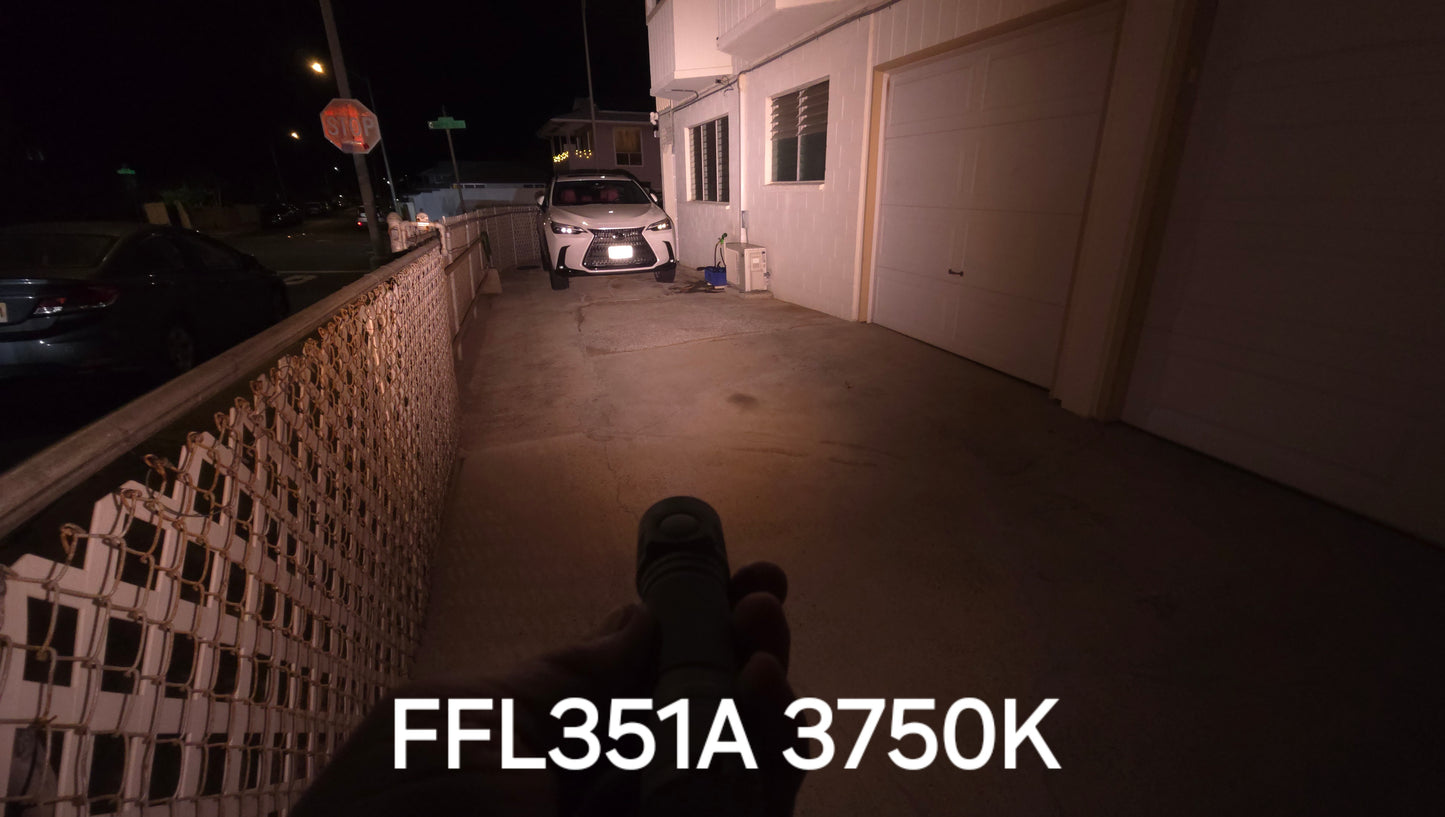

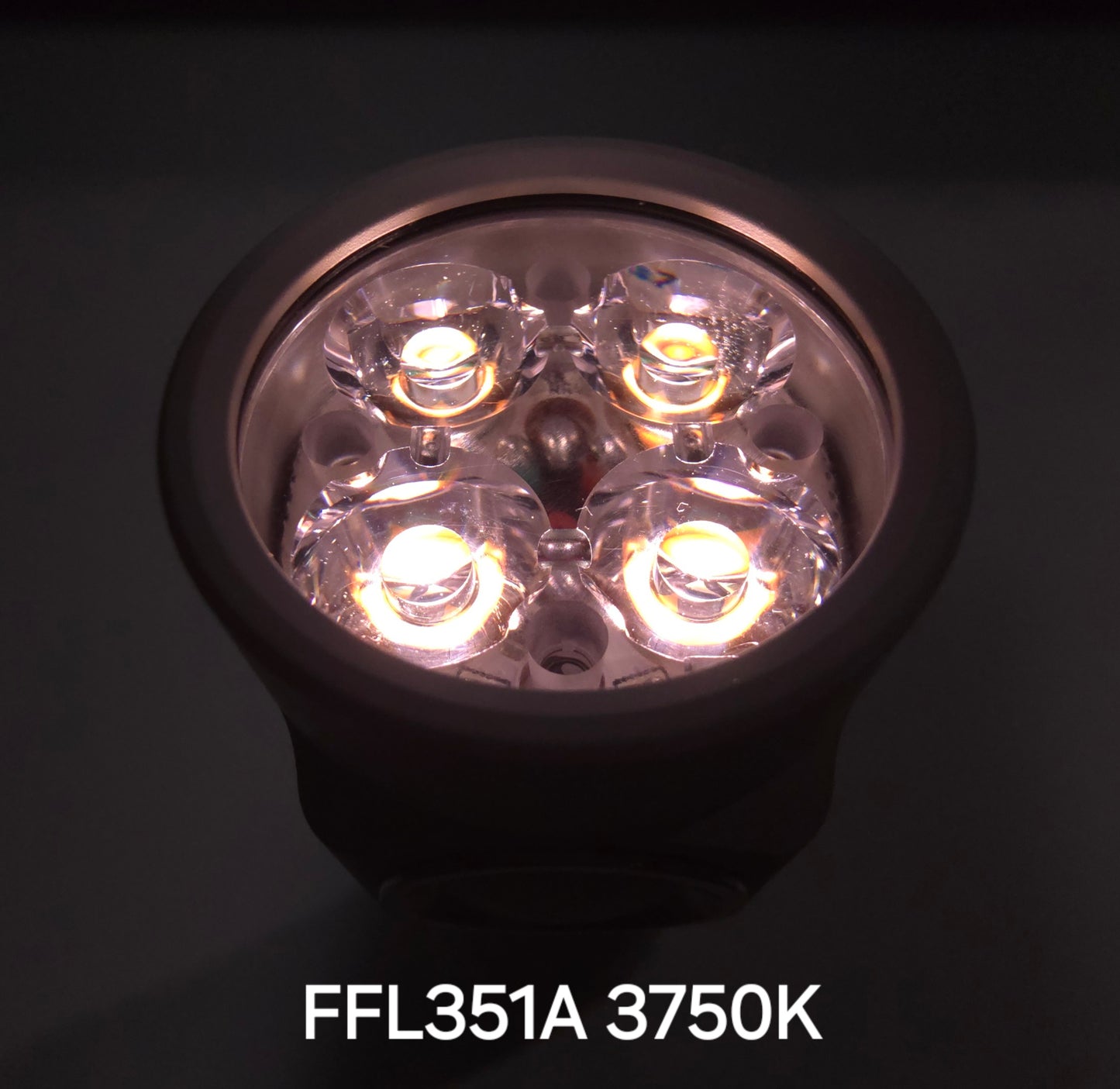

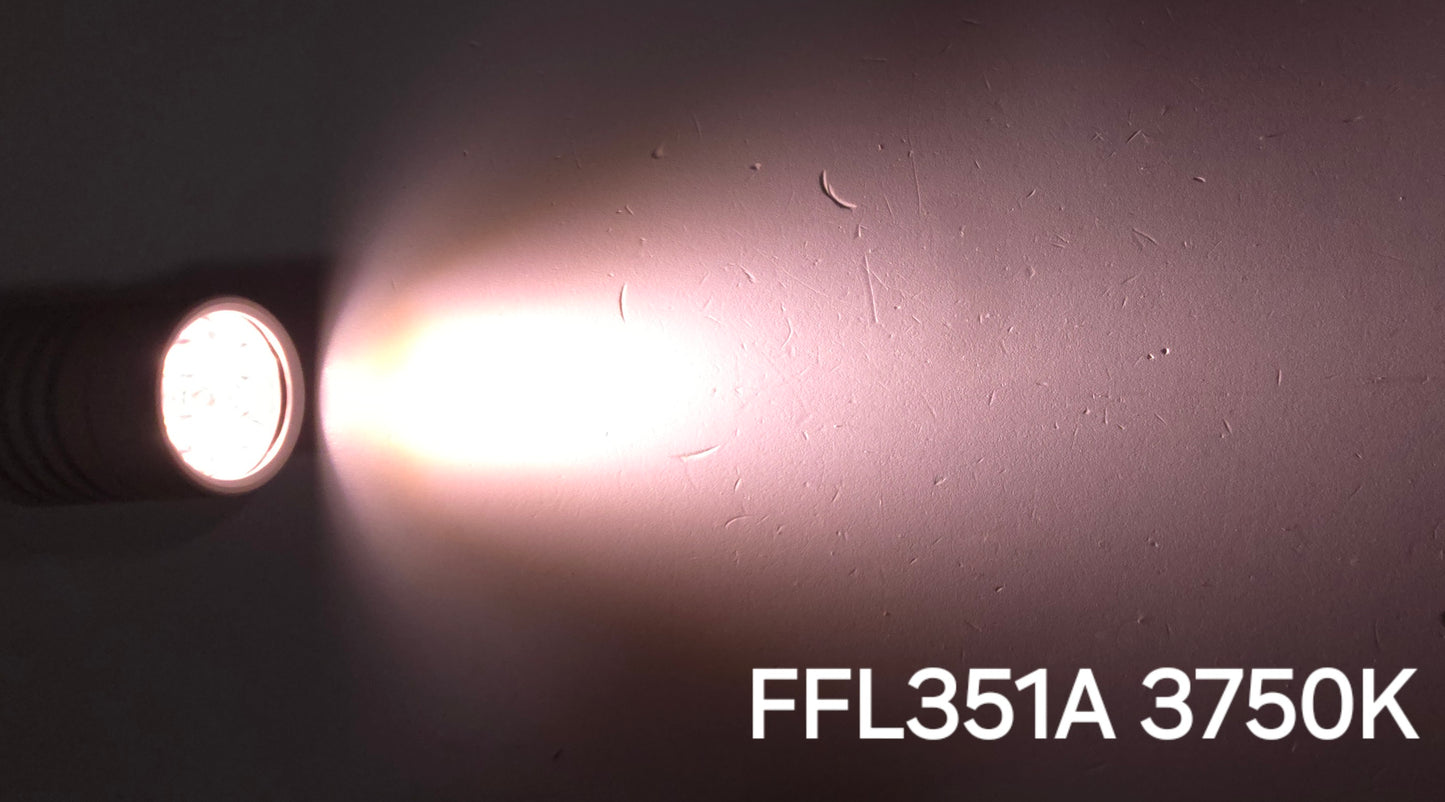

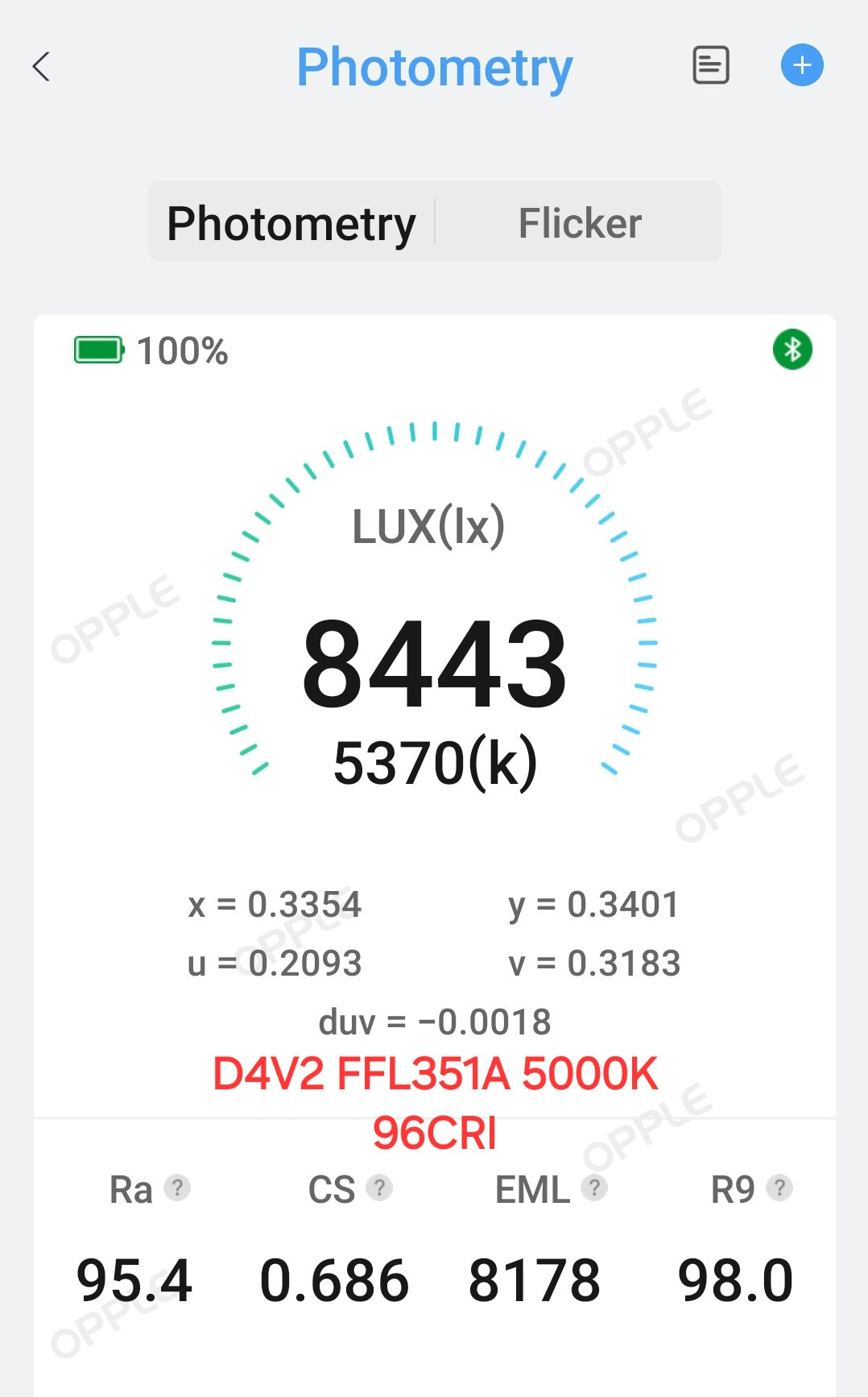

FFL351A 5000K: 4100LM (TKLAMP TEST)
Nichia 519A : 3800lm
Nichia E21A : 1200lm
SST-20 6500K/5000K: 4200lm
SST-20 4000K/2700K 95CRI: 3000lm
This product uses free software of Anduril 2, distributed under the terms of the GPLv3.
Source code is available from http://tiny.cc/TKAnduril
