EMISAR D4V2 E21A TINT RAMP/INSTANT CHANNEL SWITCHING
NOTE: THIS IS CUSTOM "BUILT-TO-ORDER" WILL SHIP ACCORDINGLY!
The light works with flat top, unprotected battery only, button top or protected battery may damage the light
Anduril 2 firmware, user choose the tint ramping or instant channel switching (operation video for reference)
Advanced mode Off -> 9H, first menu item:
0C: tint-ramping (smooth)
1C: instant channel switching

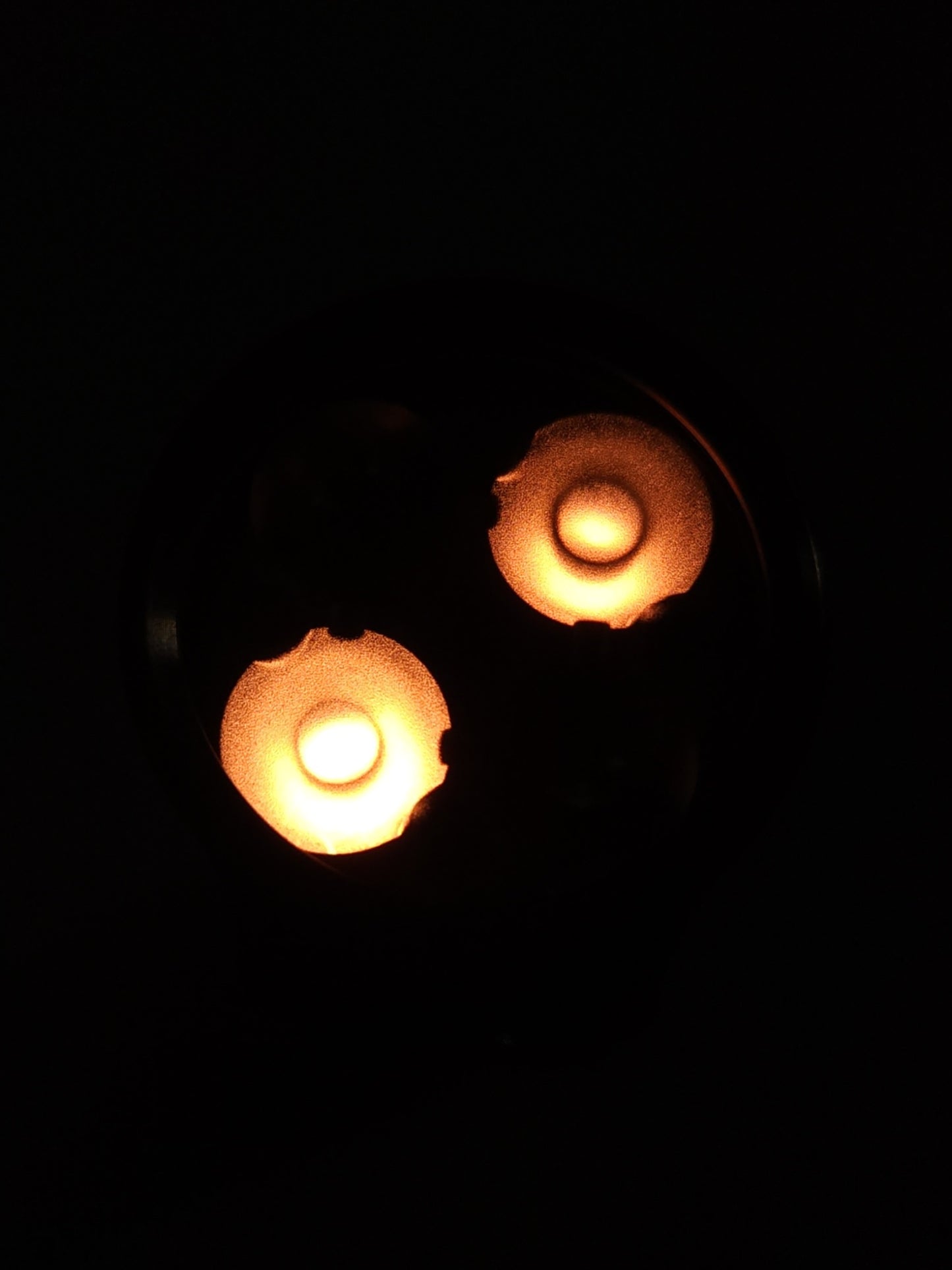

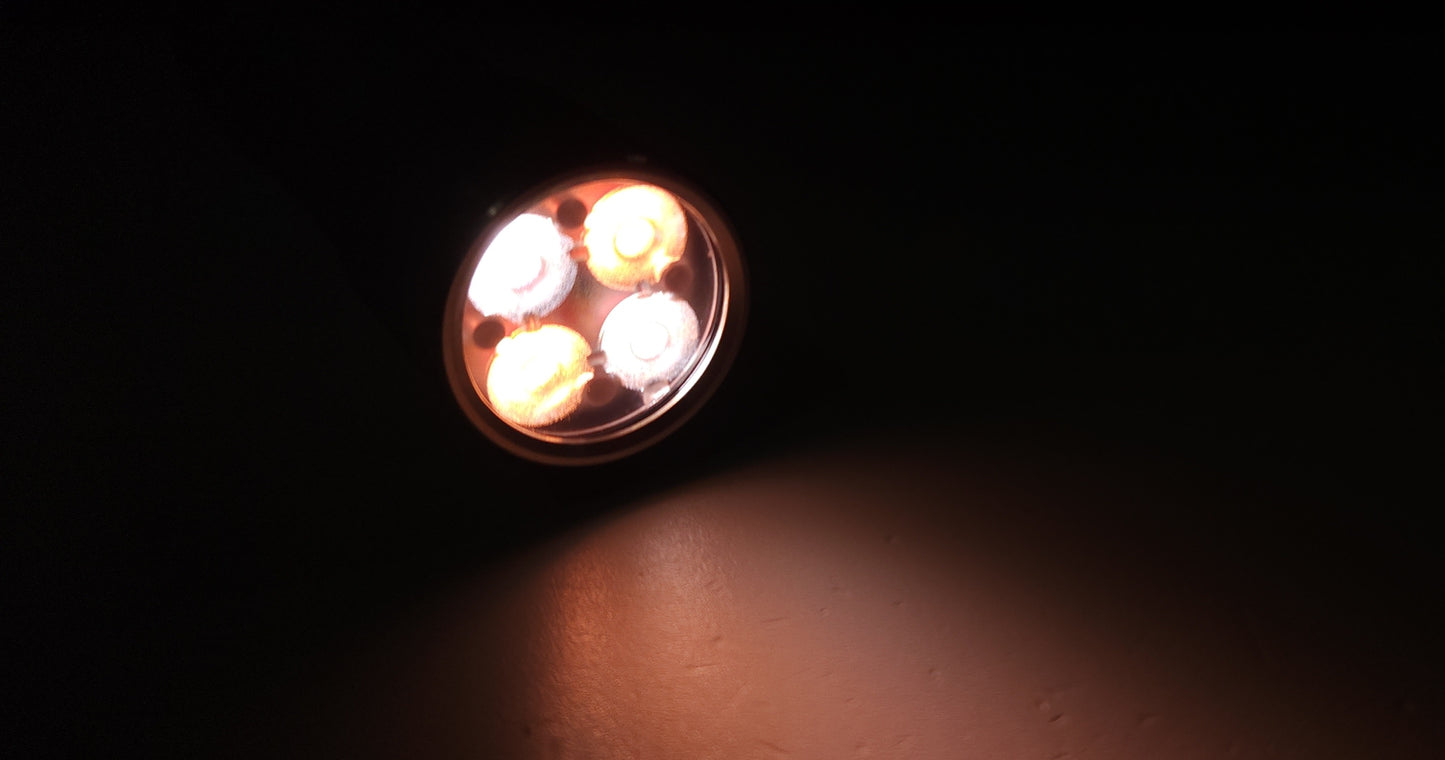

4 LEDs can be on at the same time with full power.
Emisar D4V2 puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing. Unprotected battery works only (not included in the price), D4V2 does not work with protected battery.
FIRMWARE:
TINT RAMP/CHANNEL SWITCHING
OPTIONAL: NEW 2-CH FIRMWARE
DRIVER:
MODIFIED DUAL 5A DRIVER
EMITTER OPTION:

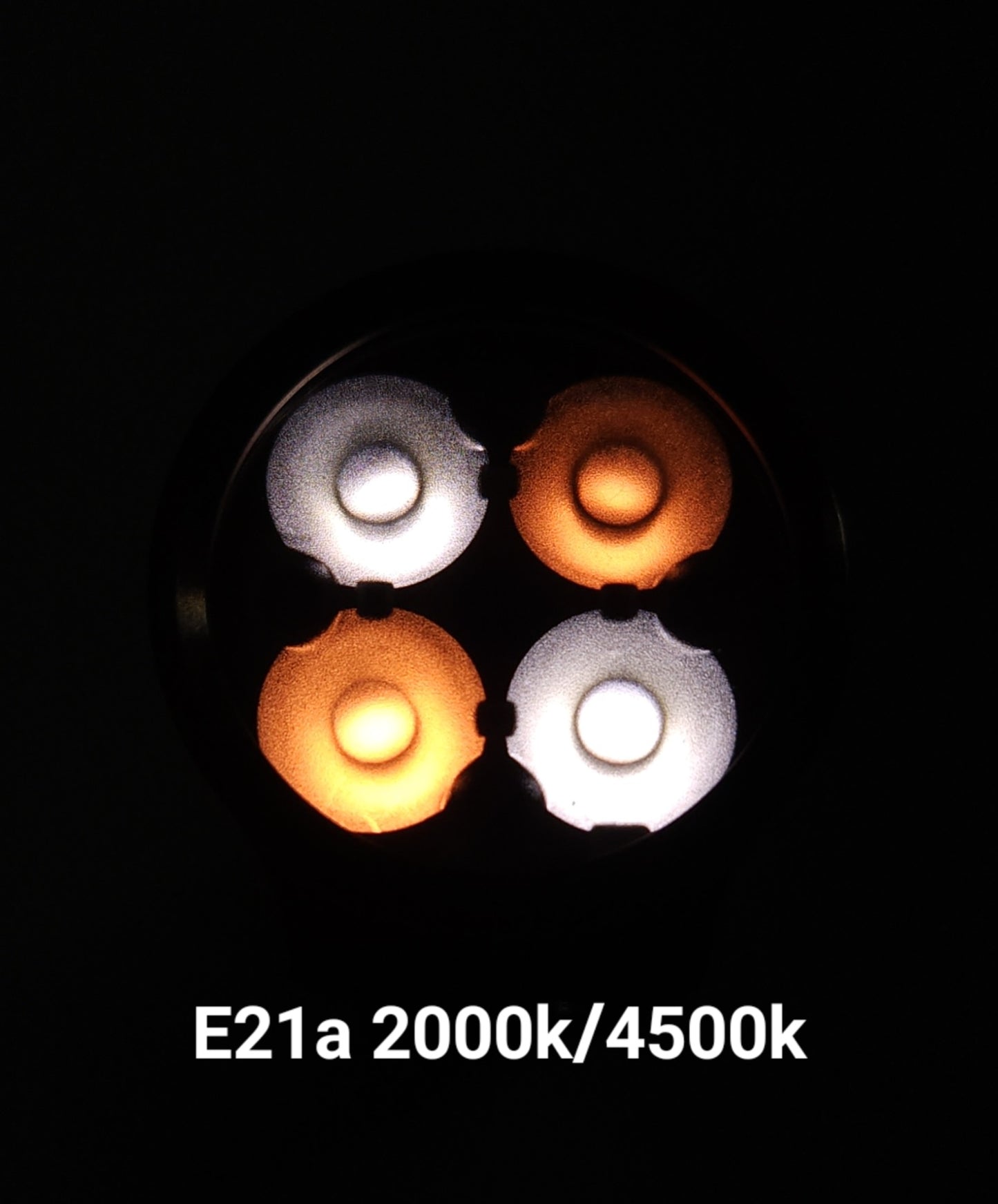

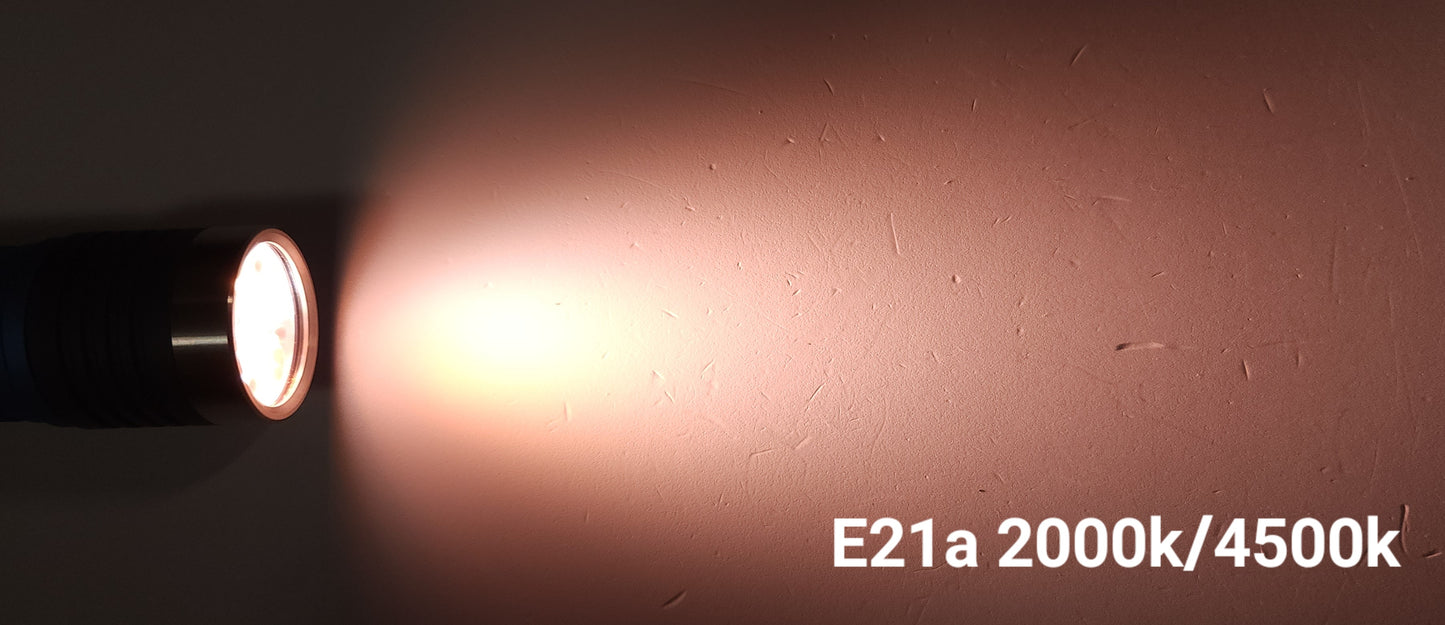

NICHIA E21A ONLY
COLOR TEMP:
2000K
3500K
4500K
OUTPUT LUMENS:
1200LM
INCLUDED OPTIONS:
CARCLO 10623 FLOODY OPTICS OR 10622 STANDARD OPTICS
DEEP CARRY POCKET CLIP
MAGNETIC CAP OPTION
BATTERY:
18650 FLAT TOP UNPROTECTED CELL MIN 10A (NOT INCLUDED)
Features:
• CNC machined from aircraft-grade aluminum
• Efficient UK made Carclo Quad LED optics
• Anti-reflective coated glass lens
• Unihead construction
• High lumen output and low moon output
• Ramping interface

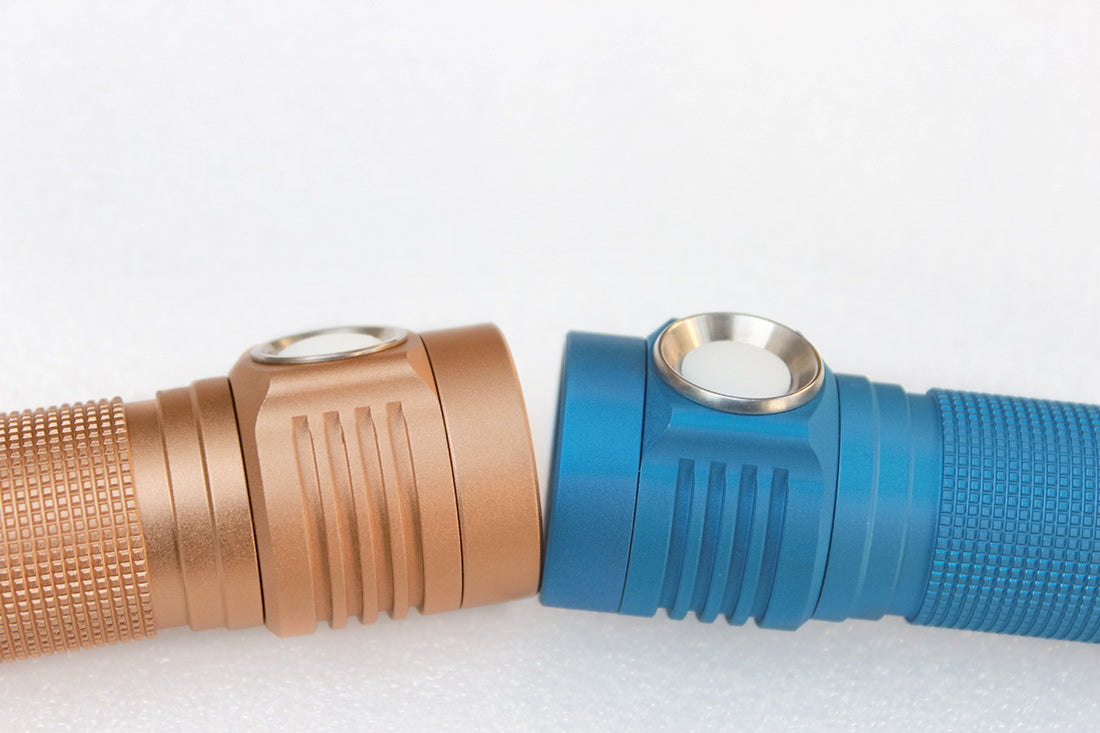

• Electronic soft touch switch
• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.
• Temperature step-down
• Waterproof and dustproof to IP67 standard (up to 1 meter)
• Default 18650 body with optional 18500 or 18350 battery tube
• Dimensions: 95mm(length) * 28mm(head) * 24mm(body), 80mm(lenght 18500), 65mm(lenght 18350)
OTF lumen output at start-up:
Nichia 219C : 3000lm
XP-L HI : 4300lm
SST-20 6500K: 4200lm
SST-20 5000K: 4200lm
SST-20 4000K/3000K 95CRI: 3000lm
This product uses free software of Anduril 2, distributed under the terms of the GPLv3.
Source code is available from http://tiny.cc/TKAnduril
