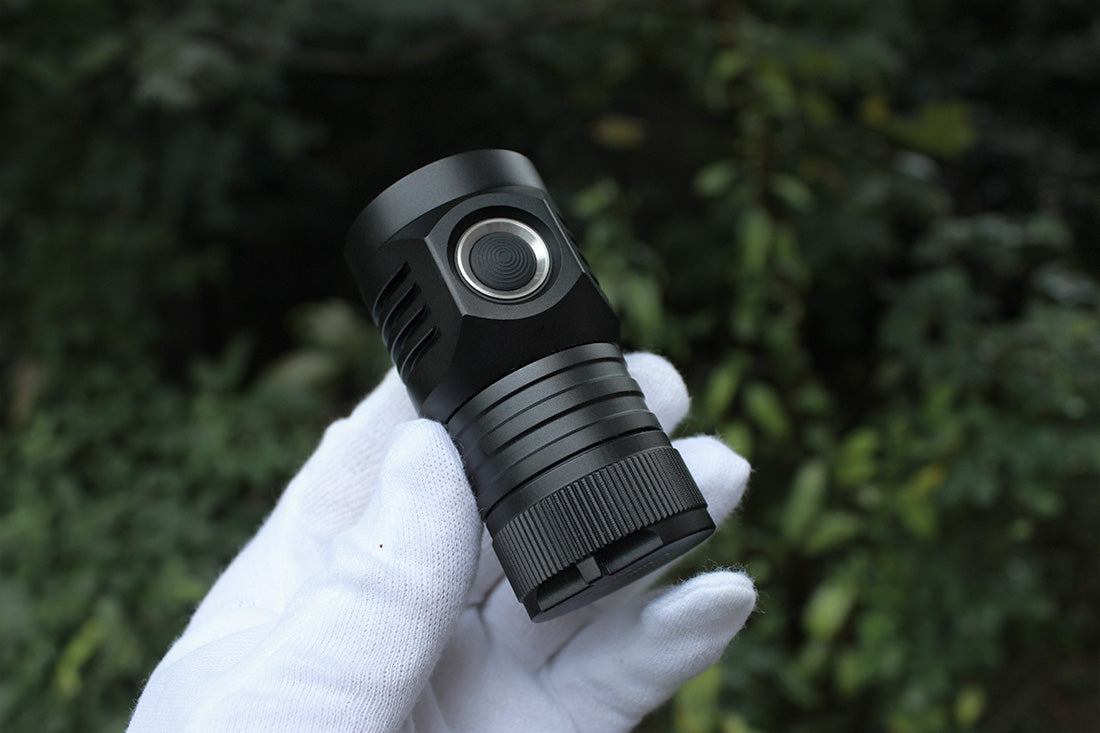

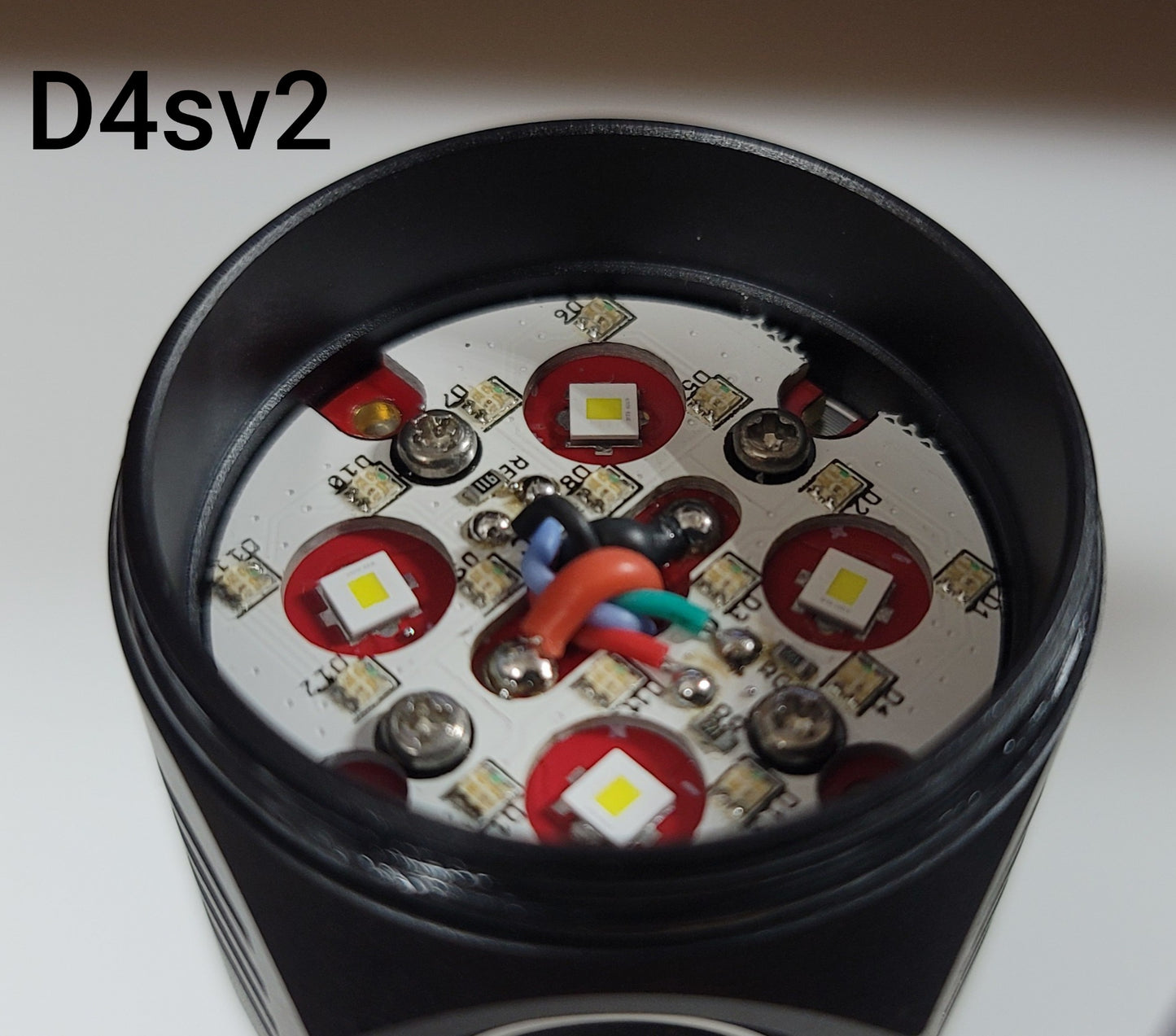

EMISAR D4SV2
NOTE: THIS IS CUSTOM "BUILT-TO-ORDER" WILL SHIPPING ACCORDINGLY!
The boost driver upgrade is available for the quad version of XP-L HI, SST-20, Osram W1/W2, Nichia 219B R9080 versions, each LED receives 2A current. The driver is not compatible with Nichia E21A, Nichia E17A, and mule versions of the flashlight.
Please be noted that the boost driver version will have 40% less output on turbo than the regular version, it is a more efficient driver (90-95%) with longer running time and less heat.
My D4sv2 are built with the lighted switch option by default cost is added to the total price of the D4sv2. Hank doesn't include tbe lighted switch options.
Emisar D4SV2 puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing.
Works with high drain unprotected 26650 cells under 69mm.
DRIVER:
9A LINEAR + FET
$16 12V 2A BOOST DRIVER OPTION (NOT AVAILABLE FOR OSRAM, 5050SMD EMITTERS SFT40 & FFL505A)
9A DUAL CHANNEL/TINT RAMP

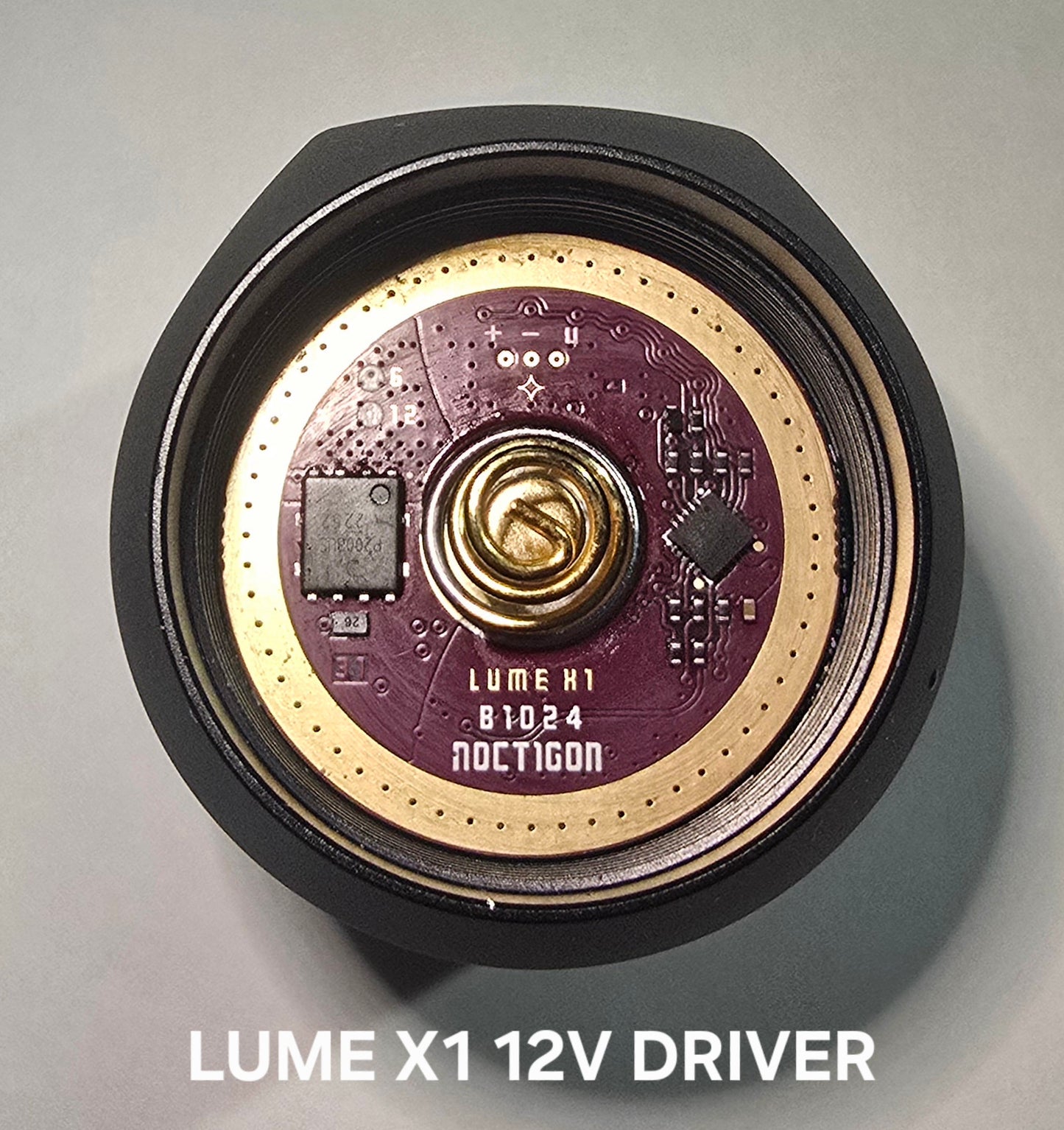

LUME X1 6V 6A BOOST
LUME X1 12V 3X BOOST
USER INTERFACE:
ANDURIL 2 UI

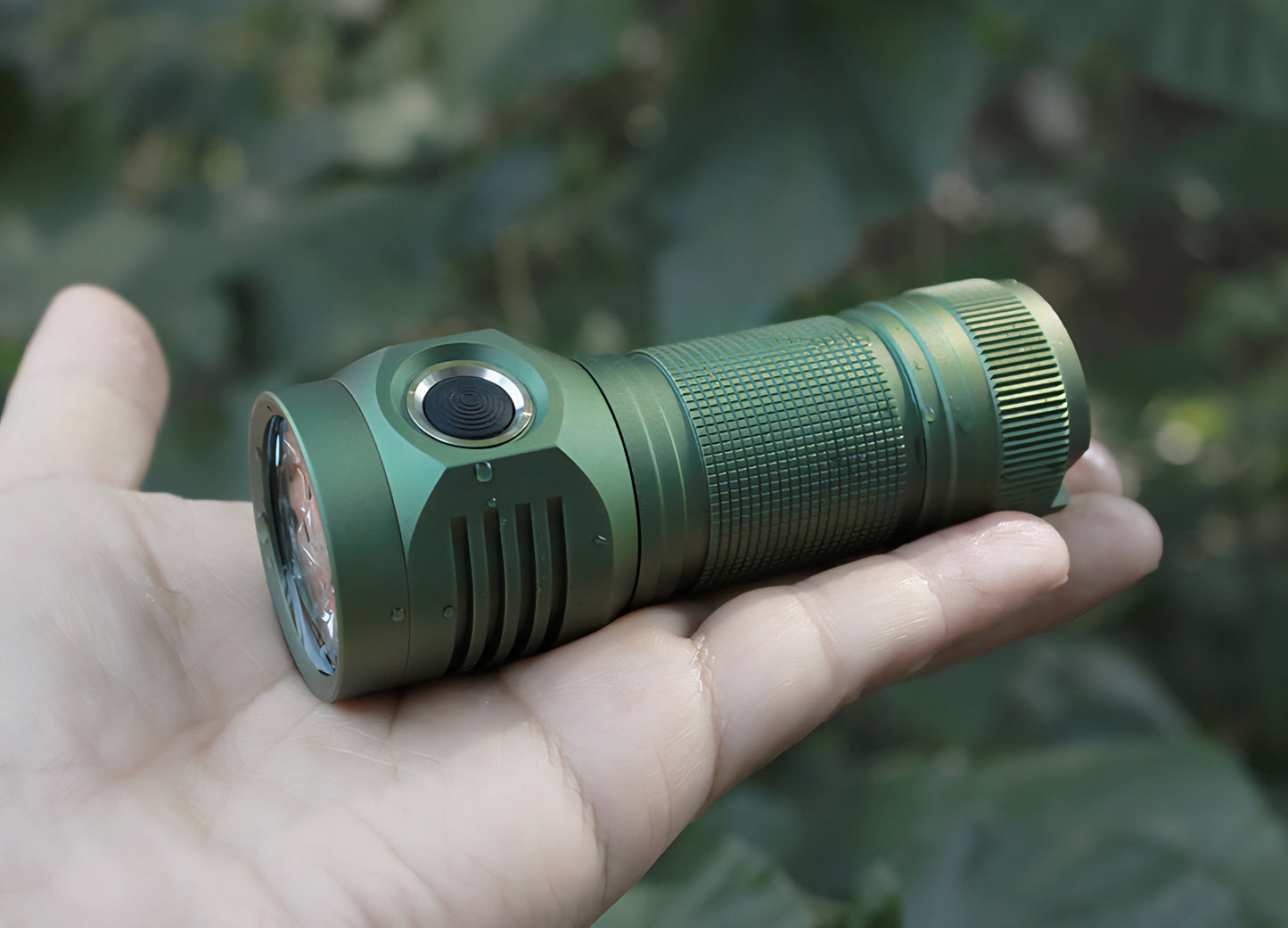

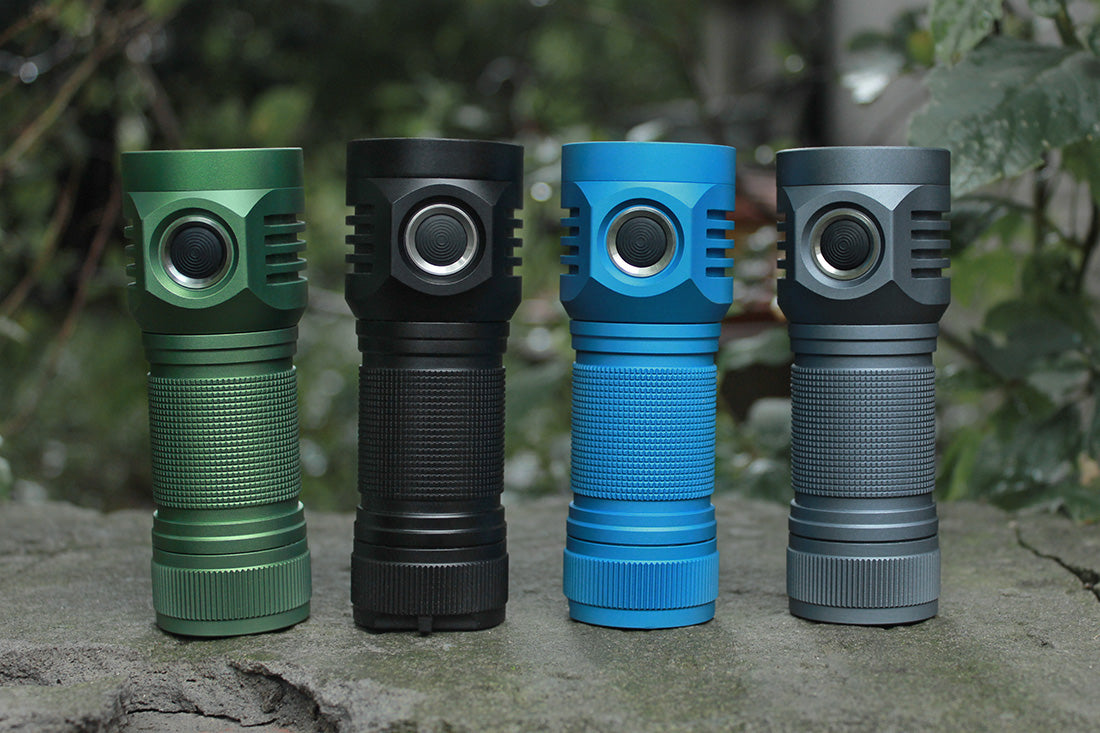

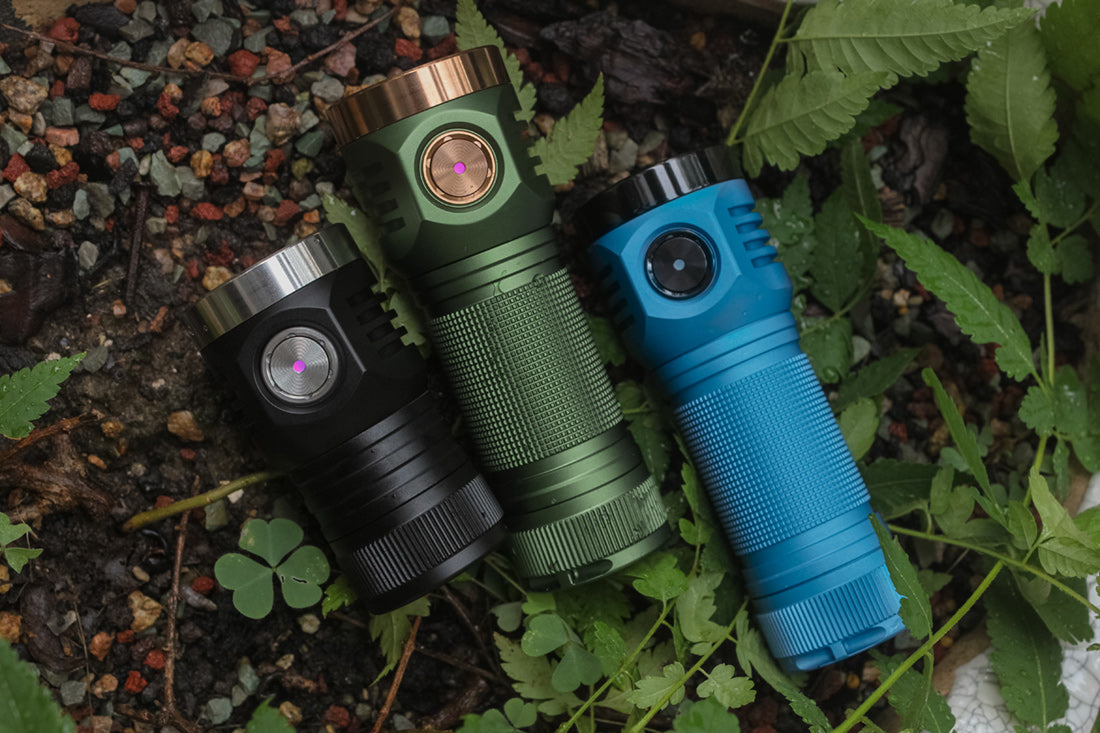

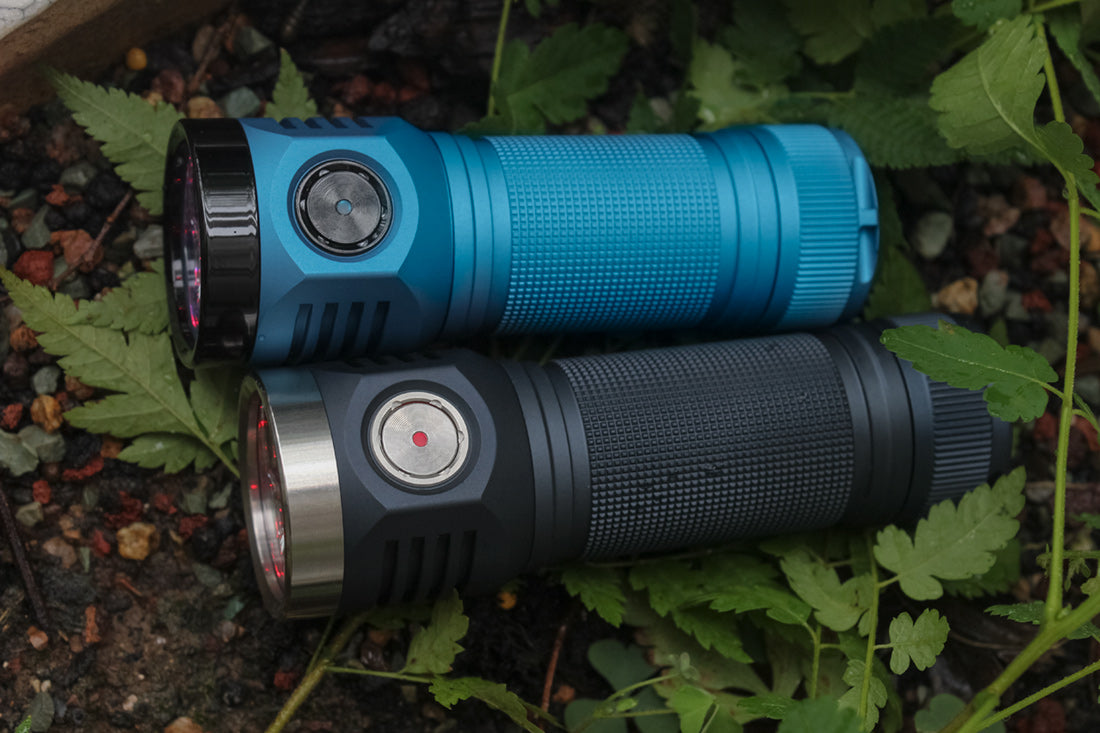

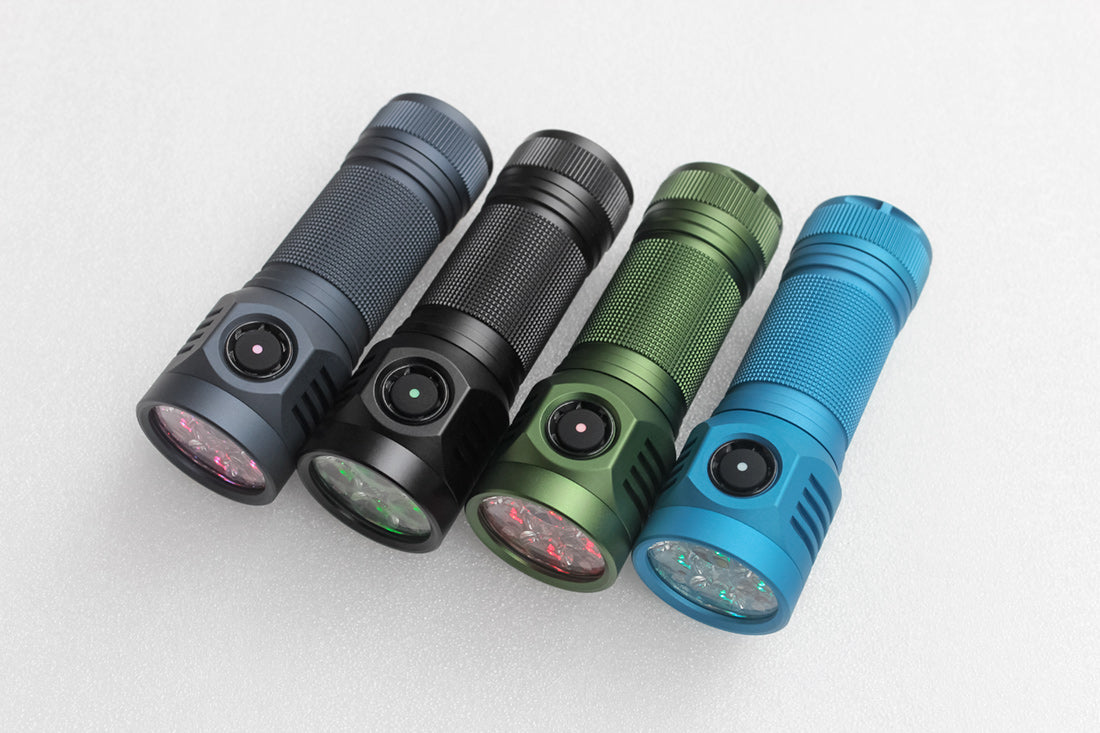

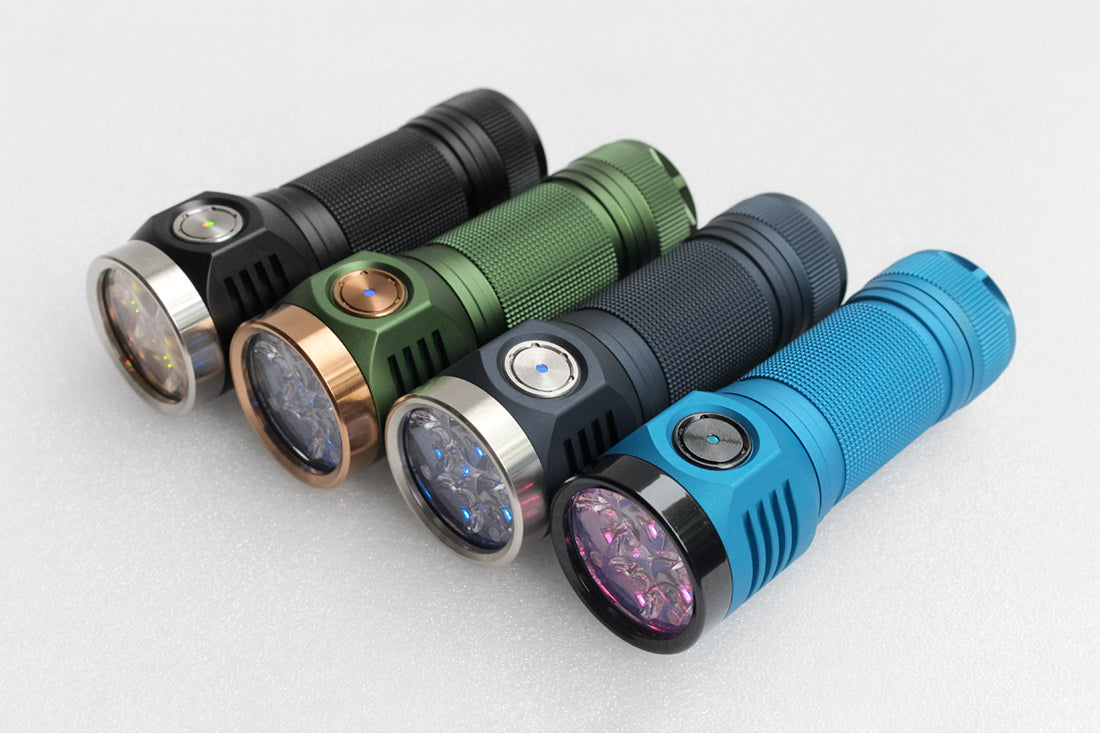

BODY COLORS:
BLACK
GRAY
CYAN

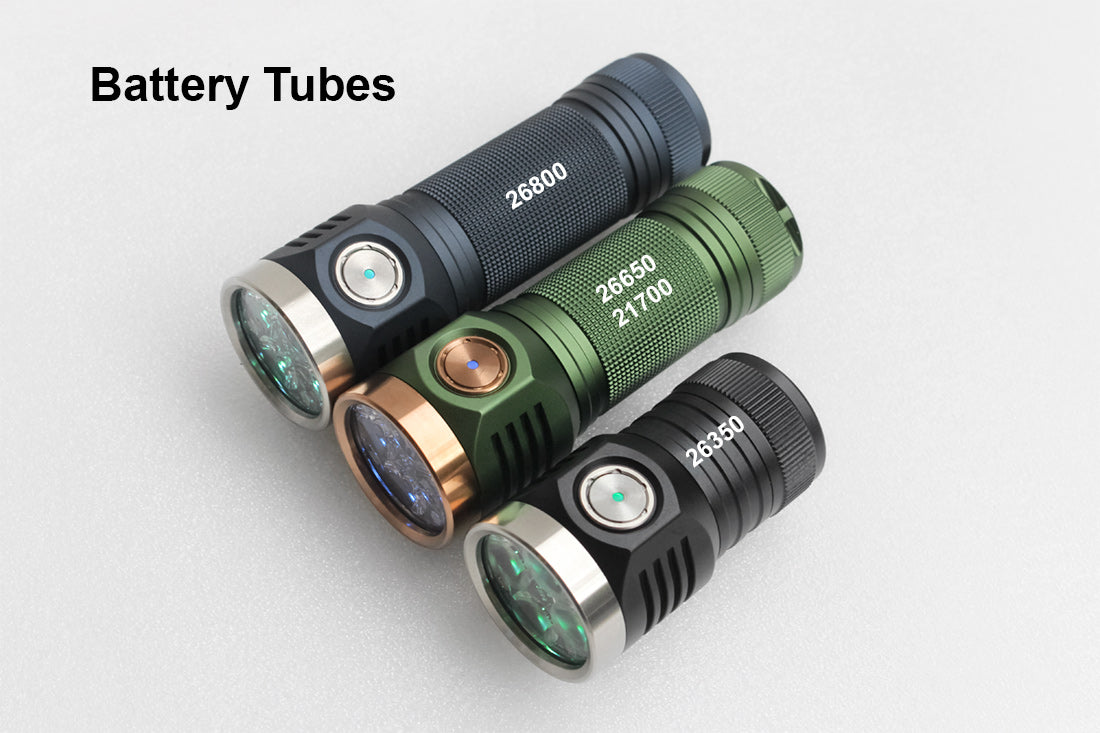

BODY TUBE:
26650 (DEFAULT)
21700 (OPTIONAL)
26800 (OPTIONAL)

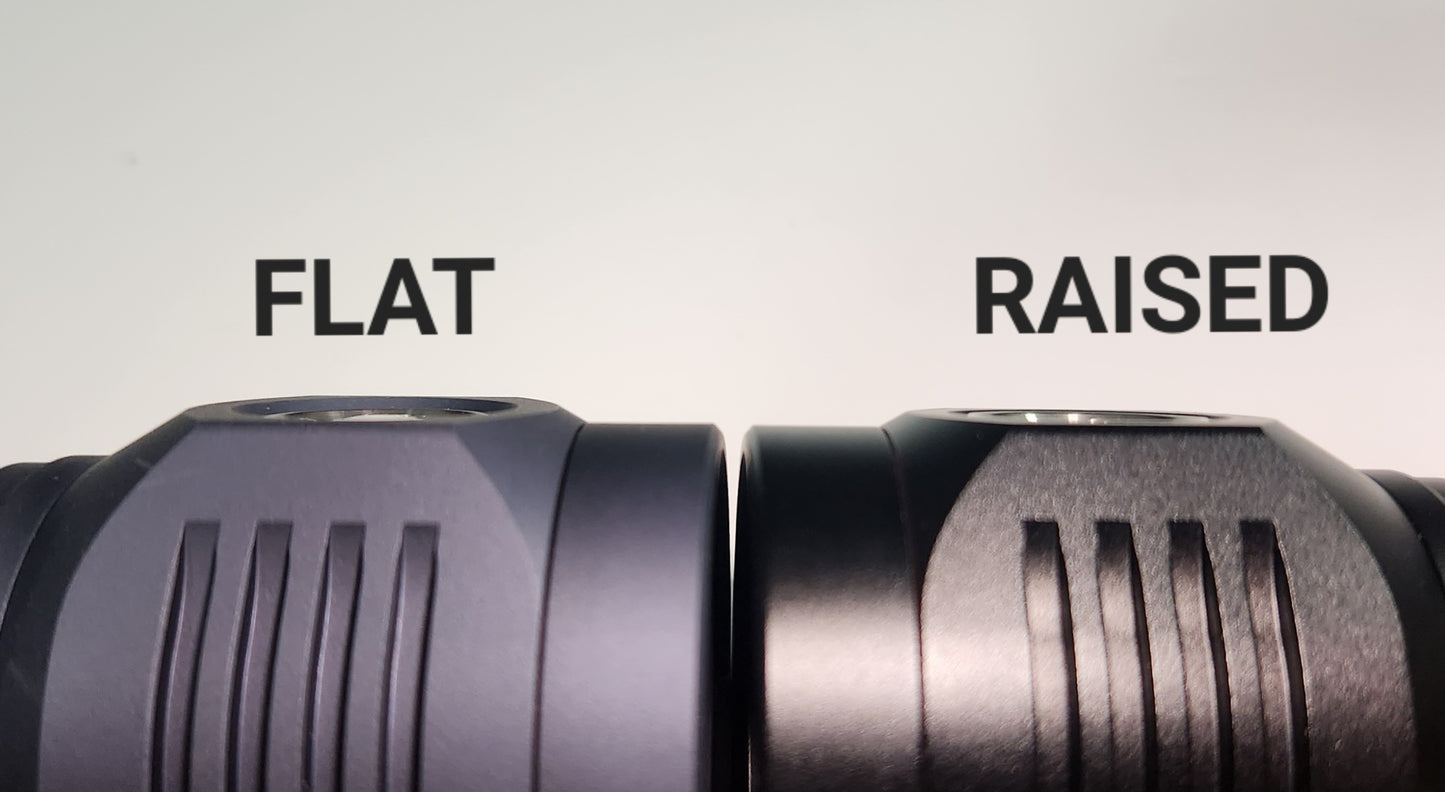

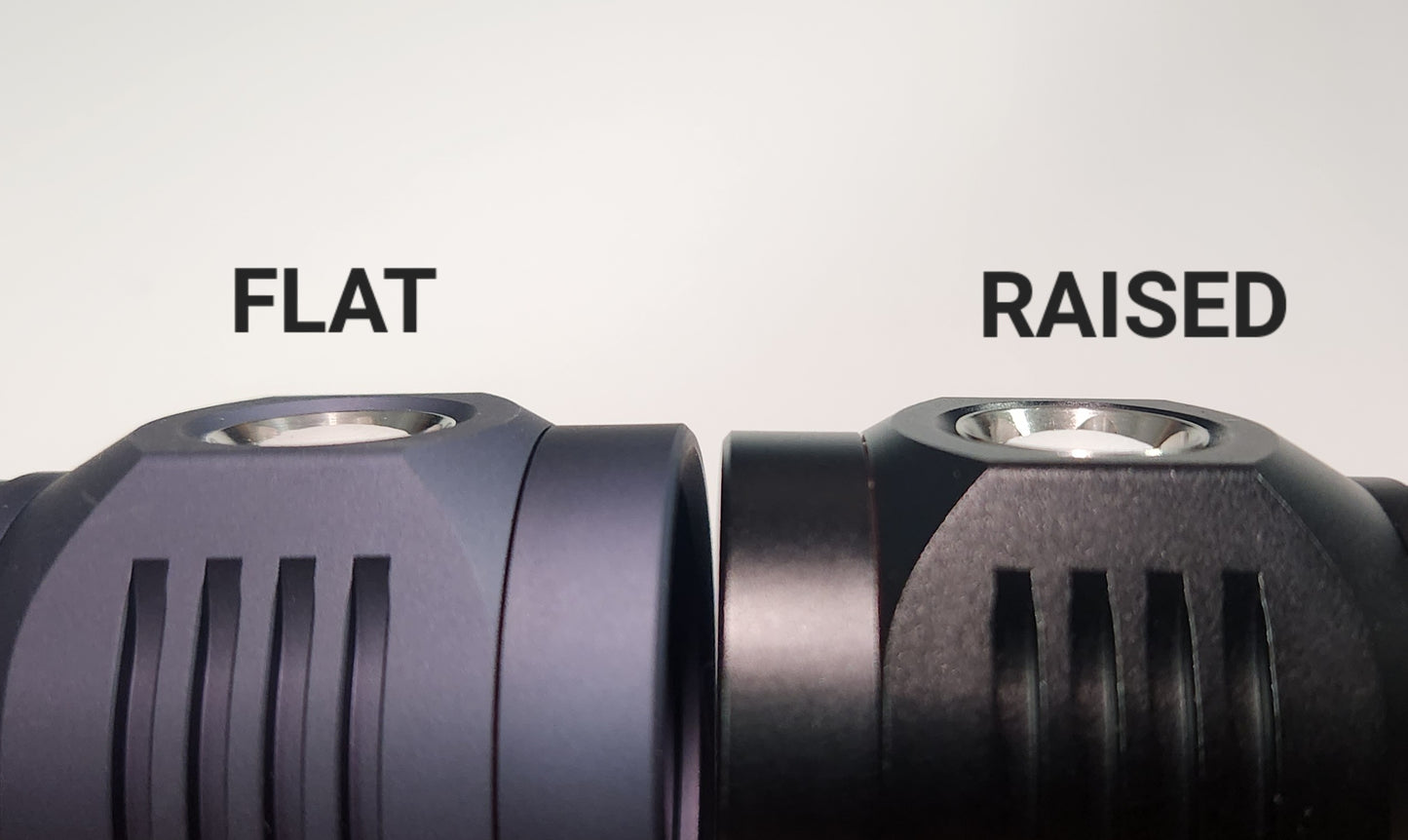

SWITCH RING:
NEW! THREADED FLAT OR RASIED RINGS!

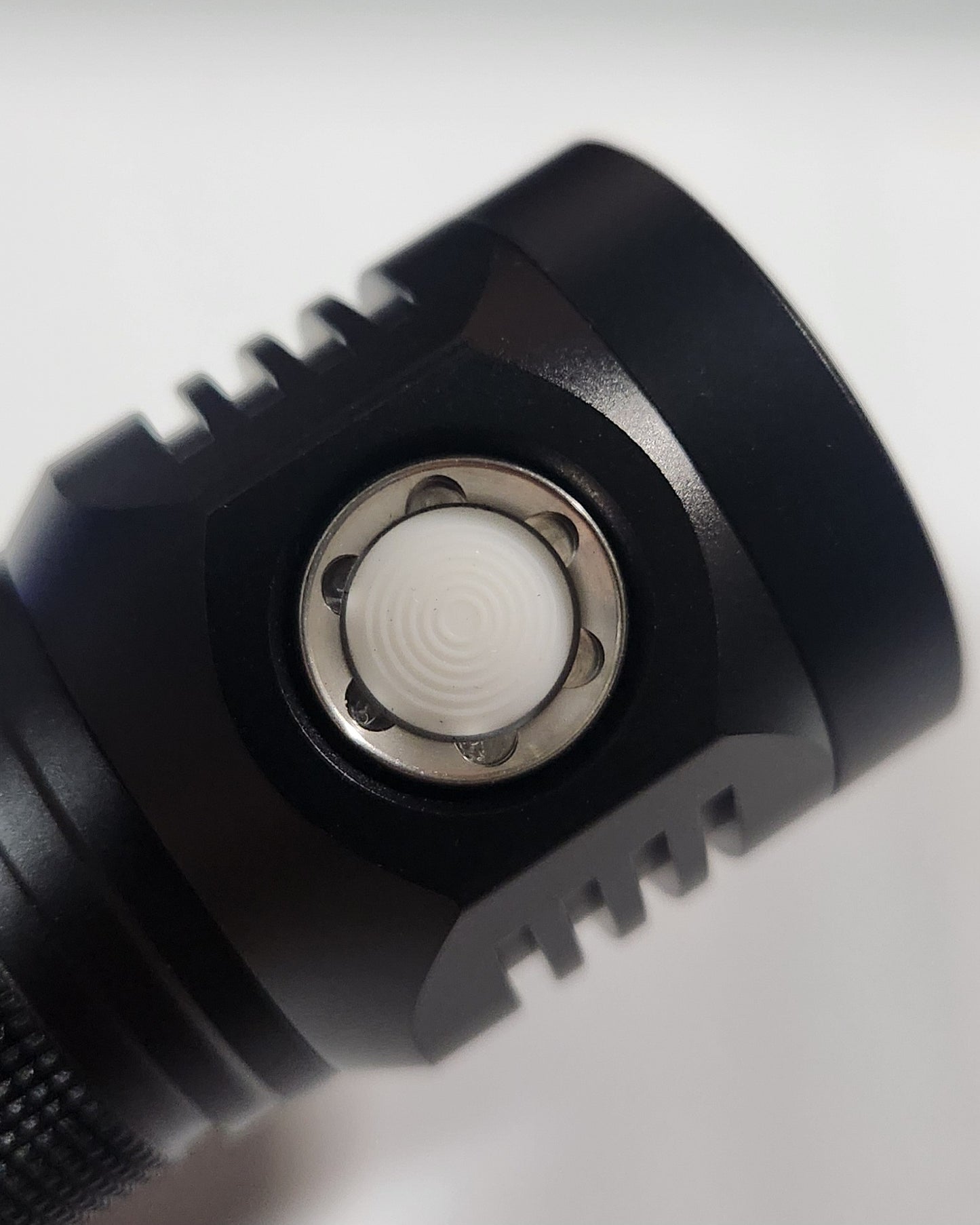

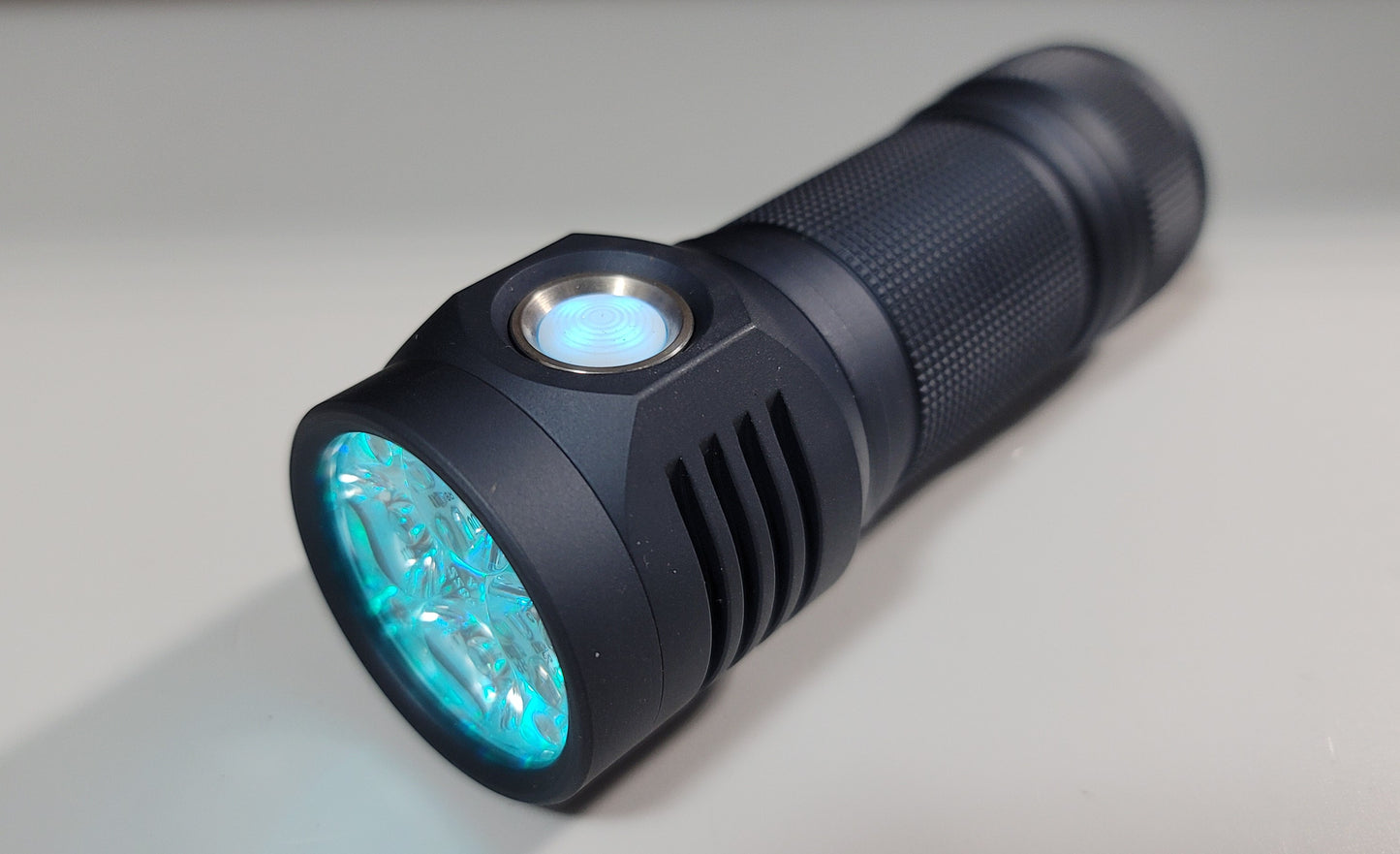

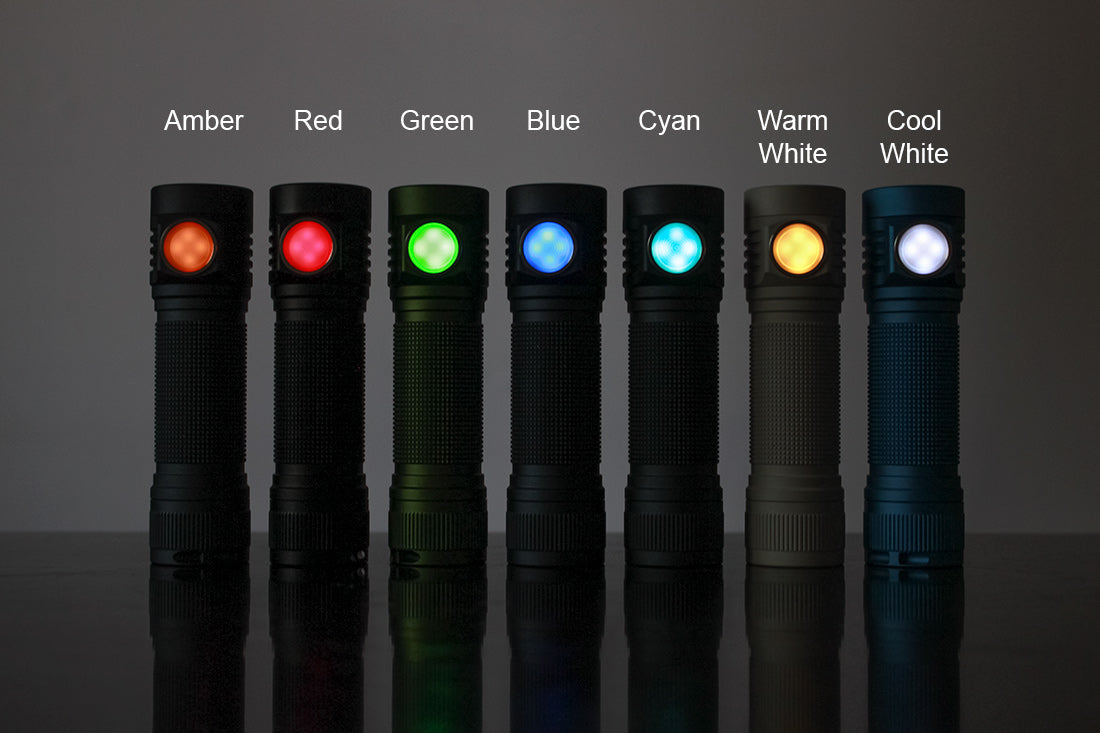

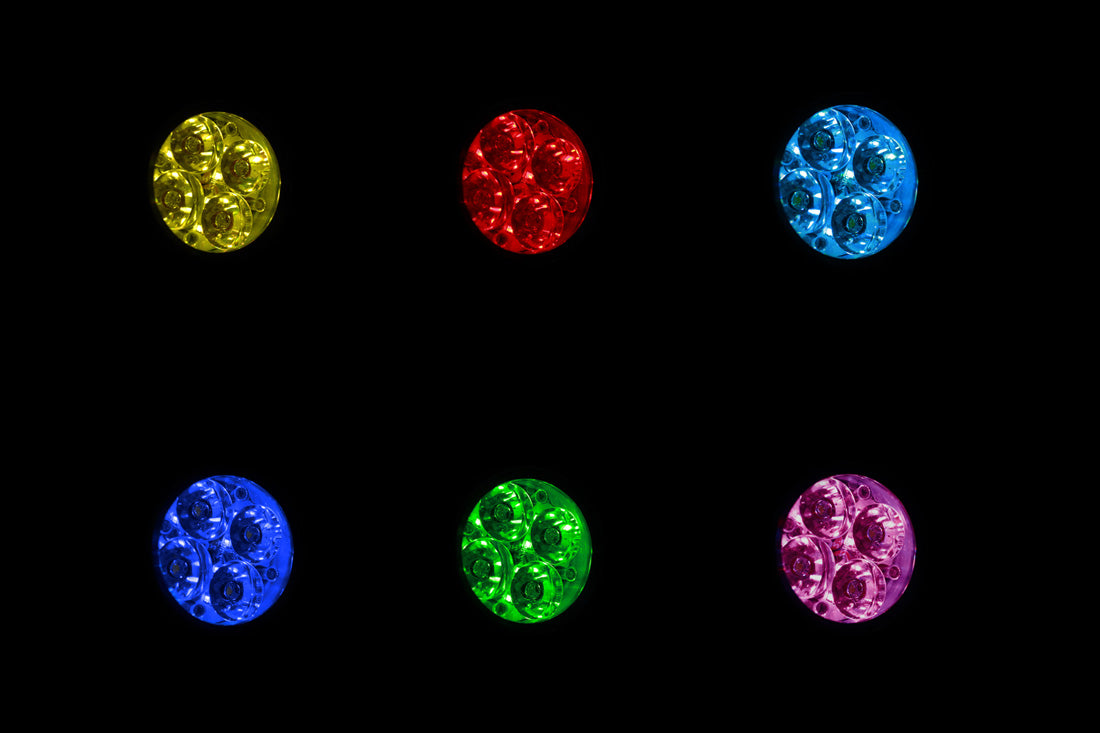

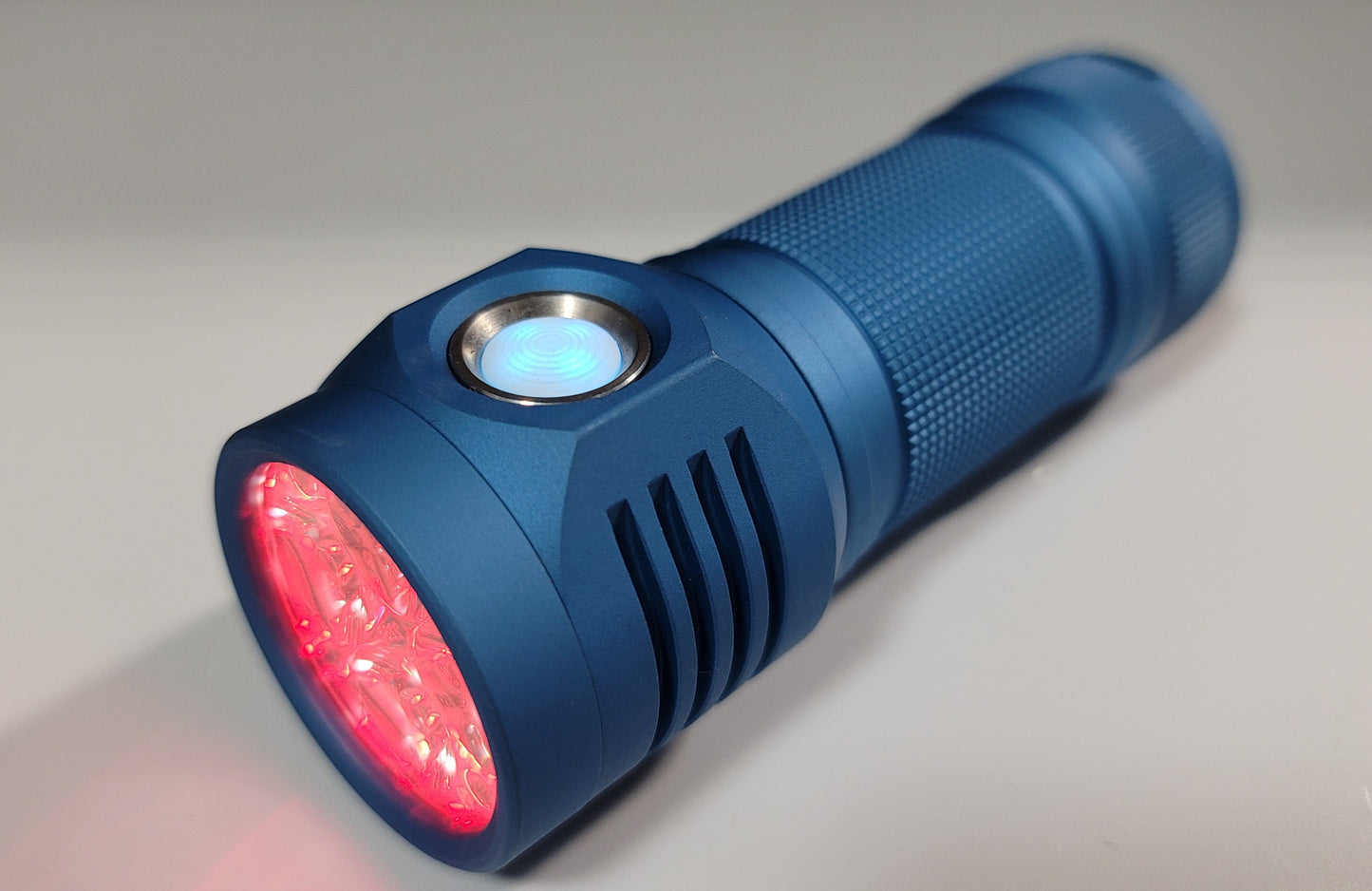

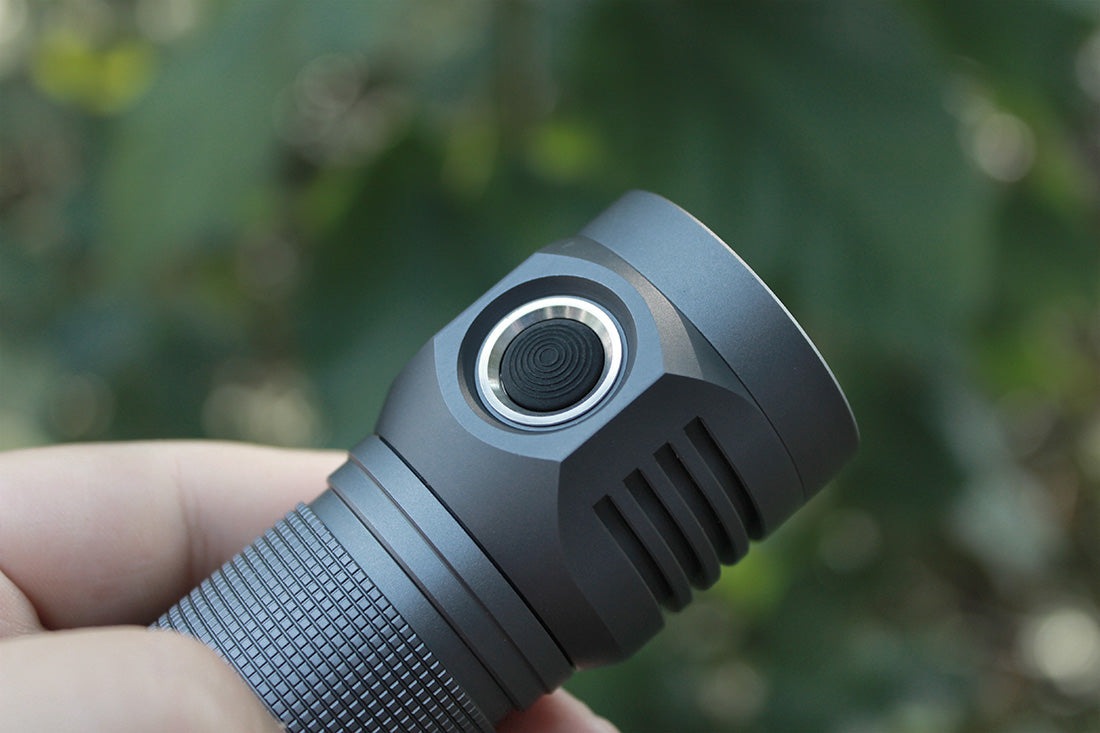

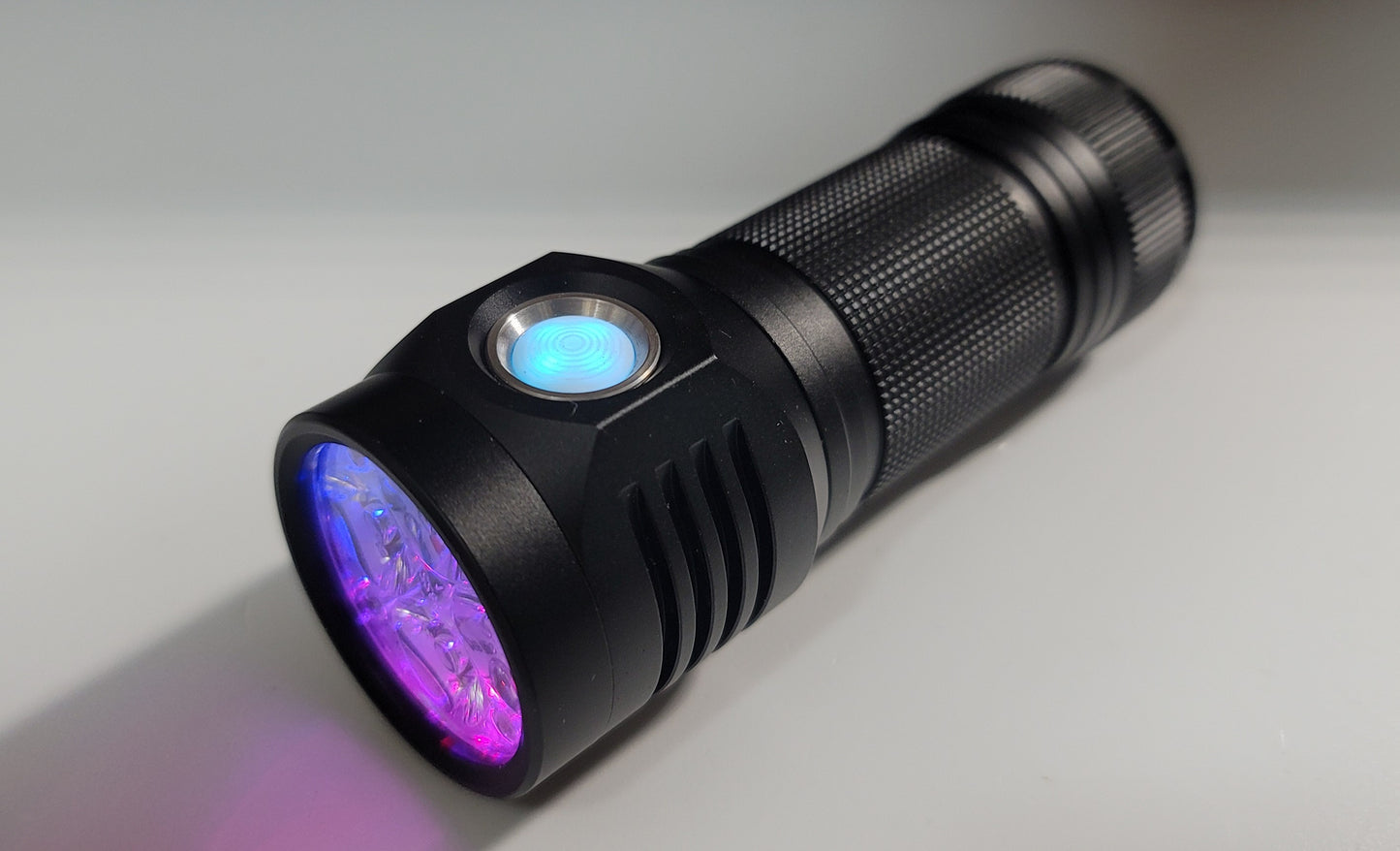

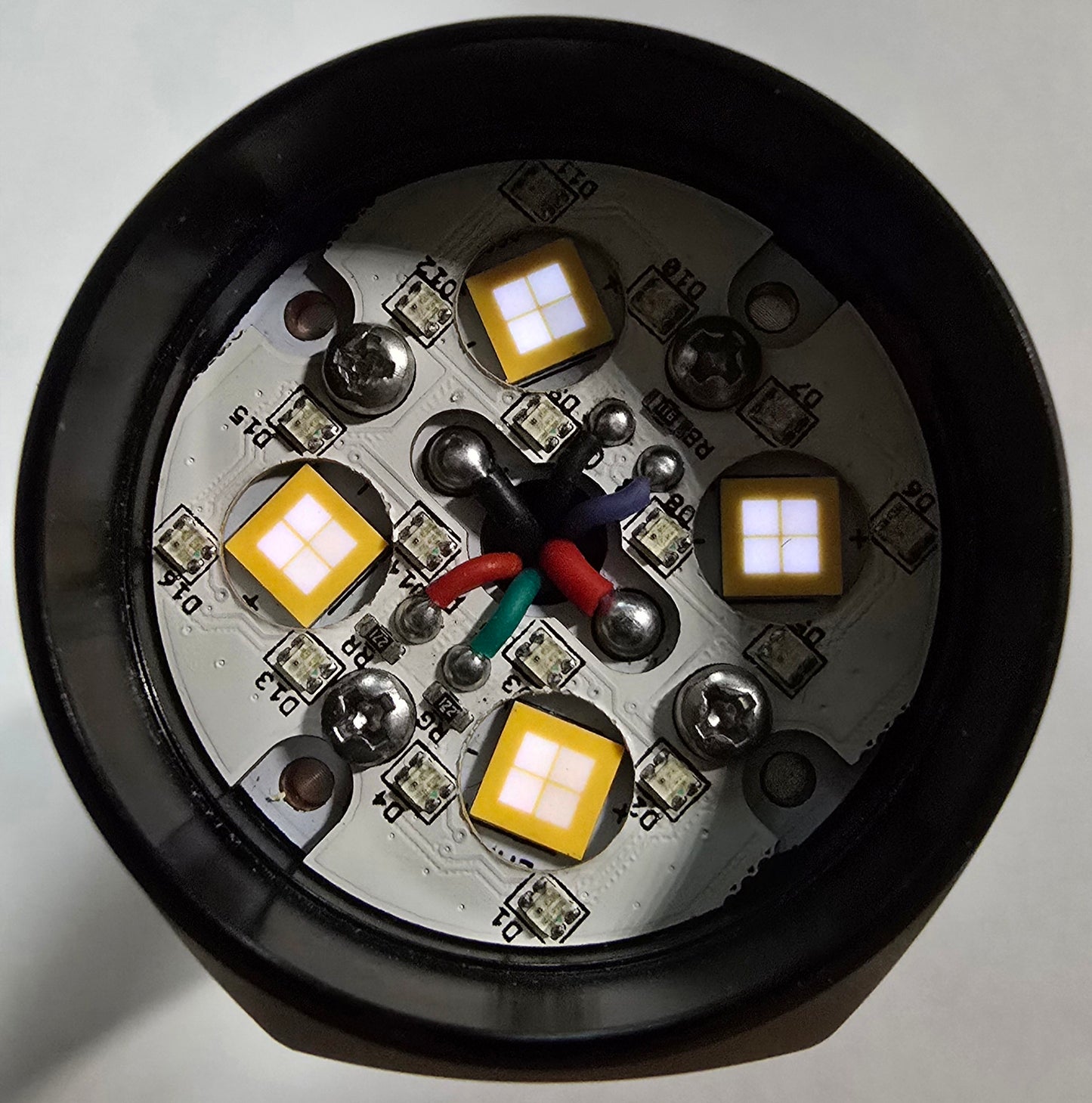

LIGHTED SWITCH:
ALL COLORS + RGB

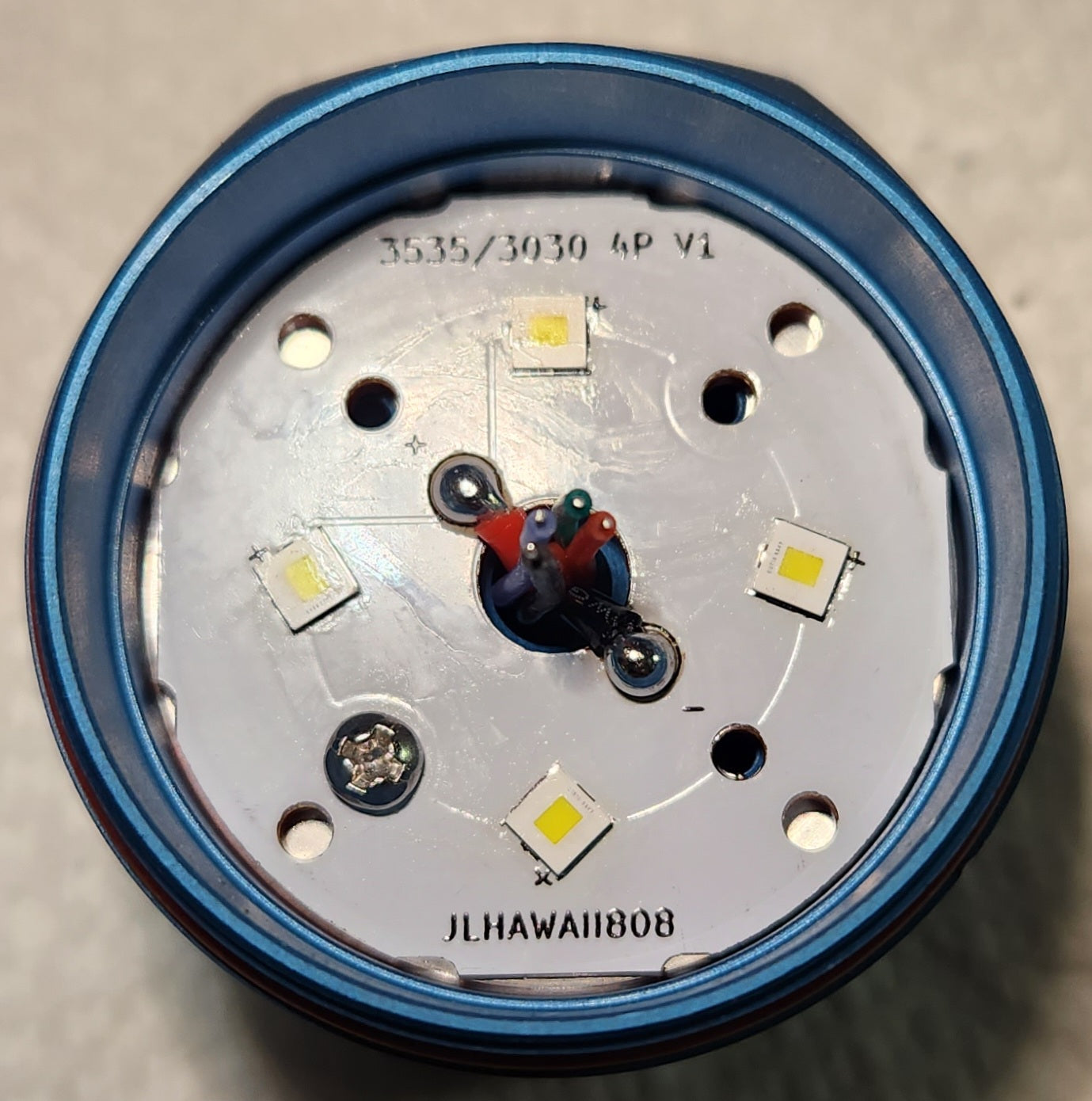

EMITTER OPTIONS:

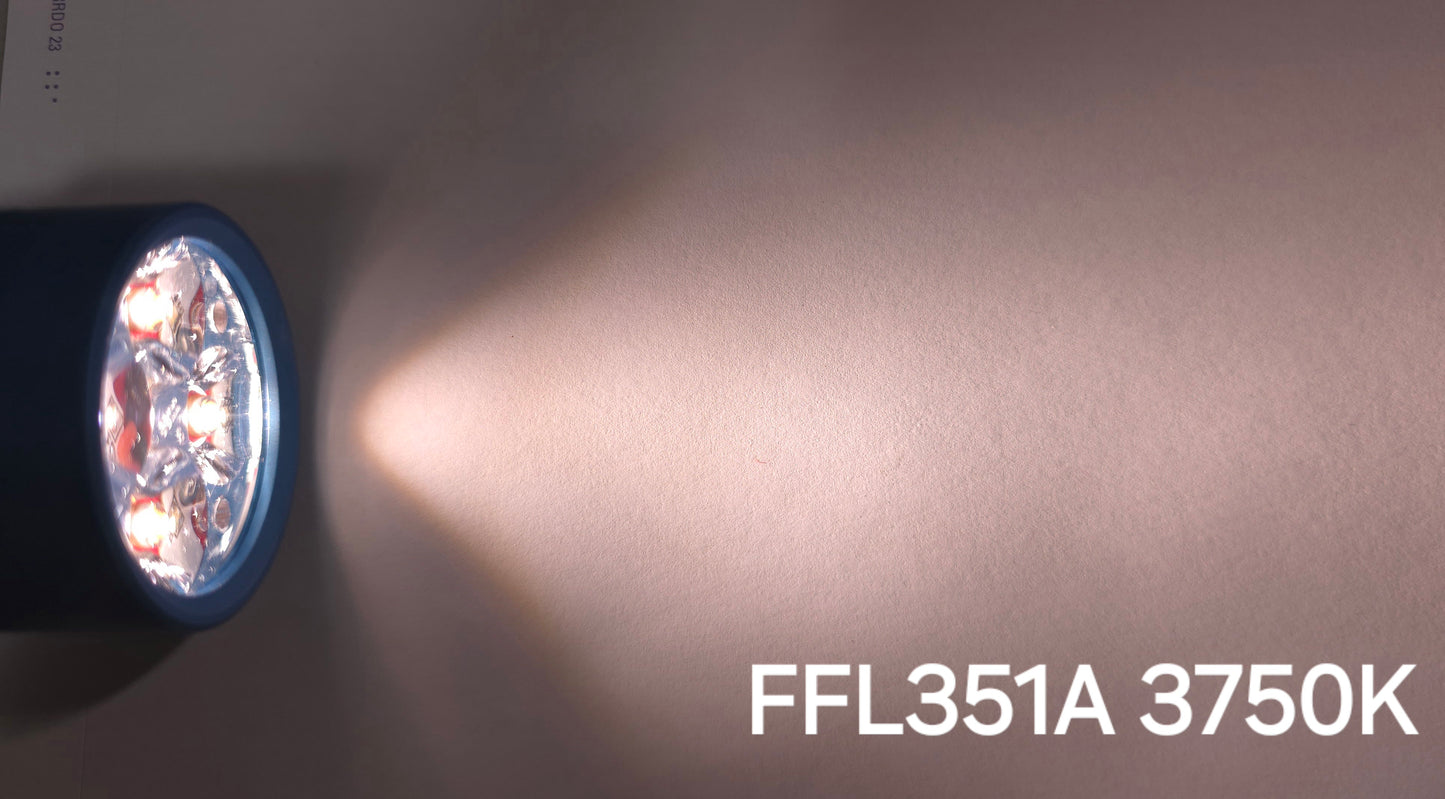

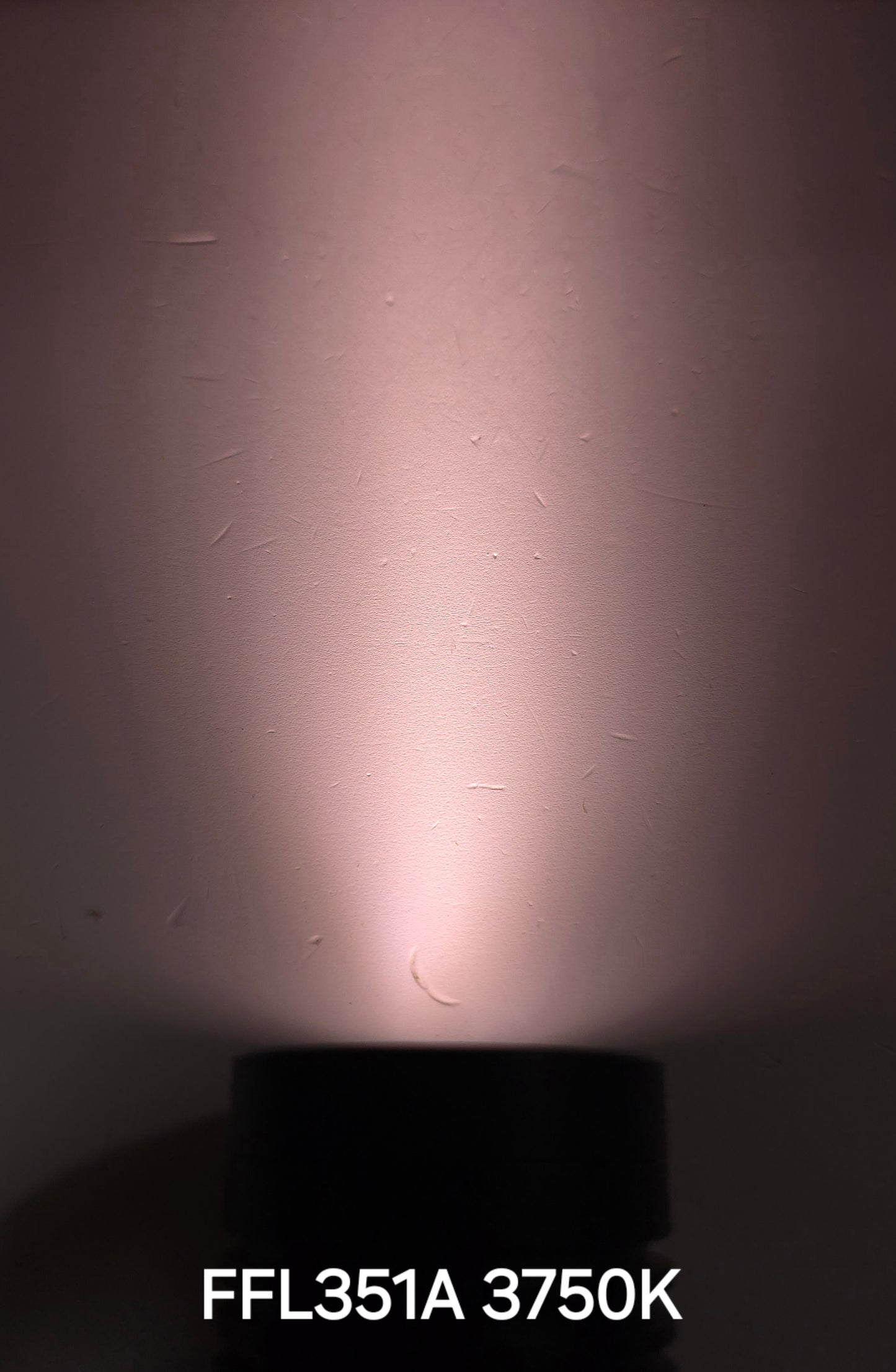

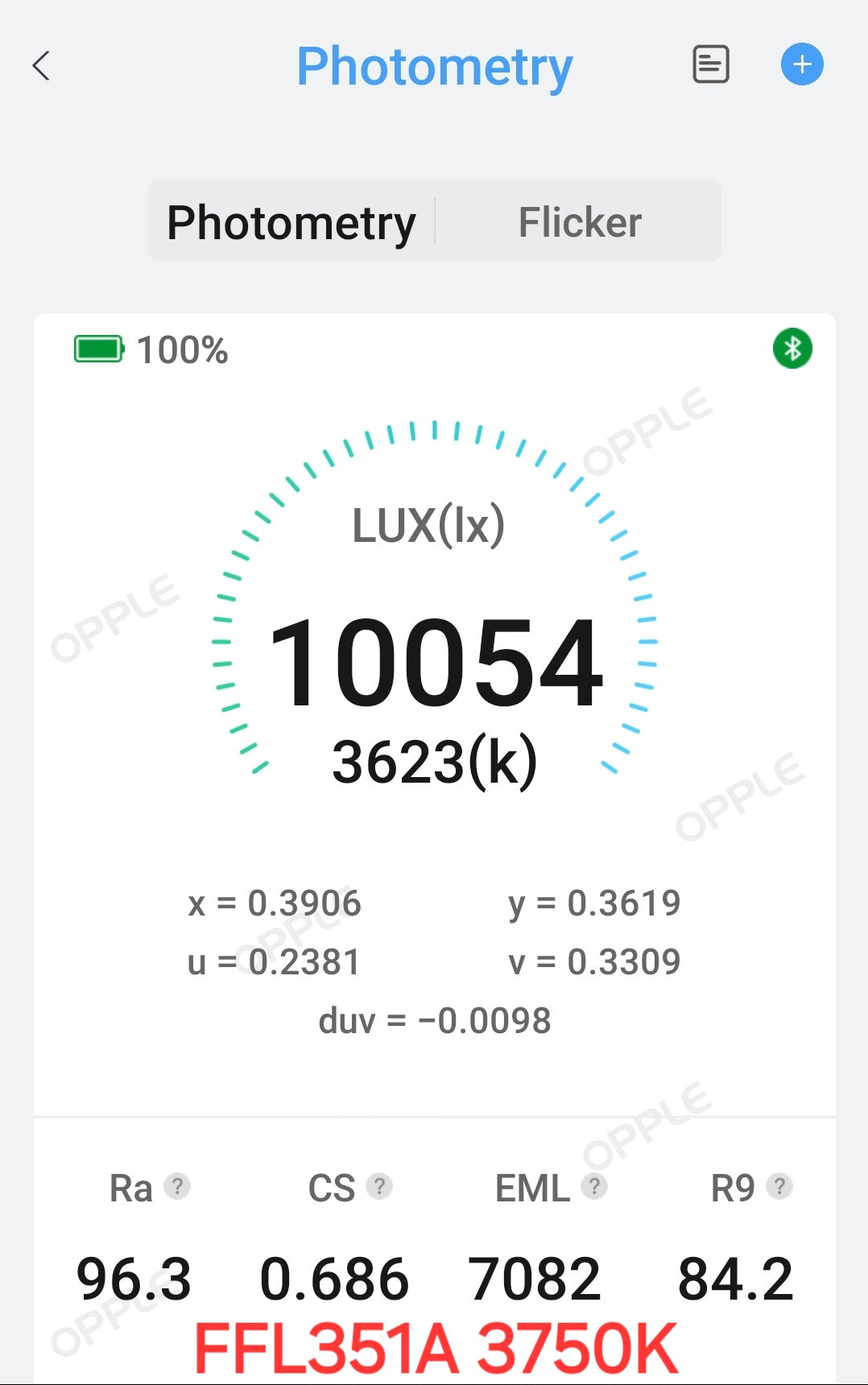

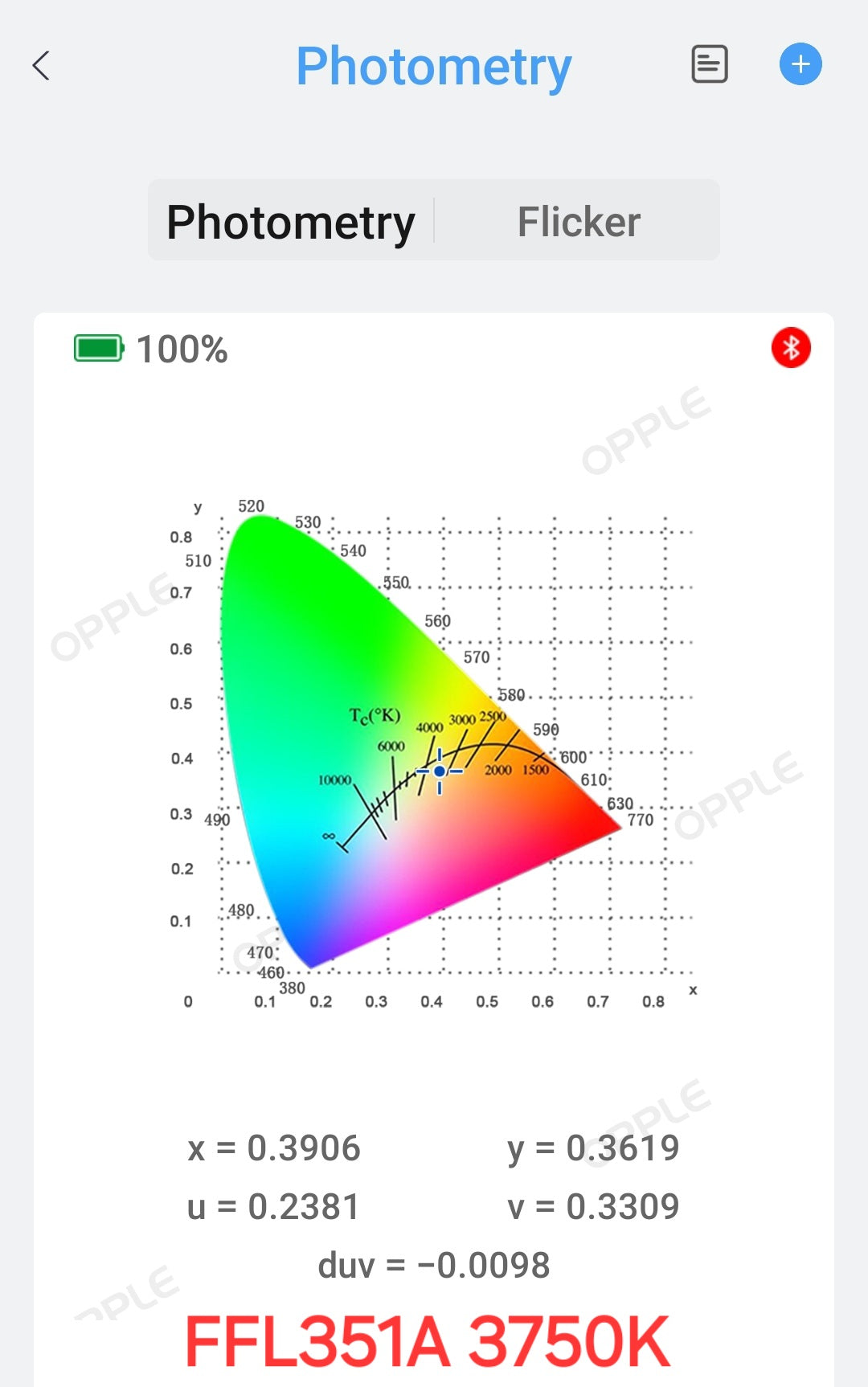

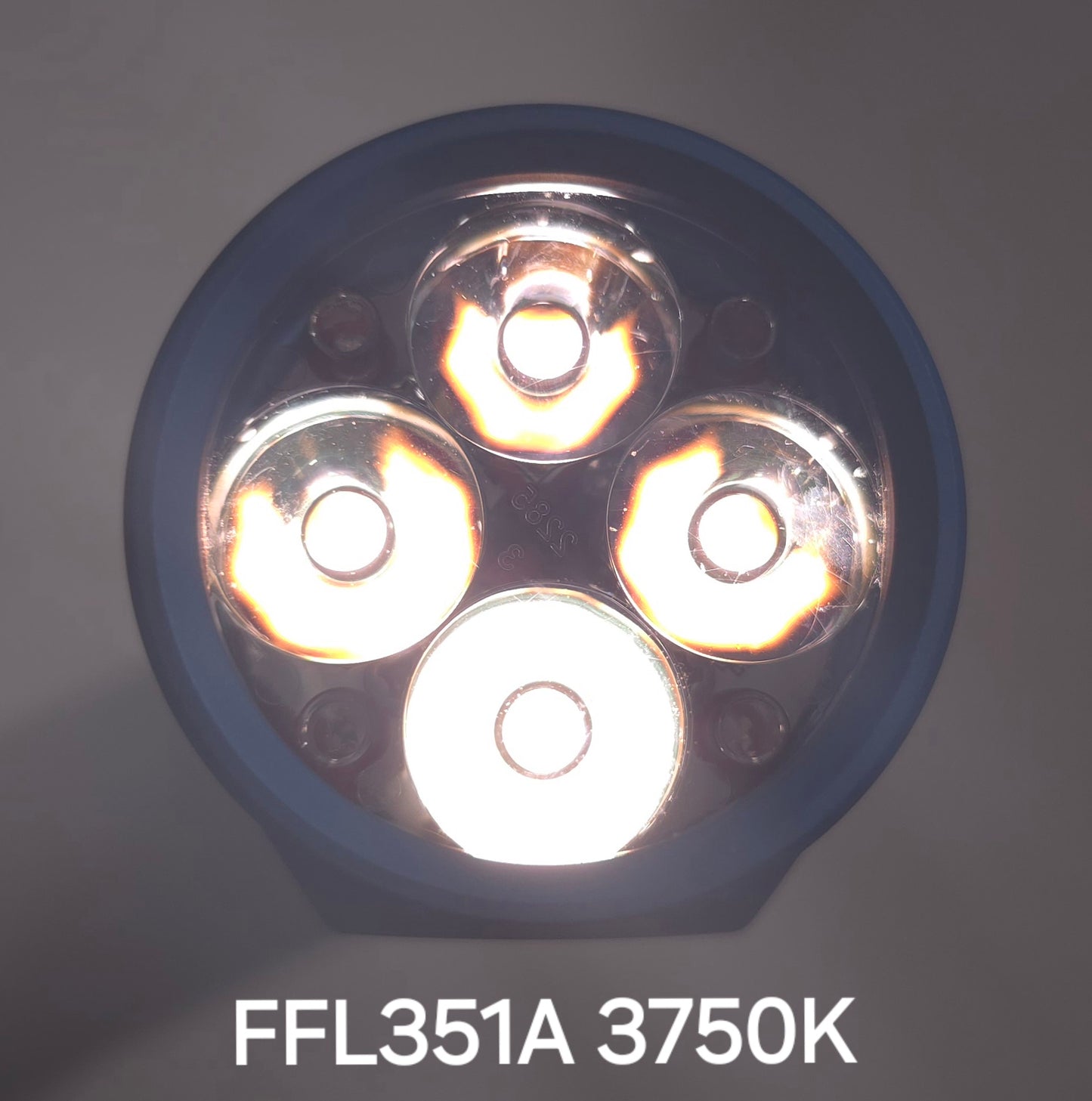

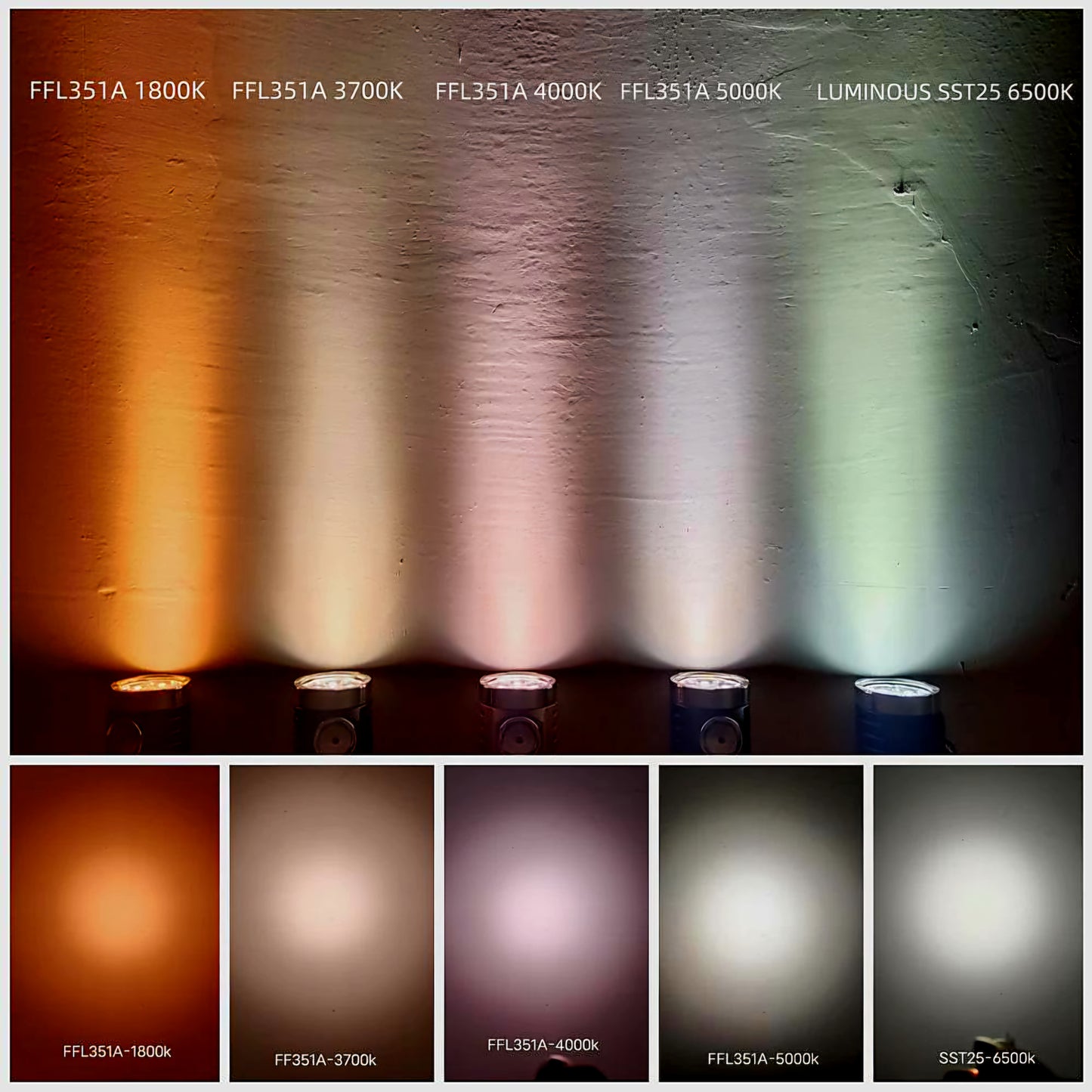

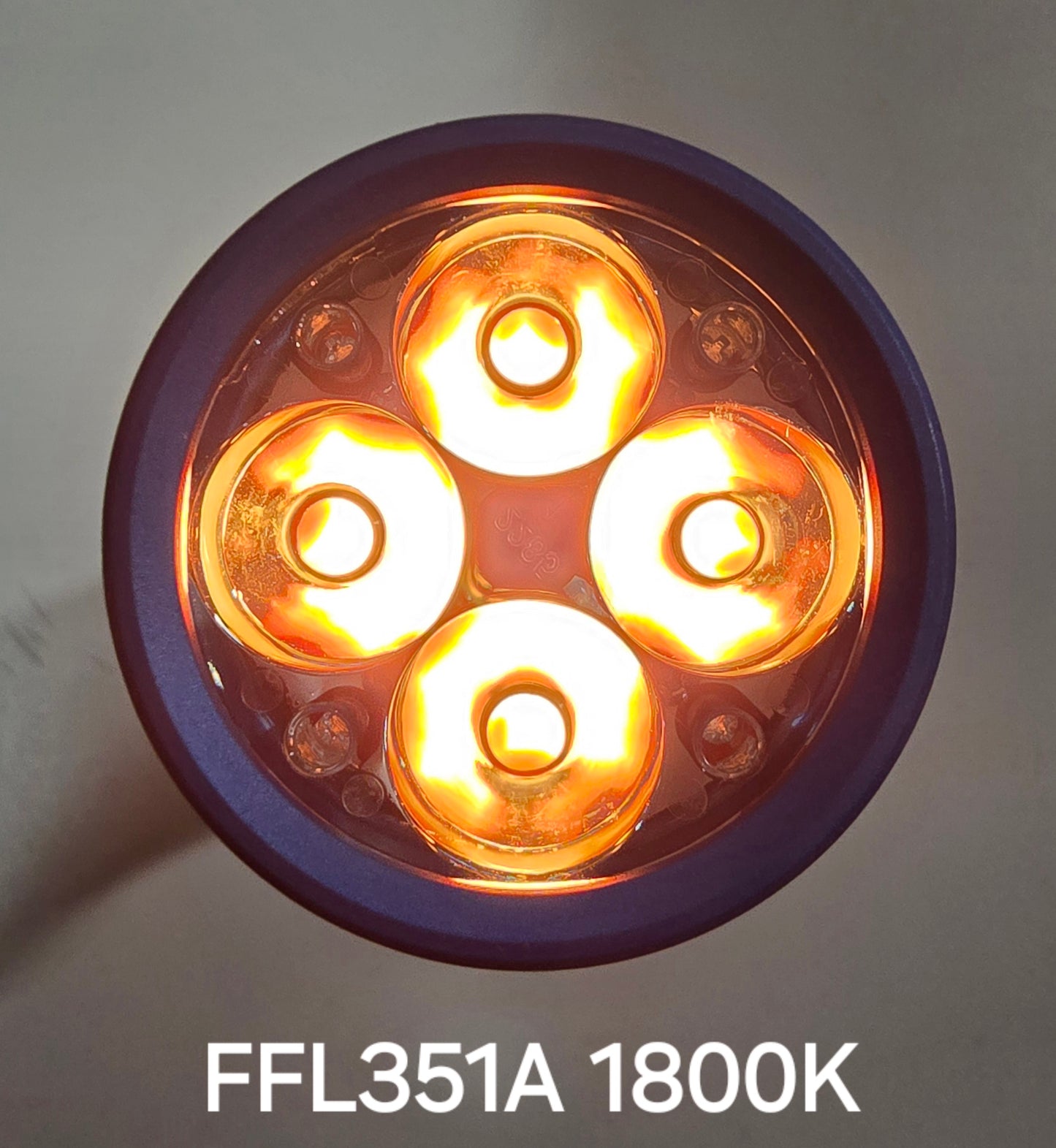

FFL351A/FFL351RD
NICHIA 219C
NICHIA 21B
NICHIA 519A
LUMINUS SST20

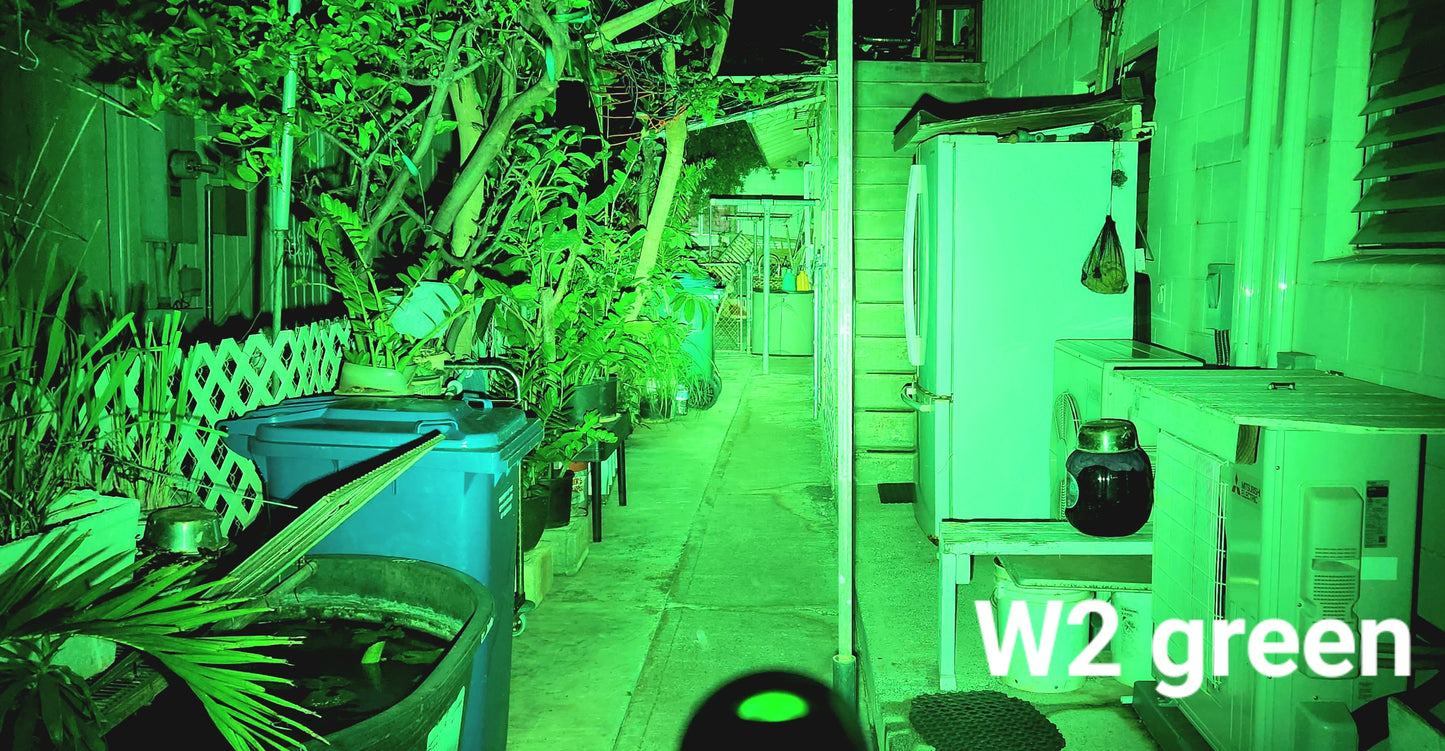

OSRAM W1/W2 6000K + COLORS
4040SMD OPTIONS

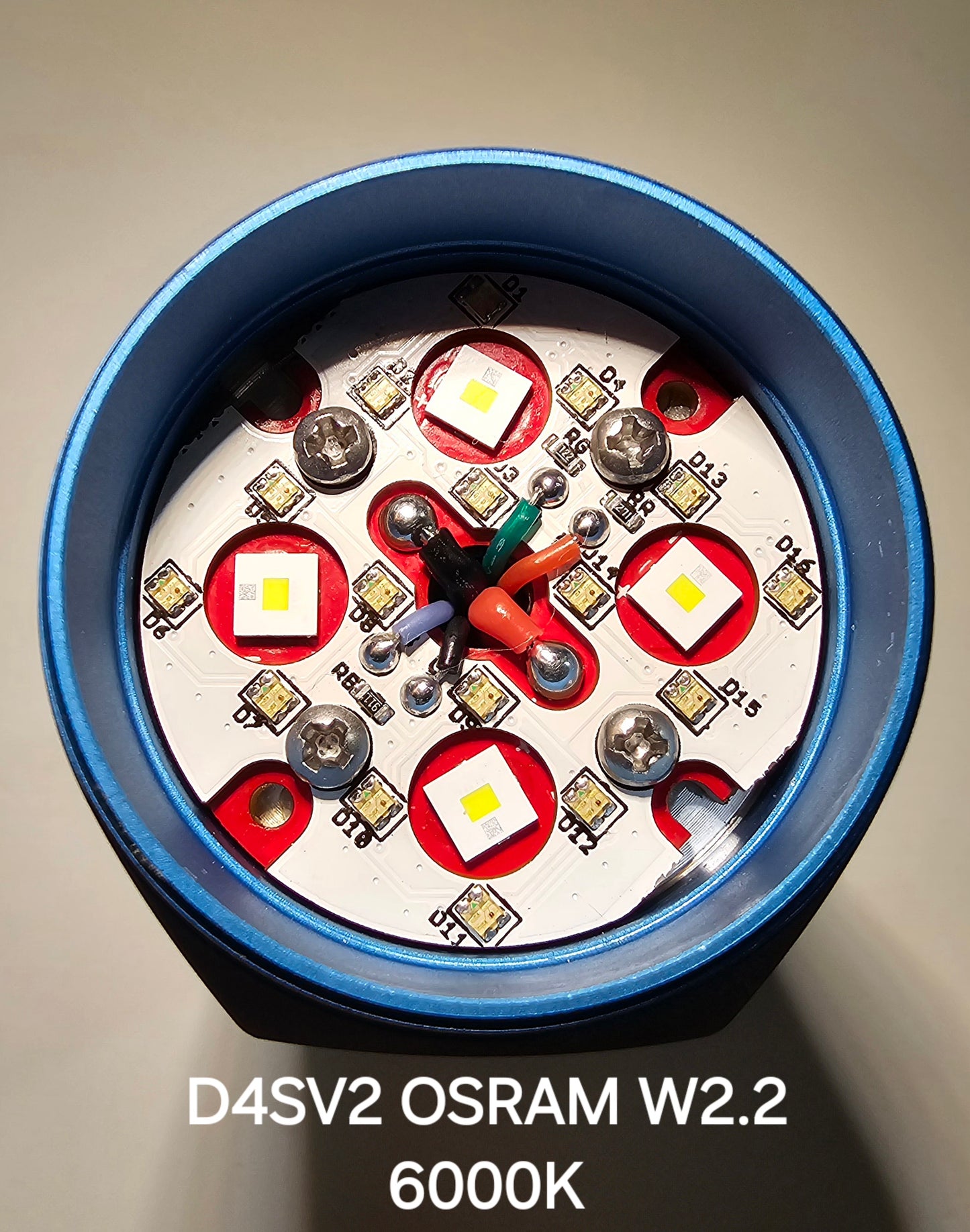

OSRAM W2.1 6000K KW CULNM1.1TG

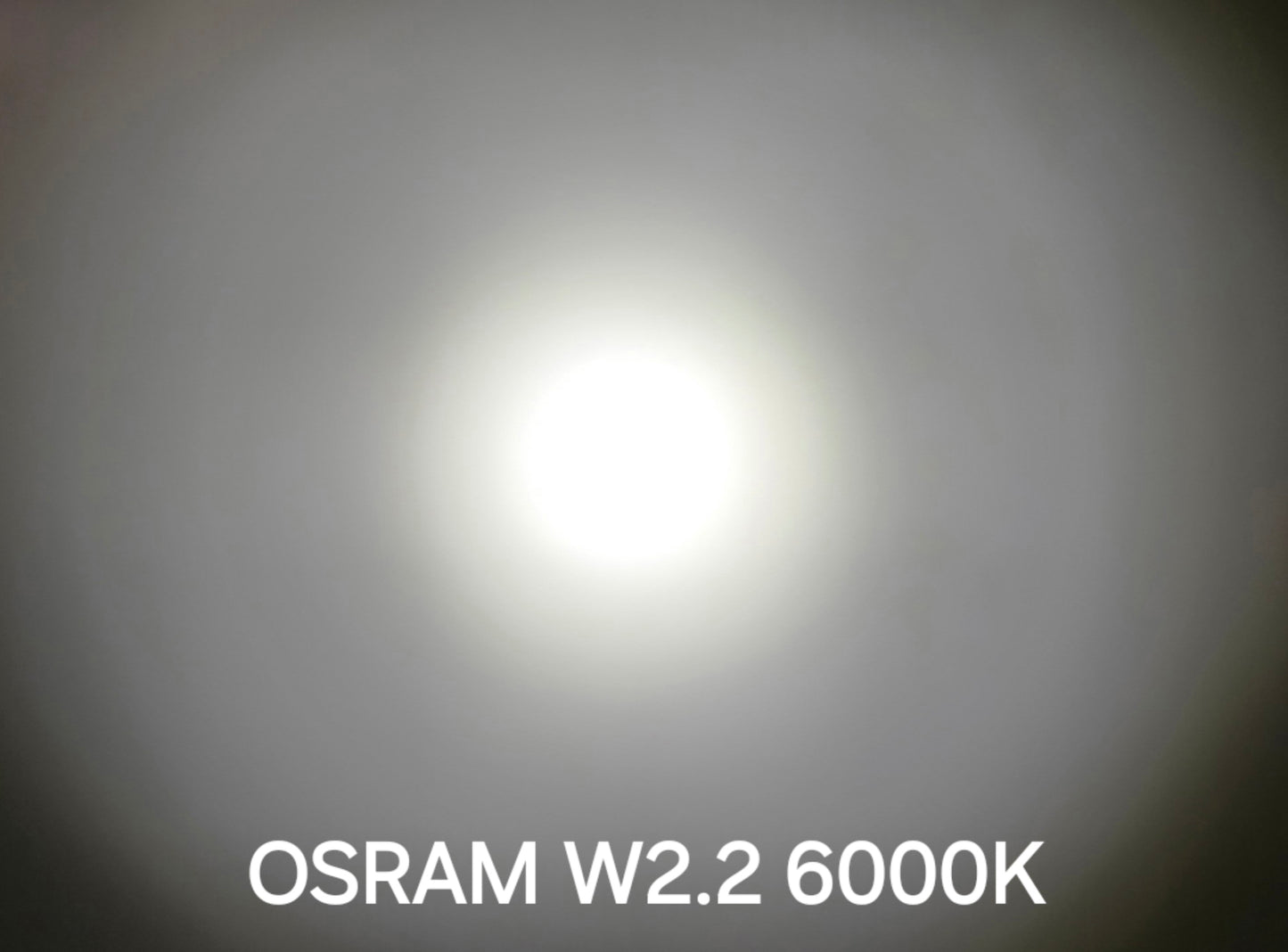

OSRAM W2.2 6000K KW CULPM1.1TG
5050SMD LED OPTIONS

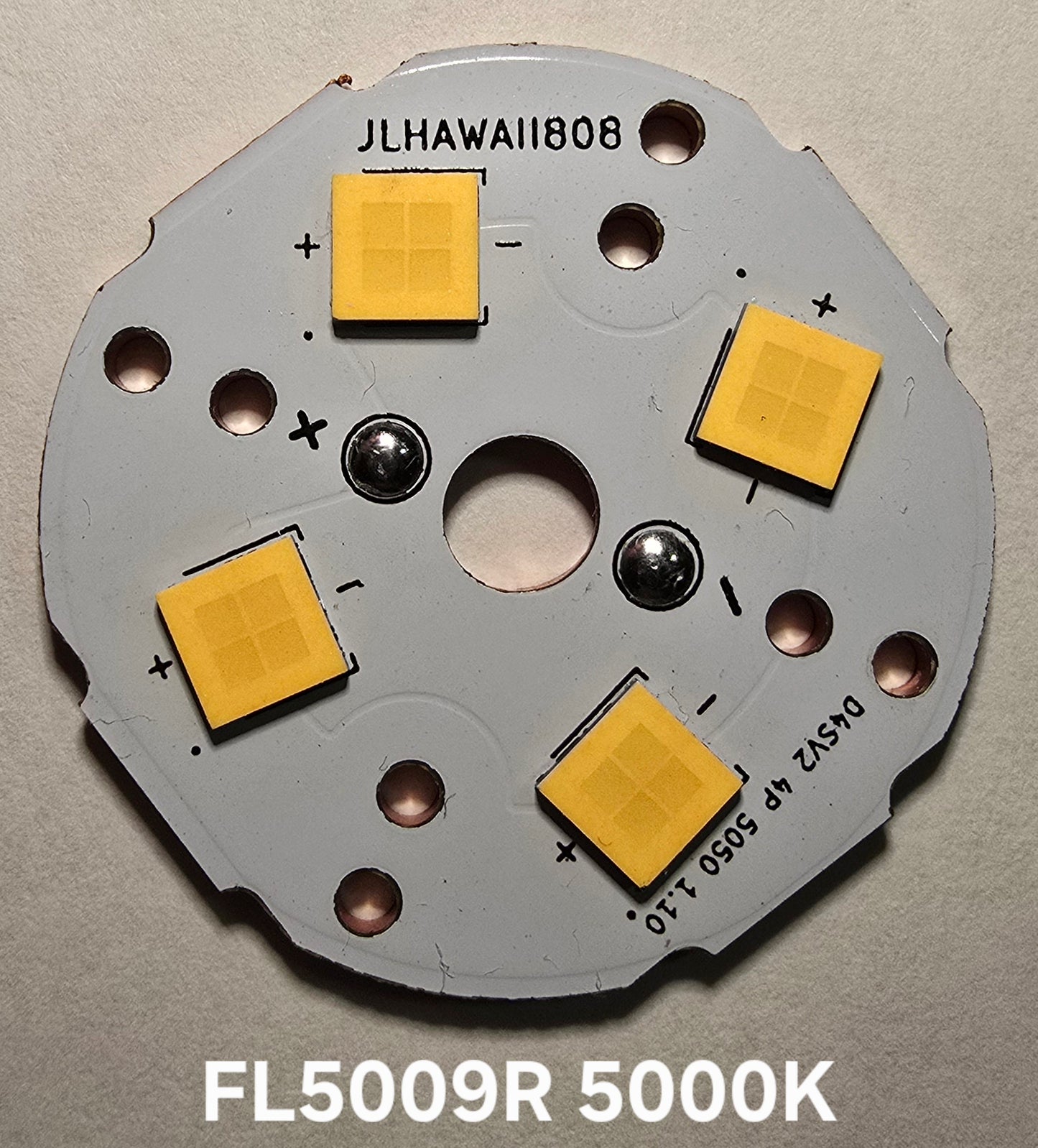

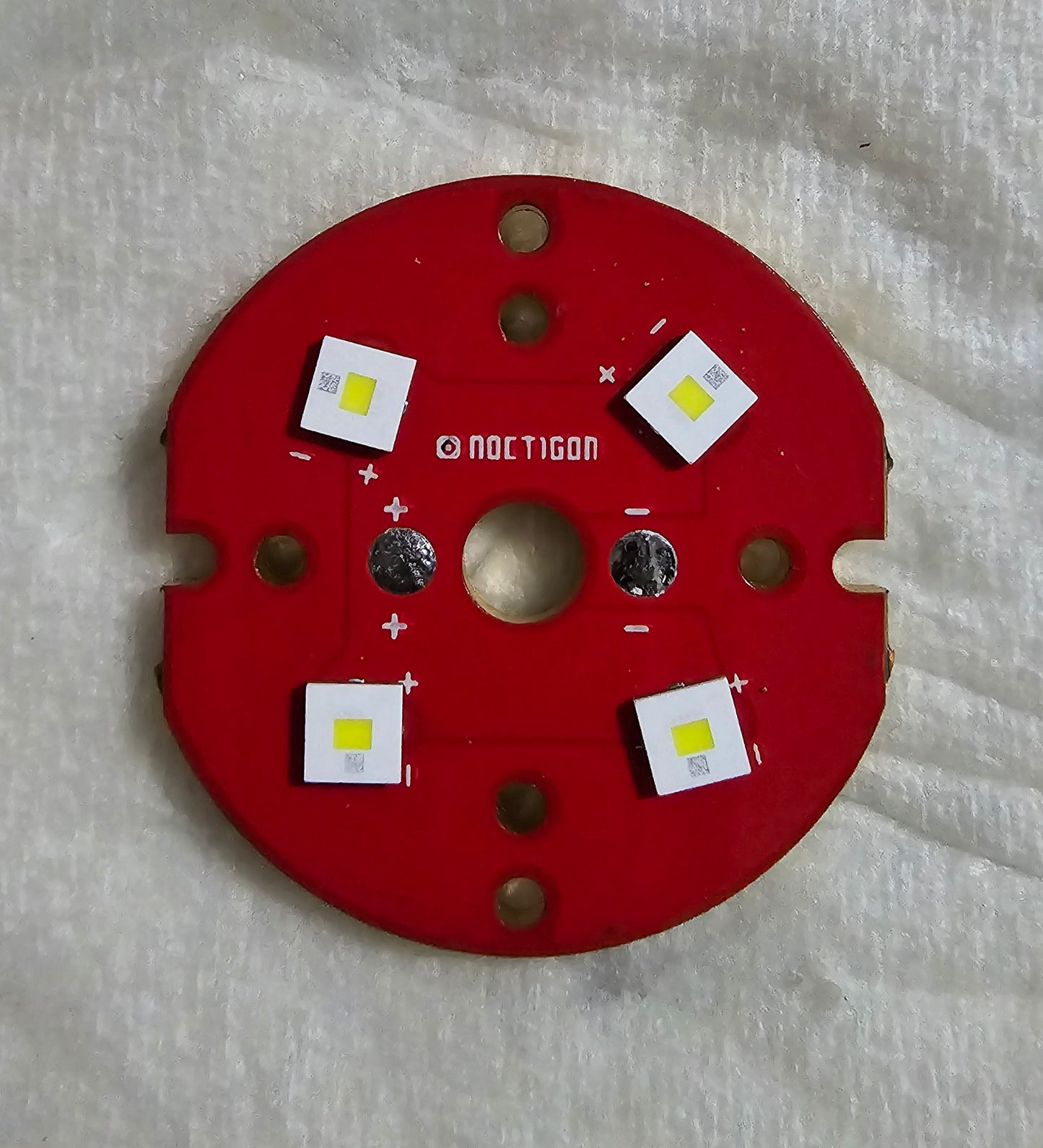

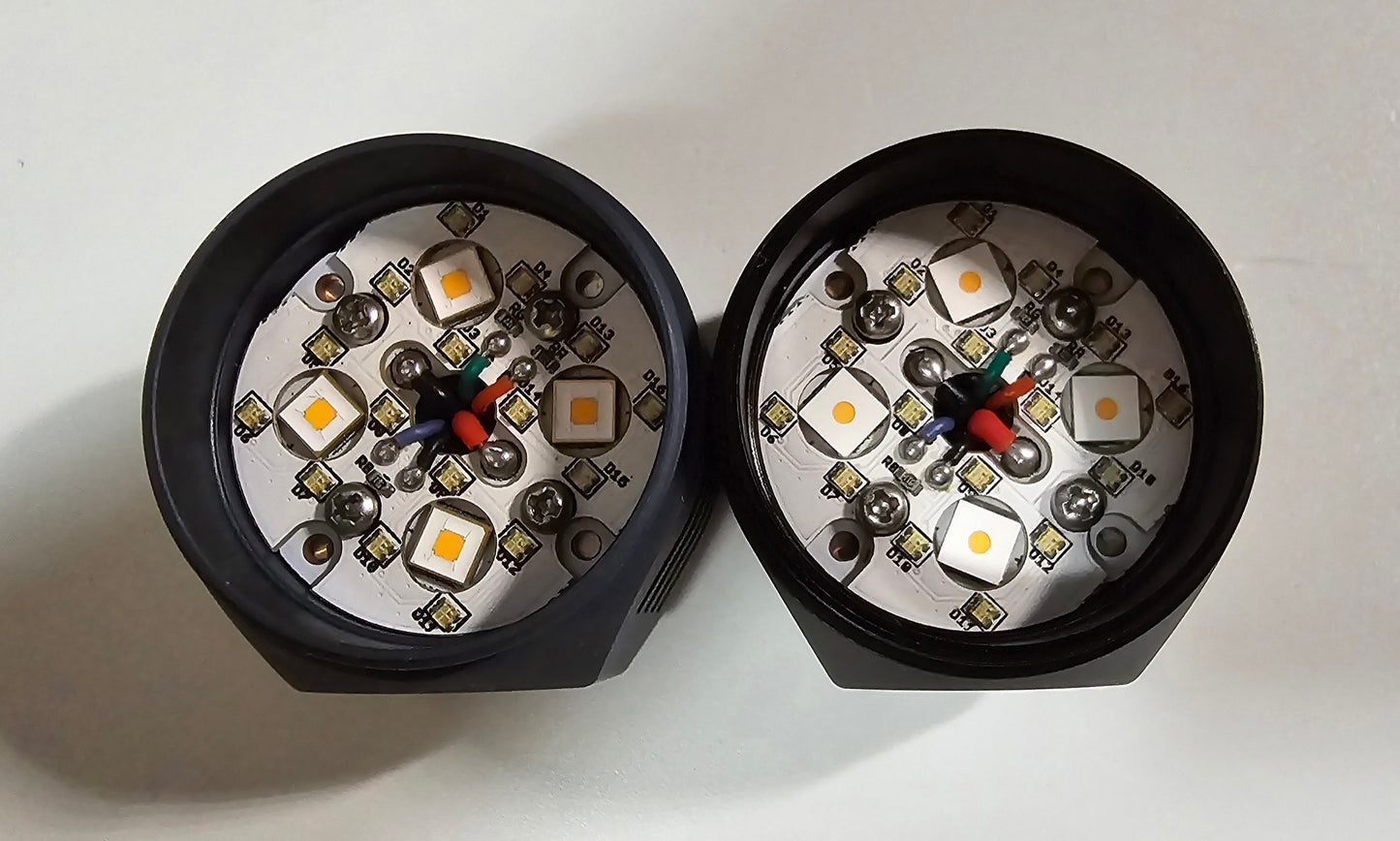

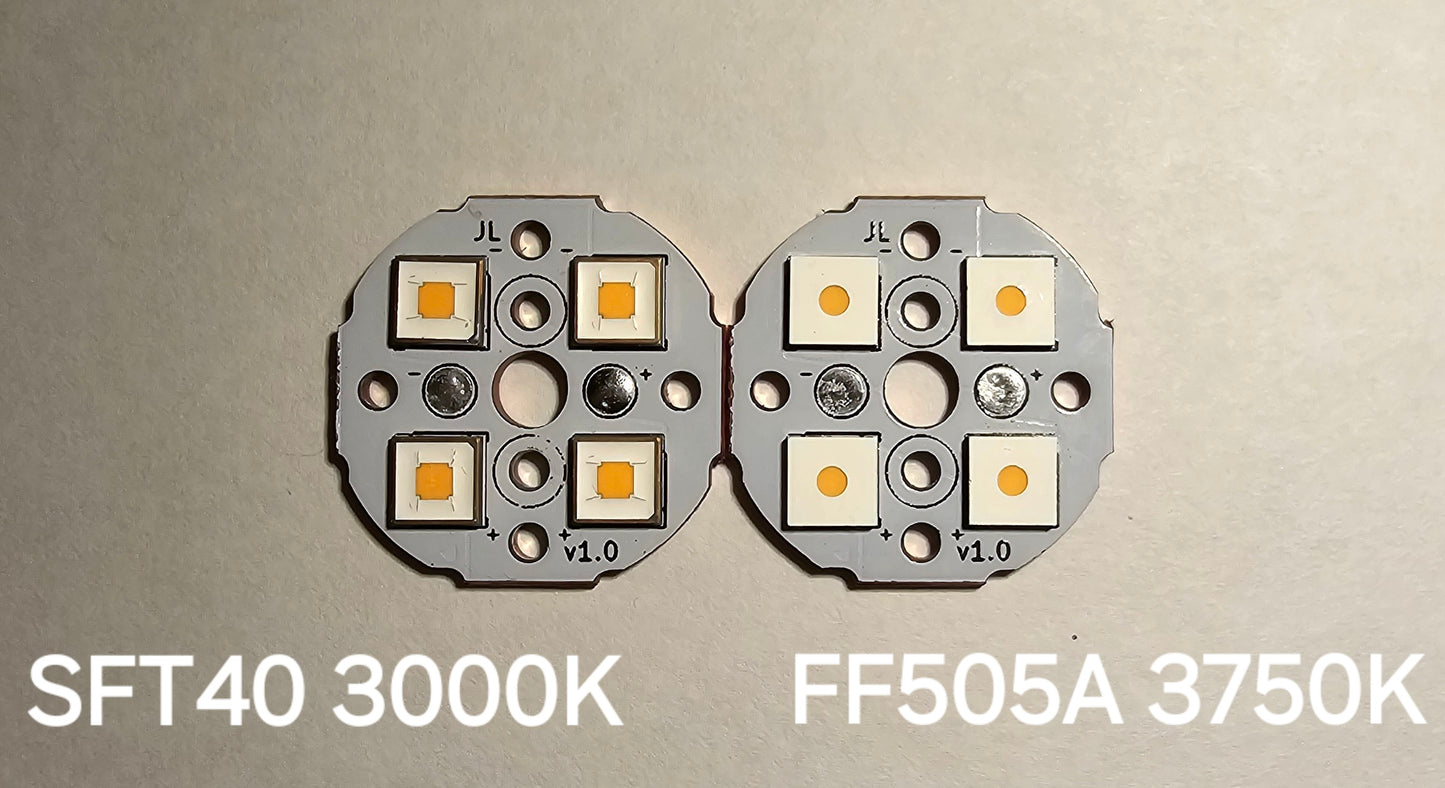

NEW! CUSTOM 5050SMD MCPCB!

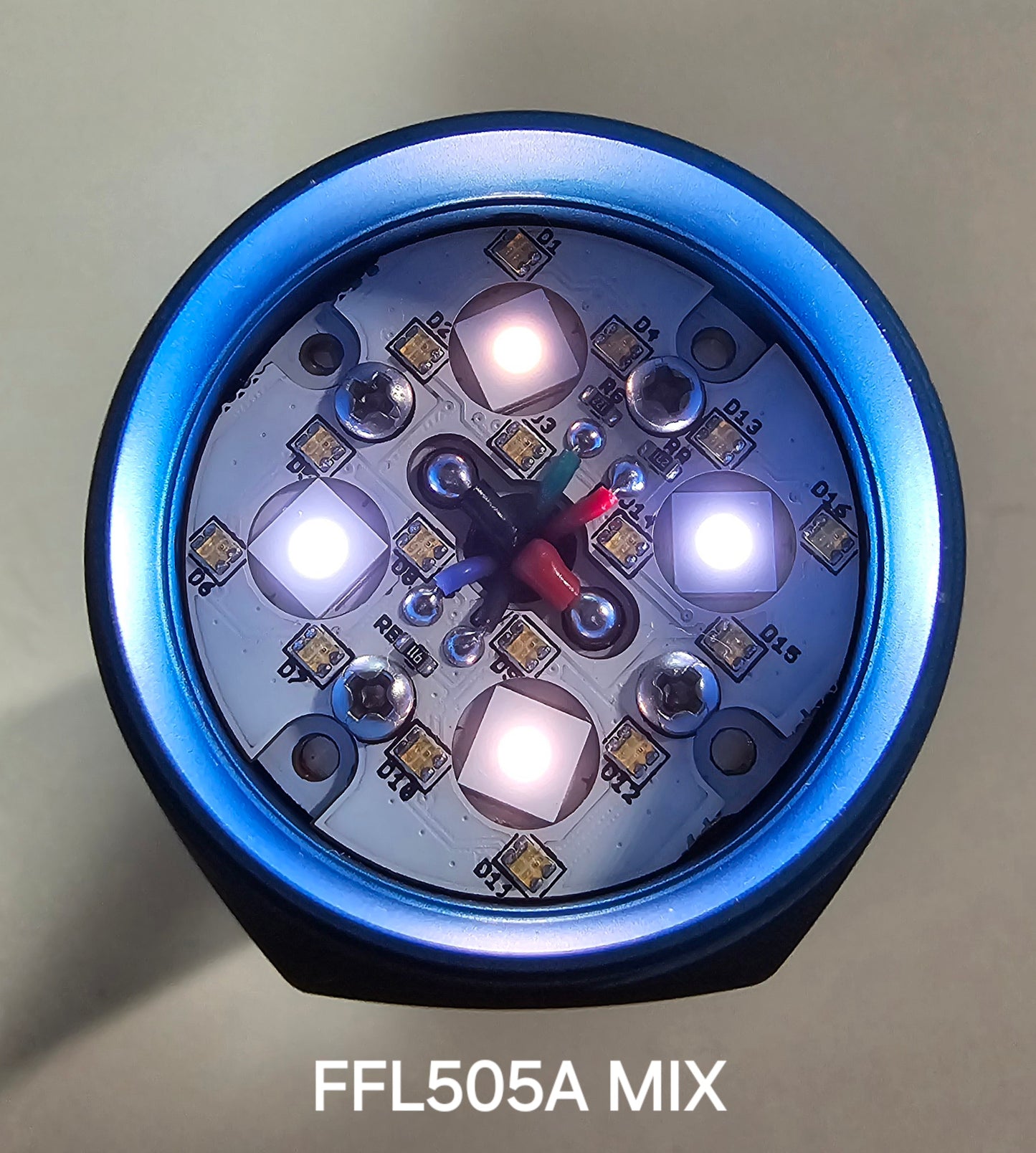

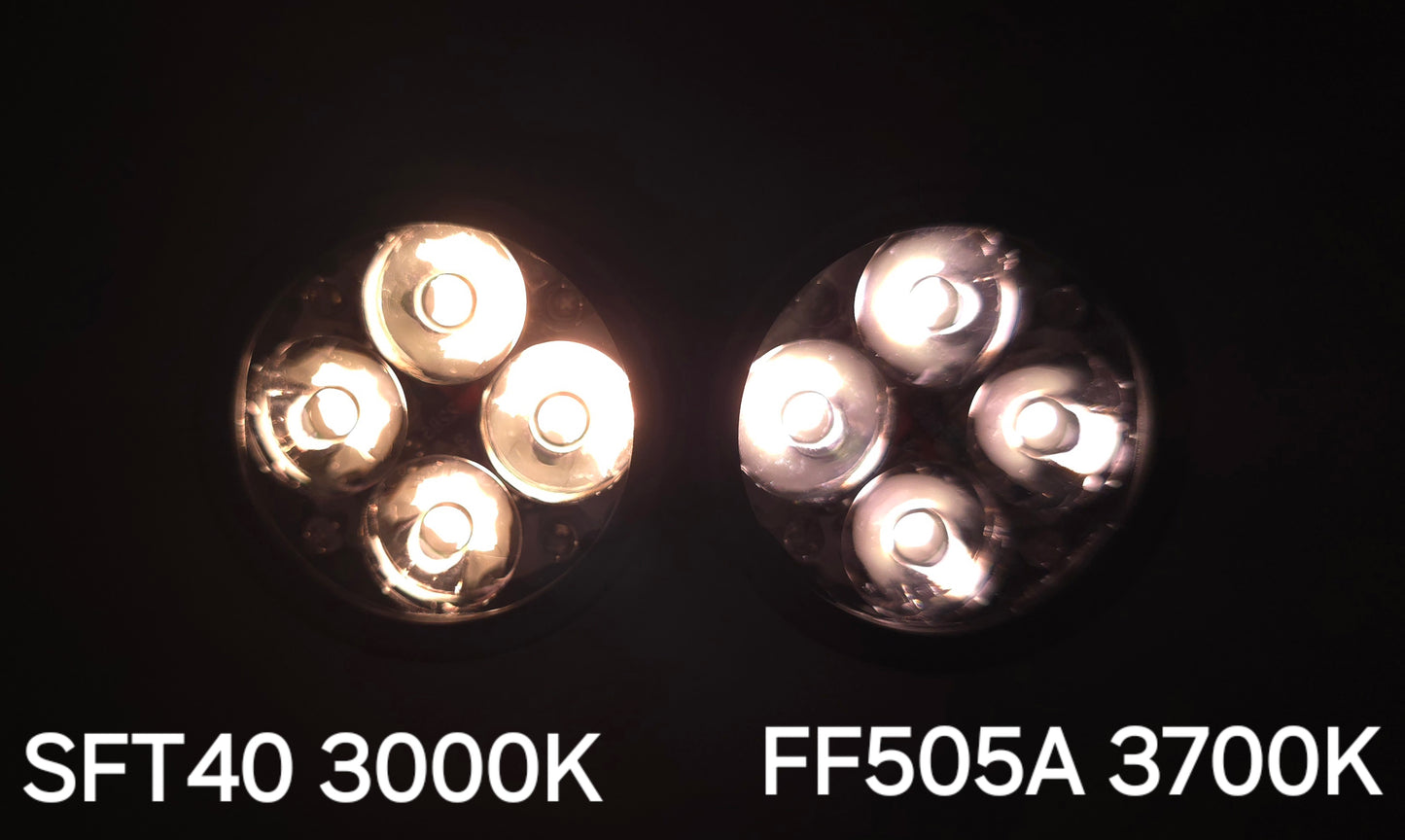

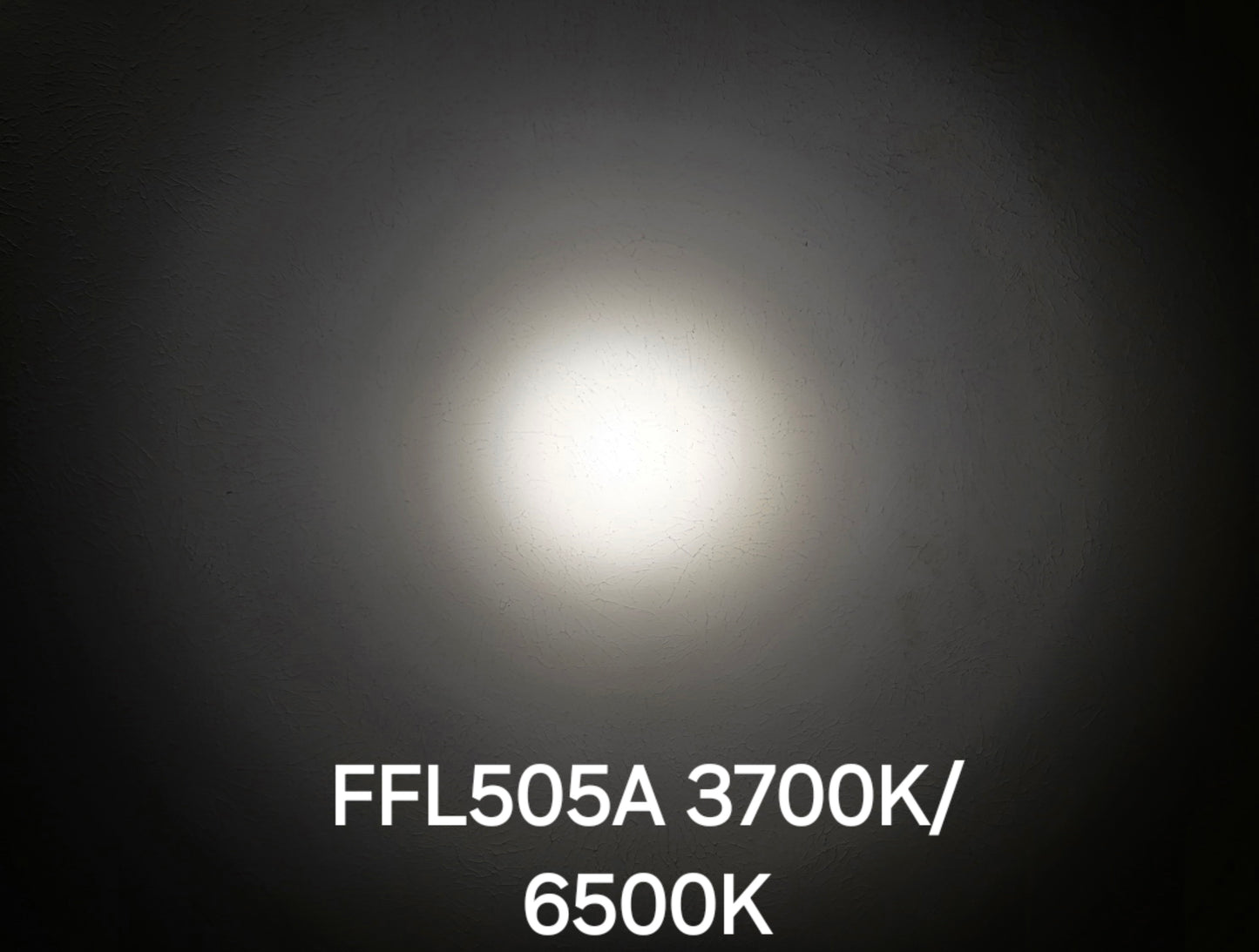

FFL505A 3700K 96CRI (ROSY BIN)
FFL505A 6500K 97CRI

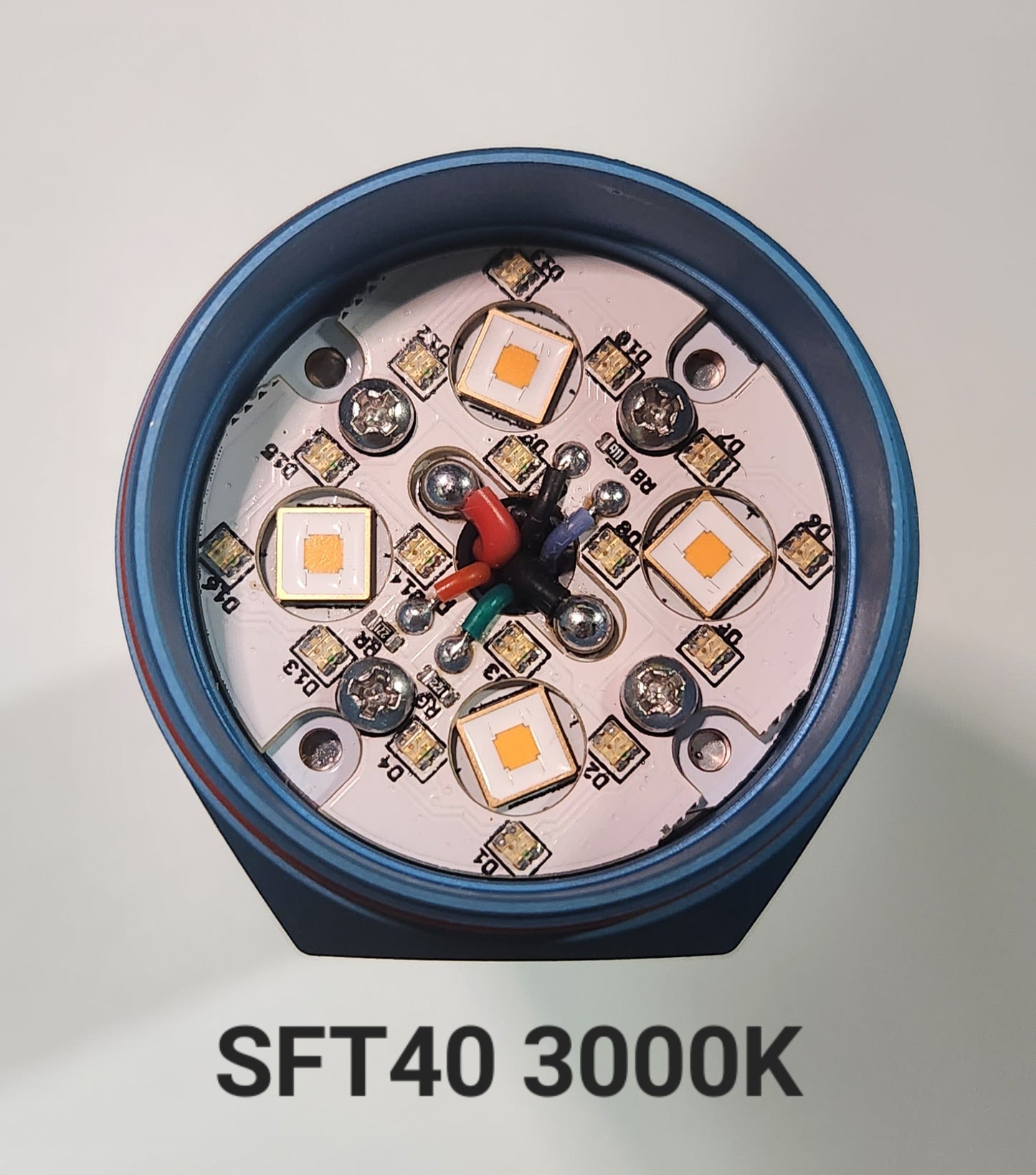

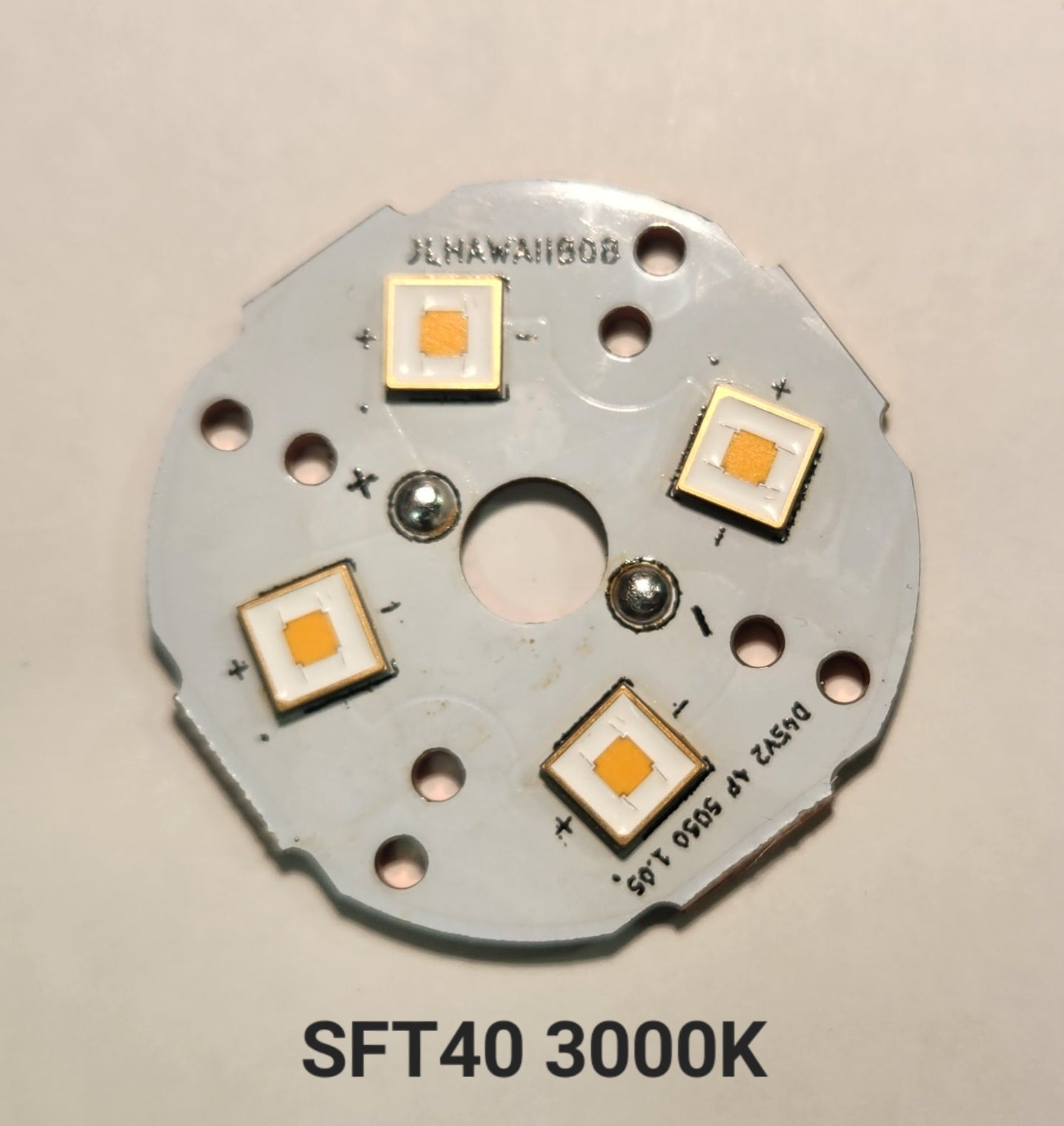

SFT40 3000K 95CRI HC1/HD2 BIN

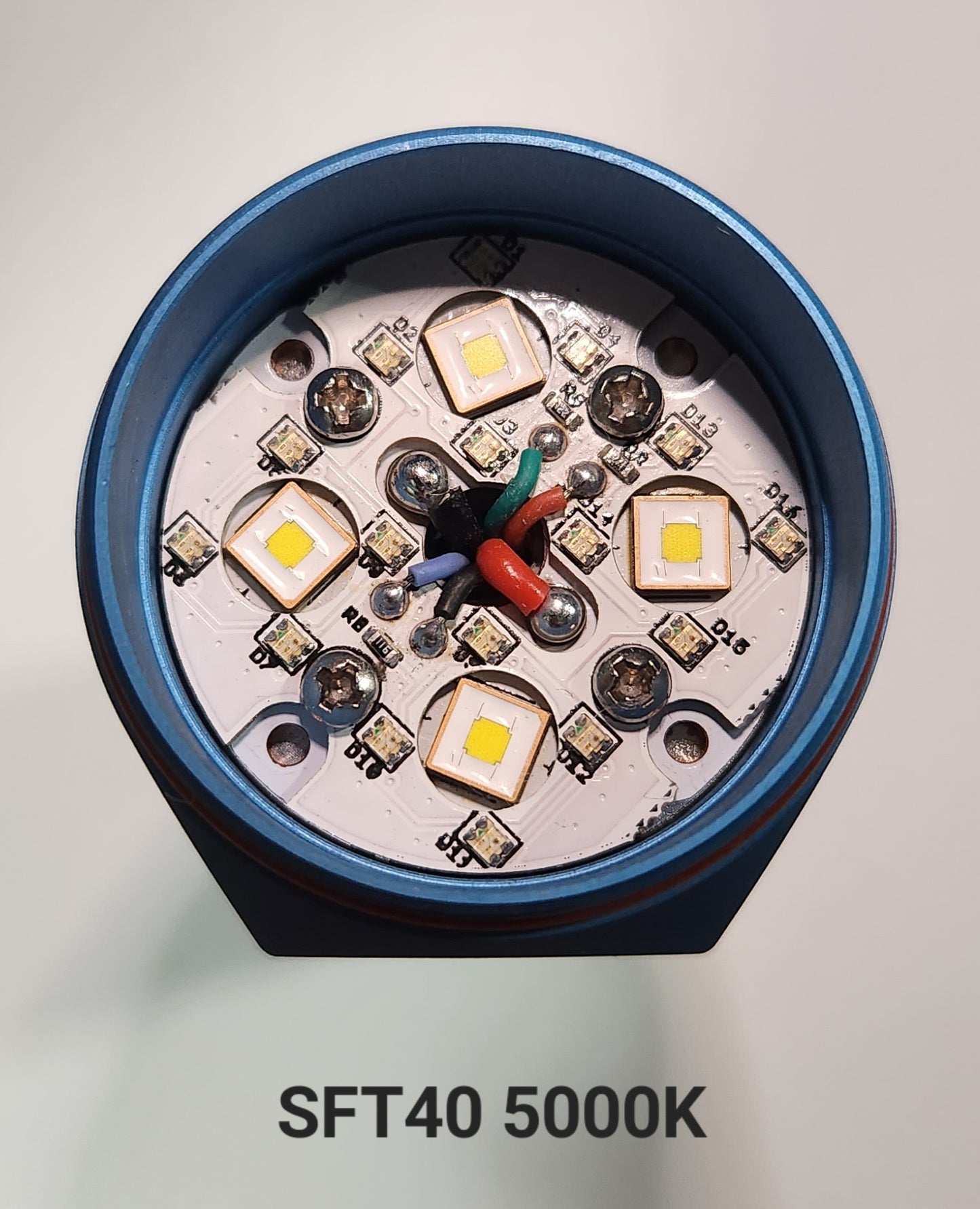

SFT40 5000K 70CRI

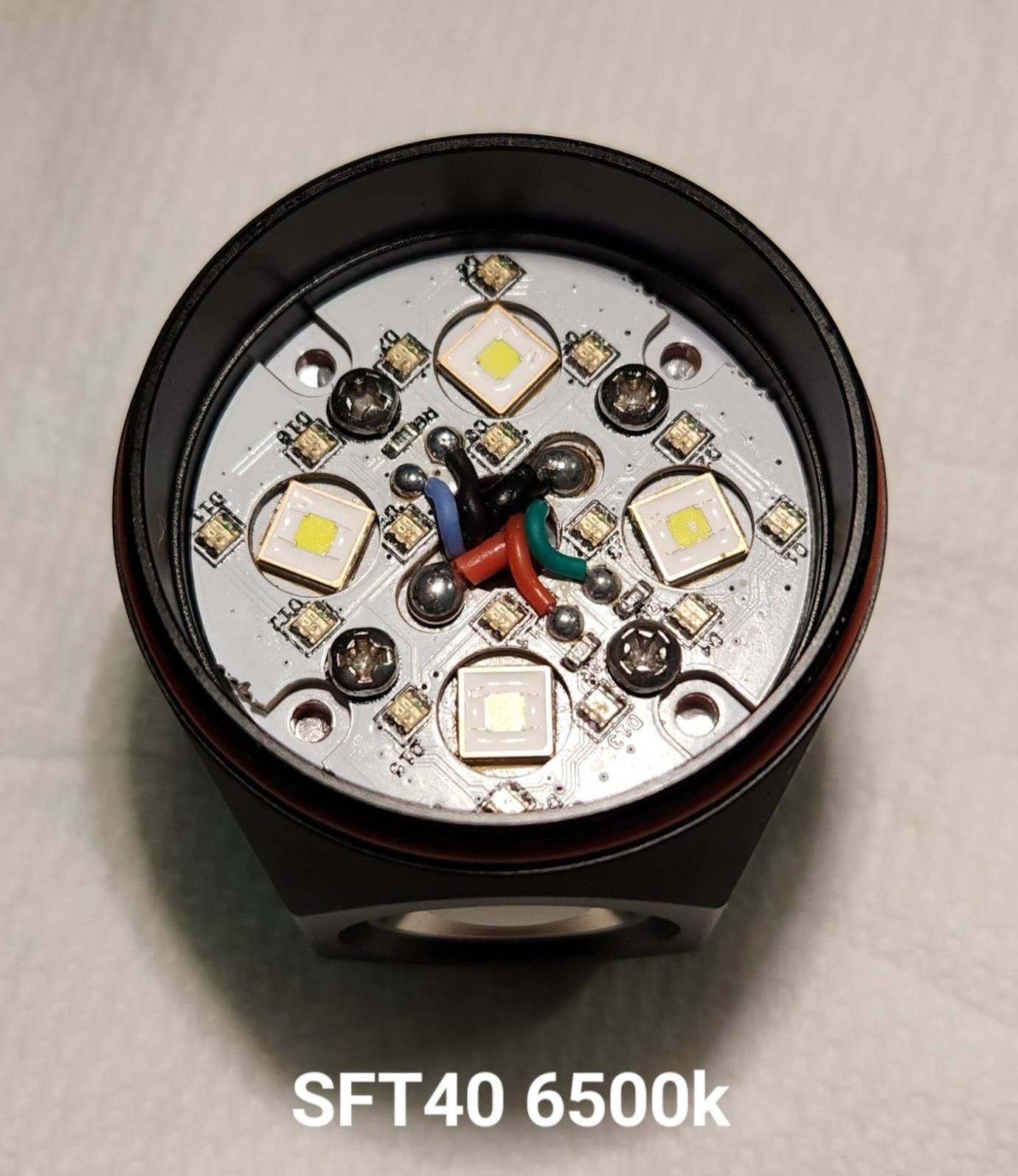

SFT40 6500K

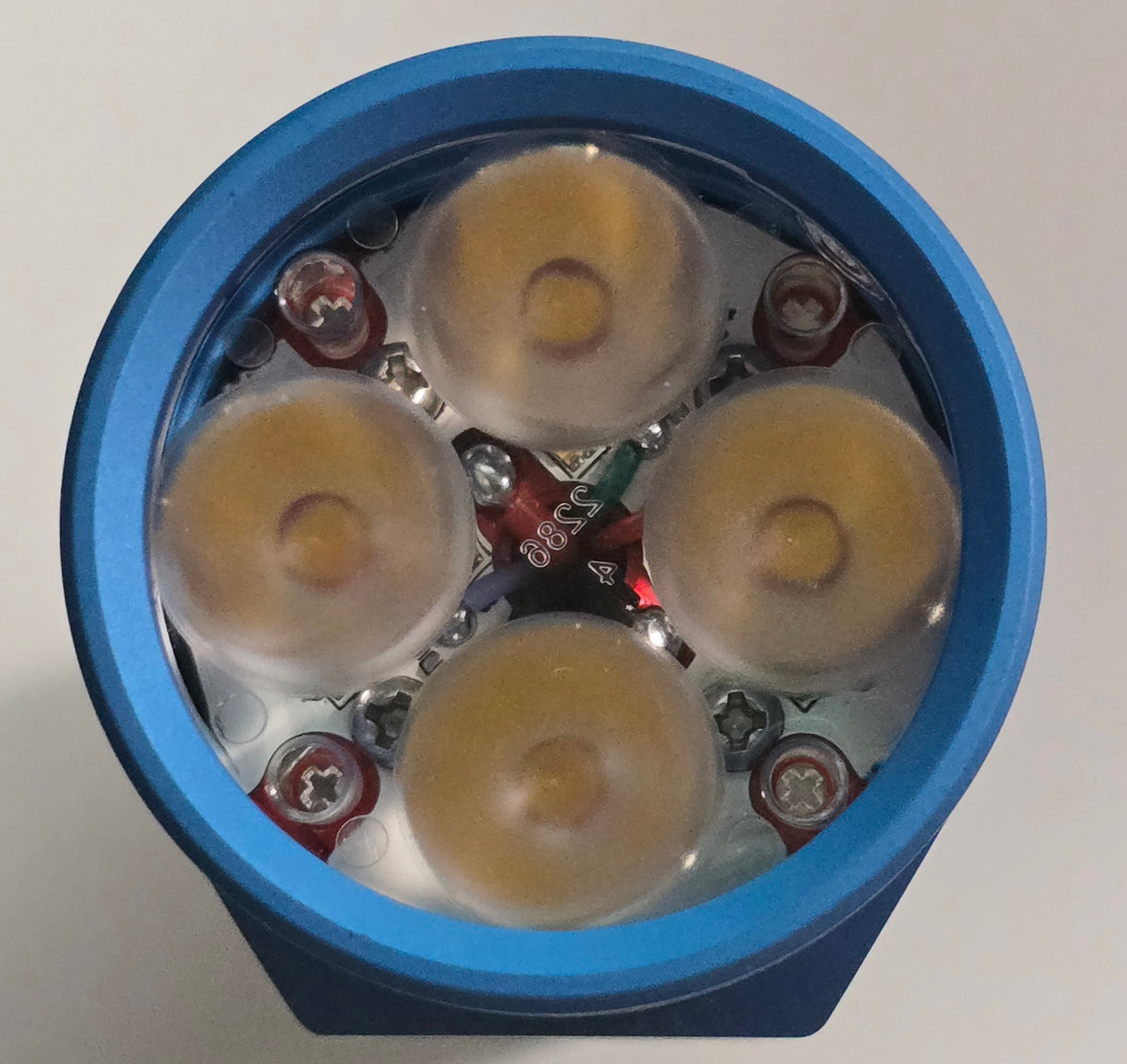

OPTICS:
LEDIL
2285 CLEAR SPOT

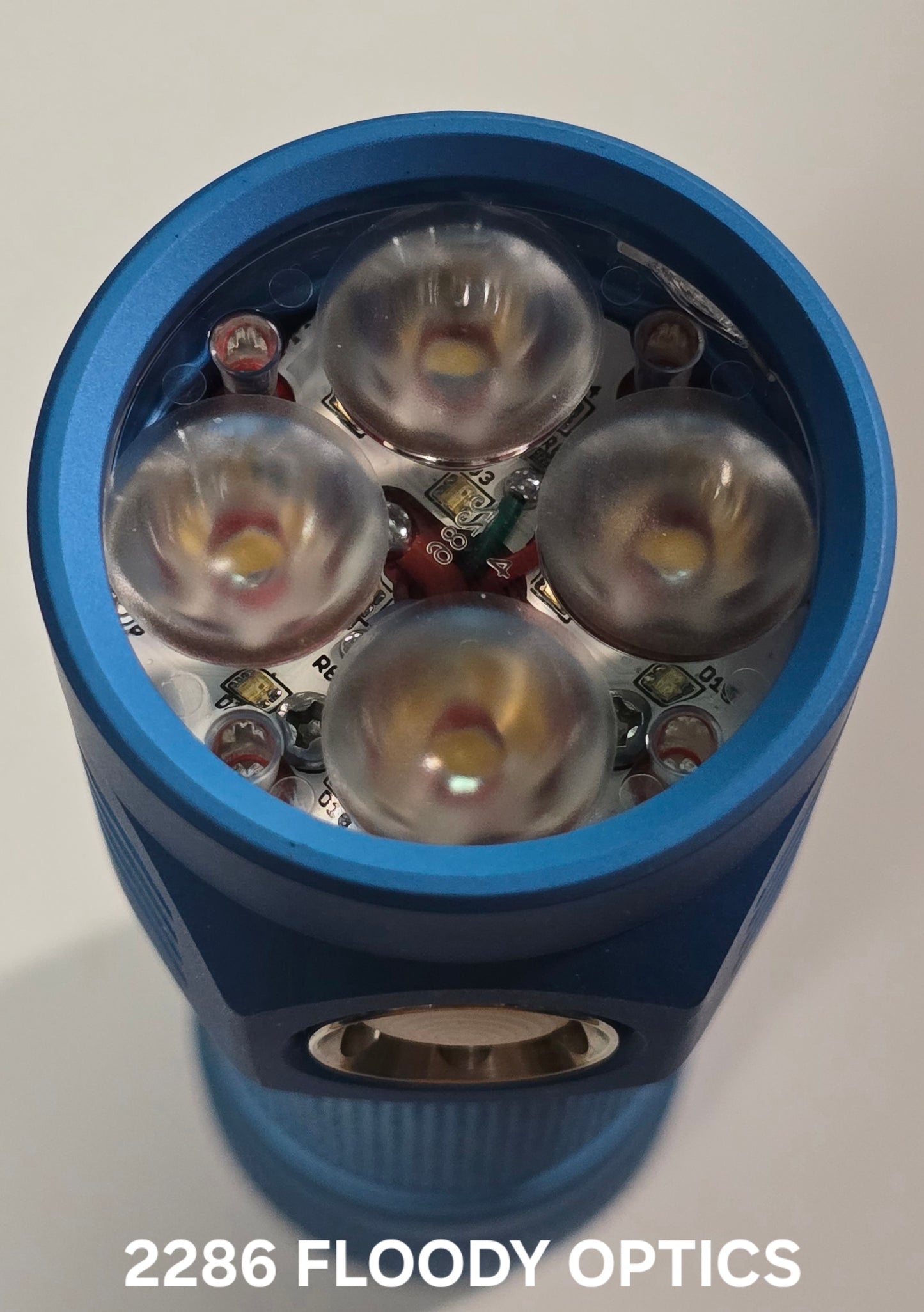

2286 FLOODY
INCLUDED OPTIONS:
LIGHTED SWITCH OPTION

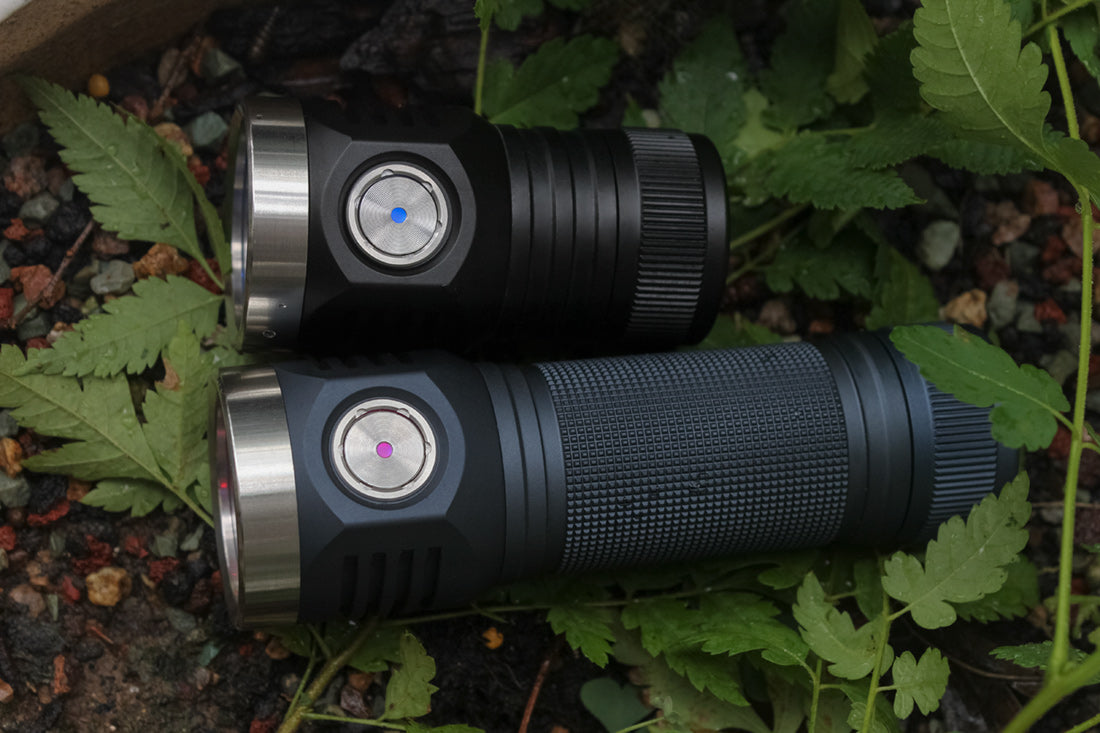

NEW! STAINLESS STEEL BEZEL INCLUDED!

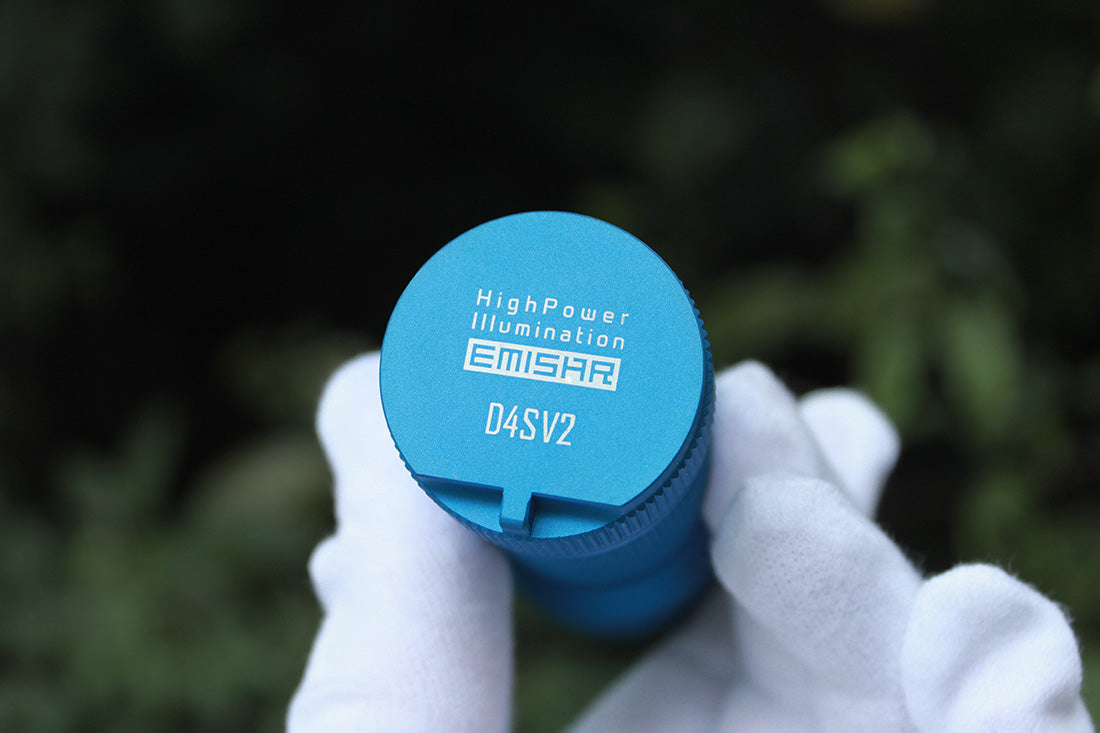

MAGNETIC TAILCAP
LANYARD
EXTRA ORINGS
ANDURIL 2 UI INSTRUCTIONS
OPTIONAL ACCESSORIES:
21700 TUBE
26800 TUBE
BATTERY:
26650 high drain unprotected flat top cell recommended min 20A (NOT INCLUDED)
21700 BATTERY LINK >>>Molicel P45B 4500mAh 21700 45A Lithium-ion Rechargeable Battery **** H – JLHawaii808
26800 BATTERY LINK >>> Vapcell INR26800 26800 6200mAh 25A Rechargeable Li-Ion Battery *** HAS – JLHawaii808

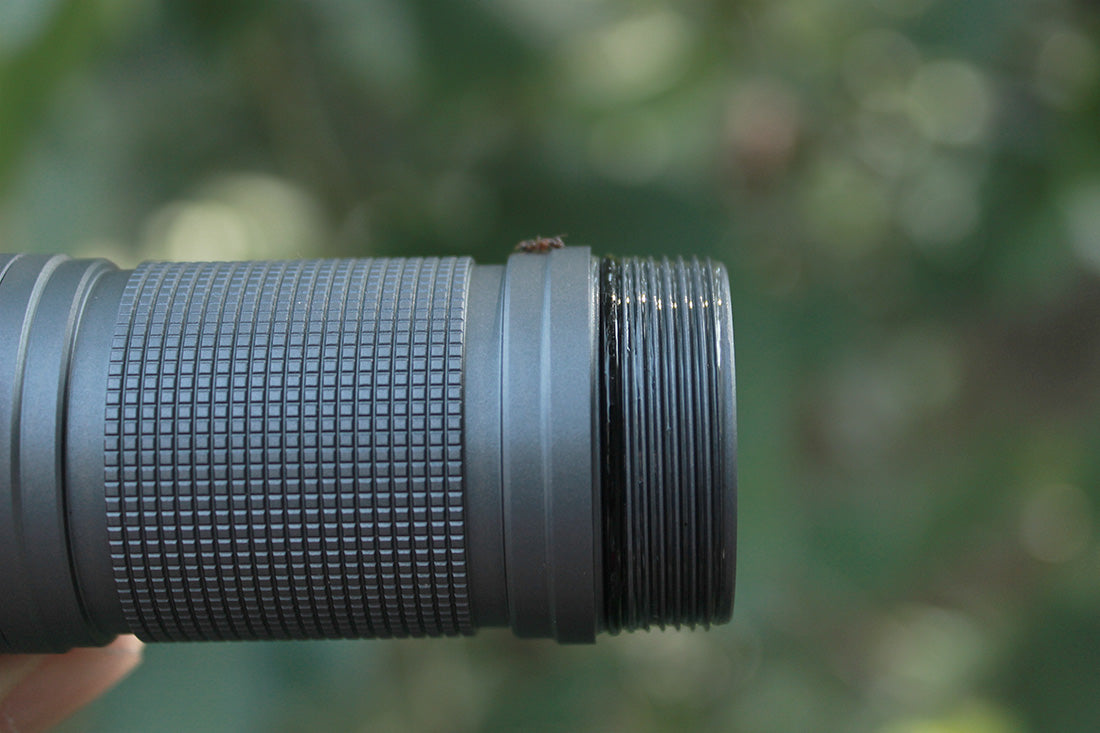

21700/26800 BATTERY TUBE LINK >>>Emisar Noctigon Replacement Body/Tube – JLHawaii808
Features:

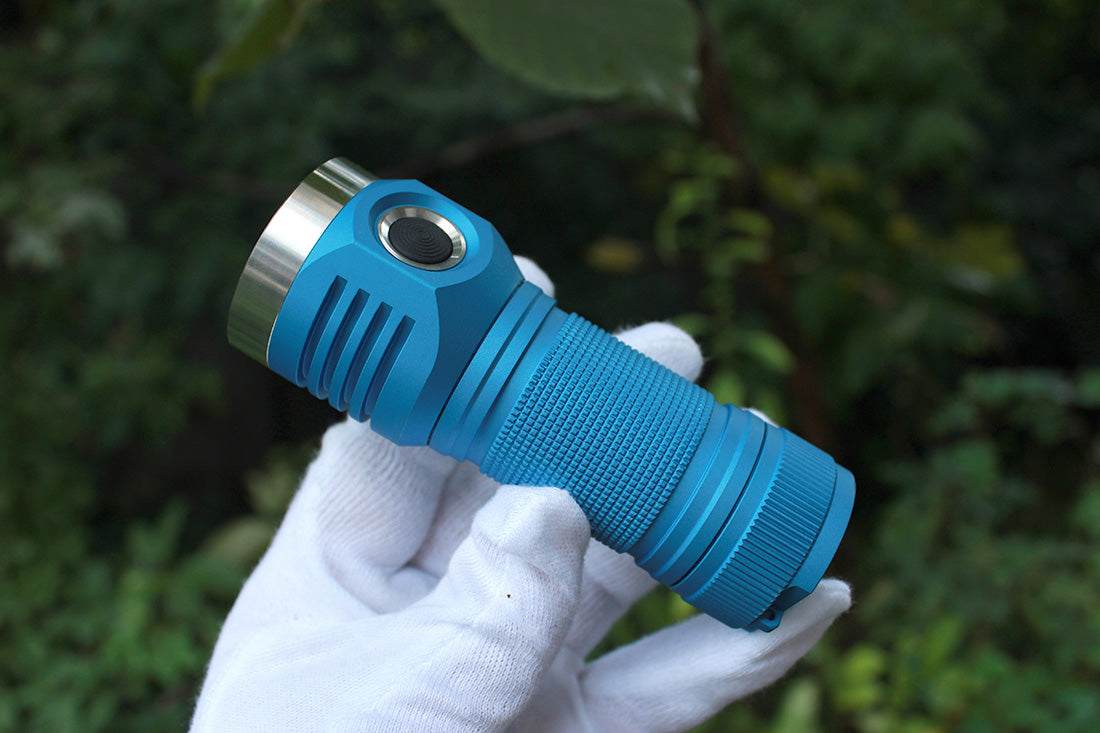

• CNC machined from aircraft-grade aluminum
• Efficient LEDiL quad optic
• Double of triple the candela of D4 (depending on LEDs of D4)
• Anti-reflective coated glass lens
• Unihead construction
• High lumen output and low moon output
• Ramping interface
• Electronic soft touch switch

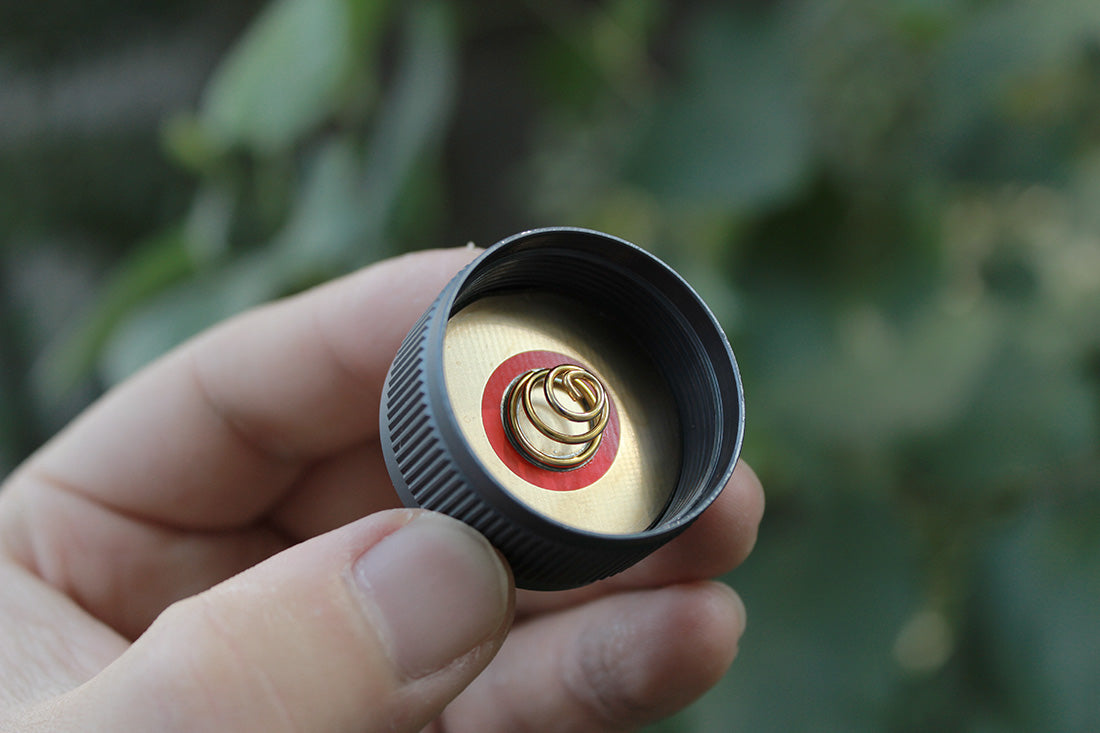

• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.
• Temperature step-down • More mass and MCPCB surface compared to D4
• Waterproof and dustproof to IP67 standard (up to 1 meter)
• Powered by a high drain 26650 cell (not included)
• Dimensions: 105mm(length) * 39mm(head) * 32mm(body)
OTF lumen output and candela at start-up
XP-G2 S4: 3300lm / 40,000cd
Nichia 219C: 3000lm / 20,000cd
XP-L HI: 4300lm / 45,000cd
XP-L HD: 5100lm / 27,000cd
SST-20 6500K: 4200lm / 58,000cd
SST-20 5000K: 4000lm / 55,000cd
SST-20 4000K/3000K 95CRI: 3000lm / 41,000cd
NICHIA 519A: 3900-4000 LUMENS
OSRAM W1/W1: W2 5000 LUMENS
SFT40: 8000-9000 LUMENS
This product uses free software distributed under the terms of the GPLv3.
Source code is available from http://tiny.cc/TKAnduril
