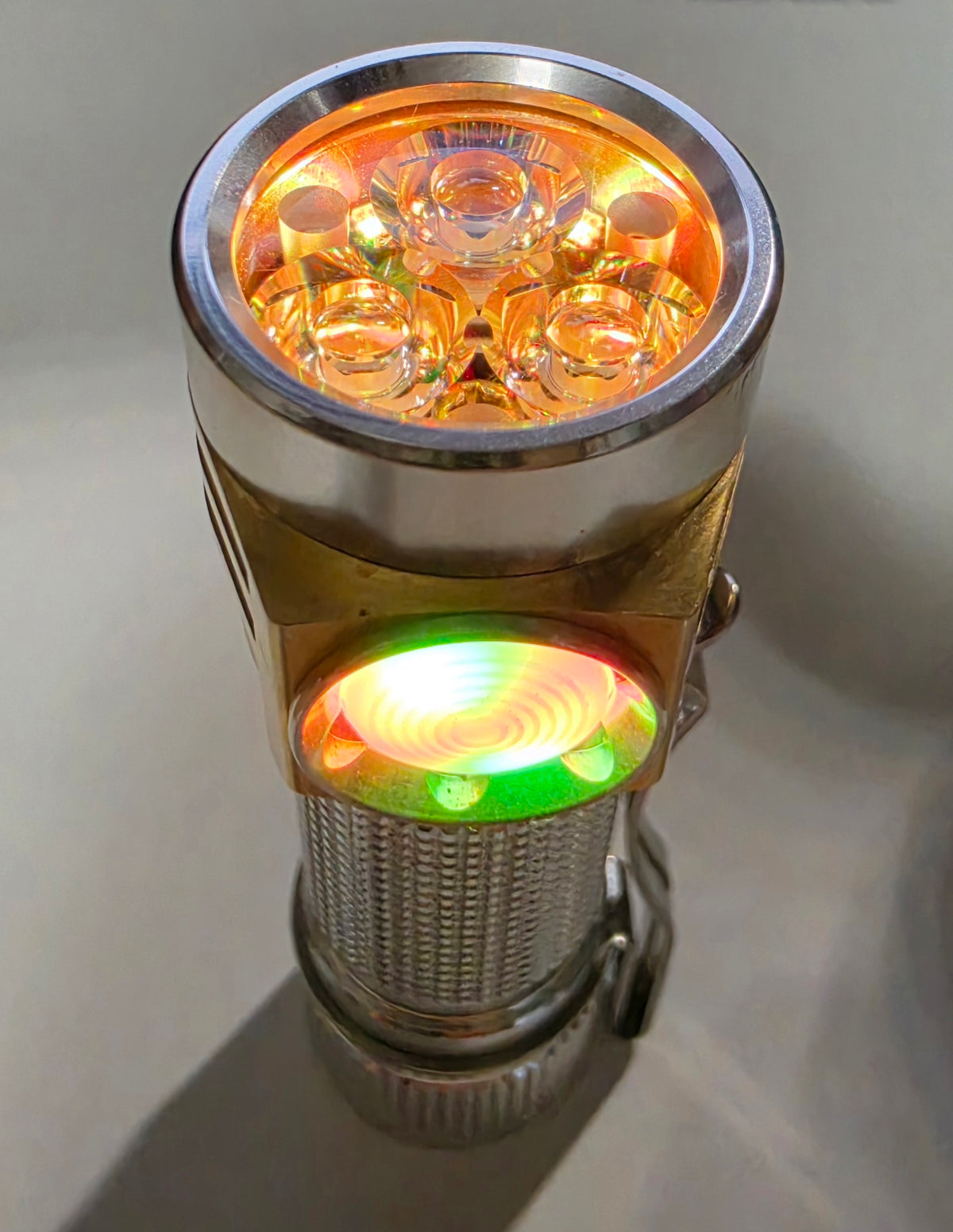

EMISAR D3AA AA/14500 COMPACT LED FLASHLIGHT

THE D3AA WILL BE ASSEMBELED HERE AND IS "CUSTOM BUILT-TO-ORDER" SO WILL SHIP ACCORDINGLY! EXPECT SHIPPING DELAYS!

The light works with button top & flat top unprotected 14500 battery (not included in the price), D3AA does not work with protected battery.

The light will be flashed with latest firmware before shipping, however, the current reflashing kit in the market may not be compatible with D3AA.

REFLASHING KIT LINK >>> https://jlhawaii808.com/products/updi-programmer-driver-reflashling-kit?utm_medium=product-links&utm_content=android

FFL351A 4000K (ROSY BIN) >>> https://iot3.opple.com/lightmaster/index.html#/report/fd98de51c07846ada74d2da2c6e32c63

REFLASHING KIT LINK >>> https://jlhawaii808.com/products/updi-programmer-driver-reflashling-kit?utm_medium=product-links&utm_content=android

https://iot3.opple.com/lightmaster/index.html#/report/fd98de51c07846ada74d2da2c6e32c63

USER INTERFACE:

ANDURIL 2 UI

DRIVER:

9V 6A THEFREEMAN BOOST HIGH EFFICENCY DRIVER

2A PER LED TRIPLE VERSION

1A PER LED ON MULE VERSION

NEW 3-PIN REFLASHING PAD CAN BE PURCHASED HERE >>> https://jlhawaii808.com/products/updi-programmer-driver-reflashling-kit?utm_medium=product-links&utm_content=android

https://budgetlightforum.com/t/emisar-d3aa-driver-technical-information/223513

LIGHTED SWITCH:

ALL COLORS + RGB

AUXILIARIES:

RGB

NO AUXILIARIES ON UV MULE

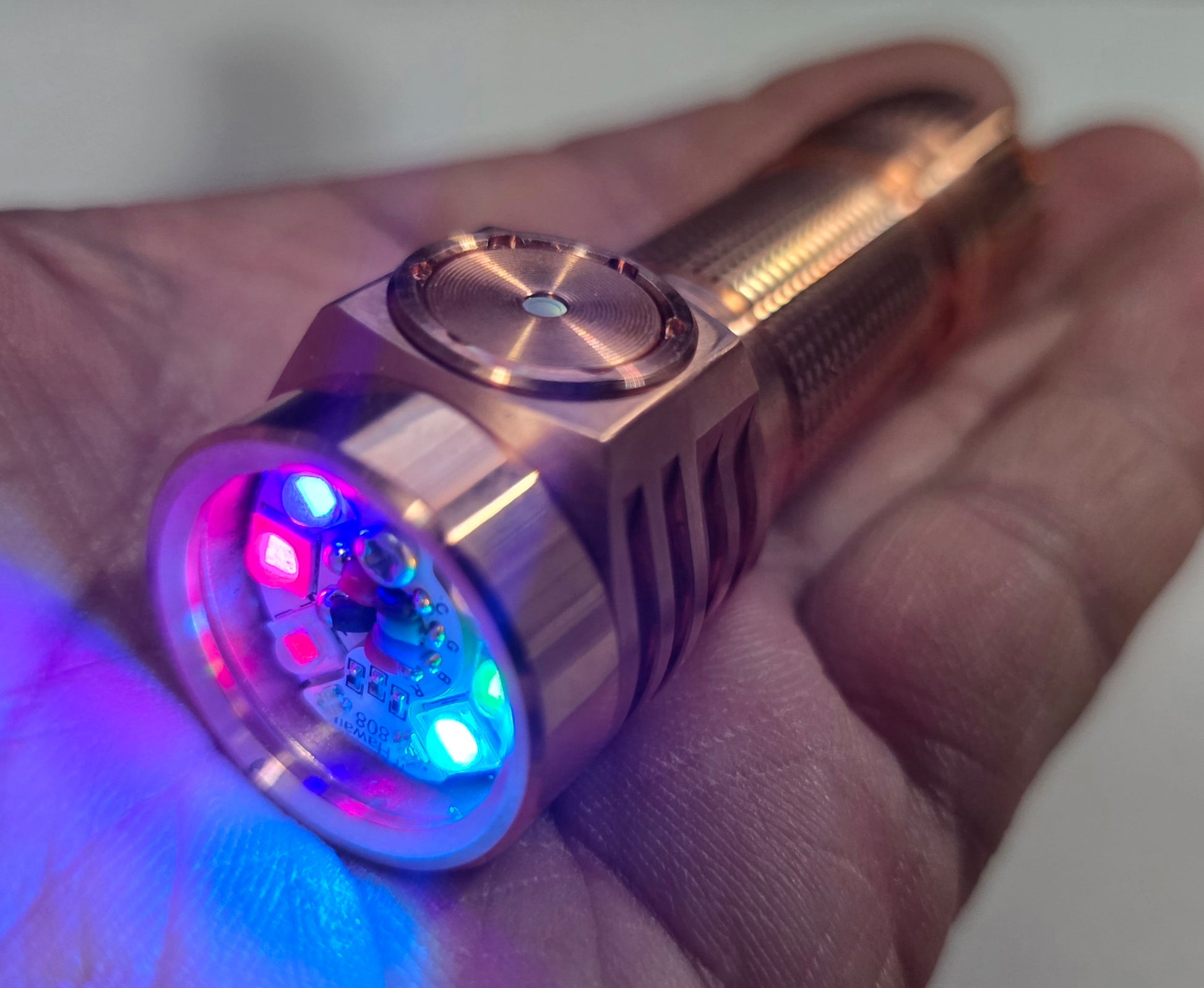

BODY:

ALUMINUM

ALUMINUM + COPPER

OPTIONAL COPPER HEAD, BEZEL AND SWITCH RING

TITANIUM VERSION >>> Emisar D3AA Titanium 14500/AA LED Flashlight *CUSTOM BUILT-TO-ORDER* – JLHawaii808

TITANIUM COLORFUL SERIRES >>> Emisar D3AA Titanium Colorful Series 14500/AA LED Flashlight – JLHawaii808

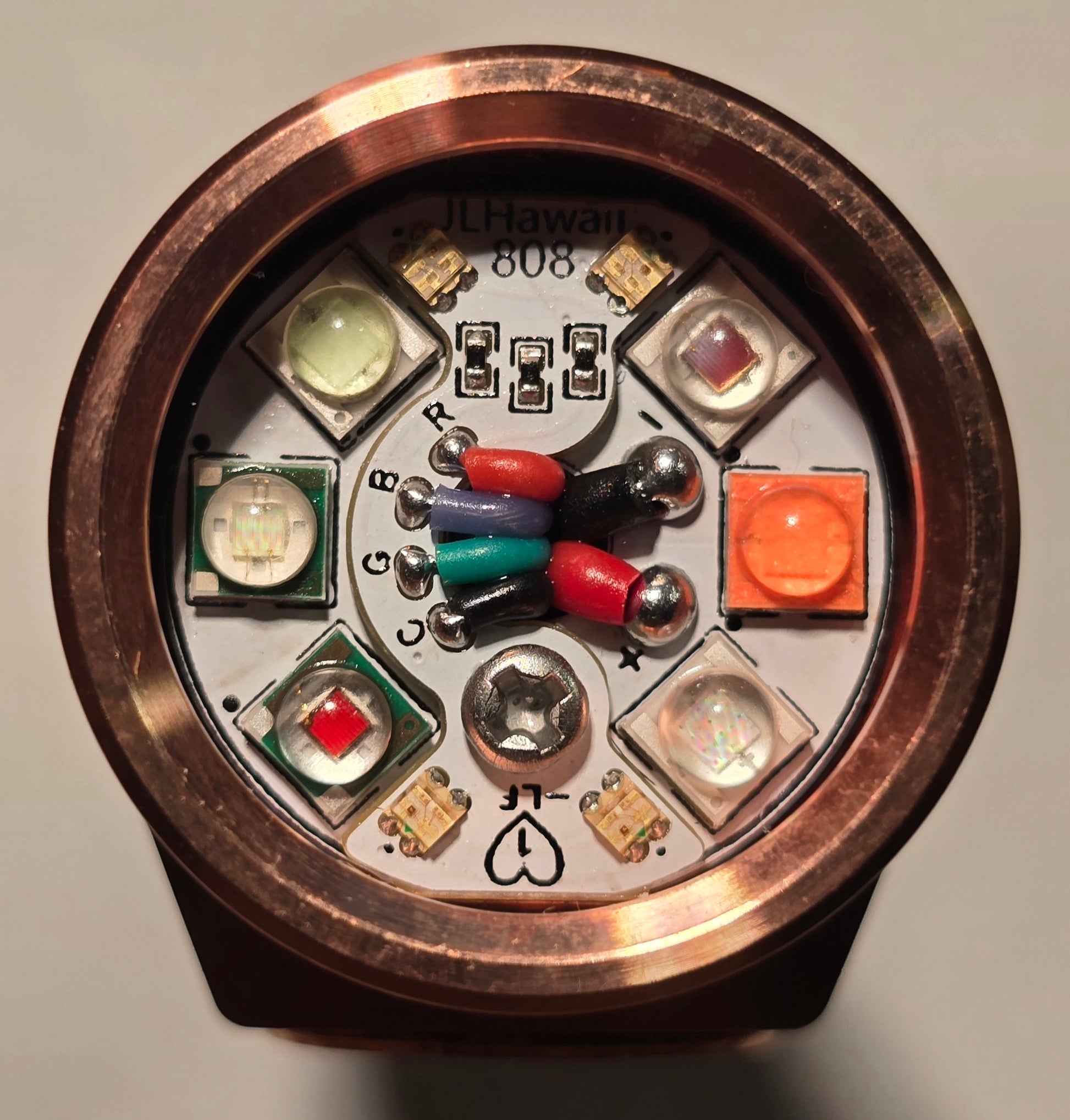

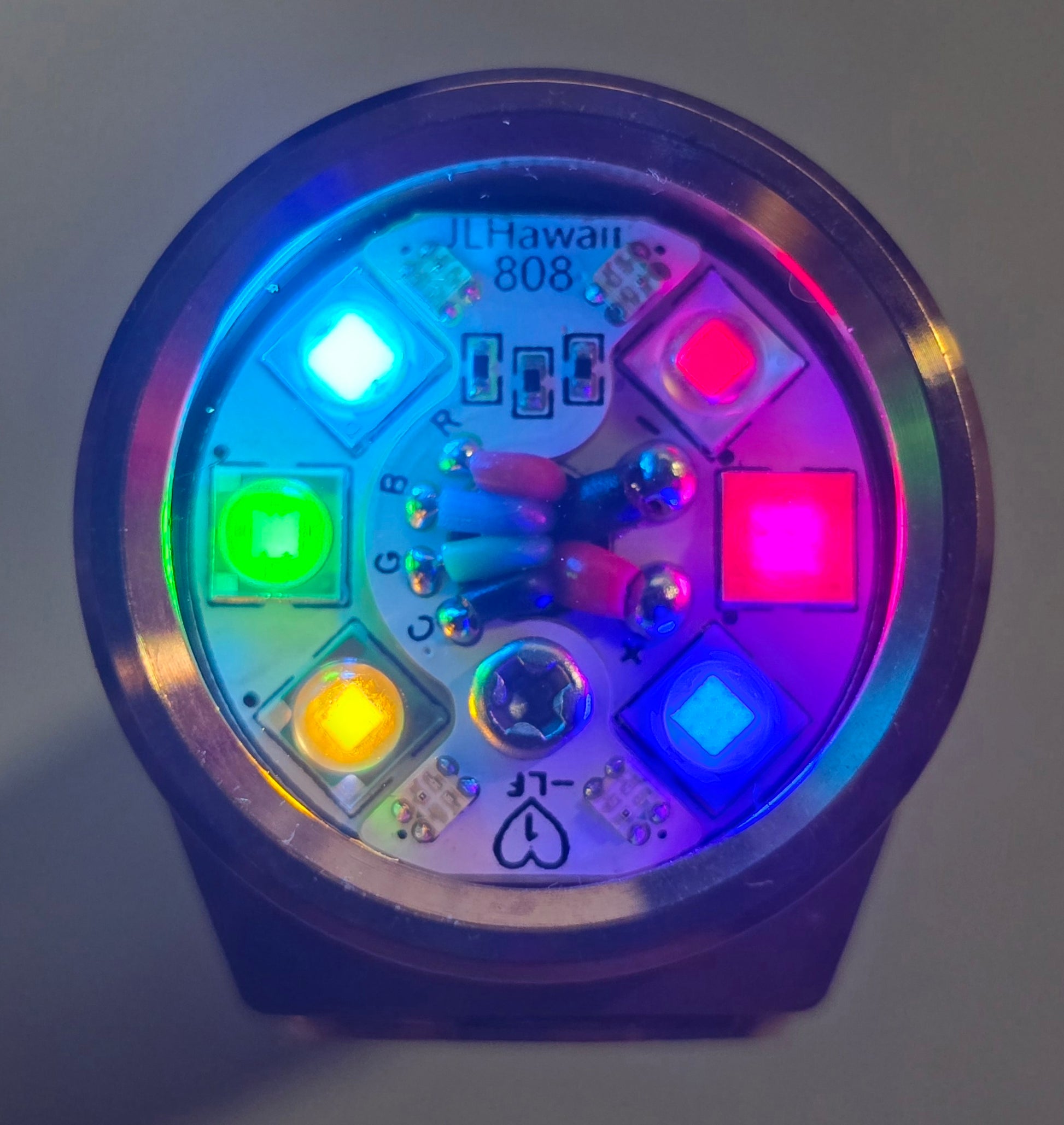

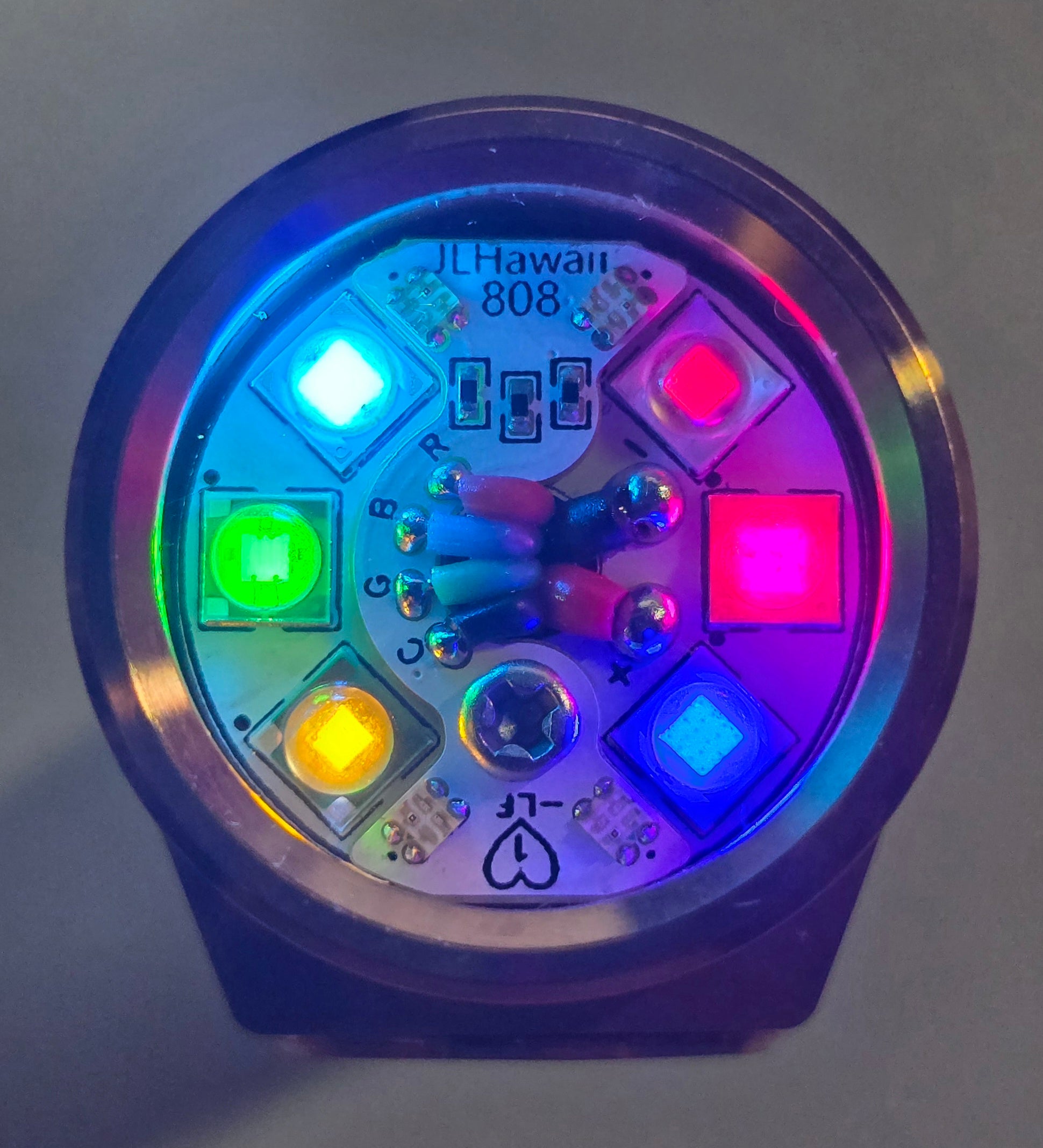

EMITTERS:

TRIPLE & MULE OPTIONED

NEW! FFL351A & FFL351RD EMITTERS

NICHIA 519A

NICHIA 219B

NICHIA 219C 4000K ONLY

SST10 5W 365NM UV LEDS

SST20

SFT25R

OSRAM LIMITED STOCK

5050SMD EMITTERS (5MMX5MM)

FFL505A 3700K 906CRI ROSY BIN

FFL505A 6500K 96CRI

SFT40 3000K 95CRI (HC1 & HD2 BIN)

SFT40 5000K 70CRI

SFT40 6500K

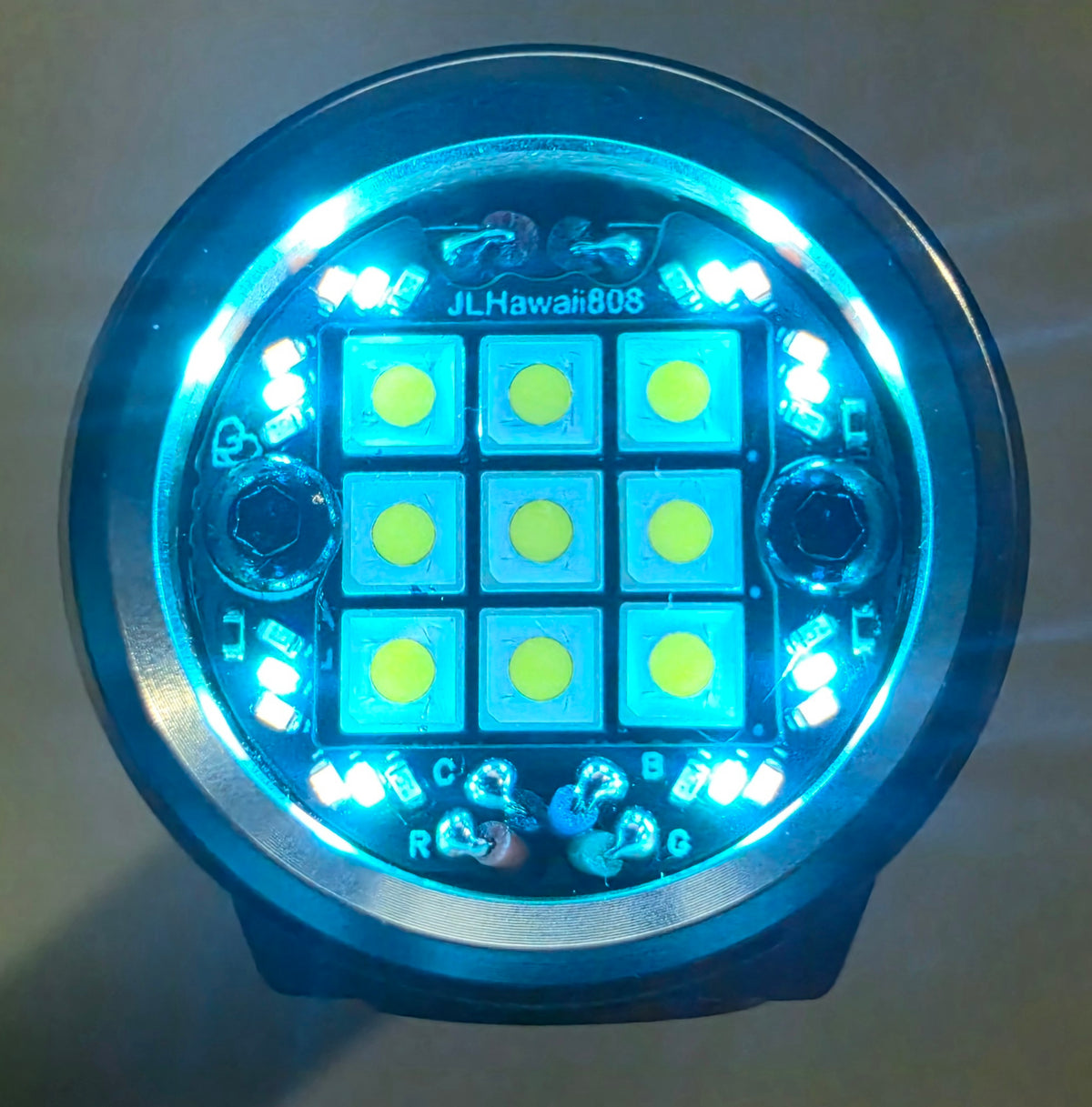

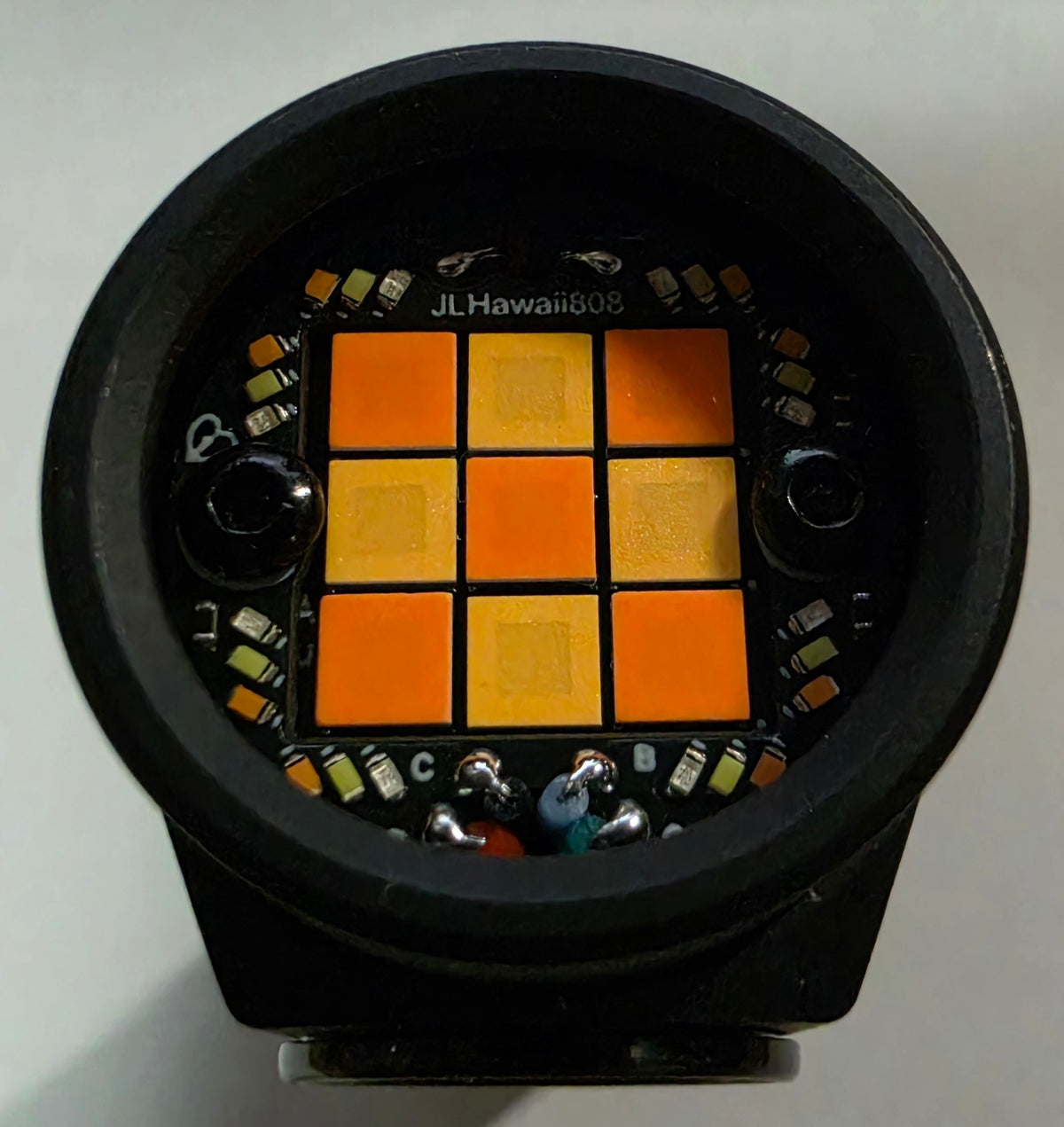

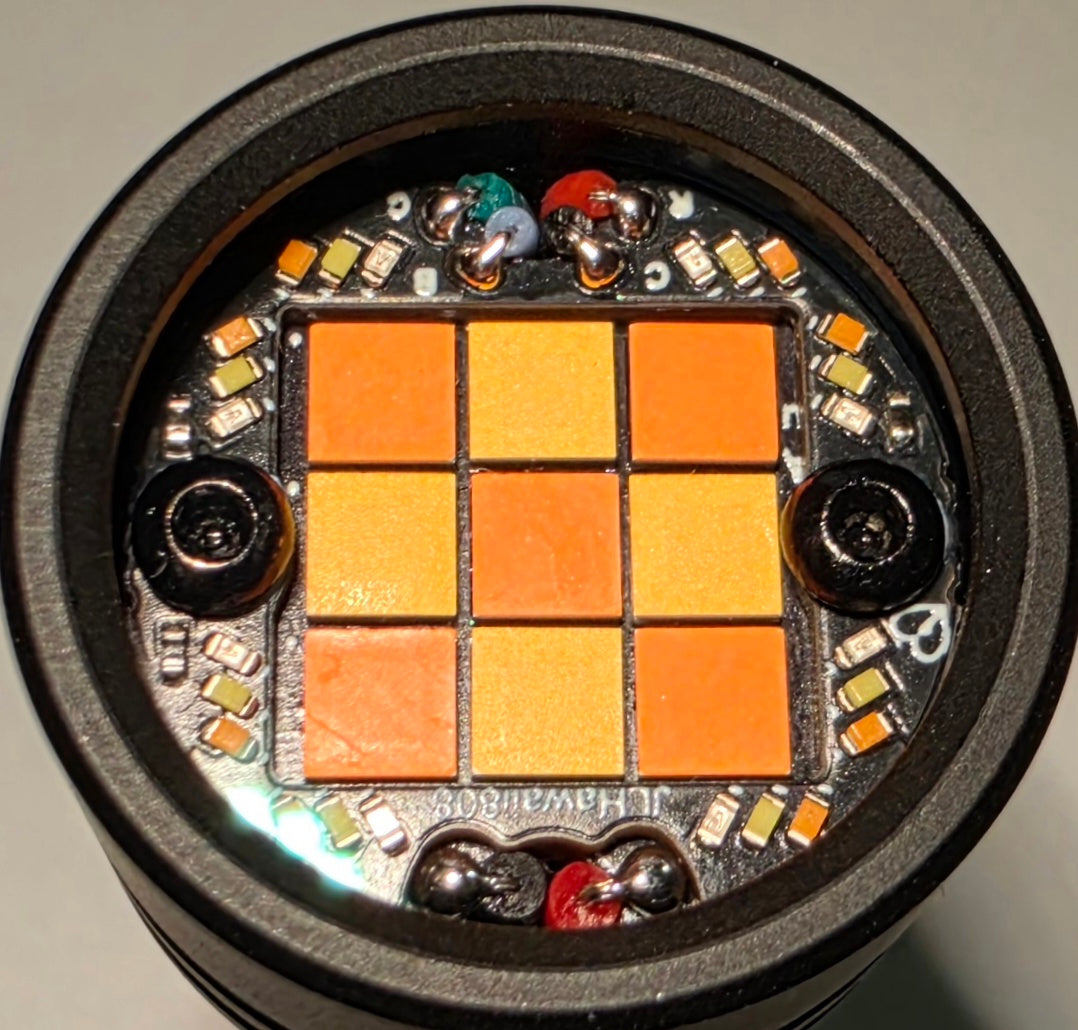

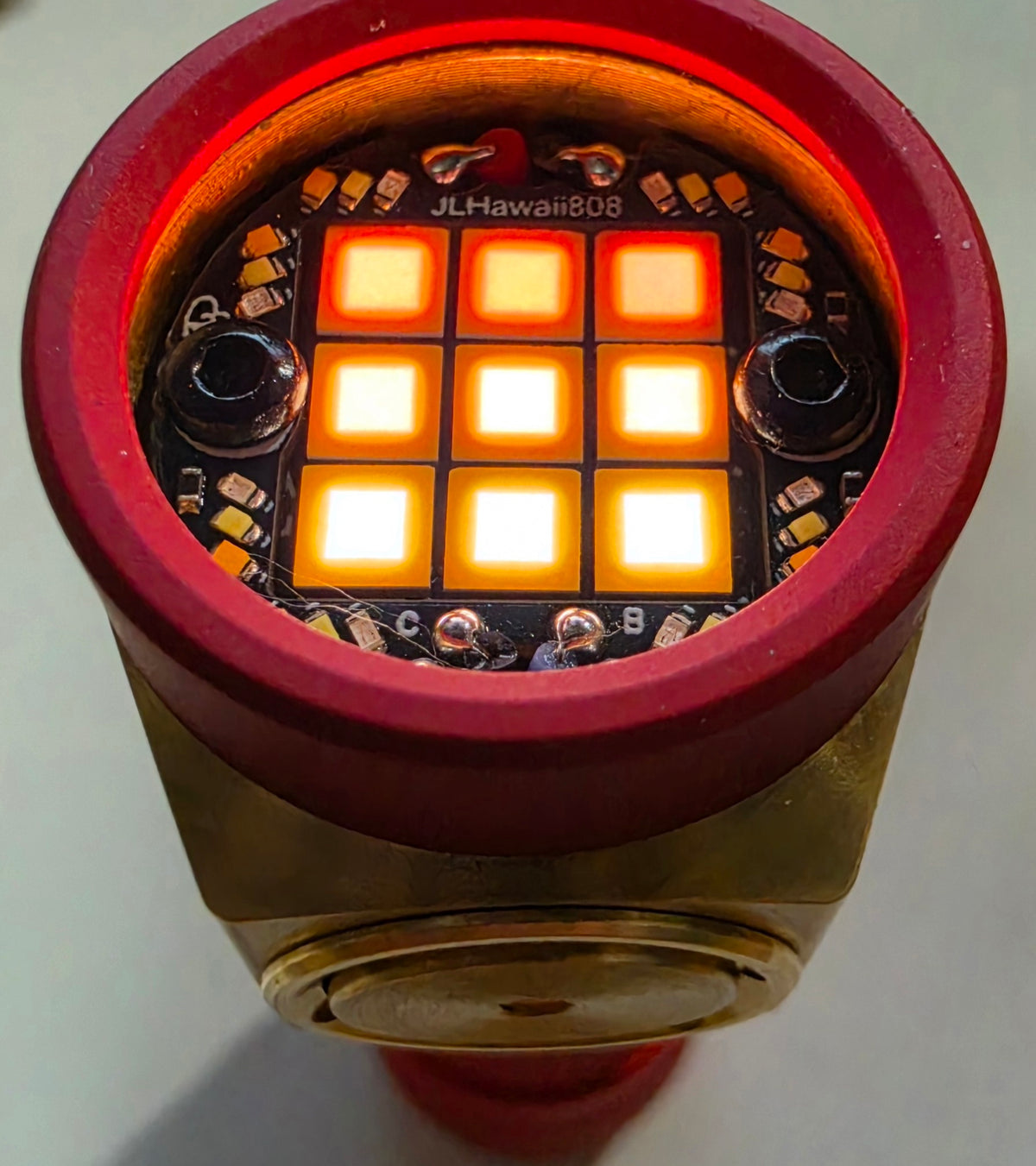

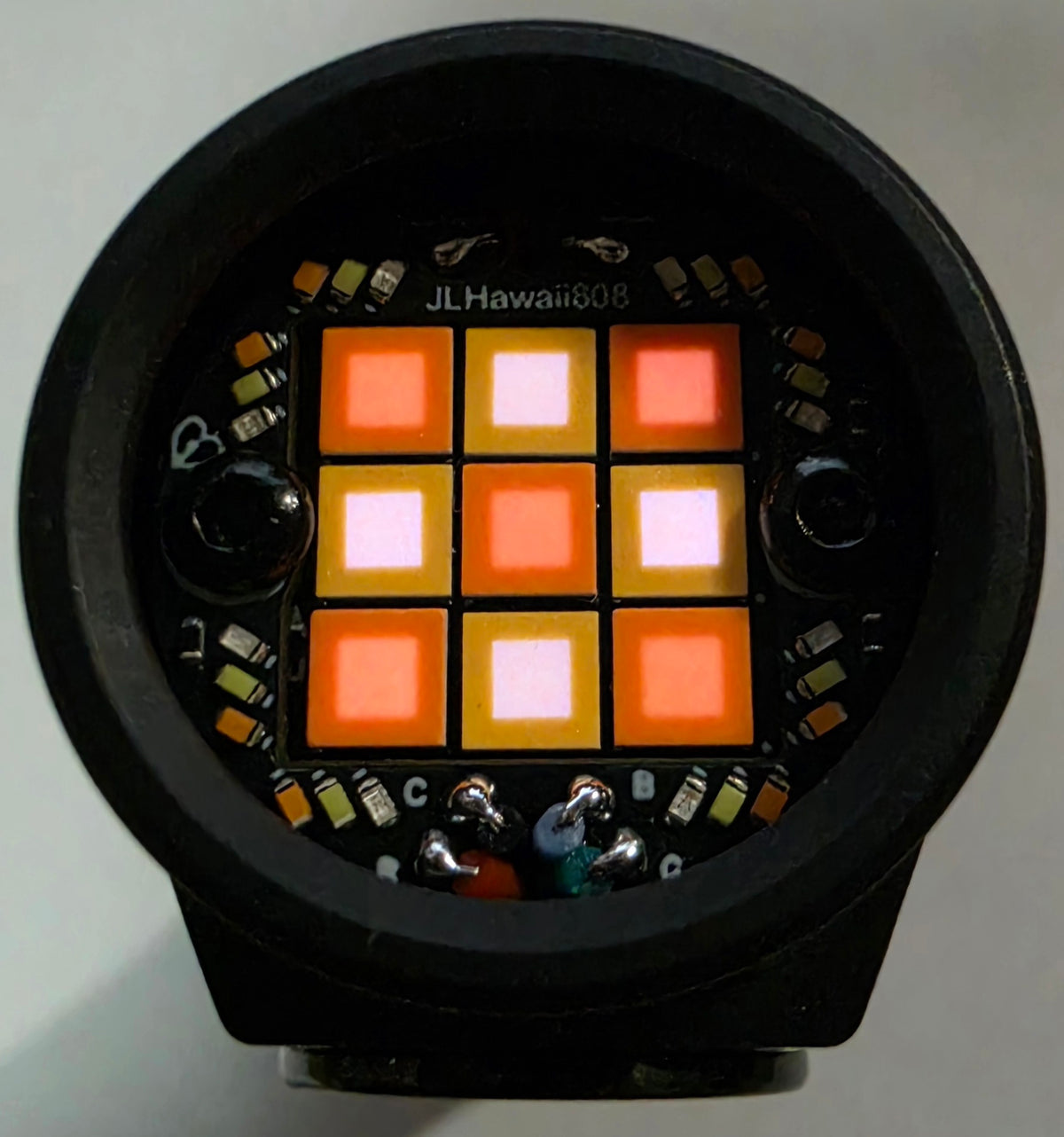

NOTE: MULES HAS A 3MM ALUMINUM SPACER + A NEW CUSTOM AUX BOARD (NO AUX ON UV)

OPTICS:

CARCLO 10511 (STANDARD)

CARCLO 10507 (SPOT) PLEASE SELECT FOR THROWY EMITTERS LIKE OSRAM, FFL351RD AND SFT25R

CARCLO 10508 (FLOODY)

NO OPTICS ON MULES

ZWB2 365NM FILTER FOR UV OPTION

OPTICS PURCHASE LINK >>> CARCLO 105XX TRIPLE TIR LENS/OPTICS – JLHawaii808

INCLUDED ACCESSORIES:

SS POCKET CLIP

MAGNETIC CAP OPTION INCLUDED

LANYARD & SPARE ORINGS

BATTERY:

BATTERY NOT INCLUDED

AA OR 14500

14500 HIGH DRAIN UNPROTECTED CELL BUTTON OR FLAT TOP RECCOMENDED. 10A RECCOMENDED! DO NOT USED PROTECTED 14500 BATTERIES THEY HAVE A PROTECTION CIRCUIT AND IT CAN BE TOO LONG, CAN CAUSE DAMAGE TO THE DRIVER

VAPCELL H10 FLAT OR BUTTON TOP PURCHASE LINK >>> VAPCELL H10 14500 10A LITHIUM-ION RECHARGEABLE BATTERY – JLHawaii808

FEATURES:

• High efficiency boost driver

• CNC machined from aluminum

• Efficient UK made Carclo triple 10511 optics by default

• Unihead construction

• High lumen output and low moon output

• Ramping interface

• Electronic soft touch switch

• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.

• Temperature step-down

• Waterproof and dustproof to IP67 standard (up to 1 meter)

• Weight:38.5g (without magnet)

• Dimensions: 78.3mm(length) * 24mm(head) * 19mm(body)

• Lumen Rating per LED option and cell 14500 (2A) / NiMH (0.6A):

519A 5700K R9080 1540lm OTF / 510lm OTF

519A 4500K R9080 1540lm OTF / 510lm OTF

519A 2700K R9080 1240lm OTF / 420lm OTF

219B 4500K R9080 1200lm OTF / 460lm OTF

KW CSLPM1.TG W2 1760lm OTF / 640lm OTF

SST-20 6500K/5000K 2075lm OTF / 765lm OTF

SST-20 4000K 95 CRI 1455lm OTF / 530lm OTF

SST-20 2700K 95 CRI 1350lm OTF / 485lm OTF

This product uses free software of Anduril 2, distributed under the terms of the GPLv3. https://toykeeper.net/anduril
