EMISAR D1K 21700
NOTE: THIS IS CUSTOM "BUILT-TO-ORDER, WILL SHIP ACCORDINGLY!
21700 Mini Pocket Thrower
NEW BATCH HEADS WILL AVAILABLE THE END OF DECEMBER OR BEGINNING OF JANUARY 2025. THIS WILL FIT THE NEW LUME X1 DRIVER!
USER INTERFACE:
ANDURUIL 2 UI
DRIVER:
9A LINEAR (CURRENT WILL BE MODIFIED)
9A LINEAR + FET (ONLY SBT90.2 & SFN60)
$15 ADDITIONAL EMISAR 6V 4A BOOST DRIVE FOR FFL707A (LOAD TEST 7A MAX TURBO) LUME X1 6V 6A BOOST
NEW! LUME X1 12V 3A AND 6V 4A BOOST
FFL505A LED:
FFL505A (FIREFLYLITE)
5050SMD
3V
7.5A
RD (ROUND DIE)
THROWY EMITTER
EXCELLECT CHOICE FOR HIGH CRI AND LONG THROW WITH A TIGHT BEAM IDENTICAL TO THE OSRAM EMITTERS
505A COLOR TEMP:
3700K 96CRI (ROSY BIN)
6500K 96-97CRI 6500K
FFL707A LED:
FFL707A 6V (FIREFLYLITE)
7070SMD
6V
6.5A
8A MAX
6V BOOST DRIVER IS 4A SO THE OUTPUT WILL BE LESS BUT LESTED THE DRIVER PUSHED OUT OVER 7A
707A COLOR TEMP:
VERY POPULAR! 4000K 96CRI @ 3000LM ROSY BIN (VERY ROSY)
5000K 95CRI @ 3200LM
6500K 70CRI @ 4200LM
TKLAMP LUMEN TEST 3200LM

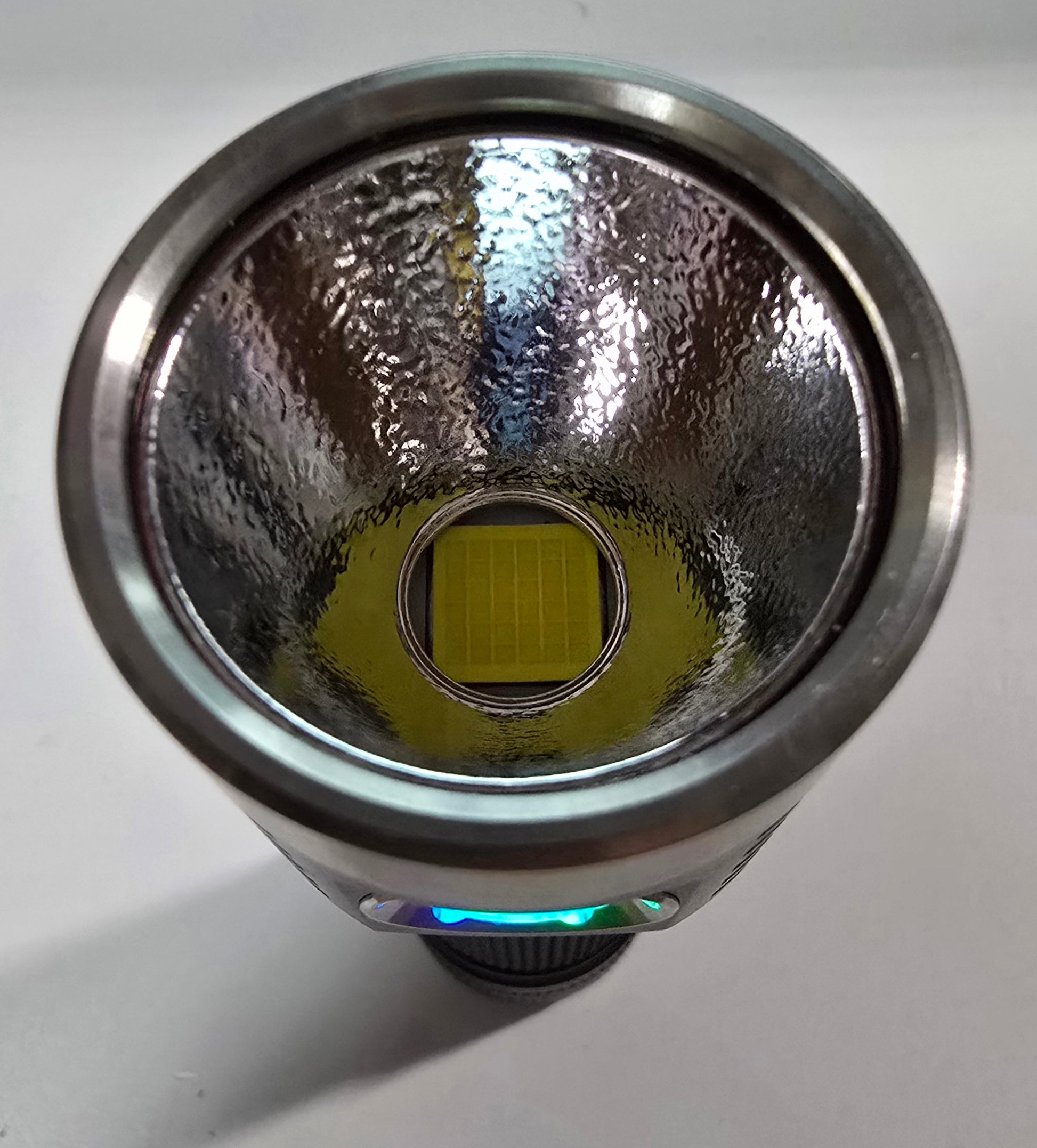

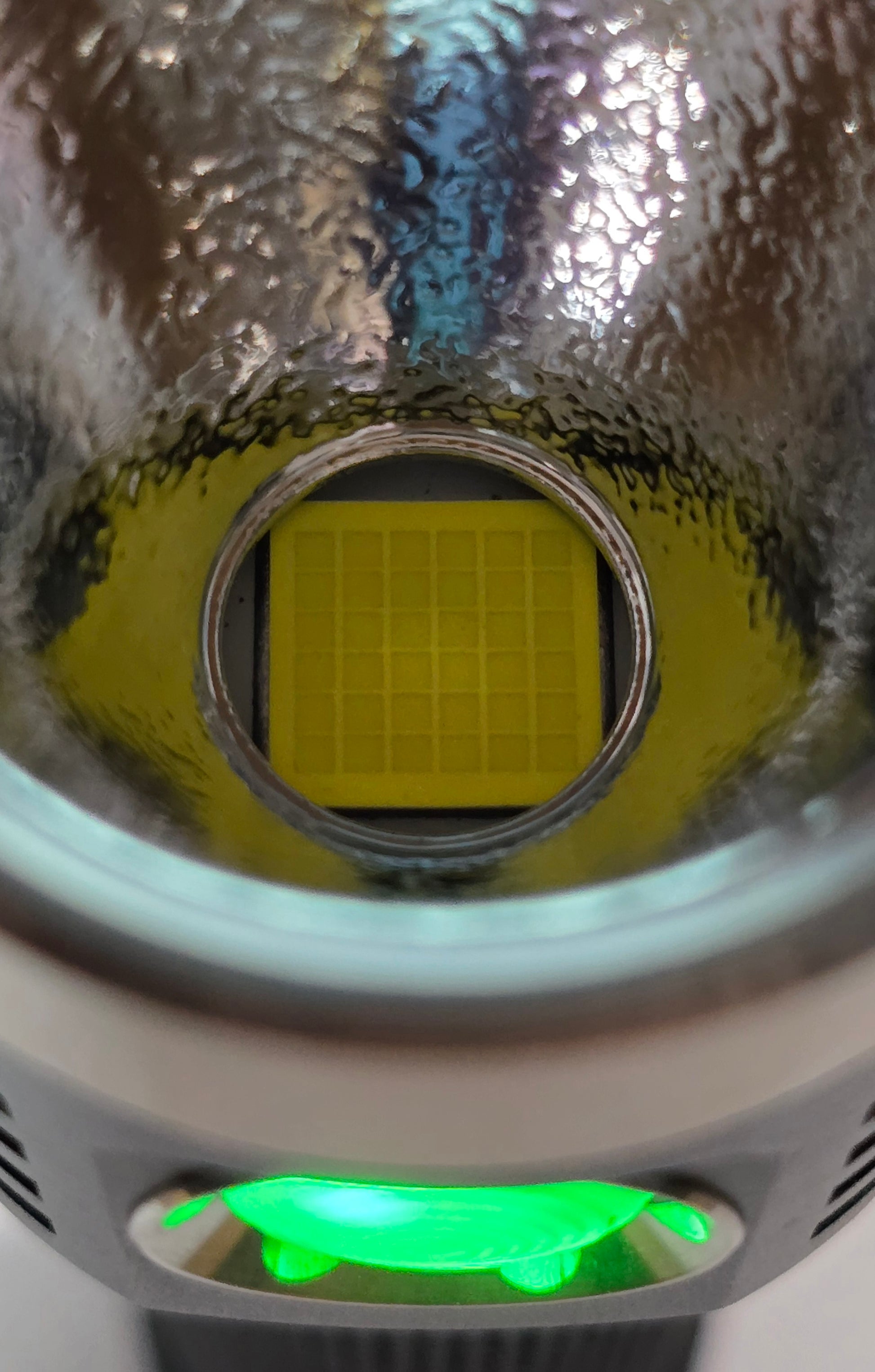

FFL909A SPECS (MOST POPULAR!) >>>
FFL909A (FIREFLYLITE)
9090SMD
9MM X 9MM
VF 2.78V
40A MAX CURRENT
100W

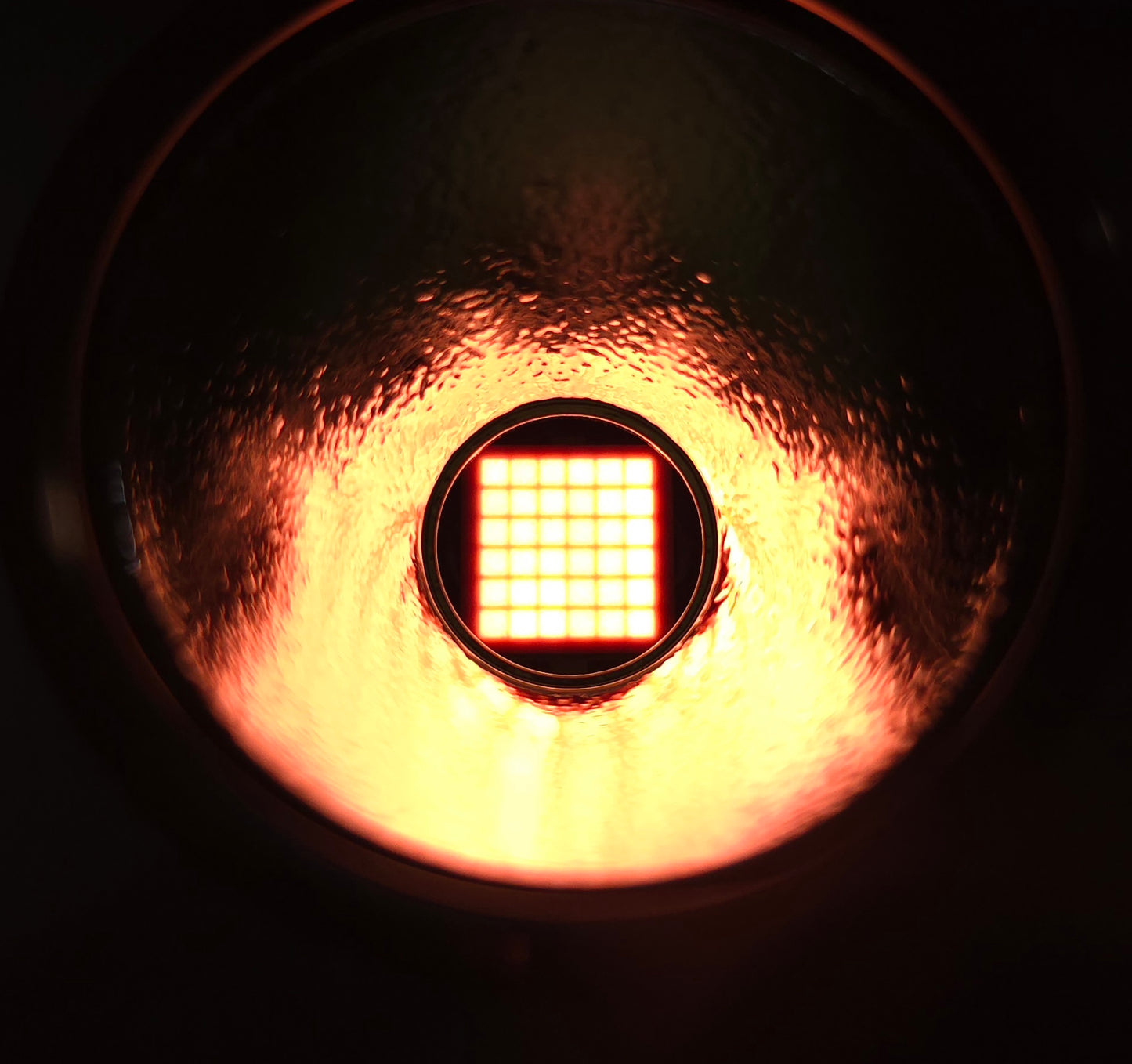

1800K 90CRI 247LM @ 1A 170LM PER WATT
4000K 92 CRI ROSY BIN 313LM @ 1A 113LM PER WATT (5400LM D1K)

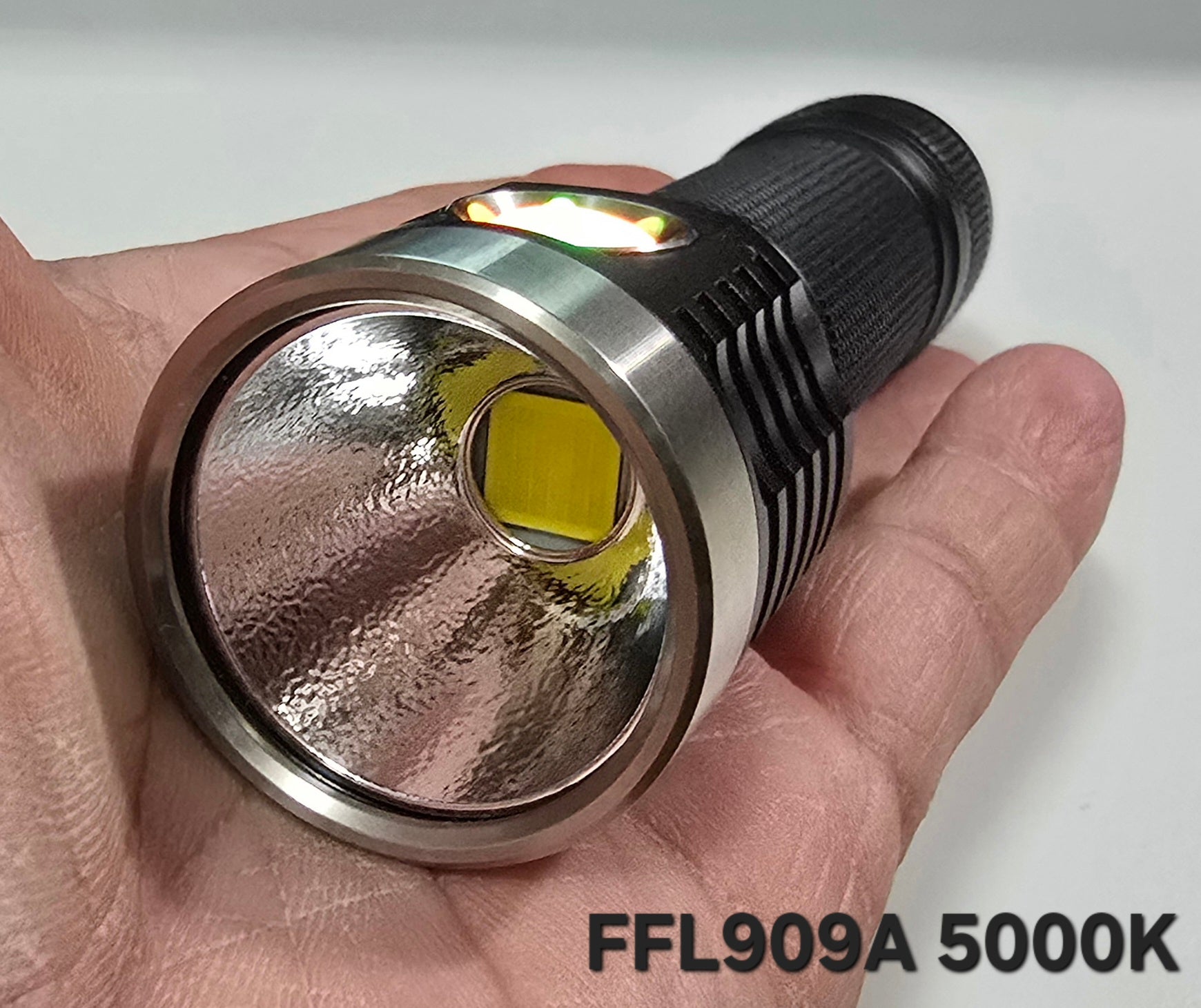

5000K 70CRI 475LM @ 1A 170LM PER WATT (8400LM D1K)
LUMINUS LED:
SFT25R G1 BIN (6500K)
SFT40 (3000K HD2, 5000K & 6500K)
SBT90.2 5700K
OSRAM LED:
OSRAM W2.1/W2.2
SAN'AN LED:
SFN60 (HIGH LUMENS)
HIGH LUMES!
7070SMD
6500K
5500K
3000K
SFN60 OUTPUT LUMENS:
4000-5000LM (20A)
9000LM MAX (35A)
TKLAMP LUMEN TEST 6800LM
COLOR TEMP:

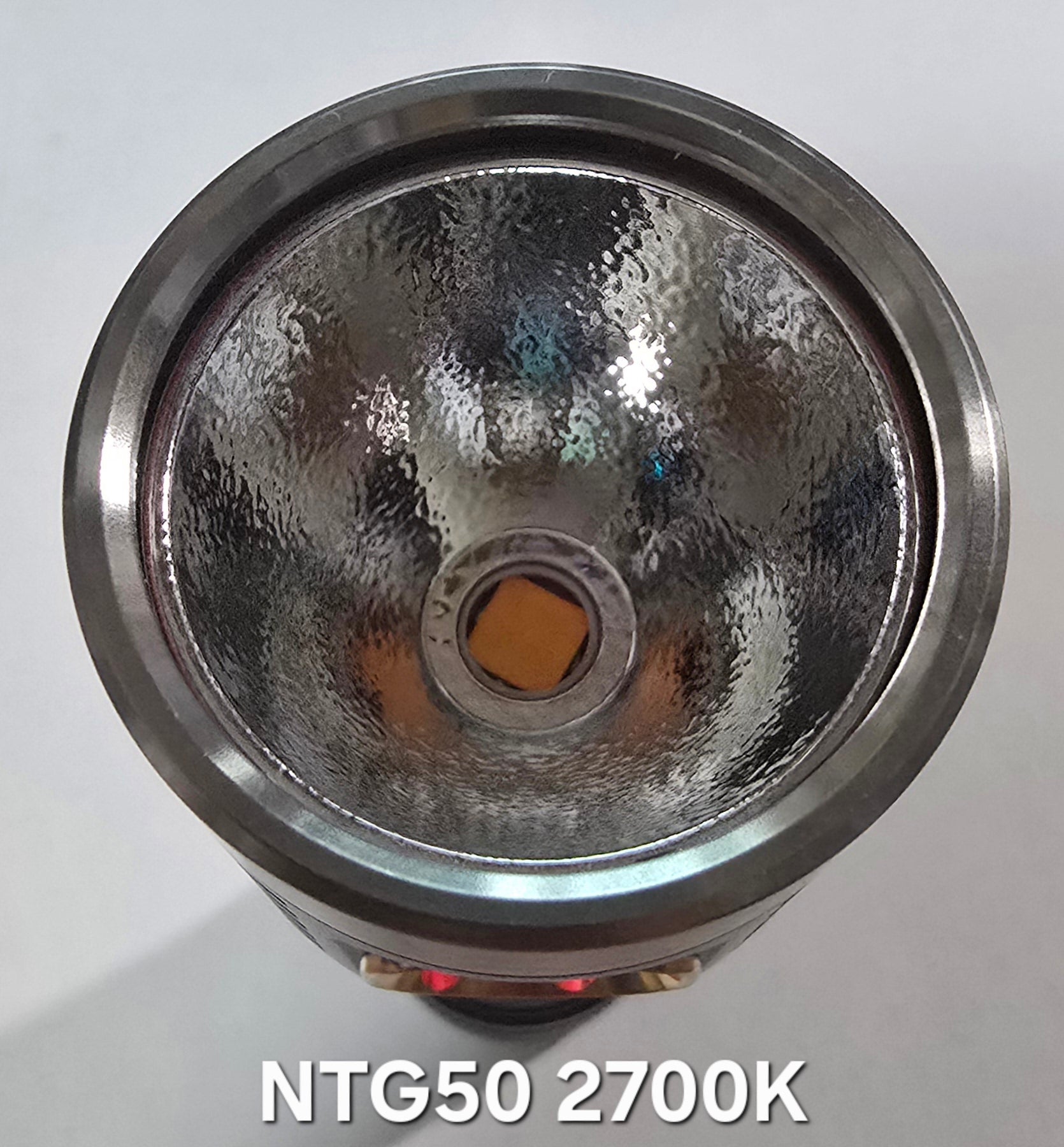

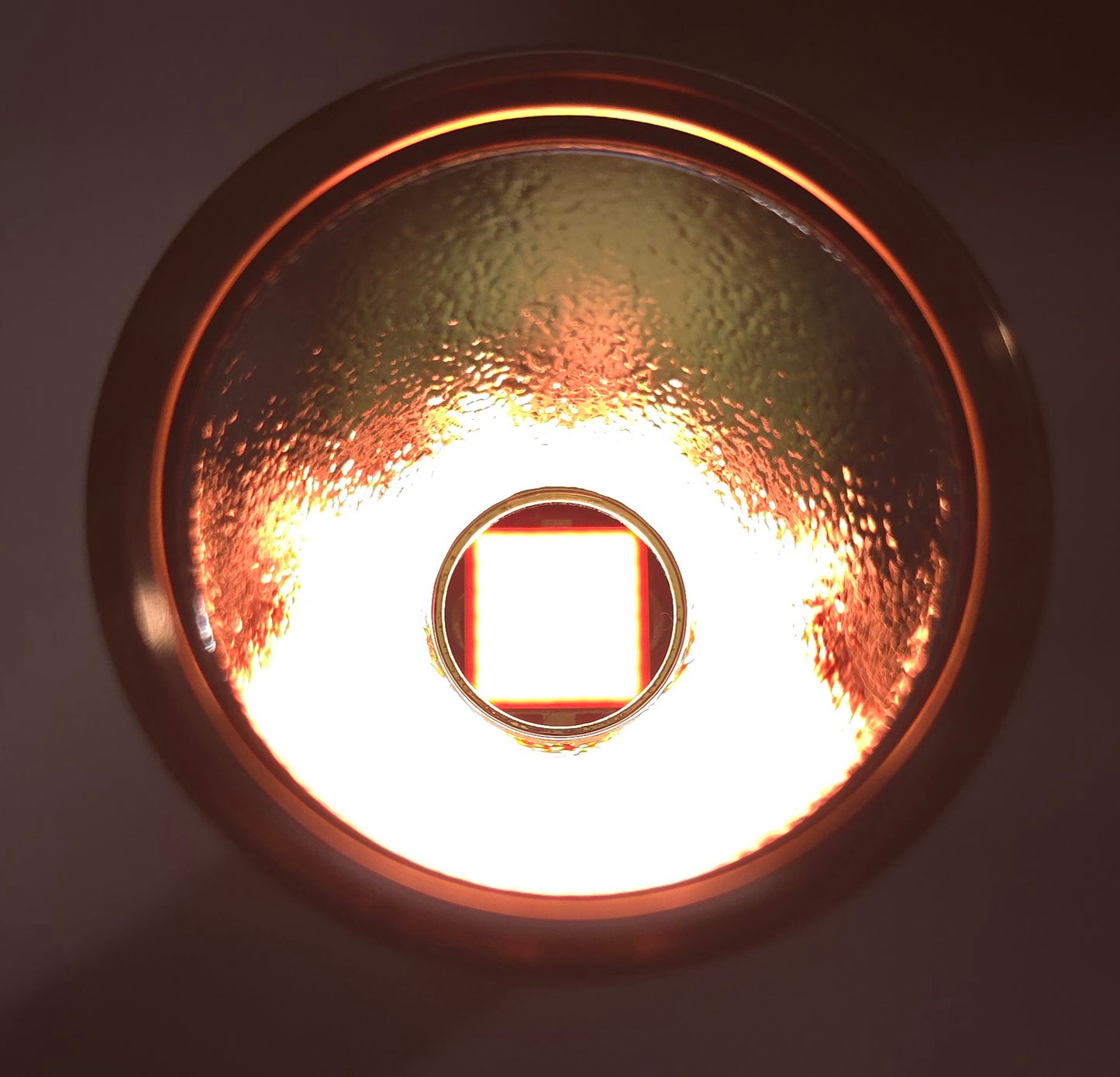

REFLECTOR OPTIONS:
DEPENDING ON THE EMITTERS USED WILL BE EITHER SMO OR OP
OP (ORANGE PEEL)
SMO (SMOOTH)

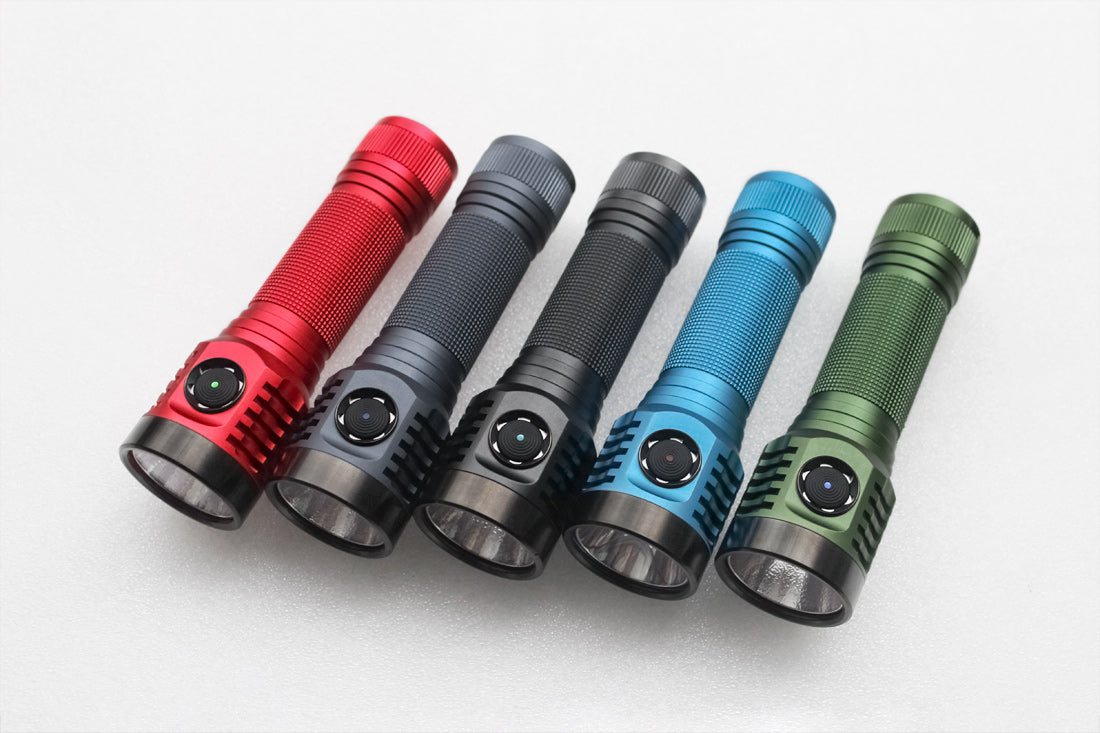

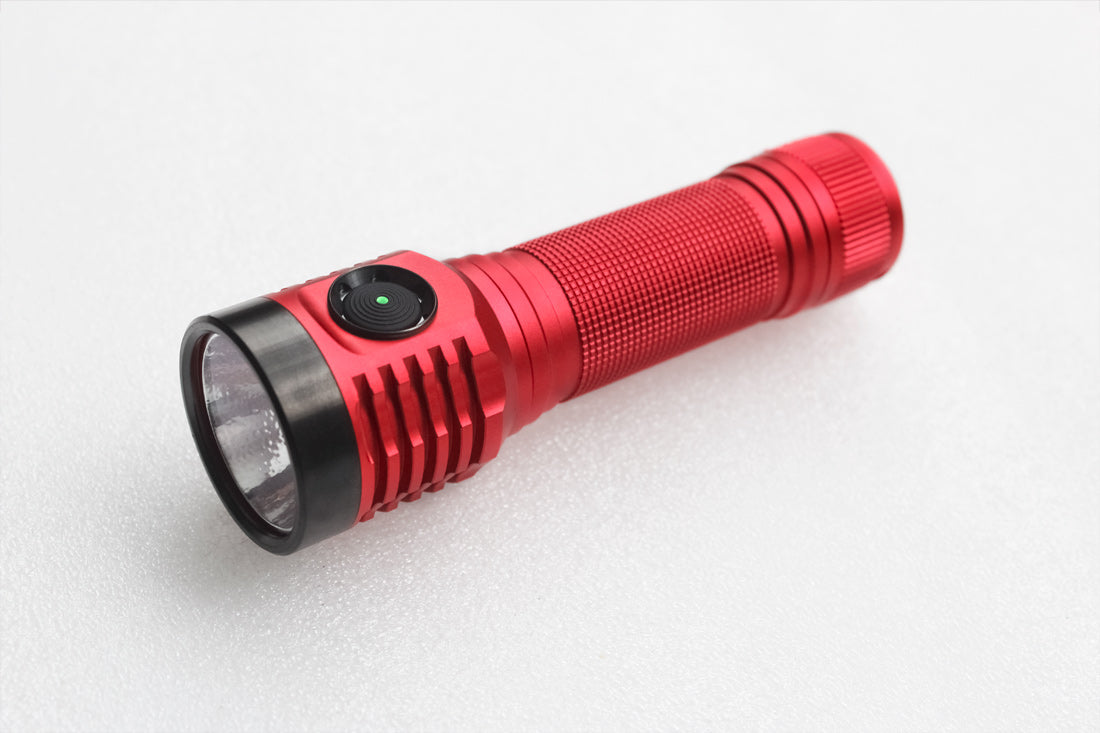

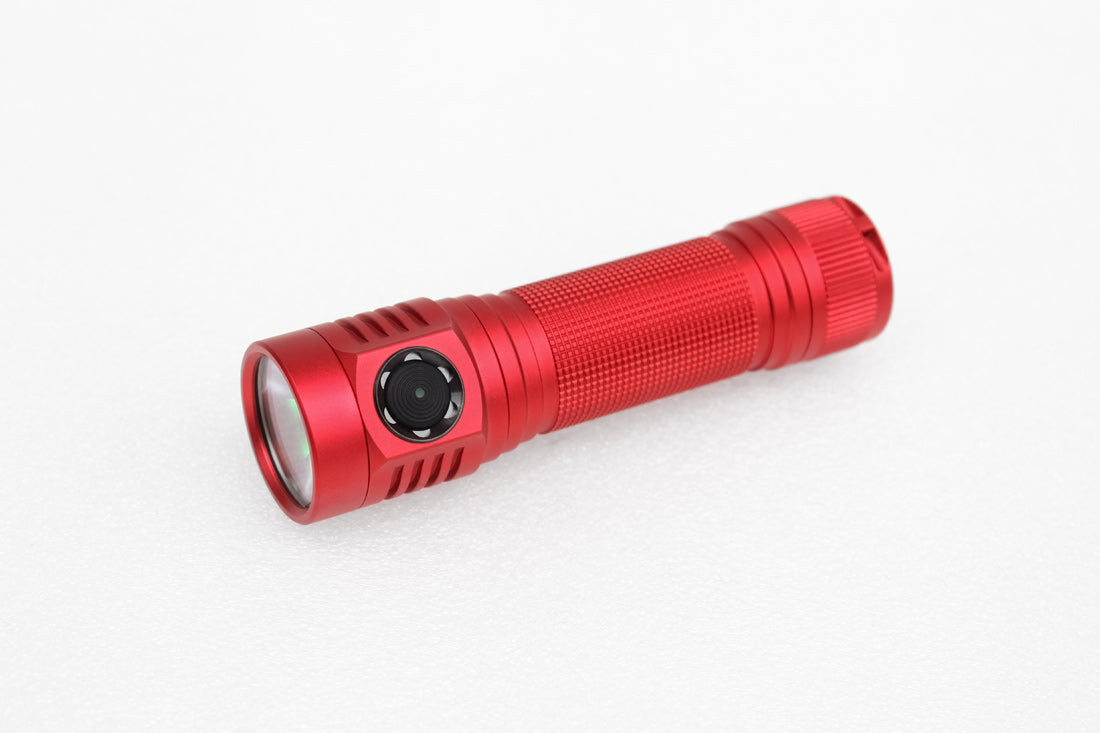

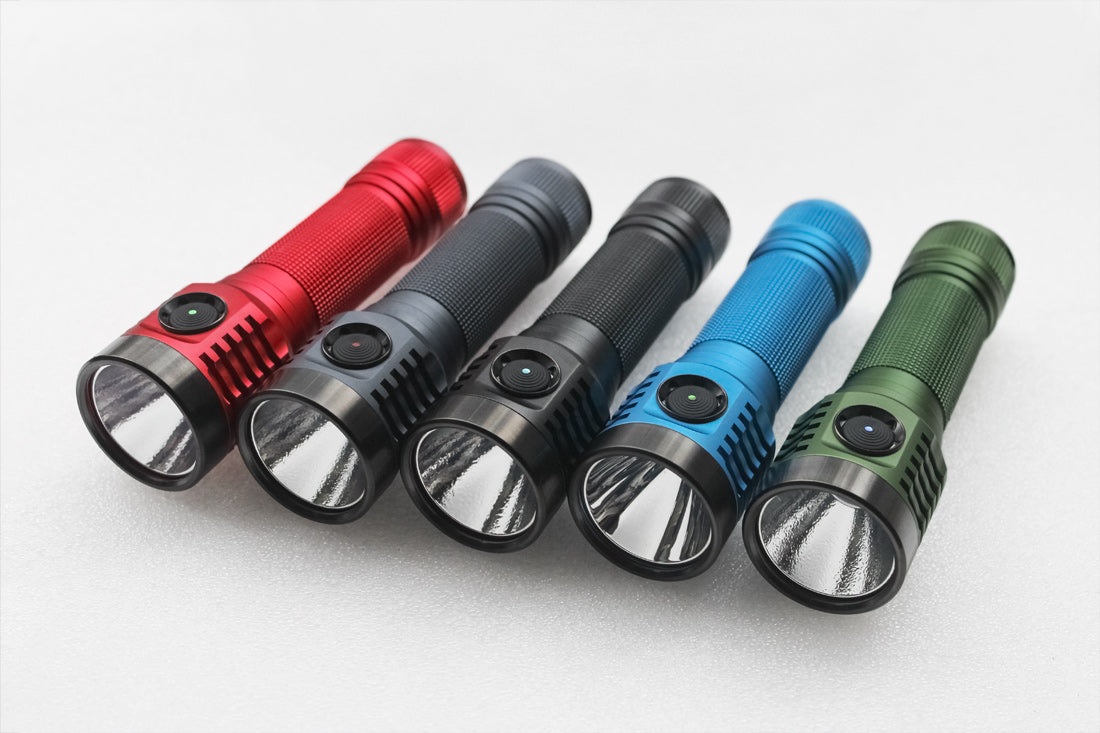

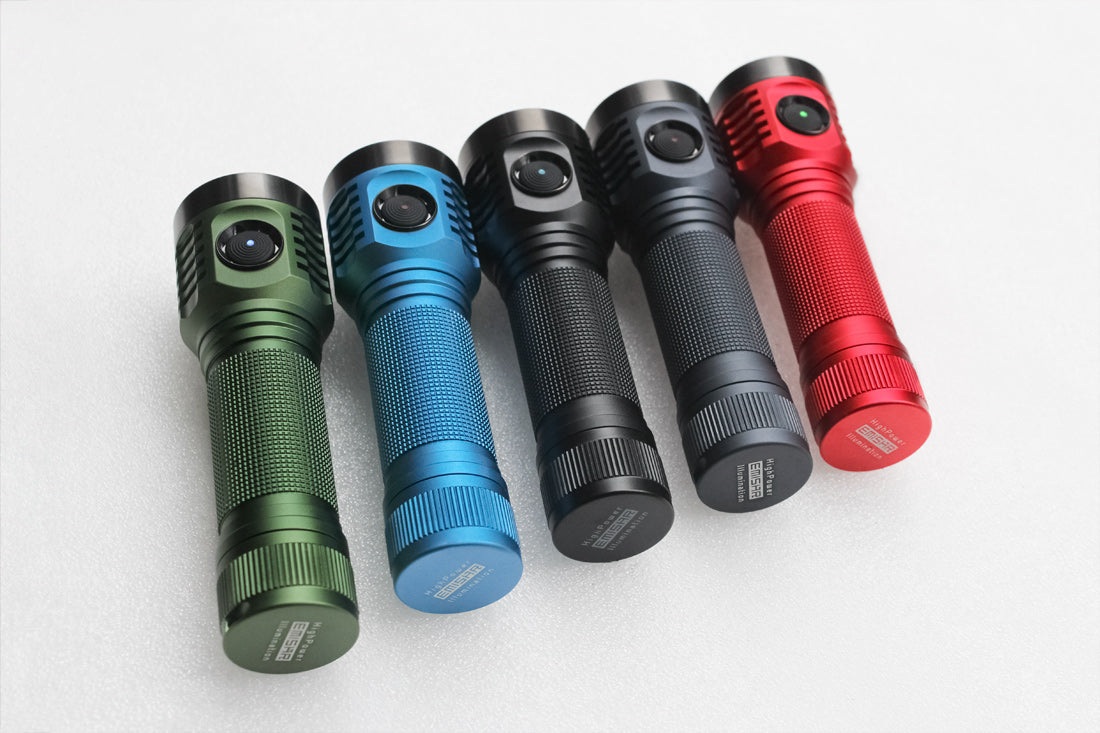

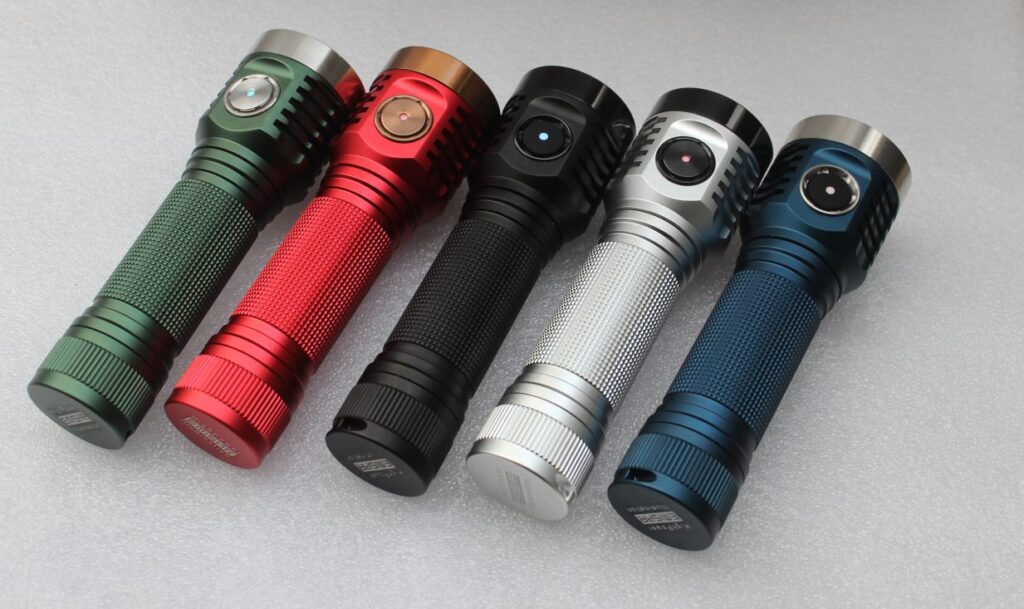

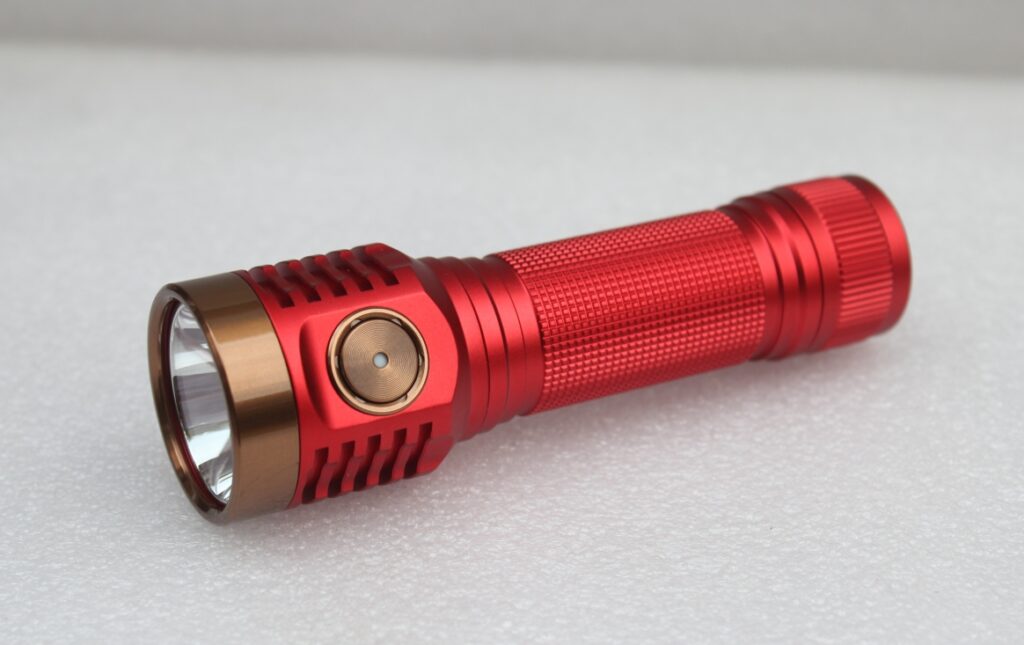

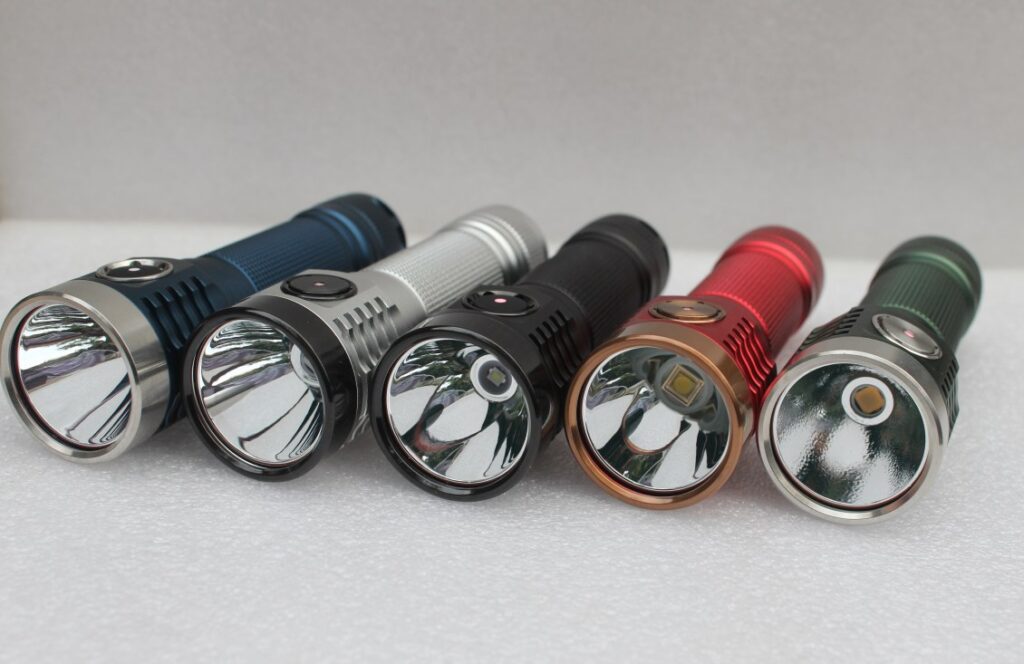

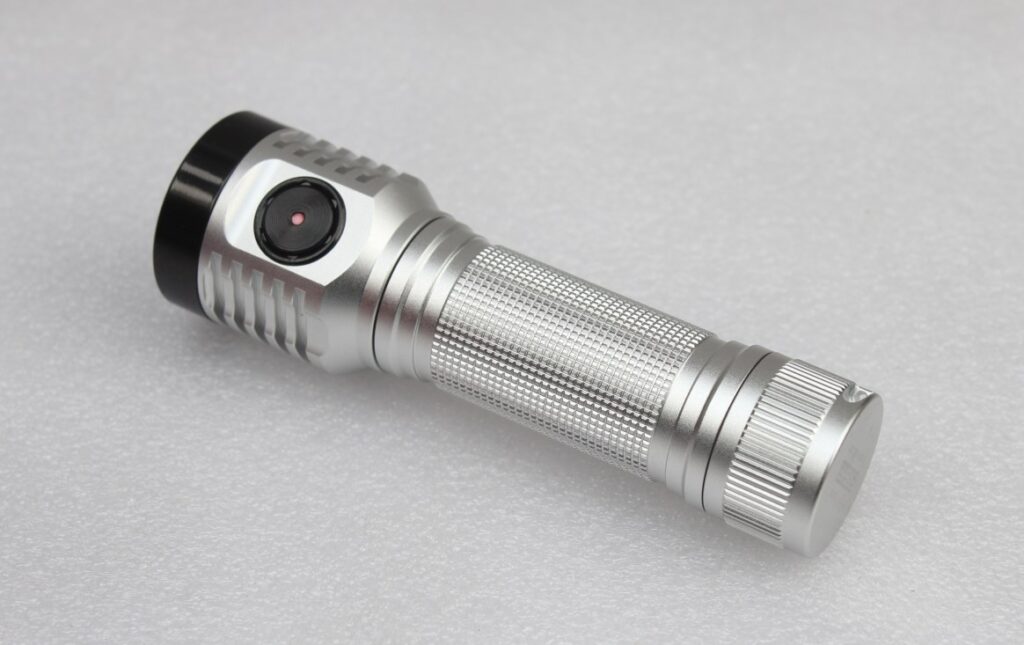

BODY COLORS:
BLACK
GRAY
CYAN
GREEN

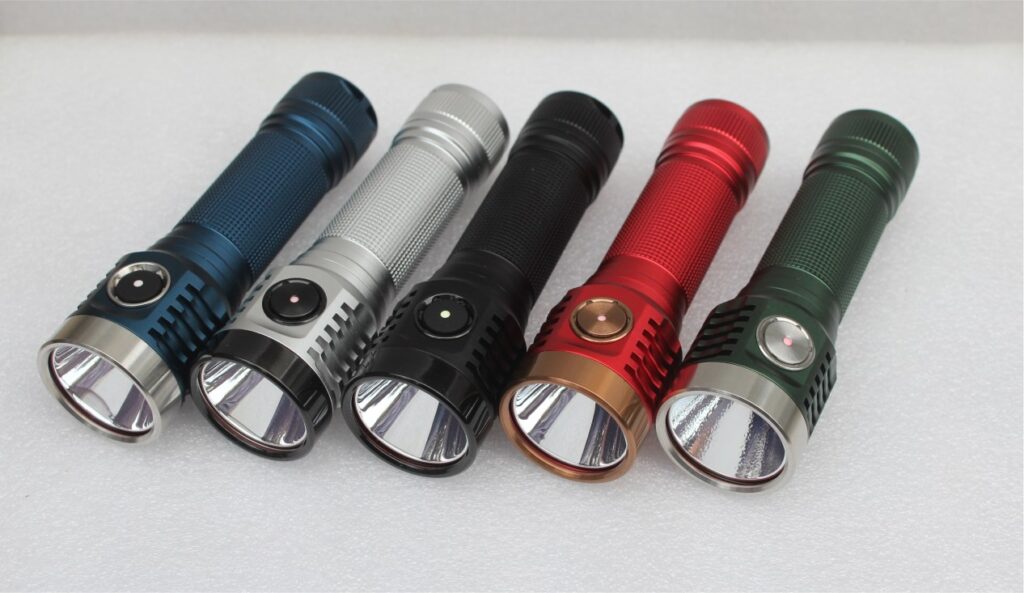

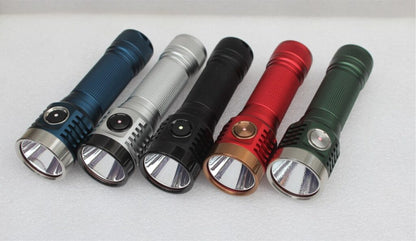

STONEWHITE ($5 ADDITIONAL)
INCLUDED OPTIONS:
MAGNETIC CAP
OPTIONAL ACCESSORIES:
21700 BATTERY (NOT INCLUDED)
BATTERY PURCHASE LINK >>> Molicel P45B 4500mAh 21700 45A Lithium-ion Rechargeable Battery **** H – JLHawaii808
Features:
• CNC machined from aircraft-grade aluminum
• Smooth aluminum reflector
• Unihead construction
• High lumen output and low moon output
• Ramping interface
• Electronic soft touch switch
• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.
• Temperature step-down • Waterproof and dustproof to IP67 standard (up to 1 meter)
• Weight: 89g
• Dimensions: 114mm(length) * 35mm(head) * 26.5mm(body)
SFT-25 6500K: 1500lm, Lux : 120Kcd (120,000cd)
W1 (Osram CSLNM1.TG): 900lm, Lux : 110Kcd (110,000cd)
W2 (Osram CSLPM1.TG): 1300lm, Lux: 100Kcd (100,000cd)
XHP70.3 HI: 2200lm, Lux: 25Kcd (25,000cd)
SST-40 5000K/6500K: 2200lm, Lux: 29Kcd (29,000cd)
SFT-40 6500K: 1600lm, Lux: 100Kcd (100,000cd)
FC-40: 1600lm, Lux: 14Kcd (14,000cd)
519A dedomed: 1200lm, Lux: 20Kcd (20,000cd)
SBT90.2: 4000lm, Lux: 100Kcd (100,000cd)
B35AM: 1000lm, Lux: 12Kcd (12,000cd)
SFN60 3V, 6500K/5500K, 5000lm, Lux: 55Kcd (55,000cd)
SFN60 3V, 3000K, 4000lm, Lux:44Kcd(44,000cd)
This product uses free software of Anduril 2, distributed under the terms of the GPLv3.
Ordered D1k with FFL909A 1800k HigjCri and enjoying it very much … nice Tint and reasonable power … thanks for this Mod !
For being Advertised as a mini pocket thrower, this thing puts out quite the circle of light.
Slightly larger than the d4k but still compact enough to fit in a pocket if you wanted.
Beautiful looking flashlight and Very bright 🌞. The 707a 4k rosy bin is gorgeous. Shout out to Jackson for offering these custom light options in Emisars.
Very nice light from Emisar, with added flexibility of FFL emitters installed by JLHawaii. An already great light made better by even more customization.
The modification itself is done perfectly, no marks or anything, couldn't tell it wasn't brand new out of the factory.

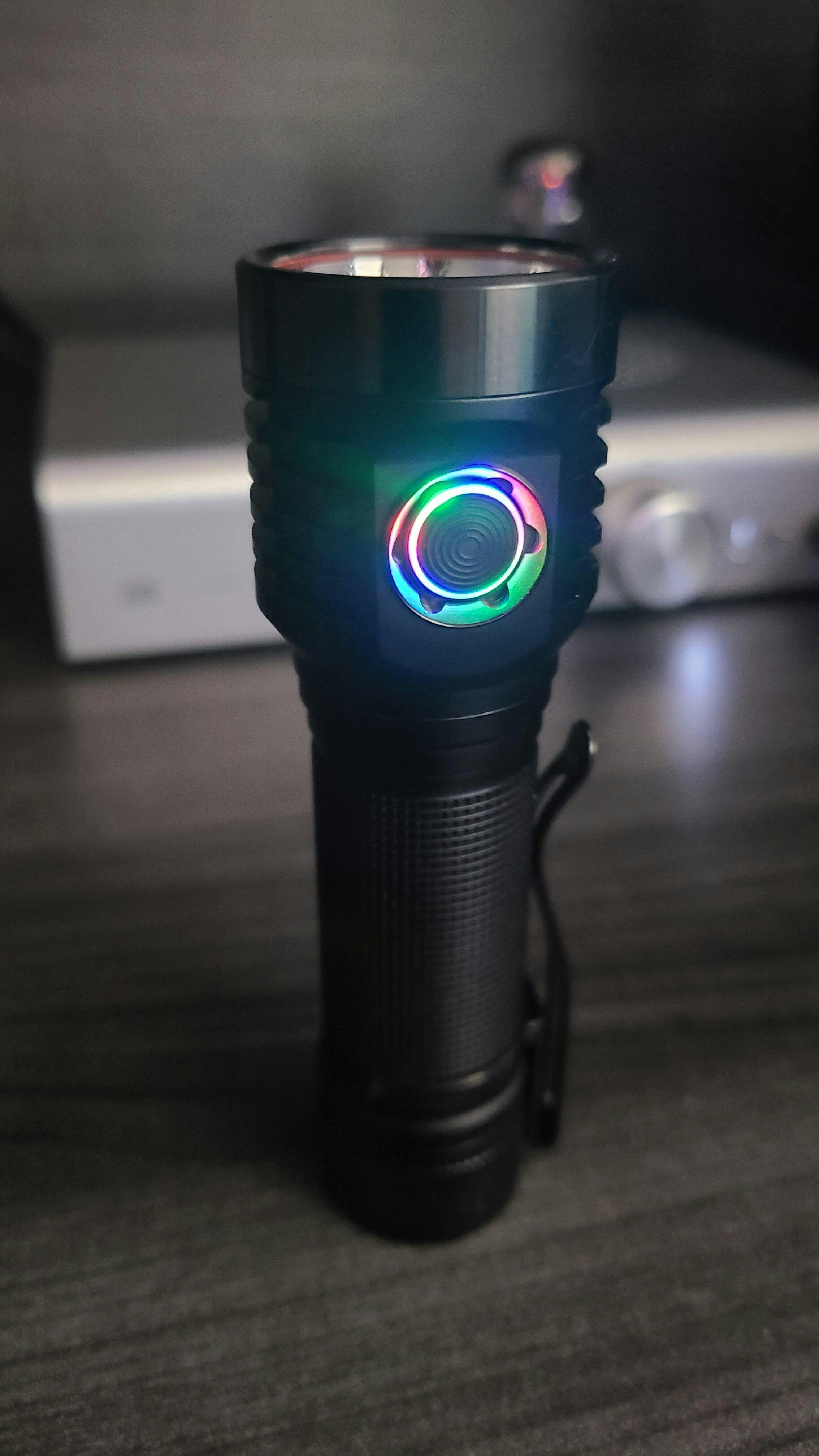

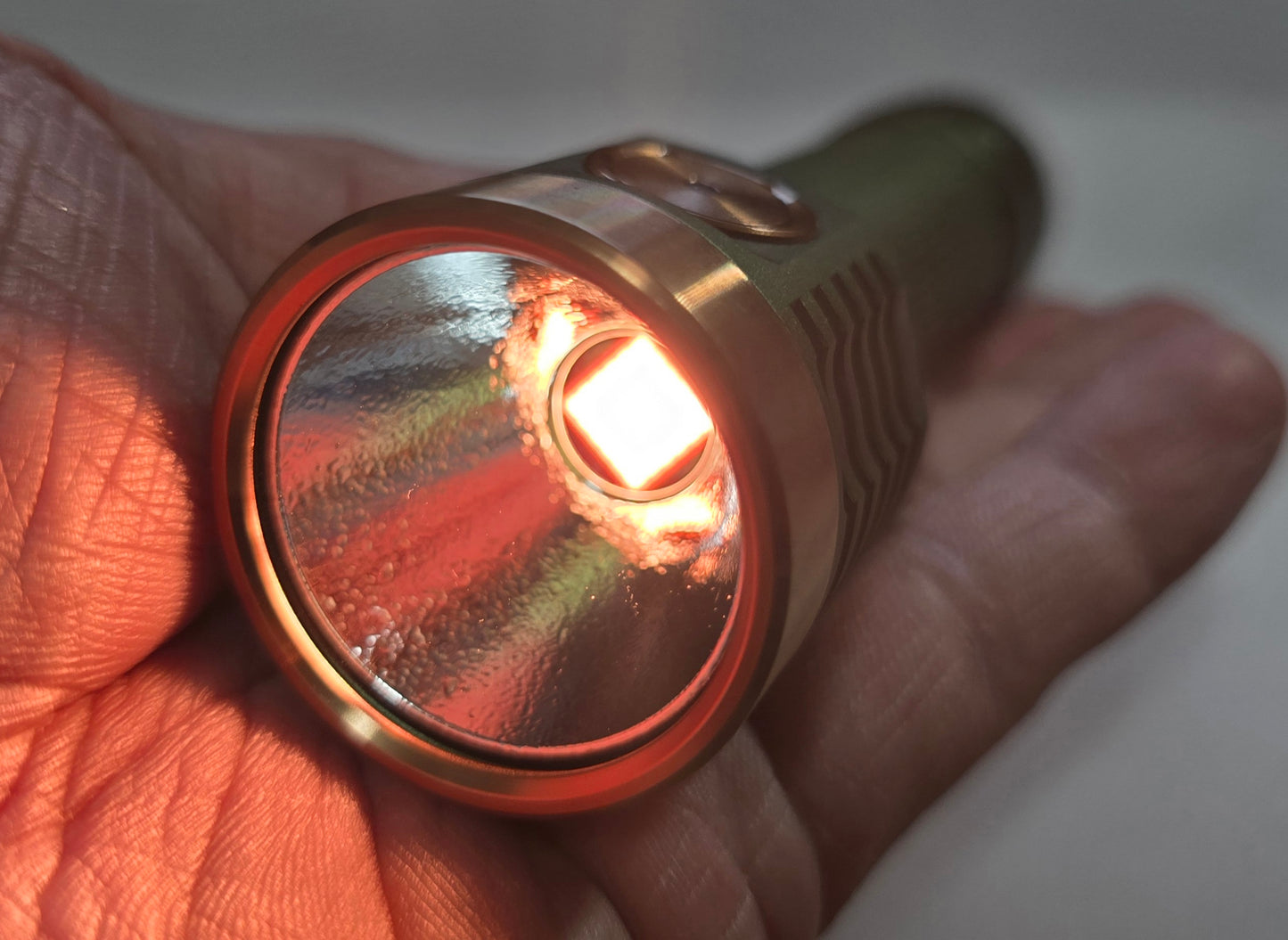

This isn't my first purchase from Jackson, and it won't be my last. He takes a great product and makes it extraordinary, he also has the skills to back up his ideas and the results are professional quality. I picked up this D1K with a FFL707A emitter, and the results couldn't be any better! (Results in the pictures)
