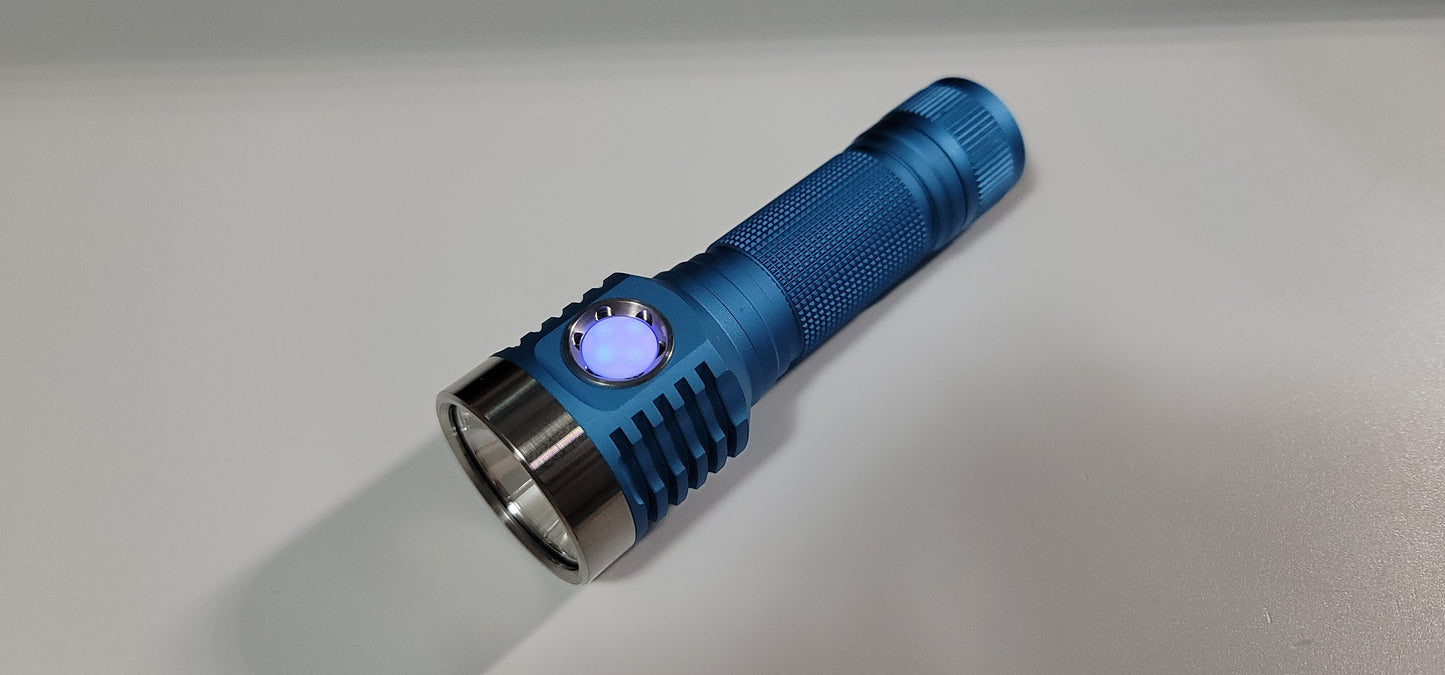

Emisar D1 Mini Thrower 18650 LED Flashlight "CUSTOM BUILT-TO-ORDER"

EMISAR D1 18650 COMPACT LED THROWER

NOTE: THIS IS CUSTOM "BUILT-TO-ORDER, WILL SHIP ACCORDINGLY!

18650 Mini Pocket Thrower

WARNING! The Emisar D1 puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing.

USER INTERFACE:

ANDURUIL 2 UI

DRIVER:

9A LINEAR (CURRENT WILL BE MODIFIED)

9A LINEAR + FET (ONLY SBT90.2 & SFN60)

NEW! LUME X1 BOOST DRIVER (6 & 12V)

EMITTER OPTIONS:

FFL505A LED:

FFL505A (FIREFLYLITE)

5050SMD

HIGH CRI

3V

7.5A

ROUND DIE (THROWY EMITTER)

New! FL5009R & FL5009D

Link >>> FIREFLYLITE LED EMITTERS – JLHawaii808

New! Noctigon NTG50

Link >>> Noctigon NTG50 6/12V 5050smd LED Emitter – JLHawaii808

FFL707A LED:

FFL707A 6V (FIREFLYLITE)

7070SMD

6V

10A

12A MAX

VERY POPULAR! 4000K 96CRI @ 3000LM ROSY BIN (VERY ROSY)

5000K 95CRI @ 3200LM

6500K 70CRI @ 4200LM
TKLAMP LUMEN TEST 3200LM

FFL909A:

FFL909A (FIREFLYLITE)

9090SMD

9MM X 9MM

VF 2.78V

40A MAX CURRENT

100W

1800K 90CRI 247LM @ 1A 170LM PER WATT

4000K 92 CRI ROSY BIN 313LM @ 1A 113LM PER WATT (5400LM D1K)

5000K 70CRI 475LM @ 1A 170LM PER WATT (9400LM D1K)

LUMINUS LED:

SFT25R G1 BIN (6500K)

SFT40 (3000K HD2, 5000K & 6500K)

SFT42R 5000K AND 6500K

SBT90.2 5700K

OSRAM LED:

OSRAM W2.1/W2.2

SAN'AN LED:

SFN60 (HIGH LUMENS)

HIGH LUMENS!

7070SMD

6500K

5500K

3000K

SFN60 OUTPUT LUMENS:

4000-5000LM (20A)

9000LM MAX (35A)

TKLAMP LUMEN TEST 6800LM

REFLECTOR OPTIONS:

DEPENDING ON THE EMITTERS USED WILL BE EITHER SMO OR OP

NOTE: REGARDING THE SMO (SMOOTH) REFLECTORS, THERE WILL BE SOME IMPERFECTIONS OR DUST INSIDE, PLEASE DO NO ATTEMPT TO CLEAN IT OFF, I GET THESE AS IS, I DON'T WORK IN A "DUST-FREE" ENVIRONMENT. THANKS!

OP (ORANGE PEEL)

SMO (SMOOTH)

BODY COLORS:

BLACK

GRAY

CYAN

GREEN

STONEWHITE ($5 ADDITIONAL)

INCLUDED OPTIONS:

LANYARD & EXTRA ORINGS

MAGNETIC CAP

OPTIONAL ACCESSORIES:

DEEP CARRY POCKET CLIP

POCKET CLIP PURCHASE LINK >>> Emisar Noctigon Stainless Pocket Clips – JLHawaii808

18650 BATTERY (NOT INCLUDED)

BATTERY PURCHASE LINK >>> MOLICEL INR-18650-P30B ULTRA HIGH POWER RECHARGEABLE LITHIUM-ION BATTE – JLHawaii808



Features:

• CNC machined from aircraft-grade aluminum

• Smooth/OP aluminum reflector

• Unihead construction

• High lumen output and low moon output

• Ramping interface

• Electronic soft touch switch

• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.

• Temperature step-down • Waterproof and dustproof to IP67 standard (up to 1 meter)

• Default 18650 body with optional 18500 or 18350 battery tube

• Weight: 89g

• Dimensions: 109mm(length) * 35mm(head) * 24mm(body)

SFT-25 6500K/5000K: 1200lm, Lux: 95Kcd (95,000cd)

W1(CSLNM1.TG): 900lm, Lux: 112Kcd (112,000cd)

W2(CSLPM1.TG): 1200lm, Lux: 102Kcd (102,000cd)

XHP70.3 HI R9050 5000K P2: 4000lm, Lux 29Kcd (29,000cd)

XHP70.3 HI R9050 4000K/3000K N4: 3740lm, Lux 25Kcd (25,000cd)

SFT-40 6500K: 1600lm, Lux: 70Kcd (70,000cd)

SFT-70 6500K/5000K: 2700lm, Lux: 53Kcd (53,000cd)

SFT-70 3000K/2400lm, Lux: 32Kcd (32,000cd)

FC-40: 1600lm, Lux: 14Kcd (14,000cd)

519A dedomed: 1200lm, Lux: 20Kcd (20,000cd)

SBT90.2: 4000lm, Lux: 85Kcd (85,000cd)

B35AM: 1000lm, Lux: 12Kcd (12,000cd)

SFN60 3V, 6500K/5500K, 5000lm, Lux: 55Kcd (55,000cd)

SFN60 3V, 3000K, 4000lm, Lux:44Kcd(44,000cd)

NTG50 5000K/4200K: 2700lm, Lux: 37Kcd (37,000cd)

NTG50 2700K: 2250lm, Lux: 29Kcd (29,000cd)

NTG50 1800K: 1700lm, Lux: 23Kcd (23,000cd)

SFT-42R 6500K: 3050lm, Lux 110Kcd (110,000cd)

This product uses free software of Anduril 2, distributed under the terms of the GPLv3.https://toykeeper.net/anduril

WARRANTY: 1 year from the purchase date
