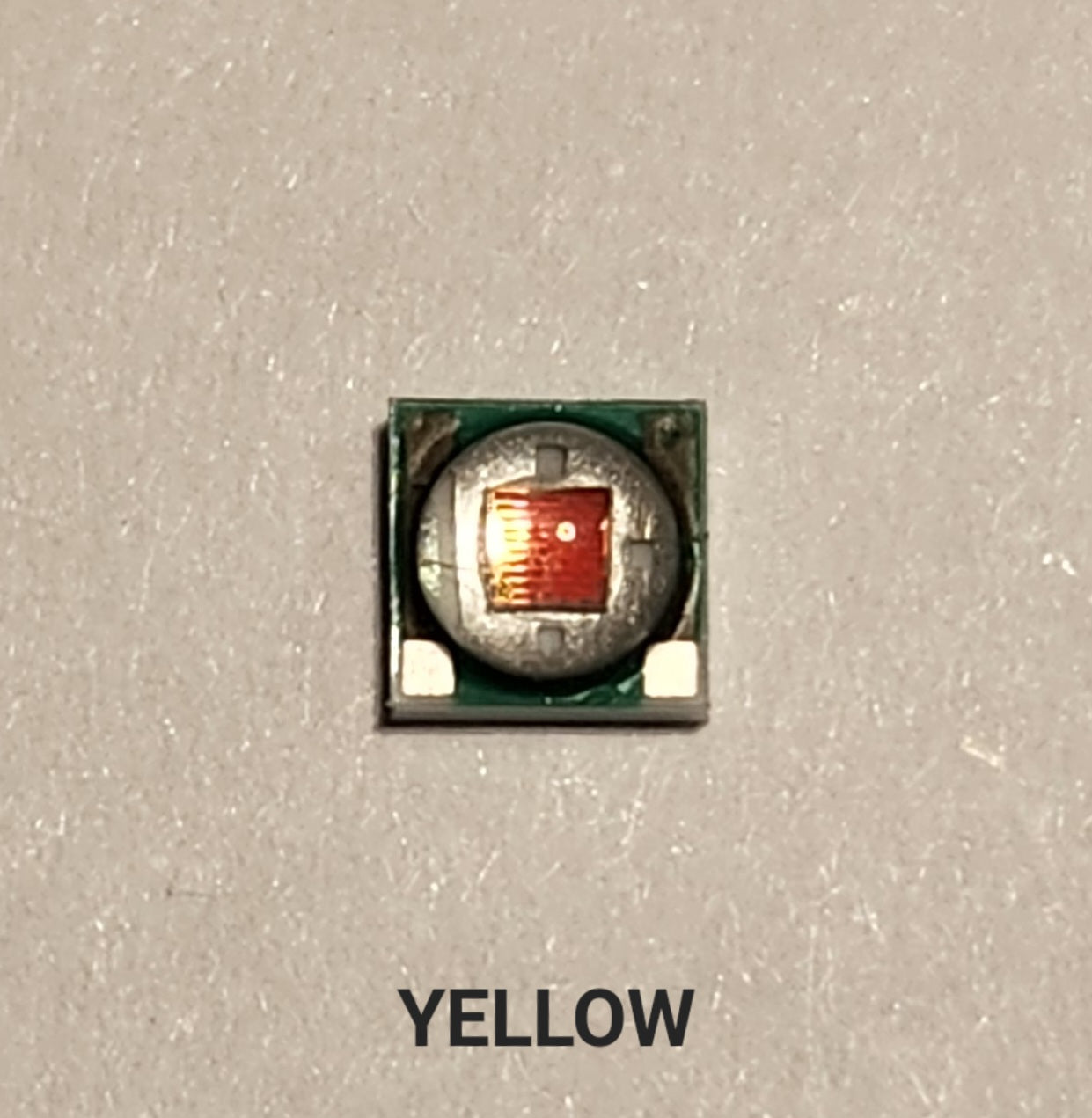

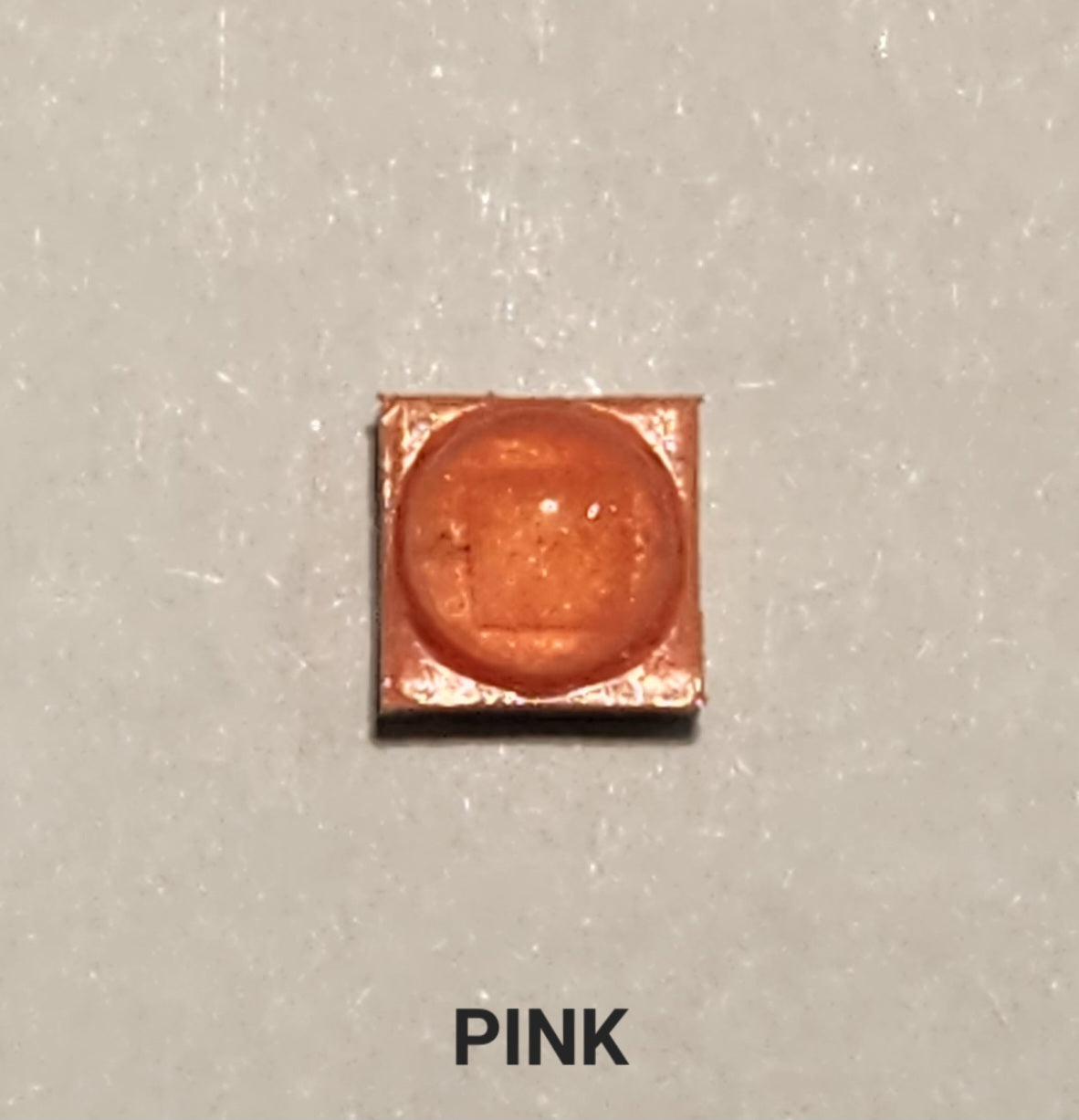

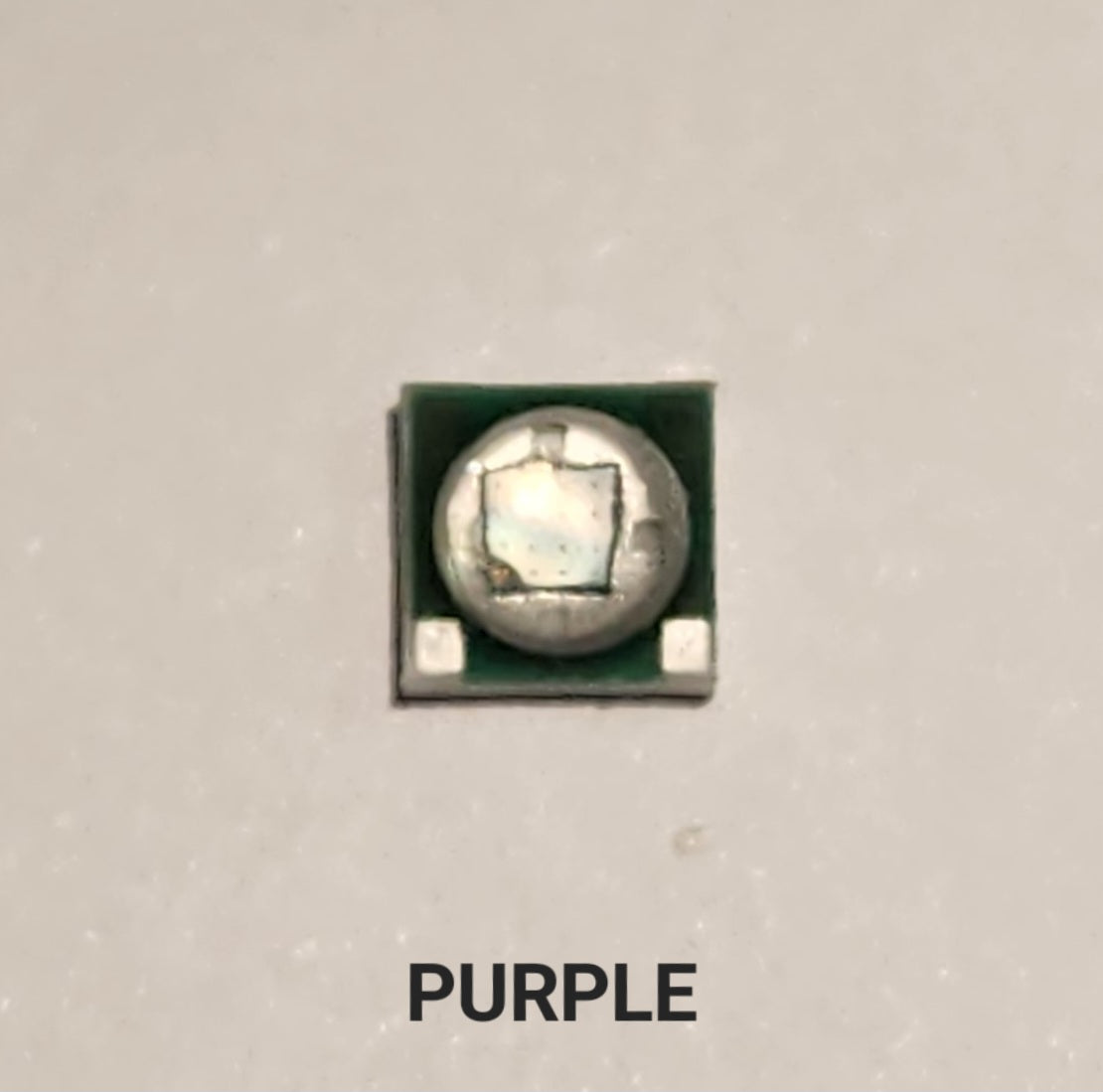

Cree XPE XP-E Color LED's 3535SMD

Cree XPE XP-E Color LED's 3535SMD

COLOR
Regular price $6.00 CAD
Regular price Sale price $6.00 CAD
Sale Sold out
Shipping calculated at checkout.

Cree LED XLamp® XP-E Color LEDs

Cree LED XLamp® XP-E Color LEDs include XP-E2 color LEDs that deliver up to 88% higher maximum light output than other comparable color LEDs. These LEDs enable lighting manufacturers to more cost-effectively address a wide spectrum of applications such as architectural, vehicle, and display lighting.

Cree LED XLamp® XP-E LEDs combine the proven lighting-class performance and reliability of the XLamp XR-E LED in a package with 80% smaller footprint. These LEDs are designed for lighting applications with a wide viewing angle, symmetrical package, unlimited floor life, and electrically neutral thermal path. XLamp XP-E High-Efficiency White LEDs upgrade the XLamp XP-E to leading performance levels for diffuse lighting applications. XP-E HEW is designed to enable faster adoption of LED light in cost-sensitive, consumer lighting products. Compared to the standard XLamp XP-E, XP-E HEW can reduce LED count by 50% and still deliver the same system performance. Cree LED XLamp XP-E LEDs bring high performance and quality of light to a wide range of lighting applications, including color-changing, portable and personal, outdoor, indoor-directional, transportation, stage and studio, commercial and emergency-vehicle lighting.

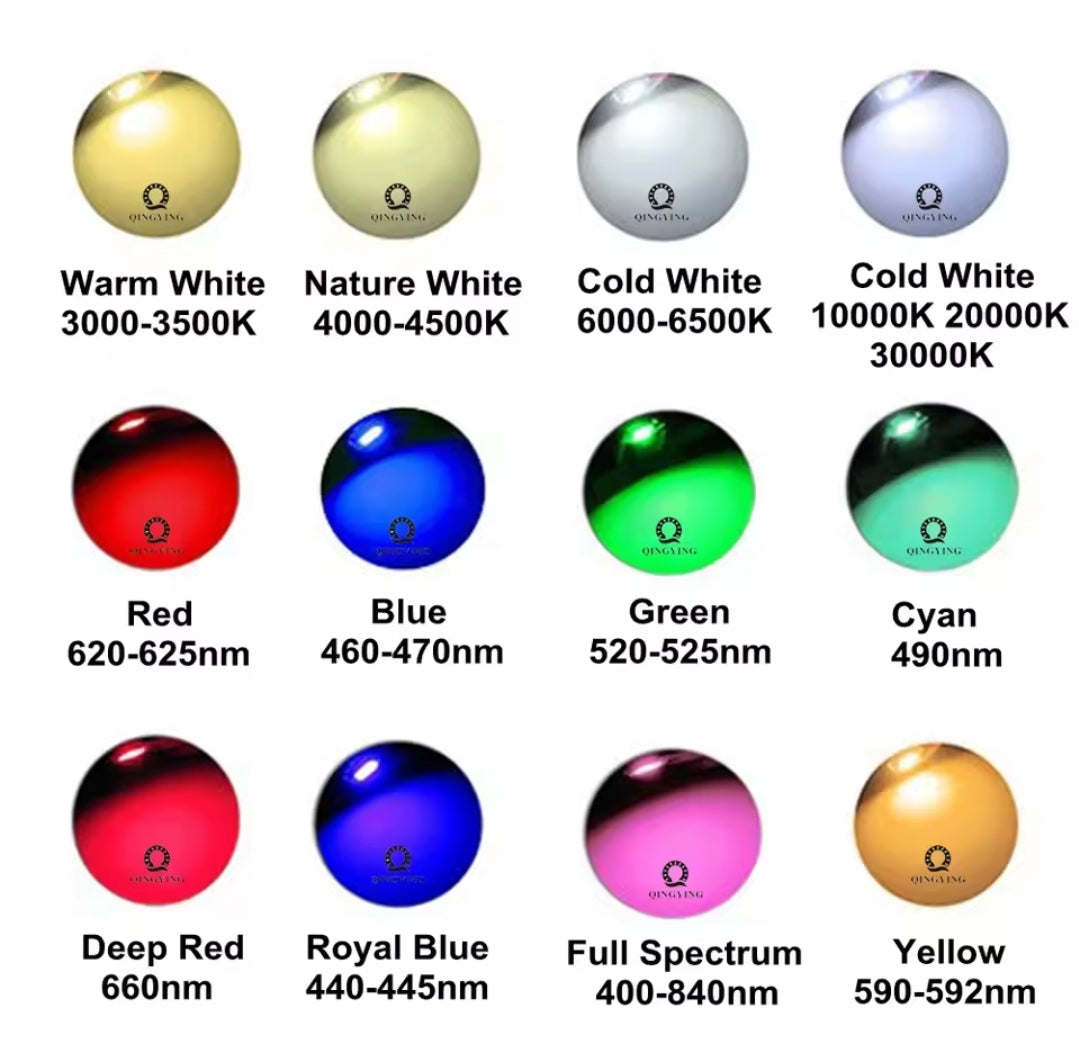

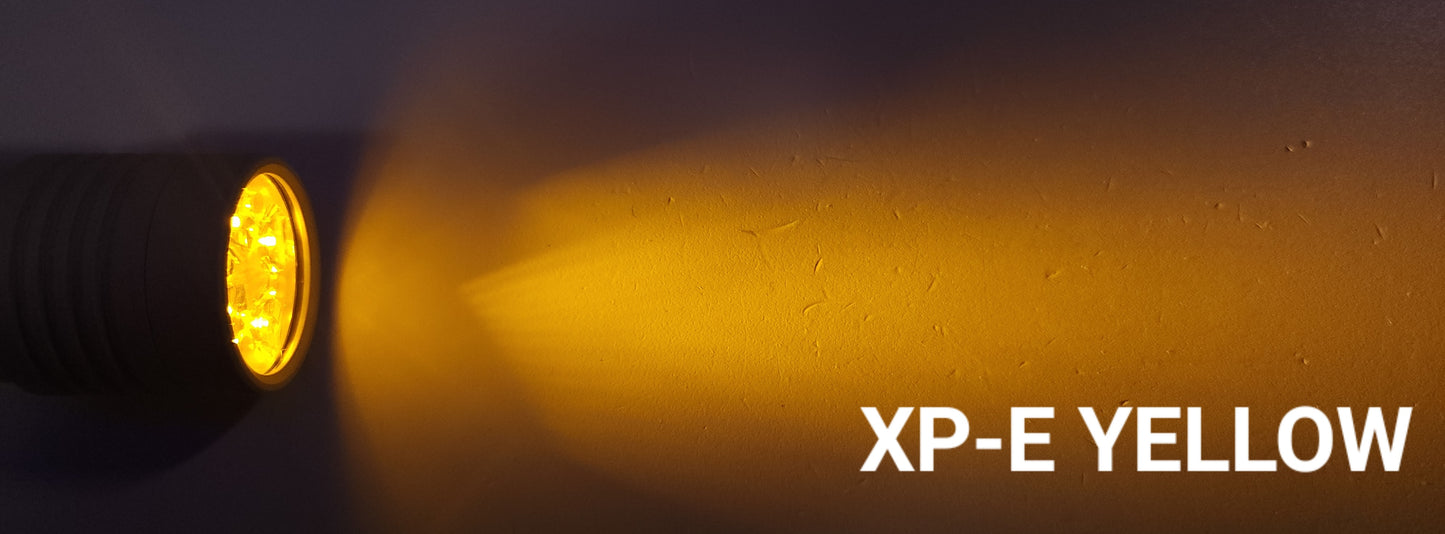

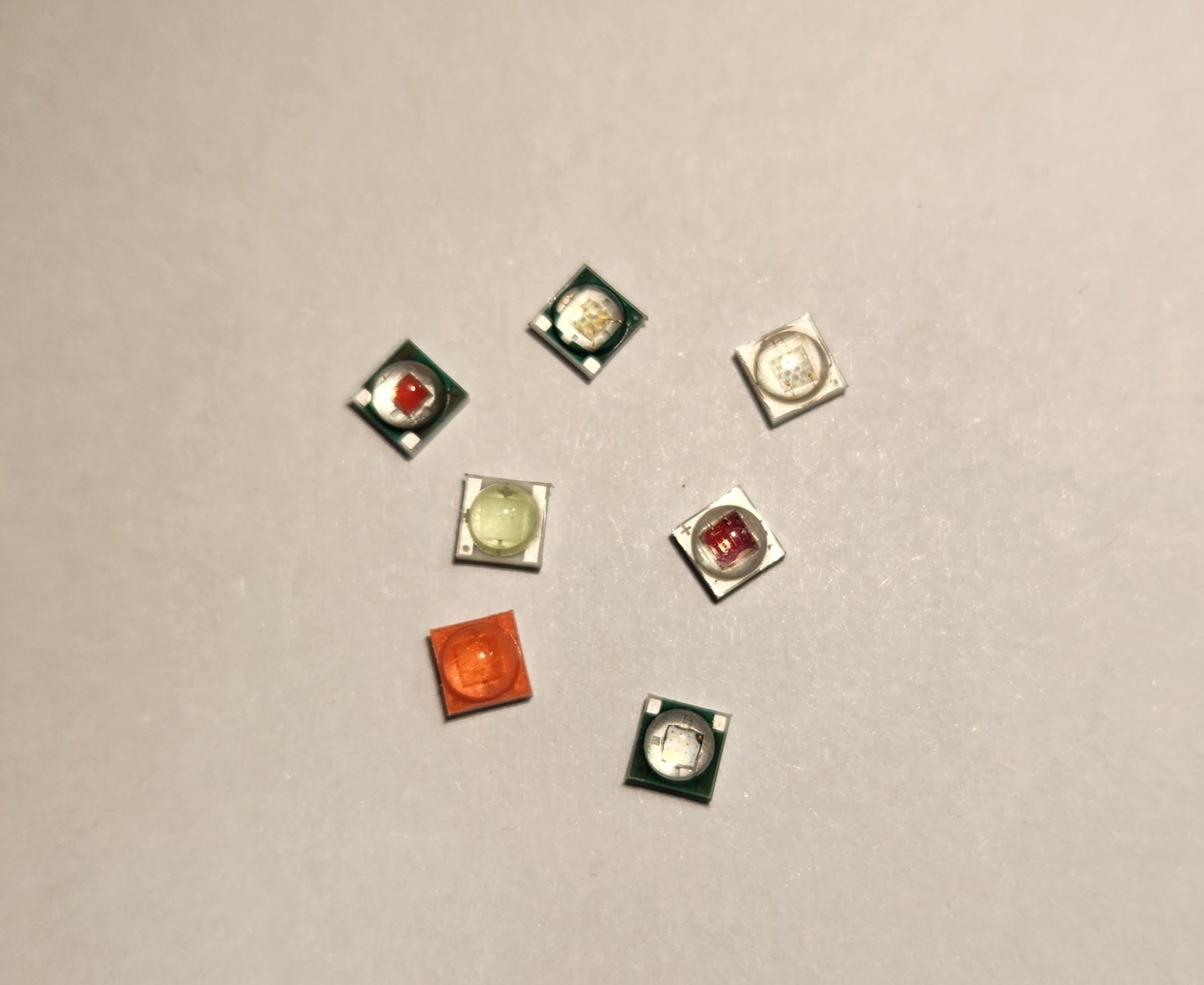

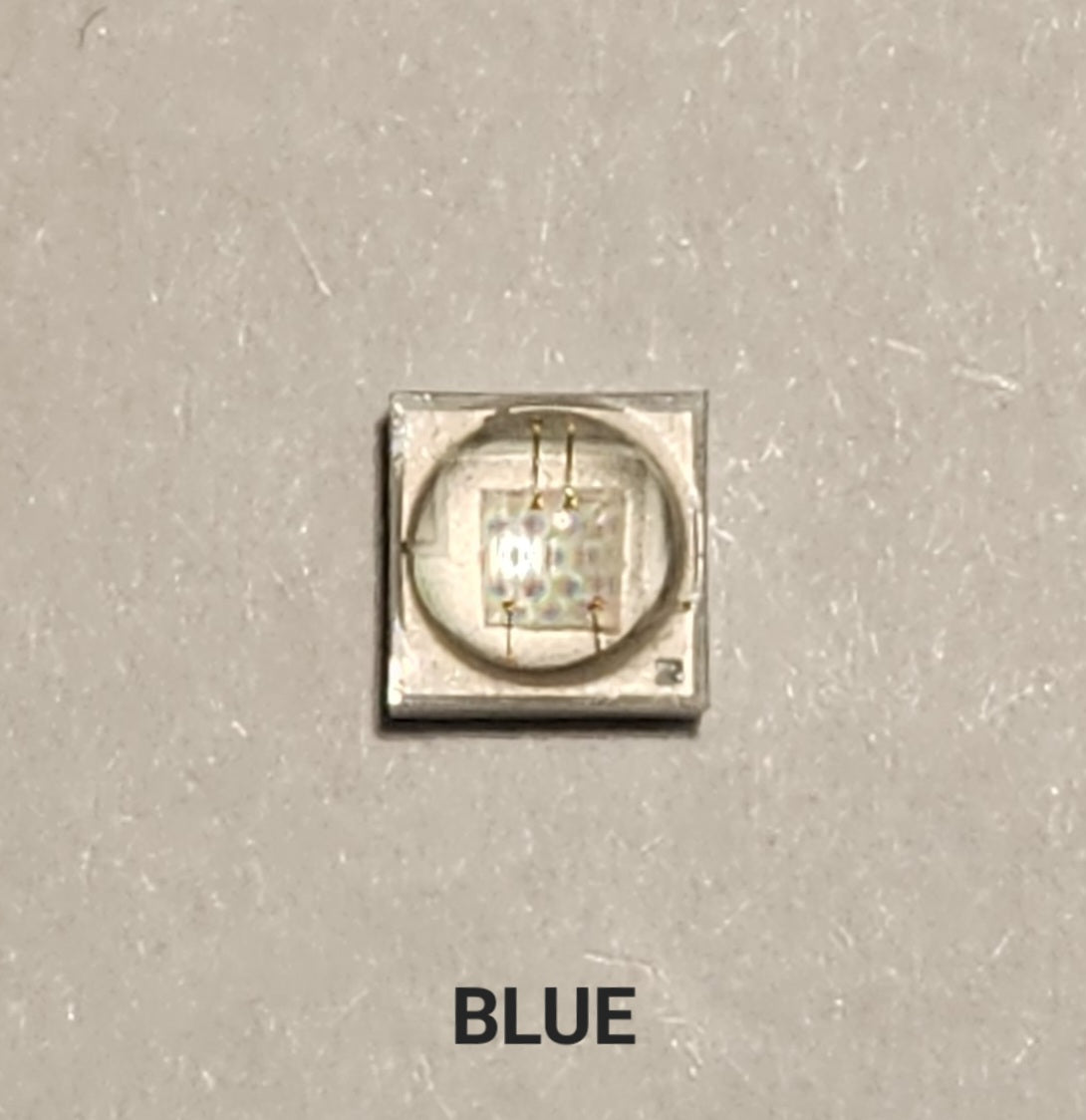

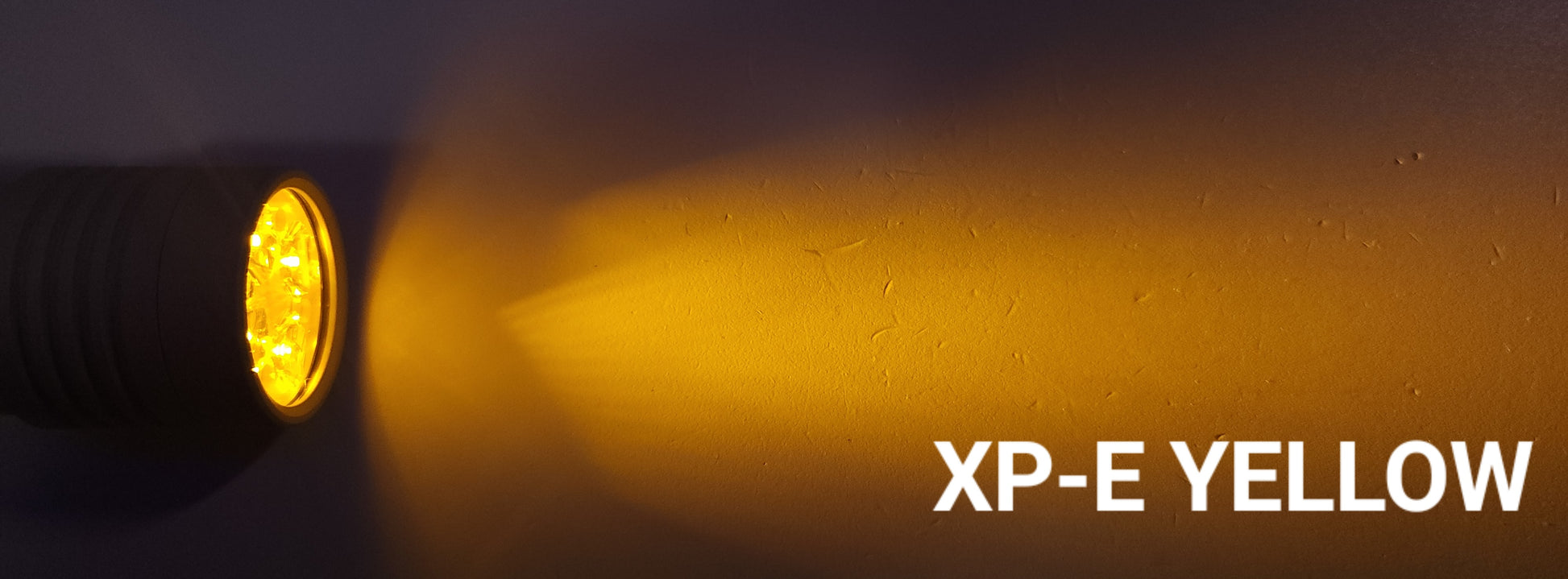

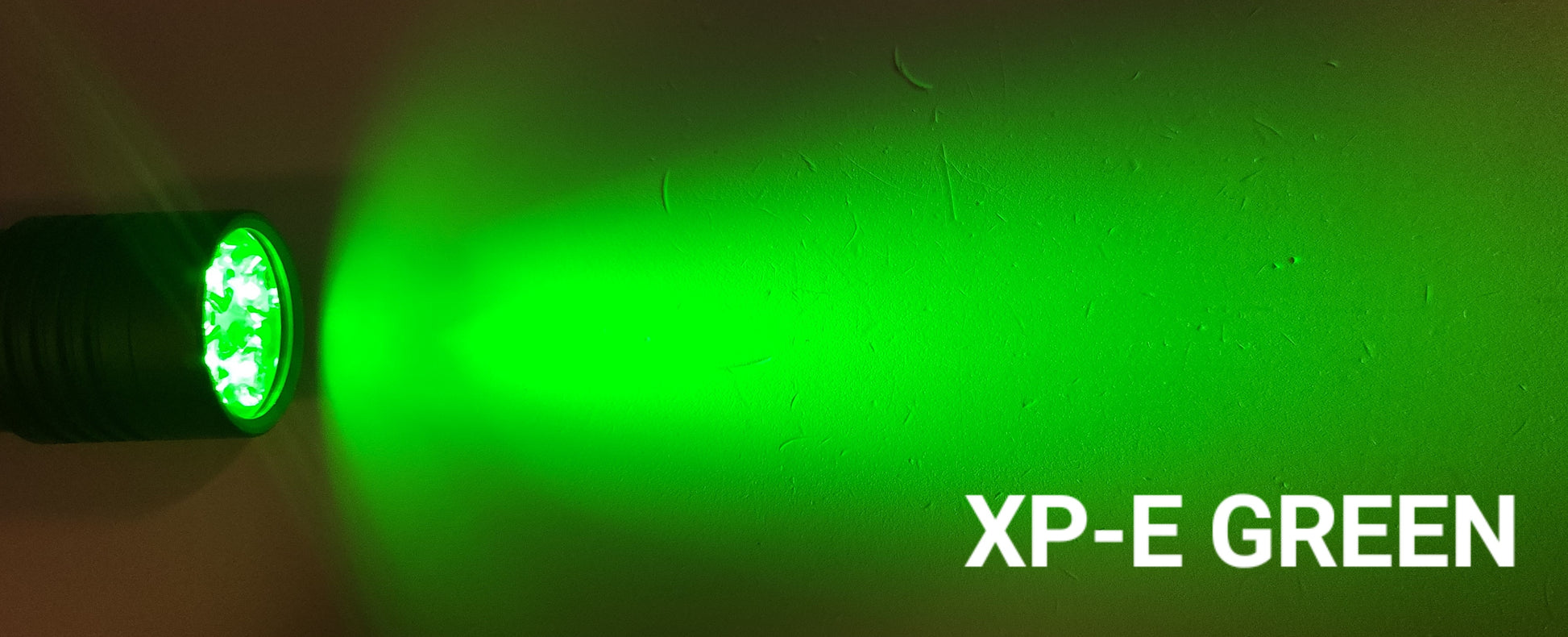

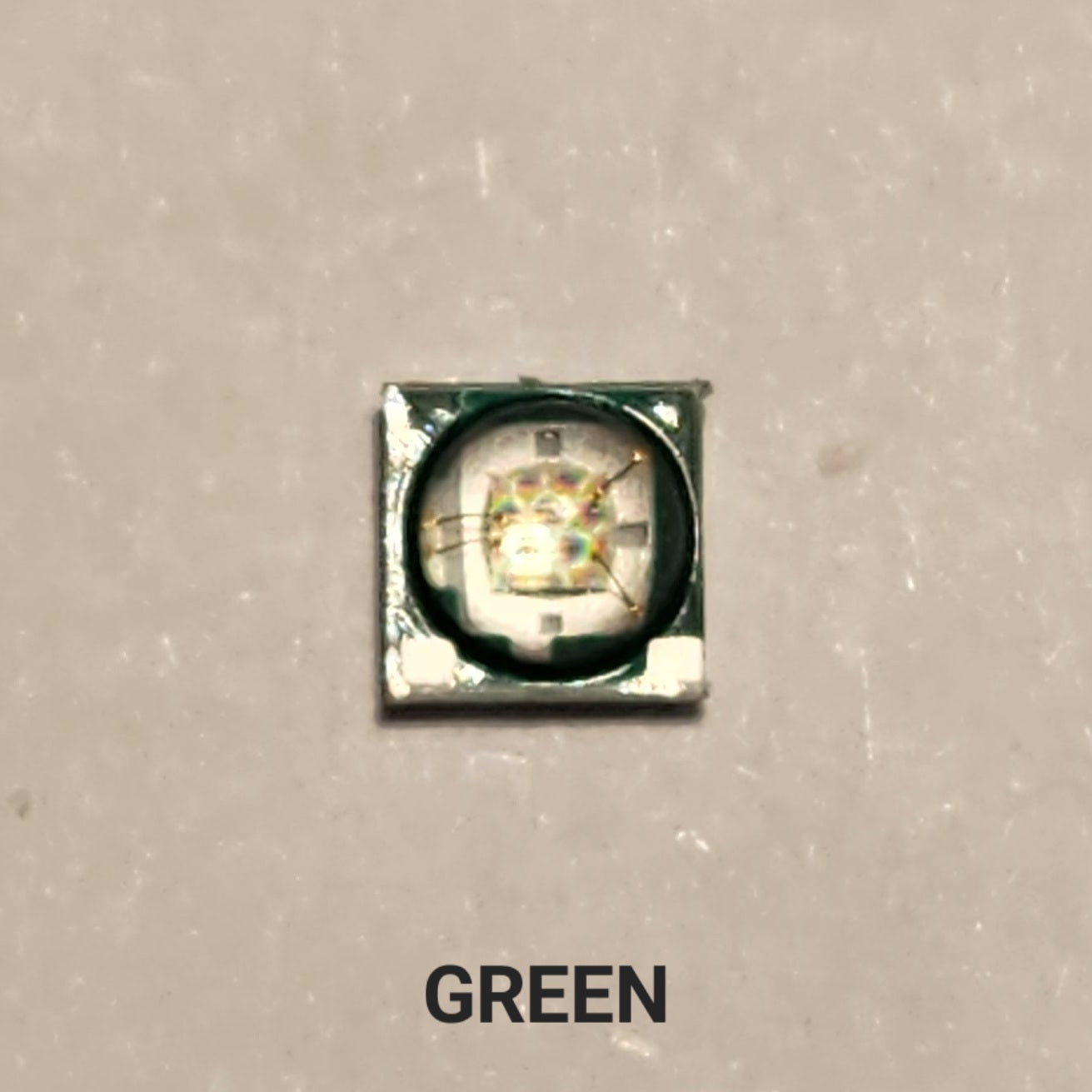

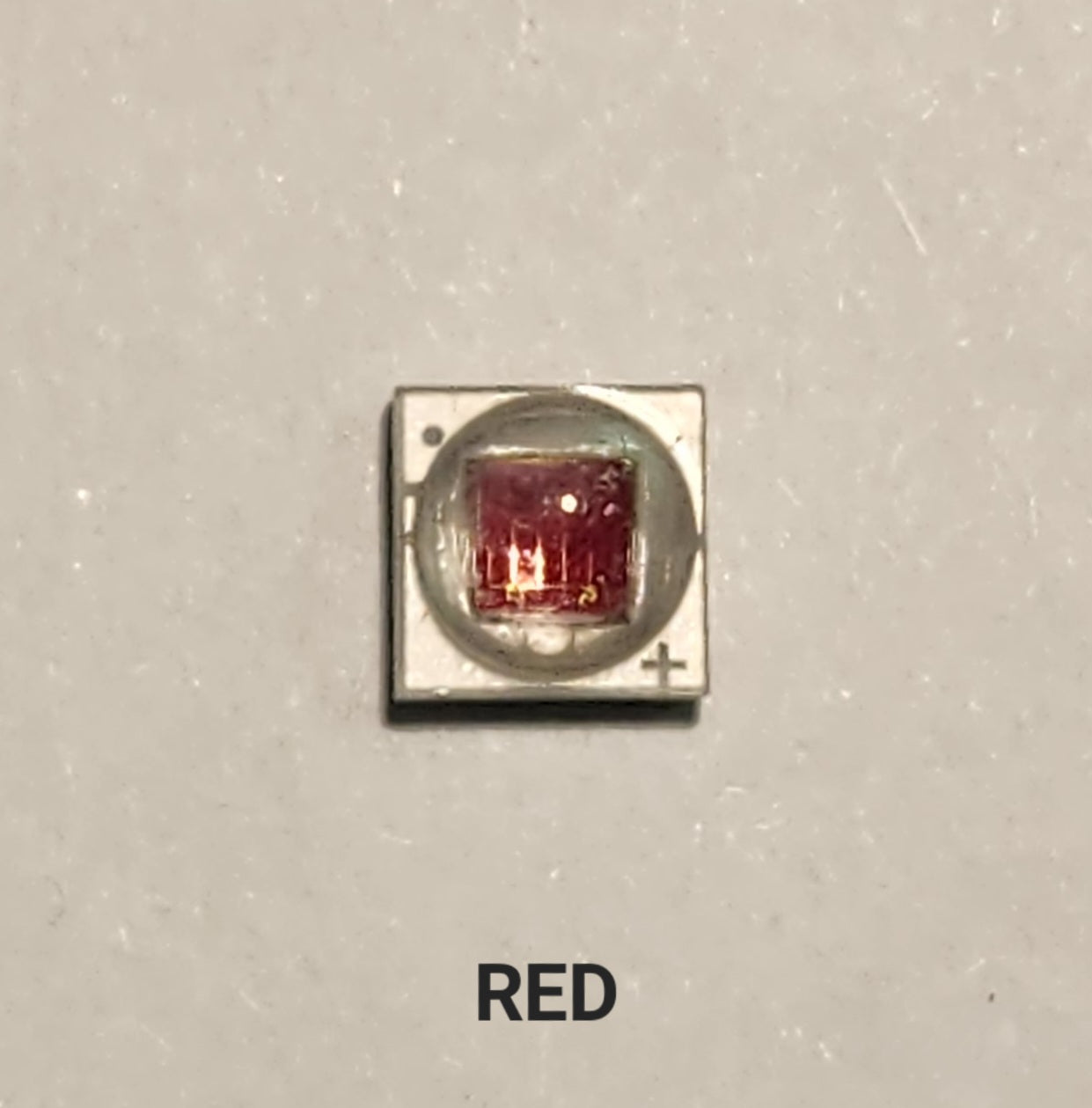

  • Available in royal blue, blue, green, amber, red-orange, and red
  • A Low thermal resistance as low as 5ºC/W
  • 130º to 135º wide viewing angle
  • 30ºC/85% RH unlimited floor life


Built on Cree LED's revolutionary SC3 Technology™ next-generation LED platform, the XP-E2 Color LEDs deliver higher lumens per watt and lumens per dollar to lower system costs for existing XP-E Color designs. These LEDs increase lumen output up to 10% while providing a single die LED point source for precise optical control. The XP-E2 Color LEDs share the same XP footprint (3.45mm x 3.45mm) and are optically compatible with the original XP-E LED - providing drop-in-ready performance enhancements to shorten the design cycle and improve customer time-to-market.

XLamp XP-E2 color LEDs are the ideal choice for lighting applications where high light output, maximum efficacy, and precise optical control are required, such as LED retrofit lamps, outdoor lighting, portable lighting, or indoor directional lighting.
